Mini-ITX boards - 17 x 17 cm

Mini-ITX is a compact motherboard configuration designed to support computers in small spaces such as in automobiles, set-top boxes, and network devices. The Mini-ITX can also be used in making thin client computers.      obh  abm

The Mini-ITX is similar and backward compatible to predecessor motherboards, the Micro-ATX and the Flex-ATX, but it has several features that set it apart.

The Mini-ITX is very small, measuring 170 mm x 170 mm (6.75 inches x 6.75 inches). The power supply is normally less than 100 watts.
The Mini-ITX processors are ultra low power x86 processors, often soldered to the motherboard
and are often cooled by a heatsink only, however the more powerful processors require a fan.

In general, video, audio, and local area network (LAN) connection are built into the Mini-ITX.
It also has USB ports, a serial and parallel port, audio input and output, and a PCI slot that can support two devices with a riser card.
There is no floppy drive interface, but there is a CD-ROM and DVD-ROM interface.
A case (a Micro-ATX and Flex-ATX case will work), memory, a hard drive, and a power supply complete an inexpensive computer.

A computer built with a Mini-ITX could be used for simple, everyday tasks such as e-mail, Web browsing, word processing, and listening to music. The Mini-ITX was developed by VIA Technologies.

All Intel 852/855 Chipsets are no longer being manufactured.

LPC = Low Pin Count bus for I/O, used by modern super I/O chips, via the Southbridge chip of the motherboard.

Super I/O chip may contain a floppy disk controller, parallel port (commonly used for printers), one or more serial ports, mouse interface, keyboard interface.    A super I/O chip may also have other interfaces, as for a joystick or infrared port.


Advantech Mini-ITX - 17 x 17cm Industrial Motherboard

Mini-ITX Motherboards
Mini-ITX motherboards are designed with rich functionality and reliable performance in a small footprint that measures just 6.69" x 6.69".
The highly integrated platforms feature low power consumption of less than 100 Watts and have one basic expansion slot.
They’re ideal platforms for fast-emerging markets where size and power efficiency are required, such as information station kiosks, POS, lottery and gaming machines, and many other applications.

Newer items are at the top of this list

AIMB-214  Intel® Atom™ N2600/D2550 Mini-ITX with CRT/HDMI/2LVDS, 6COM, and Dual LAN ports
                Data on AIMB-214E & AIMB-214U (pdf file, opens in new tab)

AIMB-267  KIOSK Intel® Core™2 Quad LGA 775 mini-ITX with CRT/LVDS, 8 COM, Dual LAN
                Data on AIMB-267G2 & AIMB-267VG (pdf file, opens in new tab)

AIMB-273  Intel Core™ i7/i5/i3/Celeron uFC-PGA988 Mini-ITX with 2 DP/HDMI/LVDS/CRT, 2 COM, Dual LAN, PCIe x16
                Data on AIMB-273G2 (pdf file, opens in new tab)

AIMB-272 Intel® Core™ i7/i5/i3/Celeron uFC-PGA988 Mini-ITX with VGA/DVI/HDMI/LVDS, 6 COM, Dual LAN, PCIe x16
                Data on AIMB-272G2 & AIMB-272VG (pdf file, opens in new tab)
AIMB-213 Intel® Atom™ N455/D525 Mini-ITX with VGA/DVI/LVDS, 6 COM, and Dual LAN
                Data on AIMB-213N & AIMB-213D (pdf file, opens in new tab)
AIMB-222 AMD Mobile Athlon™ II Neo/Turion™ II Neo Mini-ITX with VGA/LVDS/HDMI/DVI, 4 COM and Dual LAN
                Data on AIMB-222G2 (pdf file, opens in new tab)
AIMB-223 AMD Mobile G-series Dual Core/Single Core Mini-ITX with VGA/LVDS/HDMI, 6 COM and Dual LAN
                Data on AIMB-223G2 (pdf file, opens in new tab)

AIMB-210 Intel® Atom™ N270 Mini-ITX with VGA/LVDS, 6 COM, and Dual LAN  (see brief data below)
                Data on AIMB-210F & AIMB-210G2 (pdf file, opens in new tab)
AIMB-212 Intel® Atom™ N450/D510 Mini-ITX with VGA/LVDS, 6 COM, and Dual LAN
                Data on AIMB-212N & AIMB-212D (pdf file, opens in new tab)
AIMB-252 Intel® Pentium® M/Celeron® M Mini-ITX with Dual LVDS, 5 COM, and Dual LAN
                Data on AIMB-252VG & AIMB-252G2 (pdf file, opens in new tab)

*AIMB-256 Intel® Core™2 Duo Mini-ITX with VGA/DVI/LVDS, 4 COM and Dual LAN
*AIMB-258 Intel® Core™2 Duo Mini-ITX with VGA/DVI/LVDS, 6 COM,and Dual LAN  (see brief data below)
*AIMB-262 Intel® Core™2 Duo Mini-ITX with VGA, 4 COM, and LAN LGA775

*For Intel® Core™2 Duo items, see  Data on Mini-ITX boards - Advantech,  (Advantech 2009 Catalog, opens in new window)
  A selection comparison guide at the beginning of the pdf file is followed by the detailed data sheets.

AIMB-270 Intel® Core™ i7/i5/Celeron Mini-ITX with VGA/2DVI/LVDS, 6 COM, Dual LAN, PCIe x16
                Data on AIMB-270 (pdf file, opens in new tab)
AIMB-280 Intel® Core™ i7/i5/i3/Pentium® Mini-ITX with VGA/DVI, 2 COM, Dual LAN, PCIe x16
                Data on AIMB-280 (pdf file, opens in new tab)

AIMB-221 AMD Turion™ and Sempron™ Mini-ITX with VGA/LVDS/HDMI, 6 COM, and Dual LAN Port
                Data on AIMB-221 (pdf file, opens in new tab)

Atom Processor information: http://www.intel.com/content/www/us/en/processors/atom/atom-processor.html
Compare the performance of the Atom processors:  http://ark.intel.com/products/family/29035

Prices:
AIMB-201VG-DSA1E CIRCUIT BOARD, DC 19V miniITX PGA HDMI/miniPCIe/Cfast/GbE, RoHS $499+GST      10/13

AIMB-210F-S6A1E CIRCUIT MODULE, ATOM 1.6G MINI ITX FSB533,VGA,2LVDS,2LAN,TPM $379
AIMB-210F-S6B1E CIRCUIT MODULE, ATOM1.6G.MINI-ITX.FSB533,VGA,2LVDS,2LAN,TPM.RevB $376
AIMB-210G2-S6A1E CIRCUIT MODULE, ATOM 1.6G MINI ITX FSB533,VGA,LVDS,2LAN,6COM $358
AIMB-210G2-S6B1E CIRCUIT MODULE, ATOM1.6G.MINI-ITX.FSB533.VGA.LVDS.2LAN.6COM,RevB $355

AIMB-212D-S6A1E CIRCUIT BOARD, ATOM D510 1.6G MINI ITX w/VGA,LVDS,2GbE,6COM $358
AIMB-212N-RAYA1E CIRCUIT BOARD, ATOM N450 1.6G MINI ITX w/VGA,2GbE,1COM $358
AIMB-212N-S6A1E CIRCUIT BOARD, ATOM N450 1.6G MINI ITX w/VGA,LVDS,2GbE,6COM $338

AIMB-213D-S6A1E CIRCUIT BOARD, ATOM D525 1.8G MINI ITX w/VGA,LVDS,2GbE,6COM $383
AIMB-213N-S6A1E CIRCUIT BOARD, ATOM N455 1.6G MINI ITX w/VGA,LVDS,2GbE,6COM $359

AIMB-214D-S6A1E CIRCUIT BOARD, ATOM D2700 2.13G MINI ITX w/VGA,LVDS,2GbE,6COM $466
AIMB-214E-S6A1E CIRCUIT BOARD, ATOM D2550 1.86G MINI ITX w/VGA,2LVDS,2GbE,6COM $363
AIMB-214N-S6A1E CIRCUIT BOARD, ATOM N2800 1.8G MINI ITX w/VGA,2LVDS,2GbE,6COM $374
AIMB-214U-S6A1E CIRCUIT BOARD, ATOM N2600 1.6G MINI ITX w/VGA,LVDS,2GbE,6COM $352

AIMB-221G2-00A1E CIRCUIT MODULE, S1/Mini-ITX/FSB800/VGA/HDMI/6COM/2GbE,RoHS $389

AIMB-222G2-S0A1E CIRCUIT MODULE, AMD SC1.7GHz MINI ITX.VGA.DVI.LVDS.DVI.2GbE.RoHS $460
AIMB-222G2-S1A1E CIRCUIT MODULE, AMD DC1.5GHz MINI ITX.VGA.DVI.LVDS.DVI.2GbE.RoHS $604
AIMB-222G2-S2A1E CIRCUIT MODULE, AMD DC2.2GHz MINI ITX.VGA.DVI.LVDS.DVI.2GbE.RoHS $634

AIMB-223G2-S0A1E CIRCUIT MODULE, AMD eOntario SC1.2GHz MINI ITX.VGA.HDMI.LVDS.2Gb $379
AIMB-223G2-S1A1E CIRCUIT MODULE, AMD eOntario DC1.0GHz MINI ITX.VGA.HDMI.LVDS.2Gb $418
AIMB-223G2-S2A1E CIRCUIT MODULE, AMD eOntario DC1.65GHz MINI ITX.VGA.HDMI.LVDS.2G $442

AIMB-224G2-00A1E CIRCUIT BOARD, miniITX PGA VGA/LVDS/DP/miniPCIe/2GbE, RoHS $385

AIMB-252G2-00A1E CIRCUIT MODULE, P-M MINI ITX FSB533,VGA,LVDS, 2GbE,5COM $372
AIMB-252VG-M0A1E CIRCUIT MODULE, CM-600 MINI ITX FSB400,VGA, LVDS, 1GbE,5COM $322
AIMB-252VG-S0A1E CIRCUIT MODULE, CM-1G MINI ITX FSB400,VGA, LVDS, 1GbE,5COM $351

AIMB-256G2-00A1E CIRCUIT MODULE, C2D MINI ITX FSB 800 DVI, LVDS, 2GbE, 4COM, RoHS $443
AIMB-258G2-00A1E CIRCUIT MODULE, C2D MINI ITX FSB 1066 DVI/PCIe/2GbE, RoHS $452

AIMB-262VG-00A1E CIRCUIT MODULE, C2D LGA775 MINI ITX FSB 1066 VGA/PCIe/GbE, RoHS $283

AIMB-267G2-KSA1E CIRCUIT BOARD, C2Q MINI ITX FSB 1333 VGA/LVDS/PCIe/2GbE, RoHS $326
AIMB-267VG-KSA1E CIRCUIT BOARD, C2Q MINI ITX FSB 1333 VGA/PCIe/1GbE, RoHS $299

AIMB-270G2-00A1E CIRCUIT BOARD, C2D MINI ITX FSB 1066 DVI/PCIe/2GbE, RoHS $414

AIMB-272G2-00A1E CIRCUIT BOARD, DC miniITX PGA DVI/VGA/LVDS/PCIe/2GbE, RoHS $445
AIMB-272VG-00A1E CIRCUIT BOARD, DC miniITX PGA DVI/VGA/PCIe/GbE, RoHS $408
AIMB-273G2-00A1E CIRCUIT BOARD, miniITX PGA DVI/VGA/LVDS/DP/PCIe/2GbE, RoHS $480

AIMB-274G2-00A1E CIRCUIT BOARD, miniITX LGA1150 VGA/LVDS/DP/HDMI/PCIe/2GbE,RoHS $455
AIMB-274L-00A1E CIRCUIT BOARD, miniITX LGA1150, L SKU, VGA/DP-HDMI/Single GbE $374

AIMB-280QG2-00A1E CIRCUIT BOARD, LGA1156 miniITX VGA/DVI/PCIe/2GbE/ 2COM/Q57 $416
AIMB-281G2-00A1E CIRCUIT BOARD, SNB H61 MINI ITX w/VGA,LVDS,DVI,2GbE,6COM $313

Part Nos ending in E are RoHS compliant.

AIMB-B2000  Embedded Mini-ITX Chassis with One Expansion Slot

AIMB-B2000• Economical Embedded chassis for Mini-ITX motherboard
• Front LED indicators for system fault detection and with one expansion slot
• Reserved USB, COM and WLAN antenna openings on front side
• Shock-resistant two 2.5" drive bay
• Two SKUs to support ATX Power Supply & AC-DC Power Adaptor
     Data on AIMB-B2000 (.pdf file, opens in new tab)

AIMB-B2000-00YE CHASSIS, AIMB-B2000 wallmount chassis w/o adaptor $154+GST    5/13
AIMB-B2000-01XE CHASSIS, AIMB-B2000 wallmount chassis w/o adaptor $154
AIMB-B2000-15ZE CHASSIS, AIMB-B2000 Mini-ITX MB chassis w/ 150W PSU $223
AIMB-B2000-27ZE CHASSIS, AIMB-B2000 Mini-ITX MB chassis w/ 270W PSU $260

Case with Mini-ITX Board
AIMB-B2273-15ZE CHASSIS, AIMB-B2000 chassis w/ AIMB-273G2 + 150W PSU $678

Cases for Mini-ITX & MicroITX Boards
AIMB-C200-55ZE CHASSIS, Economical Embedded Chassis w/ 55W for Mini-ITX $159
AIMB-C200-BARE CHASSIS, Economical Embedded Chassis w/o PS for Mini-ITX $108

AIMB-C600-00B1E CHASSIS, Wallmount Chassis for MicroATX MB, Black outlook $172




AIMB-210 Intel ATOM

Intel ATOM Mini-ITX with VGA/LVDS, 6 COM, and Dual LAN

Intel ATOM Mini-ITX motherboard supports N270 1.6 GHz processor
Intel 945GSE and ICH7M
One 200-pin SODIMM up to 2 GB DDR2 533 SDRAM
Supports dual display for VGA, LVDS, and TV-Out
Supports dual GbE LAN
Built with 6 serial ports, 8 USB, and CF
Supports 1 PCI expansion
Onboard TPM 1.2 support (optional)
  Data on AIMB-210 (pdf file, opens in new tab)

Riser Card option:
AIMB-RP30P-03A1E   2U riser card with 3 PCI slot expansion

AIMB-258  Intel Core 2 Duo

Intel Core 2 Duo Mini-ITX with VGA/DVI/LVDS, 6 COM, and Dual LAN

Supports Intel ® uFC-PGA 478 Core™ 2 Duo mobile processor and
max. 4 GB dual channel DDR3 800/1066 MHz SDRAM
Intel GM45 and ICH9M supports FSB 667/800/1066 MHz
Supports DirectX10, OpenGL 2.0
Supports dual display for VGA, LVDS, and DVI
PCIe x16 expansion for add-on cards
Rich I/O connectivity of 6 serial ports, 8 USB, 16-bit GPIO
Dual Gigabit Ethernet
Supports iTPM 1.2   Data on Mini-ITX boards - Advantech,

Riser Card option:
AIMB-R430P-03A2E 2U riser card with 3 PCI slot expansion


iBase Mini-ITX cards

  See also iBASE Embedded Systems in small cases on Compact PC page (opens in new tab)
       Various: ultra-slim, stainless steel chassis, fanless systems, IP67 waterproof

Mini-ITX Motherboards

     Data sheets and comparisons (iBase site, opens in new tab)

3rd Gen. Intel® Core™i7/i5-Based
MI970 Intel® QM77 Express Chipset      11/12

2nd Gen. Intel® Core™i7/i5/i3-Based
MI961 Intel® H61 Express Chipset
MI956 Intel® QM67 Express Chipset

Atom™-Based
MI802 Intel®NM10 Chipset
MI801 Intel® ICH8M Chipset
MI890 Intel® ICH8M Chipset
MI889 Intel® ICH8M Chipset
MI888 Intel® ICH8M Chipset
MI812 Intel® 945GSE Express Chipset
MI810 Intel® 945GSE Express Chipset

Core™ i7/i5/i3-Based
MI980 Mini-ITX Board with 4th Gen Intel Core Processors
            and Mobile Intel QM87 Express Chipset
MI957 Intel® QM57 Express Chipset
MI953 Socket P w/ Intel® QM57 Chipset

Core™2-Based
MI946 Socket P w/ Intel® GM45 Chipset
MI945P Socket P w/ Intel® GM45 Chipset
MI941 LGA775 w/ Intel® G41 Chipset
MI950 LGA775 w/ Intel® Q45 Chipset
MI935 LGA775 w/ Intel® Q35 Chipset
MI945X Socket P w/ Intel® GM45 Chipset
MI945 Socket P w/ Intel® GM45 Chipset
MI912 Socket P w/ Inte® GME965 Chipset
MI910 Socket P w/ Inte® GME965 Chipset
MI900 LGA775 w/ Intel® Q965 Chipset
MB899X Socket M w/ Mobile Intel® 945GME Chipset
MB899 Socket M w/ Mobile Intel® 945GME Chipset

AMD

AMD R-Series-Based
MI959 AMD R-Series APU w/ AMD A70M FCH

AMD G-Series-Based
MI958 AMD G-Series APU w/ AMD A55E chipset

AMD Athlon-Based
MI952 AMD Athlon™64 / Athlon™64 x2 / Sempron™ w/ AMD RS780E Chipset
MI932 AMD Athlon™64 / Athlon™64 x2 w/ AMD M690E Chipset
MI930 AMD Athlon™64 / Athlon™64 x2 / Sempron™ w/ AMD M690T Chipset

AMD Sempron-Based
MI933 AMD Sempron™ 200U / 210U w/ AMD M690E Chipset

AMD Geode LX-Based
MB500 AMD Geode LX w/ AMD CS5536 Chipset





               Data sheets and comparisons  (iBase site, opens in new tab)


MI980 Mini-ITX Board

MI980 Mini-ITX Board with 4th Generation Intel®Core© Processors and Mobile Intel QM87 Express Chipset
The motherboard is based on the mobile Intel QM87 and HM86 Express chipsets that offer an increase in graphics and CPU performance over previous generations. The new board design was developed mainly for the industrial and embedded markets that require high processing capability, but at the same time are constrained by power limits.
The MI980 is equipped with two standard voltage or low-voltage DDR3 SO-DIMM sockets supporting up to 16GB of system memory.
Video connections include DVI-I, DVI-D, LVDS/eDP and DisplayPort.
To accommodate expansion cards, it also comes with one PCI Express x16 and two Mini PCI Express x1 slots.
Standard to this 170mm x 170mm platform are 6x USB 2.0, 4x USB 3.0, 6x COM, 4x SATA III, 2x SATA II with the latest Intel-based dual Gigabit LAN support, which allow comprehensive peripheral and networking features.
The MI980VF is also available with advanced capabilities such as Intel Active Management Technology 9.0, Trusted Platform Module 1.2, RAID and state-of-the-art Intel vPro technology.
    Data sheet on MI980 (pdf file, opens in new tab)    Large picture of MI980 (opens in new tab)

●Onboard 4th Generation Intel® Core i7/i5/i3 / Celeron QC / DC processors
●2x DDR3/DDR3L SO-DIMM, Max. 16GB
●Integrated VGA, supports DVI-I/ DVI-D/ LVDS or eDP/ DisplayPort
●2x Intel PCI-E Gigabit LAN
●Watchdog timer, Digital I/O, iAMT (9.0), vPro, iSMART
●6x USB 2.0, 4x USB 3.0, 6x COM, 4x SATA III, 2x SATA II
●1x PCI-E(x16), 2x Mini PCI-E(x1)

AMI400 fanless Mini ITX system
      - supports a range of Mini ITX motherboards

AMI400_front.jpgSystem Mini-ITX Mainboard:  MI910E or MB899HF

Allows for a PCI or a PCI-E expansion via a riser card.
It also supports one 2.5” HDD and a Slimline 5.25” optical drive.

Fanless system supports IBASE MI910E and MB899HF Mini-ITX motherboards
Silver color
One 2.5" HDD drive bay, PCI slot & 5.25" slim type DVD combo drive (option)
Fanless operation
Supports desktop or wall mount mounting
   Data sheet on AMI400-8 & -9 (.pdf, opens in new tab)         Picture of back

AMI400-8  Fanless system for MB899HF Mini-ITX motherboard, w/ Intel® Celeron® M 440,
1.83GHz, 1GB RAM, 80GB HDD,                 110W DC- DC converter, 150W power adaptor, 2.5" HDD holder

AMI400-9  Fanless system for MI910E Mini-ITX motherboard, w/ Intel® Core™2 Duo T7500,
2.2GHz , 2GB RAM, 80GB HDD, ID392 DVI, 110W DC-DC converter, 150W power adaptor, 2.5" HDD holder


     Cases for Mini ITX (separate page, opens in new tab)


Commell Mini-ITX Boards

Commell make about 28 Mini-ITX boards (170mm x 170mm)   and  4 Pico-ITX boards (100mm x 72 mm) as well as other boards.

With various processors:  Intel® Core™ i7 / i5 / i3,  Core™ i7 / i5 / i3 Mobile,  Atom™ processors,  Atom™ dual-core,  AMD Dual-core
       Core™ 2 Duo,   Core 2 Quad / Core 2 Duo / Celeron,   Pentium M / Celeron M,  Pentium 4,  VIA C7 , VIA CN400, AMD Geode
       LV-672, LV-674 & LV-677 have a PCI-Express slot onboard

    Commell web site: Industrial Embedded Motherboards (opens in new tab)

     Esis Pty Ltd - supplier of Commell boards

Example:

MB-DPNLV-67FMB-DPNLV-67F  Commell Mini-ITX Board - High Performance

MB-DPNLV-67F  supports Intel® Core™ i7, Core™ i5 and Core™ i3 CPU with DDR3 SO-DIMM,
CRT, LVDS, Gigabit LAN, PCIE x16, Mini PCI, PCI Express mini card,
Serial ATA2, 7.1Channel HD Audio, SPDIF
       Data Sheet (pdf file, opens in new tab or window)

MB-DPNLV-67FX  Intel PGA988+ QM57 Onboard VGA, LVDS, LAN, USB2.0, HD Audio, SATA, SMBUS, PCIE x16, Mini PCI and PCI Express mini card.

MB-DPNLV-67FXD  Same as MB-DPNLV-67FX with 1x DVI Interface
MB-DPNLV-67FXT  Same as MB-DPNLV-67FX with secondary CRT

PCI Express mini cards
MB-DPNMPX-7202   PCI Express mini card supports 2 x USB 3.0 provides up to 4.8Gbps of transferring rate.
MB-DPNMPX-643    PCI Express mini card supports 1 x IEEE1394A and 2 x IEEE1394B (FireWire 800)

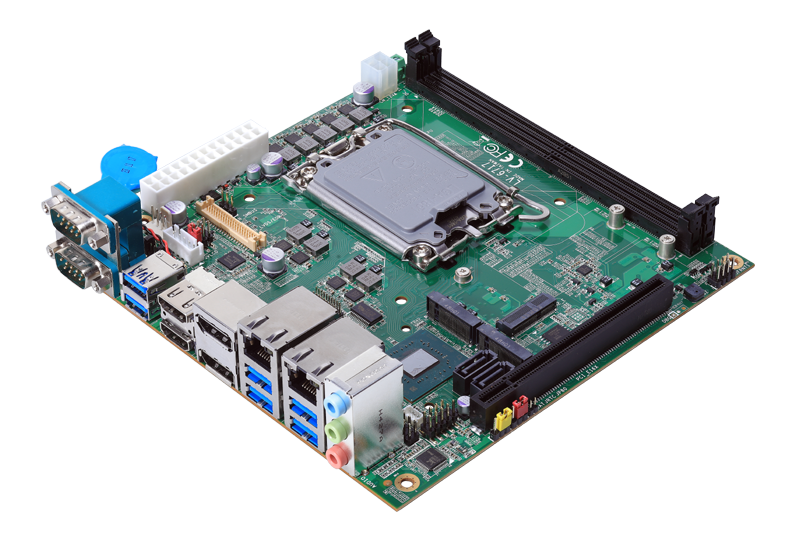

LV-67G  Mini-ITX Motherboard

Support 2nd Generation Intel® Core™ i7/ i5/ i3/
Pentium/Xeon® Desktop Processor
Onboard VGA, DVI, HD Audio, Serial ATA,
Intel® Gigabit LAN
       Data Sheet (pdf file, opens in new tab or window)






Aaeon Embedded ATX;
Micro ATX;
Mini-ITX       zuh

  For full data on the items below, click  Data on Aaeon cards This web page has a useful comparison button.

Embedded ATX; Micro ATX; Mini-ITX     7/11

EMB-LN9T   Embedded Motherboard With Intel® Atom™ N450/D510 Processors

EMB-LN8T   Embedded Motherboard with Onboard Intel ® Atom™ N455/D525 Processors

EMB-9658T   Embedded Motherboard With Intel® Core™ 2 Duo/ Celeron® M (Socket-P Based) Processors

EMB-945T Rev.B   Embedded Motherboard With Intel® Core™ 2 Duo/ Core™ Duo/ Celeron® M Processors

EMB-945T Rev.A   Embedded Motherboard With Intel® Core™ 2 Duo/ Core™ Duo/ Celeron® M Processors

EMB-9459T Rev.B   Embedded Motherboard With Onboard Intel® Atom™ N270 Processor

EMB-9459T Rev. A   Embedded Motherboard With Onboard Intel® Atom™ N270 Processor

EMB-9459T A2.0   Embedded Motherboard With Onboard Intel® Atom™ N270 Processor

EMB-9458T   Embedded Motherboard With Intel® Core™ 2 Duo/ Core™ Duo/ Celeron® M Processors

EMB-852T   Embedded Motherboard With Intel® Pentium® M/ Celeron® M Processors

EMB-6908T   Embedded Motherboard With AMD Athlon™ 64/ Athlon™ 64 x2 (AM2 Socket) Processors


Industrial Motherboards - Axiomtek

Mini ITX SBC

Mini ITX (170 x 170 mm) is off-the-shelf embedded form factor solutions with easy to reach I/O outlets and following the current standard ATX rear panel designs.
Mini ITX form factors provide optimized layout space and suitable placement for system designs with the flexibility of hardware platforms.    For full data on the items below, click  Axiomtek  Mini ITX,  Micro ATX,  ATX motherboards

Mini ITX Motherboards

MANO825    Intel® Atom™ D525/ D425 Mini ITX SBC with Intel® NM10 Chipset, VGA/LVDS, Dual LANs and 6 COM      7/11

SBC86860    LGA775 Intel® Core™2 Quad/ Core™2 Duo Mini ITX SBC with Intel® Q35 + ICH9 Chipset, DVI/LVDS, PCI Express x4 and Firewire

SBC86850    Socket P Intel® Core™2 Duo Mini ITX SBC with Intel® GM45 + ICH9M Chipset, ATI M72 Graphics Chip, DualView, DVI-I/LVDS and 4 COM

SBC86841    LGA775 Intel® Core™2 Duo Mini ITX SBC with Intel® Q965 + ICH8 Chipset, DVI/LVDS and Firewire

SBC86840    Socket P Intel® Core™2 Duo Mini ITX SBC with Intel® GME965 + ICH8M/ICH8M-E Chipset, VGA/LVDS, PCI Express x16 and Firewire

SBC86836    Intel® Atom™ N270 Mini ITX SBC with Intel® 945GSE + ICH7M Chipset, VGA/LVDS, DualView, 6 COM and Dual LANs

SBC86834    LGA775 Socket Intel® Core™ 2 Duo Mini ITX SBC with Intel® 945GC + ICH7 Chipset, DVI-D/LVDS, 6 USB and 6 COM

SBC86832    Socket M Intel® Core™2 Duo Mini ITX SBC with Intel® 945GME + ICH7M/-DH Chipset, DVI-I/LVDS, 4 COM and Firewire

SBC86831    Socket M Intel® Core™2 Duo Mini ITX SBC with Intel® 945GME + ICH7M/-DH Chipset, VGA/LVDS, PCI Express x16 and Firewire

SBC86822    Socket 478 Intel® Pentium® M Mini ITX SBC with Intel® 910GMLE + ICH6M Chipset, DualView, SATA and 6 COM Ports

SBC86620    AMD LX Mini ITX SBC with Dual LANs, 4 COM and USB 2.0

MANO825   Intel® Atom™ D525/ D425 Mini ITX SBC with Intel® NM10 Chipset, VGA/LVDS, Dual LANs and 6 COM

MANO800    LGA1156 Intel® Core™ i7/ i5/ i3/ Pentium® Mini ITX SBC with Intel® Q57 Chipset, DVI-D/VGA, PCI Express x4 and 4 SATA RAID

MANO110    AMD64 Athlon AM2&AM2+ Mini ITX SBC with HDMI, DVI-D, VGA, 4 COM and 8 USB



Micro ATX Industrial Motherboard

Micro ATX industrial motherboards (244 x 188 mm) support a wide range of computing capacities from low power Intel® Pentium® M to the latest dual-core processors.
Micro ATX motherboards designed with rich functionality in a small footprint is best for space sensitive applications.
    Axiomtek  Mini ITX,  Micro ATX,  ATX motherboards    7/11

IMB100    LGA775 Intel® Core™2 Duo Micro ATX Industrial Motherboard with Intel® Q965 + ICH8DO Chipset, Dual LANs and Audio



ATX Industrial Motherboard

ATX Motherboard
High performance ATX industrial motherboards (305 x 244 mm) support a wide range of computing capacities and up to 8 expansion slots. They're ideal platforms for applications in digital video recorder, POS system, intelligent transportation system, multi-media center and more.
    Axiomtek  Mini ITX,  Micro ATX,  ATX motherboards

ATX Motherboards

IMB205    LGA1156 Socket Intel® Core™ i7/ i5/ i3/ Pentium® ATX Industrial Motherboard with Intel® Q57 Chipset    7/11

IMB203    LGA775 Intel® Core™2 Duo ATX Industrial Motherboard with Intel® Q45 + ICH10DO Chipset, iAMT, iTPM and RAID

IMB202    LGA775 Intel® Core™2 Quad ATX Industrial Motherboard with Intel® Q35 + ICH9DO Chipset, Dual LANs and Audio

IMB201    LGA775 Intel® Core™2 Duo ATX Industrial Motherboard with Intel® Q965 + ICH8 Chipset, Dual LANs and Audio


Esis Pty Ltd, Sydney, NSW - supplier of Advantech, Commell, iBase, Axiomtek, Aaeon, etc
