Radio Modems

General purpose radio data modems for various applications

STI Radio Modems

STI’s sophisticated RF spread-spectrum radios give error free transmission even in areas of high interference.

The STI radio modem range includes “Licenced” and “Licence free” radio modems. This refers to the need for a radio licence in Australia to operate the radios:

  • Licence free radio modems use the public ISM bands, which do not require a licence to operate in.
  • Licenced radios use radio bands that are restricted and require a licence to be obtained from ACMA before they can be used.

Cruise Control Software Makes it Easy

The STI Cruise Control configuration and diagnostics software makes it easier to set-up and maintain your radio networks.

– One-click connectioncruise_control
– Load/Save Function
– Real-time diagnostics
– Remote Radio Diagnostics
– Expandable folder view with compete configuration options
– Email your files to STI for technical support



Licence Free Radio Modems for Data Transfer – 900MHz & 433MHz

This excellent range of radio modems has many advanced features such as frequency hopping, error corrections, protocol routing for Modbus RTU, DNP 3 etc protocols.

Another useful feature of these devices are that they can emulate a standard Hayes modem, except that you are using radio rather than telephone lines. In this mode, it supports most Hayes AT commands.

In addition to this, they support many different network configurations such as point-to-point, point-to-multipoint and back-to-back repeater modes.

RFI-9256 Licence Free Spread Spectrum Band Radio Modems


The RFI-9256 data radio modem is a 900MHz licence free, frequency hopping modem designed for reliable operation in industrial environments. Long range up to 30km, data rates up to 115kbps.

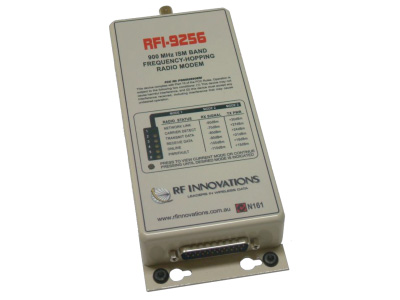

RFI-9256 data radio modem is a licence free frequency hopping unit
Click here to show/ hide more info

RFI-9256 data radio modem is a licence free frequency hopping unit

RFI-9256 Dual RS232 ports, programmable I/Os, frequency hopping, CRC, ARQ
RFI-433 433MHz frequency hopping low power radio modem

RFI-9256 900MHz High Speed Spread Spectrum (Frequency Hopping) Radio Modem

RFI 9256 ACA, RFI 9256 FCC, RFI 9256 NZ

Radio Modem for operation in the industrial, scientific, and medical (ISM) band for Australia (915-928MHz),
New Zealand (921-929MHz), and FCC (902-928MHz).

  • Dual RS232 ports for separate data streams asynchronous with handshaking, 110 to 115200bps
  • 1 Watt transmit power (software selectable)
  • Up to 30km line of sight
  • 115,200 kbps air data rate
  • Multi-mode LED front panel display for diagnostics, including RSSI meter
  • Protocol addressing and routing support, DNP-3, Modbus and IEC 870 compatibility
  • Operates with 9 to 30V DC, negative ground
  • Dimensions: 130 x 80 x 45mm

Applications
The RFI-9256 is suited for applications in Utilities, Mining, Agriculture and Transport industries where reliable wide area data transfer is critical.

The data radio can be used in small or large scale telemetry systems, with almost any PLC, RTU, HMI or DCS vendor for monitoring and control of critical assets.

Telemetry applications inlude pipeline monitoring, pump station and tank control, irrigation, fan and pressure control, and environmental monitoring.

The radios are also used in complex GPS systems for fleet tracking and management, and high precision correctional systems for machine control and automation.

The data radio can be used in small or large scale telemetry systems, with almost any PLC, RTU, HMI or DCS vendor for monitoring and control of critical assets.

Data Integrity is user selectable Automatic Retry Request (ARQ) combined with radio CRC offers a high level of data integrity for end-to-end error free transmission.

Telemetry applications inlude pipeline monitoring, pump station and tank control, irrigation, fan and pressure control, and environmental monitoring.

The radios are also used in complex GPS systems for fleet tracking and management, and high precision correctional systems for machine control and automation.

  • Links local and remote RS232 serial ports.
  • Time division Duplex – bidirectional in function
  • Spread Spectrum technology and error correction allows error-free operation in difficult RF environments
  • Intelligent built in Modem can interface with virtually any standard Data logger, PLC, computer; i.e. any RS232 device.
  • Line of sight range with 40cm antenna: 4km.
  • Line of sight range with Yagi antenna: 20 to 30km, licence not required in Australia.
  • Has BNC connector for antenna, and DB25M for serial ports (2 ports: main and auxiliary) and DC power.

Data & specs on RFI-9256 (pdf file, opens in new tab or window)

RFI-9256   900MHz spread spectrum radio modem: $CALL (approx $1500+GST)

Options:
RFI-9256 CA00: 915 MHz to 928 MHz, ACA, Data Radio
RFI-9256 CA01: 921 MHz to 929 MHz, DOC-NZ, Data Radio
RFI-9256 CF02: 902 MHz to 928 MHz, FCC, Data Radio
RFI-9256 OA00: 915 MHz to 928 MHz, ACA, Data Radio, OEM
RFI-9256 OA01: 921 MHz to 929 MHz, DOC-NZ, Data Radio, OEM
RFI-9256 OF02: 902 MHz to 928 MHz, FCC, Data Radio, OEM

  Download User Manual for RFI-9256 (.pdf file 3MB, new tab)

Accessories for RFI-9256
See Radio Modem Accessories at end of this page.

Data cable: DB25F (for the RFI-9256 end), to two DB9F (one for the data equipment, the other for a PC to set up the modem), with power leads
The second RS 232 port can be used as a diagnostics channel for monitoring network performance, and for additional data routing if required.
The data cable also has power leads, and optionally a 240VAC mains power adaptor
Dual Prog Data Cable DC (without mains adaptor)  (Regulated 12VDC supply is recommended)

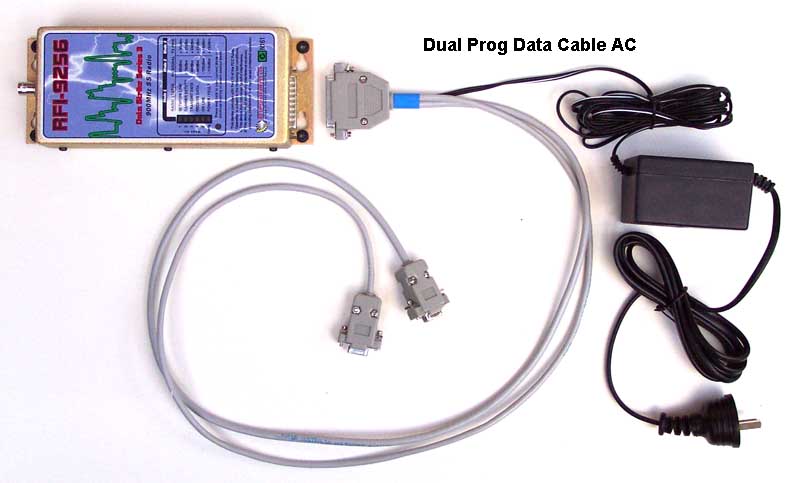

Dual Prog Data Cable AC (with 240VAC mains adaptor for 12VDC)  Picture
A null modem DB9M to DB9M can be supplied if required at no extra charge
With extra wires coming out to power an RS232/RS422/485 converter (ADAM-4520):

Antennas:

COL1798 is a 900MHz collinear antenna suitable for use with the RFI 9256.
This antenna is normally shipped with 10m of cable.
Antenna, 50mm stubby (can fit directly onto the RFI-9256 case):

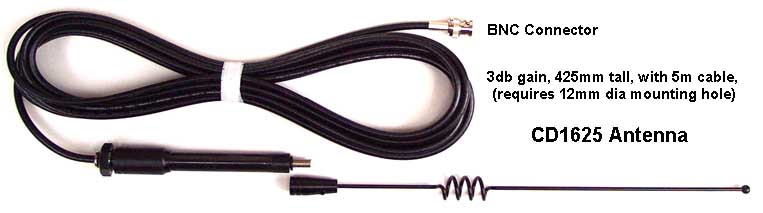

Antenna, CD1625, 3db gain, 425mm tall, with 5m cable, Picture: click here
BNC connector (requires 12mm dia mounting hole):

Antenna adaptor BNC to other type of connector (e.g. N-type) if required

A specialised version of the RFI-9256 modem…
Minimise Machinery Downtime with RFI-Minelink

Operational downtime can cost mining companies millions of dollars in lost production every day.

To counter this potentially costly problem, the RFI-Minelink system has been developed to download vehicle operational data from Caterpillar™ trucks in open-pit mines.

Utilising a specialised version of the RFI-9256 modem, the system permits real-time monitoring of mining vehicles, allowing for implementation of pro-active maintenance strategies to minimise the possibility of machine failure.

Self-contained portable repeater stations ensure optimal coverage, even in the constantly changing environments of mine sites.

The flexibility of the RFI-Minelink system makes it suitable for very large areas and for pockets of interest within a mine site.

RFI-9256 Makes its Mark on Security

The RF Innovations RFI-9256 radio modem has been successfully utilised in security access control systems across a range of applications, including tracking of mining personnel, transitory gates at mine sites and in hospital car parks.

The radio modem is particularly well suited for use in mobile and temporary access point applications, or as an alternative where cabling is either uneconomical or impractical.

The versatility of the RFI-9256 makes it suitable for a wide array of purposes, and the radio is fully compatible with the software of industry leaders Siemens™, Honeywell™ and Tecom™.

RFI-433  Piccolo 433MHz Data Radio – low cost


RFI-433 HCHPD0 433MHz frequency-hopping radio modem, with protocol support and low power mode. Range up to 5km, data rates to 38kbps.

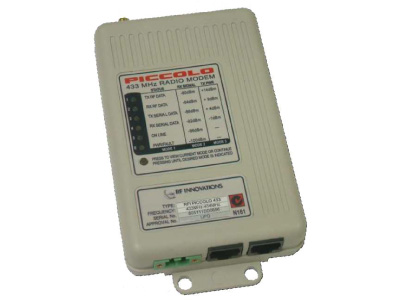

Piccolo RFI-433 data radio modem is a licence free frequency hopping unit
Click here to show/ hide more info

Piccolo RFI-433 data radio modem is a licence free frequency hopping unit

  • Dual RS232 ports for separate data streams
  • 25 mW transmit power (software selectable)
  • Up to 5km line of sight with Yagi antenna
  • Up to 38,400 bps (software selectable)
  • Low power consumption with power saving modes
  • Multi-mode LED front panel display for diagnostics, including RSSI meter
  • Protocol DNP-3, Modbus and IEC 870 compatibility.

The Piccolo 433MHz: licence-free, frequency hopping, up to 38Kbps, low current draw, ideal for medium distance links as well as solar powered applications.

The data radio can be used in small scale telemetry systems, with almost any PLC, RTU, HMI or DCS vendor for monitoring and control of critical assets.

The low cost radio can also perform as a store and forward repeater to extend the range and can also be used with other RF Innovations radio modems and I/O modules.

Piccolo is recommended for up to 3-5km line of sight, or 1km not line-of-sight (depending on location).

The Piccolo 433MHz features:

  • Air Data Rate: 9600, 19200, 38400 bps (software selectable)
  • Transmit, Standby, Sleep (3 power saving modes down to 3mA)
  • 25mW transmit power – up to 5km line-of-sight with Yagi antenna,
  • Selectable data rate up to 38.4Kbps – ability to trade-off data with range for difficult RF environments
  • Supports protocol modes – Point to Point, Point to Multipoint, Broadcast and Hayes AT Command Set
  • Time division Duplex – bidirectional in function
  • OEM version available.

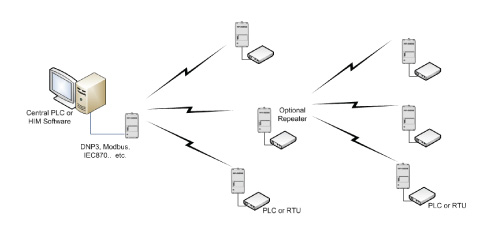

rfi-433_piccolo_diag

Full details are in the Data sheet on RFI-433 (pdf file, opens in new tab or window).

Piccolo433 Data Radio Modem, 433MHz, up to 38kbps: $CALL (approx $750+GST each – 2 or more are required)
Also required: Dual programming/data cable kit, and antenna. See Accessories below.

Accessories for RFI-433 Piccolo
See Radio Modem Accessories at end of this page.
Omni antenna CD51-68-53 with 5m cable — suitable for Piccolo up to 500m range.

Licenced Frequency Radio Modems

Licensed long distance radio units and OEM modules are available in the UHF and VHF frequency range.
Simple or advanced radio modems capable of point-to-point distances of up to 80km.

The Crescendo series is suited for applications in Underground Mining and Tunnel application where reliable underground data transfer is critical.
The data radio can be used in small or large scale telemetry systems, with almost any PLC, RTU, HMI or DCS vendor for monitoring and control of critical assets. FEC = Forward Error Correction

RFI-150 S Crescendo Crescendo – VHF half duplex separate Tx/Rx BNC radio modem, 12.5/25kHz, 9600/19200 – 5W
RFI-450 S Split port version ideal for leaky feeder head ends. Data sheet on RFI-150 S & RFI-450 S (pdf file)

Low latency with FEC and protocol timing support.

Frequency Range: 380 to 520 MHz software programmable

RFI-450 H Crescendo UHF half duplex radio modem, 12.5/25kHz, 9600/19200 – 5W, inc mount
Low latency with FEC and protocol timing support. Data sheet on RFI-450 H (pdf file)
RFI-150 H Crescendo VHF half duplex radio modem, 12.5/25kHz, 9600/19200 – 5W, inc mount
Low latency with FEC and protocol timing support.Frequency Range: 148 to 174 MHz software programmable See more info below.
RFI-450 HWMDDI  Allegro UHF half duplex radio modem,  25kHz, 9600 – 5W, inc mount

Offers all the features of the Crescendo series while maintaining compatibility with the legacy RFI-595F
Frequency Range: 380 to 520 MHz software programmable  See more info below

RFI-590 VF standard radio Compact 2.5 Watt, 2400 bps half duplex VF radio for FSK data.
Half-duplex radio aimed at applications operating in common 12.5kHz or 25kHz UHF channels using external modems.
Audio Range 300Hz to 3KHzIncludes channel control options and sleep modes. Data sheet on RFI-590A (pdf file)
UHF radio is suitable for Analog FSK systems using signalling such as Bell-202, V.23 and POCSAG.
Depending on geography, terrain and antenna setup, reliable radio communications can be achieved for distances in excess of 40km.
Repeater options allow for range extension when required.
Includes channel control options and sleep modes.
RFI-150 DWDDH0 Full-Duplex VHF Radio Modem, 5 Watt, 19.2 kbps full-duplex radio modem for use in underground applications.
The unit is ideal for time critical applications with low latency, foward error correction and protocol timing support.
RFI-595 F UHF radio with intelligent modem 9600, 2.5 Watt, 9600 bps half duplex radio modem with software configurable protocol support.

See more info below.



Licence information
The ACMA (Aust Communications & Media Authority) http://www.acma.gov.au/Industry/Spectrum/Radiocomms-licensing is the organisation that administers radio licencing in Australia. ACMA may direct you to various Accredited Frequency Assigners. The Accredited Frequency Assigners offer a very customised service at a very competitive price. The Frequency Assigners will consult with you as to what type of application you are using and the relevant licencing prices.

RFI-150 H VHF & UHF Radio Modem – Crescendo Series


Crescendo is a series of half duplex digital data radio modems designed for use in large scale wide area point-to-point and point-to-multipoint industrial systems. 148MHz to 174MHz, 5W
RFI-150 H VHF & UHF Radio Modem - Crescendo Series
Click here to show/ hide more info

RFI-150 H VHF & UHF Radio Modem - Crescendo Series

RFI-150 H VHF half duplex Radio Modem – Crescendo Series
100mW to 5W (if used at minimum power 100mW in Australia, this does not need a licence)
19200/9600 bps half-duplex radio modem. Low latency with FEC and protocol timing support.
*FEC = Forward error correction  More information on FEC
Frequency Range: 148MHz to 174MHz software selectable
Up to 80 km line of site,  up to 19.2 kbps full duplex  12VDC regulated, 1.25A when transmitting.
Specify air rate: 12.5kHz=9600bps (urban areas), or 25kHz=19.2kbps (rural areas)
Connectors: Antenna Ports Separate Tx/Rx BNC Female (50 Ohm nominal)
User Data Ports: 2 x DB9 RS232 female,    Power connector: PSC 1.5/3-M (mating connector provided)
Weight: 500gm each
Data sheet on RFI-150 H (pdf file, opens in new tab)      RFI-150 H: $1797+GST   12/10

Accessory Pack: 2x DB9 data cables, & 1m DC power lead, 100gm
Mounting Plate: powder coated, for wall mounting, 100gm

Accessories
See Radio Modem Accessories at end of this page

– 9600bps or 19200bps
– FEC and ARQs for error free data transmission
– Store and forward repeater
– Real-time diagnostics and configuration- Remote radio diagnostics
– Transparent and protocol modes
– Compatible with most industry protocols Modbus, DNP3, TDE etc.

*FEC = Forward error correction  More information on FEC

*ARQ = Automatic Repeat Request More Information

Accessory Pack: 2x DB9 data cables, & 1m DC power lead
Vibration Mounting Plate, rugged $
Dim.: 258mm L x 158mm W x 37mm H (inc vibration mount),

Antenna    Stubby, etc.

Radio: The RFI-150 Full Duplex radio modem has been designed to comply with world wide regulatory guidelines.
The radio provides frequency selection anywhere within the VHF band in 12.5 kHz (9600bps) or 25khz (19200bps) software selectable increments.
Microprocessor control ensures powerful data control algorithms whilst advanced receiver design provides superior rejection of unwanted signals.

Modem: The inbuilt modem provides RS232 serial connection with handshaking at interface speeds to 115,000 bps.
It allows transparent communications by emulating dumb data-driven modem operation;
making the RFI-150 Duplex suitable for wireless transmission of even the most timing critical serial protocols.

Application: The RFI-150 Duplex is suitable for small point-to-point or large broadcast point-to-multipoint data communications networks
either through standard antennas or underground leaky-feeder cables.

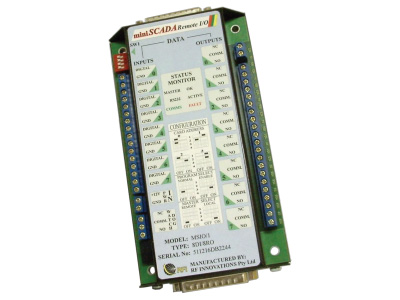

Additional RFI I/O modules can be connected to the radio modems for potentially large wireless SCADA networks.

CD-1625: 3db gain omni directional antenna, with 5m RG58 coax, and BNC connector
Stubby Antenna: unity gain omni directional antenna for testing, or mobile

Please let us know your requirements.

RFI-450 HWNDD1 Allegro Half-Duplex UHF Radio Modem


The Allegro is a Crescendo based data driven radio fully compatible with the legacy RFI-595F data radios.
RFI-450 HWNDD1 Allegro Half-Duplex UHF Radio Modem
Click here to show/ hide more info

RFI-450 HWNDD1 Allegro Half-Duplex UHF Radio Modem

5 Watt, 9600 bps half-duplex radio modem.

Offers all the features of the Crescendo series while maintaining compatibility with the RFI-595F.

The Allegro offers all of the usability of the Crescendo series, with Cruise Control support and front-panel display for trouble-free diagnostics and configuration.

  • Forward Error Correction (FEC) for high link integrity in RF-noisy environments More information on FEC
  • LED front panel display for immediate diagnostics
  • Window-based GUI support (Cruise Control) for trouble-free configuration and remote diagnostics
  • Protocol addressing and routing support, DNP3 and modbus compatibility
  • Store-and-forward repeaters for large-scale networks and coverage expansion
  • 5W maximum transmit power (software selectable)

Data on RFI-450 HWMDD1 (.pdf file, 2 pages)

RFI-595 F UHF Radio Modems


The Allegro is a Crescendo based data driven radio fully compatible with the legacy RFI-595F data radios.
RFI-595 F UHF Radio Modems
Click here to show/ hide more info

RFI-595 F UHF Radio Modems

The RFI 595F is a high-speed radio modem (not spread spectrum) capable of functioning in hostile RF environments.
RS232 data throughput is 9600 bps.
Intelligent integrated software allows many different data configurations,
including store and forward repeater operation and intelligent protocol routing for large SCADA systems.
Built in path testing  –  In built in diagnostics  –  Front panel indicators  –  Up to 50 km in one hop  –  Forward error correction
Can be commissioned without test equipment

It can interface with virtually any standard Data logger, PLC, computer; i.e. any RS232 device.
In built buffers handshake with input/output devices at data speeds up to 38400 bps and transparently move data to the other end.
Depending upon the geography and terrain, the Radio modems can communicate reliably over considerable distances.
Good line of site paths from mountaintop to hill can extend useful range beyond 100 km.
In any event, repeater facility permits extension of useful range when clear line-of-site paths are not available.

Software options include store and forward repeater function, which permits remote hilltop repeater applications.
There is no progressive degradation of Signal to Noise Ratio as the repeater function brings the signal back to digital base band.
Also, the radio modem supports many industry standard communications protocols with routing tables and packet timers.

Power:  100mW to 2.5 Watt software selectable,
Data sheet on RFI-595F (pdf file, opens in new tab)
RFI-595 F  UHF Radio Modem  RS232 9600bps, each: $CALL
Licence may not be required if set at   472.1MHz, 100mW – check this.

Can be set either in licenced band (390 to 512MHz),
or on unlicenced frequencies:  472.1MHz 100mW,    or 433.1MHz 25mW.      Note that RFI-595 only goes down to 100mW.

Accessories
See Radio Modem Accessories at end of this page

Stubby Antenna, 150mm, attaches to the radio, short range
CD51 Antenna , 400mm with 5m cable, specify MBC base or threaded stud, range 1km line of site
Antenna: various
Antenna Mount: various
AC Programming Cable
DC Programming Cable
Coax antenna line surge protector:

SCADA and Converters

RFI-MSIO  Mini-Scada Module


Low Cost Radio Interface Module:   Analog & Digital – 8 inputs – 8 outputs – expandable
RFI-MSIO Mini-Scada Module
Click here to show/ hide more info

RFI-MSIO Mini-Scada Module

Low Cost Radio Interface Module:   Analog & Digital – 8 inputs – 8 outputs – expandable

Input and output expansion for analog, digital and relay applications.
Modbus enabled Analog, Digital and Relay Input / Output device.
Compatible with most Modbus PLC’s and software

MSIO module

  • allows analog or digital signals to be transmitted via an RF modem.
  • 8 digital I/O’s (expandable)

RFI-MSIO page (this site, opens in new tab)

RFI-MSIO  Low Cost Radio Interface I/O Module: $CALL (approx $850+GST)
When ordering the MSIO, the required combination of analog and digital inputs or outputs should be specified (preset by the factory).
Option: The unit has a 25-pin connector for setting up: SCDAM106 Cable adaptor allows access to this.

Also required: Radio Modem e.g. Piccolo 433MHz Data Radio or RFI-2956

Data sheet on RFI-MSIO Mini-Scada Module (pdf file, opens in new tab)

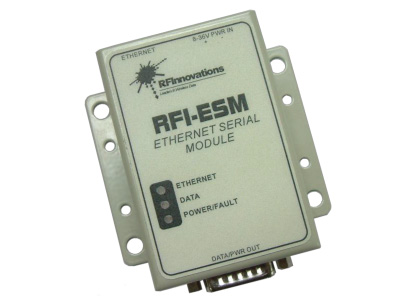

RFI-ESM Ethernet Serial Module


The RFI-ESM enables Ethernet communication over a wide area data radio network.
TKG-083b-TOUCH-MGEH Stainless steel housing
Click here to show/ hide more info

TKG-083b-TOUCH-MGEH Stainless steel housing

The RFI-ESM enables Ethernet communication over a wide area data radio network.
The module transparently transfers all protocols at the Ethernet MAC layer
including FTP and industry standard TCP/IP Modbus and DNP protocols.

IEEE 802.3 MAC layer operation for simple deployment
Transparently transfers all protocols above Ethernet
10/100 BaseT Ethernet
LED and software diagnostics

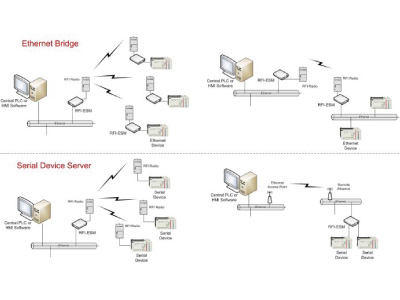

Ethernet Bridge Application
The RFI-ESM is suited for applications in Utilities, Mining, Agriculture and Transport industries where reliable wide area Ethernet data transfer is critical.
The module can be used in small and large scale telemetry systems offering the convenience of Ethernet and the wide area coverage of traditional telemetry
systems.
The RFI-ESM transparently moves data from end-to-end at speeds of up to 115 kbps and when used with RF Innovations data radio modems can transport
Ethernet data up to 50 km (maximum practical point-to-point distance with line of sight and suitable antennas).

Serial Device Server Application
The RFI-ESM can also be used as a serial device server to provide an RS232 interface on a TCP/IP port.
This effectively allows connection of RS232 devices onto an Ethernet network.
When used with RF Innovations radios existing Ethernet infrastructure can be utilized as a backbone to provide connectivity to remote RS232 devices.

RFI-ESM Ethernet Serial Module

WAN
Serial Data: RS-232 Asynchronous with handshaking
Interface Speed: 300bps to 115200bps software selectable
LAN
Ethernet: 10BaseT or 100BaseT auto detect
Mode: Half duplex or Full duplex auto detect

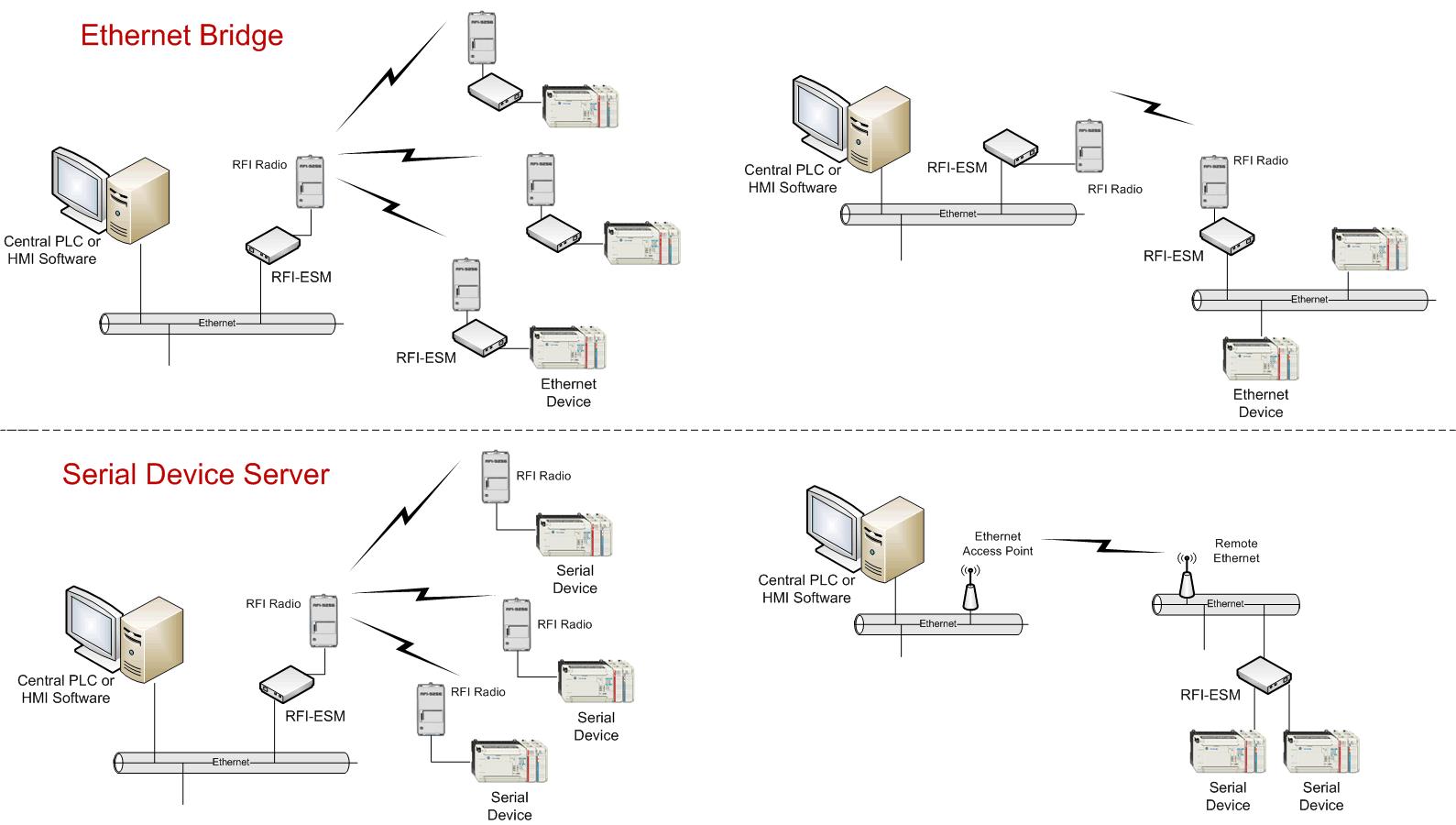

Large version of this diagram (opens in new tab)

Data sheet on RFI-ESM Ethernet Serial Module (pdf file, opens in new tab)

RFI-DR3000HS  Dual Redundant Base Station


Coming Soon
RFI-DR3000HS Dual Redundant Base Station
Click here to show/ hide more info

RFI-DR3000HS Dual Redundant Base Station

Dual Redundant base radio system suitable for half duplex UHF, VHF and 900 MHz radio networks, with SNMP radio network control.

Accessories

RFI PROG SNGL DC Single DB9 RS232 port programming cable with 12/24 VDC leads (suits RFI-9256)
RFI PROG SNGL AC Single DB9 RS232 port programming cable with 240V AC plugpack (suits RFI-9256)
RFI PROG DUAL DC Dual DB9 RS232 port programming+data cables with 12/24 VDC leads (suits RFI-9256)
RFI PROG DUAL AC Dual DB9 RS232 port programming + data cables with 240V AC plugpack (suits RFI-9256)
RFI PROG CRES-H  2 x DB9 DTE to DCE serial cables, 1x power connector and DC leads (suits Crescendo)
RFI PROG PICC DC 2 x RJ45 to DB9 serial cables, 1 x power connector and DC leads (suits Piccolo 433)
RFI-PROG PICC AC 2 x RJ45 to DB9 serial cables, 1 x power connector and 240V AC Plugpack (suits Piccolo)
900MHz Stubby 900MHz stubby antenna with BNC connector



UHF/VHF/900MHz/433MHz Antennas

The most suitable antenna depends on the distance to be covered, obstructions between the radios, required data rates and reliability, etc. Please contact us to discuss which antenna and radio modem would suit your needs.

Available antennas include:

  • Ground independent whip antennas for mobile or telemetry applications.
  • Base station antennas and yagi antennas for greater point-to-point coverage.
  • Low profile Antennas for hight restricted applications
  • Simple stubby antennas for very short range, and for systems bench testing

Obsolete Products

Obsolete product list – part numbers & which products supersede them

RFI-594            UHF radio with intelligent modem 1200/2400 – discontinued

RFI-150 D    Crescendo – VHF full duplex radio modem, 25kHz, 19200 – 5W – discontinued
5 Watt, 19.2 kbps full-duplex radio modem for use in underground applications. Data sheet on RFI-150 D (pdf file)
The unit is ideal for time critical applications with low latency, foward error correction and protocol timing support.

RFI-150 D VHF full duplex Radio Modem – Crescendo Series, has external cooling stripes – discontinued
(approved for underground use without licence, otherwise not approved)     RFI-150 D: $3579+GST
Data on RFI-150 D full duplex: click here

RFI-150 D UHF – please enquire – discontinued
has all of the features and diagnostics of the VHF version,
and is available for the UHF 12.5kHz and 25kHz licensed channels.
