Industrial ATX Motherboards

with PCIe, PCI & ISA slots - Commell, iBase, Advantech

Industrial ATX Mainboards & Motherboards

Choose from a wide range of Industrial Grade ATX motherboards. Other sizes are also available (micro-ATX, mini-ITX etc), see links at right.

Building a new industrial PC?

Ask us to build it for you, with a mix of industrial grade, desktop or server components to meet your needs. Contact us for a quote.

How do Industrial Grade motherboards differ from regular PC or server motherboards?

  • Extra reliability testing – designed for reliable 24x7 operation in harsh environments
  • Temperature rating – most industrial grade boards are rated to 60°C (regular & server components are normally rated to 40°C or less)
  • Long product lifecycle – each motherboard is typically available for 5-10 years
  • Support for legacy peripherals – industrial motherboards are available with ISA and PCI slots, multiple serial ports, RS-485 ports etc.
LGA (Land Grid Array)

LGA stands for Land Grid Array, the pins are on the motherboard, not the processor. Used by Intel processors from Pentium 4 onwards, including Core 2, Xeon, Core i3 / i5 / i7.

The number of pins in the LGA socket varies with each generation of processors. Server processors also have a different LGA pin count. For example, the desktop Core i5 generations went from LGA1156 (1st generation) to LGA1155 (2nd and 3rd generation), then LGA1150 (4th generation), then LGA1151 (6th and 7th generation Core processors). The Xeon server processors have been using LGA 2011 for CPU’s supporting extra memory channels and multiprocessor boards.

More information about CPU sockets: click here (Wikipedia)

Information about the various Intel Processors: click here (Intel website)

LPC (Low Pin Count bus)

LPC = Low Pin Count bus for I/O, used by modern super I/O chips, via the Southbridge chip of the motherboard. Super I/O chip may contain a floppy disk controller, parallel port (for printers), one or more serial ports, mouse interface, keyboard interface. A super I/O chip may also have other interfaces, as for a joystick or infrared port.

Motherboard Form Factors

ATX Motherboards Form Factor ComparisonName (biggest at top)
WTX  356×425
AT      350×305
Baby-AT 330×216
BTX   325×266
ATX   305×244
LPX    330×229
NLX   254×228
microATX  244×244
DTX           244×203
FlexATX    229×191
Mini-DTX  203×170EBX           203×146 Stacking
microATX (min.) 171×171
Mini-ITX             170×170
EPIC (Express)    165×115  Stacking
Nano-ITX           120×120
COM Express      125×95
ETX / XTX          114×95
Pico-ITX             100×72
PC/104 (-Plus)     96×90 Stacking
PCI-104                96×90     Stacking
mobile-ITX          75×45

See http://en.wikipedia.org/wiki/Comparison_of_computer_form_factors for more information.

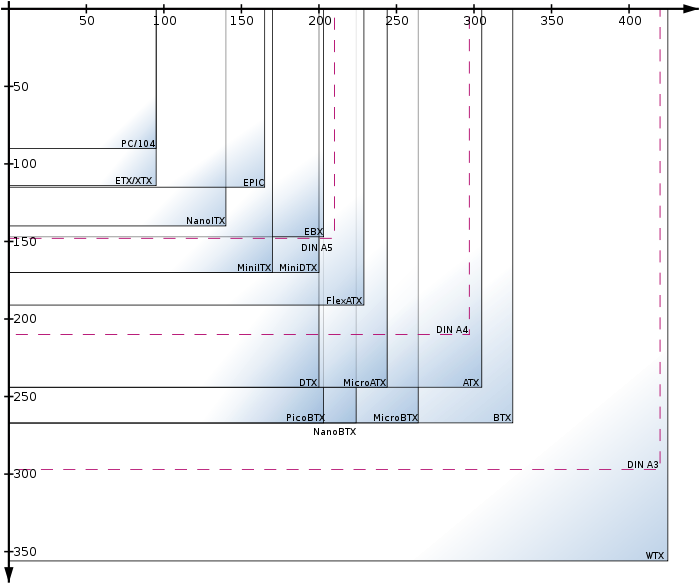

In the diagram below, standard paper sizes A3, A4, A5 are shown in red dashes.

CPU Benchmarks  (opens in a new tab or window)

Commell ATX Motherboards

Tip: If you don’t need all the expansion slots of a full ATX board, please also check out the Micro-ATX motherboards for more options.

AS-C7A – 6th generation Intel® Core™ i7 / i5 / i3 S-series and Xeon® E3-1200 v5 processor ATX Industrial Motherboard


Support 6th generation Intel® Core™ i7 / i5 / i3 S-series and Xeon® E3-1200 v5 processor desktop CPU with Intel® C236 chipset, DDR4 up to 64 GB, Onboard DVI-I, Display port, LVDS, 1 x Giga LAN, 1 x Giga PHY LAN, 4 x USB 2.0, 6 x USB 3.0, 6 x COM, HD Audio, 4 x SATAIIl with RAID, GPIO, 1 x PCIE X16, 1 x PCIE X4, 1 x PCIE X1, 4 x PCI, 2 x Mini-PCIe sockets.

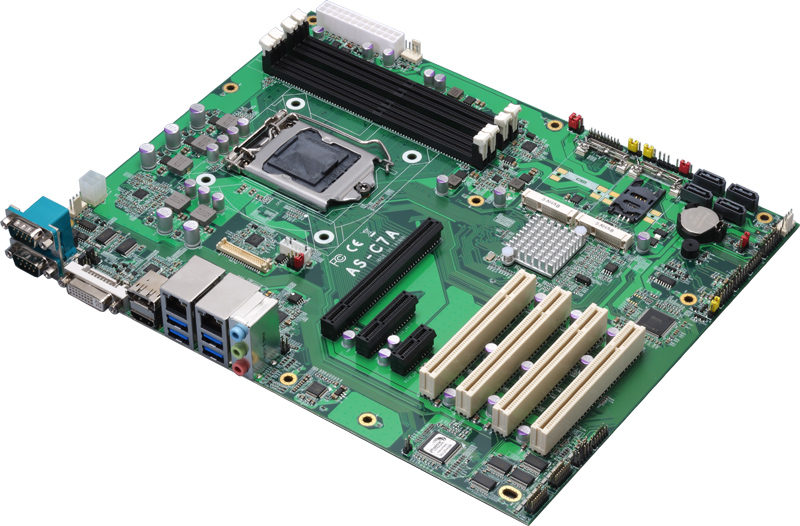

Commell ATX Motherboard AS-C7A
Click here to show/ hide more info

Commell ATX Motherboard AS-C7A

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, unveiled AS-C7A ATX Industrial Motherboard embedded system board based on Intel® 6th generation “Skylake” Core™ processor family. The “Skylake” PC is claimed to deliver 30 percent better performance than a PC base on Ivy Bridge architecture, 20 percent better performance than a PC based on “Haswell”, and 10 percent better performance than a “Broadwell” PC.

The AS-C7A desktop platform is designed for the 6th generation Intel® Core™ S-series processors and Xeon® E3-1200 v5 processor in the FCLGA1151 socket. It is the first mainstream Intel® desktop platform to support DDR4 memory (Four DDR4 LO-DIMM 1866/2133 MHz up to 64GB).

The platform is based on Intel® HD530 Graphics, this Skylake GPU offers 24 execution units (EUs) clocked at up to 1150Mhz(depending on the CPU model), The revised video engine now decodes H.265/HEVC completely in hardware and thereby much more efficiently than before. Displays can be connected via 1 CRT, 1 LVDS, 1 DVI-I, 1 HDMI and one DP port or CRT optional, up to three displays can be controlled simultaneously. AS-C7A offers lots of features including high-speed data transfer interfaces such as 6 x USB3.0 and 4 x SATAIII, equipped with dual Gigabit Ethernet (One of the dual LAN with iAMT 11.0 supported), and comes with PS/2 port, 5 x RS232 and 1 x RS232/422/485, 4 x USB2.0, Intel® High Definition Audio, and 1 x PCIE x16 slot, 1 x PCIE x4 slot, 1 x PCIE x1 slot, 2 x MiniPCIe socket(Support mSATA), 4 x PCI slot, 1 x SIM slot.

Features:

  • CPU: Intel® 6th generation Intel® Core™ i7/ i5/ i3 S-series and Xeon® E3-1200 v5 Desktop processor in the FCLGA1151 socket.
  • Memory: Four DDR4 1866 / 2133 MHz LO-DIMM up to 64 GB.
  • Chipset: Intel® C236 chipset.
  • Integrated Graphics: Intel® Core™ integrated HD Graphics 530 Technology.
  • DVI interface: Onboard DVI-I connector.
  • LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/+12V supply
  • Display port interface: Onboard Display port connector.
  • CRT interface: 16-pin connector.
  • LAN Interface: 1 x Intel® I210 Gigabit LAN and 1 x Intel® I219-LM Gigabit PHY LAN.
  • Serial ATA: Support 4 x SATA3.
  • Audio: Realtek ALC262 High Definition Audio.
  • Internal I/O: 4 x SATA3, 4 x RS232, 4 x USB2.0, 2 x USB3.0, 1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBUS, 1 x CRT.
  • Rear I/O: 1 x DisplayPort(optional), 1 x DVI-I, 1 x HDMI, 4 x USB3.0, 2 x LAN, 1 x RS232, 1 x RS232/422/485, 1 x Audio.
  • Extended interface: One PCIE X 16 slot, One PCIE X 4 slot, One PCIE X 1 slot, Two PCIE Mini cards (Optional support mSATA for Mini_Card1 and Mini_card2), one SIM socket.
  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.
  • Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) and P4 4-pin 12V.

Specification:

Form Factor ATX Industrial Motherboard
Processor 6 th Generation Intel® Skylake™ i7 / i5 / i3 series and Xeon® E3-1200 v5 Desktop Processor. Package Type:  FCLGA1151
Memory 4 x 288-pin DDR4 1866/2133 MHz LO-DIMM up to 64GB (Unbufferred,  none-ECC memory supported only)
Chipset Intel® C236 PCH-H
Integrated Graphics Intel® Core™ integrated HD Graphics 530 Technology
Real Time Clock   Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s
Serial ATA Interface Intel® C236 PCH-H built-in 4 x Serial ATA3 interface up to 600MB/s Support RAID 0, 1, 5, 10 and Intel Rapid Storage Technology.
CRT Interface Onboard 16-pin CRT interface
 DVI Interface  Onboard DVI connector
LVDS Interface Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply
 Display port Interface  Onboard Display port connector (optional)
Audio Interface Realtek ALC262 HD Audio
LAN Interface 1 x Intel® I210-AT Gigabit Ethernet Controller 1 x Intel® I219-LM Gigabit PHY Ethernet Controller
GPIO Interface Onboard programmable 8-bit digital I/O interface
Extended Interface  1 x PCIE X 16 slot‚ 1 x PCIE X 4 slot‚ 1 x PCIE X 1 slot‚ 4 x PCI slot‚ 2 x PCIE Mini card, one SIM socket. (Optional support mSATA for Mini_Card1 and  Mini_Card2)
Internal I/O Port 4 x SATA3, 4 x RS232, 4 x USB2.0, 2 x USB3.0, 1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio (MIC-in & Line-out), 1 x PS/2(Keyboard & Mouse), 1 x SMBUS, 1 x CRT
Rear I/O Port 1 x DisplayPort, 1 x DVI-I, 1 x HDMI, 4 x USB3.0, 2 x LAN, 1 x RS232, 1 x  RS232/422/485, 1 x Line-in, 1 x Line-out, 1 x MIC-in
Power Requirement Standard 24-pin ATX power supply (20-pin is compatible) and P4 4-pin 12V
Board Dimension 307 mm x 244 mm (L x W)
 Temperature Operating within 0 ~ 60°C (32°F ~ 140°F) Storage within -20 ~ 80°C (-4°F ~ 176°F)
Relative Humidity  10%~90%, non-condensing

Data sheet on AS-C7A (pdf file, opens in new tab)

AS-C76 – 3rd and 2nd generation Intel® Core™ i7 / i5 / i3 ATX Motherboard


Support 3rd and 2nd generation Intel® Core™ i7 / i5 / i3 / desktop CPU with Intel® Q77 Express, DDR3 up to 32GB, Onboard VGA & DVI, 2 x Giga LAN, 8 x USB 2.0, 4 x USB 3.0, 6 x COM, HD Audio, 4 x SATAII & 2 x SATAIIl with RAID, GPIO,TPM, PCIe X16, PCIe X4, Mini-PCIe & Mini-PCI, 5 x PCI socket .

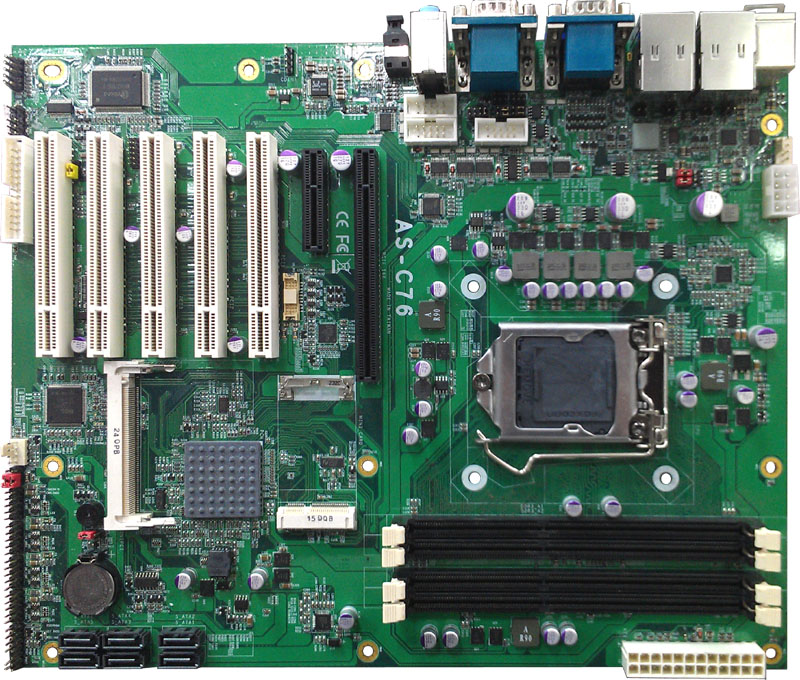

Commell ATX Motherboard AS-C76
Click here to show/ hide more info

Commell ATX Motherboard AS-C76

AS-C76 is a industrial ATX motherboard support Intel Ivy Bridge processor at LGA1155, Flexible extend slots including PCI-Express X16 / X4, Mini-PCI & Mini-PCIe, 5 x PCI socket. For the IO ports , there’re 8 x USB 2.0, 4 x USB 3.0, TPM , 6 x COM, 1 x LPT, GPIO interface, 2 x Giga LAN, Onboard VGA + DVI for Dual display solution.

This platform is ideal for developing high-performance systems for industrial control and automation, retail, gaming, print imaging and digital signage.

Onboard Intel® 82579LM GbE controller support Intel® AMT 8.0 feature on primary LAN port. The BIOS is ready to support Intel® AMT 8.0 feature. The necessary prerequisite is your CPU must support Intel® vPro technology.

Features:

  • CPU: Intel® 3rd generation Core™ i7/ i5/ i3/ Desktop in the FCLGA1155 socket (support Intel® 2nd generation Core™ i7/ i5/ i3/ Desktop in the FCLGA1155 socket)
  • Memory: 4 x DDR3 1006/1333 MHz up to 32 GB
  • Chipset: Intel® BD82Q77 PCH
  • Integrated Graphics: Intel® Clear Video integrated HD Graphics Technology
  • VGA Interface: Onboard DSUB15 connector for VGA interface
  • DVI interface: Onboard DVI with 20-pin connector
  • LAN Interface: 1 x Intel® 82574L Giga LAN and 1 x Intel® 82579LM Giga LAN
  • Serial ATA: Support 6 x SATA ( 4 x serial ATAII, 2 x serial ATAIII )
  • Audio: Realtek ALC888 High Definition Audio.
  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 8 x USB2.0 ports, 4 x USB3.0 ports, 1 x DB15 VGA port, PS/2 keyboard and mouse ports, 1 x SPDIF
  • Extended interface: PCI-Express X16 & X4, 5 x PCI, Mini-PCIe & Mini-PCI socket. Support mSATA(SATAII) for Mini_Card,but SATA6 will be disable(AS-C76S)
  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.
  • Power requirement : Standard 24-pin ATX power supply (20-pin is compatible) Standard 8-pin 12V power Input connector (4-pin is compatible)

Specification:

Form Factor industrial ATX Motherboard
Processor 3rd and 2nd Generation Intel® Core™ i7/ i5/ i3/Celeron® Desktop Processor. Package Type:  FCLGA1155
Memory 4 x DDR3 1066/1333 DIMM up to 32 GB
Chipset Intel® BD82Q77 PCH
Integrated Graphics Intel® Core™ integrated HD Graphics Technology
Real Time Clock   Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s
Power Management ACPI 3.0 compliant, supports power saving mode
TPM Infineon SLB9635 for TPM1.2
Serial ATA Interface Intel® Q77 PCH built-in 4 x Serial ATAII interface up to 300MB/s & 2 x Serial ATAIII interface up to 600MB/s Support RAID 0, 1, 5, 10 and Intel Rapid Storage Technology.
VGA Interface Onboard DSUB15 connector for VGA interface
 DVI Interface  Onboard 20-pin DVI interface
Audio Interface Realtek ALC888 HD Audio
LAN Interface 1 x Intel® 82574L Gigabit Ethernet Controller 1 x Intel® 82579LM Gigabit Ethernet controller
GPIO Interface Onboard programmable 8-bit digital I/O interface
Extended Interface  One PCIE X 16 Gen3 slot‚ One PCIE X 4 slot‚ One Mini PCI socket and One PCIE Mini card ,Five PCI slots. Support mSATA(SATAII) for Mini_Card,but SATA6 will be disable(AS-C76S )
Internal I/O Port 1 x RS232/422/485, 1 x GPIO port, 1 x CDIN connector,1 x Audio connector, 1 x IrDA connector, 1 x SMBUS connector, 1x DVI , 2 x Serial Port, 8 x USB 2.0 ports and 1 x Parallel port.
External I/O Port PS/2 Keyboard/Mouse Port, 2 x RJ45 LAN ports, 1 x DB15 VGA port, 4 x USB3.0 ports and 3 x Serial Port.
External Audio Line-in, MIC-in, Front, Rear, Center/Subwoofer and Optical SPDIF outputs.
Power Requirement Standard 24-pin ATX power supply (20-pin is compatible) Standard 8-pin 12V power Input connector (4-pin is compatible)
Board Dimension 307 mm x 244 mm (L x W)
Temperature Operating within 0 ~ 60°C Storage within -20 ~ 85°C


Data sheet on AS-C76
 (pdf file, opens in new tab)

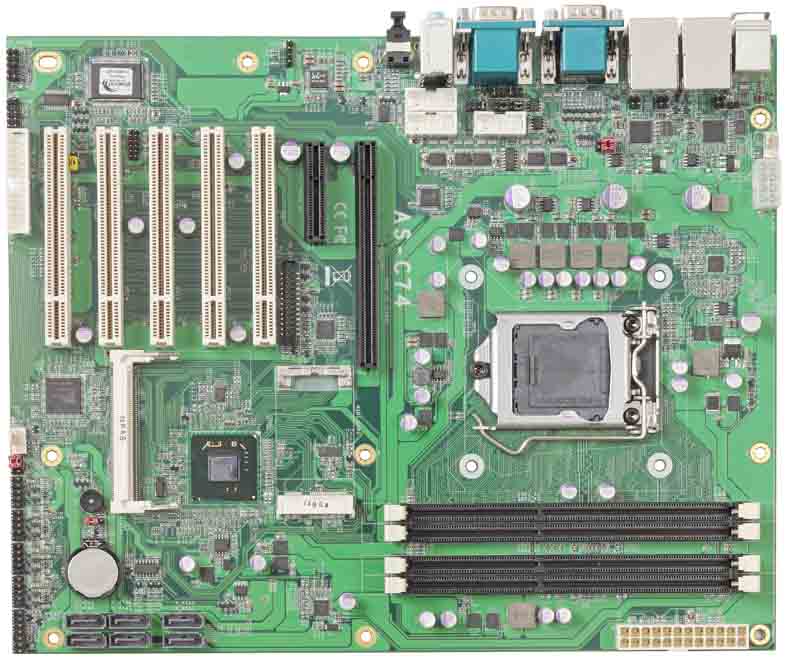

AS-C74 – 2nd generation Intel® Core™ i7 / i5 / i3 Pentium and Xeon Motherboard


2nd generation Intel® Core™ i7/i5/i3, Pentium & Xeon with Intel® Q67 Express chip Onboard VGA & DVI, 32 GB DDR3, 2 x Giga LAN, 12 x USB 2.0, 6 x COM, HD Audio 6 x SATA with RAID, GPIO, SPDIF, PCIe X16, 5 x PCI slots, Mini-PCIe & Mini-PCI
Commell ATX Motherboard AS-C74
Click here to show/ hide more info

Commell ATX Motherboard AS-C74

AS-C74 is a industrial ATX motherboard support Intel Sandy Bridge processor at LGA1155, Flexible extend slots including PCI-Express X16 / X4, 5 x PCI, Mini-PCI & Mini-PCIe socket. For the IO ports , there’re 12 x USB 2.0, 6 x COM, LPT and GPIO interface, 2 x Giga LAN, Onboard VGA + DVI for Dual display solution.

This platform is ideal for developing high-performance systems for industrial control and automation, retail, gaming, print imaging and digital signage.

Features:

  • CPU: 2nd generation Intel® Core™ i7/ i5/ i3, Pentium & Xeon desktop in the LGA1155
  • Memory: Four DDR3 1066/1333 DIMM up to 32 GB
  • Chipset: Intel® Q67 Express Chipset
  • Display Interface: Onboard VGA & DVI
  • LAN Interface: 2 x Intel® 82574L Giga LAN.
  • Serial ATA: Support four SATA2 + two SATA3 with RAID 0,1,5,10.
  • Audio: Intel® Q67 integrated with Realtek ALC888 High Definition Audio.
  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 12 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports, Audio, SPDIF
  • Extended interface: PCI-Express X16 & X4, 5 x PCI, Mini-PCIe & Mini-PCI socket.
  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

Specification:

Form Factor Industrial ATX Motherboard
Processor Intel® Core™ i7 / i5 / i3, Pentium & Xeon Desktop processor

Package Type: FCLGA1155

Memory 4 x DDR3 1066/1333 DIMM up to 32 GB
Chipset Intel® Q67 Express Chipset
Real Time Clock   Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s
Power Management ACPI 1.0 compliant, supports power saving mode
Serial ATA Interface Intel® Q67 chipset built-in 4 x Serial ATA II interface up to 300MB/s

2 x SATA3 interface up to 600MB/s. Total 6 x SATA interface

Support RAID 0, 1, 5, 10 and Intel® Rapid Storage Technology

VGA Interface Integrated Intel® HD graphic technology
 DVI Interface  Onboard 26-pin DVI interface
Audio Interface Intel® integrated Q67 with Realtek ALC888 HD Audio
LAN Interface 2 x Intel® 82574L Gigabit Ethernet Controller
GPIO Interface Onboard programmable 8-bit digital I/O interface
Extended Interface  PCI-Express X16 & X4 slot, 5 x PCI slots,  Mini-PCIe & Mini-PCI
Internal I/O Port 2 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x CDIN, 1 x SMBus,

1 x LPT, 1 x Audio,  1 x DVI ,1 x IrDA, 8 x USB2.0

External I/O Port 1 x PS/2 keyboard/mouse, 2 x RJ45, 1 x VGA, 4 x USB2.0,

1 x Audio, 3 x RS232, 1 x SPDIF

External Audio Line-in, MIC-in, Front, Rear, Center/Subwoofer and optical SPDIF
Power Requirement Standard 24-pin ATX power supply and P4 8-pin 12V.

( compatible with 20-pin ATX power supply )

Board Dimension 307 mm x 244 mm (L x W)
Temperature Operating within 0 ~ 60°C

Storage within -20 ~ 85°C

Data sheet on AS-C74 (pdf file, opens in new tab)

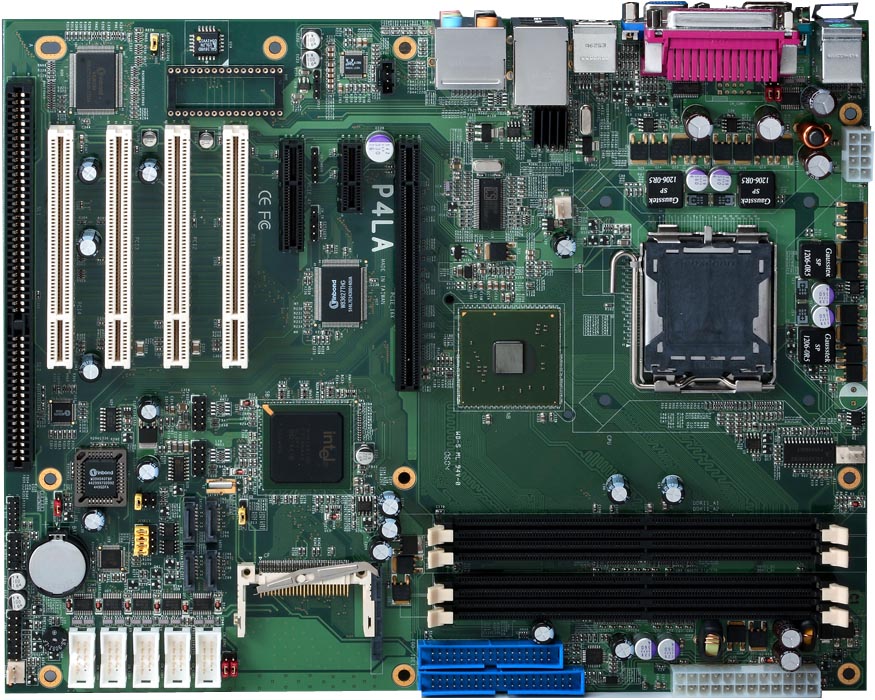

P4LA – Intel® CoreTM 2 Duo w/ ISA slot Desktop industrial ATX Motherboard


Intel® CoreTM 2 Duo Desktop with DDRII , Onboard VGA , Gigabit LAN, 8 x USB2.0 , HD Audio , 6 x COM Ports , SATA , GPIO PCI-Express x16 / x4 / x1 , 4 x PCI and ISA slot.
Commell ATX Motherboard P4LA
Click here to show/ hide more info

Commell ATX Motherboard P4LA

COMMELL, the leader of Industrial motherboard announced the P4LA which based on Intel 945G & ICH7R chipset , support Iintel Pentium D processor with 800/1066 MHz FSB, 945G integrated intel GMA950 Technology. 4 x DDR II support up to 3.0 GB Memory, 4 x SATA II interface with 300MB/s transfer rate, P4LA is designed for many demanding applications , Such as Industrial automation, Game, Medical…..

The P4LA comes with floppy, PS/2 Keyboard and Mouse, 5 x RS232 & 1x RS232/422/485, UltraATA 100 IDE and IrDA interface , Networking is provided by Marvell E8053 PCIE Gigabit Ethernet LAN. 8 x USB2.0 ports and HD Audio are also integrated. Onboard PCI-Express x16 / x4 / x1 slot , 4 x PCI and 1 x ISA slot. CompactFalsh Interface for easily using any communication and memory card.

The COMMELL P4LA is designed to meet the needs of applications that require extraordinary computing performance and reliability , which also well supports with the Windows 2000/XP, Linux operation systems.

Features:

  • CPU: Intel® CoreTM 2 Duo Desktop / Pentium D / Pentium 4 / Celeron D with LGA775 ( Don’t support Extreme Edition )
  • Memory: 4 x 240 pin DDR2 533/677 MHz up to 3.0 GB.
  • Chipset: Intel® 945G and ICH7R.
  • VGA Interface: built-in Intel® Graphics Media Accelerator (GMA) 950.
  • PCI Enhanced IDE: One Ultra ATA/100 IDE channel up to 2 ATAPI devices.
  • Serial ATA: 4 x Serial ATA II Interface with 300MB/s transfer rate.
  • LAN Interface: 1 x Marvell Gigabit LAN.
  • Audio: Realtek ALC880 HD Audio
  • Extended Interface: PCI-Express 16x / 4x / 1x slots , 4 x PCI and 1 x ISA slots.
  • Soild State Disk: DiskOnChip, IDE support 40-pin DOM, CompactFlash Type-II socket.
  • USB: 8 Hi-Speed USB 2.0 interface with up to 480 Mbps of data transfer rate.
  • I/O Ports: 5 x RS232 & 1x RS232/422/485 ports, IrDA, FDD, PS/2 keyboard and mouse ports, 1 x SPDIF. 1 x LPT.
  • Digital I/O: Supports 8-bit digital I/O.
  • Watchdog: Generates a system reset with internal timer for 1 to 255 sec. / min

Specification:

Form Factor Industrial ATX Motherboard
CPU Intel®  CoreTM 2 Duo Desktop / Pentium D / Pentium 4 / Celeron D with LGA775 800/1066 MHz FSB.
Memory 4 x DDRII  533/667 MHz SDRAM t up to 3.0 GB
Chipset Intel 945G and ICH7R
Real Time Clock   Intel ICH7R built-in RTC with onboard lithium battery
Watchdog Timer Generates a system reset  with 1 to 255 sec. / min.
PCI Enhanced IDE One Ultra ATA/100 IDE channel up to 2 ATAPI devices
VGA Interface Intel 945GVintegrated GMA 950 ( Graphics Media Accelerator ) Technology
Video Memory Up to 224MB shared with system memory
Serial ATA Interface 4 x Serial ATA II Interface  with 300MB/s transfer rate
Audio Interface Realtek ALC880 HD Audio
LAN Interface 1 x  Marvell E8053 PCIE Gigabit LAN
Solid State Disk IDE 1 supports DiskOnModule with +5V power supply

1 x  Compact Flash Socket

32-pin DIP JEDEC DiskOnChip Socket

GPIO Interface  Onboard programmable 8-bit  Digital I/O interface
Internal I/O Port 1 x FDD, 4 x USB ports,1 x IrDA, 4 x RS232 & 1 x RS232 /422/485 serial port, 1 x SPDIF, 1 x GPIO
External I/O Port 1 x RJ45 LAN port, 1 x PS/2 keyboard / Mouse ports,  1 x DB15 VGA port, 1 x DB9  RS232 serial port, 1 x LPT, Audio, 4 x USB 2.0 ports
Power Requirement Standard 24-pin ATX power connector ( 20-pin is compatible) Standard 8-pin 12V power Input connector (4 -pin is compatible)
    Board Dimension     307 x 244 mm (L x W)
Operation Temperature  0 ~ 60°C (32 ~ 140°F)


Data sheet on P4LA
 (pdf file, opens in new tab)

iBase ATX Motherboards

Tip: If you don’t need all the expansion slots of a full ATX board, please also check out the Micro-ATX motherboards for more options.

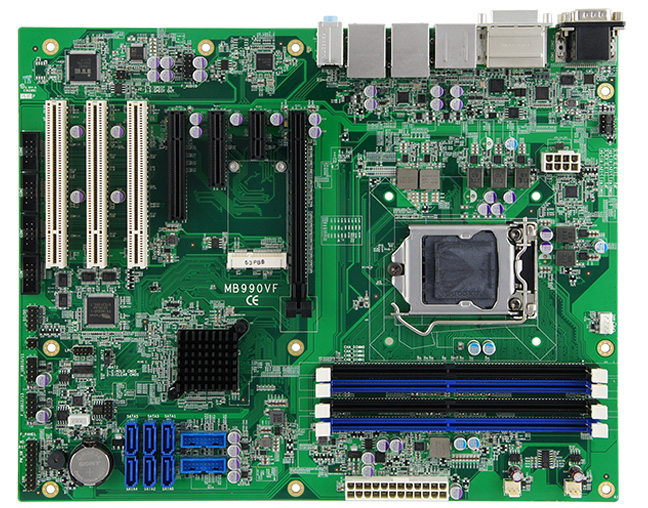

MB990 – ATX Motherboard w/ Intel® Q170 PCH


LGA1151 6th Generation Intel® Core™ i7/i5/i3 and
Pentium®/Celeron® ATX Motherboard w/ Intel® Q170 PCH
iBase Motherboard MB990
Click here to show/ hide more info

iBase Motherboard MB990

The MB990 ATX motherboard supports Intel’s newest 6th Gen Intel® Core™ processors. It features LGA1151 socket for 6th Gen Intel® Core™, Pentium or Celeron processors based on the code-named “Skylake-S” micro-architecture. The motherboard supports four DDR4 DIMM slots for up to 64GB of memory, four USB 2.0, ten USB 3.0, six COM and six SATA III ports, as well as graphics interface for DVI-D, HDMI and DisplayPort displays.

Equipped with a wide variety of expansion options including PCI-E(x16), PCI-E(x8)), PCI-E(x4), PCI-E(x1), Mini PCIe and three PCI slots, MB990 is best suited for IoT, industrial, digital signage, medial, retail and factory automation applications. The platform comes with two Gigabit Ethernet controllers and supports digital I/O, RAID, TPM 1.2 and iAMT 11.0. The board also has advanced iSMART environmental features that enable power on/off scheduling, power resume and full power down functions.

Features:

  • 6th Generation Intel® Core™ i7/i5/i3 / Pentium®/Celeron® QC/DC processors, up to 4GHz
  • 4x DDR4 DIMM, Max. 64GB, ECC compatible
  • Intel® Processor integrated graphics device supports DVI-D, HDMI and DisplayPort
  • Dual Intel® Gigabit LAN
  • 4x USB 2.0, 10x USB 3.0, 6x COM, 6x SATAIII
  • 1x PCI-E(x16), 1x PCI-E(x8) [(x4) Link], 1x PCI-E(x4) [(x1) Link], 1xPCI-E(x1)
  • 1x Mini PCI-E, 3x PCI
  • Watchdog timer, Digital I/O, iAMT (11.0), TPM (1.2), vPro, iSMART 3.0

Specification:

CPU LGA1151 for 6th Generation Intel® Core™ i7 / i5 / i3 /
Pentium® / Celeron® QC/ DC processors, up to 4GHz
System Memory 4x DDR4 DIMM, Max. 64GB (Supports ECC by CPU SKUs)
System Chipset Intel® Q170 PCH
BIOS AMI
Watchdog Timer 256 levels
SSD N/A
H/W Monitor Yes
Expansion Slots 1x PCI-E(x16), 1x PCI-E(x8), 1x PCI-E(x4), 1x PCI-E(x1),
3x PCI, 1x Mini PCI-E
VGA Controller 6th Generation Intel® Core™ i7 / i5 / i3 /
Pentium® / Celeron® QC/ DC processors Integrated
VGA Memory Max. Shared memory – 1024MB
Display Interface Supports DVI-D, HDMI and DisplayPort
LAN Controller MB990VF series: Intel® I219LM Gigabit LAN PHY
Intel® I211AT PCI-E Gigabit LAN (as 2nd LAN)
LAN Connector RJ-45 on board
I/O Chipset Fintek F81866AD-I
5x RS232, 1x RS232/422/485 (Jumper-less selection),
6x SATAIII
USB 6 ports on board, 4 ports via pin-header (USB 3.0)
4 ports via pin-header (USB 2.0)
Audio Intel® Q170 PCH built-in HD audio +
Realtek ALC892 codec
Others Digital I/O (4-in/4-out), RAID, TPM(1.2), iAMT(11.0), iSMART3.0
Dimensions 305mm x 244mm (12“ x 9.6“)
Max. Power Requirement TBD
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 10% ~ 90% (non-condensing)

Data sheet on MB990 (pdf file, opens in new tab)

MB980 ATX Motherboard w/ Intel® Q87 PCH


LGA1150 4th Generation Intel® Core™ i7/i5/i3/Pentium® ATX Motherboard w/ Intel® Q87 PCH
iBase Motherboard MB980
Click here to show/ hide more info

iBase Motherboard MB980

The MB980 in ATX form factor supports the 4th Generation Intel® Core™ i7/i5/i3 processors that are manufactured on industry-leading 22nm process technology with 3D Tri-Gate transistors.

Based on the Intel® Q87 chipset and the 4th Generation Intel® Core™ processors, MB980 provides improved CPU, media and graphics performance as well as energy efficiency making it suitable in intelligent platforms for gaming, infotainment, security, automation and digital signage applications. Moreover, it is embedded with Intel vPro Technology, an added security needed by intelligent systems, to provide a comprehensive set of security and manageability.

The MB980 comes with four standard voltage DDR3 sockets supporting up to 32GB of system memory. Graphics interface includes DVI-I, DVI-D and DisplayPort. High interconnectivity is available through two Gigabit Ethernets, 14 USB ports, 6 serial ports (jumperless selection on COM1 for RS232/422/485) and 6 SATA ports. Expansion cards can be used with the onboard four PCI, PCI-E(x16), PCI-E(x4) and PCI-E(x1) slots. The other useful features are watchdog timer, digital I/O and Intel® Active Management Technology 9.0.

Features:

  • 4th Generation Intel® Core™ i7/i5/i3 / Pentium® / Celeron® processors, up to 3.4GHz
  • 4x DDR3 DIMM, Max. 32GB
  • Intel® Processor integrated graphics device, supports DVI-I,DVI-D and DisplayPort
  • Dual Intel® Gigabit LAN
  • 10x USB 2.0, 4x USB 3.0, 6x COM, 6x SATA III
  • 4x PCI, 1x PCI-E(x16), 1x PCI-E(x4), 1xPCI-E(x1)
  • Watchdog timer, Digital I/O, iAMT (9.0), vPro, iSMART

Specification:

CPU LGA1150 for 4th Generation Intel® Core™ i7/i5/i3/ Pentium® / Celeron® processors, up to 3.4GHz
System Memory 4x DDR3 DIMM, Max. 32GB (Non-ECC)
System Chipset Intel® Q87 PCH
BIOS AMI
Watchdog Timer 256 levels
SSD N/A
H/W Monitor Yes
Expansion Slots 4x PCI, 1x PCI-E(x16), 1x PCI-E(x4), 1x PCI-E(x1)
VGA Controller 4th Generation Intel® Core™ i7/i5/i3/ Pentium® processor integrated
VGA Memory Max. Shared memory – 1024MB
Display Interface Supports DVI-I, DVI-D and DisplayPort
LAN Controller Intel® I217LM Gigabit LAN PHY
Intel® I211AT PCI-E Gigabit LAN
LAN Connector RJ-45 on board
I/O Chipset Fintek F81866AD-I
1x RS232/422/485 (jumperless selection)
5x RS232, 6x SATAIII
USB 2 ports on board, 8 ports via pin-header (USB 2.0)
4 ports on board (USB 3.0)
Audio Intel® Q87 PCH built-in HD audio + Realtek ALC892 codec
Others Digital I/O (4-in/4-out), EuP/ErP supporting, RAID, TPM (1.2), iAMT (9.0), iSMART
Dimensions 305mm x 244mm (12″ x 9.6″)
Max. Power Requirement Intel® Core™ i7-4770 3.10 GHz
w/ 2x 4GB DDR3-1333
+3.3V: 0.72 A +5V: 1.07 A
+5Vsb: 0.08 A +12V: 4.98 A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)

Data sheet on MB980 (pdf file, opens in new tab)

MB970 ATX motherboard w/ Intel® Q77 PCH, ISA Slot


LGA1155 3rd Generation Intel® Core™ i7/i5/i3/Pentium
ATX motherboard w/ Intel® Q77 PCH, with 1 ISA slot, 3 PCI slots, and 4 PCIe
iBase ATX Motherboard - MB970
Click here to show/ hide more info

iBase ATX Motherboard - MB970

The MB970 ATX motherboard is based on the 3rd generation Intel® Core™ processor and Intel® Q77 Express chipset platform to provide the ideal solution for a diverse range of applications such as Gaming, POS, Kiosk, ATM, Multimedia and Digital Signage.

The MB970 is designed for the 22nm 3rd generation Intel® Core™ processor family that supports three independent displays using the DVI-I, DVI-D and DisplayPort connectors on board. In addition to the multiple displays, the MB970 comes with four DDR3 DIMMs that support up to 32GB. It features advanced technologies including USB 3.0 and SATA III connectivity to deliver unprecedented performance and speed in any computing environments. Expansion is implemented with three PCI, one PCI-E(x16), three PCI-E(x1) and an ISA slot for backward compatibility.

Features:

  • 3rd Generation Intel® Core™ i7/i5/i3/ Pentium® QC/ DC processors, up to 3.4GHz
  • 4x DDR3 DIMM, Max. 32GB
  • iSMART – for EuP/ErP power saving, auto- scheduler and power resume
  • Intel® Processor integrated graphics, supports DVI-I,DVI-D and DisplayPort
  • Dual Intel® Gigabit LAN
  • Up to 10x USB 2.0, 4x USB 3.0, 4x COM, 4x SATA II+2x SATA III (MB970VF) 5x SATA II+1x SATA III (MB970F)
  • 1x ISA, 3x PCI, 1x PCI-E(x16), 3x PCI-E(x1)
  • Watchdog timer, Digital I/O, iAMT (8.0), vPro

Specification:

CPU LGA1155 for 3rd Generation Intel® Core™ i7/i5/i3/ Pentium® QC/ DC processors, up to 3.4GHz
System Memory 4x DDR3 DIMM, Max. 32GB (Non-ECC)
System Chipset Intel® Q77 PCH(MB970VF)
Intel® B75 PCH(MB970F)
BIOS AMI
Watchdog Timer 256 levels
SSD CFast
H/W Monitor Yes
Expansion Slots 1x ISA, 3x PCI, 1x PCI-E(x16), 3x PCI-E(x1)
VGA Controller 3rd Generation Intel® Core™ i7/i5/i3/ Pentium® processor integrated
VGA Memory Max. Shared Memory – 1024 MB
Display Interface Supports DVI-I, DVI-D and DisplayPort
LAN Controller Intel® 82579LM(MB970VF)or 82579V(MB970F) Gigabit LAN PHY
Intel® 82583V PCI-E Gigabit LAN
LAN Connector RJ-45 on board
I/O Chipset Fintek F81846AD-I
3x RS232, 1x RS232/422/485, 4x SATA II, 2x SATA III (MB970VF), 5x SATA II, 1x SATA III (MB970F)
USB 2 ports on board, 2 ports via box header (USB 3.0)
MB970VF:
4 ports on board, 6 ports via pin header (USB 2.0)
MB970F:
4 ports on board, 4 ports via pinheader (USB 2.0)
Audio Intel® Q77/B75 PCH built-in HD audio + Realtek ALC892 codec
Others MB970VF: Digital I/O(4-in/4-out), RAID, TPM (1.2)
MB970F: Digital I/O(4-in/4-out), EuP/ErP support
Dimensions 305mm x 244mm (12″ x 9.6″)
Max. Power Requirement Intel® Core™ i7-3770 3.4GHz w/ 2x 2GB DDR3-1333
+12V:1.40A +5V:3.16A
+3.3V:1.68A +5VSB:0.39A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)


Data sheet on MB970
 (pdf file, opens in new tab)

MB960 ATX Motherboard w/ Intel® Q67 PCH, ISA Slot


LGA1155 2nd/3rd Generation Intel® Core™ i7/i5/i3/ Pentium®/Celeron® ATX Motherboard w/ Intel® Q67 PCH, with 1 ISA slot, 4 PCI slots, and PCIe slots
iBase ATX Motherboard - MB960
Click here to show/ hide more info

iBase ATX Motherboard - MB960

The MB960 motherboard is a long-life industrial motherboard with new key features for embedded platform performance. Powered by the Intel® Q67 chipset and the 2nd generation Intel® Core™ processors, the MB960 was designed specifically for performance intensive industrial applications such as Medical and Imaging Systems, Industrial Automation, Gaming and Multimedia.

The MB960 supports advanced technologies including USB 3.0 and SATA 6Gb/s. Optimized for the 2nd generation Intel® Core™ processors, the board delivers unprecedented performance and speed across multiple computing environments. Standard features include four DDR3 dual-channel memory slots, multiple display outputs for DVI-I, DVI-D and HDMI, dual PCI-Express Gigabit Ethernet, Digital I/O, watchdog timer and four serial ports.

Features:

  • Supports 2nd/ 3rd Generation Intel® Core™ i7/i5/i3 / Pentium® / Celeron® processors, up to 3.4GHz
  • 4x DDR3 DIMM, Max. 32GB
  • Integrated VGA, supports DVI-I / DVI-D / HDMI
  • Dual Gigabit LAN
  • 14x USB 2.0, 2x USB 3.0, 4x COM, 4x SATA II, 2x SATA III
  • 4x PCI, 1x PCI-E(x16), 1x PCI-E(x4), 1x ISA (Slave)
  • Watchdog timer, Digital I/O

Specification:

CPU LGA1155 for 2nd/ 3rd Generation Intel® Core™ i7/i5/i3/ Pentium® / Celeron® processors, up to 3.4GHz
System Memory 4x DDR3 DIMM, Max. 32GB (Non-ECC)
System Chipset Intel® Q67 PCH
BIOS AMI
Watchdog Timer 256 levels
SSD Type II CF Socket
H/W Monitor Yes
Expansion Slots 4x PCI, 1x PCI-E(x16), 1x PCI-E(x8) [(x4) Link], ISA (Slave)
VGA Controller 2nd Generation Intel® Core™ i7/i5 /i3 / Pentium®
QC/DC integrated graphic Gen 5.7
VGA Memory Max. Shared Memory – 1024 MB
Display Interface Supports DVI-I, DVI-D, HDMI
LAN Controller Intel® 82579LM(MB960AF) /82579V(MB960F) Gigabit LAN PHY
Intel® 82583V PCI-E Gigabit LAN
LAN Connector 2x RJ-45 on board
I/O Chipset Fintek F81865-I
3x RS232, 1x RS-232/422/485, 4x SATA II,
2x SATA III
USB 4 ports on board, 10 ports via pin header (USB2.0)
2 ports on board (USB 3.0)
Audio Intel® Q67 built-in HD audio w/ Realtek ALC892 for 7.1CH
Others Digital I/O (4-in/4-out), ATX power connector, EuP/ErP compliant
Dimensions 305mm x 244mm (12″ x 9.6″)
Max. Power Requirement Intel® Core™ i7-2600 3.4GHz
w/ 2x2GB DDR3-1333
+12V:7.33A +5V:3.15A
+3.3V:1.67A +5VSB:0.51A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)

Data sheet on MB960 (pdf file, opens in new tab)

MB950 ATX Motherboard w/ Intel® Q57 PCH, ISA Slot


LGA1156 Intel® Core™ i7/i5/i3 ATX Motherboard w/ Intel® Q57 PCH, with 1 ISA slot, 4 PCI slots, and PCIe slots
iBase ATX Motherboard - MB950
Click here to show/ hide more info

iBase ATX Motherboard - MB950

The MB950 ATX motherboard offers the Socket H (LGA1156) supporting the Intel® Core™ i7, Core™ i5, Core™ i3 processors or the Intel® Pentium® processor G9650, all developed on Intel’s microarchitecture and using Intel’s 32nm and 45nm process technologies.

Designed as an enterprise-performance ATX motherboard, the MB950 offers at least 3-year availability and is ideal for the latest generation of POS, kiosk, automation and multimedia applications such as gaming. Based on the Intel® Q57 chipset, the MB950 supports the processor-integrated graphics to provide two display streams in combination of the onboard VGA CRT and DVI-D video interfaces. Up to 16GB of maximum memory can be configured in four DDR3 socket at 1066/1333MHz.

In addition to the impressive computing performance, the board is equipped with high-end connectivity comprised of dual Gigabit LAN controllers, six SATA-II ports, one IDE, fourteen USB 2.0 ports, four COM ports and high-definition audio. Should greater performance or expansion be required, add-on cards can be connected to the onboard PCI-E(x16), PCI-E(x8) [(x4) Link], PCI-E(x1), four PCI, and ISA slot.
Features:

  • Supports Intel® Core™ i7/i5/i3 and Intel® Pentium® QC/DC, 2.8GHz ~ 3.46GHz
  • 4x DDR3 DIMM, Max. 16GB
  • 1x Gigabit MAC + PHY and 1x PCI-E Gigabit LAN
  • Supports dual independent display; DVI-D/ VGA
  • 6x SATA II, 14x USB 2.0, 4x COM
  • 1x PCI-E(x16), 1x PCI-E(x4), 1x PCI-E(x1), 4x PCI, 1x ISA

Specification:

CPU LGA1156 for Intel® Core™ i7/i5/i3 and Intel® Pentium® QC/DC processors, 2.8GHz ~ 3.46GHz
System Memory 4x DDR3 DIMM, Max. 16GB
System Chipset Intel® Q57 PCH
BIOS AMI
Watchdog Timer 256 levels
SSD Type II CF socket
H/W Monitor Yes
Expansion Slots 1x PCI-E(x16), 1x PCI-E(x4), 1x PCI-E(x1), 4x PCI,
1x ISA
VGA Controller Intel® Core™ i5/i3/ Pentium® QC/DC integrated
(not in Intel® Core™ i7)
VGA Memory Max. shared memory – 224 MB
Display Interface Supports CRT and DVI-D
LAN Controller Intel® 82578DM Gigabit MAC + PHY and
Intel® 82583V PCI-E Gigabit LAN
LAN Connector RJ-45 on board
I/O Chipset Winbond W83627UHG
1x KB, 1x mouse,
3x RS232, 1x RS-232/422/485, 6x SATA II
USB 4 ports on board
Pin header for 10 ports (USB 2.0)
Audio Intel® built-in HD audio w/ Realtek ALC892 codec for 7.1CH
Others Digital I/O (4-in/4-out)
Dimensions 305mm x 244mm (12″ x 9.6″)
Max. Power Requirement Intel® Core™ i5-660 3.33GHz
w/ 4x 2GB DDR3-1333
+3.3V: 1.17A +5V: 2.25A
+12V: 3.33A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)

Data sheet on MB950 (pdf file, opens in new tab)

IP413 ATX COM Express Baseboard w/ ISA Slot


ATX COM Express (Type 6) Baseboard – 1x ISA, 3x PCI expansion slots,  Edge connectors for PS/2 keyboard & mouse, RJ45 + dual USB (2.0), COM, VGA, printer port, 2x USB 2.0, audio connector (Line-out, Line-in & Mic.)

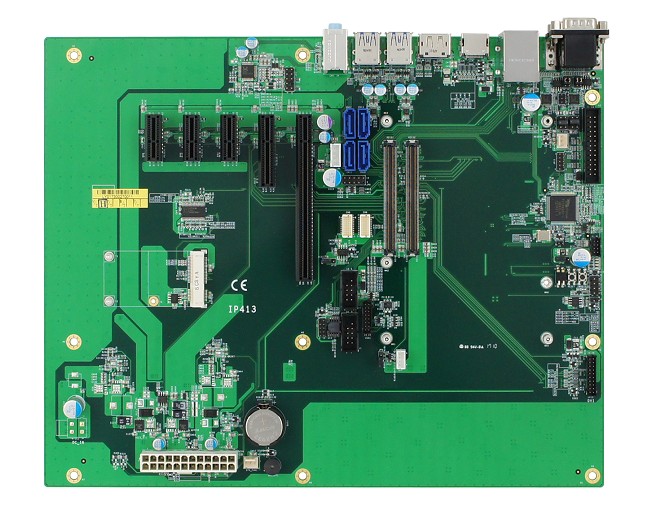

iBase ATX Motherboard - IP413
Click here to show/ hide more info

iBase ATX Motherboard - IP413

Features:

  • 1x PCI-E(x16), 1x PCI-E(x4), 3x PCI-E(x1) expansion slots
  • Edge connectors for PS/2 keyboard & mouse, RJ45+ 1x dual USB (2.0), dual COM, DP+ 1x dual USB 3.0, HDMI+ 1x dual USB 3.0, audio connector (Line-out, Line-in & Mic.)
  • Onboard headers for 2x COM (from COMe module), 1x KB/MS, 2x USB (2.0), DVI-D, CRT, LVDS, 4x SATA III, 1x LPT, COM Express (Type 6) connectors
  • ATX power connector / DC-IN (12V only)
  • 305mm x 244mm

Data sheet on IP413 (pdf file, opens in new tab)

Advantech ATX Motherboards

Tip: If you don’t need all the expansion slots of a full ATX board, please also check out the Micro-ATX motherboards for more options.

AIMB-785 LGA1151 6th and 7th Generation Intel® Core™ i7/i5/i3/Pentium/Celeron ATX Motherboard


LGA1151 6th and 7th Generation Intel® Core™ i7/i5/i3/Pentium/Celeron ATX with Triple Display, DDR4, SATA III
Advantech ATX Motherboards - AIMB-785
Click here to show/ hide more info

Advantech ATX Motherboards - AIMB-785

Features:

  • Supports Intel® 6th and 7th Core™ i7/i5/i3/Pentium/Celeron processor with Q170 chipset
  • Four DIMM sockets support up to 64 GB DDR4 1866/2133
  • Supports triple display VGA/2 DVI-D and dual GbE LAN
  • Supports SATA RAID 0, 1, 5, 10, USB 3.0
  • Supports Intel vPro, AMT 11.0 & TPM technologies
  • Note 1: TPM module is required to enable Intel vPro and TPM technologies.
  • Note 2: Intel 7th generation processors only support Windows 10 (64-bit).

Specifications:

Category Attribute Value
Form Factor Form Factor ATX
Processor System BIOS AMI SPI 128 Mbit
Chipset Intel Q170
CPU Intel Core i7/i5/i3/Pentium
Frequency Up to 3.7 GHz
Integrated Graphics Yes
L3 Cache 8 MB/6 MB/4 MB/3 MB/
Socket LGA1151
Memory Capacity Up to 64 GB (16 GB per DIMM)
Socket 4 x 288-pin DIMM
Technology Dual Channel DDR4 1866/2133 MHz
Display Controller Intel HQ Graphics Integrated
Display Interface VGA: Up to 1920 x 1200 , DVI-D: Up to 1920 x 1200
Graphic Memory Share system memory up to 1 GB with 2 GB and above memory installed
Multiple Display Triple
Expansion Interface LPC 1
PCI 3
PCI Express x 16 1
PCI Express x 4 3
Ethernet Connector 2 x RJ-45
Controller LAN1: Intel I219LM, LAN2: Intel I211AT
Interface 10/100/1000 Mbps
WatchDog Timer Interval Programmable 1~255 sec
Output System Reset
I/O COM Port 5 (4 x RS-232, 1 x RS-232/422/485)
GPIO 8-bit
LPT 1
PS/2 Keyboard/Mouse 1
SATA 6 (4 from Intel® Q170, 2 from Marvell 9186A2)
SPDIF 1
System Fan 2
USB2.0 5
USB3.0 2
Rear I/O Interface Audio 2 (Mic-in, Line-out)
COM 1 (RS-232)
Display 3
DVI 2
Ethernet 2
USB2.0 2
USB3.0 4
VGA 1
Physical Characteristics Dimensions (LxW) 304.8 x 244 mm (12″ x 9.6″)
Certification EMC CE, FCC

Data sheet on AIMB-785 (pdf file, opens in new tab)

AIMB-705 LGA1151 6th Generation Intel® Core™ i7/i5/i3/Pentium ATX Motherboard


LGA1151 6th Generation Intel® Core™ i7/i5/i3/Pentium ATX with DVI/VGA, DDR4, SATA III, USB 3.0 & 6 COMs
Advantech ATX Motherboards - AIMB-705
Click here to show/ hide more info

Advantech ATX Motherboards - AIMB-705

Features:

  • Intel 6th generation Core i7/i5/i3/pentium processor
  • Dual channel (Non-ECC) DDR4 1866/2133 up to 32GB
  • Supports VGA and DVI display
  • Supports SATA3.0, USB3.0, dual GbEs
  • Support 5 RS-232 and 1 RS-232/422/485 serial ports
  • ƒ1 PCIe x16 (Gen3) and 1 PCIe x4 (Gen3), and 5 PCI expansion slots

Specifications:

Category Attribute Value
Form Factor Form Factor ATX
Processor System BIOS AMI SPI 128 Mbit
Chipset Intel H110
CPU Intel Core i7/i5/i3/Pentium
Frequency Up to 3.7 GHz
Integrated Graphics Yes
L3 Cache 8 MB/6 MB/4 MB/3 MB/2 MB
Socket LGA1150
Memory Capacity Up to 32 GB (16 GB Per DIMM)
Socket 2 x 288-pin DIMM
Technology Dual Channel DDR4 1866/2133 MHz
Display Controller Intel HQ Graphics Integrated
Display Interface VGA: Up to 1920 x 1200, DVI-D: Up to 1920 x 1200
Graphic Memory Share system memory up to 1 GB with 2 GB and above memory installed
Multiple Display Dual
Expansion Interface LPC 1
PCI 5
PCI Express x 16 1
PCI Express x 4 1
Ethernet Connector 2 x RJ-45
Controller LAN1: Intel I219-V, LAN2: Intel I211-AT
Interface 10/100/1000 Mbps
WatchDog Timer Interval Programmable 1~255 sec
Output System Reset
I/O COM Port 4 (3 x RS-232, 1 x RS-232/422/485)
GPIO 8-bit
LPT 1
PS/2 Keyboard/Mouse 1
SATA 4 x SATA III
SPDIF 1
System Fan 2
USB2.0 3
USB3.0 2
Rear I/O Interface Audio 2 (Mic-in, Line-out)
COM 2 (RS-232)
Display 2
DVI 1
Ethernet 2
PS/2 2 (1 x keyboard and 1 x mouse)
USB2.0 2
USB3.0 2
VGA 1
Physical Characteristics Dimensions (LxW) 304.8 x 244 mm (12″ x 9.6″)
Certification EMC CE, FCC

Data sheet on AIMB-705 (pdf file, opens in new tab)

AIMB-784 LGA1150 4th generation Intel® Core™ i7/i5/i3/ Pentium ATX Motherboard


LGA1150 4th generation Intel® Core™ i7/i5/i3/ Pentium ATX with DVI/VGA, DDR3, SATA III
Advantech ATX Motherboards - AIMB-784
Click here to show/ hide more info

Advantech ATX Motherboards - AIMB-784

Features:

  • Supports Intel® Core™ i7/i5/i3 processor with Q87 chipset
  • Four DIMM sockets support up to 32 GB DDR3 1333/1600
  • Supports triple display VGA/2 DVI-D and dual GbE LAN
  • Supports SATA RAID 0, 1, 5, 10, AMT9.0, USB 3.0
  • Supports Advantech LPC modules of TPM
  • Software APIs: SMBus / H/W Monitor / Watchdog
  • Utilities: Monitoring

Specifications:

Category Attribute Value
Form Factor Form Factor ATX
Processor System BIOS AMI SPI 128 Mbit
Chipset Intel Q87
CPU Intel Core i7/i5/i3/Pentium
Frequency Up to 3.7 GHz
Integrated Graphics Yes
L3 Cache 8 MB/6 MB/4 MB/3 MB/
Socket LGA1150
Memory Capacity Up to 32 GB (8 GB per DIMM)
Socket 4 x 240-pin DIMM
Technology Dual Channel DDR3 1333/1600 MHz
Display Controller Intel HQ Graphics Integrated
Display Interface VGA: Up to 1920 x 1200 , DVI-D: Up to 1920 x 1200
Graphic Memory Share system memory up to 1 GB with 2 GB and above memory installed
Multiple Display Triple
Expansion Interface LPC 1
PCI 4
PCI Express x 1 1
PCI Express x 16 1
PCI Express x 4 1
Ethernet Connector 2 x RJ-45
Controller LAN1: Intel I217LM, LAN2: Intel I211AT
Interface 10/100/1000 Mbps
WatchDog Timer Interval Programmable 1~255 sec
Output System Reset
I/O COM Port 5 (4 x RS-232, 1 x RS-232/422/485)
GPIO 8-bit
LPT 1
PS/2 Keyboard/Mouse 1
SATA 6 x SATA III (RAID 0, 1, 5, 10)
SPDIF 1
System Fan 2
USB2.0 7
USB3.0 2
Rear I/O Interface Audio 2 (Mic-in, Line-out)
COM 1 (RS-232)
Display 3
DVI 2
Ethernet 2
PS/2 2 (1 x keyboard and 1 x mouse)
USB2.0 2
USB3.0 2
VGA 1
Physical Characteristics Dimensions (LxW) 304.8 x 244 mm (12″ x 9.6″)
Certification EMC CE, FCC

Data sheet on AIMB-784 (pdf file, opens in new tab)

AIMB-782 LGA1155 3rd generation Intel® Core™ processor-based platform


LGA1155 3rd generation Intel® Core™ processor-based platform
Advantech ATX Motherboards - AIMB-782
Click here to show/ hide more info

Advantech ATX Motherboards - AIMB-782

Features:

  • 3rd generation Intel® Core™ processor-based platform
  • Supports Intel 3rd generation Core i7/i5/i3/Pentium processor with Q77 chipset
  • Four DIMM sockets support up to 32 GB DDR3 1333/1600
  • Supports dual display VGA/DVI-D and dual GbE LAN
  • Supports SATA RAID 0, 1, 5, 10, AMT8.0, USB 3.0
  • Supports Advantech LPC modules of TPM

Specifications:

Category Attribute Value
Form Factor Form Factor ATX
Processor System BIOS AMI EFI 64 Mbit
Chipset Intel Q77
CPU Intel Core i7/i5/i3/Pentium
Frequency Up to 3.4 GHz
Integrated Graphics Yes
L3 Cache 8 MB/6 MB/3 MB
Socket LGA1155
Memory Capacity Up to 32 GB (8 GB per DIMM)
Socket 4 x 240-pin DIMM
Technology Dual Channel DDR3 1066/1333/1600 MHz (1600 only supported by Core i7/5/3 3xxx series processors)
Display Controller Intel HQ Graphics Integrated
Display Interface VGA: Up to 2048 x 1536 , DVI-D: Up to 1920 x 1200
Graphic Memory Share system memory up to 1 GB with 2 GB and above memory installed
Multiple Display Dual
Expansion Interface LPC 1
PCI 4
PCI Express x 1 1
PCI Express x 16 1
PCI Express x 4 1
Ethernet Connector 2 x RJ-45
Controller LAN1: Intel 82579LM, LAN2: Intel 82583V
Interface 10/100/1000 Mbps
WatchDog Timer Interval Programmable 1~255 sec
Output System Reset
I/O COM Port 4 (3 x RS-232, 1 x RS-232/422/485)
GPIO 8-bit
LPT 1
PS/2 Keyboard/Mouse 1
SATA 4 x SATA II (RAID 0, 1, 5, 10) 2 x SATA III (RAID 0, 1, 5, 10)
SPDIF 1
System Fan 2
USB2.0 8
USB3.0 2
Rear I/O Interface Audio 2 (Mic-in, Line-out)
COM 2 (RS-232)
Display 2
DVI 1
Ethernet 2
PS/2 2 (1 x keyboard and 1 x mouse)
USB2.0 2
USB3.0 2
VGA 1
Physical Characteristics Dimensions (LxW) 304.8 x 244 mm (12″ x 9.6″)
Certification EMC CE, FCC

Data sheet on AIMB-782 (pdf file, opens in new tab)

AIMB-781 LGA1155 Intel® Core™ i7/i5/i3/Pentium ATX Motherboard


LGA1155 Intel® Core™ i7/i5/i3/Pentium ATX with DVI/VGA, Dual Gigabit LAN, DDR3, SATA III

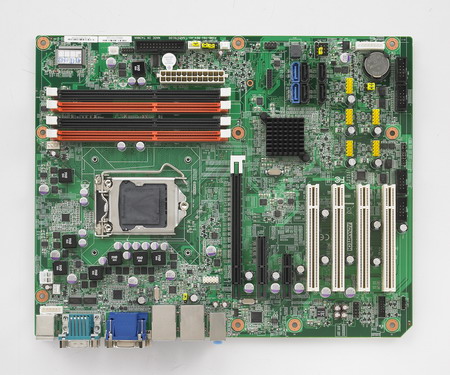

Advantech ATX Motherboards - AIMB-781
Click here to show/ hide more info

Advantech ATX Motherboards - AIMB-781

Features:

  • Supports Intel® Core™ i7/i5/i3/Pentium processor with Q67/B65 chipset
  • Four DIMM sockets support up to 32 GB DDR3 1066/1333
  • Supports dual display VGA and DVI and dual GbE LAN
  • Supports SATA RAID 0, 1, 5, 10, AMT7.0, TPM 1.2 (optional)
  • Supports embedded software APIs and utilities

Specifications:

Category Attribute Value
Form Factor Form Factor ATX
Processor System BIOS AMI EFI 64 Mbit
Chipset Intel Q67
CPU Intel Core i7/i5/i3/Pentium
Frequency Up to 3.4 GHz
Integrated Graphics Yes
L3 Cache 8 MB/6 MB/3 MB
Socket LGA1155
Memory Capacity Up to 32 GB (8 GB per DIMM)
Socket 4 x 240-pin DIMM
Technology Dual Channel DDR3 1066/1333 MHz
Display Controller Intel HQ Graphics Integrated
Display Interface VGA: Up to 2048 x 1536 , DVI-D: Up to 1920 x 1200
Graphic Memory Share system memory up to 1 GB with 2 GB and above memory installed
Multiple Display Dual
Expansion Interface LPC 1
PCI 4
PCI Express x 1 1
PCI Express x 16 1
PCI Express x 4 1
Ethernet Connector 2 x RJ-45
Controller LAN1: Intel 82579LM, LAN2: Intel 82583V
Interface 10/100/1000 Mbps
WatchDog Timer Interval Programmable 1~255 sec
Output System Reset
I/O COM Port 4 (3 x RS-232, 1 x RS-232/422/485)
GPIO 8-bit
LPT 1
PS/2 Keyboard/Mouse 1
SATA 4 x SATA II (RAID 0, 1, 5, 10) 2 x SATA III (RAID 0, 1, 5, 10)
SPDIF 1
System Fan 2
USB2.0 10
Rear I/O Interface Audio 2 (Mic-in, Line-out)
COM 2 (RS-232)
Display 2
DVI 1
Ethernet 2
PS/2 2 (1 x keyboard and 1 x mouse)
USB2.0 4
VGA 1
Physical Characteristics Dimensions (LxW) 304.8 x 244 mm (12″ x 9.6″)
Certification EMC CE, FCC

Data sheet on AIMB-781 (pdf file, opens in new tab)

AIMB-780 LGA1156 Intel® Core™ i7/i5/i3/Pentium®/Xeon® ATX Motherboard


LGA1156 Intel® Core™ i7/i5/i3/Pentium®/Xeon® ATX with DVI/VGA, 4 COM, Dual LAN, DDR3
AIMB-780 is an industrial-grade ATX motherboard with an LGA 1156 socket supporting Intel® Core™ i7/i5/i3/Xeon®/Pentium® processors. It also features Intel server-grade Xeon 34xx series processors with ECC DDR3 support and is capable of SATA RAID 0, 1, 5, and 10 to ensure reliable storage and system protection for network-intensive applications.

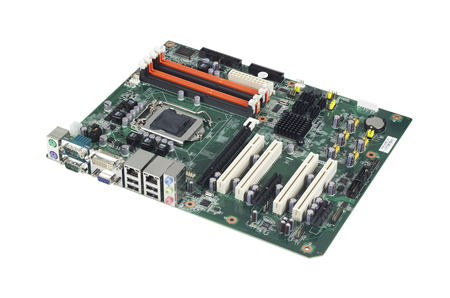

Advantech ATX Motherboards - AIMB-780
Click here to show/ hide more info

Advantech ATX Motherboards - AIMB-780

AIMB-780 is an industrial-grade ATX motherboard with an LGA 1156 socket supporting Intel® Core™ i7/i5/i3/Xeon®/Pentium® processors. It also features Intel server-grade Xeon 34xx series processors with ECC DDR3 support and is capable of SATA RAID 0, 1, 5, and 10 to ensure reliable storage and system protection for network-intensive applications.

Features:

  • Supports Intel® Core™ i7/i5/i3/Pentium®/Xeon® processor with Q57/3450 chipset
  • Four DIMM sockets support up to 16 GB DDR3 800/1066/1333
  • Supports dual display VGA and DVI and dual GbE LAN
  • Supports SATA RAID 0, 1, 5, 10, AMT6.0, TPM1.2 (optional)
  • Supports embedded software APIs and utilities

Specifications:

Category Attribute Value
Form Factor Form Factor ATX
Processor System BIOS AMI EFI 64 Mbit
Chipset Intel Q57
CPU Intel Xeon/Core i7/i5/i3/Pentium
Frequency Up to 3.3 GHz
Integrated Graphics Yes
L3 Cache 8 MB/4 MB/3 MB
Socket LGA1156
Memory Capacity Up to 16 GB (4 GB per DIMM)
Socket 4 x 240-pin DIMM
Technology Dual Channel DDR3 800/1066/1333 MHz
Display Controller Intel HQ Graphics Integrated
Display Interface VGA: Up to 2048 x 1536 , DVI-D: Up to 1920 x 1200
Graphic Memory Share system memory up to 1 GB with 2 GB and above memory installed
Multiple Display Dual
Expansion Interface LPC 1
PCI 4
PCI Express x 1 1
PCI Express x 16 1
PCI Express x 4 1
Ethernet Connector 2 x RJ-45
Controller LAN1: Intel 82578DM, LAN2: Intel 82583V
Interface 10/100/1000 Mbps
WatchDog Timer Interval Programmable 1~255 sec
Output System Reset
I/O COM Port 2 (1 x RS-232, 1 x RS-232/422/485)
GPIO 8-bit
LPT 1
PS/2 Keyboard/Mouse 1
SATA 6 x SATA II (RAID 0, 1, 5, 10)
SPDIF 1
System Fan 2
USB2.0 10
Rear I/O Interface Audio 2 (Mic-in, Line-out)
COM 2 (RS-232)
Display 2
DVI 1
Ethernet 2
PS/2 2 (1 x keyboard and 1 x mouse)
USB2.0 4
VGA 1
Physical Characteristics Dimensions (LxW) 304.8 x 244 mm (12″ x 9.6″)
Certification EMC CE, FCC

Data sheet on AIMB-780 (pdf file, opens in new tab)

AIMB-769 LGA775 Intel® Core™2 Quad ATX Motherboard


LGA775 Intel® Core™2 Quad ATX with VGA, 2 COM, Single LAN
Advantech ATX Motherboards - AIMB-769
Click here to show/ hide more info

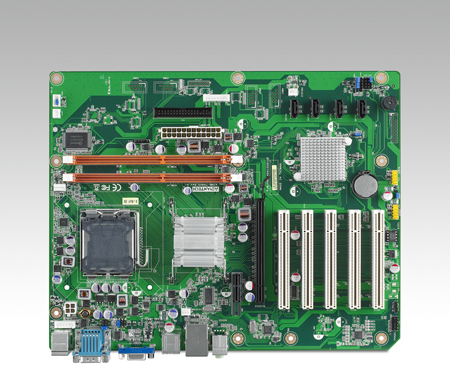

Advantech ATX Motherboards - AIMB-769

Features:

  • Intel® G41 chipset supports 800/1066/1333 MHz FSB
  • Dual channel DDR3 800/1066 SDRAM up to 4 GB
  • Chipset integraged VGA
  • Supports dual core and quad core processors with 45 nm processing
  • Supports single 10/100/1000 Mbps Ethernet via dedicated PCIe x1 bus
  • Supports Embedded Software APIs and Utilities

Specifications:

Category Attribute Value
Form Factor Form Factor ATX
Processor System BIOS AMI 16 Mbit SPI
Chipset Intel G41 + ICH7
CPU
Frequency Up to 3.16 GHz
FSB 800/1066/1333 MHz
Integrated Graphics Yes
L2 Cache 12MB/6MB/8MB/512KB
L3 Cache
Memory Capacity Up to 4GB (2 GB per DIMM)
ECC Support
Socket 2 x 240-pin UDIMM
Technology DDR3 800/1066 MHz
Display Controller Intel GMA X4500 Integrated
Display Interface VGA: Up to 2048 x 1536
Graphic Memory Share with system memory up to 352 MB
Multiple Display
Expansion Interface LPC 1
PCI 5
PCI Express x 1 1
PCI Express x 16 1
PCI Express x 4
Ethernet Connector 1 x RJ45
Controller LAN1: REALTEK RTL8111DL
Speed 10/100/1000 Base-T
WatchDog Timer Interval Programmable 1~255 sec
Output System Reset
I/O COM Port
GPIO 8-bit
LPT
PS/2 Keyboard/Mouse 1
SATA 4 x SATA II
SPDIF
System Fan 2
USB2.0 4
USB3.0
Rear I/O Interface Audio 2 (Mic-in, Line-out)
COM 2 (2 x RS232)
Display 1
DVI
Ethernet 1
LPT
PS/2 2(1 x keyboard and 1 x mouse)
USB2.0 4
USB3.0
VGA 1
Physical Characteristics Dimensions (LxW) 304.8 x 244 mm (12″ x 9.6″)
Certification EMC CE, FCC
Management Solution Software SUSIAccess

Data sheet on AIMB-769 (pdf file, opens in new tab)

AIMB-767 LGA775 Intel® Core™2 Quad ATX Motherboard


LGA775 Intel® Core™2 Quad ATX with Dual VGA/DVI, 4 COM, Dual LAN
Advantech ATX Motherboards - AIMB-767
Click here to show/ hide more info

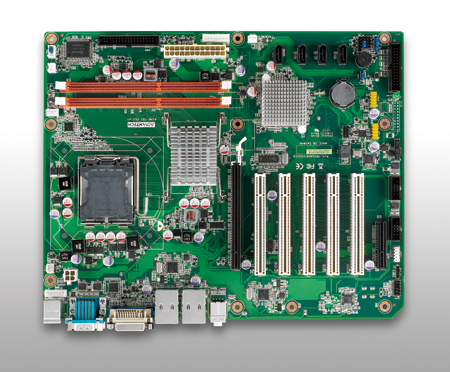

Advantech ATX Motherboards - AIMB-767

Features:

  • Intel® G41 chipset supports 800/1066/1333 MHz FSB
  • Dual channel DDR3 800/1066 SDRAM up to 4 GB
  • Supports dual display, VGA and DVI-D
  • Supports dual core and quad core processors with 45nm processing
  • Supports SATA RAID 0,1,5,10
  • Supports Embedded software APIs and utilities

Specifications:

Category Attribute Value
Form Factor Form Factor ATX
Processor System BIOS AMI 16 Mbit SPI
Chipset Intel G41 + ICH7R
CPU Intel Core 2 Quad/Duo
Frequency Up to 3.16 GHz
FSB 800/1066/1333 MHz
Integrated Graphics Yes
L2 Cache 12 MB/6 MB/8 MB/512 KB
Socket LGA775
Memory Capacity Up to 8 GB (4 GB per DIMM)
Socket 2 x 240-pin DIMM
Technology Dual Channel DDR3 800/1066 MHz
Display Controller Intel GMA X4500 Integrated
Display Interface VGA: Up to 2048 x 1536 , DVI-D: Up to 1920 x 1200
Graphic Memory Share with system memory up to 352 MB
Multiple Display Dual
Expansion Interface LPC 1
PCI 5
PCI Express x 16 1
PCI Express x 4 1
Ethernet Connector 2 x RJ-45
Controller LAN1: Intel 82583V , LAN2: Intel 82583V
Interface 10/100/1000 Mbps
WatchDog Timer Interval Programmable 1~255 sec
Output System Reset
I/O COM Port 2 (1 x RS-232, 1 x RS-232/422/485)
LPT 1
PS/2 Keyboard/Mouse 1
SATA 4 x SATA II (RAID 0, 1, 5, 10)
SPDIF 1
System Fan 2
USB2.0 4
Rear I/O Interface Audio 2 (Mic-in, Line-out)
COM 2 (RS-232)
Display 2
DVI 1
Ethernet 2
PS/2 2 (1 x keyboard and 1 x mouse)
USB2.0 4
VGA 1
Physical Characteristics Dimensions (LxW) 304.8 x 244 mm (12″ x 9.6″)
Certification EMC CE, FCC

Data sheet on AIMB-767 (pdf file, opens in new tab)

AIMB-701 LGA1155 Intel® Core™ i7/i5/i3/Pentium ATX Motherboard


LGA1155 Intel® Core™ i7/i5/i3/Pentium ATX with DVI/VGA, Dual GbE LAN
Advantech ATX Motherboards - AIMB-701
Click here to show/ hide more info

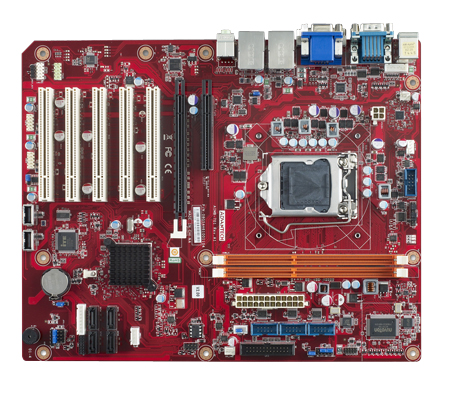

Advantech ATX Motherboards - AIMB-701

Features:

  • Supports Intel® Core™ i7/i5/i3/Pentium processor with H61 chipset
  • Two DIMM sockets support up to 16 GB DDR3 1066/1333
  • Supports dual display VGA/DVI-D and dual GbE LAN
  • Supports RS232/422/485 with auto flow control
  • Supports One PCIe x16 and 5 PCI expansion slots

Specifications:

Category Attribute Value
Form Factor Form Factor ATX
Processor System BIOS AMI EFI 64 Mbit
Chipset Intel H61
CPU Intel Core i7/i5/i3/Pentium
Frequency Up to 3.4 GHz
Integrated Graphics Yes
L3 Cache 8 MB/6 MB/3 MB
Socket LGA1155
Memory Capacity Up to 16 GB (8 GB per DIMM)
Socket 2 x 240-pin DIMM
Technology Dual Channel DDR3 1066/1333/1600 MHz (1600 only supported by Core i7/5/3 3xxx series processors)
Display Controller Intel HQ Graphics Integrated
Display Interface VGA: Up to 2048 x 1536
Graphic Memory Share system memory up to 1 GB with 2 GB and above memory installed
Expansion Interface LPC 1
PCI 5
PCI Express x 16 1
PCI Express x 4 1
Ethernet Connector 1 x RJ-45
Controller LAN1: Intel 82579V
Interface 10/100/1000 Mbps
WatchDog Timer Interval Programmable 1~255 sec
Output System Reset
I/O GPIO 8-bit
LPT 1
PS/2 Keyboard/Mouse 1
SATA 4 x SATA II
SPDIF 1
System Fan 2
USB2.0 6
Rear I/O Interface Audio 2 (Mic-in, Line-out)
COM 2 (RS-232)
Display 1
Ethernet 1
PS/2 2 (1 x keyboard and 1 x mouse)
USB2.0 4
VGA 1
Physical Characteristics Dimensions (LxW) 304.8 x 244 mm (12″ x 9.6″)
Certification EMC CE, FCC

Data sheet on AIMB-701 (pdf file, opens in new tab)
