Industrial Motherboards – Micro ATX

24x24 cm - Commell, iBase & Advantech

Motherboards & Mainboards – Small – MicroATX

Choose from a wide range of Industrial Grade Micro-ATX motherboards. Other sizes are also available, see links at right.

Building a new industrial PC?

Ask us to build it for you, with a mix of industrial grade, desktop or server components to meet your needs. Contact us for a quote.

How do Industrial Grade motherboards differ from regular PC or server motherboards?

  • Extra reliability testing – designed for reliable 24×7 operation in harsh environments
  • Temperature rating – most industrial grade boards are rated to 60°C (regular & server components are normally rated to 40°C or less)
  • Long product lifecycle – each motherboard is typically available for 5-10 years
  • Support for legacy peripherals – industrial motherboards are available with ISA and PCI slots, multiple serial ports, RS-485 ports etc.

Common questions about the various Intel Processors (Intel website, opens new tab)

ATX - Advanced Technology Extended

ATX = Advanced Technology Extended

ATX Motherboard Derivatives:

Standard ATX size: 30.5 × 24.4cm (maximum sizes)
MicroATX size: 24.4 × 24.4 cm (aka mATX or µATX)
Mini-ATX size: 28.45 × 20.83 cm See below.

See also Mini-ITX: 17.0 x 17.0 cm, etc, on separate page:  click here

MicroATX Information:

microATX, also known as µATX or mATX, motherboards, has a maximum size of 244 mm×244 mm, down to 171.45 mm × 171.45 mm (The standard ATX size is 25% longer, at 305 mm × 244 mm).

More data on MicroATX

More data on MicroATX (Wiki, opens in new tab)

Currently available microATX motherboards support CPUs from either Intel or AMD. There are no known microATX motherboards for processor architectures other than x86 and x86-64.

microATX was explicitly designed to be backward-compatible with ATX. The mounting points of microATX motherboards are a subset of those used on full-size ATX boards, and the I/O panel is identical. Thus, microATX motherboards can be used in full-size ATX cases. Furthermore, most microATX motherboards generally use the same power connectors as ATX motherboards,[2] thus permitting the use of full-size ATX power supplies with microATX boards.

microATX boards often use the same chipsets (northbridges and southbridges) as full-size ATX boards, allowing them to use many of the same components. However, since microATX tower cases are typically much smaller than ATX tower cases, they usually have fewer I/O ports and expansion slots.

microATX boards typically have only three PCI or PCI-Express expansion slots, four being the maximum permitted by the specification. Most modern ATX motherboards have five or more PCI or PCI-Express expansion slots. In order to conserve expansion slots and case space, many manufacturers produce microATX motherboard with a full-range of integrated peripherals (especially integrated graphics), which may serve as the basis for small form factor and media center PCs.

Mini-ATX or Mini ATX

Mini ATX is another ATX-derived form factor board that 284.5 mm x 208.3 mm ( 11.2″ x 8.2″)

Do not confuse Mini ATX 28.45 × 20.83 cm with Mini ITX 17 x 17cm

ATX Motherboards Form Factor Comparison

Computer Board Form Factors

ATX Motherboards Form Factor ComparisonName (biggest at top)
WTX  356×425
AT      350×305
Baby-AT 330×216
BTX   325×266
ATX   305×244
LPX    330×229
NLX   254×228
microATX  244×244
DTX           244×203
FlexATX    229×191
Mini-DTX  203×170EBX           203×146 Stacking
microATX (min.) 171×171
Mini-ITX             170×170
EPIC (Express)    165×115  Stacking
Nano-ITX           120×120
COM Express      125×95
ETX / XTX          114×95
Pico-ITX             100×72
PC/104 (-Plus)     96×90 Stacking
PCI-104                96×90     Stacking
mobile-ITX          75×45

See http://en.wikipedia.org/wiki/Comparison_of_computer_form_factors for more information.

In the diagram below, standard paper sizes A3, A4, A5 are shown in red dashes.

Commell MicroATX Motherboards – Industrial Grade

Tip: If your PC case has enough space, you can also check the full size ATX motherboards for more options.

ME-C79 – 4th Intel® Core™ i7 / i5 / i3 and Celeron 2002E CPU MicroATX Motherboard


Support 4th Intel® Core™ i7 / i5 / i3 and Celeron 2002E Mobile CPU with Mobile Intel® QM87 Express. Onboard DVI, Display Port, CRT, LVDS, 32GB DDR3L, 2 x Giga LAN, 4 x USB 2.0, 6 x USB 3.0, 6 x COM, 4 x SATA, HD Audio, GPIO, LPT, SMBUS, IrDA, 2 x PCI slots, PCI-Express X16 & X4 slot, Mini-PCIe & Mini-PCI sockets.

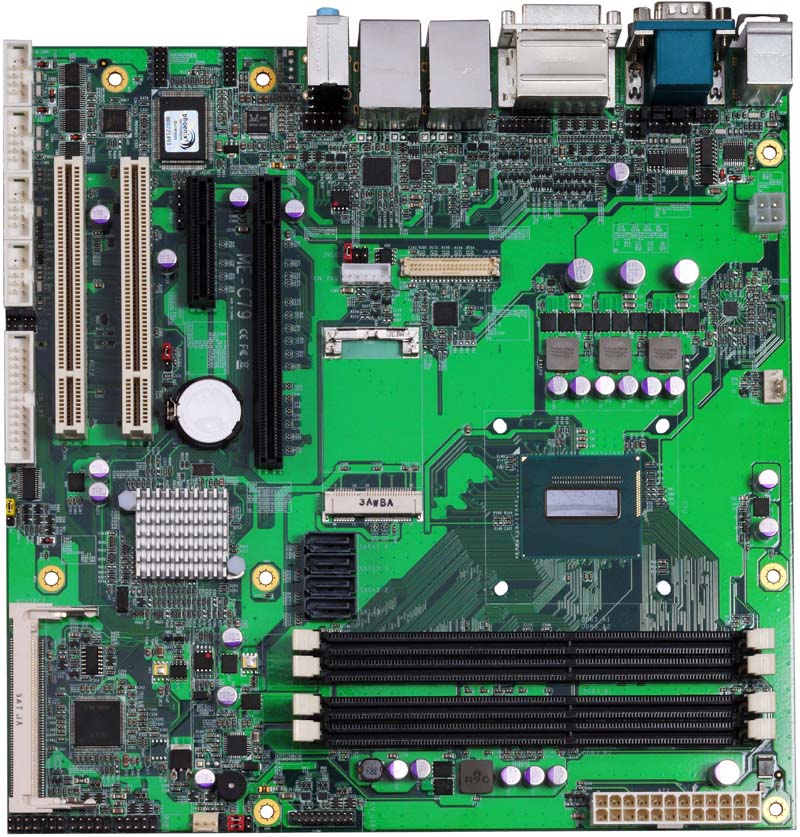

Commell MicroATX Mainboards - ME-C79
Click here to show/ hide more info

Commell MicroATX Mainboards - ME-C79

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial MicroATX motherboard, introduced the MicroATX motherboard ME-C79 that designed for the 4th generation Intel Core i7/i5/i3 , ex. i7-4700EQ , and Celeron 2002E Moblie processors.The MicroATX motherboard based on intel QM87 Express chipset is part of the mobile Intel QM87 Series Chipset family, along with intel 4th generation processors integrated HD Graphic 4600 (formerly known as “Haswell”, manufactured on 22nm processor technology). The COMMELL ME-C79 platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation application.

The ME-C79 Industrial MicroATX motherboard is designed for the 4th generation Intel® Core™ i7/i5/i3 , Celeron 2002E Mobile Processors in the FCBGA1364 supporting four DDR3L DIMM up to 32GB and running 1333/1600 MHz No ECC function. The platform is based on Intel® HD Graphics 4600 that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. In addition, ME-C79 supports CRT, LVDS, DVI and one Display port to provide its advanced solutions for imaging, machine vision and digital signage applications.

ME-C79 offers lots of features including high-speed data transfer interfaces such as 6 x USB3.0 and 4 x SATA3 supported RAID 0/1/5/10, equipped with dual Gigabit Ethernet with iAMT 9.0 supported, and comes with PS/2 Keyboard and Mouse port, 5 x RS232 and 1 x RS232/422/485, 4 x USB2.0, Intel® High Definition Audio, and two PCI slots, one PCI Express x16 & x4 slots, one PCIE Mini card & mini PCI socket,

Features:

  • CPU: Intel® 4th generation Core™ i7/ i5/ i3 and Celeron 2002E Mobile Processor
  • Memory: Four DDR3L (support 1.5V) DIMM 1333/1600 MHz up to 32 GB
  • Chipset: Mobile Intel® QM87 Express chipset
  • Integrated Graphics: Intel® Core™ integrated HD Graphics 4600 Technology
  • Display port interface: Rear I/O Port
  • CRT Interface: Onboard 2×8 pin-header
  • LVDS interface: Onboard 24-bit dual channel connector with +3.3/+5/+12V supply
  • DVI interface: Rear I/O Port
  • LAN Interface: 1 x Intel® I210-AT Giga LAN and 1 x Intel® I217-LM Giga LAN(Support iAMT9.0)
  • Serial ATA: Support 4 x SATA ( All serial ATA3 )
  • Audio: Realtek ALC888 High Definition Audio.
  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 4 x USB2.0 ports, 6 x USB3.0 ports, 1 x Display port, 1 x DVI, 1 x PS/2 keyboard and mouse ports, 1 x LPT, 1 x CRT.
  • Extended interface: PCI-Express X16 slot, PCI-Express X4 slot, 2 x PCI slots,1 x mini PCI socket, 1 x Mini-PCIe socket.
  • GPIO interface: Onboard programmable 12 pin-header, 8-bit Digital I/O interface.
  • Power requirement : Standard 24-pin(20-pin is compatible) ATX P/S and P4 4-pin 12V

Specification:

Form Factor Industrial MicroATX  Motherboard
Processor 4th  generation Intel® Core™ i7 / i5 / i3 and Celeron 2002E Mobileprocessor
Memory 4 x DDR3L (support 1.5V) 1333/1600 DIMM up to 32 GB
Chipset Mobile Intel® QM87 Express chipset
Integrated Graphics Intel® Core™ integrated HD Graphics 4600 Technology
Real Time Clock   Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s
Power Management ACPI 4.0 compliant
Serial ATA Interface All 4 x SATA3 interface up to 600MB/s.
Display port Interface  Rear I/O Port
CRT Interface Onboard 2×8 pin-header
LVDS Interface Onboard 24-bit dual channel connector with +3.3/+5/+12V supply
 DVI Interface  Rear I/O Port
Audio Interface Realtek ALC888 HD Audio
LAN Interface 1 x Intel® I210-AT Gigabit Ethernet Controller

1 x Intel® I217-LM Gigabit Ethernet Controller(Support iAMT8.0)

GPIO Interface Onboard programmable 12 pin-header, 8-bit digital I/O interface
Extended Interface  1 x PCIe x16/x4 slot, 1 x PCIe mini card socket, 2 x PCI slot ,

1 x Mini PCI socket
(Optional support mSATA(SATAIII) for Mini_Card1,but SATA6 will be disable)

Internal I/O Port 4 x RS232,1 x SMBUS, 1 x GPIO, 2 x USB3.0, 4 x USB2.0, 1 x IrDA, 1 x CRT , 1 x LVDS, 1 x LCD inverter, 1 x LPC, 4 x Serial ATA3, 1 x Parallel port, and 1 x Front panel Audio.
External I/O Port 1 x PS/2, 2 x LAN ports, 1 x DVI, 1 x DisplayPort, 4 x USB3.0 ports, 1 x RS232/422/485, 1 x RS232, and 1 x HD Audio.
Power Requirement Standard 24-pin ATX power supply (20-pin is compatible) and P4 4-pin 12V
Board Dimension 244 mm x 244 mm (L x W)
Temperature Operating within 0 ~ 60°C

Storage within -20 ~ 85°C


Data sheet on ME-C79

(pdf file, opens in new tab)

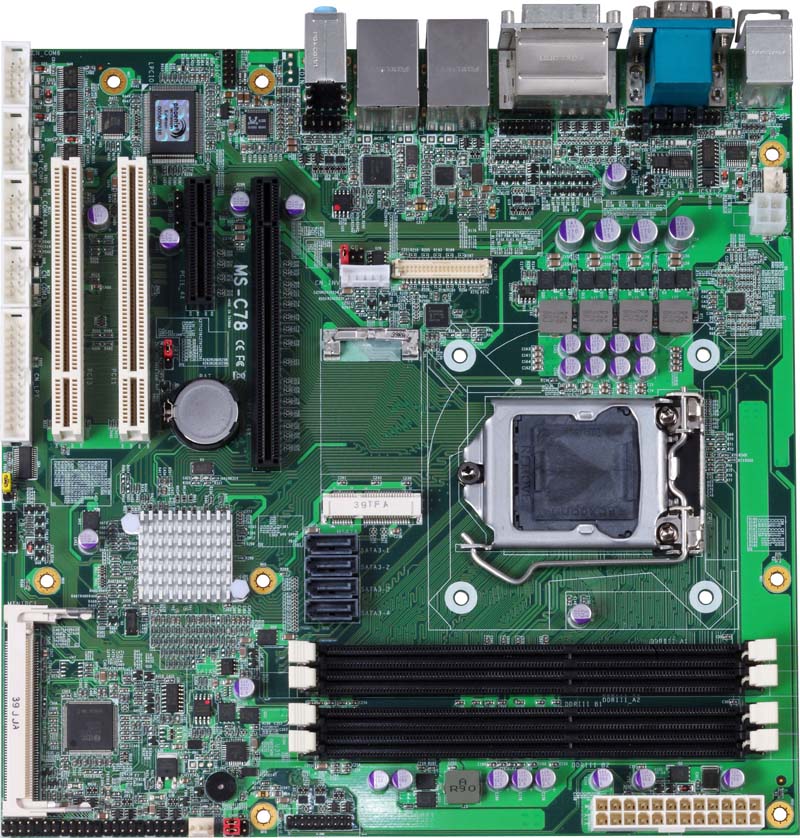

MS-C78 – 4th Intel® Core™ i7 / i5 / i3 / Celeron / Pentium Desktop Processor MicroATX Motherboard


Support 4th Intel® Core™ i7 / i5 / i3 / Celeron / Pentium Desktop Processor with Intel® Q87 Express. Onboard DVI, Display Port, CRT, LVDS, 32GB DDR3/DDR3L, 2 x Giga LAN, 6 x USB 2.0, 6 x USB 3.0, 6 x COM, 4 x SATA, HD Audio, GPIO, LPT, SMBUS, IrDA, 2 x PCI slots, PCI-Express X16 & X4 slot, Mini-PCIe & Mini-PCI sockets.
Commell MicroATX Mainboards - ME-C79
Click here to show/ hide more info

Commell MicroATX Mainboards - ME-C79

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial MicroATX motherboard, introduced the MicroATX motherboard MS-C78 that designed for the 4th generation Intel Core i7 / i5 / i3 / Celeron / Pentium Desktop processors.The MicroATX motherboard based on intel Q87 Express chipset is part of the desktop Intel Q87 Series Chipset family, along with intel 4th generation processors integrated HD Graphic 4600 (formerly known as “Haswell”, manufactured on 22nm processor technology). The COMMELL MS-C78 platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation application.

The MS-C78 Industrial MicroATX motherboard is designed for the 4th generation Intel® Core™ i7 / i5 / i3 / Celeron / Pentium Desktop Processors in the FCLGA1150 supporting four DDR3 / DDR3L DIMM up to 32GB and running 1333/1600 MHz No ECC function. The platform is based on Intel® HD Graphics 4600 that provides high-end media and graphics capabilities for devices that display videos, 2D / 3D graphics and interactive content. In addition, MS-C78 supports VGA, LVDS, DVI and one Display port to provide its advanced solutions for imaging, machine vision and digital signage applications.

MS-C78 offers lots of features including high-speed data transfer interfaces such as 6 x USB3.0 and 4 x SATA3 supported RAID 0 / 1 / 5 / 10, equipped with dual Gigabit Ethernet with iAMT 9.0 supported, and comes with PS/2 Keyboard and Mouse port, 5 x RS232 and 1 x RS232/422/485, 6 x USB2.0, Intel® High Definition Audio, and two PCI slots, one PCI Express x16 & x4 slots, one PCIE Mini card & mini PCI socket,

Features:

  • CPU: Intel® 4th generation Core™ i7 / i5 / i3 / Celeron / Pentium Desktop Processor
  • Memory: Four DDR3/DDR3L (support 1.5V) DIMM 1333/1600 MHz up to 32 GB
  • Chipset: Intel® Q87 Express chipset
  • Integrated Graphics: Intel® Core™ integrated HD Graphics 4600 Technology
  • Display port interface: Onboard Display port connector
  • VGA Interface: Intel® Clear Video integrated HD Graphics Technology
  • LVDS interface: Onboard 24-bit dual channel connector with +3.3/+5/+12V supply
  • DVI interface: Onboard DVI connector
  • LAN Interface: 1 x Intel® I210-AT Giga LAN and 1 x Intel® I217-LM Giga LAN(Support iAMT9.0)
  • Serial ATA: Support 4 x SATA ( All serial ATA3 )
  • Audio: Intel® integrated Q87 Realtek ALC888 High Definition Audio.
  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 6 x USB2.0 ports, 6 x USB3.0 ports, 1 x Display port, 1 x DVI, 1 x PS/2 keyboard and mouse ports, 1 x LPT, 1 x CRT.
  • Extended interface: PCI-Express X16 slot, PCI-Express X4 slot, 2 x PCI slots,1 x mini PCI socket, 1 x Mini-PCIe socket.
  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.
  • Power requirement : Standard ATX 24-pin(20-pin is compatible) power supply and P4 4-pin 12V

Specification:

Form Factor Industrial MicroATX  Motherboard
Processor 4th  generation Intel® Core™ i7 / i5 / i3 / Celeron / Pentium Desktopprocessor
Memory 4 x DDR3/DDR3L (support 1.5V) 1333/1600 DIMM up to 32 GB
Chipset Intel® Q87 Express chipset
Integrated Graphics Intel® Core™ integrated HD Graphics 4600 Technology
Real Time Clock   Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s
Power Management ACPI 4.0 compliant
Serial ATA Interface All 4 x SATA3 interface up to 600MB/s.
Display port Interface  Onboard Display port connector
VGA Interface Intel® Clear Video integrated HD Graphics Technology
LVDS Interface Onboard 24-bit dual channel connector with +3.3/+5/+12V supply
 DVI Interface  Onboard DVI connector
Audio Interface Intel® integrated Q87 Realtek ALC888 High Definition Audio.
LAN Interface 1 x Intel® I210-AT Gigabit Ethernet Controller

1 x Intel® I217-LM Gigabit Ethernet Controller(Support iAMT8.0)

GPIO Interface Onboard programmable 8-bit digital I/O interface
Extended Interface  1 x PCIe x16 & x4 slot, 1 x PCIe mini card socket, 2 x PCI slot ,  1 x Mini PCI socket (Optional support mSATA(SATAIII) for Mini_Card,but SATA6 will be disable)
Internal I/O Port 4 x RS232, 1 x GPIO port, 1 x Front panel Audio, 1 x IrDA connector, 1 x CRT, 1 x SMBUS, connector, 1 x LVDS, 1 x LPC, 1 x LPT, 6 x USB2.0 and 2 x USB3.0 ports, 4 x SATAIII
External I/O Port 1 x PS/2 Keyboard/Mouse Port, 1 x RS232, 1 x RS232/422/485, 1 x DVI Port, 1 x Display port, 2 x RJ45 LAN ports,  4 x USB3.0 ports,  and 1 x 2 Channel HD Audio.
Power Requirement Standard ATX 24-pin(20-pin is compatible) power supply and P4 4-pin 12V
Board Dimension 244 mm x 244 mm (L x W)
Temperature Operating within 0 ~ 60°C

Storage within -20 ~ 85°C

Data sheet on MS-C78 (pdf file, opens in new tab)

MS-C75 3rd and 2nd Intel® Core™ i7 / i5 / i3 MicroATX Motherboard


Support 3rd and 2nd Intel® Core™ i7 / i5 / i3 / Mobile CPU with Mobile Intel® QM77 Express, onboard VGA, LVDS & DVI, 16 GB DDR3 2 x Giga LAN, 6 x USB 2.0, 4 x USB 3.0, 6 x COM, 6 x SATA, HD Audio, GPIO PCI-Express X16 & X4 slot, Mini-PCIe & Mini-PCI sockets.

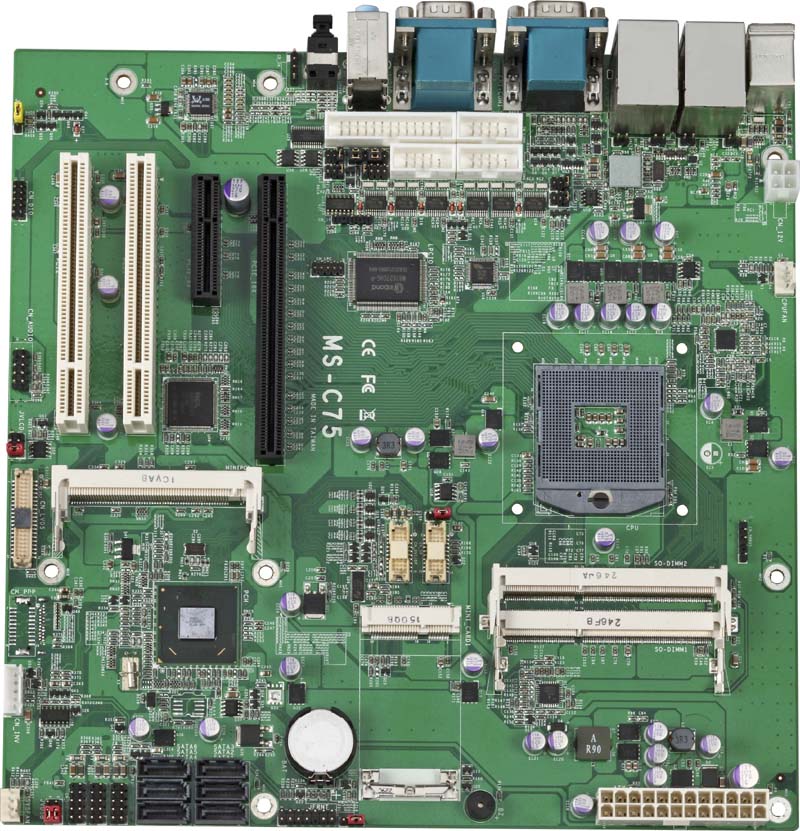

Commell MicroATX Mainboards - MS-C75
Click here to show/ hide more info

Commell MicroATX Mainboards - MS-C75

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial ATX mainboard, introduced the MicroATX motherboard MS-C75 that designed for the 3nd generation Intel Core i7/i5/i3 processors in the rPGA988B socket. The MicroATX mainboard based on intel QM77 Express chipset, QM77 Express chipset is part of the mobile Intel 7 Series Chipset family, along with a intel 3rd generation 22 nm Core i7/i5/i3, the Intel processors with HD Graphic 4000 that contains a refresh of the seventh generation graphics core, DX11 Smoother rendering at higher resolutions for an improved 3D experience, OGL4.X Improved realism for OGL 3D based application and lower power consumption, this innovative two-chip solution provides Intel Intel Hyper-Threading technology which giving you smart multitasking performance to move between applications quickly. This platform delivers higher performance, energy efficiency, most secure and manageable, It is ideal for a various range of applications, such as industrial control and automation, gaming, Medical Instruments, Surveillance Server, Military systems, print imaging and digital signage etc.

Onboard Intel® 82579LM GbE controller support Intel® AMT 8.0 feature on primary LAN port. The BIOS is ready to support Intel® AMT 8.0 feature. The necessary prerequisite is your CPU must support Intel® vPro technology

Features:

  • CPU: Intel® 3rd generation Core™ i7/ i5/ i3/ Mobile in the rPGA988B socket (support Intel® 2nd generation Core™ i7/ i5/ i3/ Mobile in the rPGA988B socket)
  • Memory: Two DDR3 1006/1333/1600 MHz up to 16 GB
  • Chipset: Mobile Intel® QM77 Express chipset
  • Integrated Graphics: Intel® Core™ integrated HD Graphics 4000 Technology
  • VGA Interface: Onboard DSUB15 connector for VGA interface
  • LVDS interface: onboard 24-bit dual channel LVDS interface
  • DVI interface: onboard DVI interface
  • LAN Interface: 1 x Intel® 82574L Giga LAN and 1 x Intel® 82579LM Giga LAN(Support iAMT8.0)
  • Serial ATA: Support 6 x SATA ( 4 x serial ATAII, 2 x serial ATAIII )
  • Audio: Realtek ALC888 High Definition Audio.
  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 6 x USB2.0 ports, 4 x USB3.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports, 1 x SPDIF.
  • Extended interface: PCI-Express X16 slot, 2 x Mini-PCIe sockets, 1 x SIM socket.
  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.
  • Power requirement : Standard 24-pin(20-pin is compatible) ATX P/S and P4 4-pin 12V

Specification:

Form Factor Industrial MicroATX  Motherboard
Processor 3rd and 2nd generation Intel® Core™ i7 / i5 / i3 Mobile processor

Package Type: rPGA988B

Memory 2 x DDR3 1066/1333/1600 SO-DIMM up to 16 GB
Chipset Mobile Intel® QM77 Express chipset
Integrated Graphics Intel® Core™ integrated HD Graphics 4000 Technology
Real Time Clock   Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s
Power Management ACPI 3.0 compliant
Serial ATA Interface 4 x Serial ATA ll interface up to 300MB/s

2 x SATAlll interface up to 600MB/s. Total 6 x SATA interface

VGA Interface Onboard DSUB15 connector for VGA interface
LVDS Interface Onboard 24-bit dual channel LVDS interface
 DVI Interface  Onboard 20-pin DVI interface
Audio Interface Realtek ALC888 HD Audio
LAN Interface 1 x Intel® 82574L Gigabit Ethernet Controller

1 x Intel® 82579LM Gigabit Ethernet Controller(Support iAMT8.0)

GPIO Interface Onboard programmable 8-bit digital I/O interface
Extended Interface  1 x PCIe x16/x4 slot, 1 x PCIe mini card socket, 2 x PCI slot, 1 x Mini PCI socket
(Optional support mSATA(SATAII) for Mini_Card1,but SATA6 will be disable)
Internal I/O Port 3 x RS232,1 x SMBUS, 1 x GPIO, 6 x USB2.0 ports, 1 x IrDA, 1 x DVI , 1 x LVDS, 4 x Serial ATAII,2 x Serial ATAIII, 1 x Parallel port,  1 x Front panel Audio and 1 x CDIN
External I/O Port 1 x PS/2, 2 x LAN ports, 1 x VGA port, 4 x USB3.0 ports, 1 x RS232/422/485, 2 x RS232,1 x 2 Channel HD Audio,1 x SPDIF
Power Requirement Standard 24-pin ATX power supply (20-pin is compatible) and P4 4-pin 12V
Board Dimension 244 mm x 244 mm (L x W)
Temperature Operating within 0 ~ 60°C

Storage within -20 ~ 85°C


Data sheet on MS-C75
 (pdf file, opens in new tab)

MS-C73 – 2nd generation Intel® Core™ i7 / i5 / i3 MicroATX Motherboard


Support 2nd generation Intel® Core™ i7 / i5 / i3 / Mobile CPU with Mobile Intel® QM67 Express, onboard VGA, LVDS & DVI, 16 GB DDR3 2 x Giga LAN, 10 x USB 2.0, 6 x COM, 6 x SATA, HD Audio, GPIO PCI-Express X16 & X4 slot, Mini-PCIe & Mini-PCI sockets.

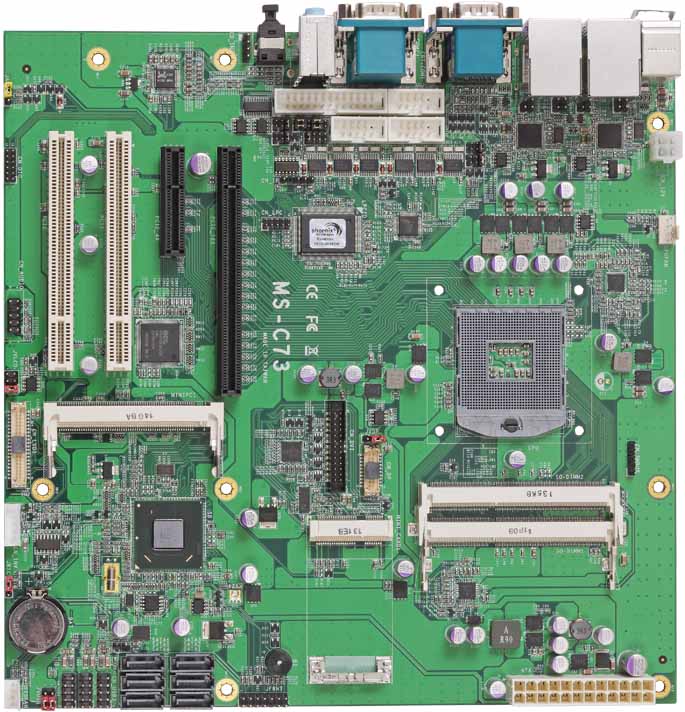

Commell MicroATX Mainboards - MS-C73
Click here to show/ hide more info

Commell MicroATX Mainboards - MS-C73

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial ATX mainboard, introduced the MicroATX motherboard MS-C73 that designed for the 2nd generation Intel Core i7/i5/i3 processors in the rPGA988B socket. The MicroATX mainboard based on intel QM67 Express chipset, QM67 Express chipset is part of the mobile Intel 6 Series Chipset family, along with a intel 2nd generation 32 nm Core i7/i5/i3, the Intel processors with HD Graphic 3000 that contains a refresh of the sixth generation graphics core enabling substantial gains in performance and lower power consumption, this innovative two-chip solution provides Intel Intel Hyper-Threading technology which giving you smart multitasking performance to move between applications quickly. This platform delivers higher performance, energy efficiency, most secure and manageable, It is ideal for a various range of applications, such as industrial control and automation, gaming, Medical Instruments, Surveillance Server, Military systems, print imaging and digital signage etc.

Features:

  • CPU: Intel® 2nd generation Core™ i7/ i5/ i3/ Mobile in the rPGA988B socket
  • Memory: Two DDR3 SO-DIMM support 1006/1333/1600 MHz up to 16 GB
  • Chipset: Mobile Intel® QM67 Express chipset
  • Display Interface: Integrated Intel Core™ HD graphics Technology
  • LVDS interface: onboard 24-bit dual channel LVDS interface
  • DVI interface: onboard DVI interface
  • LAN Interface: 2 x Intel® 82574L Giga LAN.
  • Serial ATA: Support 6 x SATA
  • Audio: Realtek ALC888 High Definition Audio.
  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 10 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports.
  • Extended interface: PCI-Express X16 & X4 slots, Mini-PCIe & Mini-PCI sockets.
  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.
  • Power requirement : Standard ATX power supply and P4 4-pin 12V

Specification:

Form Factor Industrial MicroATX  Motherboard
Processor 2nd generation Intel® Core™ i7 / i5 / i3 & Celeron Mobile processor

Package Type: rPGA988B

Memory 2 x DDR3 1066/1333/1600 SO-DIMM up to 16 GB
Chipset Mobile Intel® QM67 Express chipset
Real Time Clock   Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s
Power Management ACPI 3.0 compliant
Serial ATA Interface 4 x Serial ATA II interface up to 300MB/s

2 x SATA3 interface up to 600MB/s. Total 6 x SATA interface

VGA Interface Integrated Intel® Core™ HD graphics Technology.
LVDS Interface Onboard 24-bit dual channel LVDS interface
 DVI Interface  Onboard 26-pin DVI interface
Audio Interface Realtek ALC888 HD Audio
LAN Interface 2 x Intel® 82574L Gigabit Ethernet Controller
GPIO Interface Onboard programmable 8-bit digital I/O interface
Extended Interface  PCI-Express X16 & X4 slots, Mini-PCIe & Mini-PCI sockets.
Internal I/O Port 3 x RS232, 1 x GPIO, 1 x CDIN, 1 x LPC, 1 x Audio, 1 x IrDA, 6 x USB2.0
External I/O Port 1 x PS/2 keyboard/mouse, 2 x RJ45 LAN, 1 x VGA, 4 x USB2.0, 1 x Audio, 3 x COM ( 1 for RS232/422/485 ), 1 x SPDIF
Power Requirement Standard 24-pin ATX power supply and P4 4-pin 12V.

( compatible with 20-pin ATX power supply )

Board Dimension 244 mm x 244 mm (L x W)
Temperature Operating within 0 ~ 60°C

Storage within -20 ~ 85°C

Data sheet on MS-C73 (pdf file, opens in new tab)

MS-C72 – Intel® Core™ i7 / i5 / i3 / Pentium® MicroATX Motherboard


Support Intel® Core™ i7 / i5 / i3 / Pentium® with Intel® BD82Q57 PCH 16GB DDR3, 2 x Gbit LAN, 10 x USB 2.0, 6 x COM, HD Audio, LPT 6 x SATAII with RAID, PCIe X16/X4, PCI slots, Mini-PCIe & Mini-PCI socket

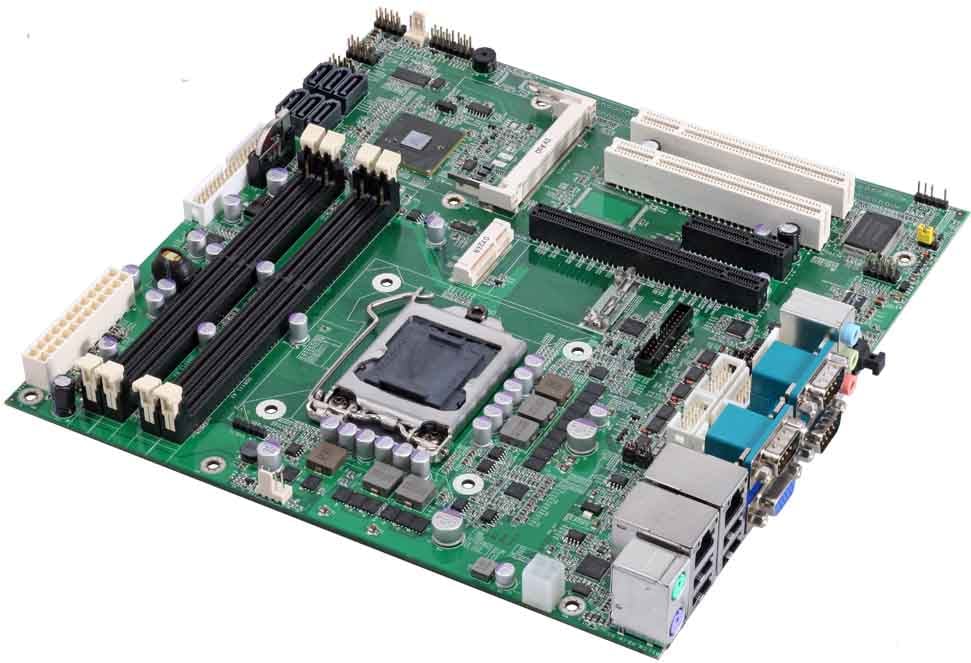

Commell MicroATX Mainboards - MS-C72
Click here to show/ hide more info

Commell MicroATX Mainboards - MS-C72

MS-C72 that designed for the new Intel Core i7/i5/i3 processors with 1066/1333MHz FSB in the LGA1156 socket. The Micro-ATX mainboard based on intel Q57 chipset, along with a compatible processor that is intel next generation 64-bit, multi-core processors built on 32 nm Core i5/i3 with HD Graphic function or 45nm i7/i5 without Graphic, this innovative two-chip solution provides Intel Turbo boost technology and Intel Hyper-Threading technology which maximizes performance to match your workload. This platform is designed fully compatible with Windows 7 and ideal for developing high-performance systems for industrial control and automation, PC-based surveillance, gaming, video server, print imaging and digital signage.

COMMELL’s MS-C72 Micro-ATX mainboard is provided four DIMM socket for up to 16GB of DDR3 1066/1333 MT/s data transfer rate dual-channel system memory, When along with Intel 32nm Core i5/i3 processor that provided Intel HD graphic function with Dynamic Video memory Technology, MPG2/WMV9/VC1/AVC hardware acceleration, advanced pixel adaptive De-Interlacing and High quality Scaling.

Features:

  • CPU: Intel® Core™ i7/ i5/ i3/ Pentium desktop in the LGA1156 socket.
  • Memory: Four DDR3 1066/1333 MT/s DIMM up to 16 GB.
  • Chipset: Intel® BD82Q57 PCH.
  • Display Interface: Intel® 32nm Core™ i5/i3 integrated HD Graphics Technology, VGA and DVI output interface.
  • LAN Interface: 2 x Intel® 82574L Giga LAN.
  • Serial ATA: Support 6 x SATAII up to 300MB/s with RAID 0,1,5,10.
  • Audio: Intel® Q57 integrated with Realtek ALC888 High Definition Audio.
  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 10 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports.
  • Extended interface: PCIe X16/X4, 2 x PCI , 1 x Mini-PCIe & 1 x Mini-PCI socket.
  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.
  • WatchDog Timer: 256-level generates NMI or system reset programmable watchdog timer.

Specification:

Form Factor MicroATX Motherboard
Processor Intel® Core™ i7 / i5 / i3 / Pentium® Desktop processor

Package Type: FCLGA1156

Bus Speed: 2.5GT/s DMI

Memory 4 x 240-pin DDR3 1066/1333 MT/s DIMM up to 16 GB
Chipset Intel® BD82Q57 PCH (Platform Controller Hub)
Real Time Clock   Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s
Power Management ACPI 1.0 compliant, supports power saving mode
Serial ATA Interface Intel® Q57 PCH built-in 6 x Serial ATA II interface up to 300MB/s

Support RAID 0, 1, 5, 10 and Intel® Rapid Storage Technology

VGA/DVI Interface Intel® Core™ integrated HD Graphics Technology
Video Memory Up to 1.7GB shared with system memory
Audio Interface Intel® integrated Q57 with Realtek ALC888 HD Audio
LAN Interface 2 x Intel® 82574L Gigabit Ethernet Controller
GPIO Interface Onboard programmable 8-bit digital I/O interface
Extended Interface  1 x PCIe X16, 1 x PCIe X4, 2 x PCI,  1 x Mini-PCIe, 1 x Mini-PCI
Internal I/O Port 1 x RS232/422/485  & 2 x RS232, 1 x GPIO, 1 x CDIN, 1 x IrDA, 1 x Audio, 1 x IrDA, 6 x USB2.0, 1 x LPT, 1 x FDD, 1 x DVI
External I/O Port 1 x PS/2 keyboard/mouse, 2 x RJ45, 1 x VGA, 4 x USB2.0, 1 x Audio, 3 x RS232, 1 x SPDIF
External Audio Line-in, MIC-in, Front, Rear, Center/Subwoofer and optical SPDIF
Power Requirement Standard 24-pin ATX power supply and P4 4-pin 12V. (20-pin is compatible)
Board Dimension 244mm x 244 mm (L x W)
Temperature Operating within 0 ~ 60°C

Storage within -20 ~ 85°C


Data sheet on MS-C72
 (pdf file, opens in new tab)

MS-C71 – Intel® Core™ i7 / i5 / i3 Mobile MicroATX Motherboard


Support Intel® Core™ i7 / i5 / i3 / Mobile CPU with Mobile Intel® QM57 Express 8GB DDR3, 2 x Giga LAN, 12 x USB 2.0, 6 x COM, 8 x SATA, HD Audio, LPT PCI-Express X16/X4 slot, PCI slot , Mini-PCIe & Mini-PCI socket

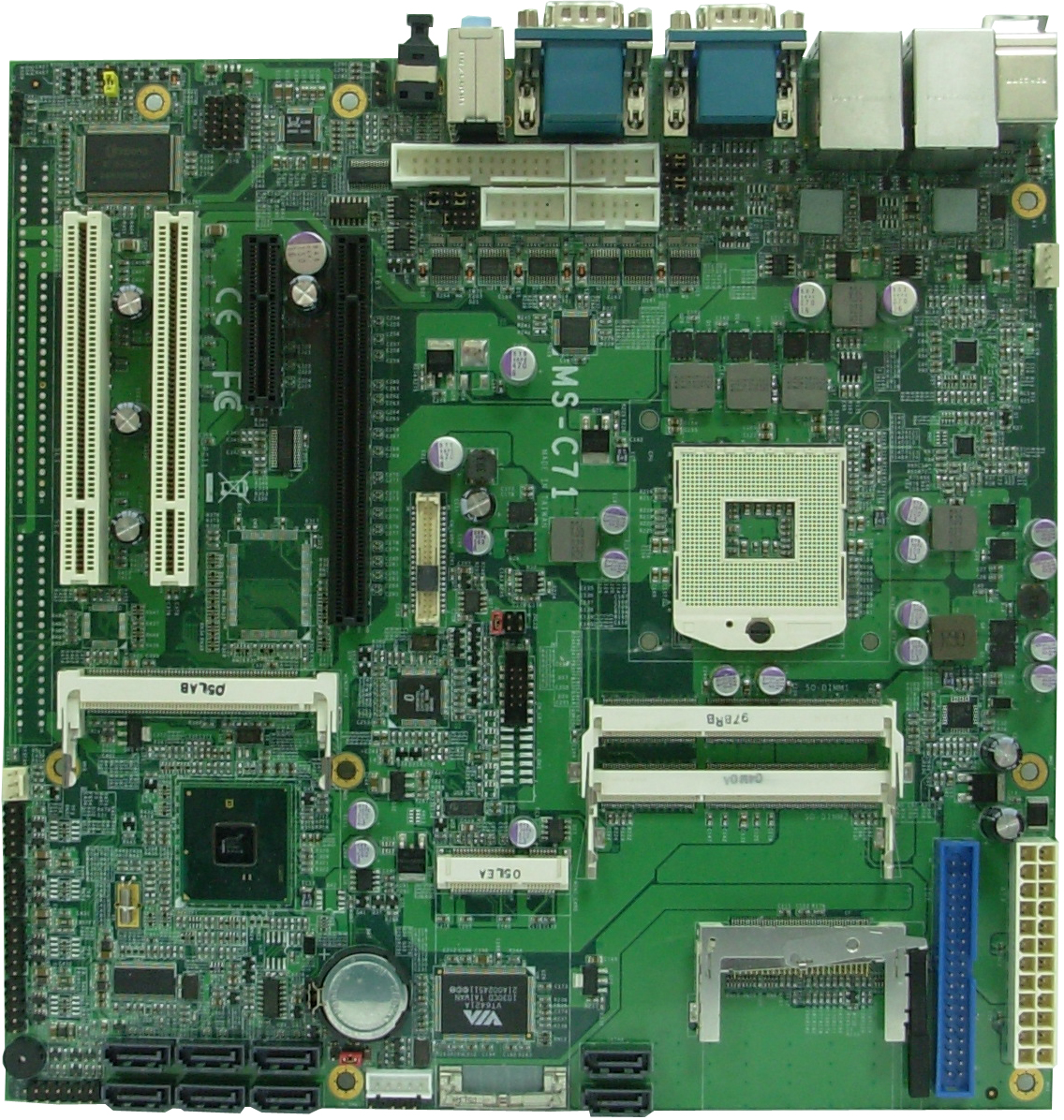

Commell MicroATX Mainboards - MS-C71
Click here to show/ hide more info

Commell MicroATX Mainboards - MS-C72

COMMELL’s MS-C71 MicroATX mainboard is provided for up to 8GB of DDR3 800/1066 MHz data transfer rate dual-channel system memory, 1-GB and 2-GB DDR3 DRAM technologies are supported for x8 and x16 devices. When along with Intel 32nm Core i7/i5/i3 processor that provided Intel HD graphic function with Dynamic Video memory Technology, MPG2/WMV9/VC1/AVC hardware acceleration, advanced pixel adaptive De-Interlacing and High quality Scaling, additional display features include 24-bit dual channel LVDS or DVI interface optional.

The MS-C71 comes with PS/2 Keyboard and Mouse, 5 x RS232C and 1 x RS232/422/485 , Networking is provided by Intel 2 x 82574L Giga LAN, 12 x USB2.0 ports, It offers support for Intel High Definition Audio enables increased bandwidth for high quality audio. Also support for eSATA enables the full SATA interface speed up to 3GB/s, support for RAID 0,1,5, and 10 enables high reliablity for personal data, or maximum storage performance for intensive applications. Mini PCI, Mini PCIe , PCI and PCIE slots easily using any other add-on cards.

Features:

  • CPU: Intel® Core™ i7/ i5/ i3/ Mobile in the rPGA988A socket.
  • Memory: Two DDR3 800/1066 MHz up to 8.0 GB
  • Chipset: Mobile Intel® QM57 Express chipset
  • Display Interface: Integrated Intel HD graphics Controller (depends on CPU)
  • LVDS interface: 24-bit dual channel LVDS interface
  • DVI interface: Optional DVI interface ( MS-C71XD)
  • LAN Interface: 2 x Intel® 82574L Giga LAN.
  • Serial ATA: Support 6 x SATAII up to 300MB/s with RAID 0,1,5,10. 2 x SATAI
  • SSD: 1 x CompactFlash socket
  • Audio: Intel® QM57 integrated with Realtek ALC888 High Definition Audio.
  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 12 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports, LPT, IrDA, SPDIF
  • Extended interface: PCI-Express X16 & X4 , 2 x PCI , Mini-PCIe & Mini-PCI socket.
  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.
  • Power requirement : Standard ATX P/S

Specification:

Form Factor MicroATX Motherboard
Processor Intel® Core™ i7 / i5 / i3 Mobile processor

Package Type: rPGA988

Memory 2 x DDR3 800/1066 SO-DIMM up to 8GB
Chipset Mobile Intel® QM57 Express chipset
Real Time Clock   Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s
Power Management ACPI 2.0 compliant
Serial ATA Interface 6 x Serial ATA II interface up to 300MB/s. Support RAID 0/1/5/10

6 x Serial ATA I interface up to 150MB/s

VGA Interface Integrated Intel® HD graphics Controller (depends on CPU).
LVDS Interface 24-bit dual channel LVDS interface
 DVI Interface  Optional DVI interface ( MS-C71XD )
Audio Interface Intel® integrated QM57 with Realtek ALC888 HD Audio
LAN Interface 2 x Intel® 82574L Gigabit Ethernet Controller
 SSD Interface  1 x Compactflash socket
GPIO Interface Onboard programmable 8-bit digital I/O interface
Extended Interface  PCI-Express X16 & X4 slot, 2 x PCI , Mini-PCIe & Mini-PCI socket.
Internal I/O Port 3 x RS232, 1 x GPIO, 1 x CDIN, 1 x SMBus, 1 x LPT, 1 x LVDS, 1 x Audio, 1 x IrDA, 8 x USB2.0, 1 x DVI ( optional )
External I/O Port 1 x PS/2 keyboard/mouse, 2 x RJ45 LAN, 1 x VGA, 4 x USB2.0, 1 x Audio, 3 x COM, 1 x SPDIF
Power Requirement Standard 24-pin ATX power supply
Board Dimension 244mm x 244 mm (L x W)
Temperature Operating within 0 ~ 60°C

Storage within -20 ~ 85°C

Data sheet on MS-C71  (pdf file, opens in new tab)

P4ELA – Intel® Core™2 Quad / Core™2 Duo w/ ISA SLot Desktop mATX Motherboard


Support Intel® Core™ 2 Quad with DDR3, onboard VGA, 2 x Gigabit LAN, 12 x USB2.0, Realtek ALC888 HD audio, 6 x COM & SATA, GPIO, ISA

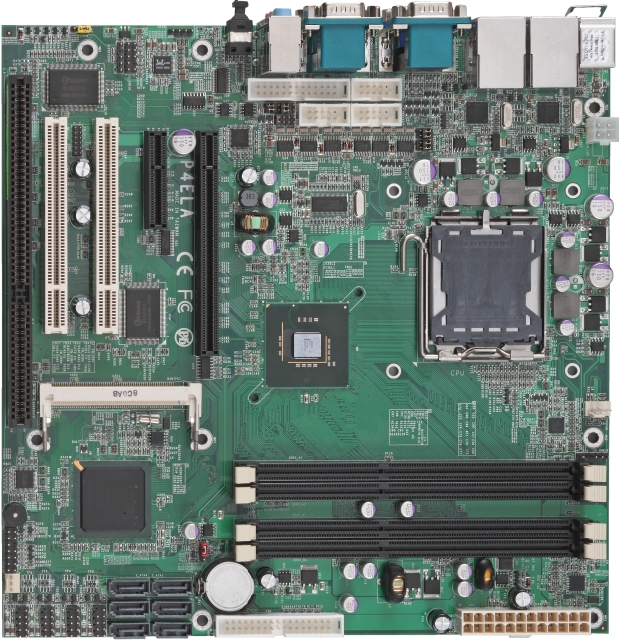

Commell MicroATX Mainboards - P4ELA
Click here to show/ hide more info

Commell MicroATX Mainboards - P4ELA

P4ELA platform based on Q45 Express chipset, is ideal for developing high-performance systems, industrial workstation, industrial control and automation, retail and hospitality, gaming, print imaging, digital signage, digital surveillance and network security applications.

P4ELA has a built-in Intel Graphics Accelerator 4500 that delivers excellent blend of graphics performance and features, supports Microsoft DirectX 10 and OpenGL 2.0 enabling support for the highest levels of Windows Vista experience. The Graphic Memory Controller Hub incorporates an updated backbone architecture that optimizes available bandwidth with the 1333MHz system bus.

Features:

  • CPU: Intel® Core™ 2 Quad/Core™ 2 Duo/Celeron processors @ FSB 800/1066/1333MHz by the LGA775 socket pin-out.
  • Memory: 4 x DDR3 800/1066MHz DIMM up to 8GB.
  • Chipset: Intel® Q45 & ICH10DO.
  • VGA: Intel® integrated extreme GMA 4500 technology.
  • LAN: 2 x Intel® 82574L Giga LAN.
  • Audio: Integrated ICH10DO with Realtek ALC888 HD Audio.
  • Serial ATA: Support 6 x SATAII interface up to 300MB/s transfer rate. Support RAID 0, 1, 5, 10 and Intel® Matrix Storage Technology.
  • I/O Ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 8 x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports.
  • Expansion slot: 1x ISA, 2 x PCI, 1 x mini-PCI, one x16 PCI-E & one x4 PCI-E.
  • GPIO Interface: Onboard programmable 8-bit Digital I/O interface.
  • WatchDog Timer: 256-level generates system reset programmable watchdog timer.
  • Dimension: 244mm x 244mm.

Specification:

Form Factor microATX Motherboard (244 x 244 mm)
Processor Family: Intel® Core™ 2 Quad / Core™ 2  Duo / Celeron

Socket type: LGA775

FSB: 800/1066/1333MHz

Memory 4 x DDR3-800/1066MHz SDRAM up to 8GB
Chipset Intel® Q45 & ICH10DO or G45 & ICH10(optional, w/o RAID)
Real Time Clock   Chipset integrated RTC with onboard lithium battery
Watchdog Timer System Reset Time-out Counter ranges from 1sec (min) to 255sec (min)
Power Management ACPI 1.0 compliant, supports power saving mode with ATX PSU
VGA Interface Intel® integrated extreme GMA 4500 technology
Video Memory Up to 1024MB shared with system memory
Serial ATA Interface 6 x Serial ATA II Interface with 300MB/s transfer rate

Support RAID 0, 1, 5, 10 and Intel® Matrix Storage Technology

Audio Interface Integrated ICH10DO with Realtek ALC888 HD Audio.
LAN Interface 2 x Intel® 82574L Gigabit Ethernet Controller
GPIO Interface Onboard programmable 8-bit digital I/O interface
Expansion slot  1x ISA, 2 x PCI, 1 x mini-PCI, one x16 PCI-E & one x4 PCI-E
Internal I/O Port 3 x RS232, 1 x LPT, 1 x FDD, 1 x GPIO, 1 x IrDA, 8 x USB, 1 x SMBus, 1 x Front Audio connector, 1 x CDIN
External I/O Port 2 x RS232, 1 x RS232/422/485, 2 x LAN, 1 x VGA, 1 x PS/2, 4 x USB, 1 x SPDIF, 1 x Audio
Power Requirement Standard 24-pin ATX power supply ( 20-pin is compatible)

Standard 4-pin 12V power Input connector

Dimension 244mm x 244 mm (L x W)
Operation Temperature 0 ~ 60oC (32 ~ 140oF)

Data sheet on P4ELA  (pdf file, opens in new tab)

PMSA – Intel® Core™ 2 Duo mobile w/ ISA Slot MicroATX Motherboard


MicroATX Motherboard with Intel® GME965 provides platform for
Intel® Core™ 2 Duo Merom with Socket P @ FSB 800 MHz, DDR2 up to 3GB, 2 Giga LAN, CRT, LVDS , HDTV, 1394, SATA, COM HD Audi, PCI-Express , PCI and ISA slots

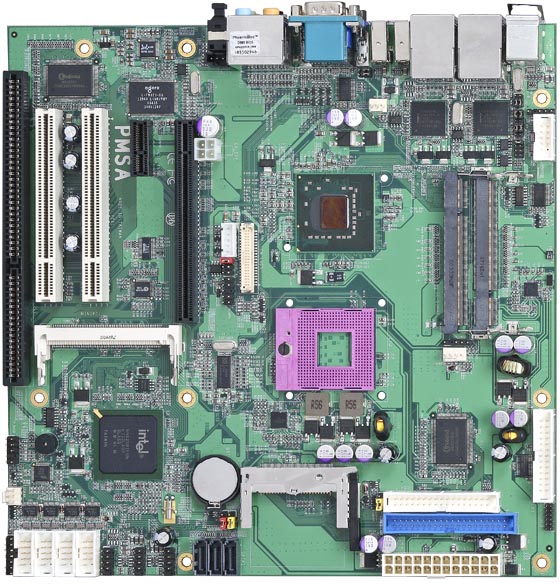

Commell MicroATX Mainboards - PMSA
Click here to show/ hide more info

Commell MicroATX Mainboards - PMSA

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial SBC, introduced the MicroATX – PMSA that mainboard incorporates an Intel® Socket P pin-out compatible with Intel® Core 2 Duo Mobile Merom processors @ FSB 533/800MHz support for T7700, T7500, T7300, T7100, Validated with the Mobile GME965 Express chipset, providing excellent flexibility for developers of embedded applications by offering outstanding graphics and I/O bandwidth, asset management capabilities, storage speed and reliability.

The PMSA provides these advantage features & an excellent performance-per-watt choice in the MicroATX form factor, it is optimized for a broad range of embedded applications such as interactive clients, gaming, medical, POS, Digital Signage, Surveillance and industrial automation equipment.

Features:

  • CPU: Intel® Core™ 2 Duo processor Merom with Socket P @ 800 MHz FSB.
  • Memory: 2 x 200-pin DDR2 533/667MHz up to 3.0 GB.
  • Chipset: Intel® GME965 and ICH8M.
  • VGA Interface: built-in Intel® extreme GMA X3100 Technology.
  • LVDS interface: Onboard 24-bit Dual channel LVDS connector.
  • Enhanced IDE: One 40-pin IDE interface supports up to 2 ATAPI Devices.
  • Serial ATA: 3 x Serial ATA interface with 300 MB/s transfer rate.
  • LAN Interface: 2 x Intel® 82573L Gigabit Ethernet.
  • Audio: Realtek ALC888 HD Audio.
  • Solid State Disk: IDE1 supports 40-pin DiskOnModule . CompactFlash Type-II socket
  • IEEE 1394: 2 x IEEE1394 port.
  • GPIO interface: Onobard 8-bit Digital I/O interface.
  • Extended interface: PCIE X16 & PCIE X1 , 2 x PCI , 1 ISA and 1 Mini-PCI socket
  • Rear I/O ports: PS/2 Keyboard/Mouse, LAN, USB 2.0, IEEE 1394, COM, VGA, Audio. SPDIF

Specification:

Form Factor MicroATX  Motherboard (244 x 244 mm)
CPU Intel® Core™ 2 Duo processor Merom with Socket P @ 800 MHz FSB.
Memory 2 x DDR2 533/667 MHz SODIMM up to 3.0 GB
Chipset Intel® GME965 & ICH8M
Real Time Clock   Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset internal timer for 1sec/min ~ 255 sec/min
Power Management ACPI 1.0 compliant, supports power saving mode
PCI Enhanced IDE 1 x 40-pin IDE channel up to 2 ATAPI devices
VGA Interface Intel® GME965 integrated GMA (Graphic Media Accelerator) X3100 Technology
Video Memory Up to 384 MB shared with system memory
Serial ATA Interface 3 x Serial ATA II Interface with 300 MB/s transfer rate.
Audio Interface Realtek ALC888 HD Audio
LAN Interface 2 x Intel® 82573L Gigabit Ethernet
Solid State Disk IDE supports 40-pin DiskOnModule , CompactFlash Type-II
GPIO Interface Onboard programmable 8-bit digital I/O interface
Extend Interface  PCIE X16 & PCIE X1 , 2 PCI , 1 ISA and 1 Mini-PCI socket
External I/O Port 1 x  PS/2 Keyboard / Mouse, 2 x RJ45 LAN, 4 x USB 2.0

2 x IEEE 1394, 1 x COM, 1 x VGA, 1 x Audio,  1 x SPDIF

    Internal I/O Port     1 x RS232/422/485, 4 x RS232,  1 x FDD, 1 x IrDA , 1 x LPT

6 x USB 2.0, 1 x 8-bit GPIO, 1 x Audio, 1 x CDIN

LVDS and LCD inverter connector, 1 x TV-out

Power Requirement Standard 24-pin ATX power supply
    Board Dimension     244mm x 244mm (L x W)
Operation Temperature  0 ~ 60ºC (32 ~ 140ºF)


Data sheet on PMSA
 (pdf file, opens in new tab)

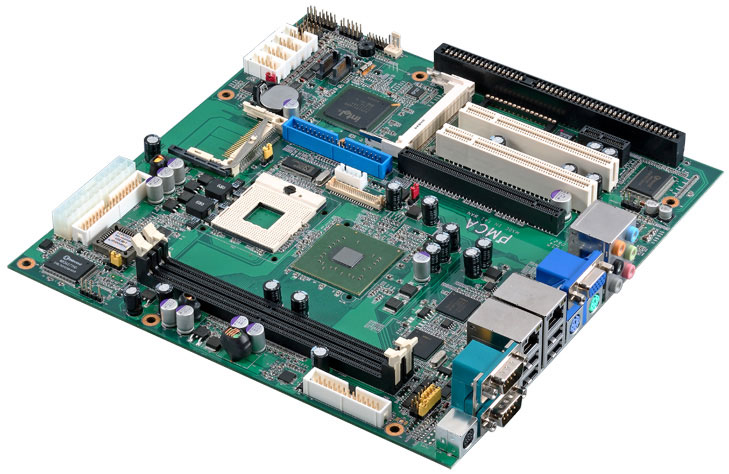

PMCA – Intel Core Duo / Core 2 Duo W/ ISA SlotMicro ATX Motherboard


Micro ATX Motherboard based on Intel Core 2 Duo / Core Duo
2 x Giga LAN , High Definition Audio , SATA , LVDS , DOC One PCI-Express x16 , One PCI-Express x1 , 2 x PCI , and ISA Mini-PCI & CompactFlash socket , 6 COM , 8 USB2.0
Commell MicroATX Mainboards - PMCA
Click here to show/ hide more info

Commell MicroATX Mainboards - PMCA

COMMELL, the leader of Industrial motherboard announced the PMCA the next generation mobile Micro ATX motherboard with the latest Intel Centrino mobile technology 945GME Express chipset, which support Intel Core Duo / Core Solo processor @ FSB 533/667 MHz, it’s enhanced to handle today’s demanding software applications – such as graphic-intensive or serious number-crunching programs.

COMMELL’s PMCA Micro ATX motherboard supports for 667 MHz Front Side Bus to up to 25% increase in Front Side Bus bandwidth over the previous generation and support for Dual channel DDR2 667 MHz up to 3GB Memory. Integrated 256-bit graphic core running at 400 MHz and DirectX 9.0 3D hardware acceleration, based on Intel Graphics Media Acceleator 950 architecture, delivers a 2 times improvement in graphics performance over the previous generation chipset, the integrated display controller comes with up to 2048*1536 resolution for both analog and digital display, Multiple display types ( LVDS / DVI / VGA ) .

Features:

  • CPU: Intel CoreTM Duo / Core 2 Duo Merom with Socket M @ 533 / 677 MHz FSB.
  • Memory: 2 x 240 pin DDR2 533/677 MHz up to 3.0 GB.
  • Chipset: Intel® 945GME and ICH7M.
  • VGA Interface: built-in Intel® Graphics Media Accelerator (GMA) 950.
  • PCI Enhanced IDE: One Ultra ATA/100 IDE channel up to 2 ATAPI devices.
  • Serial ATA: 2 x Serial ATA Interface with 150 MB/s transfer rate.
  • LAN Interface: 2 x Intel Gigabit LAN.
  • Audio: Realtek ALC880 HD Audio
  • Extended Interface: PCI-Express 16x / 1x slots , 2 x PCI and 1 x ISA slots.
  • Soild State Disk: DiskOnChip, IDE support 40-pin DOM, CompactFlash Type-II socket. DiskOnChip socket.
  • USB: 8 Hi-Speed USB 2.0 interface with up to 480 Mbps of data transfer rate.
  • I/O Ports: 5 x RS232 & 1x RS232/422/485 ports, IrDA, FDD, PS/2 keyboard and mouse ports, 1 x SPDIF. 1 x LPT.
  • Digital I/O: Supports 8-bit digital I/O.
  • Watchdog: Generates a system reset with internal timer for 1 to 255 sec. / min

Specification:

Form Factor Industrial Micro ATX Motherboard
CPU Intel CoreTM Duo / Core 2 Duo Merom with Socket M @  533 / 677 MHz FSB.
Memory 2 x DDRII  533/667 MHz SDRAM t up to 3.0 GB
Chipset Intel 945GME and ICH7M
Real Time Clock   Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset  with 1 to 255 sec. / min.
PCI Enhanced IDE One Ultra ATA/100 IDE channel up to 2 ATAPI devices
VGA Interface Intel 945GMintegrated GMA 950 ( Graphics Media Accelerator ) Technology
Video Memory Up to 224MB shared with system memory
Serial ATA Interface 2x Serial ATA  Interface  with 150 MB/s transfer rate
Audio Interface Realtek ALC880 HD Audio
LAN Interface 2 x Intel 82573L Gigbit Ethernet controllers
Solid State Disk IDE 1 supports DiskOnModule with +5V power supply

1 x  Compact Flash Socket

32-pin DIP JEDEC DiskOnChip Socket

GPIO Interface  Onboard programmable 8-bit  Digital I/O interface
Internal I/O Port 1 x FDD, 4 x USB ports,1 x IrDA, 4 x RS232 ports, 1 x SPDIF, 1 x GPIO , 1 x LPT , 1 x LVDS , 1 x LCD Inverter ,  1 x CDIN
External I/O Port 2 x RJ45 LAN port , 1 x PS/2 keyboard / Mouse ports , 1 x DB15 VGA port , 1 x RS232 serial port , 1 x RS232/422/485 ,  1 x LPT, Audio , 4 x USB
Power Requirement Standard 24-pin ATX power connector ( 20-pin is compatible)
    Board Dimension     244 x 244 mm (L x W)
Operation Temperature  0 ~ 60°C (32 ~ 140°F)

Data sheet on PMCA  (pdf file, opens in new tab)

iBase MicroATX Motherboards – Industrial Grade

Tip: If your PC case has enough space, you can also check the full size ATX motherboards for more options.

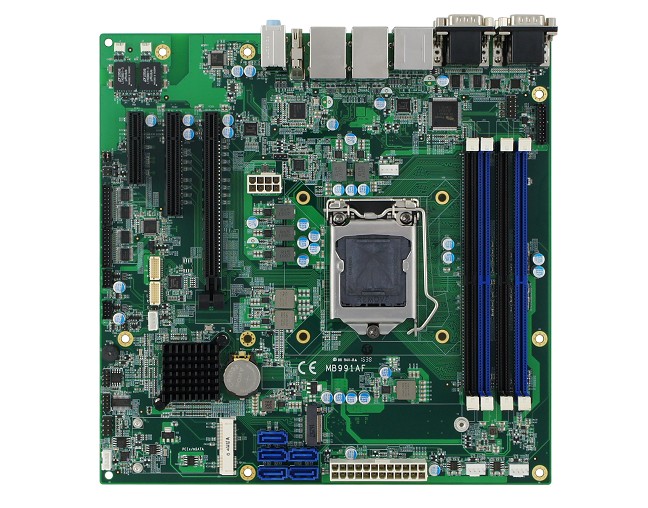

MB991 Micro ATX Motherboard w/ Intel® C236 PCH


7th/6th Generation Intel® Core™ i7/i5/i3 and Pentium®/Celeron® Micro ATX Motherboard w/ Intel® C236 PCH
iBase MicroATX Mainboard - MB991
Click here to show/ hide more info

iBase MicroATX Mainboard - MB991

Features:

  • 7th / 6th Generation Intel® Core™ i7/i5/i3 / Pentium® /Celeron® QC/DC processors, up to 4GHz
  • 4x DDR4 DIMM, Max. 64GB
  • Intel® processor integrated graphics device, supports HDMI (1.4), DVI-D and LVDS
  • Dual Intel® Gigabit LAN
  • 4x USB 2.0, 6x USB 3.0, 8x COM, 5x SATAIII
  • 1x PCI-E(x16) [(x8) Link], 1x PCI-E(x8), 1x PCI-E(x4)
  • 1x Mini PCI-E, 1x M.2 (M-key)
  • Watchdog timer, Digital I/O, iAMT (11.0), iSMART

Specification:

CPU LGA1151 for 7th/6th Generation Intel® Core™ i7/i5/i3/ Pentium® / Celeron® QC/ DC processors, up to 4GHz
System Memory 4x DDR4 DIMM, Max. 64GB (Supports ECC by CPU SKUs)
System Chipset Intel® C236/Q170 PCH
BIOS AMI
Watchdog Timer 256 levels
SSD 1x mSATA via Mini PCI-E (Thru SATA III)
1x M.2 slot [Thru PCI-E(x1) x4]
H/W Monitor Yes
Expansion Slots 1x PCI-E(x16), 1x PCI-E(x8), 1x PCI-E(x4)
1x Mini PCI-E, 1x M.2
VGA Controller 7th/6th Generation Intel® Core™ i7 / i5 / i3 / Pentium®/ Celeron® processor Integrated
VGA Memory Max. Shared memory – 1024MB
Display Interface MB991AF-C236 / MB991AF: 2x HDMI and LVDS
MB991AF-D: HDMI, LVDS and DVI-D
LAN Controller Intel® I219LM Gigabit LAN PHY
Intel® I211AT PCI-E Gigabit LAN
LAN Connector RJ-45 on board
I/O Chipset Fintek F81846AD-I + F81504D
7x RS232, 1x RS232/422/485 (jumperless selection),
5x SATA III
USB 6 ports on board (USB 3.0)
4 ports via pin-header (USB 2.0)
Audio Intel® C236 / Q170 PCH built-in HD audio +
Realtek ALC662 codec
Others Digital I/O (4-in/4-out), RAID, iAMT (11.0), iSMART
Dimensions 244mm x 244mm (9.6“ x 9.6“)
Max. Power Requirement TBD
Operating Temperature 0°C~60°C ( 32°F~140°F )
Storage Temperature -20°C~80°C ( -4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)

Data sheet on MB991 (pdf file, opens in new tab)

MB961 Micro ATX Motherboard w/ Intel® Q67 PCH


MB961 LGA1155 3rd Generation Intel® Core™ i7/i5/i3/ Pentium® / Celeron® Micro ATX Motherboard w/ Intel® Q67 PCH
iBase MicroATX Mainboard - MB961
Click here to show/ hide more info

iBase MicroATX Mainboard - MB961

The MB961 is a Micro ATX Motherboard based on the 3rd Generation Intel® Core™ i7/i5/i3 processors that are built on a new 22nm manufacturing process.

The MB961 features iSMART, IBASE’s green technology with EuP/ErP power saving and intelligent scheduler that improves its environmental performance. Utilizing Intel Q67 chipset, the motherboard supports processor-integrated graphics device supporting a range of display outputs including HDMI™, DVI-I and 24-bit LVDS. Two DDR3 DIMM sockets accept a maximum of 16GB memory.

Providing reliable all-round performance and versatility for multimedia-intensive applications in the automation, medical, POS and gaming sectors, MB961 offers the latest connectivity features with two Gigabit Ethernet, two USB and two SATA III ports (MB961RF). Other interfaces include four serial ports, SATA II and USB 2.0 ports, digital I/O and RAID (MB961RF). Expansion is provided by one PCI-E(x16, one PCI-E(x8) and two PCI slots. MB961 currently comes built in two chipsets, Q67 (MB961RF) and H61 (MB961F), and are now available.

Features:

  • Support 3rd Generation Intel® Core® i7/i5/i3/Pentium®/Celeron® processors, up to 3.4GHz
  • 2x DDR3 DIMM, Max. 16GB
  • Intel® Processor integrated graphics device, supports HDMI™, DVI-I and LVDS (MB961RF/F)
  • Intel® 82579V Gigabit LAN
  • Realtek RTL8111E Gigabit LAN
  • 12x USB 2.0, 2 x USB 3.0, 4 x COM, 2x SATA II, 2x SATA II
  • 1xPCI-E(x16), 1xPCI-E(x8) [PCI-E(4x) Link], 2x PCI
  • Watchdog timer, Digital I/O, iSMART
  • LPT (MB961 only)

Specification:

CPU LGA1155 for 3rd Generation Intel® Core™ i7/i5/i3 / Pentium® / Celeron® processors, up to 3.4GHz
System Memory 2x DDR3 DIMM Max. 16GB (Non-ECC)
System Chipset Intel® Q67 PCH (MB961RF) / H61 PCH (MB961F/MB961)
BIOS AMI
Watchdog Timer 256 levels
SSD N/A
H/W Monitor Yes
Expansion Slots 1x PCI-E(x16), 1x PCI-E(x8) [PCI-E(4x) Link], 2x PCI
VGA Controller Intel® 3rd Gen. Core™ i7 / i5 / i3 / Pentium® / Celeron® Processor Integrated
VGA Memory Max. Shared Memory – 1024 MB
Display Interface Supports DVI-I, HDMI™, 24 bit dual channel LVDS (MB961RF/F)
LAN Controller 1x Intel® 82579V Gigabit LAN
1x Realtek RTL8111E Gigabit LAN
LAN Connector RJ-45 on board
I/O Chipset Fintek F81866AD-I
3x RS232, 1x RS232/422/48 (jumperless selection)
2x SATA II + 2x SATA III (MB961RF) or 4x SATA II (MB961F), LPT (MB961)
USB 2 ports on board (USB 3.0)
MB961F: 4 ports on board + 6 ports via pin header (USB 2.0)
MB961RF: 4 ports on board + 8 ports via pin header (USB 2.0)
Audio Intel® H61/Q67 PCH built-in HD audio + Realtek ALC892 codec
Others Digital I/O(4-in/4-out), iSMART, RAID (MB961RF only)
Dimensions 244mm x 244mm (9.6″ x 9.6″)
Max. Power Requirement Intel® Core™ i7-3770 3.4GHz
w/ 2x 4GB DDR3-1333
+12V: 0.25A +5V: 2.21A
+3.3V: 1.46A +5VSB: 0.12A
Operating Temperature 0°C~60°C (32°F~140°F)
Storage Temperature -20°C~80°C (-4°F~176°F)
Relative Humidity 90% (non-condensing @60°C)


Data sheet on MB961
 (pdf file, opens in new tab)

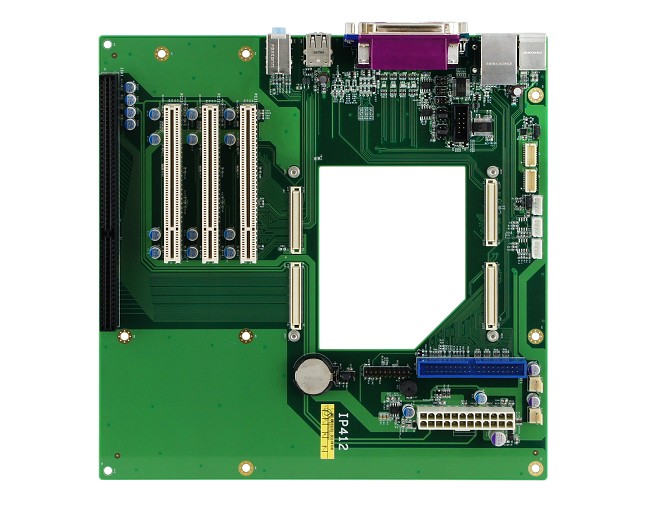

IP412 – Micro ATX ETX (3.0) Baseboard


Micro ATX ETX (3.0) Baseboard
iBase MicroATX Mainboard - IP412
Click here to show/ hide more info

iBase MicroATX Mainboard - IP412

Features:

  • 1x ISA, 3x PCI expansion slots
  • Edge connectors for PS/2 Keyboard & Mouse, RJ45 + dual USB (2.0), COM, VGA, Printer port, 2x USB (2.0) , Audio connector (Line-out, Line-in & Mic.)
  • Onboard headers for COM, LVDS, IDE , ETX connectors
  • ATX power connector
  • 244mm x 244mm


Data sheet on IP412
 (pdf file, opens in new tab)

Advantech MicroATX Motherboards – Industrial Grade

Tip: If your PC case has enough space, you can also check the full size ATX motherboards for more options.

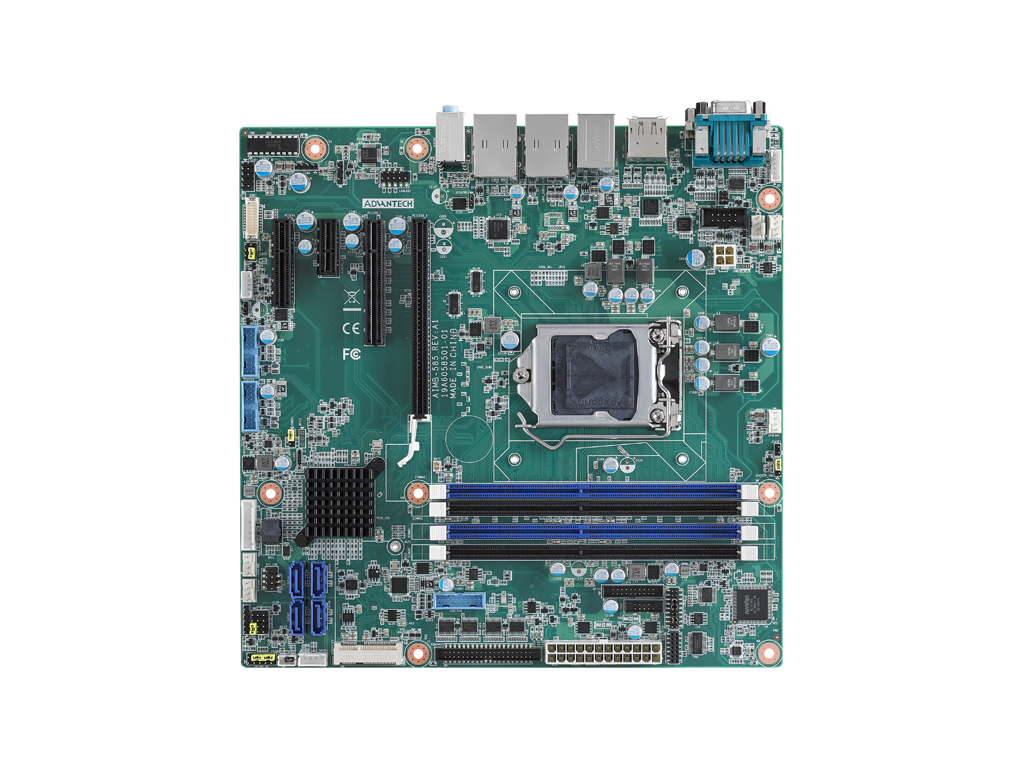

AIMB-585 MicroATX Mainboard


6th & 7th Gen Intel® Xeon E3/ Core™ i7/i5/i3 LGA1151 uATX with DVI-D/HDMI/DP++/eDP/VGA, 6 COM, Dual LAN, SATAIII,12 USB3.0
Advantech ATX Motherboards - AIMB-585
Click here to show/ hide more info

Advantech ATX Motherboards - AIMB-585

Features:

  • Supports Intel® Xeon®/ 6th & 7th Gen Core™ i7/i5/i3 processor with Q170/C236/H110 chipset
  • Four DIMM sockets support up to 64GB DDR4 2133/2400 MHz SDRAM
  • Supports DVI-D,HDMI,DP++,eDP,VGA(optioanl) display
  • Supports Intel AMT 11.0 and Intel vPro competent
  • Supports PCIE Gen3, 10 x USB 3.0, 4 x SATAIII and dual GbE LAN, mini-PCIe
  • Supports Software RAID 0, 1, 5, 10, TPM 1.2 (optional)
  • Supports WISE PaaS/RMM and Embedded Software APIs

Data sheet on AIMB-585 (pdf file, opens in new tab)

ASMB-585 MicroATX Server Board


LGA 1151 Intel® Xeon® E3 v5/v6 & 6th/7th Generation Core i series MicroATX Server Board with 4 DDR4, 1 PCIe x16, 3 PCIe x4, Quad LANs, USB 3.0
Advantech MicroATX Motherboards - ASMB-585
Click here to show/ hide more info

Advantech MicroATX Motherboards - ASMB-585

Features:

  • Supports LGA 1151 Intel® Xeon® E3-1200 v5/v6 and 6th/7th Generation Core™ i7/i5/i3 processors
  • DDR4 ECC/Non-ECC 2400/2133/1866/1600 MHz DIMM up to 64GB
  • 1 PCIe x16 slot (Gen3 x16link), 2 PCIe x4 slots (Gen3 x4 link), 1 PCIe x4 slot (Gen3 x1 link)
  • 0 ~ 60° C ambient operation temperature range
  • Support up to ten RS-232 or six RS-232 and four RS-422/485 ports
  • Support up to four Gigabit LAN ports
  • Triple display – two DVI-D and one VGA ports
  • Support seven SATA3 ports and six USB 3.0 ports

Specifications:

Part Number ASMB-585G4-00A1E
Form Factor
Form Factor Micro ATX
Processor System
CPU Intel LGA1151 Xeon E3-1200 v5/v6 and 6th/7th Gen Core i3/i5/i7 series
CPU TDP Up to 91W
Frequency Up to 3.8 GHz
Core Number Up to 4
L3 Cache Up to 8MB
BIOS AMI 128 Mbit SPI (UEFI)
Chipset Intel C236 PCH
Integrated Graphics
DMI
QPI
Memory
Capacity Up to 64 GB (16 GB per DIMM)
ECC Support Yes
Socket 4 x 288-pin UDIMM
REG Support
Technology Dual Channel DDR4 ECC/Non-ECC 1600/1866/2133/2400 MHz
Display
Controller Intel HD graphics Integrated
Graphic Memory Share system memory up to 1 GB with 2 GB and above memory installed
Multiple Display Triple
Display Interface VGA: Up to 1920 x 1200 DVI-D: Up to 1920 x 1200
Expansion Interface
PCI Express x 16 1
PCI Express x 8
PCI Express x 4 2
PCI Express x 1 1
PCI 0
LPC 1
SMBus 1
PME
Ethernet
Controller 1 x Intel I219-LM + 3 x Intel I210-AT
Connector 4 x RJ45
Speed 10/100/1000 Mbps
WatchDog Timer
Output System Reset
Interval Programmable 1~255 sec
I/O
COM Port 5 x RS-232
GPIO 8-bit
LPT 0
PS/2 Keyboard/Mouse 1
SAS controller
SATA 7 x SATA III (RAID 0, 1, 5, 10)
System Fan 4
USB2.0 7
USB3.0 2
SAS Port
Rear I/O Interface
USB3.0 4
COM 1 (1 x RS232)
PS/2
DVI 2
Ethernet 4-Feb
VGA 1
Power Requirement
Voltage +12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total
Environment
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature -40 ~ 85° C @ 95% RH Non-Condensing
Non-Operating Vibration 3.5 Grms
Physical Characteristics
Dimensions (LxW) 244 x 244 mm (9.6″ x 9.6″)
Weight 0.5 kg
Certification
EMC CE, FCC
Management Solution
Software SUSIAccess
Out of band remote management

Data sheet on ASMB-585 (pdf file, opens in new tab)

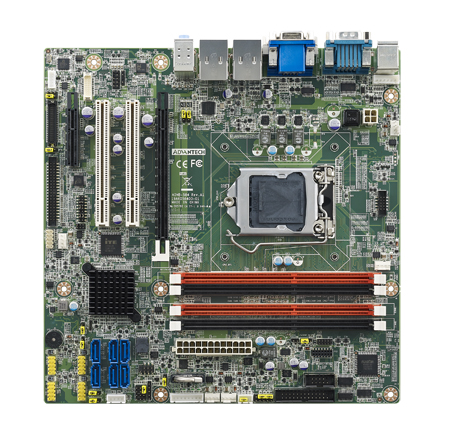

AIMB-584 MicroATX Mainboard


4th Gen Intel® Xeon® E3/ Core™ i7/i5/i3 LGA1150 MicroATX with Q87/C226, CRT/DVI/eDP/LVDS/DP, 6 COM, Dual LAN, SATAIII
Advantech ATX Motherboards - AIMB-584
Click here to show/ hide more info

Advantech ATX Motherboards - AIMB-584

Features:

  • Supports Intel ® Xeon ® / Core™ i7/i5/i3 processor with Q87/C226 chipset
  • Four DIMM sockets support up to 32 GB DDR3 1333/1600 MHz SDRAM
  • Supports CRT, DVI, LVDS, DP, eDP (optional) display
  • Supports Intel AMT 9.0 and Intel vPro competent
  • Supports PCIE Gen3, USB 3.0, Software RAID 0,1,5,10, TPM 1.2 (Optional)
  • Support 6 x SATAIII, 2 SATAII and dual GbE LAN
  • Supports WISE PaaS/RMM and Embedded Software APIs

Specifications:

Part Number AIMB-584QG2-00A1E AIMB-584WG2-00A1E
Form Factor
Form Factor Micro ATX Micro ATX
Processor
CPU 4th Gen. Intel Core i7/i5/i3/Pentium/Celeron processor Intel Xeon/ Core i7/ i5/ i3/ Pentium/ Celeron
CPU TDP 95W/65W/45W/35W 95W/65W/45W/35W
Frequency 2.3GHz~ 3.5GHz 2.3GHz~ 3.5GHz
Core Number 2/4 2/4
L3 Cache 3 ~ 8MB 3 ~ 8MB
BIOS AMI EFI 128Mbit AMI EFI 128Mbit
Chipset Intel Q87 Intel C226 PCH
Memory
Technology DDR3 1333/1600 MHz DDR3 1333/1600 MHz
Max. Capacity 32 GB 32 GB
ECC Support No Yes
Socket 4 x 240-pin DIMM 4 x 240-pin DIMM
Display
Controller Intel HD Graphics Intel HD Graphics
Graphic Engine DirectX11.1, Open GL 4.0 DirectX11.1, Open GL 4.0
Graphic Memory 1GB maximum shared memory with 2GB and above system memory installed 1GB maximum shared memory with 2GB and above system memory installed
VGA Up to 1920 x 1200 at 60 Hz Up to 1920 x 1200 at 60 Hz
LCD (TTL/LVDS/eDP) LVDS: Single channel 24-bit / dual channel 48-bit LVDS up to 1920 x 1200. eDP: Up to 3840 x 2160 @ 60 Hz LVDS: Single channel 24-bit / dual channel 48-bit LVDS up to 1920 x 1200. eDP: Up to 3840 x 2160 @ 60 Hz
DDI (HDMI/DVI/DisplayPort) DVI: 1920 x 1200 @ 60Hz DisplayPort: 2560 x 1600 @ 60Hz DVI: 1920 x 1200 @ 60Hz DisplayPort: 2560 x 1600 @ 60Hz
Multiple Display Dual/ Triple Dual/ Triple
Expansion
PCI Express x 16 1 1
PCI Express x 4 1 1
PCI 2 2
SMBus 1 1
Ethernet
Controller LAN1: I217LM, LAN2: I211AT GbE1: Intel 82579LM GbE2: Intel 82583V
Speed 10/ 100/ 1000 Mbps 10/ 100/ 1000 Mbps
Connector RJ45 x 2 RJ45 x 2
Audio
Audio Interface HD Audio HD Audio
CODEC Realtek ALC892, High Definition Audio (HD) Realtek ALC892, High Definition Audio (HD)
Connector 2 (Line out, Mic-in) 2 (Line out, Mic-in)
Watchdog Timer
WatchDog Timer Yes Yes
Storage
SATA 6 x SATAIII (Max. Data Transfer Rate 600 MB/s) 6 x SATAIII (Max. Data Transfer Rate 600 MB/s)
RAID Software RAID 0, 1, 5, 10 Software RAID 0, 1, 5, 10
I/O
USB3.0 4 4
USB2.0 8 8
GPIO 8-bit GPIO 8-bit GPIO
LPT 1 1
COM Port 6 ( 5 x RS232, 1 x RS232/ 422/ 485) 6 ( 5 x RS232, 1 x RS232/ 422/ 485)
Keypad 1 1
TPM Optional Optional
Smart Fan 5 5
Power
Power Type ATX ATX
Connector ATX24P ATX24P
Power Consumption (Full Load) 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V
Battery Lithium 3 V / 200 mAh Lithium 3 V / 200 mAh
Environment
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
Vibration Resistance 3.5 Grm (Non-Operation Mode) 3.5 Grm (Non-Operation Mode)
Physical
Dimension (mm) 244 x 244 mm 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package 1.2 kg (2.64 lb), weight of total package
Operating System
Microsoft Windows Yes Yes
Linux Yes Yes
SUSIAccess Yes Yes
Certification
EMC CE, FCC CE, FCC

Data sheet on AIMB-584 (pdf file, opens in new tab)

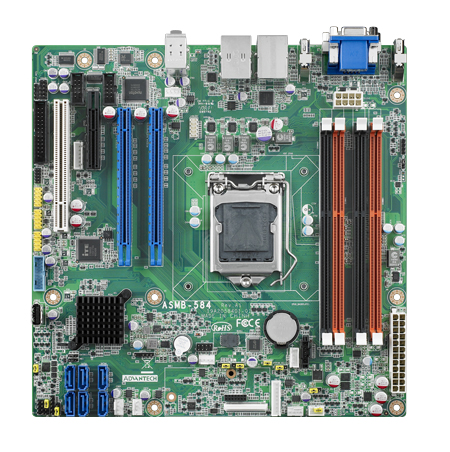

ASMB-584 MicroATX Server Board


LGA 1150 Intel® Xeon® E3 V3 Micro ATX Server Board with 2 PCIe x16 slots (x8 link), 1 PCIe x4, 1 PCI, USB 3.0, PCIe Gen III, Dual LANs
Advantech MicroATX Motherboards - ASMB-584
Click here to show/ hide more info

Advantech MicroATX Motherboards - ASMB-584

Features:

  • Supports LGA 1150 Intel® Xeon® E3 V3 processors
  • Two PCIe x16 slots (x8 link), one PCIe x4 and one PCI slots
  • DDR3 1600 MHz ECC UDIMM up to 32GB
  • Rackmount optimized placement with positive air flow design
  • Supports Intel vPro, AMT 9.0, IPMI (optional), Software RAID 0,1,5,10 and Embedded software APIs/utilities

Specifications:

Part Number ASMB-584G2-00A1E ASMB-584VG-00A1E
Form Factor
Form Factor Micro ATX Micro ATX
Processor System
CPU Intel Xeon E3-1200 v3 series and 4th Gen Core i3/i5/i7 (LGA 1150 socket) Intel Xeon E3-1200 v3 series and 4th Gen Core i3/i5/i7 (LGA 1150 socket)
CPU TDP Up to 84 W Up to 84 W
Frequency Up to 3.5 GHz Up to 3.5 GHz
Core Number 4 / 2 core 4 / 2 core
L3 Cache Up to 8MB Up to 8MB
BIOS AMI EFI 128Mbit AMI EFI 128Mbit
Chipset Intel C226 Intel C226
Integrated Graphics Yes Yes
QPI
DMI
Memory
Technology DDR3 1600 MHz DDR3 1600 MHz
Capacity Up to 32 GB (8 GB per DIMM) Up to 32 GB (8 GB per DIMM)
ECC Support Yes Yes
Socket 4 x 240-pin DIMM 4 x 240-pin DIMM
REG Support
Display
Controller Intel HD graphics Integrated Intel HD graphics Integrated
Graphic Memory Share system memory up to 1 GB with 2 GB and above memory installed Share system memory up to 1 GB with 2 GB and above memory installed
Multiple Display Triple Dual
Expansion Interface
PCI Express x 16 2 (x16 slot with Gen3 x8 link) 2 (x16 slot with Gen3 x8 link)
PCI Express x 8
PCI Express x 4 1 1
PCI Express x 1
PCI 1 1
LPC 1 1
SMBus 2 2
PME
Ethernet
Controller LAN1: Intel I217LM LAN2: Intel I210AT LAN1: Intel I217-LM
Speed 10/100/1000 Mbps 10/100/1000 Mbps
Connector 2 x RJ45 1 x RJ45
WatchDog Timer
Output System Reset System Reset
Interval Programmable 1~255 sec Programmable 1~255 sec
I/O
COM Port 2 x RS232 2 x RS232
GPIO 8-bit 8-bit
LPT 1 1
PS/2 Keyboard/Mouse 1 1
SAS controller
SATA 6 x SATA III (RAID 0, 1, 5, 10) 6 x SATA III (RAID 0, 1, 5, 10)
SPDIF 1 1
System Fan 4 4
USB3.0 2 2
SAS Port
Rear I/O Interface
Display 4 2
LAN 2 1
USB3.0 2 2
USB2.0 2 2
COM
PS/2
DVI 1 1
Ethernet 2 1
VGA 1 1
Power Requirement
Voltage +12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total +12 V/+5 V/+3.3 V/+5 VSB/V12_8P/-12 V/ Total
Current 0.07 A/2.22 A/3.7 A/0.12 A/3.77 A/0.02 A/70W 0.07 A/2.22 A/3.7 A/0.12 A/3.77 A/0.02 A/70W
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 40° C (32 ~ 104° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature -40~ 85° C and 60° C @ 95% RH Non-Condensing -40~ 85° C and 60° C @ 95% RH Non-Condensing
Non-Operating Vibration 3.5 Grms 3.5 Grms
Physical Characteristics
Dimensions (LxW) 244 x 244 mm (9.6″ x 9.6″) 244 x 244 mm (9.6″ x 9.6″)
Weight 0.5 kg 0.5 kg
Certification
EMC CE, FCC CE, FCC
Management Solution
Software SUSIAccess SUSIAccess
Out of band remote management Optional(IPMI-1000) / AMT AMT



Data sheet on ASMB-584 (pdf file, opens in new tab)

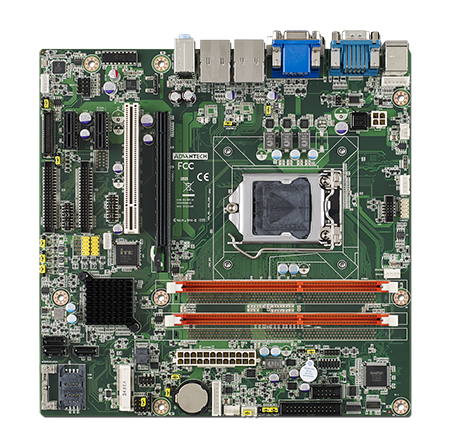

AIMB-503 MicroATX Mainboard


4th Gen Intel® Core™ i7/i5/i3 LGA1150 MicroATX with H81, CRT/DVI/LVDS, 10 COM, 2 USB 3.0, 7 USB 2.0, Dual LAN
Advantech ATX Motherboards - AIMB-503
Click here to show/ hide more info

Advantech ATX Motherboards - AIMB-503

Features:

  • Supports Intel® Core™ i7/i5/i3 processor with B85/H81 chipset
  • Two DIMM sockets support up to 16 GB DDR3/DDR3L 1333/1600 MHz SDRAM
  • Supports Tri display of VGA, DVI, LVDS and two GbE LAN
  • Supports 10 COM, 2 USB 3.0, 7 USB 2.0, TPM 1.2 (optional)
  • Supports WISE PaaS/RMM, McAfee, Acronis and Embedded Software APIs

Specifications:

Part Number AIMB-503G2-00A1E AIMB-503L-00A1E
Form Factor
Form Factor Micro ATX Micro ATX
Processor
CPU 4th Gen. Intel Core i7/i5/i3/Pentium/Celeron processor 4th Gen. Intel Core i7/i5/i3/Pentium/Celeron processor
CPU TDP 65W/54W/45W/35W 65W/54W/45W/35W
Frequency 2.3GHz~ 3.5GHz 2.3 ~ 3.5 GHz
Core Number 2/4 2/4
L3 Cache 3 ~ 8MB 3 ~ 8MB
BIOS AMI EFI 128Mbit AMI EFI 128Mbit
Chipset Intel H81 Intel H81
Memory
Technology DDR3 1333/1600 MHz DDR3 1333/1600 MHz
Max. Capacity 16GB 16GB
ECC Support No No
Socket 2 x 204 pin SODIMM 2 x 204 pin SODIMM
Display
Controller Intel HD Graphics Intel HD Graphics
Graphic Engine DirectX 11, OpenCL1.1 and OpenGL 3.1 support DirectX 11, OpenCL1.1 and OpenGL 3.1 support
Graphic Memory 1GB maximum shared memory with 2GB and above system memory installed 1GB maximum shared memory with 2GB and above system memory installed
VGA 1 1
LCD (TTL/LVDS/eDP) LVDS (Optional) 0
DDI (HDMI/DVI/DisplayPort) DVI-D/DP DVI-D/DP
Multiple Display Dual Dual
Expansion
PCI Express x 16 1 1
PCI Express x 4 0 0
PCI Express x 1 2 2
PCI 1
SMBus 0 0
Ethernet
Controller GbE LAN1: Realtek RTL8111E, GbE LAN2: Realtek RTL8111E GbE LAN1: Realtek RTL8111E, GbE LAN2: Realtek RTL8111E
Speed 10/ 100/ 1000 Mbps 10/ 100/ 1000 Mbps
Connector RJ45 x 2 RJ45 x 1
Audio
Audio Interface HD Audio HD Audio
CODEC Realtek ALC892, High Definition Audio (HD) Realtek ALC892, High Definition Audio (HD)
Connector 2 (Line out, Mic-in) 2 (Line out, Mic-in)
Watchdog Timer
WatchDog Timer Yes Yes
Storage
SATA 2 SATA 3.0 & 1 SATA 2.0 2 SATA 3.0 & 1 SATA 2.0
RAID Software RAID 0, 1, 5, 10 Software RAID 0, 1, 5, 10
I/O
USB3.0 2 2
USB2.0 7 7
GPIO 8-bit GPIO 8-bit GPIO
LPT 1 0
COM Port 10 ( 8 x RS232, 2 x RS232/ 422/ 485) 2 ( 2 x RS-232 )
Keypad 0 0
TPM Optional Optional
Smart Fan 5 5
Power
Power Type ATX ATX
Connector ATX24P ATX24P
Power Consumption (Idle) 1A @ 5V / 0.94A @ 3.3V / 0.44A @ 12V / 0.23A @ 5Vsb / 0A @ -12V/1.91A @ 5V / 0.27A @ 3.3V / 0.64A @ 12V / 0.16A @ 5Vsb / 0.14A @ -12V 1A @ 5V / 0.94A @ 3.3V / 0.44A @ 12V / 0.23A @ 5Vsb / 0A @ -12V/1.91A @ 5V / 0.27A @ 3.3V / 0.64A @ 12V / 0.16A @ 5Vsb / 0.14A @ -12V
Power Consumption (Full Load) 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V /2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V
Battery Lithium 3 V / 200 mAh Lithium 3 V / 200 mAh
Environment
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature -40~ 85° C -40~ 85° C
Vibration Resistance 3.5 Grm (Non-Operation Mode) 3.5 Grm (Non-Operation Mode)
Physical
Dimension (mm) 244 x 244 mm 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package 1.2 kg (2.64 lb), weight of total package
Operating System
Microsoft Windows Yes Yes
Linux Yes Yes
SUSIAccess Yes Yes
Certification
EMC CE/FCC Class B CE/FCC Class B

Data sheet on AIMB-503 (pdf file, opens in new tab)

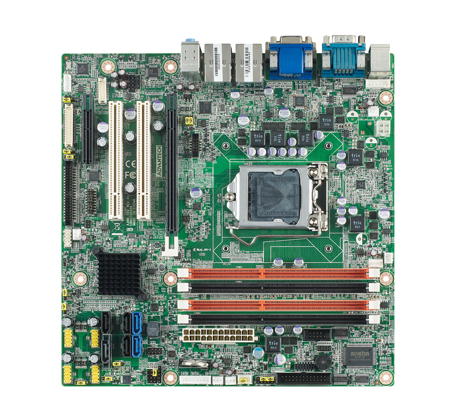

AIMB-582 MicroATX Mainboard


3rd Gen Intel® Xeon® E3/ Core™ i7/i5/i3 LGA1155 MicroATX with Q77/C216, CRT/DVI/eDP/LVDS/DP, 6 COM, Dual LAN, SATAIII
Advantech ATX Motherboards - AIMB-582
Click here to show/ hide more info

Advantech ATX Motherboards - AIMB-582

Features:

  • Supports Intel® Xeon®/ Core™ i7/i5/i3 processor with Q77/C216 chipset
  • Four DIMM sockets support up to 32 GB DDR3 1333/1600 MHz SDRAM
  • Supports CRT, DVI, LVDS, DP, eDP (optional) and dual GbE LAN
  • Supports Intel AMT 8.0 and Intel vPro competent
  • Supports PCIE Gen3, USB 3.0, Software RAID 0,1,5,10, TPM 1.2 (Optional)
  • Supports WISE PaaS/RMM and Embedded Software APIs

Specifications:

Category Attribute Value
Display Controller Intel HD Graphics
DDI (HDMI/DVI/DisplayPort) DVI: 1920 x 1200 @ 60Hz DisplayPort: 2560 x 1600 @ 60Hz
Graphic Engine DirectX 11, OpenCL1.1 and OpenGL 3.1 support
Graphic Memory 1GB maximum shared memory with 2GB and above system memory installed
LCD (TTL/LVDS/eDP) LVDS: Dual channel 24-bit, up to 2560×1600 at 60 Hz eDP: 1920 x 1600 @ 60Hz
Multiple Display Dual/ Triple
VGA Up to 2048 x 1563 @ 60Hz
Form Factor Form Factor Micro ATX
I/O COM Port 6 ( 5 x RS232, 1 x RS232/ 422/ 485)
GPIO 8-bit GPIO
Keypad 1
LPT 1
Smart Fan 5
TPM Optional
USB2.0 8
USB3.0 4
Memory ECC Support No
Max. Capacity 32 GB
Socket 4 x 240-pin DIMM
Technology DDR3 1333/1600 MHz
Processor BIOS AMI EFI 64Mbit
Chipset Intel Q77 PCH
Core Number 2 / 4
CPU Intel Core i7-3770 / i7-2600 / i5-3550S / i5-2400 / i3-3220 / i3-2120 / Pentium G2120 / Pentium G850 / Celeron G540
CPU TDP 95W / 77W / 65W / 55W
Frequency 2.5GHz ~ 3.4 GHz
L3 Cache 2 ~ 8MB
Storage RAID Software RAID 0, 1, 5, 10
SATA 4 x SATAII (Max. Data Transfer Rate 300 MB/s) 2 x SATAIII ( (Max. Data Transfer Rate 600 MB/s)
Operating System Linux Yes
Microsoft Windows Yes
SUSIAccess Yes
Environment Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Vibration Resistance 3.5 Grm (Non-Operation Mode)
Power Battery Lithium 3 V / 200 mAh
Connector ATX24P
Power Consumption (Full Load) 2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V
Power Consumption (Idle) 1.91A @ 5V / 0.27A @ 3.3V / 0.64A @ 12V / 0.16A @ 5Vsb / 0.14A @ -12V
Power Type ATX
Ethernet Connector RJ45 x 2
Controller GbE1: Intel 82579LM GbE2: Intel 82583V
Speed 10/ 100/ 1000 Mbps
Audio Audio Interface HD Audio
CODEC Realtek ALC892, High Definition Audio (HD)
Connector 2 (Line out, Mic-in)
Watchdog Timer WatchDog Timer Yes
Certification EMC CE, FCC
Expansion PCI 2
PCI Express x 16 1
PCI Express x 4 1
SMBus 1
Physical Dimension (mm) 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package

Data sheet on AIMB-582 (pdf file, opens in new tab)

AIMB-502 MicroATX Mainboard


3rd Gen Intel® Xeon® E3/ Core™ i7/i5/i3 LGA1155 MicroATX with Q77/C216, CRT/DVI/HDMI, 6 COM, Dual LAN, SATAIII
Advantech ATX Motherboards - AIMB-502
Click here to show/ hide more info

Advantech ATX Motherboards - AIMB-502

Features:

  • Supports Intel® Xeon®/ Core™ i7/i5/i3 processor with Q77/C216 chipset
  • Four DIMM sockets support up to 32 GB DDR3 1333/1600 MHz SDRAM
  • Supports CRT, DVI, HDMI, Phoenix connector and dual GbE LAN
  • Supports Intel AMT 8.0 and Intel vPro competent
  • Supports 2 SATAIII, 6 SATAII, 1 eSATA, 1 mSATA, Software RAID 0, 1, 5, 10
  • Supports PCIE Gen3, USB 3.0 x 4. TPM 1.2 (Optional)
  • Supports WISE PaaS/RMM and Embedded Software APIs

Specifications:

Part Number AIMB-502QG2-00A1E AIMB-502WG2-00A1E
Form Factor
Form Factor Micro ATX Micro ATX
Processor
CPU Intel Core i7-3770 / i7-2600 / i5-3550S / i5-2400 / i3-3220 / i3-2120 / Pentium G2120 / Pentium G850 / Celeron G540 Intel Core i7-3770 / i7-2600 / i5-3550S / i5-2400 / i3-3220 / i3-2120 / Pentium G2120 / Pentium G850 / Celeron G540
CPU TDP 95W / 77W / 65W / 55W 95W/ 65W
Frequency 2.5GHz ~ 3.4 GHz 2.9GHz ~ 3.5 GHz
Core Number 2/4 2/4
L3 Cache 2 ~ 8MB 3 ~ 8MB
BIOS AMI EFI 64Mbit AMI EFI 64Mbit
Chipset Intel Q77 PCH Intel C216 PCH
Memory
Technology DDR3 1333/1600 MHz DDR3 1333/1600 MHz
Max. Capacity 32 GB 32 GB
ECC Support No Yes/NO
Socket 4 x 240-pin DIMM 4 x 240-pin DIMM
Display
Controller Intel HD Graphics Intel HD Graphics
Graphic Engine DirectX 11, OpenCL1.1 and OpenGL 3.1 support DirectX 11, OpenCL1.1 and OpenGL 3.1 support
Graphic Memory 1GB maximum shared memory with 2GB and above system memory installed 1GB maximum shared memory with 2GB and above system memory installed
VGA Up to 2048 x 1563 @ 60Hz Up to 2048 x 1563 @ 60Hz
LCD (TTL/LVDS/eDP) 0 0
DDI (HDMI/DVI/DisplayPort) DVI: 1920 x 1200 @ 60Hz, HDMI: 1.4, up to 1920 x 1080 @ 60Hz DVI: 1920 x 1200 @ 60Hz, HDMI: 1.4, up to 1920 x 1080 @ 60Hz
Multiple Display Dual/ Triple Dual/ Triple
Expansion
PCI Express x 16 1 1
PCI Express x 4 0 0
PCI 1 1
SMBus 0 0
Ethernet
Controller GbE1: Intel 82579LM, GbE2: Intel 82574L GbE1: Intel 82579LM, GbE2: Intel 82574L
Speed 10/ 100/ 1000 Mbps 10/ 100/ 1000 Mbps
Connector RJ45 x 2 RJ45 x 2
Audio
Audio Interface HD Audio HD Audio
CODEC Realtek ALC892, High Definition Audio (HD) Realtek ALC892, High Definition Audio (HD)
Connector 2 (Line out, Mic In) 2 (Line out, Mic In)
Watchdog Timer
WatchDog Timer 255 levels timer interval, programmable by software 255 levels timer interval, programmable by software
Storage
SATA 6 x SATAII (Max. Data Transfer Rate 300 MB/s), 2 x SATAIII ( (Max. Data Transfer Rate 600 MB/s), 1 x eSATA, 1 mSATA ((Max. Data Transfer Rate 300 MB/s) 6 x SATAII (Max. Data Transfer Rate 300 MB/s), 2 x SATAIII ( (Max. Data Transfer Rate 600 MB/s), 1 x eSATA, 1 mSATA ((Max. Data Transfer Rate 300 MB/s)
RAID Software RAID 0, 1, 5, 10 Software RAID 0, 1, 5, 10
I/O
USB3.0 4 4
USB2.0 2 2
GPIO 8-bit GPIO 8-bit GPIO
LPT 0 0
COM Port 6 ( 5 x RS232, 1 x RS485 via Phoneix connector on rear IO as COM1) 6 ( 5 x RS232, 1 x RS485 via Phoneix connector on rear IO as COM1)
Keypad 0 0
TPM Optional Optional
Smart Fan 5 5
Power
Power Type ATX ATX
Power Consumption (Idle) 1.91A @ 5V / 0.27A @ 3.3V / 0.64A @ 12V / 0.16A @ 5Vsb / 0.14A @ -12V 1A @ 5V / 0.94A @ 3.3V / 0.44A @ 12V / 0.23A @ 5Vsb / 0A @ -12V
Power Consumption (Full Load) 2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V 3.66A @ 5V / 1.05A @ 3.3V / 6.02A @12V / 0.29A @ 5Vsb / 0A @ -12V
Battery Lithium 3 V / 200 mAh Lithium 3 V / 200 mAh
Environment
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
Vibration Resistance 3.5 Grm (Non-Operation Mode) 3.5 Grm (Non-Operation Mode)
Physical
Dimension (mm) 244 x 244 mm 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package 1.2 kg (2.64 lb), weight of total package
Operating System
Microsoft Windows Yes Yes
Linux Yes Yes
SUSIAccess Yes Yes
Certification
EMC CE, FCC Class B CE, FCC Class B

Data sheet on AIMB-502 (pdf file, opens in new tab)

AIMB-581 MicroATX Mainboard


2nd Gen Intel® Xeon® E3/ Core™ i7/i5/i3 LGA1155 MicroATX with Q67/C206, CRT/DVI/LVDS, 6 COM, Dual LAN, SATAIII
Advantech ATX Motherboards - AIMB-581
Click here to show/ hide more info

Advantech ATX Motherboards - AIMB-581

Features:

  • Supports Intel® Xeon®/Core™ i7/i5/i3 processor with Q67/C206 chipset
  • Four DIMM sockets support up to 16 GB DDR3 1066/1333 MHz SDRAM
  • Supports dual display of CRT, DVI, LVDS (optional) and dual GbE LAN
  • Supports Inel vPro, AMT 7.0, PECI 3.0, USB 3.0, Software RAID 0, 1, 5, 10, TPM 1.2 (optional)
  • Supports WISE PaaS/RMM and Embedded Software APIs

Specifications:

Category Attribute Value
Display Controller Intel HD Graphics
DDI (HDMI/DVI/DisplayPort) DVI: 1920 x 1200 @ 60Hz
Graphic Engine DirectX 10.1 and OpenGL 3.0 support
Graphic Memory 1GB maximum shared memory with 2GB and above system memory installed
LCD (TTL/LVDS/eDP) LVDS: Single channel 24-bit, up to 1920 x 1200 at 60 Hz
Multiple Display Dual
VGA Up to 2048 x 1563 @ 60Hz
Form Factor Form Factor Micro ATX
I/O COM Port 6 ( 5 x RS232, 1 x RS232/ 422/ 485)
GPIO 8-bit GPIO
Keypad 1
LPT 1
Smart Fan 5
TPM Optional
USB2.0 10
USB3.0 2
Memory ECC Support No
Max. Capacity 16 GB
Socket 4 x 240-pin DIMM
Technology DDR3 1066/1333 MHz
Processor BIOS AMI EFI 64Mbit
Chipset Intel Q67 PCH
Core Number 2 / 4
CPU Intel i7-2600 / i5-2400 / i3-2120 / Pentium G850 / Celeron G540
CPU TDP 95W / 65W
Frequency 2.5GHz ~ 3.4 GHz
L3 Cache 2 ~ 8MB
Storage RAID Software RAID 0, 1, 5, 10
SATA 4 x SATAII (Max. Data Transfer Rate 300 MB/s) 2 x SATAIII ( (Max. Data Transfer Rate 600 MB/s)
Operating System Linux Yes
Microsoft Windows Yes
SUSIAccess Yes
Environment Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Vibration Resistance 3.5 Grm (Non-Operation Mode)
Power Battery Lithium 3 V / 200 mAh
Connector ATX24P
Power Consumption (Full Load) 3.52A @ 5V / 1.07A @ 3.3V / 3.79A @ 12V / 0.32A @ 5Vsb / 0A @ -12V
Power Consumption (Idle) 1.73A @ 5V / 0.89A @ 3.3V / 0.68A @ 12V / 0.29A @ 5Vsb / 0.01A @ -12V
Power Type ATX
Ethernet Connector RJ45 x 2
Controller GbE1: Intel 82579LM GbE2: Intel 82583V
Speed 10/ 100/ 1000 Mbps
Audio Audio Interface HD Audio
CODEC Realtek ALC892, High Definition Audio (HD)
Connector 2 (Line out, Mic-in)
Watchdog Timer WatchDog Timer Yes
Certification EMC CE, FCC
Expansion LPC 1
PCI 2
PCI Express x 16 1
PCI Express x 4 1
Physical Dimension (mm) 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package

Data sheet on AIMB-581 (pdf file, opens in new tab)

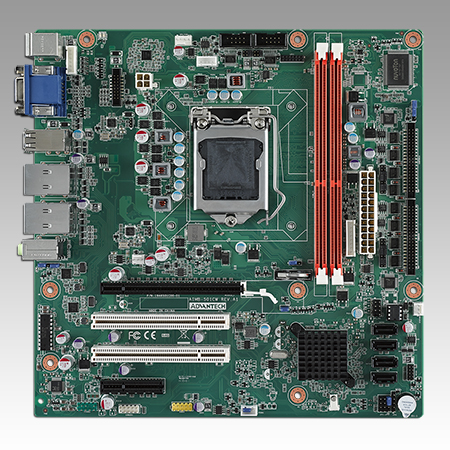

AIMB-501 MicroATX Mainboard


2nd & 3rd Gen Intel® Core™ i7/i5/i3 LGA1155 MicroATX with H61, CRT/DVI/LVDS, 10 COM, 10 USB 2.0, Dual LAN
Advantech ATX Motherboards - AIMB-501
Click here to show/ hide more info

Advantech ATX Motherboards - AIMB-501F-CWA1EAIMB-501CW

Features:

  • Supports WISE PaaS/RMM and Embedded Software APIs
  • Supports 10 USB 2.0 (G2 sku) or 2 USB 3.0 and 8 USB 2.0 ( F sku)
  • Supports 10 COM, LPT (pin header), TPM 1.2 (Optional)
  • Supports triple / dual display of VGA and two GbE LAN
  • Two DIMM sockets support up to 16 GB DDR3 1066/1333/1600 MHz SDRAM
  • Supports Intel® Core™ i7/i5/i3 processor with B75 / H61 chipset

Specifications:

Part Number AIMB-501F-CWA1E AIMB-501G2-CWA1E
Form Factor
Form Factor Micro ATX Micro ATX
Processor
CPU Intel Core i7-3770 / i7-2600 / i5-3550S / i5-2400 / i3-3220 / i3-2120 / Pentium G2120 / Pentium G850 / Celeron G540 Intel Core i7-3770 / i7-2600 / i5-3550S / i5-2400 / i3-3220 / i3-2120 / Pentium G2120 / Pentium G850 / Celeron G540
CPU TDP 95W / 77W / 65W / 55W 95W / 77W / 65W / 55W
Frequency 2.5GHz ~ 3.4 GHz 2.5GHz ~ 3.4 GHz
Core Number 2/4 2/4
L3 Cache 2 ~ 8MB 2 ~ 8MB
BIOS AMI EFI 64Mbit AMI EFI 64Mbit
Chipset Intel B75 PCH Intel H61 PCH
Memory
Technology DDR3-1066/1333/1600MHz DDR3-1066/1333/1600MHz
Max. Capacity 16 GB 16 GB
ECC Support No No
Socket 2 x 240-pin DIMM 2 x 240-pin DIMM
Display
Controller Intel HD Graphics Intel HD Graphics
Graphic Engine DirectX 11 ,OpenCL 1.1 and OpenGL 3.0 support DirectX 10.1 and OpenGL 3.0 support
Graphic Memory 1GB maximum shared memory with 2GB and above system memory installed 1GB maximum shared memory with 2GB and above system memory installed
VGA CRT1: Up to 2048 x 1563 @ 60Hz CRT2: Up to 1920 x 1200 resolution /Up to 2048 x 1563 @ 60Hz CRT1: Up to 2048 x 1563 @ 60Hz CRT2: Up to 1920 x 1200 resolution /Up to 2048 x 1563 @ 60Hz
LCD (TTL/LVDS/eDP) N/A N/A
DDI (HDMI/DVI/DisplayPort)
Multiple Display Triple Dual
Expansion
PCI Express x 16 1 1
PCI Express x 1 1 1
PCI 2
Ethernet
Controller GbE1: RTL8111-VL GbE2: RTL8111-VL GbE1: RTL8111-VL GbE2: RTL8111-VL
Speed 10/ 100/ 1000 Mbps 10/ 100/ 1000 Mbps
Connector RJ45 x 2 RJ45 x 2
Audio
Audio Interface HD Audio HD Audio
CODEC Realtek ALC892, High Definition Audio (HD) Realtek ALC892, High Definition Audio (HD)
Amplifier Dual channel 6W amplifier/- Dual channel 6W amplifier/-
Connector 2 (Line-in, Line out, Mic-in) 2 (Line-in, Line out, Mic-in)
Watchdog Timer
WatchDog Timer 1~255 level 1~255 level
Storage
SATA 4 x SATAII (Max. Data Transfer Rate 300 MB/s) 4 x SATAII (Max. Data Transfer Rate 300 MB/s)
I/O
USB2.0 2 USB 3.0 / 8 USB 2.0 10
GPIO 8-bit GPIO 8-bit GPIO
LPT 1 1
COM Port 10 ( 8 x RS232, 2 x RS232/ 422/ 485)/2 ( 1 x RS232, 1 x RS232/ 422/ 485) 10 ( 8 x RS232, 2 x RS232/ 422/ 485)/2 ( 1 x RS232, 1 x RS232/ 422/ 485)
Keypad 1 1
TPM Optional Optional
Smart Fan 3 3
Power
Power Type ATX ATX
Connector ATX24P ATX24P
Power Consumption (Idle) 1.39A @ 5V / 0.96A @ 3.3V / 0.63A @ 12V / 0.16A @ 5Vsb / 0.15A @ -12V 1.39A @ 5V / 0.96A @ 3.3V / 0.63A @ 12V / 0.16A @ 5Vsb / 0.15A @ -12V
Power Consumption (Full Load) 1.72A @ 5V / 1.02A @ 3.3V / 5.61A @ 12V / 0.27A @ 5Vsb / 0.16A @ -12V 1.72A @ 5V / 1.02A @ 3.3V / 5.61A @ 12V / 0.27A @ 5Vsb / 0.16A @ -12V
Battery Lithium 3 V / 200 mAh Lithium 3 V / 200 mAh
Environment
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
Vibration Resistance Shine 2G with cooler (Non-Operation Model) Shine 2G with cooler (Non-Operation Model)
Physical
Dimension (mm) 244 x 244 mm 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package 1.2 kg (2.64 lb), weight of total package
Operating System
Microsoft Windows Yes Yes
Linux Yes (by Project) Yes (by Project)
SUSIAccess Yes Yes
Certification
EMC CE, FCC Class B CE, FCC Class B

Data sheet on AIMB-501CW (pdf file, opens in new tab)


Advantech ATX Motherboards - AIMB-501

AIMB-501

Features:

  • Supports Intel® Core™ i7/i5/i3 processor with H61 chipset
  • Two DIMM sockets support up to 16 GB DDR3 1066/1333 MHz SDRAM
  • Supports dual display of VGA, DVI, LVDS and two GbE LAN
  • ƒSupports 10 COM, LPT, TPM 1.2 (Optional)
  • ƒSupports 10 USB 2.0 or 2 USB 3.0 and 8 USB 2.0
  • Supports WISE PaaS/RMM and Embedded Software APIs

Specifications:

Part Number AIMB-501G2-KSA1E AIMB-501L-KSA1E
Form Factor
Form Factor Micro ATX Micro ATX
Processor
CPU Intel i7-2600 / i5-2400 / i3-2120 / Pentium G850 / Celeron G540 Intel i7-2600 / i5-2400 / i3-2120 / Pentium G850 / Celeron G540
CPU TDP 95W/ 65W 95W/ 65W
Frequency 2.5GHz ~ 3.4 GHz 2.5GHz ~ 3.4 GHz
Core Number 2/4 2/4
L3 Cache 2 ~ 8MB 2 ~ 8MB
BIOS AMI EFI 64Mbit AMI EFI 64Mbit
Chipset Intel H61 PCH Intel H61 PCH
Memory
Technology DDR3 1066/1333 MHz DDR3 1066/1333 MHz
Max. Capacity 16 GB 16 GB
ECC Support No No
Socket 2 x 240-pin DIMM 2 x 240-pin DIMM
Display
Controller Intel HD Graphics Intel HD Graphics
Graphic Engine DirectX 10.1 and OpenGL 3.0 support DirectX 10.1 and OpenGL 3.0 support
Graphic Memory 1GB maximum shared memory with 2GB and above system memory installed 1GB maximum shared memory with 2GB and above system memory installed
VGA CRT1: Up to 2048 x 1563 @ 60Hz CRT2: Up to 1920 x 1200 resolution Up to 2048 x 1563 @ 60Hz
LCD (TTL/LVDS/eDP) LVDS: Support 18/24-bit single/dual channel, up to 1600 x 1200 0
DDI (HDMI/DVI/DisplayPort) DVI: 1920 x 1200 @ 60Hz (Optional) DVI: 1920 x 1200 @ 60Hz (Optional)
Multiple Display Dual
Expansion
PCI Express x 16 1 1
PCI Express x 1 1 1
PCI 2
Ethernet
Controller GbE1: RTL8111-VL GbE2: RTL8111-VL GbE1: RTL8111-VL
Speed 10/ 100/ 1000 Mbps 10/ 100/ 1000 Mbps
Connector RJ45 x 2 RJ45 x 1
Audio
Audio Interface HD Audio HD Audio
CODEC Realtek ALC892, High Definition Audio (HD) Realtek ALC892, High Definition Audio (HD)
Amplifier Dual channel 6W amplifier
Connector 2 (Line-in, Line out, Mic-in) 2 (Line-in, Line out, Mic-in)
Watchdog Timer
WatchDog Timer Yes Yes
Storage
SATA 4 x SATAII (Max. Data Transfer Rate 300 MB/s) 4 x SATAII (Max. Data Transfer Rate 300 MB/s)
I/O
USB2.0 10 10
GPIO 8-bit GPIO 8-bit GPIO
LPT 1 1
COM Port 10 ( 8 x RS232, 2 x RS232/ 422/ 485) 2 ( 1 x RS232, 1 x RS232/ 422/ 485)
Keypad 1 1
TPM Optional Optional
Smart Fan 3 3
Power
Power Type ATX ATX
Connector ATX24P ATX24P
Power Consumption (Idle) 1.39A @ 5V / 0.96A @ 3.3V / 0.63A @ 12V / 0.16A @ 5Vsb / 0.15A @ -12V 1.39A @ 5V / 0.96A @ 3.3V / 0.63A @ 12V / 0.16A @ 5Vsb / 0.15A @ -12V
Power Consumption (Full Load) 1.72A @ 5V / 1.02A @ 3.3V / 5.61A @ 12V / 0.27A @ 5Vsb / 0.16A @ -12V 1.72A @ 5V / 1.02A @ 3.3V / 5.61A @ 12V / 0.27A @ 5Vsb / 0.16A @ -12V
Battery Lithium 3 V / 200 mAh Lithium 3 V / 200 mAh
Environment
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
Vibration Resistance 3.5 Grm (Non-Operation Mode) 3.5 Grm (Non-Operation Mode)
Physical
Dimension (mm) 244 x 244 mm 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package 1.2 kg (2.64 lb), weight of total package
Operating System
Microsoft Windows Yes Yes
Linux Yes Yes
SUSIAccess Yes Yes
Certification
EMC CE, FCC CE, FCC

Data sheet on AIMB-501 (pdf file, opens in new tab)

AIMB-580 MicroATX Mainboard


1st Gen Intel® Core™ i7/i5/i3/Pentium®/Xeon LGA1156 mATX with Q57, CRT/DVI, 4 COM, Dual LAN
Advantech ATX Motherboards - AIMB-580
Click here to show/ hide more info

Advantech MicroATX Motherboards - AIMB-580QG2-00A1E

AIMB-580QG2-00A1E

Features:

  • Supports Intel® Core™ i7/i5/i3/Pentium processor with Q57 chipset
  • 4 x DIMM socket supports up to 16 GB DDR3 800/1066/1333
  • Supports dual display VGA/DVI
  • Supports dual Gigabit LAN
  • 3 x RS-232, 1 x RS-232/422/485 with auto flow control
  • 6 SATA ports with support for RAID 0, 1, 5, 10, and optional AMT 6.0, TPM 1.2
  • Supports embedded software APIs and utilities

Specifications:

Category Attribute Value
Display Controller Intel HD Graphics
DDI (HDMI/DVI/DisplayPort) DVI: 1920 x 1200 @ 60Hz
Graphic Engine DirectX 10 and Open GL 2.1 supported
Graphic Memory 1GB maximum shared memory with 2GB and above system memory installed
Multiple Display Dual
VGA Up to 2048 x 1563 @ 60Hz
Form Factor Form Factor Micro ATX
I/O COM Port 4 ( 3 x RS232, 1 x RS232/ 422/ 485)
Keypad 1
LPT 1
Smart Fan 3
TPM Optional
USB2.0 10
Memory ECC Support No
Max. Capacity 16 GB
Socket 4 x 240-pin DIMM
Technology DDR3 800/1066/1333 MHz
Processor BIOS AMI EFI 64Mbit
Chipset Intel Q57 PCH
Core Number 2 / 4
CPU Intel i7-860 / i5-750 / i5-660 / i3-540/ Pentium G6950
CPU TDP 95W / 73W
Frequency 2.66GHz ~ 3.3 GHz
L3 Cache 3 ~ 8MB
Storage RAID Software RAID 0, 1, 5, 10
SATA 6 x SATAII (Max. Data Transfer Rate 300 MB/s)
Operating System Linux Yes
Microsoft Windows Yes
SUSIAccess Yes
Environment Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Vibration Resistance 3.5 Grm (Non-Operation Mode)
Power Battery Lithium 3 V / 200 mAh
Connector ATX24P
Power Consumption (Full Load) 1.8A @ 5V / 0.67A @ 3.3V / 3.55A @ 12V / 0.01A @ 5Vsb / 0A @ -12V
Power Consumption (Idle) 1.82A @ 5V / 0.64A @ 3.3V / 1.48A @ 12V / 0A @ 5Vsb / 0A @ -12V
Power Type ATX
Ethernet Connector RJ45 x 2
Controller GbE1: Intel 82578DM GbE2: Intel 82583V
Speed 10/ 100/ 1000 Mbps
Audio Audio Interface HD Audio
CODEC Realtek ALC892, High Definition Audio (HD)
Connector 2 (Line out, Mic-in)
Watchdog Timer WatchDog Timer Yes
Certification EMC CE, FCC
Expansion LPC 1
PCI 2
PCI Express x 16 1
PCI Express x 4 1
Physical Dimension (mm) 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package

Advantech ATX Motherboards - AIMB-580WG2-00A1E

AIMB-580WG2-00A1E
Intel® Core™ i7/i5/i3/Pentium®MicroATX with VGA/DVI, Dual LAN – Workstation Version
Features:

  • Supports Intel® Core™ i7/i5/i3/Pentium processor with 3450 chipset
  • 4 x DIMM socket supports up to 16 GB DDR3 800/1066/1333
  • Supports dual display VGA/DVI
  • Supports dual Gigabit LAN
  • 3 x RS-232, 1 x RS-232/422/485 with auto flow control
  • 6 x SATA ports with support for RAID 0, 1, 5, 10, and optional AMT 6.0, TPM 1.2
  • Supports embedded software APIs and utilities

Specifications:

Category Attribute Value
Display Controller Intel HD Graphics
DDI (HDMI/DVI/DisplayPort) DVI: 1920 x 1200 @ 60Hz
Graphic Engine DirectX 10 and Open GL 2.1 supported
Graphic Memory 1GB maximum shared memory with 2GB and above system memory installed
Multiple Display Dual
VGA Up to 2048 x 1563 @ 60Hz
Form Factor Form Factor Micro ATX
I/O COM Port 4 ( 3 x RS232, 1 x RS232/ 422/ 485)
Keypad 1
LPT 1
Smart Fan 3
TPM Optional
USB2.0 10
Memory ECC Support Yes
Max. Capacity 16 GB
Socket 4 x 240-pin DIMM
Technology DDR3 800/1066/1333 MHz
Processor BIOS AMI EFI 64Mbit
Chipset Intel 3450 PCH
Core Number 2 / 4
CPU Intel Xeon 3450 / Core i5-660 / i3-540/ Pentium G6950
CPU TDP 95W / 65W
Frequency 2.66GHz ~ 3.3 GHz
L3 Cache 3 ~ 8MB
Storage RAID Software RAID 0, 1, 5, 10
SATA 6 x SATAII (Max. Data Transfer Rate 300 MB/s)
Operating System Linux Yes
Microsoft Windows Yes
SUSIAccess Yes
Environment Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Vibration Resistance 3.5 Grm (Non-Operation Mode)
Power Battery Lithium 3 V / 200 mAh
Connector ATX24P
Power Consumption (Full Load) 2.8A @ 5V / 0.99A @ 3.3V / 5.14A @ 12V / 0.01A @ 5Vsb / 0.13A @ -12V
Power Consumption (Idle) 1.85A @ 5V / 0.91A @ 3.3V / 2.84A @ 12V / 0.06A @ 5Vsb / 0.12A @ -12V
Power Type ATX
Ethernet Connector RJ45 x 2
Controller GbE1: Intel 82578DM GbE2: Intel 82583V
Speed 10/ 100/ 1000 Mbps
Audio Audio Interface HD Audio
CODEC Realtek ALC892, High Definition Audio (HD)
Connector 2 (Line out, Mic-in)
Watchdog Timer WatchDog Timer Yes
Certification EMC CE, FCC
Expansion LPC 1
PCI 2
PCI Express x 16 1
PCI Express x 4 1
Physical Dimension (mm) 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package

Data sheet on AIMB-580 (pdf file, opens in new tab)

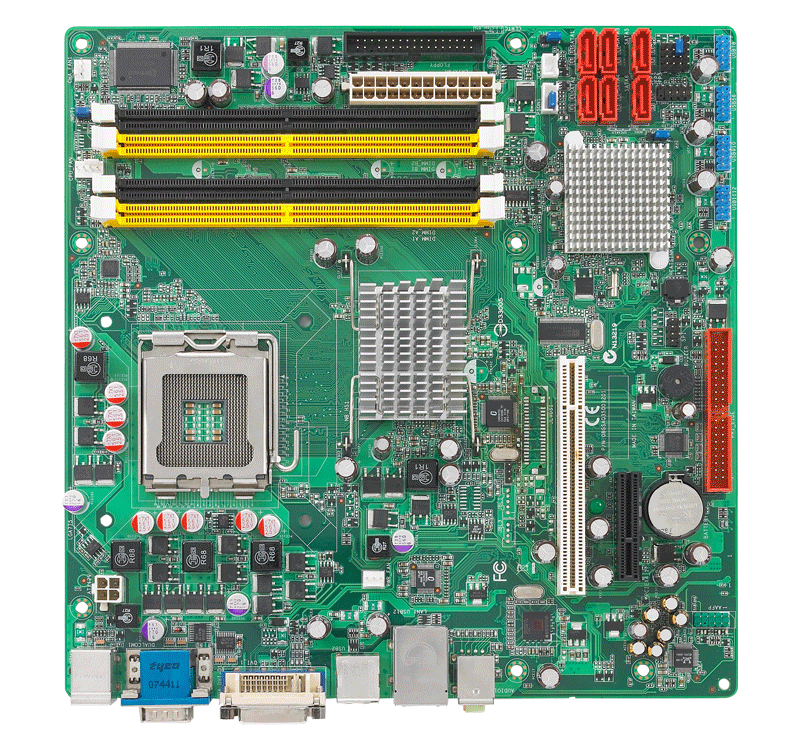

AIMB-566 MicroATX Mainboard


LGA775 Intel® Core™2 Quad/Core™2 Duo MicroATX with VGA/DVI, 2 COM, and LAN
Advantech MicroATX Motherboards - AIMB-566VG-00A1E
Click here to show/ hide more info

Advantech MicroATX Motherboards - AIMB-566VG-00A1E

Features:

  • Intel® Q35 and ICH9 DO supporting 800/1066/1333 MHz FSB
  • Supports dual core and quad core processors with 45nm processing
  • Dual channel DDR2 667/800 MHz SDRAM up to 8 GB
  • Supports dual display, VGA and DVI-D
  • Supports embedded software APIs and utilities

Specifications:

Category Attribute Value
Display Controller Intel Chipset integrated VGA controller (GMA3100)
DDI (HDMI/DVI/DisplayPort) DVI
Graphic Engine DirectX 9 and Open GL 2.0 supported
Graphic Memory Share with system memory up to 384MB
Multiple Display Dual
VGA 1 x VGA
Form Factor Form Factor Micro ATX
I/O COM Port 2 ( 2 x RS232)
Keypad 1
USB2.0 12
Memory ECC Support No
Max. Capacity 8 GB
Socket 4 x 240-pin DIMM
Technology DDR2 667/800 MHz
Processor BIOS AMI 32Mbit
Chipset Intel Q35 + ICH 9 DO
Core Number 1 ~ 4
CPU Intel Core 2 Quad Q9400 / Core 2 Duo E8500 / Pentium Daul-Core E5300 / Celeron 440
CPU TDP 95W / 65W
Frequency 2.0GHz ~ 3.16GHz
L2 Cache 512KB / 6MB
Storage Floppy 1
IDE 1
SATA 6 x SATAII (Max. Data Transfer Rate 300 MB/s)
Operating System Linux Yes
Microsoft Windows Yes
SUSIAccess Yes
Environment Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Vibration Resistance 3.5 Grm (Non-Operation Mode)
Power Battery Lithium 3 V / 200 mAh
Connector ATX24P
Power Consumption (Full Load) 3.15A @ 5V / 1.98A @ 3.3V / 1.66A @ 12V / 0.43A @ 5Vsb / 0.08A @ -12V
Power Consumption (Idle) 3.13A @ 5V / 1.89A @ 3.3V / 0.71A @ 12V / 0.44A @ 5Vsb / 0.06A @ -12V
Power Type ATX
Ethernet Connector RJ45 x 1
Controller GbE1: Intel 82566DM
Speed 10/ 100/ 1000 Mbps
Audio Audio Interface HD Audio
CODEC Realtek ALC888
Connector 2 (Line out, Mic-in)
Watchdog Timer WatchDog Timer Yes
Certification EMC CE, FCC
Expansion PCI 1
PCI Express x 4 1
Physical Dimension (mm) 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package

AIMB-564 MicroATX Mainboard


LGA775 Intel® Core™2 Quad/Core™2 Duo MicroATX with VGA, PCIe, SW RAID, and LAN
Advantech MicroATX Motherboards - AIMB-564VG-00A1E
Click here to show/ hide more info

Advantech MicroATX Motherboards - AIMB-564VG-00A1E

Features:

  • Intel® Q965 chipset 533/800/1066 MHz FSB
  • Supports Intel® Core™ 2 Quad/Core™ 2 Duo processor
  • Dual channel DDR2 533/667/800 MHz SDRAM up to 8 GB
  • Chipset integrated VGA sharing 256 MB system memory
  • PCIe x16 slot expansion
  • Supports single 10/100/1000 Mbps Ethernet via dedicated PCIe x1 bus

Specifications:

Category Attribute Value
Display Controller Intel Chipset integrated VGA controller (GMA3000)
Graphic Engine DirectX 9 and Open GL 1.4 supported
Graphic Memory Share with system memory up to 256 MB
VGA 1 x VGA
Form Factor Form Factor Micro ATX
I/O COM Port 1 ( 1 x RS232)
Keypad 1
LPT 1
USB2.0 10
Memory ECC Support No
Max. Capacity 8 GB
Socket 4 x 240-pin DIMM
Technology DDR2 533/667/800 MHz
Processor BIOS AMI 16Mbit
Chipset Intel Q965 + ICH8 DO
Core Number 1 ~ 4
CPU Intel Core 2 Quad Q6700 / Core 2 Duo E7400 / Pentium Daul-Core E2200 / Pentium 4 672/ Celeron D 352
CPU TDP 115W / 95W / 86W / 65W
Frequency 2.2GHz ~ 3.8GHz
L2 Cache 512KB ~ 8MB
Storage Floppy 1
IDE 1
RAID Software RAID 0, 1, 5, 10
SATA 7 x SATAII (Max. Data Transfer Rate 300 MB/s), 1 x eSATA
Operating System Linux Yes
Microsoft Windows Yes
SUSIAccess Yes
Environment Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Vibration Resistance 3.5 Grm (Non-Operation Mode)
Power Battery Lithium 3 V / 200 mAh
Connector ATX24P
Power Consumption (Full Load) 10.37A @ 5V / 2.83A @ 3.3V / 3.07A @ 12V / 0.46A @ 5Vsb
Power Type ATX
Ethernet Connector RJ45 x 1
Controller GbE1: Intel 82566DM
Speed 10/ 100/ 1000 Mbps
Audio Audio Interface HD Audio
CODEC Realtek ALC888
Connector 6 (Line in, Line out, Mic-in, CD-in, 6 jacks)
Watchdog Timer WatchDog Timer Yes
Certification EMC CE, FCC
Expansion PCI 2
PCI Express x 16 1
PCI Express x 4 1
Physical Dimension (mm) 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package

AIMB-562 MicroATX Mainboard


LGA775 Intel® Core™2 Duo MicroATX with Dual VGA/LVDS, 10 COM, Single LAN
Advantech ATX Motherboards - AIMB-562L-KSA1E
Click here to show/ hide more info

Advantech ATX Motherboards - AIMB-503

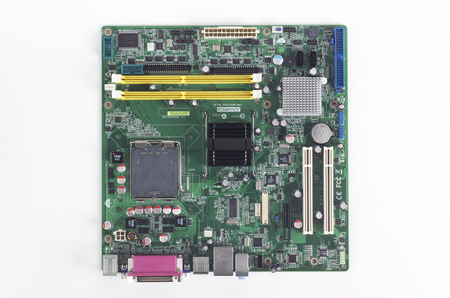

AIMB-562L-KSA1E

LGA775 Intel® Core™2 Duo MicroATX with Dual VGA/LVDS, 10 COM, Single LAN

Features:

  • Intel® 945G/945GC chipset supports 533/800/1066 MHz FSB
  • Dual channel DDR2 533/667 MHz SDRAM up to 4 GB
  • Supports dual VGA and 24-bit LVDS panel, dual channel 3 W amplifier
  • Supports 10 serial ports, 8 USB, 16-bit GPIO
  • Supports embedded software APIs and utilities

Specifications:

Category Attribute Value
Display Controller Intel Chipset integrated VGA controller (GMA 950)
Graphic Engine DirectX 9 and Open GL 1.4 supported
Graphic Memory Share with system memory up to 224 MB
VGA 1 x VGA
Form Factor Form Factor Micro ATX
I/O COM Port 2 ( 2 x RS232)
GPIO 16-bit GPIO
Keypad 1
LPT 1
USB2.0 8
Memory ECC Support No
Max. Capacity 4 GB
Socket 2 x 240-pin DIMM
Technology DDR2 533/667 MHz
Processor BIOS Award 16Mbit
Chipset Intel Q945GC + ICH7
Core Number 1 ~ 2
CPU Intel Core 2 Duo E7400 / Pentium Daul-Core E2200 / Pentium 4 651/ Celeron 440
CPU TDP 86W / 65W
Frequency 2.0GHz ~ 3.4GHz
L2 Cache 512KB ~ 4MB
Storage IDE 1
SATA 2 x SATAII (Max. Data Transfer Rate 300 MB/s)
Operating System Linux Yes
Microsoft Windows Yes
SUSIAccess Yes
Environment Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Vibration Resistance 3.5 Grm (Non-Operation Mode)
Power Battery Lithium 3 V / 200 mAh
Connector ATX24P
Power Consumption (Full Load) 4A @ 5V / 1.02A @ 3.3V / 2.35A @ 12V / 0.26A @ 5Vsb / 0.12A @ -12V
Power Type ATX
Ethernet Connector RJ45 x 1
Controller GbE1: RTL8111C
Speed 10/ 100/ 1000 Mbps
Audio Audio Interface HD Audio
CODEC Realtek ALC888
Connector 2 (Line out, Mic-in)
Watchdog Timer WatchDog Timer Yes
Certification EMC CE, FCC
Expansion PCI 2
PCI Express x 1 1
Physical Dimension (mm) 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package

Advantech ATX Motherboards - AIMB-562VG-00A1E

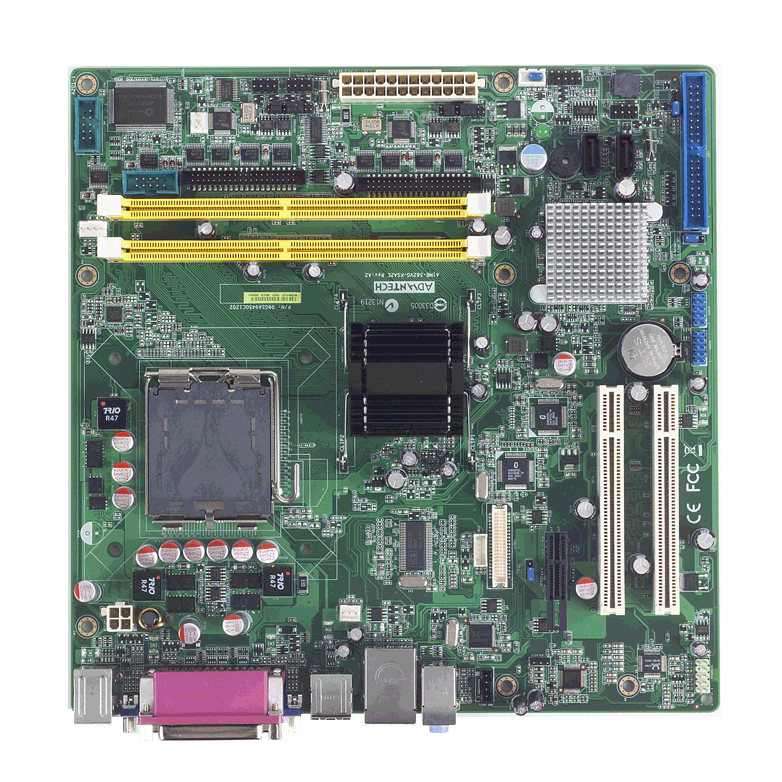

AIMB-562VG-00A1E

LGA 775 Core™ 2 Duo/Pentium® D/Pentium® 4/Celeron® D Processor-based MicroATX with DDR2/PCIe/LAN

Features:

  • Intel® 945G chipset 533/800/1066 MHz FSB
  • Supports Intel® Core™ 2 Duo processor
  • Dual channel DDR2 533/667 SDRAM up to 4 GB
  • Chipset integrated VGA sharing 224 MB system memory
  • PCIe x16 slot for VGA card
  • Four SATA II ports with 300 MB transfer rate
  • Supports single 10/100/1000Base-T Ethernet via dedicated PCIe x1 bus

Specifications:

Category Attribute Value
Display Controller Intel Chipset integrated VGA controller (GMA 950)
Graphic Engine DirectX 9 and Open GL 1.4 supported
Graphic Memory Share with system memory up to 224 MB
VGA 1 x VGA
Form Factor Form Factor Micro ATX
I/O COM Port 2 ( 2 x RS232)
Keypad 1
LPT 1
USB2.0 8
Memory ECC Support No
Max. Capacity 4 GB
Socket 2 x 240-pin DIMM
Technology DDR2 533/667 MHz
Processor BIOS AMI 4Mbit, FWH
Chipset Intel Q945G + ICH7
Core Number 1 ~ 2
CPU Intel Core 2 Duo E6700 / Pentium Daul-Core E2200 / Pentium 4 672 / Pentium D 940 / Celeron D 346
CPU TDP 115W / 95W / 86W / 65W
Frequency 2.2GHz ~ 3.8GHz
L2 Cache 512KB ~ 4MB
Storage Floppy 1
IDE 1
SATA 4 x SATAII (Max. Data Transfer Rate 300 MB/s)
Operating System Linux Yes
Microsoft Windows Yes
SUSIAccess Yes
Environment Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Vibration Resistance 3.5 Grm (Non-Operation Mode)
Power Battery Lithium 3 V / 200 mAh
Connector ATX24P
Power Consumption (Full Load) 3.95A @ 5V / 4.5A @ 3.3V / 10.36A @ 12V / 1.2A @ 5Vsb / 36mA @ -12V
Power Consumption (Idle) 3.88A @ 5V / 0.72A @ 3.3V / 1.63A @ 12V / 0.96A @ 5Vsb
Power Type ATX
Ethernet Connector RJ45 x 1
Controller GbE1: Intel 82573L
Speed 10/ 100/ 1000 Mbps
Audio Audio Interface HD Audio
CODEC Realtek ALC888
Connector 6 (Line in, Line out, Mic-in, CD-in, 6 jacks)
Watchdog Timer WatchDog Timer Yes
Certification EMC CE, FCC
Expansion PCI 2
PCI Express x 1 1
PCI Express x 16 1
Physical Dimension (mm) 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package

Advantech ATX Motherboards - AIMB-562VG-GRA1E

AIMB-562VG-GRA1E

LGA775 Intel® Core™2 Duo MicroATX with Dual VGA/LVDS, 10 COM, Single LAN

Features:

  • Intel® 945G/945GC chipset supports 533/800/1066 MHz FSB
  • Dual channel DDR2 533/667 MHz SDRAM up to 4 GB
  • Supports dual VGA and 24-bit LVDS panel, dual channel 3 W amplifier
  • Supports 10 serial ports, 8 USB, 16-bit GPIO
  • Supports embedded software APIs and utilities

Specifications:

Category Attribute Value
Display Controller Intel Chipset integrated VGA controller (GMA 950)
Graphic Engine DirectX 9 and Open GL 1.4 supported
Graphic Memory Share with system memory up to 224 MB
Multiple Display Dual
VGA 2 x VGA
Form Factor Form Factor Micro ATX
I/O COM Port 2 ( 2 x RS232)
GPIO 16-bit GPIO
Keypad 1
LPT 1
USB2.0 8
Memory ECC Support No
Max. Capacity 4 GB
Socket 2 x 240-pin DIMM
Technology DDR2 533/667 MHz
Processor BIOS Award 16Mbit
Chipset Intel Q945G + ICH7
Core Number 1 ~ 2
CPU Intel Core 2 Duo E7400 / Pentium Daul-Core E2200 / Pentium 4 651/ Celeron 440
CPU TDP 86W / 65W
Frequency 2.0GHz ~ 3.4GHz
L2 Cache 512KB ~ 4MB
Storage IDE 1
SATA 2 x SATAII (Max. Data Transfer Rate 300 MB/s)
Operating System Linux Yes
Microsoft Windows Yes
SUSIAccess Yes
Environment Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Vibration Resistance 3.5 Grm (Non-Operation Mode)
Power Battery Lithium 3 V / 200 mAh
Connector ATX24P
Power Consumption (Full Load) 4A @ 5V / 1.02A @ 3.3V / 2.35A @ 12V / 0.26A @ 5Vsb / 0.12A @ -12V
Power Type ATX
Ethernet Connector RJ45 x 1
Controller GbE1: RTL8111C
Speed 10/ 100/ 1000 Mbps
Audio Audio Interface HD Audio
CODEC Realtek ALC888
Connector 2 (Line out, Mic-in)
Watchdog Timer WatchDog Timer Yes
Certification EMC CE, FCC
Expansion PCI 2
PCI Express x 1 1
Physical Dimension (mm) 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package

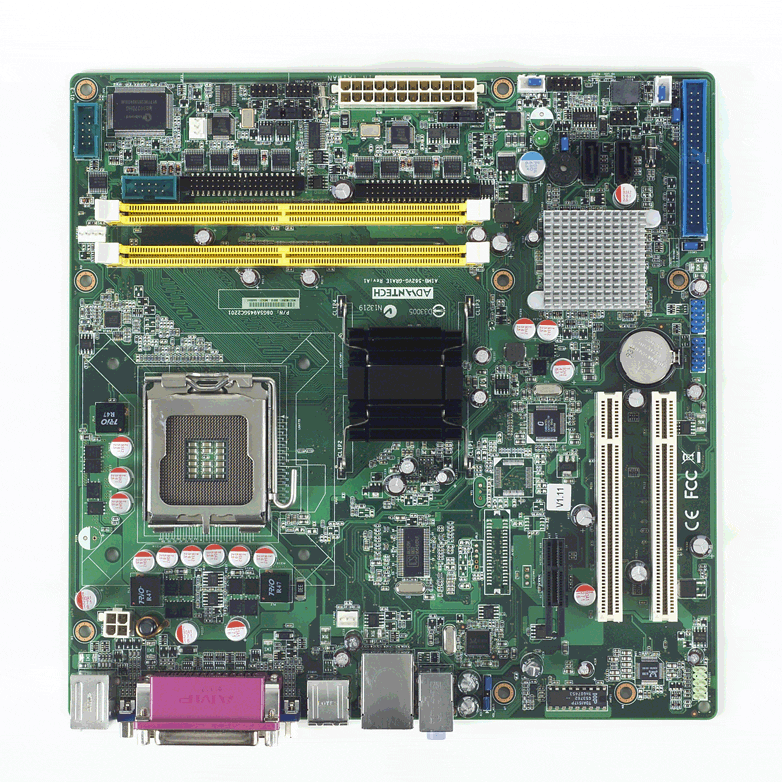

Advantech ATX Motherboards - AIMB-562VG-KSA1E

AIMB-562VG-00A1E

LGA 775 Core™ 2 Duo/Pentium® D/Pentium® 4/Celeron® D Processor-based MicroATX with DDR2/PCIe/LAN

Features:

  • Intel® 945G chipset 533/800/1066 MHz FSB
  • Supports Intel® Core™ 2 Duo processor
  • Dual channel DDR2 533/667 SDRAM up to 4 GB
  • Chipset integrated VGA sharing 224 MB system memory
  • PCIe x16 slot for VGA card
  • Four SATA II ports with 300 MB transfer rate
  • Supports single 10/100/1000Base-T Ethernet via dedicated PCIe x1 bus

Specifications:

Category Attribute Value
Display Controller Intel Chipset integrated VGA controller (GMA 950)
Graphic Engine DirectX 9 and Open GL 1.4 supported
Graphic Memory Share with system memory up to 224 MB
LCD (TTL/LVDS/eDP) LVDS: Single/dual channel 24-bit
Multiple Display Dual
VGA 2 x VGA
Form Factor Form Factor Micro ATX
I/O COM Port 2 ( 2 x RS232)
GPIO 16-bit GPIO
Keypad 1
LPT 1
USB2.0 8
Memory ECC Support No
Max. Capacity 4 GB
Socket 2 x 240-pin DIMM
Technology DDR2 533/667 MHz
Processor BIOS Award 16Mbit
Chipset Intel Q945G + ICH7
Core Number 1 ~ 2
CPU Intel Core 2 Duo E7400 / Pentium Daul-Core E2200 / Pentium 4 651/ Celeron 440
CPU TDP 86W / 65W
Frequency 2.0GHz ~ 3.4GHz
L2 Cache 512KB ~ 4MB
Storage IDE 1
SATA 2 x SATAII (Max. Data Transfer Rate 300 MB/s)
Operating System Linux Yes
Microsoft Windows Yes
SUSIAccess Yes
Environment Non-Operational Temperature -20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing
Operational Temperature 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)
Vibration Resistance 3.5 Grm (Non-Operation Mode)
Power Battery Lithium 3 V / 200 mAh
Connector ATX24P
Power Consumption (Full Load) 4A @ 5V / 1.02A @ 3.3V / 2.35A @ 12V / 0.26A @ 5Vsb / 0.12A @ -12V
Power Type ATX
Ethernet Connector RJ45 x 1
Controller GbE1: RTL8111C
Speed 10/ 100/ 1000 Mbps
Audio Audio Interface HD Audio
CODEC Realtek ALC888
Connector 2 (Line out, Mic-in)
Watchdog Timer WatchDog Timer Yes
Certification EMC CE, FCC
Expansion PCI 2
PCI Express x 1 1
Physical Dimension (mm) 244 x 244 mm
Weight 1.2 kg (2.64 lb), weight of total package
Call Now Button
