Industrial Keyboards - Silicone

Silicone Rubber Keyboards • Waterproof Keyboards • Rugged Keyboards

Sealshield Silicone Keyboards

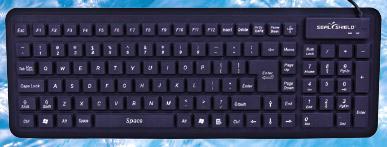

SEAL Glow 2™ Waterproof Keyboard


S106G2 / SW106G2 Dishwasher safe, anti-microbial, backlit slilcone keyboard – black or white
SEAL Glow 2™ Waterproof Keyboard
Click here to show/ hide more info

SEAL Glow 2™ Waterproof Keyboard

• Dishwasher Safe for easy cleaning
• 100% Waterproof Guaranteed — Seal Shield™ Limited Lifetime Warranty
• Silver Seal™ Protection (antimicrobial silicone reduces bacteria growth)
• LED Backlit Keys for Ease of Use in Low Light Environments
• Quick Connect™ cable makes connecting a snap!
• Seal Cap™ (Patent Pending) protects Gold-Plated USB connector
• Silent Typing with Superior Tactile Feel
• UV-Reinforced Printing resists fading
• Durable and Safe

Data on Sealshield_S106G2_SW106G2 (pdf file, opens in new tab)

CyberVisuell Industrial Keyboards – Silicone

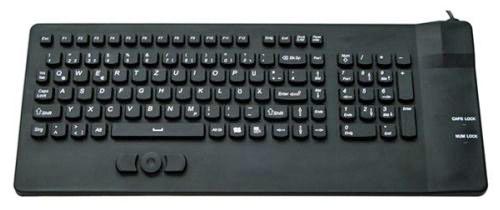

CSK301 Rugged Waterproof Keyboard with Pointer POPULAR


Silicone Industrial Keyboard, 102 keys with numeric keypad and mouse-button pointing device
CSK301
Click here to show/ hide more info

CSK-301 Rugged Silicone Keyboard with Pointer

– A 2-in-1 silicone industrial keyboard with built-in mouse.
– Rigid and rugged, waterproof and washable, made of silicone rubber
– Compatibility: Microsoft® Windows®7/Vista®/XP/2000/ME/98
– Language: All the languages compatible with Windows®
Communication: USB1.1
Key layout: 102 keys (with numeric keypad), mouse-button pointing device, and 2 mouse buttons
– Dimensions: 445(L) x 180(W) x 20(T) mm
– Net weight: 1.1kg
– Protection level: IP68
Data sheet (pdf file (opens in new tab)  (Note: PS/2 option is discontinued)

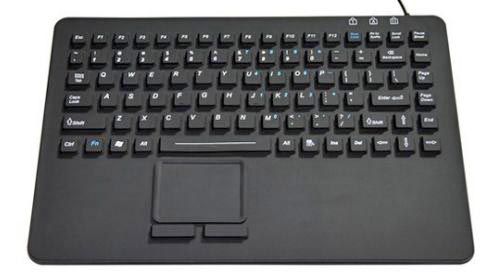

CSK302 Rugged Waterproof Keyboard with Touchpad


Silicone Industrial Keyboard, 87 keys with touch pad
CSK302
Click here to show/ hide more info

CSK302 Rugged Silicone Keyboard with Touchpad

– A specially designed industrial keyboard with touchpad, rigid and rugged, waterproof and washable, made of silicone
Rubberized surface provides comfortable use of typing
– Compatibility: Microsoft® Windows®7/Vista®/XP/2000/ME/98
– Language: All the languages compatible with Windows®
Key layout: 87 keys and 12 function keys
– Dimensions: 343(L) x 228(L) x 12(T) mm
– Net weight: 880 g
– Touch pad working area: 63 x 41 mm
– Protection level: IP68
Data sheet (pdf file)

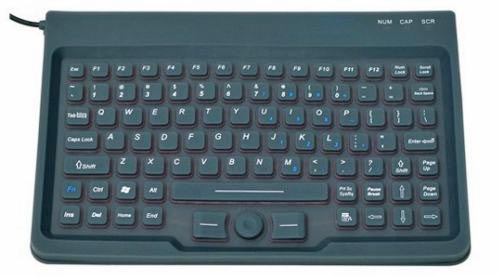

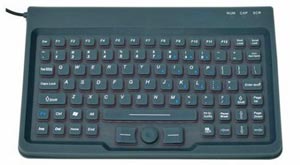

CSK303 Compact Rugged Waterproof Keyboard with Pointer


Silicone Industrial Keyboard, 85 keys with mouse-button pointing device
CSK303
Click here to show/ hide more info

CSK303 Compact Rugged Silicone Keyboard with Pointer

– A compact size industrial keyboard with built-in mouse, rigid and rugged, waterproof and washable, made of silicone
– Compatibility: Microsoft® Windows®7/Vista®/XP/2000/ME/98
– Language: All the languages compatible with Windows®
Communication: USB1.1
– Interface: USB hubs
Key layout: 85 keys and 2 mouse buttons
– Dimensions: 230(L) x 150(W) x 10(T) mm
– Net weight: 260 g
Protection level: IP68
– Colors: Solid, translucent and any custom colors
– Approvals: CE, FCC & RoHS
Data sheet (pdf file (opens in new tab)

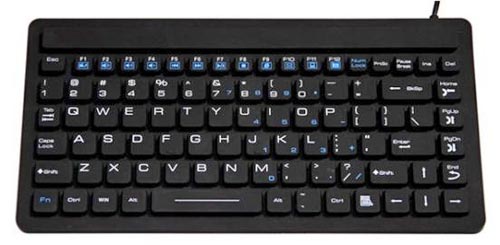

CSK307 Compact Rugged Waterproof Keyboard


Silicone Industrial Keyboard, 86 keys, compact
CSK307
Click here to show/ hide more info

CSK307 Compact Rugged Silicone Keyboard

– A specially designed industrial keyboard, rigid and rugged, waterproof and washable, made of silicone
– Rubberized surface provides comfortable use of typing
– Compatibility: Microsoft® Windows®7/Vista®/XP/2000/ME/98
– Language: All the languages compatible with Windows®
Communication: USB1.1
Key layout: 86 keys + 12 function keys
– Dimensions: 272(L) x 135(W) x 12(T) mm
– Net weight: 405 g
Protection level: IP68
– Approvals: CE, FCC & RoHS
Data sheet (pdf file, opens in new tab)    (Note: PS/2 option is discontinued)

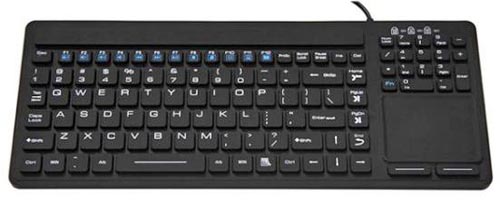

CSK308 Rugged Waterproof Compact Keyboard with Touch Pad


Silicone Industrial Keyboard, 104 keys with numeric keypad and touch pad, compact size
CSK308
Click here to show/ hide more info

SK308

– A specially designed industrial keyboard with touchpad, rigid and rugged, waterproof and washable, made of silicone
– Rubberized surface provides comfortable use of typing
– Compatibility: Microsoft® Windows®7/Vista®/XP/2000/ME/98
– Language: All the languages compatible with Windows®
Communication: USB1.1
Key layout: 104 keys + 12 function keys
– Dimensions: 346(L) x 136(W) x 12(T) mm
– Net weight: 490 g
Touch pad working area: 63 x 47 mm
Protection level: IP68
– Colors: Solid and any custom colors
– Approvals: CE, FCC & RoHS
Data sheet (pdf file (opens in new tab)

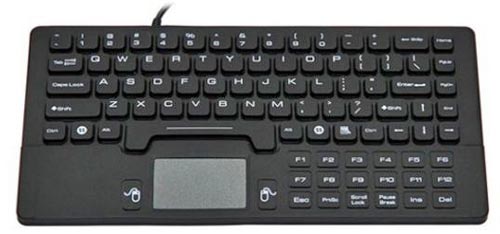

CSK309 Compact Rugged Waterproof Keyboard with Touch Pad


Compact Silicone Industrial Keyboard, 87 keys with touch pad and function keys below
CSK309
Click here to show/ hide more info

CSK309

– A mini size industrial keyboard with touchpad, rigid and rugged, waterproof and washable, made of silicone
– Rubberized surface provides comfortable use of typing
– Compatibility: Microsoft ® Windows ® 7/Vista ® /XP/2000/ME/98
– Language: All the languages compatible with Windows ®
Communication: USB1.1
Key layout: 87 keys
– Dimensions: 220(L) x 110(L) x 9(T) mm
– Net weight: 210 g
Touch pad working area: 42 x 21 mm
– Colors: Solid and any custom colors
– Approvals: CE, FCC & RoHS
Data sheet (pdf file (opens in new tab)

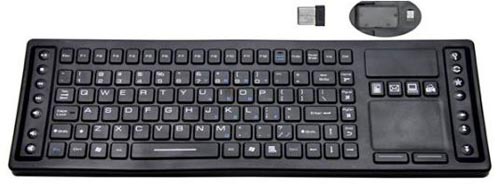

CSK310-WL Wireless 2.4GHz Rugged Waterproof Keyboard with Touch Pad


Silicone Industrial Keyboard, Wireless 2.4GHz, 89 keys with touch pad
CSK310-WL
Click here to show/ hide more info

CSK310-WL

– A specially designed wireless keyboard with touchpad for topbox, rigid and rugged, waterproof and washable, made of silicone
– 2.4GHz digital radio frequency technology
– Automatic synchronization between keyboard and receiver
– Working distance up to 10 meters (30 feet)
– Rubberized surface provides comfortable use of typing
– Compatibility: Microsoft ® Windows ® 7/Vista ® /XP/2000/ME/98
– Language: All the languages compatible with Windows ®
Communication: Mini USB receiver
Key layout: 89 keys + 16 multimedia keys
– Dimensions: 418(L) x 133(W) x 16(T) mm
– Net weight:
Protection level: IP68
– Approvals: CE, FCC & RoHS
Data sheet (pdf file (opens in new tab)

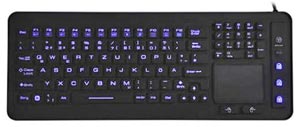

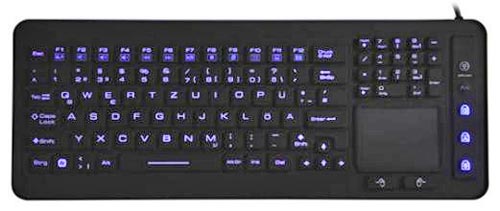

CSK311 Rugged Waterproof Compact Keyboard with Backlight and Touch Pad


Backlit Silicone Industrial Keyboard, 98 keys with numeric keypad, and touch pad, compact size
CSK311
Click here to show/ hide more info

CSK311

– A specially designed industrial keyboard with touchpad and backlight, rigid and rugged, waterproof and washable, made of silicone
LED with LGP provides well-distributed backlight for each key
– Rubberized surface provides comfortable use of typing
– Compatibility: Microsoft ® Windows ® 7/Vista ® /XP/2000/ME/98
– Language: All the languages compatible with Windows ®
Key layout: 98 keys + 12 multimedia keys
– Dimensions: 388(L) x 148(W) x 15(T) mm
– Net weight: 745 g
Protection level: IP68
– Approvals: CE, FCC & RoHS
Data sheet (pdf file (opens in new tab)

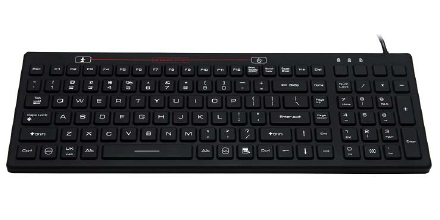

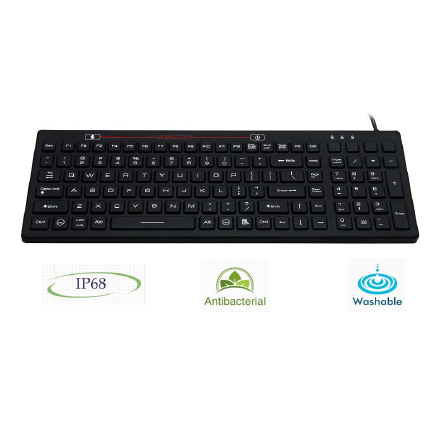

CSK312 Washable and Antibacterial rigid silicone keyboard with ON/OFF switch


Silicone Industrial Keyboard, 100 keys with numeric keypad and ON/OFF switch
CSK312
Click here to show/ hide more info

CSK312

Washable and Antibacterial rigid silicone keyboard
‐ A specially designed industrial keyboard, washable, made of rigid silicone
‐ With keyboard ON/OFF switch
‐ Rubberized surface provides comfortable use of typing
‐ Compatibility: Microsoft® Windows®7/Vista®/XP/2000/ME/98
‐ Language: All the languages compatible with Windows®
‐ Communication: USB2.0
‐ Key layout: 100 keys
‐ Dimensions: 380(L) x 130(W) x 10(T) mm
‐ Protection level: IP68
‐ Approvals: CE, FCC, RoHs & WEEE

Applications: Medical industry, Hospital, Food Industry, Education

Data sheet (pdf file (opens in new tab)  (Note: PS/2 option is discontinued)

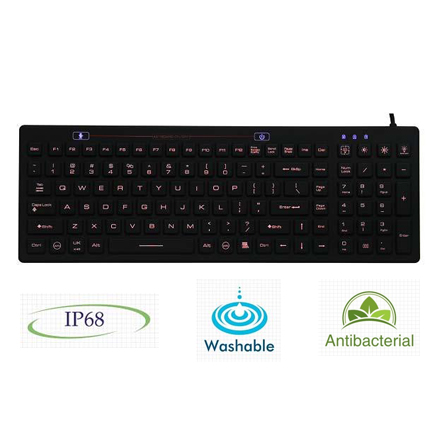

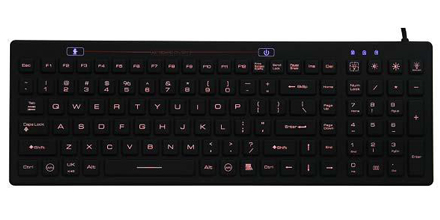

CSK312-BL Backlit Washable Antibacterial Rigid Silicone Keyboard


Backlit Washable Antibacterial Rigid Silicone Industrial Keyboard, 100 keys with numeric keypad and ON/OFF switch
CSK312-BL
Click here to show/ hide more info

CSK312-BL

Washable and Antibacterial rigid silicone keyboard
‐ A specially designed backlit industrial keyboard, washable,rigid silicone
– ON/OFF switch
‐ Rubberized surface for typing comfort
‐ Compatibility Microsoft® Windows®
‐ L anguage: All the languages compatible with Windows®
‐ Communication: USB2.0
‐ Key layout: 100 keys including Numeric pad
‐ Dimensions: 380(L) x 130(W) x 10(T) mm
‐ Protection level: IP68
‐ Approvals: CE, FCC, RoHs & WEEE

Applications: Medical industry, Hospital, Food Industry, Education

Data sheet (pdf file (opens in new tab)  (Note: PS/2 option is discontinued)

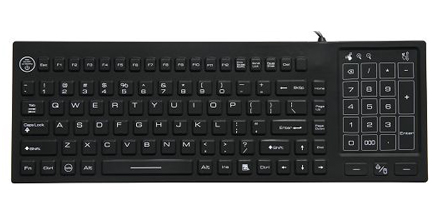

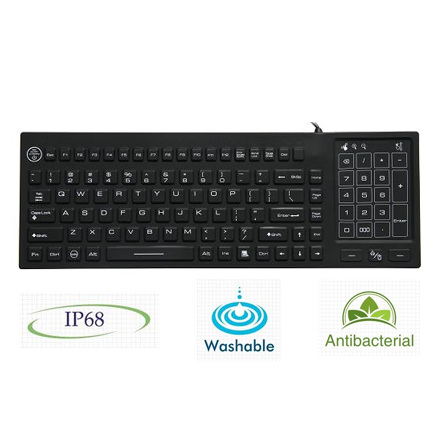

CSK318 Silicon Industrial Desktop Keyboard (Black)


Washable Antibacterial Rigid Silicone Industrial Keyboard, 88 keys with 2-in-1 trackpad and number keypad and ON/OFF switch
CSK318
Click here to show/ hide more info

CSK318

Washable and Antibacterial rigid silicone keyboard
-2-in-1 trackpad and number keypad
– With keyboard power ON/OFF switch
– Rubberized surface provides comfortable use of typing
– Compatibility: Windows
– Language: All the languages compatible with Windows
– Communication: USB2.0
– Key layout: 88 keys
– Dimensions: 380(L) x 130(W) x 13(T) mm
– Protection level: IP68
– Approvals: CE, FCC, RoHs & WEEE
Applications: Medical industry, Hospital, Food Industry

Data sheet – CSK318 (pdf file (opens in new tab)  (Note: PS/2 option is discontinued)

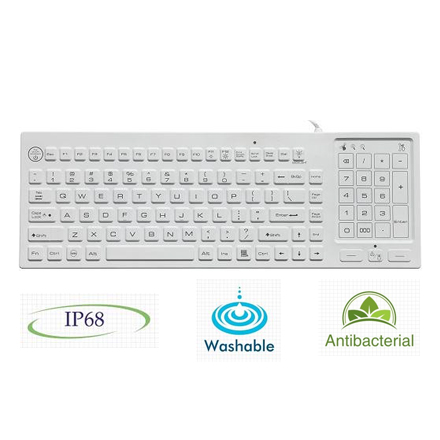

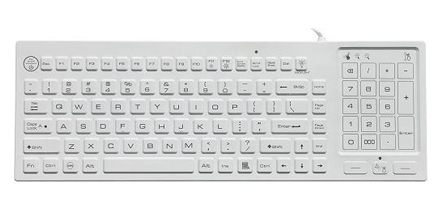

CSK318-BL Backlit Silicon Industrial Desktop Keyboard (White)


Backlit Washable Antibacterial Rigid Silicone Industrial Keyboard, 88 keys with 2-in-1 trackpad and number keypad and ON/OFF switch
CSK318-BL
Click here to show/ hide more info

CSK318-BL

Washable, Antibacterial rigid silicone backlit
-2 -in-1 trackpad and number keypad
– With keyboard power ON/OFF switch
– Rubberized surface provides comforta􀀠ble use of typing
– Compatibility: Windows
– Language: All the languages compatible with Windows
– Communication: USB2.0
– Key layout: 88 keys, backlit
– Dimensions: 380(L) x 130(W) x 13(T) mm
– Protection level: IP68
– Approvals: CE, FCC, RoHs & WEEE

Applications: Medical industry, Hospital, Food Industry

Data sheet – CSK318-BL (pdf file (opens in new tab)  (Note: PS/2 option is discontinued)

Indukey Industrial Keyboards – Silicone

Indukey, part of Gett Group, are a German manufacturer of high quality, rugged industrial keyboards. The various types of silicone keyboards are shown below.

Indukey Catalog 2011 (pdf file, 72 pages, 99MB) – Download here

Part Number meanings: for example TKG-105-MB
TKG = Keyboards with silicone keys
105 = 105 keys
MB = Mouse Button

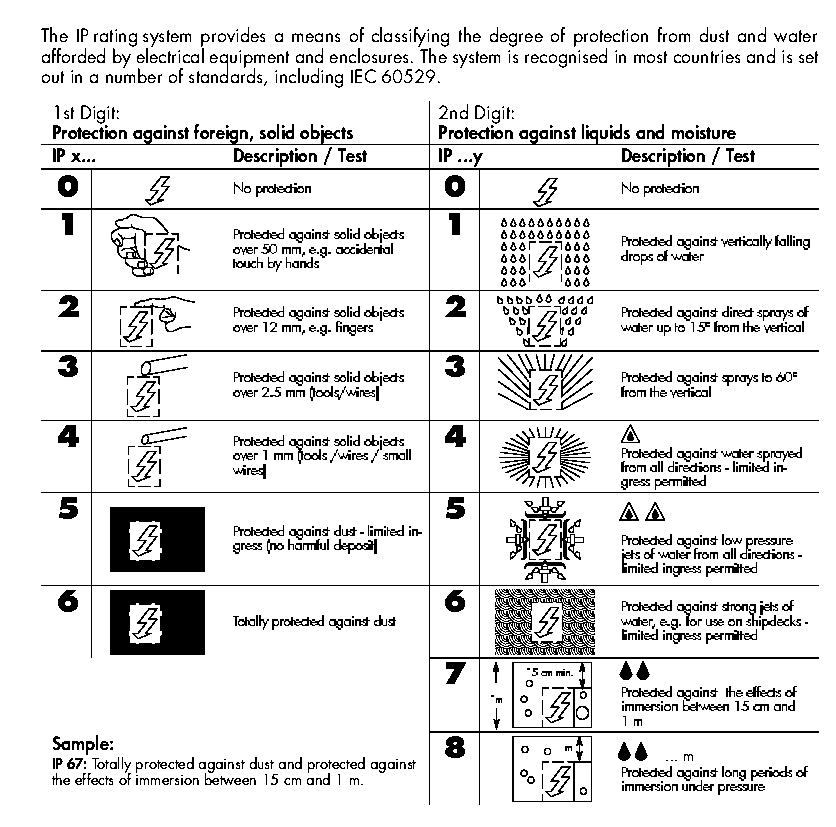

IP Ratings Chart: click here | NEMA to IP Ratings

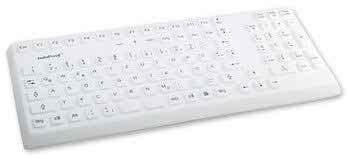

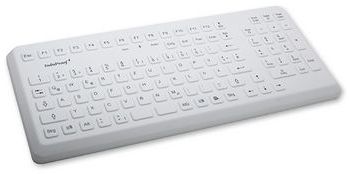

TKG-105-IP68-GREY for Medical / Hygiene Sensitive Applications


KG02003 / KG02005 InduProof2 Silicone Keyboard, with numeric keypad, no pointing device
TKG-105-IP68-GREY for Hygiene Sensitive Applications
Click here to show/ hide more info

TKG-105-IP68-GREY for Hygiene Sensitive Applications

• InduProof 2 Silicone keyboard
• Housing design: plastic housing
• Housing material: silicone
• Max. Protection level: IP68
• Number of keys: 105
• Interfaces: PS/2
• Switching technology: Short travel keys
• Operating force: 2.6 N
• Switch travel: 0.3 mm
• Switching cycles: approx. 3 Mio
• Operating temp.: -20°C to +70°C Storage temp.: -25°C to +80°C
• Dimension: 387 x 150 x 22 mm
• Color: grey Not suitable for use in meat processing industry!

Data sheet

Please use the KGxxxx part number, not the longer TKG- code.

KG02003 TKG-105-IP68-GREY-PS/2-US PS/2 interface, Indukey Induproof keyboard
KG02005 TKG-105-IP68-GREY-USB-US USB interface, Indukey Induproof keyboard

Also available in BLACK
KG02434 TKG-105-IP68-BLACK-PS/2-US PS/2 interface, Indukey Induproof keyboard
KG02435 TKG-105-IP68-BLACK-USB-US USB interface, Indukey Induproof keyboard

Note: Indukey prices change regularly according to exchange rates. Please call to confirm current pricing.

In the part number:
TKG = Keyboards with silicone keys; 105 = No of keys; MB = Mouse Button

IP Ratings Chart: click here | NEMA to IP Ratings
Note: a normal desktop PC keyboard is about 470mm wide

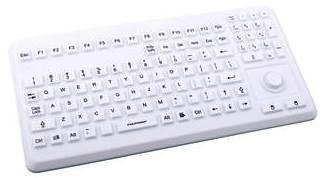

TKG-104-MB-IP68-GREY with Mouse button, works under water


KG17204 / KG17226 Silicone Keyboard with Numeric Keypad and Mouse Button pointing device
TKG-104-MB-IP68-GREY
Click here to show/ hide more info

TKG-104-MB-IP68-GREY with Mouse button, works under water

• Ergonomically designed silicone-covered keyboard with 104 keys
• Integrated pointing device
• Positive tactile feedback
• VESA boreholes (75 x 75 mm)
• IP68 sealing, can be submerged in liquid
• Special coating for excellent mechanical and chemical resistance
• PS/2 or USB interface available

Silicone keyboard
Material (buttom panel): plastic Surface: Silicone
Max. Protection level: IP68
Pointing devices: Mouse button
Vesa boreholes (75 mm)
Number of keys: 104
Interfaces: PS/2 or USB
Switching technology: Carbon contacts
Operation force: 2 N Switch travel: 1,0 mm Switching cycles: approx. 2 Mio
Operating temp.: 0°C to +70°C Storage temp.: -25°C to +80°C
Dimension: 340 x 165 x 18,4 mm

Data: see Pages 31 to 35 in the 2011 Catalog
(pdf file, 99MB, opens in new tab, large file, may take a couple of minutes to download)

Please use the KGxxxx part number, not the longer TKG- code.

KG17204 TKG-104-MB-IP68-GREY-USB-US with Mouse button, USB interface
KG17226 TKG-104-MB-IP68-GREY-PS-2-US with Mouse button, PS/2 interface

Note: TKG = Keyboards with silicone keys; 104 = No of keys; MB = Mouse Button

TKG-105-MED-IP68 InduProof Med, IP68, Antimicrobial coating


KG14011 / KG14013 Silicone Keyboard with Numeric Keypad, Medical
TKG-105-MED-IP68 InduProof Med, IP68, Antimicrobial coating
Click here to show/ hide more info

TKG-105-MED-IP68 InduProof Med, IP68, Antimicrobial coating

• Silicone keyboard
• Housing design: plastic housing
• Housing material: silicone
• Max. Protection level: IP68
• Antimicrobial coating
• Number of keys: 105
• Interfaces: PS/2 or USB
• Switching technology: Carbon contacts
• Operation force: 2 N
• Switch travel: 1.0 mm
• Switching cycles: approx. 2 Mio
• Operating temp.: -20°C to +70°C Storage temp.: -25°C to +80°C
• Dimension: 385 x 160 x 21 mm

Data Sheet (pdf file, opens in new tab)

Please use the KGxxxx part number, not the longer TKG- code.

KG14011 TKG-105-MED-IP68-GREY-PS/2-US
KG14013 TKG-105-MED-IP68-GREY-USB-US

In black:
KG15001 TKG-105-MED-IP68-BLACK-PS/2-US
KG15003 TKG-105-MED-IP68-BLACK-USB-US

Bundle Keyboard and Mouse
TKG-105-MED-IP68-BUNDLE: Set consisting of keyboard (TKG-105-MED-IP68 above) and mouse (TKH-MOUSE-SCROLL-IP68) in grey

KG16235 TKG-105-MED-IP68-BUNDLE-GREY-PS/2-US with Scroll mouse IP68

KG16239 TKG-105-MED-IP68-BUNDLE-GREY-USB-US with Scroll mouse IP68

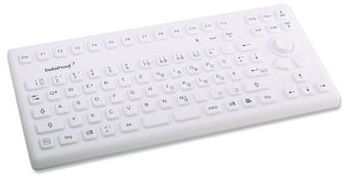

TKG-086-MB-IP68-GREY with Mouse button and Arrow keys


KG13001 / 03 / 05 / 07 / 09 / 11  Compact Silicone Keyboard with Mouse Button, Optional Backlight
TKG-086-MB-IP68-GREY with Mouse button and Arrow keys - Optional backlight
Click here to show/ hide more info

TKG-086-MB-IP68-GREY with Mouse button and Arrow keys - Optional backlight

• InduProof 3 Silicone keyboard Optional backlight
• Housing design: plastic housing
• Housing material: silicone
• Max. Protection level: IP68
• Cursor control: Mousebutton
• Number of keys: 86
• Interfaces: PS/2
• Switching technology: Gold plated domes
• Operation force: 3 N
• Switch travel: 0,6 mm
• Switching cycles: approx. 1 Mio
• Operating temp.: 0°C to +70°C Storage temp.: -25°C to +80°C
• Dimension: 320 x 145 x 22 mm Color: grey

Data Sheet (pdf file, opens in new tab)

Please use the KGxxxx part number, not the longer TKG- code.

KG13001 TKG-086-MB-IP68-GREY-PS/2-US
KG13003 TKG-086-MB-IP68-GREY-USB-US

KG13005 TKG-086-MB-IP68-BLACK-PS/2-US
KG13007 TKG-086-MB-IP68-BLACK-USB-US

As above, except colour: black

With Backlight:

LED powered backlight function
Long LED lifetime and low power consumption
8-level dimmer controlled by arrow keys

KG13009 TKG-086-MB-IP68-BACKL-PS/2-US Backlit, with mousebutton
KG13011 TKG-086-MB-IP68-BACKL-USB-US Backlit, with mousebutton

Data Sheet (pdf file, opens in new tab)

In the expanded part number:
TKG = Keyboards with silicone keys; 105 = No of keys; MB = Mouse Button

In the expanded part number:
TKS = Short travel keyboards; 104 = No of keys; MB = Mouse Button; KGEH = Plastic Housing


Chemical resistance of the silicone InduProof keyboards

The silicone covering of the InduProof keyboards and mice is resistant against the following chemicals:
• Solutions (acetone, alcohol, spirits)
• Bases (ammonia, potassium carbonate, soda)
• Acids (acetic acid 5%, nitric acid 10%, hydrochloric acid 10%, phosphoric acid 10%, sulphuric acid 20%)
• Foods (beer, wine, liqueur, coffee, cola syrup, vinegar, mineral water)
• In case of other substances please contact us.

Cleaning:
The keyboard can be washed with lukewarm water by using a normal household detergent, or disinfected with an acetone or alcohol solution. A soft cloth or sponge should be used. Please do not use scratching or scrubbing items such as brushes, scrapers or the like. Please do not clean with high-pressure cleaners.

Indukey Keyboards with Silicone Keys in Metal Panel

Indukey Keyboards with Silicone Rubber Keys in Desktop Metal Housing

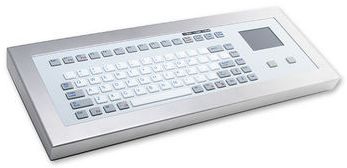

TKG-083b-TOUCH-MGEH Stainless steel housing


Part no. KG14035 / KG14037
TKG-083b-TOUCH-MGEH Stainless steel housing
Click here to show/ hide more info

TKG-083b-TOUCH-MGEH Stainless steel housing

• Silicone Keyboard Housing: Stainless steel
• Front panel material: aluminium
• Keys: silicone
• Max. Protection level: IP65
• Pointing devices: Touchpad
• Number of keys: 83
• Interfaces: PS/2 or USB
• Switching technology: Carbon contact technology
• Operation force: 1,2 N
• Switch travel: 1,2 mm
• Switching cycles: approx. 1 Mio
• Operating temp.: 0°C to +70°C Storage temp.: -25°C to +80°C
• Dimension: 435 x 165 x 35 mm

Data on this item: See Pages 40 to 43in the 2011 Catalog
(pdf file, 99MB, opens in new tab, large file, may take a couple of minutes to download)

KG14035 TKG-083b-TOUCH-MGEH-PS/2-US
KG14037 TKG-083b-TOUCH-MGEH-USB-US

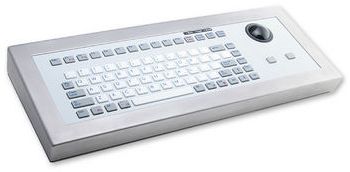

TKG-083b-TB38-MGEH with 38 mm Trackball, Stainless steel housing


Part nos KG14031 / KG14037
TKG-083b-TB38-MGEH with 38 mm Trackball, Stainless steel housing
Click here to show/ hide more info

TKG-083b-TB38-MGEH with 38 mm Trackball, Stainless steel housing

• Silicone Keyboard Housing design: metal housing TB38 = Track ball 38mm;
• Housing material: stainless steel
• Keys: silicone
• Max. Protection level: IP65 (stat.), IP54 (dyn.)
• Cursor control: 38 mm Trackball, mechanic, 50 g
• Number of keys: 83
• Interfaces: PS/2 or USB
• Switching technology: carbon contact technology
• Operating force: 1,2 N
• Switch travel: 1,2 mm
• Switching cycles: approx. 1 Mio
• Operating temp.: 0°C to +70°C Storage temp.: -25°C to +80°C
• Dimension: 435 x 165 x 45 mm Weight: 2450 g

Data on this item: See Pages 40 to 43in the 2011 Catalog2011 Catalog
(pdf file, 99MB, opens in new tab, large file, may take a couple of minutes to download)

KG14031 TKG-083b-TB38-MGEH-PS/2-US
KG14037 TKG-083b-TB38-MGEH-USB-US

Indukey Keyboards with Silicone Rubber Keys – Panel Mount

Note: the word MODUL in the description indicates M3 mounting studs on the back

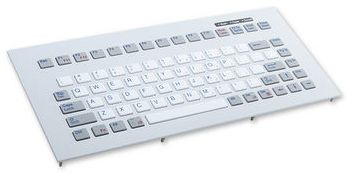

TKG-083b-MODUL


KG14015 / KG14017 Panel mount compact silicone keyboard
TKG-083b-MODUL
Click here to show/ hide more info

TKG-083-MODUL-SILVER

• Silicone Keyboard Mounting type: front panel with threaded bolts
• Front panel material: aluminium
• Keys: silicone
• Max. Protection level: IP65
• Number of keys: 83
• Interfaces: PS/2 or USB
• Switching technology: Carbon contact technology
• Operation force: 1,2 N
• Switch travel: 1,2 mm
• Switching cycles: approx. 1 Mio
• Operating temp.:-25°C to +70°C Storage temp.: -25°C to +80°C
• Dimension: 305 x 134 x 20 mm

Data Sheet incl. cutout diagram (pdf file, opens in new tab)

KG14015 TKG-083b-MODUL-PS/2-US
KG14017 TKG-083b-MODUL-USB-US

TKG-083b-TOUCH-MODUL


KG00209 / KG00211 / KG14027 / KG14029Panel mount silicone keyboard with touchpad
TKG-083-TOUCH-MODUL-SILVER
Click here to show/ hide more info

TKG-083-TOUCH-MODUL-SILVER

• Silicone Keyboard Mounting type: front panel with threaded bolts
• Front panel material: aluminium, silver look
• Keys: silicone
• Max. Protection level: IP65
• Pointing devices: Touchpad
• Number of keys: 83
• Interfaces: PS/2 or USB
• Switching technology: Carbon contact technology
• Operation force: 1,2 N Switch travel: 1,2 mm
• Switching cycles: approx. 1 Mio
• Operating temp.: 0°C to +70°C Storage temp.: -25°C to +80°C
• Dimension: 405 x 135 x 20 mm

Note: the word MODUL in the description indicates M3 mounting studs on the back

Data Sheet incl. cutout diagram (pdf file, opens in new tab)

KG14027 TKG-083b-TOUCH-MODUL-PS/2-US
KG14029 TKG-083b-TOUCH-MODUL-USB-US

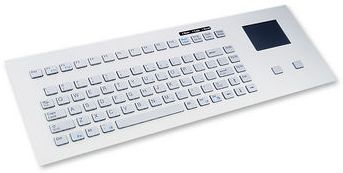

Model with silver keys (please call to check availability):
Data Sheet incl. cutout diagram (pdf file, opens in new tab)

KG00209 TKG-083-TOUCH-MODUL-SILVER-PS-2-US
KG00211 TKG-083-TOUCH-MODUL-SILVER-USB-US

TKG-083-TB38-MODUL


KG00205 / KG00207 / KG14023 / KG14025 Panel mount silicone keyboard with 38mm trackball
TKG-083-TB38-MODUL-SILVER
Click here to show/ hide more info

TKG-083-TB38-MODUL-SILVER

• Silicone Keyboard Mounting type: front panel with threaded bolts
• B-KG00205Front panel material: aluminium, silver look
• Keys: silicone
• Max. Protection level: IP65
• Pointing devices: 38 mm Trackball
• Number of keys: 83
• Interfaces: PS/2 or USB
• Switching technology: Carbon contact technology
• Operation force: 1,2 N
• Switch travel: 1,2 mm
• Switching cycles: approx. 1 Mio
• Operating temp.: 0°C to +70°C
• Storage temp.: -25°C to +80°C
• Dimension: 405 x 135 x 25 mm

Data Sheet incl. cutout diagram (pdf file, opens in new tab)

KG14023 TKG-083b-TB38-MODUL-PS/2-US
KG14025 TKG-083b-TB38-MODUL-USB-US

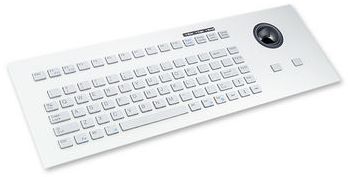

Model with silver keys (please call to check availability):
Data Sheet incl. cutout diagram (pdf file, opens in new tab)

KG00205 TKG-083-TB38-MODUL-SILVER-PS/2-US
KG00207 TKG-083-TB38-MODUL-SILVER-USB-US

Note: the word MODUL in the description indicates M3 mounting studs on the back


Note: Indukey prices change regularly according to exchange rates. Please call to confirm current pricing.

Call Now Button
