Smart Chassis Industrial LCD Monitors

Metal Housing, with many options

CyberVisuell Smart Chassis Industrial LCD Monitors

MCB0706CyberVisuell SmartChassis series industrial LCD monitors combine a smart appearance (front and back) with a rugged and long-lasting metal housing. The range is available in many sizes from 5.7″ up to 65″, either with 4:3 aspect or widescreen. The monitors are built using a fully metal chassis, and stainless steel versions are also available.

The SmartChassis series offers an unmatched array of monitor options. Monitors can easily be custom configured to meet individual customer requirements.
For example:

  • sunlight readable,
  • composite video or HDMI inputs,
  • AC or DC powered,
  • various touch screen types, and so on.

The factory supplies monitors with custom options, even for very small orders, due to the modular design.

SmartChassis LCD Monitors (optionally with IP65 Front)

includes IP65-front Stainless Steel option

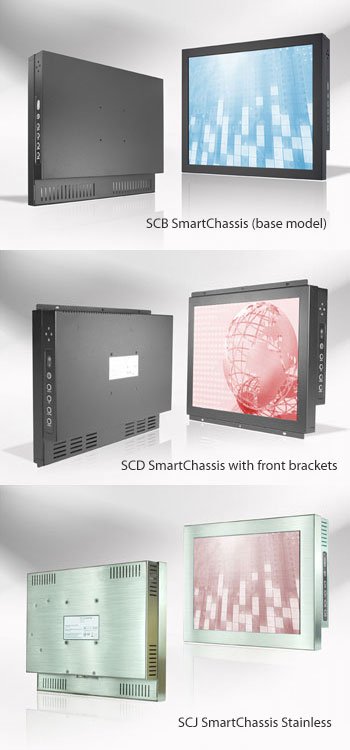

SmartChassis LCD Monitors (optionally with IP65 Front)


CyberVisuell Smart Chassis series industrial LCD monitors combine a smart appearance (front and back) with a rugged and long-lasting metal housing.

This range is well suited for mounting in front of walls, on desks, or from ceiling hangers.

SCB SmartChassis (base model)
Click here to show/ hide more info

SmartChassis

CyberVisuell Smart Chassis series industrial LCD monitors combine a smart appearance (front and back) with a rugged and long-lasting metal housing.

This range is well suited for mounting in front of walls, on desks, or from ceiling hangers.

The monitors can also be provided with mounting brackets at the front, for rear-mounting into a panel, and are also available in Stainless Steel.

Features

  • Rugged metal chassis with smart, clean appearance
  • Industrial grade for long lasting performance
  • Wide range of options available with no MOQ, due to modular design
  • Optional IP65 waterproof front
  • Wide operating temperature 0-50°C
  • Touch screens: Resistive, Capacitive, SAW, Infra-Red, or Projected Capacitive
  • Flexible input options: VGA, DVI, Composite Video, HDMI, HD-SDI
  • Power options: DC 12V with mains adaptor, or AC input, or wide range DC input for vehicle use
  • Optional Sunlight Readable panel and/or LED backlight
  • Optional front mounting brackets for panel mounting
  • VESA compliant mounting on rear


Sizes and Resolutions

4:3 Screen Models Wide Screen Models
Model No   Size Pics of 5.7″ and 20.1″ Model No   Size Pics of 7″ and 65″
SCx0576VN     5.7″ 640x480
SCx0656VN     6.5″ 640x480
SCx0846SN     8.4″ 800x600
SCx1045XN   10.4″ 1024x768
SCx1205XN   12.1″ 1024x768
SCx1505XN   15″  1024x768
SCx1705EN   17″ 1280x1024
SCx1905EN   19″ 1280x1024
SCx2005UN 20.1″ 1600x1200

Substitute x (the 3rd letter) with any of the following options:

B = OSD buttons at rear
C = OSD buttons at front
E = IP65 front, OSD at rear
G = IP65 front, OSD at front
J = Stainless Steel with IP65 front (OSD buttons at rear)

Note: Other screen resolutions are available in some sizes.

MCB0576

MCB2005

SCx0706WV    7″      800x480
SCx0896WS   8.9″  1024x600
SCx1016WS   10.1″ 1024x600
SCx12W5WE 12.1″ 1280x800
SCx1545WE   15.4″ 1280x800
SCx17W5WP  17″ 1440x900
SCx19W5WP 19″   1440x900
SCx2205WM   22″ 1680x1050
SCx2405WH   24″ 1920x1080
SCx2415WU   24″ 1920x1200
SCx2605WX   26″  1366x768
SCx3205WH   32″  1920x1080
SCx3705WH   37″ 1920x1080
SCx4204WH   42″ 1920x1080
SCx4604WH   46″ 1920x1080
SCx5504WH 54.6″ 1920x1080
SCx6504WH   65″ 1920x1080

Substitute x (the 3rd letter) with any of the following options:

B = OSD buttons at rear
C = OSD buttons at front
E = IP65 front, OSD at rear
G = IP65 front, OSD at front
J = Stainless Steel with IP65 front (OSD buttons at rear)

Note: Other screen resolutions are available in some sizes.

MCB0706

MCB6504


Common Specifications

Display Type  TFT LCD
Panel Surface Black Anti-Glare, Low Reflection Coating
Light Source CCFL, (cold-cathode fluorescent lamps)
Long Life 50,000 Hrs (typ)
Optional LED Backlight available, various brightnesses
Inputs VGA Input 15-pin D-Sub Female, Analog RGB Signal
0.7/1.0Vp-p, 75 Ohms, Fh = 30-82kHz, Fv = 50-75Hz
Separate Sync / Composite Sync / Sync on Green
Audio Stereo Mini Jack, 2W Speaker x2
Power 15″ models and above AC mains 90-260V auto sensing input
Up to 12″ / option on 15″-22″ 12V DC, with External AC Adaptor included
Mounting VESA mount on rear Up to 17″: 75 x 75 mm
19″-24″: 100 x 100 mm
26″-37″: 400 x 200 mm
Features Auto Calibration, Back Light Adjustment, Plug & Play (VESA DDC/CI, DDC 2B)
Operating Conditions Temperature / Humidity 0°C to 50°C, 10%-90% (non condensing)
Storage Conditions Temperature / Humidity -20°C to 60°C, 10%-90% (non condensing)
Certifications CE, FCC, C-Tick CE, FCC, C-Tick


Options

Most options may be ordered in any quantity of monitors

Please note some combinations of options/sizes may not be possible – please contact us for a quote.

Option Codes
Grades Marine Grade – shock and vibration tolerant, anti-rust
For marine applications we also recommend using SCK stainless series, with wide range DC input, sunlight readable, wide dimming range, and wide temperature options.
-GM
Vehicle Grade – shock and vibration tolerant
For vehicle applications we also recommend using the wide range DC input, sunlight readable, and wide temperature options.
Wide dimming range may also be needed.
-GV
Panel / Backlight LED Backlight with specified brightness “xxxx” nits
Use 0700 or 1000 nits for Sunlight Readable
-BLxxxx
CCFL Backlight with specified brightness “xxxx” nits -BCxxxx
Wide Dimming Range, controlled by OSD buttons -BW
Wide Dimming Range, controlled by knob -BK
Touchscreens

USB connection by default, or specify -RS232 for serial

Infomation about Touchscreens
(Wikipedia, opens in new tab)

Resistive -TR
Capacitive (cannot detect gloved finger), optionally with 6mm Anti-Vandal Glass -TC or -TC6
SAW (Surface Acoustic Wave) -TS
Infra-Red -TI
Projected Capacitive (can sense a passive stylus or gloved fingers) with 6mm Anti-Vandal Glass -TP6
Protective Glass (no touch): 3mm, or 6mm Anti-Vandal -TG3 or -TG6
Inputs VGA -IV
VGA + DVI -IVD
VGA + DVI + HDMI -IVDH
VGA + DVI + HDMI + RS-232 remote control input -IVDHR
VGA + S-Video + Composite Video (BNC connectors) -IVSC
VGA + S-Video + Composite Video with Looping Output (BNC connectors) -IVSCL
VGA + DVI + S-Video + Composite Video -IVDSC
VGA + HDMI + Composite Video with Looping Output -IVHCL
VGA + HDMI -IVH
VGA + Media Player (plays various formats from CF / SD cards / USB stick) -IVM
Power AC mains 90-260V auto sensing input (only for 15″ and higher) -P240
12V DC, with External AC Adaptor included -P12
Wide voltage range DC power input -PW
Mount Does not include any stand or bracket -MN
Other Options Wide Temperature Range -RW
Wide Viewing Angle -VW
Light Sensor with auto dimming -LS
OSD buttons on a wired Remote Control box -OR
Integrated PC (Panel PC / Digital Signage Platform)

Options include Fanless Atom N270, Atom D525, Core 2 Duo, Core 2 Quad, Core i5, Core i7

Contact us
Touch screen types (click to view)

Resistive, Capacitive or SAW

Resistive Touchscreens are for applications where speed and accuracy are required, They are used primarily for point of sales and medical and industrial applications.
Resistive Touchscreens are versatile and pens, gloved hands or bare skin can be used to acivate the touchscreen.

Capacitive touchscreens need bare finger or wet glove to activate them.
The surface is tougher than that of resistive touchscreens.

SAW (Surface Acoustic Wave) Touchscreens are for applications such as information kiosks.
They are strong and are scratch and vandle proof.
Water, dirt and contaminants can’t get in.
They work even when glass is scratched.
The user must use bare skin or object that absorbs the sound waves to activate the touchscreen.

SmartChassis LCD Monitors

Fully Sealed to IP66 in Stainless Steel

SmartChassis LCD Monitors – Fully Sealed to IP66 in Stainless Steel


For applications where LCD monitors are exposed to water or chemicals, our IP66-rated fully sealed stainless steel SmartChassis LCD monitors provide the ultimate in rugged protection. These monitors can handle the harshest of environments, including wash downs, outdoor use etc., and are built to last. The OSD controls can also be provided as a separate wired remote control for convenience.

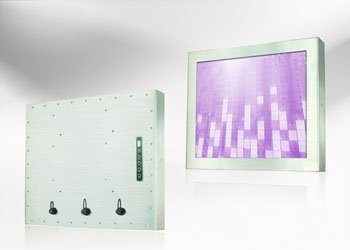

SCK1505
Click here to show/ hide more info

SCK1505

For applications where LCD monitors are exposed to water or chemicals, our IP66-rated fully sealed stainless steel SmartChassis LCD monitors provide the ultimate in rugged protection. These monitors can handle the harshest of environments, including wash downs, outdoor use etc., and are built to last. The OSD controls can also be provided as a separate wired remote control for convenience.

Features

  • Rugged stainless steel chassis with smart, clean appearance
  • IP66 sealed on all sides, with MIL spec sealed connectors
  • Industrial grade for long lasting performance
  • Wide range of options available with no MOQ, due to modular design
  • Wide operating temperature 0-50°C
  • Touch screens: Resistive, Capacitive, SAW, Infra-Red, or Projected Capacitive
  • Flexible input options: VGA, DVI, Composite Video, HDMI, HD-SDI
  • Power options: DC 12V with mains adaptor, or wide range DC input for marine / vehicle use
  • Optional Sunlight Readable panel and/or LED backlight
  • Optional wide dimming range for marine / vehicle use
  • OSD (On screen display) buttons on the rear of unit or optionally on a separate wired remote control
  • VESA compliant mounting on rear


Sizes and Resolutions

4:3 Screen Models Wide Screen Models
Model No   Size Pics of 15″ Model No   Size Pics of 19″
SCK0656VN     6.5″ 640x480
SCK0846SN     8.4″ 800x600
SCK1045SN   10.4″ 800x600
SCK1045XN   10.4″ 1024x768
SCK1205XN   12.1″ 1024x768
SCK1505XN   15″  1024x768
SCK1705EN   17″ 1280x1024
SCK1905EN   19″ 1280x1024
SCK2005UN  20.1″ 1600x1200



Note: Other screen resolutions are available in some sizes

SCK1205

SCK1505-back

SCK0706WV    7″      800x480
SCK1016WS   10.1″ 1024x600
SCK12W5WE 12.1″ 1280x800
SCK1545WE   15.4″ 1280x800
SCK17W5WP  17″   1440x900
SCK19W5WP 19″   1440x900
SCK2205WM   22″ 1680x1050
SCK2405WH   24″ 1920x1080
SCK2415WU   24″ 1920x1200
SCK2605WX   26″  1366x768
SCK3205WH   32″  1920x1080
SCK19W5-front

SCK19W5-back


Common Specifications

Display Type  TFT LCD
Panel Surface Black Anti-Glare, Low Reflection Coating
Light Source CCFL, (old-cathode fluorescent lamps)
Long Life 50,000 Hrs (typ)
(Optional LED Backlight available / Sunlight Readable)
Inputs VGA Input MIL-spec watertight connector, Analog RGB Signal
0.7/1.0Vp-p, 75 Ohms, Fh = 30-82kHz, Fv = 50-75Hz
Separate Sync / Composite Sync / Sync on Green
Audio MIL-spec watertight connector, 2W Speaker x2
Power Wide Range DC option 9-36V DC input (mains adaptor not included)
Standard DC input 12V DC, with External AC Adaptor included
Mounting VESA mount on rear Up to 17″: 75 x 75 mm
19″-24″: 100 x 100 mm
26″-37″: 400 x 200 mm
Features Auto Calibration, Back Light Adjustment, Plug & Play (VESA DDC/CI, DDC 2B)
Operating Conditions Temperature / Humidity 0°C to 50°C, 10%-90% (non condensing)
Storage Conditions Temperature / Humidity -20°C to 60°C, 10%-90% (non condensing)
Certifications CE, FCC, C-Tick CE, FCC, C-Tick


Options

Most options may be ordered in any quantity of monitors.

Please note some combinations of options/sizes may not be possible – please contact us for a quote.

Option Codes
Grades Marine Grade – shock and vibration tolerant, anti-rust
For marine applications we also recommend using wide range DC input, sunlight readable, and wide dimming range options.
-GM
Vehicle Grade – shock and vibration tolerant
For vehicle applications we also recommend using the wide range DC input, and sunlight readable option.
Wide dimming range may also be needed.
-GV
Panel / Backlight LED Backlight with specified brightness “xxxx” nits
Use 0700 or 1000 nits for Sunlight Readable
-BLxxxx
CCFL Backlight with specified brightness “xxxx” nits -BCxxxx
Wide Dimming Range, controlled by OSD buttons -BW
Wide Dimming Range, controlled by knob (please enquire) -BK
Touchscreens

USB connection by default, or specify -RS232 for serial

Infomation about Touchscreens
(Wikipedia, opens in new tab)

Resistive -TR
Capacitive (cannot detect gloved finger), optionally with 6mm Anti-Vandal Glass -TC or -TC6
SAW (Surface Acoustic Wave) -TS
Infra-Red -TI
Projected Capacitive (can sense a passive stylus or gloved fingers) with 6mm Anti-Vandal Glass -TP6
Protective Glass (no touch): 3mm, or 6mm Anti-Vandal -TG3 or -TG6
Inputs VGA -IV
VGA + DVI -IVD
VGA + DVI + HDMI -IVDH
VGA + DVI + HDMI + RS-232 remote control input -IVDHR
VGA + S-Video + Composite Video -IVSC
VGA + S-Video + Composite Video with Looping -IVSCL
VGA + DVI + S-Video + Composite Video -IVDSC
VGA + HDMI + Composite Video with Looping -IVHCL
VGA + HDMI -IVH
VGA + Media Player (plays various formats – please enquire for details) -IVM
Power 12V DC, with External AC Adaptor included -P12
Wide voltage range DC power input -PW
Mount Does not include any stand or bracket -MN
Other Wide Temperature Range -RW
Wide Viewing Angle -VW
Light Sensor with auto dimming -LS
OSD buttons on a wired Remote Control box -OR
Integrated PC (Panel PC / Digital Signage Platform)

Options include Fanless Atom N270, Atom D525, Core 2 Duo, Core 2 Quad, Core i5, Core i7

Contact us
