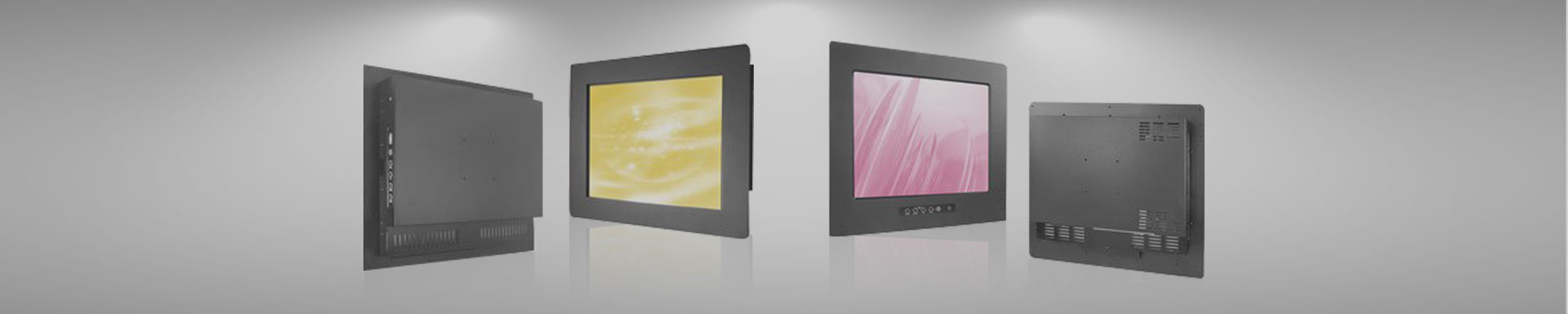

Panel Mount Industrial LCD Monitors

Metal Housing, with many options

CyberVisuell Panel Mount Industrial LCD Monitors

Panel MountCyberVisuell Panel Mount series industrial LCD monitors combine a smart front bezel with a rugged and long-lasting metal housing, for mounting into a panel or wall.
The range is available in many sizes from 5.7″ up to 65″, either with 4:3 aspect or widescreen.
The monitors are built using a fully metal chassis, and stainless steel front panel versions are also available.

The Panel Mount series offers an unmatched array of monitor options, so monitors can easily be custom configured to meet individual customer requirements. For example:

  • sunlight readable,
  • composite video or HDMI inputs,
  • AC or DC powered,
  • touch screens – various types, and so on.

The factory can supply monitors with custom combinations of options, even for very small orders, due to the highly modular design.

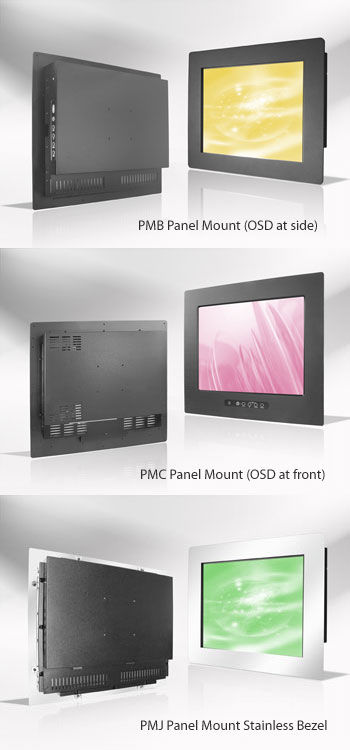

Panel Mount LCD Monitors (optionally with IP65 Front)

Aluminium or Stainless Steel Bezel

Panel Mount LCD Monitors (optionally with IP65 Front)


CyberVisuell Panel Mount Industrial LCD monitors are designed for mounting into a panel or wall. They combine a rugged all-metal housing with a smart front bezel, making it easy to fit into most industrial or commercial environments.

The front bezel can be made of aluminium or stainless steel, and can optionally be sealed to IP65. The OSD buttons can be either on the side panel to prevent tampering, or on the front panel for easy access.

PMB Panel Mount
Click here to show/ hide more info

Panel Mount

CyberVisuell Panel Mount Industrial LCD monitors are designed for mounting into a panel or wall. They combine a rugged all-metal housing with a smart front bezel, making it easy to fit into most industrial or commercial environments.

The front bezel can be made of aluminium or stainless steel, and can optionally be sealed to IP65. The OSD buttons can be either on the side panel to prevent tampering, or on the front panel for easy access.

These monitors are available with rear screw mounting, in which holes must be drilled in the panel and screws installed from the rear; or rear clamp mounting, in which small clamps are attached from the back and screwed tight against the panel (see Options table below for details).

Features

  • Aluminum or stainless front bezel for smart, clean appearance
  • Rugged metal chassis (SECC steel)
  • Industrial grade for long lasting performance
  • Wide range of options available with no MOQ, due to modular design
  • Optional IP65 waterproof front
  • OSD (on screen display) buttons can be on the front, side, or on a separate wired remote control
  • Wide operating temperature 0-50°C
  • Touch screens: Resistive, Capacitive, SAW, Infra-Red, or Projected Capacitive
  • Flexible input options: VGA, DVI, Composite Video, HDMI, HD-SDI
  • Power options: DC 12V with mains adaptor, or AC input, or wide range DC input for vehicle use
  • Optional Sunlight Readable panel and/or LED backlight
  • Optional wide dimming range for marine / vehicle use
  • VESA compliant mounting on rear


Sizes and Resolutions

4:3 Screen Models Wide Screen Models
Model No   Size Pics of 5.7″ and 20.1″ Model No   Size Pics of 7″ and 42″
PMx0576VN     5.7″ 640x480
PMx0656VN     6.5″ 640x480
PMx0846SN     8.4″ 800x600
PMx0975XN    9.7″ 1024x768
PMx1045XN   10.4″ 1024x768
PMx1205XN   12.1″ 1024x768
PMx1505XN   15″  1024x768
PMx1705EN   17″ 1280x1024
PMx1905EN   19″ 1280x1024
PMx2005UN 20.1″ 1600x1200



Substitute x (the 3rd letter) with any of the following options:

B = OSD buttons at rear
C = OSD buttons at front
E = IP65 front, OSD at rear
F = IP65 front, OSD at front
J = Stainless Steel with IP65 front (OSD buttons at rear)

Note: Other screen resolutions are available in some sizes.

PMB0576

PMB2005

PMx0706WV    7″      800x480
PMx1016WS   10.1″ 1024x600
PMx12W5WE 12.1″ 1280x800
PMx1545WE   15.4″ 1280x800
PMx17W5WP  17″ 1440x900
PMx19W5WP 19″   1440x900
PMx2155WH  21.5″ 1920x1080
PMx2205WM   22″ 1680x1050
PMx2405WH   24″ 1920x1080
PMx2415WU   24″ 1920x1200
PMx2605WX   26″  1366x768
PMx3025WQ   30″  2560x1600
PMx3205WH   32″  1920x1080
PMx3705WH   37″ 1920x1080
PMx4204WH   42″ 1920x1080



Substitute x (the 3rd letter) with any of the following options:

B = OSD buttons at rear
C = OSD buttons at front
E = IP65 front, OSD at rear
F = IP65 front, OSD at front
J = Stainless Steel with IP65 front (OSD buttons at rear)

Note: Other screen resolutions are available in some sizes.

PMB0706

PMB4204


Common Specifications

Display Type  TFT LCD
Panel Surface Black Anti-Glare, Low Reflection Coating
Light Source CCFL, (old-cathode fluorescent lamps)
Long Life 50,000 Hrs (typ)
Optional LED Backlight available
Inputs VGA Input 15-pin D-Sub Female, Analog RGB Signal
0.7/1.0Vp-p, 75 Ohms, Fh = 30-82kHz, Fv = 50-75Hz
Separate Sync / Composite Sync / Sync on Green
Audio Stereo Mini Jack, 2W Speaker x2
Power 15″ models and above AC mains 90-260V auto sensing input
Up to 12″ / option on 15″-22″ 12V DC, with External AC Adaptor included
Mounting Screw or clamp mount into panel – according to size.

VESA mount on rear – hole patterns:

Up to 17″: 75 x 75 mm
19″-24″: 100 x 100 mm
26″-37″: 400 x 200 mm
Features Auto Calibration, Back Light Adjustment, Plug & Play (VESA DDC/CI, DDC 2B)
Operating Conditions Temperature / Humidity 0°C to 50°C, 10%-90% (non condensing)
Storage Conditions Temperature / Humidity -20°C to 60°C, 10%-90% (non condensing)
Certifications CE, FCC, C-Tick CE, FCC, C-Tick


Options

Most options may be ordered in any quantity of monitors

Please note some combinations of options/sizes may not be possible – please contact us for a quote.

Option Codes
Grades Marine Grade – shock and vibration tolerant, anti-rust
For marine applications we recommend using FME Marine Front Panel Mount series, wide range DC input, sunlight readable, and wide dimming range options.
-GM
Vehicle Grade – shock and vibration tolerant
For vehicle applications we also recommend using the wide range DC input, and sunlight readable option.
Wide Dimming Range may also be required.
-GV
Panel / Backlight LED Backlight (brightness specified in nits xxxx)
For Sunlight Readable: Use 1000 or 0700 nits high brightness models
-BLxxxx
CCFL Backlight (brightness specified in nits xxxx) -BCxxxx
Wide Dimming Range, controlled by OSD buttons -BW
Wide Dimming Range, controlled by knob -BK
Touchscreens

USB connection by default, or specify -RS232 for serial

Infomation about Touchscreens

(Wikipedia, opens  in new tab)

Resistive -TR
Capacitive (cannot detect gloved finger), optionally with 6mm Anti-Vandal Glass -TC or -TC6
SAW (Surface Acoustic Wave) -TS
Infra-Red -TI
Projected Capacitive (can sense a passive stylus or gloved fingers) with 6mm Anti-Vandal Glass -TP6
Protective Glass (no touch): 3mm, or 6mm Anti-Vandal -TG3 or -TG6
Inputs VGA -IV
VGA + DVI -IVD
VGA + DVI + HDMI -IVDH
VGA + DVI + HDMI + RS-232 remote control input -IVDHR
VGA + S-Video + Composite Video (BNC connectors) -IVSC
VGA + S-Video + Composite Video with Looping Output(BNC connectors) -IVSCL
VGA + DVI + S-Video + Composite Video -IVDSC
VGA + HDMI + Composite Video with Looping Output -IVHCL
VGA + HDMI -IVH
VGA + Media Player (plays various formats from CF / SD cards / USB stick) -IVM
Power AC mains 90-260V auto sensing input (only for 15″ and larger) -P240
12V DC, with External AC Adaptor included -P12
Wide voltage range DC power input -PW
Mounting method Rear Screw Mount
Screws not supplied – screw length must be equal to panel width plus 4mm.
Holes must be drilled into the panel, in appropriate locations (drawings available).
(default, no code)
Rear Clamp Mount
Clamps and screws supplied for easy mounting into a panel without screw holes – max panel thickness 12mm (monitors up to 24″) or 20mm (monitors above 24″)
-MC
Other Wide Temperature Range -RW
Wide Viewing Angle -VW
Light Sensor with auto dimming -LS
OSD buttons on a wired Remote Control box -OR
Integrated PC (Panel PC / Digital Signage Platform)

Options include Fanless Atom N270, Atom D525, Core 2 Duo, Core 2 Quad, Core i5, Core i7

Contact us
Touch screen types (click to view)

Resistive, Capacitive or SAW

Resistive Touchscreens are for applications where speed and accuracy are required, They are used primarily for point of sales and medical and industrial applications.
Resistive Touchscreens are versatile and pens, gloved hands or bare skin can be used to acivate the touchscreen.

Capacitive touchscreens need bare finger or wet glove to activate them.
The surface is tougher than that of resistive touchscreens.

SAW (Surface Acoustic Wave) Touchscreens are for applications such as information kiosks.
They are strong and are scratch and vandal proof.
Water, dirt and contaminants can’t get in.
They work even when glass is scratched.
The user must use bare skin or object that absorbs the sound waves to activate the touchscreen.

Front Panel Mount Marine Grade LCD Monitors

with Custom Options, and Optional Tilt Bracket

Front Panel Mount Marine Grade LCD Monitors


CyberVisuell’s Front Panel Mount Marine Grade LCD monitors are designed for use on ships and boats. Their smart aluminium front bezels are rated to IP65 with protective glass over the screen, and the rear housing is rated to IP54 and protected with an anti-rust powder coating on the steel casing. The chassis are internally strengthened against shock and vibration, and they include a wide tolerance DC power supply input, as well as providing a wide dimming range for night use.

FME1505
Click here to show/ hide more info

FME1505

CyberVisuell’s Front Panel Mount Marine Grade LCD monitors are designed for use on ships and boats. Their smart aluminium front bezels are rated to IP65 with protective glass over the screen, and the rear housing is rated to IP54 and protected with an anti-rust powder coating on the steel casing. The chassis are internally strengthened against shock and vibration, and they include a wide tolerance DC power supply input, as well as providing a wide dimming range for night use.

The front mounting screw holes make it easy to mount the monitor into a panel or console without needing to access it from behind. Alternatively the innovative adjustable tilt stand allows these monitors to be mounted stand alone, either from the roof, or on an operator panel or desk.

The OSD controls are on the front panel for easy access to dim the screen when needed.

Features

  • Aluminum front bezel for smart, clean appearance
  • Screw mounting holes in front of bezel for easy panel mounting from the front
  • Rugged powder coated metal rear chassis
  • Marine grade for long lasting performance
  • Wide range of options available with no MOQ, due to modular design
  • OSD (on screen display) buttons on the front, for easy dimming
  • Wide operating temperature 0-50°C
  • Touch screens: Resistive, Capacitive, SAW, Infra-Red, or Projected Capacitive
  • Flexible input options: VGA, DVI, Composite Video, HDMI, HD-SDI
  • Wide range DC power input for marine or vehicle use
  • Optional Sunlight Readable panel and/or LED backlight
  • Wide dimming range for comfortable day or night use



Sizes and Resolutions

4:3 Aspect Ratio
Model No   Size Picture of 15” model
Marine Grade Front Panel Mount:
(can be screwed to a panel from front)
FME1045XN   10.4″ 1024x768
FME1205XN   12.1″ 1024x768
FME1505XN   15″  1024x768
FME1705EN   17″ 1280x1024
FME1905EN   19″ 1280x1024
FME2005UN 20.1″ 1600x1200
FME1703
Marine Tilt Mount (with tilt mounting bracket):
FMT1045XN   10.4″ 1024x768
FMT1205XN   12.1″ 1024x768
FMT1505XN   15″  1024x768
FMT1705EN   17″ 1280x1024
FMT1905EN   19″ 1280x1024
FMT2005UN   20.1″ 1600x1200
FME1505



Common Specifications

Display Type  TFT LCD
Panel Surface Black Anti-Glare, Low Reflection Coating
Light Source CCFL, (old-cathode fluorescent lamps)
Long Life 50,000 Hrs (typ)
Optional LED Backlight available
Inputs VGA Input



15-pin D-Sub Female, Analog RGB Signal
0.7/1.0Vp-p, 75 Ohms, Fh = 30-82kHz, Fv = 50-75Hz
Separate Sync / Composite Sync / Sync on Green
Audio Stereo Mini Jack, 2W Speaker x2
Power Power input 9-36 VDC wide range DC input
Mounting Screw mount into panel;

VESA mount on rear – hole patterns:

Up to 17″: 75 x 75 mm
19″-20″: 100 x 100 mm
Features Auto Calibration, Back Light Adjustment, Plug & Play (VESA DDC/CI, DDC 2B)
Operating Conditions Temperature / Humidity 0°C to 50°C, 10%-90% (non condensing)
Storage Conditions Temperature / Humidity -20°C to 60°C, 10%-90% (non condensing)
Certifications CE, FCC, C-Tick CE, FCC, C-Tick



Options

Most options may be ordered in any quantity of monitors

Please note some combinations of options/sizes may not be possible – please contact us for a quote.

Option Codes
Grades Marine Grade – shock and vibration tolerant, anti-rust
For marine applications we also recommend using wide range DC input, sunlight readable LED backlit, and wide dimming range options.
-GM
Panel / Backlight LED Backlight (brightness specified in nits xxxx)
For Sunlight Readable, use 1000 or 0700 nits
-BLxxxx
CCFL Backlight (brightness specified in nits xxxx) -BCxxxx
Wide Dimming Range, controlled by OSD buttons -BW
Wide Dimming Range, controlled by knob -BK
Touchscreens

USB connection by default, or specify -RS232 for serial

Infomation about Touchscreens
(Wikipedia, opens  in new tab)

Resistive -TR
Capacitive (cannot detect gloved finger), optionally with 6mm Anti-Vandal Glass -TC or -TC6
SAW (Surface Acoustic Wave) -TS
Infra-Red -TI
Projected Capacitive (can sense a passive stylus or gloved fingers) with 6mm Anti-Vandal Glass -TP6
Protective Glass (no touch): 3mm, or 6mm Anti-Vandal -TG3 or -TG6
Inputs VGA -IV
VGA + DVI -IVD
VGA + DVI + HDMI -IVDH
VGA + DVI + HDMI + RS-232 remote control input -IVDHR
VGA + S-Video + Composite Video (BNC connectors) -IVSC
VGA + S-Video + Composite Video with Looping (BNC connectors) -IVSCL
VGA + DVI + S-Video + Composite Video -IVDSC
VGA + HDMI + Composite Video with Looping -IVHCL
VGA + HDMI -IVH
VGA + Media Player (plays various formats from CF / SD cards / USB stick) -IVM
Power Wide voltage range DC power input -PW
Mounting Brackets Supplied without mounting brackets -MN
Includes marine style multi-tilt mounting brackets -MB
Other Wide Temperature Range -RW
Wide Viewing Angle -VW
Light Sensor with auto dimming -LS
OSD buttons on a wired Remote Control box -OR
Integrated PC (Panel PC / Digital Signage Platform)

Options include Fanless Atom N270, Atom D525, Core 2 Duo, Core 2 Quad, Core i5, Core i7

Contact us
