Getac Rugged Tablets & Handhelds

Always ready. Always rugged.

Ruggedized Tablets

Getac’s range of fully rugged tablet PC’s and handhelds, are brilliantly engineered, high performance rugged computers. With water and dust resistance, vibration proof and impact resistant design, and full day outdoor usability, they represent excellent value for money.

Why buy a rugged tablet instead of a regular tablet? When you’re using your tablet every day in indoor, outdoor, vehicle or warehouse environments, regular tablets just don’t cut it. In the real world, you cannot totally prevent drops, water ingress, dust ingress or vibration. And often you can’t even read the screen if you’re outdoors. Every time a tablet gets broken, you lose valuable work time. On top of that your company has to pay for repairs or replacement units every time they break.

When you buy a Getac rugged tablet, it will keep going and going, regardless of what you throw at it. Getac helps to keep you working productively no matter what environment you are in, and it’s backed up by an industry leading 5 year warranty.

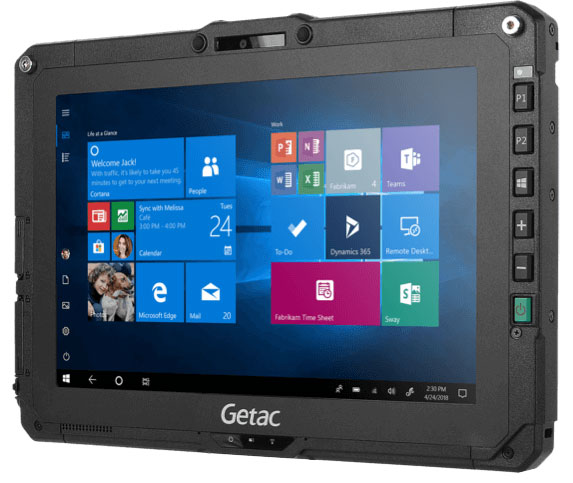

GETAC UX10 – A versatile and portable tablet

GETAC UX10 – A Versatile and Portable Tablet


The UX10 has been designed to deliver portable performance across a range of industries, including Industrial Manufacturing, Public Safety and Utility Services, in even the most demanding environments.
GETAC UX10 – A Versatile and Portable Tablet
Click here to show/ hide more info

GETAC UX10 – A Versatile and Portable Tablet

The UX10 has been designed to deliver portable performance across a range of industries, including Industrial Manufacturing, Public Safety and Utility Services, in even the most demanding environments.

Features:

  • 8th Generation Intel® CoreTM i7/i5 Processor
  • 10.1” FHD LumiBond® 2.0 Display with Getac Sunlight Readable Technology (1,000 nits) and Capacitive Touchscreen
  • Enhanced Enterprise Security with Optional Intel vProTM, Windows Hello Face-authentication Camera and Multi-factor Authentication Options
  • Detachable Keyboard and Multifunctional Hard Handle for On-the-job Flexibility
  • Multiple Configurable Options to Fit Diverse Usage Scenarios

The go-anywhere, ultimately secure rugged tablet

An optional hard handle makes the UX10 easy to grip and carry, allowing you to take the computing power you require to the place it is most needed.

A detachable keyboard with retractable hard handle further optimises worker productivity. For total security in authenticating users, the UX10 has an optional integrated fingerprint reader, smart card reader, magnetic stripe reader, an RFID reader, and can also offer a Windows Hello face-authentication camera.

The ‘always-on’ tablet

In a world where devices need to work 24/7/365 power-up continuity is essential – in portable devices that means a focus on battery configuration. The UX10 offers a range of battery configurations and options, including an optional high capacity battery and an optional bridge battery that ensures a ‘hot swap’ capability. In effect you need never power-down the UX10, making it ideal if the device is pooled between workers or required across multiple work shifts.

The usable-in-all conditions tablet

Drop resistance and temperature tolerance aside, the LumiBond® screen ensures usability in all conditions. 1000 nits of brightness make the display readable even in sunlight, whilst rain and glove touch capability guarantee visibility and productivity in even the most extreme conditions.

Data sheet on GETAC UX10 (pdf, opens in a new tab)

Technical Specifications:

Operating System Windows 10 Pro
Mobile Computing Platform

Platform Options:

Intel® Core™ i7 Technology
Intel® Core™ i7-8565U Processor 1.8 GHz
Max. 4.6GHz with Intel® Turbo Boost Technology
– 8MB Intel® Smart Cache

Intel® Core™ i7 vPro™ Technology
Intel® Core™ i7-8665U vPro™ Processor 1.9GHz
Max. 4.8 GHz with Intel® Turbo Boost Technology
– 8MB Intel® Smart Cache

Intel® Core™ i5 Technology
Intel® Core™ i5-8265U Processor 1.6GHz
Max. 3.9GHz with Intel® Turbo Boost Technology
– 6MB Intel® Smart Cache

Intel® Core™ i5 vPro™ Technology
Intel® Core™ i5-8365U vPro™ Processor 1.6GHz
Max. 4.1 GHz with Intel® Turbo Boost Technology
– 6MB Intel® Smart Cache



VGA Controller Intel® UHD Graphics 620
Display 10.1″ IPS TFT LCD FHD (1920 x 1200)
1000 nits LumiBond® display with Getac sunlight readable technology
Capacitive multi-touch screen
Storage & Memory 8GB DDR4 expandable to 16GB
256GB SSD; optional 512GB / 1TB SSD
Keyboard 6 tablet buttons (Windows, Power, Function Key, Camera Capture/ Barcode Reader Trigger, Volume Up, Volume Down)
Pointing Device Touchscreen
– Capacitive multi-touch screen
– Optional dual mode touchscreen (multi-touch and digitizer)
Expansion Slot Optional 1D/2D imager barcode readeri , or HF RFID reader, or serial port, or LAN port (RJ45), or USB 3.0 port, or VGA portii
Optional magnetic stripe readeriii, or fingerprint scanner, or serial port+LAN port (RJ45)iv
Optional smart card reader, or bridge battery, or bridge battery+smart card readerv
I/O Interface FHD webcam x 1 or Optional Windows Hello face-authentication camera (front-facing) x 1
8M pixels auto focus rear camera x 1
Headphone out / mic-in combo x 1
DC in Jack x 1
USB 3.1 Gen 2 Type-A x 1
HDMI x 1
Docking connector x 1
Optional RF antenna pass-through for GPS, WLAN and WWAN
Communication Interface Optional 10/100/1000 base-T Ethernet
Intel® Dual Band Wireless-AC 9260, 802.11ac
Bluetooth (v5.0)vi
Optional 4G LTE mobile broadband with intergrated GPS
Security Features Optional Intel® vPro™ Technology
TPM 2.0
Optional HF RFID readeri,ii
Optional magnetic stripe readeriii, or fingerprint scanneriv
Optional smart card readeriv
Kensington lock
Power AC adapter (65W, 100-240VAC, 50 / 60Hz)
Li-Ion smart battery (11.1V, 4200mAh) x 1
Optional high capacity battery (10.8V, 9240mAh) x 1
Optional bridge batteryv
Dimension (W x D x H) & Weigh 276.8 x 194.5 x 23.5 mm (10.89″ x 7.65″ x 0.92″)
1.22 kg (2.68 lbs)vii
Rugged Feature MIL-STD-810G certified and IP65 certified
MIL-STD-461G certifiedviii
6 feet drop resistantix,x
e-Mark certified for vehicle usage
Environmental Specification Temperaturex:
– Operating: -29°C to 63°C / -20°F to 145°F
– Storage: -51°C to 71°C / -60°F to 160°F
Humidity:
– 95% RH , non-condensing
Optional Accessories
  • Carry bag
  • Multi-bay charger (Dual Bay)
  • Multi-Bay charger (Eight-Bay)
  • Vehicle adapter (120W, 11-32VDC)
  • AC adapter (65W, 100-240VAC)
  • Offie dock AC adapter(90W, 100-240VAC)
  • MIL-STD-461 certified AC adapter (90W, 100-240VAC)
  • Digitizer pen
  • Capacitive stylus (Hard-tip)
  • Protection film
  • Tablet folio case
  • Hand strap
  • Shoulder harness (4-point; handsfree)
  • Shoulder strap (2-point)
  • Standard battery (11.1V, 4200mAh)
  • High capacity battery (10.8V, 9240 mAh)
  • Detachable keyboard
  • Vehicle dock
  • Office dock

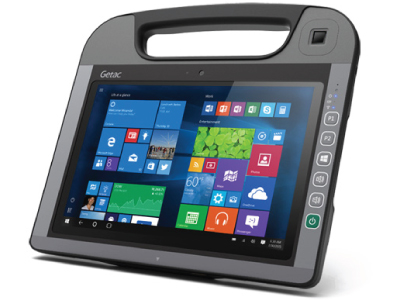

Getac RX10 – Amazingly Slim and Powerful Rugged Tablet

Getac RX10 – Amazingly Slim and Powerful Rugged Tablet


This new ultra-thin, ultra-light tablet is built for field mobility, with its 10.1″ full HD, glove-friendly touch screen and its advanced wireless options.
Getac RX10 - Amazingly Slim and Powerful Rugged Tablet
Click here to show/ hide more info

Getac RX10 - Amazingly Slim and Powerful Rugged Tablet

  • Intel® Core™ M vPro™ Processor
  • Premium Thin and Light design weighs 1.2kg and 18.8mm thin
  • 10.1″ Full HD LumiBond®2.0 display with Getac sunlight readable technology and capacitive touchscreen
  • 2-in-1 design for mobility as a tablet, or productivity with the optional attached keyboard
  • Getac’s proprietary optional SnapBack add-on featuring kickstand and hand strap, smart card reader or detachable keyboard

Getac announces a portable, lightweight and feature-rich rugged tablet for field service. The Getac RX10 incorporates some of the most advanced features and specifications needed to tackle the toughest tasks in the harshest environments.

  • MIL-STD-810G and IP65 certified
  • 4 feet drop resistant
  • Vibration & drop resistant
  • e-Mark certified for vehicle usage
  • Optional ANSI/ISA 12.12.01

By combining extremely fast processing speeds with energy efficiency, the Getac RX10 was truly designed with field service professionals in mind. And its lightweight and ergonomic handle makes it easy to tote around during a full work shift without sacrificing critical features. Field service professionals are faced with ever-changing data capture requirements on a day-to-day basis, and with Getac’s exclusive LumiBond® 2.0 technology, users get a brighter, tougher display with vibrant colors and higher contrast for easy readability, even in direct sunlight. The SnapBack add-on accessories also provide enhanced functionality. The detachable rugged rubber keyboard and kickstand allow users to transform the RX10 to a 2-in-1 device, supporting data input in the field. The rubber keyboard is easy to clean and features a backlight function and IP54 dust and water protection. “Portability and responsiveness are two critical features that field service professionals need in their rugged devices,” said Scott Shainman, president of Getac North America. “The RX10 fully rugged tablet presents a form factor that is easy to transport while providing uninterrupted operation in severe temperatures.”

Data sheet on RX10 (pdf file (opens in new tab)

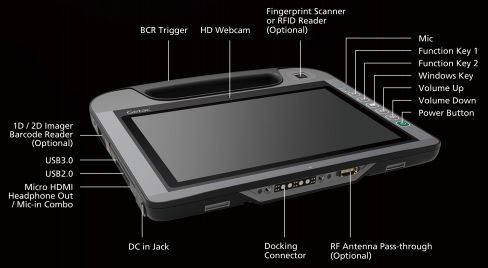

getac_rx10-with-pointers

Technical Specification

Operating System: Windows 10 Professional
Windows 7 Professional
Mobile Computing Platform: Intel® CoreTM M-5Y10c 0.8GHz processor
with Turbo Boost Technology up to 2.0GHz
4MB Intel Smart CacheIntel Core M-5Y71 vProTM 1.2GHz processor
with Turbo Boost Technology up to 2.9GHz
4MB Intel Smart Cache
VGA Controller: Intel HD Graphics 5300
Display: 10.1” IPS TFT LCD FHD (1920×1200) 800 NITs
LumiBond® 2.0 sunlight readable LED
display with multi-touch technology
Storage & Memory: 4GB LPDDR3 expandable to 8GB
SSD 128GB / 256GB
Keyboard: 6 tablet buttons:
Windows, Power, Function Key 1, Function Key 2 /
Barcode Reader Trigger, Volume Up, Volume Down
Webcam HD webcam x 1
8MP auto focus rear camera
Pointing Device: Touchscreen:
– Capacitive multi-touch screen
– Optional dual mode touchscreen (multi-touch and digitizer)
Expansion Slots: Optional 1D/2D imager barcode reader
IO Interface: DC in x 1
USB 3.0 (9-pin) x 1
USB 2.0 (4-pin) x 1
Docking port (16-pin) x 1
Headphone out/Mic-in Combo x 1
Micro HDMI x 1
Optional RF antenna pass-through for
GPS, WLAN and WWAN
Communication Interface: Intel Dual Band Wireless-AC 7265 (802.11ac)
Bluetooth (v4.0)
Optional dedicated GPS
Optional 4G LTE mobile broadband;
XLTE Ready3
Optional Gobi™ mobile broadband
Software: Getac Utility
Getac Camera
Getac Barcode Manager
Security Features: TPM 2.0
Optional Intel vPro™ Technology (per CPU option)
Optional fingerprint scanner or RFID reader
Power: AC Adapter (65W, 100-240VAC, 50/60Hz)
Li-Ion battery (15.2V, 2160mAH)
(up to 8 hours of battery life)
LifeSupport™ hot-swappable battery technology
Optional High Capacity Battery with Smart Card reader Expansion
Dimensions & Weight: 11” x 9.65” x 0.74” (280 x 245 x 18.8mm)
2.65lbs (1.2kg)4
Rugged Features: MIL-STD 810G and IP65 certified
MIL-STD-461F certified
Optional ANSI/ISA 12.12.01
Vibration & drop resistant
Environmental Specifications: Operating Temp:
-5.8°F to 131°F / -21°C to 55°C
Storage Temp:
-51°F to 160°F / -60°C to 71°C
Humidity: 95% RH, non-condensing
Optional Accessories
  • Carry bag
  • Main battery (15.2V, 2160mAh)
  • AC adapter (65W, 100-240VAC)
  • Vehicle adapter (90W, 11-16V DC and 22-32V DC)
  • Capacitive stylus & tether
  • Digitizer pen
  • Shoulder strap (2-point)
  • Hand-strap & Kick Stand
  • Hand-Strap & Kick Stand & Smart Card Reader
  • Hand-Strap & Kick Stand & Smart Card Reader & Detachable Keyboard
  • Vehicle dock
  • Office dock
  • Protection Film
  • Multi-Bay Charger (Two Bay)
  • Multi-Bay Charger (Eight Bay)

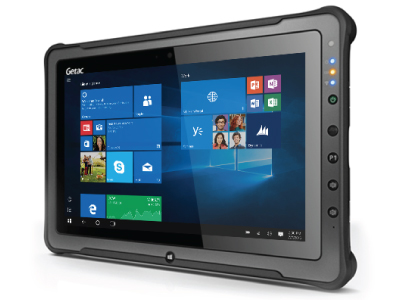

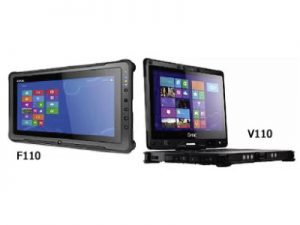

2 New Rugged Tablets Set New Standards – V110 & F110

getac_v110_f110Revolutionising modern-day computing with the latest Rugged Windows Tablets

Can be viewed in even the brightest areas of the Australian outback

Introducing the V110 Rugged Convertible Tablet and the F110 Rugged Tablet, which have set new standards for rugged devices. The slim, light and powerful devices are packed with state of the art technology that provides one of the best platforms for any mobility project.

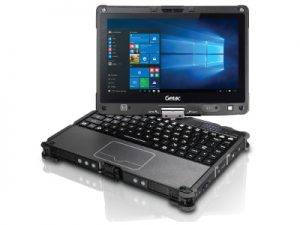

Getac V110 Convertible Tablet- rugged

Getac V110 Convertible Tablet- rugged


Getac’s updated V110 fully rugged Convertible Notebook delivers high performance and security to boost work efficiency.

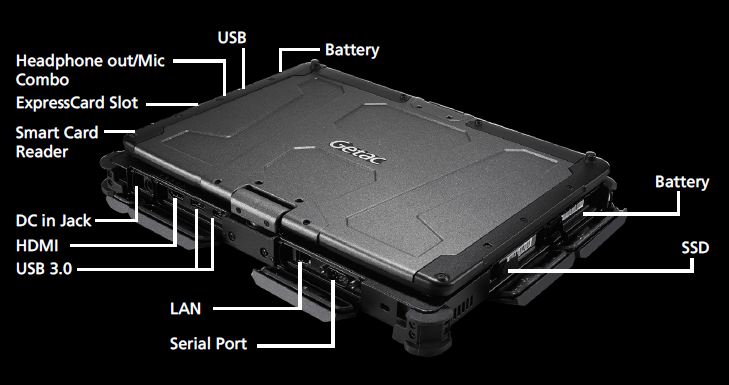

getac-v110-convertible-tablet
Click here to show/ hide more info

getac-v110-convertible-tablet

Along with the latest Skylake CPUs, experience a robust suite of security features, including multi-factor authentication,to protect against malicious threats and intrusions.

The Getac V110 fully rugged convertible notebook features best-in-class performance, industry-leading security, a large 11.6″ widescreen display and a design that is as thin and light as ever – at 2.0 kg light and 32 mm thin.

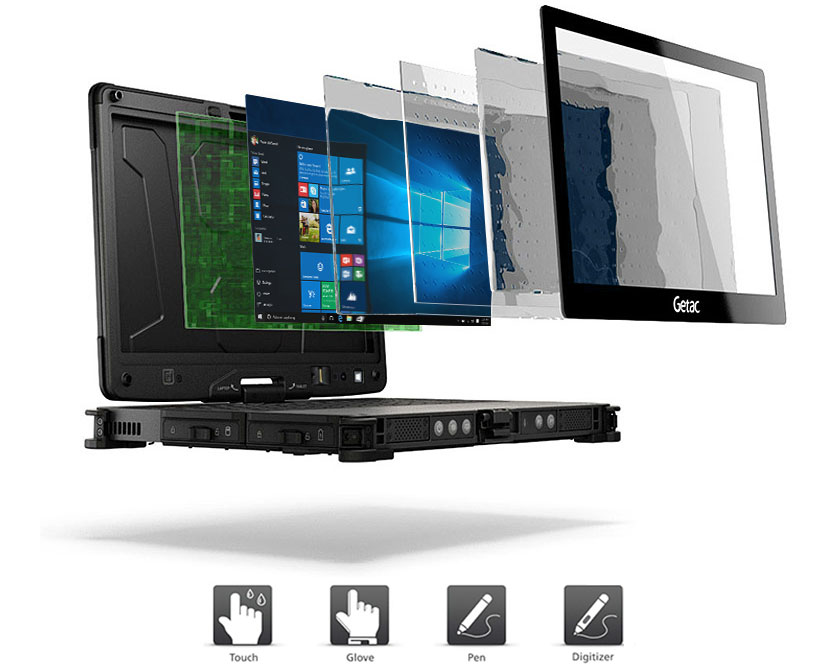

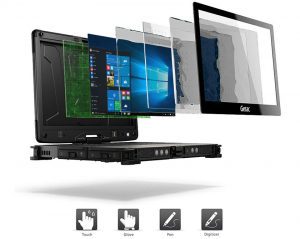

The V110 takes advantage of our revolutionary LumiBond 2.0 touchscreen technology, which bonds the display glass with the touch panel and LCD, creating a single pane that is more durable and readable, and offers better contrast and more crisp colors than any other rugged laptop display. It features four advanced touch modes (Touch/Rain, Glove or Pen mode, plus an optional Digitizer mode), and the included hard-tip stylus enables you to capture signatures and take more precise notes on drawings, maps, or forms.

It has a unique, hot-swappable dual-battery design allows for potentially infinite, uninterrupted battery life. This enables you to remove one of the two rechargeable batteries and replace it with a fresh battery without ever shutting down apps or your Windows OS.

The new V110 benefits from optimized power performance, image processing, networking speed, and efficient power with Intel’s sixth generation Core™processors (i5- i5-6200U 2.3GHz (2.8GHz) or Core™ i7-6500U 2.5GHz (3.1GHz)) and Windows 10operating system, essential for power hungry field applications and the need to be always on. Improved RAM (to DDR4-2133) provides lower power consumption, faster memory clock speed and support up to 16G.

The V110 also provides enhanced security using the latest 6th generation Intel® Core™ vPro™ processors featuring Intel® Authenticate Technology, hardware-enhanced, multi factor authentication solution that strengthens identity protection by capturing, encrypting, pairing, and storing PINs, biometrics, keys, access rights, as well as other identification data in the hardware, hiding the target from hackers to effectively strengthen the protection of corporate identities.

Built using the highest quality materials to make it unflinchingly resilient. The V110’s main chassis structure is precision cast using Magnesium Alloy, an incredibly strong structural metal that also happens to be one of the lightest in the world for its strength. We combined that with an advanced rugged polymer in areas of less impact and rubberized absorption polymer at the main points of contact.

The new V110 version will be available for ordering from early July 2016.

Data sheet on V110 (pdf file, opens in new tab)
For full details about these latest Getac rugged devices, please contact us

Technical Specification

Operating System Windows 7 Professional
Windows 10 Professional
Mobile Computing Platform Intel® Core™ i7 Technology
Intel® Core™ i7-6500U Processor 2.5GHz
Max. 3.1GHz with Intel® Turbo Boost Technology
– 4MB Intel® Smart CacheIntel® Core™ i7 vPro™ Technology
Option Intel® Core™ i7-6600U vPro™ Processor 2.6GHz
Max. 3.4Hz with Intel® Turbo Boost Technology
– 4MB Intel® Smart CacheIntel® Core™ i5 Technology
Intel® Core™ i5-6200U Processor 2.3GHz
Max. 2.8GHz with Intel® Turbo Boost Technology
– 3MB Intel® Smart CacheIntel® Core™ i5 vPro™ Technology
Optional Intel® Core™ i5-6300U vPro™ Processor 2.4GHz
Max. 3.0GHz with Intel® Turbo Boost Technology
– 3MB Intel® Smart Cache
VGA Controller Intel® HD Graphics 520
Display 11.6″ IPS TFT LCD HD (1366 x 768)
800 nits LumiBond® display with Getac sunlight readable technology
Capacitive multi-touch screen
Storage & Memory 4GB DDR4 expandable to 16GB
SSD 128GB / 256GB / 512GB
Keyboard LED backlit membrane keyboard
Optional Rubber Keyboard
Pointing Device Touchscreen
– Capacitive multi-touch screen
– Optional dual mode touchscreen (multi-touch and digitizer)Touchpad
– Glide touchpad with multi-touch
Expansion Slots ExpressCard/54 x 1
Smart Card reader x 1
IO Interface FHD webcam x 1
Serial port (9-pin; D-sub) x 1
Headphone out / mic-in Combo x 1
DC in Jack x 1
USB 3.0 (9-pin) x 2
USB 2.0 (4-pin) x1
LAN (RJ45) x 1
HDMI x 1
Docking connector (24-pin) x 1
Optional 8M pixels auto focus rear camera x1
Optional RF antenna pass-through for GPS,
WLAN and WWAN
Communication Interface 10/100/1000 base-T Ethernet
Intel® Dual Band Wireless-AC 8260; 802.11ac
Bluetooth (v4.2)i
Optional dedicated GPS
Optional Gobi™ mobile broadband
Software Getac Utility
Getac Camera
Getac Geolocation
Adobe® Reader®
Security Features Optional Intel® vPro™ Technology
TPM 2.0
Optional RFID and contactless smart card reader
Optional fingerprint scanner
Kensington lock
Power AC Adapter (65W, 100-240VAC, 50/60 Hz)
Li-Ion battery (11.1V, 2100mAh) x 2
(up to 13 hours of battery life)
Dimensions & Weight 299 x 223 x 34 mm
1.98 Kg
Rugged Features MIL-STD-810G certified and IP65 certified
MIL-STD-461F certified
Optional ANSI/ISA 12.12.01
Optional MIL-STD-810G Salt fog certified
Vibration & drop resistant
e4 Mark certified for vehicle usage
Environmental Specifications Temperature:
– Operating: -21°C to 60°C
– Storage: -40°C to 71°C
Humidity:
– 95% RH , non-condensing
Previous version of V110

The Getac V110 supersedes the popular V100 with a breakthrough in rugged notebook design, providing optimum power and performance in a new thinner package.

The overall thickness of the V110 is a mere 34mm and Getac have also succeeded in breaking the all-important 2kg barrier; a key requirement for mobility projects.

The V110 provides ease of use no matter the requirement.
Use it as a notebook but with a quick twist of the unique multi-position hinge, the V110 effortlessly transforms into a tablet. Thus giving users the versatility needed for use in various applications.

  • 4th Generation Intel® Core™ i7 / i5 vPro™ Processor
  • 11.6” Getac Sunlight Readable Display: 800 Nits with Touchscreen
  • LifeSupport™ Battery Swappable Technology
  • Optional Dual Mode Touchscreen (multi-touch and digitizer)
  • Reliable, Speedy Solid-State Driver Storage

MIL-STD-810G and IP65 certified MIL-STD-461F certified
MIL-STD-461F certified (MIL-STD-461F 90WAC adapter sold separately )
Optional ANSI/ISA12.12.01 Vibration & drop resistant
e4 Mark certified for vehicle usage

See below for more information on both V110 & F110

Data sheet for V110 (pdf file, opens in new tab)

Getac-V110-Convertible-Tablet

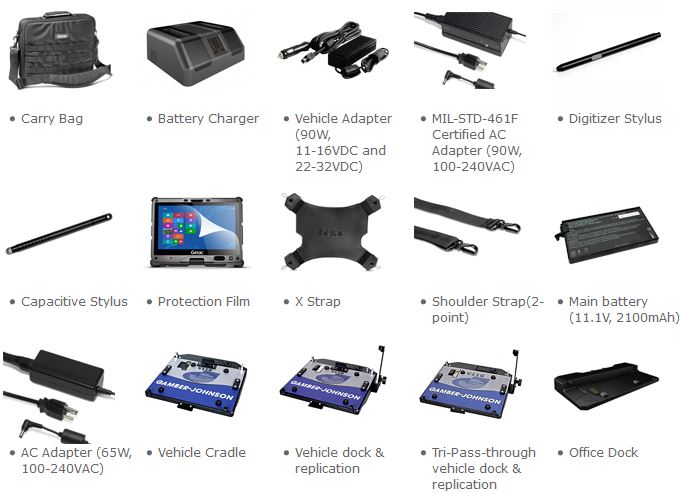

Accessories for V110

getac_v110-accessories

V110 Versions

New updated V110 – please contact us – Esis Pty Ltd.

V110-Basic
526212900P04

Core i5-4300U, 1.9GHz / 11.6″ LumiBond sunlight readable display (800 nits) / 4GB RAM / Multi-touch TS / 128GB SSD /
Hot-swappable battery x 2 / Wireless LAN ac /
Bluetooth / HD Webcam / -21C Wide Range Temp / Express Card x 1 / Smartcard x 1 /
Membrane Backlit Keyboard / 461F Platform Ready* /Win 8 Professional** 64bit ***/ 3 Years Warranty

V110-Premium
526212900P05

Core i5-4300U, 1.9GHz / 11.6″ LumiBond sunlight readable display (800 nits) / 4GB RAM / Multi-touch TS / 128GB SSD /
Hot-swappable battery x 2 / Wireless LAN ac /
Bluetooth / HD Webcam / -21C Wide Range Temp / Express Card x 1 / Smartcard x 1 /
Membrane Backlit Keyboard / GPS / Gobi 5000 / 461F Platform Ready* / Win 8 Professional** 64bit / 3 Years Warranty

V110-Premium + Tri Pass-through
526212900012

Core i5-4300U, 1.9GHz / 11.6″ LumiBond sunlight readable display (800 nits) / 4GB RAM / Multi-touch TS / 128GB SSD /
Hot-swappable battery x 2 / Wireless LAN ac /
Bluetooth / HD Webcam / -21C Wide Range Temp / Express Card x 1 / Smartcard x 1 /
Membrane Backlit Keyboard / GPS / Gobi 5000 / 461F Platform Ready* / Win 8 Professional** 64bit / 3 Years Warranty /
Tri Pass-through

V110-Full Spec – Limited Promotion SKU (Win 7)
526212900013

Core i5-4300U, 1.9GHz / 11.6″ LumiBond sunlight readable display (800 nits) / 8GB RAM / Multi-touch TS / 256GB SSD /
Hot-swappable battery x 2 / 5MP Rear Camera / Wireless LAN ac /
Bluetooth / HD Webcam / -21C Wide Range Temp / Express Card x 1 / Smartcard x 1 /
Membrane Backlit Keyboard / GPS / Gobi 5000 / 461F Platform Ready* / Win 7 Professional** 64bit / 3 Years Warranty /
Tri Pass through

Also available: various options, upgrades and accessories – Please enquire
Contactless RFID etc, etc.

Getac F110 Tablet – Rugged

Getac F110 Tablet – Rugged


The Getac F110 also incorporates the same breakthrough in rugged design as the V110, but encompasses this technology into a slim line tablet device.
Getac F110 Tablet - Rugged
Click here to show/ hide more info

Getac F110 Tablet - Rugged

The Getac F110 also incorporates the same breakthrough in rugged design as the V110, but encompasses this technology into a slim line tablet device. With its light weight 1.39kg design, the F110 is capable of being used in a variety of field and mobility applications. The F110’s 11.6″ display provides an unrivaled user experience and handles complex mapping and imagery with ease. The addition of the vehicle dock creates an ideal mobility platform – a true mobile office on the go.

  • Enhanced Enterprise Security with optional Intel vPro, Windows Disk Encryption, TPM 2.0 and other multi-factor authentication options.
  • 6th Generation Intel® Core™ i7/i5 vPro™ Processor
  • 11.6” LumiBond® 2.0 Display with Getac Sunlight Readable Technology and Capacitive Touchscreen
  • 5 Customisable Configurations to Fit Your Needs (Optional 1D/2D Imager/Barcode Reader/Serial Port/Ethernet/MicroSD/2nd USB 2.0 Port)
  • LifeSupport™ Hot-Swap Battery Technology

Data sheet on F110 (pdf file, opens in new tab)

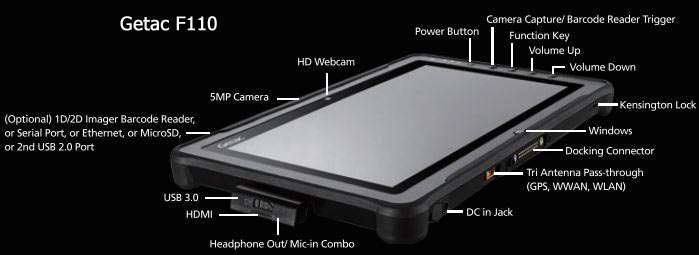

getac_f110-with-pointers

Technical Specification

Operating System: Windows 7 Professional
Windows 10 Professional
Mobile Computing Platform: Intel® Core™ i7 Technology
Intel® Core™ i7-6500U Processor 2.5GHz
Max. 3.1GHz with Intel® Turbo Boost Technology
– 4MB Intel® Smart CacheIntel® Core™ i7 vPro™ Technology
Option Intel® Core™ i7-6600U vPro™ Processor 2.6GHz
Max. 3.4Hz with Intel® Turbo Boost Technology
– 4MB Intel® Smart Cache
Intel® Core™ i5 Technology
Intel® Core™ i5-6200U Processor 2.3GHz
Max. 2.8GHz with Intel® Turbo Boost Technology
– 3MB Intel® Smart Cache
Intel® Core™ i5 vPro™ Technology
Optional Intel® Core™ i5-6300U vPro™ Processor 2.4GHz
Max. 3.0GHz with Intel® Turbo Boost Technology
– 3MB Intel® Smart Cache
VGA Controller: Intel® HD Graphics 520
Display: 11.6″ IPS TFT LCD HD (1366 x 768)
800 nits LumiBond® display with Getac sunlight readable technology
Capacitive multi-touch screen
Storage & Memory: 4GB DDR4 expandable to 16GB
SSD 128GB / 256GB / 512GB
Keyboard: 6 tablet buttons (Windows, Power, Function Key, Camera Capture/ Barcode Reader Trigger, Volume Up, Volume Down)
Pointing Device: Touchscreen
– Capacitive multi-touch screen
– Optional dual mode touchscreen (multi-touch and digitizer)
Expansion Slots: Optional 1D/2D Imager Barcode Reader, Serial Port,
Ethernet, MicroSD or 2nd USB 2.0 Port
IO Interface: FHD webcam x 1
8M pixels auto focus rear camera x 1
Headphone out / mic-in combo x 1
DC in Jack x 1
USB 3.0 (9-pin) x 1
Docking connector (24-pin) x 1
HDMI x 1
Optional RF antenna pass-through for GPS,
WLAN and WWAN
Communication Interface: Optional 10/100/1000 base-T Ethernet
(occupies expansion slot)
Intel® Dual Band Wireless-AC 8260, 802.11ac
Bluetooth (v4.2)
Optional dedicated GPS
Optional Gobi™ mobile broadband
Software: Getac Utility (including Power Manager)
Getac Camera
Getac Geolocation
Getac Barcode Manager
Adobe® Reader®
Security Features: Intel® vPro™ Technology
TPM 2.0
Optional RFID, Magnetic Stripe reader, Smart Card reader or fingerprint scanner
Kensington lock
Power: AC adapter (65W, 100-240VAC, 50 / 60Hz)
Li-Ion smart battery (11.4V, 2160mAh) x 2
(up to 12 hours of battery life)
LifeSupport™ battery swappable technology
Dimensions & Weight: 314 x 207 x 24.5 mm
1.39 kg
Rugged Features: MIL-STD-810G certified and IP65 certified
MIL-STD-461F certified
Optional ANSI/ISA 12.12.01
Vibration & drop resistant
e-Mark certified for vehicle usage
Environmental Specifications: Temperature:
– Operating: -21°C to 60°C / -5.8°F to 140°F
– Storage: -40°C to 71°C / -40°F to 160°F
Humidity:
– 95% RH , non-condensing

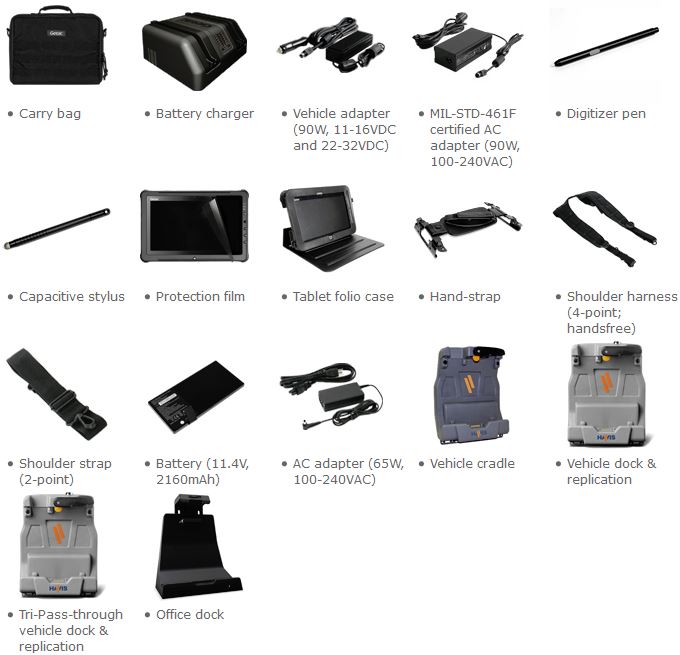

Accessories for F110

getac_f110-accessories

Both products, V110 & F110

Incorporate the latest fourth generation Intel® Core™ i5-4300U (1.9GHz) or i7-4600U (2.1GHz) processors, known as the Haswell platform, designed for speed, performance and battery life optimization.

The i5 and i7 CPUs feature Intel Turbo Boost Technology,clocking maximum speeds of up to 2.9GHz and 3.3GHz, respectively. In addition, the new Intel HD 4400 graphics provides an unparalleled level of responsiveness and frame rate for both 2D and 3D graphics.

Both V110 and F110 can be set up with an optional GOBI 5000 chipset that offers both 3.5G and 4G LTE with speeds of up to 100 mbps download and 50 mbps upload from the major Australian telecommunication carriers. This provides access critical to many mobility projects like corporate VPN and systems, cloud based applications and internet. Both devices are also equipped with the next generation 802.11ac WiFi, which is up to three times faster than the previous models. Moreover; GETAC has incorporated a brand new 3D antenna design that captures eight bands improving both signal strength and throughput while reducing drop outs. It also features a new Bluetooth 4.0 technology that helps boost performance in the field.getac-v110g3_lumibond

Lumibond Display

The revolutionary LumiBond™ technology creates an exceptional display that can be viewed in even the brightest areas of the Australian outback. The LumiBond™ display also offers greater contrast and crisper colors that allows users to work on applications that were previously unreadable. A patented technology that bonds the gorilla glass display with the touch and LCD panel, featuring a single pane that is more durable, improves readability, and provides up to 178 degree viewing angle.

The V110 and F110 are fully rugged devices certified to MILSTD-810G (drop & shock) and IP65 (dust and water protection) also encompassing options such as SIRF IV GPSthat provides fast GPS location fixes and coverage in challenging terrain.

“We are excited to introduce V110 and F110 to the Australian and New Zealand markets. I believe these products will fill a gap in the market that has long been unmet. These devices are ideal for mobility projects and field professionals in industries such as utilities, defense, mining, emergency services, insurance, transportation and logistics…

“Furthermore, Getac utilizes dual hot-swappable batteries in the V110 and F110 allowing for endless power by simply ‘swapping’ in a fresh battery without needing to shut down applications or the operating system; coupled with the efficiency of the Haswell chipset that provides unprecedented operation of up to 13 hours for the V110 and 12 hours for the F110. This potentially allows for a full day operation without the downtime of changing batteries or recharging devices in the field, allowing organisations to increase their ROI from personnel and assets…

“The same is crucial for many mission critical applications, especially in remote areas of Australia.” says Frank Bryan, Getac Country Manager.

The new thin and light rugged devices will provide an ideal platform for any mobility project without sacrificing performance, connectivity, functionality and work efficiency.

F110 Tablet Versions

F110 Basic
52628571000Y

i5-4300U 1.90GHz / 11.6″ HD LumiBondTM sunlight readable display (1366 x 768) / 4GB RAM / 128GB SSD /
Hot-swappable battery / Wireless LAN ac /
Bluetooth / 5 MP AF Camera /
Win 8 Professional / 3 year warranty

F110 Premium
52628571000K

i5-4300U 1.90GHz / 11.6″ HD LumiBond sunlight readable display (1366 x 768) / 4GB RAM / 128GB SSD /
Hot-swappable battery / Wireless LAN ac /
Bluetooth / 5 MP AF Camera / GPS / Gobi 5000 / Tri Pass-through (WLAN + WWAN + GPS) /
Win 8 Professional / 3 year warranty

F110 Premium + 2ND USB
52628571000J

1. I5-4300U 1.90GHz / 11.6″ HD LumiBond sunlight readable display (1366 x 768) / 4GB RAM / 128GB SSD /
Hot-swappable battery x 2 / Wireless LAN ac /
Bluetooth / 5 MP AF Camera / GPS / Gobi 5000  / Tri Pass through (WLAN + WWAN + GPS) /
Win 8 Professional / USB 2.0

F110 Premium +RS232
52628571000M

1. I5-4300U 1.90GHz / 11.6″ HD LumiBond sunlight readable display (1366 x 768) / 4GB RAM / 128GB SSD /
Hot-swappable battery x 2 / Wireless LAN ac /
Bluetooth / 5 MP AF Camera / GPS / Gobi 5000 / Tri Pass through (WLAN + WWAN + GPS) /
Win 8 Professional / RS232

F110 Premium + RS232 + 8GB RAM
52628571000A

1. I5-4300U 1.90GHz / 11.6″ HD LumiBond sunlight readable display (1366 x 768) / 8GB RAM / 128GB SSD /
Hot-swappable battery x 2 / Wireless LAN ac /
Bluetooth / 5 MP AF Camera / GPS / Gobi 5000 / Tri Pass through (WLAN + WWAN + GPS) /
Win 8 Professional / RS232

F110 Premium + RJ45 (LAN Port)
52628571000L

1. I5-4300U 1.90GHz / 11.6″ HD LumiBond sunlight readable display (1366 x 768) / 4GB RAM / 128GB SSD /
Hot-swappable battery x 2 / Wireless LAN ac /
Bluetooth / 5 MP AF Camera / GPS / Gobi 5000 / Tri Pass-through (WLAN + WWAN + GPS) /
Win 8 Professional / LAN 10/100/1000

F110 Premium + RJ45 (LAN Port) + 8GB RAM
52628571000B

1. I5-4300U 1.90GHz / 11.6″ HD LumiBond sunlight readable display (1366 x 768) / 8GB RAM / 128GB SSD /
Hot-swappable battery x 2 / Wireless LAN ac /
Bluetooth / 5 MP AF Camera / GPS / Gobi 5000 / Tri Pass through (WLAN + WWAN + GPS) /
Win 8 Professional / LAN 10/100/1000

F110 Premium + 1D/2D barcode reader
52628571000C

1. I5-4300U 1.90GHz / 11.6″ HD LumiBond sunlight readable display (1366 x 768) / 8GB RAM / 128GB SSD /
Hot-swappable battery x 2 / Wireless LAN ac /
Bluetooth / 5 MP AF Camera / GPS / Gobi 5000 / Tri Pass through (WLAN + WWAN + GPS) /
Win 8 Professional / 1D/2D barcode reader

Also available: various options, upgrades and accessories – please enquire

Upgrade to CPU i7-4600U 2.1GHz Processor + Contactless RFID

Expansion Options, one of the following:
1D/2D Imager barcode reader,  RS232 X 1,  RJ 45 X 1,  USB 2.0 X 1,  Micro SD X 1
etc, etc.

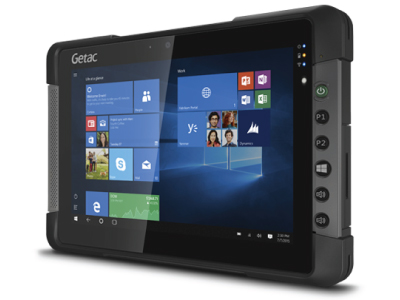

T800 Fully Rugged Tablet 8.1″

T800 Fully Rugged Tablet 8.1″


T800’s rugged and thermal design is well suited for wide temperature harsh environment, helping outdoor workers be worry-free.
T800 Fully Rugged Tablet 8.1
Click here to show/ hide more info

T800 Fully Rugged Tablet 8.1

  • 8.1” HD LumiBond® 2.0 display for better viewing experience
  • Getac proprietary SnapBack add-on featuring Smart card and contactless RFID reader Combo or 2nd expanded battery
  • Choice of 1D/2D imager barcode reader, Serial port, Micro SD or Ethernet
  • Up to 10 hours of battery life with one charge. LifeSupport™ battery swappable technology for uninterrupted battery life
  • Enhanced Enterprise Security with optional Windows Disk Encryption, TPM 2.0 and many more multi-factor authentication options.

Designed for today’s mobile workforce, the fully rugged tablet T800 features an 8.1 inch display, the latest wireless technology, and unique SnapBack add-ons that run Windows 8 and Intel® quad-core CPU for your smooth operation.

The 8.1”  T800 is the perfect size for reading and holding in everyday work.
T800’s display features LumiBond® technology to increase the screen durability while providing superior sunlight readability.
The T800 is compatible with a digitizer and stylus for higher precision and accuracy to get your job done.

The Getac T800’s SnapBack add-ons are unique. Created as an extension to the T800, the SnapBack add-ons make it quick and easy to add expanded battery, or 2-in-1 SmartCard and contactless RFID reader for data collection.
And they easily snap right on and off — no tools necessary.

The T800’s dedicated GPS offers search capacity, faster location positioning and improved accuracy.
For vehicle deployments, the T800 can be configured with pass-through antenna ports allowing you to simultaneously connect high-gain GPS, WWAN and WLAN roof mounted antennas.

The compact and superb T800 combines everything you need.
Certified to MIL-STD-810G, IP65 and six foot drop, T800 is every inch a rugged tablet providing you the best rugged tablet experience.

Data sheet on T800 (pdf file (opens in new tab)

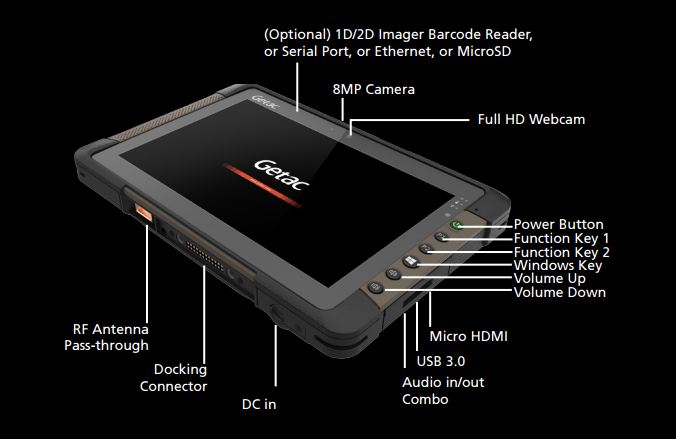

T800-Fully-Rugged-Tablet-with-pointers

Technical Specification

Operating System: Windows 10 Professional
Mobile Computing Platform Intel® Atom x7-Z8700 1.6GHz, burst up to 2.40 GHz
– 2MB Cache
VGA Controller Intel® HD Graphics
Display 8.1″ IPS TFT LCD HD (1280 x 800)
600 nits LumiBond® 2.0 display with sunlight readable technology
Memory 4GB LPDDR3 expandable to 8GB
Storage eMMC 64GB / 128GB
Keyboard 6 tablet buttons (Power, Home, Programmable, Camera Capture/ Barcode Reader Trigger, Volume Up, Volume Down)
Pointing Device Touchscreen
– Capacitive multi-touch screen
– Optional dual mode touchscreen (multi-touch and digitizer)
Expansion Slot Optional 1D/2D imager barcode reader, RS232, Micro SD or Ethernet
Optional SnapBack add-on: Smart Card and contactless RFID/NFC reader combo
Optional SnapBack add-on: 2nd expanded battery
Optional SnapBack add-on: Smart card and Magnetic Stripe reader
I/O Interfaces FHD webcam x 1
8M pixels auto focus rear camera x 1
USB 3.0 (9-pin) x 1
Headphone out/Mic-in Combo x 1
DC in Jack x 1
Micro HDMI x 1
Docking connector (24-pin) x 1
Optional RF antenna pass-through for GPS, WWAN and WLAN
Communication Interface Optional 10/100/1000 base-T Ethernet (occupies expansion slot)
Intel® Dual Band Wireless-AC 7265, 802.11ac
Bluetooth (v4.0 class 1)
Optional dedicated GPS
Optional Gobi™ mobile broadband
Software Getac Utility (including Power Manager)
Getac Geolocation
Getac Barcode Manager
Adobe® Reader®
Security Features TPM 2.0
Optional SnapBack add-on: Smart Card and contactless RFID/NFC reader combo
Power AC adapter (65W, 100-240VAC, 50 / 60Hz)
Li-Ion battery (7.4V, 4200mAh)
LifeSupport™ battery swappable technology
(only with SnapBack 2nd expanded battery)
Dimensions and Weight 227 x 151 x 24 mm
880g
Rugged Features MIL-STD-810G certified and IP65 certified
6 feet drop resistant
Optional ANSI/ISA 12.12.01
Vibration & drop resistant
e-Mark certified for vehicle usage
Environmental Specifications Temperature:
– Operating: -21°C to 50°C
– Storage: -40°C to 71°C
Humidity:
– 95% RH , non-condensing
Accessories Carry bag
Battery charger
Battery (7.4V, 4200mAh)
Multi-Bay Charger (Dual Bay)
Multi-Bay Charger (Eight Bay)
2nd Expanded Battery (14.4V, 2100mAh)
AC adapter (65W, 100-240VAC)
Vehicle adapter (90W, 11-16V DC and 22-32V DC)
Capacitive stylus (Hard tip)
Digitizer
Shoulder strap (2-point)
Hand-strap
Wrist-strap
Protection film
Vehicle dock
Office dock

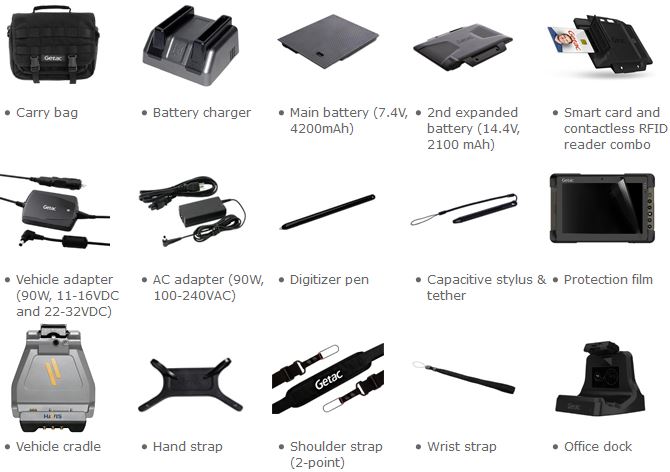

Accessories for T800

getac_t800_accessories

T800 Versions

TB48EAD_1DXX T800 Basic
52621221002L

Intel ® Pentium ® N3530 2.16GHz / 8.1″ sunlight readable display / 4GB RAM / Multi-touch TS / 64GB SSD/
Wireless LAN ac / HD Webcam /5MP AF Rear Camera / Bluetooth / – 21C Wide Range Temp /
Win 8 Professional* 64-bit / 3 year warranty

TB48ECD_1GXX T800 Premium
52621221002M

Intel® Pentium® N3530 2.16GHz / 8.1″ sunlight readable display/ 4GB RAM / Multi-touch TS / 128GB SSD/
Wireless LAN ac / HD Webcam /5MP AF Rear Camera / Bluetooth / – 21C Wide Range Temp / GPS / Gobi 5000 (3G/4G LTE) /
Win 8 Professional* 64-bit / 3 year warranty

Also available: various options, upgrades and accessories – Please enquire

Handhelds

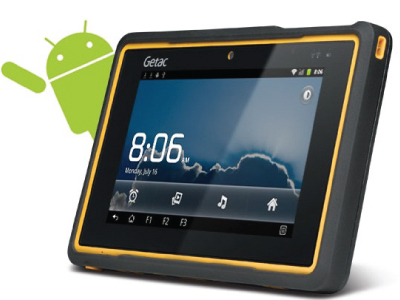

Z710 Fully Rugged Handheld Tablet

Z710 Fully Rugged Handheld Tablet


Compact and powerful, the new Android-powered Getac Z710 rugged tablet allows you the flexibility to work in nearly any environment. Perfect for data collection, data entry, PDF viewing, GPS tracking and much more, the Z710 has you covered.
Z710 Fully Rugged Handheld Tablet
Click here to show/ hide more info

Z710 Fully Rugged Handheld Tablet

  • 7” LumiBond® display with sunlight readable technology
  • Android 4.1 OS
  • MIL-STD 810G and IP65 certified
  • GPS and E-compass
  • 5MP auto-focus camera
  • HD web camera
  • Up to 10 hours of battery life**
  • Optional 1D/2D barcode reader

The new fully rugged tablet Z710 provides key advantages to operators in vertical markets including utilities, logistics and automobile manufacturing, to name just a few. For field services, this rugged tablet from Getac raises the bar for operation in all types of environmental conditions, together with significant improvements in screen durability and sensitivity, thanks to our proprietary LumiBond® technology.

LumiBond® technology integrates toughened glass, capacitive touch sensor and LED panel through OCR (Optical Clear Resin), which provide unprecedented touch sensitivity even with gloves on!

And that’s not all: Getac’s unique design allows the Z710’s screen to be controlled with a stylus, finger or gloved hand for quick data/signature input or punched-in commands. The tablet incorporates Getac’s industry-leading data-capture capabilities with barcode reader, camera, and key data connectors that you won’t find on similar devices on the market.

The new Getac tablet sets new standards for toughness, connectivity, adaptability and longer operation, all of which mean greater productivity for field operations or on factory floors.

Data sheet on Z710 (pdf file (opens in new tab)

GETAC Z710-Ex Android Rugged Tablet receives ATEX certification for use in explosive environments.

The Z710 is the world’s first rugged Android tablet to offer the optional ATEX (Explosive Atmosphere) Zone II/22 certification for use in hazardous and explosive environments.

The rugged tablet is ideal for field workers in the petrochemical, pharmaceutical and oil and gas industries, where ATEX compliance is often mandatory when carrying out inspection and maintenance work and emergency notification.

“Workers operating in environments with potentially explosive atmospheres need to be able to depend on their technology,” explains Jim Rimay, president of Getac. “The Android platform provides users a cost-effective, open source alternative, and the optional ATEX certification feature makes the Z710 the only Android-based tablet solution for field deployment in these hazardous environments.”

Recently upgraded to Android 4.1 OS, the Z710 is also one of the most secure rugged tablets on the market. Thanks to its high-security features, including random memory processing (ASLR Address space layout randomization), the operating system is all but impenetrable to memory corruption.

Built with a seven inch display, the tablet also becomes the ideal alternative to smaller handheld devices that have previously been commonplace in such hazardous environments.

In addition to its ATEX Certification, the Z710 tablet is MIL-STD 810G and IP65 accredited.

The Z710 rugged tablet with optional ATEX configuration is available for immediate ordering at ESIS.

Z710 Basic

Z710, 7.0″ WSVGA LumiBondTM sunlight readable display (1024 x 600), OMAP 4430 Dual Core 1 GHz , 1GB MDDR, 16GB iNAND, Wireless LAN 802.11b/g/n, Bluetooth V2.1+EDR, SiRF GPS, 5 MP AF Camera, E-Compass,
Non-WAN, Black, Android 4.1, Basic
(WAN: A wide area network (WAN) is a network that covers a broad area (i.e., any telecommunications network that links across metropolitan, regional, or national boundaries) using private or public network transports.)

Z710 Premium

Z710, 7.0″ WSVGA LumiBondTM sunlight readable display (1024 x 600), OMAP 4430 Dual Core 1 GHz , 1GB MDDR, 16GB iNAND, Wireless LAN 802.11b/g/n, Bluetooth V2.1+EDR, SiRF GPS, 5 MP AF Camera, E-Compass,
HSPA+, Black, Android 4.1     (HSPA+  is  Evolved High Speed Packet Access)

Z710 Premium-2D   Barcode

Z710 Premium-RF   HF RFID

Z710-Ex  EU Explosive Atmosphere ATEX Certified

ATEX Certification:  ATEX Zone 2/22,   II 3G Ex ic IIC T5 Gc,   II 3D Ex ic IIIB T100°C Dc
Data Sheet on Z710-Ex (pdf file, opens in new tab)

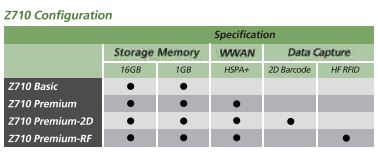

getac_z710-configuration

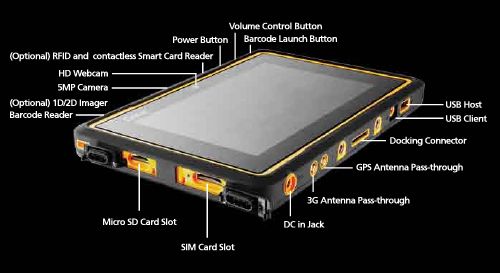

Getac_Z710_tablet-with-pointers

Technical Specification

Ruggedness MIL-STD-810G and IP65 certified
Vibration resistant
Drop resistant (26 drops from 6ft / 1.82m)
Optional ANSI/ISA 12.12.01
Optional ATEX certified
Operating System Android 4.1
Microprocessor Texas Instruments® OMAP 4430 Dual Core
1 GHz processor
Memory 1GB MDDR
Storage* 16GB NAND Flash
Display 7.0” TFT LCD WSVGA (1024 x 600)
LumiBond® display with
sunlight readable technology
Glove-friendly capacitive touchscreen
Expansion Slot Micro SDHC (Up to 32GB)
GPS Sensor Chipset: SiRFstarIVTM
Receiver Type: L1 (C/A)
Channels: 48 channels all-in-view tracking
Update Rate: 1 Hz
Horizontal Accuracy:
i) Autonomous: 8.2 ft / 2.5 m
ii) DGPS: 6.56 ft / 2.0 m
Cold Start Time: 35 sec average
Warm Start Time: 35 sec average
Hot Start Time: 1 sec average
Reacquisition: 0.1 sec average
Included Accessories Stylus with tether
Hand strap
Wrist strap
AC charger
Communications 802.11 b/g/n
Bluetooth (v2.1+EDR class 2)
SiRFstarIVTM GPS (with internal antenna)
Optional 3.5G WWAN (voice and data)
(HSPA+/UMTS/EDGE/GPRS/GSM)
Cameras HD Web Camera
5M pixels auto focus camera
Special Features E-Compass
Optional 1D/2D Imager barcode reader
Optional 13.56MHz RFID and contactless smart card reader
Power AC adapter (24W; 12V/2A, 100-240VAC; 50/60 Hz)
Lithium-Polymer smart battery (7600mAh)
(up to 10 hours of battery life)**
Dimensions & Weight 8.58” x 5.6” x 1.06” (21.8 x 14.2 x 2.7 cm)
1.77 lbs (800 g)
Temperature Operating: -4°F to 122°F /-20°C to 50°C
Storage: -40°F to 158°F / -40°C to 70°C
Humidity: 95% RH , non-condensing
I/O Interfaces USB (client 2.0) x 1
USB (host 2.0) x 1
DC in Jack x 1
Docking connector (30-pin) x 1
Speaker x 1
Microphone x 1
Optional RF antenna pass-through for GPS and WWAN
Warranty 3 Year bumper-to-bumper warranty standard

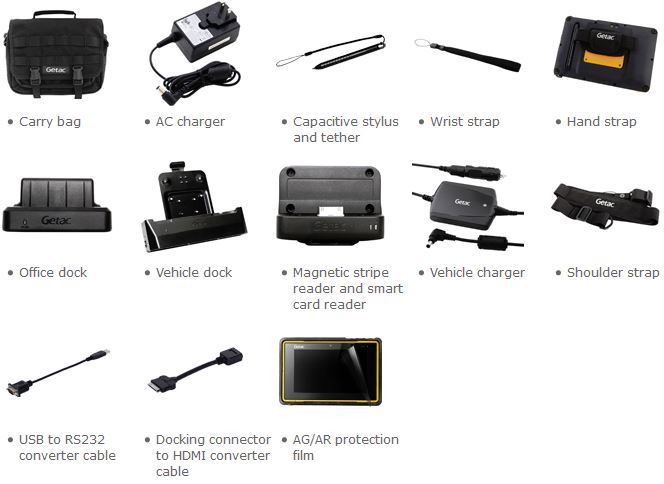

Accessories for Z710

getac_z710-accessories

Z710 Fully Rugged Handheld Tablet Versions

526284762024
Z710, 7.0″ WSVGA LumiBond sunlight readable display (1024 x 600),
OMAP 4430 Dual Core 1 GHz , 1GB MDDR, 16GB iNAND,
Wireless LAN 802.11b/g/n, Bluetooth V2.1+EDR,   SiRF GPS, 5 MP AF Camera, E-Compass,
Non-WAN,   Black,
Android 4.1 + GPS+ Pass through

526284762006
Z710, 7.0″ WSVGA LumiBond sunlight readable display (1024 x 600),
OMAP 4430Dual Core 1 GHz , 1GB MDDR, 16GB iNAND,
Wireless LAN 802.11b/g/n, BluetoothV2.1+EDR,   SiRF GPS, 5 MP AF Camera, E-Compass,
HSPA+,   Black,
Android 4.1, 13.56MHz HF RFID

526284762007
Z710, 7.0″ WSVGA LumiBondTM sunlight readable display (1024 x 600),
OMAP 4430Dual Core 1 GHz , 1GB MDDR, 16GB iNAND,
Wireless LAN 802.11b/g/n, BluetoothV2.1+EDR,   SiRF GPS, 5 MP AF Camera, E-Compass,
HSPA+, Black, ,
Android 4.1,1  3.56MHz HF RFID + 2D BCR

Optional Accessories

541384760103 Z710 AC Adapter Set with US/EU/UK/CHN/ANZ Plug (MOQ:5)
541384760108 Z710 Carry Bag
541384760106 Z710 AG/AR Protection Film (MOQ:10)
541384760113 Z710 Hand Strap
541384760114 Z710 Sholder Strap
541384760014 Z710 Office Dock with AC adapter (ANZ power cord)
541384760111 Z710 Vehicle Dock with DC adapter
541384760112 Z710 Magnetic Stripe Reader/Smart Card Reader
541384760102 Z710 Docking Connector to HDMI Converter Cable (MOQ:10)
541384760101 Z710 USB to RS232 Converter Cable (MOQ:10)
541384760105 Z710 Wrist Strap (MOQ:10)
541384760107 Z710 Vehicle Charger (MOQ:5)
541384760104 Z710 Capacity Stylus & Tether (MOQ:5)

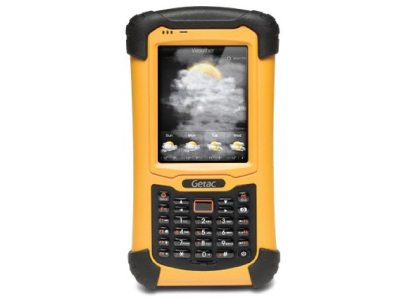

PS336 – A fully-rugged handheld offering RFID

PS336 – A fully-rugged handheld offering RFID


This field-ready workhorse was built for power, functionality and ruggedness. Featuring a large 3.5 inch display with a pressure sensitive touchscreen, advanced GPS, an alpha-numeric keyboard, plenty of power to run your apps and the highest rugged standards available in the industry, the PS336 rugged handheld is compact enough to operate in one hand.
PS336 – a fully-rugged handheld offering RFID
Click here to show/ hide more info

PS336 – a fully-rugged handheld offering RFID

  • 600 Nits QuadraClear® Sunlight Readable Display
  • Optional 3.5G WWAN (HSPA+/UMTS/EDGE/GPRS/GSM )
  • SiRFstarIV™ High Sensitivity GPS
  • Optional FlexiConn™ 1D Barcode Reader/ Long Range Bluetooth/ 13.56MHz RFID Reader

PS336 – a fully-rugged handheld that offers RFID (Radio Frequency Identification), long range Bluetooth, 1D laser barcode reader, and 3-in-1 card reader, expansion functionality (HF RFID reader, smart card reader, SAM card slots).

“We have designed and built the PS336 to be the most convenient and multi-functional handheld users can buy,”

getac_ps336-flexicon-pics

“Having multiple functions just a cap-click away makes the new handheld ideal for data capture in any environment. And in addition to Flexiconn, the device offers programmable keys so users can personalise and prioritise the functions most important to them.”

“The device has a 1GHz processor (the fastest such CPU on any handheld), providing superior graphics performance while operating on low power consumption; the battery can last up to 12 hours with LifeSupport™ Battery Swappable Technology, meaning users can change the battery without shutting down the system.”

The PS336 is also built to a rugged Certification of MIL-STD 810G, and with an Ingress Protection (IP) rating of IP68, the device can be submerged in water for at least 30 minutes and will remain fully functional. It also offers Drop Protection to 6 feet.

Key features include BlanView high resolution (VGA) display offering improved Sunlight Readability of 600 nits,
SiRFIV GPS, GPS, e-compass, altimeter and 3-Axis Accelerometer, and 5 megapixel camera.

Data sheet on PS336 (pdf file (opens in new tab)

Getac PS336 Premium
Windows® Embedded Handheld 6.5 Professional,  Yellow, Phone numeric keypad

Getac PS336 Basic
Windows® Embedded Handheld 6.5 Classic,     Yellow, Phone numeric keypad

Technical Specification

Operating System Windows Embedded Handheld 6.5 Professional
Windows Embedded Handheld 6.5 Classic
Mobile Computing Platform TI AM3715 1GHz
Display 3.5″ TFT LCD VGA (480 x 640)
600 nits QuadraClear® sunlight readable display
Pressure sensitive touchscreen
Storage & Memory 512MB MDDR
256MB and 8GB NAND flash
Keypad Phone numeric keypad
Expansion Slots FlexiConn™
Micro SDHC (up to 32GB)
IO Interface Serial port (9-pin; D-sub) x 1
USB OTG (client 2.0 and host 2.0; 5-pin; type Mini AB) x 1
Microphone x 1
Speaker x 1
DC in Jack x 1
Docking connector (4-pin) x 1
Communication Interface Optional 3.5G WWAN (HSPA+/UMTS/EDGE/GPRS/GSM) for data and voice communication
802.11 b/g/n
Bluetooth (v2.1+EDR class 2)
GPS (with internal antenna)
GPS Sensor Specifications Chipset: SiRFstarIV™
Receiver Type: L1 (C / A)
Channels: 48 channels all-in-view tracking
Update Rate: 1 Hz
Horizontal Accuracy:
i) Autonomous: 8.2 ft
ii) DGPS: 6.56 ft
Cold Start Time: 35 sec average
Hot Start Time: 1 sec average
Reacquisition: 0.1 sec average
Software Microsoft Internet Explorer Mobile®
Windows Office Mobile 2010
Windows Office Outlook Mobile
Windows Media Player Mobile
Microsoft ActiveSync 4.5 for data sync
Field Service Features GPS: SiRFstarIV™
5M pixels auto focus camera with LED light
E-compass
Altimeter
Optional 13.56MHz RFID and contactless smart card reader (ISO 15693 and 14443 A/B compliant)
Alphanumeric Data Entry Soft input panel (SIP) on screen keyboard
Transcriber handwriting recognition
Phone numeric keypad
Nuance XT9® Soft input panel (SIP)
Security Features WiFi for WPA / WPA2 operation
Authentication: OPEN, SHARED-KEY, PEAP
Encryption: WEP, AES, TKIP
Power AC charger (24W; 12V/2A, 100-240VAC; 50 / 60 Hz)
Li-lon smart battery (3.7V, 5600mAh) (up to 12 hours of battery life)
Charging time: Sleep mode, approx. 3.5 Hrs.
LifeSupport™ battery swappable technology
Dimensions & Weight 89 x 30 x 178 mm,
530 g without 3G module
Inbox Accessories AC charger
USB cable
Hand strap
Quick start guide
Battery
Stylus
Stylus tether
Rugged Features MIL-STD-810G and IP68 certified
Vibration resistant
Drop resistant (26 drops from 6ft)
Tumbling resistant (1,000 cycles; 1.6 ft)
Optional EU explosive atmosphere ATEX certified
Environmental Specifications Temperature:
– Operating: -30°C to 60°C
– Storage: -40°C to 70°C
Humidity:
– 95% RH , non-condensing

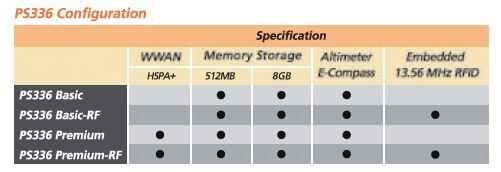

P336 Versions

52628498000A  PS336 Basic-RF
PS336, 3.5″ VGA Sunlight Readable Display (Blanviewtransmissive),
TI AM3715 1GHz, 512 MB MDDR, 8GB iNAND, Wireless LAN 802.11b/g/n,
Bluetooth V2.1+EDR, SiRF GPS, 5 MP AF Camera, E Compass, Altimeter,
Non-WAN, Yellow, Phone Numeric Keypad,
Windows Embedded Handheld 6.5 Classic, 13.56MHz HF RFID, 3 year Warranty

52628498000B  PS336 Premium-RF
PS336, 3.5″ VGA Sunlight Readable Display (Blanviewtransmissive),
TI AM3715 1GHz, 512 MB MDDR, 8GB iNAND, Wireless LAN 802.11b/g/n,
Bluetooth V2.1+EDR, SiRF GPS, 5 MP AF Camera, E Compass, Altimeter,
WWAN HSPA+, Yellow, Phone Numeric Keypad, Windows
Embedded Handheld 6.5 Professional, 13.56MHz HF RFID, 3 year Warranty

52628498000T  PS336 Basic
PS336, 3.5″ VGA Sunlight Readable Display (Blanviewtransmissive),
TI AM3715 1GHz, 512 MB MDDR, 8GB iNAND, Wireless LAN 802.11b/g/n,
Bluetooth V2.1+EDR, SiRF GPS, 5 MP AF Camera, E Compass, Altimeter,
Non-WAN, Yellow, Phone Numeric Keypad,
Windows Embedded Handheld 6.5 Classic,  ATEX SKU (ATEX Zone 2 and 22 Certification), 3 year Warranty

541384980008 PS336 Office Dock with AC adapter (ANZ power cord)

541384980004 PS336 Vehicle Charger (MOQ:5)

541383870001 PS236/PS336 FlexiConn 3-in-1 Card Reader(RFID,Smartcard,MicroSIM/SAM)
541383870010 PS236/PS336 FlexiConn Long Range BT
541383870008 PS236/PS336 FlexiConn HF RFID Reader (13.56MHz)

Obsolete Products

E110 Fully Rugged Tablet, 10.1″ – discontinued

V200, E100, PS535F, PS236, MH132, E110, S400, A790, M230, V100, V110, are discontinued

PS535F Full GPS Function + Real-time Data Transmission – All in ONE – discontinued
PS236 Fully Rugged Handheld – discontinued
PS236-Android – discontinued

Call Now Button
