Cryopak (Escort) iLog

Small Data Loggers for Temperature & Humidity

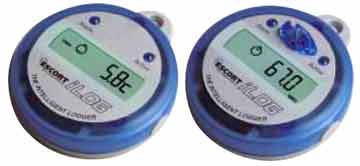

Escort iLog Intelligent Logger

The Intelligent Logger with LCD Display – Multi-use, Multi-sensor, VariouCryopak iLog temp and humidity loggerss Temperature Ranges, Customizable Length External sensor.

iLog intelligent loggers help you set up total quality control for temperature and humidity sensitive products and services, while supporting your compliance with the stringent monitoring requirements of today’s markets.

With the extended functionality of its display the iLog supplies you instantly with all the information required. The scrolling feature, programmable through Console software, shows the current reading for each sensor, and highest, lowest, average, time out of specification, and battery status.          fbb

Special Features

Bookmark via Magnet Swipe: Mark readings you wish to identify by swiping a magnet over the iLog label.
As this action can be performed only using a start magnet JA-KEY,
this convenient feature may be used to register when the iLog has been inspected by an authorised party.

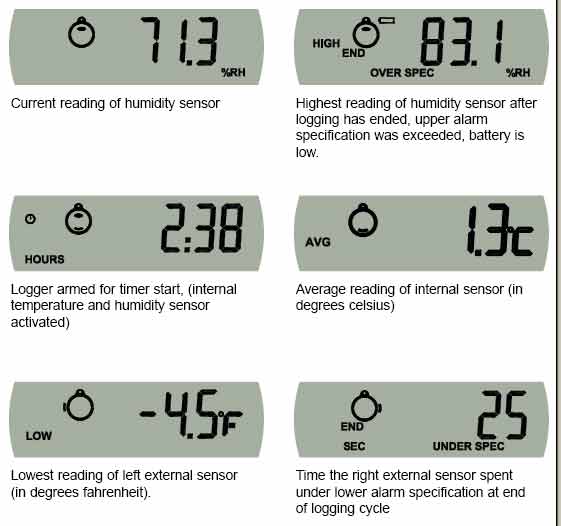

LCD Functionality: You can see comprehensive information on status of logging cycles, statistics, and
alarm conditions on iLog’s multifunctional display.

Console Software allows you to define how long the display pauses before scrolling to the next reading.

Decision making at a glance
iLog analyses the data for you and displays all relevant information on the spot without PC download.
Your decision to accept or reject goods can be made right away, saving you time and effort.

Available Sensor Combinations:
  • Internal Sensor
  • Internal and External Sensor
  • Two External Sensors
  • Internal Temperature and Humidity Sensor

High Temperature Option for External Sensor
-20 to +100C (-4 to 212°F)

IP67 Waterproof Rating (internal Temp model only)

User replaceable battery

Convenient Quick Download
With its new electronic technology iLog communicates quickly, providing you with the convenience of high download and programming speeds.
So when it comes to documention and traceability obligations iLog helps you to get more done.

0.1°C Resolution Providing an Information Advantage
Due to its combination of great resolution and high accuracy, the iLog can detect and record
the smallest fluctuations in temperature for the tight monitoring of critical conditions.

Intuitive Software for Ease of Use
The simple step by step Console software for Windows leads you intuitively through logger configuration and information retrieval.
Please see below for more details.

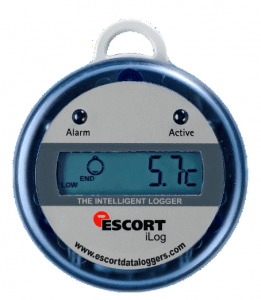

EI-IN-D-32-L Cryopak Escort iLog Internal Temperature Logger


IP67 rated Temperature Data Logger with Internal Sensor
iLog-temp
Click here to show/ hide more info

iLog-temp

  • Internal “D” Range Sensor(-40°C to +70°C)
  • 32K Memory (approx. 32000 readings)
  • Accuracy: -/+ 0.3°C
  • Resolution: 0.1°C
  • Audible alarm and LED that flashes red
  • Battery life up to 2 years
  • Fast download (ca. 35 seconds to download 16,000 readings )
  • Console Software is required

iLog Brochure (PDF, opens in new tab)
iLog User Manual (PDF, opens in new tab)

EI-IN-D-32-L iLog Temperature Logger, 1 internal sensor, -40 to +70ºC
Also requires Interface EA-INT-USB and free Console software

Also available in “N” temperature range (-100 to +40ºC):
EI-IN-N-32-L iLog Temperateure Logger, 1 internal sensor, -100 to +40ºC
Also requires Interface EA-INT-USB and free Console software

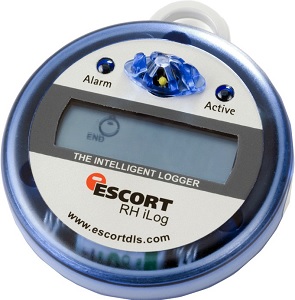

EI-HS-D-32-L Cryopak Escort iLog Temp + Humidity Logger


iLog data logger with built-in temperature and humidity sensors
iLog-Humidity
Click here to show/ hide more info

iLog-Humidity

  • Internal “D” Range Temp Sensor (-40°C to +70°C)
  • Humidity: 0% to 100%
  • Accuracy : ± 0.35º C ( from-40 ºC to 0 ºC)
  • Resolution ± 0.1°C
  • 32K memory (Approx 32000 readings)
  • Audible alarm and LED that flashes red
  • Fast download (ca. 35 seconds to download 16,000 readings)
  • Console Software is required

iLog Brochure (PDF, opens in new tab)
iLog User Manual (PDF, opens in new tab)

EI-HS-D-32-L iLog Temperature + Humidity Logger
Also requires Interface EA-INT-USB and free Console software

EI-1E-D-32-L Cryopak Escort iLog Internal+External Temp Logger


iLog temperature data logger with 1 internal and 1 external temperature sensor
iLog with 1 External Probe
Click here to show/ hide more info

iLog with 1 External Probe

  • Internal “D” Range Sensor(-40°C to +70°C)
  • External “D” Range Sensor (-40°C to +70°C)
  • Large 32K Memory (Approx. 32000 readings)
  • Accuracy: -/+ 0.3°C
  • Resolution: 0.1°C
  • Audible alarm and LED that flashes red
  • Battery life up to 2 years
  • Fast download (ca. 35 seconds to download 16,000 readings )
  • Console Software is required

iLog Brochure (PDF, opens in new tab)
iLog User Manual (PDF, opens in new tab)

Also requires Interface EA-INT-USB and free Console software.

Available in various temperature ranges:

Model Description Temp Range
EI-1E-D-32-L iLog temp logger, (1) internal & (1) external sensor probe D
EI-1E-DC-32-L iLog temp logger, (1) internal & (1) external sensor probe D & C
EI-1E-DN-32-L iLog temp logger, (1) internal & (1) external sensor probe D & N
EI-1E-DZ-32-L iLog temp logger, (1) internal & (1) external sensor probe D & Z



Code Temp Range (Deg C)
C -20 to +100
D -40 to +70
N -100 to +40
Z 0 to +150

EI-2E-D-32-L Cryopak Escort iLog Temp Logger with 2 External Probes


iLog data logger with 2 external temperature sensors (no internal sensor)
iLog with 2 External temp sensors
Click here to show/ hide more info

iLog with 2 External temp sensors

  • External “D” Range Sensor (-40°C to +70°C)
  • Large 32K Memory (Approx. 32000 readings)
  • Accuracy: -/+ 0.3°C
  • Resolution: 0.1°C
  • Large 32K memory (Approx 32000 readings)
  • Audible alarm and LED that flashes red
  • Option to order 2 or 3 metre cables for sensor
  • Battery life up to 2 years
  • Fast download (ca. 35 seconds to download 16,000 readings)
  • Console Software is required

iLog Brochure (PDF, opens in new tab)
iLog User Manual (PDF, opens in new tab)

Also requires Interface EA-INT-USB and free Console software

Available in various temperature ranges:

Model Description Temp Range
EI-2E-C-32-L iLog temp logger, (2) external sensor probes C
EI-2E-D-32-L iLog temp logger, (2) external sensor probes D
EI-2E-N-32-L iLog temp logger, (2) external sensor probes N
EI-2E-Z-32-L iLog temp logger, (2) external sensor probes Z
EI-2E-DC-32-L iLog temp logger, (2) external sensor probes D & C
EI-2E-DN-32-L iLog temp logger, (2) external sensor probes D & N
EI-2E-DZ-32-L iLog temp logger, (2) external sensor probes D & Z
EI-2E-CN-32-L iLog temp logger, (2) external sensor probes C & N
EI-2E-CZ-32-L iLog temp logger, (2) external sensor probes C & Z
EI-2E-ZN-32-L iLog temp logger, (2) external sensor probes Z & N



Code Temp Range (Deg C)
C -20 to +100
D -40 to +70
N -100 to +40
Z 0 to +150

Accessories and Software

EA-INT-USB iLog PC Interface


A cradle for connecting the iLog to a PC via USB. Required for setup and download.
EA-INT-USB iLog PC Interface
Click here to show/ hide more info

EA-INT-USB iLog PC Interface

The EA-INT-USB iLog PC Interface is a cradle into which you must place the iLog data logger, in order to connect it to your PC. You will need to do this initially to set up the logger, and for downloading logged data afterwards.

Connection to PC: USB

Also available with Serial DB9 connector: Part no. EA-INT-U

EA-KEY Magnet Key for Starting Logger


A magnet on a keyring, for signalling the iLog data loggers to start.
EA-KEY Magnet Keyring for iLog
Click here to show/ hide more info

EA-KEY Magnet Keyring for iLog

The EA-KEY is a magnet on a keyring. This is used for starting the iLog data logger by swiping it across the front of the logger.

It is not necessary to use the magnet but it is handy in many circumstances such as cold chain monitoring.

The iLog can be configured in software, to start a logging session in one of the following ways:

  • Wait a predefined time after the magnet key is swiped;
  • After a predefined delay from when the logger is configured;
  • At an absolute date and time.



Escort Console Pro Software


The free Console Software is required for configuring iLog data loggers and downloading data.
Graphing on Console Pro software
Click here to show/ hide more info



Features:

  • Program and configure logger
  • Download & view data analysis
  • View current readings
  • Export data in CSV & TXT format
  • Re-arm function
  • Graphing
  • Tabular Readings Summary
  • Statistics & Analysis including Mean Average, Max/Min, Dewpoint, PHI (Process Hygiene Index), MKT (Mean Kinetic Temperature)

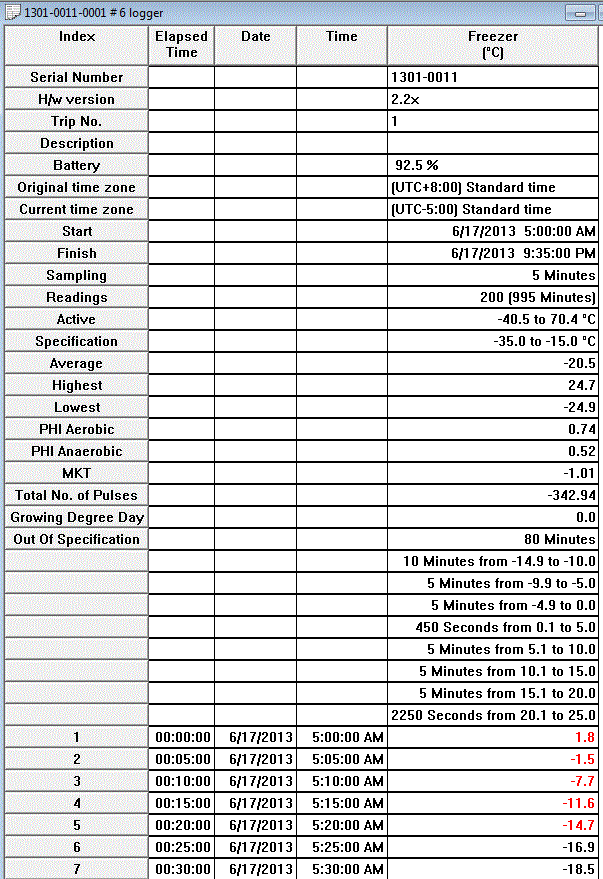

Download Software from Cryopak websiteReadings as shown on Console software
