Cryopak iMini Temperature Loggers - Single & Multi Trip

Small, low cost temperature and humidity data loggers (formerly Escort iMini)

Cryopak iMini Data Logger

mx-st-s-8-l-s-imini-8k-data-logger-range-with-memory-for-8000-samples

The Cryopak (Escort) iMini data loggers were developed for cold chain monitoring in transport and storage, and offer a low cost alternative for solving your temperature monitoring problems. Choose from the economical single use loggers, or the high quality multi-use and specialty models. The multi use loggers have internal or external sensor options, a large LCD display, and 8 Kilobytes memory (or more for some models) which is capable of storing at least 8000 samples.

iMini loggers record in real time and can be programmed to start on demand by a simple button press or with a start delay of 0 to 255 minutes. The iMini’s electronics are housed within a robust ABS plastic case which fits discreetly into any package or consignment.



Common applications

The Cryopak iMini provides key data logging solutions for a variety of industries including:

  • Transport of sensitive cargo
  • Monitoring of chilled food
  • Blood storage and transport
  • Pharmaceuticals storage and transport

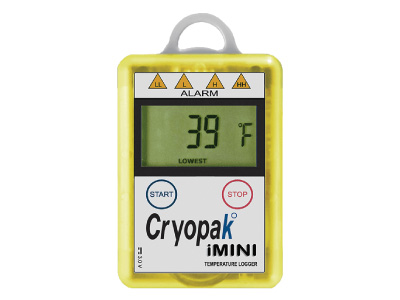

iMini “MX” 8K Data Logger Range with memory for 8000 samples


The iMINI temperature series is available as a single-trip or multi-use data logger.
MX-ST-S-8-L S
Click here to show/ hide more info

MX-ST-S-8-L S - iMini 8K Data Logger Range with memory for 8000 samples
The iMINI temperature series is available as a single-trip or multi-use data logger. Standard features include: 4 alarm threshold with LED indicators, large LCD visibility and start/stop buttons. Enhanced options include NIST traceable calibration and bookmarking capability. This series offers full versatility of memory capacity and sensor array. With 5 memory options from 8,000 to 128,000 readings and four sensor configurations, these temperature recorders adapt to a multitude of industry specific applications.

Model Description
MX-ST-S-8-L iMINI Plus 8k Lcd, Internal sensor, single trip
MX-IN-S-8-L iMINI, internal sensor 8K Memory
MX-OE-S-8-L iMINI, (1) external sensor probe 8K Memory
MX-1E-S-8-L iMINI, (1) internal and (1) external sensor probe 8K Memory
MX-2E-S-8-L iMINI, (2) external sensor probes 8K Memory
MX-HS-S-16-L iMINI, humidity and temp. internal sensors 16K Memory, -40c to + 80c, 0 – 100% Humidity, 4 alarm threshold, Bookmarking, continuous logging, IP65, user replaceable battery, Statement of Accuracy
MX-HE-S-16-L iMINI, humidity and temperature internal sensors, one (1) external
CB-USB2-MINI5P USB Cable for iMINI and iMiniPlus pdf (USB cable is not included with MX loggers)

* Requires USB2-AMB-01 Type A mini – type B USB cable & free Console Plus software, warranty 2 Years

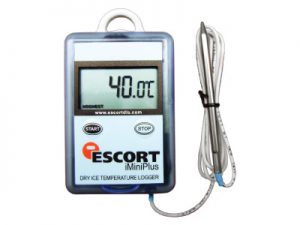

iMiniPlus “MP” Dry Ice Temperature Logger


The iMini Plus Dry Ice Logger is capable of measuring and recording extreme temperatures from -100°C to 40°C. It is the ideal solution for ensuring safe transport and storage of perishables held in dry ice.
MP-OE-N-8-L iMiniPlus Dry Ice Temperature Logger
Click here to show/ hide more info

mp-st-n-8-l-n-iminiplus-with-lcd-single-trip-1-external-sensor-probe

  • External Probe “N” Range sensor (-100°C to +20°C)
  • Memory: 8K (approx 8000 readings)
  • Accuracy: -/+ 0.5°C
  • Probe Resolution: 0.1°C
  • Battery life up to 2 years

Code: -100° to 40°  N  (Dry Ice)

Model Description
MP-ST-N-8-L iMiniPlus with LCD, single trip, (1) external sensor probe
* Requires USB-Serial cable, see below (not included)
MP-OE-N-8-L iMiniPlus with LCD, (1) external sensor (-100 /+40 C)
* Requires USB-Serial cable, see below (not included)

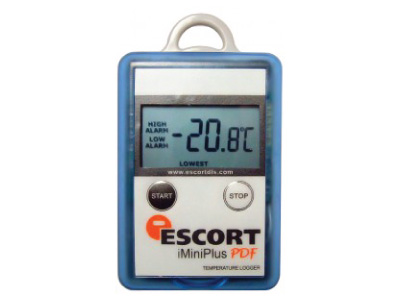

iMiniPlus “MU” PDF Logger (Internal or External sensor)


The iMiniPlus PDF data logger is the ideal instrument for monitoring shipments to destinations where proprietary software is unavailable. Generates PDF reports automatically when connected to a PC.
iMiniPlus PDF data logger
Click here to show/ hide more info

iMiniPlus PDF data logger

  • Memory Options: Multi use – 16K; 16240 readings
  • Single trip: – 8K; 8048 readings
  • Time Accuracy: ±1 minute per month
  • Sensors: Multi use – Internal and / or External
  • Temperature Range: -40 °C to +70 °C (-40 °F to +158 °F)
  • Sensor Response Time: Internal Sensor – T90 of 20 minutes in moving air
  • External Sensor: T90 of 5 minutes in moving air
  • LCD Operating Range: -20 °C to +70 °C (-4 °F to +158 °F)
  • Alarm Thresholds: Two
  • Alarm Configuration: High & low
  • Battery: 3.0V, user replaceable
Model Description
MU-ST-D-8-L  iMiniPlus PDF logger (single trip), USB socket, internal temp sensor
MU-IN-D-16-L iMiniPlus PDF logger, USB socket, internal temp sensor
MU-OE-D-16-L iMiniPlus PDF logger, USB socket, 1 meter external probe
CB-USB2-MINI5P Spare USB Cable for iMINI and iMiniPlus pdf (Cable included in units above)

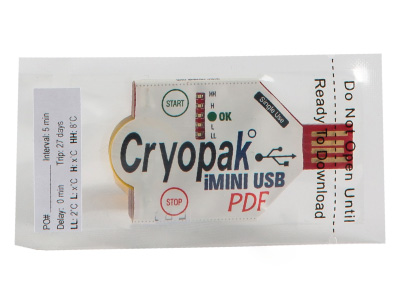

iMINI “MS” USB PDF Single Trip Logger


The iMINI USB PDF single-trip data logger with plug & play technology generates a comprehensive PDF report (also available as an Excel CSV file) without the need for proprietary software or interface. Can be programmed by end user for specific time zone, temp thresholds etc.
iMini USB PDF
Click here to show/ hide more info

iMini USB PDF

The iMINI USB PDF single-trip data logger with plug & play technology generates a comprehensive PDF report (also available as an Excel CSV file) without the need for proprietary software or interface. This user friendly temperature recorder comes preprogrammed as a 4 day, 7 day or 10 day, or any custom configuration including temperature, interval, time zone, and start delay. The configuration can also be changed by the end user before the logging session, via the Console Plus software.

With its newly expanded 4 alarm threshold capability, the iMINI USB PDF is the ideal solution for the food, pharmaceutical and life science industries. It is available with either a factory issued statement of accuracy or NIST traceable certificate of calibration. The compact profile and lightweight design, along with the waterproof pouch, allows this data logger to go virtually anywhere.

Specifications:

  • Plug & Play single trip data logger
  • No special software; data automatically opens as a PDF
  • Preprogrammed to customer specifications; end user can change settings before deploying
  • Compact profile; weighs less than 14g
  • Contained in waterproof pouch
  • Large memory capacity; 7928 readings
  • Five LEDs provide instant status
  • 21 CFR Part 11 compliant

MS-ST-S-8    iMini USB PDF Single Use Temperature Logger,
includes manufacturer’s Statement of Accuracy for all serial nos (by request),
free software download Console Plus, 21CFR part 11 compliant   (25 per box)

Model Description
MS-ST-S-8 Internal sensor, 8K Memory

*Note: These are sold in boxes of 25

iMINI “ML” LCD Single Trip Logger


The iMINI LCD is a single-trip temperature logger with a large LCD screen for easy-viewing of temperature data. The advanced monitoring technology in this product provides higher accuracy when detecting changes in shipment temperature.
iMini LCD
Click here to show/ hide more info

iMini LCD

The iMINI LCD is a single-trip temperature logger with a large LCD screen for easy-viewing of temperature data. The advanced monitoring technology in this product provides higher accuracy when detecting changes in shipment temperature. Its advanced capabilities make it ideal to use within the food and pharmaceutical industries.

Specifications:

  • Single use logger with large LCD screen
  • Pre-programmed to customer specifications by factory (not user changeable)
  • High accuracy
  • Large memory capacity
  • 21 CFR compliance
  • Compact profile
  • Waterproof pouch
  • 4 alarm thresholds
Model Description
ML-ST-S-8-L internal sensor 8K Memory

*Note: These are sold in boxes of 25

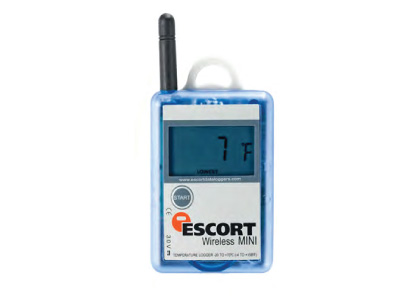

Wireless Mini Loggers

Wireless Mini Temperature Logger


Remotely Configurable and Downloadable – Wireless Temperature Loggers, with internal or external sensor
MI-IN-D-2-LR9-B Wireless Mini
Click here to show/ hide more info

MI-IN-D-2-LR9-B Wireless Mini

  • Remotely Configurable and Downloadable
  • Records stored data as well as displaying data in real time
  • Unload data wirelessly using the REDi handheld reader
  • Transfer data to PC via serial or USB port connector
  • Can be programmed in either Celsius or Fahrenheit
Model Description
MI-IN-D-2-LR9-B Wireless Mini, RF (916.50 MHz) with beeper
MI-OE-D-2-LR9-B Wireless Mini, RF (916.50 MHz) 1m external sensor (with beeper)

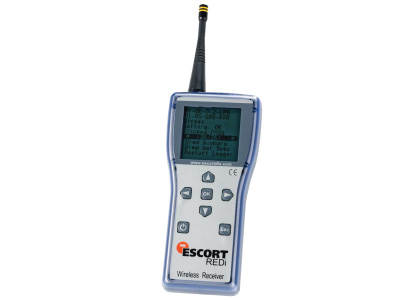

ESCORT REDi Wireless Receiver


The REDi is a portable, handheld device that facilitates radio communication with Wireless Mini loggers.
ESCORT REDi Wireless Receiver
Click here to show/ hide more info

ESCORT REDi Wireless Receiver
The REDi is a portable, handheld device that facilitates radio communication with Wireless Mini loggers. The REDi enables a user to gather recorded data from selected loggers and to collect the log data from many remote sites before transferring this data to a PC. In addition, the REDi has the ability to display statistics about the data (including readings out of specification) and to restart loggers.

The unit is physically arranged in an easy to hold handheld plastic case which is battery powered and contains a large liquid crystal display (160 x 160 bitmap) and 7 key keyboards. A communications connector, which allows the REDi to be connected to a PC, is supplied with the unit and can be mounted at the top of the unit.

The REDi is menu based. To trigger actions and display data the user must select a menu item by using the up / down arrow keys to move a highlight bar over that option then select it using the Select key (OK button). The Select key is also used to toggle between states and to return to a higher level menu.

The REDi has a power down key (bottom left hand button) which will immediately put the unit into sleep mode, as well as an escape key which will return the screen to an earlier menu (generally Menu 1).



Model Description
EA-RI-9 916.50 MHz with power supply and interface, Up to 1MB of logged data,Up to 16 meters indoors; up to 70 meters outdoors note- actual distance can vary based on environment conditions
EA-RI-INT Spare Redi/ThermoCheck Interface
RT-BOOT Redi/ThermoCheck Rubber Boot w/Belt Clip

Accessories and Software

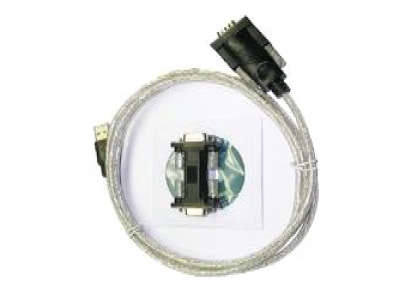

EA-USB-SER  PC Interface


This heavy duty interface will adapt standard serial port interface to a USB type interface.
Click here to show/ hide more info

ea-usb-ser-pc-interface

  • For use with iMini Plus Dry Ice Loggers and Wireless Mini Loggers with drive disc
  • Interface Device – USB to Serial Adaptor cable
  • Use with any serial cable accessories to convert to USB connection
  • Supports RS232 interface or connection of Mini loggers

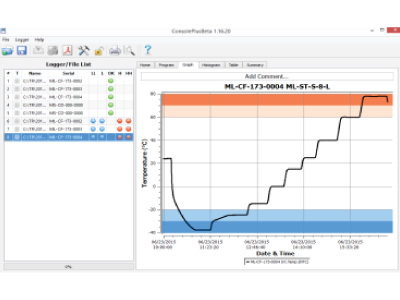

EA-SWP-PLUS Escort Console Plus Software


The free Console Software is required for configuring Mini data loggers and downloading data.
EA-SWP PLUS Console Plus software
Click here to show/ hide more info

EA-SWP PLUS Console Plus software
Features:

  • Only for the MX series loggers
  • Program and configure logger
  • Download & view data analysis
  • View current readings
  • Export data in CSV & TXT format
  • Re-arm function
  • Graphing
  • Tabular Readings Summary
  • Statistics & Analysis including Mean Average, Max/Min, Dewpoint, PHI (Process Hygiene Index), MKT (Mean Kinetic Temperature)

Download Software from Cryopak website

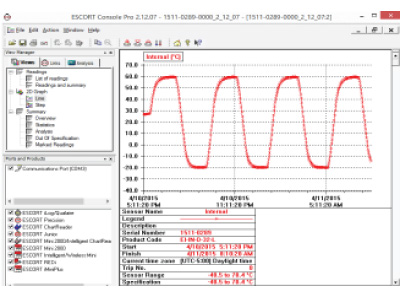

EA-SWP-CON Escort Console Pro Software


The free Console Software is required for configuring Mini data loggers and downloading data.
MINI 2000 Software
Click here to show/ hide more info

EA-SWP-CON Escort Console Pro Software
Features:

  • For all loggers except MX series
  • Program and configure logger
  • Download & view data analysis
  • View current readings
  • Export data in CSV & TXT format
  • Re-arm function
  • Graphing
  • Tabular Readings Summary
  • Statistics & Analysis including Mean Average, Max/Min, Dewpoint, PHI (Process Hygiene Index), MKT (Mean Kinetic Temperature)

Download Software from Cryopak website

EA-SWP-UAP Console Pro User Admin Package & EA-SWP-UAP-PLUS Console Plus User Admin Package


ESCORT Console Professional in conjunction with the User Admin Package has been developed to enable organisations to comply with the US FDA Title 21 CFR Part 11.
 Console-software
Click here to show/ hide more info

Escort Console and Escort User Admin Software for compliance with the US Food and Drug Admin., Title 21 Code of Federal Regulations Part 11

The User Admin Package (available as JA-SWP-UAP) was built to set up a database of Console Professional users on a network or single PC.

The User Admin Package will allow the access to the User Login and Digital Signature features in the ESCORT Console Professional software to be enabled. When the User Admin Package is not available these commands will be greyed out.

As the User Admin Package is a separate piece of software, it can be installed on a server, thus restricting access to user data to the server administrator.

The user database contains all the options necessary to establish unique electronic signatures and file tracking as required by FDA Title 21 CFR Part 11.

Due the high security levels required for FDA Title 21 CFR Part 11 compliance the ideal setup for the User Admin Package is in a network environment with general user administration in place.



Model Description
EA-SWP-UAP Console Pro User Admin Package (UAP)
EA-RI-8 Console Plus User Admin Package (UAP)

Obsolete Products


Escort MINI 2000 One channel temperature loggers
MS-ST-S-8-P – iMini USB PDF Single Use Temperature Logger Pharmacy Grade
