Fourtec DataNet wireless data logger system

Multi-point, online, wireless data monitoring system

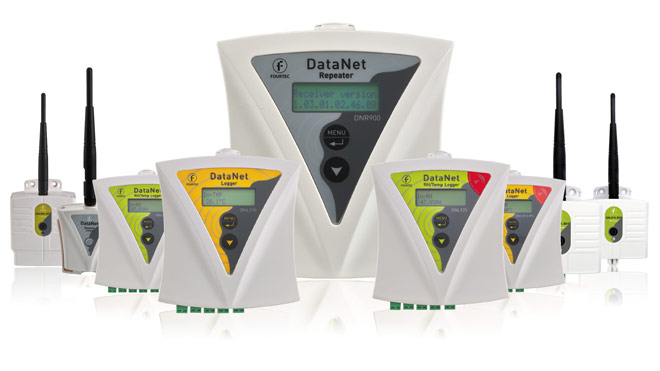

DataNet Loggers Overview

FDA 21 CFR PART 11 Compliant

  • Real-time monitoring system, with ZigBee wireless technology
  • Operates on license-free 2.4 GHz RF frequency
  • No ongoing costs – data is stored on your own PC with backups
  • WiFi not required – no need to involve your IT department
  • Wireless infrastructure suitable for multiple industrial applications
  • Robust meshed network with auto-rerouting, data recovery and long-range transmission
  • RF loggers measuring temperature, voltage, current, pulse, frequency and dry contact
  • System alarm notifications via SMS, email and external siren
  • Low-power consumption for long logger battery life
  • Supported by feature-rich DataSuite software for network configuration and data analysis
  • Excellent documentation (check it out below!)
  • API available for integrating DataNet hardware with proprietary systems

The DataNet wireless system is a data acquisition solution developed for 24/7 real-time monitoring for mission critical organizations. Boasting a variety of wireless data logger models using ZigBee RF technology, the DataNet solution is capable of measuring parameters such as temperature, relative humidity, voltage, current, or frequency. Choose from DataNet models offering up to 6 inputs or the more cost-effective single or dual input Mini DataNet range, depending on your application requirements.

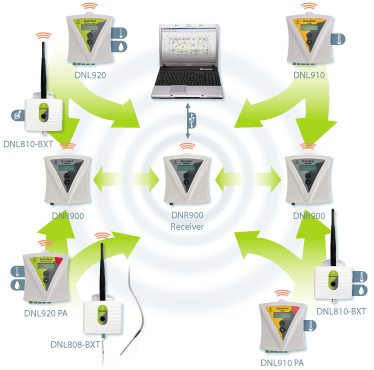

Each DataNet mesh network is managed by a Receiver connected via USB to a Windows-based PC, and also supports addition of wireless Repeater units for extending the network transmission range and improving network robustness.

What is ZigBee?

ZigBee is a standards-based protocol built around the IEEE 802.15.4 wireless protocol, providing the network infrastructure required for wireless, low power network applications such as DataNet.

Powered by the DataSuite software

The DataNet system is powered by the intuitive DataSuite software, the central management interface of each DataNet wireless network. Data is monitored online and can be displayed in graphical and tabular formats, with comprehensive features for detailed data analysis, issuing system reports, as well as network configuration, logger calibration and over-the-air firmware updates.

One DNR900A Receiver
Mandatory for every network, the Receiver forms the wireless network, and manages each device which connects to it. The Receiver handles all interaction between logger and PC, including data download, configuration and calibration.
One or more wireless data loggers

DNL910A and DNL920A – Wireless loggers with internal temperature sensor (DNL910A) and humidity sensor (DNL920A) plus four additional external inputs supporting: 4 to 20 mA, 0 to 1 V, 0 to 50 mV, PT-100 2 wires, Thermocouples (J, K and T), Contact, Pulse Counter and Frequency

DNL920A-PA – Due to integrated power amplifier, these models considerably extend the transmission range of the standard DNL910A and DNL920A models.

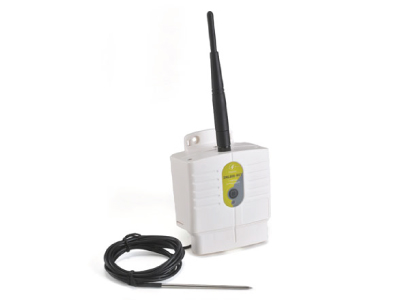

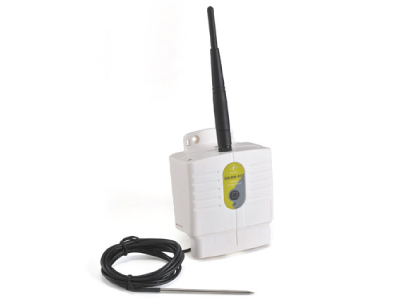

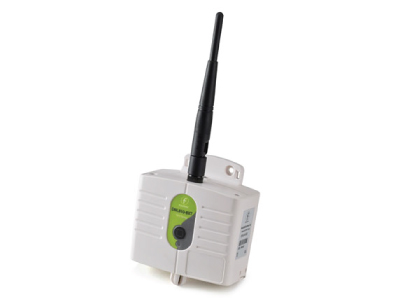

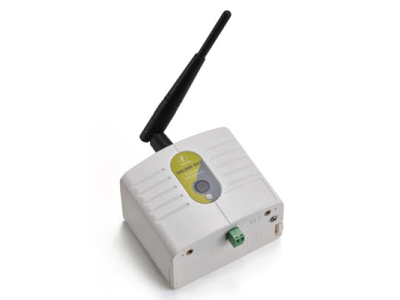

DNL808A-BXT and DNL810A-BXT – Mini DataNet battery operated loggers offer a more cost effective solution, supporting between 1-2 inputs only, and no LCD. Measuring temperature and humidity (DNL810A-BXT) or temperature only via external probe (DNL808A-BXT).

One or more Repeaters
The DNR900A device can also be configured to run as a Repeater, for extending system range and ensuring a robust network by offering multiple transmission routes between logger and Receiver.
DataSuite software installation
Each network is managed by the DataSuite software, installed on the same computer to which the Receiver is connected.

DataNet Devices

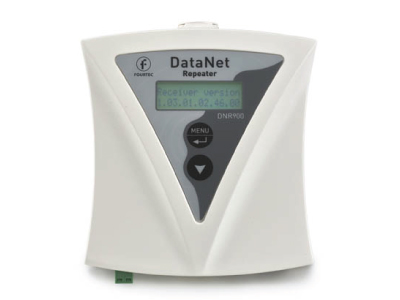

DNR900A – DataNet Receiver/Repeater


The DNR900A is a dual functionality device, operating as either a Receiver or Repeater in the DataNet network.
DataNet Receiver/Repeater
Click here to show/ hide more info

DataNet Receiver/Repeater

When configured as a Receiver, the DNR900A is the gateway between the PC and devices joined to the wireless DataNet network. Connected to the PC via a mini-USB cable, each Receiver manages a single network supporting all DataNet models, and is powered by the DataSuite data analysis software. More than one Receiver may be connected to the PC, thereby supporting monitoring of multiple DataNet networks using a single DataSuite installation.

When configured as a Repeater, the DNR900A may be deployed to increase the effectiveness and robustness of the mesh network by providing multiple transmission routes between logger and PC. And the DNR900A’s long transmission range can be leveraged to increase the overall network range, for relaying data from loggers located far from the PC.

Key product benefits:

  • Dual functionality with both Receiver and Repeater capabilities
  • Repeater offers reliable, long-range transmission for building large mesh network
  • Multiple network support on single PC
  • Intuitive interface with LCD and keypad
  • External alarm output for onsite visual/audible alarm notification
  • Powered by 12 VDC with internal back-up battery in event of power failure
  • 21 CFR Part 11 compliant

Specifications:

INPUT TYPES
None
OUTPUT TYPES
Dry Contact Alarm Output
RF NETWORK COMMUNICATION
• Frequency: 2.4 GHz

• Units per network: Up to 65,000

• Data rate: 250 Kbps

• Full mesh network architecture supported

• 128-bit network security encryption

• Worldwide license-free

• RF Transmission: 17 dbm

HARDWARE SPECIFICATIONS
Display/Keypad • 2-row LCD with 16 character display

• 2-button keypad for standalone operation

Power Supply • Internal rechargeable 4.8 V 800 mAh NiMH battery

• External 12 V DC input @ 300 mA 3.6 VA

• Back-up battery life: Approximately 3 hours

DNR900 PC Interface • USB 2.0 compliance

• Mini USB type B cable

Operating Temperature Range -20 to 50 ˚C
Casing • Plastic ABS box

• Dimensions: 9.7 x 9.3 x 2.7 cm

• Weight: 200 g

• Table and wall mounting

Standards Compliance • CE, FCC, IC Canada

• Water and dust proof: IP54

Solutions:

  • Agriculture
  • Cold Chain
  • Food
  • Heavy Industry Productions
  • Hospital Health
  • Laboratories
  • Museums
  • Pharmaceutical
  • Schools Universities
  • Transportation
  • Warehouses Storage

DataSuite for DataNet user guide (pdf file, opens in new tab)
DatPass CFR user guide (pdf file, opens in new tab)
DatPass and DataSuite CFR validation manual (pdf file, opens in new tab)

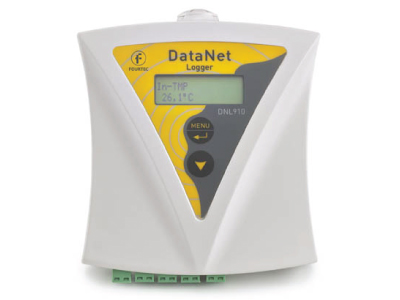

DNL910A – DataNet Wireless Temperature Logger


The DNL910A is a wireless temperature logger featuring one internal temperature sensor measuring between -20 and 50 °C and four external 2-wire inputs each capable of measuring temperature, voltage, current, frequency, pulse as well as dry contact.
DNL910A - DataNet Wireless Temperature Logger
Click here to show/ hide more info

DNL910A - DataNet Wireless Temperature Logger

With high accuracy and resolution across all inputs, the DNL910A records all measured data to its internal memory before transmitting wirelessly over the DataNet network to the online DataSuite monitoring software.

The DNL910A’s compact and robust casing is suitable for most industrial applications. This model includes a 2-row LCD screen and two-button keypad for standalone operation, such as joining the device to the wireless network, as well as a rechargeable battery pack for long-term deployment. Depending on the logger configuration, the DNL910 can run up to several months on one charge. External alarm output is available as well as 12 V excitation for powering external sensors.

DNL910A can also function as a Repeater, providing the logger with the ability to not only record and transmit its own data but also to relay transmissions from other units, thereby enhancing the DataNet’s mesh network capabilities.

Key product benefits:

  • Up to 5 measurement inputs with high accuracy and resolution
  • Real-time, wireless transmission to PC with adjustable sampling and transmission rates to conserve battery power.
  • LCD for online viewing of data samples
  • Support for scalable units, when connecting external sensors based on current or voltage outputs
  • Four level alarm configuration with email/SMS notification and onboard alarm buzzer
  • Long-lasting rechargeable battery for standalone monitoring
  • 21 CFR Part 11 compliant

Specifications:

INPUT TYPES
4 to 20 mA • Range: 4 to 20 mA
• Resolution: 47.6 μA
• Accuracy: ±0.5 %
• Loop impedance: 21 Ω
0 to 50 mV • Range: 0 to 50 mV
• Resolution: 37 μV
• Accuracy: ±0.5 %
• Input impedance: 25 MΩ
• Maximum voltage: 3.2 V
0 to 1 V • Range: 0 to 1 V
• Resolution: 200 μV
• Accuracy: ±0.5 %
• Input impedance: 25 MΩ
• Maximum voltage: 3.2 V
Temperature PT-100 (2-wires) • Range: -200 to 400 ˚C
• Resolution: 0.1 ˚C
• Accuracy:
-200 to -60 ˚C: ±0.5 %
60 to 400 ˚C: ±0.5 %
-60 to 60 ˚C: ±0.3 ˚C
Temperature Thermocouple J • Range: -200 to 1,000 ˚C
• Resolution: 0.1 ˚C
• Accuracy:
-200 to -60 ˚C: ±0.5 %
60 to 1,000 ˚C: ±0.5 %
-60 to 60 ˚C: ±0.5 ˚C
• Cold junction compensation error: ±0.3 ˚C
Temperature Thermocouple K • Range: -200 to 1,000 ºC
• Resolution: 0.1 ˚C
• Accuracy:
-200 to -60 ˚C: ±0.5 %
60 to 1,000 ˚C: ±0.5 %
-60 to 60 ˚C: ±0.5 ˚C
• Cold junction compensation error: ±0.3 ˚C
Temperature Thermocouple T • Range: -200 to 400 ˚C
• Resolution: 0.1 ˚C
• Accuracy:
-200 to -60 ˚C: ±0.5 %
60 to 400 ˚C: ±0.5 %
-60 to 60 ˚C: ±0.5 ˚C
• Cold junction compensation error: ±0.3 ˚C
Contact (for Switch/Door Position) • Range: Open/Closed
Pulse Counter (input 4 only) • Range: 1 to 65,536 counts
• Resolution: 1 count
• Frequency range: 0 to 4,000 Hz
• Input signal: 0 to 5 V
• Input impedance: 470 Ω
Frequency (input 4 only) • Range: 20 Hz to 4 KHz
• Input signal: 0 to 5 V
• Input impedance: 470 Ω
Internal Temperature • Range: -20 to 50 ˚C
• Resolution: 0.1 ˚C
• Accuracy: ±0.3 ˚C
OUTPUTS
External Power Excitation (transducers usage) • 12 V DC @ 300 mA
• Reset fuse overload
Dry Contact Alarm Output • Open collector
• Close position resistance: 50Ω
• Max. Load: 50 mA, 3 V DC
SAMPLING FEATURES • Memory capacity: ~59,000 samples (depending on logger configuration)
• Sampling rate: Once every second to once every 18 hours
• Channel separation: 80 dB
RF NETWORK COMMUNICATION • Frequency: 2.4 GHz
• Units per network: Up to 65,000
• Data rate: 250 Kbps
• Full mesh network architecture supported
• 128-bit network security encryption
• Worldwide license-free
• RF Transmission: 4 dbm
HARDWARE SPECIFICATIONS
Display/Keypad • 2-row LCD with 16 character display
• 2-button keypad for standalone operation
Power Supply • Internal rechargeable 4.8 V 800 mAh NiMH battery
• External 12 V DC input @ 300 mA 3.6 VA
• Battery Life: Up to 10 months, depending on logger configuration
Operating Temperature Range -20 to 50 ˚C
Casing • Plastic PC-ABS
• Dimensions: 9.7 x 9.3 x 2.7 cm
• Weight: 200 g
• Supports table and wall mounting
Standards Compliance • CE, FCC, IC Canada
• Water and dust proof: IP54

Solutions:

  • Agriculture
  • Cold Chain
  • Food
  • Heavy Industry Productions
  • Hospital Health
  • Laboratories
  • Museums
  • Pharmaceutical
  • Schools Universities
  • Transportation
  • Warehouses Storage

DataSuite for DataNet user guide (pdf file, opens in new tab)
DatPass CFR user guide (pdf file, opens in new tab)
DatPass and DataSuite CFR validation manual (pdf file, opens in new tab)

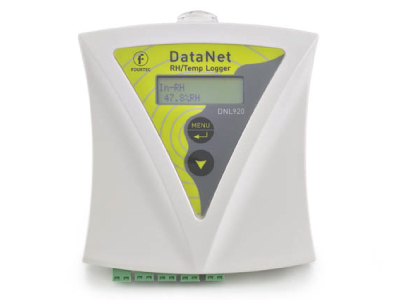

DNL920A – DataNet Wireless Temperature and Humidity Logger


The DNL920A is a wireless logger featuring internal temperature and humidity sensors and four external 2-wire inputs each capable of measuring temperature, voltage, current, frequency, pulse as well as dry contact.
DNL920A - DataNet Wireless Temperature and Humidity Logger
Click here to show/ hide more info

DNL920A - DataNet Wireless Temperature and Humidity Logger

With high accuracy and resolution across all inputs, the DNL920A records all measured data to its internal memory before transmitting wirelessly over the DataNet network to the online DataSuite monitoring software.

The DNL920A’s compact and robust casing is suitable for most industrial applications. This model includes a 2-row LCD screen and two-button keypad for standalone operation, such as joining the device to the wireless network, as well as a rechargeable battery pack for long-term deployment. Depending on the logger configuration, the DNL920A can run up to several months on one charge. External alarm output is available as well as 12 V excitation for powering external sensors.

The DNL920A can also function as a Repeater, providing the logger with the ability to not only record and transmit its own data but also to relay transmissions from other units, thereby enhancing the DataNet’s mesh network capabilities.

Key product benefits:

  • Up to 6 measurement inputs with high accuracy and resolution
  • Real-time, wireless transmission to PC with adjustable sampling and transmission rates to conserve battery power.
  • LCD for online viewing of data samples
  • Support for scalable units, when connecting external sensors based on current or voltage outputs
  • Four level alarm configuration with email/SMS notification and onboard alarm buzzer
  • Long-lasting rechargeable battery for standalone monitoring
  • 21 CFR Part 11 compliant

Specifications:

INPUT TYPES
4 to 20 mA • Range: 4 to 20 mA
• Resolution: 47.6 μA
• Accuracy: ±0.5 %
• Loop impedance: 21 Ω
0 to 50 mV • Range: 0 to 50 mV
• Resolution: 37 μV
• Accuracy: ±0.5 %
• Input impedance: 25 MΩ
• Maximum voltage: 3.2 V
0 to 1 V • Range: 0 to 1 V
• Resolution: 200 μV
• Accuracy: ±0.5 %
• Input impedance: 25 MΩ
• Maximum voltage: 3.2 V
Temperature PT-100 (2-wires) • Range: -200 to 400 ˚C
• Resolution: 0.1 ˚C
• Accuracy:
-200 to -60 ˚C: ±0.5 %
60 to 400 ˚C: ±0.5 %
-60 to 60 ˚C: ±0.3 ˚C
Temperature Thermocouple J • Range: -200 to 1,000 ˚C
• Resolution: 0.1 ˚C
• Accuracy:
-200 to -60 ˚C: ±0.5 %
60 to 1,000 ˚C: ±0.5 %
-60 to 60 ˚C: ±0.5 ˚C
• Cold junction compensation error: ±0.3 ˚C
Temperature Thermocouple K • Range: -200 to 1,000 ºC
• Resolution: 0.1 ˚C
• Accuracy:
-200 to -60 ˚C: ±0.5 %
60 to 1,000 ˚C: ±0.5 %
-60 to 60 ˚C: ±0.5 ˚C
• Cold junction compensation error: ±0.3 ˚C
 Temperature Thermocouple T • Range: -200 to 400 ˚C
• Resolution: 0.1 ˚C
• Accuracy:
-200 to -60 ˚C: ±0.5 %
60 to 400 ˚C: ±0.5 %
-60 to 60 ˚C: ±0.5 ˚C
• Cold junction compensation error: ±0.3 ˚C
Contact (for Switch/Door Position) • Range: Open/Closed
Pulse Counter (input 4 only) • Range: 1 to 65,536 counts
• Resolution: 1 count
• Frequency range: 0 to 4,000 Hz
• Input signal: 0 to 5 V
• Input impedance: 470 Ω
Frequency (input 4 only) • Range: 20 Hz to 4 KHz
• Input signal: 0 to 5 V
• Input impedance: 470 Ω
Internal Temperature • Range: -20 to 50 ˚C
• Resolution: 0.1 ˚C
• Accuracy: ±0.5 ˚C
Internal Humidity • Range: 5 to 95 % RH
• Resolution: 0.5 % RH
• Accuracy:
±3 % at 10 to 90 % RH
±5 % at 5 to 10 % RH and 90 to 95 % RH
OUTPUTS
External Power Excitation (transducers usage) • 12 V DC @ 300 mA
• Reset fuse overload
Dry Contact Alarm Output • Open collector
• Close position resistance: 50Ω
• Max. Load: 50 mA, 3 V DC
SAMPLING FEATURES



• Memory capacity: ~59,000 samples (depending on logger configuration)
• Sampling rate: Once every second to once every 18 hours
• Channel separation: 80 dB
RF NETWORK COMMUNICATION • Frequency: 2.4 GHz
• Units per network: Up to 65,000
• Data rate: 250 Kbps
• Full mesh network architecture supported
• 128-bit network security encryption
• Worldwide license-free
• RF Transmission: 4 dbm
HARDWARE SPECIFICATIONS
Display/Keypad • 2-row LCD with 16 character display
• 2-button keypad for standalone operation
Power Supply • Internal rechargeable 4.8 V 800 mAh NiMH battery
• External 12 V DC input @ 300 mA 3.6 VA
• Battery Life: Up to 10 months, depending on logger configuration
Operating Temperature Range -20 to 50 ˚C
Casing • Plastic PC-ABS
• Dimensions: 9.7 x 9.3 x 2.7 cm
• Weight: 200 g
• Supports table and wall mounting
Standards Compliance • CE, FCC, IC Canada
• Water and dust proof: IP54

Solutions:

  • Agriculture
  • Cold Chain
  • Food
  • Heavy Industry Productions
  • Hospital Health
  • Laboratories
  • Museums
  • Pharmaceutical
  • Schools Universities
  • Transportation
  • Warehouses Storage

DataSuite for DataNet user guide (pdf file, opens in new tab)
DatPass CFR user guide (pdf file, opens in new tab)
DatPass and DataSuite CFR validation manual (pdf file, opens in new tab)

DNL808A-BXT – Mini DataNet Wireless Temperature Logger with External Probe


The Mini DataNet DNL808A-BXT is a single channel, wireless logger for measuring temperature using an external probe over a range of -50 to 150 °C. The logger records all measured data to its internal memory before transmitting wirelessly over the DataNet network to the online DataSuite monitoring software.
DNL808A-BXT - Mini DataNet Wireless Temperature Logger with External Probe
Click here to show/ hide more info

DNL808A-BXT - Mini DataNet Wireless Temperature Logger with External Probe

A cost-effective solution for temperature-controlled applications, the DNL808A-BXT is a compact device operated by a one-button keypad, with a LED indicating logger status, and battery pack containing four easily replaceable AA batteries for up to a three-year battery life. A NTC temperature probe with a 2.5 m cable-length is provided together with the data logger, easily connecting to the 2-wire external input.

Key product benefits:

  • Accurate NTC temperature probe included
  • Real-time, wireless transmission to PC with adjustable sampling and transmission rates to conserve battery power.
  • Four level alarm configuration with email/SMS notification
  • Long battery life supported by four, easily replaceable AA batteries
  • 21 CFR Part 11 compliant

Specifications:

INPUT SPECIFICATIONS



• Input type: NTC 10KΏ
• Temperature range: -50 to 150 °C
• Resolution: 0.06 °C
• Accuracy:
-50 to 60 ˚C ±0.3 ˚C
60 to 150 ˚C ±0.5 %
SAMPLING FEATURES • Memory capacity: ~59,000 samples (depending on logger configuration)
• Sampling rate: Once every second to once every 18 hours
• Channel separation: 80 dB
RF NETWORK COMMUNICATION



• Frequency: 2.4 GHz
• Units per network: Up to 65,000
• Data rate: 250 Kbps
• Full mesh network architecture supported
• 128-bit network security encryption
• Worldwide license-free
• RF Transmission: 4 dbm
HARDWARE SPECIFICATIONS
Power Supply  • Removable battery pack supporting up to 4 x AA 3.6 V lithium batteries
• Battery life: Up to 3 years depending on sampling rate and operating conditions
Casing • Plastic PC-ABS
• Dimensions: 9 x 8.8 x 5.3 cm (without the external antenna and strain relief add-on)
• Supports wall mounting
Weight



• 137 g not including batteries
• 218 g including four batteries
• External Antenna: 17.5 g
Operating Temperature Range -30 to 75 ˚C (operating at temperature close to or below zero may affect battery life)
Standards Compliance • CE, FCC, IC Canada
• Water and dust proof: IP54

Solutions:

  • Agriculture
  • Cold Chain
  • Food
  • Heavy Industry Productions
  • Hospital Health
  • Laboratories
  • Museums
  • Pharmaceutical
  • Schools Universities
  • Transportation
  • Warehouses Storage

DataSuite for DataNet user guide (pdf file, opens in new tab)
DatPass CFR user guide (pdf file, opens in new tab)
DatPass and DataSuite CFR validation manual (pdf file, opens in new tab)

DNL808A-BXT Mini DataNet Ext. NTC temp logger, wireless – extended batt. with 2 batteries
DNL808A-BXT-BT4 Mini DataNet External NTC temp logger, wireless -extended batt with 4 batteries

DNL810A-BXT – Mini DataNet Wireless Temperature and Humidity Logger


The Mini DataNet DNL810A-BXT is a wireless logger with internal temperature and humidity sensors. The logger records all measured data to its internal memory before transmitting wirelessly over the DataNet network to the online DataSuite monitoring software.
DNL810A-BXT - Mini DataNet Wireless Temperature and Humidity Logger
Click here to show/ hide more info

DNL810A-BXT - Mini DataNet Wireless Temperature and Humidity Logger

A cost-effective solution for temperature and humidity-controlled environments, the DNL810A-BXT is a compact device operated by a one-button keypad, with a LED indicating logger status, and battery pack containing four easily replaceable AA batteries for up to a three-year battery life.

Key product benefits:

  • Accurate internal temperature and humidity sensors
  • Real-time, wireless transmission to PC with adjustable sampling and transmission rates to conserve battery power.
  • Four level alarm configuration with email/SMS notification
  • Long battery life supported by four, easily replaceable AA batteries
  • 21 CFR Part 11 compliant

Specifications:

INTERNAL SENSOR SPECIFICATIONS Temperature:
• Range: -20 to 50 °C
• Resolution: 0.04 °C
• Accuracy: ±0.4 °C
Humidity:
• Range: 5 to 95 %
• Resolution: 0.5 %
• Accuracy: ±3 %
SAMPLING FEATURES • Memory capacity: ~59,000 samples (depending on logger configuration)
• Sampling rate: Once every second to once every 18 hours
• Channel separation: 80 dB
RF NETWORK COMMUNICATION • Frequency: 2.4 GHz
• Units per network: Up to 65,000
• Data rate: 250 Kbps
• Full mesh network architecture supported
• 128-bit network security encryption
• Worldwide license-free
• RF Transmission: 4 dbm
HARDWARE SPECIFICATIONS
Power Supply • Removable battery pack supporting up to 4 x AA 3.6 V lithium batteries
• Battery life: Up to 3 years depending on sampling rate and operating conditions
Casing  • Plastic PC-ABS
• Dimensions: 10.2 x 8.8 x 5.3 cm (without the external antenna)
• Supports table and wall mounting
Weight: • 137 g not including batteries
• 218 g including four batteries
• External Antenna: 17.5 g
Operating Temperature Range -30 to 75 ˚C (operating at temperature close to or below zero may affect battery life)
Standards Compliance • CE, FCC, IC Canada
• Water and dust proof: IP54

Solutions:

  • Agriculture
  • Cold Chain
  • Food
  • Heavy Industry Productions
  • Hospital Health
  • Laboratories
  • Museums
  • Pharmaceutical
  • Schools Universities
  • Transportation
  • Warehouses Storage

DataSuite for DataNet user guide (pdf file, opens in new tab)
DatPass CFR user guide (pdf file, opens in new tab)
DatPass and DataSuite CFR validation manual (pdf file, opens in new tab)

DNL810A-BXT Mini DataNet Dig. RH+Temp logger, wireless – extended batt. with 2 batteries
DNL810A-BXT-BT4 Mini DataNet Digital RH+Temp logger, wireless -extended batt with 4 batteries

Accessories and Software

Software

DataSuite-DN – DataSuite Software for DataNet


DataSuite is Windows-based software offering device configuration, data monitoring and analysis functionality for the DataNet wireless system, in addition to other Fourtec systems.
DataSuite Software for DataNet
Click here to show/ hide more info

DataSuite Software for DataNet

The DataSuite platform’s core functionality is shared across all systems and includes features such as device setup, multiple data views, input calibration, alarm level definition, Email/SMS notifications, data report management, device firmware updates, online software updates and more.

Easily installed from CD or via download from the Fourtec website, DataSuite also supports automatic online updates whenever a new software version is released.

When integrated with the DatPass CFR Admin software, DataSuite helps DataNet users meet 21 CFR Part 11 compliancy by maintaining an audit trail of all user activity in addition to management of user login and privileges and electronic signatures.

Key DataSuite Benefits:

  • Multiple data view e.g. graph, table, statistics
  • Online and historical data views
  • Multiple alarm levels triggering email and SMS notifications
  • Reporting module for creating and generating reports with selected email distribution
  • Analysis features including dew point analysis, export to Excel and CSV formats, histogram, MKT
  • FDA Title 21 CFR Part 11 compliancy
  • API support for third-party integration

Specifications:

Product Part Number: DataSuite-DN
Software Activation: User must activate software using unique serial number purchased from Fourtec. 30-day trial period also available.
Order shipped with: Software CD and mini-USB communication cable
System Requirements
Software
  • Windows XP SP3, Windows Vista, Windows 7 (32-bit and 64-bit), Windows 8.1 (32-bit and 64-bit)
  • Minimum screen resolution: 1024 x 768 (800 x 600 not supported)
Hardware
  • Pentium 4, 2.0 GHz or better
  • 512 MB RAM
  • 250 MB available disk space for the DataSuite application


DataSuite for DataNet user guide
(pdf file, opens in new tab)
DataSuite Installation and Activation Guide (pdf file, opens in new tab)
DataSuite Software Release Notes (pdf file, opens in new tab)
DatPass and DataSuite CFR validation manual (pdf file, opens in new tab)

DS-CFR-DN – DatPass CFR Admin Software for DataNet


DatPass is Fourtec’s administration management software, integrating with the DataSuite and MicroLab applications to help achieve FDA 21 CFR Part 11 and GAMP 5 compliancy for a range of Fourtec data logging systems, including the DataNet wireless system.
DS-CFR-DN - DatPass CFR Admin Software for DataNet
Click here to show/ hide more info

DS-CFR-DN - DatPass CFR Admin Software for DataNet

The DatPass database, installed on a local PC or network, maintains an audit trail that automatically records all user activity within DatPass and DataSuite software, including date and time stamp, login details, input alarms details, and so on. The DatPass administrator can view the audit trail on screen or print any part of it in order to keep hard copy records.

DatPass is also used to manage all user access to the supported systems, including user login parameters, group and user privileges for relevant software functionality, digital signatures the users are permitted to sign data within electronic records, and other key CFR requirements.

The DatPass software package is also supplied with extensive operation and validation manuals to help users meet strict industry regulations.

Specifications:

Product Part Number: DS-CFR-DN
Software Activation: User must activate software using unique serial number purchased from Fourtec. 30-day trial period also available.
Order shipped with: Software CD for DatPass and DataSuite installation, and mini-USB communication cable
System Requirements
  • Windows XP SP3, Vista, 7 (32 and 64-bit)
  • Pentium 4 2.0 GHz or better
  • 512 MB RAM
  • 250 MB available disk space



DatPass CFR Admin User Guide (pdf file, opens in new tab)
DatPass Software Release Notes (pdf file, opens in new tab)
DatPass and DataSuite CFR validation manual (pdf file, opens in new tab)

CFR-DN-USERPC DataSuite CFR user PC license – DataNet (for non-admin PC’s, not running DatPass software)

Accessories

DT332N – External Temperature Needle Probe


External NTC Temperature Sensor with Needle probe – suits DNL808A and MicroLite EXT.
External Temperature Needle Probe - DT332N
Click here to show/ hide more info

External Temperature Needle Probe - DT332N

The NTC temperature probe connects to the external input of the data loggers, Mini DataNet wireless temperature (DNL808A-BXT) and MicroLite external temperature LITE5032P-EXT-A to support measurement over a range of -50 to 150 °C. The probe has a rapid temperature response time, 2.5 m cable length and 3.2 mm diameter, with its stainless steel needle tip, is suitable for multiple applications including food, liquids and ambient monitoring.

When connected to the supported data logger, the probe readings can also be calibrated using the DataSuite for DataNet software.

One NTC temperature probe is supplied with each purchase of the Mini DataNet DNL808A-BXT and MicroLite LITE5032P-EXT-A data loggers, but additional probes may be purchased from your Fourtec distributor.

Specifications:

Temperature sensor type: NTC 10kΩ
Temperature sensor range: -50 to 150 °C
Probe type / length / diameter: Stainless steel / 100 mm / 3.2 mm
Probe tip: Needle
Cable type and length: PVC, 2.5 m
Cable temperature range: -40 to 105 °C
Connector type: Universal 2-wire connector

12751 – PT-100 Temperature Probe (2-wire), 6 m cable


Temperature Sensor, PT-100, stainless steel 80mm probe,-70 to 400 deg C,  6 meter Teflon cable (cable rating -65 to 200C).
PT-100 Temperature Probe (2-wire), 6 m cable
Click here to show/ hide more info

PT-100 Temperature Probe (2-wire), 6 m cable

The PT-100 temperature probe provides accurate, stable readings with fast response time over a range of -70 to 400 °C, and is well suited for a variety of temperature applications.

Fourtec’s range of PT-100 2-wire sensors is made of thin-film Platinum RTD elements sputtered on ceramic substrate. PT-100 sensors have a resistance of 100 Ώ at 0 °C, with the resistance changing with the temperature.

Fourtec software supports both 2-point and offset calibration for the PT-100 sensors when connected to the data loggers.

Specifications:

Temperature range: -70 to 400 °C
Class A accuracy
Probe length: 80 mm
Probe tip: Rounded
Cable material: Teflon, waterproof
Cable length: 6 m
Cable operating temperature: -65 to 200 ˚C

12752 – PT-100 Temperature Probe (2-wire), 4 m cable


Temperature Sensor, PT-100, stainless steel 80mm probe,-70 to 400 deg C,  4 meter Teflon cable (cable rating -65 to 200C).
PT-100 Temperature Probe (2-wire), 4 m cable
Click here to show/ hide more info

PT-100 Temperature Probe (2-wire), 4 m cable

The PT-100 temperature probe provides accurate, stable readings with fast response time over a range of -70 to 400 °C, and is well suited for a variety of temperature applications.

Fourtec’s range of PT-100 2-wire sensors is made of thin-film Platinum RTD elements sputtered on ceramic substrate. PT-100 sensors have a resistance of 100 Ώ at 0 °C, with the resistance changing with the temperature.

Fourtec software supports both 2-point and offset calibration for the PT-100 sensors when connected to the data loggers.

Specifications:

Temperature range: -70 to 400 °C
Class A accuracy
Probe length: 80 mm
Probe tip: Rounded
Cable material: Teflon, waterproof
Cable length: 4 m
Cable operating temperature: -65 to 200 ˚C

12753 – PT-100 Temperature Probe (2-wire), 2.5 m cable


Temperature Sensor, PT-100, stainless steel 80mm probe,-70 to 400 deg C,  2.5 meter Teflon cable (cable rating -65 to 200C)
12753 - PT-100 Temperature Probe (2-wire), 2.5 m cable
Click here to show/ hide more info

12753 - PT-100 Temperature Probe (2-wire), 2.5 m cable

The PT-100 temperature probe provides accurate, stable readings with fast response time over a range of -70 to 400 °C, and is well suited for a variety of temperature applications.

Fourtec’s range of PT-100 2-wire sensors is made of thin-film Platinum RTD elements sputtered on ceramic substrate. PT-100 sensors have a resistance of 100 Ώ at 0 °C, with the resistance changing with the temperature.

Fourtec software supports both 2-point and offset calibration for the PT-100 sensors when connected to the data loggers.

Specifications:

Temperature range: -70 to 400 °C
Class A accuracy
Probe length: 80 mm
Probe tip: Rounded
Cable material: Teflon, waterproof
Cable length: 2.5 m
Cable operating temperature: -65 to 200 ˚C

50116 – PT-100 Cryogenic Temperature Probe (2-wire), 2.5 m cable


Temperature Sensor, PT-100, stainless steel 80mm probe,-200 to 400 deg C,  2.5 meter Teflon cable (cable rating -65 to 200C)
50116 - PT-100 Cryogenic Temperature Probe (2-wire), 2.5 m cable
Click here to show/ hide more info

50116 - PT-100 Cryogenic Temperature Probe (2-wire), 2.5 m cable

The PT-100 Cryogenic temperature probe provides accurate, stable readings with fast response time over a range of -200 to 400 °C, and is therefore well suited to extreme low temperature applications.

Fourtec’s range of PT-100 2-wire sensors is made of thin-film Platinum RTD elements sputtered on ceramic substrate. PT-100 sensors have a resistance of 100 Ώ at 0 °C, with the resistance changing with the temperature.

Fourtec software supports both 2-point and offset calibration for the PT-100 sensors when connected to the data loggers.

Specifications:

Temperature range: -200 to 400 °C
Class A accuracy
Probe length: 80 mm
Probe tip: Rounded
Cable material: Teflon, waterproof
Cable length: 2.5 m
Cable operating temperature: -65 to 200 ˚C

50165 – Thermocouple Type K Probe with Flat Pin Connector


Temperature Sensor, Thermocouple K type, -200 to 1000 deg C, 1.5 mm probe diam, 500mm cable length
50165 - Thermocouple Type K Probe with Flat Pin Connector
Click here to show/ hide more info

50165 - Thermocouple Type K Probe with Flat Pin Connector

The Thermocouple Type K probe is a highly accurate, reliable probe for both extreme low and high temperature applications. A flat pin connector is used for easy interface between probe and connecting wires. The Thermocouple probe is compatible with Fourtec’s DaqPRO, DaqLink and DataNet range of data loggers.

Specifications:

Temperature range: -200 to 1000 °C
Flat pin connector
Probe length: 500 mmm
Probe diameter: 1.5 mm

DT043 – High Accuracy External Temperature and Humidity Probe


Humidity and Temperature Probe, RH 0-100% ±1.5%, temp -40 to 60°C ±0.5°C, 3m cable, suits DataNet/DaqLink universal input loggers.
DT043 - High Accuracy External Temperature and Humidity Probe
Click here to show/ hide more info

DT043 - High Accuracy External Temperature and Humidity Probe

The DT043 is a highly accurate temperature and humidity probe. It measures relative humidity ranging from 0 to 100% with an error of not more than ± 1.5% RH over the entire range. The DT043 includes, in its screw-on cap, a temperature sensing element that measures temperatures ranging from ‑50 to 100 °C.

The DT043 probe is compatible with Fourtec’s DaqPRO, DaqLink and DataNet range of data loggers.

Specifications:

Operating Range: 0…100% RH / -50…100 °C
Measurement Range: 0…100% RH / -50…100 °C
Outputs (factory default): 0…1 V = 0…100% RH / -40…60 °C
Start-up Time: 2 s
Measurement Interval: 1 s
Supply voltage & Load: 6…24 VDC / 5…16 VAC / >1 kOhm
Accuracy at 23 °C: ± 1.5% rH / ± 0.5 °C
Protection rating: IP65 (except sensor/filter area)
Cable length: 3 m
Wire Colors:                  Description:
Green Power +VDC
Gray GND (digital and power)
White Analogue signal % RH / Humidity
Brown Analogue signal °C  / Temperature
Yellow AGND (analogue ground)
Shield Not connected on probe side

13750 – USB over IP Ethernet Adapter for Remote Device Connection


USB over IP shareserver-4 ports USB2.0 Ethernet.
13750 - USB over IP Ethernet Adapter for Remote Device Connection
Click here to show/ hide more info

13750 - USB over IP Ethernet Adapter for Remote Device Connection

The 4-port USB over IP Ethernet Adapter provides the capability for remotely connecting to any Fourtec USB-supported device over a LAN connection. For example, if you need to monitor the DataNet wireless system remotely and not from an onsite PC, simply connect the DataNet Receiver to the USB over IP device, and as long as you are on the same LAN, launching the DataSuite software will automatically detect the DataNet network as if you were connected to the Receiver directly via the USB cable. You will then be able to monitor the entire system as normal.

Specifications:

Windows® XP x86 / XP 64-bit
Windows® Vista/7 X86 / Vista/7 64-bit
Windows® 2000
233 MHz Pentium® II or above
64 MB RAM (128 MB recommended)
CD-ROM drive for installation
