MicroLite USB Small Data Loggers - Fourtec

Full featured USB data loggers for temperature, humidity, voltage and current

Fourtec MicroLite Overview


Accurate, portable and cable-free range of USB loggers

  • Accurate measurement of temperature, humidity, current and voltage
  • Low cost
  • Compact size for applications requiring mobile logging, such as transportation
  • Direct USB interface to PC. No cables required
  • Unique Boomerang feature that automatically creates and emails PDF data report when logger is connected to PC
  • Up to 32K cyclic memory
  • LCD for real-time data and battery display
  • LED for alarm and sampling indication

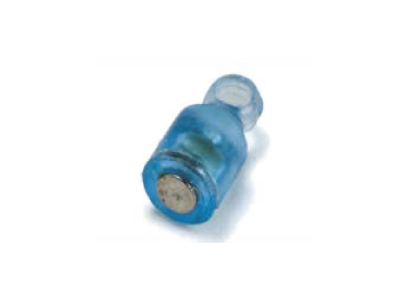

  • Magnet key for standalone logger activation

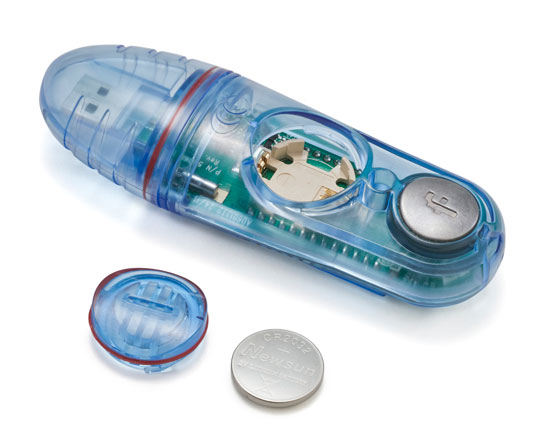

  • Easily replaceable battery with up to 1.5-year life, in normal operating conditions

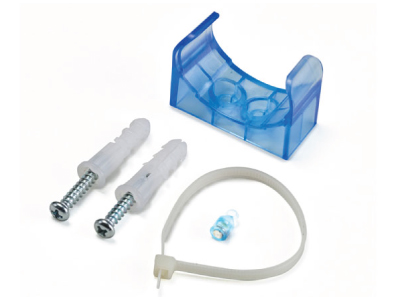

  • Cradle for wall mounting
  • Dust and water resistant (depending on logger model)
  • Free, full featured DataSuite software for data analysis and device setup
  • Excellent documentation (check it out below!)

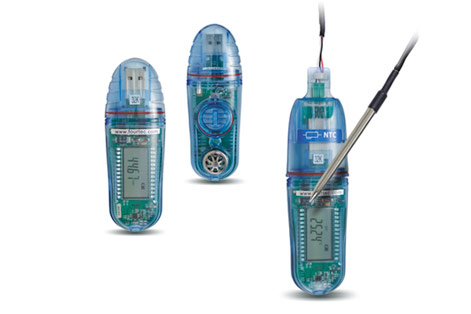

The family of MicroLite USB data loggers includes six models covering temperature, humidity, current and voltage measurements, providing the ideal solution for a wide range of applications. All models are single channel (except the humidity and temperature logger).

Combining innovation with simplicity, the MicroLite product line offers cost effective data logging, with rich functionality in a compact design, direct USB connection, multi-trip usage, and high measurement accuracy and resolution.

Real-time sensor readings with a corresponding time stamp are clearly displayed on the logger’s LCD screen, incorporating alarm thresholds. The logger is designed for low power consumption to extend battery life and reduce the time between battery replacements. User upgradeable firmware lets you take advantage of future upgrades effortlessly.

The comprehensive MicroLite range allows you to select the device most appropriate to your mission-critical application.

MicroLite Brochure (pdf file, opens in new tab)

MicroLite Devices

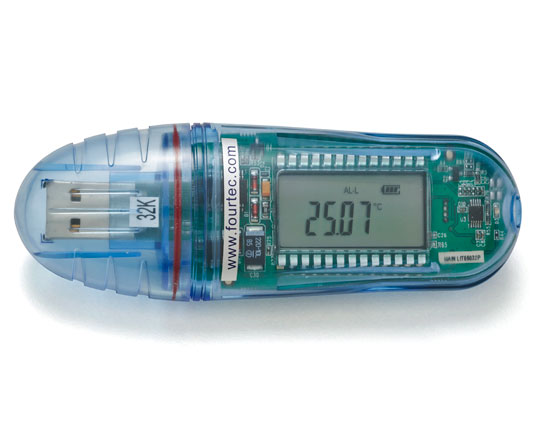

LITE5032P-A – MicroLite USB Temperature Logger (32K Memory)


This MicroLite logger includes an internal temperature sensor measuring over a range of -40 to 80 ˚C (-40 to 176 °F), with accuracy of ±0.3 ˚C.
LITE5032P-A - MicroLite USB Temperature Logger (32K Memory)
Click here to show/ hide more info

LITE5032P-A - MicroLite USB Temperature Logger (32K Memory)

Available in two models, offering 32,000 sample cyclic memory, the MicroLite Temp logger features a USB interface for easy connection to a PC for user configuration, data download and sensor calibration using the free Windows-based DataSuite data analysis software.

You can setup low and high alarm thresholds and view the logger data on the 4-digit LCD, which scrolls between the current and minimum/maximum readings. The LED provides additional sample and alarm indication in the event the LCD is off due to the MicroLite’s power save mode.

The logger is designed for both portable and stationary multi-use operation with a replaceable 3V coin battery lasting up to 1.5 years, depending on the operating conditions.

The MicroLite is dust and water resistant to IP67 standard, and together with the DataSuite software is 21 CFR Part 11 compliant.

Key product Benefits:

  • Measurement range of -40 to 80 °C
  • Direct USB interface for setup, alarm  and data download
  • Supporting Boomerang feature for automatic emailing of PDF report on PC connection
  • Multiple activation modes: Timer, Push to Run, Immediate
  • LED for alarm and sampling indication
  • Four-digit LCD with decimal point
  • Up to 32K cyclic sample memory
  • Free DataSuite software supporting data analysis and device setup
  • Dust and water resistant, IP67

Specifications:

Temperature Range -40 to 80 °C (-40 to 176 °F)
Temperature Accuracy ±0.3˚C @ 0 to 60 ˚C

After calibration only:

±0.3 ˚C -40 to 0 ˚C and 60 to 80 ˚C

Temperature Resolution 0.03 °C or better
Sample Memory 8,000 samples
Sampling Rate Minimum: Once every second

Maximum: Once every 18 hours

Auto PDF & Email Delivery (Boomerang Feature) Yes
LCD Four-digit, 7-segment LCD with decimal point
LED Yes, for alarm and sampling indication
PC Interface Direct USB
Battery Type Replaceable CR2032 3V lithium battery
Battery Life ~ 1.5 years depending on sampling rate and operating conditions
Dimensions 11 x 3.9 x 2.6 cm
Weight 45.5 g
Wall Mount Logger cradle accessory provided
Operating Environment -40 to 80 °C
Standards Compliance 21 CFR Part 11, CE, EN12830, IP67

Solutions:

  • Agriculture
  • Cold Chain
  • Food
  • Heavy Industry Productions
  • Hospital Health
  • Museums
  • Pharmaceutical
  • Warehouses Storage

DataSuite for MicroLite User Guide (pdf file, opens in new tab)
MicroLite Quick Start Guide (pdf file, opens in new tab)|
DatPass CFR User Guide (pdf file, opens in new tab)
DataSuite CFR and DatPass Validation Guide (pdf file, opens in new tab)
Weboomerang User Guide (pdf file, opens in new tab)

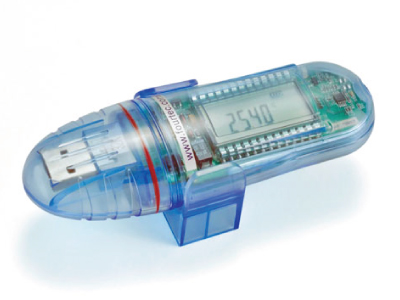

LITE5008P-A – MicroLite USB Temperature Logger (8K Memory) – MOQ Applies


This low cost version of the MicroLite logger includes an internal temperature sensor measuring over a range of -40 to 80 ˚C (-40 to 176 °F), with accuracy of ±0.3 ˚C. An MOQ applies and there may be a significant lead time.
MicroLite USB Temperature Logger (8K Memory)
Click here to show/ hide more info

MicroLite USB Temperature Logger (8K Memory)

Available in two models, Offering 8,000 sample cyclic memory, the MicroLite Temp logger features a USB interface for easy connection to a PC for user configuration, data download and sensor calibration using the free Windows-based DataSuite data analysis software.

You can setup low and high alarm thresholds and view the logger data on the 4-digit LCD, which scrolls between the current and minimum/maximum readings. The LED provides additional sample and alarm indication in the event the LCD is off due to the MicroLite’s power save mode.

The logger is designed for both portable and stationary multi-use operation with a replaceable 3V coin battery lasting up to 1.5 years, depending on the operating conditions.

The MicroLite is dust and water resistant to IP67 standard, and together with the DataSuite software is 21 CFR Part 11 compliant.

Key product Benefits:

  • Measurement range of -40 to 80 °C
  • Direct USB interface for setup, alarm  and data download
  • Supporting Boomerang feature for automatic emailing of PDF report on PC connection
  • Multiple activation modes: Timer, Push to Run, Immediate
  • LED for alarm and sampling indication
  • Four-digit LCD with decimal point
  • Up to 32K cyclic sample memory
  • Free DataSuite software supporting data analysis and device setup
  • Dust and water resistant, IP67

Specifications:

Temperature Range -40 to 80 °C (-40 to 176 °F)



Temperature Accuracy ±0.3˚C @ 0 to 60 ˚C

After calibration only:

±0.3 ˚C -40 to 0 ˚C and 60 to 80 ˚C

Temperature Resolution 0.03 °C or better
Sample Memory 8,000 samples
Sampling Rate Minimum: Once every second

Maximum: Once every 18 hours

Auto PDF & Email Delivery (Boomerang Feature) Yes
LCD Four-digit, 7-segment LCD with decimal point
LED Yes, for alarm and sampling indication
PC Interface Direct USB
Battery Type Replaceable CR2032 3V lithium battery
Battery Life ~ 1.5 years depending on sampling rate and operating conditions
Dimensions 11 x 3.9 x 2.6 cm
Weight 45.5 g
Wall Mount Logger cradle accessory provided
Operating Environment -40 to 80 °C
Standards Compliance 21 CFR Part 11, CE, EN12830, IP67

Solutions:

  • Agriculture
  • Cold Chain
  • Food
  • Heavy Industry Productions
  • Hospital Health
  • Museums
  • Pharmaceutical
  • Warehouses Storage

DataSuite for MicroLite User Guide (pdf file, opens in new tab)
MicroLite Quick Start Guide (pdf file, opens in new tab)|
DatPass CFR User Guide (pdf file, opens in new tab)
DataSuite CFR and DatPass Validation Guide (pdf file, opens in new tab)
Weboomerang User Guide (pdf file, opens in new tab)

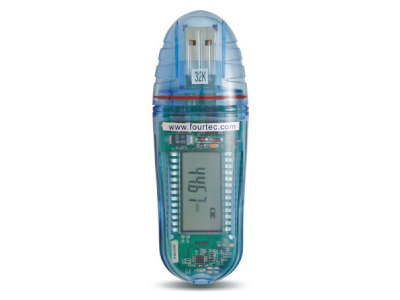

LITE5032P-RH-A – MicroLite USB Temperature and Humidity Logger


This MicroLite logger measures temperature, relative humidity and dew point over a range of -40 to 80 ˚C and 5 to 95 %.
LITE5032P-RH-A - MicroLite USB Temperature and Humidity Logger
Click here to show/ hide more info

LITE5032P-RH-A - MicroLite USB Temperature and Humidity Logger

With a 32,000 sample cyclic memory, the MicroLite Temp/RH logger features a USB interface for easy connection to a PC for user configuration, data download and sensor calibration using the free Windows-based DataSuite data analysis software.

You can setup low and high alarm thresholds and view the logger data (including dew point) on the 4-digit LCD, which scrolls between the current and minimum/maximum readings. The LED provides additional sample and alarm indication in the event the LCD is off due to the MicroLite’s power save mode.

The logger is designed for both portable and stationary multi-use operation with a replaceable 3V coin battery lasting up to 1.5 years, depending on the operating conditions.

Together with the DataSuite software the MicroLite Temp/RH is also 21 CFR Part 11 compliant.

Key product Benefits:

  • Measurement range of -40 to 80 °C, 5 to 95 % (RH accuracy of 2%)
  • Direct USB interface for setup, alarm  and data download
  • Supporting Boomerang feature for automatic emailing of PDF report on PC connection
  • Multiple activation modes: Timer, Push to Run, Immediate
  • LED for alarm and sampling indication
  • Four-digit LCD with decimal point
  • 32K cyclic sample memory
  • Free DataSuite software supporting data analysis and device setup
  • Dust and water resistant, IP54

Specifications:

Temperature Range -40 to 80 °C
Temperature Accuracy ± 0.3 °C
Temperature Resolution 0.03 °C or better
Humidity Range 5 to 95%
Humidity Accuracy ± 2% RH
Humidity Resolution 0.05% RH
Dew Point Yes
Sample Memory 32,000
Sampling Rate Minimum: Once every second

Maximum: Once every 18 hours

Auto PDF & Email Delivery (Boomerang Feature) Yes
LCD Four-digit, 7-segment LCD with decimal point
LED Yes, for alarm and sampling indication
PC Interface Direct USB
Battery Type Replaceable CR2032 3V lithium battery
Battery Life ~ 1.5 years depending on sampling rate and operating conditions
Dimensions 11 x 3.9 x 3 cm
Weight 45.5 g
Wall Mount Logger cradle accessory provided
Operating Environment -40 to 80 °C
Standards Compliance 21 CFR Part 11, CE, EN12830, IP54



Solutions:

  • Agriculture
  • Cold Chain
  • Food
  • Heavy Industry Productions
  • Hospital Health
  • Museums
  • Pharmaceutical
  • Warehouses Storage

DataSuite for MicroLite User Guide (pdf file, opens in new tab)
MicroLite Quick Start Guide (pdf file, opens in new tab)|
DatPass CFR User Guide (pdf file, opens in new tab)
DataSuite CFR and DatPass Validation Guide (pdf file, opens in new tab)
Weboomerang User Guide (pdf file, opens in new tab)

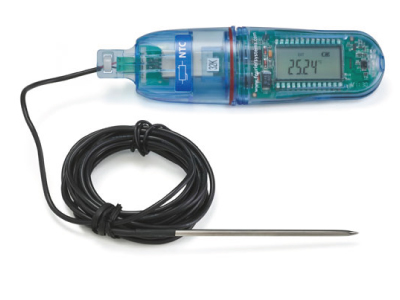

LITE5032P-EXT-A – MicroLite USB Logger with External Temperature Probe


This MicroLite logger connects to an external temperature probe measuring over a range of -50 to 150 ˚C (-58 to 302 °F), with accuracy of ±0.3 ˚C.
LITE5032P-EXT-A - MicroLite USB Logger with External Temperature Probe
Click here to show/ hide more info

LITE5032P-EXT-A - MicroLite USB Logger with External Temperature Probe

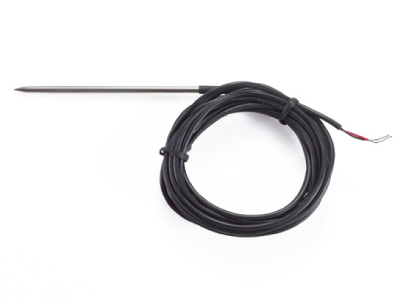

The probe itself is 10 cm long and 3.2 mm in diameter with a cable length of 2.5 m. Offering a 32,000 sample cyclic memory, the MicroLite External Temp logger features a USB interface for easy connection to a PC for user configuration, data download and sensor calibration using the free Windows-based DataSuite data analysis software.

You can setup low and high alarm thresholds and view the logger data on the 4-digit LCD, which scrolls between the current and minimum/maximum readings. The LED provides additional sample and alarm indication in the event the LCD is off due to the MicroLite’s power save mode.

The logger is designed for both portable and stationary multi-use operation with a replaceable 3V coin battery lasting up to 1.5 years, depending on the operating conditions.

Together with the DataSuite software the MicroLite External Temp logger is also 21 CFR Part 11 compliant.

Key product Benefits:

  • Measurement range of -50 to 150 °C
  • Direct USB interface for setup, alarm  and data download
  • Supporting Boomerang feature for automatic emailing of PDF report on PC connection
  • Multiple activation modes: Timer, Push to Run, Immediate
  • LED for alarm and sampling indication
  • Four-digit LCD with decimal point
  • 32K cyclic sample memory
  • Free DataSuite software supporting data analysis and device setup
  • Dust and water resistant, IP54

Specifications:

Temperature Range -50 to 150 °C
Temperature Accuracy ± 0.3˚C

(after calibration with Fourtec Temperature probe)

Temperature Resolution 0.02 °C or better
Sample Memory 32,000
Sampling Rate Minimum: Once every second

Maximum: Once every 18 hours

Auto PDF & Email Delivery (Boomerang Feature) Yes
LCD Four-digit, 7-segment LCD with decimal point
LED Yes, for alarm and sampling indication
PC Interface Direct USB
Battery Type Replaceable CR2032 3V lithium battery
Battery Life ~ 1.5 years depending on sampling rate and operating conditions
Dimensions 14 x 3.9 x 2.6 cm
Weight 45.5 g
Wall Mount Logger cradle accessory provided
Operating Environment -40 to 80 °C
Standards Compliance 21 CFR Part 11, CE, EN12830, IP54

Solutions:

  • Agriculture
  • Cold Chain
  • Food
  • Heavy Industry Productions
  • Hospital Health
  • Museums
  • Pharmaceutical
  • Warehouses Storage

DataSuite for MicroLite User Guide (pdf file, opens in new tab)
MicroLite Quick Start Guide (pdf file, opens in new tab)|
DatPass CFR User Guide (pdf file, opens in new tab)
DataSuite CFR and DatPass Validation Guide (pdf file, opens in new tab)
Weboomerang User Guide (pdf file, opens in new tab)

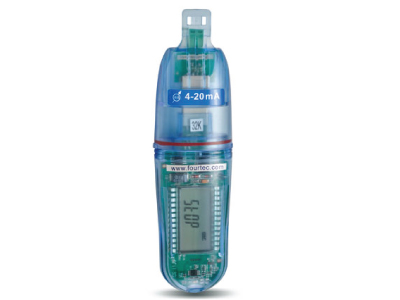

LITE5032P-4/20-A – MicroLite USB 4-20 mA Current Logger


This MicroLite logger measures current over a range of 4 to 20 mA, with accuracy of ±20 µA.
LITE5032P-4/20-A - MicroLite USB 4-20 mA Current Logger
Click here to show/ hide more info

LITE5032P-4/20-A - MicroLite USB 4-20 mA Current Logger

Offering a 32,000 sample cyclic memory, the MicroLite Current logger features a USB interface for easy connection to a PC for user configuration, data download and sensor calibration using the free Windows-based DataSuite data analysis software.

The logger’s external input includes two screw terminals for easy wire-up, with scalable units supported by the software and device LCD. You can setup low and high alarm thresholds and view the logger data on the 4-digit LCD, which scrolls between the current and minimum/maximum readings. The LED provides additional sample and alarm indication in the event the LCD is off due to the MicroLite’s power save mode.

The logger is designed for both portable and stationary multi-use operation with a replaceable 3V coin battery lasting up to 1.5 years, depending on the operating conditions.

Together with the DataSuite software the MicroLite External Temp logger is also 21 CFR Part 11 compliant.

Key product Benefits:

  • Measurement range of 4 to 20 mA
  • Direct USB interface for setup, alarm and data download
  • Supporting Boomerang feature for automatic emailing of PDF report on PC connection
  • Multiple activation modes: Timer, Push to Run, Immediate
  • LED for alarm and sampling indication
  • Four-digit LCD with decimal point
  • 32K cyclic sample memory
  • Free DataSuite software supporting data analysis and device setup
  • Dust and water resistant, IP54

Specifications:

Current Range 4 to 20 mA
Current Accuracy ±20 µA
Current Resolution 1 µA (logger display)

5 µA (logger software)

Maximum Load 25 mA, 3 V
Sample Memory 32,000
Sampling Rate Minimum: Once every second

Maximum: Once every 18 hours

Auto PDF & Email Delivery (Boomerang Feature) Yes
LCD Four-digit, 7-segment LCD with decimal point
LED Yes, for alarm and sampling indication
PC Interface Direct USB
Battery Type Replaceable CR2032 3V lithium battery
Battery Life ~ 1.5 years depending on sampling rate and operating conditions
Dimensions 14 x 3.9 x 2.6 cm
Weight 45.5 g
Wall Mount Logger cradle accessory provided
Operating Environment -40 to 80 °C
Standards Compliance 21 CFR Part 11, CE, EN12830, IP54
Temperature Range -50 to 150 °C
Temperature Accuracy ± 0.3˚C

(after calibration with Fourtec Temperature probe)

Temperature Resolution 0.02 °C or better
Sample Memory 32,000
Sampling Rate Minimum: Once every second

Maximum: Once every 18 hours

Auto PDF & Email Delivery (Boomerang Feature) Yes
LCD Four-digit, 7-segment LCD with decimal point
LED Yes, for alarm and sampling indication
PC Interface Direct USB
Battery Type Replaceable CR2032 3V lithium battery
Battery Life ~ 1.5 years depending on sampling rate and operating conditions
Dimensions 14 x 3.9 x 2.6 cm
Weight 45.5 g
Wall Mount Logger cradle accessory provided
Operating Environment -40 to 80 °C
Standards Compliance 21 CFR Part 11, CE, EN12830, IP54



Solutions:

  • Agriculture
  • Cold Chain
  • Food
  • Heavy Industry Productions
  • Hospital Health
  • Museums
  • Pharmaceutical
  • Warehouses Storage

DataSuite for MicroLite User Guide (pdf file, opens in new tab)
MicroLite Quick Start Guide (pdf file, opens in new tab)|
DatPass CFR User Guide (pdf file, opens in new tab)
DataSuite CFR and DatPass Validation Guide (pdf file, opens in new tab)
Weboomerang User Guide (pdf file, opens in new tab)

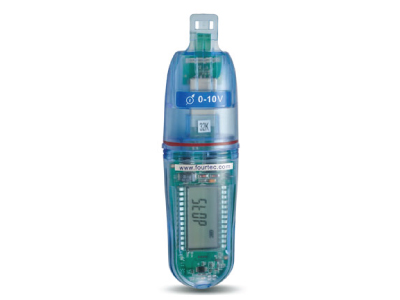

LITE5032P-V-A – MicroLite USB 0-10 V Voltage Logger


This MicroLite logger measures voltage over a range of 0 to 10 Vdc, with accuracy of ±5 mV.
LITE5032P-V-A - MicroLite USB 0-10 V Voltage Logger
Click here to show/ hide more info

LITE5032P-V-A - MicroLite USB 0-10 V Voltage Logger

Offering a 32,000 sample cyclic memory, the MicroLite Voltage logger features a USB interface for easy connection to a PC for user configuration, data download and sensor calibration using the free Windows-based DataSuite data analysis software.

The logger’s external input includes two screw terminals for easy wire-up, with scalable units supported by the software and device LCD. You can setup low and high alarm thresholds and view the logger data on the 4-digit LCD, which scrolls between the current and minimum/maximum readings. The LED provides additional sample and alarm indication in the event the LCD is off due to the MicroLite’s power save mode.

The logger is designed for both portable and stationary multi-use operation with a replaceable 3V coin battery lasting up to 1.5 years, depending on the operating conditions.

Together with the DataSuite software the MicroLite External Temp logger is also 21 CFR Part 11 compliant.

Key product Benefits:

  • Measurement range of 0 to 10 Vdc
  • Direct USB interface for setup, alarm and data download
  • Supporting Boomerang feature for automatic emailing of PDF report on PC connection
  • Multiple activation modes: Timer, Push to Run, Immediate
  • LED for alarm and sampling indication
  • Four-digit LCD with decimal point
  • 32K cyclic sample memory
  • Free DataSuite software supporting data analysis and device setup
  • Dust and water resistant, IP54

Specifications:

Voltage Range 0 to 10 Vdc



Voltage Accuracy ±5 mV
Voltage Resolution 1 mV (logger display)

4 mV (software display)

Maximum Load 12 V
Sample Memory 32,000
Sampling Rate Minimum: Once every second

Maximum: Once every 18 hours

Auto PDF & Email Delivery (Boomerang Feature) Yes
LCD Four-digit, 7-segment LCD with decimal point
LED Yes, for alarm and sampling indication
PC Interface Direct USB
Battery Type Replaceable CR2032 3V lithium battery
Battery Life ~ 1.5 years depending on sampling rate and operating conditions
Dimensions 14 x 3.9 x 2.6 cm
Weight 45.5 g
Wall Mount Logger cradle accessory provided
Operating Environment -40 to 80 °C
Standards Compliance 21 CFR Part 11, CE, EN12830, IP54

Solutions:

  • Agriculture
  • Cold Chain
  • Food
  • Heavy Industry Productions
  • Hospital Health
  • Museums
  • Pharmaceutical
  • Warehouses Storage

DataSuite for MicroLite User Guide (pdf file, opens in new tab)
MicroLite Quick Start Guide (pdf file, opens in new tab)|
DatPass CFR User Guide (pdf file, opens in new tab)
DataSuite CFR and DatPass Validation Guide (pdf file, opens in new tab)
Weboomerang User Guide (pdf file, opens in new tab)

Accessories and Software

Accessories

DT332N – External Temperature Needle Probe


External NTC Temperature Sensor with Needle probe – suits DNL808A and MicroLite EXT.
External Temperature Needle Probe - DT332N
Click here to show/ hide more info

External Temperature Needle Probe - DT332N

The NTC temperature probe connects to the external input of the data loggers, Mini DataNet wireless temperature (DNL808A-BXT) and MicroLite external temperature LITE5032P-EXT-A to support measurement over a range of -50 to 150 °C. The probe has a rapid temperature response time, 2.5 m cable length and 3.2 mm diameter, with its stainless steel needle tip, is suitable for multiple applications including food, liquids and ambient monitoring.

When connected to the supported data logger, the probe readings can also be calibrated using the DataSuite for DataNet software.

One NTC temperature probe is supplied with each purchase of the Mini DataNet DNL808A-BXT and MicroLite LITE5032P-EXT-A data loggers, but additional probes may be purchased from your Fourtec distributor.

Specifications:

Temperature sensor type: NTC 10kΩ
Temperature sensor range: -50 to 150 °C
Probe type / length / diameter: Stainless steel / 100 mm / 3.2 mm
Probe tip: Needle
Cable type and length: PVC, 2.5 m
Cable temperature range: -40 to 105 °C
Connector type: Universal 2-wire connector

11597 – Replacement MicroLite Activation Magnet


The magnet key is supplied with every MicroLite purchase, inside the logger packaging.
Replacement MicroLite Activation Magnet
Click here to show/ hide more info

Replacement MicroLite Activation Magnet

The magnet key is supplied with every MicroLite purchase, inside the logger packaging. It is used to operate the MicroLite’s reed relay for activating the logger as well as stopping it and marking time stamps. Replacement magnet keys are available from Fourtec.

50115 – MicroLite Plastic Wall Mount + Screws


Microlite Wall Mounting Bracket, including screws & anchors
MicroLite Plastic Wall Mount + Screws
Click here to show/ hide more info

MicroLite Plastic Wall Mount + Screws

Included is one plastic wall mount with two sets of screws and anchors, for securing the MicroLite data logger to a wall or other stationary surface during operation. This accessories kit is included in each original MicroLite packaging but you may also purchase a replacement kit from your Fourtec distributor.

Software

DataSuite-CFR – DatPass CFR Admin Software for MicroLite


Note: DataSuite for MicroLite software is a free download from www.fourtec.com
DataSuite CFR software module (for MicroLite), meeting 21 CFR Part 11 compliance
DataSuite-CFR - DataSuite CFR software module for MicroLite
Click here to show/ hide more info

DataSuite-CFR - DataSuite CFR software module for MicroLite

DatPass is Fourtec’s administration management software, integrating with the DataSuite and MicroLab applications to help achieve FDA 21 CFR Part 11 and GAMP 5 compliancy for a range of Fourtec data logging systems, including the MicroLite.

The DatPass database, installed on a local PC or network, maintains an audit trail that automatically records all user activity within DatPass and DataSuite software, including date and time stamp, login details, input alarms details, and so on. The DatPass administrator can view the audit trail on screen or print any part of it in order to keep hard copy records.

DatPass is also used to manage all user access to the supported systems, including user login parameters, group and user privileges for relevant software functionality, digital signatures the users are permitted to sign data within electronic records, and other key CFR requirements.

The DatPass software package is also supplied with extensive operation and validation manuals to help users meet strict industry regulations.

Specifications:

Product Part Number: DataSuite-CFR
Software Activation: User must activate software using unique serial number purchased from Fourtec. 30-day trial period also available.
Order shipped with: Software CD for DatPass and DataSuite installation
System Requirements
  • Windows XP SP3, Vista, 7 (32 and 64-bit)
  • Pentium 4 2.0 GHz or better
  • 512 MB RAM
  • 250 MB available disk space

DatPass CFR Admin User Guide (pdf file, opens in new tab)
DatPass Software Release Notes (pdf file, opens in new tab)
DatPass and DataSuite CFR validation manual (pdf file, opens in new tab)
