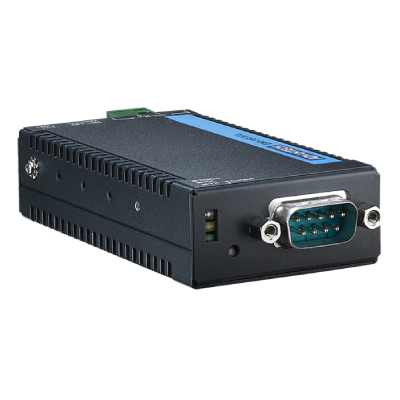

EKI-1511L


1-Port RS-232 Serial Device Server
EKI-1511IL_EKI-1511L_EKI-1511-X
Click here to show/ hide more info

EKI-1511IL_EKI-1511L_EKI-1511-X
The EKI-1511 Series focus on the entry level device server market, providing an economic solution that is designed to connect RS-232 or RS-422/485 serial devices such as PLC, meters, sensors, and barcode readers to an IP-based Ethernet LAN. This allows nearly any device with a serial port to connect and share an Ethernet network, while also providing various operations such as COM port redirection (Virtual COMport), TCP server, TCP client, and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the servers, guaranteeing compatibility with legacy serial devices and enabling backward-compatibility with existing software. With TCP server, TCP client, and UDP modes, the EKI-1511 Series ensure compatibility in network software using a standard network API. Serial devices can communicate with other devices via peer-to-peer, thus eliminating the need for an intermediate host PC and software programming.

Features:

  • Provides COM port redirection (Virtual COM), TCP, and UDP operation modes
  • Baud rate: supports up to 230.4 Kbps
  • Maximum of five hosts can access one serial port
  • Maximum of 16 hosts accessed in TCP client mode
  • Built-in 8-kV ESD protection for all serial signals
  • Provides multiple configuration configuration methods including Windows utility, Telnet console, and web browser
  • Supports 32/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2012, and Linux
  • 1 x 10/100 Mbps Ethernet port

Specifications:

Ethernet Communications
Compatibility IEEE 802.3, IEEE 802.3u
Speed 10/100 Mbps
No. of Ports 1
Port Connector 8-pin RJ45
Protection Built-in 2.25 k VDC magnetic isolation

Serial Communications
Port Type L: RS-232
  X: RS-422/485
No. of Ports 1
Port Connector DB9 male
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Odd, Even, Space, Mark
Flow Control XON/XOFF, RTS/CTS
Baud Rate 300 bps ~ 230.4 kbps
Serial Signals

RS-232: TxD, RxD, CTS, RTS, GND

RS-422: TxD+, TxD-, RxD+, RxD-, GND

RS-485 2-wire: Data+, Data-, GND

RS-485 4-wire: TxD+, TxD-, RxD+, RxD- GND

Protection Built-in 8 KV ESD for all signals

Software
Driver Support

32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10,

Windows Server 2003/2008/2012, and Linux

Operation Modes COM port redirection mode (Virtual COM)
  TCP/UDP server (polling) mode TCP/UDP client (event handling) mode Pair connection (peer to peer) mode
Configuration Windows utility, Telnet console, Web Browser
Management SNMP MIB-II
Protocols ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS, SMTP, ARP, NTP

Mechanics
Dimensions (W x H x D) 46 x 85.1 x 21.2 mm (1.81″ x 3.35′ x 0.83′)
Enclosure Metal with solid mounting hardware
Mounting DIN-rail, Wall
Weight 0.127 kg

General
LED Indicators

System: Power, System Status/LAN: Speed, Link/Active

Serial: Tx, Rx


Power Requirements
Input 9 ~ 36 VDC
Connector Terminal block
Consumption 1 W

Environment
Operating Temperature

-10 ~ 60 °C (14 ~ 140 °F)

I’ models: -40 ~ 75 °C (-40 ~ 167 °F)

Storage Temperature -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity 10 ~ 95% RH

Regulatory Approvals
EMC CE, FCC Part 15 Subpart B (Class A)


Datasheet on EKI-1511L – 1-Port RS-232 Serial Device Server (pdf, opens in a new tab)

EKI-1511IL


1-Port RS-232 Serial Device Server with Wide Operating Temperature
EKI-1511IL_EKI-1511L_EKI-1511-X
Click here to show/ hide more info

EKI-1511IL_EKI-1511L_EKI-1511-X
The EKI-1511 Series focus on the entry level device server market, providing an economic solution that is designed to connect RS-232 or RS-422/485 serial devices such as PLC, meters, sensors, and barcode readers to an IP-based Ethernet LAN. This allows nearly any device with a serial port to connect and share an Ethernet network, while also providing various operations such as COM port redirection (Virtual COMport), TCP server, TCP client, and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the servers, guaranteeing compatibility with legacy serial devices and enabling backward-compatibility with existing software. With TCP server, TCP client, and UDP modes, the EKI-1511 Series ensure compatibility in network software using a standard network API. Serial devices can communicate with other devices via peer-to-peer, thus eliminating the need for an intermediate host PC and software programming.

Features:

  • Provides COM port redirection (Virtual COM), TCP, and UDP operation modes
  • Baud rate: supports up to 230.4 Kbps
  • Maximum of five hosts can access one serial port
  • Maximum of 16 hosts accessed in TCP client mode
  • Built-in 8-kV ESD protection for all serial signals
  • Provides multiple configuration configuration methods including Windows utility, Telnet console, and web browser
  • Supports 32/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2012, and Linux
  • 1 x 10/100 Mbps Ethernet port
  • Supports wide operating temperature: -40 ~ 75 °C (-40 ~ 167 °F)

Specifications:

Ethernet Communications
Compatibility IEEE 802.3, IEEE 802.3u
Speed 10/100 Mbps
No. of Ports 1
Port Connector 8-pin RJ45
Protection Built-in 2.25 k VDC magnetic isolation

Serial Communications
Port Type L: RS-232
  X: RS-422/485
No. of Ports 1
Port Connector DB9 male
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Odd, Even, Space, Mark
Flow Control XON/XOFF, RTS/CTS
Baud Rate 300 bps ~ 230.4 kbps
Serial Signals

RS-232: TxD, RxD, CTS, RTS, GND

RS-422: TxD+, TxD-, RxD+, RxD-, GND

RS-485 2-wire: Data+, Data-, GND

RS-485 4-wire: TxD+, TxD-, RxD+, RxD- GND

Protection Built-in 8 KV ESD for all signals

Software
Driver Support

32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10,

Windows Server 2003/2008/2012, and Linux

Operation Modes COM port redirection mode (Virtual COM)
  TCP/UDP server (polling) mode TCP/UDP client (event handling) mode Pair connection (peer to peer) mode
Configuration Windows utility, Telnet console, Web Browser
Management SNMP MIB-II
Protocols ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS, SMTP, ARP, NTP

Mechanics
Dimensions (W x H x D) 46 x 85.1 x 21.2 mm (1.81″ x 3.35′ x 0.83′)
Enclosure Metal with solid mounting hardware
Mounting DIN-rail, Wall
Weight 0.127 kg

General
LED Indicators

System: Power, System Status/LAN: Speed, Link/Active

Serial: Tx, Rx


Power Requirements
Input 9 ~ 36 VDC
Connector Terminal block
Consumption 1 W

Environment
Operating Temperature

-10 ~ 60 °C (14 ~ 140 °F)

I’ models: -40 ~ 75 °C (-40 ~ 167 °F)

Storage Temperature -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity 10 ~ 95% RH

Regulatory Approvals
EMC CE, FCC Part 15 Subpart B (Class A)


Datasheet on EKI-1511IL – 1-Port RS-232 Serial Device Server with Wide Operating Temperature (pdf, opens in a new tab)

EKI-1511X


1-port RS-422/485 Serial Device Server



EKI-1511X - 1-port RS-422/485 Serial Device Server
Click here to show/ hide more info

EKI-1511X - 1-port RS-422/485 Serial Device Server
The EKI-1511 Series focus on the entry level device server market, providing an economic solution that is designed to connect RS-232 or RS-422/485 serial devices such as PLC, meters, sensors, and barcode readers to an IP-based Ethernet LAN. This allows nearly any device with a serial port to connect and share an Ethernet network, while also providing various operations such as COM port redirection (Virtual COMport), TCP server, TCP client, and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the servers, guaranteeing compatibility with legacy serial devices and enabling backward-compatibility with existing software. With TCP server, TCP client, and UDP modes, the EKI-1511 Series ensure compatibility in network software using a standard network API. Serial devices can communicate with other devices via peer-to-peer, thus eliminating the need for an intermediate host PC and software programming.

Features:

  • 1 x 10/100 Mbps Ethernet port
  • Provides COM port redirection (Virtual COM), TCP, and UDP operation modes
  • Baud rate: supports up to 230.4 Kbps
  • Maximum of five hosts can access one serial port
  • Maximum of 16 hosts accessed in TCP client mode
  • Built-in 8-kV ESD protection for all serial signals
  • Provides multiple configuration configuration methods including Windows utility, Telnet console, and web browser
  • Supports 32/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2012, and Linux
  • “I” models support a wide operating temperature

Specifications:

Ethernet Communications
Compatibility IEEE 802.3, IEEE 802.3u
Speed 10/100 Mbps
No. of Ports 1
Port Connector 8-pin RJ45
Protection Built-in 2.25 k VDC magnetic isolation

Serial Communications
Port Type L: RS-232
  X: RS-422/485
No. of Ports 1
Port Connector DB9 male
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Odd, Even, Space, Mark
Flow Control XON/XOFF, RTS/CTS
Baud Rate 300 bps ~ 230.4 kbps
Serial Signals

RS-232: TxD, RxD, CTS, RTS, GND

RS-422: TxD+, TxD-, RxD+, RxD-, GND

RS-485 2-wire: Data+, Data-, GND

RS-485 4-wire: TxD+, TxD-, RxD+, RxD- GND

Protection Built-in 8 KV ESD for all signals

Software
Driver Support

32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10,

Windows Server 2003/2008/2012, and Linux

Operation Modes COM port redirection mode (Virtual COM)
  TCP/UDP server (polling) mode TCP/UDP client (event handling) mode Pair connection (peer to peer) mode
Configuration Windows utility, Telnet console, Web Browser
Management SNMP MIB-II
Protocols ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS, SMTP, ARP, NTP

Mechanics
Dimensions (W x H x D) 46 x 85.1 x 21.2 mm (1.81″ x 3.35′ x 0.83′)
Enclosure Metal with solid mounting hardware
Mounting DIN-rail, Wall
Weight 0.127 kg

General
LED Indicators

System: Power, System Status/LAN: Speed, Link/Active

Serial: Tx, Rx


Power Requirements
Input 9 ~ 36 VDC
Connector Terminal block
Consumption 1 W

Environment
Operating Temperature

-10 ~ 60 °C (14 ~ 140 °F)

I’ models: -40 ~ 75 °C (-40 ~ 167 °F)

Storage Temperature -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity 10 ~ 95% RH

Regulatory Approvals
EMC CE, FCC Part 15 Subpart B (Class A)


Datasheet on EKI-1511X – 1-port RS-422/485 Serial Device Server (pdf, opens in a new tab)

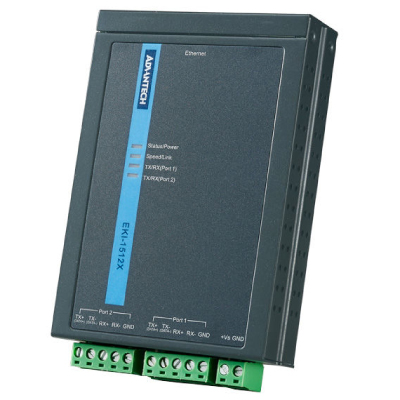

EKI-1512X


12-port RS-422/485 Serial Device Server



EKI-1512X - 12-port RS-422/485 Serial Device Server
Click here to show/ hide more info

EKI-1512X - 12-port RS-422/485 Serial Device Server
The EKI-1511X and EKI-1512X are serial device servers which connect RS-422/485 serial devices, such as PLC, meters, and sensors to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1511X and EKI-1512X provide various operation modes: COM port redirection (Virtual COM port), TCP server, TCP Client, and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1511X and EKI-1512X, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client and UDP modes, the EKI-1511X and EKI-1512X ensure the compatibility of network software that uses a standard network API. Moreover you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming. With a compact and slim IP30 metal case, EKI-1511X and EKI-1512X can be installed into a field cabinet easily. EKI-1511X and EKI-1512X provide terminal block connector for RS-422/485 that user can setup the physical wiring without any manually made connector. And with EMC level 3 protection, EKI-1511X and EKI-1512X can work in harsher working environments than other serial device servers.

Features:

  • Compact, slim designed IP30 metal case
  • EMC Level 3 protection
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Supports up to 921.6 kbps, and any baud rate setting
  • Configuration utility supports 32-bit/64-bit Windows XP/7/8/8.1, Windows Server 2003/2008/2008 R2/2012/2012 R2/2016, and Linux
  • Automatic RS-485 data flow control
  • Terminal block for easy wiring

Specifications:

Ethernet Communications
Compatibility IEEE 802.3, IEEE 802.3u
Speed 10/100 Mbps, auto-sensing
No. of Ports 1
Port Connector RJ45
Protection Built-in 1.5 KV magnetic isolation

Serial Communications
Port Type RS-422/485, software selectable
No. of Ports EKI-1511X: 1 EKI-1512X: 2
Port Connector Terminal Block
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Odd, Even, Space, Mark
Flow Control XON/XOFF, RTS/CTS
Baud Rate 50 bps ~ 921.6 kbps, any baud rate setting
Serial Signals RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485: Data+, Data-, GND
Protection Built-in 15 KV ESD for all signals

Software
Driver Support 32-bit/64-bit Windows XP/7/8/8.1, Windows Server 2003/2008/2008 R2/2012/2012 R2 and Linux
Operation Modes COM port redirection mode (Virtual COM)


TCP/UDP server (polling) mode

TCP/UDP client (event handling) mode

Pair connection (peer to peer) mode

Configuration Windows utility, Web Browser

Mechanics
Dimensions (W x H x D) 85 x 120 x 26 mm (3.35″ x 4.72″ x 1.02″)
Enclosure Metal with solid mounting hardware
Mounting Wall
Weight EKI-1511X: 250g EKI-1512X: 275g

General
LED Indicators System: Power, System Status
LAN: Speed, Link/Active Serial: Tx, Rx

Power Requirements
Input 10 ~ 30 VDC
Connector Terminal block
Consumption EKI-1511X: 2.5 W EKI-1512X: 2.5 W

Environment
Operating Temperature -10 ~ 60°C (14 ~ 140°F)
Storage Temperature -40 ~ 85°C (-40 ~ 185°F)
Operating Humidity 10 ~ 95% RH
Regulatory Approvals
EMC CE, FCC Part 15 Subpart B (Class A)

Datasheet on EKI-1512X – 12-port RS-422/485 Serial Device Server (pdf, opens in a new tab)

EKI-1521


1-port RS-232/422/485 Serial Device Server

EKI-1521 - 1-port RS-232/422/485 Serial Device Server
Click here to show/ hide more info

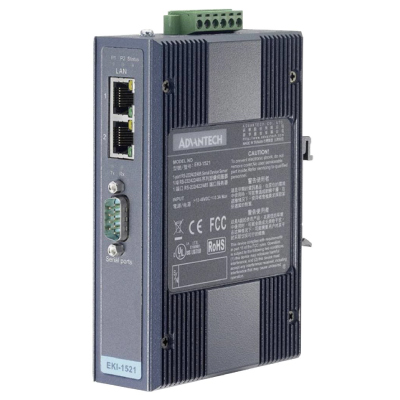

EKI-1521 - 1-port RS-232/422/485 Serial Device Server
EKI-1521, EKI-1522 and EKI-1524 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. EKI-1521, EKI-1522 and EKI-1524 are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1521, EKI-1522 and EKI-1524 provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1521, EKI-1522 and EKI-1524, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI- 1521, EKI-1522 and EKI-1524 ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.

Features:

  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Supports up to 921.6 kbps, and any baud rate setting
  • Allows a max. of 5 hosts to access one serial port
  • Allows a max. of 16 hosts to be accessed as TCP client mode
  • Built-in 15 KV ESD protection for all serial signals
  • Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
  • Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server2003/2008/2012/2016, and Linux
  • Automatic RS-485 data flow control
  • Supports line to line 2 KV, line to ground 4 KV surge protection

Specifications:

Ethernet Communications
Compatibility IEEE 802.3, IEEE 802.3u
Speed 10/100 Mbps
No. of Ports 2
Port Connector 8-pin RJ45
Protection Built-in 2.25 k VDC magnetic isolation

Serial Communications
Port Type RS-232/422/485-2w/485-4w, software selectable (EKI-1524CI-CE supports RS-422/485 only)
No. of Ports

EKI-1521: 1

EKI-1522: 2

EKI-1524: 4

Port Connector DB9 male
EKI-1521CI-DE; EKI-1522CI-DE also provide Terminal Block
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Odd, Even, Space, Mark
Flow Control XON/XOFF, RTS/CTS
Baud Rate 50 bps ~ 921.6 kbps, any baud rate setting
Serial Signals [CE Version]
RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND, DTR, DSR RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485 2-wire: Data+, Data-, GND
[DE Version]
DB9:
RS-232 isolation: TxD, RxD, CTS, RTS, GND
RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND, DTR, DSR
Terminal Block ( From top to bottom): RS-422: GND, RxD-, RxD+, TxD+, TxD- RS-485 2-wire: GND, NC, NC, TxD+, TxD-
RS-485 4-wire: GND, RxD-, RxD+, TxD+, TxD-
Protection Built-in 15 KV ESD for all signals

Software
Driver Support Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Operation Modes COM port redirection mode (Virtual COM)
  TCP/UDP server (polling) mode
  TCP/UDP client (event handling) mode
Configuration Windows utility, Telnet console, Web Browser
Pair connection (peer to peer) mode
Management SNMP MIB-II
Protocols ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS,
SMTP, ARP, NTP

Mechanics
Dimensions (W x H x D) EKI-1521/I-CE; EKI-1521CI-DE; EKI-1522/I-CE;
EKI-1522CI-DE: 30 x 140 x 95 mm (1.18″ x 5.51″ x 3.74″)
EKI-1524/CI/I-CE: 42 x 140 x 95 mm (1.65″ x 5.51″ x 3.74″)
Enclosure Metal with solid mounting hardware
Mounting DIN-rail, Wall
Weight EKI-1521/I-CE; EKI-1522/I-CE: 0.432Kg
EKI-1521CI-DE; EKI-1522CI-DE: 0.45kg
EKI-1524/CI/I-CE: 0.537Kg
IP Rating IP30

 General
LED Indicators System: Power, System Status/LAN: Speed, Link/Active Serial: Tx, Rx

Power Requirements
Input 12 ~ 48 VDC, redundant dual inputs
Connector Terminal block
Consumption EKI-1521: 3.2 W
EKI-1522: 3.2 W
EKI-1524: 4.1 W

Environment
Operating Temperature EKI-1521/EKI-1522/EKI-1524: -10 ~ 60 °C (14 ~ 140 °F)
‘CI & I’ models: -40 ~ 80 °C (-40 ~ 176 °F)
Storage Temperature -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity 10 ~ 95% RH

Regulatory Approvals
EMC CE, FCC Part 15 Subpart B (Class A)
Hazardous location UL/cUL (Class I, Division 2, Groups A, B, C and D), ATEX (Zone 2
Ex nA nC IIC T4 Gc)

Port to Port Isolation (‘CI’ models)
Serial to Ethernet 2.25 k VDC
Serial to Power 2 k VDC
Ethernet to Power 2.25 k VDC


Datasheet on EKI-1521 – 1-port RS-232/422/485 Serial Device Server (pdf, opens in a new tab)

EKI-1521I


1-port RS-232/422/485 Serial Device Server – Wide Temperature

EKI-1521I - 1-port RS-232/422/485 Serial Device Server - Wide Temperature
Click here to show/ hide more info

EKI-1521I - 1-port RS-232/422/485 Serial Device Server - Wide Temperature
EKI-1521, EKI-1522 and EKI-1524 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. EKI-1521, EKI-1522 and EKI-1524 are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1521, EKI-1522 and EKI-1524 provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1521, EKI-1522 and EKI-1524, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI- 1521, EKI-1522 and EKI-1524 ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.

Features:

  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Supports up to 921.6 kbps, and any baud rate setting
  • Allows a max. of 5 hosts to access one serial port
  • Allows a max. of 16 hosts to be accessed as TCP client mode
  • Built-in 15 KV ESD protection for all serial signals
  • Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
  • Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server2003/2008/2012/2016, and Linux
  • Automatic RS-485 data flow control
  • Supports line to line 2 KV, line to ground 4 KV surge protection

Specifications:

Ethernet Communications
Compatibility IEEE 802.3, IEEE 802.3u
Speed 10/100 Mbps
No. of Ports 2
Port Connector 8-pin RJ45
Protection Built-in 2.25 k VDC magnetic isolation

Serial Communications
Port Type RS-232/422/485-2w/485-4w, software selectable (EKI-1524CI-CE supports RS-422/485 only)
No. of Ports

EKI-1521: 1

EKI-1522: 2

EKI-1524: 4

Port Connector DB9 male
EKI-1521CI-DE; EKI-1522CI-DE also provide Terminal Block
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Odd, Even, Space, Mark
Flow Control XON/XOFF, RTS/CTS
Baud Rate 50 bps ~ 921.6 kbps, any baud rate setting
Serial Signals [CE Version]
RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND, DTR, DSR RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485 2-wire: Data+, Data-, GND
[DE Version]
DB9:
RS-232 isolation: TxD, RxD, CTS, RTS, GND
RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND, DTR, DSR
Terminal Block ( From top to bottom): RS-422: GND, RxD-, RxD+, TxD+, TxD- RS-485 2-wire: GND, NC, NC, TxD+, TxD-
RS-485 4-wire: GND, RxD-, RxD+, TxD+, TxD-
Protection Built-in 15 KV ESD for all signals

Software
Driver Support Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Operation Modes COM port redirection mode (Virtual COM)
  TCP/UDP server (polling) mode
  TCP/UDP client (event handling) mode
Configuration Windows utility, Telnet console, Web Browser
Pair connection (peer to peer) mode
Management SNMP MIB-II
Protocols ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS,
SMTP, ARP, NTP

Mechanics
Dimensions (W x H x D) EKI-1521/I-CE; EKI-1521CI-DE; EKI-1522/I-CE;
EKI-1522CI-DE: 30 x 140 x 95 mm (1.18″ x 5.51″ x 3.74″)
EKI-1524/CI/I-CE: 42 x 140 x 95 mm (1.65″ x 5.51″ x 3.74″)
Enclosure Metal with solid mounting hardware
Mounting DIN-rail, Wall
Weight EKI-1521/I-CE; EKI-1522/I-CE: 0.432Kg
EKI-1521CI-DE; EKI-1522CI-DE: 0.45kg
EKI-1524/CI/I-CE: 0.537Kg
IP Rating IP30

 General
LED Indicators System: Power, System Status/LAN: Speed, Link/Active Serial: Tx, Rx

Power Requirements
Input 12 ~ 48 VDC, redundant dual inputs
Connector Terminal block
Consumption EKI-1521: 3.2 W
EKI-1522: 3.2 W
EKI-1524: 4.1 W

Environment
Operating Temperature EKI-1521/EKI-1522/EKI-1524: -10 ~ 60 °C (14 ~ 140 °F)
‘CI & I’ models: -40 ~ 80 °C (-40 ~ 176 °F)
Storage Temperature -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity 10 ~ 95% RH

Regulatory Approvals
EMC CE, FCC Part 15 Subpart B (Class A)
Hazardous location UL/cUL (Class I, Division 2, Groups A, B, C and D), ATEX (Zone 2
Ex nA nC IIC T4 Gc)

Port to Port Isolation (‘CI’ models)
Serial to Ethernet 2.25 k VDC
Serial to Power 2 k VDC
Ethernet to Power 2.25 k VDC


Datasheet on EKI-1521I – 1-port RS-232/422/485 Serial Device Server – Wide Temperature (pdf, opens in a new tab)

EKI-1521CI


1-port RS-232/422/485 Serial Device Server – Wide Temperature

EKI-1521CI - 1-port RS-422/485 Serial Device Server - Isolation, Wide Temperature
Click here to show/ hide more info

EKI-1521CI - 1-port RS-422/485 Serial Device Server - Isolation, Wide Temperature
EKI-1521, EKI-1522 and EKI-1524 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. EKI-1521, EKI-1522 and EKI-1524 are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1521, EKI-1522 and EKI-1524 provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1521, EKI-1522 and EKI-1524, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI- 1521, EKI-1522 and EKI-1524 ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.

Features:

  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Supports up to 921.6 kbps, and any baud rate setting
  • Allows a max. of 5 hosts to access one serial port
  • Allows a max. of 16 hosts to be accessed as TCP client mode
  • Built-in 15 KV ESD protection for all serial signals
  • Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
  • Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server2003/2008/2012/2016, and Linux
  • Automatic RS-485 data flow control
  • Supports line to line 2 KV, line to ground 4 KV surge protection

Specifications:

Ethernet Communications
Compatibility IEEE 802.3, IEEE 802.3u
Speed 10/100 Mbps
No. of Ports 2
Port Connector 8-pin RJ45
Protection Built-in 2.25 k VDC magnetic isolation

Serial Communications
Port Type RS-232/422/485-2w/485-4w, software selectable (EKI-1524CI-CE supports RS-422/485 only)
No. of Ports

EKI-1521: 1

EKI-1522: 2

EKI-1524: 4

Port Connector DB9 male
EKI-1521CI-DE; EKI-1522CI-DE also provide Terminal Block
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Odd, Even, Space, Mark
Flow Control XON/XOFF, RTS/CTS
Baud Rate 50 bps ~ 921.6 kbps, any baud rate setting
Serial Signals [CE Version]
RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND, DTR, DSR RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485 2-wire: Data+, Data-, GND
[DE Version]
DB9:
RS-232 isolation: TxD, RxD, CTS, RTS, GND
RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND, DTR, DSR
Terminal Block ( From top to bottom): RS-422: GND, RxD-, RxD+, TxD+, TxD- RS-485 2-wire: GND, NC, NC, TxD+, TxD-
RS-485 4-wire: GND, RxD-, RxD+, TxD+, TxD-
Protection Built-in 15 KV ESD for all signals

Software
Driver Support Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Operation Modes COM port redirection mode (Virtual COM)
  TCP/UDP server (polling) mode
  TCP/UDP client (event handling) mode
Configuration Windows utility, Telnet console, Web Browser
Pair connection (peer to peer) mode
Management SNMP MIB-II
Protocols ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS,
SMTP, ARP, NTP

Mechanics
Dimensions (W x H x D) EKI-1521/I-CE; EKI-1521CI-DE; EKI-1522/I-CE;
EKI-1522CI-DE: 30 x 140 x 95 mm (1.18″ x 5.51″ x 3.74″)
EKI-1524/CI/I-CE: 42 x 140 x 95 mm (1.65″ x 5.51″ x 3.74″)
Enclosure Metal with solid mounting hardware
Mounting DIN-rail, Wall
Weight EKI-1521/I-CE; EKI-1522/I-CE: 0.432Kg
EKI-1521CI-DE; EKI-1522CI-DE: 0.45kg
EKI-1524/CI/I-CE: 0.537Kg
IP Rating IP30

 General
LED Indicators System: Power, System Status/LAN: Speed, Link/Active Serial: Tx, Rx

Power Requirements
Input 12 ~ 48 VDC, redundant dual inputs
Connector Terminal block
Consumption EKI-1521: 3.2 W
EKI-1522: 3.2 W
EKI-1524: 4.1 W

Environment
Operating Temperature EKI-1521/EKI-1522/EKI-1524: -10 ~ 60 °C (14 ~ 140 °F)
‘CI & I’ models: -40 ~ 80 °C (-40 ~ 176 °F)
Storage Temperature -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity 10 ~ 95% RH

Regulatory Approvals
EMC CE, FCC Part 15 Subpart B (Class A)
Hazardous location UL/cUL (Class I, Division 2, Groups A, B, C and D), ATEX (Zone 2
Ex nA nC IIC T4 Gc)

Port to Port Isolation (‘CI’ models)
Serial to Ethernet 2.25 k VDC
Serial to Power 2 k VDC
Ethernet to Power 2.25 k VDC


Datasheet on EKI-1521CI – 1-port RS-422/485 Serial Device Server – Isolation, Wide Temperature (pdf, opens in a new tab)

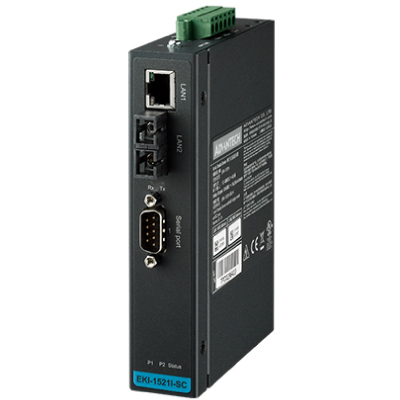

EKI-1521I-SC


1-port Device Server with Fiber and WT

EKI-1521I-SC - 1-port Device Server with Fiber and WT
Click here to show/ hide more info

EKI-1521I-SC - 1-port Device Server with Fiber and WT

The EKI-1521I-SC feature one Ethernet port with RJ45 connector and one fiber port with SC connector to provide a redundant network mechanism that guarantees Ethernet network reliability. These serial device servers are designed to connect RS-232/422/485 serial devices such as PLC, meters, sensors, and barcode readers to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network, while also providing various operations such as COM port redirection (Virtual COMport), TCP server, TCP client, and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the servers, guaranteeing compatibility with legacy serial devices and enabling backward-compatibility with existing software. With TCP server, TCP client, and UDP modes, the EKI- 1521 ensure compatibility in network software using a standard network API. Moreover, serial devices can be made communicate with other devices via peer-to-peer, thus eliminating the need for an intermediate host PC and software programming.

Features:

  • 1 x 10/100 Mbps Ethernet ports and 1 x 100 Mbps Fiber port for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP, and UDP operation modes
  • Supports up to 6 kbps and any baud rate setting
  • Allows a maximum of 5 hosts to access one serial port
  • Allows a maximum of 16 hosts to be accessed in TCP client mode
  • Built-in 15-kV ESD protection for all serial signals
  • Provides rich configuration methods including Windows utility, Telnet console, and web browser
  • Supports 32/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server 2003/2008/2012, and Linux
  • Automatic RS-485 direction control
  • Supports line-to-line (2 kV) and line-to-ground (4 kV) surge protection
  • Support a wide operating temperature

Specifications:

Ethernet Communications
Compatibility IEEE 802.3, IEEE 802.3u
Speed 10/100Base-T(X), 100Base-FX
Port 1 x RJ45 (Ethernet)
1 x SC single mode Fiber
Protection Built-in 2.25 k VDC magnetic isolation

Serial Communications
Port Type RS-232/422/485-2w/485-4w, software selectable
No. of Ports 1
Port Connector DB9 male
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Odd, Even, Space, Mark
Flow Control XON/XOFF, RTS/CTS
Baud Rate 50 bps ~ 921.6 kbps, any baud rate setting
Serial Signals RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND, DTR, DSR
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485 2-wire: Data+, Data-, GND
RS-485 4-wire: TxD+, TxD-, RxD+, RxD-, GND
Protection Built-in 15 KV ESD for all signals

Software
Driver Support 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10,
Windows Server 2003/2008/2012, and Linux
Operation Modes COM port redirection mode (Virtual COM)
  TCP/UDP server (polling) mode TCP/UDP client (event handling) mode Pair connection (peer to peer) mode
Configuration Windows utility, Telnet console, Web Browser
Management SNMP MIB-II
Protocols ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS, SMTP, ARP, NTP

Mechanics
Dimensions (W x H x D) 30 x 140 x 95.3 mm (1.18″ x 5.51″ x 3.75″)
Enclosure Metal with solid mounting hardware
Mounting DIN-rail, Wall
Weight 0.42Kg

General
Reboot Trigger Built-in WDT (watchdog timer)
LED Indicators System: Power, System Status/LAN: Speed, Link/Active
  Fiber: Link/Active Serial: Tx, Rx

Power Requirements
Input 12 ~ 48 VDC, redundant dual inputs
Connector Terminal block
Consumption 4W

Environment
Operating Temperature ‘I’ models: -40 ~ 75 °C (-40 ~ 167 °F)
Storage Temperature -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity 10 ~ 95% RH

Regulatory Approvals
EMC CE, FCC Part 15 Subpart B (Class A)
Hazardous location UL



Datasheet on EKI-1521I-SC – 1-port Device Server with Fiber and WT (pdf, opens in a new tab)

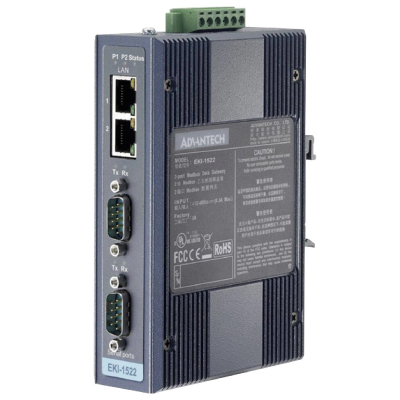

EKI-1522


2-port RS-232/422/485 Serial Device Server

EKI-1522 - 2-port RS-232/422/485 Serial Device Server
Click here to show/ hide more info

EKI-1522 - 2-port RS-232/422/485 Serial Device Server
EKI-1521, EKI-1522 and EKI-1524 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. EKI-1521, EKI-1522 and EKI-1524 are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1521, EKI-1522 and EKI-1524 provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1521, EKI-1522 and EKI-1524, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI- 1521, EKI-1522 and EKI-1524 ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.

Features:

  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Supports up to 921.6 kbps, and any baud rate setting
  • Allows a max. of 5 hosts to access one serial port
  • Allows a max. of 16 hosts to be accessed as TCP client mode
  • Built-in 15 KV ESD protection for all serial signals
  • Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
  • Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server2003/2008/2012/2016, and Linux
  • Automatic RS-485 data flow control
  • Supports line to line 2 KV, line to ground 4 KV surge protection
  •

Specifications:

Ethernet Communications
Compatibility IEEE 802.3, IEEE 802.3u
Speed 10/100 Mbps
No. of Ports 2
Port Connector 8-pin RJ45
Protection Built-in 2.25 k VDC magnetic isolation

Serial Communications
Port Type RS-232/422/485-2w/485-4w, software selectable (EKI-1524CI-CE supports RS-422/485 only)
No. of Ports

EKI-1521: 1

EKI-1522: 2

EKI-1524: 4

Port Connector DB9 male
EKI-1521CI-DE; EKI-1522CI-DE also provide Terminal Block
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Odd, Even, Space, Mark
Flow Control XON/XOFF, RTS/CTS
Baud Rate 50 bps ~ 921.6 kbps, any baud rate setting
Serial Signals [CE Version]
RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND, DTR, DSR RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485 2-wire: Data+, Data-, GND
[DE Version]
DB9:
RS-232 isolation: TxD, RxD, CTS, RTS, GND
RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND, DTR, DSR
Terminal Block ( From top to bottom): RS-422: GND, RxD-, RxD+, TxD+, TxD- RS-485 2-wire: GND, NC, NC, TxD+, TxD-
RS-485 4-wire: GND, RxD-, RxD+, TxD+, TxD-
Protection Built-in 15 KV ESD for all signals

Software
Driver Support Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Operation Modes COM port redirection mode (Virtual COM)
  TCP/UDP server (polling) mode
  TCP/UDP client (event handling) mode
Configuration Windows utility, Telnet console, Web Browser
Pair connection (peer to peer) mode
Management SNMP MIB-II
Protocols ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS,
SMTP, ARP, NTP

Mechanics
Dimensions (W x H x D) EKI-1521/I-CE; EKI-1521CI-DE; EKI-1522/I-CE;
EKI-1522CI-DE: 30 x 140 x 95 mm (1.18″ x 5.51″ x 3.74″)
EKI-1524/CI/I-CE: 42 x 140 x 95 mm (1.65″ x 5.51″ x 3.74″)
Enclosure Metal with solid mounting hardware
Mounting DIN-rail, Wall
Weight EKI-1521/I-CE; EKI-1522/I-CE: 0.432Kg
EKI-1521CI-DE; EKI-1522CI-DE: 0.45kg
EKI-1524/CI/I-CE: 0.537Kg
IP Rating IP30

 General
LED Indicators System: Power, System Status/LAN: Speed, Link/Active Serial: Tx, Rx

Power Requirements
Input 12 ~ 48 VDC, redundant dual inputs
Connector Terminal block
Consumption EKI-1521: 3.2 W
EKI-1522: 3.2 W
EKI-1524: 4.1 W

Environment
Operating Temperature EKI-1521/EKI-1522/EKI-1524: -10 ~ 60 °C (14 ~ 140 °F)
‘CI & I’ models: -40 ~ 80 °C (-40 ~ 176 °F)
Storage Temperature -40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity 10 ~ 95% RH

Regulatory Approvals
EMC CE, FCC Part 15 Subpart B (Class A)
Hazardous location UL/cUL (Class I, Division 2, Groups A, B, C and D), ATEX (Zone 2
Ex nA nC IIC T4 Gc)

Port to Port Isolation (‘CI’ models)
Serial to Ethernet 2.25 k VDC
Serial to Power 2 k VDC
Ethernet to Power 2.25 k VDC


Datasheet on EKI-1522 – 2-port RS-232/422/485 Serial Device Server (pdf, opens in a new tab)

EKI-1522CI


2-port RS-422/485 Serial Device Server – Isolation, Wide Temperature

EKI-1522CI - 2-port RS-422/485 Serial Device Server - Isolation, Wide Temperature
Click here to show/ hide more info

EKI-1522CI - 2-port RS-422/485 Serial Device Server - Isolation, Wide Temperature
EKI-1521, EKI-1522 and EKI-1524 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. EKI-1521, EKI-1522 and EKI-1524 are serial device servers that connect RS-422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1521, EKI-1522 and EKI-1524 provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1521, EKI-1522 and EKI-1524, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI-1521, EKI-1522 and EKI-1524 ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.

Features:

  • Supports line to line 2 KV, line to ground 4 KV surge protection
  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Allows a max. of 5 hosts to access one serial port
  • Allows a max. of 16 hosts to be accessed as TCP client mode
  • Supports up to 921.6 kbps, and any baud rate setting
  • Built-in 15 KV ESD protection for all serial signals
  • Provides multiple configuration methods including Windows utility, Telnet console, and Web Browser
  • Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server2003/2008/2012/2016, and Linux
  • Automatic RS-485 data flow control

Specifications:

Part Number

EKI-1522CI-CE





Certification



EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

UL 60950-1

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3 , 802.3ab , 802.3u

Ethernet Port Number

2

RJ45 Transmission Speed

10/100BaseT(X), Auto-sensing





Environment



Humidity (Operating Range)

10 ~ 95% RH

Temperature (Operating Range)

-40 ~ 75°C (-40 ~ 167°F)

Temperature (Storage Range)

-40 ~ 85°C (-40 ~ 185°F)





Mechanism



Dimensions (W x H x D)

36.6 x 140 x 95 mm (1.44″ x 5.51″ x 3.74″)

Enclosure (Metal)

Metal with solid mounting hardware

Weight

480g





Software



Configuration

Windows utility, Telnet console, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode, Pair connection



Datasheet on EKI-1522CI – 2-port RS-422/485 Serial Device Server – Isolation, Wide Temperature (pdf, opens in a new tab)

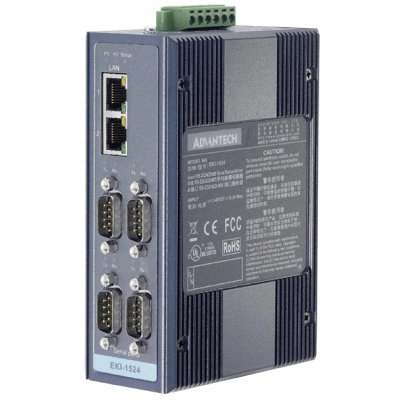

EKI-1524


4-port RS-232/422/485 Serial Device Server

EKI-1524 - 4-port RS-232/422/485 Serial Device Server
Click here to show/ hide more info

EKI-1524 - 4-port RS-232/422/485 Serial Device Server
EKI-1521, EKI-1522 and EKI-1524 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. EKI-1521, EKI-1522 and EKI-1524 are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1521, EKI-1522 and EKI-1524 provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1521, EKI-1522 and EKI-1524, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI- 1521, EKI-1522 and EKI-1524 ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.

Features:

  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Supports up to 921.6 kbps, and any baud rate setting
  • Allows a max. of 5 hosts to access one serial port
  • Allows a max. of 16 hosts to be accessed as TCP client mode
  • Built-in 15 KV ESD protection for all serial signals
  • Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
  • Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server2003/2008/2012/2016, and Linux
  • Automatic RS-485 data flow control
  • Supports line to line 2 KV, line to ground 4 KV surge protection

Specifications:

Part Number

EKI-1524-CE





Certification



EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

UL 60950-1

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3 , 802.3ab , 802.3u

Ethernet Port Number

2

RJ45 Transmission Speed

10/100BaseT(X), Auto-sensing





Serial Communication



Serial Port Connector Type

DB9 male

Serial Port Number

4

RS-232

Yes

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 921.6 Kbps

Serial Transmission Speed

50 ~ 921.6 Kbps





Environment



Humidity (Operating Range)

10 ~ 95% RH

Temperature (Min. Operating)

-10°C

Temperature (Max. Operating)

60°C

Temperature (Operating Range)

-10 ~ 60°C (14 ~ 140°F)

Temperature (Storage Range)

-20 ~ 80°C (-4 ~ 176°F)





Mechanism



Dimensions (W x H x D)

42 x 140 x 95 mm (1.65″ x 5.51″ x 3.74″)

Enclosure (Metal)

Metal with solid mounting hardware

IP Rating

IP30

Mounting (DIN-rail)

Yes

Mounting (Wall)

Yes

Weight

537g





Power



Power Connector Type

Terminal block

Power Consumption

4.1W

Power Input (DC)

12 ~ 48 VDC

Power Operating Current

0.7A @ 24V

Redundant Dual Inputs

Yes





Protection



Reverse Polarity

Present

Port to Port Isolation





Software



Configuration

Windows utility, Telnet console, Web Browser

Driver

32-bit/64-bit windows XP/7/8/8.1/10, Windows Server 2003/2008/ 2008 R2/2012/2012 R2/2016 and Linux

Operation Mode

COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode,





Warranty



Warranty Period

5 years



Datasheet on EKI-1524 – 4-port RS-232/422/485 Serial Device Server(pdf, opens in a new tab)

EKI-1524I


4-port RS-232/422/485 Serial Device Server – Wide Temperature

EKI-1524I - 4-port RS-232/422/485 Serial Device Server - Wide Temperature
Click here to show/ hide more info

EKI-1524I - 4-port RS-232/422/485 Serial Device Server - Wide Temperature
EKI-1521, EKI-1522 and EKI-1524 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. EKI-1521, EKI-1522 and EKI-1524 are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1521, EKI-1522 and EKI-1524 provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1521, EKI-1522 and EKI-1524, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI-1521, EKI-1522 and EKI-1524 ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.

Features:

  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Supports up to 921.6 kbps, and any baud rate setting
  • Allows a max. of 5 hosts to access one serial port
  • Allows a max. of 16 hosts to be accessed as TCP client mode
  • Built-in 15 KV ESD protection for all serial signals
  • Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
  • Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server2003/2008/2012/2016, and Linux
  • Automatic RS-485 data flow control
  • Supports line to line 2 KV, line to ground 4 KV surge protection

Specifications:

Part Number EKI-1524I-CE

Certification
EMC CE, FCC
EMI EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
Freefall IEC 60068-2-32
Safety UL 60950-1,UL 62368
Shock IEC 60068-2-27
Vibration IEC 60068-2-6

Ethernet Communication
RJ45 Port Connector Type RJ45
Ethernet Standard IEEE 802.3 , 802.3ab , 802.3u
Ethernet Port Number 2
RJ45 Transmission Speed 10/100BaseT(X), Auto-sensing

Serial Communication
Serial Port Connector Type   DB9 male
Serial Port Number 4
RS-232 Yes
RS-422 Yes
RS-485 Yes
Baud Rate 50 ~ 921.6 Kbps
Serial Transmission Speed 50 ~ 921.6 Kbps

Environment
Humidity (Operating Range) 10 ~ 95% RH
Temperature (Min. Operating) -40°C
Temperature (Max. Operating) 75°C
Temperature (Operating Range) -40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range) -40 ~ 85°C (-40 ~ 185°F)

Mechanism
Dimensions (W x H x D) 42 x 140 x 95 mm (1.65″ x 5.51″ x 3.74″)
Enclosure (Metal) Metal with solid mounting hardware
IP Rating IP30
Mounting (DIN-rail) Yes
Mounting (Wall) Yes
Weight 537g

Power
Power Connector Type Terminal block
Power Consumption 4.1W
Power Input (DC) 12 ~ 48 VDC
Power Operating Current 0.7A @ 24V
Redundant Dual Inputs Yes

Protection
Reverse Polarity Present
Port to Port Isolation

Software
Configuration Windows utility, Telnet console, Web Browser
Driver Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Operation Mode COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode,

Warranty
Warranty Period 5 years



Datasheet on EKI-1524I – 4-port RS-232/422/485 Serial Device Server – Wide Temperature(pdf, opens in a new tab)

EKI-1524CI


4-port RS-422/485 Serial Device Server – Isolation, Wide Temperature

EKI-1524CI - 4-port RS-422/485 Serial Device Server - Isolation, Wide Temperature
Click here to show/ hide more info

EKI-1524CI - 4-port RS-422/485 Serial Device Server - Isolation, Wide Temperature
EKI-1521, EKI-1522 and EKI-1524 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. EKI-1521, EKI-1522 and EKI-1524 are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1521, EKI-1522 and EKI-1524 provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1521, EKI-1522 and EKI-1524, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI-1521, EKI-1522 and EKI-1524 ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.

Features:

  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Supports line to line 4 KV, line to ground 8 KV surge protection
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Allows a max. of 5 hosts to access one serial port
  • Allows a max. of 16 hosts to be accessed as TCP client mode
  • Supports up to 921.6 kbps, and any baud rate setting
  • Built-in 15 KV ESD protection for all serial signals
  • Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
  • Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1, Windows Server 2003/2008/2012/2016, Windows CE 5.0, and Linux
  • Automatic RS-485 data flow control

Specifications:

Part Number EKI-1524CI-CE

Certification
EMC CE, FCC
EMI EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
Freefall IEC 60068-2-32
Safety UL 60950-1
Shock IEC 60068-2-27
Vibration IEC 60068-2-6

Ethernet Communication
RJ45 Port Connector Type RJ45
Ethernet Standard IEEE 802.3 , 802.3ab , 802.3u
Ethernet Port Number 2
RJ45 Transmission Speed 10/100BaseT(X), Auto-sensing

Serial Communication
Serial Port Connector Type DB9 male
Serial Port Number 4
RS-422 Yes
RS-485 Yes
Baud Rate 50 ~ 921.6 Kbps
Serial Transmission Speed 50 ~ 921.6 Kbps

Environment
Humidity (Operating Range) 10 ~ 95% RH
Temperature (Min. Operating) -40°C
Temperature (Max. Operating) 75°C
Temperature (Operating Range) -40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range) -40 ~ 85°C (-40 ~ 185°F)

Mechanism
Dimensions (W x H x D) 42 x 140 x 95 mm (1.65″ x 5.51″ x 3.74″)
Enclosure (Metal) Metal with solid mounting hardware
IP Rating IP30
Mounting (DIN-rail) Yes
Mounting (Wall) Yes
Weight 537g

Power
Power Connector Type Terminal block
Power Consumption 4.1W
Power Input (DC) 12 ~ 48 VDC
Power Operating Current 0.7A @ 24V
Redundant Dual Inputs Yes

Protection
Reverse Polarity Present
Port to Port Isolation Serial to Ethernet 2 kV; Serial to Power 2 kV; Ethernet to Power 1.5 kV

Software
Configuration Windows utility, Telnet console, Web Browser
Driver Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Operation Mode COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode,

Warranty
Warranty Period 5 years



Datasheet on EKI-1524CI – 4-port RS-422/485 Serial Device Server – Isolation, Wide Temperature(pdf, opens in a new tab)

EKI-1526


16-port RS-232/422/485 Serial Device Server (2 Ethernet Ports, 16 Serial Ports, 10Mbps, 100Mbps, 1Gbps, RJ45 x 2, DB9 Male x 16, AC Input, Rackmount)

EKI-1526
Click here to show/ hide more info

EKI-1526
The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can’t connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.

Features:

  • Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
  • Supports up to 976.5 kbps, and any baud rate setting
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
  • Built-in 15 KV ESD protection for all serial signals
  • SNMP MIB-II for network management
  • Built-in buzzer for easy location
  • Standard 1U rackmount size
  • Automatic RS-485 data flow control
  • Rear wiring

Specifications:

Part Number

EKI-1526-CE





Certification



EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

UL 60950-1, UL 62368

Vibration

IEC 60068-2-6





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Ethernet Port Number

2





Serial Communication



Serial Port Connector Type

DB9

Serial Port Number

16

RS-232

Yes

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 921.6 Kbps

Serial Transmission Speed

50 ~ 921.6 Kbps





Environment



Humidity (Operating Range)

10 ~ 95% RH

Temperature (Min. Operating)

-10°C

Temperature (Max. Operating)

60°C

Temperature (Operating Range)

-10 ~ 60°C (14 ~ 140°F)

Temperature (Storage Range)

-20 ~ 80°C (-4 ~ 176°F)





Mechanism



Enclosure (Metal)

SECC chassis

IP Rating

IP30

Mounting (DIN-rail)

No

Mounting (Wall)

No

Weight

3100g





Power



Power Connector Type

Power cord

Power Consumption

5.6W

Power Input (AC)

100-240V

Power Operating Current

[email protected]



[email protected]

Redundant Dual Inputs

NO





Protection



Reverse Polarity

Present

Port to Port Isolation





Software



Configuration

Windows utility, Telnet console, Web Browser

Driver

32-bit/64-bit windows XP/7/8/8.1/10, Windows Server 2003/2008/ 2008 R2/2012/2012 R2/2016 and Linux

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on EKI-1526 – 16-port RS-232/422/485 Serial Device Server – AC Input, DB9, Rackmount(pdf, opens in a new tab)

EKI-1526I


16-port RS-232/422/485 Serial Device Server – Wide Temp (2 Ethernet Ports, 16 Serial Ports, 10Mbps, 100Mbps, 1Gbps, RJ45 x 2, DB9 Male x 16, AC Input, Rackmount)

EKI-1526I
Click here to show/ hide more info

EKI-1526I
The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can’t connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.

Features:

  • Wide operation temperature -40~75°C (-40~167°F)
  • Supports up to 976.5 kbps, and any baud rate setting
  • Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
  • 16-port RS-232/422/485 serial communication
  • Built-in 15 KV ESD protection for all serial signals
  • SNMP MIB-II for network management
  • Built-in buzzer for easy location
  • Standard 1U rackmount size

Specifications:

Part Number EKI-1526I-CE

Certification
EMC CE, FCC
EMI EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
Freefall IEC 60068-2-32
Safety UL 60950-1, UL 62368
Vibration IEC 60068-2-6

Ethernet Communication
RJ45 Port Connector Type RJ45
Ethernet Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Ethernet Port Number 2

Serial Communication
Serial Port Connector Type DB9
Serial Port Number 16
RS-232 Yes
RS-422 Yes
RS-485 Yes
Baud Rate 50 ~ 921.6 Kbps
Serial Transmission Speed 50 ~ 921.6 Kbps

Environment
Humidity (Operating Range) 10 ~ 95% RH
Temperature (Min. Operating) -40°C
Temperature (Max. Operating) 70°C
Temperature (Operating Range) -40 ~ 70°C (40~158°F)
Temperature (Storage Range) -40 ~ 85°C (-40 ~ 185°F)

Mechanism
Dimensions (W x H x D) 438 x 43.6 x 259.2 mm (17.24″ x 1.71″ x 10.2″)
Enclosure (Metal) SECC chassis
IP Rating IP30
Mounting (DIN-rail) No
Mounting (Wall) No
Weight 3100g

Power
Power Connector Type Power cord
Power Consumption 5.6W
Power Input (AC) 100-240V
Power Operating Current [email protected]
  [email protected]
Redundant Dual Inputs NO

Protection
Reverse Polarity Present
Port to Port Isolation

Software
Configuration Windows utility, Telnet console, Web Browser
Driver Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Operation Mode Virtual COM, TCP/UDP server TCP/UDP client

Warranty
Warranty Period 5 years



Datasheet on EKI-1526I – 16-port RS-232/422/485 Serial Device Server – Wide Temp (pdf, opens in a new tab)

EKI-1526T


16-port RS-232/422/485 Serial Device Server (2 Ethernet Ports, 16 Serial Ports, 10Mbps, 100Mbps, 1Gbps, RJ45 x 2, DB9 Male x 16, DC Input, Rackmount)

EKI-1526I
Click here to show/ hide more info

EKI-1526I
The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can’t connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.

Features:

  • Supports up to 976.5 kbps, and any baud rate setting
  • Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
  • 8 or 16-port RS-232/422/485 serial communication
  • Built-in 15 KV ESD protection for all serial signals
  • SNMP MIB-II for network management
  • Built-in buzzer for easy location
  • Standard 1U rackmount size
  • Automatic RS-485 data flow control
  • Rear wiring

Specifications:

Part Number

EKI-1526T-VDC-CE





Certification



EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8(Level 4), EN55024

Freefall

IEC 60068-2-32





Safety

UL 60950-1, UL 62368

Vibration

IEC 60068-2-6





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Ethernet Port Number

2

RJ45 Transmission Speed

10/100BaseT(X), Auto-sensing





Serial Communication



Serial Port Connector Type

DB9

Serial Port Number

16

RS-232

Yes

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 921.6 Kbps

Serial Transmission Speed

50 ~ 921.6 Kbps





Environment



Humidity (Operating Range)

10 ~ 95% RH

Temperature (Min. Operating)

-10°C

Temperature (Max. Operating)

60°C

Temperature (Operating Range)

-10 ~ 60°C (14 ~ 140°F)

Temperature (Storage Range)

-20 ~ 80°C (-4 ~ 176°F)





Mechanism



Dimensions (W x H x D)

438 x 43.6 x 259.2 mm (17.24″ x 1.71″ x 10.2″)

Enclosure (Metal)

SECC chassis

IP Rating

IP30

Mounting (DIN-rail)

No

Mounting (Wall)

No

Weight

3100g





Power



Power Connector Type

Terminal block

Power Consumption

5.6W

Redundant Dual Inputs

No









Protection



Reverse Polarity

Present

Port to Port Isolation





Software



Configuration

Windows utility, Telnet console, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on EKI-1526T – 16-port RS-232/422/485 Serial Device Server – DC Input, DB9, Rackmount (pdf, opens in a new tab)

EKI-1526TI


16-port RS-232/422/485 Serial Device Server – Wide Temp., (2 Ethernet Ports, 16 Serial Ports, 10Mbps, 100Mbps, 1Gbps, RJ45 x 2, DB9 Male x 16, DC Input, Rackmount)

EKI-1526TI
Click here to show/ hide more info

EKI-1526TI
The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can’t connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.

Features:

  • Wide operating temperature -40~75°C (-40~167°F)
  • Supports up to 976.5 kbps, and any baud rate setting
  • Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
  • 8 or 16-port RS-232/422/485 serial communication
  • Built-in 15 KV ESD protection for all serial signals
  • SNMP MIB-II for network management
  • Built-in buzzer for easy location
  • Standard 1U rackmount size

Specifications:

Part Number EKI-1526TI

Certification
EMC CE, FCC
EMI EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4),EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024
Freefall IEC 60068-2-32
Safety UL 60950-1, UL 62368
Vibration IEC 60068-2-6

Ethernet Communication
RJ45 Port Connector Type RJ45
Ethernet Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Ethernet Port Number 2
RJ45 Transmission Speed 10/100BaseT(X), Auto-sensing

Serial Communication
Serial Port Connector Type DB9
Serial Port Number 16
RS-232 Yes
RS-422 Yes
RS-485 Yes
Baud Rate 50 ~ 921.6 Kbps
Serial Transmission Speed 50 ~ 921.6 Kbps

Environment
Humidity (Operating Range) 10 ~ 95% RH
Temperature (Min. Operating) -40°C
Temperature (Max. Operating) 70°C
Temperature (Operating Range) -40 ~ 70°C (40~158°F)
Temperature (Storage Range) -40 ~ 85°C (-40 ~ 185°F)

Mechanism
Dimensions (W x H x D) 438 x 43.6 x 259.2 mm (17.24″ x 1.71″ x 10.2″)
Enclosure (Metal) SECC chassis
IP Rating IP30
Mounting (DIN-rail) No
Mounting (Wall) No
Weight 3100g

Power
Power Connector Type Terminal block
Power Consumption 5.6W
Redundant Dual Inputs No

Protection
Reverse Polarity Present
Port to Port Isolation

Software
Configuration Windows utility, Telnet console, Web Browser
Driver Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Operation Mode Virtual COM, TCP/UDP server TCP/UDP client

Warranty
Warranty Period 5 Years



Datasheet on EKI-1526TI – 16-port RS-232/422/485 Serial Device Server – Wide Temp., DC Input, DB9, Rackmount (pdf, opens in a new tab)

EKI-1526TI-VHDC


16-port RS-232/422/485 Serial Device Server – Wide Temp., (2 Ethernet Ports, 16 Serial Ports, 10Mbps, 100Mbps, 1Gbps, RJ45 x 2, DB9 Male x 16, 125VDC Input, Rackmount)

EKI-1526TI-VHDC
Click here to show/ hide more info

EKI-1526TI-VHDC
EKI-1526TI-VHDC is an industrial-grade network-based serial device server for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. It especially features in its 125V power input.

Features:

  • 125V power input
  • 16-port RS-232/422/485 serial communication
  • Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
  • Supports up to 976.5 kbps, and any baud rate setting
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
  • Built-in 15 KV ESD protection for all serial signals
  • SNMP MIB-II for network management

Specifications:

Part Number

EKI-1526TI-VHDC





Certification



EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4),EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

UL 60950-1, UL 62368

Vibration

IEC 60068-2-6





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Ethernet Port Number

2

RJ45 Transmission Speed

10/100BaseT(X), Auto-sensing





Serial Communication



Serial Port Connector Type

DB9

Serial Port Number

16

RS-232

Yes

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 921.6 Kbps

Serial Transmission Speed

50 ~ 921.6 Kbps





Environment



Humidity (Operating Range)

10 ~ 95% RH

Temperature (Min. Operating)

-40°C

Temperature (Max. Operating)

70°C

Temperature (Operating Range)

-40 ~ 70°C (40~158°F)

Temperature (Storage Range)

-40 ~ 85°C (-40 ~ 185°F)





Mechanism



Dimensions (W x H x D)

438 x 43.6 x 259.2 mm (17.24″ x 1.71″ x 10.2″)

Enclosure (Metal)

SECC chassis

IP Rating

IP30

Mounting (DIN-rail)

No

Mounting (Wall)



No



Weight

3100g





Power



Power Connector Type

Terminal block

Power Consumption

5.6W

Power Input (DC)

12 ~ 48 VDC

Redundant Dual Inputs

No





Protection



Reverse Polarity

Present

Port to Port Isolation





Software



Configuration

Windows utility, Telnet console, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux





Warranty



Warranty Period

5 years



Datasheet on EKI-1526TI-VHDC – 16-port RS-232/422/485 Serial Device Server – Wide Temp., D125VDC Input, DB9, Rackmount (pdf, opens in a new tab)

EKI-1526N


16-port RS-232/422/485 Serial Device Server – AC Input, Serial RJ45, Rackmount

EKI-1526N
Click here to show/ hide more info

EKI-1526N
The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can’t connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.

Features:

  • Automatic RS-485 data flow control
  • Supports up to 976.5 kbps, and any baud rate setting
  • Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
  • Built-in 15 KV ESD protection for all serial signals
  • Built-in buzzer for easy location
  • SNMP MIB-II for network management
  • 8 or 16-port RS-232/422/485 serial communication

Specifications:

Part Number

EKI-1526N





Certification



EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4),

EN

61000-4-5(Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

UL 60950-1, UL 62368

Vibration

IEC 60068-2-6





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Ethernet Port Number

2

RJ45 Transmission Speed

10/100BaseT(X), Auto-sensing





Serial Communication



Serial Port Connector Type

RJ45

Serial Port Number

16

RS-232

Yes

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 921.6 Kbps

Serial Transmission Speed

50 ~ 921.6 Kbps





Environment



Humidity (Operating Range)

10 ~ 95% RH

Temperature (Min. Operating)

-10°C

Temperature (Max. Operating)

60°C

Temperature (Operating Range)

-10 ~ 60°C (14~140°F)

Temperature (Storage Range)

-20 ~ 80°C (-4 ~ 176°F)





Mechanism



Dimensions (W x H x D)

438 x 43.6 x 259.2 mm (17.24″ x 1.71″ x 10.2″)

Enclosure (Metal)

SECC chassis

IP Rating

IP30

Mounting (DIN-rail)

No

Mounting (Wall)

No

Weight

3100g





Power



Power Connector Type

Power cord

Power Consumption

5.6W

Power Input (DC)

100-240V

Power Operating Current

[email protected]



[email protected]

Redundant Dual Inputs

No





Protection



Reverse Polarity

Present

Port to Port Isolation





Software



Configuration

Windows utility, Telnet console, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on EKI-1526N – 16-port RS-232/422/485 Serial Device Server – AC Input, Serial RJ45, Rackmount (pdf, opens in a new tab)

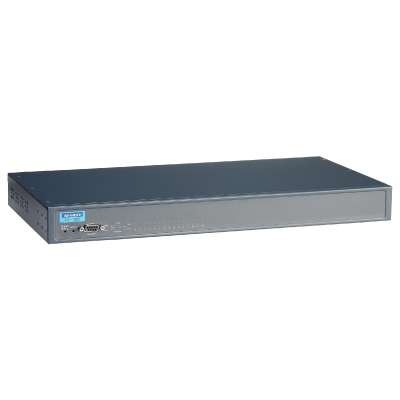

EKI-1528


8-port RS-232/422/485 Serial Device Server (2 Ethernet Ports, 8 Serial Ports, 10Mbps, 100Mbps, 1Gbps, RJ45 x 2, DB9 Male x 8, AC Input, Rackmount)

EKI-1528
Click here to show/ hide more info

EKI-1528
The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can’t connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.

Features:

  • Supports up to 976.5 kbps, and any baud rate setting
  • Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
  • Built-in 15 KV ESD protection for all serial signals
  • 8-port RS-232/422/485 serial communication
  • SNMP MIB-II for network management
  • Built-in buzzer for easy location
  • Standard 1U rackmount size
  • Rear wiring
  •

Specifications:

Part Number

EKI-1528





Certification



EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4),EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

UL 60950-1, UL 62368

Vibration

IEC 60068-2-6





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Ethernet Port Number

2

RJ45 Transmission Speed

10/100BaseT(X), Auto-sensing





Serial Communication



Serial Port Connector Type

DB9

Serial Port Number

8

RS-232

Yes

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 921.6 Kbps

Serial Transmission Speed

50 ~ 921.6 Kbps





Environment



Humidity (Operating Range)

10 ~ 95% RH

Temperature (Min. Operating)

-10°C

Temperature (Max. Operating)

60°C

Temperature (Operating Range)

-10 ~ 60°C (14~140°F)

Temperature (Storage Range)

-20 ~ 80°C (-4 ~ 176°F)





Mechanism



Dimensions (W x H x D)

438 x 43.6 x 259.2 mm (17.24″ x 1.71″ x 10.2″)

Enclosure (Metal)

SECC chassis

IP Rating

IP30

Mounting (DIN-rail)

No

Mounting (Wall)

No

Weight

2900g





Power



Power Connector Type

Power cord

Power Consumption

5.6W

Power Input (DC)

100-240V

Power Operating Current

[email protected]



[email protected]

Redundant Dual Inputs

No





Protection



Reverse Polarity

Present

Port to Port Isolation





Software



Configuration

Windows utility, Telnet console, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on EKI-1528 – 8-port RS-232/422/485 Serial Device Server(pdf, opens in a new tab)

EKI-1528I


8-port RS-232/422/485 Serial Device Server – Wide Temp., (2 Ethernet Ports, 8 Serial Ports, 10Mbps, 100Mbps, 1Gbps, RJ45 x 2, DB9 Male x 8, AC Input, Rackmount)

EKI-1528I
Click here to show/ hide more info

EKI-1528I
The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can’t connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.

Features:

  • Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
  • Supports up to 976.5 kbps, and any baud rate setting
  • Standard 1U rackmount size
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Built-in buzzer for easy location
  • Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
  • SNMP MIB-II for network management
  • Built-in 15 KV ESD protection for all serial signals
  • 8 or 16-port RS-232/422/485 serial communication

Specifications:

Part Number

EKI-1528I-DR





Certification



EMC

CE, FCC

EMI

(X)EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4),EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

UL 60950-1

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3, 802.3u

Ethernet Port Number

2

RJ45 Transmission Speed

10/100BaseT(X), Auto-sensing





Serial Communication



Serial Port Connector Type

DB9 male

Serial Port Number

8

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 921.6 Kbps

Serial Transmission Speed

50 ~ 921.6 Kbps





Environment



Humidity (Operating Range)

10 ~ 95% RH

Temperature (Min. Operating)

-40°C

Temperature (Max. Operating)

70°C

Temperature (Operating Range)

-40 ~ 70°C (40~158°F)

Temperature (Storage Range)

-40 ~ 85°C (-40 ~ 185°F)





Mechanism



Dimensions (W x H x D)

86.6 x 140 x 104 mm (3.41″ x 5.51″ x 3.74″)

Enclosure (Metal)

SECC chassis

IP Rating

IP30

Mounting (DIN-rail)

Yes

Mounting (Wall)

Yes

Weight

900g





Power



Power Connector Type

Power cord

Power Consumption

5.6W

Power Input (DC)

12~48VDC

Power Operating Current

[email protected]

Redundant Dual Inputs

Yes





Protection



Reverse Polarity

Present

Port to Port Isolation

Serial to Ethernet 2 kV; Serial to Power 2 kV; Ethernet to Power 1.5 kV





Software



Configuration

Windows utility, Telnet console, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode,





 Warranty



Warranty Period

5 years



Datasheet on EKI-1528I – 8-port RS-232/422/485 Serial Device Server(pdf, opens in a new tab)

EKI-1528T


8-port RS-232/422/485 Serial Device Server (2 Ethernet Ports, 8 Serial Ports, 10Mbps, 100Mbps, 1Gbps, RJ45 x 2, DB9 Male x 8, DC Input, Rackmount)

EKI-1528T
Click here to show/ hide more info

EKI-1528T
The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can’t connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.

Features:

  • 8 or 16-port RS-232/422/485 serial communication
  • Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
  • Supports up to 976.5 kbps, and any baud rate setting
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
  • Built-in 15 KV ESD protection for all serial signals
  • SNMP MIB-II for network management
  • Built-in buzzer for easy location
  • Standard 1U rackmount size
  • Rear wiring

Specifications:

Part Number

EKI-1528T





Certification



EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4),EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

UL 60950-1, UL 62368

Vibration

IEC 60068-2-6





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Ethernet Port Number

2

RJ45 Transmission Speed

10/100BaseT(X), Auto-sensing





Serial Communication



Serial Port Connector Type

DB9

Serial Port Number

8

RS-232

Yes

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 921.6 Kbps

Serial Transmission Speed

50 ~ 921.6 Kbps





Environment



Humidity (Operating Range)

10 ~ 95% RH

Temperature (Min. Operating)

-10°C

Temperature (Max. Operating)

60°C

Temperature (Operating Range)

-10 ~ 60°C (14~140°F)

Temperature (Storage Range)

-20 ~ 80°C (-4 ~ 176°F)





Mechanism



Dimensions (W x H x D)

438 x 43.6 x 259.2 mm (17.24″ x 1.71″ x 10.2″)

Enclosure (Metal)

SECC chassis

IP Rating

IP30

Mounting (DIN-rail)

No

Mounting (Wall)

No

Weight

2900g





Power



Power Connector Type

Terminal block

Power Consumption

5.6W

Redundant Dual Inputs

No





Protection



Reverse Polarity

Present

Port to Port Isolation





Software



Configuration

Windows utility, Telnet console, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on EKI-1528T – 8-port RS-232/422/485 Serial Device Server(pdf, opens in a new tab)

EKI-1528TI


8-port RS-232/422/485 Serial Device Server – Wide Temp., (2 Ethernet Ports, 8 Serial Ports, 10Mbps, 100Mbps, 1Gbps, RJ45 x 2, DB9 Male x 8, DC Input, Rackmount)

EKI-1528TI
Click here to show/ hide more info

EKI-1528TI
The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can’t connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.

Features:

  • Wide operating temperature -40~70°C (40~158°F)
  • 8 or 16-port RS-232/422/485 serial communication
  • Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
  • Supports up to 976.5 kbps, and any baud rate setting
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
  • Built-in 15 KV ESD protection for all serial signals
  • SNMP MIB-II for network management
  • Built-in buzzer for easy location
  • Standard 1U rackmount size

Specifications:

Part Number

EKI-1528TI





Certification



EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4),EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

UL 60950-1, UL 62368

Vibration

IEC 60068-2-6





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Ethernet Port Number

2

RJ45 Transmission Speed

10/100BaseT(X), Auto-sensing





Serial Communication



Serial Port Connector Type

DB9

Serial Port Number

8

RS-232

Yes

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 921.6 Kbps

Serial Transmission Speed

50 ~ 921.6 Kbps





Environment



Humidity (Operating Range)

10 ~ 95% RH

Temperature (Min. Operating)

-40°C

Temperature (Max. Operating)

70°C

Temperature (Operating Range)

-40 ~ 70°C (40~158°F)

Temperature (Storage Range)

-40 ~ 85°C (-40 ~ 185°F)





Mechanism



Dimensions (W x H x D)

438 x 43.6 x 259.2 mm (17.24″ x 1.71″ x 10.2″)

Enclosure (Metal)

SECC chassis

IP Rating

IP30

Mounting (DIN-rail)

No

Mounting (Wall)

No

Weight

2900g





Power



Power Connector Type

Terminal block

Power Consumption

5.6W

Redundant Dual Inputs

No





Protection



Reverse Polarity

Present

Port to Port Isolation





Software



Configuration

Windows utility, Telnet console, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on EKI-1528TI – 8-port RS-232/422/485 Serial Device Server(pdf, opens in a new tab)

EKI-1528N


8-port RS-232/422/485 Serial Device Server (2 Ethernet Ports, 8 Serial Ports, 10Mbps, 100Mbps, 1Gbps, Serial RJ45 x 2, DB9 Male x 8, AC Input, Rackmount)

EKI-1528N
Click here to show/ hide more info

EKI-1528N
The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousands of devices that can’t connect to an Ethernet network. The EKI-1528 and EKI-1526 offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.

Features:

  • Automatic RS-485 data flow control
  • Supports up to 976.5 kbps, and any baud rate setting
  • Provides 2 x 10/100/1000 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and Serial console
  • Built-in 15 KV ESD protection for all serial signals
  • Built-in buzzer for easy location
  • SNMP MIB-II for network management
  • 8-port RS-232/422/485 serial communication

Specifications:

Part Number

EKI-1528N





Certification



EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4),EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

UL 60950-1, UL 62368

Vibration

IEC 60068-2-6





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Ethernet Port Number

2

RJ45 Transmission Speed

10/100BaseT(X), Auto-sensing





Serial Communication



Serial Port Connector Type

RJ45

Serial Port Number

8

RS-232

Yes

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 921.6 Kbps

Serial Transmission Speed

50 ~ 921.6 Kbps





Environment



Humidity (Operating Range)

10 ~ 95% RH

Temperature (Min. Operating)

-10°C

Temperature (Max. Operating)

60°C

Temperature (Operating Range)

-10 ~ 60°C (14~140°F)

Temperature (Storage Range)

-20 ~ 80°C (-4 ~ 176°F)





Mechanism



Dimensions (W x H x D)

438 x 43.6 x 259.2 mm (17.24″ x 1.71″ x 10.2″)

Enclosure (Metal)

SECC chassis

IP Rating

IP30

Mounting (DIN-rail)

No

Mounting (Wall)

No

Weight

2900g





Power



Power Connector Type

Power cord

Power Consumption

5.6W

Power Input (AC)

100-240V

Power Operating Current

[email protected]



[email protected]

Redundant Dual Inputs

No





Protection



Reverse Polarity

Present

Port to Port Isolation





Software



Configuration

Windows utility, Telnet console, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on EKI-EKI-1528N – 8-port RS-232/422/485 Serial Device Server(pdf, opens in a new tab)

EKI-1528I-DR


8-port RS-232/422/485 Serial Device Server – Wide Temperature (2 Ethernet Ports, 8 Serial Ports, 10Mbps, 100Mbps, RJ45 x 2, DB9 Male x 8)

EKI-1528I-DR
Click here to show/ hide more info

EKI-1528I-DR
The EKI-1528I and EKI-1528CI feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528I and EKI-1528CI are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. The EKI-1528I and EKI-1528CI provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1528I and EKI-1528CI, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI-1528I and EKI-1528CI ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.

Features:

  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Supports up to 921.6 kbps, and any baud rate setting
  • Allows a max. of 5 hosts to access one serial port
  • Allows a max. of 16 hosts to be accessed as TCP client mode
  • Built-in 15 KV ESD protection for all serial signals
  • Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
  • Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1, Windows Server 2003/2008/2012/2016, Windows CE 5.0, and Linux
  • Automatic RS-485 data flow control
  • Supports line to line 4 KV, line to ground 8 KV surge protection

Specifications:

Part Number

EKI-1528I-DR





Certification



EMC

CE, FCC

EMI

(X)EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4),EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

UL 60950-1

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3, 802.3u

Ethernet Port Number

2

RJ45 Transmission Speed

10/100BaseT(X), Auto-sensing





Serial Communication



Serial Port Connector Type

DB9 male

Serial Port Number

8

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 921.6 Kbps

Serial Transmission Speed

50 ~ 921.6 Kbps





Environment



Humidity (Operating Range)

10 ~ 95% RH

Temperature (Min. Operating)

-40°C

Temperature (Max. Operating)

70°C

Temperature (Operating Range)

-40 ~ 70°C (40~158°F)

Temperature (Storage Range)

-40 ~ 85°C (-40 ~ 185°F)





Mechanism



Dimensions (W x H x D)

86.6 x 140 x 104 mm (3.41″ x 5.51″ x 3.74″)

Enclosure (Metal)

SECC chassis

IP Rating

IP30

Mounting (DIN-rail)

Yes

Mounting (Wall)

Yes

Weight

900g





Power



Power Connector Type

Power cord

Power Consumption

5.6W

Power Input (DC)

12~48VDC

Power Operating Current

[email protected]

Redundant Dual Inputs

Yes





Protection



Reverse Polarity

Present

Port to Port Isolation

Serial to Ethernet 2 kV; Serial to Power 2 kV; Ethernet to Power 1.5 kV





Software



Configuration

Windows utility, Telnet console, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode,TCP/UDP client (event handling) mode,





Warranty



Warranty Period

5 years



Datasheet on EKI-1528I-DR – 8-port RS-232/422/485 Serial Device Server (pdf, opens in a new tab)

EKI-1528CI-DR


8-port RS-422/485 Serial Device Server – Isolation, Wide Temperature (2 Ethernet Ports, 8 Serial Ports, 10Mbps, 100Mbps, RJ45 x 2, DB9 Male x 8)

EKI-1528CI-DR
Click here to show/ hide more info

EKI-1528CI-DR
The EKI-1528I and EKI-1528CI feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528I and EKI-1528CI are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. The EKI-1528I and EKI-1528CI provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1528I and EKI 1528CI, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI-1528I and EKI-1528CI ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.

Features:

  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Supports up to 921.6 kbps, and any baud rate setting
  • Allows a max. of 5 hosts to access one serial port
  • Allows a max. of 16 hosts to be accessed as TCP client mode
  • Built-in 15 KV ESD protection for all serial signals
  • Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
  • Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1, Windows Server 2003/2008/2012/2016, Windows CE 5.0, and Linux
  • Automatic RS-485 data flow control
  • Supports line to line 4 KV, line to ground 8 KV surge protection

Specifications:

Part Number

EKI-1528I-DR





Certification



EMC

CE, FCC

EMI

(X)EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4),EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

UL 60950-1

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3, 802.3u

Ethernet Port Number

2

RJ45 Transmission Speed

10/100BaseT(X), Auto-sensing





Serial Communication



Serial Port Connector Type

DB9 male

Serial Port Number

8

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 921.6 Kbps

Serial Transmission Speed

50 ~ 921.6 Kbps





Environment



Humidity (Operating Range)

10 ~ 95% RH

Temperature (Min. Operating)

-40°C

Temperature (Max. Operating)

70°C

Temperature (Operating Range)

-40 ~ 70°C (40~158°F)

Temperature (Storage Range)

-40 ~ 85°C (-40 ~ 185°F)





Mechanism



Dimensions (W x H x D)

86.6 x 140 x 104 mm (3.41″ x 5.51″ x 3.74″)

Enclosure (Metal)

SECC chassis

IP Rating

IP30

Mounting (DIN-rail)

Yes

Mounting (Wall)

Yes

Weight

900g





Power



Power Connector Type

Power cord

Power Consumption

5.6W

Power Input (DC)

12~48VDC

Power Operating Current

[email protected]

Redundant Dual Inputs

Yes





Protection



Reverse Polarity

Present

Port to Port Isolation

Serial to Ethernet 2 kV; Serial to Power 2 kV; Ethernet to Power 1.5 kV





Software



Configuration

Windows utility, Telnet console, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode,





 Warranty



Warranty Period

5 years



Datasheet on EKI-1528CI-DR – 8-port RS-232/422/485 Serial Device Server (pdf, opens in a new tab)

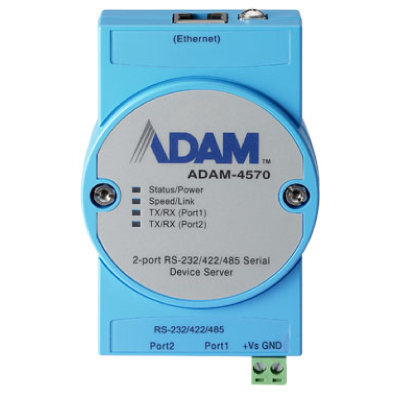

ADAM-4570


2-port RS-232/422/485 Serial Device Server (1 Ethernet Port, 2 Serial Ports, 10Mbps, 100Mbps)

ADAM-4570
Click here to show/ hide more info

ADAM-4570
ADAM-4571 and ADAM-4571L are fast and cost effective data gateways between serial and Ethernet interfaces. The units also bring the advantages of remote management and dataaccessibility to RS-232/422/485 devices. The transmission speed of the units is up to 230 kbps, meeting the demands for high-speed data exchanges. In addition, you can useWindows utility to configure ADAM-4571 and ADAM-4571L without further programming. The units not only protect your current hardware investment but also ensure future networkexpandability. Since the protocol conversion is transparent, all your existing devices can be seamlessly integrated with an Ethernet network. Therefore, ADAM-4571 and ADAM-4571Lcan be used in security systems, factory automation, SCADA, transportation and more. ADAM-4571 and ADAM4571L link both your existing human-machine interface(HMI) PC andyour RS-232/422/485 devices with Ethernet cables.ADAM-4571 and ADAM-4571L come with a Windows configuration and port-mapping utility. The configuration tool can auto-detect all Ethernet Data Gateway devices on the localnetwork, and let you adjust all settings. The port mapping utility helps you to setup up COM ports for Windows NT/2000/XP platform. This helps you configure all ports to meetyour needs.

Features:

  • Supports RS-232/422/485 serial communications
  • Supports baud rate up to 921.6 kbps
  • Allows a max. of 5 hosts to access one serial port
  • Allows a max. of 16 hosts to be accessed as TCP client mode
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Provides 10/100 Mbps auto-sensing Ethernet port
  • Supports auto re-connection function
  • Supports Windows 2000/XP/Vista drivers
  • Built-in 15 KV ESD protection for all serial signals
  • Automatic RS-485 data flow control

Specifications:

Part Number ADAM-4570-CE

Certification
EMC CE, FCC
EMI EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2),EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55025
Freefall NA
Safety NA
Shock NA
Vibration NA

Ethernet Communication
RJ45 Port Connector Type RJ45
Ethernet Standard IEEE 802.3, 802.3u
Ethernet Port Number 1
RJ45 Transmission Speed 10/100Mbps

Serial Communication
Serial Port Connector Type RJ48
Serial Port Number 2
RS-232 Yes
RS-422 Yes
RS-485 Yes
Baud Rate 50 ~ 921.6 Kbps

Environment
Humidity (Operating Range) 5 ~ 95% RH
Temperature (Min. Operating) -10°C
Temperature (Max. Operating) 60°C
Temperature (Operating Range) -10 ~ 60°C (14~140°F)
Temperature (Storage Range) -20 ~ 80°C (40 ~ 176°F)

Mechanism
Dimensions (W x H x D) 70 x 112 x 25 mm
Enclosure (Plastic) Yes
IP Rating IP30
Mounting (DIN-rail) Yes
Mounting (Wall) Yes
Weight 125g

Power
Power Connector Type Terminal block
Power Consumption 2.5W
Power Input (DC) 10~30VDC
Power Operating Current [email protected]

Software
Configuration Windows utility, Web Browser
Driver Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux
Operation Mode Virtual COM, TCP/UDP server TCP/UDP client

Warranty
Warranty Period 5 years



Datasheet on ADAM-4570 – 2-port RS-232/422/485 Serial Device Server (pdf, opens in a new tab)

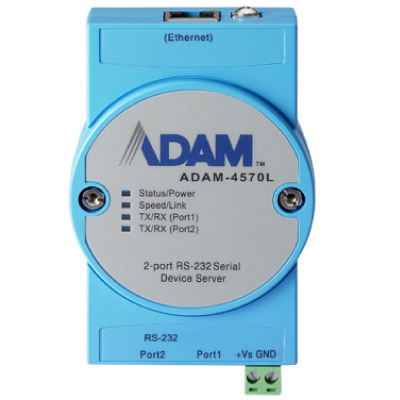

ADAM-4570L


2-port RS-232 Serial Device Server (1 Ethernet Port, 2 Serial Ports, 10Mbps, 100Mbps)

ADAM-4570L
Click here to show/ hide more info

ADAM-4570L
ADAM-4571 and ADAM-4571L are fast and cost effective data gateways between serial and Ethernet interfaces. The units also bring the advantages of remote management and dataaccessibility to RS-232/422/485 devices. The transmission speed of the units is up to 230 kbps, meeting the demands for high-speed data exchanges. In addition, you can useWindows utility to configure ADAM-4571 and ADAM-4571L without further programming. The units not only protect your current hardware investment but also ensure future networkexpandability. Since the protocol conversion is transparent, all your existing devices can be seamlessly integrated with an Ethernet network. Therefore, ADAM-4571 and ADAM-4571Lcan be used in security systems, factory automation, SCADA, transportation and more. ADAM-4571 and ADAM4571L link both your existing human-machine interface(HMI) PC andyour RS-232/422/485 devices with Ethernet cables.ADAM-4571 and ADAM-4571L come with a Windows configuration and port-mapping utility. The configuration tool can auto-detect all Ethernet Data Gateway devices on the localnetwork, and let you adjust all settings. The port mapping utility helps you to setup up COM ports for Windows NT/2000/XP platform. This helps you configure all ports to meetyour needs.

Features:

  • Supports RS-232 serial communication
  • Supports baud rate up to 921.6 kbps
  • Provides COM port redirection (Virtual COM) mode
  • Allows a max. of 5 hosts to access one serial port
  • Built-in 15 KV ESD protection for all serial signals
  • Provides 10/100 Mbps auto-sensing Ethernet port
  • Supports auto re-connection function
  • Supports Windows 2000/XP/Vista drivers
  • Supports remote update firmware

Specifications:

Part Number

ADAM-4570L





Certification



EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 18 Subpart B Class A

EMS

EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2),EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55027

Freefall

NA

Safety

NA

Shock

NA

Vibration

NA





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3, 802.3u

Ethernet Port Number

1

RJ45 Transmission Speed

10/100Mbps









Serial Communication



Serial Port Connector Type

RJ48

Serial Port Number

2

RS-232

Yes





Baud Rate

50 ~ 921.6 Kbps





Environment



Humidity (Operating Range)

5 ~ 95% RH

Temperature (Min. Operating)

-10°C

Temperature (Max. Operating)

60°C

Temperature (Operating Range)

-10 ~ 60°C (14~140°F)

Temperature (Storage Range)

-20 ~ 80°C (40 ~ 176°F)





Mechanism



Dimensions (W x H x D)

70 x 112 x 25 mm

Enclosure (Plastic)

Yes

IP Rating

IP30

Mounting (DIN-rail)

Yes

Mounting (Wall)

Yes

Weight

125g





Power



Power Connector Type

Terminal block

Power Consumption

2.5W

Power Input (DC)

10~30VDC

Power Operating Current

[email protected]





Software



Configuration

Windows utility, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on ADAM-4570L – 2-port RS-232 Serial Device Server (pdf, opens in a new tab)

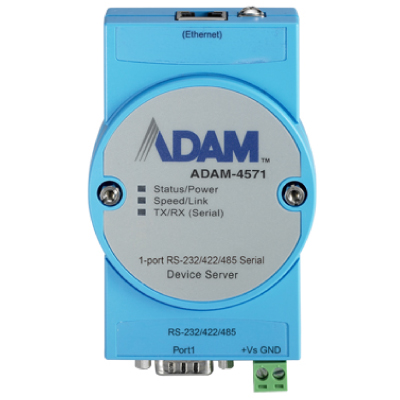

ADAM-4571


1-port RS-232/422/485 Serial Device Server (1 Ethernet Port, 1 Serial Port, 10Mbps, 100Mbps)

ADAM-4571
Click here to show/ hide more info

ADAM-4571
ADAM-4571 and ADAM-4571L are fast and cost effective data gateways between serial and Ethernet interfaces. The units also bring the advantages of remote management and data accessibility to RS-232/422/485 devices. The transmission speed of the units is up to 230 kbps, meeting the demands for high-speed data exchanges. In addition, you can use Windows utility to configure ADAM-4571 and ADAM-4571L without further programming. The units not only protect your current hardware investment but also ensure future network expandability. Since the protocol conversion is transparent, all your existing devices can be seamlessly integrated with an Ethernet network. Therefore, ADAM-4571 and ADAM-4571Lcan be used in security systems, factory automation, SCADA, transportation and more. ADAM-4571 and ADAM4571L link both your existing human-machine interface(HMI) PC and your RS-232/422/485 devices with Ethernet cables.ADAM-4571 and ADAM-4571L come with a Windows configuration and port-mapping utility. The configuration tool can auto-detect all Ethernet Data Gateway devices on the local network, and let you adjust all settings. The port mapping utility helps you to setup up COM ports for Windows NT/2000/XP platform. This helps you configure all ports to meet your needs.

Features:

  • Supports RS-232/422/485 serial communication
  • Supports baud rate up to 921.6 kbps
  • Allows a max. of 5 hosts to access one serial port
  • Allows a max. of 16 hosts to be accessed as TCP client mode
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Provides 10/100 Mbps auto-sensing Ethernet port
  • Supports auto re-connection function
  • Built-in 15 KV ESD protection for all serial signals
  • Automatic RS-485 data flow control
  • Supports remote update firmware

Specifications:

Part Number

ADAM-4571





Certification



EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 20 Subpart B Class A

EMS

EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2),EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55029

Freefall

NA

Safety

NA

Shock

NA

Vibration

NA





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3, 802.3u

Ethernet Port Number

1

RJ45 Transmission Speed

10/100Mbps





Serial Communication



Serial Port Connector Type

RJ48

Serial Port Number

1

RS-232

Yes

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 921.6 Kbps





Environment



Humidity (Operating Range)

5 ~ 95% RH

Temperature (Min. Operating)

-10°C

Temperature (Max. Operating)

60°C

Temperature (Operating Range)

-10 ~ 60°C (14~140°F)

Temperature (Storage Range)

-20 ~ 80°C (40 ~ 176°F)





Mechanism



Dimensions (W x H x D)

70 x 112 x 25 mm

Enclosure (Plastic)

Yes

IP Rating

IP30

Mounting (DIN-rail)

Yes

Mounting (Wall)

Yes

Weight

125g





Power



Power Connector Type

Terminal block

Power Consumption

2.5W

Power Input (DC)

10~30VDC

Power Operating Current

[email protected]





Software



Configuration

Windows utility, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on ADAM-4571 – 1-port RS-232/422/485 Serial Device Server (pdf, opens in a new tab)

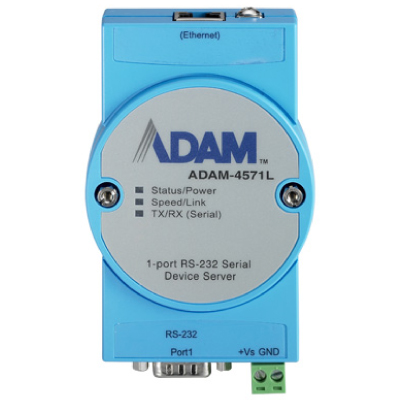

ADAM-4571L


1-port RS-232 Serial Device Server (1 Ethernet Port, 1 Serial Port, 10Mbps, 100Mbps)

ADAM-4571L
Click here to show/ hide more info

ADAM-4571L
The ADAM-4571L provides a robust and cost effective way to network-enable equipment in an industrial automation environment. It also brings the advantages of remote management and data accessibility to RS-232 devices. The transmission speed of the ADAM-4571L is up to 921.6 Kbps, meeting the demands for high-speed data exchanges. By encapsulating serial data and transporting it over Ethernet, the ADAM-4571L allows virtual serial links over TCP/IP networks. After Advantech Serial Device Server Configuration Utility installation, standard serial operation calls are transparently redirected to the serial device server, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. The ADAM-4571L comes with a Windows configuration utility. The configuration tool can auto-detect all serial device servers on the local network, and let you adjust all settings. The configuration utility merges the port mapping function to helps you to setup Virtual COM ports for Windows 2000/XP/Vista(x86) platform. This helps you configure all ports to meet your needs.

Features:

  • Supports RS-232 serial communication
  • Supports baud rate up to 921.6 kbps
  • Provides COM port redirection (Virtual COM) mode
  • Allows a max. of 5 hosts to access one serial port
  • Built-in 15 KV ESD protection for all serial signals
  • Provides 10/100 Mbps auto-sensing Ethernet port
  • Supports auto re-connection function
  • Supports Windows 2000/XP/Vista drivers
  • Supports remote update firmware

Specifications:

Part Number

ADAM-4571L





Certification



EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 20 Subpart B Class A

EMS

EN 61000-4-2 (Level 2), EN 61000-4-3 (Level 2), EN 61000-4-4 (Level 2),EN 61000-4-5 (Level 2), EN 61000-4-6 (Level 2), EN 61000-4-8 (Level 2), EN55031

Freefall

NA

Safety

NA

Shock

NA

Vibration

NA





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Standard

IEEE 802.3, 802.3u

Ethernet Port Number

1

RJ45 Transmission Speed

10/100Mbps









Serial Communication



Serial Port Connector Type

RJ48

Serial Port Number

1

RS-232

Yes

Baud Rate

50 ~ 921.6 Kbps





Environment



Humidity (Operating Range)

5 ~ 95% RH

Temperature (Min. Operating)

-10°C

Temperature (Max. Operating)

60°C

Temperature (Operating Range)

-10 ~ 60°C (14~140°F)

Temperature (Storage Range)

-20 ~ 80°C (40 ~ 176°F)





Mechanism



Dimensions (W x H x D)

70 x 112 x 25 mm

Enclosure (Plastic)

Yes

IP Rating

IP30

Mounting (DIN-rail)

Yes

Mounting (Wall)

Yes

Weight

125g





Power



Power Connector Type

Terminal block

Power Consumption

2.5W

Power Input (DC)

10~30VDC

Power Operating Current

[email protected]





Software



Configuration

Windows utility, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on ADAM-4571L – 1-port RS-232 Serial Device Server (pdf, opens in a new tab)

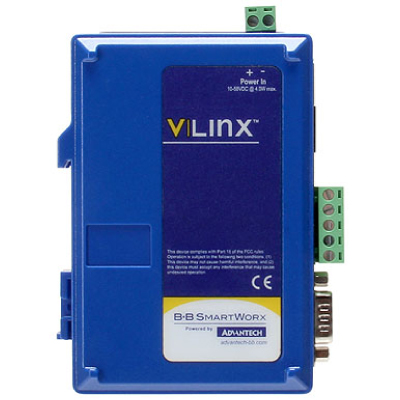

BB-VESR901


Serial Device Server, 1 x RS-232/422/485 DB9 M / TB, Ind. DIN

BB-VESR901
Click here to show/ hide more info

BB-VESR901
Take control of your serial devices with Vlinx™ Model VESR901 Industrial Ethernet Serial Server. If it has a serial port, it can be monitored and controlled from anywhere on your Ethernet LAN or WAN. Keep it at maximum productivity without leaving your office. Even troubleshoot it from outside your LAN via the internet. The easy-to-use Vlinx™ Manager software puts access to your entire factory floor on your desk. Configure devices, upgrade firmware and monitor activity. Configuration changes can also be made using a web browser. Heartbeat connectivity keeps the serial server online. If connectivity is lost, it attempts to reconnect every five seconds until connection is regained. A manual reboot is not needed when communications are restored.

Features:

  • Ethernet enable RS-232/422/485 serial devices
  • Direct IP, virtual COM port, or paired mode
  • Industrial 10 to 48 VDC input power (power supply required, not included, sold separately)
  • Wide operating temperature – -40 to +80 °C
  • UL Class 1 Division 2

Specifications:

Part Number BB-VESR901

Certification
EMC CE, FCC
EMI CE, FCC
EMS CE, FCC
Freefall NO
Safety NO
Shock NO
Vibration NO

General
Technology Serial
Serial Port Count 1
Serial Type RS-232/422/485
Ethernet Port Count 1
Mounting DIN
Power 10-48VDC
Temperture -40 to 80C

Ethernet Communication
RJ45 Port Connector Type RJ45
Ethernet Port Number 1
RJ45 Transmission Speed 802.3 auto detecting


Serial Communication
Serial Port Connector Type DB9& TB
Serial Port Number 1
RS-232 Yes
RS-422 Yes
RS-485 Yes
Baud Rate 50 ~ 230.4 Kbps
Serial Transmission speed 230.4 kbps

Environment
Humidity (Operating Range) 0 ~ 95% RH
Temperature (Min. Operating) -40°C
Temperature (Max. Operating) 80°C
Temperature (Operating Range) -40 ~ 80°C

Mechanism
Dimensions (W x H x D) 120 x 80 x 29 mm
Enclosure (Plastic) Yes
IP Rating IP30
Mounting (DIN-rail) Yes

Power
Power Connector Type Terminal block
Power Consumption 4W
Power Input (DC) 10 to 48VDC

Software
Configuration Windows utility, Web Browser
Driver Windows XP/7/8.1/10, Windows Server 2008
Operation Mode Virtual COM, TCP/UDP server TCP/UDP client

Warranty
Warranty Period 5 years



Datasheet on BB-VESR901 (pdf, opens in a new tab)

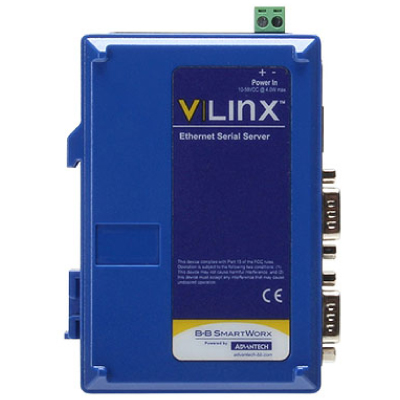

BB-VESR902D


Serial Device Server, 2 x RS-232/422/485 DB9 M, Ind. DIN

BB-VESR902D
Click here to show/ hide more info

BB-VESR902D
Take control of your serial devices with Vlinx™ Model VESR901 Industrial Ethernet Serial Server. If it has a serial port, it can be monitored and controlled from anywhere on your Ethernet LAN or WAN. Keep it at maximum productivity without leaving your office. Even troubleshoot it from outside your LAN via the internet. The easy-to-use Vlinx™ Manager software puts access to your entire factory floor on your desk. Configure devices, upgrade firmware and monitor activity. Configuration changes can also be made using a web browser. Heartbeat connectivity keeps the serial server online. If connectivity is lost, it attempts to reconnect every five seconds until connection is regained. A manual reboot is not needed when communications are restored.

Features:

  • Ethernet enable RS-232/422/485 serial devices
  • Direct IP, virtual COM port, or paired mode
  • Industrial 10 to 48 VDC input power (power supply required, not included, sold separately)
  • Wide operating temperature – -40 to +80 °C
  • UL Class 1 Division 2

Specifications:

Part Number

BB-VESR902D





Certification



EMC

CE, FCC

EMI

CE, FCC

EMS

CE, FCC

Freefall

NO

Safety

NO

Shock

NO

Vibration

NO





General



Technology

Serial

Serial Port Count

2

Serial Type

RS-232/422/485

Ethernet Port Count

1

Mountin

DIN

Power

0-48VDC

Temperture

-40 to 80C





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Port Number

1

RJ45 Transmission Speed

802.3 auto detecting





Serial Communication



Serial Port Connector Type

DB9

Serial Port Number

2

RS-232

Yes

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 230.4 Kbps

Serial Transmission speed

230.4 kbps





Environment



Humidity (Operating Range)

0 ~ 95%

Temperature (Min. Operating)

-40°C

Temperature (Max. Operating)

80°C

Temperature (Operating Range)

-40 ~ 80°C





Mechanism



Dimensions (W x H x D)

120 x 80 x 29 mm

Enclosure (Plastic)

Yes

IP Rating

IP30

Mounting (DIN-rail)

Yes





Power



Power Connector Type

Terminal block

Power Consumption

4W

Power Input (DC)

10 to 48VDC





Software



Configuration

Windows utility, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2008

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on BB-VESR902D (pdf, opens in a new tab)

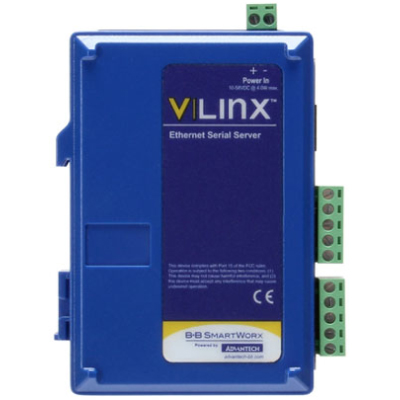

BB-VESR902T


Serial Device Server, 2 x RS-232/422/485 TB, Ind. DIN

BB-VESR902T
Click here to show/ hide more info

BB-VESR902T
Take control of your serial devices with Vlinx™ Model VESR902T Industrial Ethernet Serial Server. If it has a serial port, it can be monitored and controlled from anywhere on your Ethernet LAN or WAN. Keep it at maximum productivity without leaving your office. Even troubleshoot it from outside your LAN via the internet. The easy-to-use Vlinx™ Manager software puts access to your entire factory floor on your desk. Configure devices, upgrade firmware and monitor activity. Configuration changes can also be made using a web browser. Heartbeat connectivity keeps the serial server online. If connectivity is lost, it attempts to reconnect every five seconds until connection is regained. A manual reboot is not needed when communications are restored. Industrial 10 to 48 VDC input power. External power source required, not included, sold separately.

Features:

  • Ethernet enable RS-232/422/485 serial devices
  • Direct IP, virtual COM port or paired mode
  • Industrial 10 to 48 VDC input power (power supply required, not included, sold separately)
  • Wide operating temperature – -40 to +80 °C
  • UL Class 1/Division 2

Specifications:

Part Number

BB-VESR902T





Certification



EMC

CE, FCC

EMI

CE, FCC

EMS

CE, FCC

Freefall

NO

Safety

NO

Shock

NO

Vibration

NO





General



Technology

Serial

Serial Port

Count 2

Serial Type

RS-232/422/485

Ethernet Port

Count 1

Mounting

DIN

Power

10-48VDC

Temperture

-40 to 80C





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Port Number

1

RJ45 Transmission Speed

802.3 auto detecting









Serial Communication



Serial Port Connector Type

Terminal block

Serial Port Number

2

RS-232

Yes

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 230.4 Kbps

Serial Transmission speed

230.4 kbps





Environment



Humidity (Operating Range)

0 ~ 95%

Temperature (Min. Operating)

-40°C

Temperature (Max. Operating)

80°C

Temperature (Operating Range)

-40 ~ 80°C





Mechanism



Dimensions (W x H x D)

120 x 80 x 29 mm

Enclosure (Plastic)

Yes

IP Rating

IP30

Mounting (DIN-rail)

Yes





Power



Power Connector Type

Terminal block

Power Consumption

4W

Power Input (DC)

10 to 48VDC





Software



Configuration

Windows utility, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2008

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on BB-VESR902T (pdf, opens in a new tab)

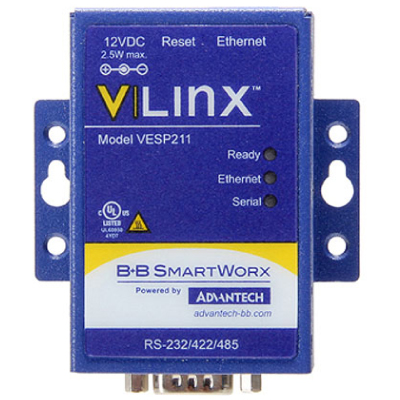

BB-VESP211


Serial Device Server, 1 x DB9 M RS-232/422/485, AC Adapter (Ethernet, 1 Port, Compact, RS-232, DB9M Serial Port, RJ45 Connector)

BB-VESP211
Click here to show/ hide more info

BB-VESP211
BB-VESP211 enables serial devices as network nodes. Manager SW configures, upgrades, monitors, troubleshoots over LAN/WAN via built-in web server and standard browser.10BaseT or 100BaseTX copper. Metal panel-mount case (optional DIN rail adapter). Includes, requires 10-30VDC power supply.

Features:

  • Ethernet enable RS-232/422/485 devices to Ethernet
  • Data rate: up to 230.4 kbps
  • 12V DC power input
  • IP30 metal enclosure – panel mount (DIN rail option)
  • (1) DB9 male; (1) RJ45 Ethernet
  • 10-30 VDC power supply required and included
  • UL 60950 Listed

Specifications:

Part Number

BB-VESP211





Certification



EMC

CE, FCC

EMI

CE, FCC

EMS

CE, FCC

Freefall

NO

Safety

NO

Shock

NO

Vibration

NO





General



Technology

Serial

Serial Port Count

1

Serial Type

RS-232/422/485

Ethernet Port Count

1

Mounting

DIN

Power

12VDC

Temperture

0 to 40C





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Port Number

1

RJ45 Transmission Speed

10/100 Mbps, auto sensing









Serial Communication



Serial Port Connector Type

DB9

Serial Port Number

1

RS-232

Yes

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 230.4 Kbps

Serial Transmission speed

230.4 kbps





Environment



Humidity (Operating Range)

0 ~ 95%

Temperature (Min. Operating)

0°C

Temperature (Max. Operating)

40°C

Temperature (Operating Range)

0 ~ 40°C





Mechanism



Dimensions (W x H x D)

52 x 79 x 22 mm

Enclosure (Plastic)

Yes

IP Rating

IP30

Mounting (DIN-rail)

Yes





Power



Power Connector Type

Jack

Power Consumption

6W

Power Input (DC)

12

Power Operating Current

0.5A





Software



Configuration

Windows utility, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2008

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on BB-VESP211 (pdf, opens in a new tab)

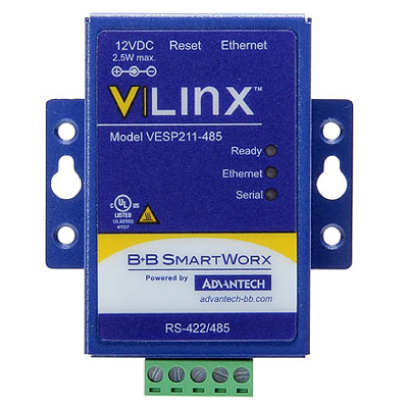

BB-VESP211-485


Serial Device Server, 1 x TB RS-422/485, AC Adapter (Ethernet, 1 Port, Removable Terminal Block, RJ45 Connector, RS-422/485)

BB-VESP211-485
Click here to show/ hide more info

BB-VESP211-485
BB-VESP211-485 enables serial devices as network nodes. Manager SW configures, upgrades, monitors, troubleshoots over LAN/WAN via built-in web server and standard browser.10BaseT or 100BaseTX copper. Metal panel-mount case (optional DIN rail adapter). Includes, requires 10-30VDC power supply.

Features:

  • Ethernet enable RS-422/485 devices
  • Data rate: up to 230.4 kbps
  • 12V DC power input
  • IP30 metal enclosure – panel mount (DIN rail option)
  • (1) removable terminal block; (1) RJ45 Ethernet
  • 10-30 VDC power supply required and included
  • UL 60950 Listed

Specifications:

Part Number

BB-VESP211-485





Certification



EMC

CE/FCC

EMI

CE/FCC

EMS

CE/FCC

Freefall

NO

Safety

NO

Shock

NO

Vibration

NO





General



Technology

Serial

Serial PortCount

1

Serial Type

RS-422/485

Ethernet Port Count

1

Mounting

Panel

Power

12VDC

Temperture

0 to 40C





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Port Number

1

RJ45 Transmission Speed

10/100 Mbps, auto sensing





Serial Communication



Serial Port Connector Type

Screw Terminal

Serial Port Number

1

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 230.4 Kbps

Serial Transmission speed

230.4 kbps





Environment



Humidity (Operating Range)

0 ~ 95%

Temperature (Min. Operating)

-40°C

Temperature (Max. Operating)

80°C

Temperature (Operating Range)

-40 ~ 80°C





Mechanism



Dimensions (W x H x D)

52 x 79 x 22 mm

Enclosure (Plastic)

Yes

IP Rating

IP30

Mounting (DIN-rail)

Yes





Power



Power Connector Type

Jack

Power Consumption

6W

Power Input (DC)

12

Power Operating Current

0.5A





Software



Configuration

Windows utility, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2008

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on BB-VESP211-485 (pdf, opens in a new tab)

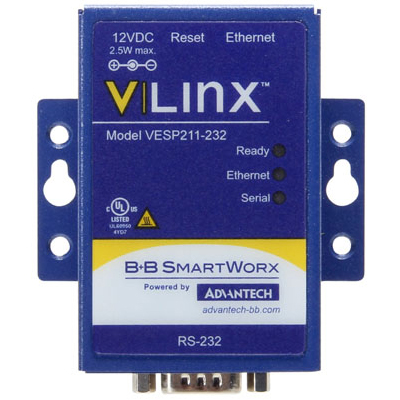

BB-VESP211-232


Serial Device Server, 1 x DB9 M RS-232, AC Adapter (Ethernet, 1 Port, DB9M Serial Port, RJ45 Connector, RS-232)

BB-VESP211-232
Click here to show/ hide more info

BB-VESP211-232
BB-VESP211-232 enables serial devices as network nodes. Manager SW configures, upgrades, monitors, troubleshoots over LAN/WAN via built-in web server and standard browser.10BaseT or 100BaseTX copper. Metal panel-mount case (optional DIN rail adapter). Includes, requires 10-30VDC power supply.

Features:

  • Ethernet enable serial devices (RS-232 to Ethernet)
  • Data rate: up to 230.4 kbps
  • 12V DC power input
  • IP30 metal enclosure – panel mount (DIN rail option)
  • (1) DB9 male; (1) RJ45 Ethernet
  • 12 VDC power supply included (international blades)
  • UL 60950 Listed

Specifications:

Part Number

BB-VESP211-232





Certification



EMC

CE/FCC

EMI

CE/FCC

EMS

CE/FCC

Freefall

NO

Safety

NO

Shock

NO

Vibration

NO





General



Technology

Serial

Serial Port Count

1

Serial Type

RS-232

Ethernet Port Count

1

Mounting

Panel

Power

12VDC

Temperture

0 to 40C





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Port Number

1

RJ45 Transmission Speed

10/100 Mbps, auto sensing





Serial Communication



Serial Port Connector Type

DB9

Serial Port Number

1

RS-232

Yes

Baud Rate

50 ~ 230.4 Kbps

Serial Transmission speed

230.4 kbps





Environment



Humidity (Operating Range)

0 ~ 95%

Temperature (Min. Operating)

0°C

Temperature (Max. Operating)

40°C

Temperature (Operating Range)

0 ~ 40°C





Mechanism



Dimensions (W x H x D)

52 x 79 x 22 mm

Enclosure (Plastic)

Yes

IP Rating

IP30

Mounting (DIN-rail)

Yes





Power



Power Connector Type

Jack

Power Consumption

6W

Power Input (DC)

12

Power Operating Current

0.5A





Software



Configuration

Windows utility, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2008

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on BB-VESP211-232 (pdf, opens in a new tab)

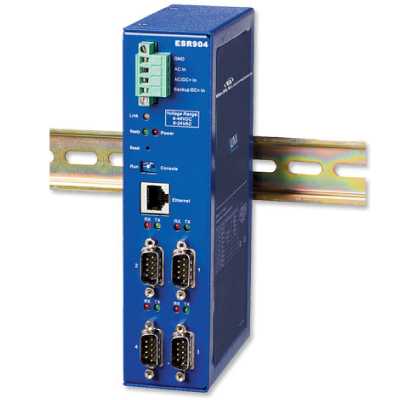

BB-ESR901


Serial Device Server, 1 x DB9 M / RJ45 RS-232/422/485, DIN Rail

BB-ESR901
Click here to show/ hide more info

BB-ESR901
Description Industrial and commercial measurement and control systems often have standalone devices with unused serial ports. B B SmartWorx ESRx Serial Servers allow you to connect those ports into your existing LAN or WAN, giving you access to more information and the ability to configure, manage and troubleshoot those devices from a control room, office or a distant location via a WAN. Save the cost, time and trouble of carrying a laptop out to devices located in distant, cold, dirty or uncomfortable environments. ESRx Serial Servers are built for industrial environments, featuring an IP30 approved, slim line, DIN rail mountable case. They operate from a range of voltages using AC or DC power, feature terminal block power connectors and even support redundant DC power. An external power source is required (not included, sold separately). Connect a serial device to the ESRx’s serial port and connect the ESRx to your LAN. Your networked computer ‘sees’ the device over the network as a virtual serial connection. ESRx serial servers support TCP or UDP protocols and allow transmit-to and receive-from multiple IP addresses. There are four methods of configuration: Vlinx Management Software, Web Server, Telnet, or a direct RS-232 console connection using a terminal program. Operation(See operating manual for more details.) ESRx serial servers can be accessed and configured from any web browser (ie, Internet Explorer) on the LAN/WAN allowing you to remotely manage the software and your serial device and do off-site troubleshooting. Vlinx ESRx Serial Servers provide automatic resumption of the TCP data connection in case of a power failure or loss of an Ethernet connection on either the client or server. Once the Heartbeat connection is established, the server sends a signal to the client every five seconds until communication is re-established. Without this feature, a device that loses a connection and stops communicating would not be able to reconnect without a person physically attending to the problem. The Heartbeat feature works with virtual COM and TCP direct IP connections. Vlinx Manager Software allows easy access to the serial server to configure the server and its ports, upgrade firmware and monitor port status and activity. When the Vlinx Manager opens, it will search for and display all serial servers on the network. The Monitor Port feature allows you to use any PC on the LAN/WAN to actively view and troubleshoot the communications status. It shows when there is a client connection to the server and the client IP address. It displays the number of bytes transmitted and received, as well as the status of the hardware handshaking lines.

Features:

  • Serial Device Server
  • Metal DIN Rail Case
  • One RS-232/422/485 Port
  • Auto Detect 10/100 Mbps Ethernet
  • Virtual COM Drivers for Windows 2000, XP, Server 2003, Vista, Server 2008, & Win 7
  • External power source required (not included, sold separately)

Specifications:

Part Number

BB-ESR901





General



Technology

Serial

Serial Port Count

1

Serial Type

RS-232/422/485

Ethernet Port Count

1

Mounting

Panel

Power

24VDC

Temperture

-10 to 80C



Datasheet on BB-ESR901 (pdf, opens in a new tab)

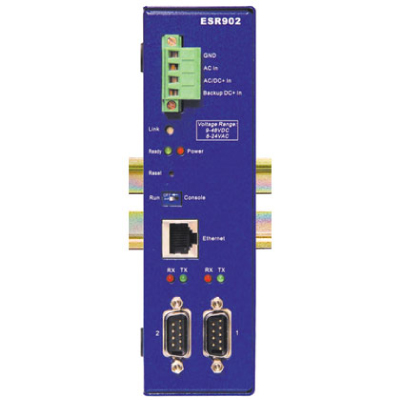

BB-ESR902


Serial Device Server, 2 x DB9 M RS-232/422/485, DIN Rail

BB-ESR902
Click here to show/ hide more info

BB-ESR902
Description Industrial and commercial measurement and control systems often have standalone devices with unused serial ports. B B SmartWorx ESRx Serial Servers allow you to connect those ports into your existing LAN or WAN, giving you access to more information and the ability to configure, manage and troubleshoot those devices from a control room, office or a distant location via a WAN. Save the cost, time and trouble of carrying a laptop out to devices located in distant, cold, dirty or uncomfortable environments. ESRx Serial Servers are built for industrial environments, featuring an IP30 approved, slim line, DIN rail mountable case. They operate from a range of voltages using AC or DC power, feature terminal block power connectors and even support redundant DC power. An external power source is required (not included, sold separately). Connect a serial device to the ESRx’s serial port and connect the ESRx to your LAN. Your networked computer ‘sees’ the device over the network as a virtual serial connection. ESRx serial servers support TCP or UDP protocols and allow transmit-to and receive-from multiple IP addresses. There are four methods of configuration: Vlinx Management Software, Web Server, Telnet, or a direct RS-232 console connection using a terminal program. Operation(See operating manual for more details.) ESRx serial servers can be accessed and configured from any web browser (ie, Internet Explorer) on the LAN/WAN allowing you to remotely manage the software and your serial device and do off-site troubleshooting. Vlinx ESRx Serial Servers provide automatic resumption of the TCP data connection in case of a power failure or loss of an Ethernet connection on either the client or server. Once the Heartbeat connection is established, the server sends a signal to the client every five seconds until communication is re-established. Without this feature, a device that loses a connection and stops communicating would not be able to reconnect without a person physically attending to the problem. The Heartbeat feature works with virtual COM and TCP direct IP connections.Vlinx Manager Software allows easy access to the serial server to configure the server and its ports, upgrade firmware and monitor port status and activity. When the Vlinx Manager opens, it will search for and display all serial servers on the network. The Monitor Port feature allows you to use any PC on the LAN/WAN to actively view and troubleshoot the communications status. It shows when there is a client connection to the server and the client IP address. It displays the number of bytes transmitted and received, as well as the status of the hardware handshaking lines.

Features:

  • Serial Device Server
  • Metal DIN Rail Case
  • Two RS-232/422/485 Port
  • Auto Detect 10/100 Mbps Ethernet
  • Virtual COM Drivers for Windows 2000, XP, Server 2003, Vista, Server 2008, & Win 7
  • External power source required (not included, sold separately)

Specifications:

Part Number

BB-ESR902





General



Technology

Serial

Serial Port Count

2

Serial Type

RS-232/422/485

Ethernet Port Count

1

Mounting

Panel

Power

24VDC

Temperture

-10 to 80C



Datasheet on BB-ESR902 (pdf, opens in a new tab)

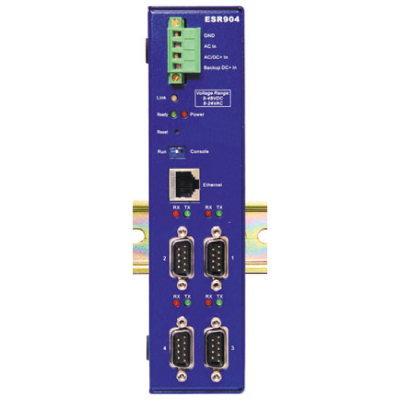

BB-ESR904


Serial Device Server, 4 x DB9 M RS-232/422/485, DIN Rail

BB-ESR904
Click here to show/ hide more info

BB-ESR904
Description Industrial and commercial measurement and control systems often have standalone devices with unused serial ports. B B SmartWorx ESRx Serial Servers allow you to connect those ports into your existing LAN or WAN, giving you access to more information and the ability to configure, manage and troubleshoot those devices from a control room, office or a distant location via a WAN. Save the cost, time and trouble of carrying a laptop out to devices located in distant, cold, dirty or uncomfortable environments. ESRx Serial Servers are built for industrial environments, featuring an IP30 approved, slim line, DIN rail mountable case. They operate from a range of voltages using AC or DC power, feature terminal block power connectors and even support redundant DC power. An external power source is required (not included, sold separately). Connect a serial device to the ESRx’s serial port and connect the ESRx to your LAN. Your networked computer ‘sees’ the device over the network as a virtual serial connection. ESRx serial servers support TCP or UDP protocols and allow transmit-to and receive-from multiple IP addresses. There are four methods of configuration: Vlinx Management Software, Web Server, Telnet, or a direct RS-232 console connection using a terminal program. Operation(See operating manual for more details.) ESRx serial servers can be accessed and configured from any web browser (ie, Internet Explorer) on the LAN/WAN allowing you to remotely manage the software and your serial device and do off-site troubleshooting. Vlinx ESRx Serial Servers provide automatic resumption of the TCP data connection in case of a power failure or loss of an Ethernet connection on either the client or server. Once the Heartbeat connection is established, the server sends a signal to the client every five seconds until communication is re-established. Without this feature, a device that loses a connection and stops communicating would not be able to reconnect without a person physically attending to the problem. The Heartbeat feature works with virtual COM and TCP direct IP connections.Vlinx Manager Software allows easy access to the serial server to configure the server and its ports, upgrade firmware and monitor port status and activity. When the Vlinx Manager opens, it will search for and display all serial servers on the network. The Monitor Port feature allows you to use any PC on the LAN/WAN to actively view and troubleshoot the communications status. It shows when there is a client connection to the server and the client IP address. It displays the number of bytes transmitted and received, as well as the status of the hardware handshaking lines.

Features:

  • Serial Device Server
  • Metal DIN Rail Case
  • Four RS-232/422/485 Port
  • Auto Detect 10/100 Mbps Ethernet
  • Virtual COM Drivers for Windows 2000, XP, Server 2003, Vista, Server 2008, & Win 7
  • External power source required (not included, sold separately)

Specifications:

Part Number

BB-ESR904





Certification



EMC

CE / FCC

EMI

CE / FCC

EMS

CE / FCC

Freefall

NO

Safety

NO

Shock

NO

Vibration

NO





General



Technology

Serial

Serial Port Count

1

Serial Type

RS-232

Ethernet Port Count

1

Mounting

Panel

Power

12VDC

Temperature

0 to 40C





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Port Number

1

RJ45 Transmission Speed

10/100 Mbps, auto sensing





Serial Communication



Serial Port Connector Type

DB9

Serial Port Number

1

RS-232

Yes

Baud Rate

50 ~ 230.4 Kbps

Serial Transmission Speed

230.4 kbps





Environment



Humidity (Operating Range)

0 ~ 95%

Temperature (Min. Operating)

0°C

Temperature (Max. Operating)

40°C

Temperature (Operating Range)

0 ~ 40°C





Mechanism



Dimensions (W x H x D)

52x79x22 mm

Enclosure (Metal)

Yes

IP Rating

IP30

Mounting (Wall)

Yes





Power



Power Connector Type

jack

Power Consumption

6W

Power Input (DC)

12

Power Operating Current

0.5A





Software



Configuration

Windows utility, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2008

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on BB-ESR904 (pdf, opens in a new tab)

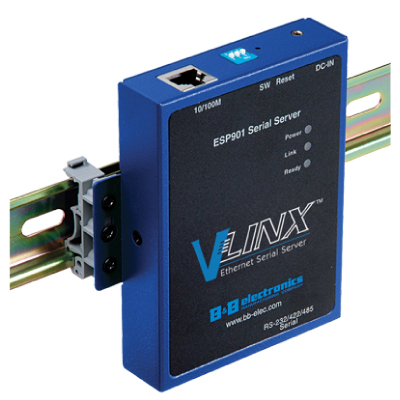

BB-ESP901


Serial Device Server, 1 x DB9 M RS-232/422/485, Panel Mount

BB-ESP901
Click here to show/ hide more info

BB-ESP901
Ethernet enable any serial device using Advantech Vlinx™ Serial Server technology and put your serial ports to work for you with the ability to communicate with every piece of equipment from any networked PC. Eliminate site visits just to make a minor configuration change. Reduce service calls and increase productivity by knowing what your equipment is doing before you get a trouble report. Spend more time doing relevqnt tasks instead of chasing down nuisance problems with remotely located equipment.

Much of today’s high-tech equipment ships with a serial port for programming, monitoring or diagnostics. 80% of these serial ports are left unconnected, often because a person travels to the port to make the connection or a permanent PC is not desirable. With Advantech Vlinx Serial Servers, you can put all of those ports to work.

Simply connect the Vlinx Serial Server to the equipment’s serial port and connect the Vlinx Ethernet port to your LAN. Your equipment is now online and appears as a local COM port on any networked PC running Advantech Virtual Serial Port software. No software customization required – just run the appropriate software for your equipment.

The BB-ESP90x family integrates the benefits of Ethernet communications with existing serial devices by offering the combination of three serial interfaces:RS-232, RS-422, and RS-485. The Ethernet connection will auto select 10BaseT or 100BaseTX.

These serial servers provide Windows host control over serial devices located virtually anywhere on a TCP/IP or UDP/IP Ethernet connection giving authorized users control over the connected serial device and server configuration from anywhere outside the LAN.

Features:

  • Serial Device Server
  • Compact Panel Mount Case
  • One RS-232/422/485 Port
  • Auto Detect 10/100 Mbps Ethernet
  • Virtual COM Drivers for Windows 2000, XP, Server 2003, Vista, Server 2008, 7, 10

Specifications:

Part Number

BB-ESP901





Certification



EMC

CE / FCC

EMI

CE / FCC

EMS

CE / FCC

Freefall

NO

Safety

NO

Shock

NO

Vibration

NO

Technology

Serial

Serial Port Count

1

Serial Type

RS-232/422/485

Ethernet Port Count

1

Mounting

DIN

Power

10-48VDC

Temperature

-40 to 80C





Ethernet Communication



RJ45 Port Connector Type

RJ45

Ethernet Port Number

1

RJ45 Transmission Speed

802.3 auto detecting





Serial Communication



Serial Port Connector Type

DB9 & TB

Serial Port Number

1

RS-232

Yes

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 230.4 Kbps

Serial Transmission Speed

230.4 kbps





Environment



Humidity (Operating Range)

0 ~ 95%

Temperature (Min. Operating)

-40°C

Temperature (Max. Operating)

80°C

Temperature (Operating Range)

-40 ~ 80°C





Mechanism



Dimensions (W x H x D)

120x80x29 mm

Enclosure (Plastic)

Yes

IP Rating

IP30

Mounting (DIN-rail)

Yes





Power



Power Connector Type

Terminal block

Power Consumption

4W

Power Input (DC)

10 to 48 VDC





Software



Configuration

Windows utility, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2008

Operation Mode

Virtual COM, TCP/UDP server TCP/UDP client





Warranty



Warranty Period

5 years



Datasheet on BB-ESP901 (pdf, opens in a new tab)

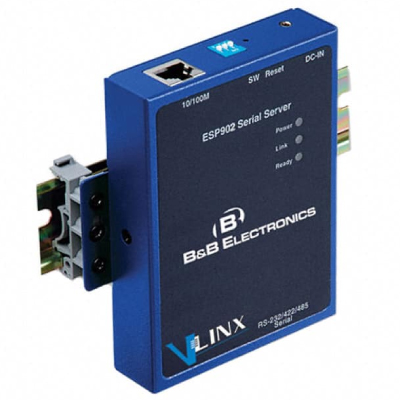

BB-ESP902


Serial Device Server, 1 x DB9M RS-232/422/485, 1 x DB9M RS-232

BB-ESP902
Click here to show/ hide more info

BB-ESP902
Ethernet enable any serial device using Advantech Vlinx™ Serial Server technology and put your serial ports to work for you with the ability to communicate with every piece of equipment from any networked PC. Eliminate site visits just to make a minor configuration change. Reduce service calls and increase productivity by knowing what your equipment is doing before you get a trouble report. Spend more time doing relevqnt tasks instead of chasing down nuisance problems with remotely located equipment.

Much of today’s high-tech equipment ships with a serial port for programming, monitoring or diagnostics. 80% of these serial ports are left unconnected, often because a person travels to the port to make the connection or a permanent PC is not desirable. With Advantech Vlinx Serial Servers, you can put all of those ports to work.

Simply connect the Vlinx Serial Server to the equipment’s serial port and connect the Vlinx Ethernet port to your LAN. Your equipment is now online and appears as a local COM port on any networked PC running Advantech Virtual Serial Port software. No software customization required – just run the appropriate software for your equipment.

The BB-ESP90x family integrates the benefits of Ethernet communications with existing serial devices by offering the combination of three serial interfaces:RS-232, RS-422, and RS-485. The Ethernet connection will auto select 10BaseT or 100BaseTX.

These serial servers provide Windows host control over serial devices located virtually anywhere on a TCP/IP or UDP/IP Ethernet connection giving authorized users control over the connected serial device and server configuration from anywhere outside the LAN.

Features:

  • Serial Sevice Server
  • Compact Panel Mount Case
  • Two RS-232/422/485 Ports
  • Auto Detect 10/100 Mbps Ethernet
  • Virtual COM Drivers for Windows 2000, XP, Server 2003, Vista, Server 2008, 7, 10

Specifications:

Part Number

BB-ESP902





General



Technology

Serial

Serial Port Count

2

Serial Type

RS-232/422/485

Ethernet Port Count

1

Mounting

Panel

Power

12VDC

Temperture

-10 to 80C



Datasheet on BB-ESP902 (pdf, opens in a new tab)

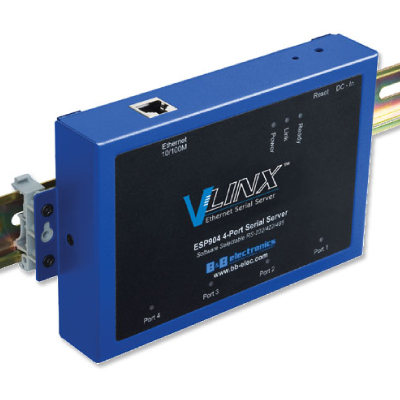

BB-ESP904


Serial Device Server, 4 x DB9 M RS-232/422/485, Panel Mount

BB-ESP904
Click here to show/ hide more info

BB-ESP904
Ethernet enable any serial device using Advantech Vlinx™ Serial Server technology and put your serial ports to work for you with the ability to communicate with every piece of equipment from any networked PC. Eliminate site visits just to make a minor configuration change. Reduce service calls and increase productivity by knowing what your equipment is doing before you get a trouble report. Spend more time doing relevqnt tasks instead of chasing down nuisance problems with remotely located equipment.

Much of today’s high-tech equipment ships with a serial port for programming, monitoring or diagnostics. 80% of these serial ports are left unconnected, often because a person travels to the port to make the connection or a permanent PC is not desirable. With Advantech Vlinx Serial Servers, you can put all of those ports to work.

Simply connect the Vlinx Serial Server to the equipment’s serial port and connect the Vlinx Ethernet port to your LAN. Your equipment is now online and appears as a local COM port on any networked PC running Advantech Virtual Serial Port software. No software customization required – just run the appropriate software for your equipment.

The BB-ESP90x family integrates the benefits of Ethernet communications with existing serial devices by offering the combination of three serial interfaces:RS-232, RS-422, and RS-485. The Ethernet connection will auto select 10BaseT or 100BaseTX.

These serial servers provide Windows host control over serial devices located virtually anywhere on a TCP/IP or UDP/IP Ethernet connection giving authorized users control over the connected serial device and server configuration from anywhere outside the LAN.

Features:

  • Serial Sevice Server
  • Compact Panel Mount Case
  • Two RS-232/422/485 Ports
  • Auto Detect 10/100 Mbps Ethernet
  • Virtual COM Drivers for Windows 2000, XP, Server 2003, Vista, Server 2008, 7, 10

Specifications:

Part Number

BB-ESP904





General



Technology

Serial

Serial Port Count

4

Serial Type

RS-232/422/485

Ethernet Port Count

1

Mounting

Panel

Power

12VDC

Temperture

-10 to 80C



Datasheet on BB-ESP904 (pdf, opens in a new tab)

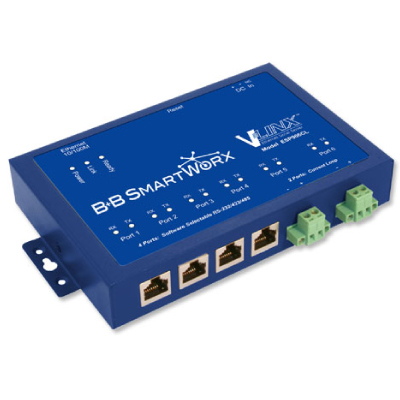

BB-ESP906CL


Serial Device Server, 4 x RJ45 RS-232/422/485, 2 x RJ45 Current Loop

BB-ESP906CL
Click here to show/ hide more info

BB-ESP906CL
B&B Electronics’ new Model ESP906CL integrates the benefits of Ethernet communications with existing serial devices by offering four configurable RS-232/422/485 serial ports and two digital current loop ports. The Ethernet connection will auto select 10BaseT or 100BaseTX. The ESP906CL provides a Windows host control over serial devices located virtually anywhere on a TCP/IP or UDP/IP Ethernet connection. It even gives authorized users control over the connected serial device or the ESP906CL Menu from anywhere outside the LAN.

Features:

  • Serial Device Server
  • Supports 10/100 Mbps Ethernet
  • Supports RS-232, RS-422, and RS-485 and digital current loop interfaces

Specifications:

Part Number

BB-ESP906CL





General



Technology

Serial

Serial Port Count

6

Serial Type

RS-232/422/485, CL

Ethernet Port Count

1

Mounting

Panel

Power

36VDC

Temperture

0 to 40C



Datasheet on BB-ESP906CL (pdf, opens in a new tab)

Call Now Button
