Fanless Embedded Computers

Industrial Fanless Mini PC's - rugged & reliable, great for harsh & dusty environments, such as vehicles, kiosks, outdoor enclosures

Mini Fanless PC’s – Industrial Grade

A fanless PC is ideal for dusty and dirty environments, high temperatures, and where shock and vibration would damage a regular PC. It is also great when you need a PC that runs silently, such as in home theatres. Our compact industrial fanless PC’s are durable, reliable and rugged, being designed for critical applications and environments where regular mini PC’s would not last. Choose from the low power Atom CPU all the way up to Core i7.

Common questions

What is a fanless PC and how does it work?

A fanless PC is a small computer that is designed to work without using any fans for cooling. It has to be carefully designed because all computer processors generate heat, and it is not so easy to get heat out of the casing without fans. Fanless Industrial computers take this one step further, adding several design features to make them “industrial grade”, such as operating in high ambient temperatures up to 60 or 70 degrees C, and using higher quality components to last for years under 24×7 operation.

The majority of fanless PC’s will make use of “low power” processors, which dissipate less heat than a regular desktop processor. However there are also some high end fanless PC’s that use desktop processors as well – these need larger heat sinks and are carefully designed to make sure the don’t overheat even under harsh conditions.

How does a fanless PC work?

All computers generate heat. The hottest part is usually the main processor or CPU. Graphics cards and spinning hard drives can also generate significant heat. To get all this heat out of the computer box, the easiest and cheapest way is to use fans to blow air through the insides of the PC. This is how most normal computers are cooled. On the other hand, in a fanless PC a large heat sink is used, which is a metal block with a lot of fins cut out of it. Internally the components that generate heat will then need to be thermally joined to the heat sink, to make sure their heat is efficiently carried away. Normally solid state drives are also used, which generate less heat and can tolerate higher temperatures.

Why use a Fanless PC?

Fan cooling of computers can cause problems: in most environments there is dust in the air, and the dust gradually builds up inside the PC, blocking the airflow and causing failures. In addition, mechanical fans are less reliable than the solid state electronics of the PC itself, so fans are likely to fail at some point. When a fan fails, the whole PC is in danger of overheating and getting damaged. Also fans are often the noisiest part of a computer, and are not well suited to use on moving platforms and vehicles. Fanless PC’s solve all these problems. Hence fanless PC’s are ideal for use in environments such as dusty factories, outdoor kiosks and equipment enclosures, moving vehicles, and remote locations that are hard to get to. They are also preferred for “home theatre” use where the background noise of a fan interferes with the sound.

What’s the difference between an Industrial Grade mini PC and a regular SFF (small form factor) mini PC?

Fanless operation – no dust build-up and no moving parts, for maximum reliability and minimum maintenance.
Wide temperature rating – most of these PC’s are rated to 60°C or even 70°C ambient temperature. This makes them suitable for use in vehicles, outdoor enclosures, factories, etc.
Extra reliability testing – designed for 24×7 operation
Shock and vibration ratings on most models, to suit vehicles and boats
Long product lifecycle – these products stay on the market for years and years, so you can design your system around them without worrying about obsolescence.
DC powered, usually connected by locking connectors or screw terminals.
Industrial connectivity – multiple serial RS-232 and RS-485 ports, Ethernet, general purpose I/O terminals, expansion boards, PoE ports, etc.

Is a Mini PC good for my application?

Mini PC’s are an excellent choice for a wide variety of applications. Most small PC’s will run standard Windows and Linux operating systems, so they can be used for most applications that a regular PC would do. They range in power from lightweight and low power processors up to the high power Core i7. Choosing a fanless mini PC gives you the added benefits that it’s totally silent, and never gets full of dust, so you won’t need to clean it out. Going one step further and choosing an industrial fanless PC will provide extra reliability and durability – your industrial fanless embedded computer work reliably for years and years even in harsh environments.

Embedded fanless PC’s are ideal where a PC is needed in an outdoor enclosure or in a dusty, hot environment. Regular PC’s would simply not survive in such environments.

Another application where we highly recommend using fanless solid state mini PC’s is for vehicles and boats. Configuring a fanless mini PC with a solid state disk (SSD) means the computer will have no moving parts, making it much more shock and vibration proof than a regular mini PC.

However mini fanless PC’s do have some limitations which means they are not suitable for every application. Fanless computer systems are not for applications requiring high powered add-in cards like high end graphics cards, RAID cards or other large add-on cards. The processor power and thermal dissipation is also always matched to the cooling capacity of the heat sink, so fanless PC’s are not available with the absolute highest powered CPU’s which generate large amounts of heat. This is a physical limitation with passive heatsink based cooling.

Points to consider before choosing a fanless PC

Before you choose a fanless PC, consider the following questions:

Where will the PC be installed? Consider the size constraints, and how it will be physically mounted. Many fanless PC’s have mounting flanges included.
What temperature range will it be exposed to? If it’s installed outdoors in a cabinet, or in a vehicle, the temperature can soar above 60 degrees C on a hot day, and dip below zero in cold mountainous areas, so choose a model with a suitable temperature rating.
Do you need an IP rating, for dust proofing or water proofing? Some fanless PC’s are available with waterproof IP ratings.
Is this PC to go in a moving vehicle? If so, consider shock and vibration ratings, or request a rugedised PC.
How fast a CPU do you need? Atom, Celeron, i3, i5, i7 – it depends on what software you’re planning to run.
How much RAM and storage (SSD) do you need? Again this depends on what software you plan to run. Choices range from 4GB RAM / 64GB SSD up to 32GB RAM, 2TB SSD or even more.
What operating system do you require? Common choices are Windows 10 Pro, Windows 10 IoT, or Linux.
What add-on cards will you need? Common ones include WiFi, 4G/LTE modem built in, Bluetooth, GPS.
What input and output ports do you need? Consider USB 2 / USB 3, Serial RS232 / RS485, Network (PoE required for powering cameras?), VGA, HDMI, DisplayPort, GPIO, etc.
Do you need the PC to have a discrete graphics processor? Some of our fanless PC’s are available with nVidia professional grade GPU’s built in.

Difference between Windows 10 Pro and Windows 10 IoT

Windows 10 Pro is the operating system most people are familiar with, for normal desktop or notebook PC’s. However when a PC is to be used in an “embedded” situation, you can get a lower cost Windows 10 licence suited for the application. Windows 10 Enterprise IoT LTSC is a special Windows 10 licensing model where you get the full version of Windows 10 Enterprise, but the licence restricts the PC’s use to only a single application or function. This is ideal for many industrial uses where the PC will typically only run a control program and nothing else. In addition to the licensing restrictions, Windows 10 Enterprise IoT LTSC is also tweaked so it only downloads important security updates, without changing the base operating system version. By comparison, the normal desktop version of Windows 10 automatically updates itself whenever a new version comes out, which can add new features, sometimes changing the way things work. This can cause issues for embedded or remote PC’s where someone can’t always be available to sort out any resulting software issues. It’s especially important where the PC is embedded into a product and can’t be accessed in a normal way.

Show Less

Understanding the terminology

LTSP = Linux Terminal Server Project

LTSC = Long Term Servicing Channel (for Windows 10 IoT 2019) – indicates Microsoft provides extended support for a longer period than standard Windows 10 (typically 10 years) and the features of the operating system will remain the same, without requiring upgrades that could interfere with existing software.

LTSB = Long Term Servicing Branch (for Windows 10 IoT 2016) – indicates Microsoft provides extended support for a longer period than standard Windows 10 (typically 10 years) and the features of the operating system will remain the same, without requiring upgrades that could interfere with existing software.

Intel CPU Comparison

Thin client definition: A user’s computer or terminal that processes only keyboard input and screen output and functions like an input/output terminal, and performs no application processing.

CPU Benchmarks: click here

MiniPCI was added to PCI version 2.2 for use in laptops, superseded by mini PCIe (see below). The standard size for Mini PCI cards is approximately a quarter of their full-sized counterparts. There is no access to the card from outside the case, (unlike desktop PCI cards with brackets carrying connectors).

PCIe: PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCIe, is a high-speed serial computer expansion bus standard designed to replace the older PCI, PCI-X, and AGP bus standards. See http://en.wikipedia.org/wiki/PCI_Express

Mini PCIe or Mini PCI Express card is a replacement for the Mini PCI form factor, based on PCI Express. The host device supports both PCI Express and USB 2.0 connectivity, and each card may use either standard. Most laptop computers built after 2005 are based on PCI Express and can have several Mini PCIe Card slots. Dimensions 30×50.95 mm. Most fanless PC’s also support at least one mini-PCIe card.

mSATA: A standard form factor for SATA solid state drives that is about the size of a credit card, and plugs directly onto the main board of the computer. The connector and card size are physically the same as for a Mini-PCIe card.

m.2: A standard form factor for SATA solid state drives and other add-on cards, about the size of a stick of gum, and plugs directly onto the main board of the computer. There are various card sizes supported, and the connector carries signals for PCIe, SATA, and USB interfaces, allowing flexibility and performance.

PC/104: The PC/104 computer bus (first released in 1992) utilizes 104 pins. These pins include all the normal lines used in the ISA bus

PC/104-Plus: The PC/104-Plus adds support for the PCI bus, in addition to the ISA bus of the PC/104 standard

PCI-104: The PCI-104 form factor includes the PCI connector, but not the ISA connector

Products on this page:

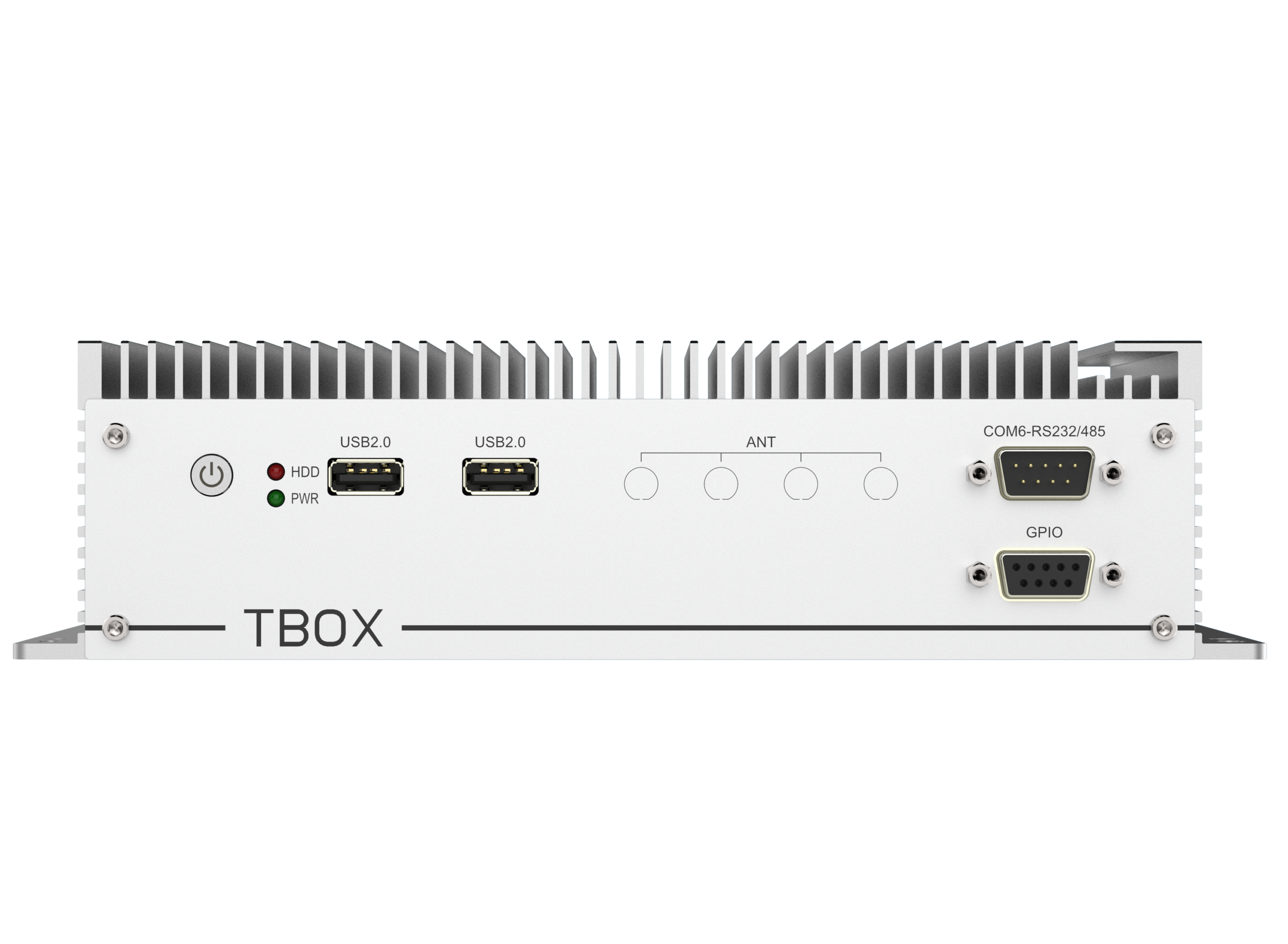

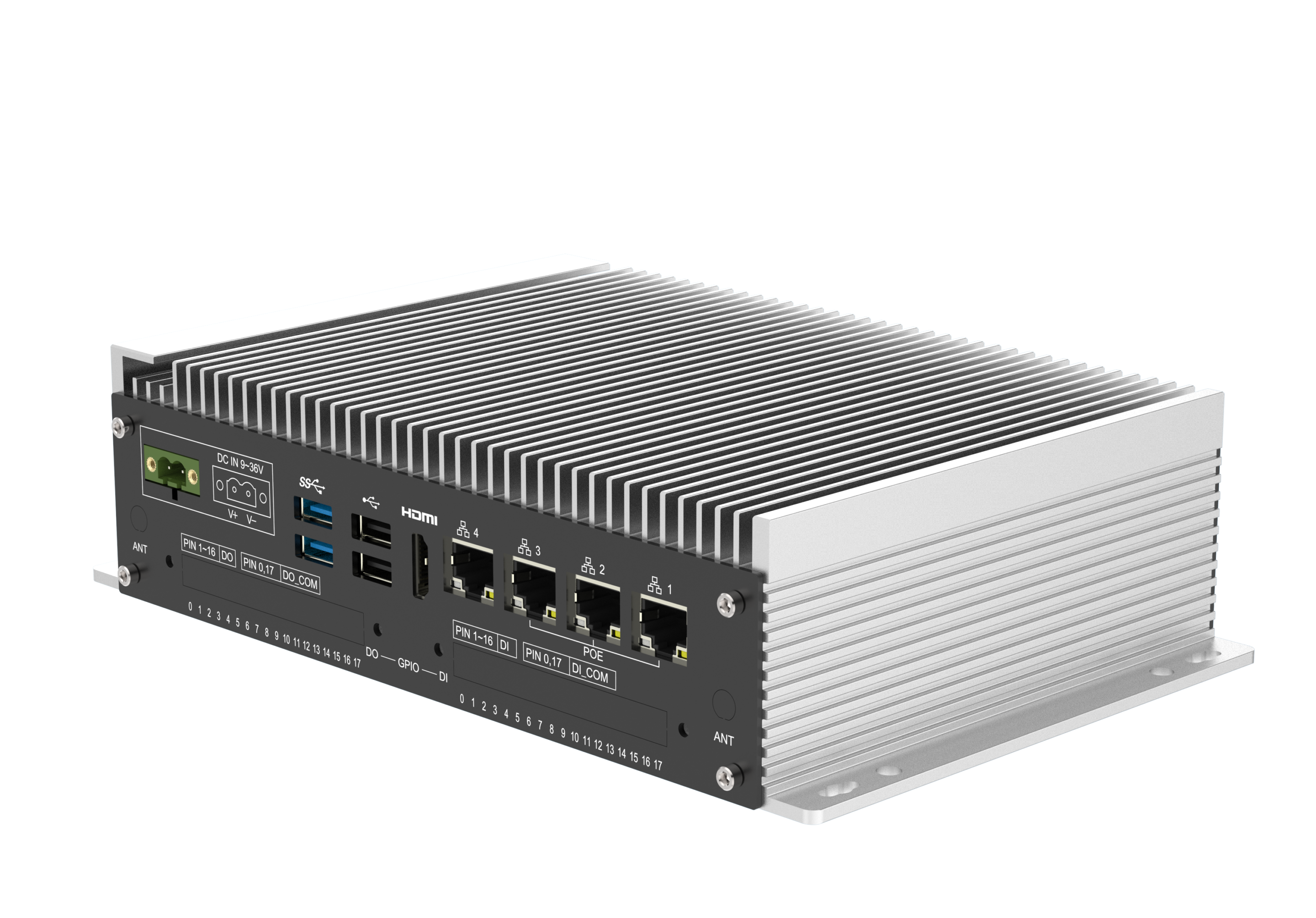

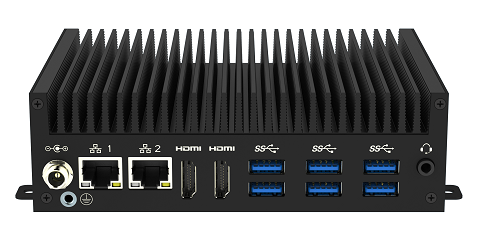

CyberVisuell – TBOX Fanless PC’s

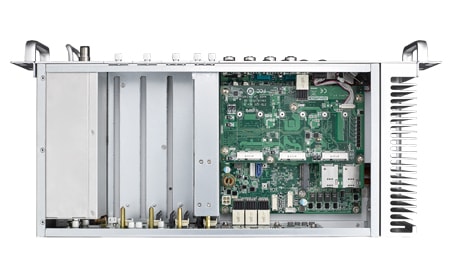

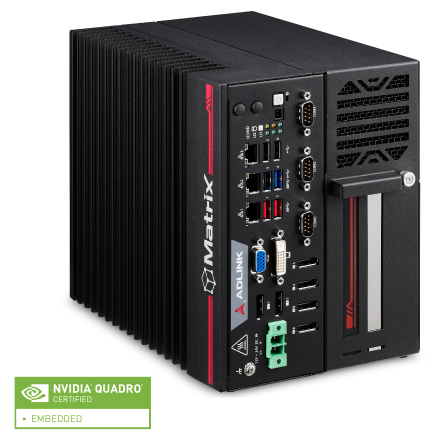

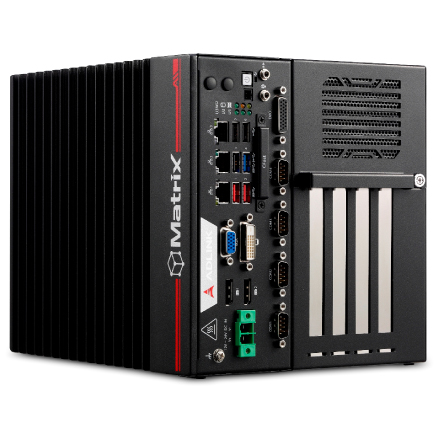

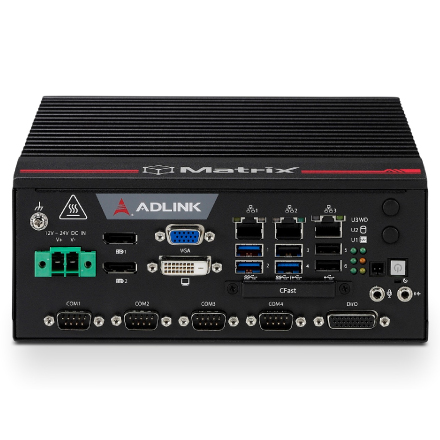

ADLINK Expandable Fanless Embedded Computers

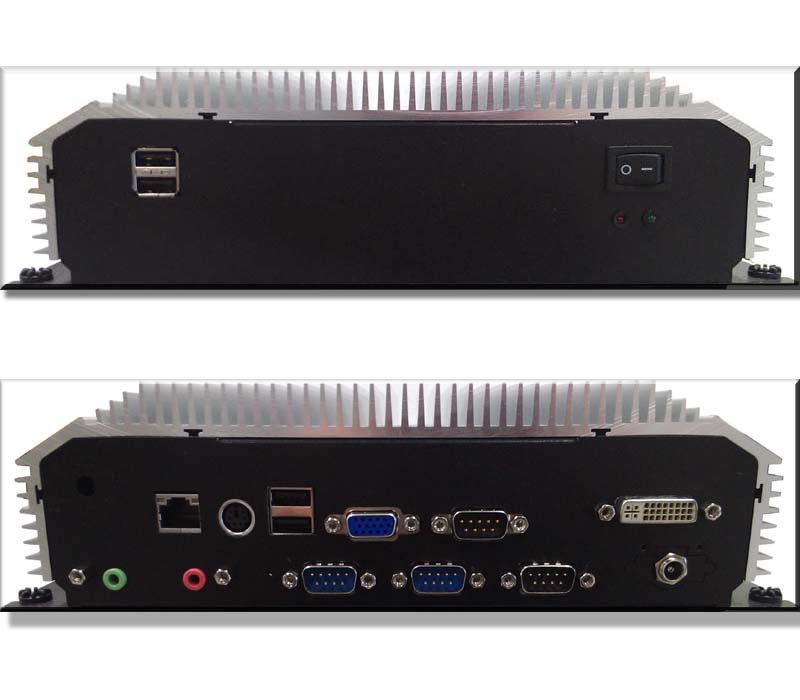

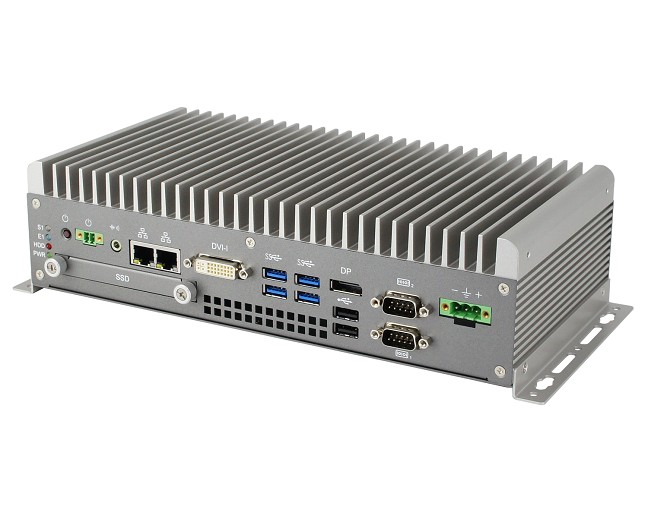

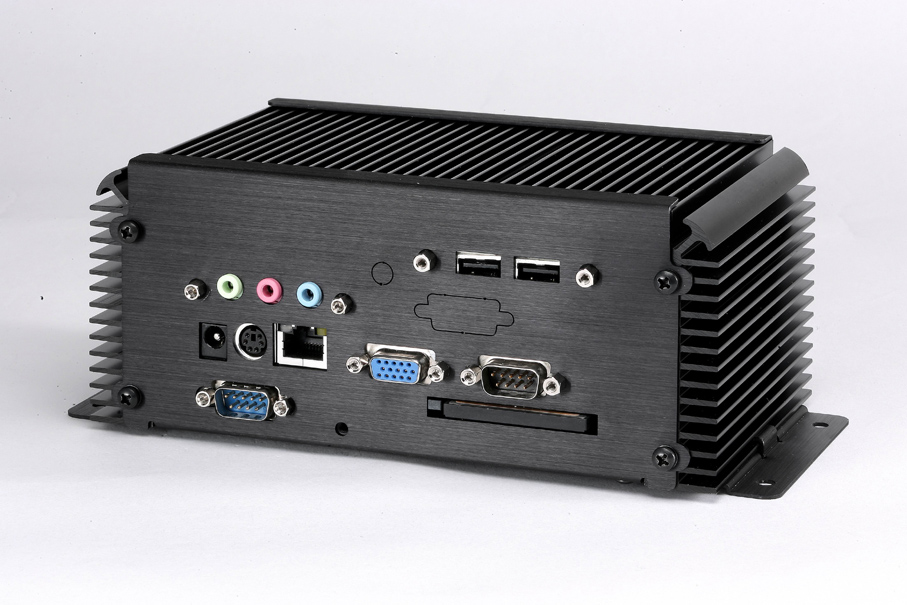

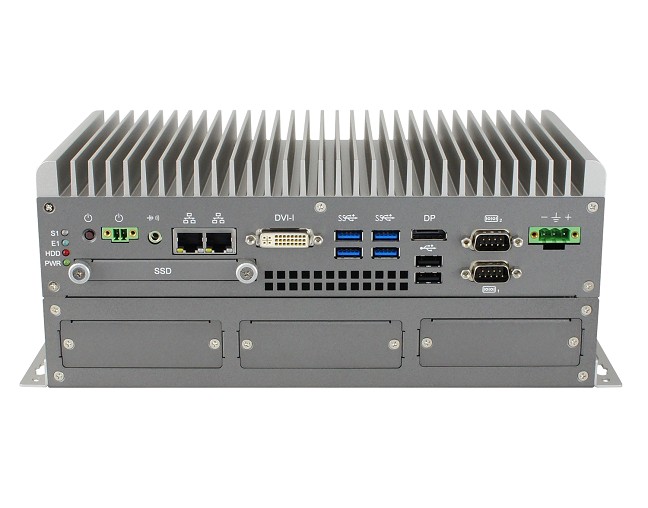

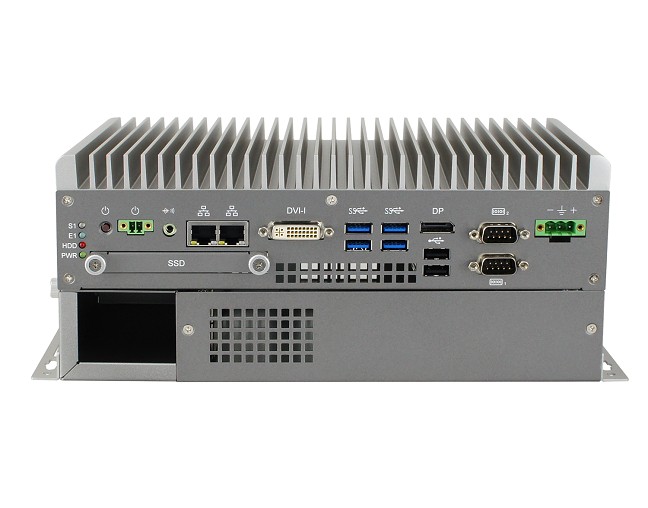

Commell Fanless Box PC’s

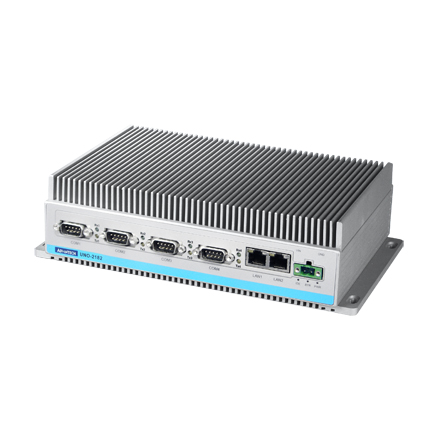

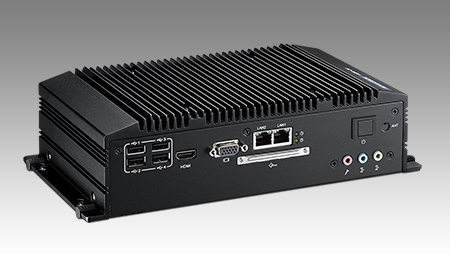

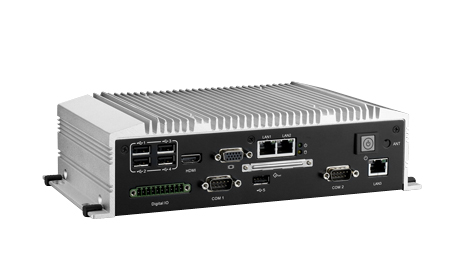

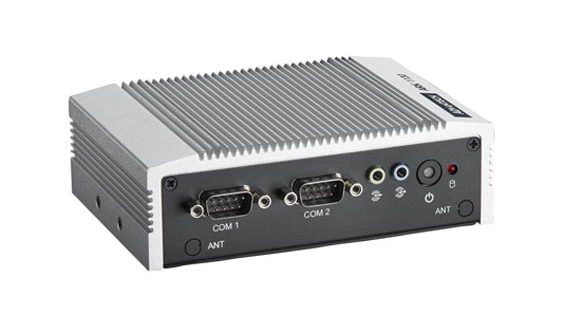

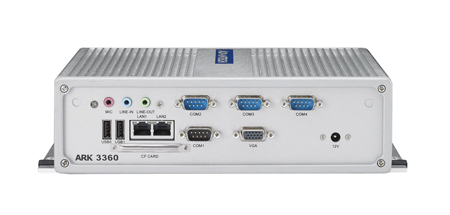

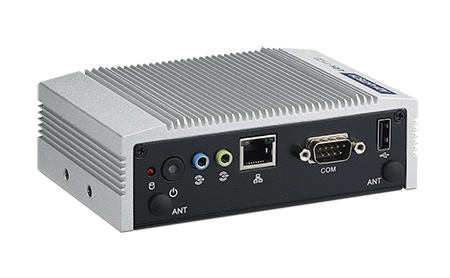

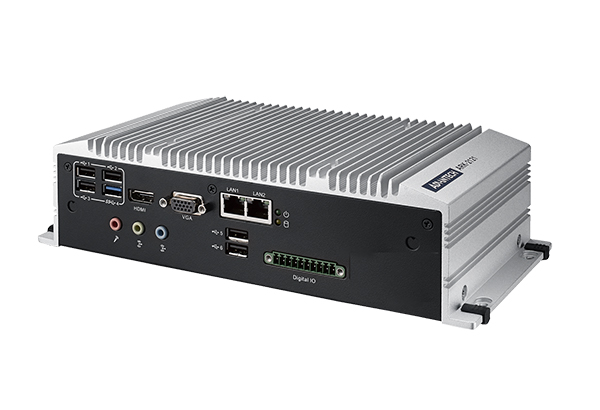

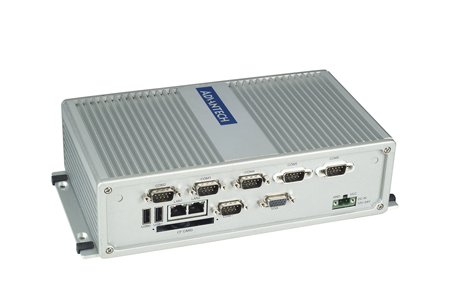

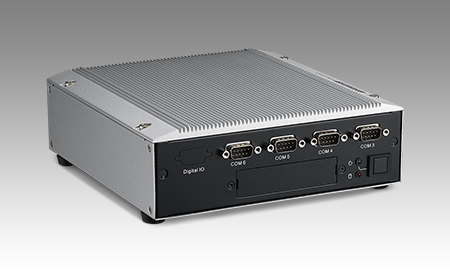

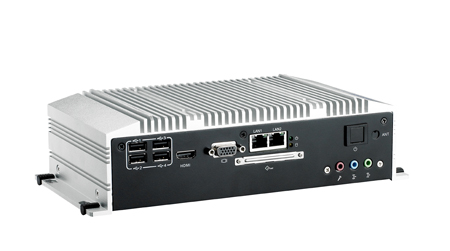

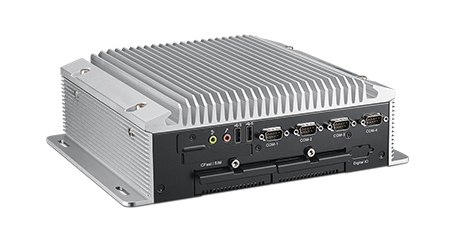

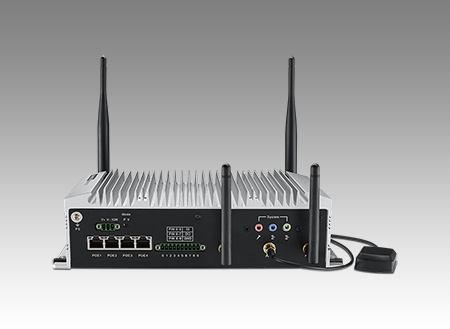

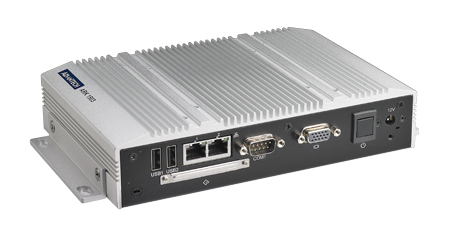

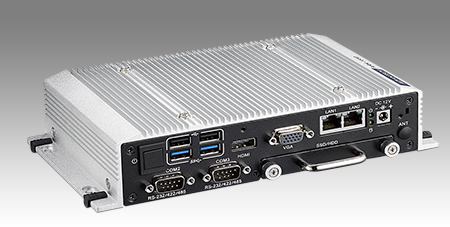

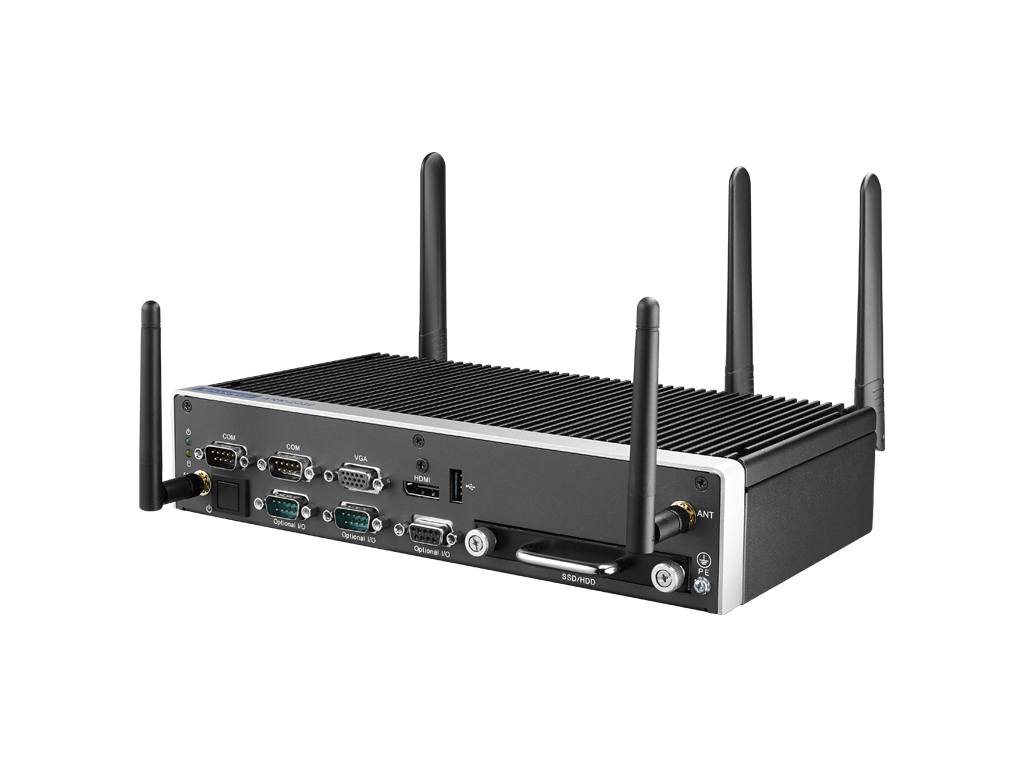

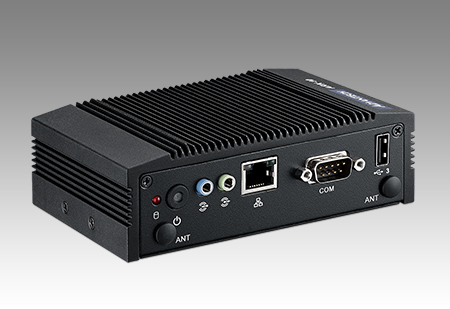

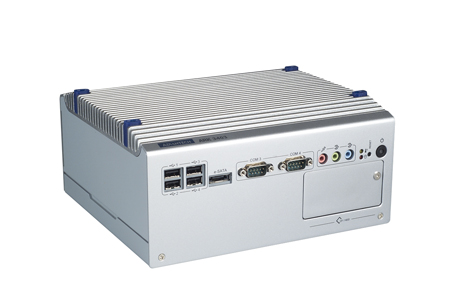

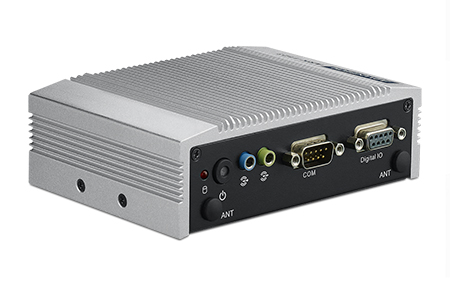

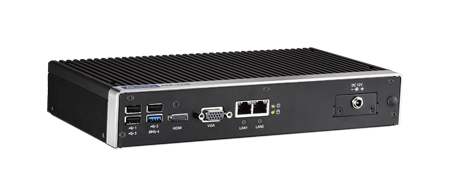

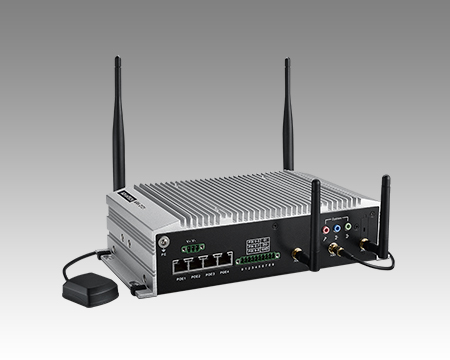

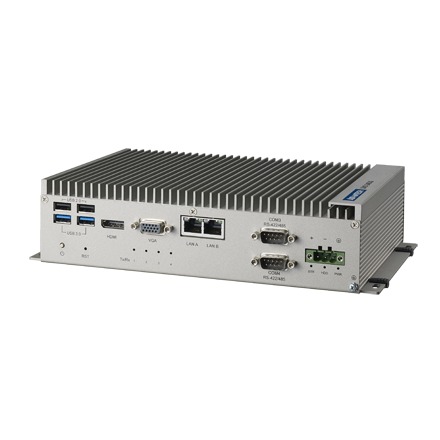

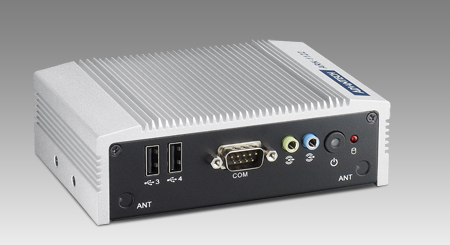

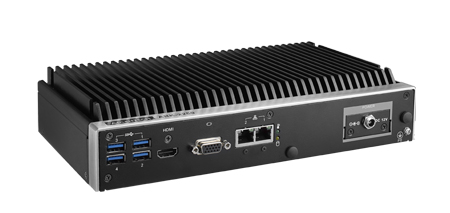

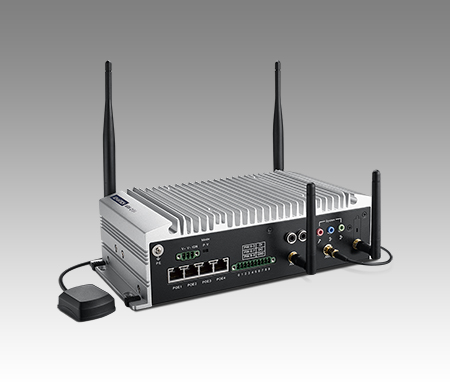

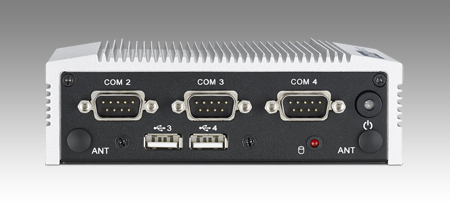

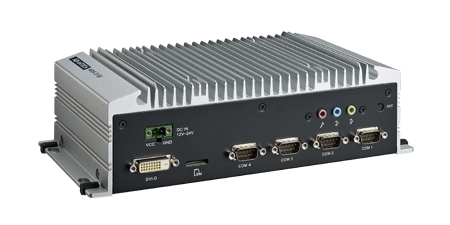

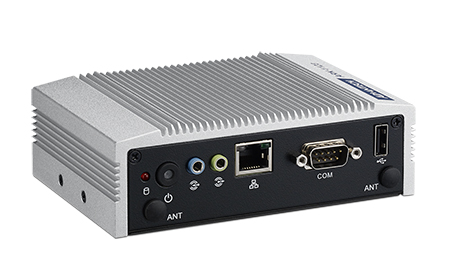

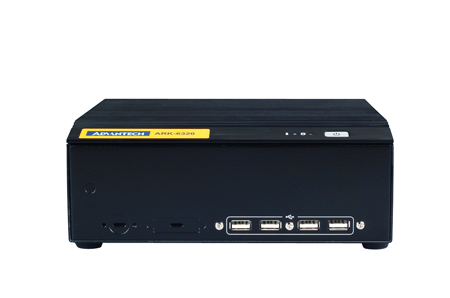

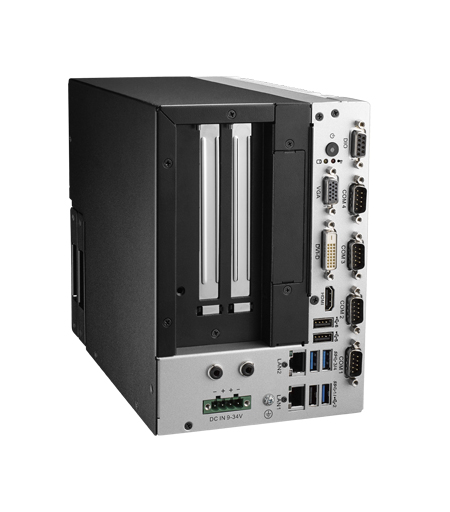

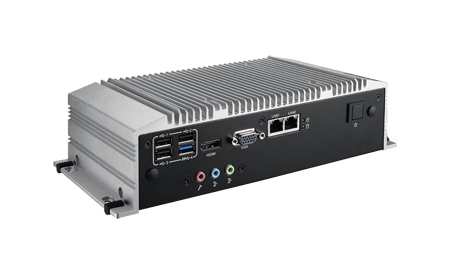

ARK Series Fanless PCs – Advantech

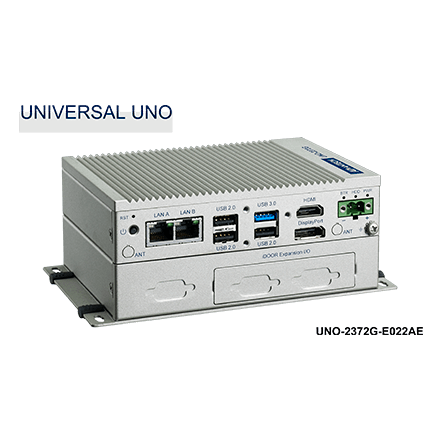

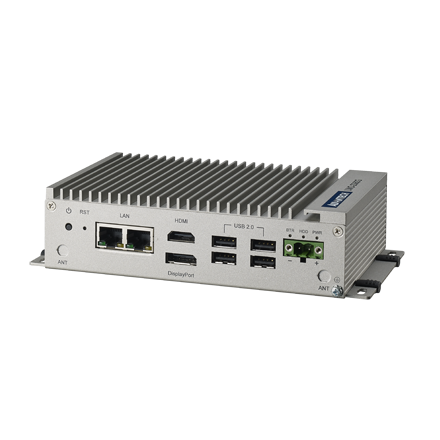

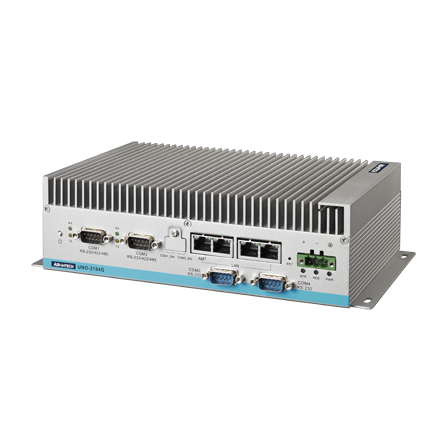

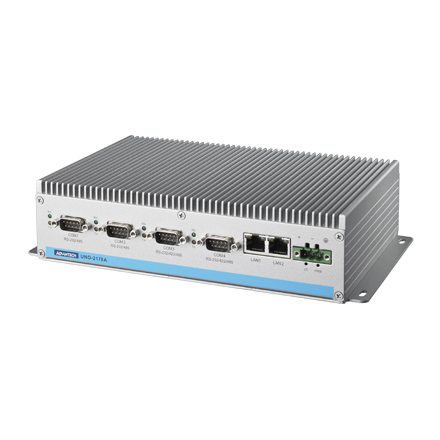

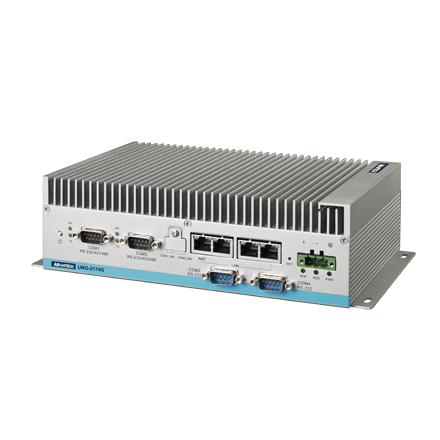

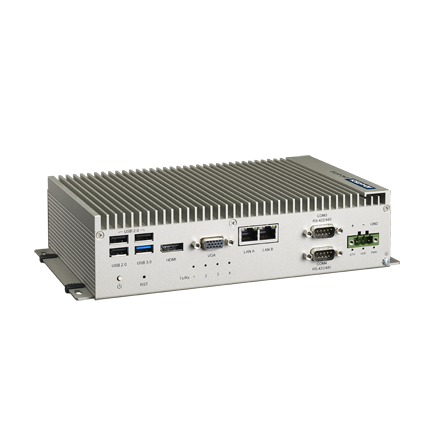

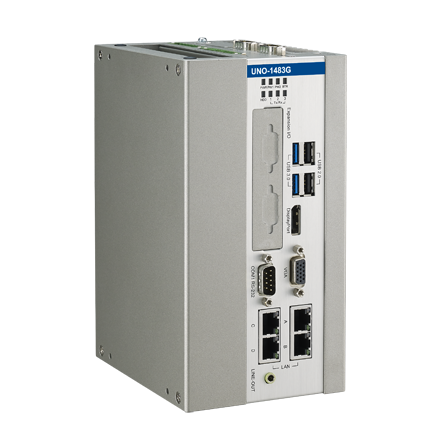

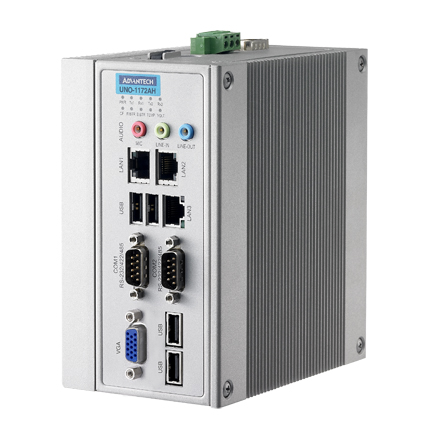

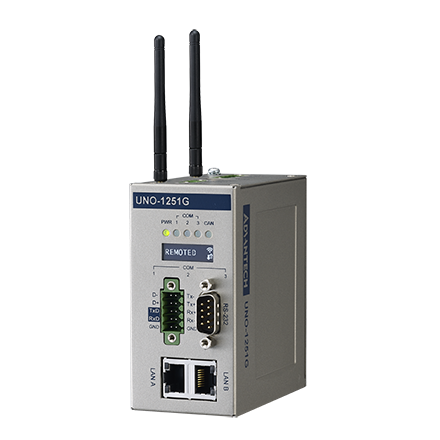

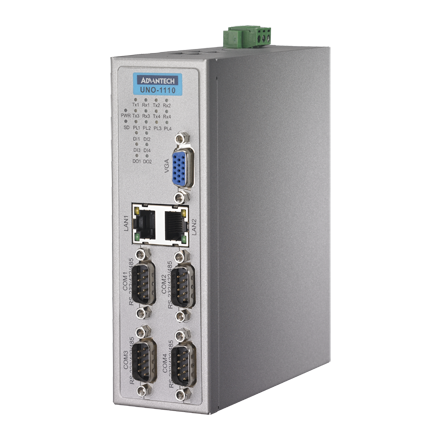

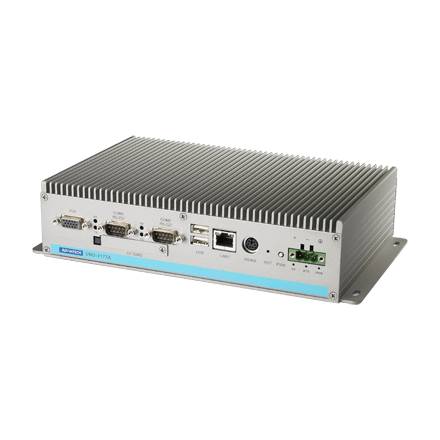

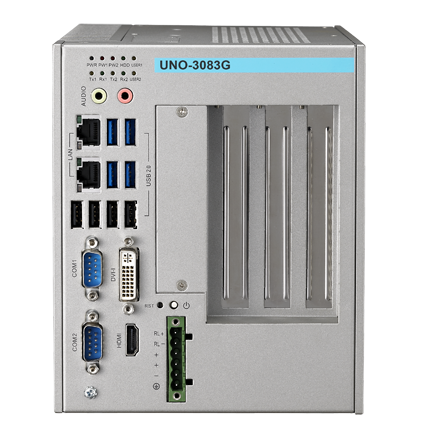

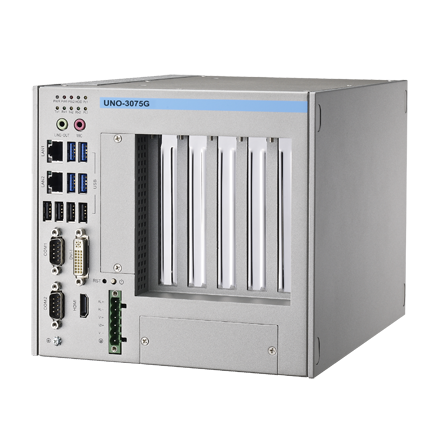

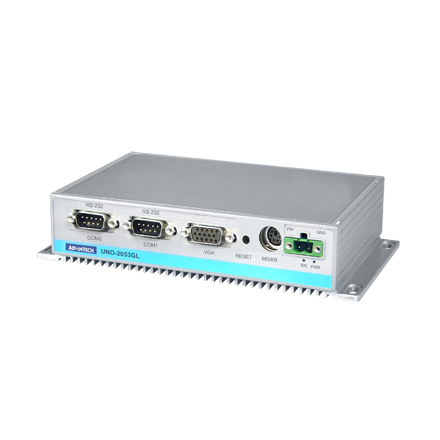

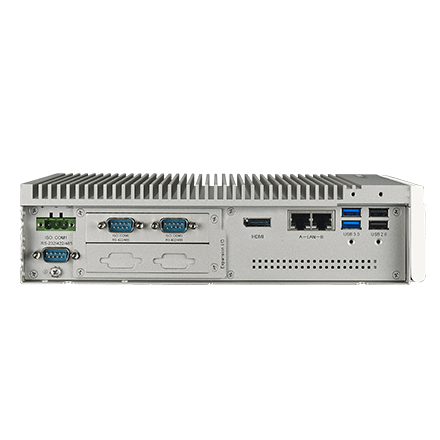

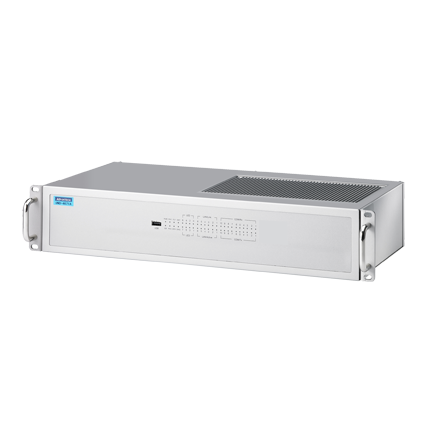

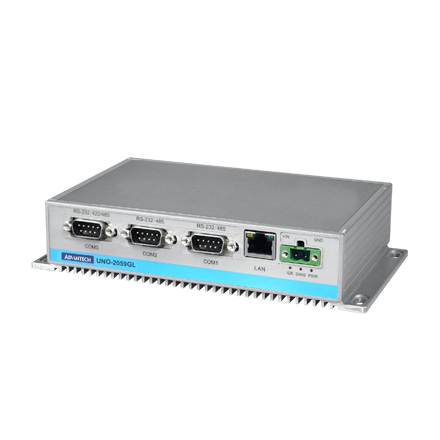

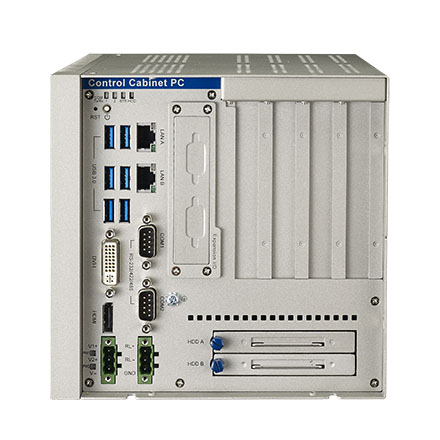

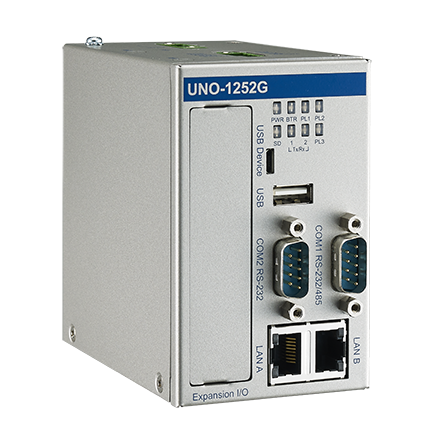

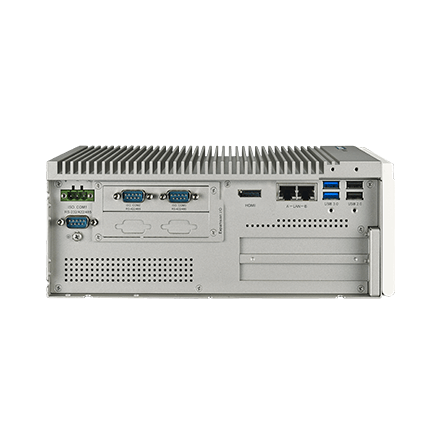

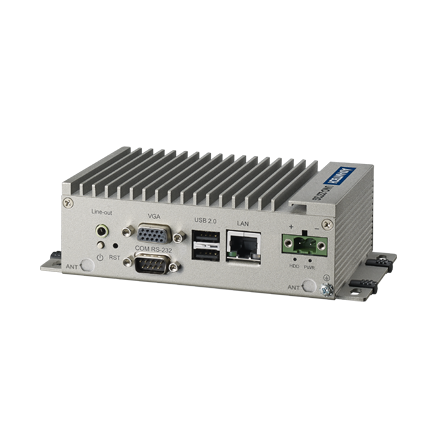

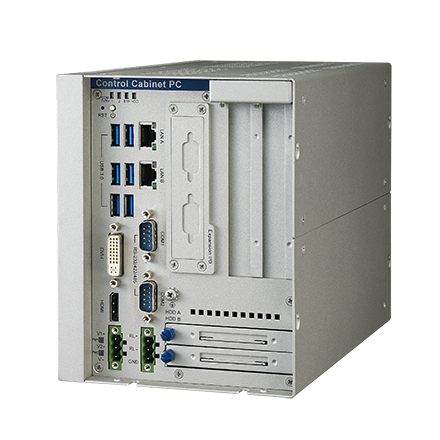

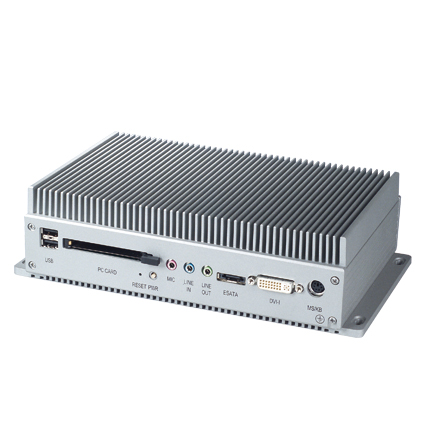

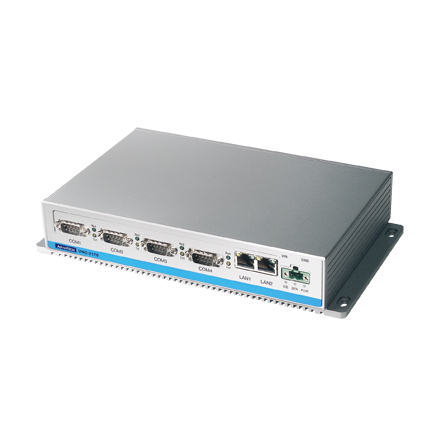

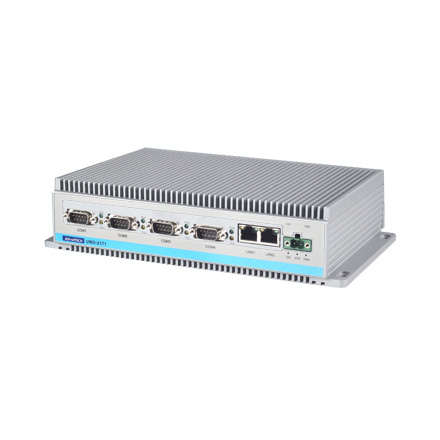

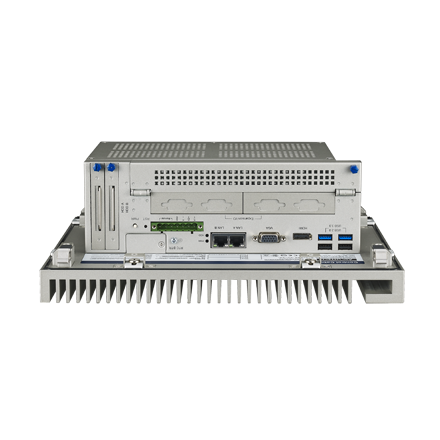

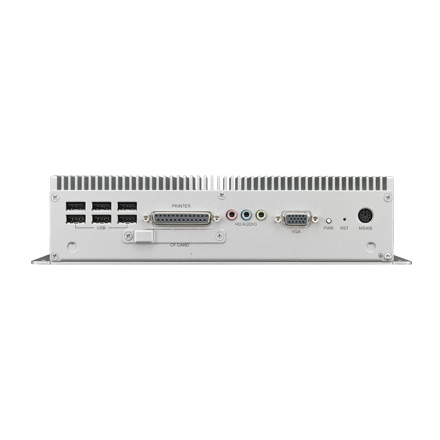

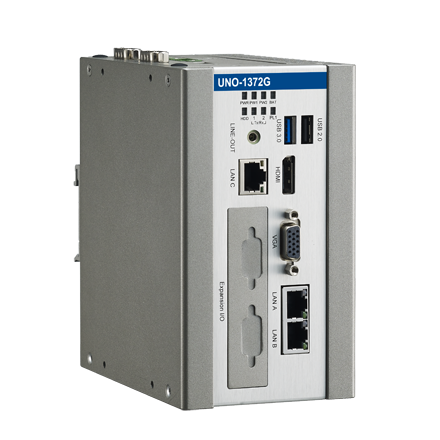

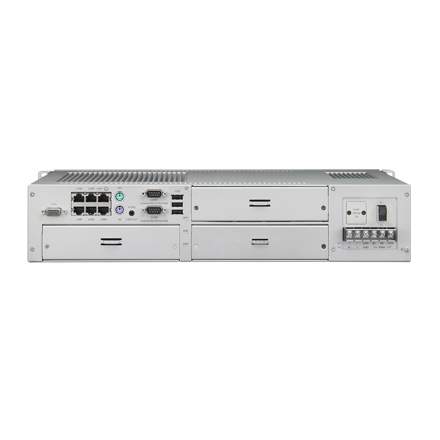

UNO Embedded Automation PC’s

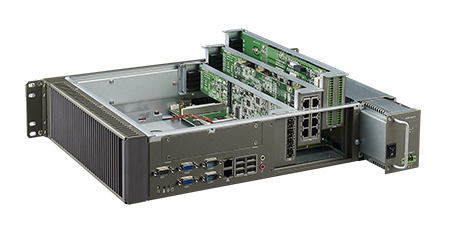

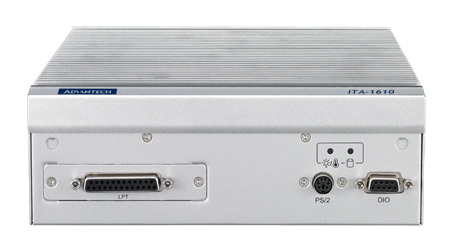

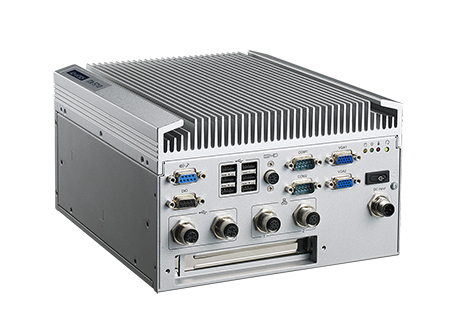

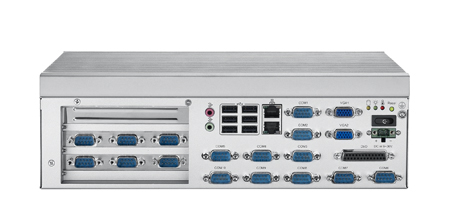

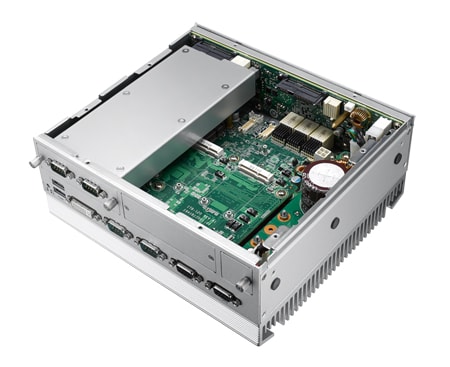

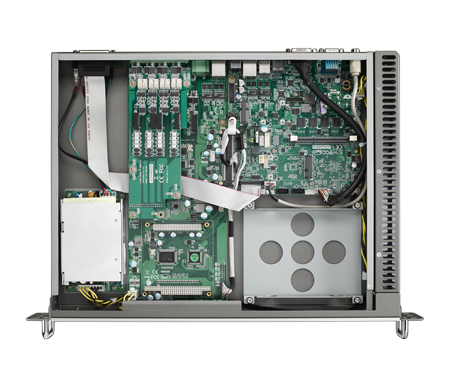

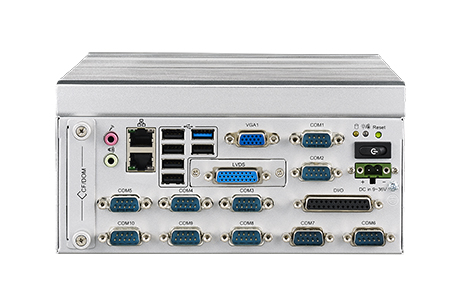

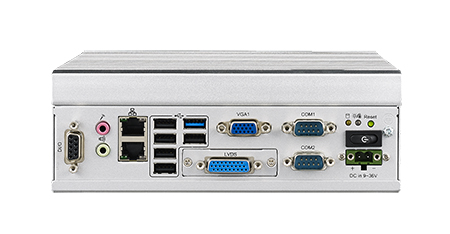

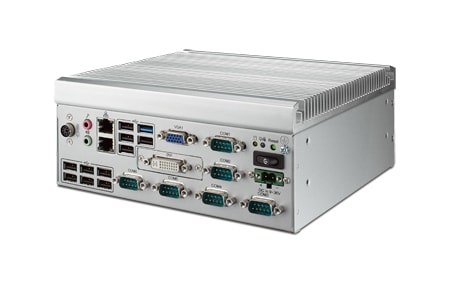

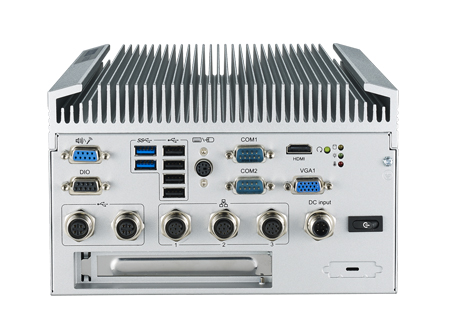

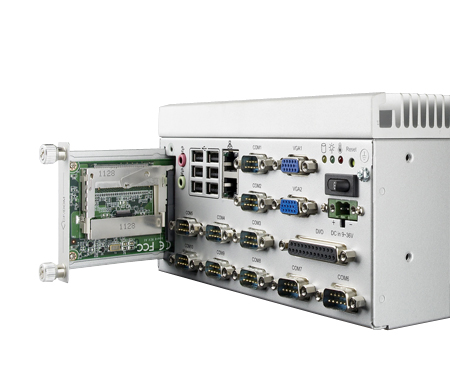

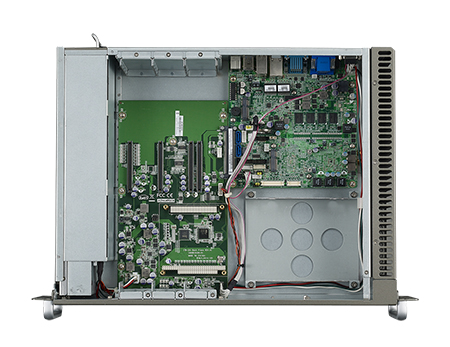

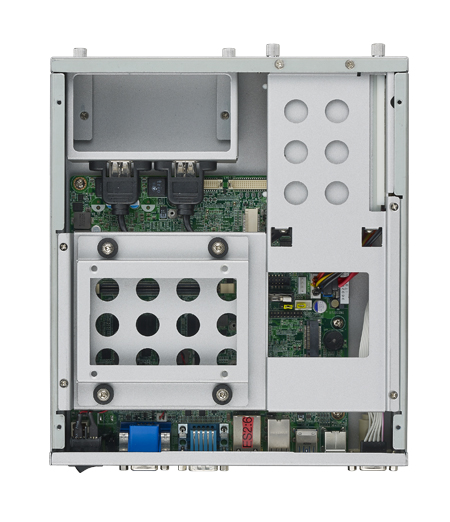

ITA Controller PC’s for Specific Applications
iBase Fanless PC’s

Other related pages:

CyberVisuell – TBOX Fanless PC’s

CyberVisuell’s TBOX fanless computers are high quality, rugged industrial fanless PC’s at very competitive prices.

Prices are excluding GST, updated April 2023. Prices are subject to change without notice. Note: Prices have recently increased (April 2023) due to the global component shortages.

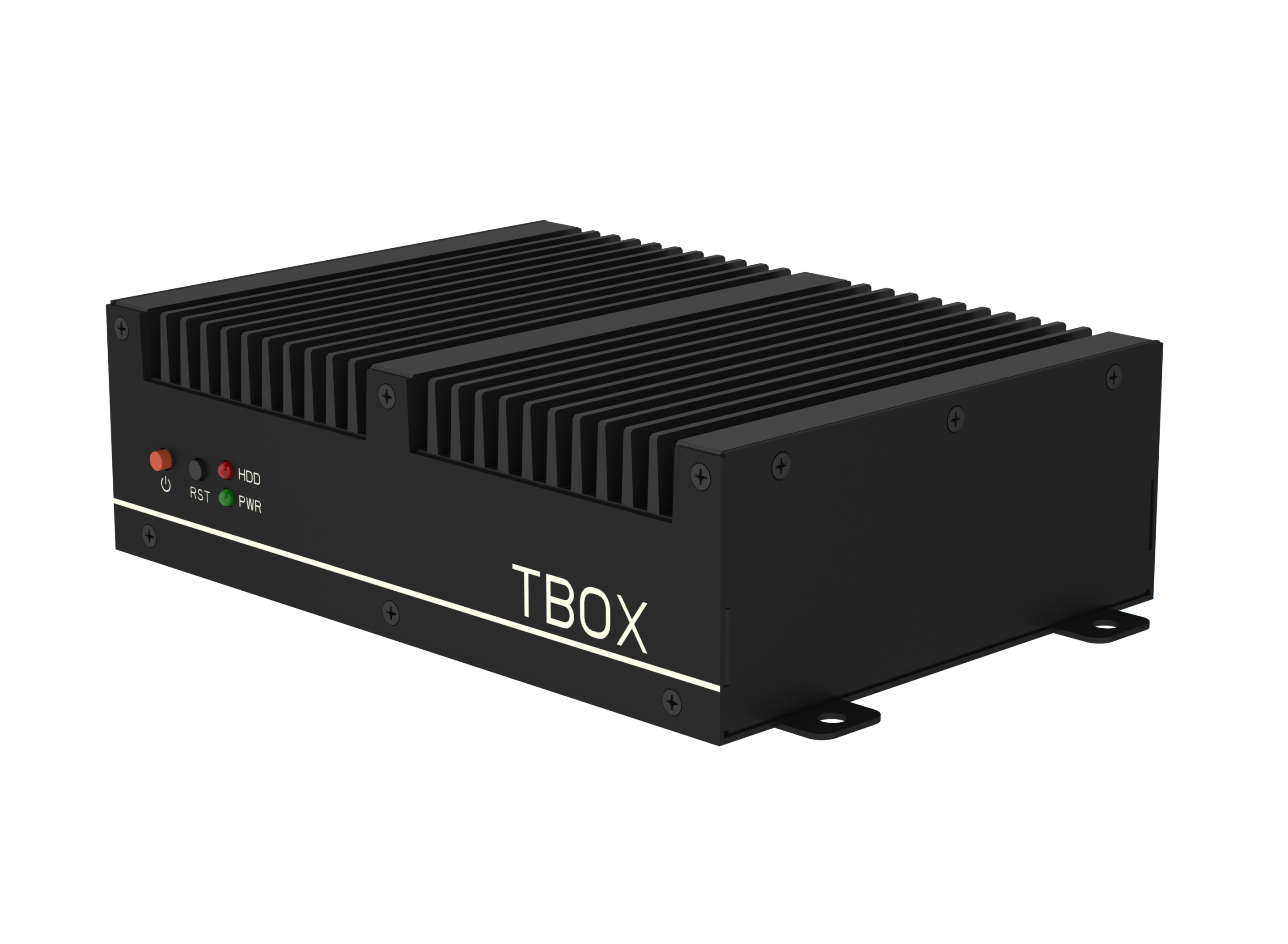

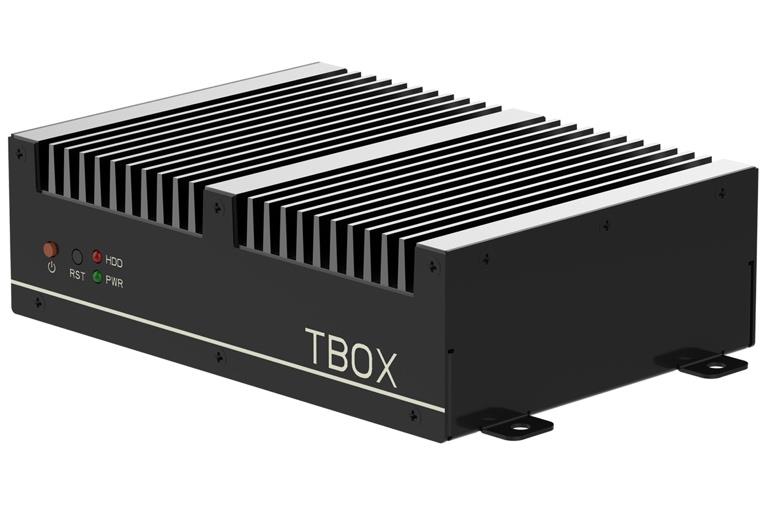

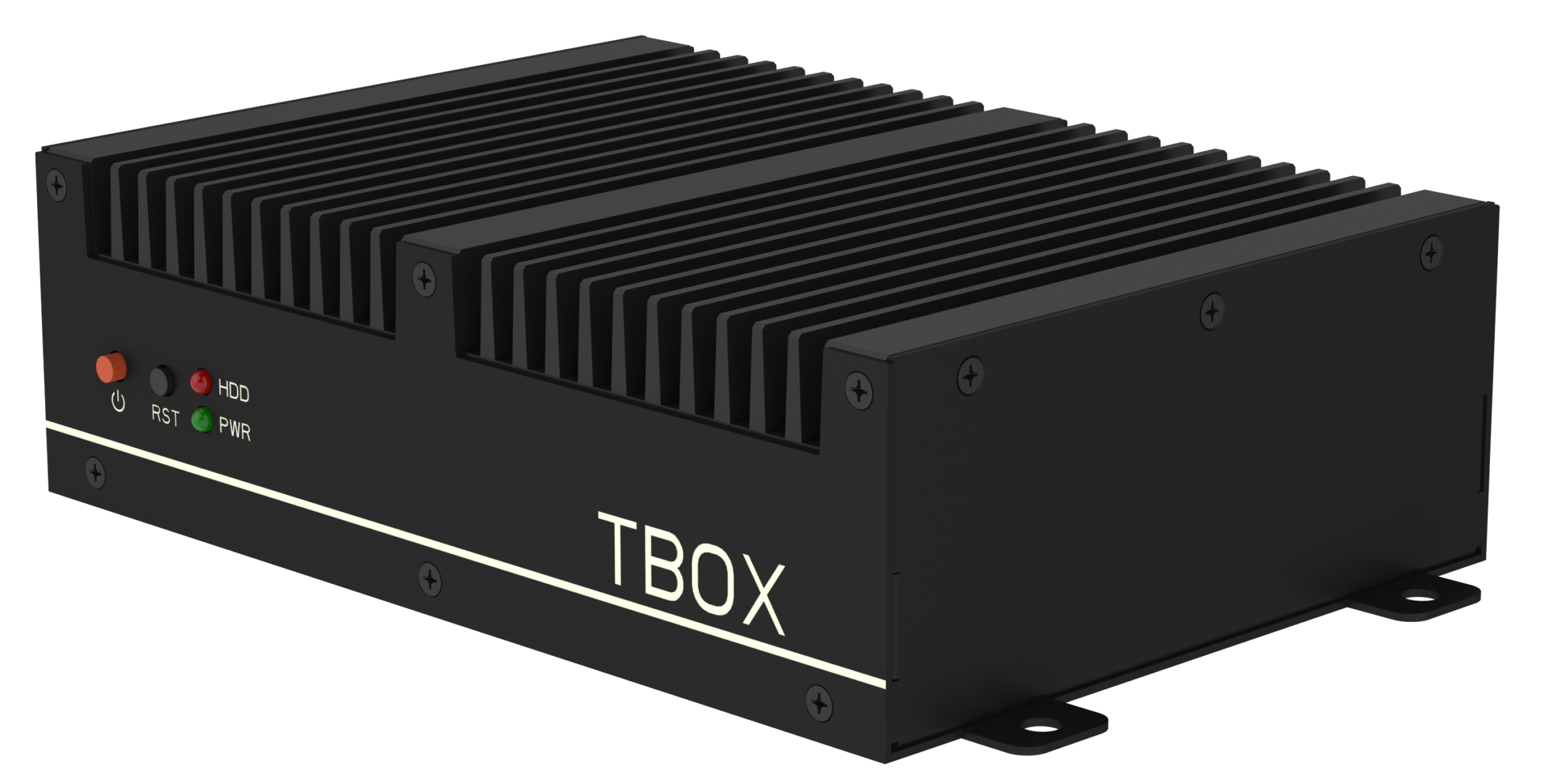

TBOX-11E10/11E11 Series – Ultra Small, Rugged Fanless Box PC

CyberVisuell TBOX-11E10 series: Compact size, midrange performance / low power / low cost Elkhart Lake Celeron CPU, dual display outputs, wide power input, Win 11 / Win 10 / Linux support.

TBOX-11E10, TBOX-11E11

Price guide: $986+ ex-GST (with 8GB RAM / 128GB SSD)

Click here to show/ hide more info

Features:

Rugged, Ultra–small, fanless designed box structure;
Intel Elkhart Lake Celeron J6412 Quad-core processor;
Wide DC 9~36V power input, with over-voltage, polarity protection;
Industrial -20 ~ + 60°C operating range;
2 GLAN, optional with 3G/4G/LTE/5G, and Wi-Fi/BT expansion;
4 USB3.0, 1 HDMI, 1 DP, Mic-in/Line-out;
1 M.2 3042/52 B-key, and 1 M.2 2230 E-key slot.

Ordering information:

Part no.	Description	Datasheets	Sell Price ex-GST, incl 8GB RAM + 128GB SSD
TBOX-11E10	Intel Elkhart Lake J6412, 2 RJ45, 4 USB3.0, 1 HDMI, 1 DP, Mic–in/Line–out, DC 9~36V (DC Jack)	Data Sheet on TBOX-11E10	$986+GST
TBOX-11E11 Minimum Order Quantity 20 units	Intel Elkhart Lake J6412, 2 RJ45, 4 USB3.0, 1 HDMI, 1 DP, Mic-in/Line-out, DC 9~36V (DC Jack)		$1,088+GST
–4G / –8G/ –16G	Memory: SO–DIMM, DDR4,4GB/8GB/16GB
TBOX–WIBlu	Wi–Fi module with BT integrated, with antenna
EM06–E–PCKi	All network 4G module, with Antenna
	5G module, with Antenna
TDRK-BOX1-35	Din 35 mount clip (1 set per unit)

Packing List:

1 unit standard Product
1 set 40W PSU (Power supply)
1 set Power Cable & Plug

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Elkhart Lake J6412, Quad–core processor
CPU Ghz	Quad–core 2.0Ghz, burst to 2.6Ghz
TDP	10W
Memory	SO–DIMM, DDR4–3200Mt/s, Max. up to 32GB
Storage	1* M.2 2280 M–Key (PCIe x2 interface)
Graphic	Intel UHD Graphics Gen10
Network	1* Intel I225–V, 1* Intel I211AT, optional support 3G/4G/5G/Wi–Fi wireless
Audio	On–board Realtek ACL 269 Audio controller
Expansion	1* M.2 3042/52 B–key slot. 1* M.2 2230 E–key slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10, Win11, Linux
I/O
Serial port	N/A
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	Mic–in/Line–out
USB	4* USB3.0
Display	1* HDMI, 1* DP
Power Input	DC Jack, lockable 5.5 * 2.5
GPIO	Optional
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Black
Mount method	Desktop, wall mount, optional with Din–rail mount
Cooling system	Finned aluminum heatsinks
Indicator & Button	Power switch, Power LED, HDD LED
Dimension	168.4 * 106.2 * 45 (mm)
Net weight	About 0.8 KG
Power & Environmental
Operating temp.	–20 ~ + 60 (°C)
Storage temp.	–40 ~ + 70 (°C)
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 9~36V
Power consumption	About 20W
EMC	CE/FCC Class A

TBOX-11400 series – Extra small fanless box PC’s

CyberVisuell TBOX-11400 series: Ultra small fan-less Industrial Box PC, with low power Celeron J3455 CPU (no serial ports).

TBOX-11410
Price guide: $965+ ex-GST (with 8GB RAM / 128GB SSD)

Click here to show/ hide more info

CyberVisuell TBOX-11400 seires is an ultra-small fan-less industrial Box PC model, it adapts Intel Apollo lake Celeron CPU, having advanced computer performance and low power consumption. TBOX-11400 series storage can support 1 *mSATA SSD; The design has a limited communication interface, with 2* LAN ports, 4* USB ports; The power input is DC 12V.

CyberVisuell TBOX-11400 series uses full-sealed box construction, and it can prevent dust from entering the device system. Large aluminum fin heat sink can distribute the heat effectively and quickly, ensures the longer reliability and life-span of the system. CyberVisuell TBOX-11400 series operating temp. is -20℃~+60℃, can be suitable for longer-time operating and harsh environment industrial application projects, such as intelligent transportation system, machine vision, medical device, textile machinery, rail transportation and industry automation. CyberVisuell TBOX-11400 series can be compatible with Windows 10, Linux Operating system and embedded Operating system, and it is also compatible with application software based on those operating systems.

Available Models:

Model	CPU	Datasheets	Base Price (April 2023) with 4GB RAM, 64GB SSD
TBOX-11410	Intel Apollo lake J3455 Quad-core Four threads, 1.5Ghz	Data Sheet on TBOX-11410	$965+GST

Please call us for pricing with other options:

8GB RAM
Up to 512GB SSD
Windows 10 IoT Enterprise LTSB pre-installed
Built in 4G LTE Modem card (Australian approved)
J3355 CPU (slightly cheaper but less commonly available – please enquire for projects)

Specifications:

System & Hardware
BIOS	SPI AMI EFI BIOS
CPU	See table above
Memory	SO-DIMM, DDR3L-1866MT/S, Max. up to 8GB
Storage	1* mSATA
GPU	Intel HD Graphics 500
Network	2* Intel I211AT (Optional Wifi/3G/4G)
Audio	Realtek ACL 269 Audio controller
Expansion	1x full-size mPCIe slot
Watch dog	0~255 seconds programmable
System	Windows10, Linux, Unix
I/O
COM	No COM ports
Network	2*RJ45, 10/100/1000 Mbps
Audio	Line-In, Line-Out
USB	4*USB3.0
Display	1*HDMI
Power Input	DC 5.5*2.5
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti-scratch treatment
Cooling System	Finned aluminum heatsinks
Color	Black
Indicator	Power Switch/ Power LED/ HDD LED
Mounting	Support Desktop, Wall-mounted,
Dimension	168.4 x 106.2 x 45 (mm)
Net weight	About 1.3KG
Power & Environmental
Voltage Input	DC 12V
Power Consumption	20W
EMC	CE/FCC Class A
Working temperature	-20℃~+60 ℃ (with wide temp industrial RAM/SSD)
Storage temperature	-30℃~+70 ℃
Relative humidity	10~95%@10℃（No condensation
Vibration	50~500Hz,1.5G,0.15mm peak to peak
Shock	10G/peak（11ms sec）

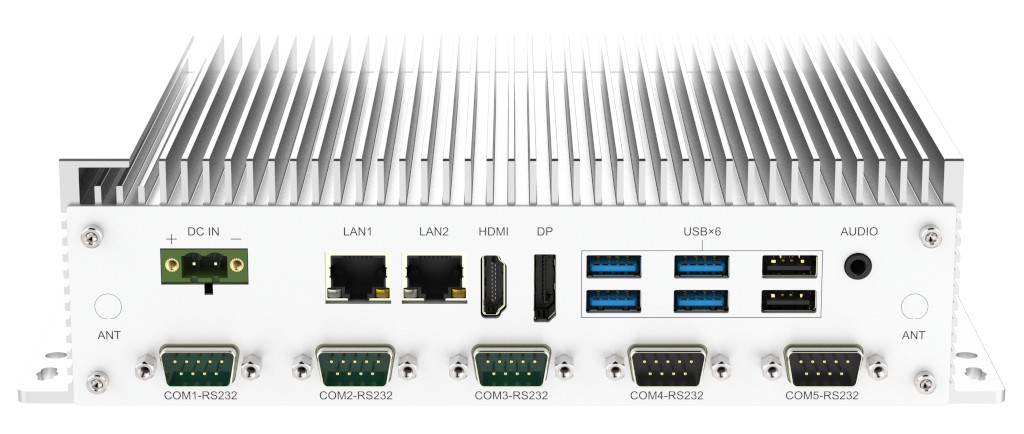

TBOX-12E15 Series Industrial Fanless PC’s – Rich I/ O, Performance and Value

Midrange CPU performance, low power & low cost Elkhart Lake Celeron CPU, dual display outputs, wide power input, wide temp operation to 70C, Win 11 / Win 10 / Linux support.

TBOX-12E15

Price guide: $1,064+ ex-GST (with 8GB/128GB)

Click here to show/ hide more info

Features:

- Rugged & compact, fanless designed box structure;
- On-board Intel Elkhart Lake J6412 Quad-core processor;
- 1* DDR4 memory, single slot, max. up to 32GB,
- 1* M.2 2280(NGFF) Key-M slot (PCIe x2 NVME) SSD;
- DC 12V input, optional wide voltage DC 9~36V input;
- 2 GLAN, dual wireless expansion 4G/5G, WIFI/BT support;
- 8 USB (3 USB3.0), 6 COM, GPIO (Optional), 2 HDMI, Audio;
- Industrial -20 ~ + 70°C operating range, optional -40~+80 °C.

Ordering information:

Part no.	Description	Datasheets	Sell Price ex-GST, incl 8GB RAM + 128GB SSD
TBOX-12E15	Intel Elkhart Lake J6412, 2 RJ45, 3 USB3.0, 5 USB2.0, 6 COM, 2 HDMI, Audio, DC 12V, PSU	Data Sheet on TBOX-12E15	$1,064+GST
TBOX-12E15-D	Intel Elkhart Lake J6412, 2 RJ45, 3 USB3.0, 5 USB2.0, 6 COM, 2 HDMI, Audio, DC 12V, PSU	Data Sheet on TBOX-12E15-D	$1,064+GST
-4G / -8G/-16G/-32G	Memory: SO-DIMM, DDR4, 4GB/8GB/16GB/32GB
-128GS / -256GS / -512GS	M.2 NVMe SSD: 128GB/256GB/512GB
	2.5” SATA SSD: 128GB/256GB/512GB/1TB
	2.5” HDD: 2TB/4TB
TBOX-WiFi	Wi-Fi module, with Antenna
TBOX-WiBlu	Wi-Fi module with BT integrated, with antenna
EM06-E-PCKi	All network 4G module, with Antenna
	5G module, with antenna
TBOX-9-36V	Optional 9-36V DC wide voltage input module with mains adaptor included
TBOX-SIMSLOT	Sim card slot for 3G/4G/5G wireless expansion, accepts full size (2FF) SIM cards

Packing List:

1 unit standard Product
1 set PSU (Power supply)
1 set Power Cable & Plug

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Elkhart Lake J6412
CPU Ghz	Quad-core 2.0Ghz, burst to 2.6Ghz, TDP 10W
TPM	Intel PTT TPM2.0
Memory	SO-DIMM, DDR4-2666/2933/3200 MHz, Single slot, Max. up to 32GB
Storage	1M.2 (NGFF) 2280 Key–M slot (PCIe x2 NVME) SSD, 1 2.5” SATA (optional)
Graphic	Intel UHD Graphics for 10th Gen Intel processors
Network	2* Intel I225 GBE LAN chip, Optional WIFI+BT (Mini-PCIe), 4G/5G (M.2 Key-B 3042/3052)
Audio	On-board Realtek ACL897 Audio controller
Expansion	1* M.2 Key–B slot, 1* Mini–PCIe slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10 /Win11, Linux
I/O
Serial port	COM1~5: RS232 COM 6: RS485 (Optional RS232)
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	1* Mic–in/Line–out (2in1 jack 4.0mm)
USB	3* USB3.0 + 5* USB2.0
Display	2* HDMI (Max. support 4096 * 2160 @30Hz)
Power Input	1* 2 pins, Phenix terminal
Optional	8* GPIO (DB9)
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Silver
Mount method	Desktop, wall mount
Cooling system	Finned aluminum heatsinks
Indicator & Button	Power switch, Power LED, HDD LED
Dimension	236.5 * 150 * 60 (mm)
Net weight	About 1.6 KG
Power & Environmental
Operating temp.	–20 ~ + 70 °C
Storage temp.	–40 ~ + 80 °C
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10 G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	About 20W
EMC	CE/FCC Class A

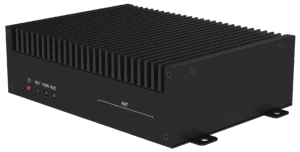

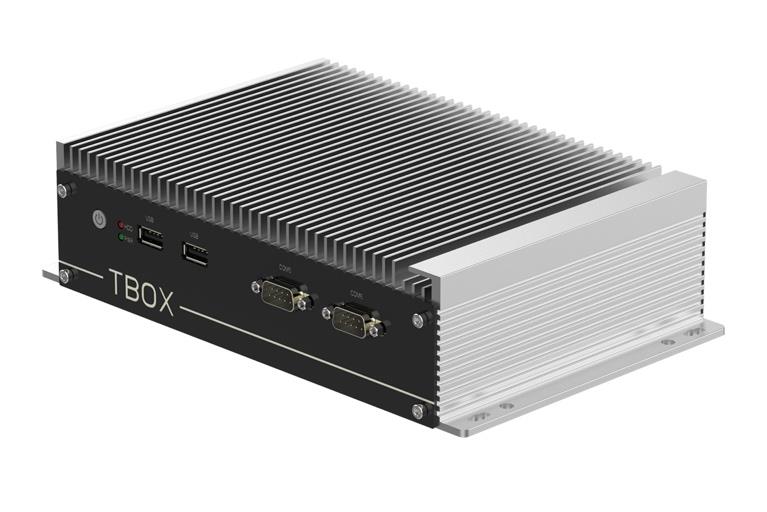

TBOX-12415 Series – Rugged Intel Industrial Box PC

Low power fanless industrial box PC’s, with Intel Apollo Lake Celeron J3355 / J3455 CPUs. With serial ports, dual HDMI ports, TPM 2.0 for Win 11 support, 2.5 inch drive bay, and wide temperature operation.

TBOX-12415

Price guide: $1,039+ ex-GST (with 8GB RAM / 128GB SSD)

Click here to show/ hide more info

Features:

Rugged & compact, fanless designed box structure;
On–board Intel Apollo Lake J3455 Quad–core processor;
Single DDR4 memory, up to 8GB, 1* M.2 and 1* 2.5” SATA storage;
DC 12V input, optional wide voltage DC 9~36V input;
2 GLAN, Dual wireless expansion 4G/5G, WIFI/BT support;
6 USB (4 USB3.0), 6 COM (optional GPIO), 2 HDMI;
Industrial –20 ~ + 70°C operating range, optional –40~+80 °C.

Ordering information:

Part no.	Description	Datasheets	Sell Price ex-GST, incl 8GB RAM + 128GB SSD
TBOX-12415	Intel Apollo Lake J3455, 2 RJ45, 4 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, DC 12V	Data Sheet on TBOX- 12415	$1,039+GST
–2G / –4G / –8G	Memory: SO–DIMM, DDR3, 4GB/8GB
–64GS / –128GS / –256GS / –512GS	M.2 SATA SSD: 128GB/256GB/512GB

DC modules	DC to DC, Wide voltage DC 9~36V

Packing List:

1 unit standard Product
1 set 60W PSU (Power supply)
1 set Power Cable & Plug

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Elkhart Lake J6412, Quad–core processor
CPU Ghz	Quad–core 1.5Ghz, burst to 2.3Ghz, TDP 10W
TDP	Intel PTT TPM2.0
Memory	SO–DIMM, DDR3L–1333/1600 MT/s, Max. up to 8GB
Storage	1M.2 (SATA, 2242), 1 2.5” SATA
Graphic	Intel UHD Graphics 500
Network	2* Intel I211 GBE LAN chip, Optional WIFI+BT (M.2 2230), 4G/5G (M.2 3042/3052)
Audio	On–board Realtek ACL 662 Audio controller
Expansion	1* M.2 Key-B slot, 1* M.2 Key-E slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10 /Win11, Linux
I/O
Serial port	COM1: RS485 (Optional RS232), COM2/3/4: RS232, COM5: RS232 (Optional GPIO), COM 6: RS485 (Optional RS232)
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	Optional Mic–in/Line–out
USB	4* USB3.0 + 2* USB2.0
Display	2* HDMI (Max. support 4096 * 2160 @30Hz)
Power Input	1* 2 pins, Phenix terminal
Optional	8* GPIO (DB9)
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Silver
Mount method	Desktop, wall mount
Cooling system	Finned aluminum heatsinks
Indicator & Button	Power switch, Power LED, HDD LED
Dimension	236.5 * 150 * 60 (mm)
Net weight	About 1.6 KG
Power & Environmental
Operating temp.	–20 ~ + 60 °C
Storage temp.	–40 ~ + 80 °C
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	About 20W
EMC	CE/FCC Class A

TBOX-12400 Series – Fanless Box PC’s, Low Power Apollo Lake

CyberVisuell TBOX-12400 series: Low power fanless industrial box PC’s, with Intel Apollo Lake Celeron J3355 / J3455 CPUs. With serial ports, 2.5 inch drive bay, and wide temperature operation.

TBOX-12400, TBOX-12410
Price guide: $1000+ ex-GST (with 8GB RAM / 128GB SSD)

Click here to show/ hide more info

CYBERVISUELL TBOX-12400 series is a high-performance fan-less industrial Box PC model, it adapts Intel Apollo lake J3455 CPUs, having advanced computer performance and low power consumption. TBOX-12400 series storage can support 1 *mSATA and 1* 2.5 inch SATA SSD or HDD; The design has a variety of communication interface, with 2* LAN ports, 2* USB 2.0 ports, 4* USB 3.0 port, 6* RS232 (Optional with 1* RS485); The power input is DC 12V voltage, and has over-current, over-voltage and reverse-polarity protection.

CYBERVISUELL TBOX-12400 series uses full-sealed box construction, and it can prevent dust from entering the device system. Large aluminum fin heat sink can distribute the heat effectively and quickly, ensures the longer reliability and life-span of the system. CYBERVISUELL TBOX-12400 series operating temp. is -20℃~+70℃, can be suitable for longer time operating and harsh environment industrial application projects, such as intelligent transportation system, machine vision, medical device, textile machinery, rail transportation and industry automation. CYBERVISUELL TBOX-12400 series can be compatible with Windows 10, Linux Operating system and embedded Operating system, and it is also compatible with application software based on those operating systems.

Available Models:

Model	CPU	Datasheets	Base Price (April 2023) with 4GB RAM, 64GB SSD
TBOX-12410	Intel Celeron J3455 Quad-core Four threads, 1.5Ghz	Data Sheet on TBOX-12410	$1,039+GST

Please call us for pricing with other options:

8GB RAM
Up to 512GB SSD
Windows 10 IoT Enterprise LTSB pre-installed
Built in 4G LTE Modem card (Australian approved)
Intel J3355 CPU (slightly cheaper but less readily available – suitable for projects)

Specifications:

System & Hardware
BIOS	SPI AMI EFI BIOS
CPU	See table above
Memory	SO-DIMM, DDR3L-1866MT/S, Max. up to 8GB
Storage	1* 2.5’’ SATA + 1* mSATA
GPU	Intel HD Graphics 500
Network	2* Intel I211AT (Optional Wifi/3G/4G)
Audio	Realtek ACL 269 Audio controller
Expansion	1x full-size mPCIe slot
Watch dog	0~255 seconds programmable
System	Windows10, Linux, Unix
I/O
COM	6*RS232, DB9, 50~115.2kbps COM2 supports RS232/RS485 COM3 supports RS232/TTL
Network	2*RJ45, 10/100/1000 Mbps
Audio	Line-In, Line-Out
USB	6USB (4USB3.0 + 2*USB2.0)
Display	1VGA, 1HDMI
Power Input	1*2 pins, phoenix port
GPIO	8*GPIO (Optional)
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti-scratch treatment
Cooling System	Finned aluminum heatsinks
Color	Silver + Black
Indicator	Power Switch/ Power LED/ HDD LED
Mounting	Support Desktop, Wall-mounted,
Dimension	236.5 x 150 x 60 (mm)
Net weight	About 1.5KG
Power & Environmental
Voltage Input	DC 12V (Over-current, Over-voltage and reverse polarity protection)
Power Consumption	20W
EMC	CE/FCC Class A
Working temperature	-20℃~+70 ℃ (with wide temp industrial RAM/SSD)
Wide temp. (Optional)	-40℃ ~ +70℃ (with wide temp industrial RAM/SSD)
Storage temperature	-40℃~+80 ℃
Relative humidity	10~95%@10℃（No condensation）
Vibration	50~500Hz,1.5G,0.15mm peak to peak
Shock	10G/peak（11ms sec）

TBOX-12300 Series – Fanless Box PC’s, Low Power Baytrail

CyberVisuell TBOX-12300 series: Low power fanless industrial box PC, with Intel Celeron J1900 CPU. With serial ports, 2.5″ drive bay, and wide temperature operation. Supports Windows 7 / 10..

TBOX-12300, TBOX-12310
Price guide: $1,065+ (ex GST)

Click here to show/ hide more info

CYBERVISUELL TBOX-12300 series is a high-performance fan-less industrial Box PC model, it adapts Intel Celeron CPUs, having advanced computer performance and low power consumption. TBOX-12300/12400 series storage can support 1 *mSATA and 1* 2.5 inch SATA SSD or HDD. TBOX-12300 series has a variety of communication interface, with 2* LAN ports, 5* USB 2.0 ports, 1* USB 3.0 port, 6* RS232 (Optional with 1* RS485); The power input is DC 9~24V voltage, and has over-current, over-voltage and reverse-polarity protection.

CYBERVISUELL TBOX-12300 series uses full-sealed box construction, and it can prevent dust from entering the device system. Large aluminum fin heat sink can distribute the heat effectively and quickly, ensures the longer reliability and life- span of the system. TBOX-12300/12400 series operating temp. is -20℃~+70℃, can be suitable for longer time operating and harsh environment industrial application projects, such as intelligent transportation system, machine vision, medical device, textile machinery, rail transportation and industry automation.

CYBERVISUELL TBOX-12300 series can be compatible with Windows 7, Windows 7 Embedded, Windows8, Windows10, Linux Operating system and embedded Operating system, and it is also compatible with application software based on those operating systems.

Available Models:

Model	CPU	Datasheets	Base Price (April 2023) with 4GB RAM, 64GB SSD
TBOX-12310	Intel Celeron J1900 Quad-core Four threads, 2.0Ghz	Data Sheet on TBOX-12310	$1,065+GST

Please call us for pricing with other options:

8GB RAM
Up to 512GB SSD
Windows 10 IoT Enterprise LTSB pre-installed
Built in 4G LTE Modem card (Australian approved).

Specifications:

BIOS	SPI AMI EFI BIOS
CPU	See table above
Memory	SO-DIMM, DDR3L, Max. up to 8GB
Storage	1* 2.5’’ SATA + 1* mSATA
GPU	Intel HD Graphics Gen7
Network	2* Intel I211AT (Optional Wifi/3G/4G)
Audio	Realtek ACL 282 Audio controller
Expansion	1x full-size mPCIe slot
Watch dog	0~255 seconds programmable
System	Windows 7, Windows 7 Embedded, Windows8, Windows10, Linux
I/O
COM	6*RS232, DB9, 50~115.2kbps COM2 supports RS232/RS485 COM3 supports RS232/TTL
Network	2*RJ45, 10/100/1000 Mbps
Audio	Line-In, Line-Out
USB	6USB (1USB3.0 + 5*USB2.0)
Display	1VGA, 1HDMI
Power Input	1*2 pins, phoenix port
GPIO	8*GPIO (Optional)
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti-scratch treatment
Cooling System	Finned aluminum heatsinks
Color	Silver + Black
Indicator	Power Switch/ Power LED/ HDD LED
Mounting	Support Desktop, Wall-mounted,
Dimension	236.5 x 150 x 60 (mm)
Net weight	About 1.5KG
Power & Environmental
Voltage Input	DC 9~24V (Over-current, Over-voltage and reverse polarity protection)
Power Consumption	20W
EMC	CE/FCC Class A
Working temperature	-20℃~+70 ℃ (with wide temp industrial RAM/SSD)
Wide temp. (Optional)	-40℃ ~ +70℃ (with wide temp industrial RAM/SSD)
Storage temperature	-40℃~+80 ℃
Relative humidity	10~95%@10℃（No condensation）
Vibration	50~500Hz,1.5G,0.15mm peak to peak
Shock	10G/peak（11ms sec）

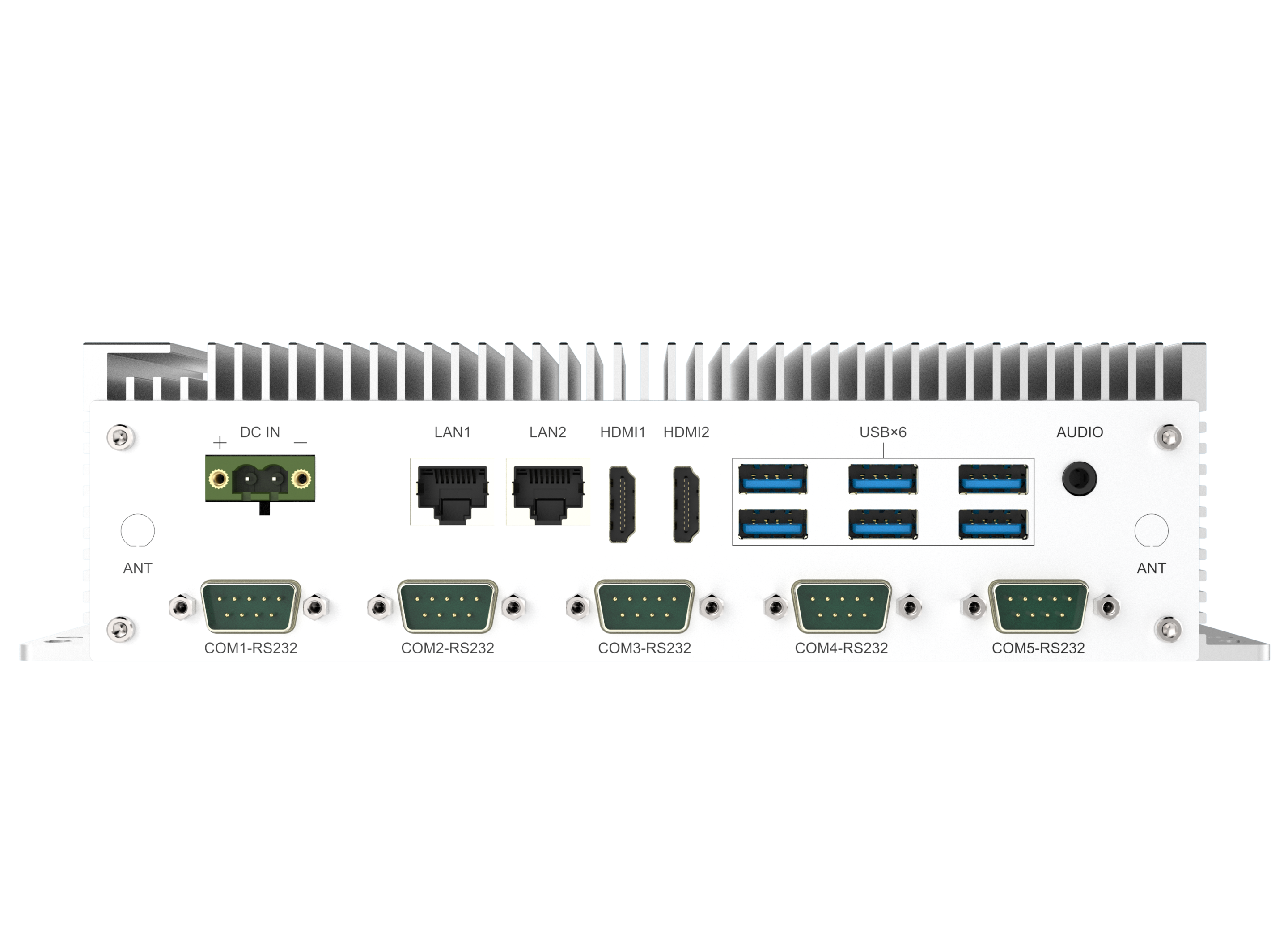

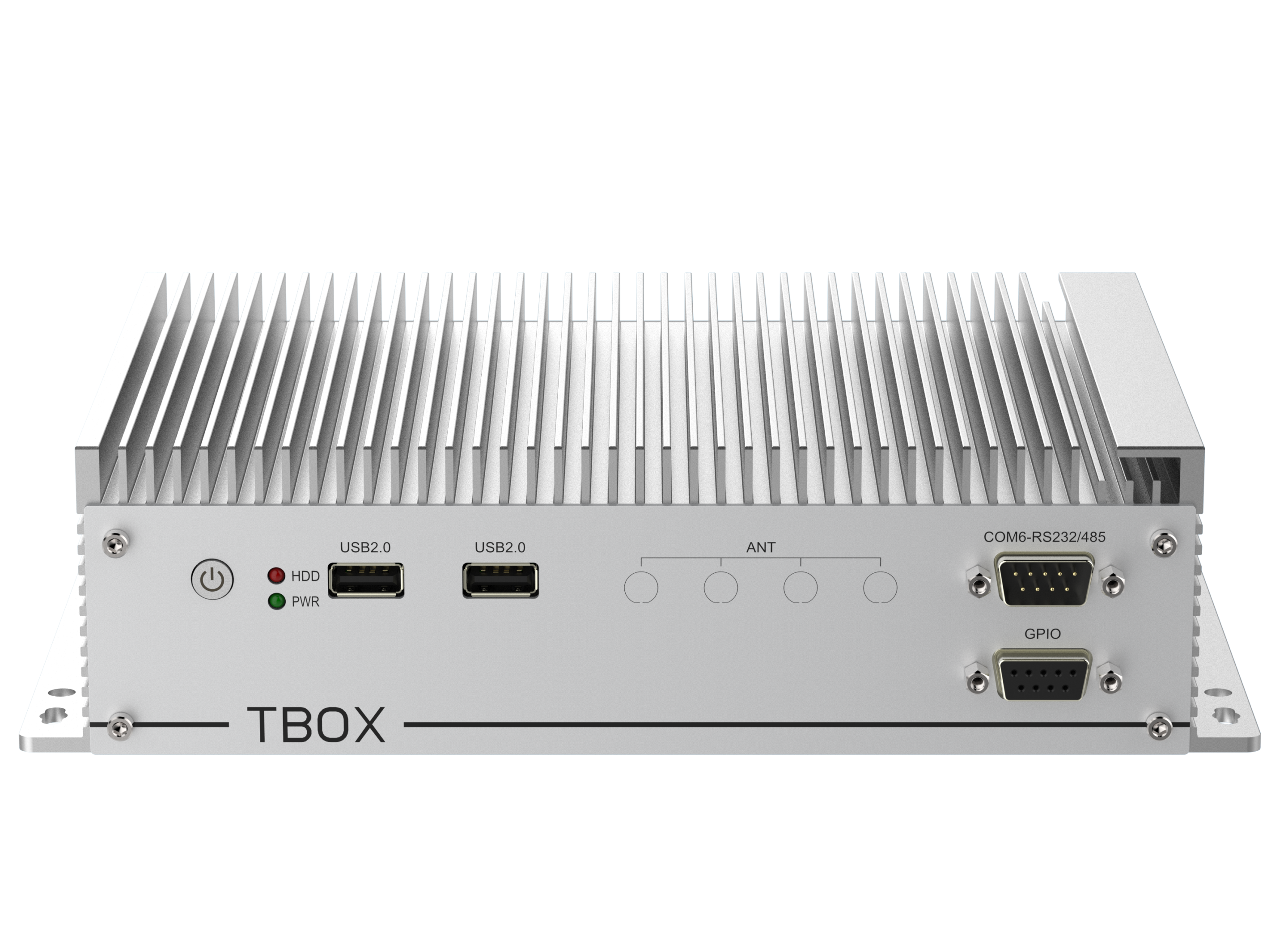

TBOX-12Tx5 Series Industrial Fanless PC’s: High Performance, Rich I/O

High performance 11th Gen Core i3/i5/i7 CPU, Rich array of I/O connections, Dual HDMI display outputs, wide temp operation to 70C, Win 11 / Win 10 / Linux support.

TBOX-12T05, TBOX-12T15, TBOX-12T25, TBOX-12T35

Price guide: $1846+ ex-GST (with i3/8GB/128GB)

Click here to show/ hide more info

Features:

- Rugged & compact, fanless designed box structure;
- On–board Intel Tiger Lake UP3 Core i3–1135G4 Dual–core processor;
- 1* DDR4 memory, single slot, max. up to 32GB,
- 1* M.2 2280(NGFF) Key–M slot (PCIe x4 NVME) SSD;
- DC 12V input, optional wide voltage DC 9~36V input;
- 2 GLAN, optional 2 wireless expansion 4G/5G, WIFI/BT support;
- 8 USB (6 USB3.0), 6 COM, GPIO (Optional), 2 HDMI, Audio;
- Industrial -20 ~ + 70°C operating range, optional -40~+80 °C.

Ordering information:

Part no.	Description	Datasheets	Sell Price ex-GST, incl 8GB RAM + 128GB SSD
TBOX-12T05	Intel Celeron 6305E, Dual core, 2 RJ45, 6 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, Audio, DC 12V, PSU	Data Sheet on TBOX-12T05	$1,850+GST
TBOX-12T15	Intel Core i3-1115G4, Dual core, 2 RJ45, 6 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, Audio, DC 12V, PSU	Data Sheet on TBOX-12T15	$1,846+GST
TBOX-12T15D	Intel Core i3-1115G4, Dual core, 2 RJ45, 6 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, GPIO, Audio, DC 12V, PSU	Data Sheet on TBOX-12T15D	$1,846+GST
TBOX-12T25	Intel Core i5-1135G7, Quad core, 2 RJ45, 6 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, Audio, DC 12V, PSU	Data Sheet on TBOX-12T25	$2,039+GST
TBOX-12T35	Intel Core i7-1165G7, Quad core, 2 RJ45, 6 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, Audio, DC 12V, PSU	Data Sheet on TBOX-12T35	$2,754+GST
–4G / –8G/–16G/–32G	Memory: SO–DIMM, DDR4, 4GB/8GB/16G/32G
–128GS / –256GS / –512GS	M.2 NVMe SSD: 128GB/256GB/512GB
	2.5” SATA SSD: 128GB/256GB/512GB/1TB
	2.5” HDD: 2TB/4TB
TBOX–WiBlu	Wi–Fi module with BT integrated, with antenna
TBOX-9-36V	9-36V DC power connection
EM06–E–PCkit	All network 4G module, with Antenna
	5G module, with antenna
Power supply	Optional PSU for TBOX–12T05W (If needed)

Packing List:

1 unit standard Product
1 set PSU (Power supply)
1 set Power Cable & Plug

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Core i3–1115G4, Dual core, up to 4.1Ghz
TDP	15W (Fixed configuration)
Memory	SO–DIMM, DDR4–2666/2933/3200 MHz, Single slot, Max. up to 32GB
Storage	1M.2 (NGFF) 2280 Key–M slot (PCIe x4 NVME) SSD, 1 2.5” SATA (optional)
Graphic	Intel UHD Graphics (Up to 48 EUs, 1.25Ghz)
Network	1* Intel I219, 1* Intel I225 LAN chips, Optional WIFI+BT (M.2 2230), 4G/5G (M.2 Key–B 3042/3052)
Audio	On–board Realtek ACL897 Audio controller
Expansion	1* M.2 (NGFF) Key–E slot, 1* M.2 (NGFF) Key–B slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10 /Win11, Linux
I/O
Serial port	COM1: RS232/RS485; COM2/3/4/5: RS232; COM 6: RS485 (Optional RS232)
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	1* Mic–in/Line–out (2in1 3.5mm Jack)
USB	6* USB3.0 + 2* USB2.0
Display	2* HDMI (Max. support 4096 * 2160 @30Hz)
Power Input	1* 2 pins, Phenix terminal
Optional	8* GPIO (DB9 COM5)
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Silver
Mount method	Desktop, wall mount
Cooling system	Finned aluminum heatsinks
Indicator & Button	Power switch, Power LED, HDD LED
Dimension	236.5 * 150 * 60 (mm)
Net weight	About 1.6 KG
Power & Environmental
Operating temp.	–20 ~ + 70 °C
Storage temp.	–40 ~ + 80 °C
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10 G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	About 25W
EMC	CE/FCC Class A

TBOX-128×5 Series – High performance Industrial Box PC

High performance 8th Gen Core CPU, Rich array of I/O connections, Dual HDMI display outputs, wide temperature operation to 60°C, Win 11 / Win 10 / Linux support.

TBOX-12815, TBOX-12805, TBOX-12825, TBOX-12835

Price guide: $1763+ ex-GST (i3 / 8G / 128G)

Click here to show/ hide more info

Features:

- Rugged & compact, fanless designed box structure;
- On–board Intel Whiskey Lake 8th–gen. Celeron 4205U Dual–core processor;
- Single DDR4 memory, up to 16GB, 1* M.2 and 1* 2.5” SATA storage;
- DC 12V input, optional wide voltage DC 9~36V input;
- 2 GLAN, Dual wireless expansion 4G/5G, WIFI/BT support;
- 6 USB (4 USB3.0), 6 COM (optional GPIO), 2 HDMI;
- Industrial -20 ~ + 70°C operating range, optional -40~+80 °C.

Ordering information:

Part no.	Description	Datasheets	Sell Price ex-GST, incl 8GB RAM + 128GB SSD
TBOX-12815	Intel Whiskey Lake Core i3–8145U, 2 RJ45, 4 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, DC 12V	Data Sheet on TBOX-12815	$1,763+GST
TBOX-12805	Intel Whiskey Lake Celeron 4205U, 2 RJ45, 4 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, DC 12V	Data Sheet on TBOX-12805	$1,085+GST
TBOX-12825	Intel Whiskey Lake Core i5–8265U, 2 RJ45, 4 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, DC 12V	Data Sheet on TBOX-12825	$1,894+GST
TBOX-12835	Intel Whiskey Lake Core i7–8565U, 2 RJ45, 4 USB3.0, 2 USB2.0, 6 COM, 2 HDMI, DC 12V	Data Sheet on TBOX-12835	$2,546+GST
–2G / –4G / –8G	Memory: SO–DIMM, DDR4, 4GB/8GB/16GB
–64GS / –128GS / –256GS / –512GS	M.2 SSD: 128GB/256GB/512GB
TBOX–WiFi–M2	Wi–Fi module, with Antenna (M.2 interface)
TBOX–WiBlu–M2	Wi–Fi module with BT integrated, with antenna (M.2 interface)
	All network 4G module, with Antenna (M.2 interface) 5G module, with antenna (M.2 interface)
DC modules	DC to DC, Wide voltage DC 9~36V

Packing List:

1 unit standard Product
1 set 60W PSU (Power supply)
1 set Power Cable & Plug

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Whiskey Lake 8th. Gen Core i3–8145U
CPU Ghz	Dual–core 2.1Ghz, burst to 3.9Ghz, TDP 15W
TPM	Intel PTT TPM2.0
Memory	SO–DIMM, DDR4–1866/2133/2400 MT/s, Max. up to 16GB
Storage	1M.2 NGFF Key–M/B slot (PCIe x4, 2242/2280), 1 2.5” SATA
Graphic	Intel UHD Graphics 620
Network	2* Intel I211 GBE LAN chip, Optional WIFI+BT (M.2 2230), 4G/5G (M.2 3042/3052)
Audio	On–board Realtek ACL 662 Audio controller
Expansion	1* M.2 Key–B slot, 1* M.2 Key–E slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10 /Win11, Linux
I/O
Serial port	COM1: RS485 (Optional RS232), COM2/3/4: RS232, COM5: RS232 (Optional GPIO), COM 6: RS485 (Optional RS232)
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	Optional Mic–in/Line–out
USB	4* USB3.0 + 2* USB2.0
Display	2* HDMI (Max. support 4096 * 2160 @30Hz)
Power Input	1* 2 pins, Phenix terminal
Optional	8* GPIO (DB9)
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Silver
Mount method	Desktop, wall mount
Cooling system	Finned aluminum heatsinks
Indicator & Button	Power switch, Power LED, HDD LED
Dimension	236.5 * 150 * 60 (mm)
Net weight	About 1.6 KG
Power & Environmental
Operating temp.	–20 ~ + 60 °C
Storage temp.	–40 ~ + 80 °C
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10 G/Peak (11 ms)
Power input	DC 12V (Optional DC 9~36V)
Power consumption	About 25W
EMC	CE/FCC Class A

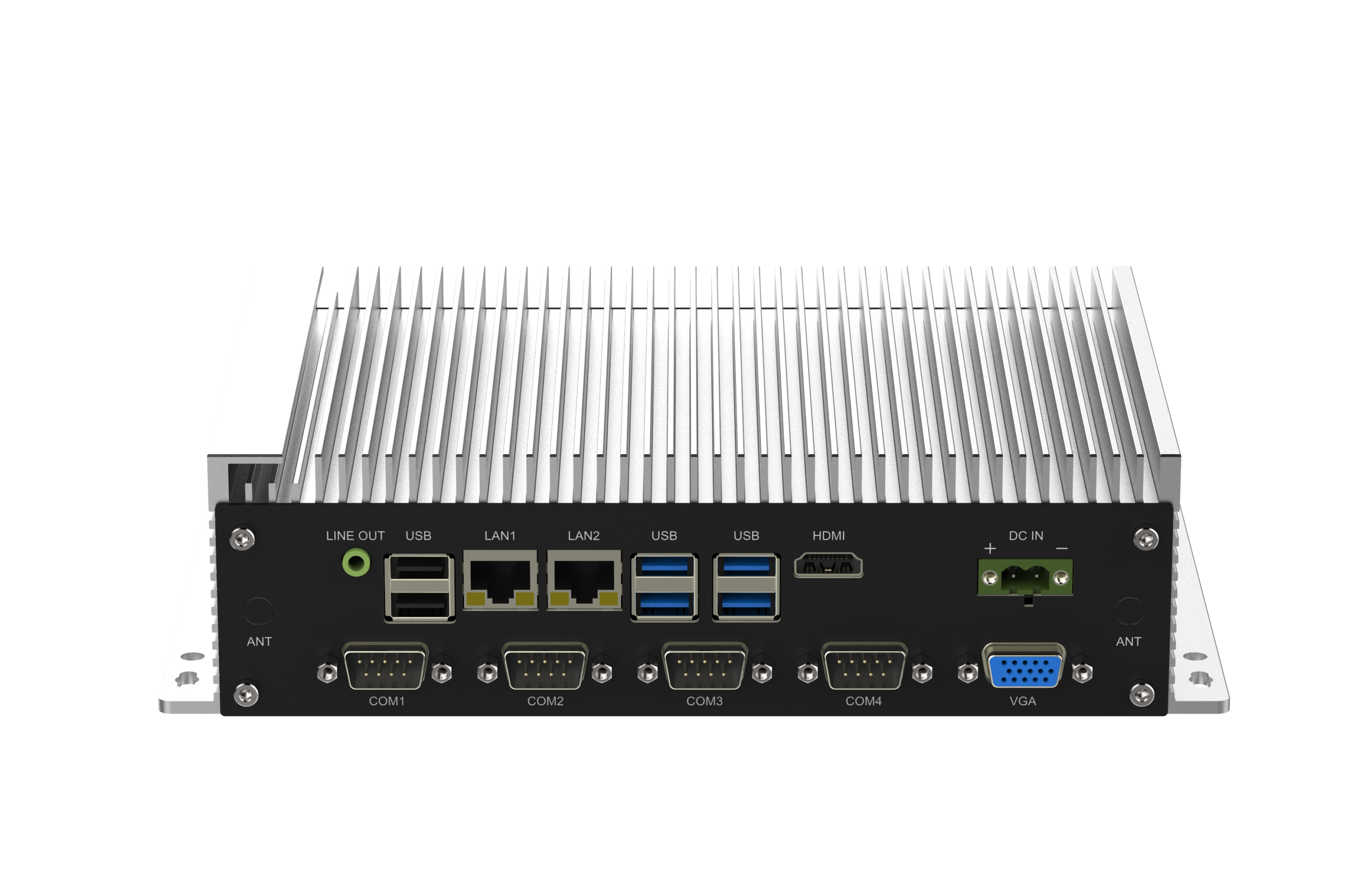

TBOX-128×0 Series – Rich IOs Industrial Box PC

CyberVisuell TBOX-128×0 series: High-performance 8th Gen Core CPU, Rich array of I/O connections, VGA and HDMI display outputs, wide temperature operation to 70°C, Win 10 / Linux support.

TBOX-12810, TBOX-12820, TBOX-12830

Price guide: $1763+ ex-GST (i3 / 8G / 128G)

Click here to show/ hide more info

Features:

Rugged & compact, fanless designed box structure;
On-board Intel Whiskey Lake 8th-gen. Core i3-8145U Dual-core processor;
Single DDR4 memory, up to 16GB, 1*mSATA and 1* 2.5” SATA storage;
DC 9~24V input, with over-current, over-voltage, polarity protection;
2 GLAN, optional with 3G/4G/LTE, and Wi-Fi/BT expansion;
8 USB (4 USB3.0), 6 COM, 1 HDMI, 1 VGA, Line-out;

Ordering information:

Part no.	Description	Datasheets	Sell Price ex-GST, incl 8GB RAM + 128GB SSD
TBOX-12810	Intel Whiskey Lake Core i3-8145U, 2 RJ45, 4 USB3.0, 4 USB2.0, 6 RS232, 1 HDMI, 1 VGA, Line-out, DC 9~24V	Data Sheet on TBOX- 12810	$1,763+GST
TBOX-12820	Intel Whiskey Lake Core i5-8265U, 2 RJ45, 4 USB3.0, 4 USB2.0, 6 RS232, 1 HDMI, 1 VGA, Line-out, DC 9~24V	Data Sheet on TBOX- 12820	$1,894+GST
TBOX-12830	Intel Whiskey Lake Core i7-8565U, 2 RJ45, 4 USB3.0, 4 USB2.0, 6 RS232, 1 HDMI, 1 VGA, Line-out, DC 9~24V	Data Sheet on TBOX- 12830	$2,546+GST
	Memory: SO-DIMM, DDR4, 4GB/8GB/16GB
	mSATA SSD: 32GB/64GB/128GB/256GB/512GB
	2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB
	2.5” HDD: 1TB/2TB/4TB
	Wi-Fi module, with Antenna
	Wi-Fi module with BT integrated, with antenna
	All network 4G module, with Antenna
	Din 35 mount clip (2 set per unit)

Packing List:

1 unit standard Product
1 set 60W PSU (Power supply)
1 set Power Cable & Plug

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Core i3–8145U
CPU Ghz	Dual-core 2.1Ghz, Burst to 3.9Ghz
TDP	15W
Memory	SO–DIMM, DDR4–2400 MT/s, Max. up to 16GB
Storage	1mSATA (Optional support 1 2.5” SATA)
Graphic	Intel UHD Graphics 620
Network	2* Intel I211AT, optional support 3G/4G/Wi–Fi wireless
Audio	On–board Realtek ACL 269 Audio controller
Expansion	1* Mini-PCIe expansion slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10, Linux
I/O
Serial port	6 * RS232 (Support 1* RS485)
Ethernet	2* RJ45, 10/100/1000 Mbps
Audio	Line–out
USB	4* USB3.0 + 4* USB2.0
Display	1* HDMI + 1* VGA
Power Input	1* 2 pins, Phenix terminal
Optional	1* CAN, 8* GPIO
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Black + Silver
Mount method	Desktop, wall mount, optional with Din-rail mount
Cooling system	Finned aluminum heatsinks
Indicator & Button	Power switch, Power LED, HDD LED
Dimension	236.5 * 150 * 60 (mm)
Net weight	About 1.6 KG
Power & Environmental
Operating temp.	–20 ~ + 70 °C
Storage temp.	–40 ~ + 80 °C
Humidity	10 ~ 95% @ 10C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10 G/Peak (11 ms)
Power input	DC 9~24V
Power consumption	About 25W
EMC	CE/FCC Class A, RCM

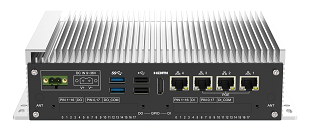

TBOX-13110 / 13111 Series – Industrial PoE Fanless PC – Performance and Value

Midrange CPU performance, low power & low cost Elkhart Lake Celeron CPU, 4x GLAN ports (3x with PoE), dual display, wide temp operation to 70C, optional 32x GPIO.

TBOX-13111, TBOX-13110

Price guide: $1358+ ex-GST(with 8GB/128GB)

Click here to show/ hide more info

Features:

- Intel Elkhart Lake Celeron J6413 Quad–core processors;
- 1* DDR4 memory socket, max. up to 16GB;
- 1* M.2 M–key 2280 SATA SSD, and 1* 2.5” SATA Storage;
- Two independent displays: 1* HDMI, 1* VGA;
- DC 9~36V input, with over–current, over–voltage, polarity protection;
- 4* GLAN (3* PoE), 6* USB, 2*COM, 32* GPIO;
- 1* M.2 2230 E–key for Wi–Fi, 1* Mini–PCIe for 4G modules expansion;
- Industrial -20 ~ + 70°C operating temperature range.

Ordering information:

Part no.	Description	Datasheets	Sell Price ex-GST, incl 8GB RAM + 128GB SSD
TBOX-13111	Intel Celeron J6413, 1HDMI, 1VGA, 4RJ45, 2USB3.0, 4USB2.0, 2RS232, 32* DIO, Mic–in, Line–out, DC 9 ~36V	Data Sheet on TBOX-13111	$1,441+GST
TBOX-13110	Intel Celeron J6413, 1HDMI, 1VGA, 4RJ45, 2USB3.0, 4USB2.0, 2RS232, (No DIO), Mic-in, Line-out, DC 9 ~36V	Data Sheet on TBOX-13110	$1,358+GST
-4G / -8G / ‐16G	Memory: SO–DIMM, DDR4,4GB/8GB/16GB
–64GS / –128GS / –256GS / –512GS	mSATA SSD: 64GB/128GB/256GB/512GB
	2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB 2.5” HDD: 1TB/2TB/4TB
TDRK‐BOX23‐35	DIN Rail Mounting Kit (factory option, must be ordered with TBOX)
TBOX–WiBlu	Wi–Fi module with BT integrated, with antenna
EC25–AU–PCKit	All network 4G module, with Antenna

Packing List:

1 unit standard Product
1 set 60W PSU (Power supply)
1 set Power Cable & Plug

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Elkhart Lake Celeron J6413
CPU Ghz	Quad–core four threads 1.8Ghz, burst to 3.0Ghz
TDP	10W
Memory	SO–DIMM, DDR4–2666/2933/3200 MHz Max. up to 16GB
Storage	1* M.2 M–key 2242/2280 SATA SSD (Optional support 1* 2.5” SATA)
Graphic	Intel HD Graphic Gen 10
Network	LAN 1~ 3: Intel I210AT; LAN 4: I225V
Audio	On–board Realtek ACL 269 Audio controller
Expansion	1 M.2 2230 E–key slot for Wi–Fi, 1* Full length Mini–PCIe expansional slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10, Linux
I/O
Serial port	2 * (support 1* RS485)
Ethernet	4* RJ45, 10/100/1000 Mbps, LAN 1~ LAN 3 support PoE 802.3 AF (Single port max. up to 15.4W, total less than 45W); LAN 4 support standard 10/100/1000 Mbps
USB	2* USB3.0, 4* USB2.0
Display	1* HDMI, 1* VGA
Power Input	1* 2 pins, Phenix terminal
GPIO	32* GPIO (16* DI, 16* DO, with isolated) (TBOX–13111 only)
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Black + Silver
Mount method	Desktop, wall mount
Cooling system	Big area aluminum heatsinks, copper tube inside, fanless design
Indicator & Button	Power switch, Power LED, HDD LED, remote switch
Dimension	236.5 * 150 * 60 (mm)
Net weight	About 1.60 KG
Power & Environmental
Operating temp.	–20 ~ + 70 °C
Storage temp.	–40 ~ + 80 (°C)
Humidity	10 ~ 95% @ 40C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10 G/Peak (11 ms)
Power input	DC 9~36V
EMC	CE/FCC Class A

TBOX-132×0 Series – High Performance PoE Industrial Fanless PC

High Performance 11th Gen Core i3/i5/i7 CPU, 5x GLAN ports (4x with PoE), Rich array of I/O connections, dual display, wide temp operation, Win 11 / Win 10 / Linux support.

TBOX-13210, TBOX-13200, TBOX-13220, TBOX-13230

Price guide: $1962+ ex-GST(with i3/8GB/128GB)

Click here to show/ hide more info

Features:

- Support Intel 11th Gen. Tiger Lake UP3 Core i3–1115G4 processors;
- 1* DDR4 memory socket, max. up to 32GB;
- 1* M.2 2280 (PCIe x4 NVMe), and 1* 2.5” SATA Storage;
- Two independent displays: 1* HDMI, 1* VGA;
- DC 9~36V input, with over–current, over–voltage, polarity protection;
- 5* GLAN (4* PoE), 4* USB3.0, 2* USB2.0, 2*COM;
- 1 Mini–PCIe slots for expansion;
- Industrial –20 ~ + 60°C operating temperature range.

Ordering information:

Part no.	Description	Datasheets	Sell Price ex-GST, incl 8GB RAM + 128GB SSD
TBOX-13210	Intel Core i3–1115G4, 1HDMI, 1VGA, 5RJ45, 4USB3.0, 2USB2.0, 1RS232, 1*RS485, DC 9 ~36v, PSU	Data Sheet on TBOX-13210	$1,962+GST
TBOX-13200	Intel Celeron 6305E, 1HDMI, 1VGA, 5RJ45, 4USB3.0, 2USB2.0, 1RS232, 1*RS485, DC 9 ~36v, PSU	Data Sheet on TBOX-13200	$1,445+GST
TBOX-13220	Intel Core i5-1135G7, 1HDMI, 1VGA, 5RJ45, 4USB3.0, 2USB2.0, 1RS232, 1*RS485, DC 9 ~36v, PSU	Data Sheet on TBOX-13220	$2,220+GST
TBOX-13230	Intel Core i7-1165G7, 1HDMI, 1VGA, 5RJ45, 4USB3.0, 2USB2.0, 1RS232, 1*RS485, DC 9 ~36v, PSU	Data Sheet on TBOX-13230	$2,737+GST
–4G / –8G/–16G/–32G	SO–DIMM, DDR4,4GB/8GB/16GB/32GB
–64GS /–128GS / –256GS / –512GS	M.2 NVMe SSD: 64GB/128GB/256GB/512GB
	2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB
	2.5” HDD: 1TB/2TB/4TB
TBOX–WiFi	Wi–Fi module, with Antenna
TBOX–WiBlu	Wi–Fi module with BT integrated, with antenna
EC25–AU	All network 4G module, with Antenna

Packing List:

1 unit standard Product
1 set 60W PSU (Power supply)
1 set Power Cable & Plug

Specifications:

System & Hardware
BIOS	SPI AMI EEI BIOS
CPU	Intel Core i3–1115G4
CPU Ghz	Dual core 3.0Ghz
TDP	15W
Memory	SO–DIMM, DDR4–2666/2933/3200 MT/s, Max. up to 32GB
Storage	1* M.2 2280 (PCIe 4 NVMe), Optional support 1 2.5” SATA3.0
Graphic	Intel UHD Graphic
Network	5* Intel I211AT (Optional 3G/4G/Wi–FI/BT)
Audio	N/A
Expansion	1* Full length Mini–PCIe expansional slot
Watchdog	0 ~ 256 seconds programmable
Operating system	Win10, Win11, Linux
I/O
Serial port	COM1: RS232; COM2: RS485
Ethernet	5* RJ45, 10/100/1000 Mbps, LAN 1~ LAN 4 support PoE 802.3 AF (Single port max. up to 15.4W, total less than 45W); LAN 5 support standard 10/100/1000 Mbps
Audio	No
USB	4* USB3.0, 2* USB2.0
Display	1* HDMI, 1* VGA
Power Input	1* 2 pins, Phenix terminal
GPIO (Optional)	32* GPIO (16* DI, 16* DO, with isolated) [TBOX–13211 Model]
Structure
Box Structure and surface	Aluminum alloy, anodizing and anti–scratch treatment
Color	Black + Silver
Mount method	Desktop, wall mount
Cooling system	Big area aluminum heatsinks, copper tube inside, fanless design
Indicator & Button	Power switch, Power LED, HDD LED, remote switch
Dimension	236.5 * 150 * 60 (mm)
Net weight	About 1.60 KG
Power & Environmental
Operating temp.	–20 ~ + 70 °C
Storage temp.	–40 ~ + 80 (°C)
Humidity	10 ~ 95% @ 40C (No condensation)
Vibration	50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock	10 G/Peak (11 ms)
Power input	DC 9~36V
EMC	CE/FCC Class A

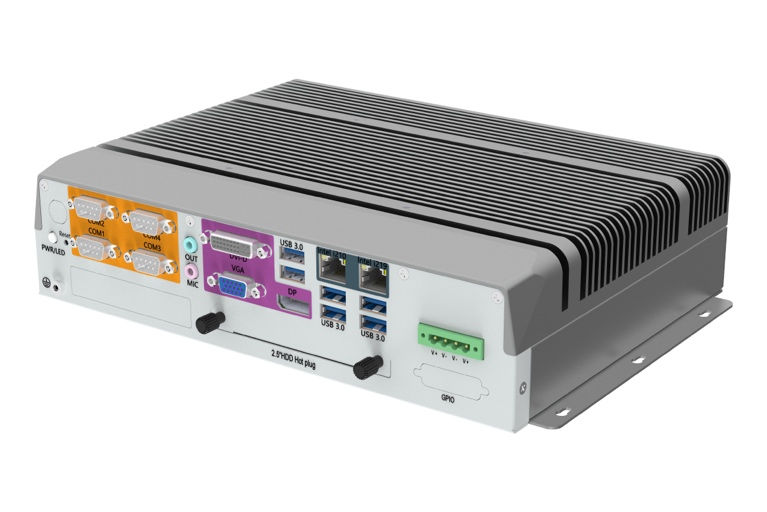

CYBOX-AE7L – Maximum performance fanless industrial box computer

CyberVisuell CYBOX-AE7L: High performance fanless industrial box PC supports Intel® 7th Core™ i7/i5/i3 desktop processors, with serial ports and 2x 2.5″ HDD bays, up to 60C operating temp.

CYBOX-AE7L, CYBOX-AE7L-61, CYBOX-AE7L-72, CYBOX-AE7L-73
Price guide: $1950+ (ex GST)

Click here to show/ hide more info

CyberVisuell CYBOX-AE7L: High performance fanless industrial box PC supports Intel® 7th Core™ i7/i5/i3 desktop multicore processors, Max. expansion up to 10 USB ports, Max. expansion up to 6x Intel RJ45 port, Max. expansion up to 6x COM ports.

Key features:

Support Intel® 7th Core™ i7/i5/i3 desktop multicore processors
Q170 industrial chipset
2x DDR4 SO-DIMM, Max. up to 32GB, Dual channel support
3x Display ports
Max. expansion up to 10 USB ports
Max. expansion up to 6x Intel RJ45 port
Max. expansion up to 6x COM ports
Optional power solution (DC 18~36v wide voltage optional)
Optional 4x extra Gigabit LAN ports
Also available with 2x PCI express slots (model CYBOX-AE7DL)

Available Models:

Model	CPU	Datasheets	Base Price (July 2021) with 8GB RAM, 128GB SSD
CYBOX-AE7L-61	Intel Kabylake Core i3-6100T Desktop 3.4GHz 2 core	Data Sheet on CYBOX-AE7L	$CALL
CYBOX-AE7L-72	Intel Kabylake Core i5-7500T Desktop 2.7GHz 4 core	Data Sheet on CYBOX-AE7L	$CALL
CYBOX-AE7L-73	Intel Kabylake Core i7-7700T Desktop 2.9GHz 4 core	Data Sheet on CYBOX-AE7L	$CALL

Please call us for pricing with other options:

Up to 32GB RAM
M.2 and/or 2.5″ SATA SSD up to 2TB
Windows 10 IoT Enterprise LTSC pre-installed
Built in 4G LTE Modem card (Australian approved)

Specifications:

System
Processor	CPU	Intel® 6th/7th Core™ i3/i5/i7 Desktop LGA1151 CPU, TDP=35W (fan-less)
	Chipset	Intel® Q170 Chipset
	BIOS	AMI SPI 64Mb, support ACPI, CPU temperature, system voltage monitoring
Memory	Interface	2 x DDR4 SO-DIMM, @1.2V, 1866/2133/2400/2666 MHz
Memory	Capacity	Max. single RAM up to 16G, Dual channels, Expansion up to 32GB
Storage	Interface	1 x 2.5〞HDD, support 5~9.5mm, hot pluggable 1 x 2.5〞HDD, support 5~9.5mm，Internal 1 x M.2 SATA 3.0（22*42mm），Internal
Display	Chipset	CPU integrated Intel® HD Graphics, support DirectX12
Display	Ports	1 x DP (Max. support resolution: 4096×2304 x24bpp, @ 60Hz) 1 x DVI-D (Max. support resolution: 1920×1200, @ 30Hz) 1 x VGA (Max. support resolution: 2048×1536)
Network	Chip	2 x Intel® Ethernet Connection; LAN1: I210-AT, LAN2: I219-LM, support WOL
Network	Wireless	1 x Mini-PCIE (Half/ full, support 802.11b/g/n, 3G/4G, optional) 1 x SIM slot
Audio	Chips	Realtek ALC662 5.1 Channel HAD Code
Audio	Port	1 x Mic-in + 1 x Audio-out
I/O	USB	6 x USB 3.0
I/O	COM	4 x DB9 RS232 (COM1/COM2 support RS485/RS422/RS232, BIOS controllable)
Expansion I/O	Front signal	1x 6 pin front panel controlled signal (Power on, restart, status LED, optional)
	Watchdog	1 x Internal USB 2.0 (Optional)
	COM	2 x 9pin COM pin-header (RS232)
	GPIO	8 x GPIO（4 IN 4 OUT，DI low level, DO high level, DI/DO BIOS configurable, Optional 8 x GPIO（4 IN 4 OUT, photoelectric isolated, 5V~40V wide voltage input，OMRON relay output, DB25, optional）
	MXM	1 x MXM 3.0 (support 4x GigE)
Power	Type	DC
	Port	1 x 4pin 5.08 phoenix terminal, with hole lock
	Input	18~36V, Max. power support 240W
LED/Switch	Power on	1 x power on button （including status LED light）
LED/Switch	Reset	1 x reset/restart button (Long press ≥3s when power of, clear CMOS; press 0.2~1s reset when power on)
Watchdog		Programmable 255 seconds
OS	version	Windows 7/8.1/10 64 bits, Linux
RAID	Mode	0, 1
Structure
Treatment	Hard anodizing treatment, scratch resistant
Color	Iron grey, industrial grey color
Cooling	Fan-less design
Weight	4.12kg
Dimension	268mm(L) x 194.2mm(W) x 67.7mm(H)
Mounting	Desktop, wall mount, VESA mount (100 x 100mm)
Environmental
Operation temp.	Operating temp.: -20~60°C (Industrial SSD) Operating temp.: 0~40°C (HDD)
Storage	-40~80°C
Humidity	10%~90%@40°C (non-condensation)
Vibration	SSD：3Grms@5~500Hz，random，1 hr/axis 2.5″ HDD：1Grms@5~500Hz，random，1 hr/axis
Shock	10G/peak (11ms sec)

Data on CyberVisuell CYBOX-AE7L (pdf, opens in a new tab)

ADLINK Expandable Fanless Embedded Computers

ADLINK MVP-6100 series

Value Family 9th Generation Intel® Xeon®/Core™ i7/i5/i3 & 8th Gen Celeron® Processor-Based Expandable Computer

Click here to show/ hide more info

The Matrix series of expandable fanless embedded computers are designed to enhance responsiveness and durability of edge AI and edge computing applications. Designed to perform and to last, the Matrix expandable fanless embedded computers offer performance, expandability, easy integration, and ruggedness to enable timely data-driven decision making at the edge.

The Matrix expandable fanless embedded computers deliver efficiency, productivity and security enhancement across industries by accelerating compute-intensive high-resolution medical imaging for faster diagnosis, detecting and classifying product defects for quality assurance, deploying facial recognition at entry points for secure access control, tracking movement of workers for hazard prevention and control, and more.

Features:

9th Gen Intel^® Xeon^®/Core™ i7/i5/i3 & 8th Gen Celeron^® LGA processor
Dual SODIMMs for up to 32GB DDR4 non-ECC/ ECC memory
Rich I/O: 2x DP++/ DVI/ VGA/ 3x GbE/ 4x COM/ 8-ch DI/ 8-ch DO/TPM2.0
2x USB 1 Gen2 + 1x USB 3.1 Gen1 + 3x USB 2.0
Rich storage: up to 4x 2.5″ SATA, CFast, M.2 2280
Embedded Expansion: Mini PCIe/ M.2 3042/ 2x USIM
Front accessible I/O and adaptive Function Module v.2 option
Flexible modular expansion with 2 or 4 slots

Ordering Information:

Model	CPU	PCH	Slot #
MVP-612X-1E/M4G	Intel^® Xeon^® E-2278GE	C246	2
MVP-612A-1E/M4G	Intel^® Core™ i7-9700E	H310	2
MVP-6121-1E/M4G	Intel^® Core™ i7-9700TE	H310	2
MVP-6122-1E/M4G	Intel^® Core™ i5-9500TE	H310	2
MVP-6123-1E/M4G	Intel^® Core™ i3-9100TE	H310	2
MVP-6124-1E/M4G	Intel^® Celeron^® G4900T	H310	2
MVP-614X-3E/M4G	Intel^® Xeon^® E-2278GE	C246	4
MVP-614A-3E/M4G	Intel^® Core™ i7-9700E	C246	4
MVP-6141-3E/M4G	Intel^® Core™ i7-9700TE	C246	4
MVP-6142-3E/M4G	Intel^® Core™ i5-9500TE	C246	4
MVP-6143-3E/M4G	Intel^® Core™ i3-9100TE	C246	4
MVP-6144-3E/M4G	Intel^® Celeron^® G4900T	C246	4

Specifications:

Model Name	MVP-610X	MVP-610A	MVP-6101	MVP-6102	MVP-6103	MVP-6104
System Core
Processor	Intel^® Xeon^® E-2278GE	Intel^® Core™ i7-9700E	Intel^® Core™ i7-9700TE	Intel^® Core™ i5-9500TE	Intel^® Core™ i3-9100TE	Intel^® Celeron^® G4900T
TDP	80W	65W	35W	35W	35W	35W
# of Cores	8	8	8	6	4	2
Base Freq.	3.3 GHz	2.6 GHz	1.8 GHz	2.2 GHz	2.2 GHz	2.9 GHz
Max Turbo Freq.	4.7 GHz	4.4 GHz	3.8 GHz	3.6 GHz	3.2 GHz	–
Chipset	C246	MVP-6120 series: H310 MVP-6140 series: C246
Memory	4GB DDR4 non-ECC 2400 MHz, dual SODIMMs, up to 32GB (Optional: 4/8/16/32GB ECC, only for Intel^® Xeon^®/Core™ i3/Celeron w/ C246)
I/O Interface
Display	2x DP++ 1.2, DVI-D, VGA (dual independent displays w/ H310, 3 independent displays w/ C246)
Ethernet	3x Intel GbE: 2x i211AT + i219 (Support Intel^® AMT/vPro™ w/ C246)
Serial Ports	COM1/2: RS-232/422/485, COM3/4: RS-232 (Optional COM5/6: RS-232, shared w/ DI/O)
USB	3x USB 3.1 Gen 1 + 3x USB 2.0, 1x internal USB 2.0 dongle (2x USB 3.1 up to Gen 2 w/ C246)
Audio	Line-out, Mic-in (Optional: speaker-out)
Mini PCIe	1x Full size (USB 2.0 + PCIe)
M.2	1x socket 2, key B+M or B, 2280/3042 (USB3.1 + SATA III + PCIe x1. Up to PCIe x2 w/ C246)
USIM	2
DI/O	8-CH DI and 8-CH DO
I²C	2 (3.3V/5V)
TPM	TPM2.0
Expansion Slots	MVP-6120 series: PCIe x16 + PCI (total up to 150W) MVP-6140 series: PCIe x16 + 2 PCIe x4 + PCI (total up to 150W with 12V in; total up to 250W with 24V in)
Storage Device
2.5″ SATA	2x internal (RAID 0/1/5/10 support w/ C246) (Optional: additional 2x internal, w/ C246)
CFast	1 Type II
Mechanical
Dimensions	MVP-6120 series: 165 (W) x 240 (D) x 210 (H) mm (6.5″ x 9.45″ x 8.27″) MVP-6140 series: 206 (W) x 240 (D) x 210 (H) mm (8.11″ x 9.45″ x 8.27″)
Weight	MVP-6120 series: 4.8 kg (10.6 lbs) MVP-6140 series: 5.1 kg (11.2 lbs)
Mounting	Wall mount
Fan	Optional
Power Supply
DC Input	12-24V (± 10% tolerance)
AC Input	Optional: 220W/280W AC/DC adapter
Environmental
Operating Temperature	Standard: (w/ air flow 0.6 m/s)
	0°C to 40°C	0°C to 50°C
	Extended: (w/ air flow 0.6 m/s & ind. storage)
	-20°C to 40°C	-20°C to 50°C	-20°C to 60°C
Storage Temperature	-40°C to 85°C (-40°F to 185°F) (excl. storage)
Humidity	~95% @ 40°C (non-condensing)
Vibration	Operating: 5 Grms, 5-500 Hz, 3 axes (w/2.5″ SSD/CFast, 3 Grms w/ fan) Operating: 0.3 Grms, 5-500 Hz, 3 axes (w/ HDD)
Shock	Operating: 50 Grms, half sine 11ms duration (w/ 2.5″ SSD/CFast)
ESD	Contact +/-4KV, Air +/-8KV
EMC	EN61000-6-4/-2, CE & FCC Class A
Safety	UL/cUL, CB, CCC

Software Support:

Win10 IoT Enterprise CBB 64bit
Linux Ubuntu 18.04

Optional Accessories:

MVP-6100 Fan Kit (P/N: 91-95267-000E)
Factory Installed 2.5″ SATA SSD/HDD/M.2/CFast
Wireless Module
Wi-Fi/ BT/ 3G/ 4G LTE/ LoRa wireless kit (w/ antenna)
Optional 2x 2.5″ SATA Kit (w/ Bracket and Cable)
AC/DC Adapter
220W (P/N: 31-62149-0000)
280W (P/N: 91-95263-0010)
Internal power cable for add-on card
30-21656-0000-A0: for MVP-6120
30-21655-0000-A0: for MVP-6140

Data sheet on ADLINK MVP-6100 Series (pdf file, opens in new tab)

ADLINK MVP-6100-MXM series (with Nvidia discrete graphics card built in)

Value Family 9th Gen Intel® Xeon®/Core™ i7/i5/i3® Processor-Based Expandable GPU Workstation Platforms

Click here to show/ hide more info

GPUs can boost the performance of a wide range of workloads, including image processing and analysis, compute acceleration, and artificial intelligence (AI). As requirements for responsiveness and accuracy become more demanding for edge systems, the combination of CPUs and GPUs is becoming more mainstream in order to deliver optimal efficiency in performance per watt and dollar.

Features:

9th Gen Intel^® Xeon^®/Core™ i7/i5/i3 LGA processor
Dual SODIMMs sockets for up to 32GB DDR4 non-ECC/ECC
Abundant I/O:
- Up to 4x additional DP 1.4 from MXM
- 2x DP++, DVI, VGA, 3x GbE, 3x COM, 0
- 2x USB 1 Gen 2, 1x USB 3.1 Gen 1, 3x USB 2.0
Rich storage options: up to 4x 2.5″ SATA, 2 2280
Front accessible I/O and adaptive Function Module 2.0 options
Flexible functionality expansion:
- Expansion slots for standard PCIe and PCI card
- Embedded slots for Mini PCIe, M.2 3042, 2x USIM
World leading embedded GP/GPU computing options built-in

Ordering Information:

Model	CPU	Expansion Slots
MVP-612X-MXM-1E/M4G/[GPU]	Intel^® Xeon^® E-2278GE	1 PCIe x4
MVP-612A-MXM-1E/M4G/[GPU]	Intel^® Core™ i7-9700E	1 PCIe x4
MVP-6121-MXM-1E/M4G/[GPU]	Intel^® Core™ i7-9700TE	1 PCIe x4
MVP-6122-MXM-1E/M4G/[GPU]	Intel^® Core™ i5-9500TE	1 PCIe x4
MVP-6123-MXM-1E/M4G/[GPU]	Intel^® Core™ i3-9100TE	1 PCIe x4
MVP-614X-MXM-2E/M4G/[GPU]	Intel^® Xeon^® E-2278GE	2 PCIe x4, 1 PCI
MVP-614A-MXM-2E/M4G/[GPU]	Intel^® Core™ i7-9700E	2 PCIe x4, 1 PCI
MVP-6141-MXM-2E/M4G/[GPU]	Intel^® Core™ i7-9700TE	2 PCIe x4, 1 PCI
MVP-6142-MXM-2E/M4G/[GPU]	Intel^® Core™ i5-9500TE	2 PCIe x4, 1 PCI
MVP-6143-MXM-2E/M4G/[GPU]	Intel^® Core™ i3-9100TE	2 PCIe x4, 1 PCI

GPU Options:

Model	GPU	Power	CUDA^® Cores	Graphics Memory
EGX-MXM-P1000	NVIDIA^® Quadro^® Embedded P1000	47W	512	GDDR5 4GB
EGX-MXM-P2000	NVIDIA^® Quadro^® Embedded P2000	58W	768	GDDR5 4GB
EGX-MXM-P3000	NVIDIA^® Quadro^® Embedded P3000	75W	1280	GDDR5 6GB
EGX-MXM-P5000	NVIDIA^® Quadro^® Embedded P5000	100W	2048	GDDR5 16GB

Specifications:

Model Name	MVP-610X-MXM	MVP-610A-MXM	MVP-6101-MXM	MVP-6102-MXM	MVP-6103-MXM
System Core
Processor	Intel^® Xeon^® E-2278GE	Intel^® Core™ i7-9700E	Intel^® Core™ i7-9700TE	Intel^® Core™ i5-9500TE	Intel^® Core™ i3-9100TE
TDP	80 W	65 W	35 W	35 W	35 W
# of Cores	8	8	8	6	4
Base Frequency	3.3 GHz	2.6 GHz	1.8 GHz	2.2 GHz	2.2 GHz
Max Turbo Frequency	4.7 GHz	4.4 GHz	3.8 GHz	3.6 GHz	3.2 GHz
Chipset	Intel^® C246
Memory	4GB DDR4 non-ECC 2400 MHz, dual SODIMMs, up to 32GB (Optional: 8, 16, 32GB ECC, only for Intel^® Xeon^®/Core™ i3)
I/O Interface
Graphics	3 independent displays: 2x DP++ 1.2/ 1x DVI-D/VGA Extra 4x DP 1.4 powered by MXM P1000/P2000 or 3x DP 1.4 powered by MXM P3000/P5000
Ethernet	3x Intel^® GbE(2x i211AT, 1x i219) w/ iAMT/vPro support
Serial Ports	COM1/2: RS-232/422/485, COM3: RS-232
USB	2x USB 3.1 Gen 2, 1x USB 3.1 Gen 1, 3x USB 2.0, 1x internal USB2.0 dongle
I²C	2 (3.3V/5V)
TPM	TPM 2.0
M.2	1x socket 2, key B+M or B, 2280/3042 (USB3.1 + SATA III + PCIe x2)
Mini PCIe	1x Full size (USB 2.0, PCIe)
USIM	2
Expansion Slots	MVP-6120-MXM: 1 PCIe x4 MVP-6140-MXM: 2 PCIe x4, 1 PCI
Storage Device 2.5″ SATA Mechanical		2 (extra 2 by optional kit), support RAID 0/1/5/10
Dimensions	MVP-6120-MXM: 165 (W) x 240 (D) x 210 (H) mm (6.5″ x 9.45″ x 8.27″) MVP-6140-MXM: 206 (W) x 240 (D) x 210 (H) mm (8.11″ x 9.45″ x 8.27″)
Cooling	System/MXM: Active fan cooling
Weight	MVP-6120-MXM: 6.0 kg (13.2 lbs) MVP-6140-MXM: 6.4 kg (14.0 lbs)
Mounting	Wall mount
Power Supply
DC Input	12 to 24V
AC Input	220W or 280W AC/DC adapter (optional)
Environmental
Operating Temperature	Standard: (w/ air flow)
	0°C to 40°C (35°C for P5000)	0°C to 50°C
	Extended: (w/ air flow & ind. storage)
	-20°C to 40°C (35°C for P5000)	-20°C to 50°C	-20°C to 60°C
Storage Temperature	-40°C to 85°C (-40°F to 185°F) (excl. storage)
Humidity	~95% @ 40°C (non-condensing)
Vibration	Operating: 2 Grms, 5-500 Hz, 3 axes (w/ 2.5″ SSD/CFast) Operating: 0.3 Grms, 5-500 Hz, 3 axes (w/ HDD)
Shock	Operating: 50 G, half sine 11ms duration (w/ 2.5″ SSD)
ESD	Contact 4kV, Air 8kV
EMC	EN61000-6-4/-2, CE, FCC Class A
Safety	UL/cUL, CB

Software Support:

Windows 10 IoT Enterprise CBB/LTSB 64-bit
Linux Ubuntu 18.04 LTS

Optional Accessories:

Factory Installed 2.5″ SSD/HDD/M.2 Storage
Optional 2x 2.5” SATA Kit
Includes cables and bracket
Wireless Mini PCIe/M.2 Module
Wi-Fi/ BT/ 3G/ 4G LTE/ LoRa wireless kit (w/ antenna)
AC/DC Adapter
220W (P/N: 31-62149-0000)
280W (P/N: 91-95263-0010)

Data sheet on ADLINK MVP-6100-MXM series (pdf file, opens in new tab)

ADLINK MVP-5100 series

Value Family 9th Generation Intel® Core™ i7/i5/i3 & 8th Gen Celeron® Processor-Based Embedded Fanless Computer

Click here to show/ hide more info

ADLINK MVP-5100 Series of fanless embedded computing platforms, incorporating the 9th Generation Intel® Core™ processor, is optimized for edge computing applications. The MVP-5100 Series consolidates high performance computing, scalable function and I/lO enhancements, and industrial-grade reliability onto a compact fanless platform, providing reliable long-time operation for performance-critical applications in industrial automation, logistics, transportation, and smart city segments.

Features:

9th Gen Intel® Core™ i7/i5/i3 & 8th Gen Celeron® LGA processor
Dual SODIMMs for up to 32GB DDR4 non-ECC/ ECC memory
Rich I/O: 2x DP++/ DVI/ VGA/ 3x GbE/ 4x COM/ 8-ch DI/ 8-ch DO/ TPM2.0
2x USB3.1 Gen2 + 1x USB3.1 Gen1 + 3x USB2.0
Rich storage:2x 2.5″ SATA, CFast, M.2 2280
Embedded Expansion: Mini PCIe/ M.2 3042/ 2x USIM
Front accessible I/O and adaptive Function Module v.2 option

Ordering Information:

Model	CPU	PCH
MVP-510A/M4G	Intel^® Core™ i7-9700E	H310
MVP-5101/M4G	Intel^® Core™ i7-9700TE	H310
MVP-5102/M4G	Intel^® Core™ i5-9500TE	H310
MVP-5103/M4G	Intel^® Core™ i3-9100TE	H310
MVP-5104/M4G	Intel^® Celeron^® G4900T	H310

Specifications:

Model Name	MVP-510A	MVP-5101	MVP-5102	MVP-5103	MVP-5104
System Core
Processor	Intel^® Core™ i7-9700E	Intel^® Core™ i7-9700TE	Intel^® Core™ i5-9500TE	Intel^® Core™ i3-9100TE	Intel^® Celeron^® G4900T
TDP	65W	35W	35W	35W	35W
# of Cores	8	8	6	4	2
Base Freq.	2.6 GHz	1.8 GHz	2.2 GHz	2.2 GHz	2.9 GHz
Max Turbo Freq.	4.4 GHz	3.8 GHz	3.6 GHz	3.2 GHz	–
Chipset	H310 (Optional: C246)
Memory	4GB DDR4 non-ECC 2400 MHz, dual SODIMMs, up to 32GB (Optional: 4/8/16/32GB ECC, only for Intel^® Core™ i3/Celeron w/ C246)
I/O Interface
Display	2x DP++ 1.2, DVI-D, VGA (dual independent displays w/ H310, 3 independent displays w/ C246)
Ethernet	3x Intel^® GbE: 2x i211AT + i219 (Support Intel^® AMT/vPro™ w/ C246)
Serial Ports	COM1/2: RS-232/422/485, COM3/4: RS-232 (Optional COM5/6: RS-232, shared w/ DI/O)
DI/O	8-CH DI and 8-CH DO
USB	3x USB 3.1 Gen 1 + 3x USB 2.0, 1x internal USB 2.0 dongle (2x USB 3.1 up to Gen 2 w/ C246)
Audio	Line-out, Mic-in (Optional: speaker-out)
Mini PCIe	1x Full size (USB2.0 + PCIe)
M.2	1x socket 2, key B+M or B, 2280/3042 (USB3.1 + SATA III + PCIex1. Up to PCIex2 w/ C246)
USIM	2
I²C	2 (3.3V/5V)
TPM	TPM2.0
Storage Device
2.5″ SATA	2x internal (RAID 0/1 support w/ C246)
CFast	1 Type II
Mechanical
Dimensions	210 (W) x 240 (D) x 86 (H) mm (8.27″ x 9.45″ x 3.39″)
Weight	4.1 kg (9.0 lbs)
Mounting	Wall mount
Power Supply
DC Input	12-24V (± 10% tolerance)
AC Input	Optional: 160W AC/DC adapter
Environmental
Operating Temperature	Standard: 0°C to 50°C, w/ air flow 0.6 m/s
	Extended: (w/ air flow 0.6 m/s & Ind. storage)
	-20°C to 50°C	-20°C to 60°C
Storage Temperature	-40°C to 85°C (-40°F to 185°F) (excl. storage)
Humidity	~95% @ 40°C (non-condensing)
Vibration	Operating: 5 Grms, 5-500 Hz, 3 axes (w/ SSD/CFast) Operating: 0.5 Grms, 5-500 Hz, 3 axes (w/ HDD)
Shock	Operating: 100 Grms, half sine 11ms duration (w/ SSD/CFast)
ESD	Contact +/-4KV, Air +/-8KV
EMC	EN61000-6-4/-2, CE & FCC Class A
Safety	UL/cUL, CB, CCC

Software Support:

Win10 IoT Enterprise CBB 64bit
Linux Ubuntu 18.04

Optional Accessories:

Factory Installed 2.5″ SATA SSD/HDD/M.2/CFast
Wireless Module
Wi-Fi/ BT/ 3G/ 4G LTE/ LoRa wireless kit (w/ antenna)
AC/DC Adapter
160W (P/N: 31-62120-0010)

Data sheet on ADLINK MVP-5100 series (pdf file, opens in new tab)

Commell Fanless Box PC – Industrial Grade

CMB-379 Atom Dual Core Fanless PC

Industrial Fanless Mini PC with Intel® Atom™ D2550 or N2800 processor

Click here to show/ hide more info

CMB-379B

COMMELL’s CMB-379 is a Industrial embedded platform Mini PC which support 3rd Atom Cedarview processor and supports one DDR3 SO-DIMM up to 4GB, 1 x RS232/422/485 and 3 x RS232 Serial Port, 4 x USB2.0, Networking is provided by one Intel 82583 Giga LAN.
All-in-one design with dual display independent display and high-performance at low energy-consumption levels, all in a fanless system.

Specification:

Form Factor	Fanless PC system
Construction	Heavy-Duty steel
3.5″ Board / CPU	Inside Motherboard : LE-379N / LE-379D5 Support CPU : Intel® Atom™ CedarTrail Processor with optional D2550 or N2800 , Package type: FCBGA559
Drive Bay	Internal: 1 x 2.5″ HDD Space ,1 x CFast Card socket, 1 x mSATA socket (Mini PCIE interface)
Front Panel	Power On / Off switch LED for Power On/Off and HDD activity 2 x USB 2.0 ports
Rear Side I/O	PS/2 Keyboard/Mouse 2.1 ch Audio 1 x VGA 1 x DVI 1 x RS232/422/485 + 3 x RS232 2 x USB 2.0 1 x RJ-45 Intel® Giga LAN 2 x DC jack 1 x Antenna
Power supply	Shipped with 12V/80W ,100~240V AC-DC Adapter (SPD-080-12)
Dimension	254 x 130 x 72 mm

Ordering Guide:

CMB-379N	Fanless Mini PC with LE-379N ( N2800 processor) , 80W adapter .
CMB-379D5	Fanless Mini PC with LE-379D5 ( D2550 processor) , 80W adapter .

Data sheet on CMB-379 (pdf file, opens in new tab)

CMB-374 / 371 / 370 / 365 Fanless PC

Industrial Fanless PC, Low Power Atom / Pentium / Celeron / VIA Eden CPU, DC 9V ~ 24V input

Click here to show/ hide more info

CMS-370

Specification:

Form Factor	Fanless barebone system
3.5″ Board	Inside Motherboard can be : LE-374 :LE-374 with onboard Intel Atom N270(1.6GHz) LS-371U25 : LS-371 with onboard Intel U2500 CPU LE-370PM14 : LE-370 with onboard P-M 1.4 GHz CPU LE-370CM6 : LE-370 with onboard C-M 600 MHz CPU LE-365D : LE-365D with onboard VIA Eden 1.0 GHz LE-365E5D : LE-365E5D with onboard VIA Eden 500 MHz
Drive Bay	Internal 1 x 2.5″ HDD
Riser card	No
Front Panel	System Reset switch Power On/Off HDD LED for activity
Mounting	Wall mounting / Desk
Rear Side I/O	Depend on 3.5 SBC rear IO
Environment	Operating Temperature: 0 ~ 40C
Power supply	DC input for DC jack
Dimension	195 x 110 x 80 mm
Weight	Approx. 1.41 kg (Without HDD)

Ordering Guide:

CMB-374D	Barebone with LE-374 and SPD-080-12, and with DVI ( Support 2.5″ IDE HDD only )
CMB-374S	Barebone with LE-374 and SPD-080-12, But without DVI ( Support 2.5″ SATA or 2.5″ IDE HDD )
CMB-374DS	Barebone with LE-374 and SPD-080-12, and with DVI ( Support 2.5″ SATA or 2.5″ IDE HDD )
CMB-371U25	Barebone with LS-371 & U2500 CPU and SPD-080-12
CMB-371DU25	The same as CMB-371U25 but with DVI output in the rear IO plate
CMB-370PM14	Barebone with LE-370 & Intel P-M 1.4 CPU and SPD-080-12
CMB-370CM6	Barebone with LE-370 & Intel C-M 600 CPU and SPD-080-12
CMB-365	Barebone with LE-365D and SPD-080-12, But without DVI
CMB-365E5	The same as CMB-365, but change CPU to VIA Eden 500 MHz CPU
CMB-365D	The same as CMB-365 but with DVI output in the rear IO plate
CMB-365E5D	The same as CMB-365D, but change CPU to VIA Eden 500 MHz CPU

Data sheet on CMB-374 (pdf file, opens in new tab)

ARK and UNO Range compared – Advantech Fanless Box PC’s

There are a number of key difference between the two families.

The form factors are indeed similar but the key differentiators are the internals.

The UNO Range is made from the Advantech Single Board range, so the computer as a whole exists on a single board and the only internal wiring is typically a SATA cable to connect to the storage media.
All other components such as the CPU, and memory are on the board and secured down via the chassis casing.
The CPU is thermally connected to the chassis part of the casing.
The memory in some cases is embedded onto the board or can be replaced/upgraded by taking the unit apart. The memory itself is also up against the chassis, so that this too draws heat away from the memory modules in order to increase the reliability.
The Chassis/Memory & Chassis/CPU design also allows for the unit to undergo vibration and shock loadings without the risk of the Memory or CPU from dislodging from the mainboard.

UNO computers come to market later compared with the ARK range, (the UNO Range have released the i7 design 6-12 months after the ARK equivalent). The designs are much more focused on communications. Currently nearly all designs are using 2Gb Ethernet network ports, with some designs using 3 or even 4 ports, as well as the typical assortment of serial communications and USB ports.

The Ark Series computers typically have Mini PCI or Mini PCIe slots for internal expansion, whereas few UNO computers have these, extra features being mounted directly on the main board.
The ARKs typically gain expansion via a riser card system which need to be ordered with the unit. If the project specification is not known then this can be hard to correct later once the unit is on site.

A few UNO computers have PCI-104 expansion, which allows them to integrate Advantech small form factor data acquisition and communications cards range. These can be internally housed in the UNO unit or encased with a modular expansion system.
Here is a link to our PC/104, PC/104+ & PCI-104 page (opens in new tab).

Show Less

FAQs

Are fanless PCs safe?

Absolutely, yes. As long as you use your fanless PC in accordance with the manufacturer’s instructions they are perfectly safe.

What are fanless PCs most commonly used for?

Small computers without a fan are used in a wide variety of applications including:

Public kiosks and ticketing machines
ATM’s
Onboard vehicles and boats
CCTV systems
Parking ticket systems

Anywhere that a harsh environment, limited space, dust and vibration may be a concern, a fanless mini PC is the perfect solution. Our engineering services team can help you configure them to meet your specific requirements.

Will a fanless PC overheat?

No, a well-designed fanless PC will not overheat. Thanks to highly efficient CPUs and the use of the body of the PC as a heat sink, they are able to remain cool in a wide variety of environments.

What are the main differences between fanless PCs and regular PCs?

A fanless mini PC will not, of course, have a fan but there are some other key differences: they are tested to higher temperatures; they are often ruggedised to work in high vibration environments; and they don’t come with monitors, keyboards or other peripherals.

Do I need to clean my fanless PC?

Small fanless computers usually cannot be opened but because there’s no fan to draw dust into the enclosure, they don’t need to be cleaned. As industrial electronic equipment specialists, we recommend them in instances where dust is an issue for regular PCs.

Can I run a fanless PC 24/7?

Yes. Fanless PCs are designed to run 24/7 without encountering overheating issues. They are extremely reliable. For questions about their suitability for specific applications, please contact us by phone or email.

Are fanless PCs as reliable as normal desktop PCs?

A fanless PC will normally be more reliable than a regular desktop tower, owing to the fact they are of a high build quality and unaffected by vibrations or dust in the air. If you have any maintenance queries, our technical support team is always here to help.

ARK Series Industrial Fanless PC – Advantech

Ultra Compact, fanless fully sealed, robust embedded box computers, designed for space critical applications that require low power consumption.
All electronics are protected in a ruggedized, sealed metal housing.
No external cooling is needed.

Comparison Table of ARK Series Box PCs (pdf file, 6 pages, 14MB, opens in new tab)
Includes: ARK-1000, ARK-2000, ARK-3000, ARK-6300

ARK-1000 Series: Ultra Slim Fanless Embedded Box PCs

ARK-10

Intel® Celeron Quad Core J1900 Quad Core SoC with Dual GbE and Dual COM Fanless Box PC

Click here to show/ hide more info

ARK-10

Features:

Intel® Celeron J1900 Quad Core 2.0 GHz SoC
2G DDR3L Memory & 500G 2.5″ 24×7 SATA HDD Built In
2 x GbE for Multiple Internet Transmission
2 x RS-232/422/485 (BIOS selection)
1 x Full-Size MiniPCIe (ex. WLAN or WWAN module)
1 x Half-Size MiniPCIe (ex. mSATA)
Optional VESA / DIN Rail / Wall Mounting kits
Threaded DC jack design
Supports SUSIAccess and Embedded Software APIs

Specifications:

Category	Attribute	Value
HDD Expansion	HDD Expansion	None
Processor	Processor	Intel® Atom™ Processor J1900 Quad Core SoC
System	System	Intel® Atom J1900 Quad Core SoC with Dual GbE and Dual COM Fanless Box PC
Chipset	Chipset	Intel® Atom SoC integrated
Memory	Memory	2GB DDR3 Memory Built-In
Solid State Disk	Solid State Disk	1x 500 GB 2.5″ HDD built-in
LVDS	LVDS	None
VGA	VGA	1
HDMI	HDMI	None
Ethernet	Ethernet	2 x 10/100/1000 Mbps
Audio	Audio	Line-in Line-out
I/O Ports	I/O Ports	2 x USB 2.0 1 x USB3.0 2 x RS-232/422/485
Expansion Slots	Expansion Slots	1 x Full-size Mini-PCIe 1 x Half-size Mini-PCIe
Dimensions (W x H x D)	Dimensions (W x H x D)	133.8 x 43.1 x 94.2 mm (5.27″ x 1.7″ x 3.71″)
OS (Optional)	OS (Optional)	Windows® 7 Windows® 7 Embedded

Data sheet on ARK-10 (pdf file, opens in new tab)

ARK-1123L

Intel® Atom E3825 SoC with Dual COM and GPIO Palm-Size Fanless Box PC

Click here to show/ hide more info

ARK-1123

Features:

Intel® Atom™ Processor E3825 Dual Core 1.33 GHz SoC
1 x 2.5″ SATA HDD/SSD Bay
1 x GbE & 1 x VGA & 1 x GPIO
1 x RS-232 & 1 x RS-232/422/485
1 x Full-Size MiniPCIe (ex. WLAN or WWAN module)
1 x Half Size MiniPCIe (ex. mSATA)
Optional VESA / DIN Rail / Wall Mounting kits
Threaded DC jack design
Supports SUSIAccess and Embedded Software APIs

Data sheet on ARK-1123L (pdf file, opens in new tab)

ARK-1123C

Intel® Atom E3825 SoC with Dual GbE and Dual COM Fanless Box PC

Click here to show/ hide more info

ARK-1123C

Features:

Intel® Atom™ E3825 Dual Core 1.33 GHz SoC
1 x 2.5″ SATA HDD/SSD Bay & 1 x VGA
2 x GbE for Multiple Internet Transmission
2 x RS-232/422/485 (BIOS selection)
1 x Full-Size MiniPCIe (ex. WLAN or WWAN module)
1 x Half-size mSATA
Optional VESA / DIN Rail / Wall Mounting kits
Threaded DC jack design
Supports SUSIAccess and Embedded Software APIs

Data sheet on ARK-1123C (pdf file, opens in new tab)

ARK-1123H

Intel® Atom E3825 SoC with Dual GbE and Dual COM Fanless Box PC

Click here to show/ hide more info

ARK-1123H

Features:

Intel® Celeron J1900 Quad Core 2.0 GHz SoC
1 x 2.5″ SATA HDD/SSD Bay
2 x GbE for Multiple Internet Transmission
2 x Independent HDMI
1 x RS-232/422/485 (BIOS selection)
1 x Full-Size MiniPCIe (ex. WLAN or WWAN module)
1 x Half Size mSATA
Optional VESA / DIN Rail / Wall Mounting kits
Threaded DC jack design
Supports SUSIAccess and Embedded Software APIs
Support WIFI 802.11 a/b/g/n bundled for IoT Gateway

Data sheet on ARK-1123H (pdf file, opens in new tab)

ARK-1122H

Intel® Atom™ Dual Core N2600 with Independent Dual Displays Fanless Box PC

Click here to show/ hide more info

ARK-1122H

Features:

Intel® Atom™ Dual Core N2600, 1.6 GHz
Palm-size form factor : 133.8(W) x 43.1(H) x 94.2(D) mm
Supports independent dual displays interfaces : VGA + HDMI
Supports 1 x GbE and 4 USB 2.0 ports
Supports 1 x RS-232 and Audio line in / line out
Supports mSATA and/or 2.5″ SATA HDD bay
Wide operating temperature -20 ~ 60° C support
Optional VESA / DIN-Rail / Wall mounts
Lockable DC jack design
Supports SUSIAccess and Embedded Software APIs

Data sheet on ARK-1122H (pdf file, opens in new tab)

ARK-1122C

Intel® Atom™ Dual Core N2600 with 4 COM Port Extendibility Fanless Box PC

Click here to show/ hide more info

ARK-1122C

Features:

Intel® Atom™ Dual Core N2600, 1.6 GHz
Palm-size form factor : 133.8(W) x 43.1(H) x 94.2(D) mm
Supports 4 x COM ports (2 x RS-232 & 2 x RS-232/422/485, select by BIOS)
Supports 1 x VGA and 4 x USB 2.0 ports
Built-in 1 x half size Mini PCIe expansion slot (i.e.: Wi-Fi module)
Supports mSATA storage (Hard drive bay by request)
Wide operating temperature -20 ~ 60° C support
Optional VESA / DIN-Rail / Wall mounts
Lockable DC jack design
Supports SUSIAccess and Embedded Software APIs

Data sheet on ARK-1122C (pdf file, opens in new tab)

ARK-1122F

Intel® Atom™ Dual Core N2800 with Diverse Communications Fanless Box PC

Click here to show/ hide more info

ARK-1122F

Features:

Intel® Atom™ Dual Core N2800, 1.86 GHz
Palm-size form factor : 133.8(W) x 43.1(H) x 94.2(D) mm
Supports 2 x Intel GbE
Built-in 2 x Mini PCIe slots for Wi-Fi/3G communications (1 w/ SIM)
Supports independent dual displays interfaces : VGA + HDMI
Supports 1 x RS-232, Audio line in / line out and 3 USB 2.0 ports
Supports mSATA storage
Wide operating temperature -20 ~ 60 C support
Optional VESA / DIN-Rail / Wall mounts
Lockable DC jack design
Supports SUSIAccess and Embedded Software APIs

Data sheet on ARK-1122F (pdf file, opens in new tab)

ARK-1122HS

Independent Dual Displays and All in One System Intel® Atom™ N2600 Low Power Fanless Embedded Box PC

Click here to show/ hide more info

ARK-1122HS

Features:

Plug and Play : 3 STEPs to power on the appliance unit for instant use
Fanless design with Intel® Atom™ N2600, 1.6 GHz
2G DDR3 Memory & 500G 2.5″ HDD built-in
Window Embedded Standard 7& SUSIAccess Pro (w/ standard Acronis and McAfee) preload
Palm-size form factor : 134 x 94 x 43 mm
Supports independent dual displays interfaces : VGA + HDMI
Supports 1 x GbE LAN and 4 USB 2.0 ports
Supports 1 x RS-232 and 1 x line in / line out
Built-in 1 x half size Mini PCIe expansion slot (i.e.: WiFi module)
Optional VESA / DIN-Rail / Wall mounts

Data sheet on ARK-1122HS (pdf file, opens in new tab)

ARK-1120LX

Palm-size and All in One System Intel® Atom™ N455 Fanless Embedded Box PC

Click here to show/ hide more info

ARK-1120LX

Features:

Plug and Play : 3 STEPs to power on the appliance unit for instant use.
Intel ® Atom™ processor N455 1.66 GHz + ICH8M
2G SO-DIMM Memory & 320G 2.5” HDD built-in
Window XP embedded & SUSIAccess Pro (Acronis and McAfee) preload.
Palm-size design: 133.8 x 43.1 x 94.2 mm, IP40
Low power consumption, < 10W
One half mini-PCIe slot. Ex : WiFi add-on card
Optional VESA / DIN-rail / Wall mount

Data sheet on ARK-1120LX (pdf file, opens in new tab)

ARK-1120L

Intel® Atom™ N455 4 USB 2.0, Audio and Competitive Pricing Fanless Box PC

Click here to show/ hide more info

ARK-1120L

Features:

Intel® Atom™ processor N455 1.66 GHz + ICH8M
Low power consumption, < 10W
Palm-size design: 133.8(W) x 43.1(H) x 94.2(D) mm
DDR3 memory support , up to 2GB
Supports 2.5″ SATA HDD Bay
One half-size mini-PCIe slot. Ex: Wi-Fi add-on card
2 x RS-232, 4 x USB ports and Audio line-in, line out
Optional VESA/DIN-rail/Wall mount
Lockable DC jack design
Supports SUSIAccess and Embedded Software APIs

Data sheet on ARK-1120L (pdf file, opens in new tab)

ARK-1120F

Intel® Atom™ N455 with 4 COM Port Extendibility Fanless Box PC

Click here to show/ hide more info

ARK-1120F

Features:

Intel® Atom™ processor N455 1.66 GHz + ICH8M
Low-power-consumption, <10W
Palm-size design: 133.8(W) x 43.1(H) x 94.2(D) mm
DDR3 memory support , up to 2GB
Supports 2.5″ SATA HDD Bay
One half-size mini-PCIe slot. Ex: Wi-Fi add-on card
4COM ports (2 x RS-232, 2 x RS-232/422/485 select by BIOS)
Optional VESA / DIN rail / Wall mounts
Lockable DC jack design
Supports SUSIAccess and Embedded Software APIs

Data sheet on ARK-1120F (pdf file, opens in new tab)

ARK-1550

Intel® 4th Generation Core i5 4300U/ Celeron 2980U SoC Slim and Panel Mountable Fanless Box PC

Click here to show/ hide more info

ARK-1550

Features:

Intel® Dual Core Celeron 2980U 1.6 GHz / Core i5 4300U 1.9 GHz SoC
One Hot Swappable 2.5″ SATA HDD Bay and mSATA slot
Triple Independent Displays by VGA + HDMI + LVDS (LVDS option)
Optional VESA / DIN Rail Mounting kits
Supports 2 x Intel GbE and 1 x GPIO
Built-in 1 x full size MiniPCIe (i.e.: 3G module) and 1 x half size MiniPCIe slot (i.e.: WIFI module)
Lockable DC jack design
Supports iManager, SUSIAccess and Embedded Software APIs
Support Intel Turbo Boost Technology 2.0 in Core i5 4300U

Data sheet on ARK-1550 (pdf file, opens in new tab)

ARK-1503

Intel® Atom™ D525 Slim and Panel Mountable Fanless Box PC

Click here to show/ hide more info

ARK-1503

Features:

Intel Atom D525 Dual Core 1.8 GHz
Supports integrated LVDS interface, with LVDS/2 x USB/Rx/Tx signal
Supports 2 x Intel GbE and 4 USB 2.0 ports
Supports 1 x RS-232, 1 x RS-232/422/485 with Auto-flow control
Built-in 1 x Mini PCIe expansion slot for communication module, like WLAN
Supports external CF socket, 2.5″ SATA HDD Bay
DC 12V power input
Lockable DC jack design
IP40 sealed design
Supports SUSIAccess and Embedded Software APIs

Data sheet on ARK-1503 (pdf file, opens in new tab)

ARK-2000 series : Easy I/O Flexibility Fanless Embedded Box PCs

ARK-2250L

Intel 6th Generation Core™ i3/i5/i7 Modular Fanless Box PC

Click here to show/ hide more info

ARK-2250L

Features:

Intel 6th Gen Intel® Core™ U-series (i3/i5/i7)
VGA and HDMI dual display, option 3rd display for triple display
12V lockable DC jack power input
9-36V power module compatible with all-in-one ordering
-20 ~ 60 °C extend temperature operating
2 x full size mPCIe expansion for WIFI/Cellular communication module
1 x full size mSATA and 1 x 2.5″ SATA storage device
Advantech iDoor module compatible
Advantech ARK Plus module support by dual layer configurations

Data sheet on ARK-2250L (pdf file, opens in new tab)

ARK-2230L

Intel® Celeron® Quad Core J1900 SoC Modular Fanless Box PC

Click here to show/ hide more info

ARK-2230L

Features:

Intel® Celeron® J1900 Quad Core 2.0 GHz SoC
VGA and HDMI dual independent display
12V lockable DC jack power input
9-36V power module compatible with all-in-one ordering
-20 ~ 60 °C extend temperature operating
Mini PCIe expansion with SIM holder for communication module
mSATA and 1 x 2.5″ SATA storage device
Advantech iDoor module compatible
Advantech EMIO miniPCIe module compatible with all-in-one ordering
Advantech MIOe module compatible with all in one ordering (2 Layers)

Data sheet on ARK-2230L (pdf file, opens in new tab)

ARK-2121L

Intel® Celeron® Quad Core J1900 SoC with Multiple I/Os Fanless Box PC

Click here to show/ hide more info

ARK-2121L

Features:

Intel® Celeron® J1900 Quad Core 2.0 GHz SoC with Turbo boost support
VGA and HDMI dual independent display
9 ~ 36 VDC wide range power input
-20 ~ 70° C extend temperature operating
Mini PCIe expansion with SIM holder for communication module
mSATA and 1 x 2.5″ SATA storage device
Advantech iDoor module compatible
Advantech EMIO miniPCIe module compatible with all-in-one ordering

Data sheet on ARK-2121L (pdf file, opens in new tab)

ARK-2121F

Intel® Celeron® Quad Core J1900 SoC with Multiple I/Os Fanless Box PC

Click here to show/ hide more info

ARK-2121F

Features:

Intel® Celeron® J1900 Quad Core 2.0 GHz SoC with Turbo boost support
VGA and HDMI dual independent display
6 x COM, 6 x USB, isolated DIO
9 ~ 36 VDC wide range power input
-20 ~ 70° C extend temperature operating
Mini PCIe expansion with SIM holder for communication module
mSATA and 1 x 2.5″ SATA storage device
Optional DVI/2nd HDMI/4x GbE by project support
Internal USB for security dongle

Data sheet on ARK-2121F (pdf file, opens in new tab)

ARK-20

Intel® Atom™ Dual Core D2550 with Multiple I/Os Fanless Box PC

Click here to show/ hide more info

ARK-20

Features:

Intel® Atom™ Dual Core D2550 1.86 GHz, 2 GB DDR3 memory built-in
VGA and HDMI dual independent display, supports DirectX 9
Mini PCIe expansion with SIM holder for communication module, i.e. HSDPA, WLAN
Supports up to 2 Intel GbE, 6 x USB 2.0 and 4 x COMs ports
1 x 500GB 2.5″ SATA HDD built-in
Supports iManager, SUSIAccess and Embedded Software APIs

Data sheet on ARK-20 (pdf file, opens in new tab)

ARK-2120F

Intel® Atom™ Dual Core D2550 with 3 GbE, 6 COM & Wide Range Power Fanless Box PC

Click here to show/ hide more info

ARK-2120F

Features:

Intel® Atom™ Dual Core D2550 1.86 GHz, DDR3 memory supports up to 4 GB
VGA, HDMI, 48-bit LVDS, support dual independent display and DirectX 9
Mini PCIe expansion with SIM holder for communication module, i.e. HSDPA, WLAN
Supports up to 3 x GbE, 5 x USB 2.0 and 6 x COMs ports
Supports external CFast socket and 1 x 2.5″ SATA HDD Bay
Supports 12 ~ 24V wide range DC input
Lockable DC jack design
Supports iManager, SUSIAccess and Embedded Software APIs

Data sheet on ARK-2120F (pdf file, opens in new tab)

ARK-2120L

Intel® Atom™ Dual Core N2600/D2550 with Multiple I/Os Fanless Box PC

Click here to show/ hide more info

ARK-2120L

Features:

Intel® Atom™ Dual Core N2600 1.6 GHz/D2550 1.86 GHz, DDR3 memory supports up to 4 GB
VGA and HDMI dual independent display, supports DirectX 9
Mini PCIe expansion with SIM holder for communication module, i.e. HSDPA, WLAN
Supports up to 2 Intel GbE, 6 x USB 2.0 and 4 x COMs ports
Supports external CFast socket and 1 x 2.5″ SATA HDD Bay
Lockable DC jack design
Supports iManager, SUSIAccess and Embedded Software APIs

Data sheet on ARK-2120L (pdf file, opens in new tab)

ARK-2150F

3rd Generation Intel® Core™ i7 with 4 x GbE, Isolated DIO & wide range power Fanless Box PC

Click here to show/ hide more info

ARK-2150F

Features:

Intel® Core™ i7 processors + Intel QM77 PCH
1 x DDR3/DDR3L SO-DIMM, support up to 8 GB
DirectX11, OpenGL3.1, OpenCL1.1
Supports Intel AMT8.0
Supports 4 x Intel GbE
Support 4ch digital input and 4ch digital output with 2.5KV isolation
Supports 3 x USB 3.0, 3 x USB 2.0, 4 COMs ports
Supports 1 x internal mSATA socket and 1 x 2.5″ SATA HDD Bay
12~24V wide range DC input with lockable connector
Supports iManager, SUSIAccess and Embedded Software APIs

Data sheet on ARK-2150F (pdf file, opens in new tab)

ARK-2150L

3rd Generation Intel® Core™ i3/i7 with Dual Independent Display Fanless Box PC

Click here to show/ hide more info

ARK-2150L

Features:

Intel® Core i7, i3 and Celeron processors + Intel QM77 PCH
1 x DDR3/DDR3L, SO-DIMM support up to 8 GB
DirectX11, OpenGL3.1, OpenCL1.1, dual independent display: VGA + HDMI/ DisplayPort*
Supports Intel AMT8.0
Supports up to 2 x GbE, 2 x USB 3.0, 4 x USB 2.0 and 4 x COMs ports
Supports 1 x internal mSATA socket and 1 x 2.5″ SATA HDD Bay
Lockable DC jack design
Supports iManager, SUSIAccess and Embedded Software APIs

Data sheet on ARK-2150L (pdf file, opens in new tab)

ARK-3000 Series: High Performance Fanless Embedded Box PCs

ARK-3520P

6th Gen. Intel® Core™ i3/ i5/ i7 with Expansion slots and wide range power Fanless Box PC

Click here to show/ hide more info

ARK-3520P

Features:

Intel® Core™ i3/i5/i7 processor (BGA)
Triple independent display: VGA + HDMI + Option Display
DDR4 SO-DIMM memory up to 32 GB
Flexible Expansion via PCI/PCIex4
9-36V wide range Power input
Versatile I/Os including 6 x high speed USB 3.0 and 8 x COM ports
2 Removable 2.5″ HDD drive bay
Advantech iDoor module compatible

Data sheet on ARK-3520P (pdf file, opens in new tab)

ARK-3405

Intel® Celeron™ N3160 Fanless Embedded Box PC with Rich Expansion and Dual Removable 2.5″ HDD Drive Bays

Click here to show/ hide more info

ARK-3405

Features:

Intel® Celeron™ N3160 Quad Core 2.24GHz SoC with Turbo boost Support
Supports VGA /DVI-D/HDMI triple independent display
Support 2 GbE, 3 USB 3.0, 3 USB 2.0, 1 DIO, audio and 4 COM ports
Two removable 2.5″ SATA HDD drive bays
Flexible Expansion via PCI/PCIe x1
Support 2 Mini PCIe with 1 SIM holder for communication module
Wide range power input 9-36V
Advantech iDoor module compatible

Data sheet on ARK-3405 (pdf file, opens in new tab)

ARK-3510

3rd Gen. Intel® Core™ i3/ i5/ i7 with 2 x 2.5″ Removable HDD Bays Fanless Box PC

Click here to show/ hide more info

ARK-3510

Features:

Supports Intel® Core™ i3/i5/i7 mobile processor(rPGA) + Intel QM77 PCH
Triple independent display with 3rd gen Core I processor : DVI + HDMI + DisplayPort
DDR3/DDR3L SO-DIMM memory support up to 16 GB
Supports 2 x 2.5″ removable SATAIII drive bays
2 x miniPCIe cards with SIM card holders
Versatile I/Os including 4 x high speed USB 3.0 and 4 x COM ports
Lockable 12V DC jack design
Supports iManager, WISE-PaaS/RMM and Embedded Software APIs

Data sheet on ARK-3510 (pdf file, opens in new tab)

ARK-3500

3rd Gen. Intel® Core™ i3/ i5/ i7 with 2 Expansion slots and wide range power Fanless Box PC

Click here to show/ hide more info

ARK-3500

Features:

Supports Intel® Core™ i3/i5/i7 mobile processor(rPGA) + Intel QM77 PCH
Triple independent display with 3rd gen Core i processor : DVI + HDMI + DisplayPort
DDR3/DDR3L SO-DIMM memory support up to 16 GB
2 expansion slots with vary interface: PCI, PCIe x 1 & PCIe x 4
2 x miniPCIe slots with SIM card holders
9-34V wide range lockable DC jack design
Versatile I/Os including 4 x high speed USB 3.0 and 8 x COM ports
Flexible Storage Support including 2x mSATA, 1x CFast and 2x 2.5″ SATA HDD/ SSD bays
Supports iManager, WISE-PaaS/RMM and Embedded Software APIs

Data sheet on ARK-3500 (pdf file, opens in new tab)

ARK-3440 A2

Intel® Core™ i3/i5/i7 Fanless Embedded Box PC with PCI/PCIe Expansion and Dual SATA HDDs

Click here to show/ hide more info

ARK-3440 A2

Features:

Intel® Core™ i3/i5/i7 Fanless Embedded Box PC
Multi-display and support for wide screen with high resolution
Supports 2 GbE, eSATA, 6 USB 2.0, audio and 3 COM ports
Two internal 2.5″ SATA HDD drive bays
Various expansion interfaces for diverse applications
Easy integration, easy maintenance, and wide input voltage range 9 ~ 34 V
Supports embedded software APIs and Utilities

Data sheet on ARK-3440 A2 (pdf file, opens in new tab)

ARK-3403

Intel® Atom™ D510/D525 Fanless Embedded Box PC with PCI/PCIe Expansion and Dual SATA HDDs

Click here to show/ hide more info

ARK-3403

Features:

Intel® Atom™ D510/D525 dual core up to 1.8 GHz Fanless Embedded Box PC
Supports VGA and LVDS dual display and support for widescreens with high resolution
Supports 2 GbE, eSATA, 6 USB 2.0, audio and 4 COM ports
Two internal 2.5″ SATA HDD drive bays
Supports 2 x Mini PCIe, 2 x PCI/PCIe expansion interfaces for diverse applications
Easy integration, easy maintenance, and wide input voltage range
Supports SUSIAccess and Embedded Software APIs

Data sheet on ARK-3403 (pdf file, opens in new tab)

ARK-3360F

Intel® Atom™ N450/D510 with 3 GbE, Isolated COM & wide range power Fanless Box PC

Click here to show/ hide more info

ARK-3360F

Features:

Intel® Atom™ N450/D510 1.66 GHz Embedded Box PC
Mini PCIe and Mini PCI expansion for communication module, i.e. HSDPA, WLAN
Supports 12 ~ 24 V wide range DC input
Supports up to 3 x GbE, 6 x USB 2.0 and 6 x COMs ports
Serial ports support RS-485 auto flow control and isolation (up to 7.5Kv)
Easy integration, easy maintenance, and wide input voltage range
Supports SUSIAccess and Embedded Software APIs

Data sheet on ARK-3360F (pdf file, opens in new tab)

ARK-3360L

Intel® Atom™ N450/D510 with Multiple I/O High Value Fanless Box PC

Click here to show/ hide more info

ARK-3360L

Features:

Intel® Atom™ N450/D510 1.66 GHz Fanless Embedded Box PC
Supports extend temperature -40 ~ 70° C (ARK-3360LZ-N4A1E)
Mini PCIe expansion for communication module, i.e. HSDPA, WLAN
Dual display and supports for wide screen with high resolution
Supports up to 2 x GbE, 6 x USB 2.0 and 4 x COMs ports
Serial port RS-485 auto-flow support
Easy integration, easy maintenance
Supports SUSIAccess and Embedded Software APIs

Data sheet on ARK-3360L (pdf file, opens in new tab)

ARK-6300 Series: Mini-ITX Series Fanless Embedded Box PCs

ARK-6320

Intel® Atom™ D510/D525 Cost-effective Mini-ITX Fanless Embedded Box PC

Click here to show/ hide more info

ARK-6320

Features:

Built-in Intel® Atom™ Processor D510 1.66 GHz/D525 1.8GHz
Comprehensive I/O: Dual Gigabit Ethernet, 8 x USB, 6 x COM, 1 x VGA, and audio
Mini PCIe expansion slot
Accepts DC12 V input
Anti-vibration design for 2.5″ HDD-bay to ensure maximum reliability
Built-in mounting bracket supports wall and table-mounting, with optional VESA mounting bracket
Supports SUSIAccess and Embedded Software APIs

Data sheet on ARK-6320 (pdf file, opens in new tab)

ARK-6322

Intel Celeron Quad Core J1900 SoC with 6 COM and 8 USB Fanless Box PC

Click here to show/ hide more info

ARK-6322

Features:

Intel Celeron Quad Core J1900 2.0GHz SoC
DDR3L 1333 MHz SO-DIMM memory support up to 8GB
Dual display : VGA + DisplayPort
Support 1 x 3.5″ or 2.5″ SATA HDD Bay and mSATA
Multiple I/O: 1 x USB 3.0, 7 x USB 2.0, 2 x LAN and 6 x COM
Support 1 x Full-size and 1 x half-size MiniPCIe
Lockable DC jack design
Optional iDoor Modules
Optional VESA / Wall Mounting kits
Supports SUSIAccess and Embedded Software APIs

Data sheet on ARK-6322 (pdf file, opens in new tab)

ARK-Transportation Series: In-Vehicle, Rolling Stock and Outdoor Surveillance Fanless Embedded Box PCs

ARK-2231R

EN50155 Intel® Atom E3845 SoC Rolling Stock Fanless System

Click here to show/ hide more info

ARK-2231R

Features:

Intel® E3845 Quad Core 1.91 GHz SoC
Stackable extension design, option extension kit for applications
DC 24V EN50155 S2/C1 compliant, DC 48/72/110V options
-40 ~ 70 °C wide temperature support with EN50155 TX compliant
Solid connection for LAN/USB/Audio/COM and power input
Anti-vibration/shock proof, IEC61373 Category1, ClassB
Built-in Advantech remote management software WISE-PaaS/RMM

Data sheet on ARK-2231R (pdf file, opens in new tab)

ARK-2121S

Outdoor NVR w/4 PoE Ports Intel® Atom E3845 SoC Fanless Box PC

Click here to show/ hide more info

ARK-2121S

Features:

Intel® Atom E3845 Quad Core 1.91 GHz SoC
4 PoE Ports to Support Mainstream IP Cameras
3KV isolation for 6 x Di & 2 x Do
Diversity Communication Abilities, ex. WWAN, WLAN
9 ~ 36 VDC Wide Power Input w/isolation
1x Hot-swappable 2.5″ drive bay
Supports iManager, SUSIAccess and Embedded Software APIs

Data sheet on ARK-2121S (pdf file, opens in new tab)

ARK-2121V

In-Vehicle NVR w/4 PoE Ports Intel® Atom E3825 / Atom E3845 SoC Fanless Box PC

Click here to show/ hide more info

ARK-2121V

Features:

Intel® Atom E3825 Dual Core 1.33 GHz & E3845 Quad Core 1.91 GHz SoC
4 PoE Ports to Support Mainstream IP Cameras
Isolated COM ports and DIO
Diversity Communication Abilities, ex. WWAN, WLAN
Built-in GPS and G-Sensor for GIS application
Intelligent Vehicle Power Ignition
9 ~ 36 VDC* Wide Power Input w/isolation
1 x Removable 2.5″ drive bay
Supports iManager, SUSIAccess and Embedded Software APIs
Up to -40 ~ 70° C wide temperature support (by project)

Data sheet on ARK-2121V (pdf file, opens in new tab)

ARK-2151S

Outdoor Full HD NVR w/4 PoE Ports 4th Gen. Intel Core i5 4300U SoC Fanless Box PC

Click here to show/ hide more info

ARK-2151S

Features:

Intel® Core i5-4300U Dual Core 1.9 GHz SoC
4 PoE Ports to Support Mainstream IP Cameras
Diversity Communication Abilities, ex. WWAN, WLAN
3KV isolation for 6 x Di & 2 x Do
9 ~ 36 VDC Wide Power Input w/isolation
1 x Removable 2.5″ drive bay
Supports iManager, SUSIAccess and Embedded Software APIs

Data sheet on ARK-2151S (pdf file, opens in new tab)

ARK-2151V

In-Vehicle Full HD NVR w/4 PoE Ports 4th Gen. Intel® Core i5 4300U / Celeron 2980U SoC Fanless Box PC

Click here to show/ hide more info

ARK-2151V

Features:

Intel® Celeron 2980U 1.6GHz / Core i5-4300U 1.9 GHz SoC
4 PoE Ports to Support Mainstream IP Cameras
Diversity Communication Abilities, ex. WWAN, WLAN
Built-in GPS and G-Sensor for GIS application
Intelligent Vehicle Power Ignition
9 ~ 36 VDC Wide Power Input w/isolation
1 x Removable 2.5″ drive bay
Supports iManager, SUSIAccess and Embedded Software APIs

Data sheet on ARK-2151V (pdf file, opens in new tab)

ITA Series: Fanless Compact Systems

ITA-1610 – Station Self-Service Controller

Intel® Atom™ D525 Compact System with Dual GigaLAN and Dual Display

Click here to show/ hide more info

ITA-1610

Features:

Fanless, Intel® Atom™ D525, 1.8 GHz Dual Core Compact System
Support 9 ~ 36 V wide range DC input
Support up to 2 x GbE, 6 x USB 2.0, 6 x COM ports
Serial ports support RS-232/422/485 with automatic flow control
Dual display
Support 8 channel Digital I/O
Onboard DDR3 memory up to 2 GB and optional NVRAM
Support 1x 2.5″ HDD

Data sheet on ITA-1610 (pdf file, opens in new tab)

ITA-1611 – Station Self-Service Controller

Intel® Celeron™J1900 Compact System Dual Gigabit Ethernet LAN and Dual Display

Click here to show/ hide more info

ITA-1611

Features:

Fanless, Intel® Celeron™ J1900, 2.0 GHz Quad Core Compact System
Onboard 4G DDR3 Memory and optional NVRAM
Supports up to 2 x LAN, 6 x USB, 6 x COM ports
Supports 1 x USB 3.0 port
Replaceable secondary display output (VGA2/DVI-D/LVDS)
Support dual full HD resolution video output

Data sheet on ITA-1611 (pdf file, opens in new tab)

ITA-1611U – Station Self-Service Controller

Intel® Celeron™J1900 Compact System Multiple COM Ports and USB Ports

Click here to show/ hide more info

ITA-1611U

Features:

Fanless, Intel® Celeron™ J1900, 2.0 GHz Quad Core Compact System
Onboard 4G DDR3 Memory and optional NVRAM
Supports up to 2 x LAN, 6 x COM ports
Supports 11 USB ports
Replaceable secondary display output (VGA2/DVI-D/LVDS)
Support dual full HD resolution video output

Data sheet on ITA-1611U (pdf file, opens in new tab)

ITA-1710 – Station Self-Service Controller

Intel® Atom™ D525 AFC System with Dual GigaLAN, 10 COM ports and Dual Display

Click here to show/ hide more info

ITA-1710

Features:

Fanless, Intel® Atom™ D525, 1.8 GHz Dual Core Compact System
Supports 9 ~ 36 V wide range DC input
Supports up to 2 x GbE, 6 x USB 2.0 10 x COM ports
Serial ports support RS-232/422/485 with automatic flow control
Wide temperature -25 ~ 60° C
Supports up to 24 Channel 24/48 bits Digital I/O
Onboard DDR3 memory up to 2 GB and optional NVRAM
Easy-accessible CF/DOM Module

Data sheet on ITA-1710 (pdf file, opens in new tab)

ITA-1711 – Station Self-Service Controller

Intel® Celeron™J1900 Compact System Dual Gigabit Ethernet LAN and Dual Display

Click here to show/ hide more info

ITA-1711

Features:

Fanless, Intel® Celeron™ J1900, 2.0 GHz Quad Core Compact System
Onboard 4G DDR3 Memory and optional NVRAM
Supports up to 2 x LAN, 6 x USB, 14 x COM ports
Supports 1 x USB 3.0 port
Replaceable secondary display output (VGA2/DVI-D/LVDS)
Support dual full HD resolution video output
Serial ports support RS-232/422/485 with automatic flow control
Support up to 24 in, 24 out Digital IO

Data sheet on ITA-1711 (pdf file, opens in new tab)

ITA-1910 – Station Self-Service Controller

Intel® Atom™ D525 AFC System with Dual GigaLAN, 16 COM ports and Expansion Slots

Click here to show/ hide more info

ITA-1910

Features:

Fanless, Intel® Atom™ D525, 1.8 GHz Dual Core Compact System
Supports 9-36V wide range DC input
Supports up to 2 x GbE, 8 x USB 2.0, 16 x COM ports
Serial ports support RS-232/422/485 with automatic flow control
PCI/PCIe expansion slots
Supports up to 24 Channel 24/48 bits Digital I/O
OnBoard DDR3 memory up to 2GB and optional NVRAM
Front-accessible Easy Swap CF/DOM Module

Data sheet on ITA-1910 (pdf file, opens in new tab)

ITA Series: Wayside Controller

ITA-2111 – Wayside Controller

Intel® Atom™ E3845 1U Fanless System; EN 50121-4 Compliant for Railway Applications

Click here to show/ hide more info

ITA-2111

Features:

Built-in Intel® Atom™ E3845 quad-core processor, 1.91 GHz
4 GB of DDR3 memory onboard
1U fanless rackmount system
x GbE and 10 x RS-232/422/485 ports with isolation design
6 x USB 2.0 and 1 x USB 3.0 slots
1 x VGA and 1 x DVI D display outputs
Compliant with EN 50121-4 for railway applications

Data sheet on ITA-2111 (pdf file, opens in new tab)

ITA-2210 – Wayside Controller

Intel® Atom™ D525 2U Fanless Rackmount System with 3 ITAM Module

Click here to show/ hide more info

ITA-2210

Features:

Built-in Intel® Atom™ D525, 1.8 GHz CPU
Onboard 2GB DDR3 Memory
2U Fanless Rackmount System
Support 3 ITAM Module for I/O Expansion
Support Easy-Swap Power Module
2 GbE & 2 RS-232 for Management
8 USB 2.0
Dual VGA Display

Data sheet on ITA-2210 (pdf file, opens in new tab)

ITA-2230 – Wayside Controller

Intel® Core™ i7 Fanless 2U Rackmount System with 3 ITAM Module

Click here to show/ hide more info

ITA-2230

Features:

Built-in Intel® Core™ i7-3555LE, 2.5 GHz CPU
Onboard 4GB DDR3 Memory
2U Fanless Rackmount System
Support 3 ITAM Module for I/O expansion
2 GbE & 2 RS-232/422/485 for management
Support Easy-Swap Power Module
HDMI & VGA Display output
4 USB 3.0 & 4 USB 2.0

Data sheet on ITA-2230 (pdf file, opens in new tab)

ITA Series: Traffic Management Controller

ITA-3630 – Traffic Management Controller

Intel® 3rd Generation Core™ i Processor Fanless System for Road Surveillance

Click here to show/ hide more info

ITA-3630

Features:

Supports Intel® 3rd Generation Core™ i7/i5/i3 BGA type CPU
Intel® HM76 PCH
Support wide temperature -25° C ~ 60° C
Supports three independent displays
2 x 2.5″ HDD or 1 x 2.5″ HDD+1 x Easy-swap CF/DOM
Built-in fixed bracket with 2 x USB2.0 port for Dongle
Supports 9 ~ 36V wide range DC input

Data sheet on ITA-3630 (pdf file, opens in new tab)

ITA Series: Rolling Stock Controller

ITA-5231 – Rolling Stock Controller

Intel® 6th Generation Core™ i Processor Fanless System; EN 50155 Complied Product for Railway Applications

Click here to show/ hide more info

ITA-5231

Features:

Intel skylake-H platform with QM170
Fanless computer for railway vehicle applications, fully compliant with EN 50155
Satisfy temp. standard: EN 50155 TX (-40 ~ 70° C) and IEC 61373 body mount class B
Compliant with EN 50121-3-2/ EN 50121-4 EMC test standard
Ruggedized connectors (M12) used for communication and power ports
Support Easy-swap storage module and I/O module

Data sheet on ITA-5231 (pdf file, opens in new tab)

ITA-5710 – Rolling Stock Controller

Intel® Atom D525 Fanless Compact System with 3 x M12 GigaLAN, 2 x M12 USB and Dual Display Fully compliant with EN 50155

Click here to show/ hide more info

ITA-5710

Features:

Fanless computer for railway vehicle applications, fully compliant with EN 50155
Satisfy temp. standard: EN 50155 T2 (-40 ~ 55° C) and IEC 61373 body mount class B
Compliant with EN 50121-3-2 EMC test standard
Ruggedized connectors (M12) used for communication and power ports
Optional PCI/ /miniPCIe slots for expansion
Support Easy-swap HDD/SSD/CF module

Data sheet on ITA-5710 (pdf file, opens in new tab)

ITA-5730 – Rolling Stock Controller

Intel® 3rd Generation Core™ i Processor Fanless System for railway applications

Click here to show/ hide more info

ITA-5730

Features:

Supports Intel® 3rd Generation processor with HM76
Fanless computer for railway vehicle applications, fully compliant with EN 50155
Satisfy temp. standard: EN 50155 TX (-40 ~ 70° C) and IEC 61373 body mount class B
Compliant with EN 50121-3-2 EMC test standard
Ruggedized connectors (M12) used for communication and power ports
Optional PCI/ /miniPCIe slots for expansion
Support Easy-swap HDD/SSD/CF module

Data sheet on ITA-5730 (pdf file, opens in new tab)

ITA-5831 – Rolling Stock Controller

Intel® 6th Generation Core™ i Processor Fanless System; EN 50155 Complied Product for Railway Applications

Click here to show/ hide more info

ITA-5831

Features:

Intel skylake-H platform with QM170
Fanless computer for railway vehicle applications, fully compliant with EN 50155
Compliant with EN 50121-3-2/ EN 50121-4 EMC test standard
Ruggedized connectors (M12) used for communication and power ports
Support Easy-swap storage module and I/O module

Data sheet on ITA-5831 (pdf file, opens in new tab)

UNO Embedded Automation Computers – Advantech

Features:

Fanless Design
No Internal Cabling
Extreme low power consumption
Wide DC power input (eg. 9 ~ 36 VDC )
Grounding Isolation Between Chassis and System
Industrial-grade RS-232/422/485 Design
Wide Operating Temperature Range

Non-volatile Memory
Hardware Switchable AT/ATX Power Mode
Plug-and-Display VGA Port
Wide Form Factor Selections to Fit Application Environments
Mini PCIe Card Slot Enables Wireless and Fieldbus Communication
Many have PC/104, PC/104+ or PCI-104 expansion

Embedded OS Introduction and Driver Support

Supports Many Operating Systems
Not only supports the popular Windows operating system, but also provide embedded operating system solutions offering a pre-configured image with optimized onboard device drivers.
Advantech’s Embedded Automation Computers provide the following most popular embedded operating systems:
Windows CE 5.0 & Windows CE 6.0 R2
Windows XP Embedded
Windows Embedded Standard (WES)
Advantech Embedded Linux

Software Drivers & Utilities
Advantech’s Embedded Automation Computers provide more value to automation users.
By accumulating years of field-experience and collecting customer’s feedback, we had
developed several convenient and high-efficient driver/utility which would highly facilitate
users to manage the Embedded Automation Computers.

Fieldbus Master UNO Introduction

In a complex automation industrial system, fieldbus is a reliable and real time communication protocol designed to link with components, such as sensors, actuators, electric motors, switches, valves and contactors.
As embedded automation computers, the UNO series, usually act as reliable data gateways, SCADA nodes or PC-base control nodes in industrial automation systems. However, in some scenarios, users may need real-time higher communication and reliability.

Read the details in the catalog linked below.

See also “ARK and UNO Range compared” near top of this page

Din-Rail Automation Controller, UNO-1000 Series

The DIN-rail automation computer-UNO-1000 Series provide both RISC-architecture and x86-based platform with wide operating temperature of up to 70°C which allows it to be installed in harsh industrial environments. In addition, the UNO-1000 series equipped with excellent communication gateway for converting communication protocols, I/O control, and data storage in the industrial field. For domain market, Advantech also offers DIN-rail controller product which is designed to be safely operated for hazardous locations with Class 1, Division 2 certification. The new UNO-1000 series also supports iDoor Technology which make them used in different market segments by being able to configure different modules.

UNO-1251G Din-Rail Automation Controller

TI Coretex A8 Micro DIN-Rail Gateway w/ 2 x LAN, 1 x USB, 1 x CANopen, 3 x COM, 2 x microSD, 1 x micro SIM

Click here to show/ hide more info

UNO-1251G

The UNO-1251G is an Industrial IoT DIN-rail gateway. This gateway features dual LAN ports & expansible Wi-Fi/3G connectivity. There are also some user friendly design elements such as: a programmable OLED display to indicate the system status; and a front accessible microSD card/micro SIM slot. With WebAccess/HMI support, it is compatible with 450 types of PLC, controllers & I/O devices. User can easily access UNO-1251G through mobile devices by VNC. It is the ideal solution for automation control as a cloud enabled HMI platform.

Features:

RISC 32 bit TI ARM® Cortex™-A8 processor
Programmable OLED display for status & error indication
1 x CAN, 3 x COM, 2 x LAN, 1 x USB ports
Backup Memory FRAM in 128KB for retaining critical data
Easily accessible Micro SD slot & Micro SIM slot
Expansible with Wi-Fi/3G connectivity
Supports WEC7 & Linux operating systems
Supports WebAccess/HMI software for compatibility with 450 types of PLC, controllers & I/O devices protocols

Data sheet on UNO-1251G (pdf file, opens in new tab)

UNO-1252G Din-Rail Automation Controller

Intel® Quark Micro Din-Rail Controller w/ 2 x LAN, 2 x mPCIe, 2 x COM, 8 x DI/O, 2 x USB, 1 x 1GB microSD card, 1 x SIM

Click here to show/ hide more info

UNO-1252G

The UNO-1252G is an Intel Quark DIN-rail controller for IoT gateway solution. This controller features dual LAN ports and mPCIe card slots for economic gateway application bridging cloud and brown area. The general purpose input/output ports also success gateway controller directly reading status of sensors and indicating required results. The UNO-1252G is also equipped with Advantech iDoor technology that employes iDoor modules to extend itself to become a wireless gateway. In addition, the UNO-1252G also features eight LED indicators for the status of Power, Battery, SD card, COM ports and three programmable indicators.

Features:

Intel® Quark X1001 400 MHz Processor with 256MB Memory
2 x LAN, 2 x mPCIe, 1 x RS-232, 1 x RS-232/485, 8 x DI/O, 2 x USB, 1 x 1GB microSD card, 1 x SIM
COM ports and Digital I/O with Isolation Protection design for Sensing and Controlling
Chassis Grounding Protection
Compact with Fanless Design
Din-rail mounting design
Supports GPRS/3G/GPS/Wi-Fi Communication by iDoor Technology
Supports Yocto Linux system

Data sheet on UNO-1252G (pdf file, opens in new tab)

UNO-1372G Din-Rail Automation Controller

Intel® Atom™ Quad-Core Small- Size Control DIN-Rail PC w/ 3 x GbE, 2 x mPCIe, 1 mSATA, 2 x COM, 8 x DI/O, 3 x USB, HDMI/VGA

Click here to show/ hide more info

UNO-1372G

The UNO-1372G is an Intel Atom Quad-Core DIN-Rail controller. This controller featured with dual power input that shorten the down time to enhance operation excellence. The general purpose input/output ports also help machine builders integrate direct control of start/stop inspection and indicate inspection results. The UNO-1372G is also equipped with Advantech iDoor technology that uses iDoor modules to extend this product to become a gateway controller, such as a PoE card, or isolation serial port card. The UNO-1372G also features 3 gigabyte LAN ports, 1 USB 3.0 port, 2 COM ports and HDMI& VGA display ports for essential upstream and downstream links, for example, PoE connected to IP camera from iDoor.

Features:

Intel® Atom E3845 1.91GHz processor with 4GB DDR3L Memory
3 x GbE, 3 x USB, 2 x COM, 1 x VGA, 1 x HDMI, Audio, iDoor, mSATA, 2mPCIe, 1 x SATA, 8 x DIO, 1 x Power Terminal
Compact with Fanless Design
Dual Power Input for Reducing Power Down Time
Exchangeable RTC Battery with easy Access on the Top
Digital I/O with Isolation Protection for Sensing and controlling
Diverse system IO and Supports Fieldbus Protocol by iDoor Technology as a Protocol Gateway
3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology as a Communication Gateway
Supports MRAM by iDoor Technology
Chassis Grounding Protection
LAN Redundancy (Teaming)

Data sheet on UNO-1372G (pdf file, opens in new tab)

UNO-1483G Din-Rail Automation Controller

Intel® Core™ i3 Regular-Size Control DIN-Rail PC w/ 4 x GbE, 3 x mPCIe, 1 PCIe, DP/VGA, 8 DI/O

Click here to show/ hide more info

UNO-1483G

The UNO-1483G is an Intel 4th generation Core i3 DIN-Rail controller. This controller featured with dual power input that shorten the down time to enhance operation excellence. The general purpose input/output ports also help machine builder integrate direct control of start/stop inspection and indicate inspection results. UNO-1483G also equipped with PCIe slot and Advantech iDoor technology that extend this product to motion controller, like motion control card, or isolation control unit from iDoor modules. In companion these features, UNO-1483G featured with 4 gigabyte LAN, 2 USB 3.0, 3 COM, DP, VGA can support essential link for upstream and downstream, for example, PoE connected to IP camera from iDoor.

Features:

4th Generation Intel® Core™ i3 Processors up to 1.7GHz with 8GB DDR3L Memory
4 x GbE, 4 x USB 2.0/3.0, 1 x RS-232, 2 x RS-422/485, 1 x VGA, 1 x DP, Audio
Compact with Fanless Design
Supports PCIe card, PoE iDoor module and Digital I/O for Machine Motion/ Vision application
Dual Power Input and Remote Power Button for reducing power down time and remote power control
4G/ 3G/GPS/GPRS/WiFi Communication by iDoor Technology
Supports MRAM by iDoor Technology
Chassis Grounding Protection
Hot-Swap RTC battery with easily access at top side
Supports Fieldbus Protocol by iDoor Technology

Data sheet on UNO-1483G (pdf file, opens in new tab)

UNO-1110 Din-Rail Automation Controller

TI Cortex AM3505 DIN-rail PC with 2 x LAN, 5 x COM, 4 x USB, 1 GB SD card

Click here to show/ hide more info

UNO-1110

Advantech’s UNO-1110 series are RISC-grade embedded platforms that offer up to 2 LAN ports, 5 serial ports and 2 SD card slots. The UNO-1110 series also come with Windows CE 6.0/Linux OS, offering an integrated image. Additionally, the UNO-1110 series operate at temperatures between -10 ~ 70°C, and their small size and lightweight design allows it to be installed in tight industrial environments. The UNO-1110 series are excellent communication gateways for converting communication protocols, I/O control, and data storage in the industrial field.

Features:

TI Cortex A8 AM3505 600 MHz processor
256 MB DDR2 on board
4 x RS-232/422/485, 1 x RS-485 serial ports
Dual 10/100 Mbps Ethernet2 x SD card slots
2 x SD card slots (1 GB SD card included)
Windows® CE 6.0 Ready Platform and optional uClinux OS support
Included Advantech DaigAnywhere for easy remote configuration & diagnosis
DIN-rail and Wallmounting Options
Onboard system & LED indicators
Supports Microsoft .NET compact framework 3.5
Fanless and no internal cabling design
System/Field ground isolation

Data sheet on UNO-1110 (pdf file, opens in new tab)

UNO-1172AH Din-Rail Automation Controller

Class I, Division 2 Certified Intel® Atom™ D510 DIN-rail PC with 3 x LAN, 2 x COM, VGA, Mini-PCIe

Click here to show/ hide more info

UNO-1172AH

In hazardous locations, devices are under potential danger from flammable gases, combustible dust, or ignitable fibers, creating the potential for fire and explosions. UNO-1172AH are designed to be safely operated in these locations and are UL listed for Hazardous Locations with Class I, Division 2, groups A, B, C, D & T5 certification. The UNO-1172AH is an Intel Atom DIN-rail PC which features an innovative system diagnosis feature for automation applications. They provide alarms for over temperature, over voltage, battery power fail, power status on both system onboard LED and Digital output. They also include remote power control through digital input. These system diagnosis features enable control and monitoring of system status remotely. Three Gigabit Ethernet interfaces with teaming function support allow users to uplink two ports with data transmission fault tolerance and downlink one port to field device.

Features:

UL listed for Hazardous Locations: Class I, Division 2
Onboard Intel® Atom D510 1.67GHz
Onboard 1 MB battery-backup SRAM
System diagnosis through led and digital output, remote power control through digital input
Two RS-232/422/485 ports with automatic flow control
Three 10/100/1000 Base-T RJ-45 ports with teaming function support
4 x external USB
PC/104+ expansion slots option
1 x Mini-PCIe slot for WLAN card and Fieldbus card
Windows 7, Windows CE, XP Embedded and Linux support
Fanless design with no internal cabling
Isolation between chassis and power ground

Data sheet on UNO-1172AH (pdf file, opens in new tab)

Standmount Embedded Automation Controller, UNO-2000 Series

This fanless embedded computer is a box pc served as an automation control and pc controller that has a wide range of CPU selection and multiple mounting method.

UNO-2372G – Standmount Embedded Automation Controller

Intel Atom Small-Size Modular Box Platform with 2 GbE,4 USB, 4 COM, 2 mPCIe, HDMI, DP

Click here to show/ hide more info

UNO-2372G

Advantech’s new generation UNO-2000 series of Embedded Automation Computers are highly ruggedized fanless and modular design. The incredible modularity of UNO-2372G offers numerous performance and cost-saving advantages, including elimination of unnecessary features and expenses, accelerated production and delivery, rapid deployment and integration, reduced system downtime and maintenance costs, and support for future upgrades and expansion. The UNO-2372G’s modular design features optimized I/O and an optional second expansion stack that support Advantech’s iDoor technology. This allows the platform functionalities to be easily extended and customized with the integration of various iDoor modules, including industrial Fieldbus, wireless communication, I/O and peripheral module, to provide purpose-built, future-proof solutions that satisfy specific application requirements.

Features:

Intel Atom Baytrial E3845 Quad-Core Processors up to 1.91GHz with 4G DDR3L Memory
Robust and cableless design with high stability
2 x GbE, 4 x USB, 4 x RS-232/422/485, 1 x HDMI, 1 x DP
Modular design with flexibility to extend second stack for function enhancement
Compact size with fanless Design
Rubber stopper design for stand mount and optional kit for DIN-rail mount, and VESA mount
Optional 3G/GPS/GPRS/Wi-Fi Communication

Data sheet on UNO-2372G (pdf file, opens in new tab)

UNO-2484G – Standmount Embedded Automation Controller

Intel® Core™ i7/i5/i3 Regular-Size Modular Box Platform (MBP) with 4 x GbE, 1 x mPCIe, HDMI, DP

Click here to show/ hide more info

UNO-2484G

Advantech’s new generation UNO-2000 series of Embedded Automation Computers are Fanless with highly ruggedized with embedded operation system. New UNO-2000 series implement Universal, Customized, and Domain idea into modular design concept which provides flexible and time-to-market support in variety of applications. The series also includes iDOOR technology which supports automation feature-extensions such as Multiple I/O Peripheral, Industrial Fieldbus, Smart I/O Communication, and Signal Communication. New UNO-2000 series including pocket, small, and regular-size form-factors with indicated market segments in terms of different kinds of smart factory application categories such as Equipment Connectivity (EC), Process Visualization (PV), Environment Management (EM), and Dispatch Management (DM) solution. New UNO enables smart factory and fulfill all application.

Features:

Intel® Core™ i7/i5/i3 Processor up to 2.6 GHz with 8GB DDR4 built-in Memory
4 x GbE, 4 x USB 3.0, 1 x HDMI, 1 x DP (4K), 4 x RS232/422/485
Stackable 2nd layer for up to 4 iDoor extension or customize for domain applications
Compact Fanless Design
Ruggedized by zero cable and lockable I/O design
Optional TPM2.0 for Cyber Security
Chassis Grounding Protection
Diverse system I/O and Isolated Digital I/O by iDoor Technology
Supports Fieldbus Protocol by iDoor Technology
3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
Supports 30+ iDOOR combination with four main categories

Data sheet on UNO-2484G (pdf file, opens in new tab)

UNO-2271G – Standmount Embedded Automation Controller

Intel® Atom™ Pocket-Size Smart Factory Edge Gateway with 2 x GbE, 1 x mPCIe, HDMI, eMMC

Click here to show/ hide more info

Advantech’s new generation UNO-2000 series of Embedded Automation Computers are Fanless with highly ruggedized with embedded operation system. New UNO-2000 series implement Universal, Customized, and Domain idea into modular design concept which provides flexible and time-to-market support in variety of applications. It also includes iDOOR
technology which supports automation feature-extensions such as Multiple I/O Peripheral, Industrial Fieldbus, Smart I/O Communication, and Signal Communication. New UNO-2000 series including Pocket, Small, and Regular-size Form-Factors with indicated market segments in terms of different kinds of smart factory application categories such as Equipment Connectivity (EC), Process Visualization (PV), Environment Management (EM), and Dispatch Management (DM) solution. New UNO enables smart factory and fulfill all application.

Features:

Intel® Atom™ E3815 Processor up to 1.46 GHz with 4GB DDR3L onboard Memory
2 x GbE, 1 x USB 3.0, 1 x HDMI, Option 2 x RS-232/422/485 or 3 x USB2.0
Compact Fanless Design
Rubber Stopper Design with internal reserved screws for 2nd layer assembly
Diverse system I/O and Isolated Digital I/O by iDoor Technology
Supports Fieldbus Protocol by iDoor Technology
3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
Supports 30+ iDOOR combination with four main categories of smart factory application
Chassis Grounding Protection
Built-in 32G eMMC storage
Selectable I/O support for standard models

Data sheet on UNO-2271G (pdf file, opens in new tab)

UNO-2483G – Standmount Embedded Automation Controller

Intel® Core™ i7/i3/Celeron Regular-Size Automation Computer w/ 4 x GbE, 2 x mPCIe, HDMI/VGA

Click here to show/ hide more info

UNO-2483G

Advantech’s UNO-2000 series of Embedded Automation Computers are Fanless with highly ruggedised with an embedded operating system. It also includes iDoor technology which supports automation feature extensions such as industry fieldbus communication, Wi-Fi/3G, Digital I/O, including Palm, Small, and Regular-size Form-Factors with indicated market segments in terms of entry, value and performance product positioning. Both entry and value Embedded Automation Computers feature specific functions and they are suitable for data gateway, concentrator and data server applications. The performance model can shorten your development time and offer multiple networking interfaces to fulfill a diverse range of requirements.

Features:

4th Generation Intel® Core™ i7/i3/Celeron Processors up to 1.9GHz with 4GB/8GB DDR3L Memory
4 x GbE, 4 x USB 2.0/3.0, 2 x RS-232, 2 x RS-422/485, 1 x VGA, 1 x HDMI, Audio
Comprehensive Palm, Small, Regular-size form-factor
Compact with Fanless Design
Rubber Stopper Design with Captive Screw
Dual HDD/SSD support with RAID 0/1 in regular-size
Diverse system IO and Isolated Digital IO by iDoor Technology
Supports Fieldbus Protocol by iDoor Technology
3G/GPS/GPRS/WiFi Communication by iDoor Technology
Supports MRAM by iDoor Technology
Chassis Grounding Protection
LAN Redundancy (Teaming)
Fault-Protected RS-485 Transceivers With Extended Common-Mode Range

Data sheet on UNO-2483G (pdf file, opens in new tab)

UNO-2473G – Standmount Embedded Automation Controller

Intel® Atom/ Celeron Processor Regular-Size Automation Computer w/ 4 x GbE, 3 x mPCIe, HDMI/VGA

Click here to show/ hide more info

UNO-2473G

Advantech’s UNO-2000 series of Embedded Automation Computers are fanless with highly ruggedized with an embedded operating system (Linux-Embedded). It also includes iDoor technology which supports automation feature extensions such as industry fieldbus communication, Wi-Fi/3G, Digital I/O, including Palm, Small, and Regular-size Form-Factors with indicated market segments in terms of entry, value and performance product positioning. Both entry and value Embedded Automation Computers feature specific functions and they are suitable for data gateway, concentrator and data server applications. The performance model can shorten your development time and offer multiple networking interfaces to fulfill a diverse range of requirements.

Features:

4th Generation Intel® Atom/Celeron J1900 Processor up to 1.91/2.42 GHz with 4GB DDR3L Memory
4/2 x GbE, 3 x USB 2.0 and 1 x USB 3.0/4 x USB 2.0 and 1 x USB 3.0, 2 x RS-232, 2 x RS-422/485 (E3AE), 2 x RS-232/422/485 (J3AE), 1 x VGA, 1 x HDMI, Audio
Comprehensive Palm, Small, Regular-size form-factor
Compact with Fanless Design
Rubber Stopper Design with Captive Screw
Diverse system IO and Isolated Digital IO by iDoor Technology
3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
Supports MRAM by iDoor Technology
Chassis Grounding Protection
LAN Redundancy (Teaming)
Fault-Protected RS-485 Transceivers With Extended Common-Mode Range

Data sheet on UNO-2473G (pdf file, opens in new tab)

UNO-2362G – Standmount Embedded Automation Controller

AMD® Dual Core T40E Small-Size Automation Computer w/ 1 x GbE, 1 x mPCIe, HDMI/DP

Click here to show/ hide more info

UNO-2362G

Advantech’s UNO-2000 series of Embedded Automation Computers are Fanless with highly ruggedised with an embedded operating system (Windows CE, Windows XPE, Linux-Embedded). It also includes iDoor technology which supports automation feature extensions such as industry fieldbus communication, Wi-Fi/3G, Digital I/O, including Palm, Small, and Regular-size Form-Factors with indicated market segments in terms of entry, value and performance product positioning. Both entry and value Embedded Automation Computers feature specific functions and they are suitable for data gateway, concentrator and data server applications. The performance model can shorten your development time and offer multiple networking interfaces to fulfill a diverse range of requirements.

Features:

Onboard AMD(R) Dual Core T40E 1.0GHz processors with 2GB DDR3 SODIMM Memory
1 x GbE, 4 x USB 2.0, 1 x RS-232, 1 x RS-485, 1 x DP, 1 x HDMI
Comprehensive Palm, Small, Regular-size form-factor
Compact with Fanless Design
Rubber Stopper Design with Captive Screw
Daisy-Chain for Ethernet with auto-bypass protection enabled
Diverse system I/O and Isolated Digital I/O by iDoor Technology
3G/GPS/GPRS/WiFi Communication by iDoor Technology
Supports Battery-backup MRAM by iDoor Technology
Chassis Grounding Protection

Data sheet on UNO-2362G (pdf file, opens in new tab)

UNO-2272G – Standmount Embedded Automation Controller

Intel® Atom™ Palm-Size Automation Computer with 1 x GbE, 2 x mPCIe, VGA/HDMI

Click here to show/ hide more info

UNO-2272G

Advantech’s UNO-2000 series of Embedded Automation Computers are Fanless with highly ruggedized with an embedded operating system (Linux-Embedded). It also includes iDoor technology which supports automation feature extensions such as industry fieldbus communication, Wi-Fi/3G, Digital I/O, including Palm, Small, and Regular-size Form-Factors with indicated market segments in terms of entry, value and performance product positioning. Both entry and value Embedded Automation Computers feature specific functions and they are suitable for data gateway, concentrator and data server applications. The performance model can shorten your development time and offer multiple networking interfaces to fulfill a diverse range of requirements.

Features:

Intel® Atom™/ Celeron Palm-Size Automation Computer with 1 x GbE, 2 x mPCIe, VGA/HDMI
1 x GbE, 3 x USB 2.0/3.0, 1 x RS-232, 1 x VGA or HDMI, Audio
Comprehensive Palm, Small, Regular-size form-factor
Compact with Fanless Design
Rubber Stopper Design with Captive Screw
Diverse system I/O and Isolated Digital I/O by iDoor Technology
Supports Fieldbus Protocol by iDoor Technology
3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
Supports MRAM by iDoor Technology
Chassis Grounding Protection

Data sheet on UNO-2272G (pdf file, opens in new tab)

UNO-2184G – Standmount Embedded Automation Controller

Intel® Core™ i7 Automation Computer with 4 x GbE, 2 x Mini PCIe, DVI/DP/HDMI

Click here to show/ hide more info

UNO-2184G

The UNO-2184G & 2174G/GL are high-performance Intel 3rd generation Core i7-3555LE/Intel 2nd generation core i7-2655LE/847E/807UE grade controllers that support PCI-104 with daughterboard expansion, 3 x display, 6 x USB, and 2 x Mini PCIe socket. They also feature WLAN, 3G expansion and compatibility with Windows 7. The 4 x Gigabit LANs on the UNO-2184G support teaming function with fault tolerance, link aggregation, and load balance features. The UNO-2184G & 2174G/GL are high end computing platforms designed to support applications with tremendous data volume and 3D content.

Features:

Onboard Intel Celeron 847E 1.1GHz/807UE 1.0GHz/Core i7-2655LE 2.2GHz/ i7-3555LE 2.5GHz processors
2 x RS-232 and 2 x RS-232/422/485 ports with automatic flow control
4 x 10/100/1000Base-T Ethernet
DVI-I, DP, HDMI support 2 x independent displays
Audio with Mic in, Line in, Line out
6 x USB ports
Supports 2 x PCI-104 plug-in card with daughterboard expansion
Windows® WES 2009, WES 7 ready solution
External accessible CFast slot
Onboard system status LED indicators
Supports wake on LAN and boot from LAN function
Supports Power eSATA
Isolation between chassis and power ground
IP40 ingress protection

Data sheet on UNO-2184G (pdf file, opens in new tab)

UNO-2170 – Standmount Embedded Automation Controller

Intel Celeron M Automation Computer with 2 x LAN, 4 x COM, PC/104

Click here to show/ hide more info

UNO-2170

UNO-2170 is an embedded automation computer that supports PC/104 expansion, serial communication ports and several other networking interfaces. UNO-2170 supports Windows XP Embedded OS and Windows CE 5.0, which offers a pre-configured image with optimized onboard device drivers. Windows XP Embedded delivers the power of the Windows operating system in componentized form. You can seamlessly integrate your applications into Windows XP Embedded and speed up your system development with an application ready platform that can provide a rich networking interface to fulfill diverse requirements.

Features:

Onboard Celeron® M 600 MHz or Celeron M 1.0 GHz
Onboard 512 KB battery-backup SRAM
Two RS-232 and two RS-232/422/485 ports with automatic flow control.
Two 10/100Base-T RJ-45 ports
Two USB and one type I/II PC Card
PC/104 expansion slots
Windows® CE 5.0 & 6.0, Windows XP Embedded, and Linux ready solution
Onboard system status LED indicators
Supports Boot From LAN function
Fanless and no internal cabling design

Data sheet on UNO-2170 (pdf file, opens in new tab)

UNO-2171 – Standmount Embedded Automation Controller

Intel® Pentium® M/Celeron® M Automation Computer with 2 x LAN, 4 x COM, PC/104+

Click here to show/ hide more info

UNO-2171

UNO-2171 is an embedded automation computer that supports PC/104+ expansion, serial communication ports and several other networking interfaces. UNO-2171 supports Windows XP Embedded OS and Windows CE 5.0 & 6.0, which offers a pre-configured image with optimized onboard device drivers. Windows XP Embedded delivers the power of the Windows operating system in componentized form. You can seamlessly integrate your applications into Windows XP Embedded and speed up your system development with an application ready platform that can provide a rich networking interface to fulfill diverse requirements.

Features:

Onboard Pentium® M 1.4 GHz or Celeron® M 1.0 GHz
Onboard 512 KB battery-backup SRAM
Two RS-232 and two RS-232/422/485 ports with automatic flow control
Two 10/100Base-T RJ-45 ports
Audio with Mic in, Line in, Line out
2 x USB 2.0 ports
PC/104+ expansion slots
Windows® CE 5.0 & 6.0, Windows XP Embedded, WES2009, and Linux ready
Onboard system status LED indicators
Supports Wake on LAN and Boot from LAN function
Fanless design with no internal cabling
Isolation between chassis and power ground

Data sheet on UNO-2171 (pdf file, opens in new tab)

UNO-2172 – Standmount Embedded Automation Controller

Intel® Core™ 2 Duo M/ Celeron® M Automation Computers with 2 x GbE, 4 x COM, DVI

Click here to show/ hide more info

UNO-2172

UNO-2172 and UNO-2182 are high-performance Pentium M/ Core 2 Duo grade controllers that support PCI-104 expansion, serial communication ports and several other networking interfaces. They support Windows WES2009 OS, which offers a pre-configured image with optimized onboard device drivers. Windows WES2009 delivers the power of the Windows operating system in componentized form. You can seamlessly integrate your applications into Windows WES2009 and speed up your system development with application-ready platforms that provide rich networking interfaces to fulfill diverse requirements.

Features:

Onboard Intel Core 2 Duo 1.5 GHz (L7400)/ Pentium M 1.6 GHz/ Celeron M 1.5 GHz processors
Onboard 512 KB battery-backup SRAM
2 x RS-232 and 2 x RS-232/422/485 ports with automatic flow control
2 x 10/100/1000 Base-T Ethernet
DVI-I supports dual display
Audio with Mic in, Line in, Line out
2 x USB 2.0 ports
PCI-104 expansion
Windows® WES 2009, WES 7 ready solution
Supports one SATA HDD and one external eSATA devices
Onboard system status LED indicators
Supports wake on LAN and boot from LAN function
Fanless design with no internal cabling
Isolation between chassis and power ground

Data sheet on UNO-2172 (pdf file, opens in new tab)

UNO-2173A/AF – Standmount Embedded Automation Controller

Intel® Atom™ N270 Automation Computers with 2 x LAN, 3 x COM, Mini PCIe

Click here to show/ hide more info

UNO-2173A

UNO-2173A/AF are Embedded Automation Computers equipped with Intel Atom N270 1.6 GHz CPUs, Gigabit Ethernet ports, rich I/O, and 1 x Mini PCIe socket. They also feature WLAN, 3G expansion and compatibility with Windows 7. Both products have Energy Star certification, IP40 anti-dust ingress protection and wide operating temperatures (-20 ~ 70° C), providing high performance and high versatility with low power consumption. UNO-2173A/AF are economic new computing platforms for manufacturing executing systems, facility automation, in-vehicle, and industrial thin client applications.

Features:

Onboard Intel Atom N270 1.6 GHz processor
2 x 10/100/1000Base-T RJ-45 port
4 x USB 2.0 ports
Windows® CE 5.0 & 6.0, Windows WES2009, WES7, and Linux ready solution
Onboard system status LED indicators
Front-accessible CF slot
Supports Boot from LAN function
1 x Mini PCIe slot for WLAN card
Fanless design with no internal cabling
Isolation between chassis and power ground
Supports wide operating temperatures from -20 ~ 70° C
IP40 ingress protection
Windows 7 and Moblin supported

Data sheet on UNO-2173A (pdf file, opens in new tab)

UNO-2178A – Standmount Embedded Automation Controller

Intel® Atom™ D510 Automation Computers with 6 x USB, 8 x COM, 2 x Mini PCIe

Click here to show/ hide more info

UNO-2178A

The UNO-2174A and UNO-2178A are Embedded Automation Computers equipped with Intel Atom N450/D510 CPUs, Gigabit Ethernet ports, rich I/O, and 2 x Mini PCIe socket. They also feature WLAN, 3G expansion and compatibility with Windows 7. Both products have Energy Star certification, IP40 anti-dust ingress protection and wide operating temperatures (-10 ~ 70°C), providing high performance and high versatility with low power consumption. The UNO-2174A and UNO-2178A are economic new computing platforms for manufacturing executing systems, facility automation, and industrial thin client applications. With an additional daughterboard, the UNO-2174A and UNO-2178A support 1 x PC/104 and 1 x PCI-104 plug-in cards for further expansion.

Features:

Onboard Intel Atom N450/D510 processors
2 x 10/100/1000Base-T RJ-45 ports, 6 x USB 2.0 ports
Windows® CE 6.0, WES 2009, WES 7 and Linux ready solution
Onboard system status LED indicators
Front-accessible CF slot
Supports Boot from LAN function
2 x Mini PCIe slots with 1 x SIM slot support
Fanless design with no internal cabling
Isolation between chassis and power ground
Supports wide operating temperatures from – 10 ~ 70°C
IP40 ingress protection
Windows 7 32 bit supported
Supports plug-in cards (1 x PCI-104 and 1 x PC/104+) with additional daughterboard expansion
Supports 8 x COM ports
Supports arbitrary baud rates

Data sheet on UNO-2178A (pdf file, opens in new tab)

UNO-2174A – Standmount Embedded Automation Controller

Intel® Atom™ N450 Automation Computers with 6 x USB, 8 x COM, 2 x Mini PCIe

Click here to show/ hide more info

UNO-2174A

Features:

Onboard Intel Atom N450/D510 processors
2 x 10/100/1000Base-T RJ-45 ports, 6 x USB 2.0 ports
Windows® CE 6.0, WES 2009, WES 7 and Linux ready solution
Onboard system status LED indicators
Front-accessible CF slot
Supports Boot from LAN function
2 x Mini PCIe slots with 1 x SIM slot support
Fanless design with no internal cabling
Isolation between chassis and power ground
Supports wide operating temperatures from – 10 ~ 70°C
IP40 ingress protection
Windows 7 32 bit supported
Supports plug-in cards (1 x PCI-104 and 1 x PC/104+) with additional daughterboard expansion
Supports arbitrary baud rates

Data sheet on UNO-2174A (pdf file, opens in new tab)

UNO-2182 – Standmount Embedded Automation Controller

Intel® Core™ 2 Duo/ Pentium® M/ Celeron® M Automation Computers with 2 x GbE, 4 x COM, DVI

Click here to show/ hide more info

UNO-2182

Features:

Onboard Intel Core 2 Duo 1.5 GHz (L7400)/ Pentium M 1.6 GHz/ Celeron M 1.5 GHz processors
Onboard 512 KB battery-backup SRAM
2 x RS-232 and 2 x RS-232/422/485 ports with automatic flow control
2 x 10/100/1000 Base-T Ethernet
DVI-I supports dual display
Audio with Mic in, Line in, Line out
2 x USB 2.0 ports
PCI-104 expansion
Windows® WES 2009, WES 7 ready solution
Supports one SATA HDD and one external eSATA devices
Onboard system status LED indicators
Supports wake on LAN and boot from LAN function
Fanless design with no internal cabling
Isolation between chassis and power ground

Data sheet on UNO-2182 (pdf file, opens in new tab)

UNO-2174G/GL – Standmount Embedded Automation Controller

Intel® Celeron® Automation Computers with 4 x GbE, 2 x Mini PCIe, DVI/DP/HDMI

Click here to show/ hide more info

UNO-2174G

The 2174G/GL are high-performance Intel 3rd generation Core i7-3555LE/Intel 2nd generation core i7-2655LE/847E/807UE grade controllers that support PCI-104 with daughterboard expansion, 3 x display, 6 x USB, and 2 x Mini PCIe socket. They also feature WLAN, 3G expansion and compatibility with Windows 7. The 4 x Gigabit LANs on the UNO-2184G support teaming function with fault tolerance, link aggregation, and load balance features. The UNO-2184G & 2174G/GL are high end computing platforms designed to support applications with tremendous data volume and 3D content.

Features:

Onboard Intel Celeron 847/807UE/Core i7-2655LE, 1.1 GHz/1.0 GHz/2.2 GHz processors
2 x RS-232 and 2 x RS-232/422/485 ports with automatic flow control
4 x 10/100/1000Base-T Ethernet
DVI-I, DP, HDMI support 2 x independent displays
Audio with Mic in, Line in, Line out
6 x USB 2.0 ports
Supports 2 x PCI-104 plug-in card with daughterboard expansion
Windows® WES 2009, WES 7 ready solution
External accessible CFast slot
Onboard system status LED indicators
Supports wake on LAN and boot from LAN function
Supports Power eSATA
Isolation between chassis and power ground
IP40 ingress protection

Data sheet on UNO-2174G (pdf file, opens in new tab)

UNO-2059GL – Standmount Embedded Automation Controller

AMD Geode™ LX Automation Computer with 4 x COM, LAN

Click here to show/ hide more info

UNO-2059GL

Advantech’s UNO-2059GL is an X86-grade platform that offers USB interfaces to fulfill I/O device expansion needs. In addition, it also offers two RS-232/485 and two RS-232/422/485 communication ports with automatic flow control functionality. The UNO-2059GL is an ideal compact solution for large computing and communication requirements. UNO-2059GL is available with a pre-configured Windows CE image with optimized onboard device drivers. Microsoft Windows CE is a compact, highly efficient, real-time operating system designed for embedded systems without mechanical HDD limitations. To expand storage capability, the UNO-2059GL allows the addition of an external 2.5″ HDD using Advantech’s HDD expansion kit. It can be used for large data backup requirements and popular OS installations such as Microsoft Windows and Linux OS. Significant anti-vibration (1G w/HDD) is maintained even with the mechanical HDD inside

Features:

Isolation between chassis and power ground
Fanless design with no internal cabling
Windows® CE 5.0 & 6.0, Windows XP Embedded SP2, and Linux ready solution
One programmable diagnostic LED and buzzer
1 x 10/100Base-T RJ-45 port and 2 x USB 2.0 ports
2 x RS-232/485, 2 x RS-232/422/485 with automatic flow control
Onboard AMD Geode GX533 LX800 500MHz CPU

Data sheet on UNO-2059GL (pdf file, opens in new tab)

UNO-2053GL – Standmount Embedded Automation Controller

AMD Geode™ LX Automation Computer with 2 x LAN, 2 x COM, Audio

Click here to show/ hide more info

UNO-2053GL

UNO-2053GL is a X86-grade platform that offers dual LAN and dual USB interfaces to fulfill user’s diverse communication needs. In addition, it also offers two RS-232 communication ports on board. Therefore, UNO-2053GL is an ideal solution for data gateway applications. UNO-2053GL is available with a pre-configured Windows CE image with optimized onboard device drivers. Microsoft Windows CE is a compact, highly efficient, real-time operating system designed for embedded systems without mechanical HDD limitations. To expand storage capability, the UNO-2053GL allows the addition of an external 2.5″ HDD using Advantech’s UNO HDD expansion kit. It can be used for large data backup requirements and popular OS installations such as Microsoft Windows and Linux OS. Significant anti-vibration is maintained even with the mechanical HDD inside. (1 G) UNO-2053GL is a perfect embedded application-ready platform that can shorten your development time and offer a rich networking interface to fulfill diverse requirements.

Features:

Isolation between chassis and power ground
Fanless design with no internal cabling
Windows® CE 5.0 & 6.0, Windows XP Embedded SP2, and Linux ready solution
Audio with Mic in, Line in, Line out
Two 10/100Base-T RJ-45 ports and two USB 2.0 ports
Two standard RS-232 and one DB-15 VGA connector
Onboard AMD Geode LX800 500MHz CPU

Data sheet on UNO-2053GL (pdf file, opens in new tab)

Wallmount Embedded Automation Box PC, UNO-3000 Series

The UNO-3000 series are wallmount PC that support PCI or PCIe expansion, with wide range computing power and PCI expansion capability allows users to add any 3rd party I/O

UNO-3285G – Wallmount Embedded Automation Box PC

Intel® Core™ i Automation Computer with 4 PCI(e) expansion slots, 2 x GbE, 2 x mPCIe, HDMI, DVI-I

Click here to show/ hide more info

UNO-3285G

The high-performance fanless control cabinet PC UNO-3283G/ 3285G equipped with a Intel® 6th Gen Core™ i7/ i5/ i3 processor and QM170 PCH chipset, rich I/O including 6 USB 3.0, 2 GigaLAN, 2 RS-232/422/485, and 1 RS-232 (pin header) ports, as well as DVI-I and HDMI display interfaces, UNO-3283G/ 3285G is designed to deliver high-performance computing and maximum flexibility for industrial automation applications. The provision of two hot-swappable HDD/SSD bays and up to 5 expansion slots (2 x PCIe x8, 2 x PCI) supports the integration of modular peripherals and ensures flexible installation in diverse cabinet configurations. In addition to an exchangeable RTC battery that can be accessed via the removable top cover for convenient maintenance, the system features dual power inputs that ensure a stable power supply.

Features:

Intel® 6th Gen Core™ i7-6822EQ Quad Core Processors, up to 2.0 GHz with 8GB DDR4 Memory
2 x GbE, 6 x USB 3.0, 2 x RS-232/422/485, 2 x 232 (pin header), 1 x DVI-I, 1 x HDMI
2 x PCIe x8, 2 x PCI, 2 x mPCIe (2 x full), 1x CFast, slot, 1 x mSATA slot (optional)
Dual Hot-Swappable storage with thumb screw support for RAID 0/1
Supports Fieldbus Protocol by iDoor Technology
Dual power input for power redundancy
Optional ECC RAM with selected RAM module
Dual power input for power redundancy
Optional ECC RAM with selected RAM module
Front LED indicator design for monitoring system status

Data sheet on UNO-3285G (pdf file, opens in new tab)

UNO-3384G – Wallmount Embedded Automation Box PC

Intel® Core™ i7/Celeron Control Cabinet PC w/ 2 x GbE, 2 x mPCIe, HDMI/DP

Click here to show/ hide more info

UNO-3384G

Advantech’s UNO-3300 series offer an open and universal automation solution. The newest UNO-3300 series of the Control Cabinet PC have attractive and flexible extension capabilities such as 2 x USB 2.0 ports and 2 x USB 3.0 ports, 1 x HDMI, 1 x DP, 1 x COM ports, 2 x LANS, 2 x mPCIe and 2 x PCI/PCIe. It’s a reliable industrial control machine certified by industrial automation standard IEC-61010.

Features:

4th Generation Intel® Core™ i7/Celeron Processors with 8GB/4GB DDR3L Memory
2 x GbE, 2 x USB 2.0, 2 x USB 3.0, 1 x RS-232/RS-422/485, 1 x HDMI, 1 x DP, 2 x PCI/PCIe, 2 x mPCIe (2 x full)
Hot-Swappable HDD/SSD support for RAID 0/1
Protection Technology of optional UPS is compatible with UNO-3300 series which enhances the quality of input power and secure the data safety
Supports Fieldbus Protocol by iDoor Technology 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
Supports MRAM by iDoor Technology
LAN Redundancy (Teaming)

Data sheet on UNO-3384G (pdf file, opens in new tab)

UNO-3382G – Wallmount Embedded Automation Box PC

Intel® Core™ i7/Celeron Control Cabinet PC w/ 2 x GbE, 2 x mPCIe, HDMI/DP

Click here to show/ hide more info

UNO-3382G

Features:

4th Generation Intel® Core™ i7/Celeron Processors with 8GB/4GB DDR3L Memory
2 x GbE, 2 x USB 2.0, 2 x USB 3.0, 1 x RS-232/RS-422/485, 1 x HDMI, 1 x DP, 2 x PCI/PCIe, 2 x mPCIe (2 x full)
Hot-Swappable HDD/SSD support for RAID 0/1
Protection Technology of optional UPS is compatible with UNO-3300 series which enhances the quality of input power and secure the data safety
Supports Fieldbus Protocol by iDoor Technology 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
Supports MRAM by iDoor Technology
LAN Redundancy (Teaming)

Data sheet on UNO-3382G (pdf file, opens in new tab)

UNO-3283G – Wallmount Embedded Automation Box PC

Intel® Core™ i Automation Computer w/ 2 x GbE, 2 x mPCIe, HDMI, DVI-I

Click here to show/ hide more info

UNO-3283G

The high performing UNO-3283G models are configured with high-performance Intel Gen.6 Quad Core i7 processor and QM170 PCH, which offers users the maximum flexibility, three displays, six USB 3.0 ports, two mPCIe sockets, and up to three expansion slots including one PCIex16 slot, one PCI slot and one iDoor expansion, iDoor technology supports automation feature extensions such as industry Fieldbus communication, POE, COM & Digital I/O. The UNO-3283G has a variety of convenient designs, captive thumb screw, dual hot-Swappable HDD/SSD slots, exchangeable RTC battery can facilitate the maintenance work, and preventing unstable environment like as power drop via dual power input.

Features:

6th Generation IntelR Quad Core Processors, up to 2.0 GHz with 8GB DDR4 Memory
2 x GbE, 6 x USB 3.0, 2 x RS-232/422/485, 1 x RS-422/485 (pin header), 1 x DVI-I, 1 x HDMI
1 x PCIex16, 1x PCI, 2 x mPCIe (2 x full), 1x CFast slot, 1 x mSATA slot (optional)
Thumb screw for easy maintenance
Hot-Swappable HDD/SSD support for RAID 0/1
Easily exchangeable RTC battery
Supports Fieldbus Protocol by iDoor Technology
Chassis Grounding Protection
LAN Redundancy (Teaming)

Data sheet on UNO-3283G (pdf file, opens in new tab)

UNO-3483G – Wallmount Embedded Automation Box PC

Intel® Core™ i7 Control Cabinet PC w/ 2 x GbE, 2 x mPCIe, HDMI/VGA

Click here to show/ hide more info

UNO-3483G

Advantech’s UNO-3483G Control Cabinet PC is configured with high-performance Intel Core i7 processors and QM77 PCH, which supports two displays, four USB ports, two mPCIe sockets, and up to three expansion slots. It also includes iDoor technology which supports automation feature extensions such as industry Fieldbus communication, Wi-Fi/3G, Digital I/O. The UNO-3483G has a compact heat sink with integrated seals mounted on the outside of the cabinet through a corresponding cutout, has a placing-and-click feature considers users’ activities and then simplifies the installation procedure for space-saving and high protection using IP67 certification. The high performing UNO-3483G model offers user the maximum flexibility when selecting the control cabinet and remains independent of the number and form of control buttons and switches on the front panel.

Features:

3rd Generation Intel® Quad Core Processors, up to 2.1 GHz with 8GB DDR3L Memory
2 x GbE, 2 x USB 2.0, 2 x USB 3.0, 1 x RS-232, 1 x RS-422/485 (pin header), 1 x VGA, 1 x HDMI
1 x PCIex4, 3 x mPCIe (2 x full, 1 x half), 1 x mSATA slot
Space-saving Compact with Fanless Design
Thumb screw to easy maintenance
Hot-Swappable HDD/SSD support for RAID 0/1
High protection IP67 certification
Convenient “Place & Click”
Easily exchangeable RTC battery
Supports Fieldbus Protocol by iDoor Technology
3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
Supports MRAM by iDoor Technology
Chassis Grounding Protection
LAN Redundancy (Teaming)

Data sheet on UNO-3483G (pdf file, opens in new tab)

UNO-3073G – Wallmount Embedded Automation Box PC

Intel Core i7/Celeron 800 series Automation Computers with 3/5 PCI(e) expansion slots, 2 Mini PCIe slots and 2 CFast sockets

Click here to show/ hide more info

UNO-3073G

The UNO-3083G/3085G/3073G/3075G/3073GL are configured with high-performance Intel® Core i7/Celeron 800 series processors and QM77/ QM67/ HM65 PCH, which supports 2 displays, 8 USB ports, 2 Mini PCIe sockets, 2 CFast Sockets and up to 5 expansion slots. They also feature two power inputs for redundancy and relay function for alarm handling, furthermore, two friendly front accessible HDD/ SSD bays to support RAID 0/1. Two Gigabit LANs support teaming function with fault tolerance, link aggregation and load balance features. The built-in intelligent BIOS to diagnose system status immediately via relay function or LED indication.

Features:

Onboard Intel Core i7-3555LE/i7-2655LE/Celeron 847E/807UE, 2.2GHz/1.1GHz/1.0GHz
2 x RS-232/422/485 ports with automatic flow control and 2 x RS-232 pin head reserved
2 x 10/100/1000Base-T Ethernet
DVI-I, HDMI support 2 x independent displays
Audio with Mic in, Line out
9 x USB ports (1 x internal USB for dongle and flash drive)
Windows® WES 2009, WES 7/8 ready solution
Dual power input for power redundancy
Onboard system diagnosis LED indicators
Supports wake on LAN and boot from LAN function
Isolation between chassis and power ground
Front accessible dual HDD/SSD with onboard RAID 0/1 support

Data sheet on UNO-3073G (pdf file, opens in new tab)

UNO-3075G – Wallmount Embedded Automation Box PC

Intel Core i7/Celeron 800 series Automation Computers with 3 PCI(e) expansion slots, 2 Mini PCIe slots and 2 CFast sockets

Click here to show/ hide more info

UNO-3075G

Features:

Onboard Intel Core i7-3555LE/i7-2655LE/Celeron 847E/807UE, 2.2GHz/1.1GHz/1.0GHz
2 x RS-232/422/485 ports with automatic flow control and 2 x RS-232 pin head reserved
2 x 10/100/1000Base-T Ethernet
DVI-I, HDMI support 2 x independent displays
Audio with Mic in, Line out
9 x USB ports (1 x internal USB for dongle and flash drive)
Windows® WES 2009, WES 7 ready solution
Dual power input for power redundancy
Onboard system diagnosis LED indicators
Supports wake on LAN and boot from LAN function
Isolation between chassis and power ground
Front accessible dual HDD/SSD with onboard RAID 0/1 support

Data sheet on UNO-3075G (pdf file, opens in new tab)

UNO-3083G – Wallmount Embedded Automation Box PC

Intel Core i7/Celeron 800 series Automation Computers with 3/5 PCI(e) expansion slots, 2 Mini PCIe slots and 2 CFast sockets

Click here to show/ hide more info

UNO-3083G

Features:

Onboard Intel Core i7-3555LE/i7-2655LE/Celeron 847E/807UE, 2.2GHz/1.1GHz/1.0GHz
2 x RS-232/422/485 ports with automatic flow control and 2 x RS-232 pin head reserved
2 x 10/100/1000Base-T Ethernet
DVI-I, HDMI support 2 x independent displays
Audio with Mic in, Line out
9 x USB ports (1 x internal USB for dongle and flash drive)
Windows XP, Windows7/8/10, WES7, WES-2009, Linux
Dual power input for power redundancy
Onboard system diagnosis LED indicators
Supports wake on LAN and boot from LAN function
Isolation between chassis and power ground
Front accessible dual HDD/SSD with onboard RAID 0/1 support

Data sheet on UNO-3083G (pdf file, opens in new tab)

UNO-3085G – Wallmount Embedded Automation Box PC

Intel Core i7/Celeron 800 series Automation Computers with 3/5 PCI(e) expansion slots, 2 Mini PCIe slots and 2 CFast sockets

Click here to show/ hide more info

UNO-3085G

Features:

Onboard Intel Core i7-3555LE/i7-2655LE/Celeron 847E/807UE, 2.2GHz/1.1GHz/1.0GHz
2 x RS-232/422/485 ports with automatic flow control and 2 x RS-232 pin head reserved
2 x 10/100/1000Base-T Ethernet
DVI-I, HDMI support 2 x independent displays
Audio with Mic in, Line out
9 x USB ports (1 x internal USB for dongle and flash drive)
Windows XP, Windows7/8/10, WES7, WES-2009, Linux
Dual power input for power redundancy
Onboard system diagnosis LED indicators
Supports wake on LAN and boot from LAN function
Isolation between chassis and power ground
Front accessible dual HDD/SSD with onboard RAID 0/1 support

Data sheet on UNO-3085G (pdf file, opens in new tab)

Rackmountable Automation Computers for Power Substations: UNO-4000 Series

The fanless, high computing power rack mount computers series containing isolated serial communication and multiple Ethernet ports that provide users with more reliability for various applications. It is a rack mount computer that enhance the effectiveness of power transmission and substation automation.

UNO-4671A – Rackmountable Automation Computers

Intel® Atom™ D510/D525 Power & Energy Automation Computers with 6 x LAN, 10 x COM, and 1 x PCI-104

Click here to show/ hide more info

UNO-4671A

UNO-4671A is compliant with Electricity Certificate IV level (especially for China) and IEC 61850-3 certification, which defines the international standards of network and system communications in power substations. Featuring a fanless design with low power consumption and high performance Intel Atom D510/D525 processor, the UNO-4671A comes with 10 isolated serial ports, 6 x LAN, 4 x USB (Internal) and 1 x PCI-104 extension. With rich OS and driver support, such as WES 2009, Windows XP, Windows CE 6.0, WES7 and Linux, users can integrate applications easily with a platform that can provide versatile functions to fulfill diverse requirements.

Features:

IEC 61850-3 and IEEE 1613 compliant for Power & Energy automation applications
China Electricity Certificate IV level
Onboard Intel Atom D510 1.66GHz/D525 1.8 GHz processor
Supports wide range and dual power input
2 x RS-232 isolated ports, 4 x RS-422/485 isolated ports and 4 x RS-485 isolated ports
6 x 10/100Base-T RJ-45 connector/2 x 10/100/1000Base-T and 4 x 10/100Base-T RJ-45 connector
Supports 1 x internal CF card and 1 x 2.5″ SATA HDD
Fanless design
WES 2009, Windows XP, Windows CE 6.0, WES7 and Linux ready solution

Data sheet on UNO-4671A (pdf file, opens in new tab)

UNO-4673A – Rackmountable Automation Computers

Intel® Atom™ Automation Computers with 6 x LAN, 2 x COM and 3 x Expansion Slots

Click here to show/ hide more info

UNO-4673A

UNO-4673A and UNO-4683 are compliant with the hardware requirements of IEC 61850-3, which defines the international standards of network and system communications in power substations. Featuring fanless designs with built-in isolated PSU and 3 expansion slots for I/O plug-in cards, UNO-4673A and UNO-4683 are suitable for harsh environment applications. The rear I/O connection and LEDs on front panel for all ports and modes highly simplify monitoring for operation and maintenance.

Features:

IEC 61850-3 and IEEE 1613 compliant for substation automation applications
Onboard Intel Atom 1.66 GHz processor
2 x RS-232/422/485 isolated serial ports with automatic flow control and 128KB FIFO
2 x 10/100/1000 Base-T (supports teaming function) and 4 x 10/100 Base-T
Supports 1 x internal CF card and 1 x 2.5″ SATA HDD
x USB 2.0 (1 x internal) and 3 x Domain I/O expansions
Rear wiring, rich system & I/O LED status indicators
Windows® CE 6.0, Windows XP Embedded SP2, and Linux ready solution
Fanless design with no internal cabling
Isolation power design with wide AC / DC input range
Isolation between chassis and power ground
One internal USB for dongle and flash drive
Redundant power supplier for system power backup

Data sheet on UNO-4673A (pdf file, opens in new tab)

UNO-4678 – Rackmountable Automation Computers

Intel Celeron M Automation Computer with 3 x LAN, 8 x COM, PC/104

Click here to show/ hide more info

UNO-4678

UNO-4678 is high-performance Fanless Box PC, which supports a Celeron M 1 GHz CPU, and equipped with eight isolated serial communication ports. They inherit the glory from the UNO family and includes the typical characteristics as it is fanless, robust, and reliable. Furthermore, in order to meet the diverse applications in industrial automation and control, varied interfaces and 1U form factor are suitable for use, especially for rack mounting. Also, LEDs for all ports and modes on the front panel simplify the monitoring status for operation, administration and maintenance. UNO-4678 is convenient and user-friendly platforms to fulfill a wide range of requirements.

Features:

Onboard Celeron® M 1 GHz processor and supports 512 MB Memory
Supports Lm sensor which can retrieve CPU and board temperature for monitoring purposes
8 x isolated RS-232/422/485 ports with automatic flow control
3 x 10/100Base-T RJ-45 ports
Supports two USB and 1 x type I/II CF card
Windows® CE 5.0 and Windows XP Embedded ready solution
Windows 2000/XP driver ready and Linux driver support
Windows XP Embedded (SP2) ready platform with write protection (EWF)
Onboard system & I/O LED indicators
Fanless and no internal cabling design

Data sheet on UNO-4678 (pdf file, opens in new tab)

UNO-4683 – Rackmountable Automation Computers

Intel® Core™ i7 Automation Computers with 6 x LAN, 2 x COM and 3 x Expansion Slots

Click here to show/ hide more info

UNO-4683

Features:

IEC 61850-3 and IEEE 1613 compliant for substation automation applications
Onboard Intel Core i7 2.0 GHz processor
2 x RS-232/422/485 isolated serial ports with automatic flow control and 128KB FIFO
2 x 10/100/1000 Base-T (supports teaming function) and 4 x 10/100 Base-T
Supports 1 x internal CF card and 1 x 2.5″ SATA HDD
x USB 2.0 (1 x internal) and 3 x Domain I/O expansions
Rear wiring, rich system & I/O LED status indicators
Windows® CE 6.0, Windows XP Embedded SP2, and Linux ready solution
Fanless design with no internal cabling
Isolation power design with wide AC / DC input range
Isolation between chassis and power ground
One internal USB for dongle and flash drive
Optional Dual power supplier for system power backup

Data sheet on UNO-4683 (pdf file, opens in new tab)

iBase Fanless Embedded PC’s – Industrial

ERS800-D16 Designed for Waterproof Application w/ IBASE ECX800 ECX SBC

Waterproof system for IBASE ECX800E-D16 SBC with onboard Intel® Core™ Duo Processor L2400, 1.66GHz

Click here to show/ hide more info

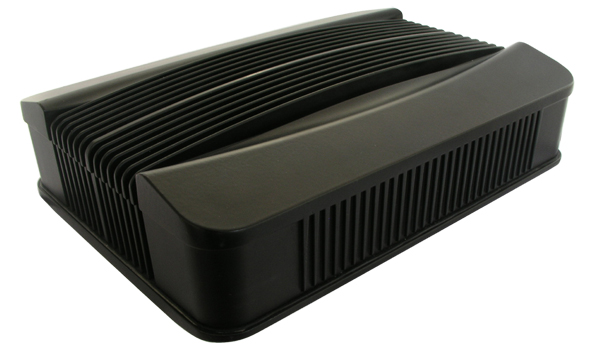

ERS800-600

Features:

Waterproof system for IBASE ECX800E-D16 SBC
Onboard Intel® Core™ Duo Processor L2400, 1.66GHz
Available in black color
Fanless operation
Supports 4GB compact flash
IP67 waterproof standard

Speifications:

System Mainboard	ECX800E-16
CPU Type	Intel® Core™ Duo Processor L2400
System Speed	1.66GHz
Memory	1x 512 DDRII 667 SO-DIMM, Max. 2GB
Construction	Aluminum
Chassis Color	Black
Rear Panel External I/O (via external cable)	1 x VGA, 2 x USB Ports, 1 x LAN, 1 x DC-in Power LED, HDD LED, Power on/off button
Storage	4GB Compact Flash
Dimensions	200mm (W)x 67mm(H) x 273mm(D)
Power Supply	Input Voltage: 100~240VAC Output Power: 12VDC, 80W
Operating Temperature	0°C~ 45°C (32°F~113°F)
Storage Temperature	-20° ~ 80°C
Relative Humidity	5~90% @ 45°C, (non-condensing)
Vibration	CFD: 8 grms / 5~500Hz / random operation
Waterproof Rate	IP67 Standard (1M within 30 min.)

AMS100-807 Fanless System

Intel® Atom™ Processor D2550-Based Fanless System

Click here to show/ hide more info

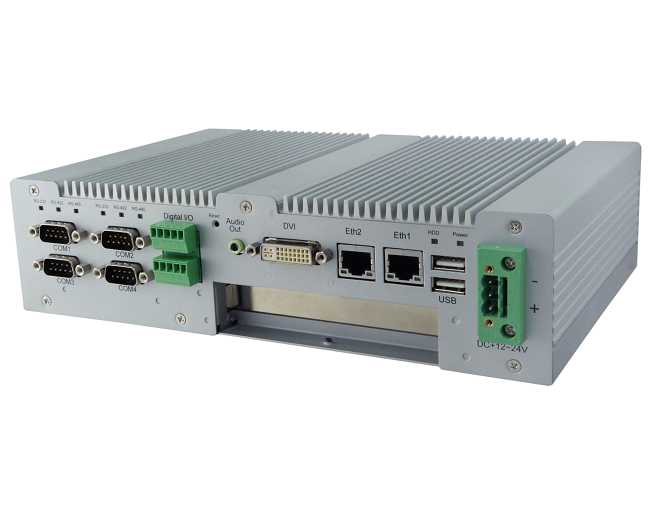

AMS100-807

The AMS100-807 is a fanless embedded system featuring the Intel™ Atom™ Processor D2550 and Intel™ NM10 chipset. This platform along with the Atom™ D2550 1.86GHz processor that has two CPU cores, 1MB L2 cache, and manufactured on 32nm process, allows higher performance and lower power consumption. Both Hyper-Threading technology and higher clocked on-chip graphics controller are supported. The on-die graphics core supports two display interfaces including a DVI-I and a 24-bit single channel LVDS connection.

The AMS100-807 supplies a rich selection of I/O and expansion capabilities that include up to eight serial ports, four USB 2.0 ports, a CFast socket, a 2.5-inch SSD drive bay, and one PCI or PCI-E expansion slot. Networking functionality comes in the form of two Gigabit Ethernet ports. The system’s serial and networking interface make it a good communication platform especially for industrial automation applications.

The standard configuration of the AMS100-807 has four serial ports, while the four additional ports are optional with the PK1-20B expansion cable. The RS-232/422/485 function is preset in the BIOS. The AMS100-807 can accept a +12V to +24V power via a 3-pin terminal block or power jack. The slim unit has dimensions of 250mm by 64mm by 162mm.

Features:

Onboard Intel® Atom™ Processor D2550, 1.86 GHz
Front access expansion slot opening
RS-232 / 422 / 485 function preset with BIOS
+12V ~ +24V with 3-pin terminal block or cylindrical DC input
1x CFast, 1x Mini PCI-E, 6x USB 2.0, 2x GbE ports
1x 2.5” HDD drive bay

Speifications:

CPU Type	Intel® Atom™ Processor D2550 1.86 GHz, 1MB Cache
Chipset	Intel® NM10 PCH
Memory	1x DDR3 non-ECC SODIMM, 800 MHz~1033 MHz, up to 4GB
Network	2x Realtek 8111E-VL GbE controller
Storage	1x 2.5” HDD drive bay, 1x CFast socket
Expansion Slots	1x PCI or 1x PCI -E(x16) (x1 signal) 1x Mini PCI-E
USB	2x USB 2.0 ports on front panel 6x USB 2.0 ports on rear panel (AMS100-807-GT) 4x USB ports on rear panel (AMS100-807-PCI / PCIE)
Serial I/O	COM1~6 COM7~8 (optional)
VGA	CPU built-in graphics core 1x DVI-I, 1x 24-bit single channel LVDS
LED	Power / HDD activity RS232 / RS422 / RS485 indicator
Power Supply	+12V~+24V DC-In terminal block
Certification	CE, FCC, CCC, KTI-CB
System Dimensions	250mm(W) x 64mm(H) x 162mm(D)
System Operating Temperature	0°C~ 45°C (32°F~113°F)
System Storage Temperature	-20° ~ 70°C (-4°F~158°F)
System Relative Humidity	5~95% @ 45°C, (non-condensing)

Ordering Guide:

AMS100-807-PCI-M	Fanless system, NM10+D2550 1.86 GHz, Dual GbE LAN, PCI slot, barebone
AMS100-807-PCIE-M	Fanless system, NM10+D2550 1.86 GHz, Dual GbE LAN, PCI-E slot, barebone
AMS100-807-GT	Fanless system, NM10+D2550 1.86 GHz, Dual GbE LAN, PCI slot, Power switch, barebone
Power Adaptor	60 watts DC +12V, bare wire for terminal block connector
IB807	Intel® Atom™ D2550, NM10, Realtek 2x GbE, CFast socket, Mini PCI-E, +12V ~ +24V DC Input
IP807	PCI riser card for IB807
IP808	PCI-E riser card for IB807

Data sheet on AMS100-807 (pdf file, opens in new tab)

AMS300 Fanless System

Expandable Fanless & Compact System for 7th/6th Generation Intel® Core™ i7/i5/i3 Desktop Processors

Click here to show/ hide more info

AMS300

Expandable Fanless & Compact System for 7th/6th Generation Intel® Core™ i7/i5/i3 Desktop Processors.

Features:

Compact Fanless system by for IBASE MB300 customized board
Supports 7th/6th Generation Intel® Core™ i7/i5/i3 processors
2MB MRAM module (optional)
Front removable drive bay for HDD/SSD (supports RAID 0/1)
Over/Under/Reverse voltage protection
iSMART, iAMT (11.6)

Data sheet on AMS300 (pdf file, opens in new tab)

AMS301 Fanless System

Expandable Fanless & Compact System for 7th/6th Generation Intel® Core™ i7/i5/i3 Desktop Processors

Click here to show/ hide more info

AMS301

Expandable Fanless & Compact System for 7th/6th Generation Intel® Core™ i7/i5/i3 Desktop Processors

Features:

Compact Fanless system by for IBASE MB300 customized board
Supports 7th/6th Generation Intel® Core™ i7/i5/i3 processors
2MB MRAM module (optional)
Front removable drive bay for HDD/SSD (supports RAID 0/1)
Supports different types of Fieldbus through expansion slot
Over/Under/Reverse voltage protection
Wall mount & DIN rail mount compatibility
iSMART, iAMT (11.6)

Data sheet on AMS301 (pdf file, opens in new tab)

AMS302 Fanless System

Expandable Fanless & Compact System for 7th/6th Generation Intel® Core™ i7/i5/i3 Desktop Processors

Click here to show/ hide more info

AMS302

Expandable Fanless & Compact System for 7th/6th Generation Intel® Core™ i7/i5/i3 Desktop Processors

Features:

Compact Fanless system by for IBASE MB300 customized board
Supports 7th/6th Generation Intel® Core™ i7/i5/i3 processors
2MB MRAM module (optional)
Front removable drive bay for HDD/SSD (supports RAID 0/1)
1x PCI-E(x8) + 1x PCI-E(x4) expansion slot
Over/Under/Reverse voltage protection
Wall mount & Din rail mount compatibility
iSMART, iAMT (11.6)

Data sheet on AMS302 (pdf file, opens in new tab)

Obsolete Products

TBOX-11600 Series – Extra small fanless box PC’s

TBOX- 12600 Series – Fanless Box PC’s – High Performance

TBOX- 12700 Series – Fanless Box PC’s – High Performance

TBOX- 13600/13700 Series – Fanless Box PC’s with 4x PoE LAN ports, High Performance
