Mini PC's - Industrial

Industrial Mini PC's - Suitable for 24x7 operation, POS, control rooms etc

Mini PC’s – Industrial Grade

Industrial Mini PC’s are small, rugged computers that are designed to last for years while operating reliably 24x7. These metal cased compact PC’s can be used for many different applications, including inside public kiosks, point of sale (POS), and in control rooms. Models with and without cooling fans are available. Choose from the low power Atom CPU all the way up to Core i7.

Looking for Fanless PC’s? Click here

Too many models to choose from? Give us a call and we’ll help you find the right mini PC for your application.

What’s the difference between Industrial Grade mini PC’s and normal SFF (small form factor) mini PCs?

  • Wide temperature rating – most of these PC’s are rated to 60°C or higher ambient temperature. This makes them suitable for use in vehicles, outdoor enclosures, factories, etc.
  • Extra reliability testing – designed for 24x7 operation
  • Rugged metal casings and high quality componentry
  • Shock and vibration ratings on most models, to suit vehicles and boats
  • Many models are fanless (see our Fanless PC’s page) – no dust build-up and no moving parts, for maximum reliability and minimum maintenance.
  • Long product lifecycle – these products stay on the market for years and years, so you can design your system around them without worrying about obsolescence.
  • DC powered, usually connected by locking connectors or screw terminals.
  • Industrial connectivity – multiple serial RS-232 and RS-485 ports, Ethernet, general purpose I/O terminals, expansion boards, etc.
Understanding the terminology

LTSP = Linux Terminal Server Project
CPU Chip Information (Toms Hardware Guide)

Thin client definition: A user’s computer or terminal that processes only keyboard input and screen output and functions like an input/output terminal, and performs no application processing.

Information about the various Intel Processors: click here (Intel website)
Information about DDR & DDR2 SDRAM information (end of this page)

CPU Benchmarks: click here

Atom processor info:
Intel Atom
Intel Atom Microprocessors

MiniPCI was added to PCI version 2.2 for use in laptops. The standard size for Mini PCI cards is approximately a quarter of their full-sized counterparts. There is no access to the card from outside the case, (unlike desktop PCI cards with brackets carrying connectors).

PCIe: PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCIe, is a high-speed serial computer expansion bus standard designed to replace the older PCI, PCI-X, and AGP bus standards. See http://en.wikipedia.org/wiki/PCI_Express

Mini PCIe or Mini PCI Express card is a replacement for the Mini PCI form factor, based on PCI Express. The host device supports both PCI Express and USB 2.0 connectivity, and each card may use either standard. Most laptop computers built after 2005 are based on PCI Express and can have several Mini PCIe Card slots. Dimensions 30×50.95 mm.

PC/104: The PC/104 computer bus (first released in 1992) utilizes 104 pins. These pins include all the normal lines used in the ISA bus

PC/104-Plus: The PC/104-Plus adds support for the PCI bus, in addition to the ISA bus of the PC/104 standard

PCI-104: The PCI-104 form factor includes the PCI connector, but not the ISA connector

Commell Embedded Box PCs – Compact PCs – Fanless Mini PC – Fanless PC

Note: Fanless models are also available, see our Fanless PC page

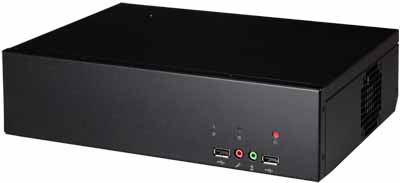

CMB-67 series Mini-ITX PC


Mini-ITX compact PC (with fan) supports Intel® Core™ i7/ i5/i3 processor, with PCIe expansion slot, AC powered.

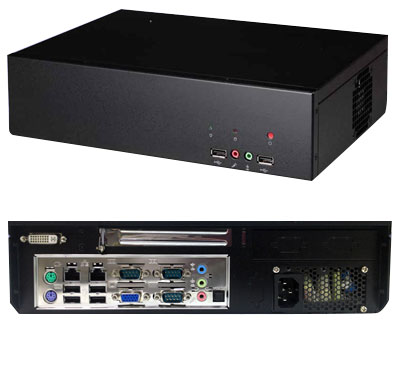

CMB-67H01
Click here to show/ hide more info

CMB-67H01

The product is a high-performance Mini-ITX barebone systems which support Intel® Core™ i7/i5/i3 processor , and comes with 1 x PCI-Express X16 slot & 2 x Mini-PCIe expansion slots to allow customer to add Mini-PCIe cards without modify case, Such as Ethernet, serial port, IEEE 1394, Wifi card. suitable for industrial application like industrial control and automation, retail, gaming, print imaging

Specification:

Form Factor Mini barebone system
Construction Heavy-Duty steel
Mini-ITX Board / CPU

 Inside Motherboard : LV-67HTXD

Support CPU : 2nd generation Intel® Core™ i7/i5/i3 mobile processor

——————————————————————————————————-

Inside Motherboard : LV-67G

Support CPU : 2nd generation Intel® Core™  i7/i5/i3 desktop processor

——————————————————————————————————-

Inside Motherboard : LV-67K

Support CPU : 3rd generation Intel® Core™ i7/i5/i3 mobile processor

——————————————————————————————————-

Inside Motherboard : LV-67J

Support CPU : 3rd generation Intel® Core™  i7/i5/i3 desktop processor

Drive Bay

 1 x internal 3.5” HDD or 2 x internal 2.5” HDD space or

2 x external 2.5” HDD space by drive cage

Extensive slot 1 x PCI-Express X16 slot , 2 x Mini-PCIe sockets
Thermal Control 1 x  6 cm system cooling Fan
Front Panel

 Power On / Off switch

LED for Power On/Off and HDD activity

2 x USB ports

Mic-in / Ear phone

Rear Side I/O

 1 x PS/2 Keyboard/Mouse

1 x VGA

1 x DVI

1 x RS232/422/485 + 2 x RS232

4 x USB 2.0 CMB-67H CMB-67G

( or 4 x USB 3.0 CMB-67K CMB-67J )

2 x RJ-45 Intel® Giga LAN

2 x cutout for DB9 COM port ( Can’t be used when use 3.5″ HDD or

external 2.5″ HDD )

1 x cutout for antenna

Environment Operating Temperature: 0 ~ 40ºC
Power supply 250 watt power supply
Dimension 300 x 220 x 80 mm

Ordering Guide:

CMB-67H-01 Barebone with LV-67HTXD CPU Fan, 250W power supply & PCIe riser card
Processor Intel® Core™  i7-2710QE / i5-2510E / i3-2330E mobile processor
Memory  DDR3 1066/1333/1600 SO-DIMM for 1.0GB / 2.0 GB / 4.0 / 8.0 GB
CMB-67G-01 Barebone with LV-67G, CPU Fan, 250W power supply & PCIe riser card
Processor Intel® Core™  i7-2600 / i5-2400 / i3-2120 mobile processor
Memory  DDR3 1066/1333 for 1.0GB / 2.0 GB / 4.0 / 8.0 GB
CMB-67K-01 Barebone with LV-67K CPU Fan, 250W power supply & PCIe riser card
CMB-67J-01 Barebone with LV-67J CPU Fan, 250W power supply & PCIe riser card

Data sheet on CMB-67G-01 (pdf file, opens in new tab)

Data sheet on CMB-67H-01 (pdf file, opens in new tab)

CMB-67 Series Mini-ITX i7/i5/i3 System


Mini-ITX compact PC (with fan) supports Intel® Core™ i7/ i5/i3 Mobile processor, DVD drive bay

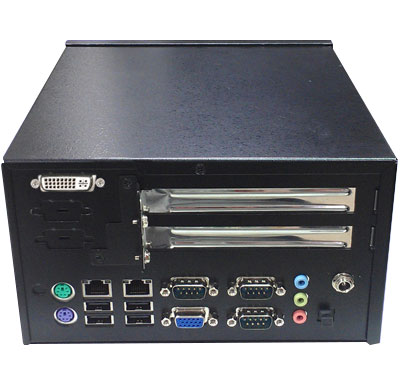

CMB-67H02
Click here to show/ hide more info

CMB-67H02

COMMELL’s CMB-67H-02/CMB-67K-02 is a high-performance Mini-ITX barebone systems which support 2nd or 3rd generation Intel® Core™ i7/i5/i3 Mobile processor in PGA 988B, CMB-67H-02/CMB-67K-02 comes with 2 x Mini-PCIe expansion slots to allow customer to add Mini-PCIe cards without modify case, Such as Ethernet, serial port, IEEE 1394, Wifi card. CMB-67H-02/CMB-67K-02 is suitable for industrial application like industrial control and automation, retail, gaming, print imaging

Specification:

Form Factor Mini barebone system
Construction Heavy-Duty steel
Mini-ITX Board / CPU

 Inside Motherboard : LV-67HTXD

Support CPU : 2nd generation Intel® Core™  i7/i5/i3 mobile processor

——————————————————————————————————-

Inside Motherboard : LV-67K

Support CPU : 3rd generation Intel® Core™  i7/i5/i3 mobile processor

Drive Bay

 External 1 x Slim CD-ROM Space

Internal  1 x 2.5″ HDD space

Extensive slot 2 x Mini-PCIe sockets
Thermal Control 1 x  6 cm system cooling Fan
Front Panel

 Power On / Off switch

Reset switch

LED for Power On/Off and HDD activity

2 x USB ports

Mic-in / Ear phone

Rear Side I/O

 PS/2 Keyboard/Mouse

2.1 ch Audio

1 x VGA

1 x DVI

1 x SPDIF

1 x RS232/422/485 + 2 x RS232

4 x USB 2.0 /CMB-67H-02

(4 x USB 3.0 /CMB-67K-02)

2 x RJ-45 Intel® Giga LAN

2 x cutout for DB9 COM port

Environment Operating Temperature: 0 ~ 40ºC
Power supply19V/ 120W adapter
Dimension199 x 189 x 110 mm

Ordering Guide:

CMB-67H-02 Barebone with LV-67HTXD, CPU Fan, 120W adapter
Processor Intel® Core™  i7-2710QE / i5-2510E / i3-2330E mobile processor
Memory  DDR3 1066/1333/1600 SO-DIMM for 1.0GB / 2.0 GB / 4.0 / 8.0 GB
CMB-67K-02 Barebone with LV-67K, CPU Fan, 120W adapter

Data sheet on CMB-67H-02 (pdf file, opens in new tab)

CMB-574 / CMB-576 Mini PC with i7/i5 CPU and 6x LAN


Metal cased mini PC (with fan), 5.25″ Drive Bay size, with 2nd/3rd gen Core™ i7 / i5 / i3 Mobile processor, 6x Gigabit LAN, 6 x COM, DC 9V ~ 24V powered
CMB-574
Click here to show/ hide more info

CMB-574

COMMELL’s CMB-574 / CMB576 are compact 5.25″ drive-size embedded multiple Ethernet platform based on 2nd or 3rd generation Intel® Core™ i7 / i5 / i3 Mobile processor in PGA 988B, and offering 6 x Intel® 82574L Gigabit Ethernet interfaces for industrial multiple Ethernet applications such as firewall, mainstream IDS/IPS, Anti-virus, VPN gateway and UTM applications.

Specification:

Form Factor5.25″ Barebone
ConstructionHeavy-duty Steel
5.25″ SBC

Inside Motherboard can be :

LS-574TXD : Support 2nd generation Intel® Core™ i7 / i5 / i3 Mobile

processor in PGA 988B

——————————————————————————————————

LS-576TXD : Support 3rd generation Intel® Core™ i7 / i5 / i3 Mobile

processor in PGA 988B

Memory2 x DDR3 1066/1333/1600 SO-DIMM up to 16 GB
Drive Bay1 x 2.5″ HDD Space
Riser cardNo
Thermal Control1 x System Fan
Front PanelPower On/Off , reset and HDD activity LED

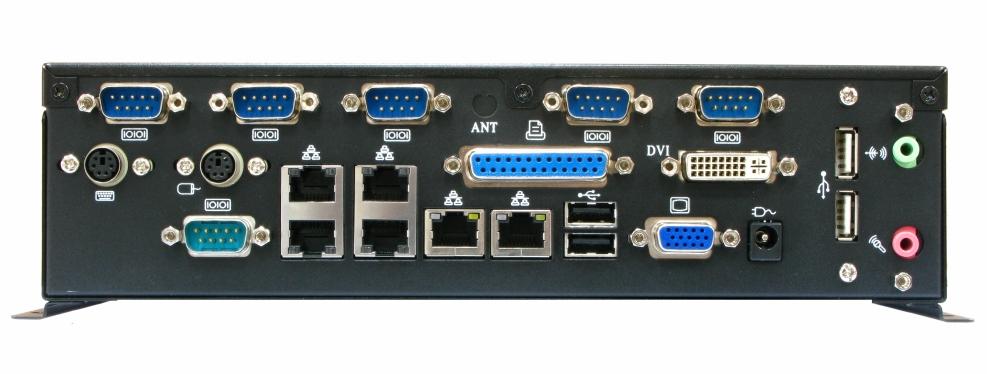

Rear Side I/O

6 x RJ45 LAN, 1 x DC input, 4 x USB, 1 x VGA, 1 x LPT, 1 x Key/Mouse

Line-In / Mic-In / Line-Out, 1 x Antenna, 1 x DVI, 6 x COM

EnvironmentOperating Temperature: 0 ~ 40°C
Power supplyDC 9V ~24V  input ( Ship with 19V/120W adapter )
Dimension250 x 65 x 160 mm (W x H x D)
WeightApprox. 1.75 kg (Without HDD)

Ordering Guide:

CMB-574Barebone with LS-574TXD board (2nd Gen Core), 120W PSU & CPU cooling Fan
CMB-576Barebone with LS-576TXD board (3rd Gen Core), 120W PSU & CPU cooling Fan
Processor2nd (CMB-574) or 3rd (CMB-576) generation Intel® Core™  i7 / i5 / i3 mobile processor
Memory DDR3 1066/1333/1600 SO-DIMM for 1.0GB / 2.0 GB / 4.0 / 8.0 GB
Storage device2.5″ SATA HDD for 160GB , 320GB , 500GB

Data sheet on CMB-574/CMB-576 (pdf file, opens in new tab)

CMB-573BIR Core 2 Duo Mini PC


Core 2 Duo based mini PC for POS and Auto-ID market, metal chassis, notebook style power adapter
CMB-573BIR
Click here to show/ hide more info

CMB-573BIR

Features:

  • Intel® GM45 & ICH9M, high performance
  • Rigid and metal chassis, notebook level power adapter
  • Outstanding system for POS and Auto-ID market

Specification:

CPUSupport Intel® Core 2 Duo (Socket P), FSB 667/800/1066MHz
MemorySupport 2 x 204-pin DDR3-800/1066MHz SO-DIMM up to 8GB
ChipsetIntel® GM45 & ICH9-M
Real Time ClockChipset integrated RTC with onboard lithium battery
Watchdog TimerGenerates a system reset internal timer for 1sec/min ~ 255 sec/min
Power ManagementACPI 1.0 compliant, supports power saving mode
VGA InterfaceIntel® GM45 integrated GMA 4500MHD Technology
Serial ATA Interface4 x Serial ATA Interface with 300 MB/s transfer rate
Audio InterfaceRealtek ALC888 HD Audio
LAN Interface1 x Intel® 82574L Gigabit Ethernet
GPIO InterfaceOnboard programmable 8-bit digital I/O interface
Expansion Interface1 x PCI, 1 x Min-PCI, 1 x PCI Express Mini card
Front I/O Port2 x USB
Rear I/O Port

1 x RJ45 LAN, 1 x DC input, 4 x USB, 1 x VGA, 1 x LPT

1 x Key/Mouse, Line-In / Mic-In / Line-Out, 1 x Antenna

4 x COM (COM1, COM2 support 5V/12V, jumper setting)

Internal I/O Port

1 x ATX 20-pin, 1 x 4-pin CPU fan, 1 x 3-pin system fan, 4 x SATAII, 1 x IrDA,

1 x digital I/O

Power RequirementDC12V input
Dimension250 x 65 x 160 mm
WeightApprox 1.75kgs (w/o HDD)
Operating Temperature0 ~ 40ºC

Ordering Guide:

CMB-573BIR: Barebone with LS-573BIR and SPD-080-12 12V/80W power adaptor

CMB-378 Mini PC system with expansion


Mini PC system (with fan), supports 2nd gen. Core™ i7/ i5/i3 Mobile processor

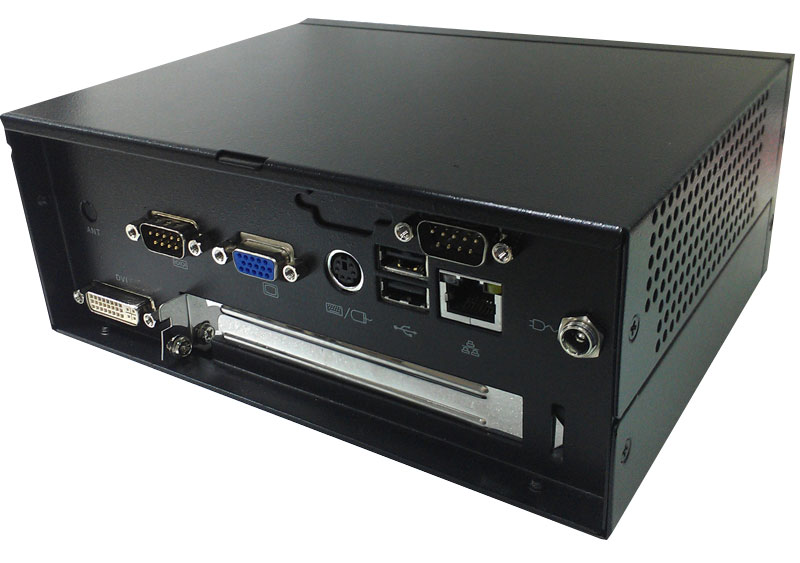

CMB-378
Click here to show/ hide more info

CMB-378

COMMELL’s CMB-378 is a high-performance Mini barebone systems which support 2nd generation Intel® Core™ i7/i5/i3 Mobile processor in PGA 988B, CMB-378 come with 2 x Mini-PCIe expansion slots to allow customer to add Mini-PCIe cards without modify case, Such as Ethernet, serial port, IEEE 1394, Wifi card ….especial in power input source, CMB-378 support DC 9V ~ 24V input, therefore, CMB-378 is suitable for industrial application like industrial control and automation, retail, gaming, print imaging

Specification:

Form Factor Mini barebone system
Construction Heavy-Duty steel
3.5″ board / CPU

 Inside Motherboard : LS-378DXT

Support CPU : 2nd generation Intel® Core™  i7/i5/i3 mobile processor

Memory 1 x DDR3 1066/1333/1600 SO-DIMM support up to 8.0 GB
Drive Bay 1 x internal 2.5″ HDD Space. Shock-resistant
Extensive slot 1 x PCI bracket space for Mini-PCIe daughter board
Thermal Control One 5 cm system cooling Fan
Front Panel

 Power On / Off switch

LED for Power On/Off and HDD activity

2 x USB ports

Mic-in / Ear phone

Rear Side I/O

 1 x PS/2 Keyboard/Mouse

1 x VGA

1 x DVI

2 x COM

2 x USB 2.0

1 x RJ-45 Intel® Giga LAN

1 x DC input

1 x cutout for antenna

Environment Operating Temperature: 0 ~ 40ºC
Power supply 9V ~ 24V DC input  ( Ship with 19V/120W adapter ) )
Dimension 190 x 150 x 75 mm

Ordering Guide:

CMB-378Barebone with LS-378 SBC , 120W PSU & CPU cooling Fan
ProcessorIntel® Core™  i7-2710QE / i5-2510E / i3-2330E mobile processor
Memory DDR3 1066/1333/1600 SO-DIMM for 1.0GB / 2.0 GB / 4.0 / 8.0 GB
Storage device2.5″ SATA HDD for 160GB , 320GB , 500GB

Data sheet on CMB-378 (pdf file, opens in new tab)

CMB-170 Pico-ITX Mini-PC with Atom™ Processor


Tiny metal cased mini PC system (with fan) supports Intel® Atom D525 Dual Core processor

CMB-170
Click here to show/ hide more info

CMB-170

Specification:

Form Factor Bare-bone system for Pico-ITX motherboard
Construction Heavy-Duty steel
Mini-ITX Board / CPU

 Inside Motherboard : LP-170C

Onboard CPU : Intel® Atom™ D525 dual-core processor

Drive Bay Internal  : 1 x 2.5″ HDD Space , 1 x CF card socket
Extensive slot 1 x Mini-PCIe socket for wifi card
Thermal Control One 5 cm system cooling Fan
Front Panel

 Power on switch

LED indicator for Power and HDD activity

Mic-in / Ear phone , 2 x USB

Rear Side I/O

 2 x COM , 2 x USB , 1 x LAN , 1 x VGA , 1 x PS/2 Key/Mouse

1 x DC input , 1 x antenna , 1 x DVI ( Optional )

Environment Operating Temperature: 0 ~ 40ºC
Power supply 12V/ 80W adapter
Dimension 125 x 90 x 80 mm

Ordering Guide:

CMB-170CBarebone with LP-170C motherboard , 12V/80W adapter
ADP-L2DXT LVDS to DVI convert module
MemoryDDR2 667 MHz SO-DIMM for 1.0GB / 2.0 GB / 4.0 GB
Storage device2.5″ SATA HDD or CompactFlash card

Data sheet on CMB-170 (pdf file, opens in new tab)

iBase Embedded Systems

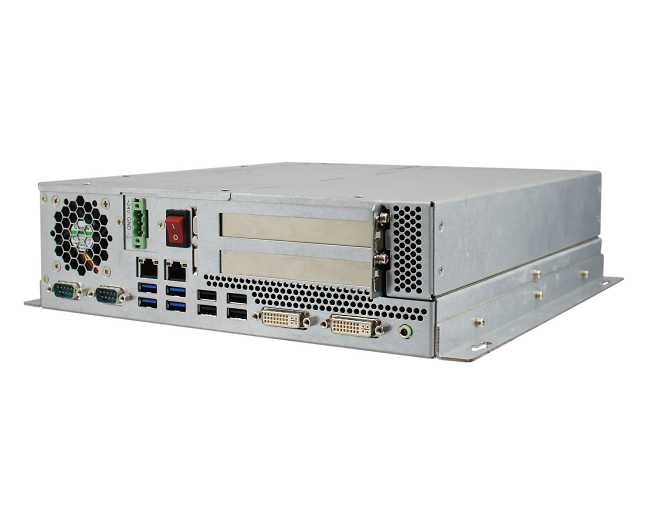

AMS200 Compact Industrial PC


Intel® Celeron® 1020/ 3rd Generation Intel® Core™ i System with Intel® HM76 PCH
AMS200
Click here to show/ hide more info

AMS200

Intel® Celeron® 1020/ 3rd Generation Intel® Core™ i System with Intel® HM76 PCH

Features:

  • Supports Intel® Celeron® 1020E or 3rd Generation Intel® Core™ i processors
  • 2x DDR3 SO-DIMM, Max 16GB
  • Onboard dual Gigabit LAN
  • Optional 2MB battery backup NVRAM (SRAM)
  • 2x expansion slots
  • Dual DVI-I display outputs

Data sheet on AMS200 (pdf file, opens in new tab)

Call Now Button
