Industrial Custom Built PC's , Cases and Racks
Industrial PC's custom built for your needsIndustrial PC’s custom built for your needs
Do you need an Industrial PC built to meet a specific need? Esis specialises in custom building top quality industrial computers, combining hardware from our extensive network of industrial & server hardware manufacturers.
If you want a well engineered, professionally assembled industrial computer that fully meets your requirements, built from quality industrial componentry – give us a call today.
We go to great lengths to make sure we have understood your needs and are providing a system that will work for you. Our engineers are highly qualified and experienced in many industry sectors.
You can also browse our range of fanless embedded PC’s and mini industrial PC’s which may suit your needs.
11 questions to ask yourself before buying an industrial PC
When you need to purchase an industrial PC, it is easy to overlook some of the critical factors surrounding the system and its environment. To allow us to provide you with the most optimal solution, please consider the following questions when asking us for a quotation.
1. How critical is this PC?
In other words, how will it impact you if the PC fails or is inadequate for the task, now and into the future?
2. What work will this PC perform?
e.g. Industrial process control, Workstation, Server, Multimedia production, Digital Signage, Kiosk
3. What environmental conditions will the PC be operated in?
e.g. clean office, server room, dusty factory, corrosive atmosphere, marine deck, marine bridge, vehicle, wash down area, high humidity, etc.
4. What ambient temperature range will it need operate in, and is there any fan forced ventilation to assist the PC with heat dissipation?
Consider the worst case scenario, e.g. outdoors in a weatherproof cabinet it could easily reach 60 degrees C ambient.
5. What type of PC case is required?
e.g. Industrial Box PC (fanless or not), Rackmount PC, Regular tower case, Panel PC (with monitor all-in-one), etc
6. What physical size constraints are there?
ie. maximum depth / width / height, screen size and aspect for panel PC’s.
7. What power supply will be available?
e.g. 240V mains, 12V DC, 24V DC, -48V DC etc
8. What operating system and application software will the PC need to run?
9. What performance specifications are required?
ie. CPU type and speed, how much RAM memory, discrete graphics, etc
10. What are the data storage requirements and capacity?
e.g. Hard drive, SSD, industrial DOM, enterprise grade / mission critical, RAID, DVD burner, floppy drive, etc
11. What special requirements are there?
e.g. ISA slots for legacy cards, serial ports, compatibility, etc.
Commonly requested Industrial PC’s
Although we normally build industrial PC’s to exactly fit each customer’s needs, we have found a few configurations that are commonly requested. These are listed below.

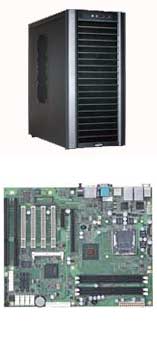

ATX PC’s with ISA slots – Mid-Tower chassis or Rack Mount chassis
Core-2 Quad PC with 1 ISA slot
- Thermaltake 550W or higher power supply with 3 year warranty
- P4ELA Industrial MicroATX Motherboard, LGA775, Q45 chipset, 2x PCIe / 2x PCI / 1xISA, 2x Gb LAN, onboard VGA, 8xUSB2.0, 6xCOM ports
- Intel Core 2 Quad CPU
- 4 x DDR3 800/1066MHz SDRAM up to 8GB
- 1TB SATA HDD, optional Enterprise Grade, or SSD, or DOM (Disk On Module)
- DVD-RW burner
- Optional operating system installed (with genuine licence)
- MS-DOS / Windows XP / Win 7 / Win 8 / Win 10
- All components are new and come with manufacturer warranties
- Fully assembled and tested
- 1 year return-to-base warranty on system (longer on parts)
Core-i5 PC with 1 ISA slot
- Thermaltake 550W or higher power supply with 3 year warranty
- MB960 Industrial ATX Motherboard, LGA1155, Q67 chipset, 2x PCIe, 4x PCI, 1x ISA slots, 2x Gb LAN, onboard dual DVI + HDMI, 10x USB2.0, 2x USB3.0, 4x COM ports
- Intel Core i5 CPU (2nd Gen – Sandy Bridge)
- DDR3 RAM 2GB or more
- 500GB SATA HDD, optional Enterprise Grade, or SSD
- DVD-RW burner
- Optional operating system installed (with genuine licence) – MS-DOS / Windows XP / Win 7 / Win 8
- All components are new and come with manufacturer warranties
- Fully assembled and tested
- 1 year return-to-base warranty on system (longer on parts)

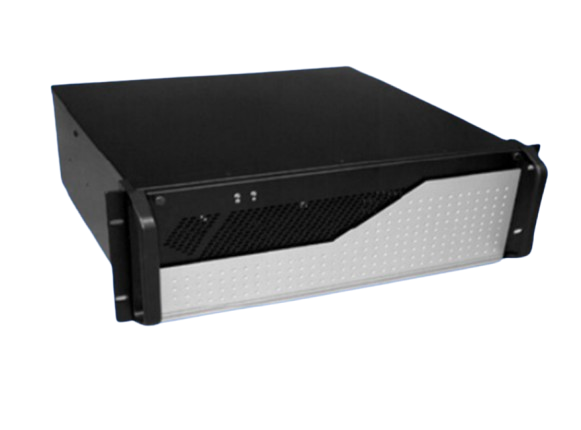

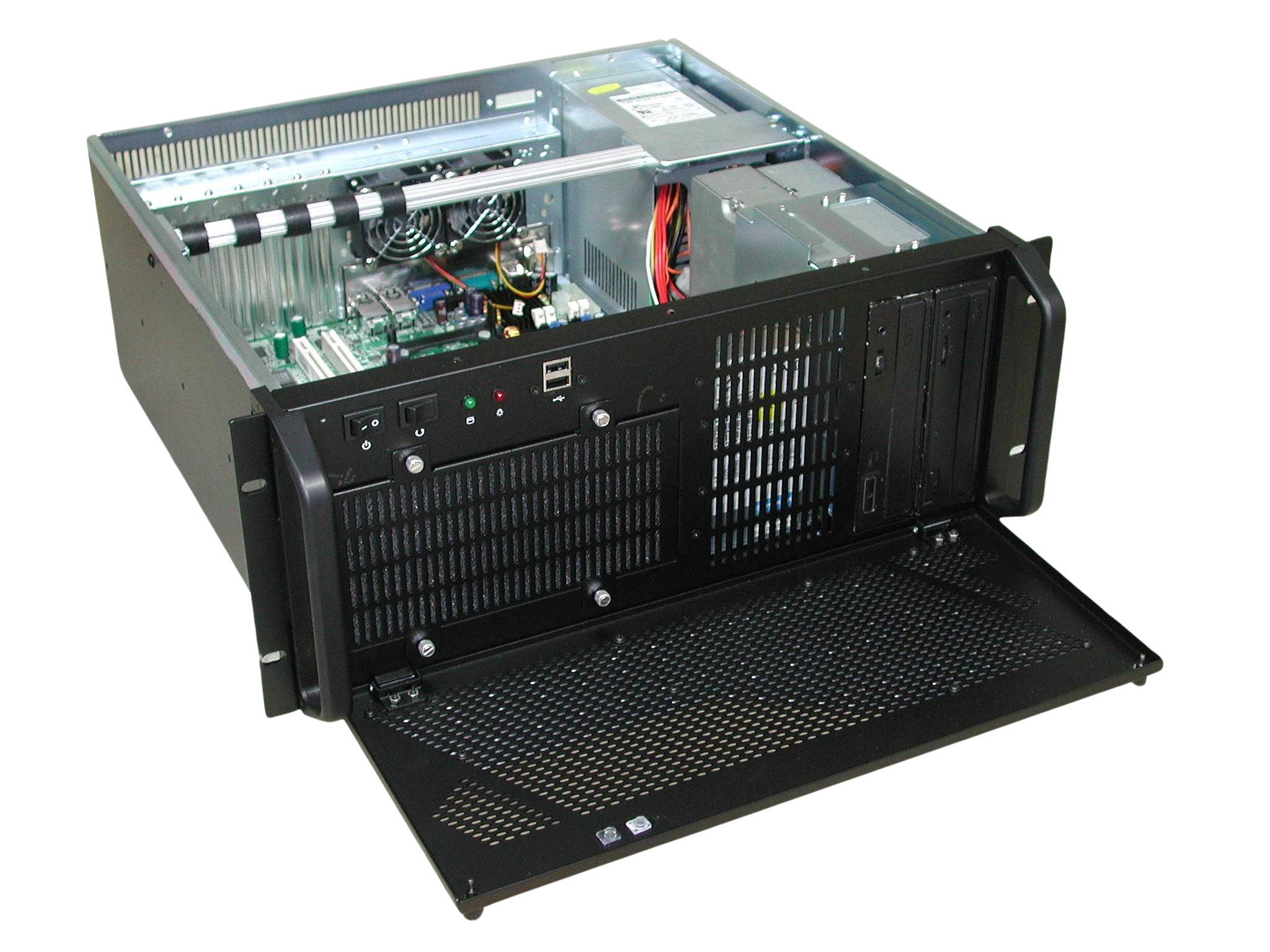

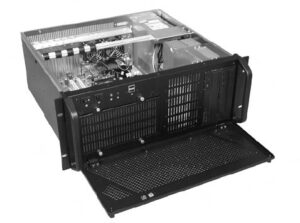

The above systems can also be supplied in Rack Mount chassis, typically 3U or 4U height. Our most popular rack mount chassis are:
| DSPC-422B | 4U chassis with 3 external drive bays, depth 522mm |  |
| IPC-510MB | 4U Industrial Grade chassis with 3 external drive bays, depth 450mm |  |
| APGHI-351 | 3U chassis with 1 external drive bay, depth 400mm |  |
Here are a few clients we’ve built industrial PC’s for
- Electricity utility in Australia – Extra short depth rack mount Xeon-based industrial servers, -48VDC powered, with high end RAID card and removable drives – ongoing supply for electricity substation upgrades
- SunWater, Queensland – Compact, fully industrial grade SCADA PC’s with Core 2 Duo, ISA slot, and RAID array
- RMIT University laboratory – Mid tower PC’s with Core 2 Duo, 2 ISA slots, Windows XP
- Lion Nathan brewery – Took an old, failed industrial PC that controlled the brewery plant, and built a new 4U Rackmount industrial PC to match the specification and provide compatibility with the original I/O cards, and transferred the software from the old PC to the new, and engineered the BIOS and DOS configuration until it worked correctly. New system was integrated and works with the brewery’s existing industrial plant.
- Thales shipboard project for Australian Navy – Short depth rack mount dual Xeon industrial servers with removable drives and remote access via IPMI, for data recording on Navy ships
- Transpacific Waste – Short depth 3U rackmount industrial PC’s with Pentium-4 and ISA slots
- Universal Dye Works – Mid tower Core 2 Duo industrial PC with ISA slot and Windows XP, for control of dye plant
- Sucrogen – Rack mount Core 2 Duo industrial PC’s with ISA slot, RAID
- Screencorp – Rack mount Core 2 Duo industrial PC’s with PCI slots and Windows 7, for controlling transportable large displays
