17” Panel PC’s – CyberVisuell
A robust range of Industrial Grade 17" All In One Panel PC's with CPU's from Celeron to i7Explore CyberVisuell’s robust 17″ Panel PC range, designed for the rigours of industrial use. Our 17″ LCD display ensures clear visuals, backed by a range of efficient Intel processors suitable for all tasks.
Choose between multi-point capacitive touch or dependable 5-wire resistive touch for smooth control. Constructed with durable aluminium-magnesium alloy, these PCs are built to last and can withstand industrial temperature ranges.
Our 17″ PCs feature a fanless design, ideal for dust-free operations. With flexible mounting options like Panel mount and VESA, they fit into any setup. Additionally, Front IP65 protection ensures resistance against dust and moisture. Reliable, rugged, and ready for industry – that’s CyberVisuell’s promise.
On this page:
Other related pages:
Slim Panel PC Models
CyberVisuell’s slim panel PC’s provide maximum mounting versatility: a VESA mounting point allows the monitor to be easily mounted onto a bracket, or the front IP65-rated screen can be mounted into a panel. These models have a reduced number of I/O ports on the rear, due to their slim profile, but still include enough connections to suit the majority of applications.

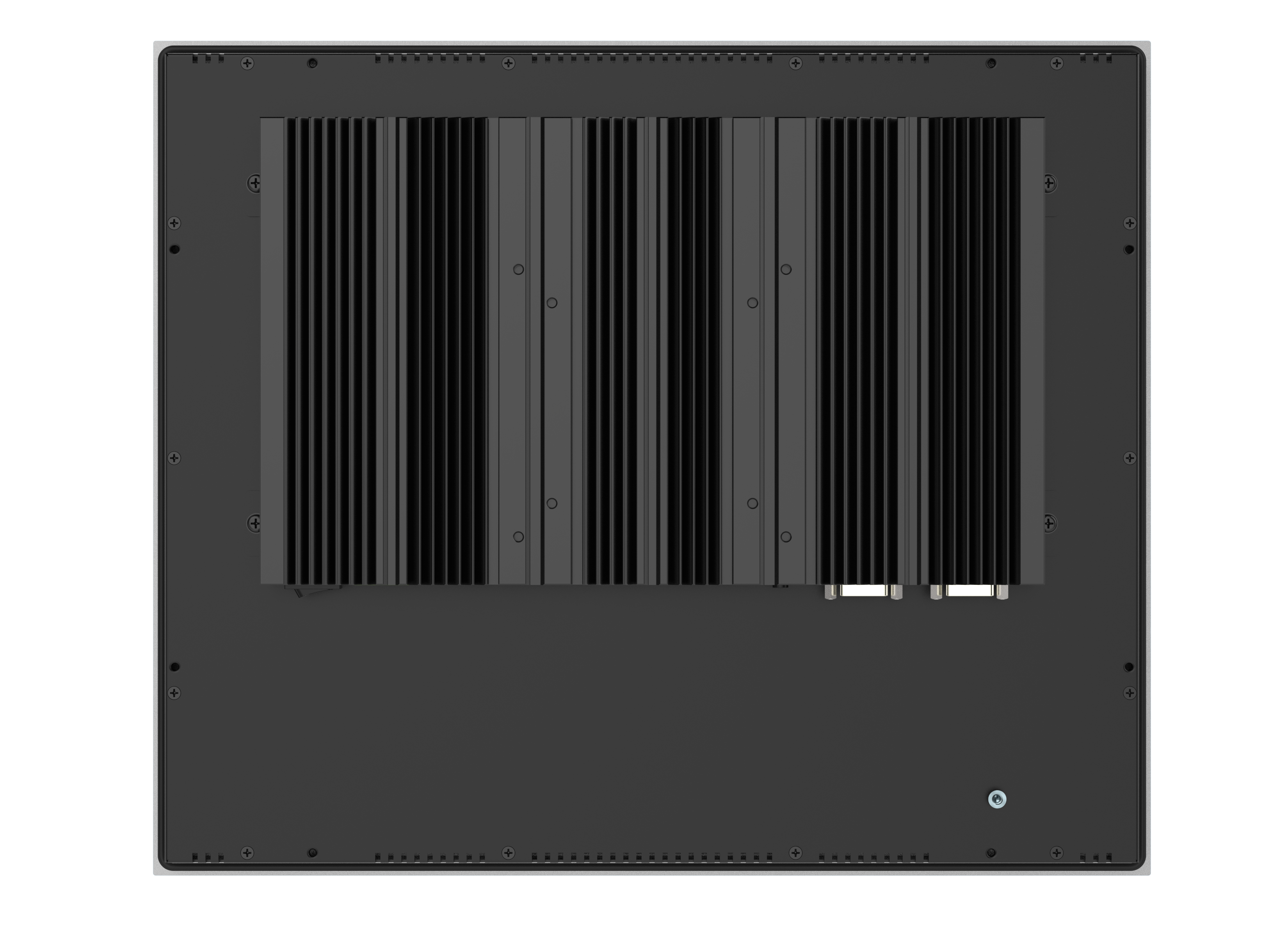

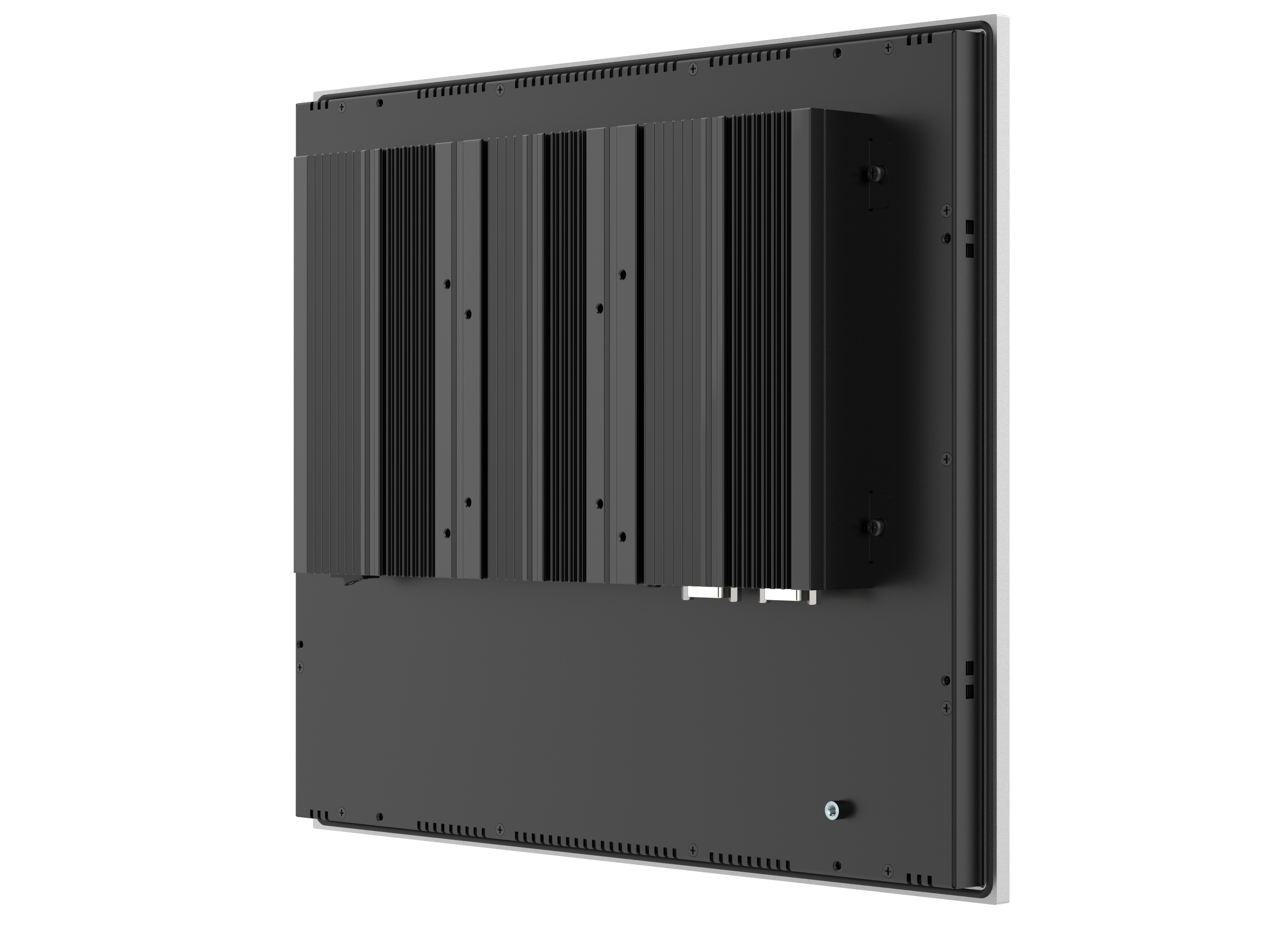

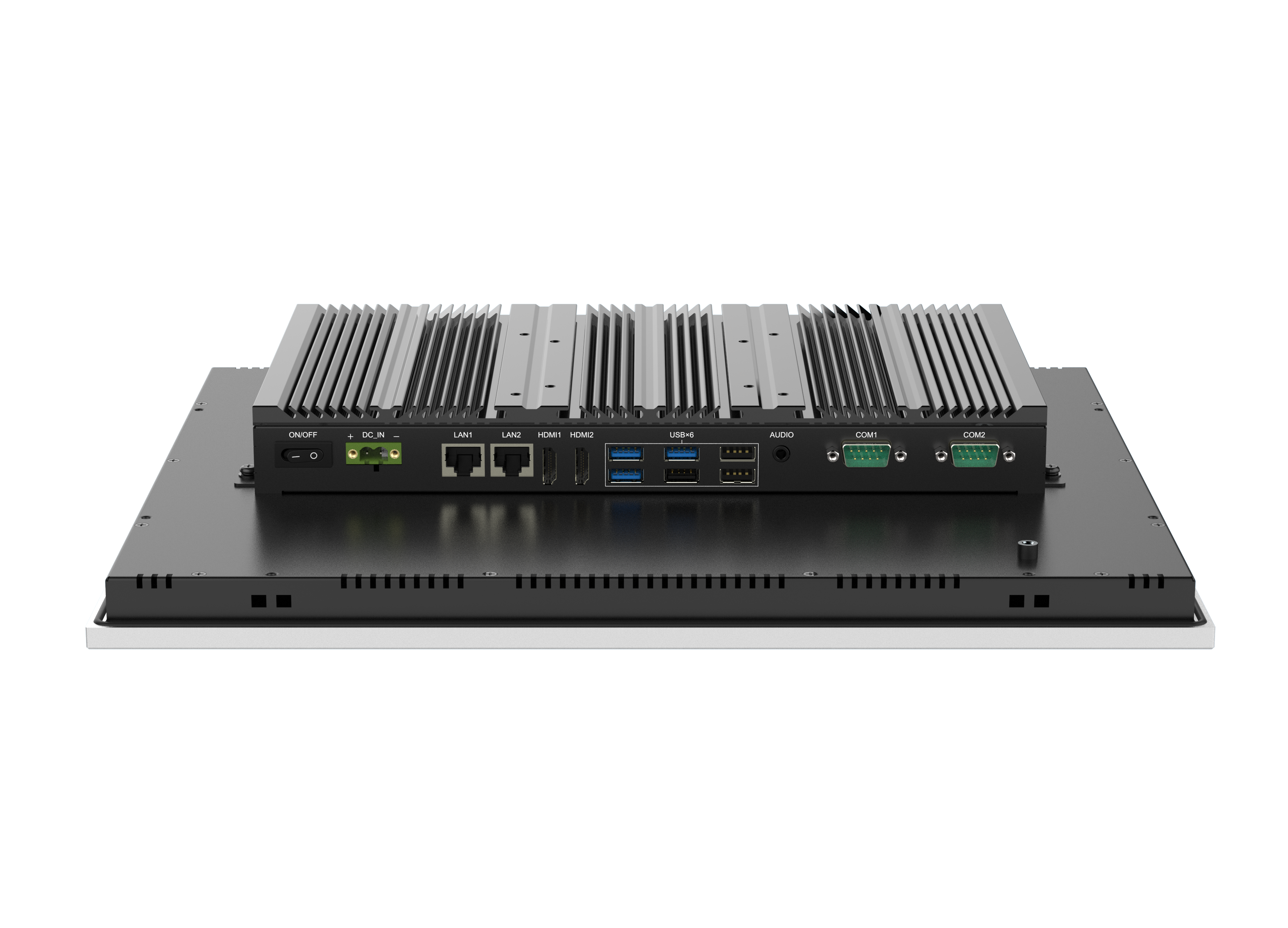

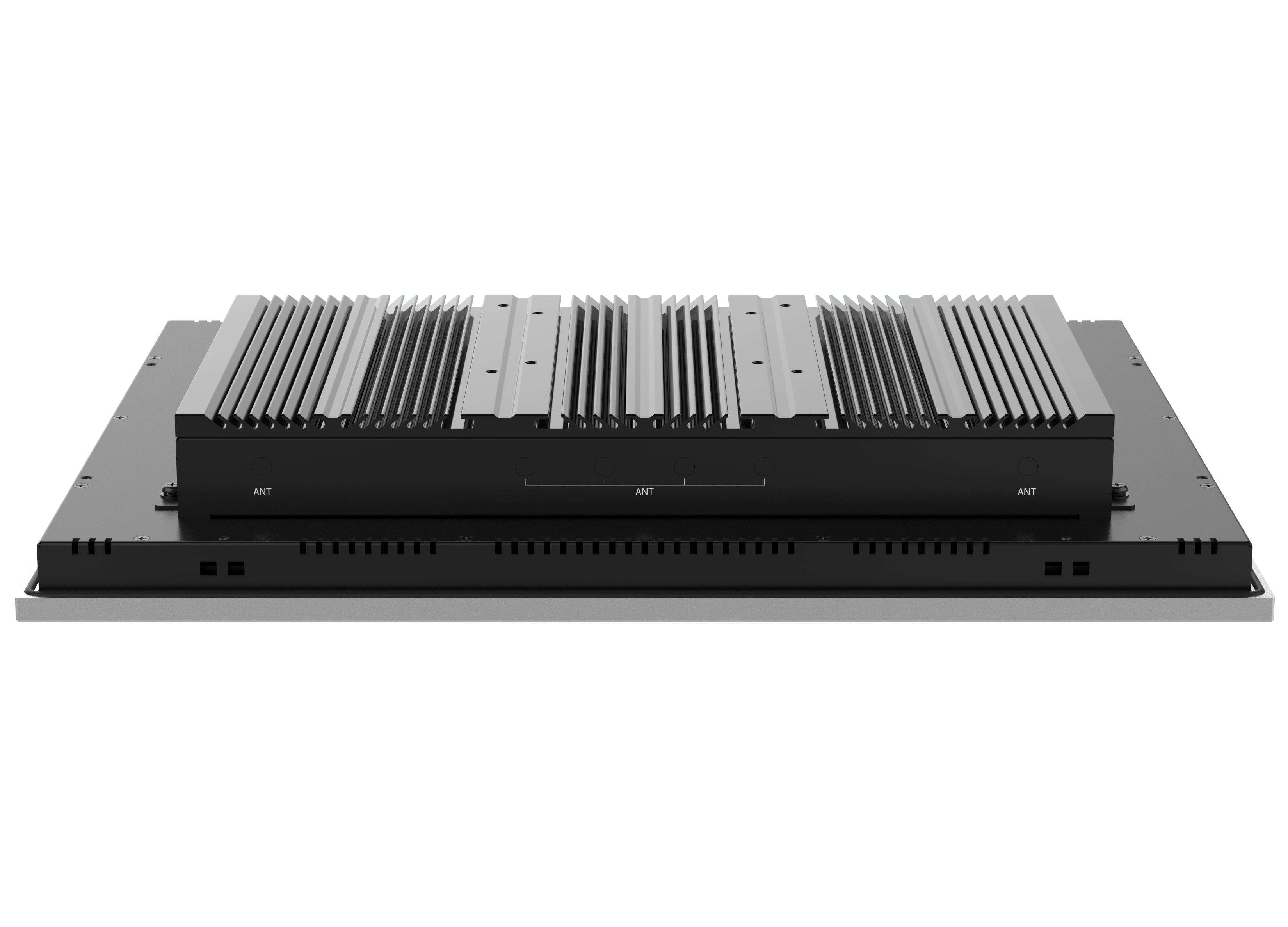

PPC-DS170-E1 CyberVisuell Industrial Panel PC
Features:
- 17.0” TFT LCD display, LED Backlit, SXGA 1280 *1024;
- Intel Elkhart Lake Celeron J6412 processor, Quad-core 2.0Ghz;
- 1* DDR4 memory, up to 32GB, 1* M.2 NVME and 1* 2.5” SATA storage;
- Multi-point projected capacitive touch, or 5-wire resistive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 12V power input, optional wide voltage DC 9~36V range;
- IO: 2*GLAN, 3*USB3.0, 3*USB2.0, 2*COM (DB9), 2*HDMI, Audio;
- Intel PTT TPM2.0, support Windows 11;
- Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
Ordering information: (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.) Updated June 2024 – prices subject to change without notice
Part no. | Description | Datasheets | Sell Price ex-GST |
PPC-DS170-E1-CT | 17.0”, 1280 * 1024, Celeron J6412, Quad-core 2.0Ghz, Pcap. touch, 2*GLAN, 3*USB3.0, 3*USB2.0, 2*COM, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-E1-CT | $2,113 |
PPC-DS170-E1-RT | 17.0”, 1280 * 1024, Celeron J6412, Quad-core 2.0Ghz, Resistive touch, 2*GLAN, 3*USB3.0, 3*USB2.0, 2*COM, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-E1-RT | $2,182 |
-4G / -8G/ -16G/ -32G | SO-DIMM, DDR4, 4GB/8G/16G/32G Memory | ||
-128GS / -256GS / -512GS | M.2 SSD: 128GB/256GB/512GB | ||
2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB
2.5” HDD: 2TB/4TB |
|||
TBOX-WIFI | Wi-Fi module, with Antenna | ||
TBOX-WIBlu | Wi-Fi with BT integrated module, with Antenna | ||
EM06-E-PCKit | All network 4G/LTE module, With Antenna | ||
5G module, with Antenna | |||
TBOX-9-36V | Optional 9-36V DC wide voltage input module with mains adaptor included | ||
TBOX-SIMSLOT | Sim card slot for 3G/4G/5G wireless expansion, accepts full size (2FF) SIM cards |
Packing List:
- 1x Standard Product
- 1x 60W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
System & Hardware | |
BIOS | SPI AMI EEI BIOS |
CPU | Intel Elkhart Lake Celeron J6412, Quad-core 2.0Ghz, burst to 2.6Ghz, TDP 10W |
Memory | SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB |
Storage | 1* M.2 2280 (NVMe PCIe 2.0) + 1* 2.5” SATA |
Graphic | Intel UHD Graphics for 10th Gen Intel processors |
Network | 2* Intel I225 GBE LAN chip (Optional wireless 3G/4G, Wi-Fi/BT, 4G/5G) |
Audio | On-board Realtek ACL 897 audio controller |
Expansion | 1* M.2 Key-B slot, 1* Mini-PCIe slot |
Watchdog | 0~256 seconds programmable |
OS | Win10, Win11, Linux, Ubuntu |
I/O interface | |
COM | 2*RS232 (Optional 1* RS485) |
Ethernet | 2* RJ45, 10/100/1000 Mbps |
Audio | Mic-in/Line-out (2 in 1, 4.0mm jack) |
USB | 3x USB3.0, 3x USB2.0 |
Display | 2x HDMI |
Power | 1x 2 pins, phenix terminal |
LCD Display | |
Size/Type | 17.0” TFT LCD |
Resolution | 1280 * 1024 (SXGA) |
Brightness | 250nits |
Backlit & MTBF | LED backlit & 30 000hours |
Display area | 337.92 * 270.34 |
View angle | 85/85/85/85 |
Touchscreen | |
Type | Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller |
Touch points | Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive) |
Durability | >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive) |
Surface hardness | Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive) |
Special treatment | Anti-fingerprint (PCap) |
Structure | |
Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
Mount method | Panel mount, VESA 75/100 |
Cooling system | Large area finned heat sink |
Overall dimension | 386.5 * 323.5 * 57.5 (mm) |
Cut-out dimension | 376 * 313 (mm) |
Net weight | 4.7 KG |
IP protection | Front Panel IP65 |
Power & Environmental | |
Operating temp. | 0~+50℃ |
Storage temp. | -20~+60℃ |
Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
Shock | 10G/Peak (11 ms) |
Power input | DC 12V (Optional DC 9~36V) |
Power consumption | Around 35W |
EMC | CE/FCC Class A |

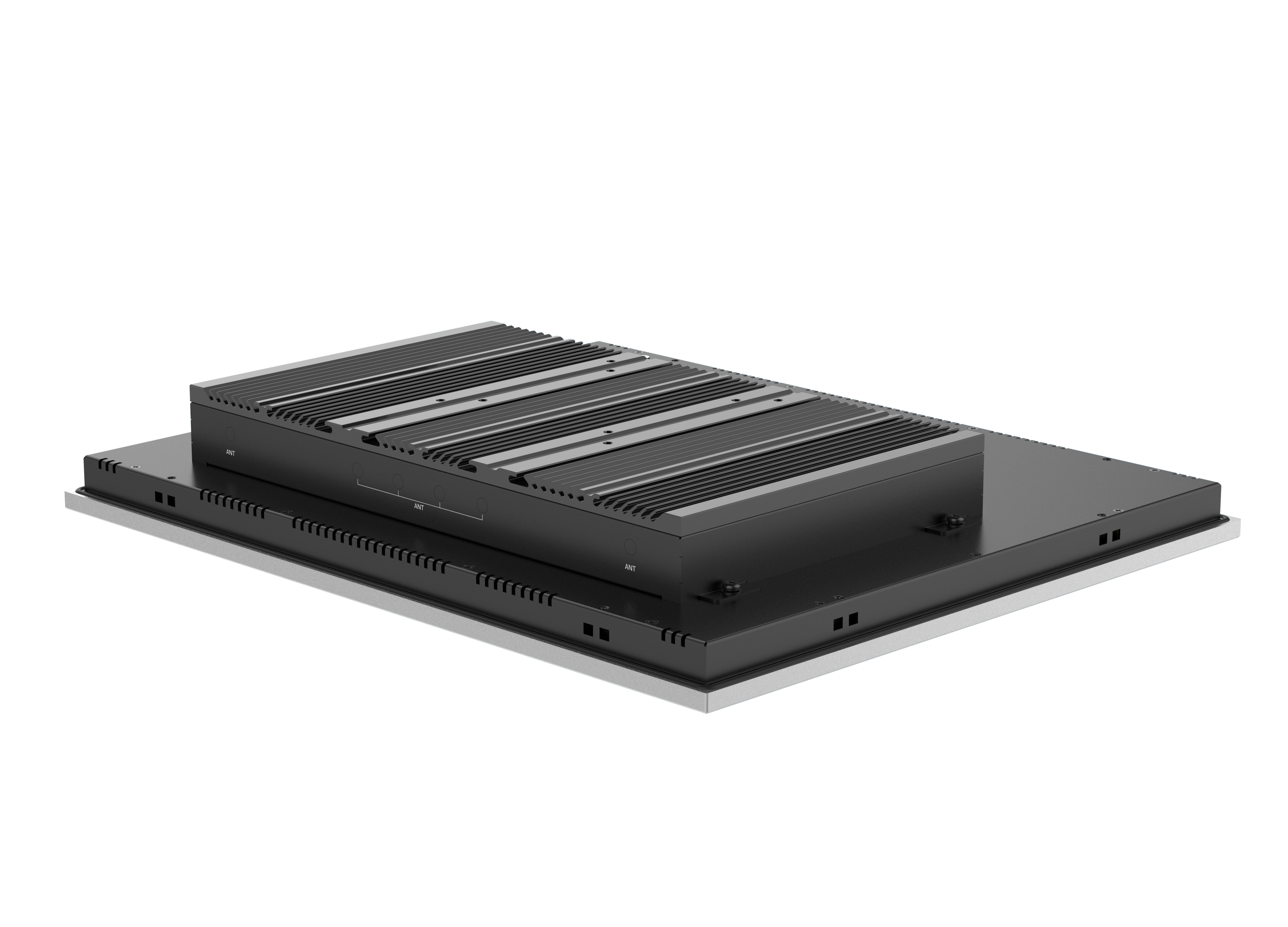

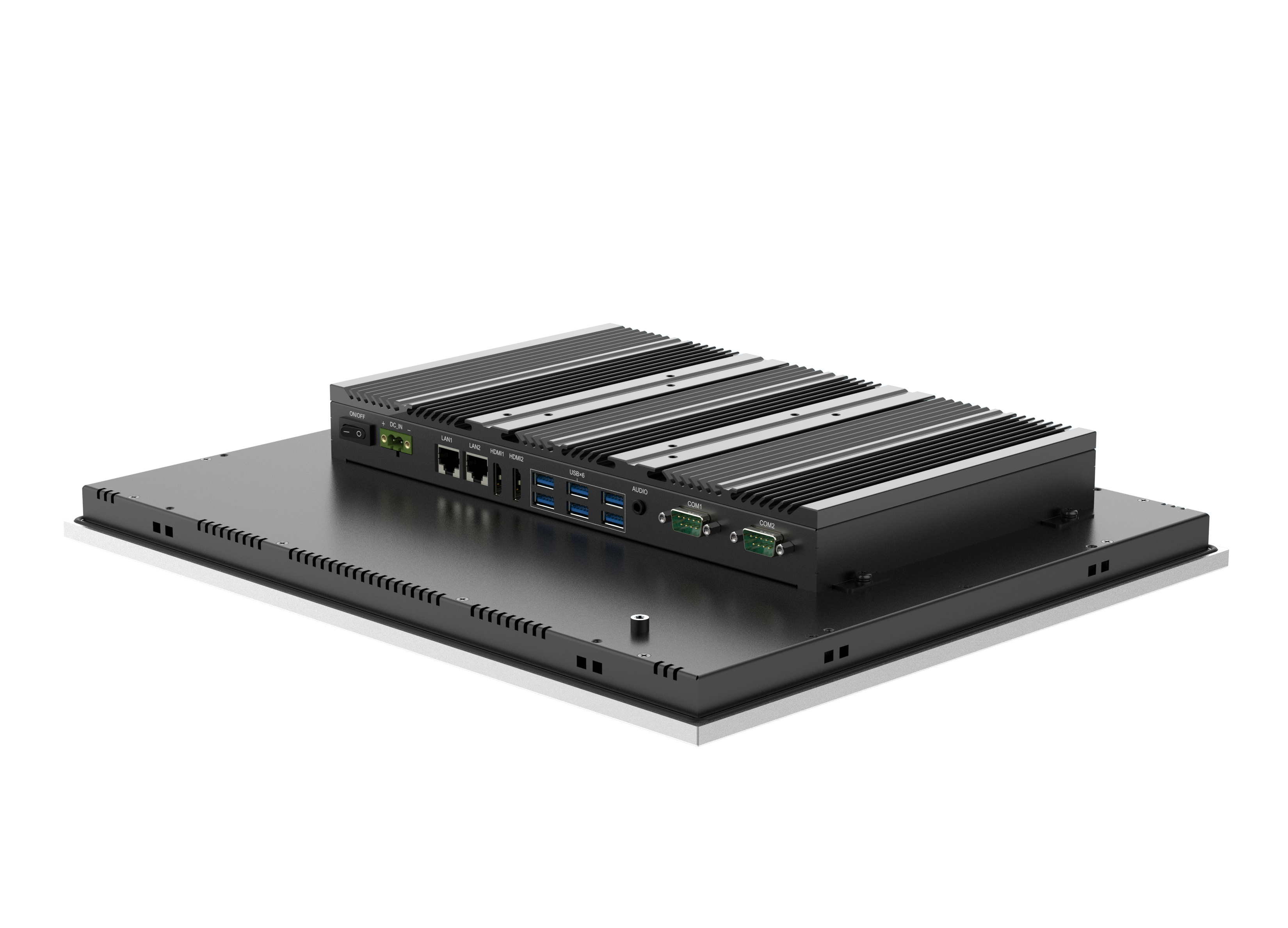

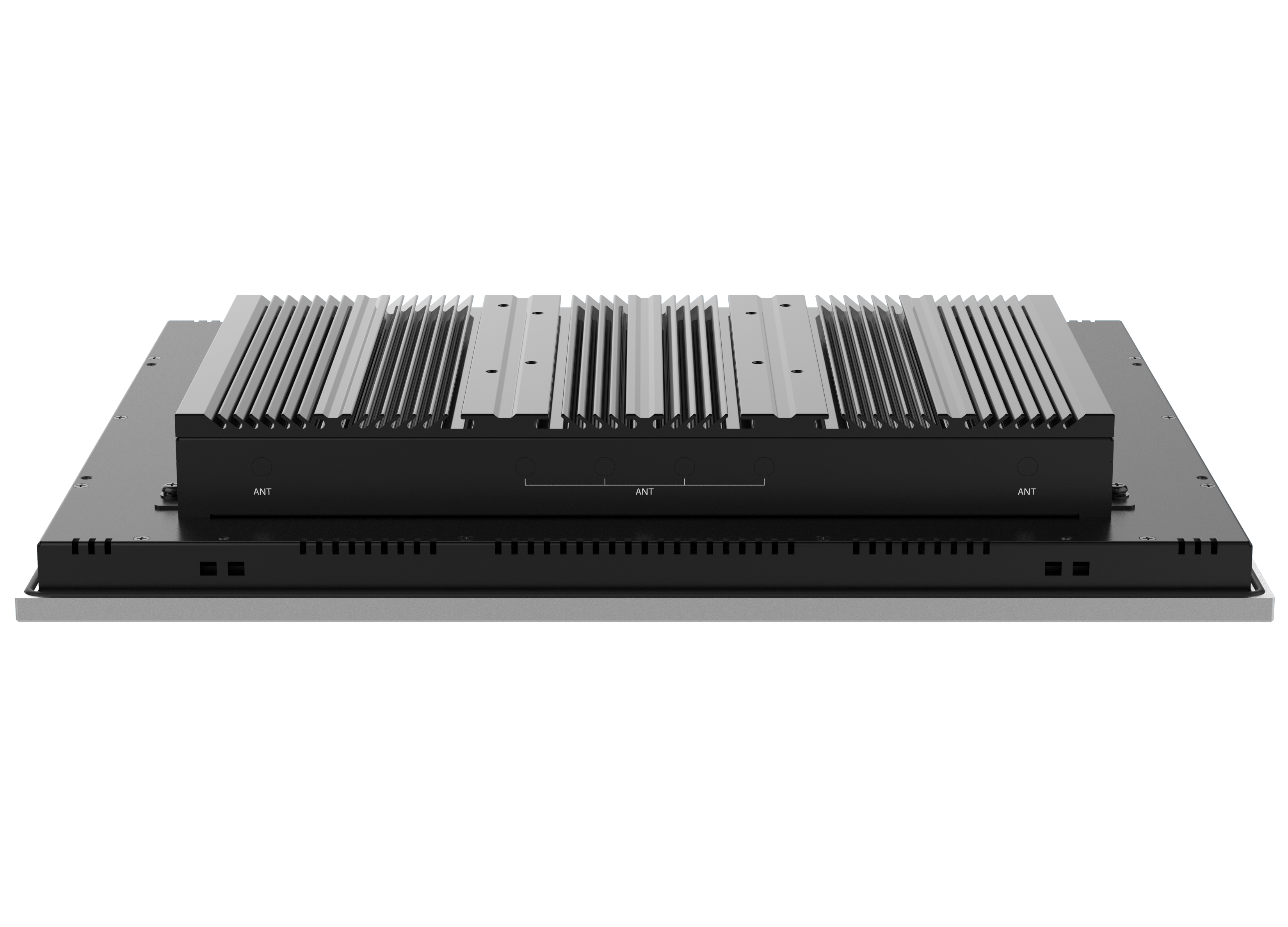

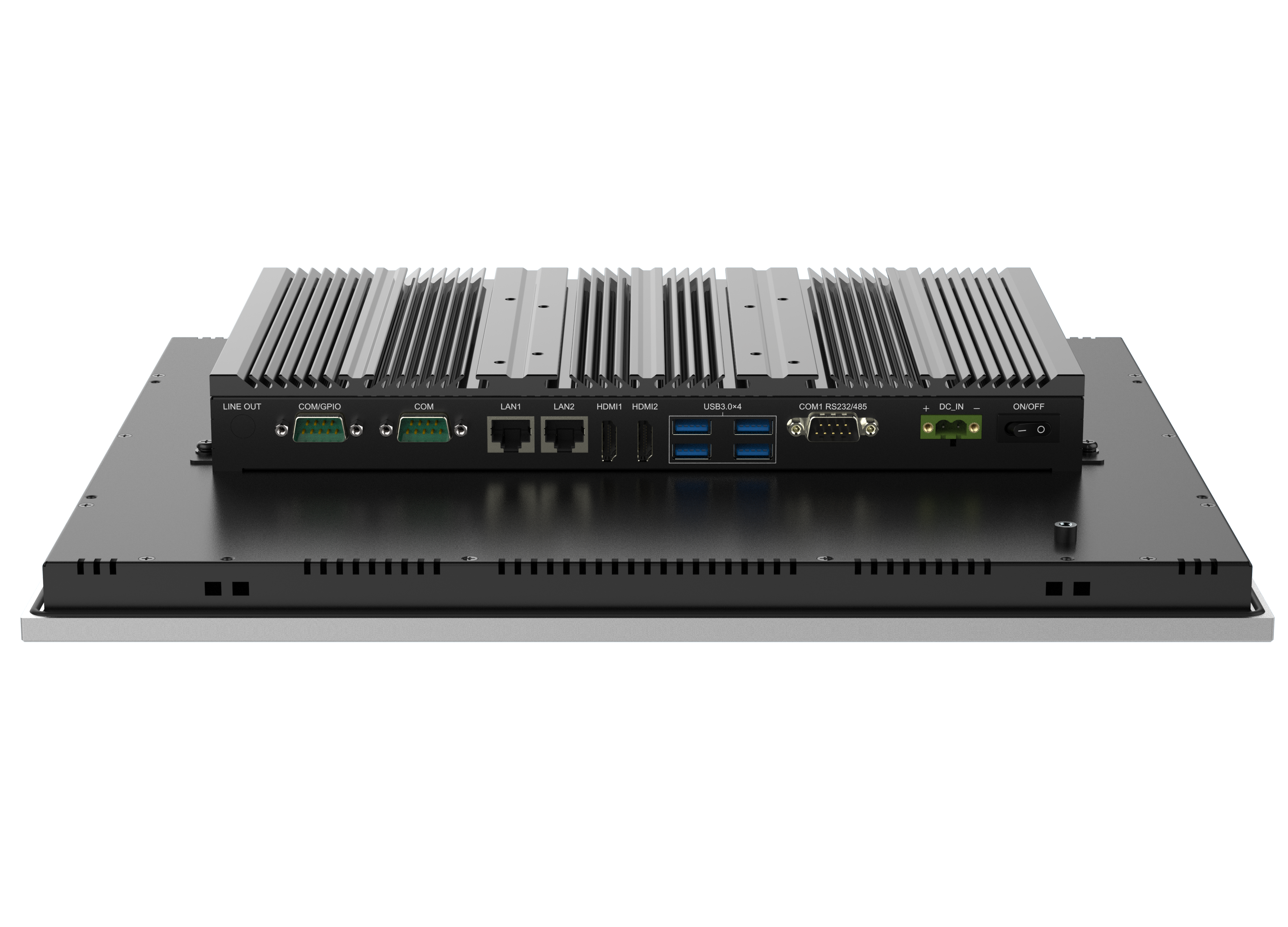

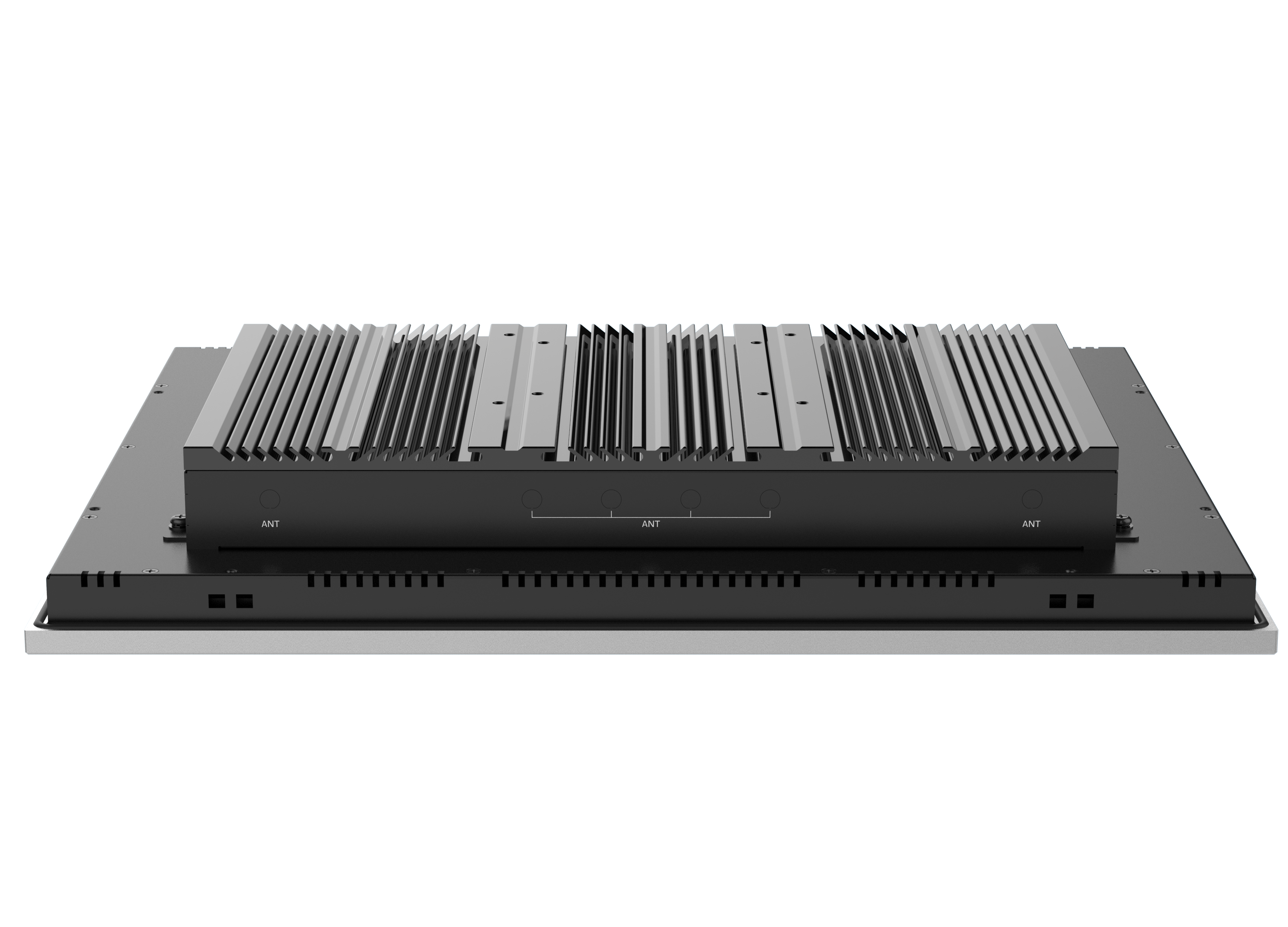

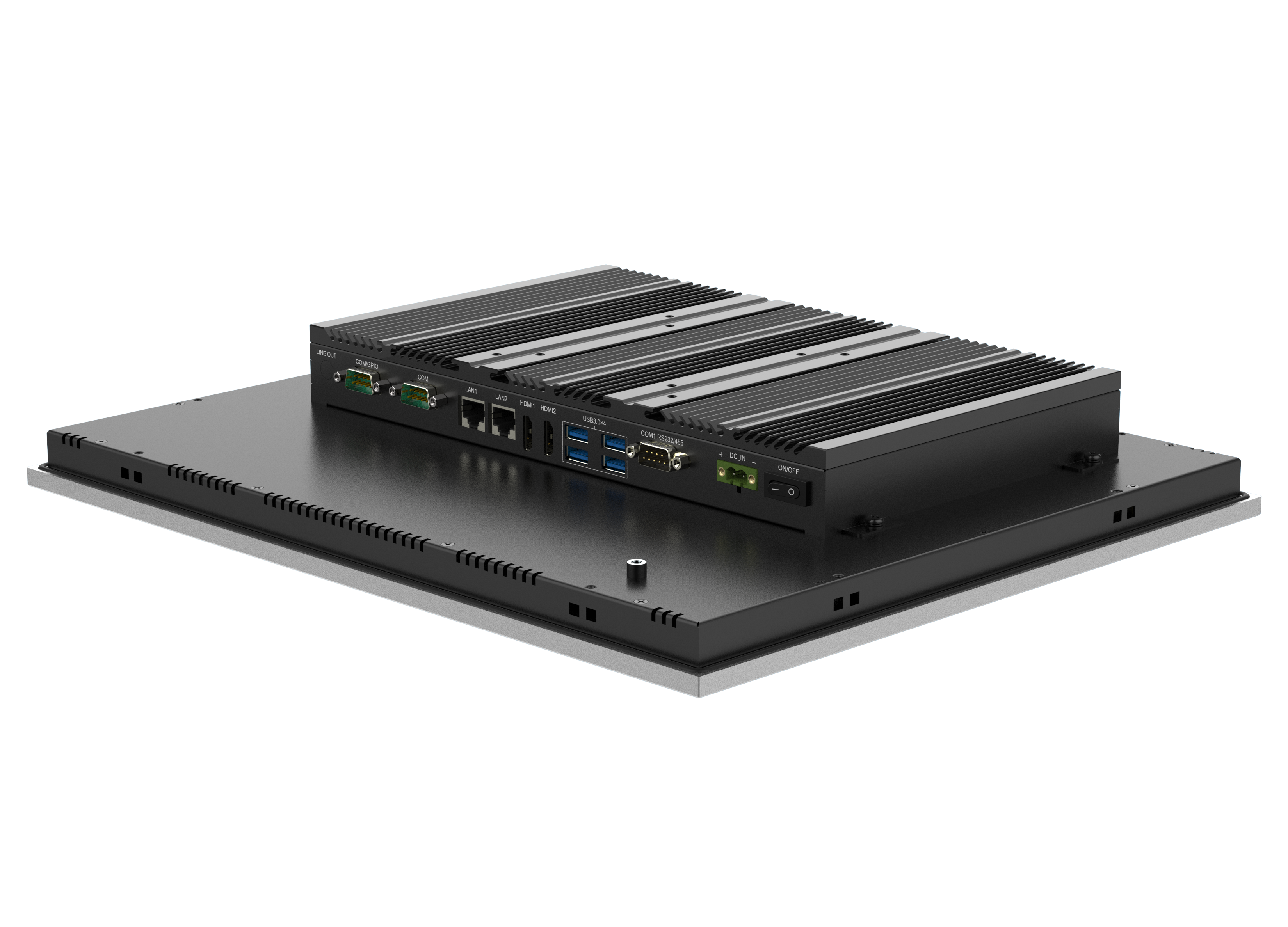

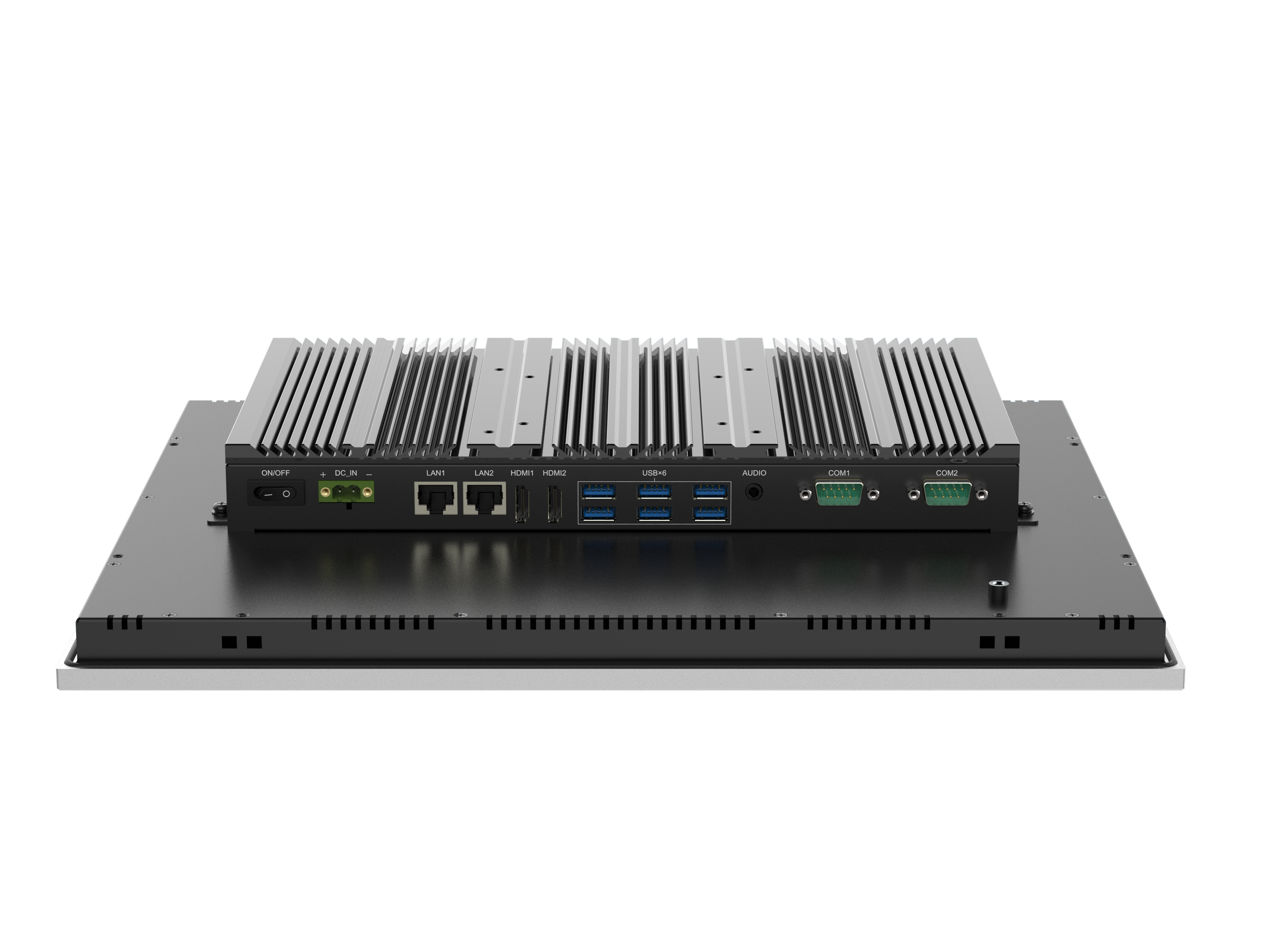

PPC-DS170-T1 CyberVisuell Industrial Panel PC
Features:
- 17.0” TFT LCD display, LED Backlit, SXGA 1280 *1024;
- Intel 11th Gen. Core i3-1115G4 processor;
- 1* DDR4 memory, up to 32GB, 1* M.2 2280 (NVMe) storage;
- Multi-point projected capacitive touch, or 5-wire resistive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 12V power input, optional wide DC 9~36V input range;
- IO: 2*GLAN, 6*USB3.0, 2*COM (DB9), 2*HDMI, Audio;
- Intel PTT TPM2.0, Support Windows 11;
- Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
Ordering information: (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.) Updated August 2024 – prices subject to change without notice
Part no. | Description | Datasheets | Price ex-GST with 8GB RAM / 256GB SSD |
PPC-DS170-T1-CT | 17.0”, 1280 * 1024, Core i3-1115G4, Dual-core 4.10Ghz, Pcap. touch, 2*GLAN, 6*USB3.0, 2*COM, Audio, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-T1-CT | $2,565 |
PPC-DS170-T1-RT | 17.0”, 1280 * 1024, Core i3-1115G4, Dual-core 4.10Ghz, Resistive touch, 2*GLAN, 6*USB3.0, 2*COM, Audio, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-T1-RT | $2,634 |
-4G / -8G / -16G /-32G | SO-DIMM, DDR4, 4GB/8G/16G/32G Memory | ||
-128GS / -256GS / -512GS | M.2 SSD: 128GB/256GB/512GB | ||
TBOX-WiBlu | Wi-Fi with BT integrated module, with Antenna | ||
EM06-E-PCKit | All network 4G/LTE module, With Antenna | ||
5G module, with Antenna | |||
TBOX-9-36V | Optional 9-36V DC wide voltage input module with mains adaptor included | ||
SIM Card module | Sim card slot for 3G/4G/5G wireless expansion |
Packing List:
- 1x Standard Product
- 1x 60W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
System & Hardware | |
BIOS | SPI AMI EEI BIOS |
CPU | Intel 11th-gen. Core i3-1115G4 |
TDP | Default 15W (BIOS fixed) |
Memory | SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB |
Storage | 1* M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD, 1* 2.5” SATA SSD |
Graphic | Intel Iris Xe Graphics |
Network | 1* Intel I219, 1* Intel I225 LAN chips, Optional Wi-Fi +BT, 3G/4G/5G |
Audio | On-board Realtek ACL 897 audio controller |
Expansion | 1* M.2 (NGFF) Key-B 3052 slot, 1* M.2 (NGFF) Key-E 2230 slot |
Watchdog | 0~256 seconds programmable |
OS | Win10, Win11, Linux, Ubuntu |
I/O interface | |
COM | 2*RS232 (Optional 1* RS485) |
Ethernet | 2* RJ45, 10/100/1000 Mbps |
Audio | Mic-in/Line-out (2 in 1, 4.0mm jack) |
USB | 6x USB3.0 |
Display | 2x HDMI |
Power | 1x 2 pins, phenix terminal |
LCD Display | |
Size/Type | 17.0” TFT LCD |
Resolution | 1280 * 1024 (SXGA) |
Brightness | 250nits |
Backlit & MTBF | LED backlit & 30 000hours |
Display area | 337.92 * 270.34 |
View angle | 85/85/85/85 |
Touchscreen | |
Type | Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller |
Touch points | Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive) |
Durability | >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive) |
Surface hardness | Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive) |
Special treatment | Anti-fingerprint (PCap) |
Structure | |
Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
Mount method | Panel mount, VESA 75/100 |
Cooling system | Large area finned heat sink |
Overall dimension | 386.5 * 323.5 * 57.5 (mm) |
Cut-out dimension | 376 * 313 (mm) |
Net weight | 4.7 KG |
IP protection | Front Panel IP65 |
Power & Environmental | |
Operating temp. | -20~+60℃ |
Storage temp. | 30~+80℃ |
Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
Shock | 10G/Peak (11 ms) |
Power input | DC 12V (Optional DC 9~36V) |
Power consumption | Around 40W |
EMC | CE/FCC Class A |
PPC-DS170-T2 CyberVisuell Industrial Panel PC
Features:
- 17.0” TFT LCD display, LED Backlit, SXGA 1280 *1024;
- Intel 11th Gen. Core i5-1135G7 processor;
- 1* DDR4 memory, up to 32GB, 1* M.2 2280 (NVMe) storage;
- Multi-point projected capacitive touch, or 5-wire resistive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 12V power input, optional wide DC 9~36V input range;
- IO: 2*GLAN, 6*USB3.0, 2*COM (DB9), 2*HDMI, Audio;
- Intel PTT TPM2.0, Support Windows 11;
- Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
Ordering information: (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.) Updated August 2024 – prices subject to change without notice
Part no. | Description | Datasheets | Price ex-GST with 8GB RAM / 256GB SSD |
PPC-DS170-T2-CT | 17.0”, 1280 * 1024, Core i5-1135G7, Quad-core 4.20Ghz, Pcap. touch, 2*GLAN, 6*USB3.0, 2*COM, Audio, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-T2-CT | $2,777 |
PPC-DS170-T2-RT | 17.0”, 1280 * 1024, Core i5-1135G7, Quad-core 4.20Ghz, Resistive touch, 2*GLAN, 6*USB3.0, 2*COM, Audio, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-T2-RT | $2,847 |
-4G / -8G / -16G /-32G | SO-DIMM, DDR4, 4G/8G/16G/32G Memory | ||
-128GS / -256GS / -512GS | M.2 SSD: 128GB/256GB/512GB | ||
TBOX-WiBlu | Wi-Fi with BT integrated module, with Antenna | ||
EM06-E-PCKit | All network 4G/LTE module, With Antenna | ||
5G module, with Antenna | |||
TBOX-9-36V | Optional 9-36V DC wide voltage input module with mains adaptor included | ||
SIM Card module | Sim card slot for 3G/4G/5G wireless expansion |
Packing List:
- 1x Standard Product
- 1x 60W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
System & Hardware | |
BIOS | SPI AMI EEI BIOS |
CPU | Intel 11th-gen. Core i5-1135G7 |
TDP | Default 15W (BIOS fixed) |
Memory | SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB |
Storage | 1* M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD, 1* 2.5” SATA SSD |
Graphic | Intel Iris Xe Graphics |
Network | 1* Intel I219, 1* Intel I225 LAN chips, Optional Wi-Fi +BT, 3G/4G/5G |
Audio | On-board Realtek ACL 897 audio controller |
Expansion | 1* M.2 (NGFF) Key-B 3052 slot, 1* M.2 (NGFF) Key-E 2230 slot |
Watchdog | 0~256 seconds programmable |
OS | Win10, Win11, Linux, Ubuntu |
I/O interface | |
COM | 2*RS232 (Optional 1* RS485) |
Ethernet | 2* RJ45, 10/100/1000 Mbps |
Audio | Mic-in/Line-out (2 in 1, 4.0mm jack) |
USB | 6x USB3.0 |
Display | 2x HDMI |
Power | 1x 2 pins, phenix terminal |
LCD Display | |
Size/Type | 17.0” TFT LCD |
Resolution | 1280 * 1024 (SXGA) |
Brightness | 250nits |
Backlit & MTBF | LED backlit & 30 000hours |
Display area | 337.92 * 270.34 |
View angle | 85/85/85/85 |
Touchscreen | |
Type | Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller |
Touch points | Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive) |
Durability | >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive) |
Surface hardness | Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive) |
Special treatment | Anti-fingerprint (PCap) |
Structure | |
Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
Mount method | Panel mount, VESA 75/100 |
Cooling system | Large area finned heat sink |
Overall dimension | 386.5 * 323.5 * 57.5 (mm) |
Cut-out dimension | 376 * 313 (mm) |
Net weight | 4.7 KG |
IP protection | Front Panel IP65 |
Power & Environmental | |
Operating temp. | -20~+60℃ |
Storage temp. | 30~+80℃ |
Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
Shock | 10G/Peak (11 ms) |
Power input | DC 12V (Optional DC 9~36V) |
Power consumption | Around 40W |
EMC | CE/FCC Class A |
PPC-DS170-T3 CyberVisuell Industrial Panel PC
Features:
- 17.0” TFT LCD display, LED Backlit, SXGA 1280 *1024;
- Intel 11th Gen. Core i7-1165G7 processor;
- 1* DDR4 memory, up to 32GB, 1* M.2 2280 (NVMe) storage;
- Multi-point projected capacitive touch, or 5-wire resistive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 12V power input, optional wide DC 9~36V input range;
- IO: 2*GLAN, 6*USB3.0, 2*COM (DB9), 2*HDMI, Audio;
- Intel PTT TPM2.0, Support Windows 11;
- Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
Ordering information: (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.) Updated August 2024 – prices subject to change without notice
Part no. | Description | Datasheets | Price ex-GST with 8GB RAM / 256GB SSD |
PPC-DS170-T3-CT | 17.0”, 1280 * 1024, Core i7-1165G7, Quad-core 4.40Ghz, Pcap. touch, 2*GLAN, 6*USB3.0, 2*COM, Audio, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-T3-CT | $3,176 |
PPC-DS170-T3-RT | 17.0”, 1280 * 1024, Core i7-1165G7, Quad-core 4.40Ghz, Resistive touch, 2*GLAN, 6*USB3.0, 2*COM, Audio, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-T3-RT | $3,246 |
-4G / -8G / -16G /-32G | SO-DIMM, DDR4, 4GB/8G/16G/32G Memory | ||
-128GS / -256GS / -512GS | M.2 SSD: 128GB/256GB/512GB | ||
TBOX-WiBlu | Wi-Fi with BT integrated module, with Antenna | ||
EM06-E-PCKit | All network 4G/LTE module, With Antenna | ||
5G module, with Antenna | |||
TBOX-9-36V | Optional 9-36V DC wide voltage input module with mains adaptor included | ||
SIM Card module | Sim card slot for 3G/4G/5G wireless expansion |
Packing List:
- 1x Standard Product
- 1x 60W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
System & Hardware | |
BIOS | SPI AMI EEI BIOS |
CPU | Intel 11th-gen. Core i7-1165G7 |
TDP | Default 15W (BIOS fixed) |
Memory | SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB |
Storage | 1* M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD, 1* 2.5” SATA SSD |
Graphic | Intel Iris Xe Graphics |
Network | 1* Intel I219, 1* Intel I225 LAN chips, Optional Wi-Fi +BT, 3G/4G/5G |
Audio | On-board Realtek ACL 897 audio controller |
Expansion | 1* M.2 (NGFF) Key-B 3052 slot, 1* M.2 (NGFF) Key-E 2230 slot |
Watchdog | 0~256 seconds programmable |
OS | Win10, Win11, Linux, Ubuntu |
I/O interface | |
COM | 2*RS232 (Optional 1* RS485) |
Ethernet | 2* RJ45, 10/100/1000 Mbps |
Audio | Mic-in/Line-out (2 in 1, 4.0mm jack) |
USB | 6x USB3.0 |
Display | 2x HDMI |
Power | 1x 2 pins, phenix terminal |
LCD Display | |
Size/Type | 17.0” TFT LCD |
Resolution | 1280 * 1024 (SXGA) |
Brightness | 250nits |
Backlit & MTBF | LED backlit & 30 000hours |
Display area | 337.92 * 270.34 |
View angle | 85/85/85/85 |
Touchscreen | |
Type | Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller |
Touch points | Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive) |
Durability | >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive) |
Surface hardness | Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive) |
Special treatment | Anti-fingerprint (PCap) |
Structure | |
Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
Mount method | Panel mount, VESA 75/100 |
Cooling system | Large area finned heat sink |
Overall dimension | 386.5 * 323.5 * 57.5 (mm) |
Cut-out dimension | 376 * 313 (mm) |
Net weight | 4.7 KG |
IP protection | Front Panel IP65 |
Power & Environmental | |
Operating temp. | -20~+60℃ |
Storage temp. | 30~+80℃ |
Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
Shock | 10G/Peak (11 ms) |
Power input | DC 12V (Optional DC 9~36V) |
Power consumption | Around 40W |
EMC | CE/FCC Class A |

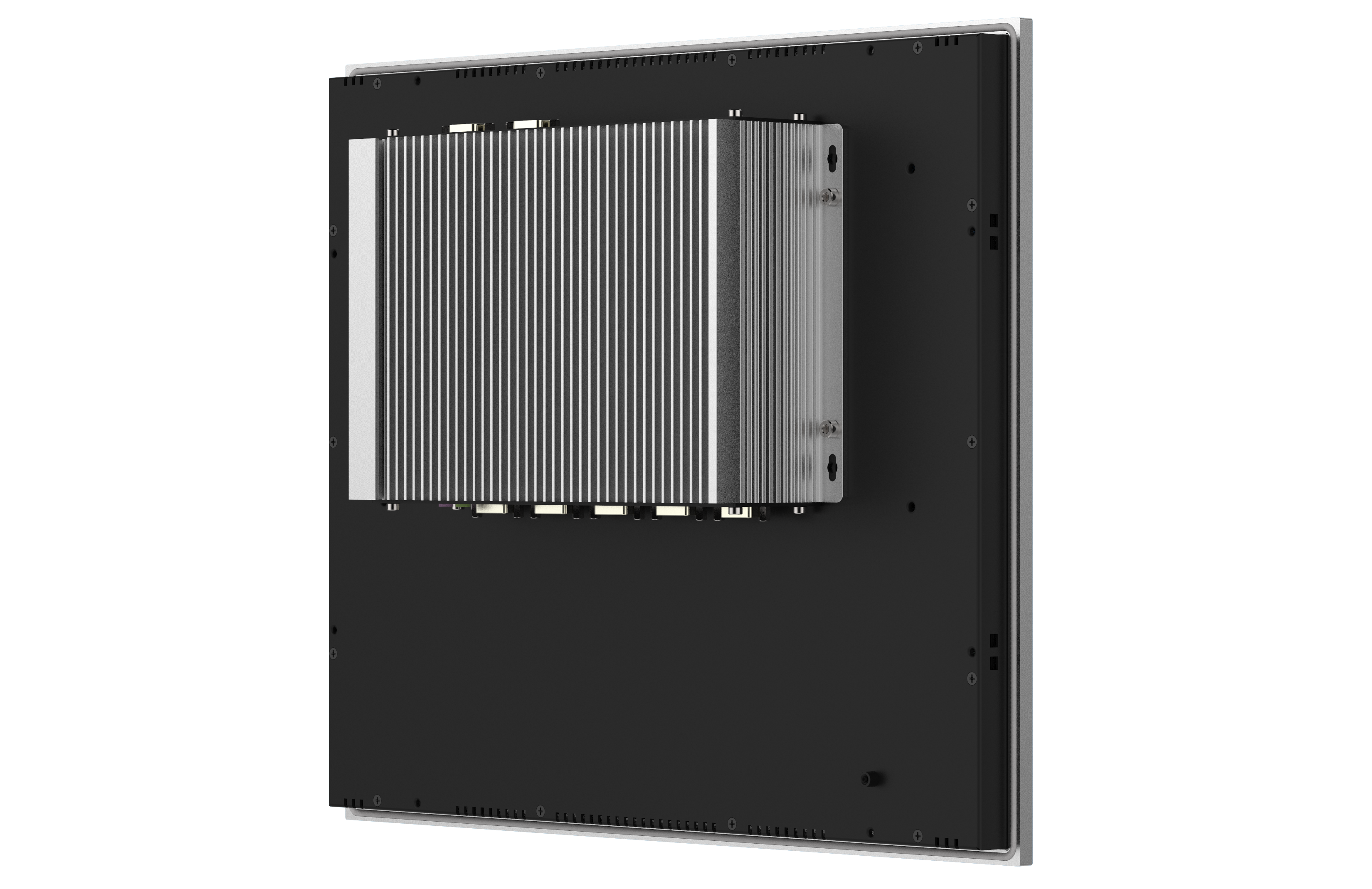

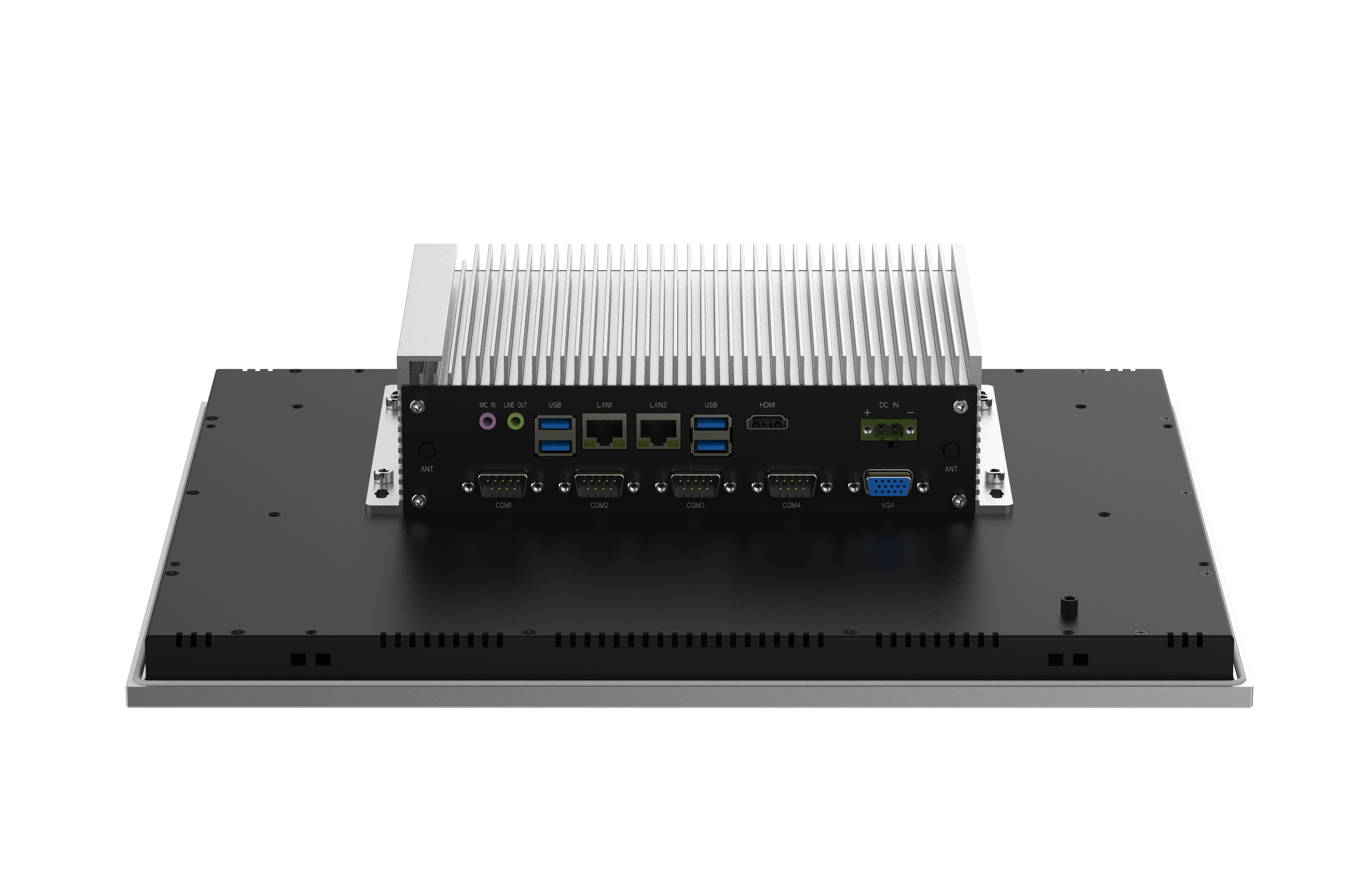

PPC-DS170-A1 CyberVisuell Industrial Panel PC
Features:
- 17.0” TFT LCD display, 4:3, LED Backlit, SXGA 1280 *1024;
- Intel Apollo Lake J3455 processor, Quad-core 1.5Ghz;
- Multi-point projected capacitive touch, or 5-wire resistive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 12V, optional wide voltage DC 9~36V power input;
- IO: 2*GLAN, 4*USB3.0, 3*COM (DB9), 2*HDMI;
- Intel PTT TPM2.0, Support Windows 11 OS;
- Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
Ordering information: (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.) Updated June 2024- prices subject to change without notice
Part no. | Description | Datasheets | Sell Price ex-GST |
PPC-DS170-A1-CT | 17.0”, 1280 * 1024, Intel J3455, Quad-core 1.5Ghz, Pcap. touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-A1-CT | $2,086 |
PPC-DS170-A1-RT | 17.0”, 1280 * 1024, Intel J3455, Quad-core 1.5Ghz, Resistive touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-A1-RT | $2,155 |
-4G / -8G | SO-DIMM, DDR3L, 4GB/8GB Memory | ||
-128GS / -256GS / -512GS | M.2 SSD: 128GB/256GB/512GB | ||
2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB
2.5” HDD: 2TB/4TB |
|||
TBOX-AUDIO | Optional Mic-In + Line-Out audio connections | ||
TBOX-WiBlu-M2 | Optional WiFi + Bluetooth Module (M.2 interface) | ||
EM06-E-PCKit | Optional 4G LTE broadband module (M.2 interface) | ||
5G module, with Antenna (M.2 interface) | |||
TBOX-9-36V | Optional 9-36V DC power input support | ||
Power supply | Optional PSU for PPC-DS170-W-A1 | ||
TBOX-SIMSLOT | Optional SIM Card Slot to suit 4G broadband module |
Packing List:
- 1x Standard Product
- 1x 60W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
System & Hardware | |
BIOS | SPI AMI EEI BIOS |
CPU | Intel Apollo Lake J3455, Quad-core 1.5Ghz, burst to 2.3Ghz |
Memory | SO-DIMM, Support DDR3L 1333/1600/1866 MHz, Max. up to 8GB |
Storage | 1* M.2 (SATA) + 1* 2.5” SATA |
Graphic | Intel HD Graphics 500 |
Network | 2* Intel I211 GBE LAN chip (Optional wireless 3G/4G, 5G, Wi-Fi/BT, Wi-Fi 6) |
Audio | On-board Realtek ACL 662 audio controller |
Expansion | 1* M.2 Key-B slot, 1* M.2 Key-E slot |
Watchdog | 0~256 seconds programmable |
OS | Win10, Win11, Linux, Ubuntu |
I/O interface | |
COM | 3*RS232 (Default), Optional 1* RS485 or 8*GPIO |
Ethernet | 2* RJ45, 10/100/1000 Mbps |
Audio | Optional Line-out |
USB | 4x USB3.0 |
Display | 2x HDMI |
Power | 1x 2 pins, phenix terminal |
LCD Display | |
Size/Type | 17.0” TFT LCD |
Resolution | 1280 * 1024 (SXGA) |
Brightness | 250nits |
Backlit & MTBF | LED backlit & 30 000hours |
Display area | 337.92 * 270.34 |
View angle | 85/85/85/85 |
Touchscreen | |
Type | Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller |
Touch points | Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive) |
Durability | >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive) |
Surface hardness | Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive) |
Special treatment | Anti-fingerprint (PCap) |
Structure | |
Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
Mount method | Panel mount, VESA 75/100 |
Cooling system | Large area finned heat sink |
Overall dimension | 386.5 * 323.5 * 57.5 (mm) |
Cut-out dimension | 376 * 313 (mm) |
Net weight | 4.7 KG |
IP protection | Front Panel IP65 |
Power & Environmental | |
Operating temp. | 0~+50℃ |
Storage temp. | -20~+60℃ |
Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
Shock | 10G/Peak (11 ms) |
Power input | DC 12V (Optional DC 9~36V) |
Power consumption | Around 35W |
EMC | CE/FCC Class A |

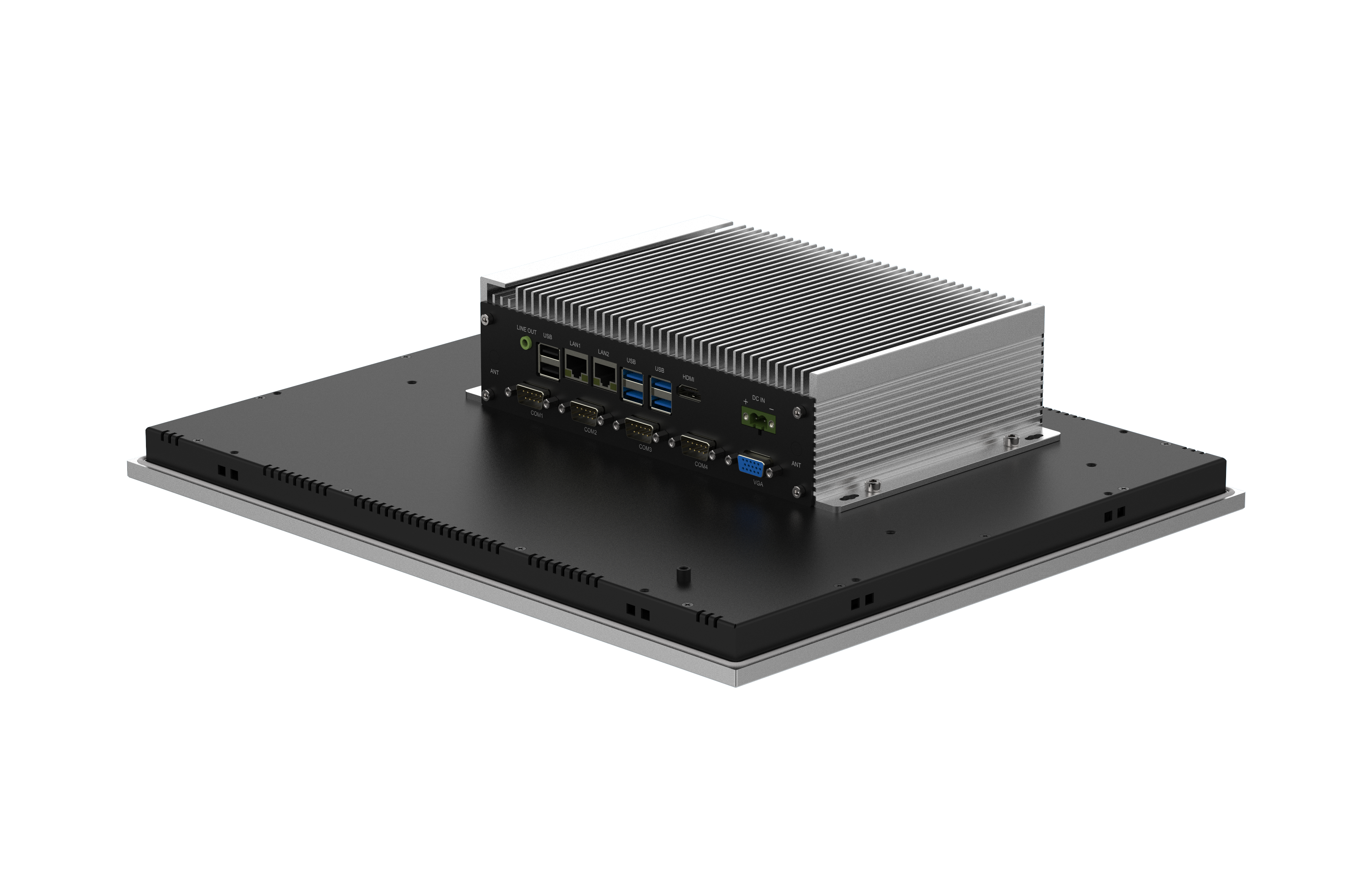

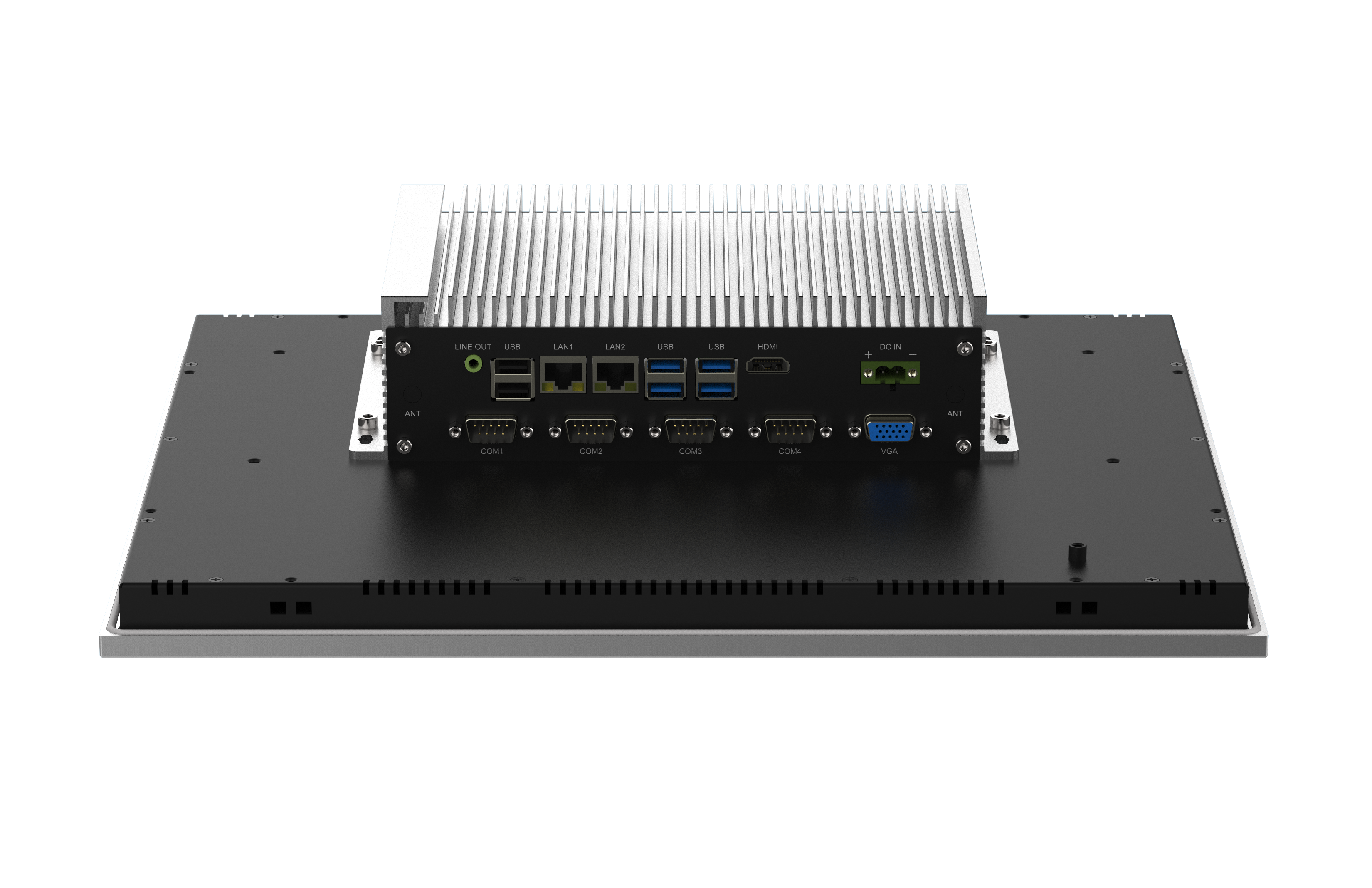

PPC-DS170-W1 CyberVisuell Industrial Panel PC
Features:
- 17.0” TFT LCD display, 4:3, LED Backlit, SXGA 1280 *1024;
- Intel 8th -gen. Whiskey Lake Core i3 processor;
- Multi-point projected capacitive touch, or 5-wire resistive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 12V, optional wide voltage DC 9~36V power input;
- IO: 2*GLAN, 4*USB3.0, 3*COM (DB9), 2*HDMI;
- Intel PTT TPM2.0, Support Windows 11 OS;
- Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
Ordering information: (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.) Updated June 2024 – prices subject to change without notice
Part no. | Description | Datasheets | Sell Price ex-GST |
PPC-DS170-W1-CT | 17.0”, 1280 * 1024, Core i3-8145U, Dual-core 2.1Ghz, Pcap. touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-W1-CT | $2,565 |
PPC-DS170-W1-RT | 17.0”, 1280 * 1024, Core i3-8145U, Dual-core 2.1Ghz, Resistive touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-W1-RT | $2,634 |
-4G / -8G / -16G | SO-DIMM, DDR4, 4GB/8GB/16GB Memory | ||
-128GS / -256GS / -512GS | M.2 SSD: 128GB/256GB/512GB | ||
2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB
2.5” HDD: 2TB/4TB |
|||
TBOX-AUDIO | Audio (Line out) connector on rear connector panel | ||
TBOX-WiBlu | Wi-Fi with BT integrated module, with Antenna (M.2 interface) | ||
EM06-E-PCKit | All network 4G/LTE module, With Antenna (M.2 interface) | ||
5G module, with Antenna (M.2 interface) | |||
TBOX-9-36V | Optional 9-36V DC wide voltage input module with mains adaptor included | ||
TBOX-SIMSLOT | Sim card slot for 3G/4G/5G wireless expansion, accepts full size (2FF) SIM cards |
Packing List:
- 1x Standard Product
- 1x 60W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
System & Hardware | |
BIOS | SPI AMI EEI BIOS |
CPU | Intel 8th-gen. Whiskey Lake Core i3-8145U |
Memory | SO-DIMM, DDR4-1866/2133/2400 MT/s, Max. up to 16GB |
Storage | 1* M.2 NGFF Key-M/B slot + 1* 2.5” SATA |
Graphic | Intel UHD Graphics 620 |
Network | 1* Intel I211AT, and 1* Intel I219V LAN chips (Optional wireless 3G/4G, 5G, Wi-Fi/BT, Wi-Fi 6) |
Audio | On-board Realtek ACL 662 audio controller (Optional Line-Out connector available) |
Expansion | 1* M.2 Key-B slot, 1* M.2 Key-E slot |
Watchdog | 0~256 seconds programmable |
OS | Win10, Win11, Linux, Ubuntu |
I/O interface | |
COM | 3*RS232 (Default), Optional 1* RS485 or 8*GPIO |
Ethernet | 2* RJ45, 10/100/1000 Mbps |
Audio | Optional Line-out |
USB | 4x USB3.0 |
Display | 2x HDMI |
Power | 1x 2 pins, phenix terminal |
LCD Display | |
Size/Type | 17.0” TFT LCD |
Resolution | 1280 * 1024 (SXGA) |
Brightness | 250nits |
Backlit & MTBF | LED backlit & 30 000hours |
Display area | 337.92 * 270.34 |
View angle | 85/85/85/85 |
Touchscreen | |
Type | Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller |
Touch points | Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive) |
Durability | >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive) |
Surface hardness | Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive) |
Special treatment | Anti-fingerprint (PCap) |
Structure | |
Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
Mount method | Panel mount, VESA 75/100 |
Cooling system | Large area finned heat sink |
Overall dimension | 386.5 * 323.5 * 57.5 (mm) |
Cut-out dimension | 376 * 313 (mm) |
Net weight | 4.7 KG |
IP protection | Front Panel IP65 |
Power & Environmental | |
Operating temp. | 0~+50℃ |
Storage temp. | -20~+60℃ |
Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
Shock | 10G/Peak (11 ms) |
Power input | DC 12V (Optional DC 9~36V) |
Power consumption | Around 40W |
EMC | CE/FCC Class A |
PPC-DS170-W2 CyberVisuell Industrial Panel PC
Features:
- 17.0” TFT LCD display, 4:3, LED Backlit, SXGA 1280 *1024;
- Intel 8th -gen. Whiskey Lake Core i5 processor;
- Multi-point projected capacitive touch, or 5-wire resistive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 12V, optional wide voltage DC 9~36V power input;
- IO: 2*GLAN, 4*USB3.0, 3*COM (DB9), 2*HDMI;
- Intel PTT TPM2.0, Support Windows 11 OS;
- Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
Ordering information: (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.) Updated June 2024 – prices subject to change without notice
Part no. | Description | Datasheets | Sell Price ex-GST |
PPC-DS170-W2-CT | 17.0”, 1280 * 1024, Core i5-8265U, Quad-core 1.6Ghz, Pcap. touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-W2-CT | $2,777 |
PPC-DS170-W2-RT | 17.0”, 1280 * 1024, Core i5-8265U, Quad-core 1.6Ghz, Resistive touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-W2-RT | $2,847 |
-4G / -8G / -16G | SO-DIMM, DDR4, 4GB/8GB/16GB Memory | ||
-128GS / -256GS / -512GS | M.2 SSD: 128GB/256GB/512GB | ||
2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB
2.5” HDD: 2TB/4TB |
|||
TBOX-AUDIO | Audio (Line out) connector on rear connector panel | ||
TBOX-WiBlu | Wi-Fi with BT integrated module, with Antenna (M.2 interface) | ||
EM06-E-PCKit | All network 4G/LTE module, With Antenna (M.2 interface) | ||
5G module, with Antenna (M.2 interface) | |||
TBOX-9-36V | Optional 9-36V DC wide voltage input module with mains adaptor included | ||
TBOX-SIMSLOT | Sim card slot for 3G/4G/5G wireless expansion, accepts full size (2FF) SIM cards |
Packing List:
- 1x Standard Product
- 1x 60W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
System & Hardware | |
BIOS | SPI AMI EEI BIOS |
CPU | Intel 8th-gen. Whiskey Lake Core i5-8265U |
Memory | SO-DIMM, DDR4-1866/2133/2400 MT/s, Max. up to 16GB |
Storage | 1* M.2 NGFF Key-M/B slot + 1* 2.5” SATA |
Graphic | Intel UHD Graphics 620 |
Network | 1* Intel I211AT, and 1* Intel I219V LAN chips (Optional wireless 3G/4G, 5G, Wi-Fi/BT, Wi-Fi 6) |
Audio | On-board Realtek ACL 662 audio controller (Optional Line-Out connector available) |
Expansion | 1* M.2 Key-B slot, 1* M.2 Key-E slot |
Watchdog | 0~256 seconds programmable |
OS | Win10, Win11, Linux, Ubuntu |
I/O interface | |
COM | 3*RS232 (Default), Optional 1* RS485 or 8*GPIO |
Ethernet | 2* RJ45, 10/100/1000 Mbps |
Audio | Optional Line-out |
USB | 4x USB3.0 |
Display | 2x HDMI |
Power | 1x 2 pins, phenix terminal |
LCD Display | |
Size/Type | 17.0” TFT LCD |
Resolution | 1280 * 1024 (SXGA) |
Brightness | 250nits |
Backlit & MTBF | LED backlit & 30 000hours |
Display area | 337.92 * 270.34 |
View angle | 85/85/85/85 |
Touchscreen | |
Type | Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller |
Touch points | Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive) |
Durability | >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive) |
Surface hardness | Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive) |
Special treatment | Anti-fingerprint (PCap) |
Structure | |
Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
Mount method | Panel mount, VESA 75/100 |
Cooling system | Large area finned heat sink |
Overall dimension | 386.5 * 323.5 * 57.5 (mm) |
Cut-out dimension | 376 * 313 (mm) |
Net weight | 4.7 KG |
IP protection | Front Panel IP65 |
Power & Environmental | |
Operating temp. | 0~+50℃ |
Storage temp. | -20~+60℃ |
Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
Shock | 10G/Peak (11 ms) |
Power input | DC 12V (Optional DC 9~36V) |
Power consumption | Around 40W |
EMC | CE/FCC Class A |

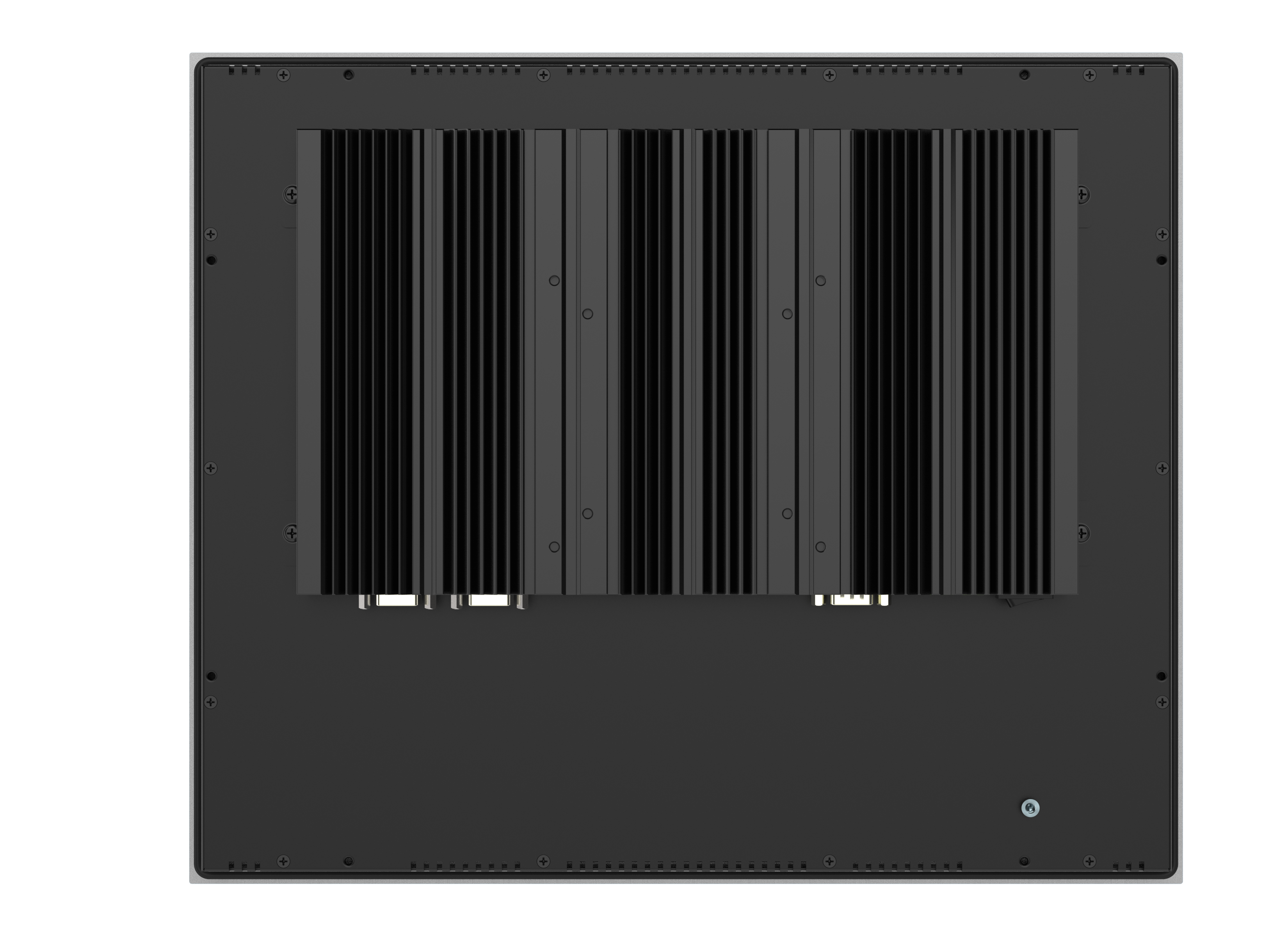

PPC-DS170-W3 CyberVisuell Industrial Panel PC
Features:
- 17.0” TFT LCD display, 4:3, LED Backlit, SXGA 1280 *1024;
- Intel 8th -gen. Whiskey Lake Core i7 processor;
- Multi-point projected capacitive touch, or 5-wire resistive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 12V, optional wide voltage DC 9~36V power input;
- IO: 2*GLAN, 4*USB3.0, 3*COM (DB9), 2*HDMI;
- Intel PTT TPM2.0, Support Windows 11 OS;
- Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
Ordering information: (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.) Updated June 2024 – prices subject to change without notice
Part no. | Description | Datasheets | Sell Price ex-GST |
PPC-DS170-W3-CT | 17.0”, 1280 * 1024, Core i7-8565U, Quad-core 1.8Ghz, Pcap. touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-W3-CT | $3,176 |
PPC-DS170-W3-RT | 17.0”, 1280 * 1024, Core i7-8565U, Quad-core 1.8Ghz, Resistive touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU | Data Sheet on PPC-DS170-W3-RT | $3,246 |
-4G / -8G / -16G | SO-DIMM, DDR4, 4GB/8GB/16GB Memory | ||
-128GS / -256GS / -512GS | M.2 SSD: 128GB/256GB/512GB | ||
2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB
2.5” HDD: 2TB/4TB |
|||
TBOX-AUDIO | Audio (Line out) connector on rear connector panel | ||
TBOX-WiBlu | Wi-Fi with BT integrated module, with Antenna (M.2 interface) | ||
EM06-E-PCKit | All network 4G/LTE module, With Antenna (M.2 interface) | ||
5G module, with Antenna (M.2 interface) | |||
TBOX-9-36V | Optional 9-36V DC wide voltage input module with mains adaptor included | ||
TBOX-SIMSLOT | Sim card slot for 3G/4G/5G wireless expansion, accepts full size (2FF) SIM cards |
Packing List:
- 1x Standard Product
- 1x 60W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
System & Hardware | |
BIOS | SPI AMI EEI BIOS |
CPU | Intel 8th-gen. Whiskey Lake Core i7-8565U |
Memory | SO-DIMM, DDR4-1866/2133/2400 MT/s, Max. up to 16GB |
Storage | 1* M.2 NGFF Key-M/B slot + 1* 2.5” SATA |
Graphic | Intel UHD Graphics 620 |
Network | 1* Intel I211AT, and 1* Intel I219V LAN chips (Optional wireless 3G/4G, 5G, Wi-Fi/BT, Wi-Fi 6) |
Audio | On-board Realtek ACL 662 audio controller (Optional Line-Out connector available) |
Expansion | 1* M.2 Key-B slot, 1* M.2 Key-E slot |
Watchdog | 0~256 seconds programmable |
OS | Win10, Win11, Linux, Ubuntu |
I/O interface | |
COM | 3*RS232 (Default), Optional 1* RS485 or 8*GPIO |
Ethernet | 2* RJ45, 10/100/1000 Mbps |
Audio | Optional Line-out |
USB | 4x USB3.0 |
Display | 2x HDMI |
Power | 1x 2 pins, phenix terminal |
LCD Display | |
Size/Type | 17.0” TFT LCD |
Resolution | 1280 * 1024 (SXGA) |
Brightness | 250nits |
Backlit & MTBF | LED backlit & 30 000hours |
Display area | 337.92 * 270.34 |
View angle | 85/85/85/85 |
Touchscreen | |
Type | Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller |
Touch points | Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive) |
Durability | >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive) |
Surface hardness | Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive) |
Special treatment | Anti-fingerprint (PCap) |
Structure | |
Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
Mount method | Panel mount, VESA 75/100 |
Cooling system | Large area finned heat sink |
Overall dimension | 386.5 * 323.5 * 57.5 (mm) |
Cut-out dimension | 376 * 313 (mm) |
Net weight | 4.7 KG |
IP protection | Front Panel IP65 |
Power & Environmental | |
Operating temp. | 0~+50℃ |
Storage temp. | -20~+60℃ |
Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
Shock | 10G/Peak (11 ms) |
Power input | DC 12V (Optional DC 9~36V) |
Power consumption | Around 40W |
EMC | CE/FCC Class A |
Rich I/O Panel PC Models
CyberVisuell’s rich I/O panel PC’s have the full complement of I/O connections, including multiple serial and USB ports, with space to add an internal 2.5″ SSD/HDD plus various other options. These PC’s can mount into a panel, and an optional bracket can be added for VESA mounting.

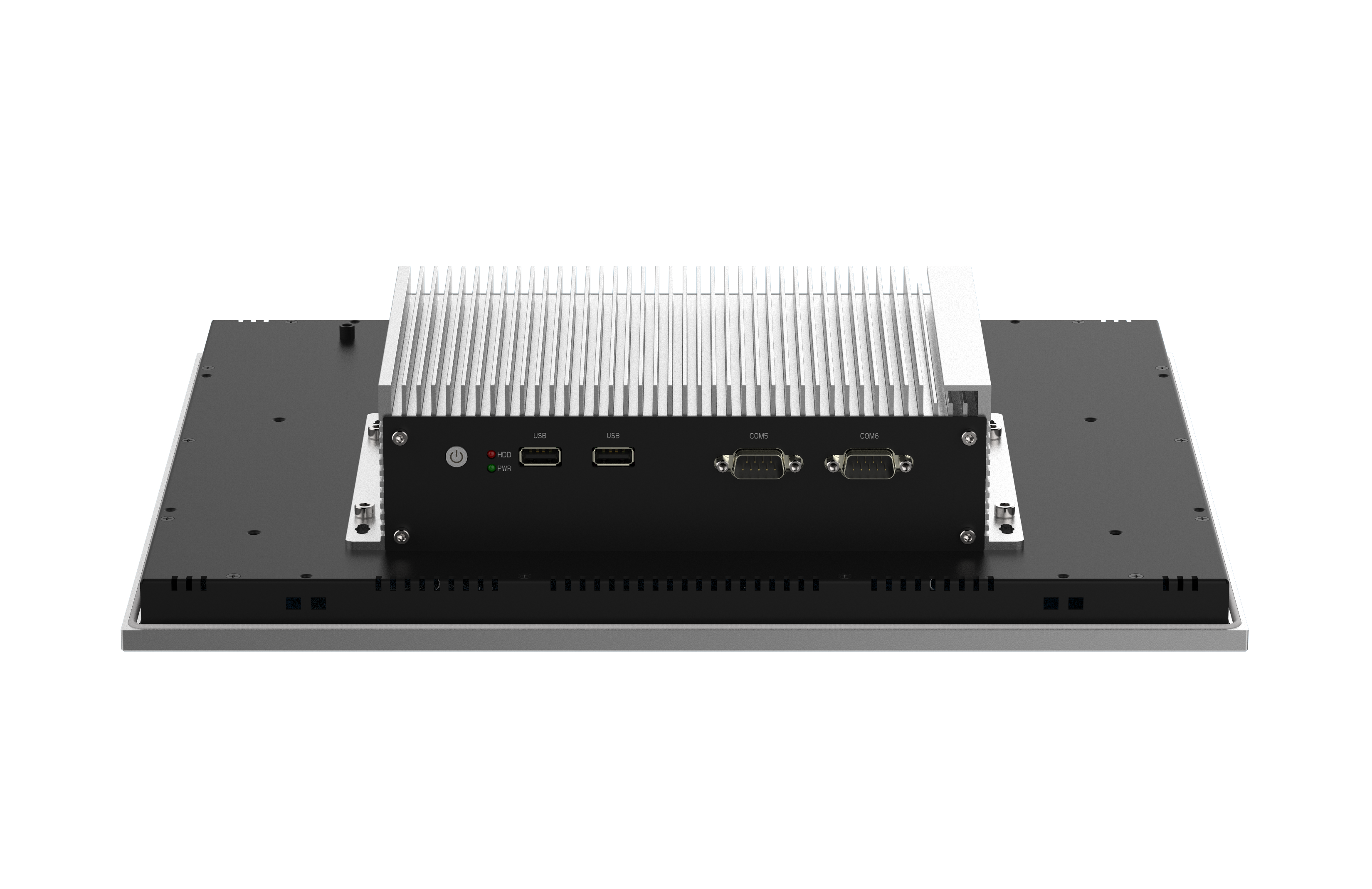

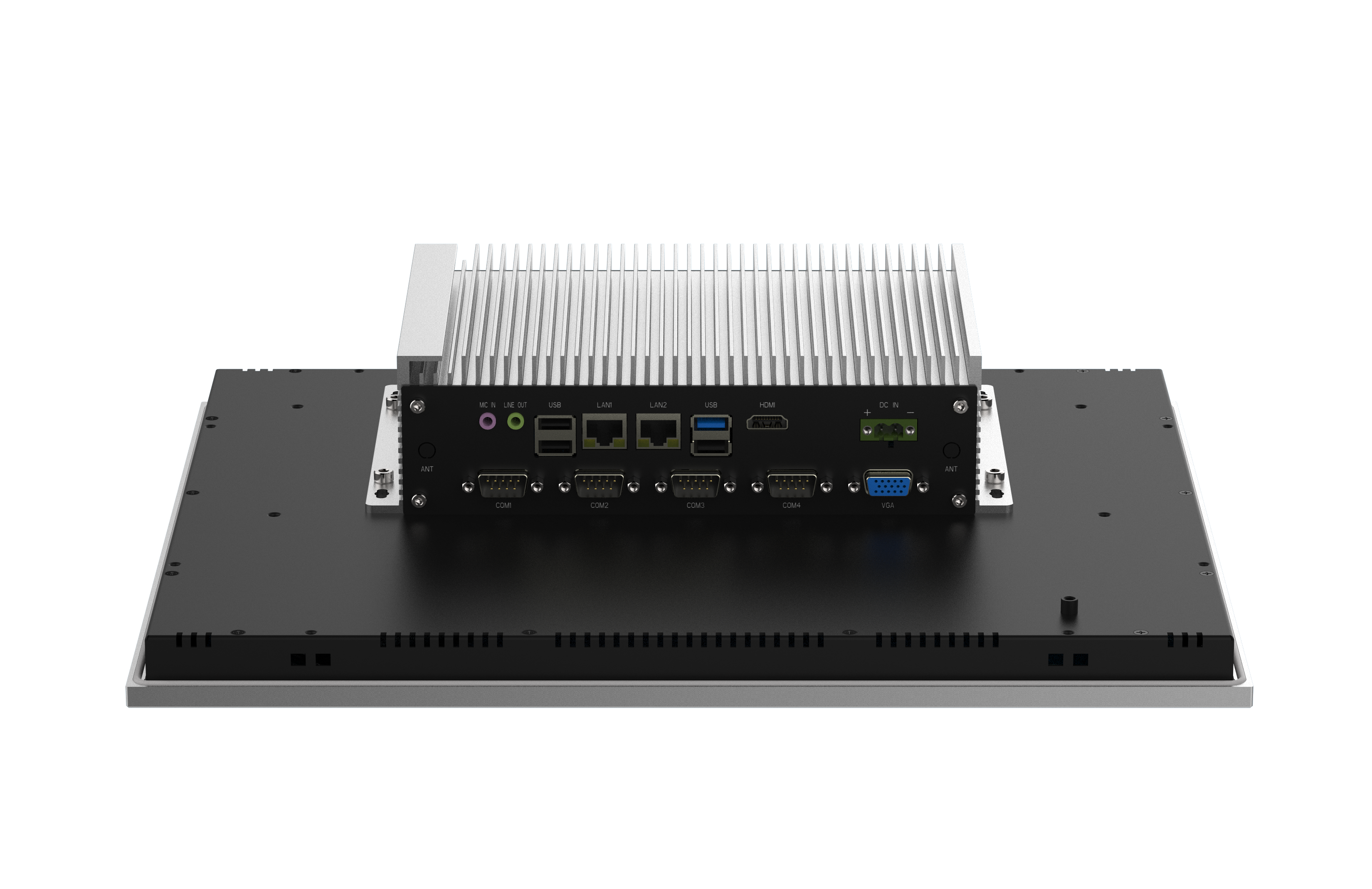

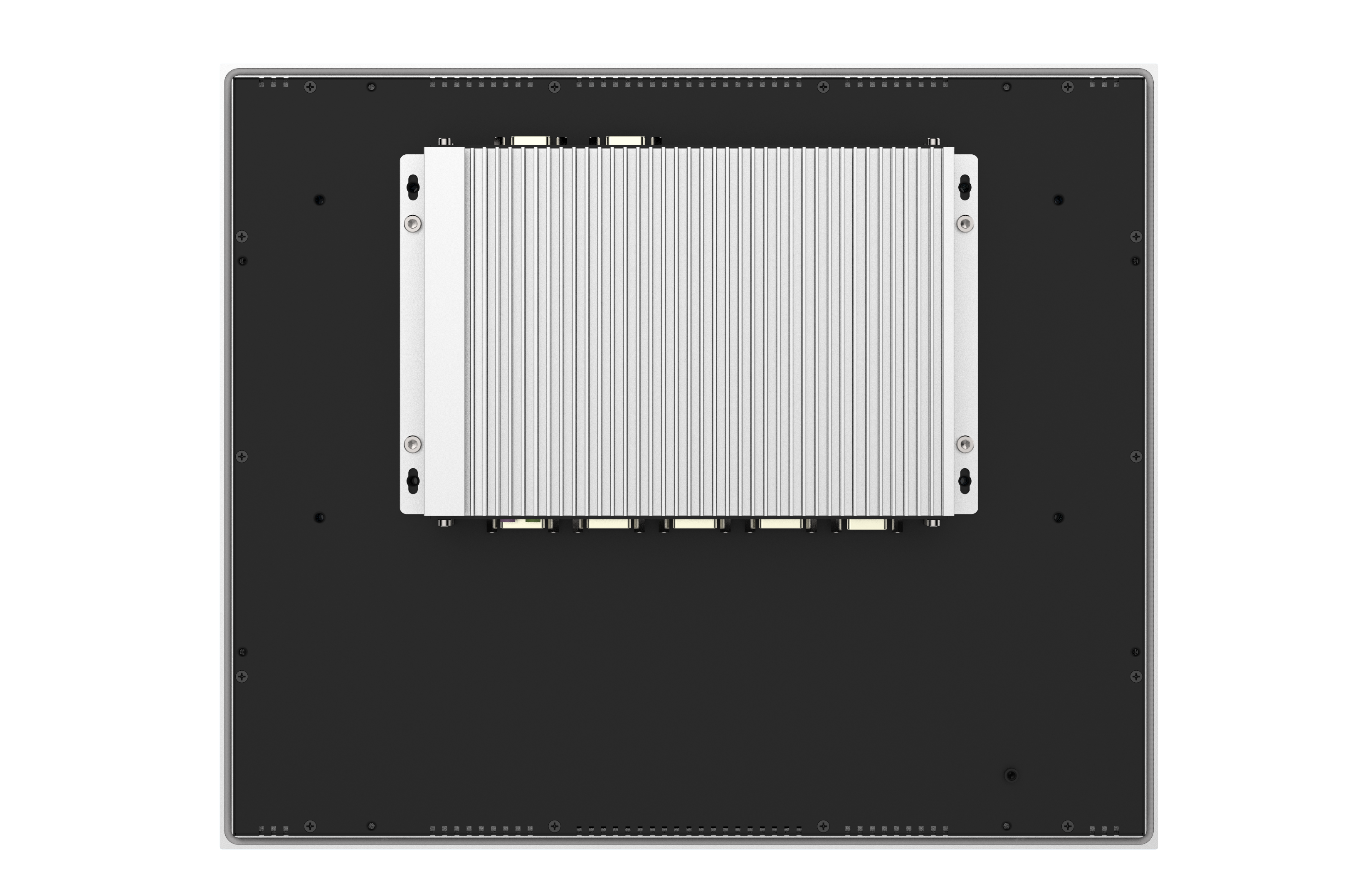

PPC-170-C1 CyberVisuell Industrial Panel PC
Features:
- 17.0” TFT LCD display, LED Backlit, SXGA 1280 *1024;
- Intel Baytrail J1900 2.0Ghz Quad-core processor;
- Multi-point projected capacitive touch, or 5-wire resistive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 9~24V, with over-current, over-voltage and polarity protection;
- 2*GLAN, 5*USB, 6*COM, 1*HDMI, 1*VGA, Mic-in/Line-out;
- Fan-less & Rich IO design, Panel mount, VESA, Front IP65 protection.
Ordering information: (Prices include 8GB RAM + 128GB SSD, and exclude GST. Please contact us for other configurations.) Updated June 2024 – prices subject to change without notice
Part no. | Description | Datasheets | Sell Price ex-GST |
PPC-170-C1-CT | 17.0”, 1280 * 1024, Intel Baytrail J1900, Pcap. touch, 2*GLAN, 5*USB, 6*COM, 1*HDMI, 1*VGA, Mic-in/Line-out, DC 9~24V | Data Sheet on PPC-170-C1-CT | $2,090 |
PPC-170-C1-RT | 17.0”, 1280 * 1024, Intel Baytrail J1900, Resistive touch, 2*GLAN, 5*USB, 6*COM, 1*HDMI, 1*VGA, Mic-in/Line-out, DC 9~24V | Data Sheet on PPC-170-C1-RT | $2,160 |
-2G / -4G / -8G | Memory: SO-DIMM, DDR3,2GB/4GB/8GB Memory | ||
-64GS / -128GS / -256GS / -512GS | mSATA SSD: 64GB/128GB/256GB/512GB | ||
2.5” SATA SSD: 256GB/512GB
2.5” HDD: 1TB/2TB/4TB |
|||
TBOX-WIFI | Wi-Fi module, with Antenna | ||
TBOX-WIBlu | Wi-Fi with BT integrated module, with Antenna | ||
EC25-AU-PCKit | All network 4G/LTE module, With Antenna | ||
TA-VESAB1 | Additional VESA bracket for VESA mounting |
Packing List:
- 1x Standard Product
- 1x 60W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
System & Hardware | |
BIOS | SPI AMI EEI BIOS |
CPU | Intel Baytrail J1900, Quad-core 2.0Ghz, burst to 2.42Ghz |
Memory | SO-DIMM, DDR3L-1333, Max. up to 8GB (Compatible with DDR3) |
Storage | 1*mSATA (Optional support 1* 2.5” SATA) |
Graphic | Intel HD Graphics Gen7 |
Network | 2* Intel I211AT (Optional 3G/4G/Wi-Fi) |
Audio | On-board Realtek ACL 282 audio controller |
Expansion | 1* Full size Mini-PCIe slot |
Watchdog | 0~256 seconds programmable |
OS | Win7, Win8, Win embedded, Win10, Linux |
I/O interface | |
COM | 6x RS232 (Optional support 1x RS485) |
Ethernet | 2x RJ45, 10/100/1000 Mbps |
Audio | Mic-in/Line-out |
USB | 1x USB3.0, 4x USB2.0 |
Display | 1x HDMI, 1x VGA |
Power | 1x 2 pins, phenix terminal |
LCD Display | |
Size/Type | 17.0” TFT LCD |
Resolution | 1280 * 1024 (SXGA) |
Brightness | 250 nits |
Backlit & MTBF | LED backlit & 30 000hours |
Display area | 337.92 * 270.34 |
View angle | 85/85/85/85 |
Touchscreen | |
Type | Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller |
Touch points | Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive) |
Durability | >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive) |
Surface hardness | Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive) |
Special treatment | Anti-fingerprint (PCap) |
Structure | |
Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
Mount method | Panel mount (Optional support VESA 75/100) |
Cooling system | Large area finned heat sink |
Overall dimension | 386.5 * 323.5 * 84.0 (mm) |
Cut-out dimension | 376 * 313 (mm) |
Net weight | 5.5 KG |
IP protection | Front Panel IP65 |
Power & Environmental | |
Operating temp. | 0~+50℃ |
Storage temp. | -20~+60℃ |
Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
Shock | 10G/Peak (11 ms) |
Power input | DC 9~24V |
Power consumption | Around 35W |
EMC | CE/FCC Class A |
PPC-170-A1 CyberVisuell Industrial Panel PC
Features:
- 17.0” TFT LCD display, LED Backlit, SXGA 1280 *1024;
- Intel Apollo Lake J3455 1.5Ghz Quad-core processor;
- Multi-point projected capacitive touch, or 5-wire resistive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 12V, with over-current, over-voltage and polarity protection;
- 2*GLAN, 6*USB, 6*COM, 1*HDMI, 1*VGA, Mic-in/Line-out;
- Fan-less & Rich IO design, Panel mount, VESA, Front IP65 protection.
Ordering information: (Prices include 8GB RAM + 128GB SSD, and exclude GST. Please contact us for other configurations.) Updated June 2024 – prices subject to change without notice
Part no. | Description | Datasheets | Sell Price ex-GST |
PPC-170-A1-CT | 17.0”, 1280 * 1024, Intel J3455, Pcap. touch, 2*GLAN, 6*USB, 6*COM, 1*HDMI, 1*VGA, Mic-in/Line-out, DC 12V | Data Sheet on PPC-170-A1-CT | $2,064 |
PPC-170-A1-RT | 17.0”, 1280 * 1024, Intel J3455, Resistive touch, 2*GLAN, 6*USB, 6*COM, 1*HDMI, 1*VGA, Mic-in/Line-out, DC 12V | Data Sheet on PPC-170-A1-RT | $2,133 |
-2G / -4G / -8G | Memory: SO-DIMM, DDR3,2GB/4GB/8GB Memory | ||
-64GS / -128GS / -256GS / -512GS | mSATA SSD: 64GB/128GB/256GB/512GB | ||
2.5” SATA SSD: 256GB/512GB 2.5” HDD: 1TB/2TB/4TB |
|||
TBOX-WIFI | Wi-Fi module, with Antenna | ||
TBOX-WIBlu | Wi-Fi with BT integrated module, with Antenna | ||
EC25-AU-PCKit | All network 4G/LTE module, With Antenna | ||
TPS-DTD936M1 | DC to DC, wide power input DC 9 ~ 36V | ||
TA-VESAB1 | Additional VESA bracket for VESA mounting |
Packing List:
- 1x Standard Product
- 1x 60W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
System & Hardware | |
BIOS | SPI AMI EEI BIOS |
CPU | Intel Apollo Lake J3455, Quad-core 1.5Ghz, burst to 2.3Ghz |
Memory | SO-DIMM, DDR3-1866Mt/s, Max. up to 8GB |
Storage | 1*mSATA (Optional support 1* 2.5” SATA) |
Graphic | Intel HD Graphics 500 |
Network | 2* Intel I211AT (Optional 3G/4G/Wi-Fi) |
Audio | On-board Realtek ACL 269 audio controller |
Expansion | 1* Full size Mini-PCIe slot |
Watchdog | 0~256 seconds programmable |
OS | Win10, Linux |
I/O interface | |
COM | 6x RS232 (Optional support 1x RS485) |
Ethernet | 2x RJ45, 10/100/1000 Mbps |
Audio | Mic-in/Line-out |
USB | 4x USB3.0, 2x USB2.0 |
Display | 1x HDMI, 1x VGA |
Power | 1x 2 pins, phenix terminal |
LCD Display | |
Size/Type | 15.0” TFT LCD |
Resolution | 1024 * 768 (XGA) |
Brightness | 350 nits |
Backlit & MTBF | LED backlit & 50 000hours |
Display area | 304.128 * 228.096 |
View angle | 80/80/80/80 |
Touchscreen | |
Type | Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller |
Touch points | Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive) |
Durability | >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive) |
Surface hardness | Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive) |
Special treatment | Anti-fingerprint (PCap) |
Structure | |
Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
Mount method | Panel mount (Optional support VESA 75/100) |
Cooling system | Large area finned heat sink |
Overall dimension | 352.2 * 279.3 * 84.0 (mm) |
Cut-out dimension | 341 * 268 (mm) |
Net weight | 4.5 KG |
IP protection | Front Panel IP65 |
Power & Environmental | |
Operating temp. | -20~+60℃ |
Storage temp. | -30~+80℃ |
Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
Shock | 10G/Peak (11 ms) |
Power input | DC 12V (Optional DC 9~36V) |
Power consumption | Around 35W |
EMC | CE/FCC Class A |

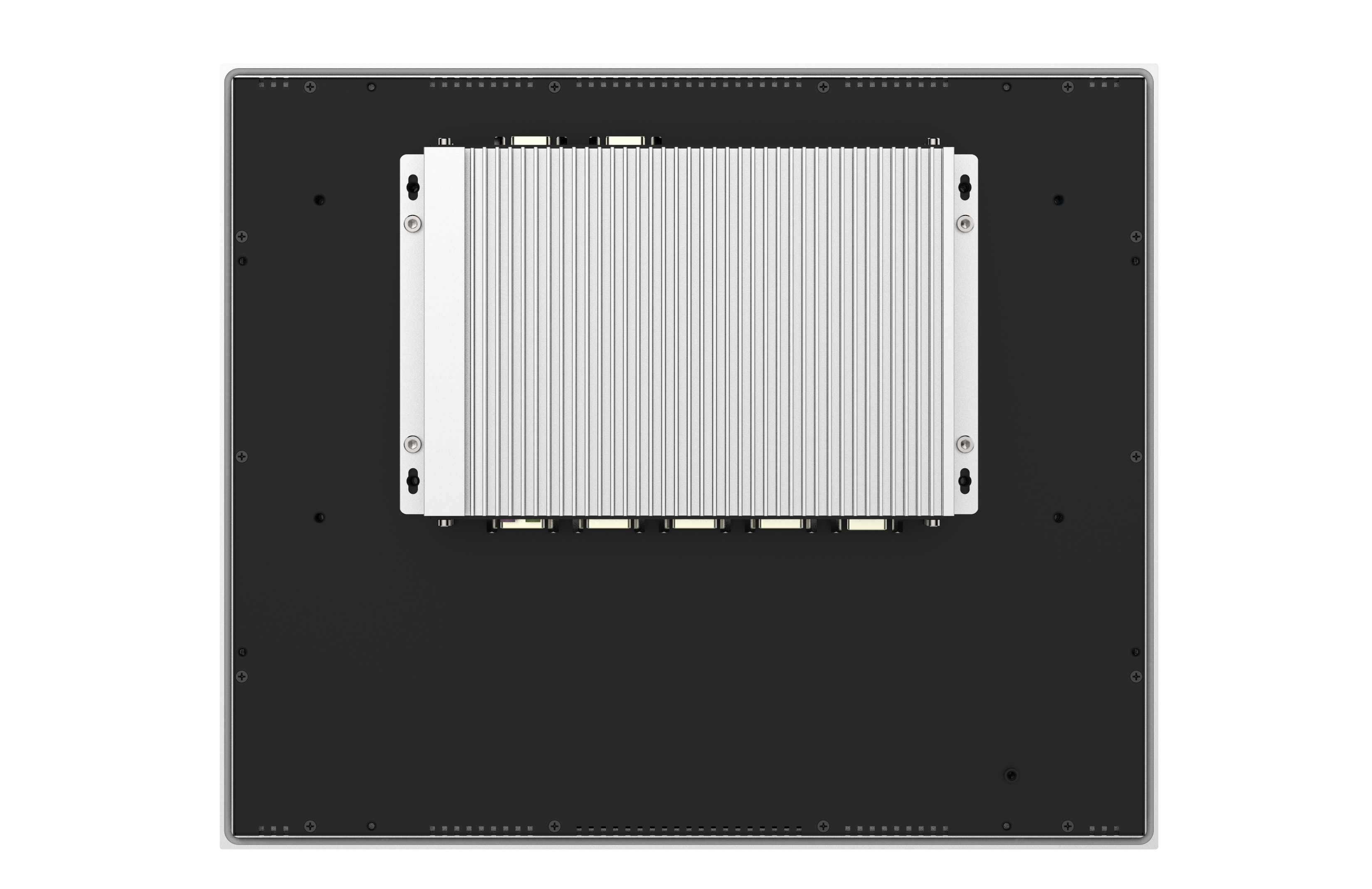

PPC-170-W1 CyberVisuell Industrial Panel PC
Features:
- 17.0” TFT LCD display, LED Backlit, SXGA 1280 *1024;
- Intel 8th -gen. Whiskey Lake -U, Core i3 processor;
- Multi-point projected capacitive touch, or 5-wire resistive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 9~24V, with over-current, over-voltage and polarity protection;
- 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out;
- Fan-less & Rich IO design, Panel mount, VESA, Front IP65 protection.
Ordering information: (Prices include 8GB RAM + 128GB SSD, and exclude GST. Please contact us for other configurations.) Updated June 2024 – prices subject to change without notice
Part no. | Description | Datasheets | Sell Price ex-GST |
PPC-170-W1-CT | 17.0”, 1280 * 1024, Core i3-8145U, Pcap. touch, 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out, DC 9~24V | Data Sheet on PPC-170-W1-CT | $2,543 |
PPC-170-W1-RT | 17.0”, 1280 * 1024, Core i3-8145U, Resistive touch, 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out, DC 9~24V | Data Sheet on PPC-170-W1-RT | $2,612 |
-4G / -8G / -16G | Memory: SO-DIMM, DDR4,4GB/8GB/16GB Memory | ||
-64GS / -128GS / -256GS / -512GS | mSATA SSD: 64GB/128GB/256GB/512GB | ||
2.5” SATA SSD: 256GB/512GB 2.5” HDD: 1TB/2TB/4TB |
|||
TBOX-WIFI | Wi-Fi module, with Antenna | ||
TBOX-WIBlu | Wi-Fi with BT integrated module, with Antenna | ||
EC25-AU-PCKit | All network 4G/LTE module, With Antenna | ||
TA-VESAB1 | Additional VESA bracket for VESA mounting |
Packing List:
- 1x Standard Product
- 1x 90W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
System & Hardware | |
BIOS | SPI AMI EEI BIOS |
CPU | Intel Core i3-8145U, Dual core 2.1Ghz, burst to 3.9Ghz |
Memory | SO-DIMM, DDR4, max. up to 16GB |
Storage | 1*mSATA (Optional support 1* 2.5” SATA) |
Graphic | Intel HD Graphics 620 |
Network | 2* Intel I211AT (Optional 3G/4G/Wi-Fi) |
Audio | On-board Realtek ACL 269 audio controller |
Expansion | 1* Full size Mini-PCIe slot |
Watchdog | 0~256 seconds programmable |
OS | Win10, Linux |
I/O interface | |
COM | 6x RS232 (Support 1x RS485) |
Ethernet | 2x RJ45, 10/100/1000 Mbps |
Audio | Line-out |
USB | 4x USB3.0, 4x USB2.0 |
Display | 1x HDMI, 1x VGA |
Power | 1x 2 pins, phenix terminal |
LCD Display | |
Size/Type | 17.0” TFT LCD |
Resolution | 1280 * 1024 (SXGA) |
Brightness | 250 nits |
Backlit & MTBF | LED backlit & 30 000hours |
Display area | 337.92 * 270.34 |
View angle | 85/85/85/85 |
Touchscreen | |
Type | Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller |
Touch points | Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive) |
Durability | >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive) |
Surface hardness | Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive) |
Special treatment | Anti-fingerprint (PCap) |
Structure | |
Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
Mount method | Panel mount (Optional support VESA 75/100 mount) |
Cooling system | Large area finned heat sink |
Overall dimension | 386.5 * 323.5 * 84.0 (mm) |
Cut-out dimension | 376 * 313 (mm) |
Net weight | 5.5 KG |
IP protection | Front Panel IP65 |
Power & Environmental | |
Operating temp. | 0~+50℃ |
Storage temp. | –20~+60℃ |
Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
Shock | 10G/Peak (11 ms) |
Power input | DC 9~24V |
Power consumption | Around 40W |
EMC | CE/FCC Class A |
PPC-170-W2 CyberVisuell Industrial Panel PC
Features:
- 17.0” TFT LCD display, LED Backlit, SXGA 1280 *1024;
- Intel 8th -gen. Whiskey Lake -U, Core i5 processor;
- Multi-point projected capacitive touch, or 5-wire resistive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 9~24V, with over-current, over-voltage and polarity protection;
- 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out;
- Fan-less & Rich IO design, Panel mount, VESA, Front IP65 protection.
Ordering information: (Prices include 8GB RAM + 128GB SSD, and exclude GST. Please contact us for other configurations.) Updated June 2024 – prices subject to change without notice
Part no. | Description | Datasheets | Sell Price ex-GST |
PPC-170-W2-CT | 17.0”, 1280 * 1024, Core i5-8265U, Pcap. touch, 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out, DC 9~24V | Data Sheet on PPC-170-W2-CT | $2,866 |
PPC-170-W2-RT | 17.0”, 1280 * 1024, Core i5-8265U, Resistive touch, 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out, DC 9~24V | Data Sheet on PPC-170-W2-RT | $2,935 |
-4G / -8G / -16G | Memory: SO-DIMM, DDR4,4GB/8GB/16GB Memory | ||
-64GS / -128GS / -256GS / -512GS | mSATA SSD: 64GB/128GB/256GB/512GB | ||
2.5” SATA SSD: 256GB/512GB 2.5” HDD: 1TB/2TB/4TB |
|||
TBOX-WIFI | Wi-Fi module, with Antenna | ||
TBOX-WIBlu | Wi-Fi with BT integrated module, with Antenna | ||
EC25-AU-PCKit | All network 4G/LTE module, With Antenna | ||
TA-VESAB1 | Additional VESA bracket for VESA mounting |
Packing List:
- 1x Standard Product
- 1x 90W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
System & Hardware | |
BIOS | SPI AMI EEI BIOS |
CPU | Intel Core i5-8265U, Dual core 1.5Ghz, burst to 3.9Ghz |
Memory | SO-DIMM, DDR4, max. up to 16GB |
Storage | 1*mSATA (Optional support 1* 2.5” SATA) |
Graphic | Intel HD Graphics 620 |
Network | 2* Intel I211AT (Optional 3G/4G/Wi-Fi) |
Audio | On-board Realtek ACL 269 audio controller |
Expansion | 1* Full size Mini-PCIe slot |
Watchdog | 0~256 seconds programmable |
OS | Win10, Linux |
I/O interface | |
COM | 6x RS232 (Support 1x RS485) |
Ethernet | 2x RJ45, 10/100/1000 Mbps |
Audio | Line-out |
USB | 4x USB3.0, 4x USB2.0 |
Display | 1x HDMI, 1x VGA |
Power | 1x 2 pins, phenix terminal |
LCD Display | |
Size/Type | 17.0” TFT LCD |
Resolution | 1280 * 1024 (SXGA) |
Brightness | 250 nits |
Backlit & MTBF | LED backlit & 30 000hours |
Display area | 337.92 * 270.34 |
View angle | 85/85/85/85 |
Touchscreen | |
Type | Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller |
Touch points | Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive) |
Durability | >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive) |
Surface hardness | Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive) |
Special treatment | Anti-fingerprint (PCap) |
Structure | |
Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
Mount method | Panel mount (Optional support VESA 75/100 mount) |
Cooling system | Large area finned heat sink |
Overall dimension | 386.5 * 323.5 * 84.0 (mm) |
Cut-out dimension | 376 * 313 (mm) |
Net weight | 5.5 KG |
IP protection | Front Panel IP65 |
Power & Environmental | |
Operating temp. | 0~+50℃ |
Storage temp. | –20~+60℃ |
Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
Shock | 10G/Peak (11 ms) |
Power input | DC 9~24V |
Power consumption | Around 40W |
EMC | CE/FCC Class A |
PPC-170-W3 CyberVisuell Industrial Panel PC
Features:
- 17.0” TFT LCD display, LED Backlit, SXGA 1280 *1024;
- Intel 8th -gen. Whiskey Lake -U, Core i7 processor;
- Multi-point projected capacitive touch, or 5-wire resistive touch;
- Aluminum-magnesium alloy, anodized treatment, Modular designed;
- DC 9~24V, with over-current, over-voltage and polarity protection;
- 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out;
- Fan-less & Rich IO design, Panel mount, VESA, Front IP65 protection.
Ordering information: (Prices include 8GB RAM + 128GB SSD, and exclude GST. Please contact us for other configurations.) Updated June 2024 – prices subject to change without notice
Part no. | Description | Datasheets | Sell Price ex-GST |
PPC-170-W3-CT | 17.0”, 1280 * 1024, Core i7-8565U, Pcap. touch, 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out, DC 9~24V | Data Sheet on PPC-170-W3-CT | $3,154 |
PPC-170-W1-RT | 17.0”, 1280 * 1024, Core i7-8565U, Resistive touch, 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out, DC 9~24 | Data Sheet on PPC-170-W3-RT | $3,224 |
-4G / -8G / -16G | Memory: SO-DIMM, DDR4,4GB/8GB/16GB Memory | ||
-64GS / -128GS / -256GS / -512GS | mSATA SSD: 64GB/128GB/256GB/512GB | ||
2.5” SATA SSD: 256GB/512GB 2.5” HDD: 1TB/2TB/4TB |
|||
TBOX-WIFI | Wi-Fi module, with Antenna | ||
TBOX-WIBlu | Wi-Fi with BT integrated module, with Antenna | ||
EC25-AU-PCKit | All network 4G/LTE module, With Antenna | ||
TA-VESAB1 | Additional VESA bracket for VESA mounting |
Packing List:
- 1x Standard Product
- 1x 90W PSU (Power Supply)
- 1x Power cable & Plug
- 8x Panel mount metal clips
Specifications:
System & Hardware | |
BIOS | SPI AMI EEI BIOS |
CPU | Intel Core i7-8565U, Dual core 2.1Ghz, burst to 3.9Ghz |
Memory | SO-DIMM, DDR4, max. up to 16GB |
Storage | 1*mSATA (Optional support 1* 2.5” SATA) |
Graphic | Intel HD Graphics 620 |
Network | 2* Intel I211AT (Optional 3G/4G/Wi-Fi) |
Audio | On-board Realtek ACL 269 audio controller |
Expansion | 1* Full size Mini-PCIe slot |
Watchdog | 0~256 seconds programmable |
OS | Win10, Linux |
I/O interface | |
COM | 6x RS232 (Support 1x RS485) |
Ethernet | 2x RJ45, 10/100/1000 Mbps |
Audio | Line-out |
USB | 4x USB3.0, 4x USB2.0 |
Display | 1x HDMI, 1x VGA |
Power | 1x 2 pins, phenix terminal |
LCD Display | |
Size/Type | 17.0” TFT LCD |
Resolution | 1280 * 1024 (SXGA) |
Brightness | 250 nits |
Backlit & MTBF | LED backlit & 30 000hours |
Display area | 337.92 * 270.34 |
View angle | 85/85/85/85 |
Touchscreen | |
Type | Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller |
Touch points | Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive) |
Durability | >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive) |
Surface hardness | Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive) |
Special treatment | Anti-fingerprint (PCap) |
Structure | |
Structure and surface | Magnesium-Aluminum alloy, sand blasting, anodized treatment |
Mount method | Panel mount (Optional support VESA 75/100 mount) |
Cooling system | Large area finned heat sink |
Overall dimension | 386.5 * 323.5 * 84.0 (mm) |
Cut-out dimension | 376 * 313 (mm) |
Net weight | 5.5 KG |
IP protection | Front Panel IP65 |
Power & Environmental | |
Operating temp. | 0~+50℃ |
Storage temp. | –20~+60℃ |
Relative Humidity | 10 ~ 95% @ 10C (Non-condensation) |
Vibration | 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak |
Shock | 10G/Peak (11 ms) |
Power input | DC 9~24V |
Power consumption | Around 40W |
EMC | CE/FCC Class A |
