21.5” Panel PC’s – CyberVisuell

A versatile range of Industrial Grade 21.5” All In One Panel PC’s with CPU’s from Celeron to i7
Home » Computer Products » Industrial PCs » Panel PC’s » Panel PC’s – Industrial All-In-One PC’s with Touchscreen » 21.5” Panel PC’s – CyberVisuell – All-In-One Industrial PC’s

Explore the world of industrial-grade computing with CyberVisuell, your reliable partner for rugged and powerful 21.5″ Panel PCs. Our products are specifically designed to meet the demanding needs of various industrial environments, combining unrivalled durability with top-tier performance.

Equipped with a vibrant widescreen 21.5” TFT LCD display with LED backlighting, our Panel PCs provide Full HD 1920*1080 resolution, ensuring sharp and clear visuals even in challenging lighting conditions.

Read More

Our ruggedized Panel PCs are powered by a range of high-efficiency Intel processors, from the low cost Celeron series to the performance focused Core i3/i5/i7 series, perfect for data-intensive tasks prevalent in industrial settings.

Whether it’s the intuitive multi-point projected capacitive touch or the reliable 5-wire resistive touch, our devices provide seamless and precise control, allowing your operations to run with utmost efficiency.

Built with a robust aluminum-magnesium alloy and anodized treatment, our Panel PCs exhibit a modular and rugged design that stands the test of time and harsh environments. These devices are expertly engineered to operate over a wide temperature range, assuring reliable performance under extreme industrial conditions.

CyberVisuell’s 21.5″ Panel PCs embrace a fanless and slim design for noise-free and dust proof operation, an essential feature for many industrial applications. These devices also offer flexible mounting options, including Panel mount and VESA, ensuring easy integration into any industrial setup.

Our devices are built with Front IP65 protection, providing robust resistance against dust, moisture, and various other environmental hazards, making them rugged and suitable for industrial use.

Show Less

Send us a Message
ESIS - Phone +61 2 9481 7420

Browse Products
On this page:
Other related pages:

Slim Panel PC Models

CyberVisuell’s slim panel PC’s provide maximum mounting versatility: a VESA mounting point allows the monitor to be easily mounted onto a bracket, or the front IP65-rated screen can be mounted into a panel. These models have a reduced number of I/O ports on the rear, due to their slim profile, but still include enough connections to suit the majority of applications.

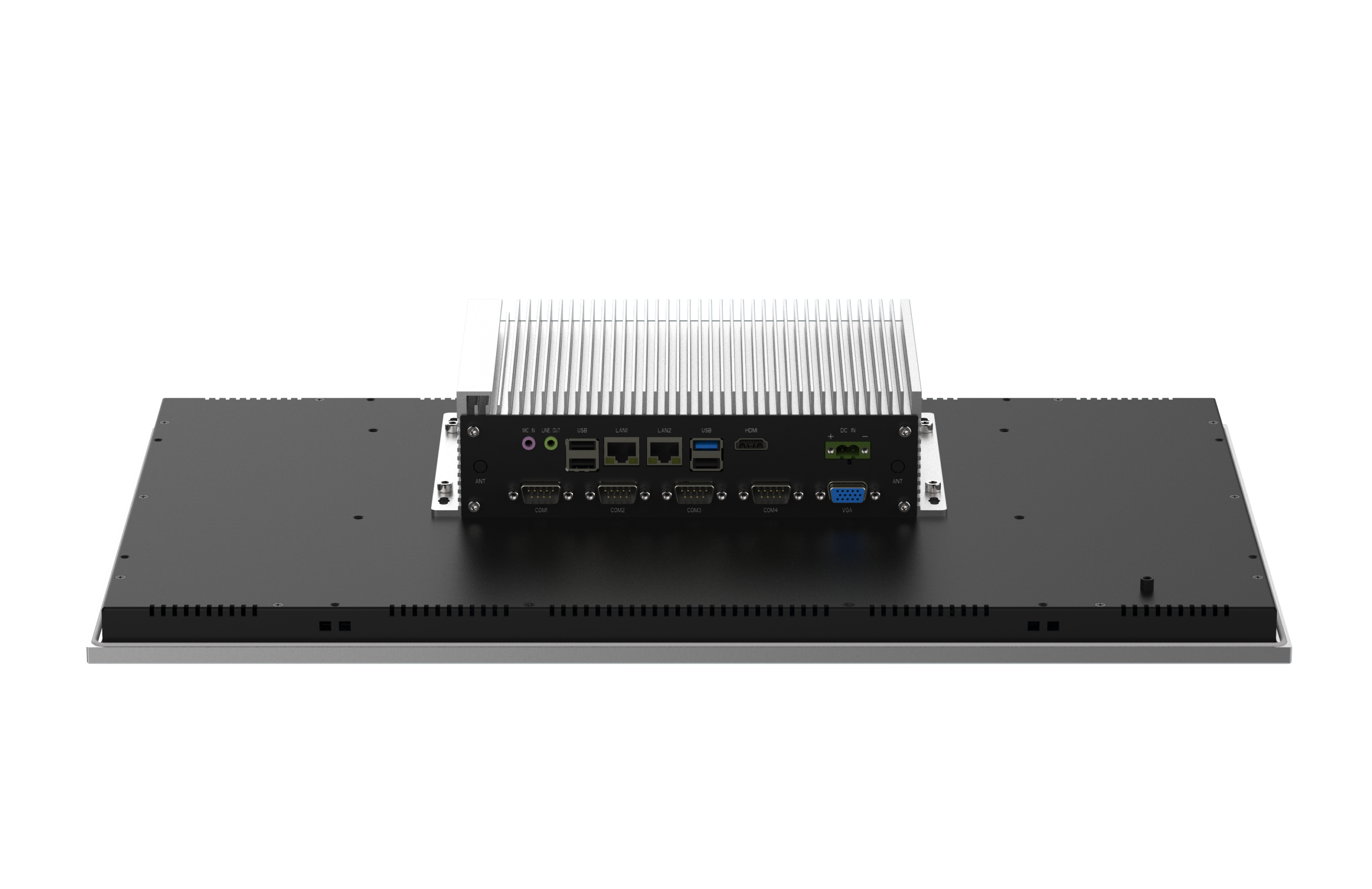

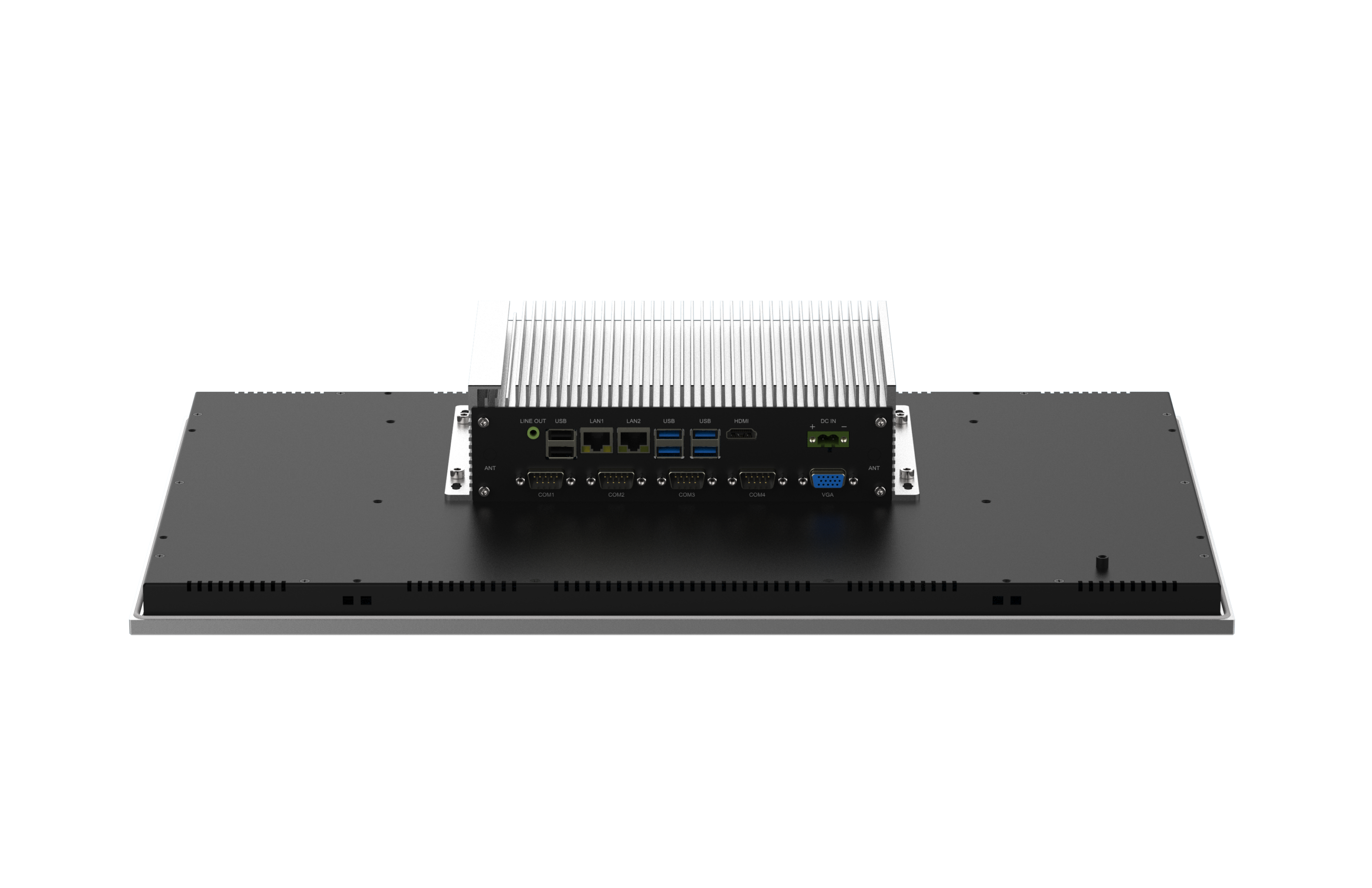

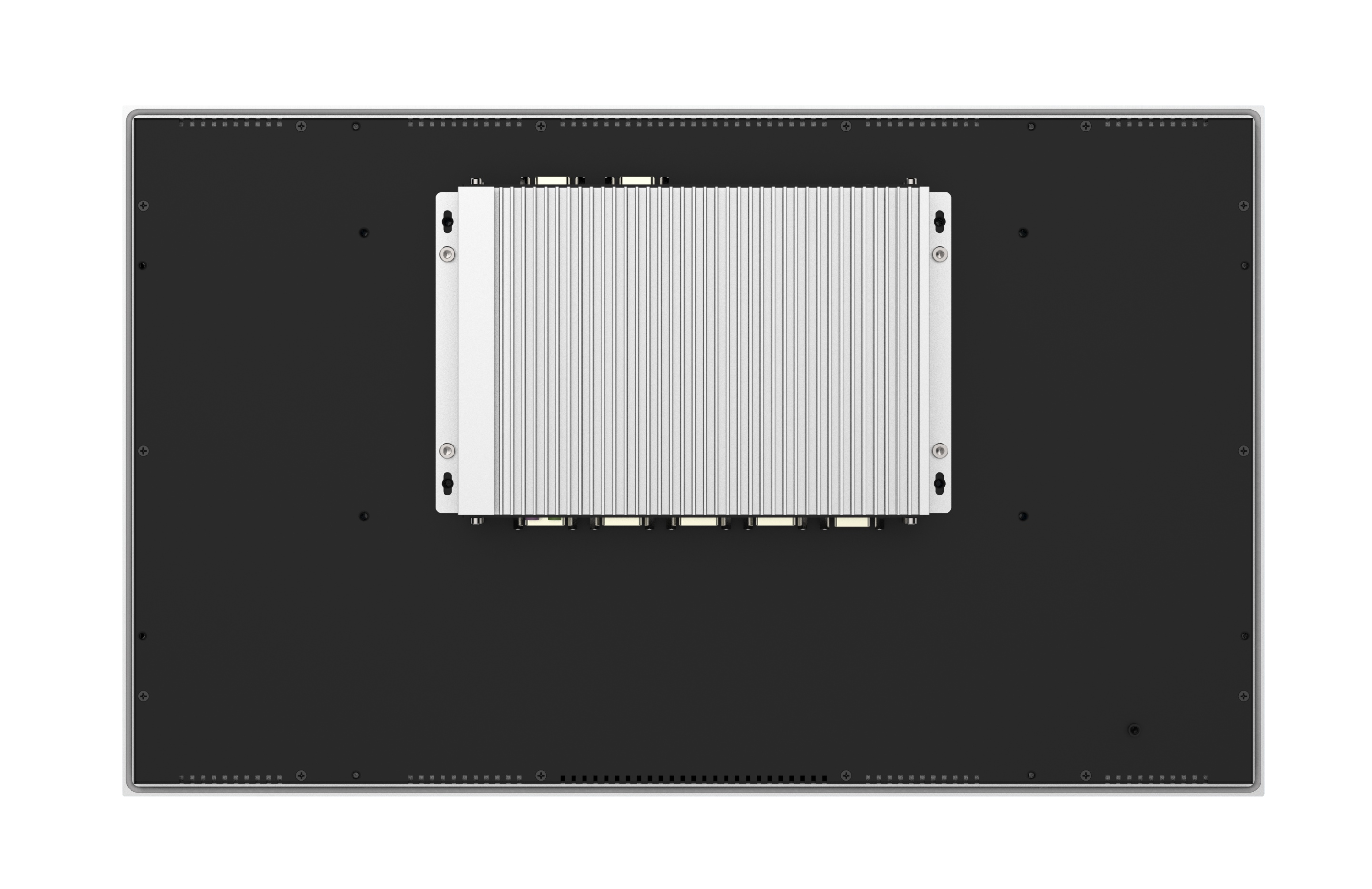

PPC-DS215-A1 CyberVisuell Industrial Panel PC

21.5″ Panel PC with Apollo Lake Celeron J3455 processor. Slim fanless design, I/O includes 2*GLAN, 4*USB3.0, 3*COM (DB9), 2*HDMI. Compatible with Windows 10 / 11, features Front IP65 protection.
Price guide: $2333+GST (incl 8GB RAM + 256GB SSD)
PPC-DS215-A1 CyberVisuell Industrial Panel PC
Read more

Features:

  • Widescreen 21.5” TFT LCD display, LED Backlit, Full HD 1920 *1080;
  • Intel Apollo Lake J3455 processor, Quad-core 1.5Ghz;
  • Multi-point projected capacitive touch, or 5-wire resistive touch;
  • Aluminium-magnesium alloy, anodized treatment, Modular designed;
  • DC 12V, optional wide voltage DC 9~36V power input;
  • IO: 2*GLAN, 4*USB3.0, 3*COM (DB9), 2*HDMI;
  • Intel PTT TPM2.0, Support Windows 11 OS;
  • Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
PPC-DS215-1

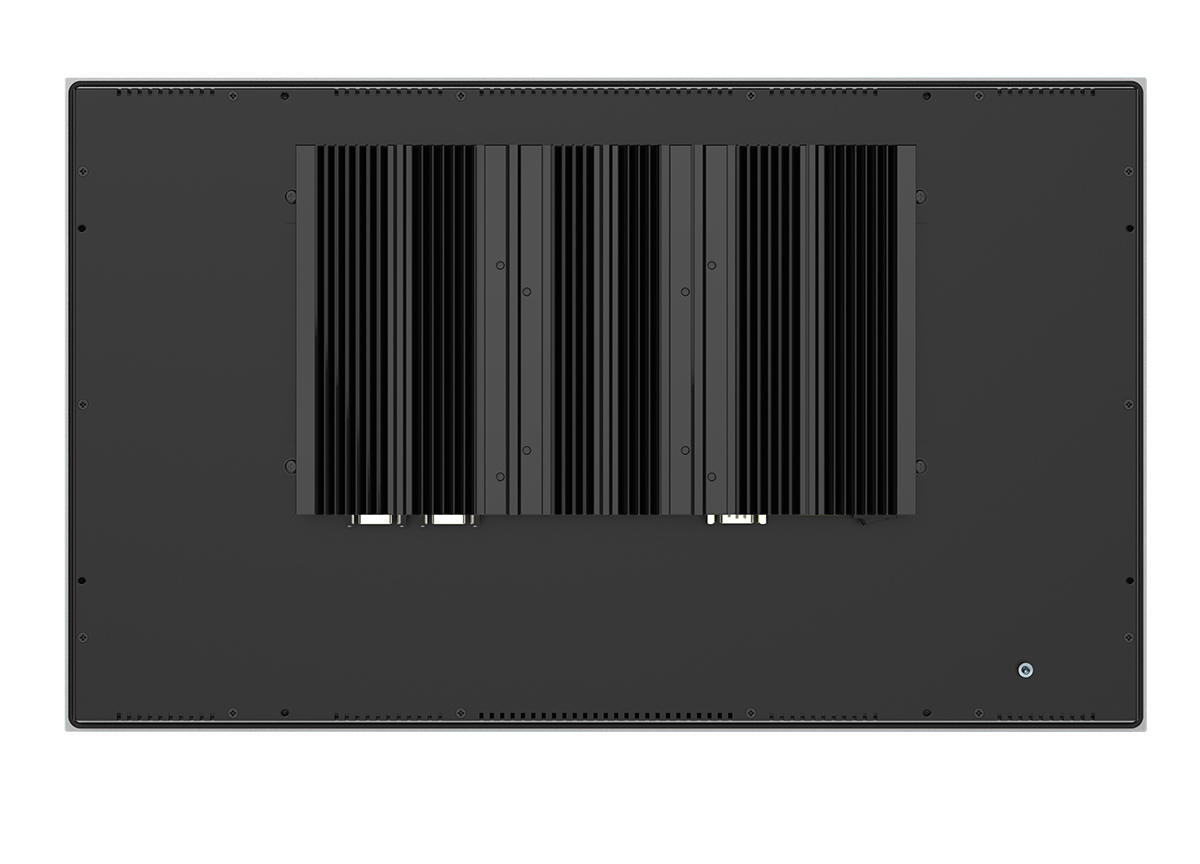

PPC-DS215-3

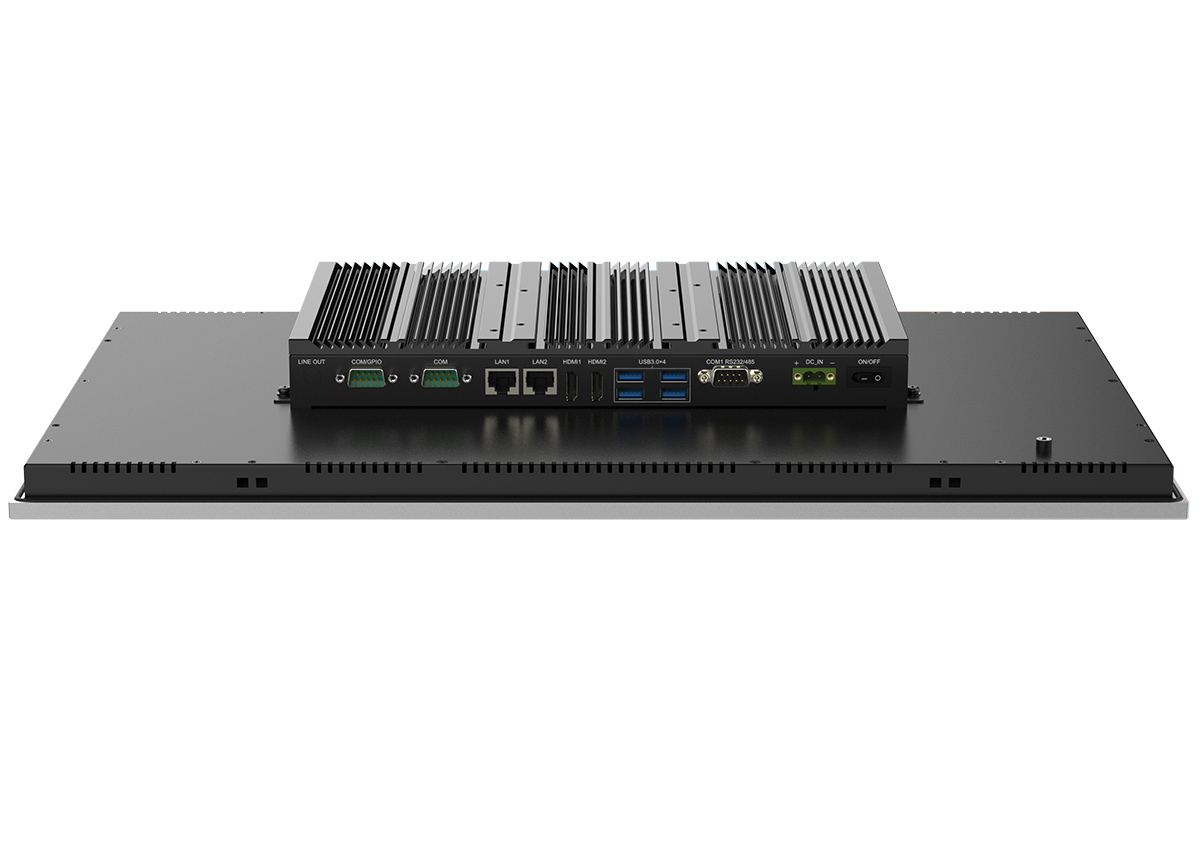

PPC-DS215-4

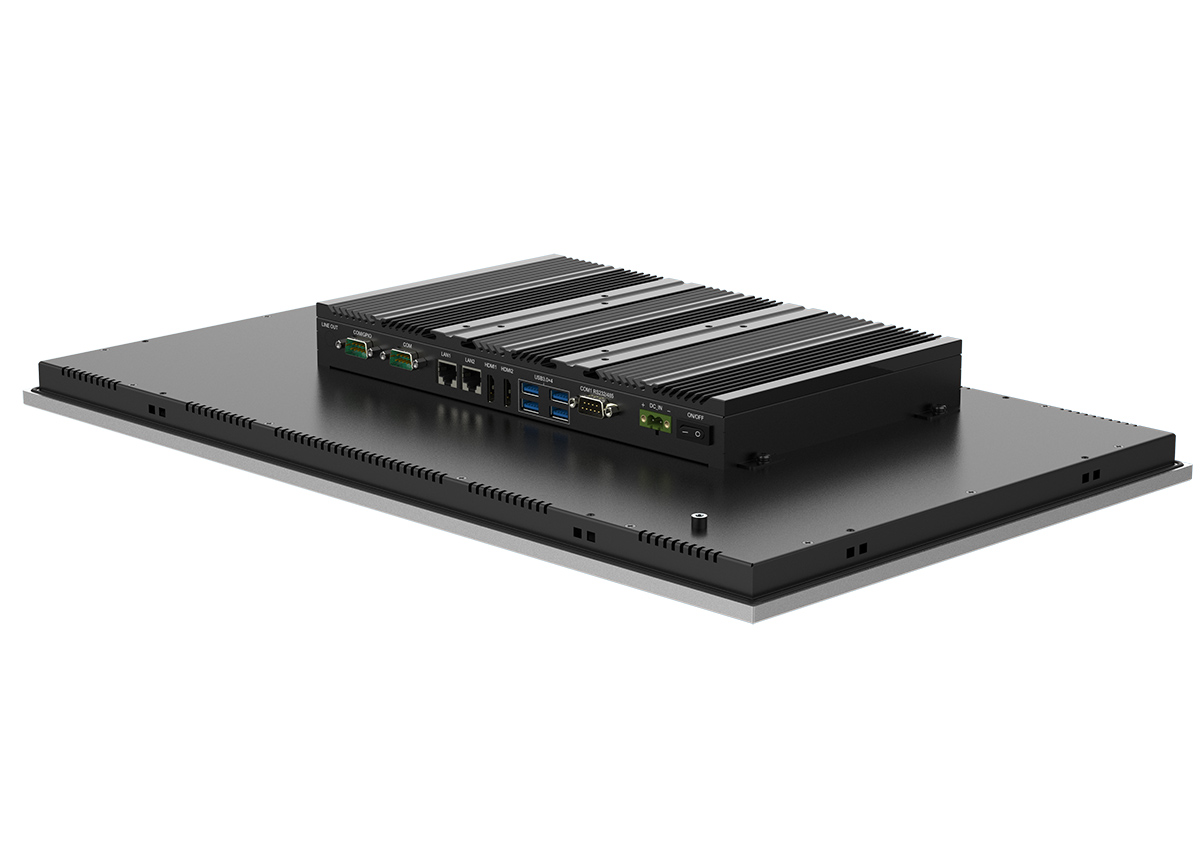

PPC-DS215-5

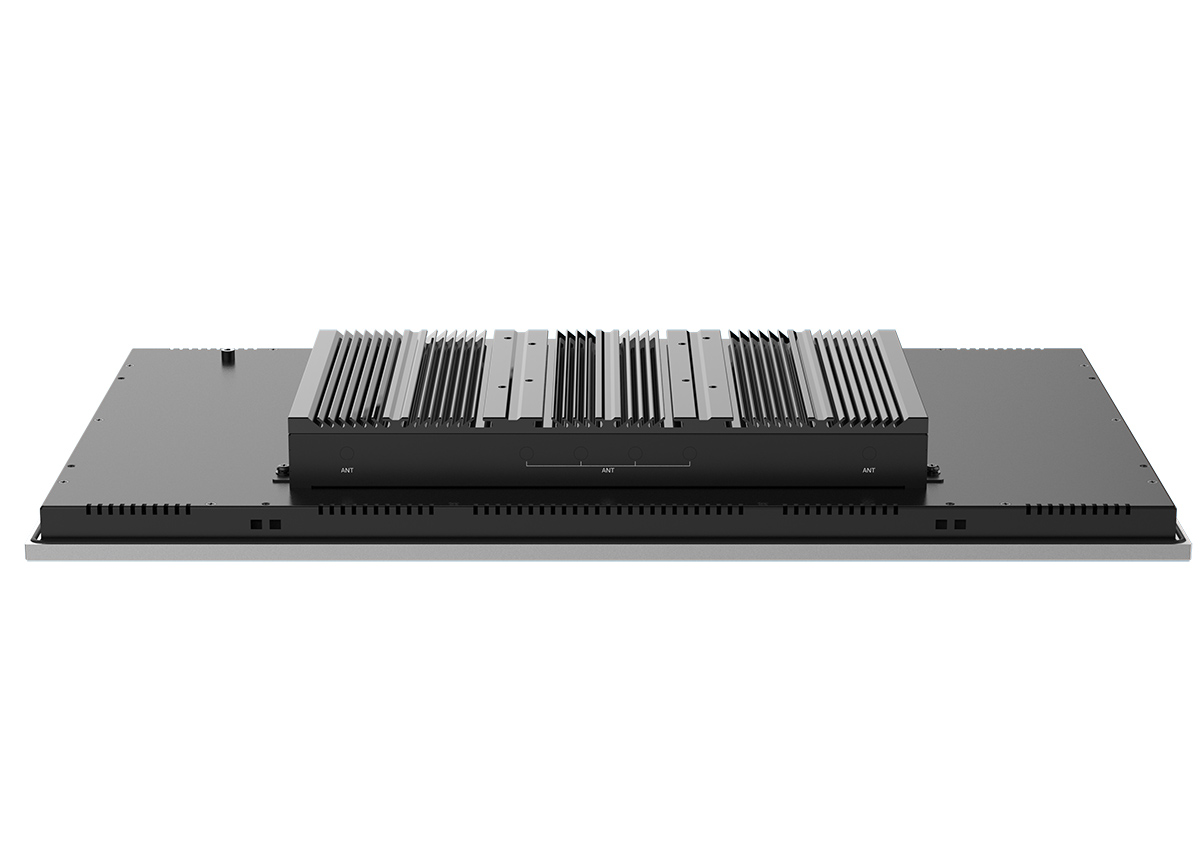

PPC-DS215-6
previous arrow
next arrow
PPC-DS215-1
PPC-DS215-3
PPC-DS215-4
PPC-DS215-5
PPC-DS215-6
previous arrow
next arrow

Ordering information:  (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.)   Updated June 2024 – prices subject to change without notice

Part no. Description Datasheets Sell Price ex-GST
PPC-DS215-A1-CT 21.5”, 1920 * 1080, Intel J3455, Quad-core 1.5Ghz, Pcap. touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-A1-CT $2,333
PPC-DS215-A1-RT 21.5”, 1920 * 1080, Intel J3455, Quad-core 1.5Ghz, Resistive touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-A1-RT $2,450
-4G / -8G SO-DIMM, DDR3L, 4GB/8GB Memory
-128GS / -256GS / -512GS M.2 SSD: 128GB/256GB/512GB
2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB

2.5” HDD: 2TB/4TB
TBOX-AUDIO Optional Mic-In + Line-Out audio connections
TBOX-WiBlu-M2 Optional WiFi + Bluetooth Module (M.2 interface)
EM06-E-PCKit Optional 4G LTE broadband module (M.2 interface)
5G module, with Antenna (M.2 interface)
TBOX-9-36V Optional 9-36V DC power input support
Power supply Optional PSU for PPC-DS215-W-A1
TBOX-SIMSLOT Optional SIM Card Slot to suit 4G broadband module

Packing List:

  • 1x Standard Product
  • 1x 60W PSU (Power Supply)
  • 1x Power cable & Plug
  • 8x Panel mount metal clips

Specifications:

System & Hardware
BIOS SPI AMI EEI BIOS
CPU Intel Apollo Lake J3455, Quad-core 1.5Ghz, burst to 2.3Ghz
Memory SO-DIMM, Support DDR3L 1333/1600/1866 MHz, Max. up to 8GB
Storage 1* M.2 (SATA) slot + 1* 2.5” SATA
Graphic Intel HD Graphics 500
Network 2* Intel I211 GBE LAN chip (Optional wireless 3G/4G, 5G, Wi-Fi/BT, Wi-Fi 6)
Audio On-board Realtek ACL 662 audio controller
Expansion 1* M.2 Key-B slot, 1* M.2 Key-E slot
Watchdog 0~256 seconds programmable
OS Win10, Win11, Linux, Ubuntu
I/O interface
COM 3*RS232 (Default), Optional 1* RS485 or 8*GPIO
Ethernet 2* RJ45, 10/100/1000 Mbps
Audio Optional Line-out
USB 4x USB3.0
Display 2x HDMI
Power 1x 2 pins, phenix terminal
LCD Display
Size/Type 21.5” TFT LCD
Resolution 1920 * 1080 (Full HD)
Brightness 250 nits
Backlit & MTBF LED backlit & 30 000hours
Display area 476.64 * 268.11
View angle 89/89/89/89
Touchscreen
Type Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment Anti-fingerprint (PCap)
Structure
Structure and surface Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method Panel mount, VESA 75/100
Cooling system Large area finned heat sink
Overall dimension 527 * 318.7 * 57.5 (mm)
Cut-out dimension 516 * 308 (mm)
Net weight 7.0 KG
IP protection Front Panel IP65
Power & Environmental
Operating temp. 0～+60℃
Storage temp. -20～+70℃
Relative Humidity 10 ~ 95% @ 10C (Non-condensation)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Power input DC 12V (Optional DC 9~36V)
Power consumption Around 40W
EMC CE/FCC Class A

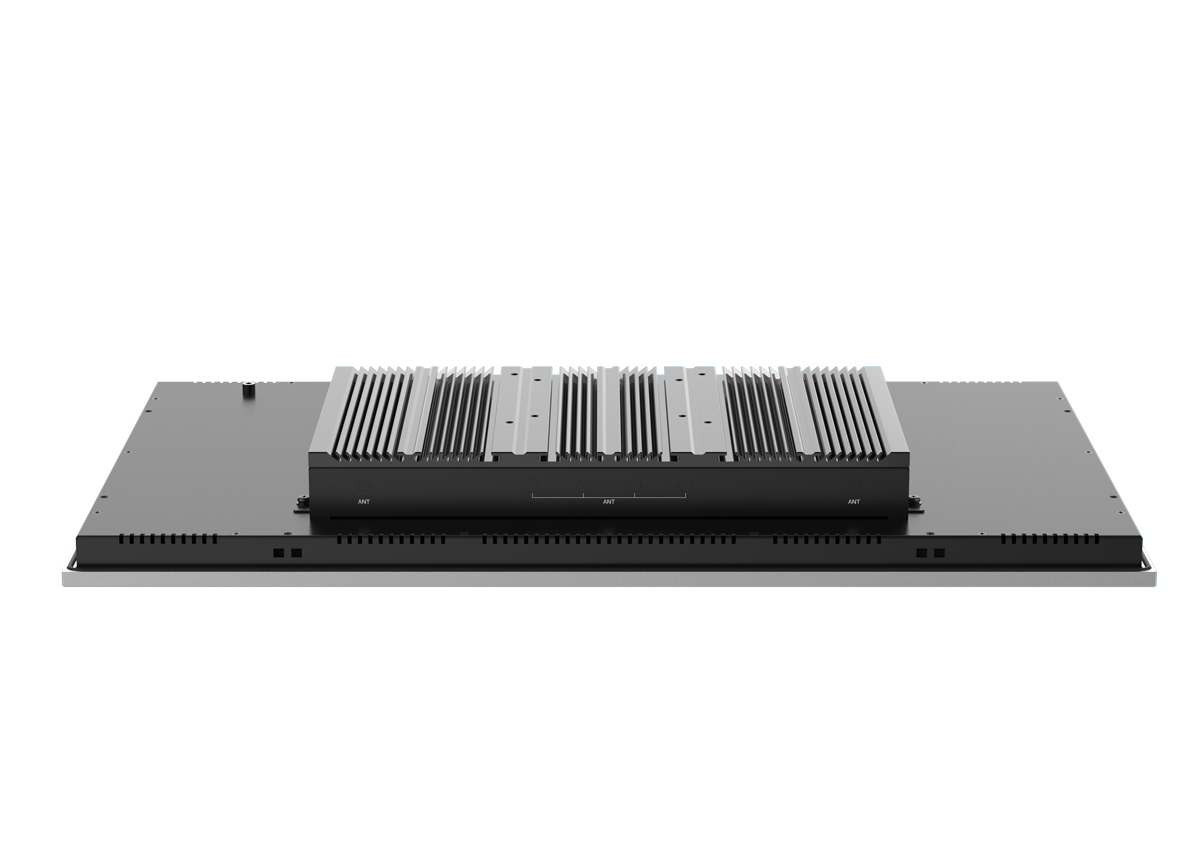

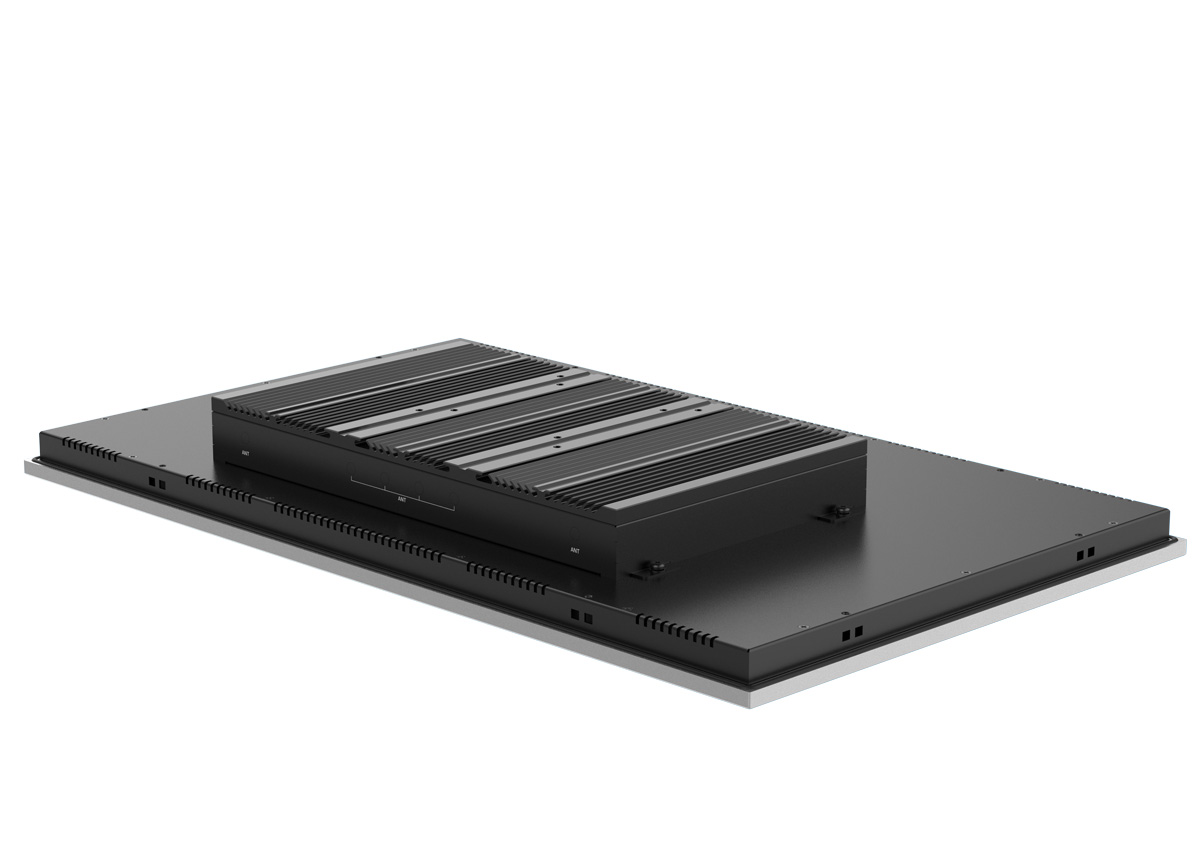

PPC-DS215-E1 CyberVisuell Industrial Panel PC

21.5″ Panel PC with Elkhart Lake Celeron J6412 processor. Slim fanless design, I/O includes 2*GLAN, 3*USB3.0, 3*USB2.0, 2*COM (DB9), 2*HDMI, Audio. Supports Windows 10 / 11, features Front IP65 protection.
Price guide: $2359+GST (incl 8GB RAM + 256GB SSD)
PPC-DS215-E1
Read more

Features:

  • Widescreen 21.5” TFT LCD display, LED Backlit, Full HD 1920 *1080;
  • Intel Elkhart Lake Celeron J6412 processor, Quad-core 2.0Ghz;
  • 1* DDR4 memory, up to 32GB, 1* M.2 NVME and 1* 2.5” SATA storage;
  • Multi-point projected capacitive touch, or 5-wire resistive touch;
  • Aluminum-magnesium alloy, anodized treatment, Modular designed;
  • DC 12V power input, optional wide voltage DC 9~36V range;
  • IO: 2*GLAN, 3*USB3.0, 3*USB2.0, 2*COM (DB9), 2*HDMI, Audio;
  • Intel PTT TPM2.0, support Windows 11;
  • Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.

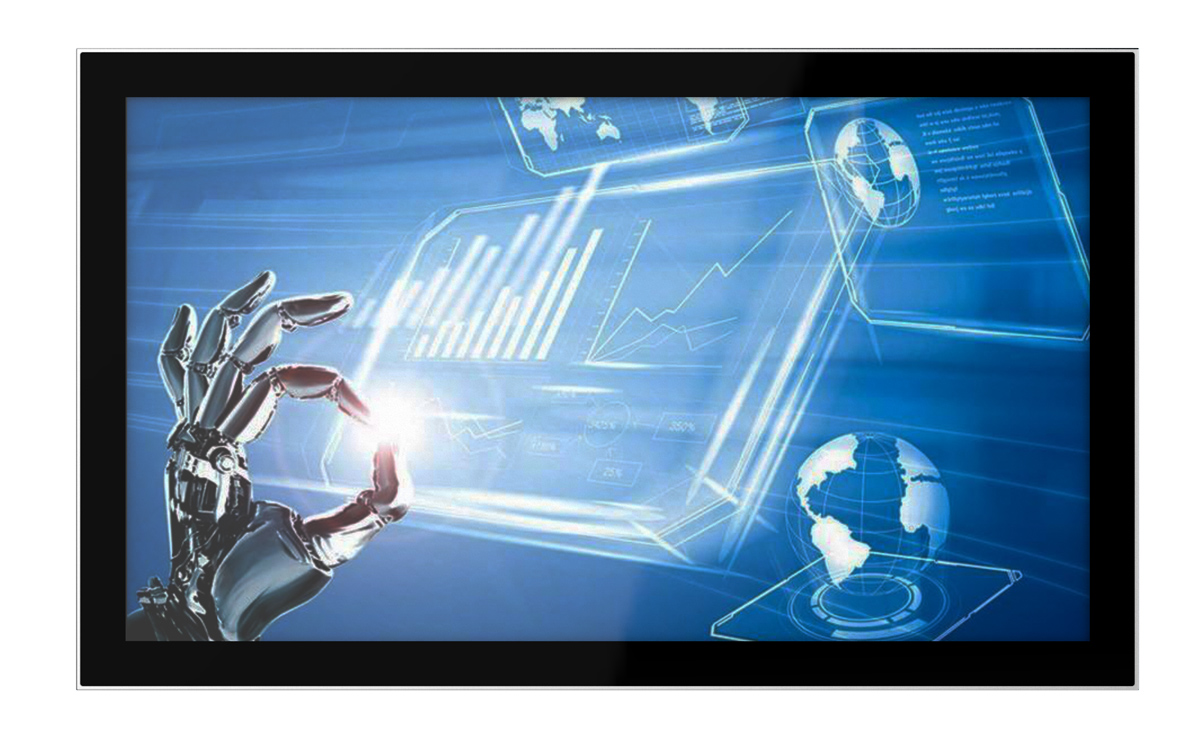

PPC-DS215-E1-1

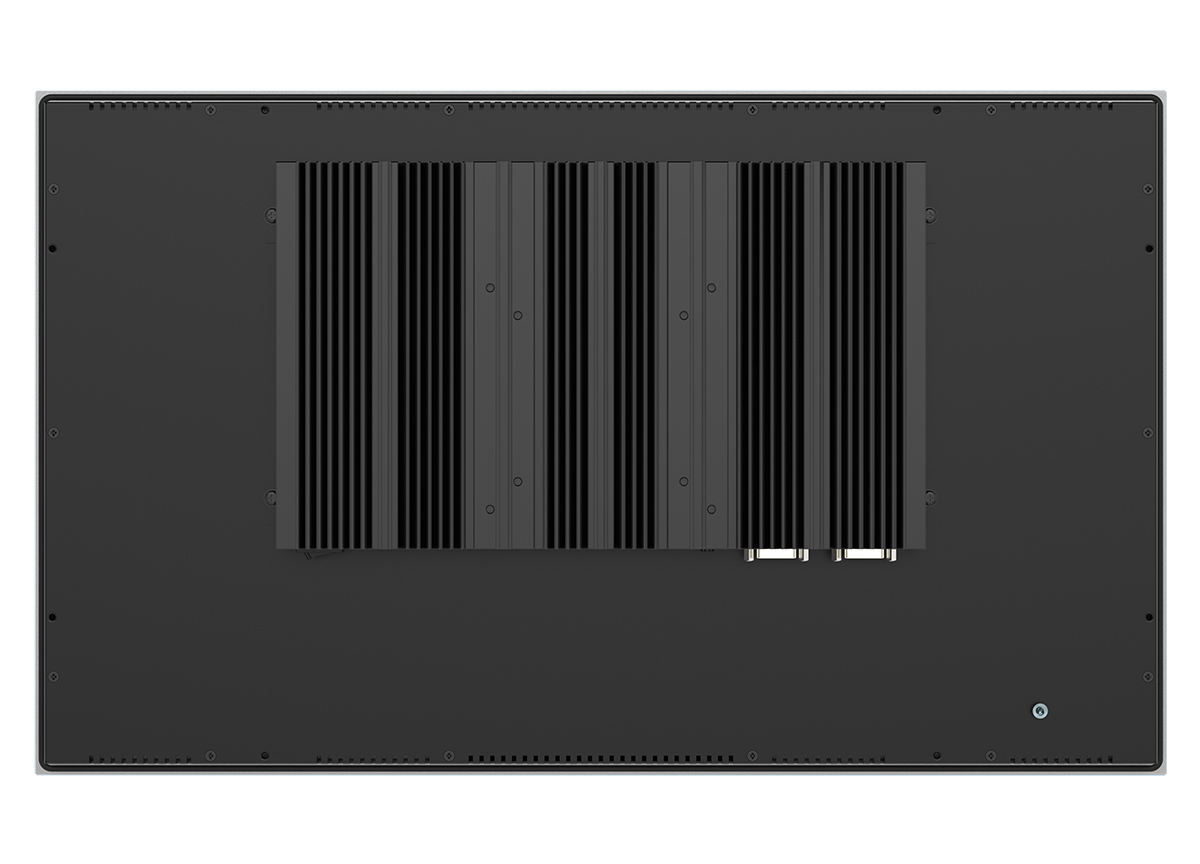

PPC-DS215-E1-3

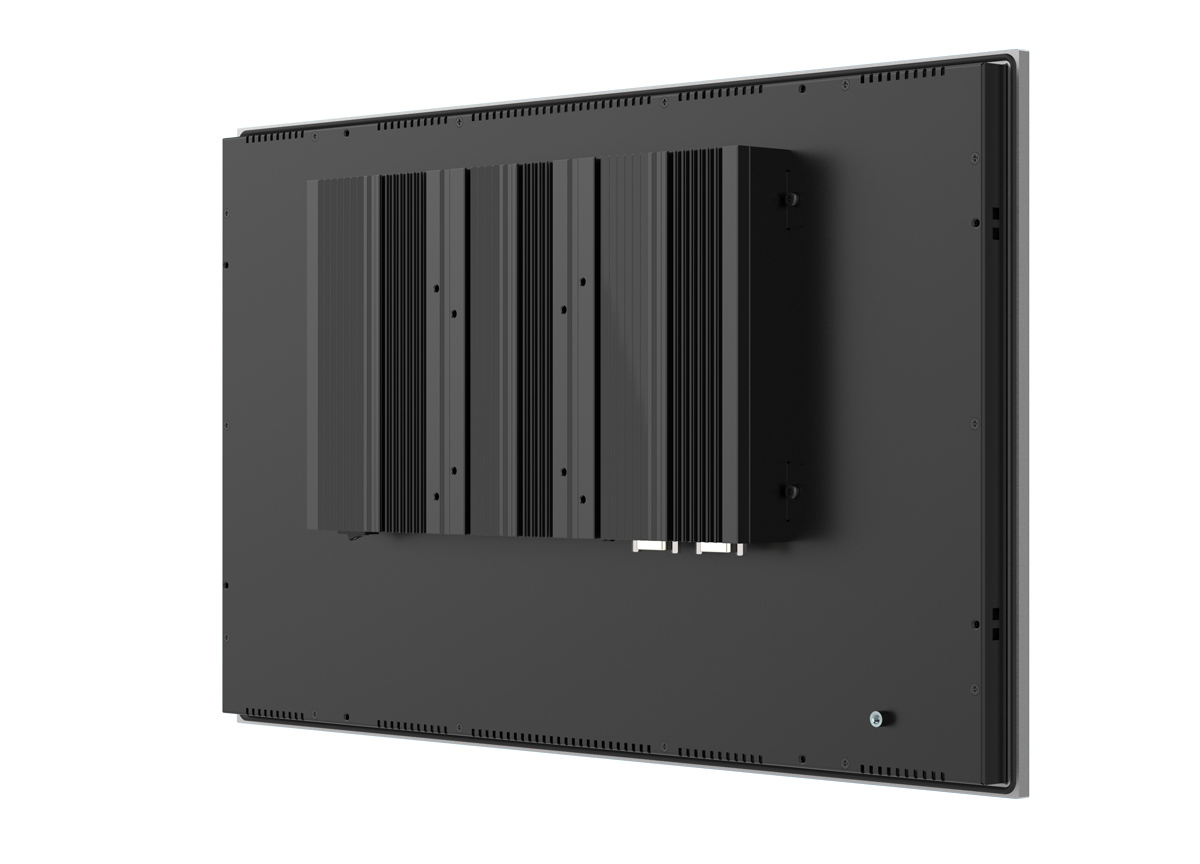

PPC-DS215-E1-4

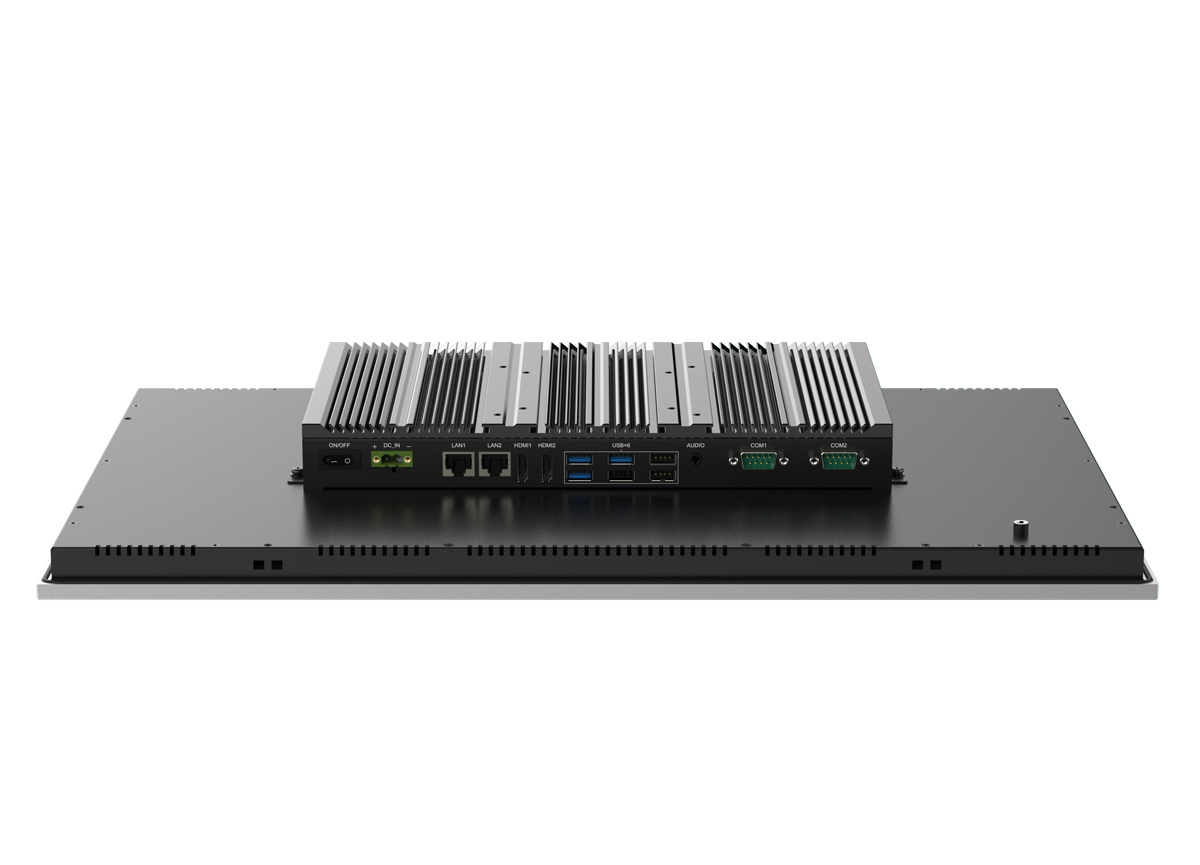

PPC-DS215-E1-5

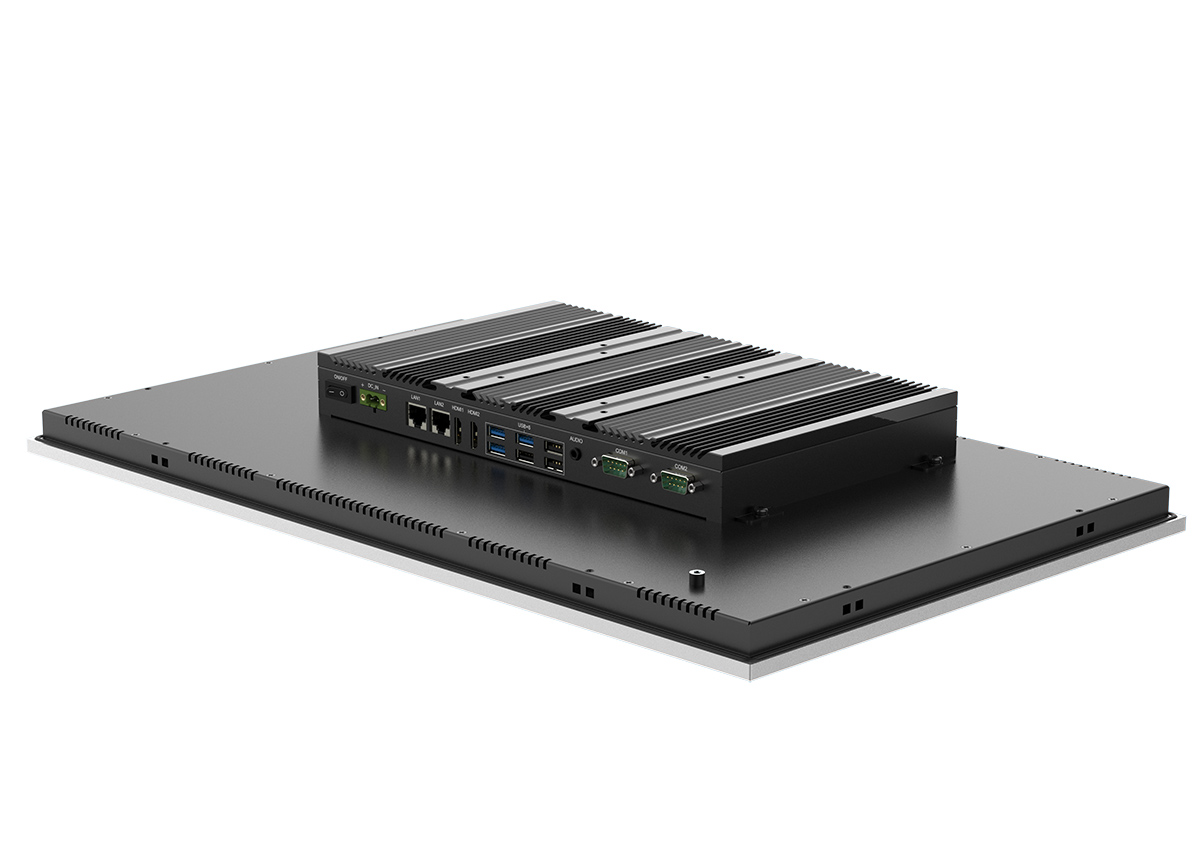

PPC-DS215-E1-6
PPC-DS215-E1-7
PPC-DS215-E1-8
previous arrow
next arrow
PPC-DS215-E1-1
PPC-DS215-E1-3
PPC-DS215-E1-4
PPC-DS215-E1-5
PPC-DS215-E1-6
PPC-DS215-E1-7
PPC-DS215-E1-8
previous arrow
next arrow

Ordering information:  (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.)   Updated June 2024 – prices subject to change without notice

Part no. Description Datasheets Sell Price ex-GST
PPC-DS215-E1-CT 21.5”, 1920 * 1080, Celeron J6412, Quad-core 2.0Ghz, Pcap. touch, 2*GLAN, 3*USB3.0, 3*USB2.0, 2*COM, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-E1-CT $2,359
PPC-DS215-E1-RT 21.5”, 1920 * 1080, Celeron J6412, Quad-core 2.0Ghz, Resistive touch, 2*GLAN, 3*USB3.0, 3*USB2.0, 2*COM, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-E1-RT $2,476
-4G / -8G/ -16G/ -32G SO-DIMM, DDR4, 4GB/8G/16G/32G Memory
-128GS / -256GS / -512GS M.2 SSD: 128GB/256GB/512GB
2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB

2.5” HDD: 2TB/4TB
TBOX-WIFI Wi-Fi module, with Antenna
TBOX-WIBlu Wi-Fi with BT integrated module, with Antenna
EM06-E-PCKit All network 4G/LTE module, With Antenn
5G module, with Antenna
TBOX-9-36V Optional 9-36V DC wide voltage input module with mains adaptor included
TBOX-SIMSLOT Sim card slot for 3G/4G/5G wireless expansion, accepts full size (2FF) SIM cards

Packing List:

  • 1x Standard Product
  • 1x 60W PSU (Power Supply)
  • 1x Power cable & Plug
  • 8x Panel mount metal clips

Specifications:

System & Hardware
BIOS SPI AMI EEI BIOS
CPU Intel Elkhart Lake Celeron J6412, Quad-core 2.0Ghz, burst to 2.6Ghz, TDP 10W
Memory SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB
Storage 1* M.2 2280 (NVMe PCIe 2.0) + 1* 2.5” SATA
Graphic Intel UHD Graphics for 10th Gen Intel processors
Network 2* Intel I225 GBE LAN chip (Optional wireless 3G/4G, Wi-Fi/BT, 4G/5G)
Audio On-board Realtek ACL 897 audio controller
Expansion 1* M.2 Key-B slot, 1* Mini-PCIe slot
Watchdog 0 ~ 256 seconds programmable
OS Win10, Win11, Linux, Ubuntu
I/O interface
COM 2*RS232 (Optional 1* RS485)
Ethernet 2* RJ45, 10/100/1000 Mbps
Audio Mic-in/Line-out (2 in 1, 4.0mm jack)
USB 3x USB3.0, 3x USB2.0
Display 2x HDMI
Power 1x 2 pins, phenix terminal
LCD Display
Size/Type 21.5” TFT LCD
Resolution 1920 * 1080 (Full HD)
Brightness 250 nits
Backlit & MTBF LED backlit & 30 000hours
Display area 476.64 * 268.11
View angle 89/89/89/89
Touchscreen
Type Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment Anti-fingerprint (PCap)
Structure
Structure and surface Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method Panel mount, VESA 75/100
Cooling system Large area finned heat sink
Overall dimension 527 * 318.7 * 57.5 (mm)
Cut-out dimension 516 * 308 (mm)
Net weight 7.0 KG
IP protection Front Panel IP65
Power & Environmental
Operating temp. 0～+60℃
Storage temp. -20～+70℃
Relative Humidity 10 ~ 95% @ 10C (Non-condensation)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Power input DC 12V (Optional DC 9~36V)
Power consumption Around 40W
EMC CE/FCC Class A

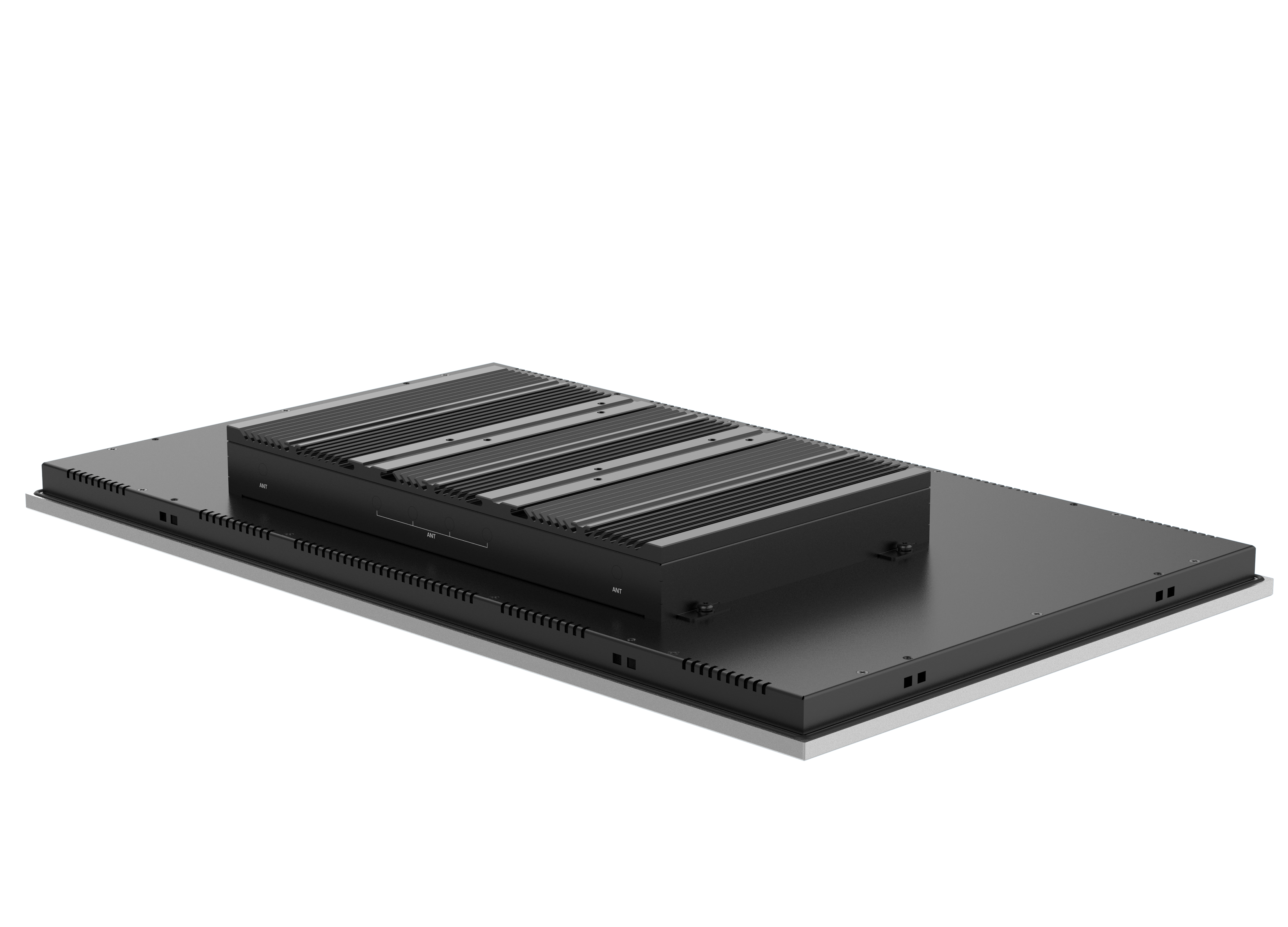

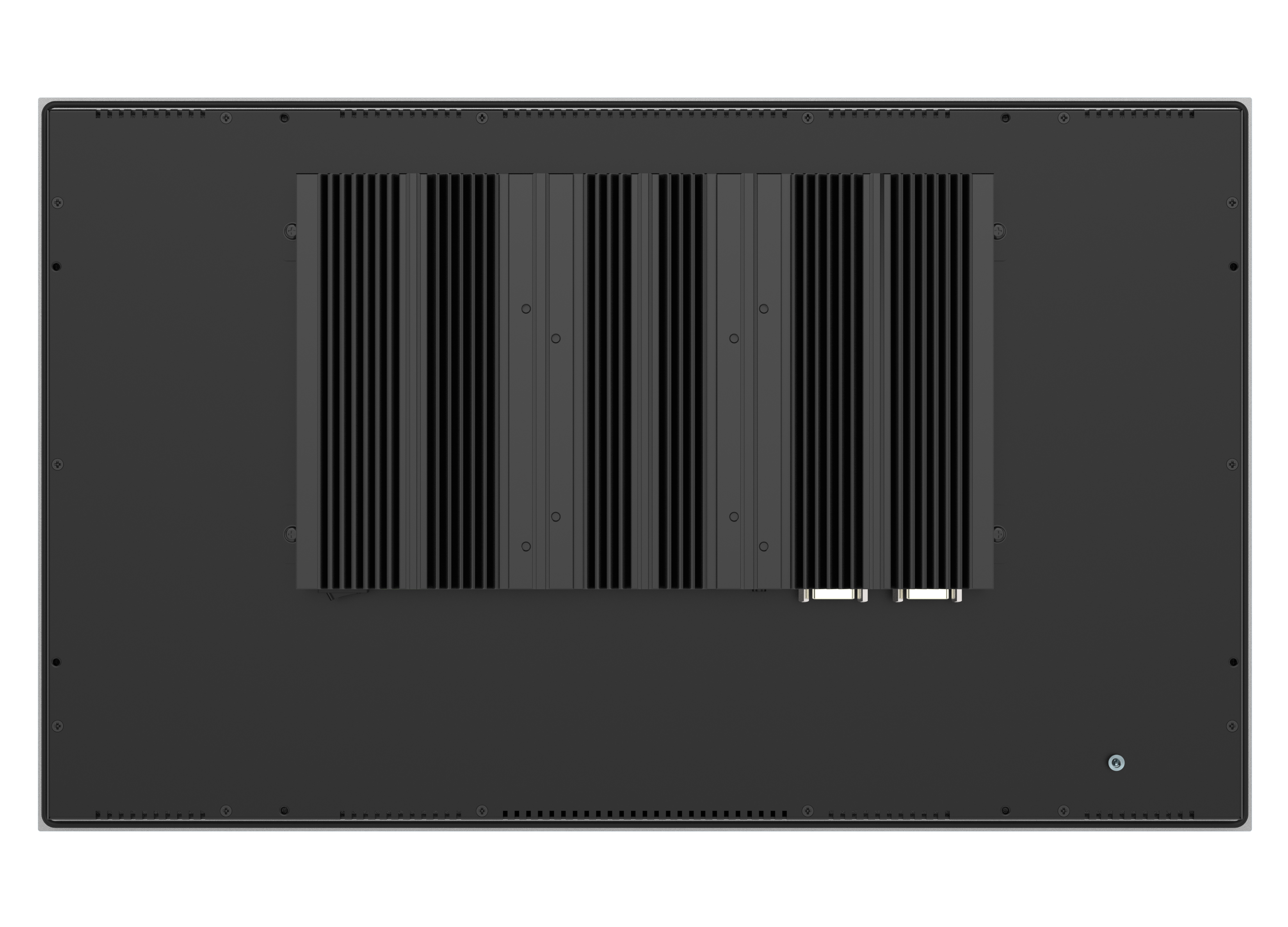

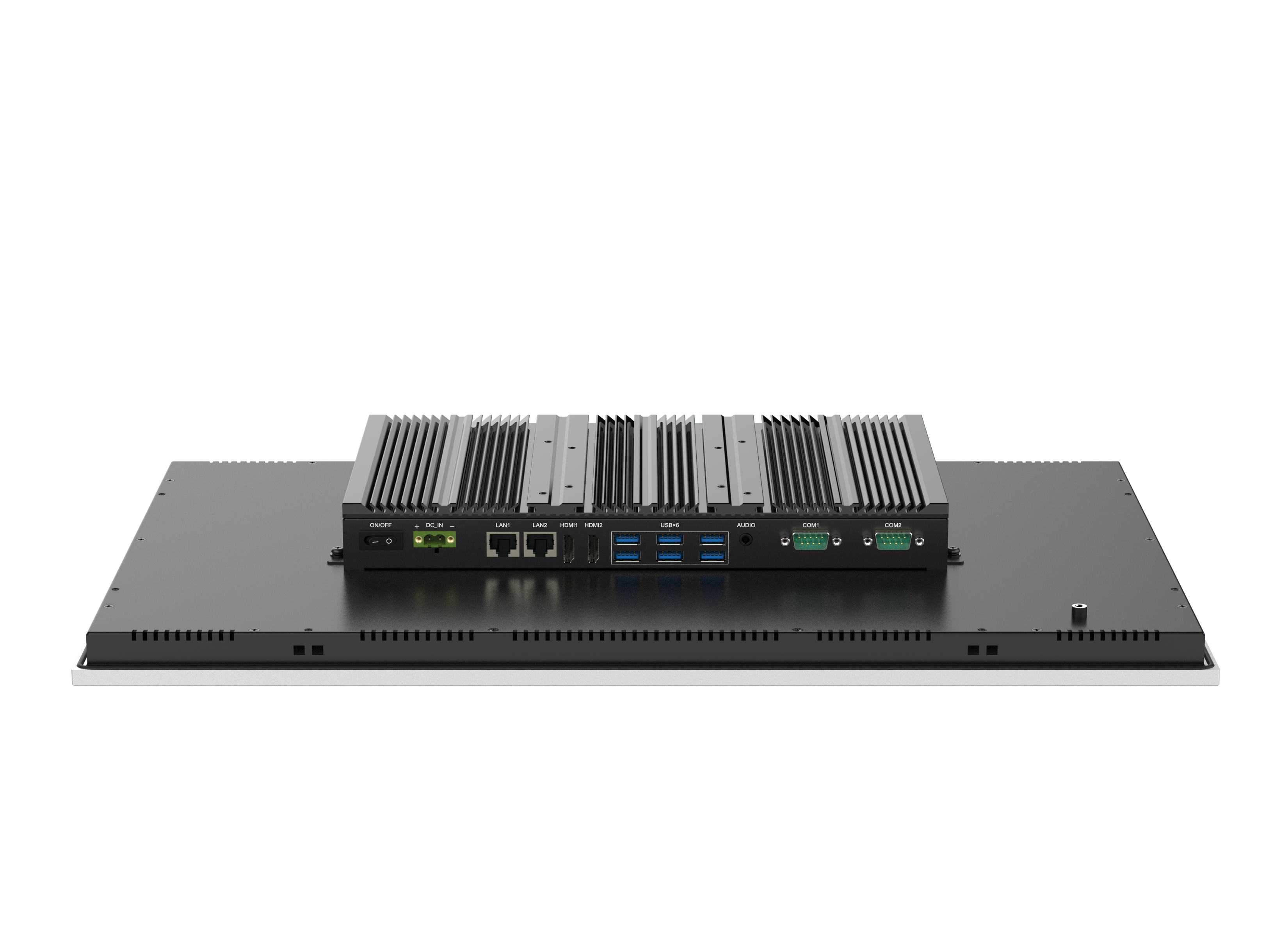

PPC-DS215-T1 CyberVisuell Industrial Panel PC

21.5″ Panel PC with 11th-gen Core i3-1115G4 processor. Slim, fanless design, I/O includes 2*GLAN, 6*USB3.0, 2*COM (DB9), 2*HDMI. Supports Windows 11, features front IP65 protection.
Price guide: $2812+GST (incl 8GB RAM + 256GB SSD)
PPC-DS215-W3
Read more

Features:

  • Widescreen 21.5” TFT LCD display, LED Backlit, Full HD 1920 *1080;
  • 11th-gen. Core i3-1115G4 processor;
  • Multi-point projected capacitive touch, or 5-wire resistive touch;
  • Aluminum-magnesium alloy, anodized treatment, Modular designed;
  • DC 12V, optional wide voltage DC 9~36V power input;
  • IO: 2*GLAN, 6*USB3.0, 2*COM (DB9), 2*HDMI, Audio;
  • Intel PTT TPM2.0, Support Windows 11 OS;
  • Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
PPC-DS215-1
PPC-DS215-3
PPC-DS215-4
PPC-DS215-5
PPC-DS215-6
PPC-DS215-6
PPC-DS215-6
previous arrow
next arrow
PPC-DS215-1
PPC-DS215-3
PPC-DS215-4
PPC-DS215-5
PPC-DS215-6
PPC-DS215-6
PPC-DS215-6
previous arrow
next arrow

Ordering information:  (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.)   Updated June 2024 – prices subject to change without notice

Part no. Description Datasheets Sell Price ex-GST
PPC-DS215-T1-CT 21.5”, 1920 * 1080, Core i3-1115G4, Dual-core 4.10Ghz, Pcap. touch, 2*GLAN, 6*USB3.0, 2*COM, Audio, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-T1 $2,812
PPC-DS215-T1-RT 21.5”, 1920 * 1080, Core i3-1115G4, Dual-core 4.10Ghz, Resistive touch, 2*GLAN, 6*USB3.0, 2*COM, Audio, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-T1 $2,929
-4G / -8G/ -16G/ -32G SO-DIMM, DDR4, 4GB/8G/16G/32G Memory
-128GS / -256GS / -512GS M.2 SSD: 128GB/256GB/512GB
TBOX-WIBlu Wi-Fi with BT integrated module, with Antenna
EM06-E-PCKit All network 4G/LTE module, With Antenna
5G module, with Antenna
TBOX-9-36V Optional 9-36V DC wide voltage input module with mains adaptor included
SIM Card module Sim card slot for 3G/4G/5G wireless expansion

Packing List:

  • 1x Standard Product
  • 1x 60W PSU (Power Supply)
  • 1x Power cable & Plug
  • 8x Panel mount metal clips

Specifications:

System & Hardware
BIOS SPI AMI EEI BIOS
CPU 11th-gen. Core i3-1115G4
TDP Default 15W (BIOS fixed)
Memory SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB
Storage 1* M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD, 1* 2.5” SATA SSD
Graphic Intel Iris Xe Graphics
Network 1* Intel I219, 1* Intel I225 LAN chips, Optional Wi-Fi +BT, 3G/4G/5G
Audio On-board Realtek ACL 897 audio controller
Expansion 1* M.2 (NGFF) Key-B 3052 slot, 1* M.2 (NGFF) Key-E 2230 slot
Watchdog 0 ~ 256 seconds programmable
OS Win10, Win11, Linux, Ubuntu
I/O interface
COM 2*RS232 (Optional 1* RS485)
Ethernet 2* RJ45, 10/100/1000 Mbps
Audio Mic-in/Line-out (2 in 1, 4.0mm jack)
USB 6x USB3.0
Display 2x HDMI
Power 1x 2 pins, phenix terminal
LCD Display
Size/Type 21.5” TFT LCD
Resolution 1920 * 1080 (Full HD)
Brightness 250 nits
Backlit & MTBF LED backlit & 30 000hours
Display area 476.64 * 268.11
View angle 89/89/89/89
Touchscreen
Type Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment Anti-fingerprint (PCap)
Structure
Structure and surface Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method Panel mount, VESA 75/100
Cooling system Large area finned heat sink
Overall dimension 527 * 318.7 * 57.5 (mm)
Cut-out dimension 516 * 308 (mm)
Net weight 7.0 KG
IP protection Front Panel IP65
Power & Environmental
Operating temp. 0～+60℃
Storage temp. -20～+70℃
Relative Humidity 10 ~ 95% @ 10C (Non-condensation)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Power input DC 12V (Optional DC 9~36V)
Power consumption Around 45W
EMC CE/FCC Class A

PPC-DS215-T2 CyberVisuell Industrial Panel PC

21.5″ Panel PC with 11th-gen Core i5-1135G7 processor. Slim, fanless design, I/O includes 2*GLAN, 6*USB3.0, 2*COM (DB9), 2*HDMI. Supports Windows 11, features front IP65 protection.
Price guide: $3024+GST (incl 8GB RAM + 256GB SSD)
PPC-DS215-W3
Read more

Features:

  • Widescreen 21.5” TFT LCD display, LED Backlit, Full HD 1920 *1080;
  • 11th-gen. Core i5-1135G7 processor;
  • Multi-point projected capacitive touch, or 5-wire resistive touch;
  • Aluminum-magnesium alloy, anodized treatment, Modular designed;
  • DC 12V, optional wide voltage DC 9~36V power input;
  • IO: 2*GLAN, 6*USB3.0, 2*COM (DB9), 2*HDMI, Audio;
  • Intel PTT TPM2.0, Support Windows 11 OS;

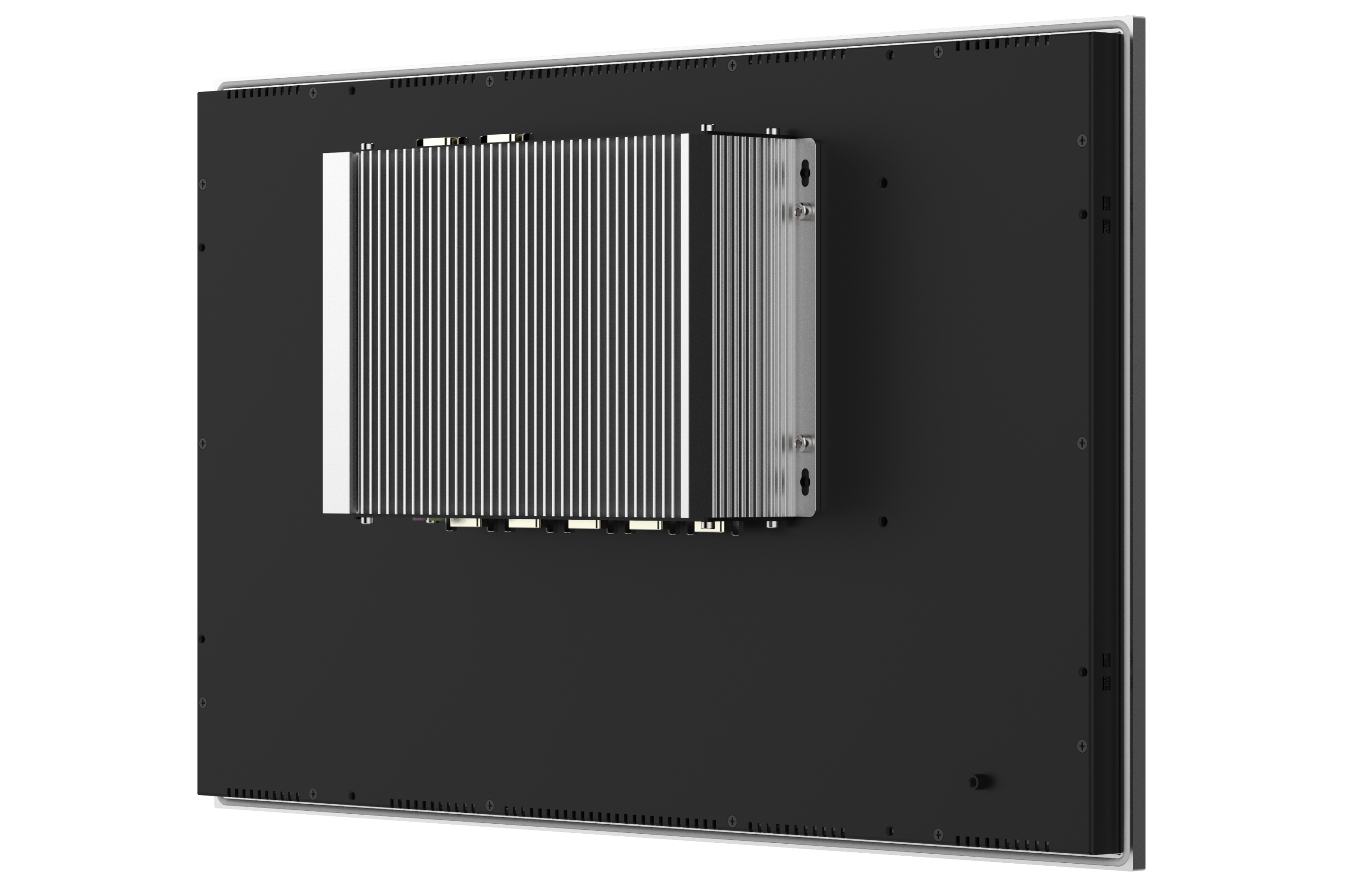

  • Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.

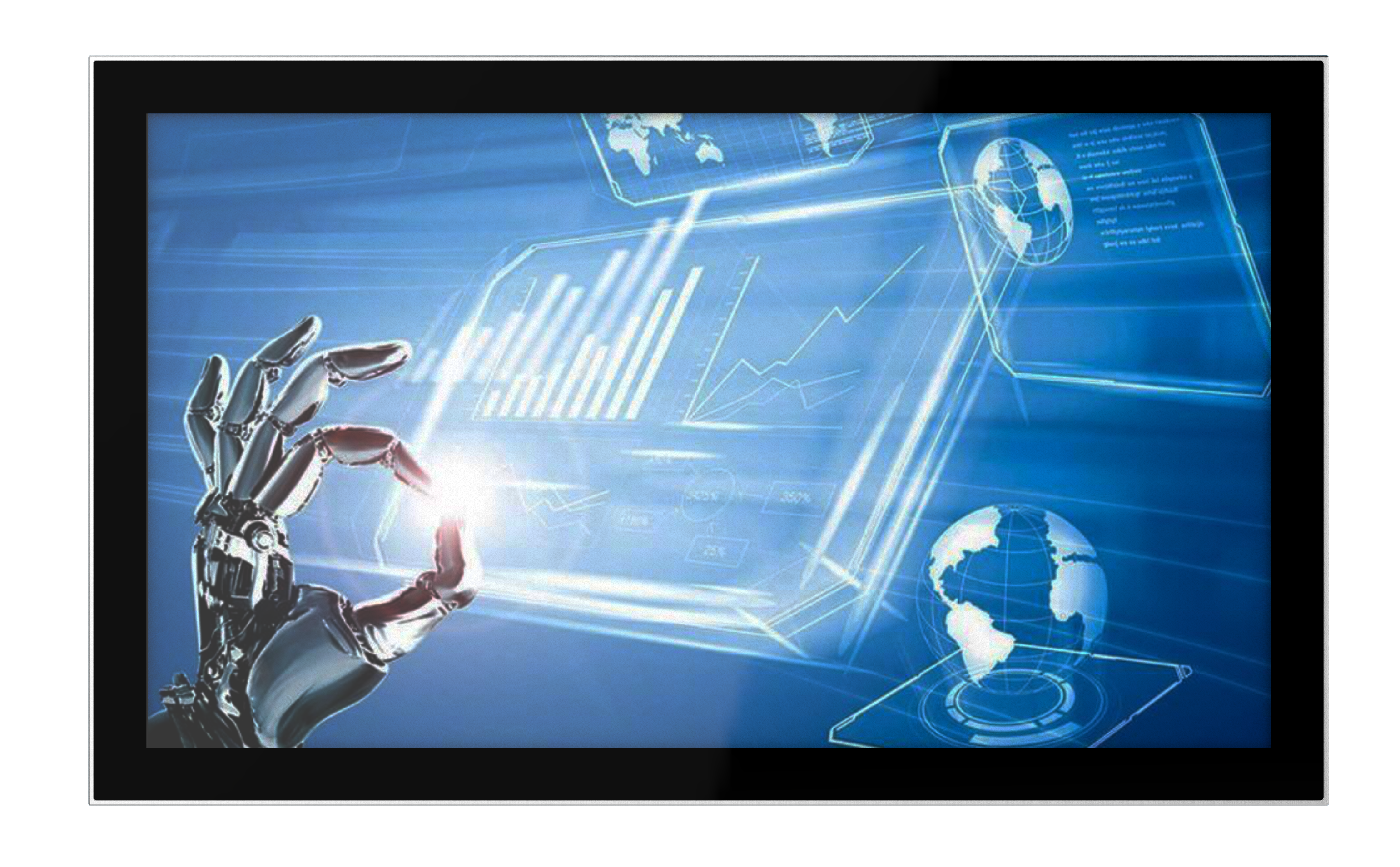

PPC-DS215-1

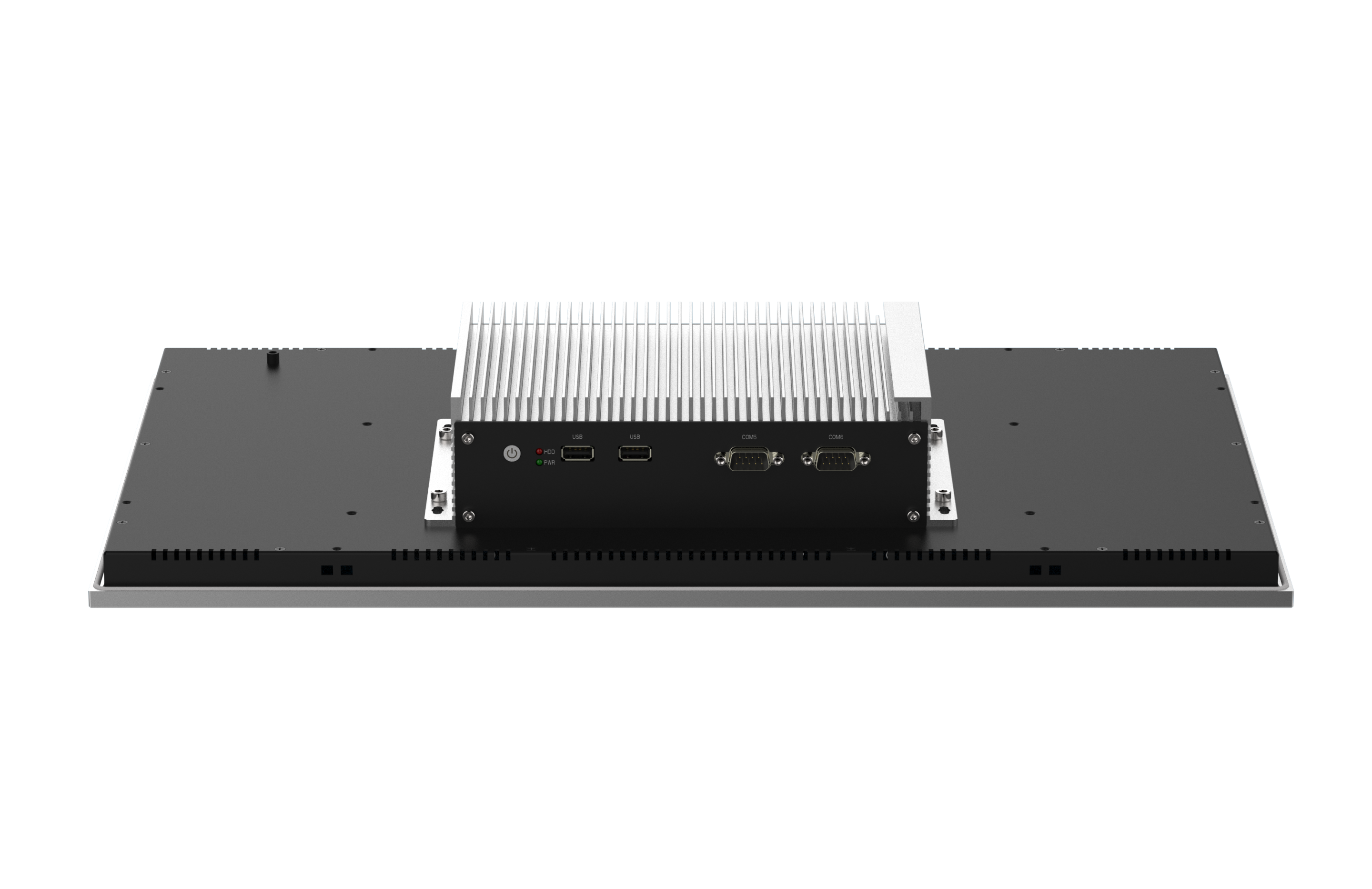

PPC-DS215-3

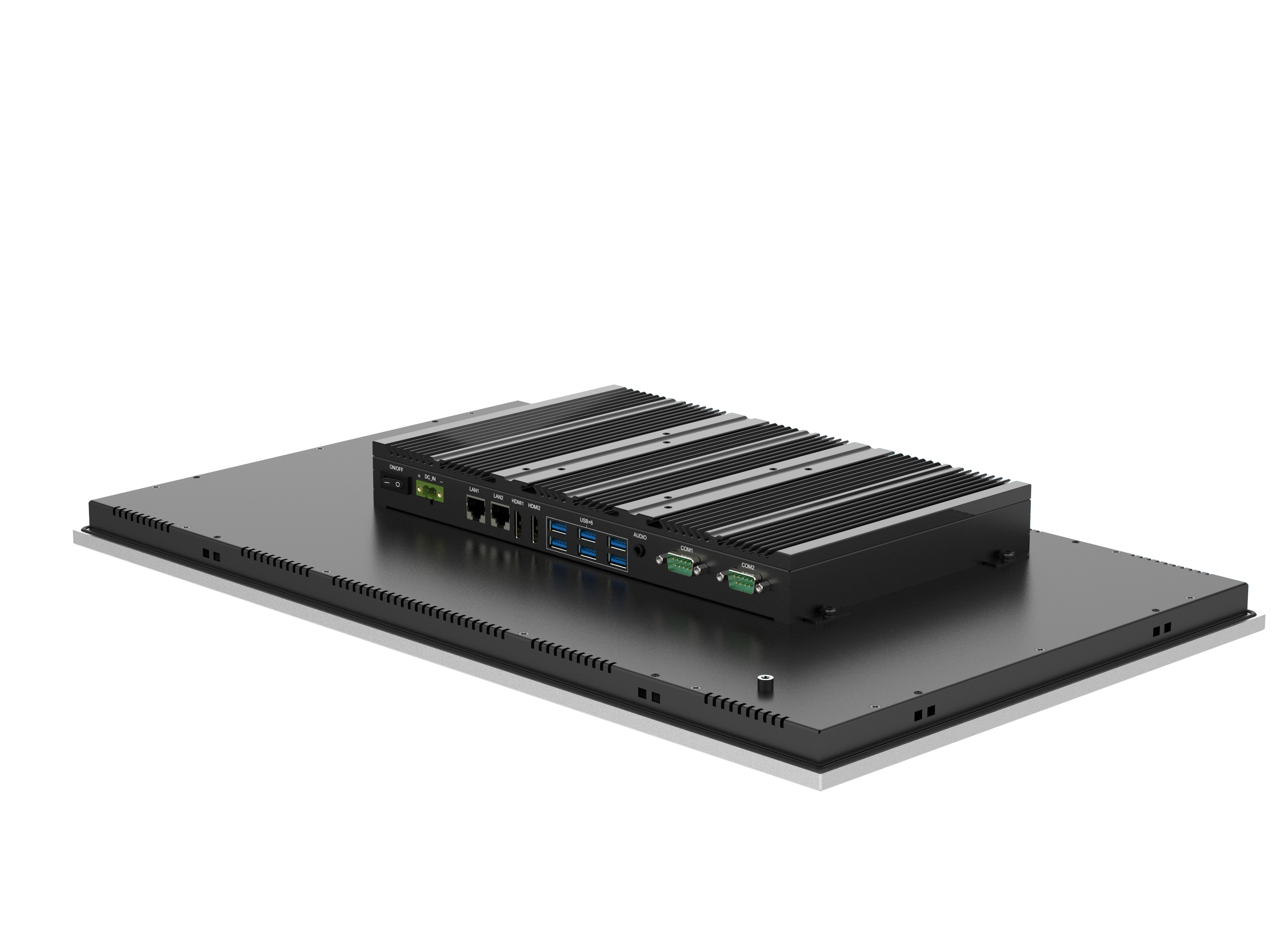

PPC-DS215-4
PPC-DS215-5

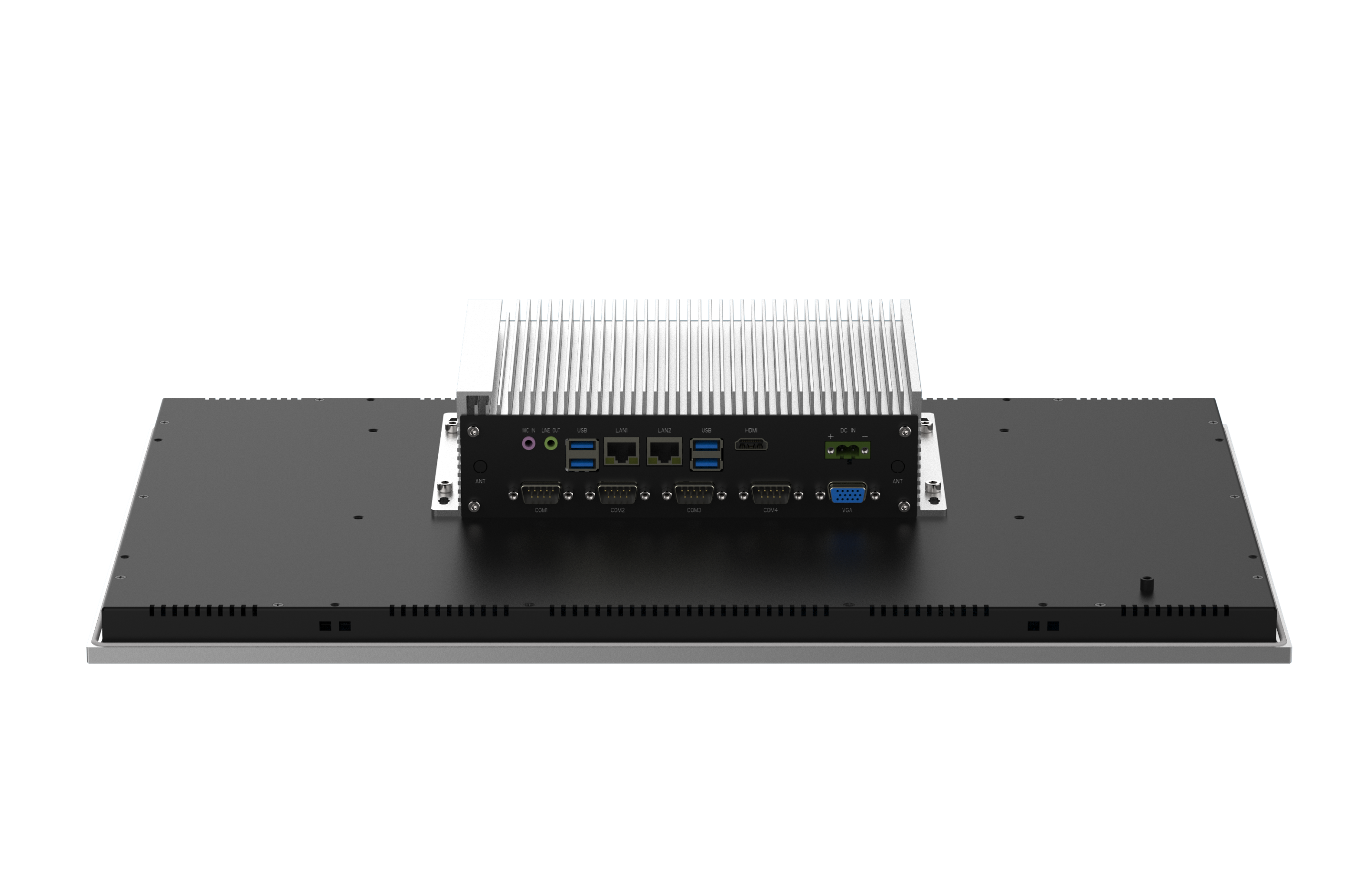

PPC-DS215-6
PPC-DS215-6
PPC-DS215-6
previous arrow
next arrow
PPC-DS215-1
PPC-DS215-3
PPC-DS215-4
PPC-DS215-5
PPC-DS215-6
PPC-DS215-6
PPC-DS215-6
previous arrow
next arrow

Ordering information:  (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.)   Updated June 2024 – prices subject to change without notice

Part no. Description Datasheets Sell Price ex-GST
PPC-DS215-T2-CT 21.5”, 1920 * 1080, Core i5-1135G7, Quad-core 4.20Ghz, Pcap. touch, 2*GLAN, 6*USB3.0, 2*COM, Audio, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-T2-CT $3,024
PPC-DS215-T2-RT 21.5”, 1920 * 1080, Core i5-1135G7, Quad-core 4.20Ghz, Resistive touch, 2*GLAN, 6*USB3.0, 2*COM, Audio, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-T2-RT $3,141
-4G / -8G/ -16G/ -32G SO-DIMM, DDR4, 4GB/8G/16G/32G Memory
-128GS / -256GS / -512GS M.2 SSD: 128GB/256GB/512GB
TBOX-WIBlu Wi-Fi with BT integrated module, with Antenna
EM06-E-PCKit All network 4G/LTE module, With Antenna
5G module, with Antenna
TBOX-9-36V Optional 9-36V DC wide voltage input module with mains adaptor included
SIM Card module Sim card slot for 3G/4G/5G wireless expansion

Packing List:

  • 1x Standard Product
  • 1x 60W PSU (Power Supply)
  • 1x Power cable & Plug
  • 8x Panel mount metal clips

Specifications:

System & Hardware
BIOS SPI AMI EEI BIOS
CPU 11th-gen. Core i5-1135G7
TDP Default 15W (BIOS fixed)
Memory SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB
Storage 1* M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD, 1* 2.5” SATA SSD
Graphic Intel Iris Xe Graphics
Network 1* Intel I219, 1* Intel I225 LAN chips, Optional Wi-Fi +BT, 3G/4G/5G
Audio On-board Realtek ACL 897 audio controller
Expansion 1* M.2 (NGFF) Key-B 3052 slot, 1* M.2 (NGFF) Key-E 2230 slot
Watchdog 0 ~ 256 seconds programmable
OS Win10, Win11, Linux, Ubuntu
I/O interface
COM 2*RS232 (Optional 1* RS485)
Ethernet 2* RJ45, 10/100/1000 Mbps
Audio Mic-in/Line-out (2 in 1, 4.0mm jack)
USB 6x USB3.0
Display 2x HDMI
Power 1x 2 pins, phenix terminal
LCD Display
Size/Type 21.5” TFT LCD
Resolution 1920 * 1080 (Full HD)
Brightness 250 nits
Backlit & MTBF LED backlit & 30 000hours
Display area 476.64 * 268.11
View angle 89/89/89/89
Touchscreen
Type Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment Anti-fingerprint (PCap)
Structure
Structure and surface Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method Panel mount, VESA 75/100

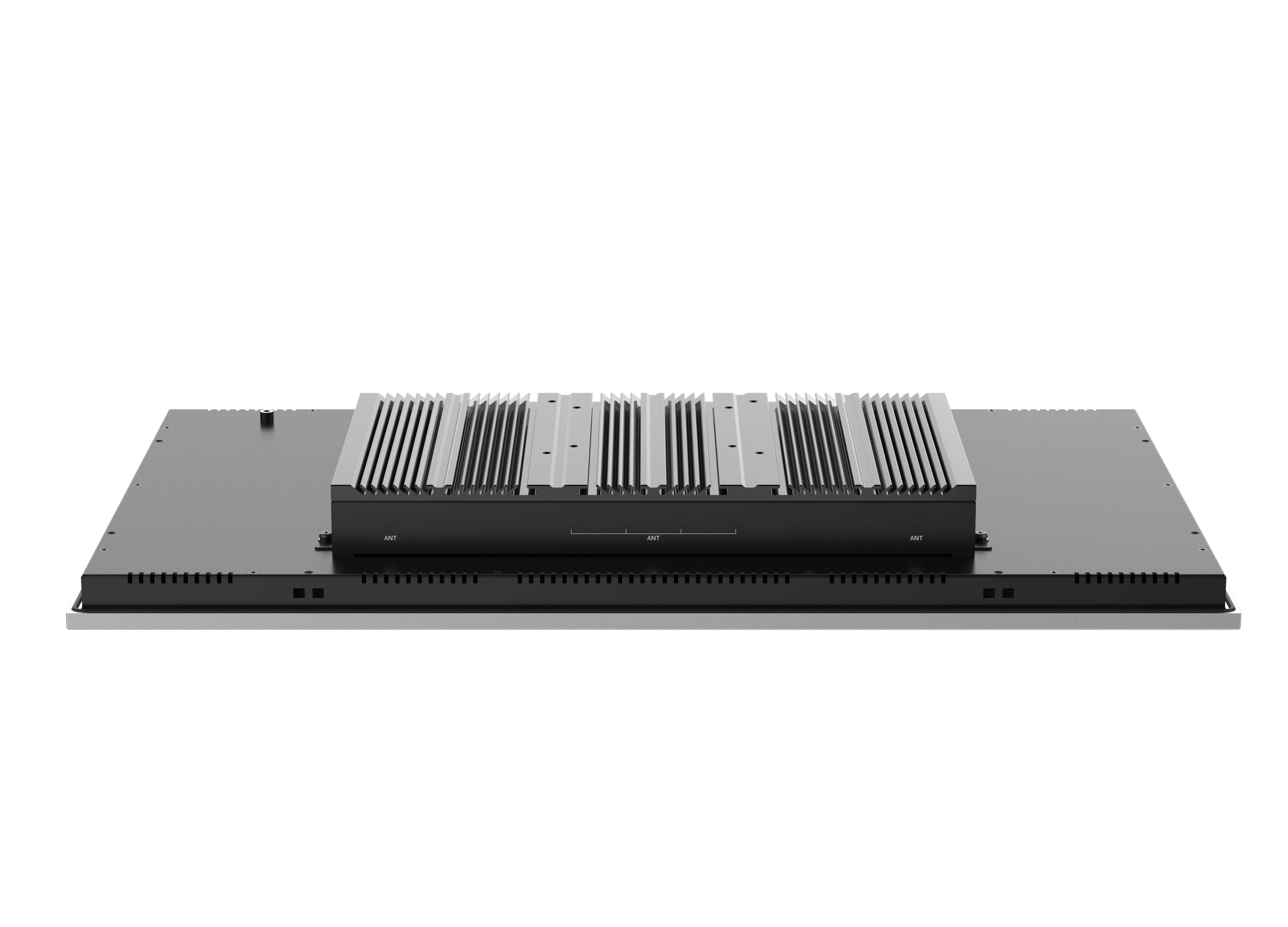

Cooling system Large area finned heat sink
Overall dimension 527 * 318.7 * 57.5 (mm)
Cut-out dimension 516 * 308 (mm)
Net weight 7.0 KG
IP protection Front Panel IP65
Power & Environmental
Operating temp. 0～+60℃
Storage temp. -20～+70℃
Relative Humidity 10 ~ 95% @ 10C (Non-condensation)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Power input DC 12V (Optional DC 9~36V)
Power consumption Around 45W
EMC CE/FCC Class A

PPC-DS215-T3 CyberVisuell Industrial Panel PC

21.5″ Panel PC with 11th-gen Core i7-1165G7 processor. Slim, fanless design, I/O includes 2*GLAN, 6*USB3.0, 2*COM (DB9), 2*HDMI. Supports Windows 11, features front IP65 protection.
Price guide: $3423+GST (incl 8GB RAM + 256GB SSD)
PPC-DS215-W3
Read more

Features:

  • Widescreen 21.5” TFT LCD display, LED Backlit, Full HD 1920 *1080;
  • 11th-gen. Core i7-1165G7 processor;
  • Multi-point projected capacitive touch, or 5-wire resistive touch;
  • Aluminum-magnesium alloy, anodized treatment, Modular designed;
  • DC 12V, optional wide voltage DC 9~36V power input;
  • IO: 2*GLAN, 6*USB3.0, 2*COM (DB9), Audio, 2*HDMI;
  • Intel PTT TPM2.0, Support Windows 11 OS;
  • Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
PPC-DS215-1
PPC-DS215-3
PPC-DS215-4
PPC-DS215-5
PPC-DS215-6
PPC-DS215-6
PPC-DS215-6
previous arrow
next arrow
PPC-DS215-1
PPC-DS215-3
PPC-DS215-4
PPC-DS215-5
PPC-DS215-6
PPC-DS215-6
PPC-DS215-6
previous arrow
next arrow

Ordering information:  (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.)   Updated June 2024 – prices subject to change without notice

Part no. Description Datasheets Sell Price ex-GST
PPC-DS215-T3-CT 21.5”, 1920 * 1080, Core i7-1165G7, Quad-core 4.40Ghz, Pcap. touch, 2*GLAN, 6*USB3.0, 2*COM, Audio, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-T3-CT $3,423
PPC-DS215-T3-RT 21.5”, 1920 * 1080, Core i7-1165G7, Quad-core 4.40Ghz, Resistive touch, 2*GLAN, 6*USB3.0, 2*COM, Audio, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-T3-RT $3,540
-4G / -8G/ -16G/ -32G SO-DIMM, DDR4, 4GB/8G/16G/32G Memory
-128GS / -256GS / -512GS M.2 SSD: 128GB/256GB/512GB
TBOX-WIBlu Wi-Fi with BT integrated module, with Antenna
EM06-E-PCKit All network 4G/LTE module, With Antenna
5G module, with Antenna
TBOX-9-36V Optional 9-36V DC wide voltage input module with mains adaptor included
SIM Card module Sim card slot for 3G/4G/5G wireless expansion

Packing List:

  • 1x Standard Product
  • 1x 60W PSU (Power Supply)
  • 1x Power cable & Plug
  • 8x Panel mount metal clips

Specifications:

System & Hardware
BIOS SPI AMI EEI BIOS
CPU 11th-gen. Core i7-1165G7
TDP Default 15W (BIOS fixed)
Memory SO-DIMM, Support DDR4 2666/2933/3200 MHz, Max. up to 32GB
Storage 1* M.2 2280 M-key (PCIe x4 Gen.IV NVMe) SSD, 1* 2.5” SATA SSD
Graphic Intel Iris Xe Graphics
Network 1* Intel I219, 1* Intel I225 LAN chips, Optional Wi-Fi +BT, 3G/4G/5G
Audio On-board Realtek ACL 897 audio controller
Expansion 1* M.2 (NGFF) Key-B 3052 slot, 1* M.2 (NGFF) Key-E 2230 slot
Watchdog 0 ~ 256 seconds programmable
OS Win10, Win11, Linux, Ubuntu
I/O interface
COM 2*RS232 (Optional 1* RS485)
Ethernet 2* RJ45, 10/100/1000 Mbps
Audio Mic-in/Line-out (2 in 1, 4.0mm jack)
USB 6x USB3.0
Display 2x HDMI
Power 1x 2 pins, phenix terminal
LCD Display
Size/Type 21.5” TFT LCD
Resolution 1920 * 1080 (Full HD)
Brightness 250 nits
Backlit & MTBF LED backlit & 30 000hours
Display area 476.64 * 268.11
View angle 89/89/89/89
Touchscreen
Type Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment Anti-fingerprint (PCap)
Structure
Structure and surface Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method Panel mount, VESA 75/100
Cooling system Large area finned heat sink
Overall dimension 527 * 318.7 * 57.5 (mm)
Cut-out dimension 516 * 308 (mm)
Net weight 7.0 KG
IP protection Front Panel IP65
Power & Environmental
Operating temp. 0～+60℃
Storage temp. -20～+70℃
Relative Humidity 10 ~ 95% @ 10C (Non-condensation)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Power input DC 12V (Optional DC 9~36V)
Power consumption Around 45W
EMC CE/FCC Class A

PPC-DS215-W1 CyberVisuell Industrial Panel PC

21.5″ Panel PC with 8th-gen Whiskey Lake i3-8145U processor. Slim, fanless design, I/O includes 2*GLAN, 4*USB3.0, 3*COM (DB9), 2*HDMI. Compatible with Windows 10 / 11, features front IP65 protection.
Price guide: $2812+GST (incl 8GB RAM + 256GB SSD)

PPC-DS215-W1
Read more

Features:

  • Widescreen 21.5” TFT LCD display, LED Backlit, Full HD 1920 *1080;
  • Intel 8th -gen. Whiskey Lake Celeron, Core i3/i5/i7 processor;
  • Multi-point projected capacitive touch, or 5-wire resistive touch;
  • Aluminum-magnesium alloy, anodized treatment, Modular designed;
  • DC 12V, optional wide voltage DC 9~36V power input;
  • IO: 2*GLAN, 4*USB3.0, 3*COM (DB9), 2*HDMI;
  • Intel PTT TPM2.0, Support Windows 11 OS;
  • Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.

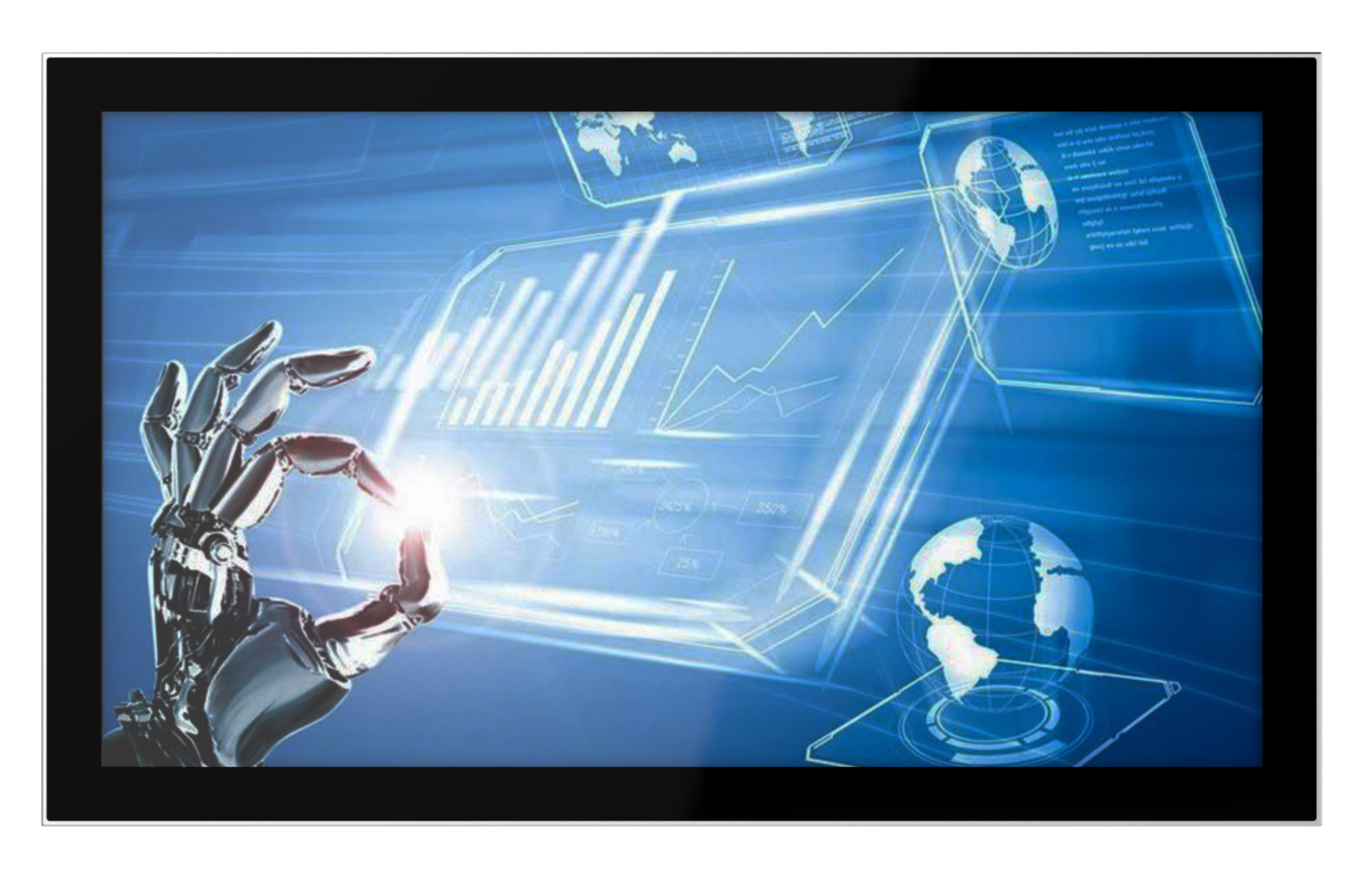

PPC-DS215-W1-1

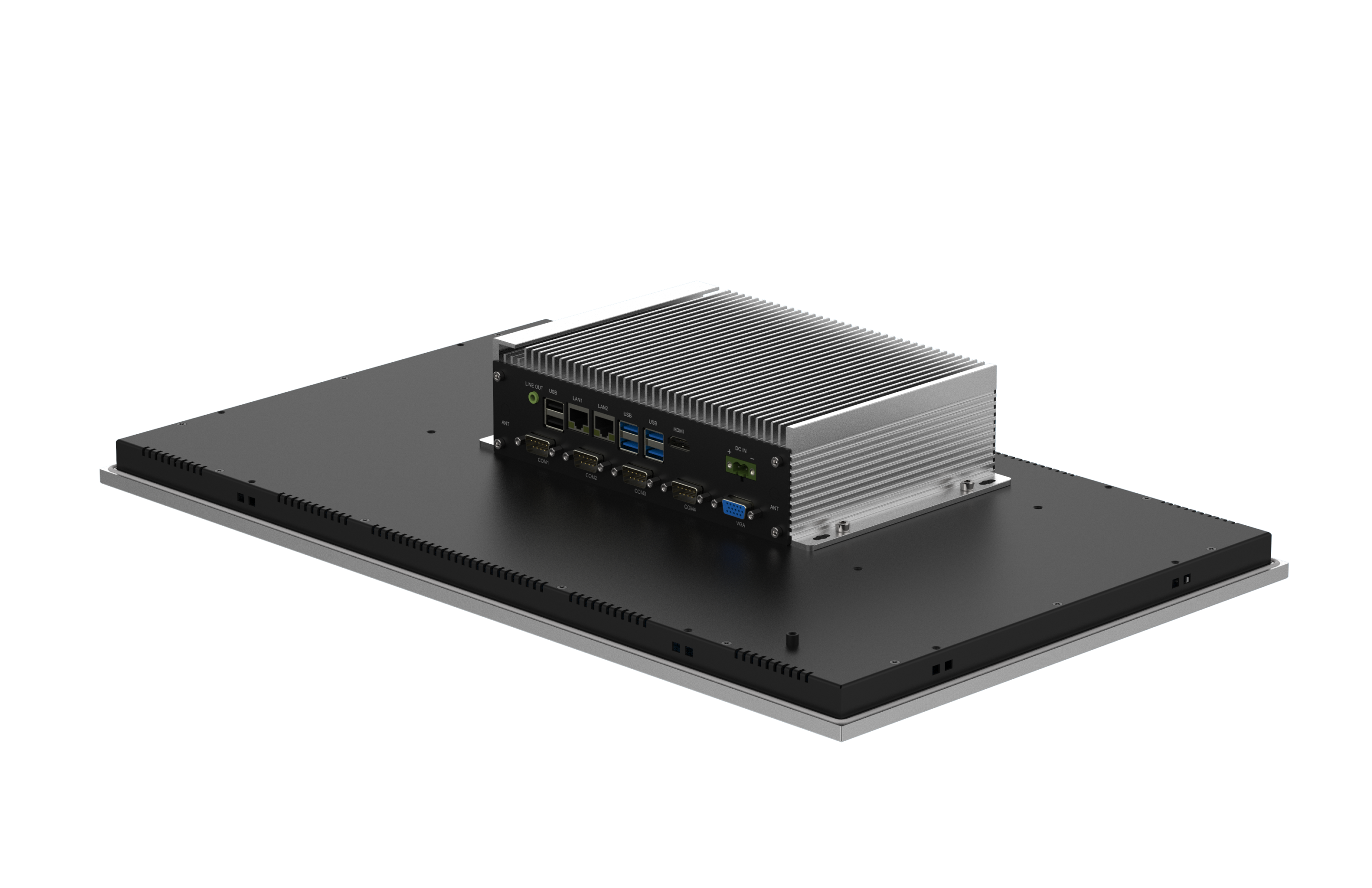

PPC-DS215-W1-5
PPC-DS215-W1-6
PPC-DS215-W1-7
previous arrow
next arrow
PPC-DS215-W1-1
PPC-DS215-W1-5
PPC-DS215-W1-6
PPC-DS215-W1-7
previous arrow
next arrow

Ordering information:  (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.)   Updated June 2024 – prices subject to change without notice

Part no. Description Datasheets Sell Price ex-GST
PPC-DS215-W1-CT 21.5”, 1920 * 1080, Core i3-8145U, Dual-core 2.1Ghz, Pcap. touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-W1-CT $2,812
PPC-DS215-W1-RT 21.5”, 1920 * 1080, Core i3-8145U, Dual-core 2.1Ghz, Resistive touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-W1-RT $2,929
-4G / -8G/ -16G SO-DIMM, DDR4, 4GB/8GB/16GB Memory
-128GS / -256GS / -512GS M.2 SSD: 128GB/256GB/512GB


2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB

2.5” HDD: 2TB/4TB


TBOX-AUDIO Audio (Line out) connector on rear connector panel
TBOX-WIBlu Wi-Fi with BT integrated module, with Antenna (M.2 interface)
EM06-E-PCKit All network 4G/LTE module, With Antenna (M.2 interface)
  5G module, with Antenna (M.2 interface)
TBOX-9-36V Optional 9-36V DC wide voltage input module with mains adaptor included
TBOX-SIMSLOT Sim card slot for 3G/4G/5G wireless expansion, accepts full size (2FF) SIM cards

Packing List:

  • 1x Standard Product
  • 1x 60W PSU (Power Supply)
  • 1x Power cable & Plug
  • 8x Panel mount metal clips

Specifications:

System & Hardware
BIOS SPI AMI EEI BIOS
CPU Intel 8th-gen. Whiskey Lake Celeron 4205U, Core i3-8145U, Core i5-8265U, Core i7-8565U
Memory SO-DIMM, DDR4-1866/2133/2400 MT/s, Max. up to 16GB
Storage 1* M.2 NGFF Key-M/B slot + 1* 2.5” SATA
Graphic Intel UHD Graphics 620
Network 1* Intel I211AT, and 1* Intel I219V LAN chips (Optional wireless 3G/4G, 5G, Wi-Fi/BT, Wi-Fi 6)
Audio On-board Realtek ACL 662 audio controller (Optional Line-Out connector available)
Expansion 1* M.2 Key-B slot, 1* M.2 Key-E slot
Watchdog 0 ~ 256 seconds programmable
OS Win10, Win11, Linux, Ubuntu
I/O interface
COM 3*RS232 (Default), Optional 1* RS485 or 8*GPIO
Ethernet 2* RJ45, 10/100/1000 Mbps
Audio Optional Line-out
USB 4x USB3.0
Display 2x HDMI
Power 1x 2 pins, phenix terminal
LCD Display
Size/Type 21.5” TFT LCD
Resolution 1920 * 1080 (Full HD)
Brightness 250 nits
Backlit & MTBF LED backlit & 30 000hours
Display area 476.64 * 268.11
View angle 89/89/89/89
Touchscreen
Type Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment Anti-fingerprint (PCap)
Structure
Structure and surface Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method Panel mount, VESA 75/100
Cooling system Large area finned heat sink
Overall dimension 527 * 318.7 * 57.5 (mm)
Cut-out dimension 516 * 308 (mm)
Net weight 7.0 KG
IP protection Front Panel IP65
Power & Environmental
Operating temp. 0～+60℃
Storage temp. -20～+70℃
Relative Humidity 10 ~ 95% @ 10C (Non-condensation)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Power input DC 12V (Optional DC 9~36V)
Power consumption Around 45W
EMC CE/FCC Class A

PPC-DS215-W2 CyberVisuell Industrial Panel PC

21.5″ Panel PC with Intel 8th-gen Whiskey Lake i5-8265U processor. Slim, fanless design, I/O includes 2*GLAN, 4*USB3.0, 3*COM (DB9), 2*HDMI. Compatible with Windows 10 / 11, features front IP65 protection.
Price guide: $3024+GST (incl 8GB RAM + 256GB SSD)

TPC DS215
Read more

Features:

  • Widescreen 21.5” TFT LCD display, LED Backlit, Full HD 1920 *1080;
  • Intel 8th -gen. Whiskey Lake Celeron, Core i3/i5/i7 processor;
  • Multi-point projected capacitive touch, or 5-wire resistive touch;
  • Aluminum-magnesium alloy, anodized treatment, Modular designed;
  • DC 12V, optional wide voltage DC 9~36V power input;
  • IO: 2*GLAN, 4*USB3.0, 3*COM (DB9), 2*HDMI;
  • Intel PTT TPM2.0, Support Windows 11 OS;
  • Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
PPC-DS215-W2-1
PPC-DS215-W2-3
PPC-DS215-W2-5
PPC-DS215-W2-6
PPC-DS215-W2-7
previous arrow
next arrow
PPC-DS215-W2-1
PPC-DS215-W2-3
PPC-DS215-W2-5
PPC-DS215-W2-6
PPC-DS215-W2-7
previous arrow
next arrow

Ordering information:  (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.)   Updated June 2024 – prices subject to change without notice

Part no. Description Datasheets Sell Price ex-GST
PPC-DS215-W2-CT 21.5”, 1920 * 1080, Core i5-8265U, Quad-core 1.6Ghz, Pcap. touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-W2-CT $3,024
PPC-DS215-W2-RT 21.5”, 1920 * 1080, Core i5-8265U, Quad-core 1.6Ghz, Resistive touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-W2-RT $3,141
-4G / -8G/ -16G SO-DIMM, DDR4, 4GB/8GB/16GB Memory
-128GS / -256GS / -512GS M.2 SSD: 128GB/256GB/512GB


2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB

2.5” HDD: 2TB/4TB


TBOX-AUDIO Audio (Line out) connector on rear connector panel
TBOX-WIBlu Wi-Fi with BT integrated module, with Antenna (M.2 interface)
EM06-E-PCKit All network 4G/LTE module, With Antenna (M.2 interface)
  5G module, with Antenna (M.2 interface)
TBOX-9-36V Optional 9-36V DC wide voltage input module with mains adaptor included
TBOX-SIMSLOT Sim card slot for 3G/4G/5G wireless expansion, accepts full size (2FF) SIM cards

Packing List:

  • 1x Standard Product
  • 1x 60W PSU (Power Supply)
  • 1x Power cable & Plug
  • 8x Panel mount metal clips

Specifications:

System & Hardware
BIOS SPI AMI EEI BIOS
CPU Intel 8th-gen. Whiskey Lake Celeron 4205U, Core i3-8145U, Core i5-8265U, Core i7-8565U
Memory SO-DIMM, DDR4-1866/2133/2400 MT/s, Max. up to 16GB
Storage 1* M.2 NGFF Key-M/B slot + 1* 2.5” SATA
Graphic Intel UHD Graphics 620
Network 1* Intel I211AT, and 1* Intel I219V LAN chips (Optional wireless 3G/4G, 5G, Wi-Fi/BT, Wi-Fi 6)
Audio On-board Realtek ACL 662 audio controller (Optional Line-Out connector available)
Expansion 1* M.2 Key-B slot, 1* M.2 Key-E slot
Watchdog 0 ~ 256 seconds programmable
OS Win10, Win11, Linux, Ubuntu
I/O interface
COM 3*RS232 (Default), Optional 1* RS485 or 8*GPIO
Ethernet 2* RJ45, 10/100/1000 Mbps
Audio Optional Line-out
USB 4x USB3.0
Display 2x HDMI
Power 1x 2 pins, phenix terminal
LCD Display
Size/Type 21.5” TFT LCD
Resolution 1920 * 1080 (Full HD)
Brightness 250 nits
Backlit & MTBF LED backlit & 30 000hours
Display area 476.64 * 268.11
View angle 89/89/89/89
Touchscreen
Type Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment Anti-fingerprint (PCap)
Structure
Structure and surface Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method Panel mount, VESA 75/100
Cooling system Large area finned heat sink
Overall dimension 527 * 318.7 * 57.5 (mm)
Cut-out dimension 516 * 308 (mm)
Net weight 7.0 KG
IP protection Front Panel IP65
Power & Environmental
Operating temp. 0～+60℃
Storage temp. -20～+70℃
Relative Humidity 10 ~ 95% @ 10C (Non-condensation)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Power input DC 12V (Optional DC 9~36V)
Power consumption Around 45W
EMC CE/FCC Class A

PPC-DS215-W3 CyberVisuell Industrial Panel PC

21.5″ Panel PC with 8th-gen Whiskey Lake i7-8565U processor. Slim, fanless design, I/O includes 2*GLAN, 4*USB3.0, 3*COM (DB9), 2*HDMI. Compatible with Windows 10 / 11, features front IP65 protection.
Price guide: $3423+GST (incl 8GB RAM + 256GB SSD)

PPC-DS215-W3
Read more

Features:

  • Widescreen 21.5” TFT LCD display, LED Backlit, Full HD 1920 *1080;
  • Intel 8th -gen. Whiskey Lake Celeron, Core i3/i5/i7 processor;
  • Multi-point projected capacitive touch, or 5-wire resistive touch;
  • Aluminum-magnesium alloy, anodized treatment, Modular designed;
  • DC 12V, optional wide voltage DC 9~36V power input;
  • IO: 2*GLAN, 4*USB3.0, 3*COM (DB9), 2*HDMI;
  • Intel PTT TPM2.0, Support Windows 11 OS;
  • Fan-less & Slim design, Panel mount, VESA, Front IP65 protection.
PPC-DS215-W3-1
PPC-DS215-W3-3
PPC-DS215-W3-5
PPC-DS215-W3-6
PPC-DS215-W3-7
previous arrow
next arrow
PPC-DS215-W3-1
PPC-DS215-W3-3
PPC-DS215-W3-5
PPC-DS215-W3-6
PPC-DS215-W3-7
previous arrow
next arrow

Ordering information:  (Prices include 8GB RAM + 256GB SSD, and exclude GST. Please contact us for other configurations.)   Updated June 2024 – prices subject to change without notice

Part no. Description Datasheets Sell Price ex-GST
PPC-DS215-W3-CT 21.5”, 1920 * 1080, Core i7-8565U, Quad-core 1.8Ghz, Pcap. touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-W3-CT $3,423
PPC-DS215-W3-RT 21.5”, 1920 * 1080, Core i7-8565U, Quad-core 1.8Ghz, Resistive touch, 2*GLAN, 4*USB3.0, 3*COM, 2*HDMI, DC 12V, PSU Data Sheet on PPC-DS215-W3-RT $3,540
-4G / -8G/ -16G SO-DIMM, DDR4, 4GB/8GB/16GB Memory
-128GS / -256GS / -512GS M.2 SSD: 128GB/256GB/512GB


2.5” SATA SSD: 64GB/128GB/256GB/512GB/1TB

2.5” HDD: 2TB/4TB


TBOX-AUDIO Audio (Line out) connector on rear connector panel
TBOX-WIBlu Wi-Fi with BT integrated module, with Antenna (M.2 interface)
EM06-E-PCKit All network 4G/LTE module, With Antenna (M.2 interface)
  5G module, with Antenna (M.2 interface)
TBOX-9-36V Optional 9-36V DC wide voltage input module with mains adaptor included
TBOX-SIMSLOT Sim card slot for 3G/4G/5G wireless expansion, accepts full size (2FF) SIM cards

Packing List:

  • 1x Standard Product
  • 1x 60W PSU (Power Supply)
  • 1x Power cable & Plug
  • 8x Panel mount metal clips

Specifications:

System & Hardware
BIOS SPI AMI EEI BIOS
CPU Intel 8th-gen. Whiskey Lake Celeron 4205U, Core i3-8145U, Core i5-8265U, Core i7-8565U
Memory SO-DIMM, DDR4-1866/2133/2400 MT/s, Max. up to 16GB
Storage 1* M.2 NGFF Key-M/B slot + 1* 2.5” SATA
Graphic Intel UHD Graphics 620
Network 1* Intel I211AT, and 1* Intel I219V LAN chips (Optional wireless 3G/4G, 5G, Wi-Fi/BT, Wi-Fi 6)
Audio On-board Realtek ACL 662 audio controller (Optional Line-Out connector available)
Expansion 1* M.2 Key-B slot, 1* M.2 Key-E slot
Watchdog 0 ~ 256 seconds programmable
OS Win10, Win11, Linux, Ubuntu
I/O interface
COM 3*RS232 (Default), Optional 1* RS485 or 8*GPIO
Ethernet 2* RJ45, 10/100/1000 Mbps
Audio Optional Line-out
USB 4x USB3.0
Display 2x HDMI
Power 1x 2 pins, phenix terminal
LCD Display
Size/Type 21.5” TFT LCD
Resolution 1920 * 1080 (Full HD)
Brightness 250 nits
Backlit & MTBF LED backlit & 30 000hours
Display area 476.64 * 268.11
View angle 89/89/89/89
Touchscreen
Type Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment Anti-fingerprint (PCap)
Structure
Structure and surface Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method Panel mount, VESA 75/100
Cooling system Large area finned heat sink
Overall dimension 527 * 318.7 * 57.5 (mm)
Cut-out dimension 516 * 308 (mm)
Net weight 7.0 KG
IP protection Front Panel IP65
Power & Environmental
Operating temp. 0～+60℃
Storage temp. -20～+70℃
Relative Humidity 10 ~ 95% @ 10C (Non-condensation)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Power input DC 12V (Optional DC 9~36V)
Power consumption Around 45W
EMC CE/FCC Class A

Rich I/O Panel PC Models

CyberVisuell’s rich I/O panel PC’s have the full complement of I/O connections, including multiple serial and USB ports, with space to add an internal 2.5″ SSD/HDD plus various other options. These PC’s can mount into a panel, and an optional bracket can be added for VESA mounting.

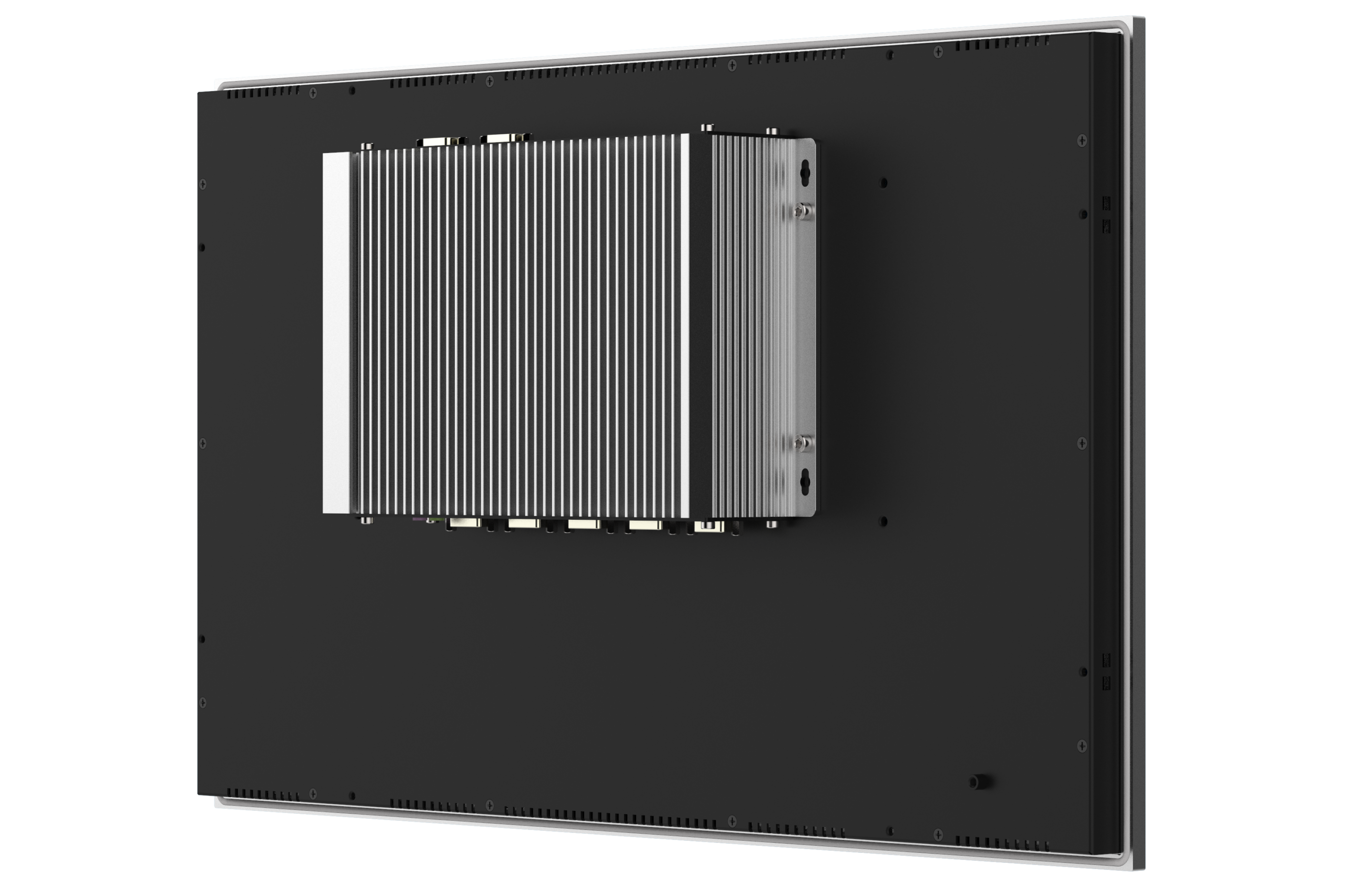

PPC-215-C1 CyberVisuell Industrial Panel PC

21.5″ Panel PC with Baytrail Celeron J1900 processor. Fanless design, I/O includes 2*GLAN, 5*USB, 6*COM, 1*HDMI, 1*VGA, Mic-in/Line-out. Compatible with Windows 7 / 10, features Front IP65 protection.
Price guide: $2337+GST (incl 8GB RAM + 128GB SSD)

PPC-215
Read more

Features:

  • Widescreen 21.5” TFT LCD display, LED Backlit, Full HD 1920 *1080;
  • Intel Baytrail J1900 2.0Ghz Quad-core processor;
  • Multi-points (Max. up 10 points) Projective capacitive touch, EETI controller;
  • Aluminum-magnesium alloy, anodized treatment, Modular designed;
  • DC 9~24V, with over-current, over-voltage and polarity protection;
  • 2*GLAN, 5*USB, 6*COM, 1*HDMI, 1*VGA, Mic-in/Line-out;
  • Fan-less & Rich IO design, Panel mount, VESA, Front IP65 protection.
PPC-215-C1-1
PPC-215-C1-3
PPC-215-C1-4
PPC-215-C1-5
PPC-215-C1-6
previous arrow
next arrow
PPC-215-C1-1
PPC-215-C1-3
PPC-215-C1-4
PPC-215-C1-5
PPC-215-C1-6
previous arrow
next arrow


Ordering information:  (Prices include 8GB RAM + 128GB SSD, and exclude GST. Please contact us for other configurations.)   Updated June 2024 – prices subject to change without notice

Part no. Description Datasheets Sell Price ex-GST
PPC-215-C1-CT 21.5” LCD, 1920 * 1080, Intel Baytrail J1900, Pcap. touch, 2*GLAN, 5*USB, 6*COM, 1*HDMI, 1*VGA, Mic-in/Line-out, DC 9~24V Data Sheet on PPC-215-C1-CT $2,337
PPC-215-C1-RT 21.5” LCD, 1920 * 1080, Intel Baytrail J1900, Resistive touch, 2*GLAN, 5*USB, 6*COM, 1*HDMI, 1*VGA, Mic-in/Line-out, DC 9~24V Data Sheet on PPC-215-C1-RT $2,454
-2G / -4G / -8G Memory: SO-DIMM, DDR3,2GB/4GB/8GB Memory
-64GS / -128GS / -256GS / -512GS mSATA SSD: 64GB/128GB/256GB/512GB


2.5” SATA SSD: 256GB/512GB

2.5” HDD: 1TB/2TB/4TB


TBOX-WIFI Wi-Fi module, with Antenna
TBOX-WIBlu Wi-Fi with BT integrated module, with Antenna
EC25-AU-PCKit All network 4G/LTE module, With Antenna
TA-VESAB1 Additional VESA bracket for VESA mounting

Packing List:

  • 1x Standard Product
  • 1x 60W PSU (Power Supply)
  • 1x Power cable & Plug
  • 8x Panel mount metal clips

Specifications:

System & Hardware
BIOS SPI AMI EEI BIOS
CPU Intel Baytrail J1900, Quad-core 2.0Ghz, burst to 2.42Ghz
Memory SO-DIMM, DDR3L-1333, Max. up to 8GB (Compatible with DDR3)
Storage 1*mSATA (Optional support 1* 2.5” SATA)
Graphic Intel HD Graphics Gen7
Network 2* Intel I211AT (Optional 3G/4G/Wi-Fi)
Audio On-board Realtek ACL 282 audio controller
Expansion 1* Full size Mini-PCIe slot
Watchdog 0~256 seconds programmable
OS Win7, Win8, Win embedded, Win10, Linux
I/O interface
COM 6x RS232 (Optional support 1x RS485)
Ethernet 2x RJ45, 10/100/1000 Mbps
Audio Mic-in/Line-out
USB 1x USB3.0, 4x USB2.0
Display 1x HDMI, 1x VGA
Power 1x 2 pins, phenix terminal
LCD Display
Size/Type 21.5” TFT LC
Resolution 1920 * 1080 (Full HD)
Brightness 250 nits
Backlit & MTBF LED backlit & 30 000hours
Display area 476.64 * 268.11
View angle 89/89/89/89
Touchscreen
Type Projective capacitive touchscreen
Touch points Multi points touch, max. up to 10 points
Durability >100 000 000 times
Surface hardness Mohs 6H
Special treatment Anti-fingerprint (AF)
Structure
Structure and surface Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method Panel mount (Optional support VESA 75/100)
Cooling system Large area finned heat sink
Overall dimension 527 * 318.7 * 84.0 (mm)
Cut-out dimension 516 * 308 (mm)
Net weight 7.5 KG
IP protection Front Panel IP65
Power & Environmental
Operating temp. 0～+60℃
Storage temp. -20～+70℃
Relative Humidity 10 ~ 95% @ 10C (Non-condensation)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Power input DC 9~24V
Power consumption Around 40W
EMC CE/FCC Class A

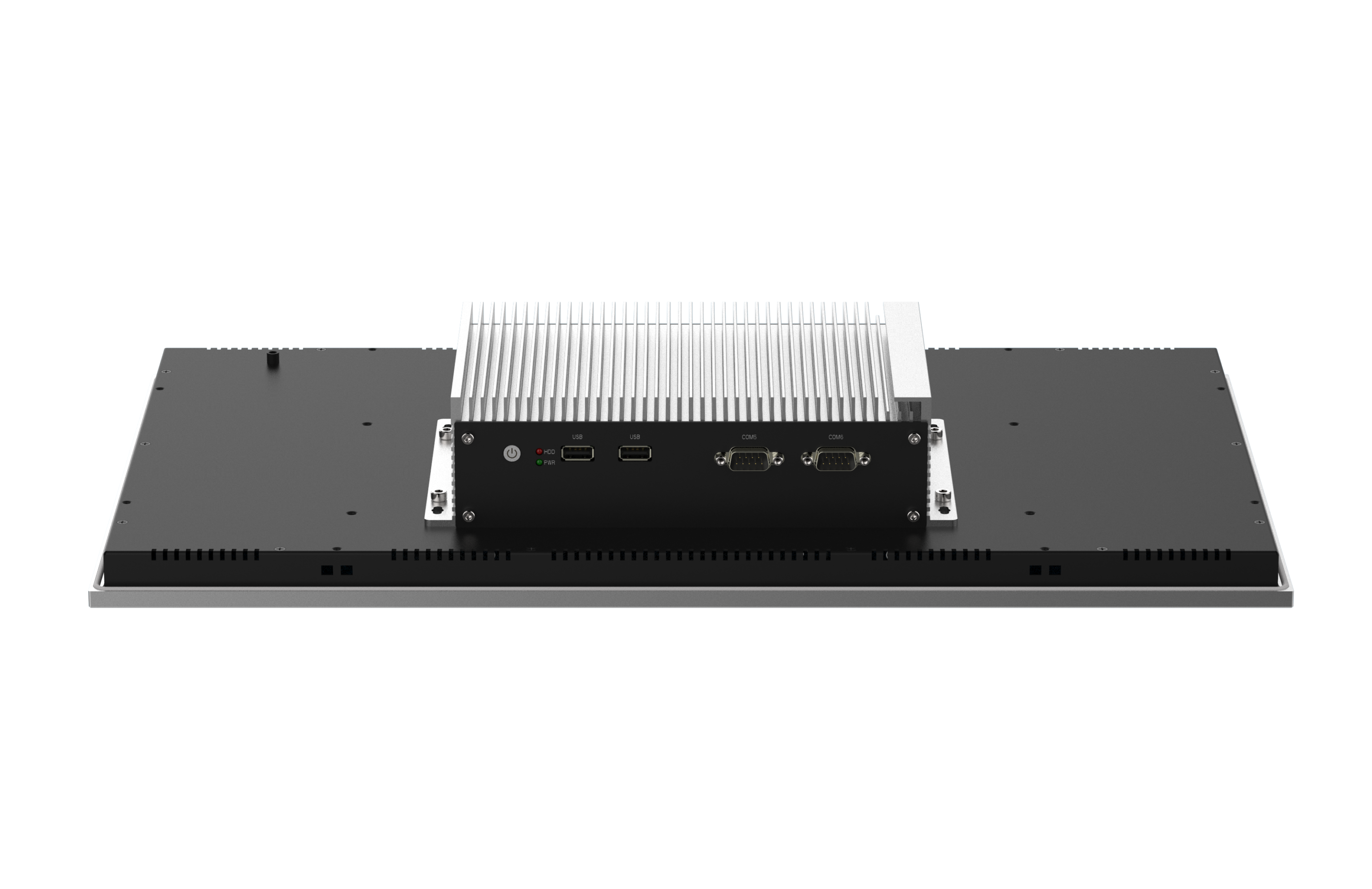

PPC-215-A1 CyberVisuell Industrial Panel PC

21.5″ Panel PC with Apollo Lake Celeron J3455 processor. Fanless design, I/O includes 2*GLAN, 6*USB, 6*COM, 1*HDMI, 1*VGA, Mic-in/Line-out. Compatible with Windows 10, features Front IP65 protection.
Price guide: $2311+GST (incl 8GB RAM + 128GB SSD)

PPC-215
Read more

Features:

  • Widescreen 21.5” TFT LCD display, LED Backlit, Full HD 1920 *1080;
  • Intel Apollo Lake J3455 1.5Ghz Quad-core processor;
  • Multi-point projected capacitive touch, or 5-wire resistive touch;
  • Aluminum-magnesium alloy, anodized treatment, Modular designed;
  • DC 12V, with over-current, over-voltage and polarity protection;
  • 2*GLAN, 6*USB, 6*COM, 1*HDMI, 1*VGA, Mic-in/Line-out;
  • Fan-less & Rich IO design, Panel mount, VESA, Front IP65 protection.
PPC-215-A1-1
PPC-215-A1-3
PPC-215-A1-4
PPC-215-A1-5
PPC-215-A1-6
previous arrow
next arrow
PPC-215-A1-1
PPC-215-A1-3
PPC-215-A1-4
PPC-215-A1-5
PPC-215-A1-6
previous arrow
next arrow


Ordering information:  (Prices include 8GB RAM + 128GB SSD, and exclude GST. Please contact us for other configurations.)   Updated June 2024 – prices subject to change without notice

Part no. Description Datasheets Sell Price ex-GST
PPC-215-A1-CT 21.5” LCD, 1920 * 1080, Intel Apollo Lake J3455, Pcap. touch, 2*GLAN, 6*USB, 6*COM, 1*HDMI, 1*VGA, Mic-in/Line-out, DC 12V Data Sheet on PPC-215-A1-CT $2,311
PPC-215-A1-RT 21.5” LCD, 1920 * 1080, Intel Apollo Lake J3455, Resistive touch, 2*GLAN, 6*USB, 6*COM, 1*HDMI, 1*VGA, Mic-in/Line-out, DC 12V Data Sheet on PPC-215-A1-RT $2,428
-2G / -4G / -8G Memory: SO-DIMM, DDR3,2GB/4GB/8GB Memory
-64GS / -128GS / -256GS / -512GS mSATA SSD: 64GB/128GB/256GB/512GB


2.5” SATA SSD: 256GB/512GB

2.5” HDD: 1TB/2TB/4TB


TBOX-WIFI Wi-Fi module, with Antenna
TBOX-WIBlu Wi-Fi with BT integrated module, with Antenna
EC25-AU-PCKit All network 4G/LTE module, With Antenn
TPS-DTD936M1 DC to DC, wide power input DC 9 ~ 36V
TA-VESAB1 Additional VESA bracket for VESA mounting

Packing List:

  • 1x Standard Product
  • 1x 60W PSU (Power Supply)
  • 1x Power cable & Plug
  • 8x Panel mount metal clips

Specifications:

System & Hardware
BIOS SPI AMI EEI BIOS
CPU Intel Apollo Lake J3455, Quad-core 1.5Ghz, burst to 2.3Ghz
Memory SO-DIMM, DDR3-1866Mt/s, Max. up to 8GB
Storage 1*mSATA (Optional support 1* 2.5” SATA)
Graphic Intel HD Graphics 500
Network 2* Intel I211AT (Optional 3G/4G/Wi-Fi)
Audio On-board Realtek ACL 269 audio controller
Expansion 1* Full size Mini-PCIe slot
Watchdog 0~256 seconds programmable
OS Win10, Linux
I/O interface
COM 6x RS232 (Optional support 1x RS485)
Ethernet 2x RJ45, 10/100/1000 Mbps
Audio Mic-in/Line-out
USB 4x USB3.0, 2x USB2.0
Display 1x HDMI, 1x VGA
Power 1x 2 pins, phenix terminal
LCD Display
Size/Type 21.5” TFT LCD
Resolution 1920 * 1080 (Full HD)
Brightness 250 nits
Backlit & MTBF LED backlit & 30 000hours
Display area 476.64 * 268.11
View angle 89/89/89/89
Touchscreen
Type Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment Anti-fingerprint (PCap)
Structure
Structure and surface Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method Panel mount (Optional support VESA 75/100)
Cooling system Large area finned heat sink
Overall dimension 527 * 318.7 * 84 (mm)
Cut-out dimension 516 * 308 (mm)
Net weight 7.5 KG
IP protection Front Panel IP65
Power & Environmental
Operating temp. 0～+60℃
Storage temp. -20～+70℃
Relative Humidity 10 ~ 95% @ 10C (Non-condensation)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Power input DC 12V (Optional DC 9~36V)
Power consumption Around 40W
EMC CE/FCC Class A

PPC-215-W1 CyberVisuell Industrial Panel PC

21.5″ Panel PC with 8th-gen Whiskey Lake i3-8145U processor. Fanless design, I/O includes 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out. Compatible with Windows 10, features front IP65 protection.
Price guide: $2790+GST (incl 8GB RAM + 128GB SSD)

PPC-215
Read more

Features:

  • Widescreen 21.5” TFT LCD display, WLED Backlit, Full HD 1920 * 1080;
  • Intel 8th -gen. Whiskey Lake -U, Celeron Core i3/i5/i7 processor;
  • Multi-point projected capacitive touch, or 5-wire resistive touch;
  • Aluminum-magnesium alloy, anodized treatment, Modular designed;
  • DC 9~24V, with over-current, over-voltage and polarity protection;
  • 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out;
  • Fan-less & Rich IO design, Panel mount, VESA, Front IP65 protection.
PPC-215-W1-1
PPC-215-W1-3
PPC-215-W1-4
PPC-215-W1-5
PPC-215-W1-6
PPC-215-W1-7
previous arrow
next arrow
PPC-215-W1-1
PPC-215-W1-3
PPC-215-W1-4
PPC-215-W1-5
PPC-215-W1-6
PPC-215-W1-7
previous arrow
next arrow


Ordering information:  (Prices include 8GB RAM + 128GB SSD, and exclude GST. Please contact us for other configurations.)   Updated June 2024 – prices subject to change without notice

Part no. Description Datasheets Sell Price ex-GST
PPC-215-W1-CT 21.5”, 1920 * 1080, Core i3-8145U, Pcap. touch, 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out, DC 9~24V Data Sheet on PPC-215-W1-CT $2,790
PPC-215-W1-RT 21.5”, 1920 * 1080, Core i3-8145U, Resistive touch, 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out, DC 9~24V Data Sheet on PPC-215-W1-RT $2,907
-4G / -8G / -16G Memory: SO-DIMM, DDR4,4GB/8GB/16GB Memory
-64GS / -128GS / -256GS / -512GS mSATA SSD: 64GB/128GB/256GB/512GB


2.5” SATA SSD: 256GB/512GB

2.5” HDD: 1TB/2TB/4TB


TBOX-AUDIO Audio (Line out) connector on rear connector panel
TBOX-WIBlu Wi-Fi with BT integrated module, with Antenna
EC25-AU-PCKit All network 4G/LTE module, With Antenna
TA-VESAB1 Additional VESA bracket for VESA mounting

Packing List:

  • 1x Standard Product
  • 1x 90W PSU (Power Supply)
  • 1x Power cable & Plug
  • 8x Panel mount metal clips

Specifications:

System & Hardware
BIOS SPI AMI EEI BIOS
CPU Intel 8th-gen. Whiskey Lake Celeron 4205U, Core i3-8145U, Core i5-8265U, Core i7-8565U
Memory SO-DIMM, DDR4-1866/2133/2400 MT/s, Max. up to 16GB
Storage 1* M.2 NGFF Key-M/B slot + 1* 2.5” SATA
Graphic Intel UHD Graphics 620
Network 1* Intel I211AT, and 1* Intel I219V LAN chips (Optional wireless 3G/4G, 5G, Wi-Fi/BT, Wi-Fi 6)
Audio On-board Realtek ACL 662 audio controller (Optional Line-Out connector available)
Expansion 1* M.2 Key-B slot, 1* M.2 Key-E slot
Watchdog 0 ~ 256 seconds programmable
OS Win10, Win11, Linux, Ubuntu
I/O interface
COM 3*RS232 (Default), Optional 1* RS485 or 8*GPIO
Ethernet 2* RJ45, 10/100/1000 Mbps
Audio Optional Line-out
USB 4x USB3.0
Display 2x HDMI
Power 1x 2 pins, phenix terminal
LCD Display
Size/Type 21.5” TFT LCD
Resolution 1920 * 1080 (Full HD)
Brightness 250 nits
Backlit & MTBF LED backlit & 30 000hours
Display area 476.64 * 268.11
View angle 89/89/89/89
Touchscreen
Type Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment Anti-fingerprint (PCap)
Structure
Structure and surface Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method Panel mount, VESA 75/100
Cooling system Large area finned heat sink
Overall dimension 527 * 318.7 * 57.5 (mm)
Cut-out dimension 516 * 308 (mm)
Net weight 7.0 KG
IP protection Front Panel IP65
Power & Environmental
Operating temp. 0～+60℃
Storage temp. -20～+70℃
Relative Humidity 10 ~ 95% @ 10C (Non-condensation)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Power input DC 12V (Optional DC 9~36V)
Power consumption Around 45W
EMC CE/FCC Class A

PPC-215-W2 CyberVisuell Industrial Panel PC

21.5″ Panel PC with 8th-gen Whiskey Lake i5-8265U processor. Fanless design, I/O includes 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out. Compatible with Windows 10, features front IP65 protection.
Price guide: $3113+GST (incl 8GB RAM + 128GB SSD)

PPC-215
Read more

Features:

  • Widescreen 21.5” TFT LCD display, WLED Backlit, Full HD 1920 * 1080;
  • Intel 8th -gen. Whiskey Lake -U, Celeron Core i3/i5/i7 processor;
  • Multi-point projected capacitive touch, or 5-wire resistive touch;
  • Aluminum-magnesium alloy, anodized treatment, Modular designed;
  • DC 9~24V, with over-current, over-voltage and polarity protection;
  • 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out;
  • Fan-less & Rich IO design, Panel mount, VESA, Front IP65 protection.
PPC-215-W2-1
PPC-215-W2-3
PPC-215-W2-4
PPC-215-W2-6
PPC-215-W2-7
previous arrow
next arrow
PPC-215-W2-1
PPC-215-W2-3
PPC-215-W2-4
PPC-215-W2-6
PPC-215-W2-7
previous arrow
next arrow


Ordering information:  (Prices include 8GB RAM + 128GB SSD, and exclude GST. Please contact us for other configurations.)   Updated June 2024 – prices subject to change without notice

Part no. Description Datasheets Sell Price ex-GST
PPC-215-W2-CT 21.5”, 1920 * 1080, Core i5-8265U, Pcap. touch, 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out, DC 9~24V Data Sheet on PPC-215-W2-CT $3,113
PPC-215-W2-RT 21.5”, 1920 * 1080, Core i5-8265U, Resistive touch, 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out, DC 9~24V Data Sheet on PPC-215-W2-RT $3,230
-4G / -8G / -16G Memory: SO-DIMM, DDR4,4GB/8GB/16GB Memory
-64GS / -128GS / -256GS / -512GS mSATA SSD: 64GB/128GB/256GB/512GB


2.5” SATA SSD: 256GB/512GB

2.5” HDD: 1TB/2TB/4TB


TBOX-AUDIO Audio (Line out) connector on rear connector panel
TBOX-WIBlu Wi-Fi with BT integrated module, with Antenna
EC25-AU-PCKit All network 4G/LTE module, With Antenna
TA-VESAB1 Additional VESA bracket for VESA mounting

Packing List:

  • 1x Standard Product
  • 1x 90W PSU (Power Supply)
  • 1x Power cable & Plug
  • 8x Panel mount metal clips

Specifications:

System & Hardware
BIOS SPI AMI EEI BIOS
CPU Intel 8th-gen. Whiskey Lake Celeron 4205U, Core i3-8145U, Core i5-8265U, Core i7-8565U
Memory SO-DIMM, DDR4-1866/2133/2400 MT/s, Max. up to 16GB
Storage 1* M.2 NGFF Key-M/B slot + 1* 2.5” SATA
Graphic Intel UHD Graphics 620
Network 1* Intel I211AT, and 1* Intel I219V LAN chips (Optional wireless 3G/4G, 5G, Wi-Fi/BT, Wi-Fi 6)
Audio On-board Realtek ACL 662 audio controller (Optional Line-Out connector available)
Expansion 1* M.2 Key-B slot, 1* M.2 Key-E slot
Watchdog 0 ~ 256 seconds programmable
OS Win10, Win11, Linux, Ubuntu
I/O interface
COM 3*RS232 (Default), Optional 1* RS485 or 8*GPIO
Ethernet 2* RJ45, 10/100/1000 Mbps
Audio Optional Line-out
USB 4x USB3.0
Display 2x HDMI
Power 1x 2 pins, phenix terminal
LCD Display
Size/Type 21.5” TFT LCD
Resolution 1920 * 1080 (Full HD)
Brightness 250 nits
Backlit & MTBF LED backlit & 30 000hours
Display area 476.64 * 268.11
View angle 89/89/89/89
Touchscreen
Type Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment Anti-fingerprint (PCap)
Structure
Structure and surface Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method Panel mount, VESA 75/100
Cooling system Large area finned heat sink
Overall dimension 527 * 318.7 * 57.5 (mm)
Cut-out dimension 516 * 308 (mm)
Net weight 7.0 KG
IP protection Front Panel IP65
Power & Environmental
Operating temp. 0～+60℃
Storage temp. -20～+70℃
Relative Humidity 10 ~ 95% @ 10C (Non-condensation)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Power input DC 12V (Optional DC 9~36V)
Power consumption Around 45W
EMC CE/FCC Class A

PPC-215-W3 CyberVisuell Industrial Panel PC

21.5″ Panel PC with 8th-gen Whiskey Lake i7-8565U processor. Fanless design, I/O includes 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out. Compatible with Windows 10, features front IP65 protection.
Price guide: $3401+GST (incl 8GB RAM + 128GB SSD)

PPC-215
Read more

Features:

  • Widescreen 21.5” TFT LCD display, WLED Backlit, Full HD 1920 * 1080;
  • Intel 8th -gen. Whiskey Lake -U, Celeron Core i3/i5/i7 processor;
  • Multi-point projected capacitive touch, or 5-wire resistive touch;
  • Aluminum-magnesium alloy, anodized treatment, Modular designed;
  • DC 9~24V, with over-current, over-voltage and polarity protection;
  • 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out;
  • Fan-less & Rich IO design, Panel mount, VESA, Front IP65 protection.
PPC-215-W3-1
PPC-215-W3-3
PPC-215-W3-4
PPC-215-W3-5
PPC-215-W3-6
PPC-215-W3-7
previous arrow
next arrow
PPC-215-W3-1
PPC-215-W3-3
PPC-215-W3-4
PPC-215-W3-5
PPC-215-W3-6
PPC-215-W3-7
previous arrow
next arrow


Ordering information:  (Prices include 8GB RAM + 128GB SSD, and exclude GST. Please contact us for other configurations.)   Updated June 2024 – prices subject to change without notice

Part no. Description Datasheets Sell Price ex-GST
PPC-215-W3-CT 21.5”, 1920 * 1080, Core i7-8565U, Pcap. touch, 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out, DC 9~24V Data Sheet on PPC-215-W3-CT $3,401
PPC-215-W3-RT 21.5”, 1920 * 1080, Core i7-8565U, Resistive touch, 2*GLAN, 8*USB, 6*COM, 1*HDMI, 1*VGA, Line-out, DC 9~24V Data Sheet on PPC-215-W3-RT $3,518
-4G / -8G / -16G Memory: SO-DIMM, DDR4,4GB/8GB/16GB Memory
-64GS / -128GS / -256GS / -512GS mSATA SSD: 64GB/128GB/256GB/512GB


2.5” SATA SSD: 256GB/512GB

2.5” HDD: 1TB/2TB/4TB


TBOX-AUDIO Audio (Line out) connector on rear connector panel
TBOX-WIBlu Wi-Fi with BT integrated module, with Antenna
EC25-AU-PCKit All network 4G/LTE module, With Antenna
TA-VESAB1 Additional VESA bracket for VESA mounting

Packing List:

  • 1x Standard Product
  • 1x 90W PSU (Power Supply)
  • 1x Power cable & Plug
  • 8x Panel mount metal clips

Specifications:

System & Hardware
BIOS SPI AMI EEI BIOS
CPU Intel 8th-gen. Whiskey Lake Celeron 4205U, Core i3-8145U, Core i5-8265U, Core i7-8565U
Memory SO-DIMM, DDR4-1866/2133/2400 MT/s, Max. up to 16GB
Storage 1* M.2 NGFF Key-M/B slot + 1* 2.5” SATA
Graphic Intel UHD Graphics 620
Network 1* Intel I211AT, and 1* Intel I219V LAN chips (Optional wireless 3G/4G, 5G, Wi-Fi/BT, Wi-Fi 6)
Audio On-board Realtek ACL 662 audio controller (Optional Line-Out connector available)
Expansion 1* M.2 Key-B slot, 1* M.2 Key-E slot
Watchdog 0 ~ 256 seconds programmable
OS Win10, Win11, Linux, Ubuntu
I/O interface
COM 3*RS232 (Default), Optional 1* RS485 or 8*GPIO
Ethernet 2* RJ45, 10/100/1000 Mbps
Audio Optional Line-out
USB 4x USB3.0
Display 2x HDMI
Power 1x 2 pins, phenix terminal
LCD Display
Size/Type 21.5” TFT LCD
Resolution 1920 * 1080 (Full HD)
Brightness 250 nits
Backlit & MTBF LED backlit & 30 000hours
Display area 476.64 * 268.11
View angle 89/89/89/89
Touchscreen
Type Projective capacitive touchscreen / Wide temp. 5-wires Resistive touchscreen, EETI controller
Touch points Multi points touch, max. up to 10 points (Pcap) / Single touch (Resistive)
Durability >100 000 000 times (PCap) / 35 milion clicks@ 250g (Resistive)
Surface hardness Glass, Mohs 6H hardness (PCap) / PET film laminated, flat design (Resistive)
Special treatment Anti-fingerprint (PCap)
Structure
Structure and surface Magnesium-Aluminum alloy, sand blasting, anodized treatment
Mount method Panel mount, VESA 75/100
Cooling system Large area finned heat sink
Overall dimension 527 * 318.7 * 57.5 (mm)
Cut-out dimension 516 * 308 (mm)
Net weight 7.0 KG
IP protection Front Panel IP65
Power & Environmental
Operating temp. 0～+60℃
Storage temp. -20～+70℃
Relative Humidity 10 ~ 95% @ 10C (Non-condensation)
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock 10G/Peak (11 ms)
Power input DC 12V (Optional DC 9~36V)
Power consumption Around 45W
EMC CE/FCC Class A
Call Now Button
Save 10% on CyberVisuell PC and Keyboard Bundle
Learn more
Save 10% on CyberVisuell PC and Keyboard Bundle
