Industrial Keyboards - Flat Membrane
Industrial Membrane Keyboards - Waterproof, easy to wipe downFoil Covered Industrial Keyboards – Membrane Keyboards
Foil-covered keyboards are the most widely used input elements in device and apparatus construction. Whether they have a narrow operating area with two keys or are a complete user interface with a large number of keys and additional elements, their robust design, flat insertion depth and the large degree of freedom in terms of their shape continue to make them customers’ first choice.
The almost unlimited flexibility in design is one of the major advantages of foil-covered keyboards. As a result, the design engineer can freely set the number of keys, their position and their shape on the device. Then there is the equally wide selection of graphical designs for the user interface. Foil-covered keyboards as mechanical switching elements firstly offer thin metal dome switches. Secondly, the switching mechanism works when the foil surface contacts the switching film below. Foil-covered keyboards are normally glued into place without a great deal of effort to integrate them within systems.
The variety of additional functions and properties that can be combined with foil-covered keyboards are what make them an attractive proposition. Coatings that repel biocides or liquids, different lighting options, capacity sensor elements or a double contact function are all available.
Desktop Membrane Keyboards
Stand alone desktop industrial keyboards, flat membrane style. These have short travel keys, covered with a tough chemical resistant polyester foil.
Please use the KSxxxx part number, not the longer TKS- code.

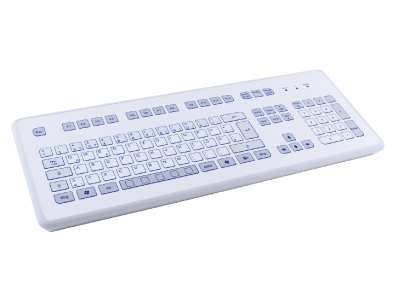

KS18233 (TKS-105c-KGEH-USB-US) – Industrial Desktop Keyboard
Product features:
- Robust polyester front foil with key embossment
- Positive tactile feedback
- Rugged plastic enclosure
- Chemical, abrasion and scratch resistant frontsheet
- IP65 resistant against dirt, dust and liquids
- Short travel keys as switching elements
- Max.Protection level: IP65
Technical Specifications:
- Number of keys: 105
- Interfaces available: USB
- Switching technology: short travel keys
- Operation force: 2.6 N
- Switch travel: 0.3 mm
- Switching cycles: approx. 3 Million (per key)
- Operating temp.: -25°C to +70°C Storage temp.: -25°C to +80°C
- Dimension: 482.6 x 184.6 x 34.9mm
Data Sheet (pdf file, opens in new tab)
KS18233 TKS-105c-KGEH-USB-US Desktop membrane keyboard with Foil covered, short travel keys, USB

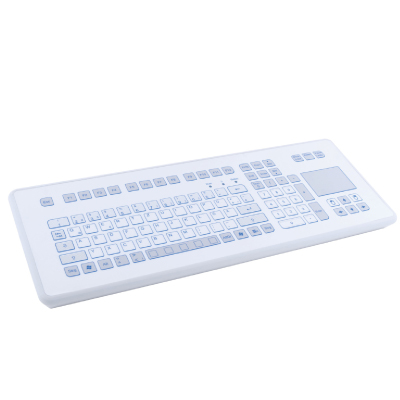

KS18241 (TKS-105c-TOUCH-KGEH-USB-US) – Industrial Desktop Keyboard with Touchpad
- Foil covered keyboard Housing design: plastic housing
- Housing material: ABS
- Max.Protection level: IP65
- Pointing devices: Touchpad, capacitive
- Number of keys: 105
- Interfaces: USB
- Keyswitch technology: short travel keys
- Operation force: 2,6 N
- Switch travel: 0,3 mm
- Switching cycles: approx. 3 Million
- Operating temp.: 0°C to +70°C Storage temp.: -25°C to +80°C
- Dimension: 482.6 x 184.6 x 34.9mm
- Weight: approx 1300 g
Data Sheet (pdf, opens in new tab)
KS18241 TKS-105c-TOUCH-KGEH-USB-US Industrial Desktop Keyboard with Touchpad, USB
Note: a normal desktop PC keyboard is about 470mm wide

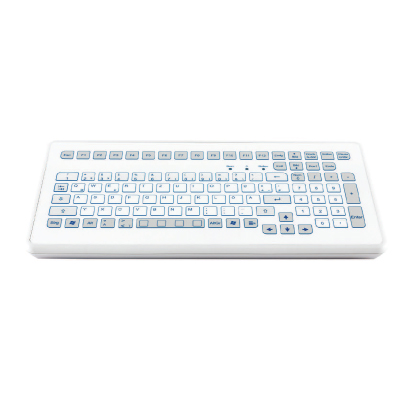

KS18245 (TKS-105c-KGEH-USB-US) – Compact Industrial Desktop Keyboard
- Foil covered keyboard
- Housing material: ABS (KGEH = Plastic Housing)
- Max.Protection level: IP65
- Number of keys: 105
- Interfaces: USB
- Switching technology: short travel keys
- Operation force: 2,6 N
- Switch travel: 0,3 mm
- Switching cycles: approx. 3 Million
- Operating temp.: -25°C to +70°C Storage temp.: -25°C to +80°C
- Dimension: 382.6 x 184.6 x 34.9 mm
- Weight: 1100 g approx
Data Sheet (pdf file, opens in new tab)
KS18245 TKS-105c-KGEH-USB-US with Foil covered, Short Travel Keys (USB)

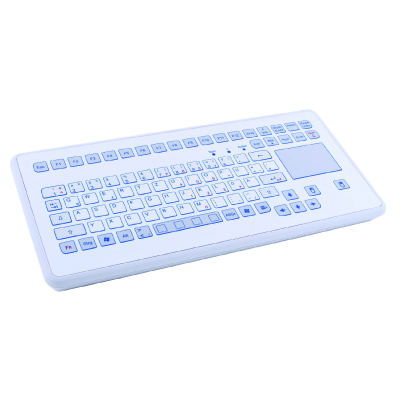

KS18253 (TKS-088c-TOUCH-KGEH-USB-US) – Compact Industrial Desktop Keyboard with Touchpad
- Foil covered keyboard Housing design: plastic housing
- Housing material: ABS
- Max.Protection level: IP65
- Cursor control: touchpad, capacitive
- Number of keys: 88
- Interfaces: USB
- Switching technology: short travel keys
- Operation force: 2,6 N
- Switch travel: 0,3 mm
- Switching cycles: approx. 3 Million
- Operating temp.: 0°C to +70°C Storage temp.: -25°C to +80°C
- Dimension: 382.6 x 184.6 x 34.9 mm
- Weight: 1000 g
Data sheet (pdf file, opens in new tab)
KS18253 TKS-088c-TOUCH-KGEH-USB-US

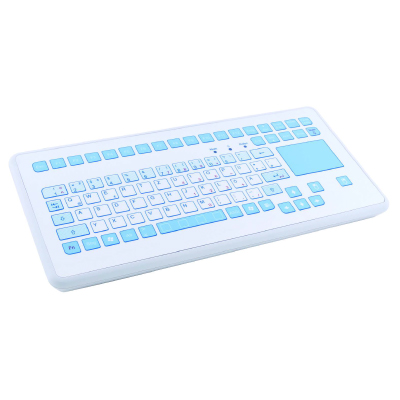

KS18257 (TKS-088c-TOUCH-AM-KGEH-USB-US) – Compact Medical Desktop Keyboard with Touchpad
- Foil covered keyboard Housing design: plastic housing
- Housing material: ABS
- Max.Protection level: IP65
- Cursor control: touchpad, capacitive
- Additional component: antimicrobial surface
- Number of keys: 88
- Interfaces: USB
- Switching technology: short travel keys
- Operation force: 2,6 N
- Switch travel: 0,3 mm
- Switching cycles: approx. 3 Million
- Operating temp.: 0°C to +70°C Storage temp.: -25°C to +80°C
- Dimension: 382.6 x 184.6 x 34.9 mm
- Weight: 1100 g
Data sheet (pdf file, opens in new tab)
KS18257 TKS-088c-TOUCH-AM-KGEH-USB-US
Panel Mount Membrane Keyboards
KS18297 (TKS-088c-TOUCH-MODUL-USB-US) Compact Panel Mount Keyboard with Touchpad
• Foil covered keyboard Mounting type: front panel with threaded bolts
• Front panel material: aluminium
• Cursor control: touchpad, capacitive
• Protection level (max): IP65
• Number of keys: 88
• Keyswitch technology: short travel keys
• Operating force: 2.6 N
• Switch travel: 0.3 mm
• Switching cycles: approx. 3 Mil. (per key)
• Interfaces: PS/2, USB
• Operating temperature: 0 °C to +70 °C Storage temperature: -25 °C to +80 °C
• Dimensions: 370 x 180 x 25.8 mm Weight: 1000g
Data Sheet incl. cutout diagram (pdf file, opens in new tab)
KS18297 TKS-088c-TOUCH-MODUL-USB-US
KS18292 (TKS-088c-TOUCH-MODUL-EP-USB-US) – Compact Panel Mount Keyboard and Touchpad with Edge Protection
• Foil covered keyboard Mounting type: front panel with threaded bolts
• Front panel material: aluminium
• Cursor control: touchpad, capacitive
• Protection level (max): IP65
• Number of keys: 88
• Keyswitch technology: short travel keys
• Operating force: 2.6 N
• Switch travel: 0.3 mm
• Switching cycles: approx. 3 Mil. (per key)
• Interfaces: USB
• Operating temperature: 0 °C to +70 °C Storage temperature: -25 °C to +80 °C
• Dimensions: 370 x 180 x 25.8 mm Weight: 1000g
Data Sheet incl. cutout diagram (pdf file, opens in new tab)
KS18392 TKS-088c-TOUCH-MODUL-EP-USB-US

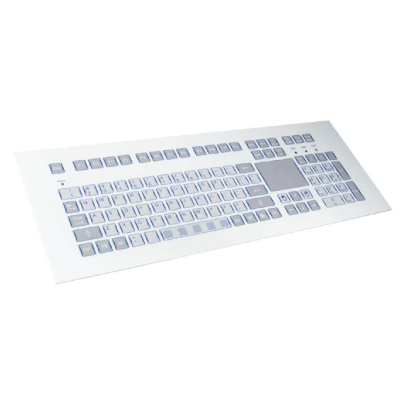

KS09502 (TKS-105a-TOUCH-MODUL) – Keyboard with Touchpad & Capacitive
- Foil covered keyboard Mounting type: front panel with threaded bolts
- Front panel material: aluminium
- Cursor control: touchpad, capacitive
- Protection level (max): IP65 (front)
- Number of keys: 105
- Keyswitch technology: short travel keys
- Operating force: 2.6 N
- Switch travel: 0.3 mm
- Switching cycles: pprox. 3 Mil. (per key) Interfaces: PS/2
- Operating temperature: 0 °C to +70 °C Storage temperature: -25 °C to +80 °C
- Dimensions: 482.6 x 177.8 x 23 mm Weight: 1200
Data Sheet incl. cutout diagram (pdf file, opens in new tab)
KS09502 TKS-105a-TOUCH-MODUL-USB-US
KY02000 TKS-105a-MODUL-SCHABLONE Template
KS09524 (TKS-088a-TOUCH-MODUL) without edge protection
KS15021 (TKS-088b-TOUCH-MODUL) with edge protection
• Foil covered Keyboard
• Mounting type: front panel with threaded bolts and foil protection at the edge
• Front panel material: aluminium
• Max. Protection level: IP65 (front)
• Number of keys: 88
• Cursor control: touchpad, capacitive
• Interfaces: USB
• Switching technology: short travel keys
• Operation force: 2.6 N
• Switch travel: 0.3 mm
• Switching cycles: approx. 3 Mio
• Operating temp.: 0°C to +70°C Storage temp.: -25°C to +80°C
• Dimension: 370 x 180 x 45.9 mm Weight: 1000 g
• Layout: american marking template optionally availabl with article number KY2001
Data on KS09524 & KS15021 (pdf file, opens in new tab)
KS09524 TKS-088a-TOUCH-MODUL-USB-US
KS15021 TKS-088b-TOUCH-MODUL-USB-US with edge protection
Keypads

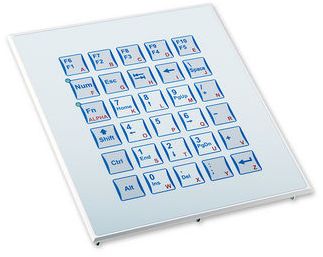

KS14030 (TKS-030b-MODUL-USB-US) – Foil Covered Short Travel Keyboards
- Foil covered Keyboard
- Mounting type: front panel with threaded bolts and foil protection at the edge
- Front panel material: aluminium
- Max. Protection level: IP65 (front)
- Number of keys: 30
- Interfaces: USB
- Switching technology: short travel keys
- Operating force: 2.6 N
- Switch travel: 0.3 mm
- Switching cycles: approx. 3 Mio
- Operating temp.: -25°C to +70°C Storage temp.: -25°C to +80°C
- Dimension: 141 x 157 x 16.2 mm Weight: 300 g
Data Sheet (pdf file, opens in new tab)
KS14030 (TKS-030b-MODUL-USB-US)

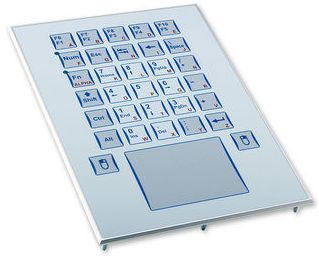

KS14034 (TKS-030b-TOUCH-MODUL-USB-US) – Foil Covered Short Travel Keyboards
Features:
- Ergonomically designed keyboard with 30 keys
- Optional with integrated Touchpad
- Positive tactile feedback
- Key emboss frame
- Chemical, abrasion and scratch resistant frontsheet
- Resistant to dirt, dust and liquid (IP65)
- PS/2 or USB interface available
Data Sheet (pdf file, opens in new tab)
KS14034 TKS-030b-TOUCH-MODUL-USB-US
Foil Covered, Rack Mounting Series
Drawer Series – Rackmount Keyboard Drawers 1U
TKS-104a-SCHUBL – see below
TKS-088a-TOUCH-SCHUBL – see below
3-RU Mounting Height Series
TKS-105a-FP-3HE
TKS-105a-TB38-FP-3HE
TKS-105a-TOUCH-FP-3HE
TKS-105a-FP
TKS-105a-TB38-FP Trackball 38mm
TKS-105a-TB50oF80-FP Trackball 50mm
TKS-105a-TOUCH-FP – see below
TKS-030-FP
Keyboard drawer – Rack mounting
KS09528 (TKS-104a-SCHUBL-USB-US) – Rack mounting keyboard drawer
Features:
- Foil covered Keyboard (die Schublade = the drawer)
- Mounting type: 19″ rack mount (1U)
- Front panel material: aluminium
- Max. Protection level: IP65
- Number of keys: 104
- Interfaces: USB
- Switching technology: short travel keys
- Operation force: 2.6 N
- Switch travel: 0.3 mm
- Switching cycles: approx. 3 Mio
- Operating temp.: -25°C to +70°C Storage temp.: -25°C to +80°C
- Dimension: 482.6 x 280 x 43.7 mm Weight: 5000 g
Data Sheet on KS09528 (pdf file, opens new tab)
KS09528 TKS-104a-SCHUBL-USB-US IP65 Keyboard drawer

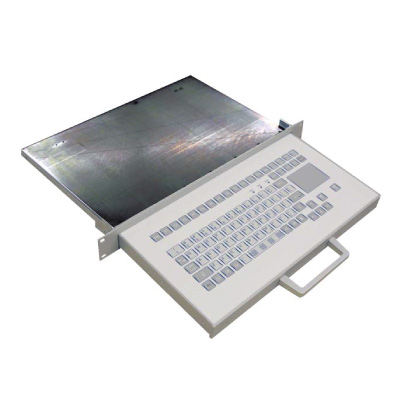

KS09530 (TKS-088a-TOUCH-SCHUBL-USB-US)
Features:
- Compact-size version with integrated capacitive touchpad in a 19” drawer
- Highly reliable OMRON mechanical switches
- Positive tactile feedback and key embossing
- USB compatible
- Rack-mounting with mounting holes
- Rugged construction for reliable functionality and ergonomic design
- Chemical, abrasion and scratch resistant frontsheet
- IP65 (NEMA 4x) sealing
- 3 million operations per key
- Semi- or full customisation available
Specification:
- Number of Keys: 104
- Keyswitch Technology: short travel keys
- Actuation Force/ -Travel: 2.6 N / 0.3 mm
- Keyswitch Lifetime: 3 mil. operations
- Protection Level: IP65 (front); NEMA 4
- Mounting Type: 19“ rack mount
- Dimensions: 482.6 x 43.5 x 280 mm (19“; 1U) (19“ x 1.71“ x 11.02“)
- Weight: 5000 g
- Operating Temperature: 0 °C to +50 °C
- 32 °F to 122 °F
Specification Touchpad
- Motion Detection
- Method: capacitive
- Resolution: 40 counts / mm
Data Sheet on KS09530 (pdf file, opens new tab)
KS09530 TKS-088a-TOUCH-SCHUBL-USB-US Touchpad IP65 Keyboard drawer
Rugged Flat Input Keyboards
Housing Series
Plastic
TKF-085a-KGEH – see below
TKF-085a-TB38-KGEH
TKF-085a-TOUCH-KGEH – see below
TKF-085c-MGEH – see below
TKF-085c-TOUCH-MGEH – see below
OEM-Series
TKF-085a-OEM
KF09451 (TKF-085a-KGEH-USB-US) – Gold-on-gold dome keyboards
Features and benefits:
- Gold-on-gold dome keyboard
- USB compatible
- Desktop version
- Rugged construction for reliable functionality
- Chemical, abrasion and scratch resistant frontsheet
- Ergonomic design
- IP65 (NEMA 4x)
- Semi or full customisation available
- Cost-effective
Specification:
- Number of Keys: 85
- Keyswitch Technology: gold-on-gold domes
- Actuation Force/Travel: 2 N / 0.3 mm
- Keyswitch Lifetime: 1 mil. operations
- Protection Level: IP65; NEMA 4x
- Mounting Type: desktop
- Dimensions: 275 x 139 x 35 mm; 10.826“ x 5.472“ x 1.377“
- Weight: 700 g
- Operating Temperature: -40 °C to 90 °C; -40 °F to +194 °F
- Enclosure Material: polystyrene
Data sheet (pdf file, opens in new tab)
KF09451 TKF-085a-KGEH-USB-US
KF09449 (TKF-085a-TOUCH-KGEH-USB-US) – Gold-on-Gold Dome Keyboards
Features and benefits:
- Gold-on-gold dome keyboard with integrated capacitive touchpad
- USB compatible
- Desktop version
- Rugged construction for reliable functionality
- Chemical, abrasion and scratch resistant frontsheet
- Ergonomic design
- IP65 (NEMA 4x)
- Semi or full customisation available
- Cost-effective
Specification Keyboard:
- Number of Keys: 85
- Keyswitch Technology: gold-on-gold domes
- Actuation Force/Travel: 2 N / 0.3 mm
- Keyswitch Lifetime: 1 mil. operations
- Protection Level: IP65; NEMA 4x
- Mounting Type: desktop
- Dimensions: 350 x 139 x 38 mm; 13.779“ x 5.472“ x 1.496“
- Weight: 700 g
- Operating Temperature: -40 °C to 90 °C; -40 °F to +194 °F
- Enclosure Material: polystyrene
Specification Touchpad:
- Motion Detection
- Method: capacitive
- Active Area: 60 x 44 mm
Data sheet (pdf file, opens in new tab)
KF09449 TKF-085a-TOUCH-KGEH-USB-US
In the part number: TKF = Flat input keyboards; 085 = No of keys; MB = Mouse Button; MGEH = Metal Housing
KF02063 (TKF-085c-MGEH-USB-US) – Foil covered flat Input Keyboard
Features and benefits:
- Gold-on-gold dome keyboard
- USB compatible
- Desktop version
- Rugged construction for reliable functionality
- Chemical, abrasion and scratch resistant frontsheet
- Ergonomic design
- IP65
- Semi or full customisation available
- Long lifetime
- Only 15,5 mm height
- VESA-mounting available on request
Specification Keyboard:
- Number of Keys: 85
- Keyswitch Technology: gold-on-gold domes
- Activation Force/ -Travel 2 N / 0,3 mm
- Keyswitch Lifetime: 1 mil. Operations
- Protection Level: IP65
- Mounting Type: desktop version
- Dimensions: 261 x 116 x 15,5 mm; 10,27“ x 4,56“ x 0,61“
- Weight: 923 g
- Operating Temperature: -40 °C to 90 °C; -40 °F to +194 °F
- Enclosure Material: milled solid aluminium
Data sheet (pdf file, opens in new tab)
KF02063 TKF-085c-MGEH-USB-US
KF02069 (TKF-085c-TOUCH-MGEH-USB-US) – keyboard with Touchpad
Features and benefits:
- Gold-on-gold dome keyboard with integrated capacitive touchpad
- USB compatible
- Desktop version
- Rugged construction for reliable functionality
- Chemical, abrasion and scratch resistant frontsheet
- Ergonomic design
- IP65
- Long lifetime
- Only 15,5 mm height
- VESA-mounting available on request
Specification Keyboard:
- Number of Keys: 85
- Keyswitch Technology: gold-on-gold domes
- Activation Force/ -Travel 2 N / 0,3 mm
- Keyswitch Lifetime: 1 mil. Operations
- Protection Level: IP65
- Mounting Type: desktop version
- Dimensions: 261 x 116 x 15,5 mm
- 13.2“ x 4.56“ x 0.61“
- Weight: 1,114 kg
- Operating Temperature: -40 °C to 90 °C;
- -40 °F to +194 °F
- Enclosure Material: milled solid aluminium
Specification Touchpad:
- Motion Detection Method: capacitive
- Active Area: 23,6“ x 17,3“
Data Sheet on KF02069 (pdf file, opens in new tab)
KF02069 TKF-085c-TOUCH-MGEH-USB-US
Rugged Flat Input Keyboards, Front Mounting Series
With Metal Frame
TKF-085a-MODUL – see below
TKF-085a-TB38-MODUL
TKF-085a-TOUCH-MODUL
TKF-085b-MODUL – see below
TKF-085b-TB38-MODUL
TKF-085b-TOUCH-MODUL
Rugged Flat Input Keyboards, Rack Mounting Series
With Metal Frame
TKF-085a-FP – see below
TKF-085a-TB38-FP
TKF-085a-TOUCH-FP – see below
TKF-085b-FP
TKF-085b-TB38-FP
TKF-085b-TOUCH-FP
KF09433 (TKF-085a-MODUL-USB-US) – Front Mounting Series
Features and benefits:
- Gold-on-gold keys consisting of a gold metal dome on gold PCB-contact
- Positive tactile feedback and key embossing
- USB compatible
- Panel-mount version
- Rugged construction for reliable functionality
- Chemical, abrasion and scratch resistant frontsheet
- Ergonomic design
- IP65 (NEMA 4x) sealing
- Semi or full customisation available
- Cost-effective
Specification Keyboard:
- Number of keys: 85
- Keyswitch Technology: gold-on-gold-domes
- Actuation Force/ -Travel: 3 N / 0.55 mm
- Keyswitch Lifetime: 1 mil. operations
- Protection Level: IP65, NEMA 4x (frontside)
- Mounting Type: panel mount
- Electronic Interface: PS/2, USB
- Dimensions: 244 x 108 x 15 mm; 9.60“ x 4.25“ x 0.59“
- Weight: 375 g
- Operating Temperature: -40 °C to +90 °C; -40 °F to +194 °F
- Frontpanel Material: aluminium
Data sheet on KF09433 (pdf file, opens in new tab)
KF09433 TKF-085a-MODUL-USB-US
KF02003 (TKF-085b-MODUL-USB-US) – Gold-on-Gold Dome Keyboards
Features and benefits:
- Gold on gold dome keyboard with integrated capacitive touchpad
- USB compatible
- Panel mount version
- Rugged construction for reliable functionality
- Chemical, abrasion and scratch resistant frontsheet
- Ergonomic design
- IP65 (NEMA 4x) frontside sealing
- Semi or full customisation available
- Cost-effective
Specification Keyboard:
- Number of Keys: 85
- Keyswitch Technology: gold-on-gold domes
- Actuation Force/Travel: 2 N / 0.3 mm
- Keyswitch Lifetime: 1 mil. operations
- Protection Level: IP65; NEMA 4x (frontside)
- Mounting Type: panel mount
- Dimensions: 274 x 135 x 20 mm; 10.787“ x 5.314“ x 0.787“
- Weight: 400 grams
- Operating Temperature: -40 °C to 90 °C; -40 °F to +194 °F
- Frontpanel Material: PCB-material, FR4
Data sheet on KF02003 (pdf file, opens in new tab)
KF02003 TKF-085b-MODUL-USB-US
KF09425 (TKF-085a-TB38-FP-USB-US) – Membrane keys – Rack Mount Series
Features and benefits:
- Designed for 19“ rack
- Key full-embossing frame
- Integrated 38-mm trackball
- With foil-edge-protection
- Resistant foil surface
- Resistant against dirt, dust and liquids (IP65)
Specification Keyboard:
- Number of keys: 85
- Key switch technology: gold plated domes
- Operating force: 3.0 N
- Switch travel: 0.6 mm
- Switching cycles: approx. 1 mill. (per key)
- Stat. Protection level: IP65 static, IP54 dynamic
- Mounting type: front panel with mounting holes (19“ rack systems)
- Front panel material: aluminium
- Interfaces: USB
- Operating temperature: -0 °C to +70 °C
- Storage temperature: -25 °C to +80 °C
- Dimension: 340 x 128.4 (3 RU) x 39,1 mm
- Weight: 530 g
Data Sheet on KF09425 (pdf file, opens in new tab)
KF09425 TKF-085a-TB38-FP-USB-US
KF09449 (TKF-085a-TOUCH-KGEH-USB-US) – 85 Membrane keys – Rack Mount Series
Features and benefits:
- Key full-embossing frame
- With foil-edge-protection
- Integrated capacitive touchpad
- Resistant foil surface
- Resistant against dirt, dust and liquids (IP65)
Specification Keyboard:
- Number of keys: 85
- Keyswitch technology: gold plated domes
- Operating force: 3.0 N
- Switch travel: 0.6 mm
- Switching cycles: approx. 1 mill. (per key)
- Protection level (max): IP65 static, IP54 dynamic
- Housing material: plastic housing
- Interfaces: USB
- Operating temperature: 0 °C to +70 °C
- Storage temperature: -25 °C to +80 °C
- Dimensions: 350 x 138 x 35 mm
- Weight: 700 g
Specification Touchpad:
- Operating principle: capacitive
Data sheet on KF09449 (pdf file, opens in new tab)
KF09449 TKF-085a-TOUCH-KGEH-USB-US
Australian Made Rugged Flat Membrane Keyboards
A-KB Series Fully Sealed Keyboards in Metal Case
A-KB2 has 82 keys, in diecast aluminium case, sealed to IP66, to 60°, (IP66 = Protected against incoming water similar to sea waves), 340 x150mm, specify desktop or panel mount, 2 year warranty:
A-KB2-SS with Stainless Steel chassis: $700+GST 04/18
A-KB2-P-SS Panel Mount with Stainless Steel chassis: $700+GST 04/18
A-KBIM2 Fully sealed keyboard with mouse/joystick
• FULL PC COMPATIBILITY zob
• TACTILE FEED BACK
• ERGONOMIC JOYSTICK
• FULLY SEALED TO IP65
• JOYSTICK EMULATES MICROSOFT® MOUSE
• NON SLIP FEET
• STAINLESS STEEL OPTIONAL
• AUSTRALIAN MADE
The A-KBIM2 is a industrial keyboard for rugged conditions.
The A-KBIM2 provides a full QWERTY keyboard with an integral joystick. It is designed for industrial environments and is fully sealed.
The joystick uses a patented opto-strain-gauge technology providing both an ergonomic and very durable pointing device.
The joystick also incorporates a ‘click in the stick’, further enhancing its ergonomics.
The joystick can be held between the fingers or used as a finger/thumb pad.
The keys are hard wearing membrane type with tactile feedback.
Construction is die-cast aluminium, powder-coated and painted (standard) or stainless steel (optional).
The joystick emulates a Microsoft® Mouse. It connects to a USB with optional adaptor.
The A-KBIM2 is ideally suited to operator interface requirements in the mining, marine, defence,
petrochemical and food manufacturing industries as well as in medical operating theatres, process plants, flour mills,
cement works and smelters.
The A-KBIM2 is an Australian product designed and manufactured in Australia.
CONSTRUCTION: Membrane is UV resistant polyester. Enclosure is die-cast aluminium,
powder-coated and painted for corrosion protection.
Optional stainless steel enclosure.
SEALING: Sealed to IP65.
TEMPERATURE: Operating: 0 to 60ºC Non-operating: -20ºC to +70ºC
EMC Immunity: CE: EN5008-2:1995 Generic Immunity Standard Part 2: Industrial Environment
EMC Emissions: CE: EN55022:1995. CISPR22 1993 Class B FCC: Class A
WEIGHT: Approx 3kg
KEY TYPE: Stainless steel domes which provide positive tactile feedback.
KEY LIFE: Minimum 500,000 operations.
KEY FUNCTIONS: 82 keys – full QWERTY
JOYSTICK: Compatible with USB mouse
Cursor movement speed is proportional to displacement of the joystick.
Auto-zeroing on power up or when both buttons are held down. Joystick is covered by U.S. patent 5,973,673.
CONFIGURATION: The A-KBIM2 is the standard version (desk mount).
The KBIM2-P is the panel mount version.
The A-KBIM2-SS and KBIM2-P-SS have Stainless Steel enclosure.
Three button pointer operation is available as an option.
The two buttons and ‘click in stick’ can be assigned in any combination to left, centre and right button.
Please advise required assignment with order. Minimum quantities apply for non-standard..
Dimensions: 340 x 150mm, 82 keys, full QWERTY.
Sealed to IP65, Aluminium diecast enclosure with powder coated paint finish.
Membrane is polyester. Keys have stainless steel domes providing positive tactile feedback.
Operating temperature range: 0 to 60°C (non-operating -20 to 70°C)
Joystick compatiblilty:
Microsoft two button PS/2 or USB mouse (software driver not supplied)
Cursor movement speed is proportional to displacement (exponential),
auto-zeroing on power up, or when both buttons are held down.
Curly cable with 5-pin DIN & DB9 connectors at end. Adaptors are supplied for PS/2 mouse & keyboard.
Non-slip feet. Weight 3kg. Diagram with dimensions: click here
A-KBIM2-USB Full QWERTY Membrane Desk Mount Keyboard Die Cast Chassis with IM2: $800+GST 04/18
A-KBIM2-SS-USB Full QWERTY Membrane Desk Mount Keyboard Die Cast Chassis with IM2 in Stainless Steel: $900+GST 04/18
A-KBIM2-19″ Rack mount version: Keyboard slopes at 45° when mounted in vertical 19″ rack: please enquire
Panel Mount version – see the next item.
A-KBIM2-P Fully sealed keyboard with mouse/joystick – Panel Mount
• Tactile feedback
• Fully sealed to IP65
• Ergonomic joystick, emulates MS Mouse
• Panel mounted
• Fully serviceable
• Solid construction
• Fully rugged
• Optional Stainless Steel
The KBIM2-P is a 82 key, full QWERTY panel mounted keyboard with an integral joystick, designed for use in industrial and other harsh environments.
Features include membrane keys to provide positive tactile feedback and joystick using patented opto-strain-gauge technology.
The joystick displacement is proportional to the movement speed of the cursor.
Sealing to IP65, the KBIM2-P is ideally suited to harsh environments such as those found in mining, defence food processing and
manufacturing.
Key functions: 82 key
Format: QWERTY
Construction: Mild steel powder coated
EMC immunity: CE: EN50082-2: 1995 Generic Immunity Standard Part 2, Industrial environment
EMC emission: FCC Part 15 Subpart B; Class B Certification EN55022 Class B
Connector: 2m coiled lean DIN plug PS/2
Sealing: IP65
Environmental
Operating temperature: 0°C to + 60°C
Storage temperature: -20°C to + 70°C
Physical Dimensions
Gross weight: approx 2.1kg
Unit dimensions: Desk mount 353(W) x 162(D) x 45(H)mm
Options:
KBIM2-P Panel Mount version
KBIM2-P-SS Panel mount, stainless steel
KBIM2-P-SPEC Panel Mount with boot over j/s
Data Sheet on A-KBIM2-P includes dimension diagram (pdf file, opens in new tab)
A-KBIM2-P-SS-USB Full QWERTY Membrane Panel Mount Keyboard Die Cast Chassis with IM2 in Stainless Steel: $800+GST 04/18
A-KBIM2-19″ Rack mount version: Keyboard slopes at 45° when mounted in vertical 19″ rack: please enquire
Intrinsically Safe – IS
“Intrinsically Safe” devices have been specifically developed for use in hazardous areas where an explosive mixture of air and gas or vapor is or may be present.
“Intrinsically Safe” devices are incapable of causing an explosion in the surrounding explosive atmosphere. This generally involves adding protective components in series with energy storage devices. The purpose of the protective components is to reduce the risk of ignition due to spark or increased surface temperature of components.
These areas typically include mining, petroleum and chemical engineering plants and factories processing and storing gases, solvents and other flammable substances.
Intrinsic safety (IS) barriers are a core component of an intrinsically safe solution. Intrinsic safety barriers are devices that limit current, voltage, & total energy delivered to a sensor or other instrument located in a hazardous area. Limiting the energy prevents fires & explosions from occurring in areas with hazardous chemicals, gases or other ignitable atmospheres.
Items below described as IS are manufactured under AUSEX certification, and now have International EX certification. (EX refers to Explosion Protection)
Reference information:
• EX Zone 0: Where hydrocarbons or gases are present at all times during normal operation,
• EX Zone 1: Where hydrocarbons or gases may be present during normal operation (for a limited time),
• EX Zone 2: Where hydrocarbons or gases are only be present during abnormal operation (or for a very limited time).
A-KBIM2-IS Intrinsically Safe membrane keyboard with Joystick
A-KBIM2-IS Intrinsically Safe membrane keyboard with Joystick, with barriers and repeater
Intrinsically safe keyboard, certified to IECEx 60079.11, protected via safety barriers,
and is suitable for use in Class 1 Zone 0 hazardous areas.
60°C Temperature Rating. 82 keys – full QWERTY, sealed to IP65
Stainless steel fully welded construction, powder coated paint finish, tactile feedback.
The membrane is covered with a conductive stainless steel shim to prevent static build up.
More data on A-KBIM2-IS (this site)
A-KBIM2-IS Intrinsically Safe Membrane Keyboard with IM2 Pointing Device, Barrier and Repeater: $4,399+GST 04/18
A-KBIM2-IS-KBD Intrinsically Safe Membrane Keyboard with IM2 Pointing Device: $2,799+GST 04/18
A-IS-RPTR Repeater for KBIM2-IS or IM2-IS: $900+GST 04/18
A-IS-BAR Barrier for KBIM2-IS or IM2-IS: $900+GST 04/18
Ideal for operator interface requirements in mining, oil and gas industries with potentially explosive atmospheres
A-KB2-IS Intrinsically Safe keyboard:
Dec. 2005: The A-KB2-IS is no longer available — please see A-KBIM2-IS above
Accessories
PS/2 to USB Converter for A-KB-IM2 series
AP-PSUSB ?? or
USBX2PS2 Cabac Please enquire
Use just one or both PS/2 ports to connect a keyboard and/or mouse
Works with A-KB-IM2 series
