Industrial Keyboards & Pointing Devices
Industrial Keyboards and Rugged Input Devices
Esis supplies rugged keyboards and pointing devices rated IP65 to IP68, in silicone, waterproof plastic, flat membrane, and vandal-proof stainless steel construction. Panel mount, desktop, and wall mount options are stocked, suited to washdown, kiosk, and heavy industrial environments across Australia.
Industrial grade keyboards and pointing devices, panel mounting and stand-alone, water- and dust-proof etc
Industrial Keyboards – Silicone
These industrial grade keyboards are completely covered with silicone, which makes them entirely waterproof and dustproof. The key shapes are moulded in the silicone cover as well, providing a positive key press movement, and a silent typing experience.

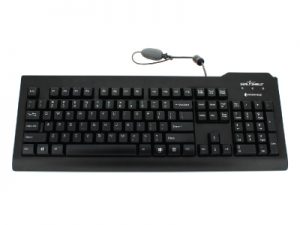

Waterproof Keyboards – Plastic
The Waterproof keyboards boasts a modern form and types like a standard style keyboard. 100% waterproof, dishwasher safe and includes antimicrobial product protection. The combination of washable technology and antimicrobial product protection achieves the highest level of protection available in a standard style keyboard today.
Industrial Keyboards – Flat Membrane
Foil-covered keyboards, or flat membrane keyboards, are the most widely used input elements in industrial equipment. Featuring a robust design, flat insertion depth, and a completely flat surface that is easy to wipe clean.
Industrial Keyboards – Metal / Vandal Proof
Metal keyboards are used in areas requiring protection against vandalism. This especially applies to places where information terminals or info points are freely accessible to the public.
Industrial Mouse
The mice of this category are equipped with a closed silicone surface. Thus, they are completely protected against liquids and dust – the protection level is IP68.
Industrial Trackballs / Joysticks / Touchpads
Trackballs: Directly integrated into the system or they can be used as stand-alone mounting types for the corresponding application. Touchpad: In particular for notebook users, touchpads offer a familiar tactile feedback. Joystick: A further mounting option is the OEM joystick.
Compare IP Rating, Washdown and Vandal-Proof Options
|
Category |
IP Rating |
Washdown / Vandal Fit |
Example Model |
|
Silicone Desktop |
IP68 Waterproof, dustproof |
Wash-down environments, dusty sites |
CSK312 |
|
Waterproof Plastic (Seal Shield) |
IP68, NEMA 4X |
Dishwasher safe, hospital disinfectant compatible, resistant to bleach, sporicides and alcohol |
SSKSV207 |
|
Flat Membrane |
Sealed flat surface |
Wipe-clean medical, industrial equipment |
A-KB2 |
|
Metal / Vandal Proof, Stainless Steel |
IP65, most also NEMA4X |
Kiosk and public-terminal vandalism protection,heavy industrial areas |
CKBCA1, CKB020 |
|
Metal / Vandal Proof, INDUKEY |
IP65 (some IP65 static / IP54 dynamic on trackball models) |
Public surroundings, industrial extreme environments, high reliability requirements |
KV09206 |
|
Industrial Mouse |
IP68 |
Silicone, fully sealed against liquid and dust |
CSM502B |
Full specifications and pricing for each model are listed on the individual category pages.
Matching a Keyboard to the Environment
- Washdown or chemical exposure (food, pharmaceutical, medical): the Seal Shield waterproof plastic range, IP68 and NEMA4X, dishwasher safe and resistant to disinfectants and sporicides. Standard plastic keyboard feel makes it suitable for higher typing activity.
- Public kiosks or self-service terminals: the metal/vandal-proof stainless steel range, resists mechanical impact and cannot be levered open, with an IP-rated seal against spills and dust.
- General industrial equipment surrounds: the silicone range, sealed and low cost, desktop for easy placement.
- Critical wipe-down applications:: the flat membrane range, easy to wipe and highly chemical resistant.
- Pointing device to match: the silicone industrial mouse (IP68) or the trackball/touchpad/joystick range, selected by mounting method and application.
What Sets ESIS Apart for Rugged Keyboards in Australia
- Multiple keyboard constructions: Compare silicone, plastic, flat-membrane and stainless-steel products for different cleaning, impact and installation needs.
- IP-rated options: The listed range includes IP65, IP66 and IP68 products, with ratings to suit individual applications.
- Flexible mounting formats: Desktop, panel-mount, wall-mount, OEM and 19-inch rack choices support new systems and replacement projects.
- Integrated pointing choices: Selected keyboards include touchpads, mouse buttons or trackballs, with separate industrial mice, touchpads and joysticks also available.
- Application-based product support: ESIS can compare the site’s cleaning, interface, mounting, layout and environmental requirements against the available models.
- Australian industrial supplier since 1971: ESIS supports industry, commerce, education, healthcare and government customers from Thornleigh, Sydney.
Send ESIS Your Industrial Keyboard Requirements
Send ESIS the required keyboard style, IP rating, cleaning process, material, mounting method, key layout, pointing device, interface and quantity. For a replacement, include the existing model number, panel cut-out and connection details. The team can check a suitable rugged keyboard configuration and current availability.
Phone: 02 9481 7420
Email: esis.enq@esis.com.au
Frequently Asked Questions
What IP rating should an industrial keyboard have?
IP65 protects against dust and low pressure water jets, suited to most industrial and kiosk environments. IP68 protects against full submersion and is required for washdown, medical, or heavy chemical exposure sites. Confirm the exposure level of the installation before choosing.
What is a vandal proof keyboard?
A vandal proof keyboard uses a stainless steel front panel and metal key caps secured with a lip so they cannot be levered out, resisting mechanical impact in unsupervised, publicly accessible locations like kiosks and self service terminals.
Can these keyboards be cleaned with disinfectant or put through a dishwasher?
The Seal Shield waterproof plastic range is dishwasher safe and compatible with hospital disinfectants, resistant to bleach, alcohol, and sporicides. Other ranges vary by construction, confirm washdown compatibility for the specific model.
What is the difference between silicone and flat membrane keyboards?
Silicone keyboards are fully moulded and completely sealed, giving a soft, silent key press. Flat membrane keyboards have a completely flat, foil covered surface with a low insertion depth, suited to built in equipment panels or regular wipe down.
Do these keyboards come with a pointing device built in?
Yes. Several CyberVisuell and INDUKEY models include an integrated trackball or touchpad. A separate industrial mouse (IP68) or standalone trackball, touchpad, or joystick is also available where a built-in device is not needed.
What mounting options are available?
Desktop, rear panel mount (stud or flange), and wall mount options are available depending on the model. Confirm the required mounting method when specifying.
How long do these keyboards typically last?
Stainless steel CyberVisuell models are rated for over 5 million keystrokes with a lifespan of 5 or more years. INDUKEY models are rated for approximately 10 million switching cycles. The Seal Shield waterproof plastic range is rated for over 10 million keystrokes.
