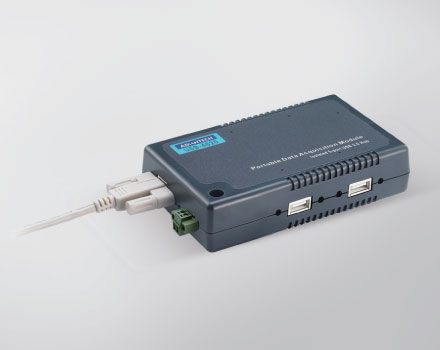

USB-4620-AE


5-port Full-speed Isolated USB 2.0 Hub
USB-4620
Click here to show/ hide more info

USB-4620With 5 USB 2.0 ports, USB-4620 enhances its isolation protection to 3,000 VDC for each downstream port, making every USB device connected with USB-4620 could operate independently and safely. Designed for industrial applications, USB-4620 is able to be mounted through several types, such as DIN-rail mounting, wall mount, and VESA mount. Other than that, USB-4620 is equipped with lockable USB connectors and screw holes, allowing each device to be connected firmly with USB-4620. Though the standard USB cable is made for easy plugging and removing, it is critical to have reliable connections while operating for automation control and online production applications.

Product Specifications

  • 5 downstream USB 2.0 ports
  • Compatible with USB 2.0 Full-speed
  • 3,000 VDC voltage isolation for each downstream port
  • Suitable for DIN-rail mounting
  • One lockable USB cable included
  • 10 ~ 30 VDC power input (power adapter not included*)

Product Specifications:

Connectivity
Ports 1 x Upstream (Type B) 5 x Downstream (Type A)
Compatibility USB 2.0 full speed
Transfer Speed 12 Mbps
Supply Current 500 mA max. per channel

General
Housing Plastic (ABS+PC)
Dimensions (L x W x H) 132 x 80 x 32 mm (5.2″ x 3.15″ x 1.26″)
DC Input 10 ~ 30 VDC
Power Consumption 24 V @ 36 mA
Operating Temperature 0 ~ 60 °C (32 ~ 140 °F)
Storage Temperature -20 ~ 70 °C (-4 ~ 158 °F)
Storage Humidity 5 ~ 95% RH non-condensing

Protection
Isolation Protection 3000 VDC

Ordering Information
USB-4620-AE 5-port isolated USB 2.0 full-speed hub

Accessories
96PSD-A40W24-MM DIN rail power supply
40 W 24 V
1960004544 Wall mount bracket
1960005788 VESA mount bracket
USB-LOCKCABLE-AE Lockable USB 2.0 cable
1 m with screw kit

Data sheet on USB-4620 (pdf, opens in a new tab)



USB-4622-CE


5-port High-speed USB 2.0 Hub
USB-4620
Click here to show/ hide more info

USB-4620
USB-4622 is a USB 2.0 hub capable of connecting at most 5 USB salve modules. It supports the USB 2.0 high-speed mode that can achieve 480Mbps data transmitting rate, realizing the USB-4700 series’ high performance for heavy-loaded applications. The Advantech’s unique lockable cable design secures the slave module connections, preventing the cable from being unplugged accidently.

Product Specifications

  • 5 downstream USB 2.0 ports
  • Compatible with USB 2.0 High-speed, USB 2.0 Full-speed, USB 1.0
  • 480 Mbps high-speed data transfer
  • LED indicator
  • Suitable for DIN-rail mounting
  • One lockable USB cable included
  • 10 ~ 30 VDC power input (power adapter not included*)

Product Specifications:

Connectivity
Ports 1 x Upstream (Type B) 5 x Downstream (Type A)
Compatibility USB 2.0 high speed
USB 2.0 full speed USB 1.0
Transfer Speed 480 Mbps/12 Mbps/1.5 Mbps
Supply Current 500 mA max. per channel

General
Housing Plastic (ABS+PC)
Dimensions (L x W x H) 132 x 80 x 32 mm (5.2″ x 3.15″ x 1.26″)
DC Input 10 ~ 30 VDC
Power Consumption 24 V @ 36 mA
Operating Temperature 0 ~ 60 °C (32 ~ 140 °F)
Storage Temperature -20 ~ 70 °C (-4 ~ 158 °F)
Storage Humidity 5 ~ 95% RH non-condensing

Ordering Information
USB-4622-CE 5-port USB 2.0 high-speed hub

Accessories
96PSD-A40W24-MM DIN rail power supply
40 W 24 V
1960004544 Wall mount bracket
1960005788 VESA mount bracket
USB-LOCKCABLE-AE Lockable USB 2.0 cable
1 m with screw kit

Data sheet on USB-4622 (pdf, opens in a new tab)

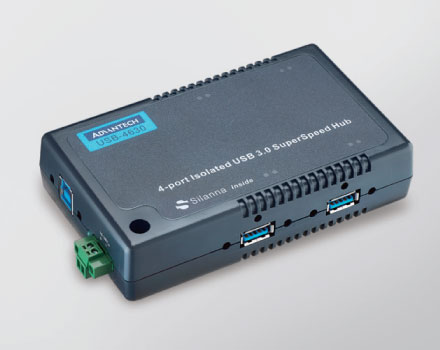

USB-4630-AE


4-port Isolated USB 3.0 SuperSpeed Hub
USB-4630-AE
Click here to show/ hide more info

USB-4630-AE
Product Specifications

  • 2,500 VDC voltage isolation for upstream ports
  • 4 x downstream USB 3.0 SuperSpeed™ ports
  • Can be powered via a USB bus or 10 ~ 30 VDC external power source
  • ESD protection up to ±8 kV (Level 3)
  • Power status and downstream port speed LED indicators
  • The world’s first isolated USB 3.0 SuperSpeed Hub
  • Up to 5 Gbps transfer speed
  • Lockable USB 3.0 cable is included

Product Specifications:

Connectivity



Ports

1 x Upstream (Type B)

4 x Downstream (Type A)

Compatibility

USB 3.0 SuperSpeed (1)

Transfer Speed

5 Gbps shared by all downstream ports

Load Current

External power: 900 mA max. per port

USB bus power: 700 mA max. shared by all ports (2)





General



Housing Plastic

(ABS + PC)

Dimensions

(L x W x H) 132 x 80 x 32 mm (5.2″ x 3.15″ x 1.26″)

Power Input

10 ~ 30 VDC

Power Consumption

760 mW (no load)

Operating Temperature

0 ~ 70 °C (32 ~ 158 °F) with external power

0 ~ 60 °C (32 ~ 140 °F) with USB bus power

Storage Temperature

-20 ~ 70 °C (-4 ~ 158 °F)

Storage Humidity

5 ~ 95% RH (non-condensing)





Protection



Isolation Protection

2500 VDC

ESD Protection Contact discharge:

±4 kV (Level 2)

Air discharge:

±8 kV (Level 3)





Ordering Information



USB-4630-AE

4-port isolated USB 3.0 SuperSpeed™ hub

96PSD-A40W24-MM

DIN rail power supply

40 W

24 V

Data sheet on USB-4630-AE (pdf, opens in a new tab)

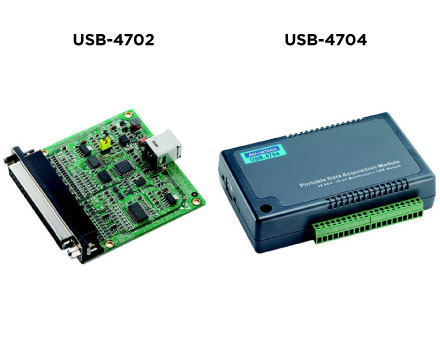

USB-4702 and USB-4704


USB-4702: 10 kS/s, 12-bit, 8-ch Multifunction USB Module
USB-4704: 48 kS/s, 14-Bit, 8-Ch Multifunction DAQ USB Module
USB-4702 and USB-4704
Click here to show/ hide more info
USB-4702 and USB-4704
USB-4702 and USB-4704 are low-cost USB data acquisition modules that can be installed without opening the chassis; simply plug in the modules to access collected data. Reliable and rugged enough for industrial applications, yet sufficiently affordable for home systems, USB-4702 and USB-4704 DAQ modules provide an easy and efficient means of adding measurement and control capabilities to USB-capable computers. Additionally, because USB-4702 and USB-4704 draw power from the computer via the USB port, no external power connection is required, making these modules the most cost-effective solution for testing and measurement applications.
Product Features:



  • Supports USB 2.0
  • Bus-powered
  • 8 x analog input channels
  • 12-bit resolution AI
  • Sampling rates up to 10 kS/s
  • 8-ch DI/8-ch DO, 2-ch AO and one 32-bit counter
  • Portable

Product Specifications:

Analog Input
Channels 8 single ended/4 differential (software programmable)
Resolution

USB-4702: single ended: 11 bits Differential: 12 bits

USB-4704: single ended: 13 bits Differential: 14 bits

Max. Sampling Rate

USB-4702: 10 kS/s max.

USB-4704: 48 kS/s max.



Note: The sampling rate of each channel is influenced by the number of used channels.

For example if 4 channels are used the sampling rate will be 10k/4 = 2.5 kS/s per channel.

FIFO Size 512 samples
Overvoltage Protection 30 Vp-p
Input Impedance 127 kΩ
Sampling Modes Software onboard programmable pacer and external

Input Range and Absolute Accuracy

Single Ended ±10 N/A N/A N/A N/A N/A N/A N/A N/A
Differential N/A ±1 ±1.25 ±2 ±2.5 ±4 ±5 ±10 ±20
Absolute Accuracy (% of FSR)* USB- 4702 0.2 0.15 0.15 0.15 0.15 0.15 0.15 0.15 0.15
USB- 4704 0.15 0.1 0.1 0.1 0.1 0.1 0.1 0.15 0.15



* ±1 LSB is added as the derivative for absolute accuracy



Analog Output
Channels 2
Resolution 12 bits
Output Rate Static update
Output Range 0 ~ 5 V (software programmable)
Slew Rate 0.7 V/μs
Driving Capability 5 mA
Output Impedance 51 Ω
Operation Mode Single output
Accuracy Relative: ±12 LSB Differential non-linearity: ±5 LSB

Digital Input
Channels 8
Compatibility 3.3 V/5 V/TTL
Input Voltage Logic 0: 0.8 V max. Logic 1: 2.0 V min.

Digital Output
Channels 8
Compatibility TTL
Output Voltage Logic 0: 0.4 V [email protected] 4 mA (sink) Logic 1: 3.5 V [email protected] 4 mA (source)

Counter
Channels 1
Resolution 32 bits
Compatibility 3.3 V/TTL
Max. Input Frequency 5 MHz

General
Bus Type USB 2.0
I/O Connector USB-4702: 1 x DB37
female USB-4704: Onboard screw terminal
Dimensions

(L x W x H)

USB-4702: 70 x 70 mm (2.76″ x 2.76″)

USB-4704: 132 x 80 x 32 mm (5.2″ x 3.15″ x 1.26″)

Power Consumption Typical: 5 V @ 100 mA Max.: 5 V @ 500 mA
Operating Temperature 0 ~ 55 °C (32 ~ 131 °F)
Storage Temperature -20 ~ 70 °C (-4 ~ 158 °F)
Storage Humidity 5 ~ 95% RH non-condensing



Data sheet on USB-4702 and USB-4704 (pdf, opens in a new tab)

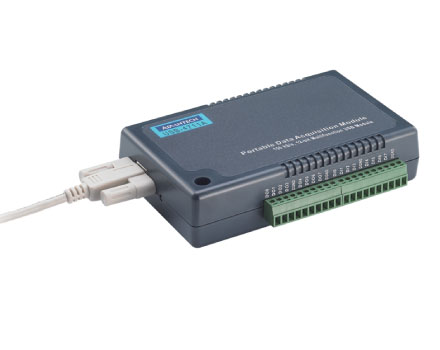

USB-4711A


150 kS/s, 12-Bit, 16-Ch Multifunction DAQ USB Module
USB-4711A
Click here to show/ hide more info
USB-4711A
The USB-4700 series comprises plug-and-play DAQ modules that can be installed without opening the chassis; simply plug in the modules to access collected data. Reliable and rugged enough for industrial applications, yet sufficiently affordable for home systems, USB-4700 series modules provide an easy and efficient means of adding measurement and control capabilities to USB-capable computers.USB-4711A is equipped with an onboard terminal block, 16-ch analog input, 2-ch analog output, 16-ch digital I/O, and a counter channel capable of outputting a constant frequency square wave. Additionally, because USB-4711A draws power from the computer via the USB port, no external power connection is required, making this module a most cost-effective solution for diverse testing and measurement applications.
Product Features:

  • Supports USB 2.0
  • Bus-powered
  • 8 x analog input channels
  • 12-bit resolution AI
  • Sampling rates up to 10 kS/s
  • 8-ch DI/8-ch DO, 2-ch AO and one 32-bit counter
  • Portable

Product Specifications:

Analog Input
Channels 16 Single ended/8 differential (software programmable)
Resolution 12 bits
Max. Sampling Rate 150 kS/s max.

Note: The sampling rate of each channel is influenced by the number of used channels. For example

if 4 channels are used the sampling rate will be 150k/4 = 37.5 kS/s per channel.

FIFO Size 1024 samples
Overvoltage Protection 30 Vp-p
Input Impedance 1 GΩ
Sampling Modes Software onboard programmable pacer and external
Input Range and Absolute Accuracy

Bipolar ± 10 ± 5 ± 2.5 ± 1.25 ± 0.625
Absolute Accuracy (% of FSR)* 0.1 0.1 0.2 0.2 0.4

* ±1 LSB is added as the derivative for absolute accuracy

Analog Output
Channels 2
Resolution 12 bits
Output Rate Static update
Output Range (V, software programmable)


Internal Reference Unipolar 0 ~ 5, 0 ~ 10
Bipolar ±5, ±10

Slew Rate 0.125 V/us
Driving Capability 5 mA
Output Impedance 0.1 Ω
Operation Mode Single output
Accuracy Relative: ±1 LSB Differential non-linearity: ±1 LSB

Digital Input
Channels 8
Compatibility 3.3 V/5 V/TTL
Input Voltage Logic 0: 0.8 V max. Logic 1: 2.0 V min.

Digital Output
Channels 8
Compatibility 3.3 V/TTL
Output Voltage Logic 0: 0.4 V [email protected] 6 mA Logic 1: 2.6 V [email protected] 6 mA

Event Counter
Channels 1
Compatibility 3.3 V/TTL
Max. Input Frequency 1 kHz

General
Bus Type USB 2.0
I/O Connector Onboard screw terminal
Dimensions (L x W x H) 132 x 80 x 32 mm (5.2″ x 3.15″ x 1.26″)
Power Consumption Typical: 5 V @ 360 mA Max.: 5 V @ 450 mA
Operating Temperature 0 ~ 60 °C (32 ~ 140 °F)
Storage Temperature -20 ~ 70 °C (-4 ~ 158 °F)
Storage Humidity 5 ~ 95% RH non-condensing

Ordering Information
USB-4711A-AE 150 kS/s
12-bit 16-ch multifunction DAQ USB module

Accessories
1960004544 Wall mount bracket
1960005788 VESA mount bracket



Data sheet on USB-4711 (pdf, opens in a new tab)

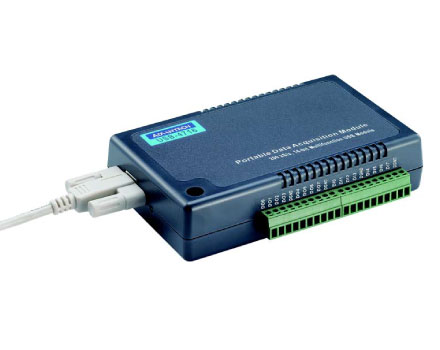

USB-4716


200 kS/s, 16-Bit, 16-Ch Multifunction DAQ USB Module
USB-4716
Click here to show/ hide more info
USB-4716
The USB-4700 series comprises plug-and-play DAQ modules that can be installed without opening the chassis; simply plug in the modules to access collected data. Reliable and rugged enough for industrial applications, yet sufficiently affordable for home systems, USB-4700 series modules provide an easy and efficient means of adding measurement and control capabilities to USB-capable computers.
USB-4716 offers 16 single-ended/8 differential analog inputs with 16-bit resolution, up to 200 kS/s throughput, 16 digital I/Os, 1 user counter, and 2 16-bit analog outputs. Additionally, because USB-4716 draws power from the computer via the USB port, no external power connection is required, making this module a most cost-effective solution for diverse testing and measurement applications.
Product Features:

  • Supports USB 2.0
  • Portable
  • Bus powered
  • 16 x Analog input channels
  • 16-bit resolution analog input
  • Up to 200 kS/s sampling rate
  • 8-ch Digital input/8-ch digital output, 2-ch analog output, and 1 x 32-bit counter
  • Detachable screw terminal on modules
  • Suitable for DIN rail mounting
  • 1 x Lockable USB cable included for connection security

Product Specifications:

Refer Datasheet

Data sheet on USB-4716 (pdf, opens in a new tab)

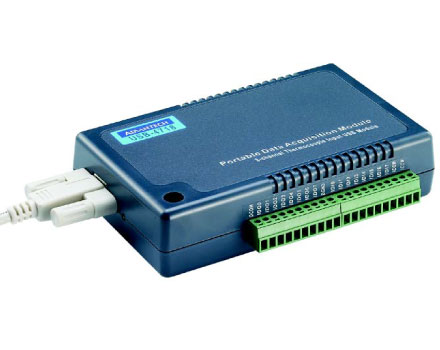

USB-4718


8-Ch Thermocouple Input USB Module with 8-Ch Isolated Digital Input
USB-4718
Click here to show/ hide more info
USB-4718
The USB-4700 series comprises plug-and-play DAQ modules that can be installed without opening the chassis; simply plug in the modules to access collected data. Reliable and rugged enough for industrial applications, yet sufficiently affordable for home systems, USB-4700 series modules provide an easy and efficient means of adding measurement and control capabilities to USB-capable computers.
USB-4718 offers 8 thermocouple inputs with 16-bit resolution and up to 0.1% input range accuracy. With its compact and portable design, USB-4718 is ideal for field-based applications. Additionally, the module’s input channels can be individually configured to enable handling of multiple sensor types.
Product Features:

  • Supports USB 2.0
  • Supports voltage, current, and thermocouple inputs
  • Bus powered
  • 8 x Thermocouple input channels
  • 2,500 VDC isolation
  • Supports 4 ~ 20 mA current input
  • Detachable screw terminal on modules
  • 8-ch isolated digital input and 8-ch isolated digital output
  • Suitable for DIN rail mounting
  • 1 x Lockable USB cable included for connection security

Product Specifications:

Refer Datasheet

Data sheet on USB-4718 (pdf, opens in a new tab)



USB-4750


32-Ch Isolated Digital I/O USB Module
USB-4750
Click here to show/ hide more info
USB-4750
Product Features:



  • Supports USB 2.0
  • Supports voltage, current, and thermocouple inputs
  • Bus powered
  • 8 x Thermocouple input channels
  • 2,500 VDC isolation
  • Supports 4 ~ 20 mA current input
  • Detachable screw terminal on modules
  • 8-ch isolated digital input and 8-ch isolated digital output
  • Suitable for DIN rail mounting
  • 1 x Lockable USB cable included for connection security

Product Specifications:

Refer Datasheet

Data sheet on USB-4750 (pdf, opens in a new tab)

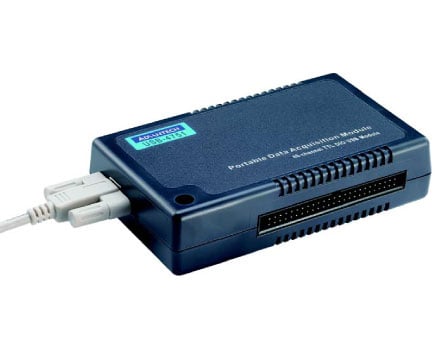

USB-4751 and USB-4751L


USB-4751: 48-Ch Digital I/O USB Module
USB-4751L: 24-Ch Digital I/O USB Module
USB-4751 and USB-4751L
Click here to show/ hide more info
USB-4751 and USB-4751L
Product Features:

  • Compatible with USB 1.1/2.0
  • Portable
  • Bus powered
  • 48/24 x TTL digital I/O
  • Emulates Mode 0 of the Intel® 8255 PPI chip
  • Buffered circuits offer a higher driving capacity compared to the Intel® 8255
  • PPI chip
  • Interrupt handling capability
  • Timer/Counter interrupt capability
  • Supports both dry and wet contact
  • 50-pin Opto-22-compatible box header
  • Suitable for DIN rail mounting
  • 1 x Lockable USB cable included for connection security

Product Specifications:

Refer Datasheet

Data sheet on USB-4751 and USB-4751L (pdf, opens in a new tab)



USB-4761


32-Ch Isolated Digital I/O USB Module
USB-4761
Click here to show/ hide more info
USB-4761
Product Features:

  • Compatible with USB 1.1/2.0
  • Portable
  • Bus powered
  • 8 x Relay output and 8 x isolated digital input channels
  • LED indicators to show activated relays
  • 8 x Form C-type relay output channels
  • High-voltage isolation on input channels (2,500 VDC)
  • High ESD protection (2,000 V)
  • Wide input range (5 ~ 30 VDC)
  • Interrupt handling capability
  • Detachable screw terminal on modules
  • Suitable for DIN rail mounting
  • 1 x Lockable USB cable included for connection security

Product Specifications:

Refer Datasheet

Data sheet on USB-4761 (pdf, opens in a new tab)

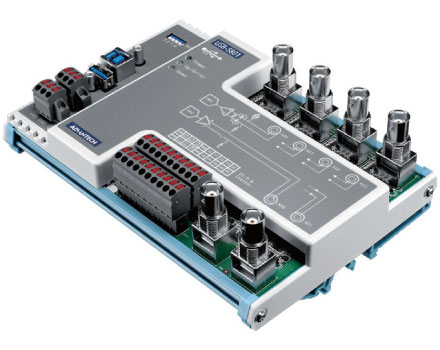

USB-5801


4-ch, 24-bit, 192 kS/s DSA USB 3.0 I/O Module with AO and Tachometer
USB-5801
Click here to show/ hide more info
USB-5801
USB-5801 is a high accuracy dynamic signal acquisition USB 3.0 module specifically designed for vibration and acoustic measurements. It provides four simultaneously sampled, 24-bit, IEPE sensor inputs with up to 192 kS/s sample rate for high resolution measurements. It is also equipped with two 24-bit analog outputs with up to 192 kS/s update rate. In addition, it has two tachometer inputs whose data can be correlated to the sensor data. The built-in USB hub makes this module daisy chainable with other USB-5000 series products.
Product Features:

  • USB 3.0 SuperSpeed and daisy chainable by built-in USB hub
  • 4x simultaneously sampled analog inputs, up to 192 kS/s
  • 24-bit resolution ADCs with -94 dB total harmonic distortion plus noise (THD+N)
  • Built-in anti-aliasing filter
  • 2 mA integrated electronic piezoelectric (IEPE) excitation currents
  • 2 analog outputs with update rate up to 192 kS/s
  • 24-bit resolution DACs with -90 dB total harmonic distortion plus noise (THD+N)
  • 2 tachometer inputs for period or frequency measurement
  • 4-ch isolated digital input and 4-ch isolated digital output

Product Specifications:

Refer Datasheet

Data sheet on USB-5801 (pdf, opens in a new tab)

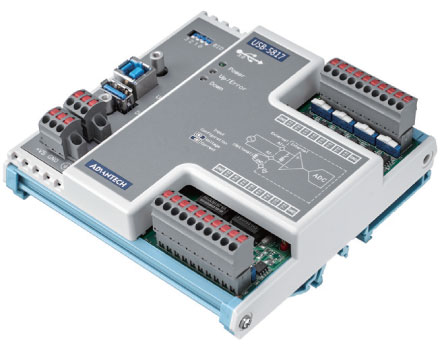

USB-5817


8-ch, 16-bit, 200 kS/s Isolated Analog Input USB 3.0 I/O Module
USB-5817
Click here to show/ hide more info
USB-5817
USB-5817 is a 8-ch, 16-bit, 200 kS/s Isolated Analog Input USB 3.0 I/O Module . Its compact size and DIN-rail mount kit make it easily installed in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. For safe and reliable operation, the controller (host) side is protected by a 2,500 VDC isolation circuit. Furthermore, it supports both voltage and current measurement with common-mode voltage up to ±275 V.
Product Features:

  • USB 3.0 SuperSpeed
  • Daisy chainable by built-in USB hub
  • 8 x 16-bit analog input channels with 2,500 VDC isolation
  • Support voltage and current measurement
  • Wide common-mode voltage range (±275 V)
  • Removable European-type connector
  • Supported operating systems: Windows XP/7/8/10

Product Specifications:

Refer Datasheet

Data sheet on USB-5817
(pdf, opens in a new tab)

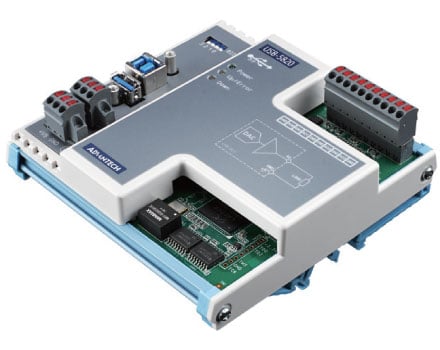

USB-5820


4-ch, 16-bit, 200 kS/s Isolated Analog Output USB 3.0 I/O Module
USB-5820
Click here to show/ hide more info
USB-5820
USB-5820 is a 4-ch, 16-bit, 200 kS/s Isolated Analog Output USB 3.0 I/O Module . Its compact size and DIN-rail mount kit make it easily installed in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. For safe and reliable operation, the controller (host) side is protected by a 2,500 VDC isolation circuit. Furthermore, it supports multiple voltage and current output ranges.
Product Features:

  • USB 3.0 SuperSpeed
  • Daisy chainable by built-in USB hub
  • 4 x 16-bit analog output channels with 2,500 V DC isolation
  • Multiple voltage and current output ranges
  • Removable European-type connector
  • Supported operating systems: Windows XP/7/8/10

Product Specifications:

Refer Datasheet

Data sheet on USB-5820
(pdf, opens in a new tab)

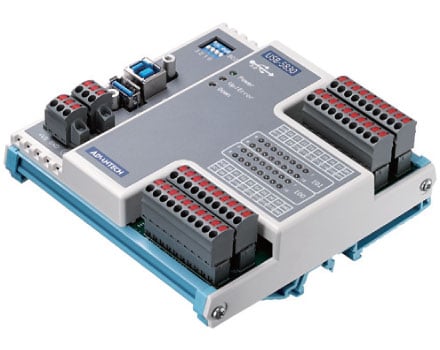

USB-5830


16-ch Isolated Digital Input and 16-ch Isolated Digital Output USB 3.0 I/O module
USB-5830
Click here to show/ hide more info
USB-5830
The USB-5800 series are industrial isolated digital input and output USB 3.0 I/O modules. Its compact size and DIN-rail mount kit can install easily in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation.
Product Features:

  • USB 3.0 SuperSpeed
  • Daisy chainable by built-in USB hub
  • 4 x 16-bit analog output channels with 2,500 V DC isolation
  • Multiple voltage and current output ranges
  • Removable European-type connector
  • Supported operating systems: Windows XP/7/8/10

Product Specifications:

Refer Datasheet

Data sheet on USB-5830
(pdf, opens in a new tab)

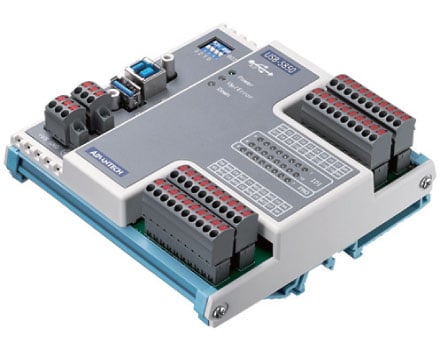

USB-5850


16-ch Isolated Digital Input & 8-ch PhotoMOS Relay USB 3.0 I/O module
USB-5850
Click here to show/ hide more info
USB-5850
The USB-5800 series are industrial isolated digital input and output USB 3.0 I/O modules. Its compact size and DIN-rail mount kit can install easily in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation.
Product Features:

  • USB 3.0 SuperSpeed
  • Daisy chainable by built in USB hub
  • 16-ch digital input and 8-ch PhotoMOS Relay output (Form A) isolation
  • Wide input voltage range (10 ~ 30 VDC)
  • 1500 VDC optical isolation for relay outputs
  • Quick removable European type connector
  • LED indicators for I/O status
  • Supported operating systems: Windows XP/7/8/10

Product Specifications:

Refer Datasheet

Data sheet on USB-5850 (pdf, opens in a new tab)



USB-5855


32-ch Isolated Digital Input and 16-ch PhotoMOS Relay USB 3.0 I/O Module
USB-5855
Click here to show/ hide more info
USB-5855
The USB-5800 series are industrial isolated digital input and output USB 3.0 I/O modules. Its compact size and DIN-rail mount kit can install easily in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation.
Product Features:

  • USB 3.0 SuperSpeed
  • Daisy chainable by built in USB hub
  • 32-ch digital input and 16-ch PhotoMOS Relay output (Form A) isolation
  • Wide input voltage range (10 ~ 30 VDC)
  • 1500 VDC optical isolation for relay outputs
  • Quick removable European type connector
  • LED indicators for I/O status
  • Supported operating systems: Windows XP/7/8/10

Product Specifications:

Refer Datasheet

Data sheet on USB-5855 (pdf, opens in a new tab)

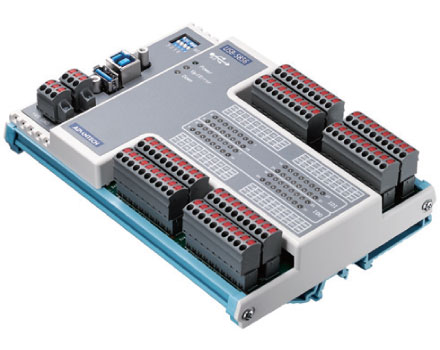

USB-5856


32-ch Isolated DI and 32-ch Isolated DO USB 3.0 I/O Module
USB-5856
Click here to show/ hide more info
USB-5856
The USB-5800 series are industrial isolated digital input and output USB 3.0 I/O modules. Its compact size and DIN-rail mount kit can install easily in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation.
Product Features:

  • USB 3.0 SuperSpeed
  • Daisy chainable by built in USB hub
  • 32-ch digital input and 32-ch digital output with 2,500 VDC isolation
  • Wide input voltage range (10 ~ 30 VDC)
  • Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
  • Quick removable European type connector
  • LED indicators for I/O status
  • Supported operating systems: Windows XP/7/8/10

Product Specifications:

Refer Datasheet

Data sheet on USB-5856 (pdf, opens in a new tab)

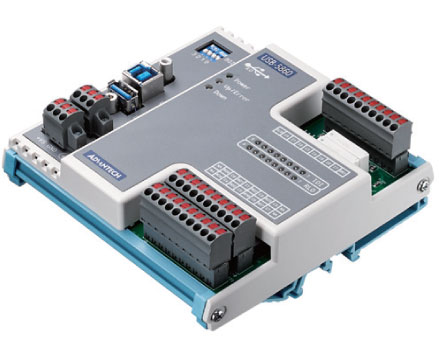

USB-5860


8-ch Isolated Digital Input & 8-ch Relay USB 3.0 I/O module
USB-5860
Click here to show/ hide more info
USB-5860
The USB-5800 series are industrial isolated digital input and output USB 3.0 I/O modules. Its compact size and DIN-rail mount kit can install easily in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation.
Product Features:



  • USB 3.0 SuperSpeed
  • Daisy chainable by built in USB hub
  • 8-ch Isolated Digital Input and 8-ch Form A-type Relay Output
  • Wide input voltage range (10 ~ 30 VDC)
  • High-voltage isolation on input channel (2,500 VDC )
  • Quick removable European type connector
  • LED indicators for I/O status
  • Supported operating systems: Windows XP/7/8/10

Product Specifications:

Refer Datasheet

Data sheet on USB-5860 (pdf, opens in a new tab)

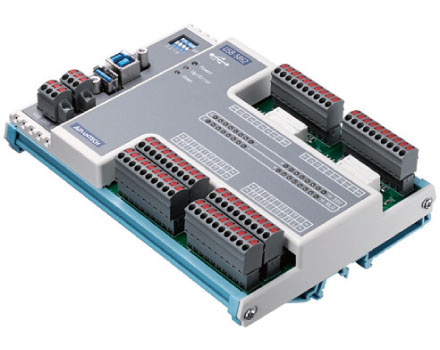

USB-5862


16-ch Isolated Digital Input and 16-ch Relay USB 3.0 I/O Module
USB-5862
Click here to show/ hide more info
USB-5862
The USB-5800 series are industrial isolated digital input and output USB 3.0 I/O modules. Its compact size and DIN-rail mount kit can install easily in a cabinet. Built in USB hub can support daisy chain topology. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation.
Product Features:

  • USB 3.0 SuperSpeed
  • Daisy chainable by built in USB hub
  • 16-ch Isolated Digital Input and 16-ch Form A-type Relay Output
  • Wide input voltage range (10 ~ 30 VDC)
  • High-voltage isolation on input channel (2,500 VDC )
  • Quick removable European type connector
  • LED indicators for I/O status
  • Supported operating systems: Windows XP/7/8/10

Product Specifications:

Refer Datasheet

Data sheet on USB-5862 (pdf, opens in a new tab)

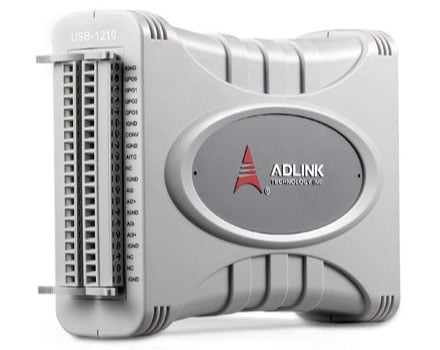

USB-1210


4-CH 16-Bit 2MS/s Simultaneous-Sampling USB DAQ Module
USB-1210
Click here to show/ hide more info
USB-1210
The USB-1210 is a 16-bit high-speed USB 2.0-based DAQ module equipped with 4 analog input channels providing simultaneous sampling at up to 2MS/s per channel. The USB-1210 delivers high accuracy and excellent dynamic performance at maximum sampling rates, and flexible trigger functions. In addition, onboard 64M samples FIFO ensures no data loss during acquisition even when CPU or system loading is heavy.The USB-1210 is USB bus-powered and equipped with removable screw-down terminals for easy device connectivity. The attached multifunctional stand can be used for desktop, rail, or wall mounting. Suitable for high-speed data acquisition, laboratory and medical research, the USB-1210 provides a reliable measurement solution at an affordable price.
Product Features:

  • USB 2.0 Hi-speed, USB bus power
  • 4-CH simultaneous-sampling analog input, up to 2MS/s per chanel
  • 500VDC Isolation & 256M samples FIFO
  • Analog and digital triggering
  • Removable screw terminals on module
  • Lockable USB cable for secure connectivity
  • Ready-to-use testing application (U-Test) provided
  • Supported Operating System: Windows 7/8 x64/x86, Linux, and MAC (Call for availability)

Product Specifications:

OS Information
-Windows 7/8 x64/x86, Linux, and Mac

Software Compatibility
-LabVIEW?
-MATLABR
-C/C++
-Visual Basic, Visual Studio.NET

Software Recommendations
-U-Test

Ordering Information
USB-1210  4-CH 16-Bit 2MS/s Simultaneous-Sampling Analog Input USB Module
Note Standard shipped accessories inculed one pair of 20-pin removable screw terminals 2 M USB Type A to USB Mini-B cable with lockable connector module stand and rail-mount kit

Accessory
RST-20P One pair of 20-pin removable screw terminals
USB-2M-L 2 M USB Type A to USB Mini-B cable with lockable connector

Data sheet on USB-1210(pdf, opens in a new tab)

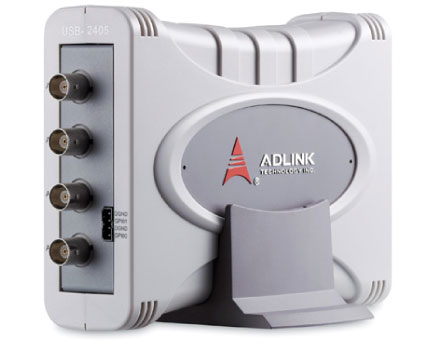

USB-2405


4-CH 24-Bit 128kS/s Dynamic Signal Acquisition USB 2.0 Module (OEM version available)
USB-2405
Click here to show/ hide more info
USB-2405
The USB-2405 is a 24-bit high-performance dynamic signal acquisition USB module equipped with 4 analog input channels providing simultaneous-sampling at up to 128 kS/s per channel. The USB-2405 also features software selectable AC or DC coupling input configuration and built-in high precision 2 mA excitation current to measure integrated electronic piezoelectric (IEPE) sensors such as accelerometers and microphones.

The USB-2405 delivers high precision, DC and dynamic measurement performance with very low temperature drift. The onboard 24-bit Sigma-Delta ADC supports anti-aliasing filtering, suppressing modulator and signal out-of-band noise and providing usable signal bandwidth of the Nyquist rate, making it ideal for high dynamic range signal measurement in vibration and acoustic applications.

The USB-2405 supports digital and analog trigger sources and flexible trigger modes, including post, delay, middle, gated, and pre-triggering for efficient data acquisition with no need for post-processing. The USB-2405 is USB bus powered and equipped with BNC connectors and removable spring terminals for easy device connectivity.


Product Features:

  • Hi-Speed USB 2.0, and USB bus powered
  • 24-bit Sigma-Delta ADC with built-in anti-aliasing filter
  • 4-CH simultaneous sampling analog input, up to 128kS/s
  • AC or DC input coupling, software selectable
  • Analog and Digital triggering & Full auto-calibration
  • Supports 2mA excitation output on each analog input channel for IEPE sensor measurement
  • Supporting Time-Frequency analysis software -Visual Signal
  • Supported Operating System: Windows 7/8 x64/x86, Linux, and MAC (Call for availability)

Product Specifications:

OS Information
-Windows 7/8 x64/x86, Linux, and Mac

Software Compatibility
-LabVIEW?
-MATLABR
-C/C++
-Visual Basic, Visual Studio.NET

Software Recommendations
-U-Test
-Visual Signal DAQ Express

Ordering Information



USB-2405

4-CH 24-Bit 128kS/s Dynamic Signal Acquisition USB 2.0 Module

USB-2405/OEM

4-CH 24-Bit 128kS/s Dynamic Signal Acquisition USB 2.0 Module OEM board-level version no enclosure





Accessory



USB-2M-L

2 M USB Type A to USB Mini-B cable with lockable connector

Data sheet on USB-2405(pdf, opens in a new tab)

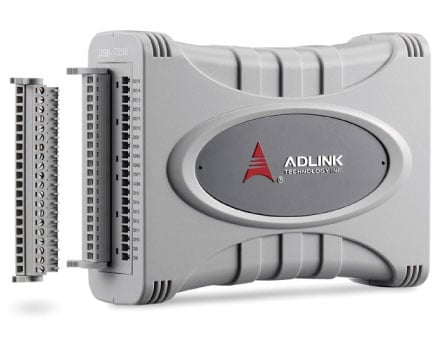

USB-7230 and USB-7250


Isolated USB Digital I/O Modules (OEM version available)
USB-7230-7250
Click here to show/ hide more info
USB-7230-7250
The USB-7230/7250 USB-based digital I/O modules feature high voltage on/off control and monitoring, and isolation voltage supported up to 2500VRMS. The USB-7230 provides 32-CH isolated digital I/O and 2-CH frequency/event counters. The USB-7250 provides 8-CH relay output (4 form C and 4 form A), 8-CH isolated DI, and 2-CH frequency/event counters.

The USB-powered USB-7230/7250 features removable screw-down terminals for easy device connectivity, and the included multi-functional stand fully supports desktop, rail, or wall mounting.

The USB-7230/7250 is suitable for industrial I/O control applications requiring high voltage and superior protection. High isolation voltage protects against damage from accidental contact with external voltages and eliminates troublesome ground loops. U-Test, a free ready-to-use testing program, is included to enable operation or testing of all ADLINK USB DAQ series functions with no programming requirement.

Product Features:

  • USB 2.0, USB bus powered
  • Programmable digital filter removes unexpected glitches from input channels
  • Programmable DO/Relay initial status
  • 32-CH isolated digital I/O (USB-7230), 8-CH relay output, 8-CH isolated DI (USB-7250)
  • 2-CH frequency/event counters (USB-7230/7250)
  • Up to 2500 VRMS isolation voltage
  • Ready-to-use testing application (U-Test) provided
  • Supported Operating System: Windows 7/10, Linux
  •

Product Specifications:

OS Information
-Windows 7/10, Linux

Software Compatibility
-LabVIEW
-MATLAB
-C/C++
-Visual Studio.NET

Software Recommendations
-U-Test

Ordering Information
USB-7230 32-CH isolated Digital I/O & 2-CH counter USB module
USB-7230/OEM 32-CH isolated Digital I/O & 2-CH counter USB module, OEM board-level version, no enclosure

USB-7250/OEM 8-CH isolated DI & 2-CH counter USB module, OEM board-level version, no enclosure
USB-7250 8-CH relay output, 8-CH isolated DI & 2-CH counter USB module
Note :Standard shipped accessories include one pair of 20-pin removable screw, 2 M USB Type A to USB Mini-B, Module stand, Rail-mount kit

Accessory
RST-20P One pair of 20-pin removable screw terminals
USB-2M-L 2 M USB Type A to USB Mini-B cable with lockable connector

Data sheet on USB-7230-7250(pdf, opens in a new tab)



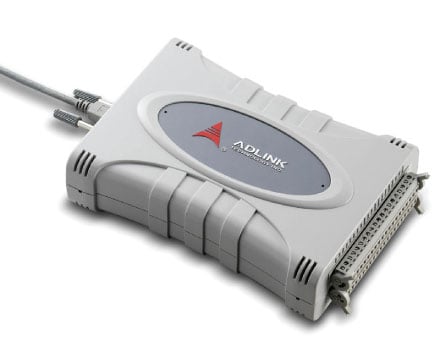

USB-2401


4-CH 24-Bit Universal Input USB DAQ Modules (OEM version available)
USB-2401
Click here to show/ hide more info
USB-2401
The USB-2401 is a 24-bit, 4-channel simultaneous-sampling universal input USB DAQ modules featuring built-in signal conditioning circuitry, providing direct measurement of commonly used sensors including current output transducers, thermocouple, RTD, load cell, strain gauge, and others. Individual channels can be programmed to measure different signal types.The USB-powered USB-2401 is equipped with removable screw-down terminals for easy device connectivity, and the included multi-functional stand fully supports desktop, rail, or wall mounting.

The USB-2401 is suitable for basic measurement applications requiring high resolution and accuracy, laboratory research and material testing environments, and industrial temperature measurement. U-test, a free ready-to-use testing program is included to enable operation or testing of all ADLINK USB DAQ series functions with no programming requirement.

Product Features:

  • USB 2.0 High-Speed, USB bus powered
  • 4-CH simultaneous-sampling analog input
  • Built-in signal conditioning for high voltage/current/thermocouple/RTD/strain gauge/load cell measurement
  • Up to 2kS/s analog input rate
  • Removable screw terminal on module
  • Supported Operating System: Windows 7/8 x64/x86, Linux, and MAC (Call for availability)
  • Ready-to-use testing application (U-Test) provided

Product Specifications:

OS Information
-Windows 7/10×64/x86, Linux

Software Compatibility
-LabVIEW
-C/C++
-C#

Software Recommendations
-U-Test

Ordering Information
USB-2401 4-CH 24-Bit Universal Input USB DAQ
USB-2401/OEM 4-CH 24-Bit Universal Input USB DAQ, OEM board-level version, no enclosure.
Note Standard shipped accessories include one pair of 20-pin removable screw, 2 M USB Type A to USB Mini-B, Module stand, Rail-mount kit

Accessory
RST-20P One pair of 20-pin removable screw terminals
USB-2M-L 2 M USB Type A to USB Mini-B cable with lockable connector

Data sheet on USB-2401(pdf, opens in a new tab)

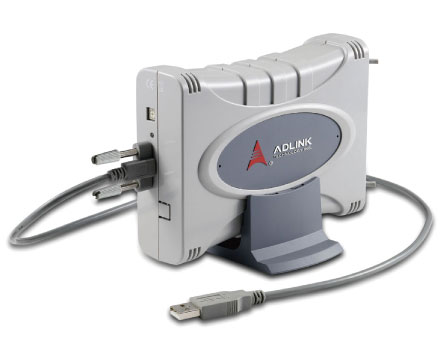

USB-1901 and USB-1902 and USB-1903


4-CH 24-Bit Universal Input USB DAQ Modules (OEM version available)
USB-1901-1902-1903
Click here to show/ hide more info
USB-1901-1902-1903
The USB-1901-1902-1903 is a 24-bit, 4-channel simultaneous-sampling universal input USB DAQ modules featuring built-in signal conditioning circuitry, providing direct measurement of commonly used sensors including current output transducers, thermocouple, RTD, load cell, strain gauge, and others. Individual channels can be programmed to measure different signal types.The USB-powered USB-1901-1902-1903 is equipped with removable screw-down terminals for easy device connectivity, and the included multi-functional stand fully supports desktop, rail, or wall mounting.The USB-1901-1902-1903 is suitable for basic measurement applications requiring high resolution and accuracy, laboratory research and material testing environments, and industrial temperature measurement. U-test, a free ready-to-use testing program is included to enable operation or testing of all ADLINK USB DAQ series functions with no programming requirement.

Product Features:

  • USB 2.0 High-Speed, USB bus powered
  • 4-CH simultaneous-sampling analog input
  • Built-in signal conditioning for high voltage/current/thermocouple/RTD/strain gauge/load cell measurement
  • Up to 2kS/s analog input rate
  • Removable screw terminal on module
  • Supported Operating System: Windows 7/8 x64/x86, Linux, and MAC (Call for availability)
  • Ready-to-use testing application (U-Test) provided

Product Specifications:

OS Information
-Windows 7/10×64/x86, Linux

Software Compatibility
-LabVIEW
-C/C++
-C#

Software Recommendations
-U-Test

Ordering Information
USB-1901-1902-1903 4-CH 24-Bit Universal Input USB DAQ
USB-1901-1902-1903/OEM 4-CH 24-Bit Universal Input USB DAQ, OEM board-level version, no enclosure.
Note Standard shipped accessories include one pair of 20-pin removable screw, 2 M USB Type A to USB Mini-B, Module stand, Rail-mount kit

Accessory
RST-20P One pair of 20-pin removable screw terminals
USB-2M-L 2 M USB Type A to USB Mini-B cable with lockable connector

Data sheet on USB-1901 and USB-1902 and USB-1903 (pdf, opens in a new tab)



Obsolete and Superseded Products

Name

Call Now Button
