ACR SmartReader Plus Temperature & Humidity data loggers
Covering SmartReader Plus models 1, 10, 2, 5, 6, 8ACR SmartReader Plus Temperature (& Humidity) data loggers
ACR SmartReader Plus data loggers are multi-channel, high quality data loggers that monitor a variety of parameters and feature a 10 year battery life. The alarm feature alerts when thresholds are transgressed, via phone or email*. These loggers are accessible remotely by modem or device server; multiple loggers can also be linked to form a network. Durability is assured with a 3-year logger warranty and 10-year battery life.
On many competitive products, if a replaceable battery comes loose or dies, you could lose the data – the lost time and effort far outweighs any price difference. The SRP range is carefully designed for ultra-low power consumption, with its a 12-bit successive approximation A-D converter. When the recording interval is set longer than 8 seconds, the readings are sampled every 8 seconds and averaged over the recording interval. This gives a much more realistic picture of what you’re measuring, compared to just taking 1 measurement each recording interval.
Software Packages (TrendReader) are purchased separately as they can support more than one device.
Faster logging, up to 25 samples per second, is supported using an external power source (USB cable or BP-101 Battery Pack option, see below).
Specifications common to all SmartReader Plus loggers FAQs (ACR website, opens in a new tab)
SmartReader Plus data loggers
SmartReader Plus 1:
NTC temperature data logger, 1 internal and 1 external sensor
The SmartReader Plus 1 is a powerful and accurate data logger designed for easy monitoring and recording of temperature. With one internal ambient temperature channel and an input for an optional remote temperature or contact closure sensor, the SmartReader Plus 1 is ideal for quick and accurate temperature recordings in a variety of applications. Compatible with ACR’s TrendReader® software .
Specifications
Channels:
Two (one for internal temperature sensor and one for remote sensing of temperature, switch status or resistance)
Accessories:
ACR ET Series Temperature Probes or any NTC thermistor probe
Data on SmartReader Plus 1 (SRP1) (pdf file, opens in new tab)
Prices are indicative only and may change without notice – please contact us for a quote.
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| SRP-001 128K | SmartReader Plus 1 – 128 KB Two channel, 12 bit, 128 KB data logger (One ambient temperature and one external temperature channel) | Approx $1,138+GST |
| SRP-001-1.5M | SmartReader Plus 1 – 1.5 MB Two channel, 12 bit, 1.5 MB data logger (One ambient temperature and one external temperature channel) | Approx $1,720+GST |
Also required with SmartReader Plus loggers:
TrendReader Software for Windows with IC-102 USB Cable, see below
See list of Thermistor Probes below

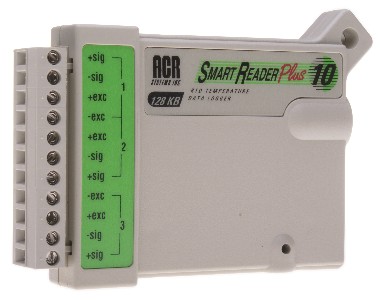

SmartReader Plus 10:
RTD temperature data logger, 1 internal and 3 external sensors
SmartReader Plus 10 is a temperature logger with four channels. Sn internal thermistor channel and three external channels specifically designed for use with RTD (Resistance Temperature Detector) temperature probes, designed to precisely measure temperature over a wider temperature range than a thermistor, without sacrificing accuracy or resolution.
Two-, three-, and four-wire RTDs may be used with the SmartReader Plus 10, however, four-wire RTDs produce the highest accuracy. RTDs with a Temperature Coefficient Resistance (TCR) of 0.00385 can be used with this data logger.
Specifications
No. of Channels:
Four (one for ambient temperature, and three for temperature with RTD probes)
RTD Type:
Any 100 or 1000 ohm Platinum RTD with a Temperature Coefficient of Resistance (TCR) of 0.00385
Temperature Range*:
-230 to 300°C (-382 to 572°F)
Accuracy*:
+/- 0.3ºC (+/- 0.54ºF) + resolution
Resolution*:
+/- 0.14°C (+/- 0.25°F)
Wiring Configurations:
2, 3, or 4 wire RTDs
*100 and 1000 Ohm probes only
Data on SmartReader Plus 10 (SRP10) (pdf file, opens in new tab)
Prices are indicative only and may change without notice – please contact us for a quote.
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| SRP-010-128K | SmartReader Plus 10 – 128 KB RAM, Four channel, 12 bit, 128 KB data logger (One ambient temperature and three external RTD temperature channels) | Approx $1,655+GST |
Also required with SmartReader Plus loggers:
TR3-IC102 TrendReader Software for Windows with IC-102 USB cable, see below
SmartReader Plus 2:
Relative Humidity & Temperature data logger, supports internal and external sensors
SmartReader Plus 2 is a self-contained data logger that can monitor and record temperature and relative humidity – right out of the box. The on-board RH sensor is temperature compensated, permitting reliable, worry-free RH readings. For remote sensing of temperature and RH, simply attach ACR’s temperature/RH probe, or for remote temperature sensing, attach ACR’s thermistor probe.
Specifications
RH Sensor Type:
Capacitive thin polymer film
RH Sensor Range:
0 to 95% RH (non-condensing)
RH Sensor Accuracy:
+/- 3% RH from 10 to 90% RH (-20 to 40ºC [-4 to 104ºF])
RH Sensor Resolution:
Better than 0.04% RH between 25 and 60% RH at 25ºC (77ºF)
Response Time:
Adequate ventilation increases the response time which is approximately 5 minutes in still air.
Environmental Conditions:
Like all relative humidity sensors, when exposed to contaminants and/or extreme environmental conditions accuracy degradation could result. For maximum long-term stability, sensor should not be exposed or subjected to organic solvents, corrosive agents (acids, SO2, H2SO4, Cl2, HCl, H2S, etc.), and strong bases (compounds with PH greater than 7). Dust settling on the sensor surface will not affect sensor performance except possibly to decrease the speed of response.
Data on SmartReader Plus 2 (SRP2) (pdf file, opens in new tab)
Prices are indicative only and may change without notice – please contact us for a quote.
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| SRP-002-128K | SmartReader Plus 2 – 128 KB RAM, Four channel, 12 bit, 128 KB data logger (One ambient temperature and RH channel and one external temperature and RH channel). | Approx $1,425+GST |
Also required with SmartReader Plus loggers:
TR3-IC102 TrendReader software for Windows with IC102 USB Cable, see below

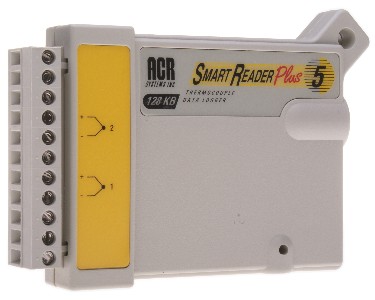

SmartReader Plus 5:
Thermocouple temperature data logger, 1 internal and 2 external sensors
The SmartReader Plus 5 data logger is ideal for those applications that require monitoring extremely high temperatures or monitoring temperature over a wide range. The logger has one internal channel for measuring ambient temperature and two external channels for use with ACR thermocouple wire or any J, K, S, T or E type thermocouple wire.
Specifications
Accuracy:
+/- 0.5% of range + resolution
NOTE: In addition to the data logger’s accuracy spec, the accuracy of the thermocouples is significant and varies depending on the type and quality of thermocouple wire. Please ask us for help when choosing.
Thermocouple Specs:
Range and Resolution:
J type: -50 to 600ºC (-55 to 1100ºF); 0.30ºC (0.55ºF)
K type: -100 to 1150ºC (-145 to 2100ºF); 0.50ºC (0.90ºF)
S type: 0 to 1450ºC (32 to 2642ºF ); 1.0ºC (1.8ºF)
T type: -200 to 400ºC (-325 to 750ºF); 0.40ºC (0.75ºF)
E type: -50 to 680ºC (-58 to 1250ºF); 0.24ºC (0.44ºF)
Accessories:
ACR Thermocouple Wire, or any J, K, S, T and E type thermocouples
Data on SmartReader Plus 5 (SRP5) (pdf file, opens in new tab)
Prices are indicative only and may change without notice – please contact us for a quote.
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| SRP-005-128K | SmartReader Plus 5 – 128 KB RAM, Three channel, 12 bit, 128 KB data logger (One ambient temperature and two external thermocouple channels). | Approx $1,242+GST |
Also required with SmartReader Plus loggers:
TR3-IC102 TrendReader software for Windows with IC-102 USB cable, see below

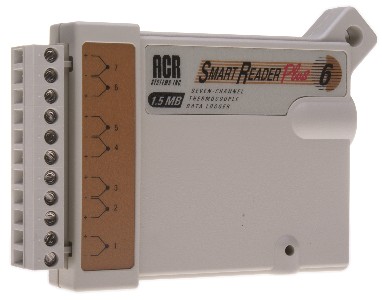

SmartReader Plus 6:
Thermocouple temperature data logger, 1 internal and 7 external sensors
Monitor temperature over a wide range with the SmartReader Plus 6 data logger. Easily and accurately record temperature from any J, K, S, T or E type thermocouple probe. With seven inputs for thermocouple probes and an on-board cold-junction thermistor, the SRP6 is one of the most versatile thermocouple data loggers available.
Specifications
Accuracy:
+/- 0.5% of range + resolution
NOTE: In addition to the data logger’s accuracy spec, the accuracy of the thermocouple sensors is significant, and can vary according to thermocouple type and quality. Please ask us for help when choosing.
Thermocouple Specs:
Range and Resolution:
J type: -50 to 600ºC (-55 to 1100ºF); 0.30ºC (0.55ºF)
K type: -100 to 1150ºC (-145 to 2100ºF); 0.50ºC (0.90ºF)
S type: 0 to 1450ºC (32 to 2642ºF ); 1.0ºC (1.8ºF)
T type: -200 to 400ºC (-325 to 750ºF); 0.40ºC (0.75ºF)
E type: -50 to 680ºC (-58 to 1250ºF); 0.24ºC (0.44ºF)
Accessories:
ACR Thermocouple Wire, or any J, K, S, T and E type thermocouples
Data on SmartReader Plus 6 (SRP6) (pdf file, opens in new tab)
Prices are indicative only and may change without notice – please contact us for a quote.
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| SRP-006-128K | SmartReader Plus 6 – 128 KB RAM, Eight channel, 12 bit, 128 KB data logger (One ambient temperature and seven external thermocouple channels) | Approx $2,025+GST |
| SRP-006-1.5M | SmartReader Plus 6 – 1.5 MB RAM, Eight channel, 12 bit, 1.5 MB data logger (One ambient temperature and seven external thermocouple channels) | Approx $2,570+GST |
Also required with SmartReader Plus loggers:
TR3-IC102 TrendReader software for Windows with IC-102 USB cable, see below

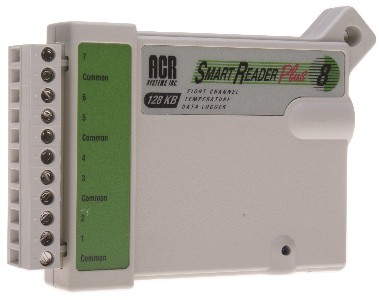

SmartReader Plus 8:
NTC temperature data logger, 1 internal plus 7 external sensors
The SmartReader Plus 8 data logger is the ideal solution for recording temperature in up to eight different locations simultaneously. Choose from a variety of different thermistor (NTC) probes.
Specifications
Channels:
Eight (one for the internal temperature sensor, and seven for remote sensing of temperature, resistance or switch status)
Accessories:
ACR ET Series Temperature Probes or any NTC thermistor probe
Data on SmartReader Plus 8 (SRP8) (pdf file, opens in new tab)
Prices are indicative only and may change without notice – please contact us for a quote.
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| SRP-008-128K | SmartReader Plus 8 – 128 KB RAM, Eight channel, 12 bit, 128 KB data logger (One ambient temperature and seven external temperature channels) | Approx $1,920+GST |
| SRP-008-1.5M | SmartReader Plus 8 – 1.5Mb RAM, Eight channel, 12 bit, 1.5MB data logger (One ambient temperature and seven external temperature channels) | Approx $2,570+GST |
Also required with SmartReader Plus loggers:
TR3-IC102 TrendReader software for Windows with IC-102 USB cable, see below
See list of Thermistor Probes below
Software: TrendReader for Windows
TrendReader® 3 is a powerful, versatile and easy-to-use software application for all versions of windows, designed exclusively for ACR’s SmartReader Plus, SmartReader, IAQ, OWL, TRH, JR and Nautilus data loggers.
Powerful features and easy setup enables collected data to be thoroughly analyzed in seconds.
TrendReader Software details includes download trial (ACR site, opens in new tab)
Data Sheet on TrendReader 2 Rev 6, 7/11/2012 (pdf, opens in a new tab)
Data collected in ACR Data Loggers is downloaded using the USB (or serial RS232) port of a computer.
TrendReader Software features:
- Simple logger setup window
- Compound multiple graphs to a resultant graph
- Export data to most spreadsheet formats
- Interface with remote loggers via modem
- Multi-graph display
- Zoom
- Scale units
- Add comments
- Data table view
Updates: TrendReader updates are available free of charge to existing users at the ACR website – downloads.
The USB cable has a minijack plug on one end for the SmartReader Plus logger, and a USB plug on the other end for the PC.
Prices are indicative only and may change without notice – please contact us for a quote.
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| TR3-IC102 | TrendReader3 software package for PC, including IC-102 USB interface cable for SRP loggers | Approx $288+GST |
An RS-232 Serial logger cable is also available, for connecting SRP loggers to serial device servers etc:
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| IC-101 | RS-232 9-pin PC serial port to logger interface cable, for SmartReader Plus loggers | Approx $150+GST |
For connecting SmartReader Plus loggers directly to modems, a different serial cable is available:
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| IC-101RFA | DE9M connector w/built in Null Modem for connection to DCE (RF/Cellular Modem), c/w 30cm M-M Stereo Cable | Approx $188+GST |
Temperature probes for the SRP8 (SRP-008) thermistor temperature data loggers
Please contact us for pricing and lead times.
General Purpose
| Part No | Product Details |
|---|---|
| P1703 | Alpha Thermistor Probe (Data) – Plastic – non WaterProof – 10K @ 25 deg C 2.4M cable Uses TrendReader Equation No: 45 |
| P1713 | Alpha Thermistor Probe (Data) – Plastic – Water Proof – 10K @ 25 deg C 2.4M cable Uses TrendReader Equation No: 45 |
| P1723 | P1723 Alpha Thermistor Probe (Data) – 5mm x 75mm S.S. probe WP – 10K @ 25 deg C 2.4M cable Uses TrendReader Equation No: 45 |
Low Temperature
| Part No | Product Details |
|---|---|
| P1711 | Alpha Thermistor Probe (Data) – Plastic – WaterProof – Low Temp – 2.252K @ 25 deg C 2.4M cable Uses TrendReader Equation No: 46 |
| P1721 | Alpha Thermistor Probe (Data) – 5mm x 75mm S.S. probe WaterProof – Low Temp – 10K @ 25 deg C 2.4M cable Uses TrendReader Equation No: 46 |
ET Series Thermistor Probes with rounded tip (except -GP, -STP, -SMP), teflon cable, all are waterproof.
| Part No | Product Details |
|---|---|
| ET-016/6M | 6M General Purpose Stainless Steel probe, 1 X 5mm probe. Range: -35° to 95°C Length: 6 meters. |
| ET-016/SMP | Special Surface Pipe Mount G.P. Stainless steel, 3mm x 10mm probe. Range: 20° to 40°C Length: 6.0 meters |
| ET-016/STP | Skin Surface Temperature Stainless steel probe, 3mm x 10mm probe. Range: -35° to 95°C, 10K @ 25 deg C, Length: 1.5 meters |
| ET-004/6M | Low Temp Stainless steel, 1 x 5mm probe. Range: -60° to 55°C Length: 6 metres |
| ET-016/6M | General Purpose Stainless Steel probe, 1 X 5mm probe. Range: -35° to 95°C Length: 6 meters. |
| ET-081/6M | High Temp Thermistor Probe |
| ET-086/6M | Oven Temp Stainless steel probe, 1 X 5mm probe. Range: 70° to 255°C Length: 6 meters |

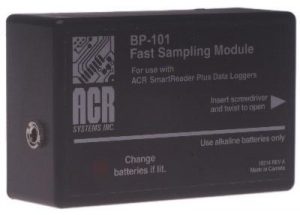

BP-101 Battery Pack
SmartReader Plus Data Loggers require the BP-101 Battery pack to log at rates faster than once every 8 seconds. A male stereo jack and cable plugs directly into the communication port on the logger. Uses 4 AAA batteries (included) and are user replaceable.
Size: 80 x 55 x 40 cm (3.25 x 2 x 1.5 inches)
Portable power supply for SmartReader Plus data loggers to allow them to sample faster than 8 seconds.
Prices are indicative only and may change without notice – please contact us for a quote.
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| BP-101 | Battery Pack, Fast Sampling – BP101, Portable power supply for SmartReader Plus data loggers to allow them to sample faster than 8 seconds. | Approx $85+GST |
