MicroLog Pro II Temperature/Humidity Data Loggers - Fourtec
Accurate and professional environmental monitoring with user-friendly designFourtec MicroLogPRO Overview
Accurate environmental monitoring with user-friendly design
- Internal temperature and humidity sensors with high accuracy and resolution
- Unique patent pending Boomerang feature that automatically creates and emails PDF data report when logger is connected to PC
- Mini-USB port for PC communication and firmware updates
- 4-digit data display including minimum/maximum readings, battery and alarm indication
- External 0 to 20 mA and 0 to 10 V inputs connecting with industry standard sensors
- Multi-function keypad for manual time stamp, Run/Stop activation
- Built-in LED for logging and alarm indication
- View up to 30 days Min/Max data history on LCD screen
- Stand-alone monitoring with up to 52K sample memory
- Low power consumption, with up to 2-year battery life, ideal for long-haul monitoring
- Water and dust resistant enclosure
- Free DataSuite software for data monitoring, analysis and logger calibration
- API for third-party integration
On this page:
MicroLog Brochure (pdf file, opens in new tab)
MicroLog Devices

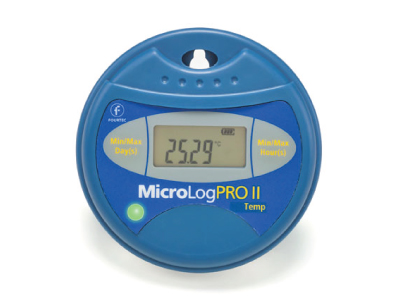

EC800A – MicroLogPRO II Temperature Logger
The MicroLogPRO II Temperature logger combines an internal temperature sensor with one external input for temperature and voltage measurements. Combining low-cost portable logging with rich functionality, the MicroLogPRO II provides application reliability for a variety of mission critical industries.
Key product Benefits:
- Accurate internal temperature sensor with range of -40 to 80 °C
- Supporting Boomerang feature that automatically creates and emails PDF data report when logger is connected to PC
- Mini-USB port for PC communication and firmware updates
- 4-digit data display including min/max readings, battery and alarm indication
- External 0 to 10 V input connecting with industry standard sensors
- Multi-function keypad for manual time stamp, Run/Stop activation
- Built-in LED for logging and alarm indication
- View up to 30 days Min/Max data history on LCD screen
- Stand-alone monitoring with up to 52K sample memory
- Low power consumption, with up to 2-year battery life, ideal for long-haul monitoring
- Water and dust resistant (IP65/NEMA 4)
- Free DataSuite software for data monitoring, analysis and logger calibration
- API available for third-party integration
Specifications:
| Measurement Inputs | Two (one internal, one external) |
| Internal Sensor Range | Temp: -40 to 80 °C |
| Internal Temperature Accuracy | ± 0.3 °C |
| Internal Temperature Resolution | 0.02 °C or better |
| External Input Support | NTC Temperature -50 to 150 °C, 0-10 V |
| Sample Memory | 52,000 samples (over 3 channels), cyclic |
| Sampling Rate | Minimum: Once every second Maximum: Once every 18 hours |
| Auto PDF & Email Delivery (Boomerang Feature) | Yes |
| LCD | Four-digit, 7-segment LCD with decimal point |
| LED | Bi-color alarm indicator |
| PC Interface | Mini USB |
| Power Supply | 2/3 AA 3.6V lithium battery |
| Battery Life | ~ 2 years depending on sampling rate and operating conditions |
| Dimensions | Diameter: 72 mm Thickness: 22.9 mm |
| Weight | 55 g |
| Wall Mount | Cradle accessory |
| Standards Compliance | CE, IP65, EN12830 |

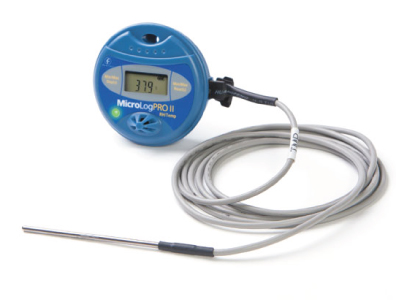

| External Sensors for the EC800 Temp logger | ||
| Specification | NTC Temperature sensor with 100 mm probe
DT132N (2.5 m cable length) |
Voltage Adapter
|
| Range | -50 to 110 °C | 0 to 10 V |
| Accuracy | ±0.3 ˚C | ±5 mV |
| Resolution | 0.03 °C | 1 mV (display), 4 mV (software) |
Solutions:
- Cold Chain
- Hospital Health
- Pharmaceutical
- Warehouses Storage
MicroLogPRO II Quick Start Guide (pdf file, opens in new tab)
DataSuite User Guide for MicroLogPRO II (pdf file, opens in new tab)|
DatPass User Guide (pdf file, opens in new tab)
DataSuite CFR and DatPass Validation Guide (pdf file, opens in new tab)
Weboomerang User Guide (pdf file, opens in new tab)
EC850A – MicroLogPRO II Temperature and Humidity Logger
The MicroLogPRO II Temp/RH logger features internal temperature and humidity sensors with one external input for temperature and voltage measurements. Combining low-cost portable logging with rich functionality, the MicroLogPRO II provides application reliability for a variety of mission critical industries.
Key product Benefits:
- Internal temperature and humidity sensor with high accuracy and resolution
- Supporting Boomerang feature that automatically creates and emails PDF data report when logger is connected to PC
- Mini-USB port for PC communication and firmware updates
- 4-digit data display including min/max readings, battery and alarm indication
- Multi-function keypad for manual time stamp, Run/Stop activation
- Built-in LED for logging and alarm indication
- View up to 30 days Min/Max data history on LCD screen
- Stand-alone monitoring with up to 52K sample memory
- Low power consumption, with up to 2-year battery life, ideal for long-haul monitoring
- Water and dust resistant (IP54/NEMA 4)
- Free DataSuite software for data monitoring, analysis and logger calibration
- API available for third-party integration
Specifications:
| Measurement Inputs | Three (two internal, one external) |
| Internal Sensor Range | Temp: -40 to 80 °C RH: 5 to 95% |
| Internal Temperature Accuracy | ± 0.3 °C |
| Internal Temperature Resolution | 0.015 °C |
| Internal Humidity Accuracy | ± 2 % |
| Internal Humidity Resolution | 0.05 % |
| External Input Support | NTC Temperature -50 to 150 °C, 0-10 V |
| Sample Memory | 52,000 samples (over 3 channels) |
| Sampling Rate | Minimum: Once every second Maximum: Once every 18 hours |
| Auto PDF & Email Delivery (Boomerang Feature) | Yes |
| LCD | Four-digit, 7-segment LCD with decimal point |
| Dew Point | LCD and software indication |
| LED | Bi-color alarm indicator |
| PC Interface | Mini USB |
| Power Supply | 2/3 AA 3.6V lithium battery |
| Battery Life | ~ 2 years depending on sampling rate and operating conditions |
| Dimensions | Diameter: 72 mm Thickness: 22.9 mm |
| Weight | 55 g |
| Wall Mount | Cradle accessory |
| Standards Compliance | CE, IP54, EN12830 |
| External Sensors for EC850 Temperature and Humidity Logger | ||
| Specification | NTC Temperature sensor with 100 mm probe
DT132N (2.5 m cable length) DT093 (8 m cable length) |
Voltage Adapter
DT140-ML2 (for for EC800) |
| Range | -50 to 110 °C | 0 to 10 V |
| Accuracy | ±0.3 ˚C | ±5 mV |
| Resolution | 0.03 °C | 1 mV (display), 4 mV (software) |
Solutions:
- Cold Chain
- Hospital Health
- Pharmaceutical
- Warehouses Storage
MicroLogPRO II Quick Start Guide (pdf file, opens in new tab)
DataSuite User Guide for MicroLogPRO II (pdf file, opens in new tab)|
DatPass User Guide (pdf file, opens in new tab)
DataSuite CFR and DatPass Validation Guide (pdf file, opens in new tab)
Weboomerang User Guide (pdf file, opens in new tab)
Accessories and Software
Accessories

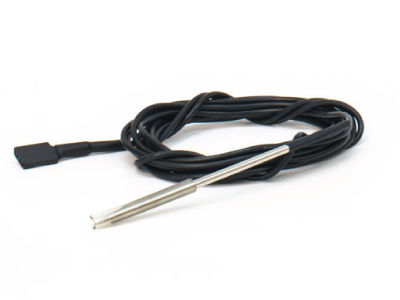

DT132N – Ext. Temperature Probe, 2.5 m cable, for MicroLog & MicroLogPRO II
The NTC temperature probe connects to the external input of the MicroLog and MicroLogPRO II data loggers to provide an extended temperature range when compared to the logger’s internal temperature sensor. The probe has a rapid temperature response time, 2.5 m cable length and with its stainless steel needle tip, is suitable for multiple applications including food, liquids and ambient monitoring.
When connected to the data logger, the probe readings can also be calibrated using the supported product software.
Specifications:
| Temperature sensor type: | NTC 10kΩ |
| Temperature range: | With EC600: -50 to 100 °C
With EC800 & EC850: -50 to 110 °C |
| Temperature accuracy: | With EC600: 2 % of reading
With EC800 & EC850: ±0.3 ˚C |
| Cable length: | 2.5 m |
| Cable temp. range: | 105 °C |
| Probe length / diameter: | 100 mm / 3.2 mm |
| Probe type: | Stainless steel needle tip |
Software
DataSuite-ML – DataSuite Software for MicroLogPRO II
DataSuite is Windows-based software offering device configuration, data monitoring and analysis functionality for MicroLogPRO II data loggers, in addition to other Fourtec systems.
The DataSuite platform’s core functionality is shared across all systems and includes features such as device setup, multiple data views, input calibration, alarm level definition, Email/SMS notifications, data report management, device firmware updates, online software updates and more.
Easily installed from CD or via download from the Fourtec website, DataSuite also supports automatic online updates whenever a new software version is released.
When integrated with the DatPass CFR Admin software, DataSuite helps MicroLogPRO II users meet 21 CFR Part 11 compliancy by maintaining an audit trail of all user activity in addition to management of user login and privileges and electronic signatures.
- Multiple data view e.g. graph, table, statistics
- Online and historical data views
- Boomerang feature for automatic generation and emailing of PDF data reports when logger is connected to PC
- Multiple alarm levels triggering email and SMS notifications
- Reporting module for creating and generating reports with selected email distribution
- Analysis features including dew point analysis, export to Excel and CSV formats, histogram, MKT
- FDA Title 21 CFR Part 11 compliancy
- API support for third-party integration
Specifications:
| Product Part Number: | DataSuite-ML |
| Software Activation: | Software is free to use, no activation is required. |
| Order shipped with: | Software CD and mini-USB communication cable |
| System Requirements | |
| Software |
|
| Hardware |
|
DataSuite for MicroLogPRO II User Guide (pdf file, opens in new tab)
MicroLogPRO II Quick Start Guide (pdf file, opens in new tab)
DataSuite Software Release Notes (pdf file, opens in new tab)

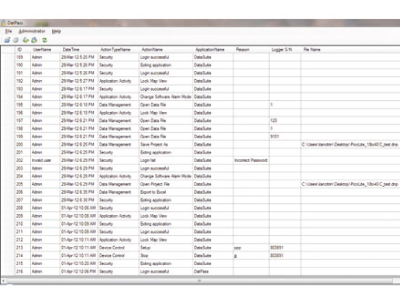

DS-CFR-ML2 – DatPass CFR Admin Software for MicroLogPRO II
DatPass is Fourtec’s administration management software, integrating with the DataSuite and MicroLab applications to help achieve FDA 21 CFR Part 11 and GAMP 5 compliancy for a range of Fourtec data logging systems, including the MicroLogPRO II.
The DatPass database, installed on a local PC or network, maintains an audit trail that automatically records all user activity within DatPass and DataSuite software, including date and time stamp, login details, input alarms details, and so on. The DatPass administrator can view the audit trail on screen or print any part of it in order to keep hard copy records.
DatPass is also used to manage all user access to the supported systems, including user login parameters, group and user privileges for relevant software functionality, digital signatures the users are permitted to sign data within electronic records, and other key CFR requirements.
The DatPass software package is also supplied with extensive operation and validation manuals to help users meet strict industry regulations.
Specifications:
| Product Part Number: | DS-CFR-ML2 |
| Software Activation: | User must activate software using unique serial number purchased from Fourtec. 30-day trial period also provided. |
| Order shipped with: | Software CD for DatPass and DataSuite installation, and mini-USB communication cable |
| System Requirements |
|
DatPass CFR Admin User Guide (pdf file, opens in new tab)
DataSuite CFR and DatPass Validation Manual (pdf file, opens in new tab)
DatPass Software Release Notes (pdf file, opens in new tab)
| CFR-ML2-USERPC | MicroLite 2 CFR user PC license (for non-admin PC’s, not running DatPass software) |
