PLC's and Touch Screen HMI's - RENU Electronics
Smart, flexible and easy to use controllers and touch screens - compatible with most PLC brandsRENU Electronics PLC Controllers and HMI’s
FlexiLogics® Series Products are versatile high-performance programmable controllers with Microsoft® Windows based configuration Software. An external powered FL series model can be used as a PLC based Automation Solution with optional built-in I/O points. The system can be expanded up to Eight I/O modules (analog and digital modules). It supports IEC61131-3 programming environment.
These products are compliant to EMC directive 2014/30/EU and LVD directive 2014/35/EU.
The FlexiPanels® support Operator interface as well as Programmable Logic Controller features. The user can implement logic, specific to application using standard Ladder programming. A PLC logic block can be executed at power up, during every scan, upon receiving an interrupt on specific I/O pins or upon a timer interrupt. The FlexiPanels operator interface functions revolve around Screens and Tasks that can be assigned to screens and application.
FlexiLogics PLC’s

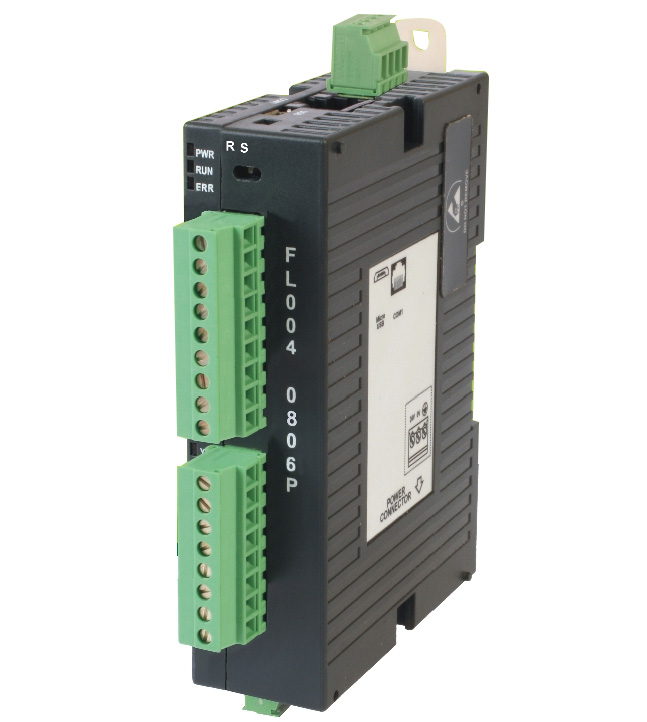

FL004 Economical Series PLC
Features:
- DIN rail / Back panel mounted slim PLC
- Transistor or Relay outputs
- 32 Bit RISC processor
- DC inputs, DC Outputs
- Support for High Speed Counters(8 Channels Up-to10KHz or 2 channels Up-to 25KHz) / Quaduature (any 2 pairs Up-to 10KHz or 4 pairs Up-to 5KHz) and Timers
- High Speed 3 PWM output (Up-to 10 Khz)
- Up-to 2 Serial Ports, 1 RS232, 1 RS485
- 1 USB Device Port
- DC powered units (24 V DC)
- IEC61131-3 programming environment and Native Ladder programming environment support
- CE approved
Ordering Information:
Product Code | Description | Price (excl GST) |
FL004-0806P | 8 Bi-directional digital inputs(2 single phase HSC up-to 25KHz or 8 single phase HSC up-to 10KHz or 4 Quadrature up-to 5KHz or 2 Quadrature up-to 10KHz), 6 PNP-transistor type digital outputs, (3high speed outputs up-to 10KHz),13K Steps Memory | $182 |
FL004-0806R | 8 Bi-directional digital inputs(3 single phase HSC up-to 25KHz or 2 Quadrature up-to 5KHz), 6 Relay type digital outputs, 13K Steps Memory | $182 |
FL004-0806N | 8 Bi-directional digital inputs(2 single phase HSC up-to 25KHz or 8 single phase HSC up-to 10KHz or 4 Quadrature up-to 5KHz or 2 Quadrature up-to 10KHz), 6 NPN-transistor type digital outputs, (3high speed outputs up-to 10KHz),13K Steps Memory | $182 |
Data on FL004 Economical Series PLC (pdf, opens in a new tab)

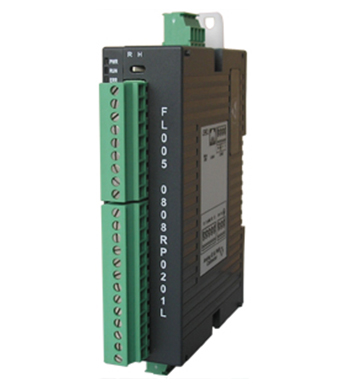

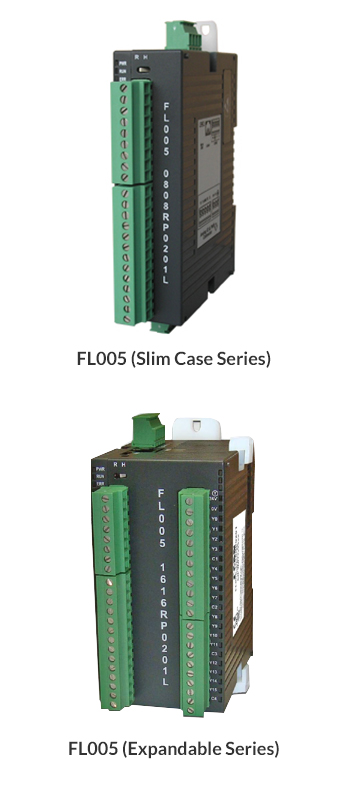

FL005 Slim PLC – Fixed or Expandable I/O
Common Features:
- DIN rail / Back panel mounted PLC
- Transistor or Relay outputs
- 32 Bit RISC processor
- Built-in RTC
- DC inputs, DC Outputs
- Up-to 2 Serial Ports. Support for various PLC protocols
- 1 USB Device Port
- DC powered units (24 V DC)
- Simple Ladder programming using Windows® based software
- Support for LD, FBD, ST, SFC, IL type IEC61131-3 programming languages
- CE, UL Class1 Div2 approved
FL005 (Slim Case Series) Features:
- Analog Inputs (Voltage, Current)
- Analog Output (Current)
- Support for High Speed Counters / Quaduature (up to 200 KHz) and Timers
- High Speed PWM output (100 KHz)
FL005 (Expandable Series) Features:
- Expandable up to 16 expansions
- Analog Inputs (Voltage, Current, RTD and Thermocouple)
- Analog Output (Voltage, Current)
- Support for High Speed Counters / Quaduature (up to 200 KHz) and Timers
- High Speed PWM output (200 KHz)
Ordering Information:
Model | >Description | Price (Excl. GST) |
FL005 (Slim Case Series) | ||
FL005-0604P | Memory – 600KB, PLC Memory – 33K Steps, Digital In/Out – 6 DC/5 PNP, Serial ports – 1 RS232, USB Device, Power – 24VDC External | $264 |
FL005-0604N | Memory – 600KB, PLC Memory – 33K Steps, Digital In/Out – 6 DC/5 PNP, Serial ports – 1 RS232, 1 USB Micro Device, 1 USB Micro Device, Power – 24VDC External | $264 |
FL005-0808P | Memory – 600KB, PLC Memory – 33K Steps, Digital In/Out – 8 DC/8 PNP, Serial ports – 1 RS232, 1 RS485, 1 USB Device, Power – 24VDC External | $303 |
FL005-0808N | Memory – 600KB, PLC Memory – 33K Steps, Digital In/Out – 8 DC/8 PNP, Serial ports – 1 RS232, 1 RS485, 1 USB Device, Power – 24VDC External | $303 |
FL005-0808RP | Memory – 600KB, PLC Memory – 33K Steps, Digital In/Out – 8 DC/6 Relays 2 PNP, Serial ports – 1 RS232, 1 RS485, 1 USB Device, Power – 24VDC External | $323 |
FL005-0808P0201L | Memory – 600KB, PLC Memory – 33K Steps, Digital In/Out – 8 DC/8 PNP, Analog In/Out – 2 4-20 mA or 0-10 V 16 bit/1 4-20 mA 12 bit, Serial ports – 1 RS232, 1 RS485, 1 USB Device, Power – 24VDC External | $362 |
FL005-0808N0201L | Memory – 600KB, PLC Memory – 33K Steps, Digital In/Out – 8 DC/8 PNP, Analog In/Out – 2 4-20 mA or 0-10 V 16 bit/1 4-20 mA 12 bit, Serial ports – 1 RS232, 1 RS485, 1 USB Device, Power – 24VDC External | $362 |
FL005-0808RP0201L | Memory – 600KB, PLC Memory – 33K Steps, Digital In/Out – 8 DC/6 Relays 2 PNP, Analog In/Out – 2 4-20 mA or 0-10 V 16 bit/1 4-20 mA 12 bit, Serial ports – 1 RS232, 1 RS485, 1 USB Device, Power – 24VDC External | $382 |
FL005 (Expandable Series) | ||
FL005-1616P | Memory – 600KB, PLC Memory – 30K Steps, Digital In/Out – 16 DC/16 PNP, Serial ports – 1 RS232 , 1 RS485, 1 USB Device, Power – 24VDC External | $450 |
FL005-1616RP | Memory – 600KB, PLC Memory – 30K Steps, Digital In/Out – 16 DC/14 Relay 2 PNP, Serial ports – 1 RS232 , 1 RS485, 1 USB Device, Power – 24VDC External | $450 |
FL005-0808RP0402U | Memory – 600KB, PLC Memory – 30K Steps, Digital In/Out – 8 DC/6 Relay 2 PNP, Analog In/Out – 4 Universal mA/mV/RTD/TC 16 bit / 2 4-20 mA or 0-10 VDC 12 bit, Serial ports – 1 RS232 , 1 RS485, 1 USB Device, Power – 24VDC External | $470 |
FL005-1616P0201L | Memory – 600KB, PLC Memory – 30K Steps, Digital In/Out – 16 DC/16 PNP, Analog In/Out – 2 4-20mA, 0-20mA or 0-10V 0-5 VDC / 1 4-20 mA or 0-10 VDC 12 bit, 16 bit, Serial ports – 1 RS232 , 1 RS485, 1 USB Device, Power – 24VDC External | $490 |
FL005-1616N0201L | Memory – 600KB, PLC Memory – 30K Steps, Digital In/Out – 16 DC/16 PNP, Analog In/Out – 2 4-20mA, 0-20mA or 0-10V 0-5 VDC / 1 4-20 mA or 0-10 VDC 12 bit, 16 bit, Serial ports – 1 RS232 , 1 RS485, 1 USB Device, Power – 24VDC External | $490 |
FL005-1616RP0201L | Memory – 600KB, PLC Memory – 30K Steps, Digital In/Out – 16 DC/14 Relay 2 PNP, Analog In/Out – 2 4-20mA, 0-20mA or 0-10V 0-5 VDC / 1 4-20 mA or 0-10 VDC 12 bit, 16 bit, Serial ports – 1 RS232 , 1 RS485, 1 USB Device, Power – 24VDC External | $490 |
FL005-1616P0201L-S1 | Memory – 600KB, PLC Memory – 33K Steps, Digital In/Out – 16 DC/16 PNP, Analog In/Out – 2 4-20 mA or 0-10 V 16 bit/1 4-20 mA 12 bit, Serial ports – 1 RS232, 1 RS485, 1 USB Device, Power – 24VDC External | $441 |
Expansion Modules – Digital | ||
FLD1600 | 16 DC In | $177 |
FLD0016P | 16 PNP 0.5A | $266 |
FLD0016N | 16 NPN 0.5A | $266 |
FLD0808P | 8 DC In, 8 PNP 0.5A | $226 |
FLD0808N | 8 DC In, 8 NPN 0.5A | $226 |
FLD0808R | 8 DC In, 8 Relay 2A | $226 |
FLD0016R | 16 Relay 2A | $266 |
FLD-HS-0808P | 8 Digital Inputs, 8 Digital Outputs (PNP), 4 High Speed Inputs (Single phase & Quadrature counter), 2 PWM Outputs | $240 |
FLD-HS-0808N | 8 Digital Inputs, 8 Digital Outputs (NPN), 4 High Speed Inputs (Single phase & Quadrature counter), 2 PWM Outputs | $240 |
Expansion Modules – Analog | ||
FLA0800L | 8 Analog inputs (0-10 V or 4-20 mA) | $315 |
FLA0402U | 4 universal analog inputs (0-10 V, 0-50/100 mV 0-20, 4-20 mA RTD PT100, T/C) 2 analog outputs (0-10 V or 4-20 mA) | $403 |
FLA0004 | 4 analog outputs (0-10, 4-20 mA) | $305 |
Data on FL005 (Slim Case Series) (pdf file, opens in a new tab)
Data on FL005 (Expandable Series) (pdf file, opens in a new tab)

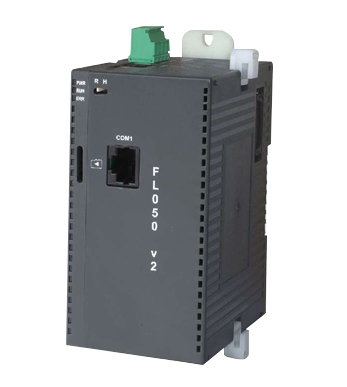

FL050-V2 – PLC with Ethernet
Features
- DIN rail / Back panel mounted compact PLC
- Up-to Two Serial Ports, One USB Device Port (microUSB)
- One Ethernet port to connect PLC / Programming port / remote monitoring over Modbus TCP/IP
- One USB Device Port
- Expandable up-to 16 expansions
- 32 Bit RISC processor
- Built-in RTC
- One microSD card slot for upload, download, logging and monitoring of program
- Power 24 V DC
- Support for LD, FBD, ST, SFC, IL type IEC61131-3 programming languages
- CE, UL approved
Ordering Information:
Model | Description | Price (Excl. GST) | |
FL050-V2 | Memory – 1MB, PLC Memory – 40K Steps, Expansion ports – upto 16, Serial ports – COM1 (RS-232), COM2 (RS-485), USB Device, 1 MicroSD HC, Power – 24VDC External | $344 | |
Expansion Modules- Digital | |||
FLD1600 | 16 DC In | $177 | |
FLD0016P | 16 PNP 0.5A | $266 | |
FLD0016N | 16 NPN 0.5A | $266 | |
FLD0808P | 8 DC In, 8 PNP 0.5A | $226 | |
FLD0808N | 8 DC In, 8 NPN 0.5A | $226 | |
FLD0808R | 8 DC In, 8 Relay 2A | $226 | |
FLD0016R | 16 Relay 2A | $266 | |
FLD-HS-0808P | 8 Digital Inputs, 8 Digital Outputs (PNP), 4 High Speed Inputs (Single phase & Quadrature counter), 2 PWM Outputs | $240 | |
FLD-HS-0808N | 8 Digital Inputs, 8 Digital Outputs (NPN), 4 High Speed Inputs (Single phase & Quadrature counter), 2 PWM Outputs | $240 | |
Expansion Modules- Analog | |||
FLA0800L | 8 Analog inputs (0-10 V or 4-20 mA) | $315 | |
FLA0402U | 4 universal analog inputs (0-10 V, 0-50/100 mV 0-20, 4-20 mA RTD PT100, T/C) 2 analog outputs (0-10 V or 4-20 mA) | $403 | |
FLA0004 | 4 analog outputs (0-10, 4-20 mA) | $305 |
Data sheet on FL050-V2 – PLC with Ethernet (pdf file, opens in a new tab)

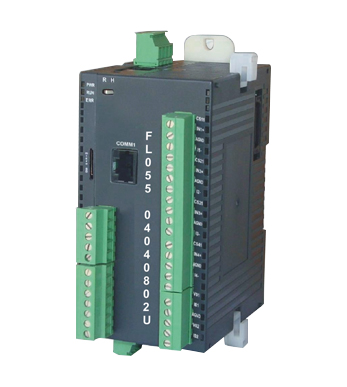

FL055 High Performance PLC with Ethernet and Expandable I/O
Features
- DIN rail / Back panel mounted PLC
- Transistor output
- Expandable up to 16 expansions
- 32 Bit RISC processor
- Built-in RTC
- DC inputs, DC Outputs
- Universal Analog Inputs (Voltage, Current, RTO, Thermocouple)
- Linear Analog Inputs (Current type)
- Analog Output (Voltage, Current)
- One SD card slot
- Support for High Speed Counters / Quaduature (up to 200 KHz) and Timers
- High Speed PWM output(100 KHz)
- Up-to 2 Serial Ports, Support for various PLC protocols
- One ethernet port to connect PLC/Programming port/Remote monitoring over MODBUS TCP/IP
- 1 USB Device Port
- DC powered unit (24 V DC)
- Simple Ladder programming using Windows(r) based software
- Support for LD, FBD, ST, SFC, IL, type IEC61131-3 programming languages
- CE, UL Class1 Div2 approved
Ordering Information:
Model | Description | Price (Excl. GST) | |
FL-055-0404P-0802U | Memory – 1MB, PLC Memory – 40K Steps, Digital In/Out – 4DC / 4PNP, Analog In/Out – 4 (0-20mA, 4-20mA) 4 Universal (mA, mV, V, RTD, Thermocouple) 16 bit / 2 (4-20mA, 0-10VDC), 12 bit, Expansion ports – upto 16, Serial ports – COM1 (RS-232), COM2 (RS-485), USB Device, 1 MicroSD HC, Power – 24VDC External | $627 | |
Expansion Modules- Digital | |||
FLD1600 | 16 DC In | $177 | |
FLD0016P | 16 PNP 0.5A | $266 | |
FLD0016N | 16 NPN 0.5A | $266 | |
FLD0808P | 8 DC In, 8 PNP 0.5A | $226 | |
FLD0808N | 8 DC In, 8 NPN 0.5A | $226 | |
FLD0808R | 8 DC In, 8 Relay 2A | $226 | |
FLD0016R | 16 Relay 2A | $266 | |
FLD-HS-0808P | 8 Digital Inputs, 8 Digital Outputs (PNP), 4 High Speed Inputs (Single phase & Quadrature counter), 2 PWM Outputs | $240 | |
FLD-HS-0808N | 8 Digital Inputs, 8 Digital Outputs (NPN), 4 High Speed Inputs (Single phase & Quadrature counter), 2 PWM Outputs | $240 | |
Expansion Modules- Analog | |||
FLA0800L | 8 Analog inputs (0-10 V or 4-20 mA) | $315 | |
FLA0402U | 4 universal analog inputs (0-10 V, 0-50/100 mV 0-20, 4-20 mA RTD PT100, T/C) 2 analog outputs (0-10 V or 4-20 mA) | $403 | |
FLA0004 | 4 analog outputs (0-10, 4-20 mA) | $305 |
Data on FL055 (pdf file, opens in a new tab)

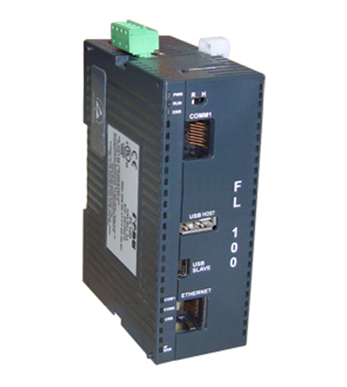

FL100 High Speed PLC with Ethernet and Expandable I/O
Features
- DIN rail / Back panel mounted compact PLC
- Up-to 2 Serial Ports , 1 USB Device Port , 1 USB Host Port
- One Ethernet port to connect PLC / Programming Port / Remote monitoring over Modbus TCP/IP
- Expandable up to 16 expansions
- 32 Bit RISC processor
- Simple Ladder programming using Windows® based software
- Support for LD, FBD, ST, SFC, IL type IEC61131-3 programming languages
- Support for web server functionality
- Strong Communication capabilities. PLC can be configured as Modbus RTU Master or Slave
- DC powered units (24 V DC)
- CE, UL approved
Ordering Information:
Model | Description | Price (Excl. GST) | |
FL100 | Memory – 22MB, PLC Memory – Ladder 30MB User Application 10MB, Expansion ports – upto 16, Serial ports – COM1 (RS-232), COM2 (RS-485), USB Host & Device, Power – 24VDC External | $619 | |
Expansion Modules- Digital | |||
FLD1600 | 16 DC In | $177 | |
FLD0016P | 16 PNP 0.5A | $266 | |
FLD0016N | 16 NPN 0.5A | $266 | |
FLD0808P | 8 DC In, 8 PNP 0.5A | $226 | |
FLD0808N | 8 DC In, 8 NPN 0.5A | $226 | |
FLD0808R | 8 DC In, 8 Relay 2A | $226 | |
FLD0016R | 16 Relay 2A | $266 | |
FLD-HS-0808P | 8 Digital Inputs, 8 Digital Outputs (PNP), 4 High Speed Inputs (Single phase & Quadrature counter), 2 PWM Outputs | $240 | |
FLD-HS-0808N | 8 Digital Inputs, 8 Digital Outputs (NPN), 4 High Speed Inputs (Single phase & Quadrature counter), 2 PWM Outputs | $240 | |
Expansion Modules- Analog | |||
FLA0800L | 8 Analog inputs (0-10 V or 4-20 mA) | $315 | |
FLA0402U | 4 universal analog inputs (0-10 V, 0-50/100 mV 0-20, 4-20 mA RTD PT100, T/C) 2 analog outputs (0-10 V or 4-20 mA) | $403 | |
FLA0004 | 4 analog outputs (0-10, 4-20 mA) | $305 |
Data on FL100 (pdf file, opens in new tab)
FlexiPanels HMI’s

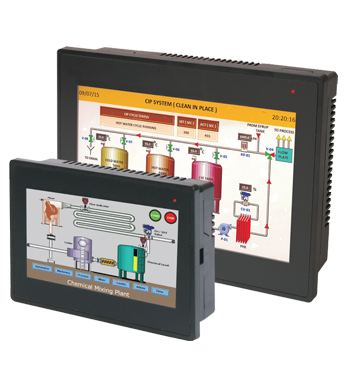

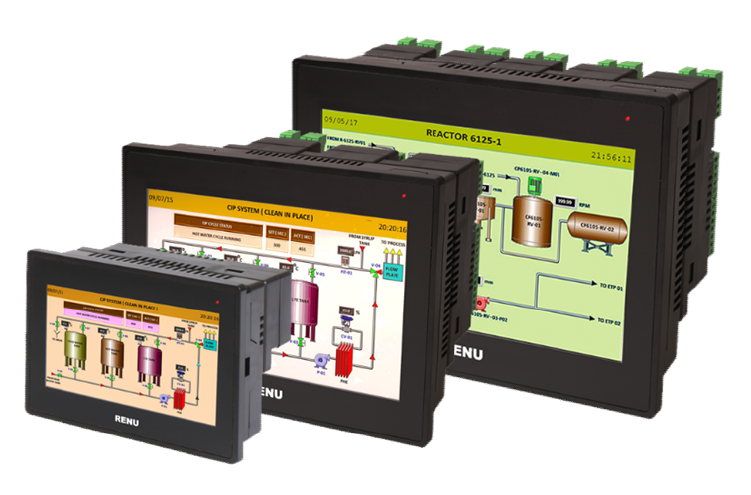

FP2 Series Basic HMI’s
Features:
- 4.3”and 7” TFT display options
- Suitable for basic applications, trending, tasks, alarms, logging, IEC 61131-3 programing environment, native ladder logic support
- Flash: 16MB
- RAM: 16MB
- Approvals: CE, UL Class I Div 2, IP65
Ordering Information:
Models | Description | Price (Excl. GST) |
FP2043T | 4.3” TFT, 24VDC, 2 Serial ports (1 RS232, 1 RS485), 1 USB device, Operating Temperature: 0° to 50° C, CE, UL Class I Div 2 | $343 |
FP2043TN | 4.3” TFT, 24VDC, 2 Serial ports (1 RS232, 1 RS485), 1 USB device, 1 Ethernet, Operating Temperature: 0° to 50° C, CE, UL Class I Div 2 | $372 |
FP2070T | 7” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, Operating Temperature: 0° to 50° C, CE, UL Class I Div 2 | $549 |
FP2070TN | 7” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 Ethernet, Operating Temperature: 0° to 50° C, CE, UL Class I Div 2 | $578 |
Data sheet on FP2 Series Basic HMI’s (pdf file, opens in new tab)

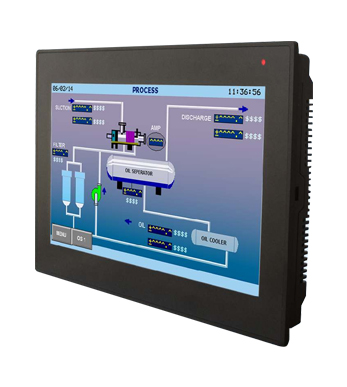

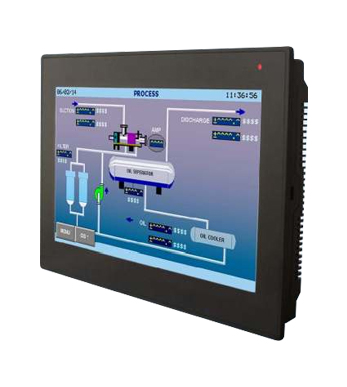

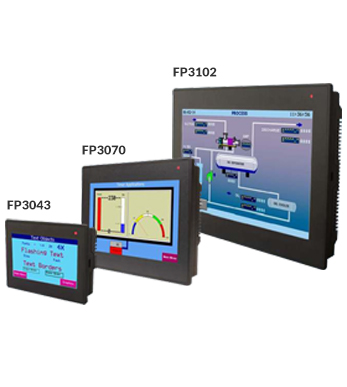

FP3 Series HMI’s – Value Touch Screens
Features:
- 4.3” to 10.2” TFT Color display with touch screen
- Two serial communication interfaces (One RS232 and One RS232/RS485)
- One USB programming port
- One USB Host port
- One Ethernet port
- One SD card slot
- Supports Horizontal and Vertical display orientation
- High quality color display
- Front Panel mounting with IP66 rating
- Multilanguage support with true type Windows fonts
- CE, UL Class I Div 2, RoHS
Ordering Information:
Models | Description | Price (Excl. GST) |
FP3035T | 3.5” TFT, 24VDC, 2 Serial ports (1 RS232, 1 RS485), 1 USB device | $343 |
FP3043T | 4.3” TFT, 24VDC, 2 Serial ports (1 RS232, 1 RS485), 1 USB device, 1 USB host | $441 |
FP3043TN | 4.3” TFT, 24VDC, 2 Serial ports (1 RS232, 1 RS485), 1 USB device, 1 USB host, 1 Ethernet, 1 SD Card Slot | $500 |
FP3070T | 7” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB host | $647 |
FP3070TN | 7” TFT, 24VDC, 2 Serial ports (RS232/RS485),1 USB device, 1 USB host, 1 Ethernet, 1 SD Card Slot | $706 |
FP3102T | 10.2” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB host | $1,049 |
FP3102TN | 10.2” TFT, 24VDC, 2 Serial ports (RS232/RS485),1 USB device, 1 USB host, 1 Ethernet, 1 SD Card Slot | $1,108 |
Programming SW | FlexiSoft v2.3 and later (Free) |
Data sheet on FP3 Series HMI’s (pdf file, opens in a new tab)

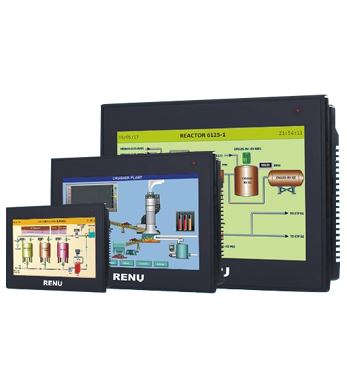

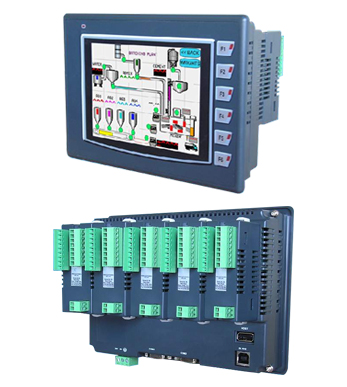

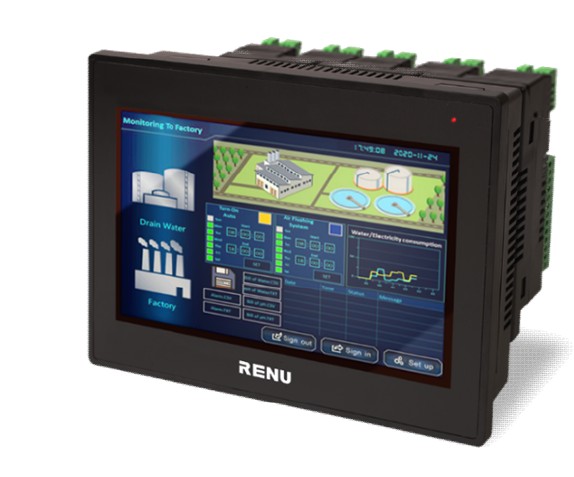

FP4 Series Advanced HMI’s
FP4 Advanced series offers a powerful, feature rich and versatile HMI product range that provides a perfect solution for complex application needs. A powerful combination of FlexiSoft configuration software and new FlexiSoft runtime gives a perfect balance of ease of configuration and efficient performance.
Features:
- 4.3”, 7”, 10.1″, 12.1″ and 15″ TFT display options
- Suitable for Complex applications, VNC Server, Web server, Trending, Email, Alarms, Data logging, IEC 61131-3 programing environment, Recipe Management
- eMMC: 4GB, RAM: 512MB
- Operating Temperature range (-10 to 60° C)
- Approvals:CE, UL Class I Div2, IP66
Ordering Information:
Models | Description | Price (Excl. GST) |
FP4043T | 4.3” TFT, 24VDC, 2 Serial ports (1 RS232, 1 RS485), 1 USB device, 1 USB Host, Operating Temperature: -10° to 60° C, CE, UL Class I Div 2 | $480 |
FP4043TN | 4.3” TFT, 24VDC, 2 Serial ports (1 RS232, 1 RS485), 1 USB device, 1 USB Host, 1 Ethernet, 1 SD Card Slot, Operating Temperature: -10° to 60° C, CE, UL Class I Div 2 | $539 |
FP4070T | 7” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB Host, Operating Temperature: -10° to 60° C, CE, UL Class I Div 2 | $686 |
FP4070TN | 7” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB Host, 1 Ethernet, 1 SD Card Slot, Operating Temperature: -10° to 60° C, CE, UL Class I Div 2 | $745 |
FP4101T | 10.1” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB Host, Operating Temperature: -10° to 60° C, CE, UL Class I Div 2 | $1,088 |
FP4101TN | 10.1” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB Host, 1 Ethernet, 1 SD Card Slot, Operating Temperature: -10° to 60° C, CE, UL Class I Div 2 | $1,147 |
FP4121T | 12.1” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB Host, Operating Temperature: -10° to 60° C, CE, UL Class I Div 2 | $2,961 |
FP4121TN | 12.1” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB Host, 1 Ethernet, 1 SD Card Slot, Operating Temperature: -10° to 60° C, CE, UL Class I Div 2 | $3,020 |
Data sheet FP4 Series Advanced HMI’s (pdf file, opens in a new tab)

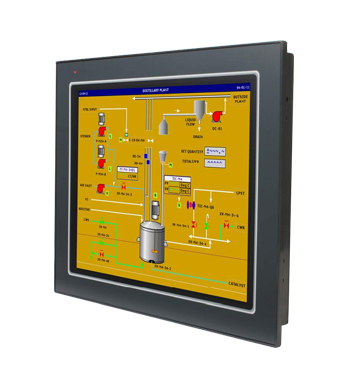

FP4/FP5 Series HMI’s
The FlexiPanels support Operator interface features. The user can also implement logic, specific to application using standard Ladder programming. A PLC logic block can be executed at power up, during every scan or upon a timer interrupt. TheFlexiPanels operator interface functions revolve around Screens and Tasks that can be assigned to screens and application.
Features:
- 3” to 12.1” Graphical Touchscreen Multicolor / TFT Color Display
- Floating point support, Bar graph, Built-in RTC
- Ladder editor with powerful instruction set
- Support for Recipes and 32K color Bitmaps for color LCD Models
- Communication Ports:
- One / Two serial ports to connect PLC at RS232 / 422 / 485 levels / Printer / Programming Port
- One USB (device) port as Programming Port
- One USB (host) port to connect USB memory drive*
- One optional Ethernet port to connect PLC / Programming Port / Remote monitoring*
- Dual Port communication supported for units with two serial ports
- User defined Function keys to support various tasks
- Data Logging, Transfer logged data on USB memory drive*
- Trending (Real Time & Historical*)
- Alarms (Real Time & Historical)
- Multilanguage (Unicode) support with true type Windows® fonts
- IP66 design. CE, UL approved. RoHS compliant
- Common Programming software for the entire FlexiPanels® family………FREE!!
*Not supported in FP4030MT
Ordering Information:
Models | Description | Price (Excl. GST) |
FP4030MT | 3” (128×64 pixels) multicolor backlit LCD with Touch Screen, 2 (RS232 / RS485 on 1 “D” Type connector), 1 USB Device, Power 24 VDC external | $433 |
FP5043T | 4.3” (480×272 pixels) TFT Color Touch Screen, 2 (RS232 / RS485 on 1 “D” Type connector), USB Device and Host, Power 24 VDC external. | $668 |
FP5043TN | 4.3” (480×272 pixels) TFT Color Touch Screen, 2 (RS232 / RS485 on 1 “D” Type connector), USB Device and Host, Power 24 VDC external. | $766 |
FP5070T | 7” (800×480 pixels) TFT Color Touch Screen, 2 (RS232/485), USB Device and Host, Power 24 VDC external. | $1,071 |
FP5070TN | 7” (800×480 pixels) TFT Color Touch Screen, 2 (RS232/485), USB Device and Host, Power 24 VDC external. | $1,169 |
FP5121T | 12.1″ (800×600) TFT Color Touch Screen HMI, 2 (RS232/485), USB Device and Host, Power 24 VDC external. | $2,824 |
FP5121TN | 12.1″ (800×600) TFT Color Touch Screen HMI, 2 (RS232/485), USB Device and Host, Power 24 VDC external. | $3,216 |
Data sheet on FP4/FP5 Series HMI’s (pdf file, opens in new tab)

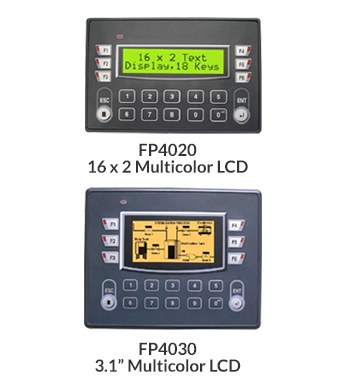

HMI’s with Keypad
Features:
- 16 x 2 Text and 3.1” Graphical / Multicolor Backlight LCD Display
- Floating point support, Bar graph, Built-in RTC
- Ladder editor with powerful instruction set
- Support for Recipes
- Communication Ports:
- One serial port to connect PLC at RS232 / 422 / 485 levels / Printer / Progamming Port
- One USB (device) port as Programming Port
- User defined Function keys to support various tasks
- Alarms (Real Time & Historical)
- Multilanguage (Unicode) support with true type Windows® fonts for graphical model
- IP66 design. CE, UL approved. RoHS compliant
- Common Programming software for the entire FlexiPanels® family………FREE!!
Ordering Information:
Models | Description | Price (Excl. GST) |
FP4020MR | 2×16 Text Multi color backlight, 18 Keys, 1 RS232/485, USB Device, 24VDC External | $256 |
FP4030MR | 128×64 Mono Multi color backlight, 18 Keys, 1 RS232/485, USB Device, 24VDC External | $362 |
Data sheet on HMI’s with Keypad (pdf file, opens in new tab)

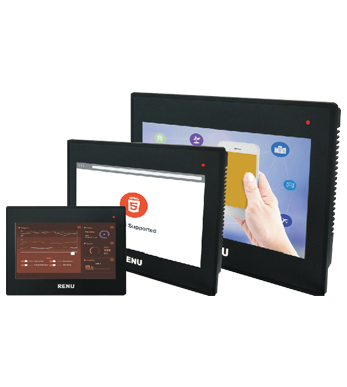

WP6 WebPanel with HTML5
The Web HMI is a ThinClient with an inbuilt browser which can be used to connect to a remote web server on the network. All the products are compliant to EMC directive 2014/30/EU and LVD directive 2014/35/EU and certified for UL Class I Div. 2.
Features:
- 4.3”, 7” and 10.1″TFT display options
- HTML5 compatible web browser support
- SVG support
- ARM Cortex-A9 with GPU 2D / GPU 3D support
- Complete browser functionality
- Approvals: CE, UL, RoHS, IP66
Ordering Information:
Part Number | Description | |
WP6043TN | 4.3″ TFT Web Panel | Contact us for price |
WP6070TN | 7″ TFT Web Panel | |
WP6101TN | 10.1″ TFT Web Panel |
Data sheet on WP6 WebPanel with HTML5 (pdf file, opens in new tab)
FlexiPanels HMI’s with I/O (All in One PLC+HMI)

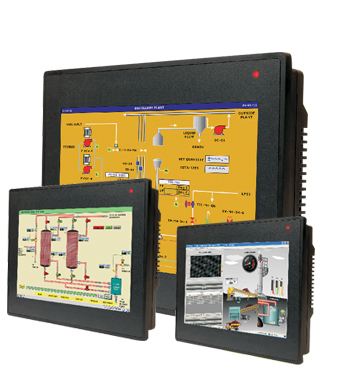

FP3 Series HMI’s with I/O Expansion
Features:
- 4.3”, 7” and 10.2” TFT Color display with Optional Pluggable I/O modules
- Easy to connect and configure
- Wide range of ‘All-in-one’ (Digital and Analog) I/O modules
- One USB Host port
- One Ethernet port with multiple protocol support and FTP
- One SD card slot for programming or data logging
- Supports Horizontal and Vertical display orientation
- High quality color display
- Front Panel mounting with IP66 rating
- Multilanguage support with true type Windows fonts
- CE, UL Class I Div 2, RoHS
HMI Ordering Information:
Models | Description | Price (Excl. GST) |
FP3043T-E | 4.3” TFT, 24VDC, 2 Serial ports (1 RS232, 1 RS485), 1 USB device, 1 USB host | $460 |
FP3043TN-E | 4.3” TFT, 24VDC, 2 Serial ports (1 RS232, 1 RS485), 1 USB device, 1 USB host, 1 Ethernet, 1 SD Card Slot | $519 |
FP3070T-E | 7” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB host | $686 |
FP3070TN-E | 7” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB host, 1 Ethernet, 1 SD Card Slot | $745 |
FP3102T-E | 10.2” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB host | $1,147 |
FP3102TN-E | 10.2” TFT, 24VDC, 2 Serial ports (RS232/RS485), 1 USB device, 1 USB host, 1 Ethernet, 1 SD Card Slot | $1,206 |
Programming SW | FlexiSoft v2.3 and later (Free) |
Pluggable I/O Module Ordering Information:
Models | Description | Price (Excl. GST) |
FPEM-1616P | 16 Digital Inputs, 16 Digital Outputs (14 PNP, 2 outputs can be configured for PWM) | $264 |
FPEM-1614RP | 16 Digital Inputs, 14 Digital Outputs (12 Relay, 2 outputs can be configured for PWM) | $264 |
FPEM-1212P-A0200L | 12 Digital Inputs, 12 Digital Outputs (10 PNP, 2 outputs can be configured for PWM), 2 Analog Inputs (Voltage / Current) | $225 |
FPEM-1212RP-A0200L | 12 Digital Inputs, 12 Digital Outputs (10 Relay, 2 outputs can be configured for PWM), 2 Analog Inputs (Voltage / Current) | $225 |
FPEM-1210P-A0201L | 12 Digital Inputs, 10 Digital Outputs (8 PNP, 2 outputs can be configured for PWM), 2 Analog Inputs (Voltage / Current), 1 Analog Output (Voltage / Current) | $244 |
FPEM-1210RP-A0201L | 12 Digital Inputs, 10 Digital Outputs (8 Relay, 2 outputs can be configured for PWM), 2 Analog Inputs (Voltage / Current), 1 Analog Output (Voltage / Current) | $244 |
FPEM-1210P-A0200U | 12 DI (2 HSC I/P up to 200 KHz), 10 DO (PNP type, 2 PWM O/P up to 200 KHz), 2 16- bit Universal AI (Voltage / Current / RTD / Thermocouple) | $362 |
FPEM-0808P-A0401U | 8 Digital Inputs, 8 Digital Outputs (6 PNP, 2 outputs can be configured for PWM), 4 Analog Inputs (Universal), 1 Analog Output (Voltage / Current) | $421 |
FPEM-0808RP-A0401U | 8 Digital Inputs, 8 Digital Outputs (6 Relay, 2 outputs can be configured for PWM), 4 Analog Inputs (Universal), 1 Analog Output (Voltage / Current) | $421 |
Data sheet on FP3 Series HMI with I/Os (pdf file, opens in new tab)

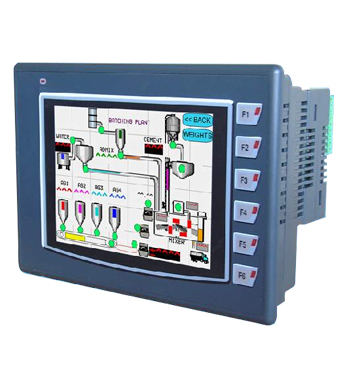

FP4/FP5 Series HMI’s with I/O Expansion
Features:
- 3” Monochrome to 7” Graphical Touchscreen TFT Color Display
- Floating point support, Bar graph, Built-in RTC
- Integrated / Pluggable Digital and Analog Inputs and Outputs
- Digital Outputs – OC / Relays
- Analog Inputs for RTD, mV, mA, Thermocouple, 0 to 5 VDC, 0 to 10 VDC, -10 to +10VDC
- Analog Outputs are 4-20 mA / 0-10 VDC
- High Speed Counters and Timers
- Support for Quadrature inputs and PWM output
- Ladder editor with powerful instruction set
- Support for Recipes and 32K color Bitmaps for color LCD Models
- Communication Ports:
- One / Two serial ports to connect PLC at RS232 / 422 / 485 levels / Printer / Programming Port
- One USB (device) port as Programming Port
- One USB (host) port to connect USB memory drive
- One optional Ethernet port to connect PLC / Programming Port / Remote monitoring
- Dual Port communication supported for units with two serial ports
- User defined Function keys to support various tasks
- Data Logging, Transfer logged data on USB memory drive
- Trending (Real Time & Historical)
- Alarms (Real Time & Historical)
- Multilanguage (Unicode) support with true type Windows® fonts for graphical models
- IP66 design. CE, UL approved. RoHS compliant
- Common Programming software for the entire FlexiPanels® family………FREE!!
Ordering Information:
Models | Description | Price (Excl. GST) |
FP4030MT-L0808RP-A0201U | 128×64 (3”) Multicolor Backlight, USB Device, 24VDC External | $727 |
FP4030MT-L0808RP-A0201L | 128×64 (3”) Multicolor Backlight, USB Device, 24VDC External | $629 |
FP4030MT-L0808RP | 128×64 (3”) Multicolor Backlight, USB Device, 24VDC External | $590 |
FP5043T-E | 4.3” (480×272 pixels) TFT Color Touch Screen, Power 24 VDC external. | $727 |
FP5043TN-E | 4.3” (480×272 pixels) TFT Color Touch Screen, Power 24 VDC external. | $825 |
FP5070T-E | 7” (800×480 pixels) TFT Color Touch Screen, Power 24 VDC external. | $1,129 |
FP5070TN-E | 7” (800×480 pixels) TFT Color Touch Screen, Power 24 VDC external. | $1,227 |
Pluggable Expansion Modules (Digital I/O):
Models | Description | Price (Excl. GST) |
FPED0808P | 8 DC in, 8 PNP out module 0.5A | $177 |
FPED0808N | 8 DC in, 8 NPN out module 0.5A | $177 |
FPED1600 | 16 Digital inputs. | $158 |
FPED0012R | 12 outputs (relays 2 A, 5 A per common) | $207 |
FPED0016P | 16 outputs (PNP 0.5 A) | $226 |
FPED0016N | 16 outputs (NPN 0.5A) | $226 |
FPED-HS-0808N | 08 DI (04 DI can be configured for High Speed inputs. 25 K Hz), 08 DO (NPN. 2 outputs can be configured for PWM. 10KHz). | $207 |
FPED-HS-0808P | 08 DI (04 DI can be configured for High Speed inputs. 25 K Hz), 08 DO (PNP. 2 outputs can be configured for PWM. 10KHz). | $207 |
FPED-HS-0808RP | 8 DI, 6 Relay outputs (2A, 5A per common), 2 PNP outputs | $207 |
FPED-HS-0808RN | 8 DI, 6 Relay outputs (2A, 5A per common), 2 NPN outputs | $207 |
Pluggable Expansion Modules (Analog I/O):
Models | Description | Price (Excl. GST) |
FPEA0202L | 2 Analog inputs (4-20mA, 0 – 20mA, 0 – 10 V, -10 to + 10V ranges) 2 Analog Outputs (4-20mA, 0 – 20mA, 0 – 10 V) | $372 |
FPEA0400L | 4 Analog inputs (4-20mA, 0 – 20mA, 0 – 10 V, -10 to + 10V ranges) | $313 |
FPEA-0402U-16 | 4 Universal Analog Inputs (4-20mA, 0 – 20mA, TC , RTD, 0-5V, 0 – 10 V, 0-50mV, 0 – 100mv ranges) 2 Analog Outputs (4-20mA, 0 – 20mA, 0 – 10 V). All AI/O 16 bit resolution | $470 |
FPEA0800LC | 8 Analog inputs (4-20mA) | $352 |
FPEA0800LV | 8 Analog inputs (0-10VDC) | $352 |
Data sheet on FP4/FP5 Series HMI’s with I/O Expansion (pdf file, opens in a new tab)

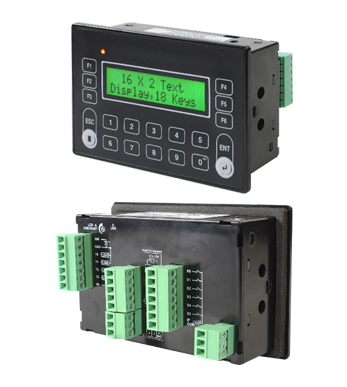

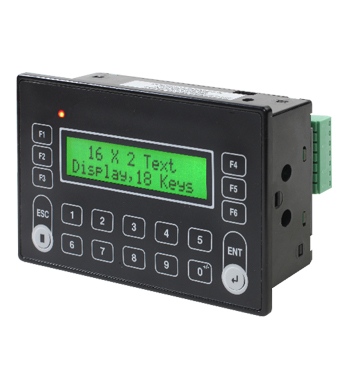

FP2020 Low Cost HMI with I/O
Features:
- 16 x 2 text display with multicolor LED backlight
- 18 keys (6 Function Keys)
- One USB programming port
- 24 VDC Power Supply
- DC inputs, DC Outputs
- Analog Inputs (voltage, Current)
- Analog Output (Voltage, Current)
- Support for High Pulse Output up-to 1 KHz
- IEC61131-3 Programming enviroment
- CE, UL Class I Div 2, RoHs
Ordering Information:
Models | Description | Price (Excl. GST) |
FP2020-L0604P-A0401L | 2×16 Text Multi color backlight, 18 keys, One USB programming port for upload/download and monitoring, Digital I/P’s: 6 DC in, Digital O/P’s: 4 PNP out , Analog I/P’s : 2 Voltage I/P’s, 2 Current I/P’s, Analog O/P’s : 1 (Voltage / Current), 24VDC External | $305 |
FP2020-L0808P-A0401L | 2×16 Text Multi color backlight, 18 keys, One USB programming port for upload/download and monitoring, Digital I/P’s: 8 DC in Digital O/P’s: 8 PNP out, Analog I/P’s: 2 Voltage I/P’s, 2 Current I/P’s, Analog O/P’s: 1 (Voltage / Current), 24VDC External | $346 |
FP2020-L0808RP-A0401L | 2×16 Text Multi color backlight, 18 keys, One USB programming port for upload/download and monitoring, Digital I/P’s: 8 DC in Digital O/P’s: 6 Relay out 2A, 2 PNP out, Analog I/P’s: 2 Voltage I/P’s, 2 Current I/P’s, Analog O/P’s :1 (Voltage / Current), 24VDC External | $347 |
Data sheet on FP2020 Low Cost HMI with I/O (pdf file, opens in a new tab)

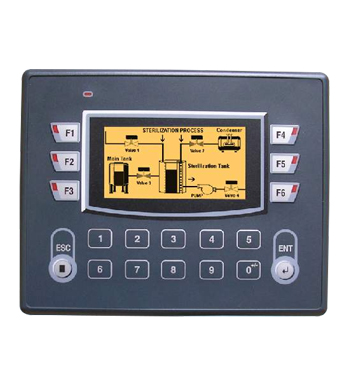

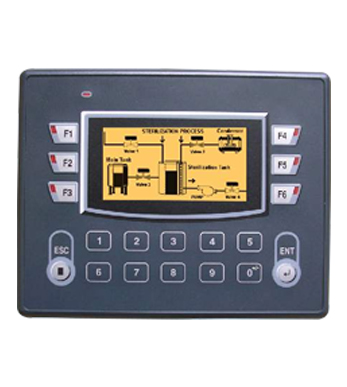

HMI’s with I/O with Keypad
- 16 x 2 Text and 3.1” Graphical / Multicolor Backlight LCD Display
- Floating point support, Bar graph, Built-in RTC
- Integrated / Pluggable Digital and Analog Inputs and Outputs
- Digital Outputs – OC / Relays
- Analog Inputs for RTD, mV, mA, Thermocouple, 0 to 5 VDC, 0 to 10 VDC, -10 to +10VDC
- Analog Outputs are 4-20 mA / 0-10 VDC
- High Speed Counters and Timers
- Support for Quadrature inputs and PWM output
- Ladder editor with powerful instruction set
- Support for Recipes
- Communication Ports:
- One serial port to connect PLC at RS232 / 422 / 485 levels / Printer / Progamming Port
- One USB (device) port as Programming Port
- User defined Function keys to support various tasks
- Alarms (Real Time & Historical)
- Multilanguage (Unicode) support with true type Windows® fonts for graphical model
- IP66 design. CE, UL approved. RoHS compliant
- Common Programming software for the entire FlexiPanels® family………FREE!!
Ordering Information:
Models | Description | Price (Excl. GST) |
FP4020MR-L0808P | 2×16 Text Multi color backlight, 18 keys, Digital I/P’s : 8 DC in, Digital O/P’s : 8 PNP 0.5A, RTClock, 1 RS232/485, USB Device, 24VDC External | $453 |
FP4020MR-L0808N | 2×16 Text Multi color backlight, 18 keys, Digital I/P’s : 8 DC in, Digital O/P’s : 8 PNP 0.5A, RTClock, 1 RS232/485, USB Device, 24VDC External | $453 |
FP4020MR-L0808R | 2×16 Text Multi color backlight, 18 keys, Digital I/P’s : 8 DC in, Digital O/P’s : 6 Relays 2A 2 NPN 0.5A, RTClock, 1 RS232/485, USB Device, 24VDC External | $492 |
FP4030MR-L1208R | 128×64 Mono Multi color backlight, 18 keys, Digital I/P’s : 12 DC in, Digital O/P’s : 6 Relays 2A 2 NPN 0.5A, RTClock, 1 RS232/485, USB Device, 24VDC External | $658 |
FP4030MR-E | 128×64 Mono Multi color backlight, 18 keys, 3 Expansion ports, RTClock, RS232/485, USB Device, 24VDC External | $453 |
Pluggable Expansion Modules (Digital I/O):
Models | Description | Price (Excl. GST) |
FPED0808P | 8 DC in, 8 PNP out module 0.5A | $177 |
FPED0808N | 8 DC in, 8 NPN out module 0.5A | $177 |
FPED1600 | 16 Digital inputs. | $158 |
FPED0012R | 12 outputs (relays 2 A, 5 A per common) | $207 |
FPED0016P | 16 outputs (PNP 0.5 A) | $226 |
FPED0016N | 16 outputs (NPN 0.5A) | $226 |
FPED-HS-0808N | 08 DI (04 DI can be configured for High Speed inputs. 25 K Hz), 08 DO (NPN. 2 outputs can be configured for PWM. 10KHz). | $207 |
FPED-HS-0808P | 08 DI (04 DI can be configured for High Speed inputs. 25 K Hz), 08 DO (PNP. 2 outputs can be configured for PWM. 10KHz). | $207 |
FPED-HS-0808RP | 8 DI, 6 Relay outputs (2A, 5A per common), 2 PNP outputs | $207 |
FPED-HS-0808RN | 8 DI, 6 Relay outputs (2A, 5A per common), 2 NPN outputs | $207 |
Pluggable Expansion Modules (Analog I/O):
Models | Description | Price (Excl. GST) |
FPEA0202L | 2 Analog inputs (4-20mA, 0 – 20mA, 0 – 10 V, -10 to + 10V ranges) 2 Analog Outputs (4-20mA, 0 – 20mA, 0 – 10 V) | $372 |
FPEA0400L | 4 Analog inputs (4-20mA, 0 – 20mA, 0 – 10 V, -10 to + 10V ranges) | $313 |
FPEA-0402U-16 | 4 Universal Analog Inputs (4-20mA, 0 – 20mA, TC , RTD, 0-5V, 0 – 10 V, 0-50mV, 0 – 100mv ranges) 2 Analog Outputs (4-20mA, 0 – 20mA, 0 – 10 V). All AI/O 16 bit resolution | $470 |
FPEA0800LC | 8 Analog inputs (4-20mA) | $352 |
FPEA0800LV | 8 Analog inputs (0-10VDC) | $352 |
Data sheet on HMI’s with I/O with Keypad (pdf file, opens in new tab)

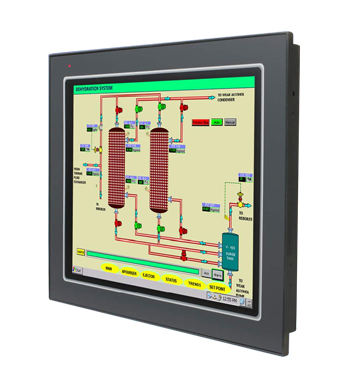

FlexiPanels Windows CE Based HMI’s
PC3 Series HMI’s
<
TheWindow CE based FlexiPanels have pre-installed Windows CE 6.0 R3 operating system. It allows the user to execute Windows CE compatible third party software, SCADA on the device. The SDK (software development kit) built for the these devices can be used to develop native and managed custom applications, using VC++, VB, C# Languages and Visual Studio. .NET framework 3.5 is included in the device required to run managed applications on the device. These products can be connected to PC through USB cable and Active sync 3.5. USB Host can be used for connecting USB keyboard, USB Mouse and SB Stick.
Features:
- 4.3”, 7” and 10.2” Color TFT display options
- Pre-installed Windows CE 6.0 R3
- Memory :
- Up-to 128 MB RAM
- Up-to 128 MB Flash
- 2x serial communication ports
- 1x Ethernet port (10/100 Mbps)
- 1x SD card slot
- 1x USB device port
- 1x USB host port: Can be used for extended memory / USB keyboard / USB mouse
- Support for 65K color
- Front Panel mounting with IP66 rating
- CE, UL Class I Div 2, RoHS
Ordering Information:
Models | Description | Price (Excl. GST) |
PC3043TN | 4.3” TFT, 24VDC, 2x Serial ports (1 RS232, 1 RS485), 1x USB device, 1x USB host, 1 Ethernet, 1x SD Card Slot | $598 |
PC3070TN | 7” TFT, 24VDC, 2x Serial ports (RS232/RS485), 1x USB device, 1x USB host, 1x Ethernet, 1x SD Card Slot | $804 |
PC3102TN | 10.2” TFT, 24VDC, 2x Serial ports (RS232/RS485), 1x USB device, 1x USB host, 1x Ethernet, 1x SD Card Slot |
$1,206
|
SKU | Windows CE 6.0 R3 Pro |
Data sheet on PC3 Series HMI’s (pdf file, opens in new tab)
PC5 Series HMI’s with I/O Expansion
Features:
- 4.3” WQVGA (480×272 pixels), 7” WVGA (800×480 pixels), 12.1” SVGA (800×600 pixels)
- TFT Color Touch screen Graphical Display
- Windows CE 6.0 R3 support
- Support for 65K color, Built-in RTC
- Dual Port communication supported
- Serial Communication Ports:
- Serial ports to connect PLC at RS232 / 485 levels
- USB Ports:
- One USB device port
- One USB host port: Can be used for Extended Memory / USB Keyboard / USB Mouse
- Ethernet Port : One Ethernet port (10/100 Mbps)
- Memory:
- Up-to 128 MB RAM
- Up-to 128 MB flash memory
- Integrated / Pluggable Digital and Analog Inputs and Outputs
- Digital Outputs – OC / Relays
- Analog Inputs for RTD, mV, mA, Thermocouple, 0 to 5 VDC, 0 to 10 VDC, -10 to +10VDC
- Analog Outputs are 4-20 mA / 0-10 VDC
- Support for Quadrature inputs and PWM output
- IP66 design. CE, UL approved. RoHS compliant
Ordering Information:
Models | Description | Price (Excl. GST) |
PC5043TN | 4.3” (480×272 pixels) TFT Color Touch Screen HMI with Windows Embedded CE 6.0 R3 Support, Power 24 VDC external. | $864 |
PC5043TN-E | 4.3” (480×272 pixels) TFT Color Touch Screen HMI with Windows Embedded CE 6.0 R3 Support, Power 24 VDC external. | $923 |
PC5070TN | 7” (800×480 pixels) TFT Color Touch Screen HMI with Windows Embedded CE 6.0 R3 Support, Power 24 VDC external. | $1,267 |
PC5070TN-E | 7” (800×480 pixels) TFT Color Touch Screen HMI with Windows Embedded CE 6.0 R3 Support, Power 24 VDC external. | $1,325 |
PC5121TN | 12.1″ (800×600) TFT Color Touch Screen HMI with Windows Embedded CE 6.0 R3 Support, Power 24 VDC external. | $3,315 |
Pluggable Expansion Modules (Digital I/O):
Models | Description | Price (Excl. GST) |
FPED0808P | 8 DC in, 8 PNP out module 0.5A | $177 |
FPED0808N | 8 DC in, 8 NPN out module 0.5A | $177 |
FPED1600 | 16 Digital inputs. | $158 |
FPED0012R | 12 outputs (relays 2 A, 5 A per common) | $207 |
FPED0016P | 16 outputs (PNP 0.5 A) | $226 |
FPED0016N | 16 outputs (NPN 0.5A) | $226 |
FPED-HS-0808N | 08 DI (04 DI can be configured for High Speed inputs. 25 K Hz), 08 DO (NPN. 2 outputs can be configured for PWM. 10KHz). | $207 |
FPED-HS-0808P | 08 DI (04 DI can be configured for High Speed inputs. 25 K Hz), 08 DO (PNP. 2 outputs can be configured for PWM. 10KHz). | $207 |
FPED-HS-0808RP | 8 DI, 6 Relay outputs (2A, 5A per common), 2 PNP outputs | $207 |
FPED-HS-0808RN | 8 DI, 6 Relay outputs (2A, 5A per common), 2 NPN outputs | $207 |
Pluggable Expansion Modules (Analog I/O):
Models | Description | Price (Excl. GST) |
FPEA0202L | 2 Analog inputs (4-20mA, 0 – 20mA, 0 – 10 V, -10 to + 10V ranges) 2 Analog Outputs (4-20mA, 0 – 20mA, 0 – 10 V) | $372 |
FPEA0400L | 4 Analog inputs (4-20mA, 0 – 20mA, 0 – 10 V, -10 to + 10V ranges) | $313 |
FPEA-0402U-16 | 4 Universal Analog Inputs (4-20mA, 0 – 20mA, TC , RTD, 0-5V, 0 – 10 V, 0-50mV, 0 – 100mv ranges) 2 Analog Outputs (4-20mA, 0 – 20mA, 0 – 10 V). All AI/O 16 bit resolution | $470 |
FPEA0800LC | 8 Analog inputs (4-20mA) | $352 |
FPEA0800LV | 8 Analog inputs (0-10VDC) | $352 |
Data sheet on PC5 Series HMI’s with I/O Expansion (pdf file, opens in a new tab)
