What is an anemometer/wind sensor?

An anemometer is an instrument that measures the air velocity. The main applications of wind sensor are in the field of meteorology and industrial applications such as in wind turbine business or high-rise crane safety monitoring. Wind speed sensor & wind direction sensor are used for wind speed and direction measurement. For the measurement of wind speed and wind direction, several principles may be used, as described in the WMO ‘Guide to Meteorological Instruments and Methods of Observations. RIKA offers a wide range of wind anemometer & wind sensors with wind cup principle, ultrasonic principle or hotline principle, which all have one thing in common: designed to be used within the hardest environmental conditions. There are diverse types of wind sensors like cup anemometer, vane anemometer, etc and among which that the wind cup anemometer is the most commonly used in meteorological stations.

Scroll down to browse for the sensor or instrument you need, or give us a call to discuss your needs.

NOTE: Products marked with “Configuration code required” need a product configuration form to be completed along with your order. The configuration code instructs our factory how you need the product configured such as scaling, outputs, cable lengths, mounting options etc. All configured products are made specifically to your order and most are delivered within 2 weeks (subject to occasional factory delays). Should you have any questions or need any support completing a configuration form, please contact our office.

Rika wind speed and direction sensors

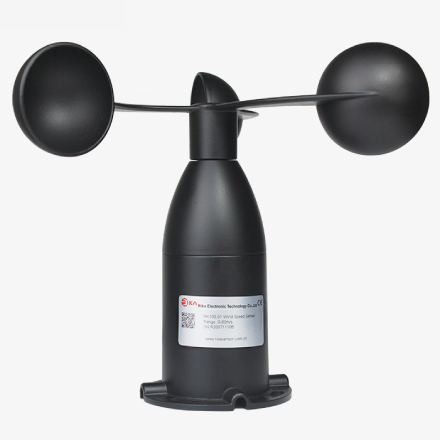

RK100-01 Wind Speed Sensor


The RK100-01 Wind Speed Sensor is specifically designed to accurately and reliably measure wind velocity under the adverse environmental conditions.
RK100-01 Wind Speed Sensor
Click here to show/ hide more info

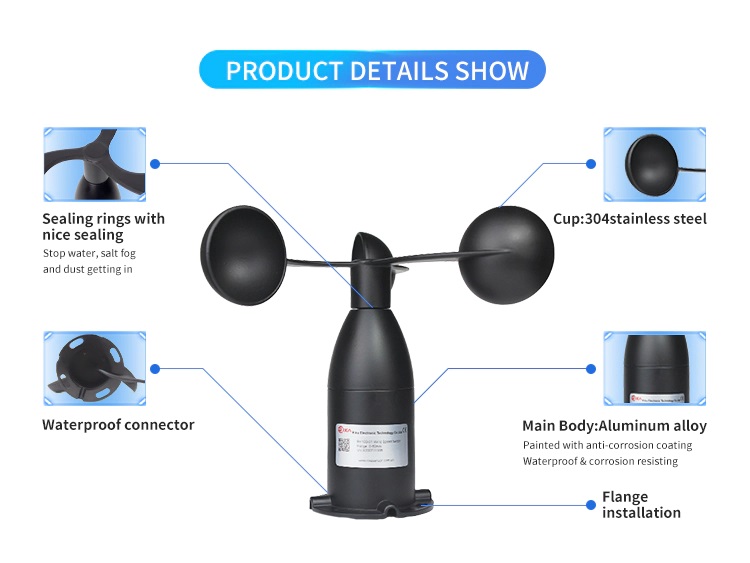

RK100-01 Wind Speed Sensor

The RK100-01 Wind Speed Sensor is specifically designed to accurately and reliably measure wind velocity under the adverse environmental conditions. Digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are build-in, it outputs voltage and current signals by electromagnetic induction, the value and horizontal wind speed are linear relation.Shell is made of high-strength aluminum alloy, the wind cup is made of 304 stainless steel, the PCB board is painted with anti-corrosion coating, featured with water proof, corrosion resisting. Inside and turning position have sealing rings with nice sealing function, stop water, salt fog and dust getting in.The RK100-01 Wind speed sensor has good performance in harsh environment.

Features:

  • Low starting threshold
  • Massive all-metal construction
  • Strong corrosion resistant ability
  • Stainless steel Wind cup, anti-wind load until 70m/s
  • Double bearing design
  • Surge protection design
  • Easy Installation

Applications:

  • Weather monitoring stations
  • Safety monitoring of high altitude equipment
  • Ports
  • Solar and wind power generation
  • Mobile weather monitoring vehicles
  • Marine vessels
  • Remote airports & helipads
  • Road & rail tunnels

Specifications:

Output Pulses 4-20mA RS485 0-5V/0-10V/1-5V
Supply Voltage 5-24VDC ① 12-24VDC 5-15VDC(typ12) ② 12-24VDC
Load Capacity >2k0 <5000(typ 2500)   >2k0
Range 0-30m/s,
0-60m/s
0-30m/s,
0-60m/s
0-30m/s,
0-60m/s
0-30m/s,
0-60m/s
Accuracy ±0.5m/s(<5m/s) ±3%FS(•5m/s) ±0.5m/s(<5m/s) ±3%FS(•5m/s) ±0.5m/s(<5m/s) ±2%FS(•5m/s) ±0.5m/s(<5m/s) ±3%FS(•5m/s)
Starting Threshold <0.5m/s
Ingress Protection IP65
Operating
Temperature
-30°C-+70°C
Weight(unpacked) 240g
Dimension Cup rotor: 0200mm, Height: 125mm
Main material Cup: 304stainless steel, Main Body: Aluminum alloy
Finish Polyester powder electrostatic spraying (black)
Storage Condition 10°C-60°[email protected]%-90%RH
① The output follow input voltage amplitude.
② If the power supply is 24 VDC, please specify when ordering.

Product Details:


Part No Product Details Price (ex-GST)
RK100-01 Wind Speed Sensor
Material: aluminum alloy
Test range: 0~30m/s, 0-60m/s
Output signal: Pulses/4-20mA/0-5V/RS485
Supply voltage: 5V/12-24VDC
$193.12


Data sheet on RK100-01 Wind speed sensor (pdf, opens in a new tab)

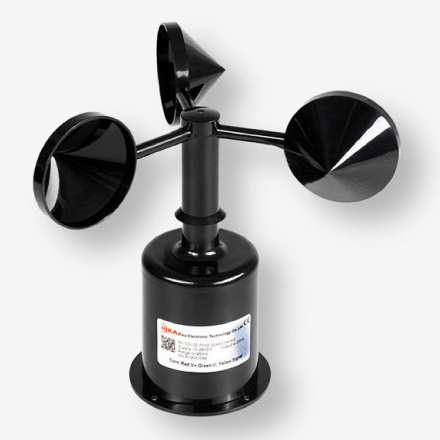

RK100-02 Wind Speed Sensor


The RK100-02 Wind Speed Sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups are made of carbon fiber material, with high intensity and low starting threshold.
RK100-02 Wind Speed Sensor
Click here to show/ hide more info

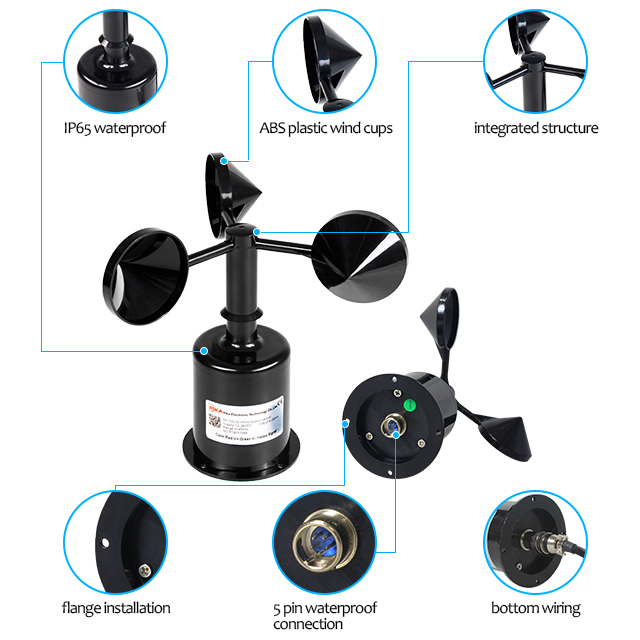

RK100-02 Wind Speed Sensor

The RK100-02 Wind Speed Sensor uses a sensitive 3-cup anemometer designed to measure wind speed and wind run. The cups are made of carbon fiber material, with high intensity and low starting threshold. The signal processing units are built in the housing shell. Rika RK100-02 3 cup anemometer can be widely used in meteorology, marine, environmental monitoring, airport, harbor, laboratory, industrial and agricultural areas.

Features:

  • Low starting threshold
  • Overall carbon fiber material
  • Strong corrosion resistant ability
  • Light structure
  • Various output signals optional
  • Easy Installation

Applications:

  • Weather monitoring stations
  • Safety monitoring of high altitude equipment
  • Ports
  • Solar and wind power generation
  • Mobile weather monitoring vehicles
  • Marine vessels
  • Remote airports & helipads
  • Road & rail tunnels

Specifications:

Output Pulses 4-20mA 0-5V RS485
Supply Voltage 5V,12V-24V 5V,12V-24V 5V,12V-24V 5V,12V-24V
Load Capacity >1kΩ <500Ω(typ 250Ω) >1kΩ
Range 0-45m/s 0-45m/s 0-45m/s 0-45m/s
Accuracy ±(0.3+0.03V)m/s; (V is the current wind speed)
Starting Threshold <0.5m/s
Limit Wind Speed 50m/s
Ingress Protection IP65
Operating Temperature -40℃~ +50℃
Cable Grade Nominal voltage:300V ,Temperature grade:80℃
Weight(unpacked) 170g
Dimension Cup rotor:179mm,Height:160mm
Main material Carbon fiber
Storage Condition 10℃-50℃@20%-90%RH

The output voltage amplitude is 5V.


Product Details:


Part No Product Details Price (ex-GST)
RK100-02
Wind Speed Sensor
Material: carbon fiber
Test range: 0~45m/s
Output signal: Pulses/4-20mA/0-5V/RS485
Supply voltage: 5V/12-24VDC
$148.41


Data sheet on RK100-02 Wind speed sensor (pdf, opens in a new tab)

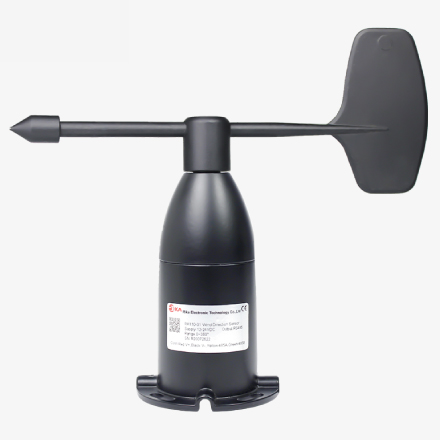

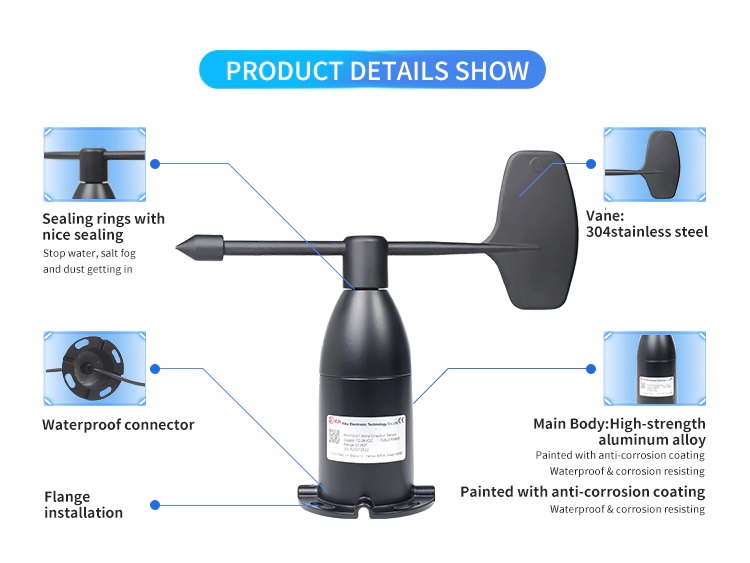

RK110-01 Wind Direction Sensor


The RK110-01 Wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction. Digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are build-in. The construction of the sensor reflects the requirements for reliability and durability.
RK110-01 Wind Direction Sensor
Click here to show/ hide more info

The RK110-01 Wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction. Digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are build-in. The construction of the sensor reflects the requirements for reliability and durability. Only the highest quality corrosion resistant materials, such as high strength aluminum and stainless steel are used. The sensor has good resistance to sand, dust, salt spray and fungus resistance. This sensor is ideal for wind resource assessment studies and similar applications requiring accuracy, reliability and minimal maintenance.

Features:

  • Low starting threshold
  • Massive all-metal construction
  • Strong corrosion resistant ability
  • Various output signals optional
  • Easy Installation

Applications:

  • Weather monitoring stations
  • Ports
  • Solar and wind power generation
  • Mobile weather monitoring vehicles
  • Remote airports & helipads.

Specifications:

Output 4-20mA RS485 0-5V/0-10V/1-5V
Supply Voltage 12-24VDC 5-15VDC(typ12)① 12-24VDC
Load Capacity <5000(typ 2500)   >2k0
Range 0-360°
Accuracy ±3° ±2° ±3°
Resolution 16 direction② or 1° 1° 16 direction② or 1°
Starting Threshold <0.5m/s
Ingress Protection IP55
Operating Temperature -30ć-+70ć
Weight(unpacked) 410g
Dimension Turning Radius:147mm,Height:160mm
Main material Vane:304stainless steel,Main Body:Aluminum alloy
Finish Polyester powder electrostatic spraying(black)
Storage Condition 10ć-60ć@20%-90%RH
① If the power supply is 24 VDC, please specify when ordering.
② d16 direction:22.5°.

Product Details:


Part No Product Details Price (ex-GST)
RK110-01
Wind Direction Sensor
Material: aluminum alloy
Test range: 0~360°
Resolution: 22.5°
Accuracy: ±3°
Output signal: 0-5V/4-20mA/RS485
Supply: 5V/12-24VDC
$193.12


Data sheet on RK110-01 Wind Direction Sensor (pdf, opens in a new tab)

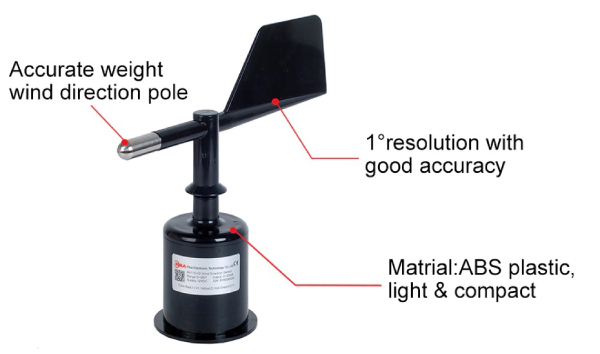

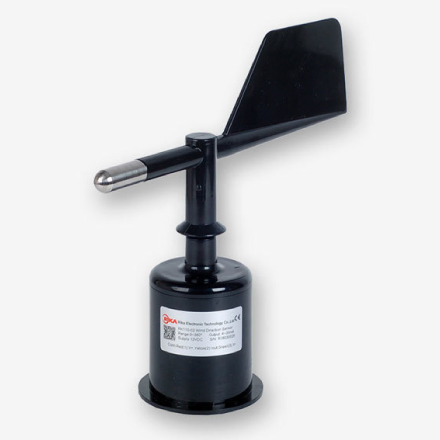

RK110-02 Wind Direction Sensor


The RK110-02 wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction.
RK110-02 Wind Direction Sensor
Click here to show/ hide more info

The RK110-02 wind direction sensor is a sensitive wind direction indicator that gives a visual indication of wind direction. High precision magnetic sensitive chips are built in the housing shell. The wind vane is constructed on low inertia light metal to show wind directions. The product is wide range, good linearity, strong anti- lightning strike, good performance.

Features:

  • Low starting threshold
  • Great dynamic characteristics
  • Overall carbon fiber material
  • Strong corrosion resistant ability
  • Light structure
  • Various output signals optional
  • Easy Installation

Applications:

  • Weather monitoring stations
  • Ports
  • Solar and wind power generation
  • Mobile weather monitoring vehicles
  • Remote airports & helipads

Specifications:

Output 4-20mA 0-5V RS485
Supply Voltage 5V,12V-24V 5V,12V,24V 5V,12V-24V
Load Capacity <500Ω(typ 250Ω) >1kΩ
Range 0~360°
Accuracy ±3°
Resolution
Starting Threshold <0.5m/s
Limit Wind Speed 50m/s
Ingress Protection IP65
Operating Temperature -40℃~+50℃
Cable Grade Nominal voltage:300V ,Temperature grade:80℃
Weight(unpacked) 195g
Dimension Turning Radius:147mm,Height:199mm
Main material Carbon fiber
Storage Condition 10℃-50℃@20%-90%RH



Product Details:


Part No Product Details Price (ex-GST)
RK110-02
“Wind Direction Sensor
Material: carbon fiber
Test range: 0~360°
Resolution: 1°
Accuracy: ±3°
Output signal: 0-5V/4-20mA/RS485
Supply: 5V/12-24VDC”
$166.29

Data sheet on RK110-01 Wind Direction Sensor (pdf, opens in a new tab)

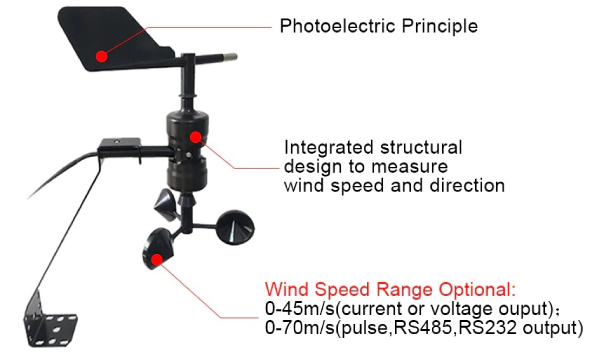

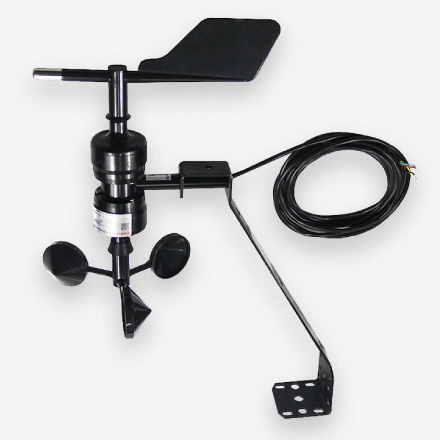

RK120-01C Combined Wind Speed & Direction Sensor


RK120-01C Combined Wind Speed & Direction Sensor is assembled with aluminum alloy precision machined parts, which has high strength and convenient installation.
RK120-01C Combined Wind Speed & Direction Sensor
Click here to show/ hide more info

RK120-01C Combined Wind Speed & Direction Sensor

RK120-01C Combined Wind Speed & Direction Sensor is assembled with aluminum alloy precision machined parts, which has high strength and convenient installation. The wind speed part adopts the traditional three-wind cup structure, the wind cup is made of carbon fiber material, the starting performance is good, the measuring range is large, the linearity is good, stable and reliable. The wind direction part adopts low inertia wind direction to respond to the wind direction. When the wind direction changes, the tail wheel drives the angle sensor to sense the azimuth change, thereby generating a change of electrical signal output, good linearity, high precision, and no blind zone.

Features:

  • Combined wind speed & direction sensor
  • Low starting threshold
  • Good corrosion resistance
  • Compact and light design
  • Easy installation

Applications:

  • Environmental monitoring
  • Bridge & Tunnel
  • Solar and wind power generation
  • Wind resource assessment
  • Automatic weather station
  • Agriculture.

Specifications:

Item



Technical Specification

Wind Speed Wind Direction
Range

0-45m/s(current or voltage ouput),

0-70m/s(pulse,RS485,RS232 output)

0-360°
Resolution 0.1m/s
Accuracy



±(0.3+0.03V)m/s ,V is current wind speed

≤±3°
Acquisition Cycle 3s
Starting wind speed 0.5m/s
Limited wind speed 75m/s
Supply 5V(only for digital output),12-24VDC
Output Signal RS485,4-20mA,0-5V,RS232,pulse(NPN,only for wind speed)
Operating Temperature -40℃-+70℃
Ingress Protection IP65
Main material Aluminum alloy and carbon fiber
Storage 10-60℃@20%-90%RH
Cable length Default 2.5m,other length is optional
Installation bracket attached
Weight(unpacked) 700g

Specifications:


Part No Product Details Price (ex-GST)
RK120-01C “Wind Speed & Direction Sensor
Material: ABS
Wind speed range: 0-60m/s, resolution: 0.1m/s
Wind direction range: 0-360°, resolution: 1°
Output signal: 4-20mA/0-5V/RS485
Power Supply: 12-24V “
$472.53

Data sheet on RK120-01C Combined Wind Speed & Direction Sensor (pdf, opens in a new tab)

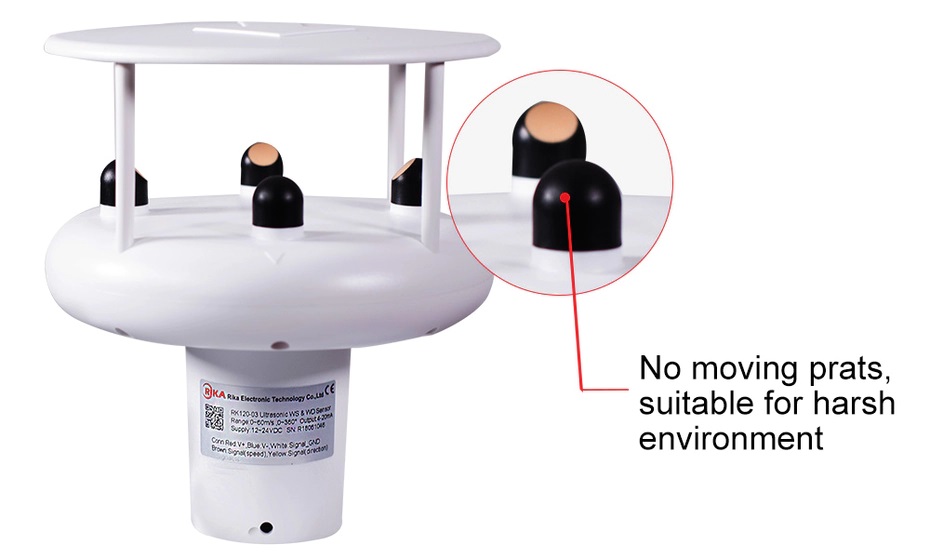

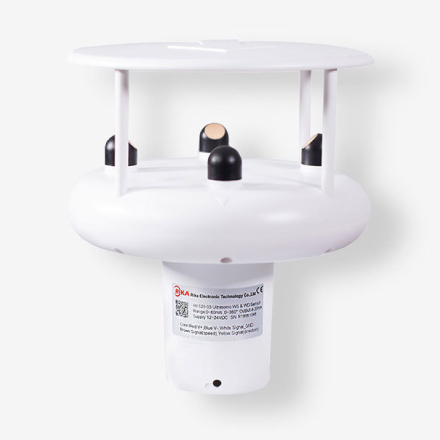

RK120-03 Ultrasonic Wind Speed & Direction Sensor


RK120-03 Economical Ultrasonic Wind Sensor is a fully digital detector, high-precision sensors, integrated by the ultrasonic wind speed and direction sensors.
RK120-03 Ultrasonic Wind Speed & Direction Sensor
Click here to show/ hide more info

RK120-03 Ultrasonic Wind Speed & Direction Sensor

RK120-03 Economical Ultrasonic Wind Sensor is a fully digital detector, high-precision sensors, integrated by the ultrasonic wind speed and direction sensors. it can accurately and quickly detect the wind speed, wind direction; built-in signal processing unit can output a corresponding signal in response to user needs, with the structure lightweight and compact, no moving parts, high-strength structural design can be accurately detected in the harsh climatic conditions, made the accurate and stable elements, low maintenance, an open communications protocol and so on. It can be widely used in meteorology, oceanography, environment, airports, ports, laboratories, industry and agriculture, and transportation and other fields.

Features:

  • Adapt to complex weather conditions
  • No moving parts, long service life
  • The surface preservative treatment
  • Strong anti-interference
  • High accuracy
  • Automatic heating anti-frozen

Applications:

  • Environmental monitoring
  • Sea-going vessel
  • Bridge & Tunnel
  • Solar and wind power generation
  • Wind resource assessment
  • Drilling platform
  • Automatic weather station
  • Agriculture

Specifications:

Item Technical Specification
Power Supply 12-24VDC
Power consumption <1W(Heating not activated);<3W(Heating activated)
Output Signal RS232/RS485(Modbus /NMEA-0183),4-20mA (only for wind speed & direction) optional
Operating Temperature -30℃-+70℃
Ingress Protection IP66
Heating power 3W max.
Electronic Compass Optional
Atmopsheric Pressure Optional
Dimension  Ф145*138mm
Weight(unpacked) 0.8kg
Main material Anti-radiation ABS Engineering plastic



Item Technical Specification
Wind speed Wind direction  Atmospheric Pressure(Optional)
Range 0-45m/s, 0-60m/s 0-360° 150-1100hPa
Resolution 0.01m/s 0.1hPa
Accuracy ≤10m/s:±0.2m/s
>10m/s:<±2% the current value
±3° ±1 hPa
Starting Threshold 0.1m/s 0.1m/s /
Extreme Wind Speed 60m/s /

Product Details:


Part No Product Details Price (ex-GST)
RK120-03
Ultrasonic Wind Sensor
Material: ABS
Wind speed range: 0-60m/s, resolution: 0.01m/s
Wind direction range: 0-360°, resolution: 1°
Output signal: 4-20mA/RS485/RS232/SDI-12
Power Supply: 12-24V
$1087.24

Data sheet on RK120-03 Ultrasonic Wind Speed & Direction Sensor (pdf, opens in a new tab)

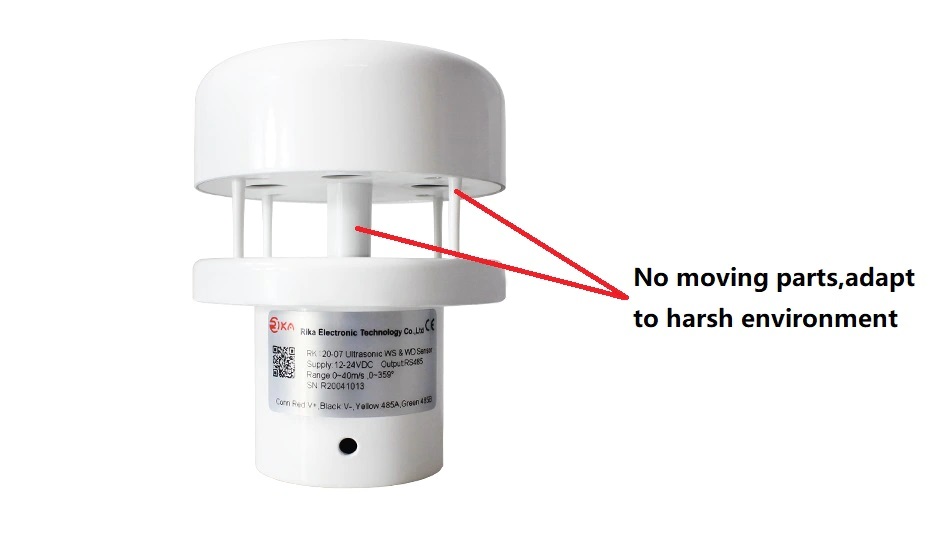

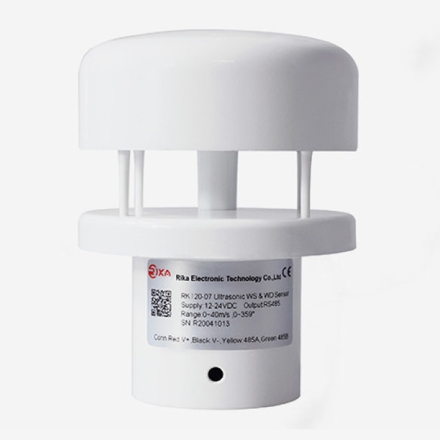

RK120-07 Ultrasonic Wind Speed & Direction Sensor


RK120-07 The wind speed and direction meter is a kind of measuring instrument which uses the time difference of ultrasonic wave in the air to measure the wind speed and direction.
RK120-07 Ultrasonic Wind Speed & Direction Sensor
Click here to show/ hide more info

RK120-07 Ultrasonic Wind Speed & Direction Sensor

RK120-07 The wind speed and direction meter is a kind of measuring instrument which uses the time difference of ultrasonic wave in the air to measure the wind speed and direction. RK120-07 uses low-power chip with power consumption of only 0.2W, which is especially suitable for solar or battery powered environment with high power consumption requirements. Due to the adoption of new technology and new process, the structure is more compact and compact. Optional temperature and air pressure module.

Features:

  • Adapt to complex weather conditions
  • No moving parts, long service life
  • The surface preservative treatment
  • Strong anti-interference
  • High accuracy

Applications:

  • Environmental monitoring
  • Sea-going vessel
  • Bridge & Tunnel
  • Solar and wind power generation
  • Wind resource assessment
  • Drilling platform
  • Automatic weather station
  • Agriculture

Specifications:

Item Technical Specification
Power Supply 12-24VDC
Power consumption 1.7W
Output Signal RS232/RS485(Modbus/NMEA-0183),SDI-12
Operating Temperature -30℃-+60℃
Ingress Protection IP65
Dimension
Ф82*108mm
Weight(unpacked) 0.8kg
Main material ABS



Item Technical Specification
Range Resolution  Accuracy
Wind Speed 0-45m/s 0.1m/s ±3%
Wind Direction 0-360° ±3°

Starting Threshold 0.1m/s 0.1m/s
Extreme Wind Speed 60m/s 60m/s

Product Details:


Part No Product Details Price (ex-GST)
RK120-07
“Ultrasonic Wind Speed & Direction Sensor
Material: ABS
Wind speed range: 0-40m/s
Wind direction range: 0-360°
Output: RS485/RS232/SDI-12
Power supply: 12-24VDC”
$450.18

Data sheet on RK120-07 Ultrasonic Wind Speed & Direction Sensor (pdf, opens in a new tab)

Call Now Button
