Esis, a leading Australian supplier of industrial PC’s and technology, is pleased to announce Advantech’s UNO-3272G – a cost-effective entry-level fanless control cabinet PC.  Equipped with an Intel® Celeron® J1900 quad-core processor, one USB 3.0, two Giga LAN, two RS-232/422/485, as well as one VGA and one HDMI display interface, UNO-3272G is an entry-level computer designed to deliver maximum flexibility for industrial machine/factory automation applications. The provision of two expansion slots (PCIe x1 or PCI) supports the inclusion of a PCI/PCIe expansion card.

In addition to dual power inputs that ensure system stability and uninterrupted operation, UNO-3272G also supports iDoor technology to enable flexible functionality according to specific application requirements. With the integration of various iDoor modules, such as an industrial field bus, power-over-Ethernet, COM, or digital I/O module, the system functions can be extended or customized to provide purpose-built, future-proof solutions for diverse automation applications.

UNO-3272G Fanless PC

Photo courtesy of Advantech

Industrial Design for Increased Reliability

To facilitate high-performance computing for industrial IoT applications, UNO-3272G, this versatile fanless PC is powered by an Intel® Celeron® J1900 quad-core, 2.0 GHz processor with 4 GB of DDR3L memory (two sockets can support up to 8 GB) that supports both HDMI and VGA display. The platform’s ruggedization, which includes support for 10 ~ 36 VDC input power and a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F), provides the reliability to ensure stable operation in the most demanding industrial environments. Moreover, the provision of dual power inputs for power redundancy ensures a stable power supply, preventing unexpected shutdowns and interruptions.

UNO-3272G Fanless PC Cabinet

Photo courtesy of Advantech

Easy Optimization with Flexible Expansion

To ensure easy deployment for diverse industrial applications, UNO-3272G features an optimized all-in-one design that supports a variety of backplanes, offering increased convenience to the fanless PC for integrating additional optional peripherals such as iDoor modules and DI/O cards. Furthermore, UNO-3272G is equipped with two PCI/PCIe expansion slots that enable the installation of machine vision/motion cards for diverse automation applications. As the latest generation of Advantech’s UNO-3000 series, UNO-3272G also retains most of the I/O interfaces offered with previous models, which means existing UNO systems can be easily upgraded for more flexible I/O.

Built-In TPM 2.0 Chip Offers Enhanced Security

To ensure data security across platforms, UNO-3272G also features a built-in TPM 2.0 chip that provides industrial-grade, hardware-based security and supports functions such as encryption, system integrity monitoring, boot control, and key management. Because TPM chips use their own internal firmware and logic circuits for processing instructions, they are safe from software-based OS attacks, making them ideal for industrial process-based applications.

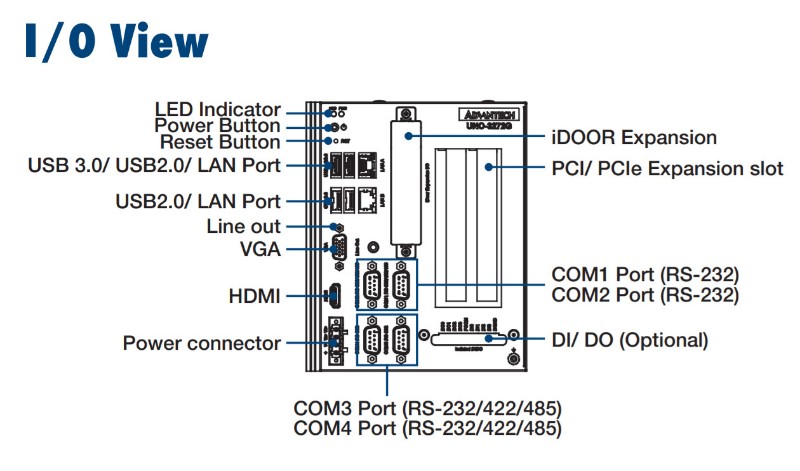

UNO-3272G Fanless PC Features

Photo courtesy of Advantech

Key Features

  • Intel® Celeron J1900 quad-core, 2.0 GHz processor with 4 GB of DDR4 memory
  • 2 x GbE, 1 x USB 3.0, 2 x USB 2.0, and 2 x RS-232/422/485
  • 1 x VGA and 1 x HDMI display output
  • 2 x PCIe x1, 2 x full-size mini PCIe, 1 x CFast, 1 x mSATA (optional)
  • Supports fieldbus protocols via iDoor technology
  • Dual power inputs enable power redundancy
  • Front-facing LED indicators show system status

ESIS specializes in embedded fanless PCs and is the leading supplier of industrial electronic equipment in the Australian market since 1971. Choose from our wide range of products to best suit your requirements.

Contact us right away to discuss your needs.
