USB Over Ethernet

ANYWHEREUSB PLUS

Connect USB peripheral devices anywhere on a Local Area Network (LAN) without a locally-attached host computer

IoT business automation requires communication with various IT assets and peripherals located across an enterprise. AnywhereUSB® Plus remote USB hubs give users the simplest and most direct connection options for existing equipment with a variety of USB 3.1 Gen 1 port options. All three models have Gigabit Ethernet support for failover redundancy and network bonding with SFP+ ports in the 8 and 24-port models for higher speeds or fiber networks.

AnywhereUSB 24 Plus is rack mountable with 24 USB 3.1 Gen 1 ports, while AnywhereUSB 8 Plus and AnywhereUSB 2 Plus are desktop or panel mountable units with eight or two ports, respectively, and support for Gigabit Ethernet.

AnywhereUSB can be coupled with Digi Remote Manager®, a web-based device configuration and security management platform, to help users reduce downtime. An intuitive user experience makes installation smooth and easy; with quick setup and configuration to monitor and maintain larger installations of remote Digi and third-party devices.

For enterprise and industrial customers who need remote or local USB ports and the higher speeds of USB 3.1 Gen 1 and Gigabit/10 Gigabit Ethernet, Digi AnywhereUSB Plus products give you an industry-leading connectivity solution.

FEATURES AND BENEFITS
– Network-attached USB hubs easily connect USB peripheral devices to a PC from remote or virtual hosts
– Ideal for connecting USB devices over the network in virtualized environments such as VMware®
– AnywhereUSB 24 Plus is rack mountable with two power supplies and Ethernet connections for failover redundancy
– Access and monitor USB and serial devices over TCP/IP connection
– Supports multi-host connectivity for each USB port or group independently
– Supports Digi Remote Manager® cloud-based management platform to deploy, monitor and manage devices

ANYWHEREUSBPLUS

AW02-G300 – Digi AnywhereUSB 2 Plus


AnywhereUSB 2 Plus; dual USB 3.1 Gen 1 Ports, single 10M/100M/1G Ethernet, 5VDC
AW02-G300 - Digi AnywhereUSB 2 Plus
Click here to show/ hide more info

AW02-G300 - Digi AnywhereUSB 2 Plus

AnywhereUSB 2 Plus; dual USB 3.1 Gen 1 Ports, single 10M/100M/1G Ethernet, 5VDC (requires external 5VDC power supply, recommended power supply accessory is 76000965)

Features:

  • Model: Digi AnywhereUSB 2 Plus
  • Base Hardware: (1) RJ45 10/100/1 Gig Ethernet, (2) USB 3.1 Gen 1 (Type A) Ports
  • Wi-Fi: Not Included
  • Remote Management: Digi Remote Manager
  • Power Connector: Barrel (Locking)
  • Accessories: recommended power supply – 76000965
  • Available Accessory Kits: See below

Specifications:

CELLULAR
MODULE SUPPORT
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud based)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (SSH)
OPERATING SYSTEMS Windows® 7, 8.1 and 10; Windows Server® 2012 R2, 2016 and 2019
PROTOCOLS Supports multi-host connectivity for each USB port or group independently
MEMORY 512 MB RAM, 4 GB flash (eMMC)
NETWORK
ETHERNET (1) RJ-45; 10/100/1000 Mbps
SFP+
CONNECTORS
CONSOLE
USB



(2) USB 3.1 Gen 1 Type A

PHYSICAL
DIMENSIONS (L X W X H)

118 mm x 74 mm x 30 mm (4.6 in x 2.9 in

x 1.2 in)

WEIGHT 0.38 kg (0.84 lb)



STATUS LEDS



(2) Ethernet, 2 (x1) USB, power

POWER REQUIREMENTS
POWER INPUT



5 V, 5 A max

POWER CONSUMPTION 25 watts max
ENVIRONMENTAL
OPERATING TEMPERATURE 0° C to 40° C (32° F to 104° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
BLUETOOTH
SAFETY UL 60950, CSA 22.2 No. 60950, EN60950, EN62368
EMISSIONS/IMMUNITY CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032
WARRANTY
PRODUCT WARRANTY 5-year



ENTERPRISE SOFTWARE DESCRIPTION
PROTOCOL SUPPORT HTTPS, FTP, SFTP, SSL, SMTP, SSH and CLI for web management; remote management via Digi Remote Manager
SECURITY/VPN TLS 1.2, SSH, HTTPS
ROUTING/FAILOVER Ethernet bonding (only for AnywhereUSB 24 Plus)
OTHER PROTOCOLS DHCP

Datasheet on AW02-G300 – Digi AnywhereUSB 2 Plus (pdf, opens in a new tab)

ANYWHEREUSB 2 PLUS ACCESSORIES

PART NUMBERS

ANYWHEREUSB 2 PLUS ACCESSORIES – RECOMMENDED POWER SUPPLY

76000965

AC power supply – extended temperature, universal plugs (US, EU, UK, AU) to 5 VDC – 2.5 mm locking barrel plug (6 A max)**

**Recommended power supply for AnywhereUSB 2 Plus, provides full USB charging capability of 1.8 A per port.



PART NUMBERS

ANYWHEREUSB 2 PLUS ACCESSORIES – ALTERNATE POWER SUPPLIES

76000934

AC power supply – US plug to 5 VDC – 2.5 mm locking barrel plug (3 A max)***

76000935

AC power supply – EU plug to 5 VDC – 2.5 mm locking barrel plug (3 A max)***

76002021

AC power supply – standard temperature, universal plugs (US, EU, UK, AU) to 5 VDC – 2.5 mm locking barrel plug (3 A max)***

***Alternative power supply may be used with AnywhereUSB 2 Plus if USB port charging is not required.



PART NUMBERS

ANYWHEREUSB 2 PLUS ACCESSORIES – DIN MOUNTING BRACKET

76000682

DIN rail mounting kit for AnywhereUSB 2 Plus

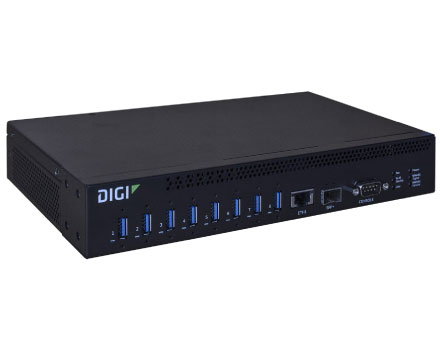

AW08-G300 – Digi AnywhereUSB 8 Plus


AnywhereUSB 8 Plus; eight USB 3.1 Gen 1 Ports, single 10M/100M/1G/10G Ethernet, single SFP+, 12VDC
AW08-G300 - Digi AnywhereUSB 8 Plus
Click here to show/ hide more info

AW08-G300 - Digi AnywhereUSB 8 Plus

AnywhereUSB 8 Plus; eight USB 3.1 Gen 1 Ports, single 10M/100M/1G/10G Ethernet, single SFP+, 12VDC

Features:

  • Model: Digi AnywhereUSB 8 Plus
  • Base Hardware: (1) RJ45 10/100/1 Gig/10 Gig Ethernet, (1) SFP+ Port, (8) USB 3.1 Gen 1 (Type A) Ports
  • Mounting Accessory: Rack mount extension kit for use in 19” 1U rack (included)
  • Wi-Fi: Not Included
  • Remote Management: Digi Remote Manager
  • Power Connector: Phoenix Connector
  • Accessories: Power Supply Included

Specifications:

CELLULAR
MODULE SUPPORT (1) Digi CORE modem compliant socket
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud based)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (Console, SSH)
OPERATING SYSTEMS Windows® 7, 8.1 and 10; Windows Server® 2012 R2, 2016 and 2019
PROTOCOLS Supports multi-host connectivity for each USB port or group independently
MEMORY 2 GB RAM, 4 GB flash (eMMC)
NETWORK
ETHERNET (1) RJ-45; 10M/100M/1G/10G
SFP+ (1) SFP+ socket
CONNECTORS
CONSOLE (1) DB09M; RS-232 DTE
USB



(8) USB 3.1 Gen 1 Type A

PHYSICAL
DIMENSIONS (L X W X H)

260mm x 160 mm x 44.45 mm (10 in x 6 in

x 1.75 in)

WEIGHT 1.58 kg (3.48 lb)



STATUS LEDS



(2) Ethernet, (2) SFP+ 8 (x1 )USB, power, fan, user, (3) future Wi-Fi/WWAN

POWER REQUIREMENTS
POWER INPUT



12 VDC, 12 A max

POWER CONSUMPTION 98.5 watts max
ENVIRONMENTAL
OPERATING TEMPERATURE 0° C to 55° C (32° F to 131° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
BLUETOOTH Bluetooth BLE 4.2
SAFETY UL/EN60950, UL/EN62368 and CSA 22.2
EMISSIONS/IMMUNITY CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032
WARRANTY
PRODUCT WARRANTY 5-year



ENTERPRISE SOFTWARE DESCRIPTION
PROTOCOL SUPPORT HTTPS, FTP, SFTP, SSL, SMTP, SSH and CLI for web management; remote management via Digi Remote Manager
SECURITY/VPN TLS 1.2, SSH, HTTPS
ROUTING/FAILOVER Ethernet bonding (only for AnywhereUSB 24 Plus)
OTHER PROTOCOLS DHCP

Datasheet on AW08-G300 – Digi AnywhereUSB 8 Plus (pdf, opens in a new tab)

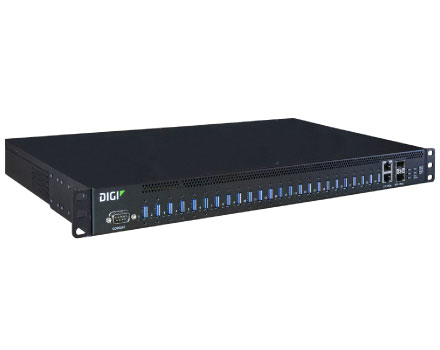

AW24-G300 – Digi AnywhereUSB 24 Plus


AnywhereUSB 24 Plus; 24 USB 3.1 Gen 1 Ports, dual 10M/100M/1G/10G Ethernet, dual SFP+, dual power 100-240VAC
AW24-G300 - Digi AnywhereUSB 24 Plus
Click here to show/ hide more info

AW24-G300 - Digi AnywhereUSB 24 Plus

AnywhereUSB 24 Plus; 24 USB 3.1 Gen 1 Ports, dual 10M/100M/1G/10G Ethernet, dual SFP+, dual power 100-240VAC

Features:

  • Model: Digi AnywhereUSB 24 Plus
  • Base Hardware: (2) RJ45 10/100/1 Gig/10 Gig Ethernet, (2) SFP+ Ports, (24) USB 3.1 Gen 1 (Type A) Ports
  • Wi-Fi: Not Included
  • Remote Management: Digi Remote Manager
  • Power Connector: Dual AC Internal Power Supplies 100-240VAC, IEC 320 C14
  • Accessories: Includes 19” 1U rack ears (pre-attached)

Specifications:

CELLULAR
MODULE SUPPORT (1) Digi CORE modem compliant socket
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud based)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (Console, SSH)
OPERATING SYSTEMS Windows® 7, 8.1 and 10; Windows Server® 2012 R2, 2016 and 2019
PROTOCOLS Supports multi-host connectivity for each USB port or group independently
MEMORY 2 GB RAM, 4 GB flash (eMMC)
NETWORK
ETHERNET (2) RJ-45; 10M/100M/1G/10G
SFP+ (2) SFP+ sockets
CONNECTORS
CONSOLE (1) DB09M; RS-232 DTE
USB



(24) USB 3.1 Gen 1 Type A

PHYSICAL
DIMENSIONS (L X W X H) 450.85 mm x 255 mm x 44.45 mm (17.75 in x 10 in x 1.75 in)
WEIGHT 4.7 kg (10.36 lb)



STATUS LEDS

2 (x2) Ethernet, 2 (x2) SFP+, 24 (x1) USB,

2 (x1) PSU, 2 (x1) fan, user, (3) future Wi-Fi/ WWAN

POWER REQUIREMENTS
POWER INPUT

100-240 V, 3 A max

(2 supplies for redundancy)

POWER CONSUMPTION 157.7 watts max
ENVIRONMENTAL
OPERATING TEMPERATURE 0° C to 55° C (32° F to 131° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
BLUETOOTH Bluetooth BLE 4.2
SAFETY UL 60950, CSA 22.2 No. 60950, EN60950, EN62368
EMISSIONS/IMMUNITY CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032
WARRANTY
PRODUCT WARRANTY 5-year



ENTERPRISE SOFTWARE DESCRIPTION
PROTOCOL SUPPORT HTTPS, FTP, SFTP, SSL, SMTP, SSH and CLI for web management; remote management via Digi Remote Manager
SECURITY/VPN TLS 1.2, SSH, HTTPS
ROUTING/FAILOVER Ethernet bonding (only for AnywhereUSB 24 Plus)
OTHER PROTOCOLS DHCP

Datasheet on AW24-G300 – Digi AnywhereUSB 24 Plus (pdf, opens in a new tab)
