Industrial Keyboards - Metal / Vandal Proof
Industrial Metal Keyboards, Vandal ProofIndustrial Keyboards – Metal / Vandal Proof
Metal keyboards are used in areas requiring protection against vandalism. This especially applies to places where information terminals or info points are freely accessible to the public. As they are mostly unsupervised and available 24 hours a day, these so-called self-service kiosk systems are exposed to the great danger of mechanical impacts due to vandalism.
The advantage of metal keyboards used as data input devices in public space is that they are serviceable for a long period of time. Being equipped with a metal front panel and metal key caps, they do not only resist mechanical impacts occurring on the surface. As the bottom side of the key caps are provided with a lip, they cannot be levered out.
Moreover, the majority of the models provide an increased IP-protection level which additionally protects the keyboard against dust and liquids. This way, e.g. beverages which have been spilled over the keyboard, or dirt which reaches the device, cannot damage the electronic system of the keyboard.
Application areas of Metal keyboards:
- Kiosk systems
- Self-service machines
- Service terminals in public spaces
- Points-of-Sale
- Heavy industry
CYBERVISUELL STAINLESS STEEL KEYBOARDS

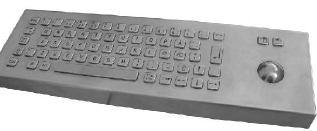

CKBCA1 – CyberVisuell Stainless Steel Keyboard with Trackball
- Protection Level: IP65; NEMA4X
- Lifespan: > 5 years.
- Interface: PS2, USB available.
- Supply Voltage: +5V DC +/-5%
- Operating temperature: -10C to +60C.
- Storage temperature: -20C to +70C.
- Dimensions: 416mm x 124mm x 38mm
- Dustproof, Water proof, Vandalism resistance
- No. of keys: 66 keys, high quality stainless steel
- Track ball diameter: 38mm
- Keyswitch Technology: Silicone switching element
- keyswitch lifetime: > 5 million of operations.
- Actuation Force/travel: 1N/2.0mm
- Casing: Stainless steel
- Lettering: laser engraved legends for excellent durability
- G.W.: 3.60kg.
Data sheet on CKBCA1 (pdf, opens in a new tab)
CKBCA1 – USBPS2 CYBERVISUELL stainless steel keyboard: $581+GST
Note: All languages version and interface are available on request.

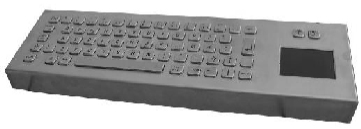

CKBCA2 – CyberVisuell Stainless Steel Keyboard with Touchpad
- Protection Level: IP65; NEMA4X
- Lifespan: > 5 years.
- Interface: PS2, USB available.
- Supply Voltage: +5V DC +/-5%
- Operating temperature: -10C to +60C.
- Storage temperature: -20C to +70C.
- Dimensions: 416mm x 130mm x 38mm
- Dustproof, Water proof, Vandalism resistance
- No. of keys: 66 keys, high quality stainless steel
- Keyswitch Technology: Silicone switching element
- keyswitch lifetime: > 5 million of operations.
- Actuation Force/travel: 1N/2.0mm
- Casing: Stainless steel
- Lettering: laser engraved legends for excellent durability
- G.W.: 3.50kg.
Data sheet on CKBCA2 (pdf, opens in a new tab)
CKBCA2-USBPS2 CYBERVISUELL stainless steel keyboard, desktop with touchpad: $581+GST
Note: All languages version and interface are available on request.

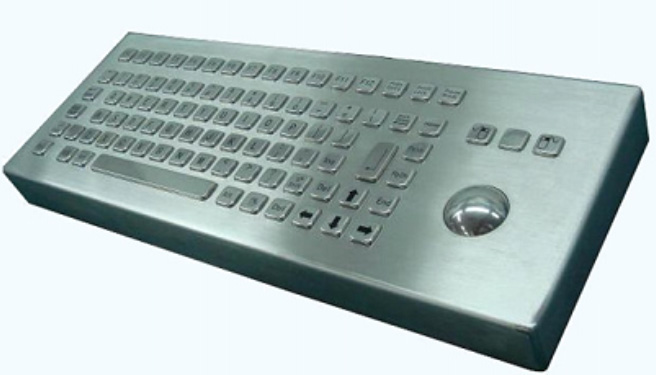

CKBCA3 – CyberVisuell Stainless Steel Desktop Keyboard with Trackball
- Protection Level: IP65 Static; IP54 Dynamic;NEMA4X
- Lifespan: > 5 years.
- Interface: PS2, USB available.
- Supply Voltage: +5V DC +/-5%
- Operating temperature: -10C to +60C
- Storage temperature: -20C to +70C.
- Panel dimensions: 412mm x 155mm
- Dustproof, Water proof, Vandalism resistance
- Mounting type: Desktop
- No. of keys: 83 keys, high quality stainless steel
- Track ball diameter: 38mm
- Key switch Technology: Silicone switching element
- Key switch lifetime: > 5 million of operations.
- Actuation Force/travel: 1N/2.0mm
- Mounting Rack: Aluminum alloy
- Lettering: laser engraved legends for excellent durability
- G.W.: 3.80kg.
Data sheet on CKBCA3 (pdf, opens in a new tab)
CKBCA3-USB CYBERVISUELL Vandal-Resistant Desktop Stainless Steel Keyboard with 38mm Trackball: $659+GST
Note: All languages version and interface are available on request.

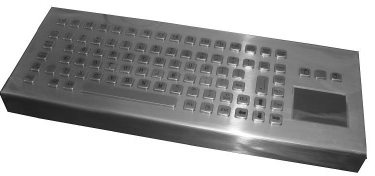

CKBCA4 – CyberVisuell Stainless steel Desktop keyboard with Touchpad
- Protection Level: IP65; NEMA4X
- Lifespan: > 5 years.
- Interface: PS2, USB available.
- Supply Voltage: +5V DC +/-5%
- Operating temperature: -10C to +60C.
- Storage temperature: -20C to +70C.
- Dimensions: 416mm x 155mm x 38mm
- Dustproof, Water proof, Vandalism resistance
- No. of keys: 83 keys, high quality stainless steel
- Keyswitch Technology: Silicone switching element
- keyswitch lifetime: > 5 million of operations.
- Actuation Force/travel: 1N/2.0mm
- Casing: Stainless steel
- Lettering: laser engraved legends for excellent durability
- G.W.: 3.70kg.
Data sheet on CKBCA4 (pdf, opens in a new tab)
CKBCA4-USBPS2 CYBERVISUELL STainless steel desktop keyboard.: $659+GST
Note: All languages version and interface are available on request.

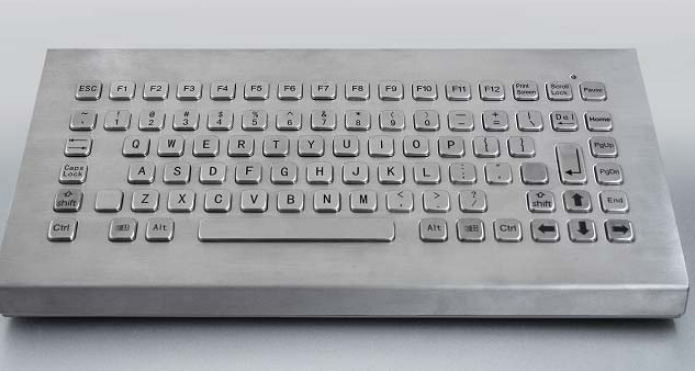

CKBCA6 – CyberVisuell Stainless Steel Vandal Resistant Keyboard IP65
static, NEMA4X. Dustproof, Water proof, Vandalism resistance. Laser engraved legends for excellent durability.
- Protection Level: IP65; NEMA4X
- Lifespan: > 5 years.
- Interface: PS2, USB available.
- Supply Voltage: +5V DC +/‐5%
- Operating temperature: ‐10C to +60C
- Storage temperature: ‐20C to +70C.
- Panel dimensions: 346mm x 175mm
- Dustproof, Water proof, Vandalism resistance
- Mounting type: Desktop
- No. of keys: 83 keys, high quality stainless steel
- Key switch Technology: Silicone switching element
- Key switch lifetime: > 5 million of operations.
- Actuation Force/travel: 1N/2.0mm
- Mounting Rack: Aluminum alloy
- Lettering: laser engraved legends for excellent durability
- G.W.: 3.00kg.
Data sheet on CKBCA6 (pdf, opens in a new tab)
CKBCA6-USBPS2 CYBERVISUELL Industrial Desktop Stainless Steel keyboard: $570+GST
Note: All languages version and interface are available on request.

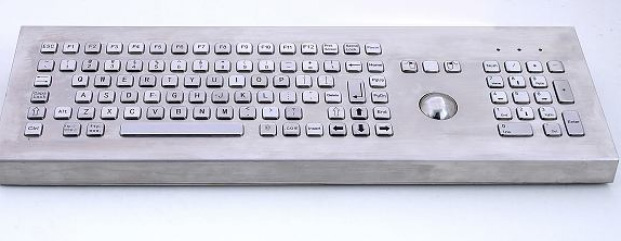

CKB500K-DT – CyberVisuell Stainless Steel Desktop Keyboard with Trackball
- Protection Level: IP65; NEMA4X
- Lifespan: > 5 years.
- Interface: PS2, USB available.
- Supply Voltage: +5V DC +/-5%
- Operating temperature: -10C to +60C
- Storage temperature: -20C to +70C.
- Panel dimensions: 502mm x 164mm
- Dustproof, Water proof, Vandalism resistance
- Mounting type: Desktop
- No. of keys: 106keys, high quality stainless steel
- Track ball diameter: 38mm
- Key switch Technology: Silicone switching element
- Key switch lifetime: > 5 million of operations.
- Actuation Force/travel: 1N/2.0mm
- Mounting Rack: Aluminum alloy
- Lettering: laser engraved legends for excellent durability
- G.W.: 3.50kg.
Data sheet on CKB500K-DT (pdf, opens in a new tab)
CKB005K-DT-USBPS2 CYBERVISUELL Industrial Stainless Steel Desktop Keyboard: $665+GST
Note: All languages version and interface are available on request.
CYBERVISUELL WALL & PANEL MOUNT STAINLESS STEEL KEYBOARDS

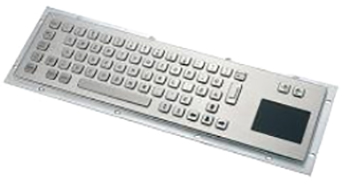

CKB001T – Stainless Steel Panel Rear Mount Keyboard with Touchpad
- Protection Level: IP65; NEMA4X
- Lifespan: > 5 years.
- Interface: PS2, USB available.
- Supply Voltage: +5V DC +/-5%
- Operating temperature: -10C to +60C.
- Storage temperature: -20C to +70C.
- Dimensions: 392mm x 110mm (front panel)
- Dustproof, Water proof, Vandalism resistance
- Mounting type: Rear Mounting
- No. of keys: 66 keys, high quality stainless steel
- Keyswitch Technology: Silicone switching element
- keyswitch lifetime: > 5 million of operations.
- Actuation Force/travel: 1N/2.0mm
- Mounting Rack: Aluminum alloy
- Lettering: laser engraved legends for excellent durability
- G.W.: 1.70kg.
Data sheet on CKB001T (pdf, opens in a new tab)
CKB001T-USB CYBERVISUELL Stainless Steel Panel Rear Mount Keyboard: $432+GST
Note: All languages version and interface are available on request.

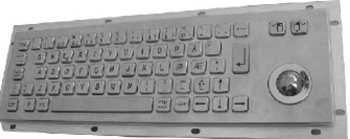

CKB003 – CyberVisuell Industrial Panel Mount Stainless Steel Keyboard with Trackball
- Protection Level: IP65; NEMA4X
- Trackball IP65 (static) (IP54 dynamic)
- Lifespan: > 5 years.
- Interface: USB, PS/2 available.
- Supply Voltage: +5V DC +/-5%
- Operating temperature: -10C to +60C.
- Storage temperature: -20C to +70C.
- Dimensions: 330mm x 100mm (front panel)
- Dustproof, Water proof, Vandalism resistance
- Mounting type: Rear Mounting
- No. of keys: 66 keys, high quality stainless steel
- Track ball diameter: 25mm
- Keyswitch Technology: Silicone switching element
- Keys witch lifetime: > 5 million of operations.
- Actuation Force/travel: 1N/2.0mm
- Mounting Rack: Aluminum alloy
- Lettering: laser engraved legends for excellent durability
- G.W.: 1.60kg
Data sheet on CKB003 (pdf, opens in a new tab)
CKB003-USB Vandal Resistant/Industrial Panel Mount Keyboard: $433+GST
Note: All languages version and interface are available on request.

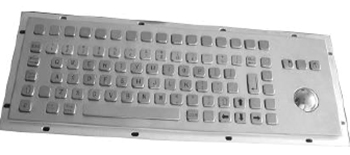

CKB005 – CyberVisuell Panel Mount Stainless Steel Keyboard with Trackball
- Protection Level: IP65; NEMA4X
- Lifespan: > 5 years.
- Interface: PS2, USB available.
- Supply Voltage: +5V DC +/-5%
- Operating temperature: -10C to +60C.
- Storage temperature: -20C to +70C.
- Dimensions: 392mm x 135mm (front panel)
- Dustproof, Water proof, Vandalism resistance
- Mounting type: Panel mount from Rear
- No. of keys: 83 keys, high quality stainless steel
- Track ball diameter: 38mm
- Keyswitch Technology: Silicone switching element
- keyswitch lifetime: > 5 million of operations.
- Actuation Force/travel: 1N/2.0mm
- Mounting Rack: Aluminum alloy
- Lettering: laser engraved legends for excellent durability
- G.W.: 2.10kg.
Data sheet on CKB005 (pdf, opens in a new tab)
CKB005-USB CYBERVISUELL Stainless Steel Keyboard with 38mm Trackball, Panel Mount from Rear: $517+GST
Note: All languages version and interface are available on request.

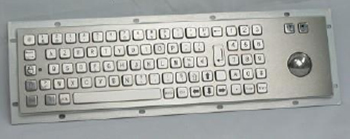

CKB015 – CyberVisuell Industrial Panel Mount Metal Keyboard with Numeric Keys and Trackball
- Protection Level: IP65; NEMA4X
- Lifespan: > 5 years.
- Interface: PS2, USB available.
- Supply Voltage: +5V DC +/-5%
- Operating temperature: -10C to +60C.
- Storage temperature: -20C to +70C.
- Dimensions: 420mm x 125mm (front panel)
- Dustproof, Water proof, Vandalism resistance
- Mounting type: Rear Mounting
- No. of keys: 83 keys, high quality stainless steel
- Track ball diameter: 38mm
- Keyswitch Technology: Silicone switching element
- keyswitch lifetime: > 5 million of operations.
- Actuation Force/travel: 1N/2.0mm
- Mounting Rack: Aluminum alloy
- Lettering: laser engraved legends for excellent durability
- G.W.: 2.50kg.
Data sheet on CKB015 (pdf, opens in a new tab)
CKB015-USB CYBERVISUELL Industrial Panel Mount Metal Keyboard: $576+GST
Note: All languages version and interface are available on request.

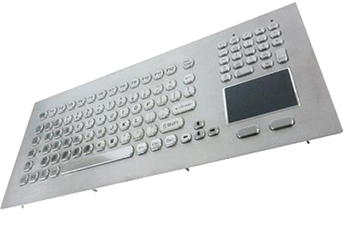

CKB020 – CyberVisuell Industrial Panel Mount Keyboard IP65 with Numeric & Trackpad
- Protection Level: IP65; NEMA4X
- Lifespan: > 5 years.
- Interface: USB (PS/2 available)
- Supply Voltage: +5V DC +/-5%
- Operating temperature: -10C to +60C
- Storage temperature: -20C to +70C.
- Panel dimensions: 385mm x 180mm
- Dustproof, Water proof, Vandalism resistance
- Mounting type: Panel Mounting
- No. of keys: 104keys, high quality stainless steel
- Key switch Technology: Silicone switching element
- Key switch lifetime: > 5 million of operations.
- Actuation Force/travel: 1N/2.0mm
- Mounting Rack: Aluminum alloy
- Lettering: laser engraved legends for excellent durability
- G.W.: 1.80kg.
Data sheet on CKB020 (pdf, opens in a new tab)
CKB020-USB CYBERVISUELL Industrial Panel Mount Keyboard IP65, Numeric, Trackpad: $576+GST
Note: All languages version and interface are available on request.

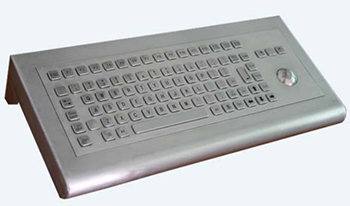

CKWS003 – CyberVisuell Wall Mount Stainless Steel Keyboard, IP65 with Trackball
- Protection Level: IP65; NEMA4X
- Lifespan: > 5 years.
- Interface: USB
- Supply Voltage: +5V DC +/‐5%
- Operating temperature: ‐10C to +60C
- Storage temperature: ‐20C to +70C.
- Panel dimensions: 440mm x 200mm
- Dust proof, Water proof, Vandalism resistance
- Mounting type: Back mount
- No. of keys: 83 keys, high quality stainless steel
- Track ball diameter: 38mm
- Key switch Technology: Silicone switching element
- Key switch lifetime: > 5 million of operations.
- Actuation Force/travel: 1N/2.0mm
- Mounting Rack: Aluminum alloy
- Lettering: laser engraved legends for excellent durability
- G.W.: 3.70kg.
Data sheet on CKWS003 (pdf, opens in a new tab)
CKWS003-USB Wall Mount Stainless Steel Keyboard, IP65 with 38mm trackball: $597+GST
Note: All languages version and interface are available on request.

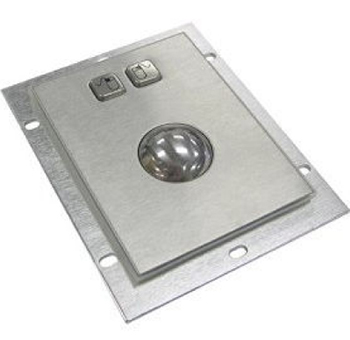

CKT100P – CyberVisuell Panel Mount 38mm Stainless Steel Trackball
- 38mm Stainless Steel Trackball
- Dustproof, Water proof, Vandalism resistance
- Mounting type: Rear Mounting
- Keyswitch Technology: Silicone switching element
- Keyswitch lifetime: > 5 million operations.
- Actuation Force/travel: 1N
- Mounting Flanges: Aluminum alloy
- Lettering: laser engraved legends for excellent durability
Data sheet on CKT100P (pdf, opens in a new tab)
CKT100P-USB CYBERVISUELL Panel Mount 38mm Stainless Steel Trackball with 2 Mouse Buttons: $290+GST
Note: All languages version and interface are available on request.
METAL VANDAL-PROOF KEYBOARDS – INDUKEY

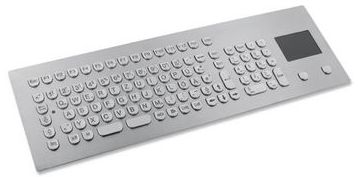

TKV-105-TOUCH-MODUL Stainless steel keyboard
- InduSteel 3
- Stainless steel keyboard
- Mounting type: front panel with threade bolts
- Max. Protection level: IP65
- Pointing devices: Touchpad
- Number of keys: 105
- Interfaces: PS/2 or USB
- Switching technology: Carbon contact technology
- Operation force: 1,0 N
- Switch travel: 1,5 mm
- Switching cycles: approx. 10 Mio
- Operating temp.: 0°C to +70°C Storage temp.: -25°C to +80°C
- Dimension: 446 x 145 x 38 mm
Data sheet (pdf file, opens in new tab)
KV17200 TKV-105-TOUCH-MODUL-USB-US Stainless steel keyboard, USB interface
KV17216 TKV-105-TOUCH-MODUL-PS/2-US Stainless steel keyboard, PS/2 interface
Note: the word MODUL in the description indicates M3 mounting studs on the back

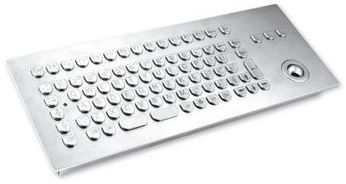

TKV-084-TB25V-MODUL Stainless Steel Keyboard
• InduSteel
• Stainless steel keyboard
• Mounting type: front panel with threaded bolts
• Front panel material: stainless steel
• Protection level: IP65 (stat.), IP54 (dyn.)
• Cursor control: 25 mm trackball, mechanic
• Number of keys: 84
• Interfaces: PS/2
• Switching technology: Carbon contact technology
• Operating force: 1.0 N
• Switch travel: 1.5 mm
• Switching cycles: approx. 10 Mio
• Operating temp.: 0°C to +70°C Storage temp.: -25°C to +80°C
• Dimension: 370 x 145 x 35 mm Weight: 2200 g
Data Sheet (pdf file, opens in new tab)
KV01211 TKV-084-TB25-MODUL-PS/2-US
KV01217 TKV-084-TB25-MODUL-USB-US

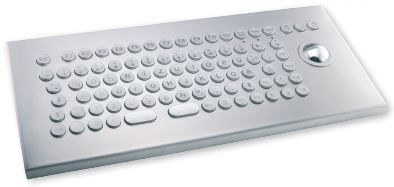

TKV-086-TB38V-IP65-MGEH Vandal Proof Keyboard IP65
Click here to show/ hide more info
Stainless steel housing
• Vandal proof keyboard with 86 keys
• For public surroundings with vandalism risk, industrial extreme surroundings
• Carbon contact technology
• Integrated 38-mm-trackball with 3 mouse buttons
• Resistant to dirt, dust and liquid (IP65)
• PS/2 or USB interface available
Data sheet (pdf file, opens in new tab)
KV09206 TKV-086-TB38V-IP65-MGEH-USB-US Vandal Proof Keyboard IP65: $POA
VANDAL PROOF KEYBOARDS

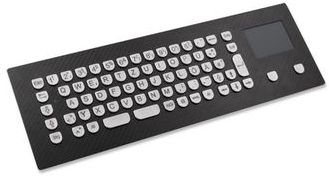

TKV-068-TOUCH-CFK-MODUL Vandal proof rugged keyboard
• Vandal proof keyboard
• Mounting type: front panel with threade bolts
• Front panel material: Carbon (CFK) Max. Protection level: IP65
• Pointing devices: Touchpad
• Number of keys: 68
• Interfaces: PS/2 or USB
• Switching technology: Carbon contact technology
• Operation force: 1,0 N
• Switch travel: 1,5 mm
• Switching cycles: approx. 10 Mio
• Operating temp.: 0°C to +70°C Storage temp.: -25°C to +80°C
• Dimension: 375 x 125 x 27 mm
• Backlight available
Data Sheet (pdf file, opens in new tab)
KV16332 TKV-068-TOUCH-CFK-MODUL-PS/2-US Vandal proof keyboard, PS/2 interface
KV16334 TKV-068-TOUCH-CFK-MODUL-USB-US Vandal proof keyboard, USB interface
