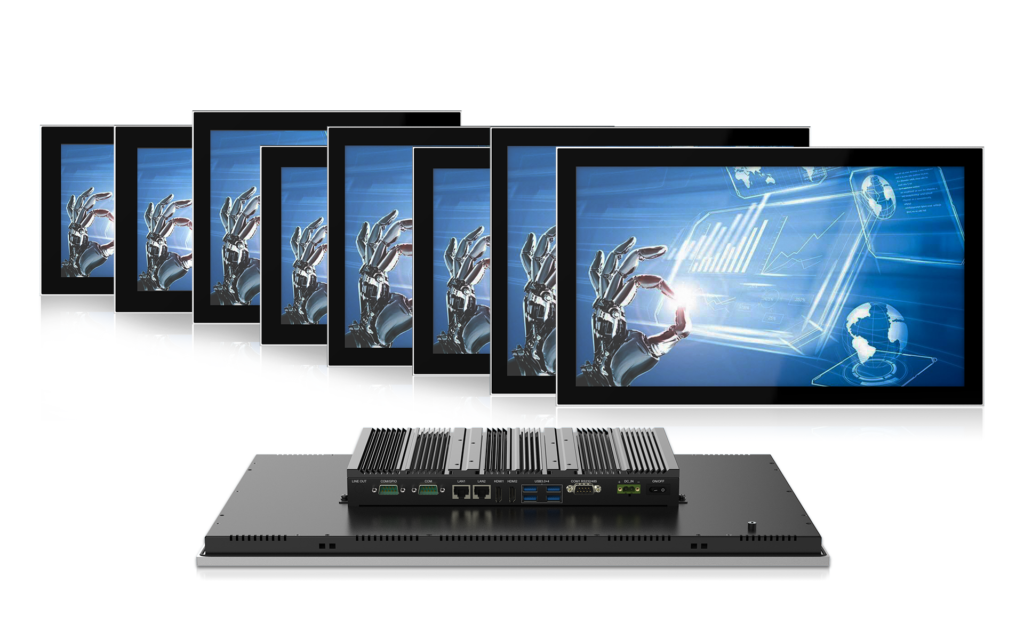

CyberVisuell PPC Series Fanless Panel PC’s
CyberVisuell Custom Panel PC’s
Any customised CyberVisuell LCD monitor can be supplied as a Panel PC, CPU’s from Celeron to i7. Contact us for a quote.
Advantech Atom & Celeron Panel PC’s

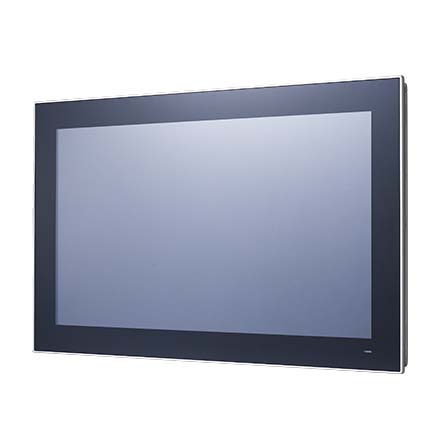

PPC-3210SW
Features
- Industrial 21.5″ Full HD LED panel with 50k lifetime backlight
- Projected capacitive multi touch screen
- Embedded Intel® processor, quad core Celeron® N2930 1.83GHz onboard
- System memory up to 8 GB DDR3L SDRAM
- Compact Fanless Design with solid AI Alloy enclosure
- True-flat with IP65 certified front panel protection
- E-Eye Monitoring and Protection
- Supports Full-size Mini PCIe Expansion
- Supports USB 3.0
- Supports Windows Embedded and Android
- Supports VESA 75
Descriptions
The PPC-3210SW is a high value, ultraslim Panel PC with a 21.5″ Full HD LCD; the low power, Intel® Celeron N2930 1.86GHz processor provides high computing performance in a compact, fanless, embedded system. With a high durability design, the PPC-3210SW is equipped with a true-flat touch screen with IP65 front panel protection, die-cast AI alloy enclosure, and Projected capacitive touchscreen. It supports two serial ports, three USB ports, and two GbE LANs to satisfy various industrial applications. To provide further system monitoring and protection, the E-Eye in the PPC-3210SW rear cover gives clear indication of system operating status, for detection and analysis.
Specifications
Part Number | PPC-3210SW-PAE |
Processor System | |
CPU | Intel® Celeron® N2930, Quad core |
Frequency | 1.83 GHz |
2nd Cache Memory | 2MB |
Memory | 1 x SO-DIMM, DDR3L 1333, Max 8 GB |
Storage 1 | 1 x 2.5″ SATA Bay (Optional, need ordering bracket module for installation);1 x mSATA Bay (default) |
Network (LAN) | 1 x 10/100/1000Mbps Ethernet |
I/O Ports | 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS) ;1 x USB 2.0, 1 x USB 3.0 |
Expansion Slots | 1 x Full size Mini PCIe slot |
Watchdog Timer | 255 timer levels; setup by software |
Physical Characteristics | |
Dimensions | 558.4 x 349.8 x 56.2 (219.8″ x 137.7″ x 22.1″) |
Weight | 7.5 Kg |
OS Support | |
OS Support | Microsoft® Windows 7 32bit&64bit/Windows 8.1 32bit&64bit/Windows 10 32bit&64bit/WES7/WEC 7/Linux/ Android 4.4 |
Power Supply | |
Input Voltage | 12-24 VDC |
Power Consumption | 25W (Burn-in test 7.0 in Windows 7 32 bit) |
LCD Display | |
Display Type | 21.5″ TFT LCD (LED Backlight) |
Viewing Angle (H/V°) | 89 (left), 89 (right), 89 (up), 89 (down) |
Max. Resolution | 1920 x 1080 |
Luminance (cd/m2) | 300 |
Contrast Ratio | 5000:1 |
Backlight Life | 50, 000 hrs |
Touchscreen | |
Touch Type | Projected capacitive multi-touch 10 points |
Light Transmission | 90% ± 3% |
Controller | USB interface |
Environment | |
Operating Temperature | 0 ~ 50°C (32 ~ 122°F) with SSD;0 ~ 40°C (32 ~ 104°F) with HDD (HDD test condition:the SPEC of HDD temperature need more than or equal to 65°C) |
Storage Temperature | -40 ~ 60°C (-40~140°F) |
Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
Shock | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
Vibration | Operating Random Vibration Test 5~500Hz, 1Grms @with HDD, follow IEC 60068-2-64 |
EMC | CE, FCC Class B, BSMI |
Safety | CB, CCC, BSMI, UL |
Front Panel Protection | IP65 Compliant |
Data sheet on PPC-3210SW (pdf file (opens in new tab)

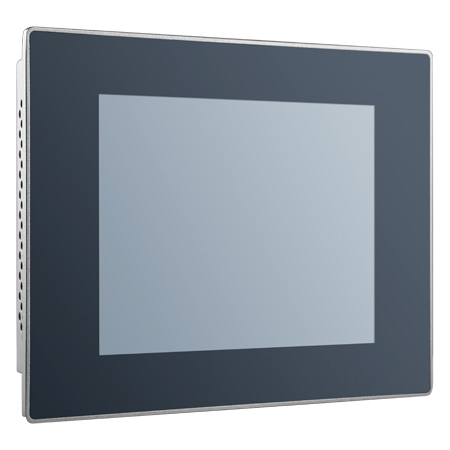

PPC-3060S
Features
- Industrial 6.5″ TFT VGA LCD (LED Backlight)
- Durable 5-wire Resistive Touch Screen
- Embedded Intel Celeron® processor, dual core N2807 1.58 GHz on board
- System memory up to 4 GB DDR3L SDRAM
- Compact Fanless Design
- True-flat with IP65 certified front panel protection
- Supports Full-size Mini PCIe Expansion
- Supports USB 3.0
- Supports Windows Embedded and Android
- Supports VESA 75
Descriptions
The PPC-3060S is a high value ultraslim Panel PC with a 6.5″ TFT VGA LCD, low power Intel® Celeron® N2807 1.58GHz processor. It provides high computing performance in a compact fanless embedded system. With a highly durable design,the PPC-3060S is equipped with an IP65 protected front panel and true-flat 5-wire resistive touch screen. It supports two serial ports, three USB ports, and two GbE LAN to satisfy various industrial applications.
Specifications
Part Number | PPC-3060S-N80AE |
Environment | |
Front Panel Protection | IP65 Compliant |
Safety | CE, UL,CCC, BSMI |
EMC | BSMI, CE, FCC Class B |
Operating Temperature | 0 ~ 50°C (32 ~ 122°F) with SSD, 0 ~ 40°C (32 ~ 104°F) with HDD |
Relative Humidity | 10 ~ 95% RH @ 40°C, non-condensing |
Shock | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
Storage Temperature | -40 ~ 60°C (-40~140°F) |
Vibration | Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64 |
Processor System | |
CPU | Intel® Celeron® N2807, Dual core |
Frequency | 1.58 GHz |
Memory | 1 x SO-DIMM, DDR3L 1333, Max 4 GB |
Storage 1 | 1 x 2.5″ SATA Bay (Optional), 1 x mSATA Bay |
Expansion Slots | 1 x Full size Mini PCIe slot |
I/O Ports | 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS), 2 x USB 2.0; 1 x USB 3.0 |
Watchdog Timer | 255 timer levels; setup by software |
Network (LAN) | 2 x 10/100/1000 Mbps Ethernet (Intel I211) |
LCD Display | |
Backlight Lifetime | 50,000 hrs (typical) |
Contrast Ratio | 600:1 |
Display Type | 6.5″ TFT LCD (LED Backlight) |
Luminance (cd/m2) | 700 |
Max. Resolution | 640 x 480 |
Viewing Angle (H/V°) | 80 (left), 80 (right), 70 (up), 70 (down) |
OS Support | |
OS Support | Microsoft® Windows 7 32bit&64bit/Windows 8.1 32bit&64bit/Windows 10 32bit&64bit/WES7/WEC 7/Linux/ Android 4.4 |
Power Supply | |
Power Consumption | 11 W (Burn-in test 7.0 in Windows 7 32bit) |
Input Voltage | 12-24 VDC |
Touchscreen | |
Durability (Touches) | Greater than 35 million touches in one location without failure |
Controller | RS-232 interface |
Light Transmission | 80% ±5 |
Physical Characteristics | |
Weight | 1.5 kg ( 3.30 lb) |
Dimensions | 197.6 x 150.6 x 41mm (7.8″ x 5.9″ x 1.6″) |
Data sheet on PPC-3060S (pdf file (opens in new tab)

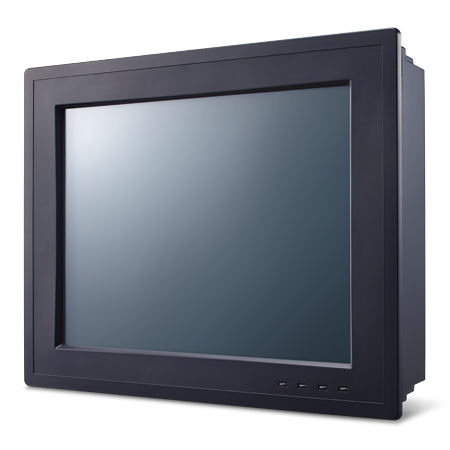

PPC-3100
Features
- 10.4″ TFT SVGA LED Panel with resistive touchscreen
- Embedded Intel® Atom™ processor D2550 1.86 GHz
- System memory up to 4 GB DDR3 1066 SDRAM
- Supports one internal SATA 2.5″ HDD and 1 x mSATA socket
- Fanless design and low power consumption
- Automatic data flow control over RS-485
- Adjust RS-232/422/485 through BIOS
- COM1/COM2 pin9 RI/5V/12V adjustable through BIOS
- LED backlight Auto dimming
Descriptions
PPC-3100 is a new 10.4″ Panel PC equipped with an Intel Atom processor D2550. Meeting high demands of harsh environments, the fanless design makes PPC-3100 more reliable in different kinds of applications for the machine building industry. In addition, the dual GbE LAN, 4 x serial ports, 4 x USB ports, and GPIO connector make it easier to connect to devices and be integrated into specific solutions. With a user friendly design it comes with an LED indicator on the front panel for power on/off, storage access, and LAN active status.
Specifications
Part Number | PPC-3100-RAE |
Processor System | |
CPU | Intel Atom D2550 1.86GHz 10W Dual Core CPU on board |
Frequency | 1.91GHz |
L3 Cache | 2M |
Memory | SO-DIMM x 1, DDR3 1066, Max 4 GB |
Network (LAN) | 2 x 10/100/1000 Mbps Ethernet |
I/O Ports | 4 x Serial ports: 3 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS), 4 x USB 2.0 ports, 1 x Line-out, 1x MIC-in, 1 x DB15 VGA ,1 x DB9 GPIO port (8 pin programable) |
Watchdog Timer | 255 timer levels; setup by software |
Speaker | 2 x 1W speakers |
Physical Characteristics | |
Dimensions | 275 x 220 x 64.3 mm (10.83″ x 8.74″ x 2.53″) |
Weight | 2.5 kg (5.51 lb) |
OS Support | |
OS Support | Microsoft® Windows XPE / Windows XP Pro / WES7 32bit / WEC7 / Windows 7 32bit / Linux |
Power Supply | |
Input Voltage | 12-30 VDC |
Power Consumption | 30W (Burn-in test 7.0 in Windows 7 32 bit) |
Display | |
Display Type | 10.4″ TFT LCD (LED Backlight) |
Max. Resolution | 800 x 600 |
Viewing Angle | 80 (left), 80 (right), 70 (up), 70 (down) |
Luminance (cd/m2) | 400 |
Backlight Life (hrs) | 30, 000 hrs (typical) |
Touchscreen | |
Touch Type | Analog Resistive 5-wire |
Light Transmission | 81±3% |
Controller | USB interface |
Durability (Touches) | 36 million |
Environment | |
Operating Temperature | 0 ~ 50°C (32 ~ 122°F) |
Storage Temperature | -20 ~ 60°C (-4 ~ 140°F) |
Safety | CB, CCC, BSMI, UL |
Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
Shock Protection | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
Vibration Protection | Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64 |
EMC | BSMI, CE, FCC Class B |
Front Panel Protection | IP65 Compliant |
Data sheet on PPC-3100 (pdf file (opens in new tab)

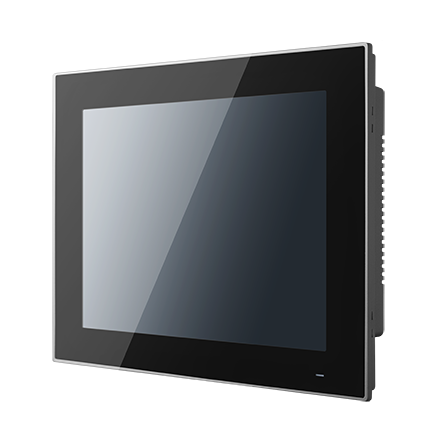

PPC-3100S
Features
- Industrial 10.4″ TFT SVGA LED panel with 30k (min.) lifetime backlight
- Durable 5-wire Resistive Touch Screen
- System memory up to 8 GB DDR3L SDRAM onboard
- Embedded Intel processor, quad core Celeron® N2930 1.83GHz onboard
- Compact Fanless Design with solid AI Alloy enclosure
- True-flat with IP65 certified front panel protection
- E-Eye Monitoring and Protection
- Supports Full-size Mini PCIe Expansion
- Supports USB 3.0
- Supports Windows Embedded and Android
- Supports VESA 75
Descriptions
The PPC-3100S high value ultraslim Panel PC with a 10.4″ SVGA LCD, low power Intel® Celeron® N2930 1.86GHz Processor provides high computing performance in compact fanless embedded system. With a high durability design,the PPC-3100S is equipped with a true-flat touch screen with IP65 front panel protection,die-cast AI Alloy enclosure and
5-wire resistive touch screen. It supports two serial ports, three USB ports, and two GbE LAN to satisfy various industrial applications. To provide further system monitoring and protection, the E-Eye in PPC-3100S rear cover gives a clear signal of system operating status, helping people detecting and analysis.
Specifications
Data sheet on PPC-3100S (pdf file (opens in new tab)

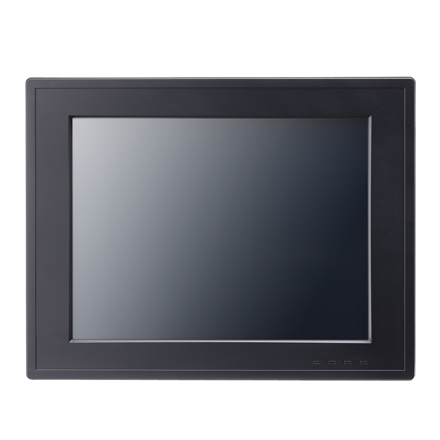

PPC-3120
Features
- 12.1″ TFT XGA LED Panel with resistive touchscreen
- Embedded Intel® Atom™ processor D2550 1.86 GHz
- System memory up to 4 GB DDR3 1066 SDRAM
- Supports one internal SATA 2.5″ HDD and 1 x mSATA socket
- Optional PCI/PCIe x1 expansion kit
- Fanless design and low power consumption
- Automatic data flow control over RS-485
- Adjust RS-232/422/485 through BIOS
- COM1/COM2 pin9 RI/5V/12V adjustable through BIOS
Descriptions
PPC-3120 is a new 12.1″ Panel PC equipped with an Intel Atom processor D2550. Meeting high demands of harsh environments, the fanless design makes PPC-3120 more reliable in different kinds of applications for the machine building industry. In addition, the dual GbE LAN, 4 x serial ports, 4 x USB ports, and GPIO connector make it easier to connect to devices and be integrated into specific solutions. With a user friendly design it comes with an LED indicator on the front panel for power on/off, storage access, and LAN active status.
Specifications
Part Number | PPC-3120-RAE |
Processor System | |
CPU | Intel Atom D2550 1.86GHz 10W Dual Core CPU on board |
Frequency | 1.86 GHz |
2nd Cache Memory | 1 MB |
Chipset | Intel NM10 |
Memory | SO-DIMM x 1, DDR3 1066, Max 4 GB |
Storage | 1 x 2.5″ SATA Bay, 1 x mSATA Bay |
Network (LAN) | 2 x 10/100/1000 Mbps Ethernet |
I/O Ports | 4 x Serial ports: 3 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS), 4 x USB 2.0 ports, 1 x Line-out, 1x MIC-in, 1 x DB15 VGA ,1 x DB9 GPIO port (8 pin programable) |
Expansion Slots | 1 x Mini PCIe;1 x PCIe x1; 1 x PCI |
Speaker | 2 x 1W speakers |
Watchdog Timer | |
Watchdog Timer | 255 timer levels, set up by software |
Physical Characteristics | |
Dimensions | 325 x 253.8 x 58.4 mm (12.79″ x 10″ x 2.3″) |
Weight | 3.3 kg (7.27 lb) |
Power Supply | |
Input Voltage | 12-30 VDC |
Power Consumption | 36 W (Burn-in test 7.0 in Windows 7 32bit);34 W (Burn-in test 7.0 in Windows XP 32bit) |
OS Support | |
OS Support | Microsoft® Windows XPE / Windows XP Pro / WES7 32bit / WEC7 / Windows 7 32bit / Linux |
Display | |
Display Type | 12.1″ TFT LCD (LED Backlight) |
Max. Resolution | 1024 x 768 |
Viewing Angle | 80 (left), 80 (right), 70 (up), 70 (down) |
Luminance (cd/m2) | 600 |
Contrast Ratio | 700 : 1 |
Backlight Life (hrs) | 50,000 hrs (typical) |
Touchscreen | |
Touch Type | Analog Resistive 5-wire |
Light Transmission | 81±3% |
Controller | RS-232 interface |
Durability (Touches) | 36 million |
Environment | |
Operating Temperature | 0 ~ 50°C (32 ~ 122°F) |
Storage Temperature | -20 ~ 60°C (-4 ~ 140°F) |
Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
Shock Protection | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
Vibration Protection | Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64 |
EMC | BSMI, CE, FCC Class B |
Safety | CB, CCC, BSMI, UL |
Front Panel Protection | IP65 Compliant |
Data sheet on PPC-3120 (pdf file (opens in new tab)
PPC-3120S
Features
- Industrial 12.1″ TFT XGA LED panel with 30k (min.) lifetime backlight
- Durable 5-wire Resistive Touch Screen
- Embedded Intel processor, quad core Celeron® N2930 1.83GHz onboard
- System memory up to 8 GB DDR3L SDRAM
- Compact Fanless Design with solid AI Alloy enclosure
- True-flat with IP65 certified front panel protection
- E-Eye Monitoring and Protection
- Supports Full-size Mini PCIe Expansion
- Supports USB 3.0
- Supports Windows Embedded and Android
- Supports VESA 75
Descriptions
The PPC-3120S high value ultraslim Panel PC with a 12.1″ XGA LCD, low power Intel® Celeron N2930 1.86GHz Processor provides high computing performance in compact fanless embedded system. With a high durability design,the PPC-3120S is equipped with a true-flat touch screen with IP65 front panel protection,die-cast AI Alloy enclosure and 5-wire resistive touch screen. It supports two serial ports, three USB ports, and two GbE LAN to satisfy various industrial applications. To provide further system monitoring and protection, the E-Eye in PPC-3120S rear cover gives a clear signal of system operating status, helping people detecting and analysis.
Specifications
Part Number | PPC-3120S-RAE |
Power Supply | |
Power Consumption | 18W (Burn-in test 7.0 in Windows 7 32 bit) |
Input Voltage | 12-24 VDC |
LCD Display | |
Viewing Angle (H/V°) | 80 (left), 80 (right), 70 (up), 70 (down) |
Luminance (cd/m2) | 500 |
Contrast Ratio | 700:1 |
Display Type | 12.1″ TFT LCD (LED Backlight) |
Backlight Life | 30,000 hrs (Min.) |
Environment | |
Relative Humidity | 10 ~ 95% @ 40°C non-condensing |
EMC | CE, FCC Class B, BSMI |
Safety | CB, CCC, BSMI, UL |
Operating Temperature | 0 ~ 50°C (32 ~ 122°F) with SSD, 0 ~ 40°C (32 ~ 104°F) with HDD |
Storage Temperature | -40 ~ 60°C (-40~140°F) |
Front Panel Protection | IP65 Compliant |
Vibration | Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64 |
Shock | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
Processor System | |
Memory | 1 x SO-DIMM, DDR3L 1333, Max 8 GB |
Frequency | 1.83 GHz |
I/O Ports | 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS), 2 x USB 2.0; 1 x USB 3.0 |
Network (LAN) | 2 x 10/100/1000 Mbps Ethernet (Intel I211) |
Storage 1 | 1 x 2.5″ SATA bay, 1 x mSATA bay |
Watchdog Timer | 255 timer levels; setup by software |
CPU | Intel® Celeron® N2930, Quad core |
Expansion Slots | 1 x Full size Mini PCIe slot |
Touchscreen | |
Light Transmission | 80±5% at 550 nm wavelength |
Controller | RS-232 interface |
Durability (Touches) | Greater than 35 million touches in one location without failure |
Touch Type | Elo Resistive 5 wires |
OS Support | |
OS Support | Microsoft® Windows 7 32bit&64bit/Windows 8.1 32bit&64bit/Windows 10 32bit&64bit/WES7/WEC 7/Linux/Android 4.4 |
Physical Characteristics | |
Dimensions | 317 x 246 x 49 mm(12.5″ x 9.7″ x 1.9″) |
Weight | 2.1 Kg (4.63 lb) |
Data sheet on PPC-3120S (pdf file (opens in new tab)

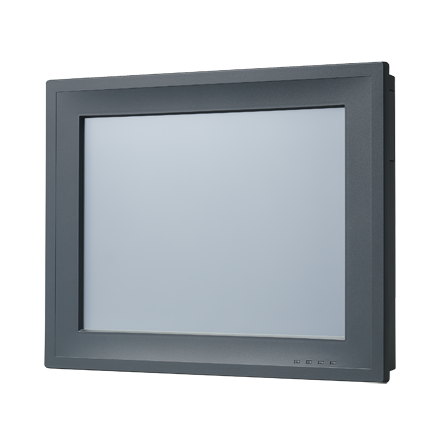

PPC-3150
Features
- 15” TFT XGA LCD with resistive touchscreen
- Embedded Intel Atom Quad-Core E3845 1.91G
- Wide operating temp. range from -20~60°C
- Built-in one PCI or one PCIe x1 expansion slot
- Wide range power input for 9~32VDC
- Supports one internal 2.5” SATA HDD, one mSATA socket
- One isolated RS-422/485 with Autoflow, Dual Intel GbE
- One optional GPIO (8 channels, TTL level)
- Fanless and Slim design
Descriptions
The PPC-3150 is a 15” fanless panel PC that doesn’t only deliver high performance with an Intel quad-core Atom processor but also supports a wide operating temp.(-20~60°C) and wide range of power input (9~32VDC). It consolidates performance and reliability in one system. With multiple I/Os such as 4 x COM, 1 x USB3.0, 1x isolated RS-422/485 and dual Intel Gigabit Ethernet make it easier to connect to devices and be integrated into machine building industry. The PCI/PCIe expansion is allowed to add on field bus or proprietary card makes more application possibility.
Specifications
Part Number | PPC-3150-RE4AE |
Processor System | |
CPU | Intel® Atom™ E3845, Quad core |
Frequency | 1.91GHz |
L3 Cache | 2M |
Memory | 1 x SO-DIMM, DDR3L 1333MHz,Max 8 GB |
Storage | 1 x 2.5″ SATA Bay, 1 x mSATA Bay |
Network (LAN) | 2 x 10/100/1000 Mbps Ethernet (Intel I210) |
I/O Ports | 1 x isolated RS-422/485 (terminal block) 4 x RS-232, two external and two by internal pin header (need optional module), 1 x GPIO (8 channels, TTL level) by internal pin header (need optional module), 1 x USB3.0 + 3 x USB2.0, 1 x D-SUB VGA port, 1 x DP1.1a, 1 x Line-out, 1 x Mic-in |
Expansion Slots | 1 x Mini PCIe;1 x PCIe x4 or PCI;Optional: 1 x Cfast, 1 x CF card, 1 x internal USB dongle, 2 x RS-232 or 1 x RS-232 + 1 x GPIO |
Speaker | 2 x 1W |
Watchdog Timer | |
Watchdog Timer | 255 timer levels, set up by software |
Physical Characteristics | |
Dimensions | 396.5 x 317.6 x 65.3 (15.6″ x 12.5″ x 2.57″) |
Weight | 5.3 Kg (11.68 lb) |
OS Support | |
OS Support | Microsoft® WEC7/ WES7 32bit&64bit/ Windows 7 32bit&64bit/Windows 8.1 32bit&64bit/Windows 10 32bit&64bit/ Linux |
Power Supply | |
Input Voltage | 9 – 32 Vdc |
Power Consumption | 30W (Burn-in test 7.0 in Windows 7 32 bit) |
Display | |
Display Type | 15″ TFT LED Panel |
Max. Resolution | 1024 x 768 |
Viewing Angle | 80 (left), 80 (right), 70 (up), 70 (down) |
Luminance (cd/m2) | 400 |
Backlight Life (hrs) | 50, 000 hrs (Min.) |
Touchscreen | |
Touch Type | Analog Resistive 5-wire |
Light Transmission | 80±3% |
Controller | USB interface |
Durability (Touches) | 36 million |
Environment | |
Operating Temperature | 0 ~ 50°C (32 ~ 122°F) with 2.5” SATA HDD -20 ~ 60°C (-4 ~ 140°F) with -40 ~ 85°C mSATA |
Storage Temperature | -40 ~ 60°C (-40~140°F) |
Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
Shock Protection | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
Vibration Protection | Operating Random Vibration Test 5~500Hz, 1Grms @with HDD, follow IEC 60068-2-64 |
EMC | CE, BSMI, FCC Class A |
Safety | CB, CCC, BSMI, UL |
Front Panel Protection | IP65 Compliant |
Data sheet on PPC-3150 (pdf file (opens in new tab)

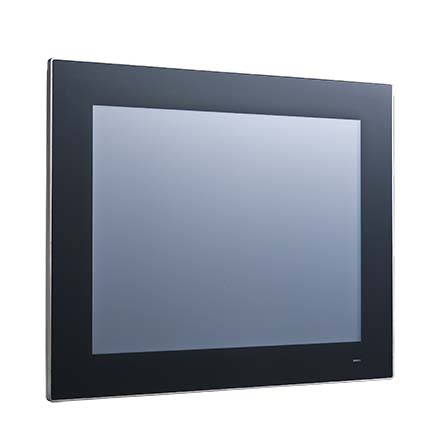

PPC-3150S
Features
- Industrial 15″ TFT XGA LED panel with 50k lifetime backlight
- Durable 5-wire Resistive Touch Screen
- Embedded Intel® processor, quad core Celeron® N2930 1.83GHz onboard
- System memory up to 8 GB DDR3L SDRAM
- Compact Fanless Design with solid AI Alloy enclosure
- True-flat with IP65 certified front panel protection
- E-Eye Monitoring and Protection
- Supports Full-size Mini PCIe Expansion
- Supports USB 3.0
- Supports Windows Embedded and Android
- Supports VESA 75
Descriptions
The PPC-3150S is a high value, ultraslim Panel PC with a 15″ XGA LCD; the low power, Intel® Celeron N2930 1.86GHz processor provides high computing performance in a compact, fanless, embedded system. With a high durability design, the PPC-3150S is equipped with a true-flat touch screen with IP65 front panel protection, die-cast AI alloy enclosure, and 5-wire resistive touch screen. It supports two serial ports, three USB ports, and two GbE LANs to satisfy various industrial applications. To provide further system monitoring and protection, the E-Eye in the PPC-3150S rear cover gives clear indication of system operating status, for detection and analysis.
Specifications
Part Number | PPC-3150S-RAE |
Processor System | |
CPU | Intel® Celeron® N2930, Quad core |
Frequency | 1.83GHz |
L3 Cache | 2MB |
Memory | 1 x SO-DIMM, DDR3L 1333, Max 8 GB |
Storage | 1 x 2.5″ SATA Bay (Optional, need ordering bracket module for installation);1 x mSATA Bay (default) |
Network (LAN) | 2 x 10/100/1000 Mbps Ethernet (Intel I211-AT) |
I/O Ports | 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS), 2 x USB 2.0; 1 x USB 3.0 |
Expansion Slots | 1 x Full size Mini PCIe slot |
Watchdog Timer | 255 timer levels; setup by software |
Physical Characteristics | |
Dimensions | 391.36 x 312.46 x 51.5mm(15.4″ x 12.3″ x 2.0″) |
Weight | 4Kg (8.8Ib) |
OS Support | |
OS Support | Microsoft Windows 7 32bit&64bit/Windows 8.1 32bit&64bit/Windows 10 32bit&64bit/WES7/WEC 7/Linux/ Android 4.4 |
Power Supply | |
Input Voltage | 12- 24 Vdc |
Power Consumption | 20W (Burn-in test 7.0 in Windows 7 32 bit) |
Display | |
Display Type | 15″ TFT LCD (LED Backlight) |
Max. Resolution | 1024 x 768 |
Viewing Angle | 80 (left), 80 (right), 70 (up), 70 (down) |
Luminance (cd/m2) | 400 |
Backlight Life (hrs) | 50, 000 hrs (Min.) |
Touchscreen | |
Touch Type | Resistive 5 wires |
Light Transmission | 80±5% at 550 nm wavelength |
Controller | RS-232 interface |
Durability (Touches) | 36 million |
Environment | |
Operating Temperature | 0 ~ 50°C (32 ~ 122°F) with SSD;0 ~ 40°C (32 ~ 104°F) with HDD (HDD test condition:the SPEC of HDD temperature need more than or equal to 65°C) |
Storage Temperature | -40 ~ 60°C (-40~140°F) |
Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
Shock Protection | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
Vibration Protection | Operating Random Vibration Test 5~500Hz, 1Grms @with HDD, follow IEC 60068-2-64 |
EMC | CE, FCC Class B, BSMI |
Safety | CB, CCC, BSMI, UL |
Front Panel Protection | IP65 Compliant |
Data sheet on PPC-3150S (pdf file (opens in new tab)

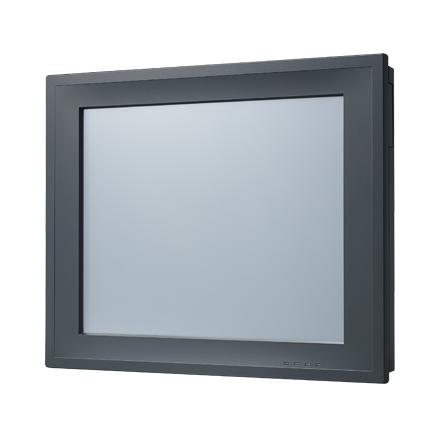

PPC-3170
Features
- 17” TFT SXGA LCD with resistive touchscreen
- Embedded Intel Atom Quad-Core E3845 1.91G
- Fanless and Slim design
- Supports one internal 2.5” SATA HDD, one mSATA socket
- Built-in one PCI or one PCIe x1 expansion slot
- Wide operating temp. range from -20~60°C
- Wide range power input for 9~32VDC
- One isolated RS-422/485 with Autoflow, Dual Intel GbE
- One optional GPIO (8 channels, TTL level)
Descriptions
The PPC-3170 is a 17” fanless panel PC that doesn’t only deliver high performance with an Intel quad-core Atom processor but also supports a wide operating temp. (-20~60°C) and wide range of power input (9~32VDC). It consolidates performance and reliability in one system. With multiple I/Os such as 4 x COM, 1 x USB3.0, 1x isolated RS-422/485 and dual Intel Gigabit Ethernet make it easier to connect to devices and be integrated into machine building industry. The PCI/PCIe expansion is allowed to add on field bus or proprietary card makes more application possibility.
Specifications
Part Number | PPC-3170-RE4AE |
Processor System | |
CPU | Intel® Atom™ E3845, Quad core |
Frequency | 1.91GHz |
L3 Cache | 2M |
Memory | 1 x SO-DIMM, DDR3L 1333MHz,Max 8 GB |
Storage | 1 x 2.5″ SATA Bay, 1 x mSATA Bay |
Network (LAN) | 2 x 10/100/1000 Mbps Ethernet (Intel I210) |
I/O Ports | 1 x isolated RS-422/485 (terminal block) 4 x RS-232, two external and two by internal pin header (need optional module), 1 x GPIO (8 channels, TTL level) by internal pin header (need optional module), 1 x USB3.0 + 3 x USB2.0, 1 x D-SUB VGA port, 1 x DP1.1a, 1 x Line-out, 1 x Mic-in |
Expansion Slots | 1 x Mini PCIe;1 x PCIe x4 or PCI;Optional: 1 x Cfast, 1 x CF card, 1 x internal USB dongle, 2 x RS-232 or 1 x RS-232 + 1 x GPIO |
Speaker | 2 x 1W |
Watchdog Timer | |
Watchdog Timer | 255 timer levels, set up by software |
Physical Characteristics | |
Dimensions | 442.0 x 362.0 x 69.5 (mm) (17.4″ x 14.3″ x2.74″) |
Weight | 6.3 Kg (13.89lb) |
OS Support | |
OS Support | Microsoft® WEC7/ WES7 32bit&64bit/ Windows 7 32bit&64bit/Windows 8.1 32bit&64bit/Windows 10 32bit&64bit/ Linux |
Power Supply | |
Input Voltage | 9-32 VDC |
Power Consumption | 34W (Burn-in test 7.0 in Windows 7 32 bit) |
Display | |
Display Type | 17″ TFT LED Panel |
Max. Resolution | 1280 x 1024 |
Viewing Angle | 80 (left), 80 (right), 60 (up), 80 (down) |
Luminance (cd/m2) | 350 |
Backlight Life (hrs) | 50,000 hrs (typical) |
Touchscreen | |
Touch Type | Analog Resistive 5-wire |
Light Transmission | 81±3% |
Controller | USB interface |
Durability (Touches) | 36 million |
Environment | |
Operating Temperature | 0 ~ 50°C (32 ~ 122°F) with 2.5” SATA HDD -20 ~ 60°C (-4 ~ 140°F) with -40 ~ 85°C mSATA |
Storage Temperature | -40 ~ 60°C (-40~140°F) |
Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
Shock Protection | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
Vibration Protection | Operating Random Vibration Test 5~500Hz, 1Grms @with HDD, follow IEC 60068-2-64 |
EMC | CE, BSMI, FCC Class A |
Safety | CB, CCC, BSMI, UL |
Front Panel Protection | IP65 Compliant |
Data sheet on PPC-3170 (pdf file (opens in new tab)

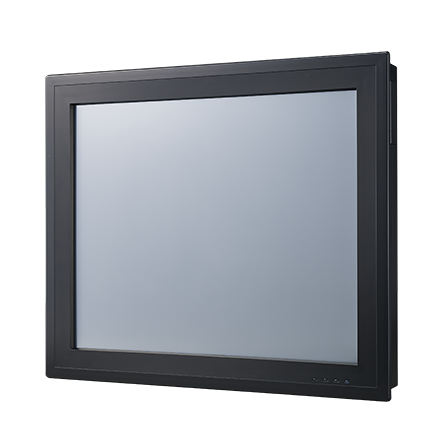

PPC-3190
Features
- 19″ TFT SXGA LCD with resistive touchscreen
- Embedded Intel Atom Quad-Core E3845 1.91G
- Fanless and Slim design
- Supports one internal 2.5” SATA HDD, one mSATA socket
- Built-in one PCI or one PCIe x1 expansion slot
- Wide operating temp. range from -20~60°C
- Wide range power input for 9~32V DC
- One isolated RS-422/485 with Autoflow, Dual Intel GbE
- One optional GPIO (8 channels, TTL level)
Descriptions
The PPC-3190 is a 19″ fanless panel PC that doesn’t only deliver high performance with an Intel quad-core Atom processor but also supports a wide operating temp. (-20~60°C) and wide range of power input (9~32V DC ). It consolidates performance and reliability in one system. With multiple I/Os such as 4 x COM, 1 x USB3.0, 1x isolated RS-422/485 and dual Intel Gigabit Ethernet make it easier to connect to devices and be integrated into machine building industry. The PCI/PCIe expansion is allowed to add on field bus or proprietary
card makes more application possibility.
Specifications
Part Number | PPC-3190-RE4AE |
Processor System | |
CPU | Intel® Atom™ E3845, Quad core |
Frequency | 1.91GHz |
L3 Cache | 2M |
Memory | 1 x SO-DIMM, DDR3L 1333MHz,Max 8 GB |
Storage | 1 x 2.5″ SATA Bay, 1 x mSATA Bay |
Network (LAN) | 2 x 10/100/1000 Mbps Ethernet (Intel I210) |
I/O Ports | 1 x isolated RS-422/485 (terminal block) 4 x RS-232, two external and two by internal pin header (need optional module), 1 x GPIO (8 channels, TTL level) by internal pin header (need optional module), 1 x USB3.0 + 3 x USB2.0, 1 x D-SUB VGA port, 1 x DP1.1a, 1 x Line-out, 1 x Mic-in |
Expansion Slots | 1 x Mini PCIe;1 x PCIe x4 or PCI;Optional: 1 x Cfast, 1 x CF card, 1 x internal USB dongle, 2 x RS-232 or 1 x RS-232 + 1 x GPIO |
Speaker | 2 x 1W |
Watchdog Timer | |
Watchdog Timer | 255 timer levels, set up by software |
Physical Characteristics | |
Dimensions | 458.2 x 384 x 67.3(mm)(18″ x 15″ x 2.6″) |
Weight | 7.9 Kg (17.3Ib) |
OS Support | |
OS Support | Microsoft® WEC7/ WES7 32bit&64bit/ Windows 7 32bit&64bit/Windows 8.1 32bit&64bit/Windows 10 32bit&64bit/ Linux |
Power Supply | |
Input Voltage | 9-32 VDC |
Power Consumption | 27W (Burn-in test 7.0 in Windows 7 32 bit) |
Display | |
Display Type | 17″ TFT LED Panel |
Max. Resolution | 1280 x 1024 |
Viewing Angle | 85°(left), 85°(right), 80°(up), 80°(down) |
Luminance (cd/m2) | 350 |
Backlight Life (hrs) | 50, 000 hrs (Min.) |
Touchscreen | |
Touch Type | Analog Resistive 5-wire |
Light Transmission | 81% +/- 3% |
Controller | USB interface |
Durability (Touches) | 36 million |
Environment | |
Operating Temperature | 0 ~ 50°C (32 ~ 122°F) with 2.5” SATA HDD -20 ~ 60°C (-4 ~ 140°F) with -40 ~ 85°C mSATA |
Storage Temperature | -40 ~ 60°C (-40~140°F) |
Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
Shock Protection | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
Vibration Protection | Operating Random Vibration Test 5~500Hz, 1Grms @with HDD, follow IEC 60068-2-64 |
EMC | CE, BSMI, FCC Class A |
Safety | CB, CCC, BSMI, UL |
Front Panel Protection | IP65 Compliant |
Data sheet on PPC-3190 (pdf file (opens in new tab)

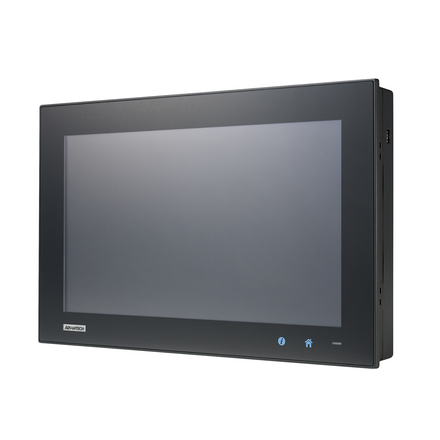

PPC-4150W
Features
- 15.6″ TFT WXGA LED entirely flat panel with Projected capacitive multi-touch screen
- Fanless design and low power consumption
- Supports one internal SATA 2.5″ HDD and 1 x mSATA socket
- PCI or PCIe expansion support
- Adjust RS-232/422/485 through BIOS
- Automatic data flow control over RS-485
- Wide Range DC 12~30V support
- One right side USB port
- Front panel compliant with IP65
Descriptions
The PPC-4150W is a new generation Panel PC with 15.6 inch wide screen and Projected Capacitive Multi finger touch screen. The new technology brings an intuitive experience and customers can design software to enhance the displays safety protection. With an entirely flat touch screen it is easy and convenient to clean and use. Equipped with an Intel Atom processor D2550, the fanless design become practical and makes PPC-4150W more reliable in harsh environments. In addition, the dual GbE LAN, 4 x serial ports, 5 x USB ports, and GPIO connector make it easier to connect to devices and be integrated into machines.
Specifications
Part Number | PPC-4150W-P4GAE |
Power Supply | |
Power Consumption | 36 W (4 GB DDR3, 2.5″ HDD 500G, 4xRS232 loop back, USB2.0x3, mouse ,Windows7 32bit) |
Input Voltage | 12-30 VDC |
LCD Display | |
Viewing Angle (H/V°) | 85 (left), 85 (right), 85 (up), 85 (down) |
Luminance (cd/m2) | 300 |
Max. Resolution | 1366 x 768 |
Max. Colors | 16.7 M |
Display Type | 15.6″ TFT LCD (LED Backlight) |
Brightness Control | Yes |
Backlight Lifetime | 50, 000 hrs |
Environment | |
Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
Operating Temperature | 0 ~ 50°C (32 ~ 122°F) |
Storage Temperature | -20 ~ 60°C (-4 ~ 140°F) |
Front Panel Protection | IP65 Compliant |
Processor System | |
Memory | SODIMM x 1, DDR3 1066, 4 GB DDR3 pre-installed |
Storage | mSATA*1 |
Bus Expansion | 1 x MINI PCIe, 1 x PCIex1 or 1 x PCI |
HDD | 1 x 2.5″ SATA HDD Bay (Internal) |
Weight | 5.5Kg |
Dimensions (W x H x D) | 419.7 x 269 x 59 mm |
2nd Cache Memory | 1 MB |
Network (LAN) | 1 x 10/100/1000Mbps Ethernet |
Watchdog Timer | 255 timer levels; setup by software |
CPU | Intel Atom D2550 1.86GHz 10W Dual Core CPU on board |
Touchscreen | |
Light Transmission | 88%±2% |
Controller | USB interface |
Touch Type | Projected capacitive multi-touch 10 points |
OS Support | |
OS Support | Win XPE / WES7 / WIN CE7.0 / Linux |
Data sheet on PPC-4150W (pdf file (opens in new tab)
Advantech Core i3/i5/i7 Panel PC’s

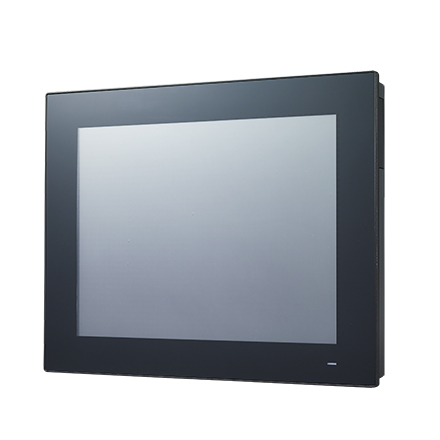

PPC-3151
Features
- 15″ TFT XGA LCD flat panel with projected capacitive (default) or resistive (optional) touchscreen
- Intel® Core™ i5-6300U (default)/i7/i3 (optional) processor with fanless system design
- Supports either 1 x PCIe x4 or PCI
- 1 x M.2 bay (2242) for storage only
- 1 x isolated RS-422/485 with auto flow
- Wide DC input range (9 ~ 32V)
- Dual Gigabit Ethernet, IEEE1588 compliant
- 3 x Independent displays
- Supports VESA 75 mounting interface
Descriptions
The PPC-3151 is a next-generation panel PC featuring a 15″ TFT XGA display with 1024 x 768 resolution. Powered by a high-performance Intel® Core™ i5-6300U processor, the system’s high-efficiency fanless thermal design allows heat to dissipate rapidly. By combining high performance with reliability, PPC-3151 provides a superior human-machine interface. Rich I/O including 3 x COM, 4 x USB 3.0, and dual Gigabit Ethernet facilitate device connectivity and system integration. The inclusion of a PCIe/PCI slot for fieldbus or proprietary card expansion increases the system’s suitability for diverse applications. Finally, the 5-point multi-touch screen ensures convenient and intuitive operation for the optimal user experience.
Specifications
Part Number | PPC-3151-650AE |
Processor System | |
CPU | Intel® Core™ i5-6300U (dual core) |
Frequency | 2.4 GHz, turbo boost up to 3.0 GHz |
L3 Cache | 3M |
Memory | 1 x SODIMM, DDR4 1866/2133, max. 16 GB (1.2V) |
Storage | 1 x 2.5″ SATA bay;1 x M.2 bay (size: 22 x 42 mm, socket 2 B key, for storage only) |
Network (LAN) | 2 x 10/100/1000 Mbps Ethernet |
I/O Ports | 3 x Serial ports (2 x RS-232, 1 x RS-422/485 with 1K VDC isolation);4 x USB 3.0 ports at rear;1 x Line-Out, 1 x Mic-In;1 x DB15 VGA;1 x DisplayPort (1.2) |
Expansion Slots | 1 x Mini PCIe;1 x PCIe x4 or PCI;Optional: 1 x Cfast, 1 x CF card, 1 x internal USB dongle, 2 x RS-232 or 1 x RS-232 + 1 x GPIO |
Watchdog Timer | 255 timer levels; setup by software |
Speaker | 2 x 1W speakers |
Physical Characteristics | |
Dimensions | 391.4 x 312.5 x 55.35 mm (15.41 x 12.3 x 2.18″) |
Weight | 5.4 kg (11.90 lb) |
Power Supply | |
Input Voltage | 9-32 VDC |
Power Consumption | i5-6300U: 60W (BurnIn test 7.0 in Windows 7, 64 bit) |
Display | |
Display Type | 15″ TFT LED Panel |
Max. Resolution | 1024 x 768 |
Viewing Angle | 80°(left), 80°(right), 70°(up), 70°(down) |
Luminance (cd/m2) | 400 |
Backlight Life (hrs) | 50, 000 hrs |
LCD Display | |
Contrast Ratio | 700:1 |
Touchscreen | |
Touch Type | Projected capacitive 5-point multi-touch |
Light Transmission | 88% ± 5% |
Controller | USB interface |
Environment | |
Operating Temperature | 0 ~ 50°C (32 ~ 122°F) with SSD, 0 ~ 40°C (32 ~ 104°F) with HDD |
Storage Temperature | -40 ~ 60°C (-40~140°F) |
Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
Shock Protection | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
Vibration Protection | Operating Random Vibration Test 5~500Hz, 1Grms @with HDD, follow IEC 60068-2-64 |
EMC | CE, FCC Class B, BSMI |
Safety | CE, UL,CCC, BSMI |
Front Panel Protection | IP65 Compliant |
Data sheet on PPC-3151 (pdf file (opens in new tab)
PPC-4151W
Features
- 15.6″ WXGA entirely flat panel with Projected capacitive touchscreen or flat panel with resistive touchscreen
- High performance Intel Core i CPU with Fanless design
- PCIe x4 or PCI expansion support
- Automatic data flow control over RS-485
- Wide Range DC 9-32V support
- Dual Gigabit Ethernet, support IEEE1588
- 3 x Independent display
Descriptions
The PPC-4151W is a new generation Panel PC with WXGA (1366 x 768) screen. The most important, system equips with high performacne Intel Core i CPU but the heat can be dispatched easily by high effeciency fanless thermal design. This makes HMI a big step forward to consolidate performance and reliability in one system. Besides, with rich I/O as 5xCOM, 5xUSB and dual Gigabit ethernet make it easier to connect to devices and be integrated into machine building industry. In addition, PCIe/PCI expansion to add on field bus or propiretary card makes more application posibility. The last but not least, the multi touch screen makes the HMI more intuitive, brings you the best operate experience.
Specifications
Part Number | PPC-4151W-P5AE |
Power Supply | |
Power Consumption | i5-4300U: 56W (8G DDR3L, USB x 4, COM x 4, USB mouse, 2.5″ HDD 500G, Win7 64bit, Burn-in 7.0 ) |
Input Voltage | 9-32 VDC |
LCD Display | |
Viewing Angle (H/V°) | 85 (left), 85 (right), 80 (up), 80 (down) |
Luminance (cd/m2) | 400 |
Max. Resolution | 1366 x 768 |
Max. Colors | 16.7 M |
Display Type | 15.6″ TFT LCD (LED Backlight) |
Brightness Control | Yes (by BIOS) |
Backlight Lifetime | 50,000 hrs min. |
Environment | |
Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
EMC | BSMI, CE, FCC Class B |
Safety | CB, CCC, BSMI, UL |
Front Panel Protection | IP65 Compliant |
Vibration | Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, Follows IEC 60068-2-64 |
Shock | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
Processor System | |
Storage | 1 x 2.5″ SATA Bay, 1 x mSATA Bay |
Bus Expansion | 1 x MINI PCIe, 1 x PCIe x1 or 1 x PCI(either one) |
HDD | 1 x 2.5″ SATA HDD Bay (Internal) |
Weight | 5.8 Kg |
Dimensions (W x H x D) | 419.7 x 269 x 59 mm |
2nd Cache Memory | 3 MB |
Network (LAN) | 2 x 10/100/1000 Mbps Ethernet, Intel I211-AT, Intel I218LM |
Watchdog Timer | 255 timer levels; setup by software |
Speaker | 2 x 1W speakers |
CPU | Intel 4th Generation Core i CPU, i5-4300U, 2C, 3M, up to 2.9GHz |
Touchscreen | |
Light Transmission | 88+/-2% |
Resolution | 2048 x 2048 |
Controller | USB interface |
Durability (Touches) | 36 million |
Touch Type | Projected Capacitive multi touch 10 point |
Software Driver Support | Windows7 , Windows8, Windows10 |
OS Support | |
OS Support | Microsoft® Windows 7 32 and 64-bit/Windows 8.1 64-bit/Windows 10/WES 7 32 and 64-bit/Linux |
Data sheet on PPC-4151W (pdf file (opens in new tab)
PPC-4211W
Features
- 21.5″ Full HD entirely flat panel with Projected capacitive touchscreen
- High perofrmance Intel Core i CPU with Fanless design
- Optional 2nd SATA 2.5″ HDD bay
- PCIe x4 / x1 or PCI expansion support
- Automatic data flow control over RS-485
- Wide Range DC 12-32V support
- Dual Gigabit ethernet, support IEEE1588
- 3 x Independent display
Descriptions
The PPC-4211W is a new generation Panel PC with Full HD (1920 x 1080) screen. The large panel help you to display more yet important information in one screen. The most important, system equips with high performacne Intel Core i CPU but the heat can be dispatched easily by high effeciency fanless thermal design. This makes HMI a big step forward to consolidate performance and reliability in one system. Besides, with rich I/O as 5xCOM, 5xUSB and dual Gigabit ethernet make it easier to connect to devices and be integrated into machine building industry. Moreover, with PCIe x4 expansion to add on field bus or propiretary card makes more application posibility. The last but not least, the multi touch screen makes the HMI more intuitive, brings you the best operate experience.
Specifications
Data sheet on PPC-4211W (pdf file (opens in new tab)
Advantech Configurable Panel PCs

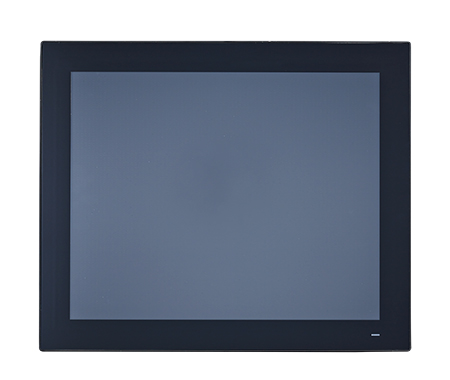

PPC-6191C
Features
- 19″ true-flat panel PC with resistive touch
- Supports certified mini-ITX motherboards (up to 45W TDP processor)
- PCI or PCIe expansion slots
- Front-facing power status LED indicators
- IP65-rated front panel
- Optional VESA mount module
Descriptions
The PPC-6191C, a panel PC chassis with 19″ TFT LED screen, is specifically designed for Mini-ITX motherboards, which supports a diverse range of Mini-iTX motherboards in fulfilling customer requirements for varied functionalities and price concern. PPC-6191C is a true flat bezel which meets market trends demanding for a stylish look and provides additional backup port and expansion slot in order to accommodate customers’ various application needs
Specifications
Part Number | PPC-6191C-RMAE |
Chassis feature | |
Storage | 2 x 2.5″ SATA HDD bay |
I/O ports | 1 x AC inlet;1 x Power Switch;1 x DP port (input, for connecting M/B and LVDS panel);1 x USB 2.0 (input, for connecting M/B and touch controller);Reserved opening:Based on M/B’s specific |
Expansion | 1 x PCIe x4 or 1 x PCI (in the accessory box) |
Speaker | 2 X 1W |
Fan | 2 x 12V, 60 x 60 x 15 mm |
Physical Characteristics | |
Dimensions | 454 x 379.8 x 107.5 mm (17.9″ x 15″ x 4.2″) |
Weight | 5.8 Kg(12.81b) |
OS Support | |
OS Support | According to motherboard specifications |
Power Supply | |
Input Voltage | 100 – 240 Vac, 50/60Hz, 4-2A |
LCD Display | |
Display Type | 19″ TFT LED Panel |
Max. Resolution | 1280 x 1024 |
Viewing Angle (H/V°) | 85 (left), 85 (right), 80 (up), 80 (down) |
Luminance (cd/m2) | 350 |
Contrast Ratio | 100:1 |
Backlight Life | 50, 000 hrs |
Touch Screen | |
Type | Analog Resistive 5-wire/Projected capacitive type (optional) |
Light transmission | 80+/-5% |
Controller | USB interface |
Durability (Touches) | 35 million |
Environment | |
Operating Temperature | 0 ~ 50 °C (32 ~ 122 °F);0 ~ 45 °C (32 ~ 113 °F) with VESA mount module |
Storage Temperature | -30 ~ 60°C (-22 ~ 140°F) |
Relative Humidity (Non-condensing) | 10 ~ 95% @ 40°C (non-condensing) |
Shock | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
Vibration | Operating: Random vibration test 5 ~ 500 Hz, 1 Grms @ with HDD, IEC 60068-2-64 compliant |
EMC | CE, FCC Class A |
Safety | CB,CCC,UL |
Front Panel Protection | IP65 Compliant |
Data sheet on PPC-6191C (pdf file (opens in new tab)

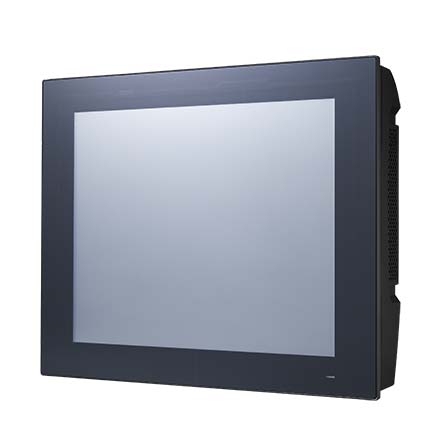

PPC-6171C
Features
- 17” true-flat PPC with Resistive touch
- Supports certified mini-ITX motherboard up to 45W TDP processor
- Support PCI or PCIe expansion slot
- Front LED indicators for power status
- Front panel is IP65 compliant
- Optional VESA mount by request
Descriptions
The PPC-6171C, a panel PC chassis with 17″ TFT LED screen, is specifically designed for Mini-ITX motherboards, which supports a diverse range of Mini-iTX motherboards in fulfilling customer requirements for varied functionalities and price concern. PPC-6171C is a true flat bezel which meets market trends demanding for a stylish look and provides additional backup port and expansion slot in order to accommodate customers’ various application needs.
Specifications
Part Number | PPC-6171C-RMAE |
Chassis feature | |
Storage | 2 x 2.5″ SATA HDD bay |
I/O ports | 1 x AC inlet;1 x Power Switch;1 x DP port (input, for connecting M/B and LVDS panel);1 x USB 2.0 (input, for connecting M/B and touch controller);Reserved opening:Based on M/B’s specific |
Expansion | 1 x PCIe x4 or 1 x PCI (in the accessory box) |
Speaker | 2 X 1W |
Fan | 2 x 12V, 60 x 60 x 15 mm |
Physical Characteristics | |
Dimensions | 437 x 357 x 107.6 mm (17.2″ x 14.06″ x 4.2″) |
Weight | 5.4 kg (11.90 lb) |
OS Support | |
OS Support | According to motherboard specifications |
Power Supply | |
Input Voltage | 100 ~ 240 VAC, 250W |
LCD Display | |
Display Type | 17″ TFT LED Panel |
Max. Resolution | 1280×1024 |
Viewing Angle (H/V°) | 80 (left), 80 (right), 60 (up), 80 (down) |
Luminance (cd/m2) | 350 |
Contrast Ratio | 800:1 |
Backlight Life | 50,000 hrs |
Touch Screen | |
Type | Analog Resistive 5-wire/Projected capacitive type (optional) |
Light transmission | 80+/-5% |
Controller | USB interface |
Durability (Touches) | 35 million |
Environment | |
Operating Temperature | 0 ~ 50 °C (32 ~ 122 °F);0 ~ 45 °C (32 ~ 113 °F) with VESA mount module |
Storage Temperature | -40 ~ 60°C (-40~140°F) |
Relative Humidity (Non-condensing) | 10 ~ 95% @ 40°C (non-condensing) |
Shock | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
Vibration | Operating: Random vibration test 5 ~ 500 Hz, 1 Grms @ with HDD, IEC 60068-2-64 compliant |
EMC | CE, FCC Class A |
Safety | CB,CCC,UL |
Front Panel Protection | IP65 Compliant |
Data sheet on PPC-6171C (pdf file (opens in new tab)

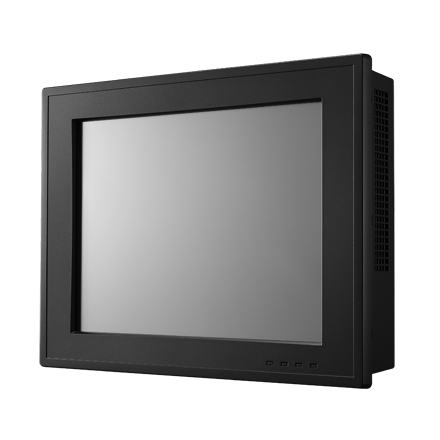

PPC-6120
Features
- 12.1″ TFT XGA LED Panel with resistive touchscreen
- Supports 4th Generation Intel® Core™ i / Celeron® Processor (Thermal Design Power: 35W/45W)
- System memory supports dual channel DDR3/DDR3L up to 16 GB
- Supports 2 x Mini PCIe sockets, one is included mSATA function
- Optional one PCI/PCIe x1 expansion kit
- Supports one isolated RS422/ RS485
- 8 x TTL level programmable DIO, 1 x VGA and 1 x Display port
- Dual GbE, supports Intel AMT8.0
- LED backlight Auto dimming
Descriptions
The PPC-6120 is an 4th Generation Intel® Core™ i / Celeron® based Panel PC with a 12″ color TFT LCD. It features extremely high computing power, various connectors, and can be installed in virtually any application. In addition, its user-friendly interface makes it a great host for information appliances. Three RS-232 ,one isolated RS422/485 and Dual Gb Ethernet connectors support Intel AMT, one expansion slot make PPC-6120 highly reliable, and provides a great solution for versatile applications.
Specifications
Part Number | PPC-6120-RAE |
Display | |
Viewing Angle | 80°(left), 80°(right), 70°(up), 70°(down) |
Power Supply | |
Input Voltage | 12 ~30 VDC |
LCD Display | |
Luminance (cd/m2) | 600 |
Max. Resolution | 1024 x 768 |
Max. Colors | 262 K |
Display Type | 12.1″ TFT LED Panel |
Pixel Pitch (mm) | 0.24 x 0.24 |
Brightness Control | Yes |
Processor System | |
Memory | 2 x SO-DIMM,DDR3 1066/1333; DDR3L 1066/1333, up to 16GB/8GB per SO-DIMM |
Storage | 1 x 2.5″ SATA Bay, 1x mSATA Bay |
Bus Expansion | 1 x MiniPCIe (Standard), 1 x PCIe x 1 or 1 x PCI through riser (Optional) |
Network (LAN) | 2 x 10/100/1000 Mbps Ethernet, supports Intel AMT9.0 |
Watchdog Timer | 255 timer levels; setup by software |
Speaker | 2 x 1W speakers |
CPU | 4th Generation Intel® Core™ i / Celeron® Processor (Thermal Design Power: 35W/45W) |
Chipset | Intel Q87 |
I/O | 4 x USB3.0 (Ext.), 2 x USB2.0 (Int. pin head), 4 x RS-232 Serial port, 1 x isolated RS422/485, 1 x DB9 GPIO port (8 x TTL level programmable DIO), 1 x DB15 VGA out, 1 x Mic in, 1 x Line out |
Touchscreen | |
Light Transmission | 81+/-3% |
Resolution | 2048 x 2048 |
Controller | RS-232 interface |
Durability (Touches) | 36 million |
Software Driver Support | Windows 7, 8.1, 10, XP, CE |
Touchscreen (Optional) | |
Type | Analog Resistive 5-wire |
OS Support | |
OS Support | WIN7 / WIN 8.1 / WIN 10 / Linux /WEC7 |
Physical Characteristics | |
Dimensions | 325 x 253.8 x 73.8 mm |
Weight | 3.8KG |
Data sheet on PPC-6120 (pdf file (opens in new tab)

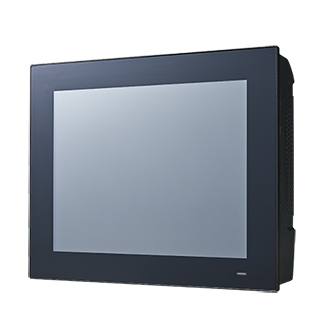

PPC-6151C and PPC-MB-8260AE
Features
- 15” true-flat PPC with Resistive touch
- Supports certified mini-ITX motherboard up to 45W TDP processor
- Support PCI or PCIe expansion slot
- Front LED indicators for power status
- Front panel is IP65 compliant
- Optional VESA mount by request
Descriptions
The PPC-6151C, a panel PC chassis with 15″ TFT LED screen, is specifically designed for Mini-ITX motherboards, which supports a diverse range of Mini-iTX motherboards in fulfilling customer requirements for varied functionalities and price concern. PPC-6151C is a true flat bezel which meets market trends demanding for a stylish look and provides additional backup port and expansion slot in order to accommodate customers’ various application needs.
Specifications
Part Number | PPC-6151C-RMAE |
Chassis feature | |
I/O ports | 1 x AC inlet;1 x Power Switch;1 x DP port (input, for connecting M/B and LVDS panel);1 x USB 2.0 (input, for connecting M/B and touch controller);Reserved opening:Based on M/B’s specific |
Storage | 2 x 2.5″ SATA HDD bay |
Expansion | either 1 x PCIex 4,or 1 x PCI (in the accessory box) |
Speaker | 2 X 1W |
Fan | 2 x 12V 60 x 60 x 15mm |
Physical Characteristics | |
Dimensions | 391.4 x 312.5 x 103.6 mm (15.4″ x 12.3 x 4.08″) |
Weight | 5.03 kg |
OS Support | |
OS Support | Based in M/B specBased in M/B spec |
Power Supply | |
Input Voltage | 100-240VAC, 250W |
LCD Display | |
Display Type | 15″ TFT LED Panel |
Max. Resolution | 1024 x 768 |
Viewing Angle (H/V°) | 80 (left), 80 (right), 70 (up), 70 (down) |
Luminance (cd/m2) | 400 |
Contrast Ratio | 700:1 |
Backlight Life | 50,000 hrs min. |
Touch Screen | |
Type | Analog Resistive 5-wire/Projected capacitive type (optional) |
Light transmission | 80+/-5% |
Controller | USB interface |
Durability (Touches) | 35 million |
Environment | |
Operating Temperature | 0 ~ 50°C (32 ~ 122°F) |
Storage Temperature | -40 ~ 60°C (-40~140°F) |
Relative Humidity (Non-condensing) | 10 ~ 95% @ 40°C (non-condensing) |
Shock | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
Vibration | Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64 |
EMC | CE, FCC Class A |
Safety | CB, CCC, BSMI, UL |
Front Panel Protection | IP65 Compliant |
Data sheet on PPC-6151C (pdf file (opens in new tab)

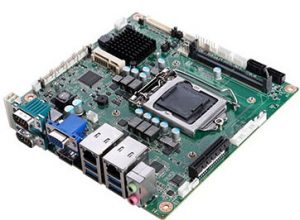

PPC-MB-8260AE – Intel® 6th Gen.Core™ i Mini-ITX Motherboard (For PPC-6151C)
The PPC-MB-8260AE also features rich I/O support– including support for dual display and connectivity of 5 serial ports, 4 USB3.0 ports, dual GbE LAN ports, 1 PCIe x 4 and either 1 Full Size mSATA orMini PCIe, which application developers can flexibly use to configure functions meeting specific user needs.
Specifications
Part Number | PPC-MB-8260AE |
Connector | |
Internal Connector | 3 x RS232,1 x GPIO( 8 channels),1x speaker connector,1xLED Connector,2 xUSB2.0,1 x LVDS Connector,1 x Touch Connector,2 x SATA Connector |
Ethernet | |
LAN | 2 x 10/100/1000 Mbps Ethernet, Intel 211 x 2 |
Expansion | |
Slots | 1 x full-size mSATA or Mini PCIe,1 x PCIex4 slot for riser card |
I/O | |
Rear I/O | 1 x RS232/422/485,1xRS232,;1 x DP 1.2,;1 x VGA,4 x USB(3.0,)1 x Line-out,1 x Mic-in |
Memory | |
Socket | 1 x 260pin SO-DIMM,DDR4,2133MHz, up to 16GB (Non-ECC) |
Operating System | |
Embedded OS Support | Microsoft® Windows 7 32bit&64bit/ Windows 8.1 64bit / Windows 10 64bit |
Physical | |
Dimensions | 170 x 170 mm (6.69″ x 6.69″) |
Processor | |
Chipset | H110 |
CPU | Intel Core i7/i5/i3/Pentium/Celeron |
CPU TDP | 35W |
Frequency | 2.3 ~ 3.4 GHz |
L3 Cache | 2 ~ 8MB |
Watchdog Timer | |
Watchdog Timer | 255 timer levels, set up by software |
Data sheet on PPC-6151C (pdf file (opens in new tab)

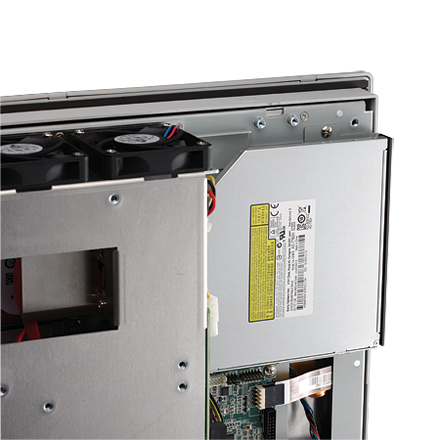

PPC-6150
Features
- Intel® Core™ i3, i5, Celeron 847E and 1020E + Intel QM77 PCH
- 1X DDR3/DDR3L SODIMM support to 8 GB
- Multiple expansion slots including one PCIe x4, one PCI + one PCIe x1, two PCI (optional) and two PCIe x1 (optional)
- Optional second HDD, supports Intel RAID
- One isolated RS-232/422/485 port; (selectable in by BIOS)
- One GPIO/RS-232 (8 channels, TTL level); (by swapping pin header)
- Dual GbE, supports Intel AMT8.0
- Supports iManager, SUSIAccess and Embedded Software APIs
Descriptions
The PPC-6150 is a Panel PC with an Intel Core i3/i5 or Celeron processor, and a 15″ color TFT LCD panel. It features extremely high computing power, modular design, excellent connectivity, and can support virtually any application. In addition, its user-friendly interface makes it a great host for information appliances. Two expansion slots, dual hard drives supporting Intel RAID, and one isolated RS-232/422/485 port make the PPC-6150 highly reliable, and provide a great solution for a wide range of applications.
Specifications
Part Number | PPC-6150-RI3AE |
Display | |
Viewing Angle | 80°(left), 80°(right), 70°(up), 70°(down) |
Power Supply | |
Power Consumption | With Core i3-3120ME is 50W (Burn-in test 7.0 in Windows 7 32-bit) |
Input Voltage | 100 – 240VAC, 50/60Hz, 4-2A |
Output Rating | 150 W (max.) |
LCD Display | |
Luminance (cd/m2) | 400 |
Contrast Ratio | 700:1 |
Max. Resolution | 1024 x 768 |
Max. Colors | 262 K |
Display Type | 15″ TFT LED Panel |
Pixel Pitch (mm) | 0.297 x 0.2970 |
Backlight Life | 50,000 hrs min. |
Processor System | |
L3 Cache | 3M |
Memory | 1 x SO-DIMM, DDR3 1600/DDR3L 1333, Max 8 GB |
Frequency | 2.4 GHz |
Network (LAN) | 2 x 10/100/1000 Mbps Ethernet (GbE1- Intel 82579LM, GbE2 – Intel 82583V),Intel AMT supported |
Intel | Core i3-3120ME |
Storage 1 | 1 x 2.5″ SATA bay |
Storage 2 | Either one – Second 2.5″ SATA bay (Intel RAID supported, optional) – Slim type 8X or above DVD +/- RW (optional) |
Additional Expansion | 1 x Full-size mini PCIe (Supports mSATA), 1 x half-size mini PCIe1 x Full-size mini PCIe (Supports mSATA), 1 x half-size mini PCIe |
FAN | Two 12V 60 x 60 x 13 (mm) with smart fan control, (70,000 hours continuous test @ 40° C) |
Chipset | Intel QM77 |
I/O | 4 x Serial ports: 1 x isolated RS-232/422/485, 3 x RS-232, 1 x GPIO/RS-232 (8 channels, TTL level); by pin header, 3 x USB 3.0, 2 x USB 2.0, 1 x VGA, 1 x HDMI, 1 x Line-out,1 x Mic-in |
OS Support | |
OS Support | Win XPE / Win XP Pro / WES7 32 & 64 bit / Windows 7 32 & 64 bit / Windows 8.1 32 & 64bit / Windows 10 32&64 bit / Linux |
Physical Characteristics | |
Dimensions | 395.5 x 316.8 x 105.5 (mm) (15.6″ x 12.5″ x 4.15″) |
Weight | 6.5 Kg (14.32lb) |
Data sheet on PPC-6150 (pdf file (opens in new tab)

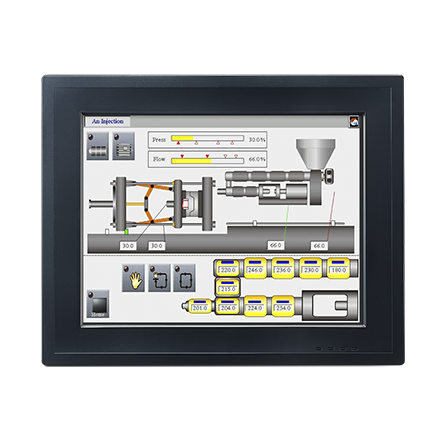

PPC-8150
Features
- 15″ TFT LED Panel,resolution up to 1024 x 768
- Built-in Intel ® Core™ i3, i5 desktop processor (LGA) with Intel H61 chipset
- Two 204 PIN DDR3 SO-DIMM,DDR3 1066/1333/1600MHz SDRAM, up to 8 GB/4 GB per SO-DIMM
- Support one expansion PCIe x 4 slot installed Replaceable with PCI riser accessory
- Supports 6 USB, 6 COMs, 1 x GPIO, 8 bits (Internal pin header)
- Support 1 x 2.5″ SATA bay
- Support AC 100~240V input
- Supports iManager, SUSIAccess and Embedded Software APIs
Descriptions
PPC-8150 is a Panel PC with an Intel ® Core™ i3, i5 processor, and 15″ color TFT LCD panel. It features extremely high computing power and performance, excellent connectivity, and good expansion ability.
In addition, its rich variety of IO support makes it easy to operate for information applications, and provide a great solution for a wide-range of industrial applications.
Specifications
Data sheet on PPC-8150 (pdf file (opens in new tab)

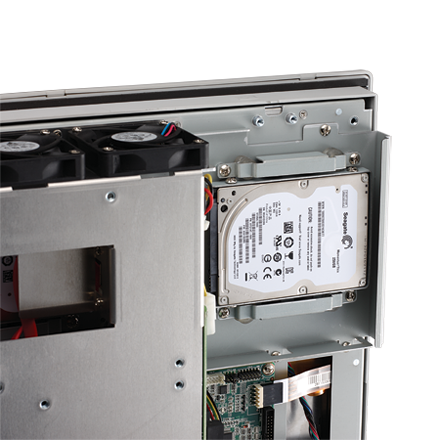

PPC-6170
Features
- Intel® Core™ i3, i5, Celeron 847E and 1020E + Intel QM77 PCH
- 1X DDR3/DDR3L SODIMM support to 8 GB
- Multiple expansion slots including one PCIe x4, one PCI + one PCIe x1, two PCI (optional) and two PCIe x1 (optional)
- Optional second HDD, supports Intel RAID
- One isolated RS-232/422/485 port; (selectable in by BIOS)
- One GPIO/RS-232 (8 channels, TTL level); (by swapping pin header)
- Dual GbE, supports Intel AMT8.0
- Supports iManager, SUSIAccess and Embedded Software APIs
Descriptions
The PPC-6170 is a Panel PC with an Intel Core i3/i5 processor, and a 17″ color TFT LCD panel. It features extremely high computing power, modular design, excellent connectivity, and can support virtually any application. In addition, its user-friendly interface makes it a great host for information appliances. Two expansion slots, dual hard drives supporting Intel RAID, and one isolated RS-232/422/485 port make the PPC-6170 highly reliable, and provide a great solution for a wide range of applications.
Specifications
Part Number | PPC-6170-RI3AE |
Display | |
Viewing Angle | 80°(left), 80°(right), 60°(up), 80°(down) |
Power Supply | |
Power Consumption | With Core i3-3120ME is 55W (Burn-in test 7.0 in Windows 7 32-bit) |
Input Voltage | 100 – 240VAC, 50/60Hz, 4-2A |
Output Rating | 150 W (max.) |
LCD Display | |
Luminance (cd/m2) | 350 |
Contrast Ratio | 1000:1 |
Max. Resolution | 1280×1024 |
Max. Colors | 262 K |
Display Type | 17″ TFT LED Panel |
Pixel Pitch (mm) | 0.264 x 0.264 |
Backlight Life | 50,000 hrs (Min.) |
Processor System | |
L3 Cache | 3M |
Memory | 1 x SO-DIMM, DDR3 1600/DDR3L 1333, Max 8 GB |
Frequency | 2.4 GHz |
Network (LAN) | 2 x 10/100/1000 Mbps Ethernet (GbE1- Intel 82579LM, GbE2 – Intel 82583V),Intel AMT supported |
Intel | Core i3-3120ME |
Storage 1 | 1 x 2.5″ SATA bay |
Storage 2 | Either one – Second 2.5″ SATA bay (Intel RAID supported, optional) – Slim type 8X or above DVD +/- RW (optional) |
Additional Expansion | 1 x Full-size mini PCIe (Supports mSATA), 1 x half-size mini PCIe |
FAN | Two 12V 60 x 60 x 13 (mm) with smart fan control, (70,000 hours continuous test @ 40° C) |
Chipset | Intel QM77 |
OS Support | |
OS Support | Win XPE / Win XP Pro / WES7 32 & 64 bit / Windows 7 32 & 64 bit / Windows 8.1 32 & 64bit / Windows 10 32&64 bit / Linux |
Physical Characteristics | |
Dimensions | 442.0 x 362.0 x 113.5 (mm) (17.4″ x 14.25″ x 4.47″) |
Weight | 7.5Kg (16.52lb) |
Data sheet on PPC-6170 (pdf file (opens in new tab)

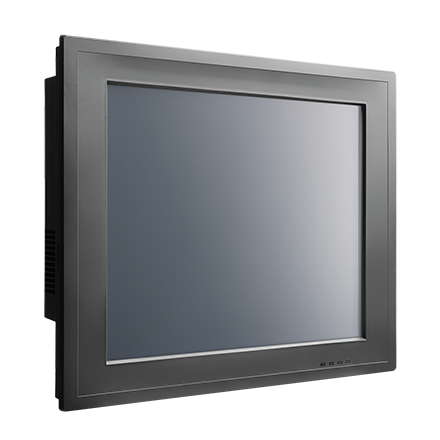

PPC-8170
Features
- 17″ TFT LED Panel,resolution up to 1280 x 1024
- Built-in Intel ® Core™ i3, i5 desktop processor (LGA) with Intel H61 chipset
- Two 204 PIN DDR3 SO-DIMM,DDR3 1066/1333/1600MHz SDRAM, up to 8 GB/4 GB per SO-DIMM
- Support one expansion PCIe x 4 slot installed. (Replaceable with PCI riser accessory
- Supports 6 USB, 6 COMs, 1 x GPIO, 8 bits (Internal pin header)
- Support 1 x 2.5″ SATA bay
- Support AC 100~240V input
- Supports iManager, SUSIAccess and Embedded Software APIs
Descriptions
PPC-8170 is a Panel PC with an Intel Core i3/i5 desktop processor, and a 17″ color TFT LCD panel. It features extremely high computing power and performance, excellent connectivity, and good expansion ability.
In addition, its rich variety of IO support makes it easy to operate for information applications, and provide a great solution for a wide-range of industrial applications.
Specifications
Data sheet on PPC-8170 (pdf file (opens in new tab)

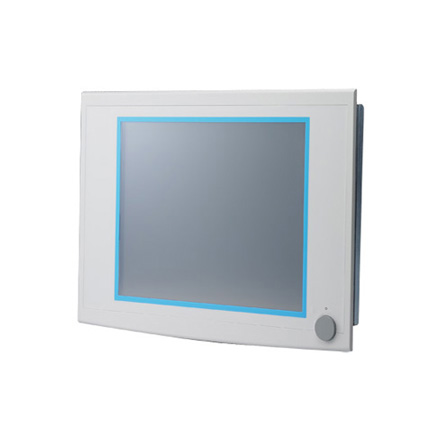

IPPC-6152A
Features
- 15″ XGA TFT LCD with touchscreen
- Supports Intel® Core™ i7/i5/i3 processor with Q87 chipset (up to 3.1GHz )
- System supports four DIMM sockets support up to 32 GB DDR3 1333/1600MHz SDRAM
- Offers multiple expansion slots including two PCI (standard), one PCI + one PCIe x4 (optional), two PCIe x1 (optional)
- SATA 2.0 or SATA 3.0 HDDs and RAID 0,1 compatibility
- Front USB access and system reset function
- Front panel is IP65 compliant
- Supports Intel AMT 9.0 and Intel vPro competent
- Supports Microsoft® Windows® 8 and Windows 7
- Supports SUSIAccess and Embedded Software APIs
- Optional Functionality –CFast ,PCI/ PCIe expansion,DVD-ROM
Descriptions
The IPPC-6000A Series is an Industrial Panel PC with front USB access, supports the powerful Haswell platform Core™ i7/i5/i3, high speed DDR3 memory, up to 32 GB, two expansion PCI slots. The processor and chipset combination form the foundation of vPro, Intel’s next generation digital office platform, offering remote out-of-band manageability, improved security, and energy efficient performance. Two SATA hard driver interface with RAID 0,1 support provides data security. Multi function optional –CFast ,PCI/ PCIe expansion,DVDROM which offers great flexibility for application specific requirements.Rugged Metal &IP65 Flat-Sealed Front provide excellent durability in harsh environment. With optional mounting accessories, from panels to racks,it can be mounted anywhere.
Specifications
Part Number | IPPC-6152A-R2AE |
Display | |
Backlight Life (hrs) | 50,000 hrs |
Contrast Ratio | 700 : 1 |
Luminance (cd/m2) | 400 |
Max. Colors | 16.2M/262K |
Max. Resolution | 1024 x 768 |
Size | 15″ |
Type | XGA TFT LCD LED Backlight |
Viewing Angle (H/V°) | 160/140 |
Environment | |
Humidity (Operating) | 5 ~ 85% @ 40°C (non-condensing) |
Ingress Protection | Front panel: IP65 |
Temperature (Operating) | 0 ~ 50° C (32 ~ 122° F) |
Temperature (Storage) | -20 ~ 60° C (-4 ~ 140° F) |
Vibration Protection | 5 ~ 500 Hz, 1 GRMS random vibration |
General | |
BIOS | AMI 64 MB Flash BIOS |
Certifications | UL, CE, FCC, CCC, BSMI |
Dimensions | 449.92 x 315.63 x 126.4 mm (17.71″ x 12.43″ x 4.98″) |
Mounting | Panel, Rack (option) |
OS Support | Microsoft Windows 7, Windows 8 |
Power Input | 100 ~ 240 VAC @ 60 ~ 50 Hz, 7 ~ 3.5 A |
Power Supply | 350 W |
Weight (Gross) | – |
System Hardware | |
Chipset | Intel Q87 |
CPU | Supports Intel® Core™ i7/i5/i3 processor (up to 3.1GHz ) |
Expansion Slots | 2 x half-length PCI Slot installed.(1x two slot PCIE x1 riser optional) |
LAN | 10/100/1000Base-T Ethernet x 2 |
Memory | System supports four DIMM sockets support up to 32GB DDR3 1333/1600 MHz SDRAM |
Storage | Supports 2 x 2.5“ SATA 2.0 or SATA 3.0 HDDs and RAID 0,1 compatibility |
Optical Driver | 1 x Slim Type DVD-RW (optional), CFast (optional) |
Touchscreen | |
Lifespan | 36 million with a silicone rubber of R8 finger, writing rate is by 250g at 2 times/s |
Touch Type | Analog Resistive 5-wire |
Light Transmission | > 80% |
Data sheet on IPPC-6152A (pdf file (opens in new tab)

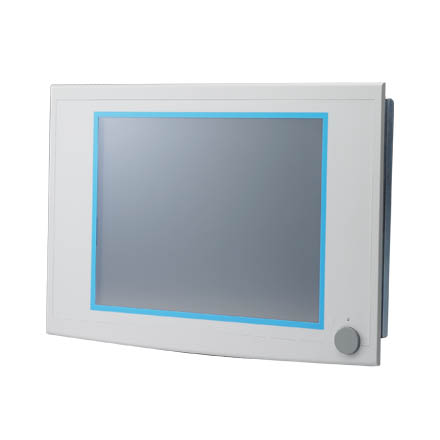

IPPC-6172A
Features
- 17″ SXGA TFT LCD with touchscreen
- Supports Intel® Core™ i7/i5/i3 processor with Q87 chipset (up to 3.1GHz )
- System supports four DIMM sockets support up to 32 GB DDR3 1333/1600MHz SDRAM
- Offers multiple expansion slots including two PCI (standard), one PCI + one PCIe x4 (optional), two PCIe x1 (optional)
- SATA 2.0 or SATA 3.0 HDDs and RAID 0,1 compatibility
- Front USB access and system reset function
- Front panel is IP65 compliant
- Supports Intel AMT 9.0 and Intel vPro competent
- Supports Microsoft® Windows® 8 and Windows 7
- Supports SUSIAccess and Embedded Software APIs
- Optional Functionality –CFast ,PCI/ PCIe expansion,DVD-ROM
Descriptions
The IPPC-6000A Series is an Industrial Panel PC with front USB access, supports the powerful Haswell platform Core™ i7/i5/i3, high speed DDR3 memory, up to 32 GB, two expansion PCI slots. The processor and chipset combination form the foundation of vPro, Intel’s next generation digital office platform, offering remote out-of-band manageability, improved security, and energy efficient performance. Two SATA hard driver interface with RAID 0,1 support provides data security. Multi function optional –CFast ,PCI/ PCIe expansion,DVDROM which offers great flexibility for application specific requirements.Rugged Metal &IP65 Flat-Sealed Front provide excellent durability in harsh environment. With optional mounting accessories, from panels to racks,it can be mounted anywhere.
Specifications
Part Number | IPPC-6172A-R2AE |
General | |
BIOS | AMI 64 MB Flash BIOS |
Certifications | UL, CE, FCC, CCC, BSMI |
Dimensions (W x H x D) | 481.93 x 355.87 x 132.5 mm (18.97″ x 14.01″ x 5.22″) |
Enclosure | Die-cast flat-sealed front with SGCC Housing |
Mounting | Panel, Rack (option) |
OS Support | Microsoft Windows 7, Windows 8 |
Power Input | 100 ~ 240 VAC @ 60 ~ 50 Hz, 7 ~ 3.5 A |
Power Supply | 350 W |
Environment | |
Humidity | 5 ~ 95% @ 40°C (non-condensing) |
Ingress Protection | Front panel: IP65 |
Temperature (Operating) | 0 ~ 50° C (32 ~ 122° F) |
Temperature (Storage) | -20 ~ 60° C (-4 ~ 140° F) |
Vibration Protection | 5 ~ 500 Hz, 1 GRMS random vibration |
LCD Display | |
Backlight Life | 50,000 hrs |
Contrast Ratio | 1000:1 |
Display Size | 17″ |
Display Type | SXGA TFT LCD LED Backlight |
Luminance (cd/m2) | 350 |
Max. Colors | 16.7M (RGB 6-bit + Hi-FRC data) |
Max. Resolution | 1280×1024 |
Viewing Angle (H/V°) | 170/160 |
System Hardware | |
Chipset | Intel Q87 |
CPU | Supports Intel® Core™ i7/i5/i3 processor (up to 3.1GHz ) |
Expansion | Two half-length PCI (Standard) Two PCIe x1(Optional) One PCI + One PCIe x4 (Optional) |
I/Os | 4 (3 x RS-232, 1 x RS-232/422/485 to support auto flow control), 1 x GPIO, 2 x Reservation ports, 5 x USB Host( USB 2.0 front, 4 USB 3.0) 2 x GbE LAN |
LAN | 10/100/1000Base-T Ethernet x 2 |
Memory | System supports four DIMM sockets support up to 32GB DDR3 1333/1600 MHz SDRAM |
Optical Driver | 1 x Slim Type DVD-RW (optional), CFast (optional) |
Storage | Supports 2 x 2.5″ SATA HDD Interface and Intel Matrix Storage Technology RAID 0/1 |
Touchscreen | |
Lifespan | 36 million with a silicone rubber of R8 finger, writing rate is by 250g at 2 times/s |
Light Transmission | > 80% |
Touch Type | Analog Resistive 5 wires |
Data sheet on IPPC-6172A (pdf file (opens in new tab)

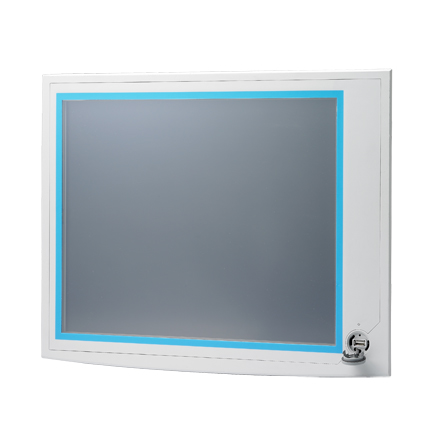

IPPC-6192A
Features
- 19″ SXGA TFT LCD with touchscreen
- Supports Intel® Core™ i7/i5/i3 processor with Q87 chipset (up to 3.1GHz)
- System supports four DIMM sockets support up to 32 GB DDR3 1333/1600MHz SDRAM
- Offers multiple expansion slots including two PCI (standard), one PCI + one PCIe x4 (optional), two PCIe x1 (optional)
- SATA 2.0 or SATA 3.0 HDDs and RAID 0,1 compatibility
- Front USB access and system reset function
- Front panel is IP65 compliant
- Supports Intel AMT 9.0 and Intel vPro competent
- Supports Microsoft® Windows® 8 and Windows 7
- Supports SUSIAccess and Embedded Software APIs
- Optional Functionality –CFast ,PCI/ PCIe expansion,DVD-ROM
Descriptions
The IPPC-6000A Series is an Industrial Panel PC with front USB access, supports the powerful Haswell platform Core™ i7/i5/i3, high speed DDR3 memory, up to 32 GB, two expansion PCI slots. The processor and chipset combination form the foundation of vPro, Intel’s next generation digital office platform, offering remote out-of-band manageability, improved security, and energy efficient performance. Two SATA hard driver interface with RAID 0,1 support provides data security. Multi function optional –CFast ,PCI/ PCIe expansion,DVDROM which offers great flexibility for application specific requirements.Rugged Metal &IP65 Flat-Sealed Front provide excellent durability in harsh environment. With optional mounting accessories, from panels to racks,it can be mounted anywhere.
Specifications
Part Number | IPPC-6192A-R2AE |
General | |
BIOS | AMI 64 MB Flash BIOS |
Certifications | UL, CE, FCC, CCC, BSMI |
Dimensions (W x H x D) | 481.93 x 384.6 x 135.5 mm (18.97″ x 15.14″ x 5.33″) |
Enclosure | Die-cast flat-sealed front with SGCC Housing |
Mounting | Panel, Rack (option) |
OS Support | Microsoft Windows 7, Windows 8 |
Power Input | 100 ~ 240 VAC @ 60 ~ 50 Hz, 7 ~ 3.5 A |
Power Supply | 350 W |
Environment | |
Humidity | 5 ~ 85% @ 4C (non-condensing) |
Ingress Protection | Front panel: IP65 |
Temperature (Operating) | 0 ~ 50° C (32 ~ 122° F) |
Temperature (Storage) | -20 ~ 60° C (-4 ~ 140° F) |
Vibration Protection | 5 ~ 500 Hz, 1 GRMS random vibration |
LCD Display | |
Backlight Life | 50,000 hrs |
Contrast Ratio | 1000:1 |
Display Size | 19″ |
Display Type | SXGA TFT LCD LED Backlight |
Luminance (cd/m2) | 350 |
Max. Colors | 16.7M (RGB 6-bit + Hi-FRC data) |
Max. Resolution | 1280×1024 |
Viewing Angle (H/V°) | 170/160 |
System Hardware | |
Chipset | Intel Q87 |
CPU | Supports Intel® Core™ i7/i5/i3 processor (up to 3.1GHz ) |
Expansion | Two half-length PCI (Standard) Two PCIe x1(Optional) One PCI + One PCIe x4 (Optional) |
I/Os | 4 (3 x RS-232, 1 x RS-232/422/485 to support auto flow control), 1 x GPIO, 2 x Reservation ports, 5 x USB Host( USB 2.0 front, 4 USB 3.0) 2 x GbE LAN |
LAN | 10/100/1000Base-T Ethernet x 2 |
Memory | System supports four DIMM sockets support up to 32GB DDR3 1333/1600 MHz SDRAM |
Optical Driver | 1 x Slim Type DVD-RW (optional), CFast (optional) |
Storage | Supports 2 x 2.5″ SATA HDD Interface and Intel Matrix Storage Technology RAID 0/1 |
Touchscreen | |
Lifespan | 36 million with a silicone rubber of R8 finger, writing rate is by 250g at 2 times/s |
Light Transmission | > 80% |
Touch Type | Analog Resistive 5 wires |
Data sheet on IPPC-6192A (pdf file (opens in new tab)
Panel PC Accessories

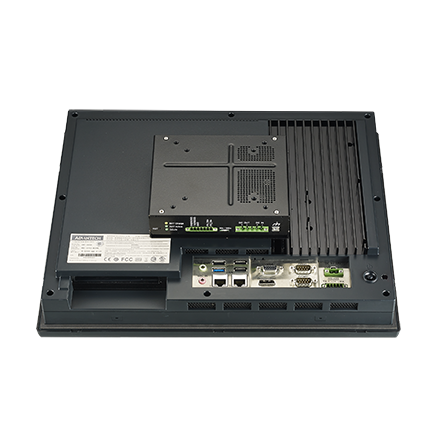

PPC-IPS-AE
Features
- 50W (2.1A @ 24V) output, 25.2Wh with auto shut down function to PC
- With changeable battery pack for easy maintenance
- Wide Range power input for 12~30 V DC
- Supports over discharging protection to extend battery life
- Metal enclosure supports VESA 75/ VESA 100 and DIN Rail mounting
- With status indicators for monitoring battery pack and input power
- With accessible switch for adjusting timing (30sec / 6 min), to execute auto shut down PC
- With free software utility for configuration and monitoring
Descriptions
The lightweight and intelligent power management module, protect Panel PC from electrical damage and greatly reduce the risk of losing data. The IPS module serves as temporary power during a short break in power and allows a safe system shutdown. It can be easily to install on din rail or on the back of Panel PC.
Specifications
Part Number | PPC-IPS-AE |
Power Supply | |
Input Voltage | 12-30 VDC |
Input Power Rating | 90W |
Charging Current | 2A |
Output Voltage | 24V +/-10% |
Output Current | Max 2.5A |
Battery Capacity | 14.4 VDC, 1750 mAH |
Battery Cycle Life | 300 times of charge circle (Above 60% capacity compared to the initial state) |
Protection | |
Short Circuit Protection | Yes |
Over Discharge Protection | IPS shuts down when 5% of battery capacity (Default) |
Environment | |
Relative Humidity | 10 ~ 95% @ 40° C (non-condensing) |
Operating Temperature | 0~50°C (Din-rail), 0-45°C (VESA, secured with PPC) |
Storage Temperature | -20 ~ 50°C (-4 ~ 122°F) |
Vibration | Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64 |
Shock | Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27 |
I/O Ports | |
others | PS_ON to shut down PC, RS-232 for monitoring and setting IPS |
Physical Characteristics | |
Dimensions | 151.8 x 125 x 37.2 mm (5.98″ x 4.92″ x 1.46″) |
Certification | |
Safety | UL, CB, CCC, BSMI |
EMC | CE, FCC, CCC, BSMI |
Data sheet on PPC-IPS-AE (pdf file (opens in new tab)

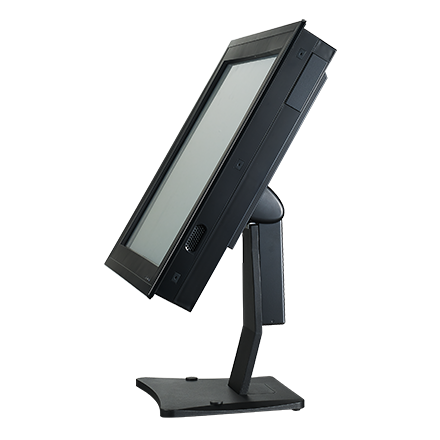

PPC-STAND-A1E
Features
- Includes VESA standards:75 x 75 mm and/or 100 x 100 mm hole pattern bracket
- Texture of material aluminum
- Modern appearance
- Maximum load-bearing 10 kg
Descriptions
An elegant desktop stand made of aluminum alloy that supports VESA 75/100. This stand allows users to adjust the vertical viewing angle and can be affixed to surfaces using two screws.
Specifications
Data sheet on PPC-STAND-A1E (pdf file (opens in new tab)

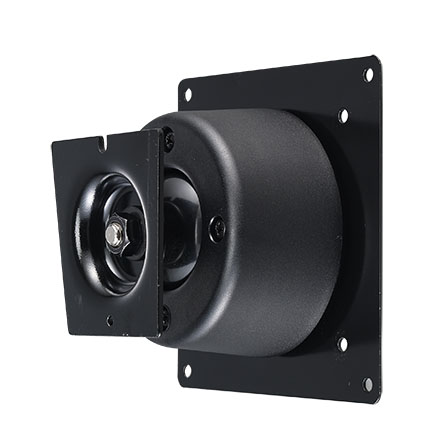

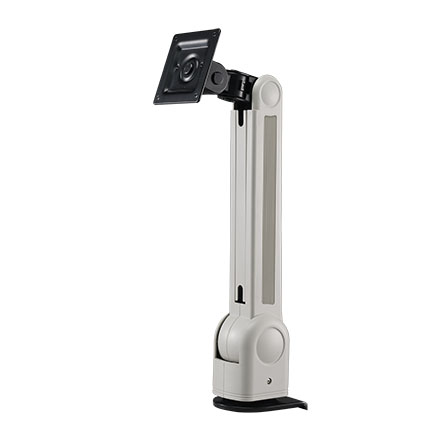

PPC-174T-WL-MTE
Features
- Includes VESA standards:75 x 75 mm and 100 x 100 mm hole pattern bracket
- Panel adjustable: 360°
- Panel up & down adjustable: 46°
- Panel left & right swivel : 46°
- Max. Load-bearing: 15 Kg
Descriptions
The PPC-174T-WL-MTE fits all 6″ ~ 21.5″ PPC products, and is designed using metals. After many thousands of torque tests, this stand ensure that PPCs products won’t change their position.
Specifications
Data sheet on PPC-174T-WL-MTE (pdf file (opens in new tab)

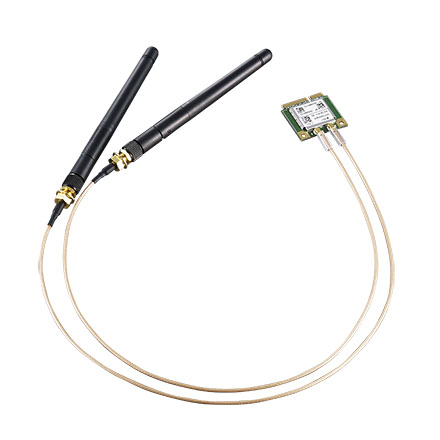

PPC-WLAN-B1E
Features
- IEEE 802.11ac/a/b/g/n WiFi with Bluetooth 4.0 standard
- 1Tx/1Rx with Bluetooth
- Up to 433.3 Mbps data rate
- Fully BT 4.0 and BT 3.0 + High speed system
- Operating temperature: 0 to +70° C
- Support Windows 7 and Windows 10
Descriptions
An optional Wi-Fi module with dual antennae and 802.11 a/b/g/n/ac support.
Specifications
Data sheet on PPC-WLAN-B1E (pdf file (opens in new tab)
