Industrial Trackballs, Touchpads, Joysticks and Keypads
Industrial Pointing DevicesIndustrial Trackballs, Touchpads, Joysticks and Keypads
Trackballs: The various trackball types can either be directly integrated into the system or they can be used as stand-alone mounting types for the corresponding application.

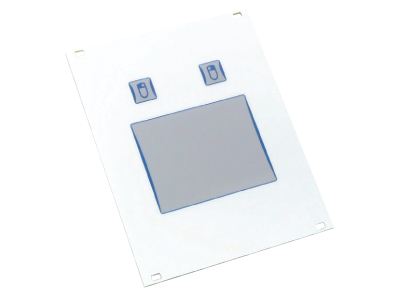

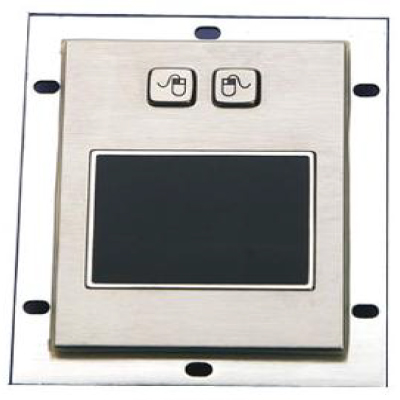

Touchpad: In particular for notebook users, touchpads offer a familiar tactile feedback. Basically, the application of touchpads allows to achieve the highest degrees of protection, since the complete surface is sealed.

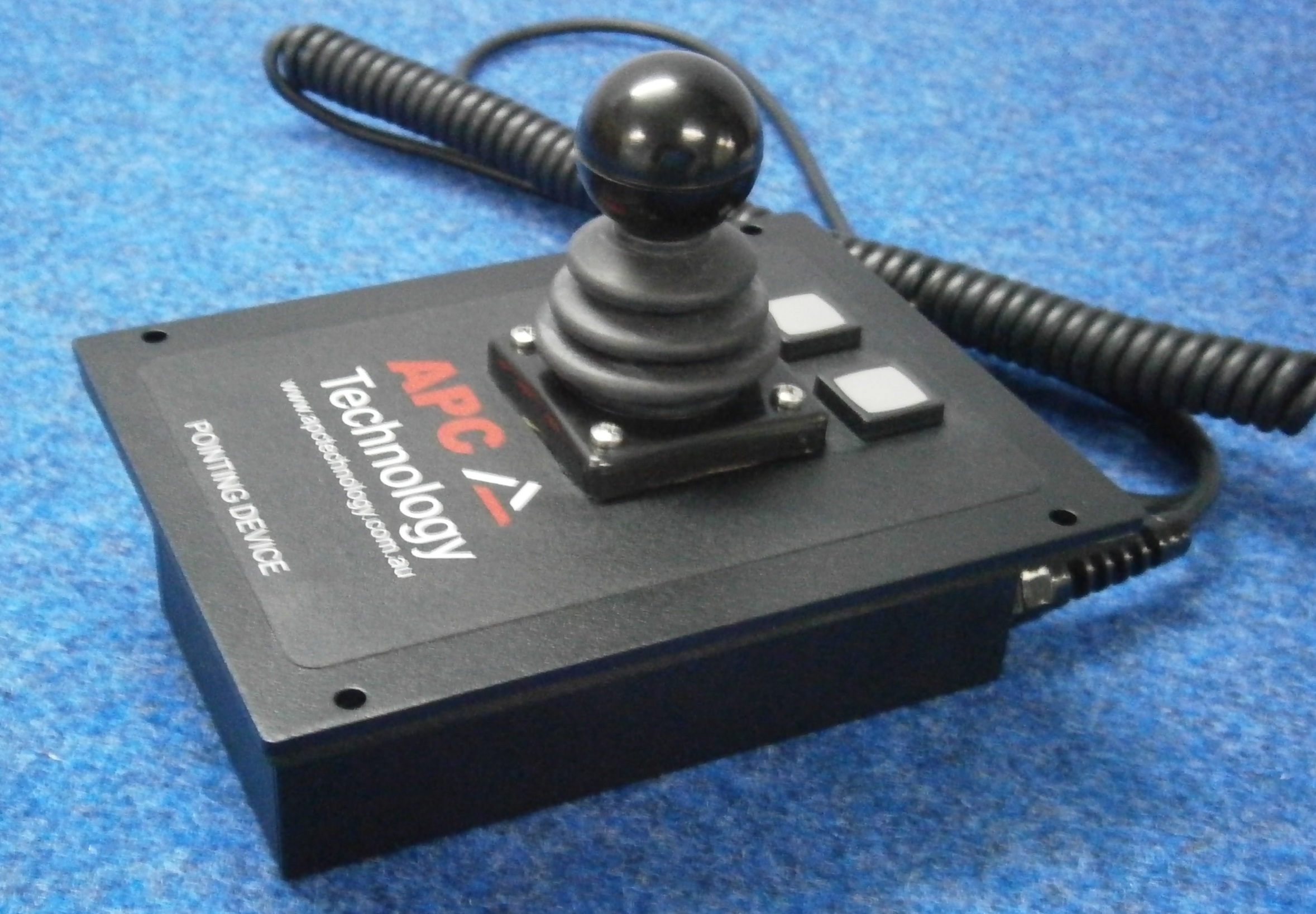

Joystick: A further mounting option is the OEM joystick. The standard version of the joystick features two axes, a cursor stick with integrated mouse button and a compact and robust housing according to the protection level IP65.
Keypads: The various keypads types can be directly integrated into the system. Basically, the application of keypads allows achieving the highest protection of dust, water, and vandal proof.
Industrial Trackballs
ITAC

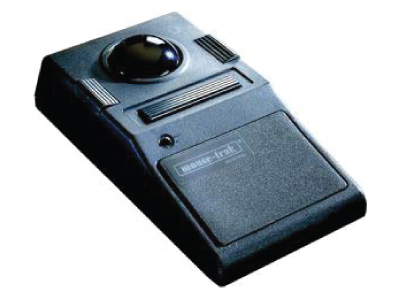

MOUSE-TRAK™ Industrial Desktop
Conformal coating on the Industrial unit PCB protects against caustic and conductive contaminants.
Stainless steel shafts and bearings and super strong glass filled Xenoy™ thermoplastic housing construction make this unit extremely durable. The IDT is tough enough to withstand the most difficult tasks, but it is also designed to significantly reduce the effects of common repetitive stress injury (RSI) syndrome caused by wrist and elbow powered mouse devices. As much as a 60% improvement in RSI can be realized with use of the IDT. Integrated hand support virtually eliminates the threat of carpal tunnel injuries as well. IDT provides high speed, accurate and highly precise operation under the most challenging conditions.
USB Interface
B-USBID-XROHS Reference Model
B-SCRIN-XROHS Scrolling Enabled
Scrolling enabled unit also supports speed/precision toggles
B-SFUSB-XROHS-FW001 BAE SOCET SET
B-SFUSB-XROHS-FW002 BAE SOCET GXP
SOCET SET is a software application that performs functions related to photogrammetry. It is developed and published by BAE Systems. SOCET SET was the first commercial digital photogrammetry software program. Prior to SOCET SET, all photogrammetry programs were primarily analog or custom systems built for government agencies. – Wiki
B-MPIND-XROHS PS/2 Interface Assignable Keys
B-9PIND-XROHS Serial Interface Assignable Keys
All PS/2, serial and USB models are
compatible with Windows, Linux, Unix and Mac OS
B-SUNID-XROHS SUN Assignable Keys
Device Features
1. Case is textured Xenoy™ 6240/5220
2. Outer casing is UL 94HB Flame Class Rated (3)
3. Trackball is cast phenolic resin
4. Hand rest Pad is Grade 5800 flexible PVC
5. Shafts and ball bearings are 440 hardened stainless steel
6. Entirely RoHS Compliant
7. Conformal coated PCB resistant to liquids, moisture and dust.
8. Switches rated at 1,000,000 minimum actuations
- No driver installations required. Uses native drivers from the OS
- Xenoy™ 6240 glass reinforced polycarbonate housing
- Precision cast phenolic resin ball
- Stainless steel bearings
- Dual speed selector toggle for changing between Precision Pointing Mode and Speed Mode at the touch of a button
- Made to withstand harsh environments and heavy usage
- Supplied with either 5 or 8 foot cable depending on interface
- Key functions selectable such as Right hand/Left hand, Double click and Click/ Drag operations
- Industrial black color
Full specs for MOUSE-TRAK Industrial Desktop (pdf file (opens in new tab)
Industrial Desktop Functional Description:
Resolution: 192 to 576 pulses per revolution of the ball.
Input Mouse Buttons: Three (3)
Speed Control button:
Initially the trackball is in Ballistic mode where cursor movement depends both on the distance the ball is moved and on the speed of ball motion.
Pressing the speed control button toggles to “distance only” mode.
PS/2 Interface
Compatibility: Microsoft Serial Mouse Protocol, Mouse Systems Protocol
OS Certifications: Microsoft Windows 95, Microsoft Windows NT 4.0
Switches: Mechanically limited, break resistent
Cable: 96″+-0.5″ (Custom lengths available), double shielded, 100% coverage
Power: Line-powered. No external supply necessary
Power Consumption: Idle: 4mA Max: 12mA
Mechanical Specifications:
Dimensions: 104 x 201mm, cable entry at rear centre
Weight: 600gm 1.2 lbs.
Body Material: ABS, Beige
Ball Material: Cast Phenolic Resin
Ball Hardness: Rockwell H 85
Tracking Force: 1.5 oz. maximum, 0.5 oz. typical (15g)
Ball Load: 25 lbs. maximum downward
Ball Speed: 500 RPM maximum
Hand Pad: Injection-molded vinyl, grey
Environmental Specifications:
Operating Temperature: 0 to +50 degrees Celcius
Storage Temperature: -20 to +60 degrees Celcius
Humidity: 0 to 95% non condensing
Special Features:
Right/Left-handed modes: Yes. See manual for programming instructions
Programmability: Middle Key: The middle key may be set for the auxiliary function, a primary
click-and-drag, or a primary double-click. See manual for programming instructions.
Right (Secondary button in right-handed mode) Key: The right key may be set for either secondary click
or secondary click-and-drag. See manual for programming instructions.
Note:-Programming will reset to factory default if the MOUSE-TRAK receives a reset signal or
power down from the host computer.
Advanced Features
The middle key button can be set as Primary Key “Click & Drag”
Chording (pressing key buttons at the same time) all 3 keys and the speed button allows the middle key to generate “Click & Drag” function for the Primary Function (Left key in right hand mode).
Chording the 3 keys & speed button again causes the middle key to revert to Auxiliary Function.
The middle key button can be set as Primary Key “Double Click”
Chording the left, middle and right keys allows the middle key to generate a double click of the Primary Function.
The secondary key button can be set a Primary Key “Click & Drag”
Chording the right key and the speed button allows the key assigned to the Secondary Function (the right key in right hand mode) to operate in “click and Drag” mode for the secondary function.
Cleaning functions can be done without disassembling the unit, by spinning the ball fast in a diagonal direction, and by pressing down on the ball and moving the ball in a circular way. If these actions are insufficient then the case can be opened for further cleaning inside.

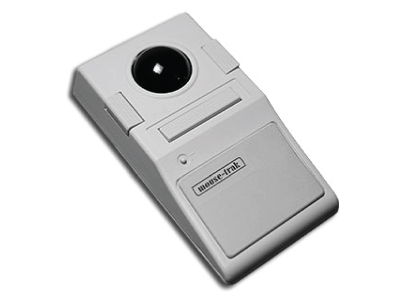

MOUSE-TRAK™ Professional Desktop
Stainless steel shafts and bearings and ABS thermoplastic housing construction make this unit extremely durable. The PDT is tough enough to withstand the most difficult tasks, but is also designed to significantly reduce the effects of common repetitive stress injury (RSI) syndrome caused by wrist and elbow powered mouse devices.
As much as a 60% improvement in RSI can be realized with use of the PDT. Integrated hand support virtually eliminates the threat of carpal tunnel injuries as well.
PDT provides high speed, accurate and highly precise operation under the most challenging conditions.
MOUSE-TRAK™ Professional Desktop
USB Interface
B-5XUSB-XROHS USB Reference Model
B-SCRPR-XROHS USB Scrolling Enabled
B-5XXMP-XROHS PS2/MOUSEPORT Assignable Keys
B-5XX9P-XROHS 9 PIN SERIAL SUN Assignable Keys
B-SUNMD-XROHS SUN Assignable Keys
Device Features
1. Case is textured ABS Plastic
2. Outer casing is UL 94HB Flame Class Rated (3)
3. Trackball is cast phenolic resin
4. Hand rest Pad is Grade 5800 flexible PVC
5. Shafts and ball bearings are 440 hardened stainless steel RC 50-55
6. Entirely RoHS Compliant
7. Conformal coated PCB resistant to liquids, moisture and dust.
8. Switches rated at 1,000,000 minimum actuations
• No driver installations required. Uses native drivers from the OS
• ABS plastic housing
• Stainless steel shafts and bearings
• Precision cast phenolic resin ball
• Dual speed selector toggle for changing between Precision Pointing Mode and Speed Mode at the touch of a button
• Designed for office productivity and CAD
• Key functions selectable such as Right hand/Left hand, Double click and Click/ Drag operations
• 60% less tiring than traditional mouse
• Made to withstand heavy usage
• Neutral light grey color
Full specs for MOUSE-TRAK Professional Desktop (pdf file (opens in new tab)
Indukey

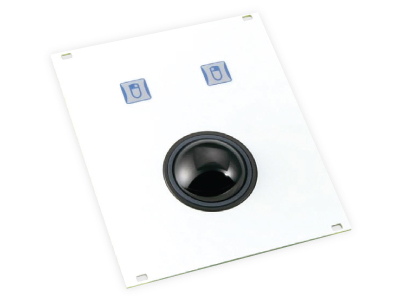

KH02005 Aluminium Industrial Trackball 38mm, Panel Mount with Studs
Features and benefits:
- With four mounting studs
- 38 mm Industrial Trackball
- > 6 mil. ball revolutions
- PS/2 and USB compatible
- Panel mount version
- Rugged construction for reliable functionality
- Chemical, abrasion and scratch resistant frontsheet
- Ergonomic design

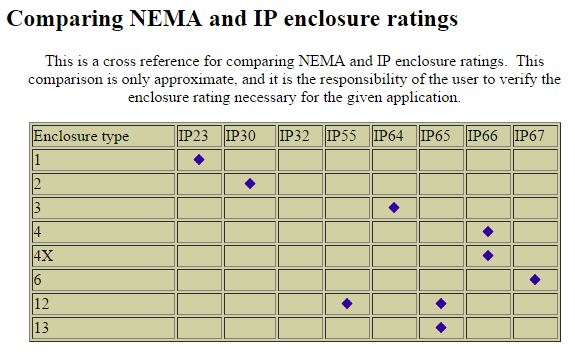

- IP65 (NEMA 4x) frontside sealing
- Semi or full customisation available
- Cost-effective
- 12 months warranty
Specification:
Ball Diameter: 38 mm (1.5“)
Actuation Force: 50 g
Trackball Lifetime: > 6 mil. revolutions
Protection Level: IP65 static (NEMA 4x), IP54 dynamic,
Mounting Type: panel mount
Dimensions: 110 x 135 x 30 mm; 4.330“ x 5.314“ x 1.181“
Weight: 200 grams
Operating Temperature: -40 °C to 90 °C; -40 °F to +194 °F
Frontpanel Material: PCB-material, FR4
Data sheet (pdf file, opens in new tab or window)
KH02005 – PS2 version (TKH-TB38b-MODUL-PS/2)
KH02006 – USB version (TKH-TB38b-MODUL-USB)
Pages 44 to 46 in the 2011 Catalog (pdf file, 99MB, opens in new tab, large file, may take a couple of minutes to download)
Note: The word MODUL in the description indicates M3 mounting studs on the back

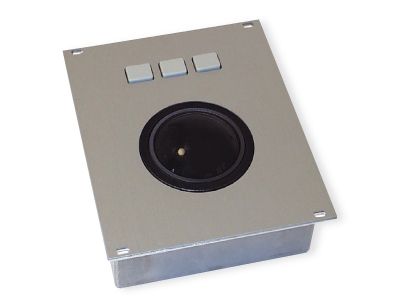

KH09433 Aluminium Industrial Trackball, 50mm, Panel Mount
Features and benefits:
- Industrial trackball panel module for harsh environment
- Suitable for integration into 19″-front panels
- Extra large ball (d= 50 mm) for exact positioning
- Water- and dust-proof (IP54; IP65 static)
- Silicone mouse-switches with tactile feedback
- PS/2-mouse compatible with 3 mouse-switches (RS232 by adaptor)
- Surface made of Aluminum
- Rearside with electronic fully covered
- Frontside-integration by 4 holes
- Customized frontpanel layout on request
- 12 months warranty
Specification:
Ball Diameter: 50.8 mm; 2“
Actuation force: 50 g
Number of Keys: 3 silicone switches
Protection Level: IP65 static, IP54 dynamic; NEMA 3 (frontside)
Interface: PS/2
Dimensions: 128.4 x 106.3 x 103 mm; 5.05 x 4.18 x 4.05“
Weight: 650 g
Operating Temperature: 0 °C to 50 °C; 32 °F to 122 °F
Ball Material: phenolic resin
Resolution: 155 pulses/rev.
Data sheet (pdf file, opens in new tab or window)
KH06521 – PS2 version (TKH-TB50-AL-NAT-FP-PS-2)
KH09433 – USB version (TKH-TB50-AL-NAT-FP-USB)
Pages 44 to 46 in the 2011 Catalog (pdf file, 99MB, opens in new tab, large file, may take a couple of minutes to download)
ITAC
MOUSE-TRAK™ Industrial Desktop
Conformal coating on the Industrial unit PCB protects against caustic and conductive contaminants.
Stainless steel shafts and bearings and super strong glass filled Xenoy™ thermoplastic housing construction make this unit extremely durable. The IDT is tough enough to withstand the most difficult tasks, but it is also designed to significantly reduce the effects of common repetitive stress injury (RSI) syndrome caused by wrist and elbow powered mouse devices. As much as a 60% improvement in RSI can be realized with use of the IDT. Integrated hand support virtually eliminates the threat of carpal tunnel injuries as well. IDT provides high speed, accurate and highly precise operation under the most challenging conditions.
USB Interface
B-USBID-XROHS Reference Model
B-SCRIN-XROHS Scrolling Enabled
Scrolling enabled unit also supports speed/precision toggles
B-SFUSB-XROHS-FW001 BAE SOCET SET
B-SFUSB-XROHS-FW002 BAE SOCET GXP
SOCET SET is a software application that performs functions related to photogrammetry. It is developed and published by BAE Systems. SOCET SET was the first commercial digital photogrammetry software program. Prior to SOCET SET, all photogrammetry programs were primarily analog or custom systems built for government agencies. – Wiki
B-MPIND-XROHS PS/2 Interface Assignable Keys
B-9PIND-XROHS Serial Interface Assignable Keys
All PS/2, serial and USB models are
compatible with Windows, Linux, Unix and Mac OS
B-SUNID-XROHS SUN Assignable Keys
Device Features
1. Case is textured Xenoy™ 6240/5220
2. Outer casing is UL 94HB Flame Class Rated (3)
3. Trackball is cast phenolic resin
4. Hand rest Pad is Grade 5800 flexible PVC
5. Shafts and ball bearings are 440 hardened stainless steel
6. Entirely RoHS Compliant
7. Conformal coated PCB resistant to liquids, moisture and dust.
8. Switches rated at 1,000,000 minimum actuations
- No driver installations required. Uses native drivers from the OS
- Xenoy™ 6240 glass reinforced polycarbonate housing
- Precision cast phenolic resin ball
- Stainless steel bearings
- Dual speed selector toggle for changing between Precision Pointing Mode and Speed Mode at the touch of a button
- Made to withstand harsh environments and heavy usage
- Supplied with either 5 or 8 foot cable depending on interface
- Key functions selectable such as Right hand/Left hand, Double click and Click/ Drag operations
- Industrial black color
Full specs for MOUSE-TRAK Industrial Desktop (pdf file (opens in new tab)
Industrial Desktop Functional Description:
Resolution: 192 to 576 pulses per revolution of the ball.
Input Mouse Buttons: Three (3)
Speed Control button:
Initially the trackball is in Ballistic mode where cursor movement depends both on the distance the ball is moved and on the speed of ball motion.
Pressing the speed control button toggles to “distance only” mode.
PS/2 Interface
Compatibility: Microsoft Serial Mouse Protocol, Mouse Systems Protocol
OS Certifications: Microsoft Windows 95, Microsoft Windows NT 4.0
Switches: Mechanically limited, break resistent
Cable: 96″+-0.5″ (Custom lengths available), double shielded, 100% coverage
Power: Line-powered. No external supply necessary
Power Consumption: Idle: 4mA Max: 12mA
Mechanical Specifications:
Dimensions: 104 x 201mm, cable entry at rear centre
Weight: 600gm 1.2 lbs.
Body Material: ABS, Beige
Ball Material: Cast Phenolic Resin
Ball Hardness: Rockwell H 85
Tracking Force: 1.5 oz. maximum, 0.5 oz. typical (15g)
Ball Load: 25 lbs. maximum downward
Ball Speed: 500 RPM maximum
Hand Pad: Injection-molded vinyl, grey
Environmental Specifications:
Operating Temperature: 0 to +50 degrees Celcius
Storage Temperature: -20 to +60 degrees Celcius
Humidity: 0 to 95% non condensing
Special Features:
Right/Left-handed modes: Yes. See manual for programming instructions
Programmability: Middle Key: The middle key may be set for the auxiliary function, a primary
click-and-drag, or a primary double-click. See manual for programming instructions.
Right (Secondary button in right-handed mode) Key: The right key may be set for either secondary click
or secondary click-and-drag. See manual for programming instructions.
Note:-Programming will reset to factory default if the MOUSE-TRAK receives a reset signal or
power down from the host computer.
Advanced Features
The middle key button can be set as Primary Key “Click & Drag”
Chording (pressing key buttons at the same time) all 3 keys and the speed button allows the middle key to generate “Click & Drag” function for the Primary Function (Left key in right hand mode).
Chording the 3 keys & speed button again causes the middle key to revert to Auxiliary Function.
The middle key button can be set as Primary Key “Double Click”
Chording the left, middle and right keys allows the middle key to generate a double click of the Primary Function.
The secondary key button can be set a Primary Key “Click & Drag”
Chording the right key and the speed button allows the key assigned to the Secondary Function (the right key in right hand mode) to operate in “click and Drag” mode for the secondary function.
Cleaning functions can be done without disassembling the unit, by spinning the ball fast in a diagonal direction, and by pressing down on the ball and moving the ball in a circular way. If these actions are insufficient then the case can be opened for further cleaning inside.
MOUSE-TRAK™ Professional Desktop
Stainless steel shafts and bearings and ABS thermoplastic housing construction make this unit extremely durable. The PDT is tough enough to withstand the most difficult tasks, but is also designed to significantly reduce the effects of common repetitive stress injury (RSI) syndrome caused by wrist and elbow powered mouse devices.
As much as a 60% improvement in RSI can be realized with use of the PDT. Integrated hand support virtually eliminates the threat of carpal tunnel injuries as well.
PDT provides high speed, accurate and highly precise operation under the most challenging conditions.
USB Interface
B-5XUSB-XROHS USB Reference Model
B-SCRPR-XROHS USB Scrolling Enabled
B-5XXMP-XROHS PS2/MOUSEPORT Assignable Keys
B-5XX9P-XROHS 9 PIN SERIAL SUN Assignable Keys
B-SUNMD-XROHS SUN Assignable Keys
Device Features
1. Case is textured ABS Plastic
2. Outer casing is UL 94HB Flame Class Rated (3)
3. Trackball is cast phenolic resin
4. Hand rest Pad is Grade 5800 flexible PVC
5. Shafts and ball bearings are 440 hardened stainless steel RC 50-55
6. Entirely RoHS Compliant
7. Conformal coated PCB resistant to liquids, moisture and dust.
8. Switches rated at 1,000,000 minimum actuations
• No driver installations required. Uses native drivers from the OS
• ABS plastic housing
• Stainless steel shafts and bearings
• Precision cast phenolic resin ball
• Dual speed selector toggle for changing between Precision Pointing Mode and Speed Mode at the touch of a button
• Designed for office productivity and CAD
• Key functions selectable such as Right hand/Left hand, Double click and Click/ Drag operations
• 60% less tiring than traditional mouse
• Made to withstand heavy usage
• Neutral light grey color
Full specs for MOUSE-TRAK Professional Desktop (pdf file (opens in new tab)
Indukey
KH02005 Aluminium Industrial Trackball 38mm, Panel Mount with Studs
Features and benefits:
- With four mounting studs
- 38 mm Industrial Trackball
- > 6 mil. ball revolutions
- PS/2 and USB compatible
- Panel mount version
- Rugged construction for reliable functionality
- Chemical, abrasion and scratch resistant frontsheet
- Ergonomic design
- IP65 (NEMA 4x) frontside sealing
- Semi or full customisation available
- Cost-effective
- 12 months warranty
Specification:
Ball Diameter: 38 mm (1.5“)
Actuation Force: 50 g
Trackball Lifetime: > 6 mil. revolutions
Protection Level: IP65 static (NEMA 4x), IP54 dynamic,
Mounting Type: panel mount
Dimensions: 110 x 135 x 30 mm; 4.330“ x 5.314“ x 1.181“
Weight: 200 grams
Operating Temperature: -40 °C to 90 °C; -40 °F to +194 °F
Frontpanel Material: PCB-material, FR4
Data sheet (pdf file, opens in new tab or window)
KH02005 – PS2 version (TKH-TB38b-MODUL-PS/2)
KH02006 – USB version (TKH-TB38b-MODUL-USB)
Pages 44 to 46 in the 2011 Catalog (pdf file, 99MB, opens in new tab, large file, may take a couple of minutes to download)
Note: The word MODUL in the description indicates M3 mounting studs on the back
KH09433 Aluminium Industrial Trackball, 50mm, Panel Mount
Features and benefits:
- Industrial trackball panel module for harsh environment
- Suitable for integration into 19″-front panels
- Extra large ball (d= 50 mm) for exact positioning
- Water- and dust-proof (IP54; IP65 static)
- Silicone mouse-switches with tactile feedback
- PS/2-mouse compatible with 3 mouse-switches (RS232 by adaptor)
- Surface made of Aluminum
- Rearside with electronic fully covered
- Frontside-integration by 4 holes
- Customized frontpanel layout on request
- 12 months warranty
Specification:
Ball Diameter: 50.8 mm; 2“
Actuation force: 50 g
Number of Keys: 3 silicone switches
Protection Level: IP65 static, IP54 dynamic; NEMA 3 (frontside)
Interface: PS/2
Dimensions: 128.4 x 106.3 x 103 mm; 5.05 x 4.18 x 4.05“
Weight: 650 g
Operating Temperature: 0 °C to 50 °C; 32 °F to 122 °F
Ball Material: phenolic resin
Resolution: 155 pulses/rev.
Data sheet (pdf file, opens in new tab or window)
KH06521 – PS2 version (TKH-TB50-AL-NAT-FP-PS-2)
KH09433 – USB version (TKH-TB50-AL-NAT-FP-USB)
Pages 44 to 46 in the 2011 Catalog (pdf file, 99MB, opens in new tab, large file, may take a couple of minutes to download)
Industrial Joysticks
APC

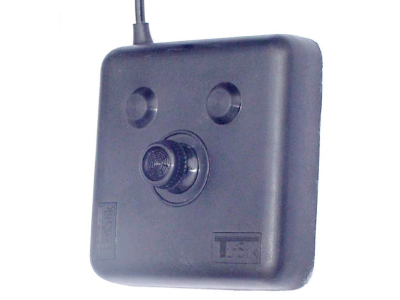

A-IM2 Industrial Joystick – Industrial Mouse

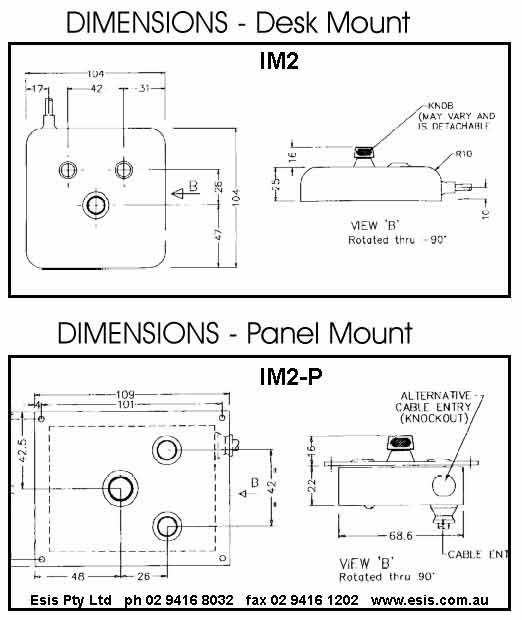

It has a click in the stick to further enhance this. Dimensioned drawings of A-IM2.
Sealed to IP65 (IP65 = Protected against water jet with nozzle).
• Precise fast control
• Designed for industrial environments
• Compatible with Microsoft® Mouse
• Unaffected by dust or water
• USB or PS/2
• Tested for EMC to CE Standards
The mouse cursor speed is proportional to displacement of the joystick thus providing both speed and precision.
Its movement is optimised with an ‘orthogonal weighting’ making horizontal and vertical movements easier to describe.
The unit has a metal base with a rubber overlay. Its weight and rubber feet ensure it does not slip.
The unit connects via a standard USB or PS/2 port and is available for desktop or panel mounting.
It requires little desk space, and offers excellent control, even for office environments.
ENVIRONMENTAL: Sealing to IP65. Die cast aluminium construction, with nitrile rubber overlay
TEMPERATURE: Operating 0° C to 60° C, Non-operating -20° C to 70° C
EMC Immunity: CE: EN5008-2: 1995 Generic Immunity Standard Part 2: Industrial Environment
EMISSIONS: CE: EN55022: 1995. CISPR22 1993 Class B FCC: Class A
SHOCK: 25g (11 mS sine wave) 3 axis Weights: A-IM2: Approx 500gm, IM-2P under 600gm
OPERATION: Cursor movement speed proportional to joystick displacement (exponential relationship), with ‘orthogonal weighting’.
Auto zero on power up.
JOYSTICK: Opto Strain Gauge. Compatible with Microsoft® Mouse. (Driver not provided)
CONNECTION: 2 metre coiled lead.
Specify USB or PS/2 when ordering.
A-IM2 Desktop version, black rubber surface (450gm packed in box): $440+GST 04/18
A-IM2-P Panel Mount version (550gm packed in box): $500+GST 04/18
A-IM2-P-SS Panel Mount Stainless Steel version: $550+GST 04/18
Conformal coating: For very adverse conditions, the interior circuitry can be conformally coated
to prevent contact by moisture, etc: POA
A-IM2-OEM Low cost version without faceplate enclosure or cable, for integration into customer’s own panels: $369+GST 04/18
A-IM2-K-OEM OEM Joystick to suit KBIM2 or KBIM2-P: $369+GST 04/18
Intrinsically Safe Mouse A-IM2-IS

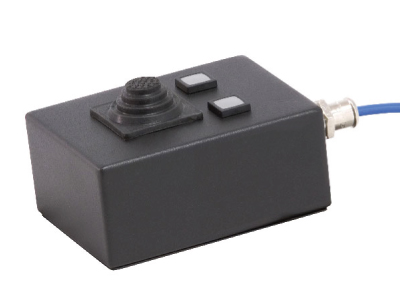

A-IM2-IS Intrinsically Safe Mouse
The A-IM2-IS is a short stick Industrial OPTO mouse for use in hazardous environments.
The unit is intrinsically safe, protected via safety barriers,
and is suitable for use in Class 1 Zone 0 hazardous areas.
Manufactured under AUSEX certification and International EX certification.
Includes repeater and barrier.
Also available with USB interface.

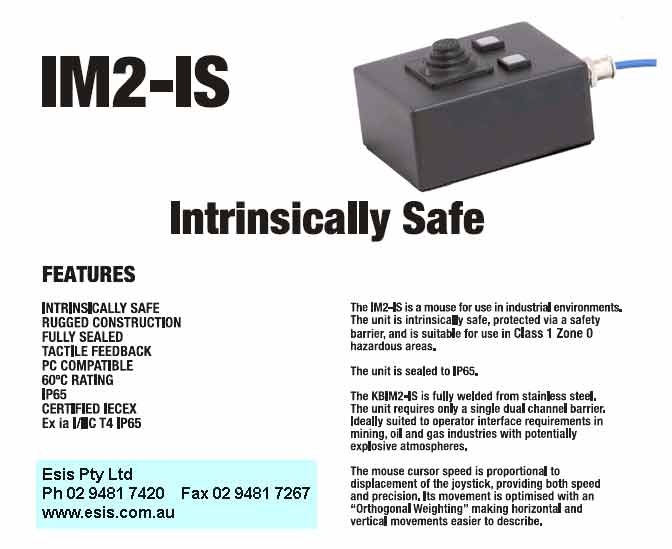

Data on A-IM2-IS (.jpg, opens in new window)
Manufactured under AUSEX certification and International EX certification.
IP Ratings Chart: Click here
A-IM2-IS Intrinsically Safe IM2 Pointing Device with Barrier and Repeater: $3,599+GST 04/18
A-IM2-IS-MSE Intrinsically Safe IM2 Pointing Device: $1,999+GST 04/18
A-IS-RPTR Repeater for KBIM2-IS or IM2-IS: $900+GST 04/18
A-IS-BAR Barrier for KBIM2-IS or IM2-IS: $900+GST 04/18
A-PCIM Industrial Mouse – Desktop / Panel Mount
A-PCIM Industrial Mouse – IP65 – desktop or panel mount
A-PCIM Industrial MouseFor very harsh environments, operators using gloves.
The A-PCIM Industrial Mouse is an inductive joystick, that emulates a mouse.
It has two “mouse buttons”.
The mouse cursor speed is proportional to displacement of the joystick thus providing both speed and precision.
it is unaffected by dust and water and is sealed to an equivalent of IP65.
The unit connects via a standard PS/2 port (via a serial port),
and is available for desktop or panel mounting.
The A-PCIM desktop version is heavy duty, constructed from steel, which is zinc plated and powder coated for added protection.
Its weight and rubber feet ensure it does not slip, and offers the perfect solution for industrial applications.
Requires little desk space, and offers excellent control, even for office environments.
The A-PCIM-P panel mount version requires a cutout: 100 x 149mm (W x H), with 4 screw holes.
Specifications
Construction: Steel – zinc plated and powder coated. Sealing: IP65
Joystick: Inductive type, emulates Microsoft Mouse (driver not provided)
Operation: Cursor movement speed proportional to joystick displacement. Auto joystick null position sensitive.
Operating temperature: 0°C to +60°C
Storage temperature: -20°C to +70°C
Connector: 2 metre coiled lead with nine pin female D type connector for serial mouse, adapter provided for PS/2 connection
Unit Dimensions: 105(W) x 168.5(D) x 200(H) mm, Gross weight: approx 0.75kg
Option: A-PCIM-SS Stainless Steel Desktop Industrial Mouse
Option: A-PCIM-P-SS Panel mount, Stainless Steel Industrial Mouse

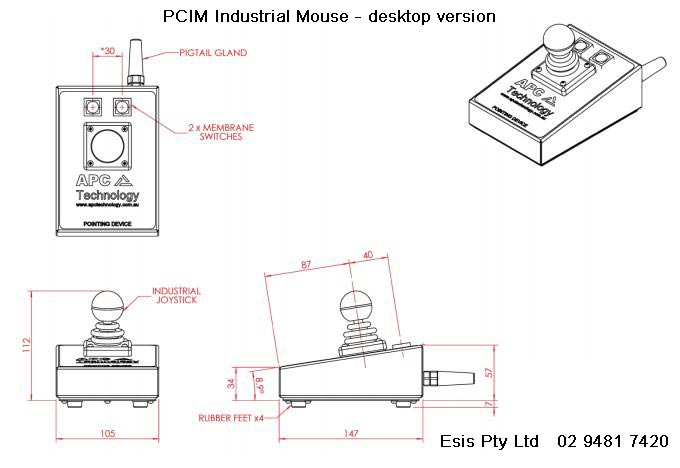

Diagram of A-PCIM Desktop Industrial Mouse, with dimensions (.jpg file, opens in new tab)

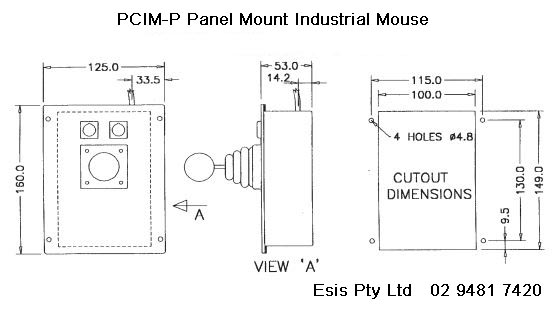

Diagram of A-PCIM-P Panel Mount Industrial Mouse, with dimensions (.jpg file, opens in new tab)
A-PCIM Desk mount Industrial Mouse: $899+GST 04/18
A-PCIM-P Panel Mount Industrial Mouse: $799+GST 04/18
A-PCIM-SS Desk mount Stainless Steel version: $899+GST 04/18
A-PCIM-P-SS Panel Mount Stainless Steel version: $850+GST 04/18
A-PCIM-SPEC Industrial Panel Mount Joystick (mouse emulation), Heavy Duty, for wheelchairs, IP65, USB: $999+GST 04/18
Industrial Touchpads
Indukey
KH02010 Panel Mount Industrial Touchpad (studs)
Features and benefits:
- Four mounting studs
- Capacitive Touchpad
- PS/2 and USB compatible
- Panel mount version
- Rugged construction for reliable functionality
- Chemical, abrasion and scratch resistant frontsheet
- Ergonomic design
- IP65 (NEMA 4x) frontside sealing
- Semi or full customisation available
- Cost-effective
- 12 months warranty
Specification:
Motion Detection Method: Capacitive
Resolution: 40 counts / mm
Protection Level: IP65; NEMA 4x (frontside)
Mounting Type: Panel mount
Dimensions: 110 x 135 x 20 mm; 4.330“ x 5.314“ x 0.787“
Weight: 150 grams
Operating Temperature: -40 °C to 90 °C; -40 °F to +194 °F
Frontpanel Material: PCB-material, FR4
Data sheet (pdf file, opens in new tab or window)
KH02009 – PS2 version (TKH-TOUCHb-MODUL-PS/2)
KH02010 – USB version (TKH-TOUCHb-MODUL-USB)
Pages 44 to 46 in the 2011 Catalog (pdf file, 99MB, opens in new tab, large file, may take a couple of minutes to download)
Note: The word MODUL in the description indicates M3 mounting studs on the back.
Industrial Keypads
CYBERVISUELL
CKC300-RPM-USB CYBERVISUELL Stainless Steel Rear Panel Mount Touchpad, 2 Mouse Buttons, IP65, USB $286+GST
Features:
- Dimensions: Top Plate110mm x 83mm, Touch Pad 65x49mm, Base Plate 134x107mm
- Dustproof, IP65 Water proof, Vandalism resistance
- Mounting type: Rear Mounting
- Keyswitch Technology: Silicone switching element
- Keyswitch lifetime: > 5 million of operations
- Actuation Force/travel: 1N
- Mounting Rack: Aluminum alloy
- Lettering: laser engraved legends for excellent durability
- G.W.: 0.7kg
Specification:
Protection Level | IP65; NEMA4X |
Lifespan | > 5 years |
Interface | USB (PS/2 available) |
Supply Voltage | +5V DC +/-5% |
Operating temperature | -10C to +60C |
Storage temperature | -20C to +70C |
Data sheet on CKC300-RPM-USB (pdf file, opens in new tab or window)
Obsolete Products
- KH02008 – Panel Mount Industrial Touchpad (holes)
- KH16209 – Panel Mount Industrial Joystick
