WiFi Access Points - Industrial / Outdoor

Wireless network access points for outdoor and industrial applications
Wide Area Network (WAN)
A Wide Area Network (WAN) is a telecommunication network that covers a broad area (i.e., any network that links across metropolitan, regional, or national boundaries). Business and government entities utilize WANs to relay data among employees, clients, buyers, and suppliers from various geographical locations. In essence this mode of telecommunication allows a business to effectively carry out its daily function regardless of location.[1]    More info (Wiki)

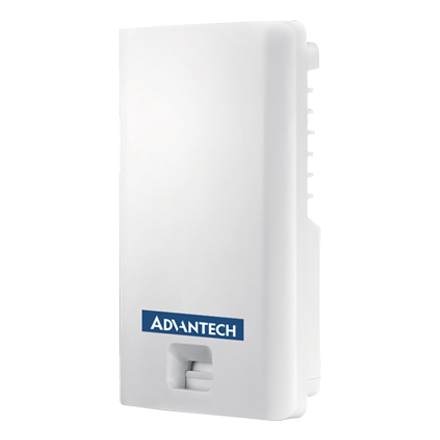

EKI-6333AC-2G – Industrial WiFi IEEE 802.11 b/g/n Wireless Access Point / Client Bridge


The EKI-6333AC-2G is a feature-rich wireless AP providing reliable wireless connectivity for industrial environments. The PoE injector enhances flexibility in deployment of this AP even where the DC power supply is hard to fulfill.

EKI-6333AC-2G - Industrial WiFi IEEE 802.11 b/g/n Wireless Access Point / Client Bridge
Click here to show/ hide more info

EKI-6333AC-2G - Industrial WiFi IEEE 802.11 b/g/n Wireless Access Point / Client Bridge

The EKI-6333AC-2G is a feature-rich wireless AP providing reliable wireless connectivity for industrial environments. The PoE injector enhances flexibility in deployment of this AP even where the DC power supply is hard to fulfill. As a 802.11n compliant device, EKI-6333AC-2G provides a data rate that is six times higher than legacy 802.11g devices.
With the support of STP, WMM and IGMP snooping protocols, EKI-6333AC-2G improves the reliability of wireless connectivity, especially in applications requiring high reliability and throughput data transmission. To secure the wireless connection, EKI-6333AC-2G implements the latest encryption technologies, including WPA2/WPA/802.1x for powerful security authentication.

Ethernet Communications

Port Type RJ45
No. of Ports2
Speed10/100/1000 Mbps

Wireless LAN Communications

Compatibility2.4GHz: IEEE 802.11 b/g/n
5GHz: IEEE 802.11 a/n/ac
SpeedUp to 1167Mbps
Network ModeInfrastructure
Free Space RangeOpen space 100 m
Wireless SecurityWEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise

Software

ManagementTelnet, FTP, SNMP, Web UI, SSH
WirelessRadio on/off, WMM, Output Power
Control, Beacon Interval,
RTS/ CTS threshold, DTIM Interval
Operation ModesAccess Point mode, Client, Repeater
ConfigurationWeb Browser
ProtocolARP, ICMP, IPv4, IPv6, TCP, UDP, DHCP Client, DHCP
Server, Auto IP, Telnet, DNS, SNMP, HTTP, DMZ,
PPPoE, VPN Passthrough, Telnet Server, SSH Server,
FTP Server, QoS

Antenna

Default with 4 x external 5 dBi Omni antenna
4 x Reverse SMA connectors for SMA antenna

Data Rates

802.11b802.11b 11M, 5.5M, 2M, 1Mbps
802.11a/g54M, 48M, 36M,18M, 12M, 9M, 6Mbps
802.11nHT20 MCS0~15 / HT40 MCS0~15
802.11acVHT80 MCS0~9

Mechanics

EnclosurePlastic
MountingWall, Pole
Dimensions (W x H x D)191.6 x 114.3 x 47.7 mm (7.54” x 4.49” x 1.88”)
Weight0.5kg

General

LED IndicatorsSystem: Power
WLAN: Link/Active
LAN: Link/Active

Power Requirements

Power InputDC 24 V / 1A; POE Adapter 100 V ~ 240 V
Power ConnectorRJ45, Passive 24V PoE
Power Consumption15W

Environment

Operating Temperature-20 ~ 70 °C (-4~158°F)
Storage Temperature-30 ~ 80°C (-22 ~ 176°F)
Operating Humidity10 ~ 95% RH

Regulatory Approvals

EMCEMC CE, FCC Part 15 Subpart B



Data sheet of EKI-6333AC-2G (pdf file – opens in new tab)

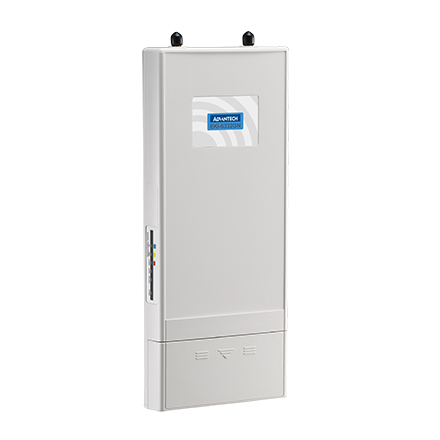

EKI-6332GN – Industrial WiFi IEEE 802.11 b/g/n Wireless Access Point / Client Bridge


The EKI-6332GN is a feature rich wireless AP/Client which provides a reliable wireless connectivity for industrial environments. The PoE injector enhances flexibility in deployment of this AP/Client even where the DC power supply is hard to fulfill. As an 802.11n compliant device, EKI-6332GN provides 6 times higher data rates than legacy 802.11g devices.

EKI-6332GN - IEEE 802.11 b/g/n Wireless Access Point / Client Bridge
Click here to show/ hide more info

EKI-6332GN - IEEE 802.11 b/g/n Wireless Access Point / Client Bridge

With the support of STP, WMM and IGMP snooping protocols, EKI-6332GN effectively improves the reliability of wireless connectivity, especially in applications that need high reliability and high throughput data transmission. To secure wireless connections, EKI-6332GN implements the latest encryption technologies including WPA2/WPA/802.1x for powerful security authentication.



Standard Support
Physical Specifications

PowerDC 24 V / 1A; AC Adapter 100 V ~ 240 V
Dimensions (W x H x D)111 x 256 x 48 mm (4.37″ x 10.08″ x 1.89″)
MountingWall, Pole
Weight0.5 Kg

Environment

Operating TemperatureNon Heater : -20 ~ 70 °C (-4 ~ 158 °F)
Storage Temperature-40 ~ 70 °C (-40 ~ 158 °F)
Humidity10% ~ 95% non-condensing

Interface Operation Modes
Access Point (AP) / Client
Antenna

  • Default external 5 dBi Omni antenna
  • 2 x RP-SMA connectors (female) for RP-SMA antennae (male)

Other Features

ManagementTelnet, FTP, SNMP, Web UI
WirelessRadio on/off, WMM/Regatta Mode, Output Power Control, Fragmentation Length, Beacon Interval, RTS/ CTS threshold, DTIM Interval,
SecurityOpen System , Shared Key, Lagacy 8021X, WPA, WPA2, WPA-PSK (TKIP), WPA2-PSK(AES)

Modulation Techniques

IEEE 802.11nOFDM (BPSK, QPSK, 16-QAM, 64-QAM)
IEEE 802.11bDSSS (DBPSK, DQPSK, CCK)
IEEE 802.11gOFDM (BPSK, QPSK, 16-QAM, 64-QAM)

Channel Support

IEEE 802.11b/g/gn

HT20

FCC: CH1 ~ CH11; ETSI: CH1 ~ CH13

IEEE 802.11gn

HT40

FCC: CH3 ~ CH9; ETSI: CH3 ~ CH11

Wireless Transmission Rates

Transmitted Power*

802.11b: 27 dBm

802.11g: 25 dBm @ 6 Mbps, 23 dBm @ 54 Mbps 802.11gn HT20: 27 dBm @ MCS0/8, 23 [email protected] MCS7/15 802.11gn HT40: 26 dBm @ MCS0/8, 22

[email protected] MCS7/15

Point to point wireless Ethernet bridge: A pair of EKI-6332GN units may be configured as a point to point Ethernet wireless bridge, to connect 2 Ethernet devices or networks together wirelessly. Testing by Esis with the previous model (EKI-6311GN) achieved a range of more than 200m in a built up area, in the presence of many other WiFi networks.

Data sheet of EKI-6332GN (pdf file – opens in new tab)

Obsolete Products

  • HS1200N Wireless N Hotspot
  • HS1100 Wireless N Hotspot & Network Ticket Generator
  • NP730 Outdoor Wireless Access Point – Netcomm (Replaced by NP731)
  • NP731 Outdoor Dual Band WiFi N Access Point – Netcomm
  • EKI-6311GN IEEE 802.11 b/g/n Wireless Access Point/ Client Bridge (Replaced by EKI-6332GN)
