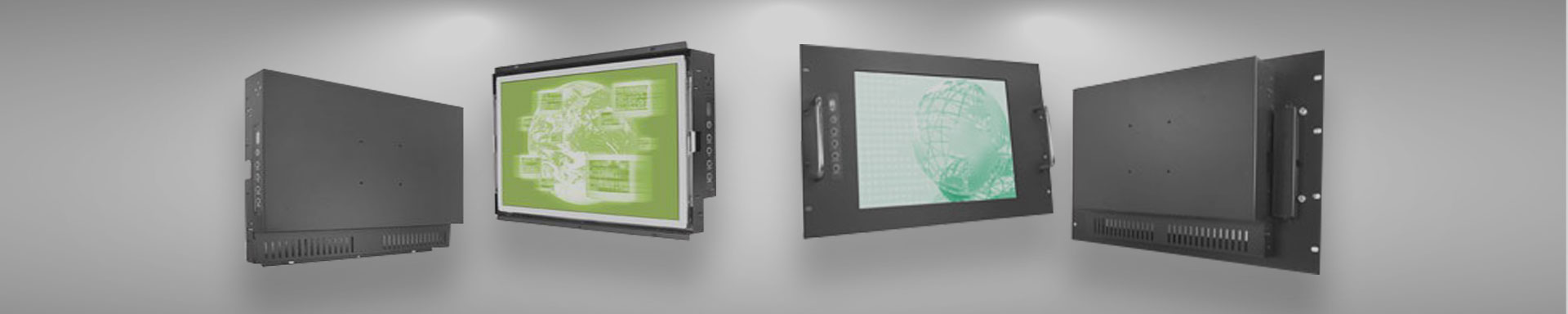

Rack Mount and Open Frame Industrial LCD Monitors
with many optionsCyberVisuell Rack Mount & Open Frame Industrial LCD Monitors
CyberVisuell Open Frame industrial LCD monitors are perfect for integrating into kiosks, or rear-mounting in walls or panels. They provide easy mounting options and offer a rugged metal rear housing, without a front bezel. Available in sizes ranging from 5.7″ up to 65″.
These monitors also offer an unmatched array of monitor options, so monitors can easily be custom configured to meet individual customer requirements. For example, sunlight readable, composite video or HDMI inputs, DC powered, various touch screen types, and so on.
The factory can supply monitors with custom combinations of options, even for very small orders, due to the highly modular design.
Rack Mount Industrial LCD Monitors
Rack Mount Industrial LCD Monitors
CyberVisuell Rack Mount Industrial LCD monitors are designed for mounting into a standard 19″ rack. With their rugged all-metal housing, smart aluminium front bezel, and industrial grade components, these monitors are built to last.
CyberVisuell Rack Mount Industrial LCD monitors are designed for mounting into a standard 19″ rack. With their rugged all-metal housing, smart aluminium front bezel, and industrial grade components, these monitors are built to last.
Applications:
- Industrial HMI for SCADA systems
- IT / server rooms (standard VGA or DVI inputs allow a regular KVM switch to be used)
- Surveillance camera monitoring (composite video input with optional looping connector)
- Professional TV/Video work (HDMI, HD-SDI, composite video with looping, S-video inputs)
Features
- Aluminum front bezel for smart, clean appearance
- Rugged metal chassis (SECC steel)
- Industrial grade for long lasting performance
- Wide range of options available with no MOQ, due to modular design
- Optional IP65 waterproof front
- OSD (on screen display) buttons on the front for easy adjustment
- Wide operating temperature 0-50°C
- Touch screens: Resistive, Capacitive, SAW, Infra-Red, or Projected Capacitive
- Flexible input options: VGA, DVI, Composite Video, HDMI, HD-SDI
- Power options: DC 12V with mains adaptor, or AC input, or wide range DC input for vehicle use
- Optional Sunlight Readable panel and/or LED backlight
- Optional wide dimming range for marine / vehicle use
- VESA compliant mounting on rear
Sizes and Resolutions
| 4:3 Screen Models | Wide Screen Models | ||
| Model No Size Res. Units | Pics of 10″ and 20.1″ | Model No Size Res. Units | Pics of 12″ and 17″ |
| To fit standard 19″ rack: RMB1045XN 10.4″ 1024×768 5U RMB1205XN 12.1″ 1024×768 6U RMB1505XN 15″ 1024×768 7U RMB1705EN 17″ 1280×1024 9U RMB1905EN 19″ 1280×1024 9UNote: Other screen resolutions are available in some sizes. |
|
To fit standard 19″ rack: RMB12W5WE 12.1″ 1280×800 RMB1545WE 15.4″ 1280×800 7U RMB17W5WP 17″ 1440×900 8U RMB17W5WU 17″ 1920×1200 8U RMB1735WH 17.3″ 1920X1080Wider than 19″ rack: RMB19W5WP 19″ 1440×900 RMB2155WH 21.5″ 1920×1080 RMB2205WM 22″ 1680×1050 RMB2405WH 24″ 1920×1080 |
|
Common Specifications
| Display Type | TFT LCD | |
| Panel | Surface | Black Anti-Glare, Low Reflection Coating |
| Light Source | CCFL, (old-cathode fluorescent lamps) Long Life 50,000 Hrs (typ) Optional LED Backlight available |
|
| Inputs | VGA Input
|
15-pin D-Sub Female, Analog RGB Signal |
| 0.7/1.0Vp-p, 75 Ohms, Fh = 30-82kHz, Fv = 50-75Hz | ||
| Separate Sync / Composite Sync / Sync on Green | ||
| Audio | Stereo Mini Jack, 2W Speaker x2 | |
| Power | 15″ models and above | AC mains 90-260V auto sensing input |
| Up to 12″ / option on 15″-24″ | 12V DC, with External AC Adaptor included | |
| Mounting | Screw mount into rack
VESA mount on rear – hole patterns: |
Up to 17″: 75 x 75 mm |
| 19″-24″: 100 x 100 mm | ||
| Features | Auto Calibration, Back Light Adjustment, Plug & Play (VESA DDC/CI, DDC 2B) | |
| Operating Conditions | Temperature / Humidity | 0°C to 50°C, 10%-90% (non condensing) |
| Storage Conditions | Temperature / Humidity | -20°C to 60°C, 10%-90% (non condensing) |
| Certifications | CE, FCC, C-Tick | CE, FCC, C-Tick |
Options
| Most options may be ordered in any quantity of monitors
Please note some combinations of options/sizes may not be possible – please contact us for a quote. |
Option Codes | |
| Grades | Marine Grade – shock and vibration tolerant, anti-rust For marine applications we also recommend using FME Flush Mount Marine series, wide range DC input, sunlight readable, and wide dimming range options. |
-GM |
| Vehicle Grade – shock and vibration tolerant For vehicle applications we also recommend using the wide range DC input, and sunlight readable option. Wide dimming range may also be required. |
-GV | |
| Panel / Backlight | LED Backlight (brightness specified in nits xxxx) For Sunlight Readable: Use 1000 or 0700 nits high brightness models |
-BLxxxx |
| CCFL Backlight (brightness specified in nits xxxx) | -BCxxxx | |
| Wide Dimming Range, controlled by OSD buttons | -BW | |
| Wide Dimming Range, controlled by knob | -BK | |
| Touchscreens
USB connection by default, or specify -RS232 for serial Infomation about Touchscreens |
Resistive | -TR |
| Capacitive (cannot detect gloved finger), optionally with 6mm Anti-Vandal Glass | -TC or -TC6 | |
| SAW (Surface Acoustic Wave) | -TS | |
| Infra-Red | -TI | |
| Projected Capacitive (can sense a passive stylus or gloved fingers) with 6mm Anti-Vandal Glass | -TP6 | |
| Protective Glass (no touch): 3mm, or 6mm Anti-Vandal | -TG3 or -TG6 | |
| Inputs | VGA | -IV |
| VGA + DVI | -IVD | |
| VGA + DVI + HDMI | -IVDH | |
| VGA + DVI + HDMI + RS-232 remote control input | -IVDHR | |
| VGA + S-Video + Composite Video (BNC connectors) | -IVSC | |
| VGA + S-Video + Composite Video with Looping (BNC connectors) | -IVSCL | |
| VGA + DVI + S-Video + Composite Video | -IVDSC | |
| VGA + HDMI + Composite Video with Looping | -IVHCL | |
| VGA + HDMI | -IVH | |
| VGA + Media Player (plays various formats from CF / SD cards / USB stick) | -IVM | |
| Power | AC mains 90-260V auto sensing input (only for 15″ and larger) | -P240 |
| 12V DC, with External AC Adaptor included | -P12 | |
| Wide voltage range DC power input | -PW | |
| Other | Wide Temperature Range | -RW |
| Wide Viewing Angle | -VW | |
| Light Sensor with auto dimming | -LS | |
| OSD buttons on a wired Remote Control box | -OR | |
| Integrated PC (Panel PC / Digital Signage Platform)
Options include Fanless Atom N270, Atom D525, Core 2 Duo, Core 2 Quad, Core i5, Core i7 |
Contact us | |
Touch screen types (click to view)
Resistive, Capacitive or SAW
Resistive Touchscreens are for applications where speed and accuracy are required, They are used primarily for point of sales and medical and industrial applications.
Resistive Touchscreens are versatile and pens, gloved hands or bare skin can be used to acivate the touchscreen.
Capacitive touchscreens need bare finger or wet glove to activate them.
The surface is tougher than that of resistive touchscreens.
SAW (Surface Acoustic Wave) Touchscreens are for applications such as information kiosks.
They are strong and are scratch and vandal proof.
Water, dirt and contaminants can’t get in.
They work even when glass is scratched.
The user must use bare skin or object that absorbs the sound waves to activate the touchscreen.
Open Frame Industrial LCD Monitors
Open Frame Industrial LCD Monitors
CyberVisuell Open Frame Industrial LCD monitors are perfect for integrating into kiosks, or rear-mounting in walls or panels. They provide easy mounting options and offer a rugged metal rear housing, without a front bezel.
CyberVisuell Open Frame Industrial LCD monitors are perfect for integrating into kiosks, or rear-mounting in walls or panels. They provide easy mounting options and offer a rugged metal rear housing, without a front bezel.
Features
- Rugged steel chassis with open front for easy integration
- Industrial grade for long lasting performance
- Wide range of options available with no MOQ, due to modular design
- Wide operating temperature 0-50°C
- Touch screens: Resistive, Capacitive, SAW, Infra-Red, or Projected Capacitive
- Flexible input options: VGA, DVI, Composite Video, HDMI, HD-SDI
- Power options: DC 12V with mains adaptor, or AC input, or wide range DC input for vehicle use
- Optional Sunlight Readable panel and/or LED backlight
- Side mounted OSD buttons
- VESA compliant mounting on rear
Sizes and Resolutions
| 4:3 Screen Models | Wide Screen Models | ||
| Model No Size | Pics of 5.7″ and 20.1″ | Model No Size | Pics of 7″ and 65″ |
| OFB0576VN 5.7″ 640×480 OFB0656VN 6.5″ 640×480 OFB0846SN 8.4″ 800×600 OFB0975XN 9.7″ 1024×768 OFB1045XN 10.4″ 1024×768 OFB1205XN 12.1″ 1024×768 OFB1505XN 15″ 1024×768 OFB1705EN 17″ 1280×1024 OFB1905EN 19″ 1280×1024Note: Other screen resolutions are available in some sizes. |
|
OFB0706WV 7″ 800×480 OFB0896WS 8.9″ 1024×600 OFB1016WS 10.1″ 1024×600 OFB12W5WE 12.1″ 1280×800 OFB1545WE 15.4″ 1280×800 OFB17W5WP 17″ 1440×900 OFB19W5WP 19″ 1440×900 OFB2205WM 22″ 1680×1050 OFB2405WH 24″ 1920×1080 OFB2415WU 24″ 1920×1200 OFB2725QD 27″ 2560×1440 OFB3205WH 32″ 1920×1080 OFB4204WH 42″ 1920×1080 OFB4604WH 46″ 1920×1080 OFB5504WH 54.6″ 1920×1080 OFB6504WH 65″ 1920×1080 |
|
Common Specifications
| Display Type | TFT LCD | |
| Panel | Surface | Black Anti-Glare, Low Reflection Coating |
| Light Source | CCFL, (old-cathode fluorescent lamps) Long Life 50,000 Hrs (typ) Optional LED Backlight available |
|
| Inputs | VGA Input | 15-pin D-Sub Female, Analog RGB Signal |
| 0.7/1.0Vp-p, 75 Ohms, Fh = 30-82kHz, Fv = 50-75Hz | ||
| Separate Sync / Composite Sync / Sync on Green | ||
| Audio (Optional) | Optional Stereo Mini Jack with 2W Speaker x2 | |
| Power | 15″ models and above | AC mains 90-260V auto sensing input |
| Up to 12″ / option on 15″-22″ | 12V DC, with External AC Adaptor included | |
| Mounting | VESA mount on rear | Up to 17″: 75 x 75 mm |
| 19″-24″: 100 x 100 mm | ||
| 26″-37″: 400 x 200 mm | ||
| Features | Auto Calibration, Back Light Adjustment, Plug & Play (VESA DDC/CI, DDC 2B) | |
| Operating Conditions | Temperature / Humidity | 0°C to 50°C, 10%-90% (non condensing) |
| Storage Conditions | Temperature / Humidity | -20°C to 60°C, 10%-90% (non condensing) |
| Certifications | CE, FCC, C-Tick | CE, FCC, C-Tick |
Options
| Most options may be ordered in any quantity of monitors
Please note some combinations of options/sizes may not be possible – please contact us for a quote. |
Option Codes | |
| Grades | Marine Grade – shock and vibration tolerant, anti-rust powder coating For marine applications we also recommend using a suitably sealed enclosure, wide range DC input, sunlight readable, and wide dimming range options. |
-GM |
| Vehicle Grade – shock and vibration tolerant For vehicle applications we also recommend using the wide range DC input, and sunlight readable option. Wide dimming range may also be required. |
-GV | |
| Panel / Backlight | LED Backlight (brightness specified in nits xxxx) For Sunlight Readable: Use 1000 or 0700 nits high brightness models |
-BLxxxx |
| CCFL Backlight (brightness specified in nits xxxx) | -BCxxxx | |
| Wide Dimming Range, controlled by OSD buttons | -BW | |
| Wide Dimming Range, controlled by knob | -BK | |
| Touchscreens
USB connection by default, or specify -RS232 for serial (Wikipedia, opens in new tab) |
Resistive | -TR |
| Capacitive (cannot detect gloved finger), optionally with 6mm Anti-Vandal Glass | -TC or -TC6 | |
| SAW (Surface Acoustic Wave) | -TS | |
| Infra-Red | -TI | |
| Projected Capacitive (can sense a passive stylus or gloved fingers) with 6mm Anti-Vandal Glass | -TP6 | |
| Protective Glass (no touch): 3mm, or 6mm Anti-Vandal | -TG3 or -TG6 | |
| Inputs | VGA | -IV |
| VGA + DVI | -IVD | |
| VGA + DVI + HDMI | -IVDH | |
| VGA + DVI + HDMI + RS-232 remote control input | -IVDHR | |
| VGA + S-Video + Composite Video (BNC connectors) | -IVSC | |
| VGA + S-Video + Composite Video with Looping (BNC connectors) | -IVSCL | |
| VGA + DVI + S-Video + Composite Video | -IVDSC | |
| VGA + HDMI + Composite Video with Looping | -IVHCL | |
| VGA + HDMI | -IVH | |
| VGA + Media Player (plays various formats from CF / SD cards / USB stick) | -IVM | |
| Power | AC mains 90-260V auto sensing input (only 15″ and larger) | -P240 |
| 12V DC, with External AC Adaptor included | -P12 | |
| Wide voltage range DC power input | -PW | |
| Other | Wide Temperature Range | -RW |
| Wide Viewing Angle | -VW | |
| Light Sensor with auto dimming | -LS | |
| OSD buttons on a wired Remote Control box | -OR | |
| Integrated PC (Panel PC / Digital Signage Platform)
Options include Fanless Atom N270, Atom D525, Core 2 Duo, Core 2 Quad, Core i5, Core i7 |
Contact us | |
