Serial Data Cards: 1 & 2 port - PCI and ISA bus

RS232, RS422, RS485

Advantech serial communication cards featuring RS232 card, CAN bus card and communication board that need only one PCI or ISA slot to provide independent serial channels.

Product Categories

PC/104 and PCI-104 Communication Cards (PCM-3600 Series)
PCI-104 module and PCI/104 communication cards with embedded serial protocol designed for reliable and easy-of-use communication applications.

PCI-bus Communication Cards (PCI-1600 Series)
Advantech PCI-bus communication cards featuring PCI serial, RS-232/RS-422/RS-485 serial that need only one PCI or ISA slot to provide independent serial channels.

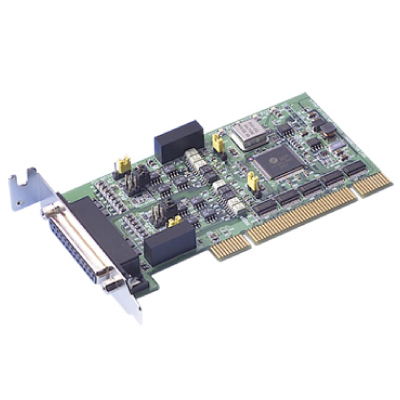

PCI-bus Low-profile Cards (PCI-1600 Series)
PCI-bus Low-profile cards featuring Low-Profile serial and RS-422/RS-485 serial for industrial DAQ and automation application and also capable of operating in harsh environment.

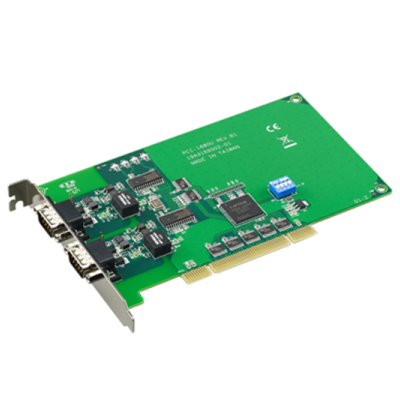

CAN Communication Cards
The CAN-bus boards supporting PCI CAN and PCIe CAN are exceptional CAN controllers for your PC.

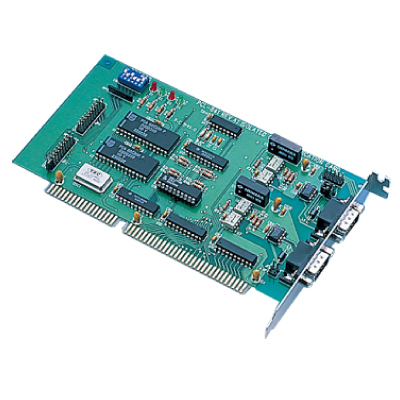

ISA-bus Communication Cards
ISA-bus Industrial Communication cards provide excellent RS-232/422/485 solutions for industrial automation and DAQ applications.

PC/104 and PCI-104 Communication Cards (PCM-3600 Series)

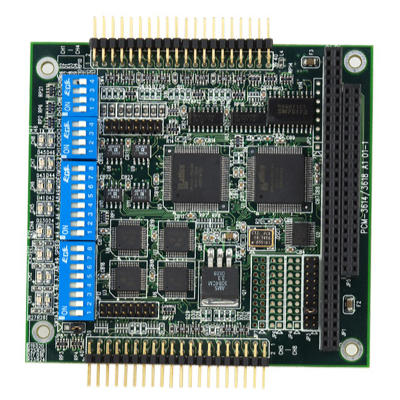

PCM-3618


8-port RS-422/485 High-Speed PC/104 Module

PCM-3618
Click here to show/ hide more info

PCM-3618
The PCM-3618 is a PC/104-compatible module with eight individually configurable RS-422/485 ports. It works with PC/104 CPU modules to extend additional RS-2422/485 ports. The PCM-3618 also features lots of functions such as high transmission speed of 921.6 kbps, shared IRQ and more. It also provides high-performance 16C550 UART communication chip with 16-byte FIFO to reduce CPU load. This makes the PCM-3618 especially suitable for multitasking environments.

Features:

  • Eight independent RS-422/485 serial ports
  • Automatic RS-485 data flow control
  • Transmission speeds up to 921.6 Kbps
  • Shared IRQ settings for each port
  • Windows® 95/98/NT/ME/2000/XP, Windows® CE driver
  • Built-in termination resistors
  • LED indicators: TX, RX
  • Standard PC ports: COM1, COM2, COM3, COM4 compatible

Specifications:

Part Number

PCM-3618-AE





Environment



Operating Humidity*

0 ~ 90 % RH, non-condensing

Storage Temperature

-40 ~ 85°C (-40 ~ 185°F)

Operating Temperature

-40 ~ 85°C (-40 ~ 185°F)





General



Bus Interface

PC/104

Connectors

8 x DB9-M

Power Consumption*

450 mA @ +5 V (typ.)

Certifications*

CE, FCC, RoHS

OS Support*

Windows 2000/XP/Vista/7 , WinCE 4.2, 5.0

Dimensions*

96 x 90 mm (3.775″ x 5.550″)





Communications*



Ports

8

Data Bits

5,6,7,8

Parity

None, even, odd

Speed

50 bps ~ 921.6 kbps

Stop Bits

1,1.5,2

Data Flow Control

Automatic RS-485 data flow control

Serial/CAN/GPIB/USB

RS-232/RS-422/RS-485





Software*



Bundled Software

ICOM Tools



Datasheet on PCM-3618 (pdf, opens in a new tab)

PCI-bus Communication Cards (PCI-1600 Series)

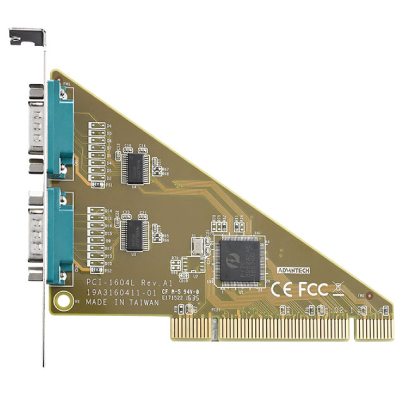

PCI-1604L


2-port RS-232 PCI Communication Card

PCI-1604L
Click here to show/ hide more info

PCM-3618
The PCI-1604L is an 2-port RS-232 and compatible with the PCI 2.2 bus specification, The card provides 1 KV EFT protection , 8KV ESD protection and have many functions such as high transmission speed of 921.6 kbps; The card can work under a tough environment with -20 ~ 60°C operating temperature. PCI-1604L is an economical communication card for users who need to control several RS-232 devices.

Features:

  • PCI bus 2.2 compliant
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Level 4 ESD protection (air 15 KV , contact 8 KV)
  • 2 x RS-232 ports
  • 128-byte FIFO
  • Supported operating systems: Windows XP/7/8, and Linux
  • Operating Temperature -20 ~ 60°C

Specifications:

Part Number PCI-1604L-AE

Communications*
Ports 2
Data Bits 5,6,7,8
FIFO 128 bytes
Parity None, Even, Odd, Mark and Space
Speed 50 bps ~ 921.6 kbps
Stop Bits 1,1.5,2
Data Flow Control RTS/CTS, Xon/Xoff
Serial/CAN/GPIB/USB RS-232

Environment
Operating-Temperature* -20 ~ 60°C
Operating Humidity* 5 ~ 95 % RH, non-condensing
Storage Temperature -25 ~ 85°C (-13 ~ 185°F)

General
Bus* PCI
Connectors 2 x Male DB9
Power Consumption* 200mA @ +3.3V (typ.)
Certifications* CE, FCC, RoHS
OS Support* Windows® 2000/XP/7 32-bit/64-bit
Dimensions* 119.91 x 83.06 mm (4.72″ x 3.27″)

Protection*
ESD Protection 15KV (air), 8KV (contact)
Surge Protection
Isolation Protection
EFT Protection 1 KV

Software*
Bundled Software ICOM Tools



Datasheet on PCI-1604L (pdf, opens in a new tab)

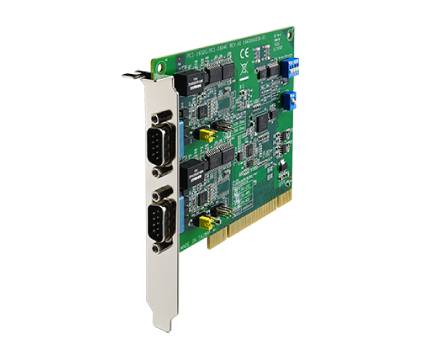

PCI-1602


2-port RS-232/422/485 PCI Communication Card w/Surge & Isolation

PCI-1602
Click here to show/ hide more info

PCI-1602
The PCI-1602 are RS-422/485 PCI communication card that are compatible with the PCI 2.2 bus specification. This card provide EFT protected RS-422/485 ports and come with features such as: high transmission speed of 921.6 kbps, optional isolation protection, windows utility software and more. This card also come with high-performance OXuPCI952 UART with a 128-byte FIFO to reduce CPU load.

Features:

  • Universal PCI v2.2
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting
  • 2 x RS-232 or RS- 232/422/485 ports
  • Supported operating systems: Windows 7/8/10, and Linux.
  • XR17V352 UART with 256-byte FIFOs

Specifications:

Part Number PCI-1602B-CE PCI-1602C-AE

Communications*
Ports 2 2
Data Bits 5,6,7,8 5,6,7,8
FIFO 256 bytes 256 bytes
Parity None, Even, Odd, Mark and Space None, Even, Odd, Mark and Space
Speed 50 bps ~ 921.6 kbps, any baud rate setting 50 bps ~ 921.6 kbps, any baud rate setting
Stop Bits 1,1.5,2 1,1.5,2
Data Flow Control DTR/DSR,RTS/CTS, Xon/Xoff DTR/DSR,RTS/CTS, Xon/Xoff
Communication Controller XR17V352 XR17V352
Serial/CAN/GPIB/USB RS-232/RS-422/RS-485 RS-232/RS-422/RS-485

Environment
Operating-Temperature* -10 ~ 60° C (14 ~ 140° F) -10 ~ 60° C (14 ~ 140° F)
Operating Humidity* 5 ~ 95 % RH, non-condensing 5 ~ 95 % RH, non-condensing
Storage Temperature -25 ~ 85°C (-13 ~ 185°F) -25 ~ 85°C (-13 ~ 185°F)

General
Bus* PCI PCI
Connectors 2 x Male DB9 2 x Male DB9
Power Consumption* 260 mA @ +3.3 V (typ.) 260 mA @ +3.3 V (typ.)
Certifications* CE, FCC, RoHS CE, FCC, RoHS
OS Support* 32-bit/64-bit Windows 7/8/10, and Linux 32-bit/64-bit Windows 7/8/10, and Linux
Dimensions* 119.91 x 106.67 mm (4.72” x 4.2”) 119.91 x 106.67 mm (4.72” x 4.2”)

Protection*
ESD Protection 15KV (air), 8KV (contact) 15KV (air), 8KV (contact)
Surge Protection 1 KV 1 KV
EFT Protection 1 KV 1 KV
Isolation Protection 3 KV

Software*
Bundled Software ICOM Tools ICOM Tools



Datasheet on PCI-1602 (pdf, opens in a new tab)

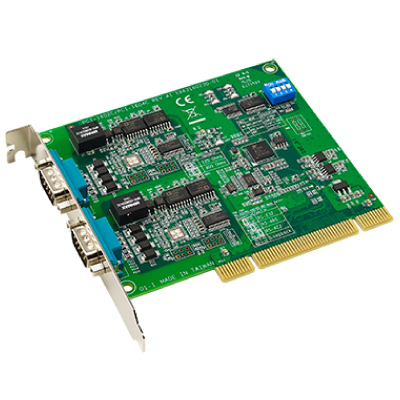

PCI-1604


2-port RS-232 PCI Communication Card w/Surge & Isolation

PCI-1604
Click here to show/ hide more info

PCI-1604
2-port RS-232 PCI Communication Card w/Surge & Isolation

Features:

  • Universal PCI v2.2
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting
  • 2 x RS-232 ports
  • Supported operating systems: Windows 7/8/10, and Linux.
  • XR17V352 UART with 256-byte FIFOs

Specifications:

Part Number

PCI-1604C-AE





Communications*



Ports

2

Data Bits

5,6,7,8

FIFO

256 bytes

Parity

None, Even, Odd, Mark and Space

Speed

50 bps ~ 921.6 kbps, any baud rate setting

Stop Bits

1,1.5,2

Data Flow Control

DTR/DSR,RTS/CTS, Xon/Xoff

Communication Controller

XR17V352

Serial/CAN/GPIB/USB

RS-232





Environment



Operating-Temperature*

-10 ~ 60° C (14 ~ 140° F)

Operating Humidity*

5 ~ 95 % RH, non-condensing

Storage Temperature

-25 ~ 85°C (-13 ~ 185°F)





General



Bus*

PCI

Connectors

2 x Male DB9

Power Consumption*

260 mA @ +3.3 V (typ.)

Certifications*

CE, FCC, RoHS

OS Support*

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions*

119.91 x 106.67 mm (4.72” x 4.2”)





Protection*



ESD Protection

15KV (air), 8KV (contact)

Surge Protection

1 KV

EFT Protection

1 KV

Isolation Protection

3 KV





Software*



Bundled Software

ICOM Tools



Datasheet on PCI-1604 (pdf, opens in a new tab)

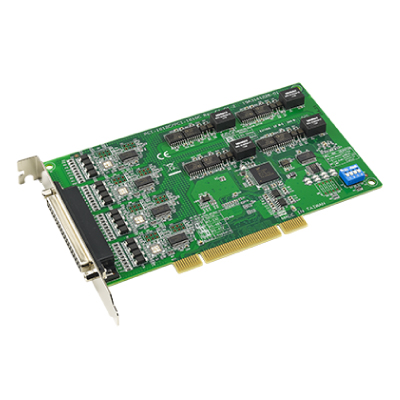

PCI-1610


4-port RS-232 PCI Communication Card w/Surge & Isolation

PCI-1610
Click here to show/ hide more info

PCI-1610
4-port RS-232 PCI Communication Card w/Surge & Isolation

Features:

  • Universal PCI v2.2
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting
  • 4 x RS-232 ports
  • Supported operating systems: Windows 7/8/10, and Linux.
  • XR17V354 UART with 256-byte FIFOs

Specifications:

Part Number PCI-1610B-DE PCI-1610C-CE

Communications*
Ports 4 4
Data Bits 5,6,7,8 5,6,7,8
FIFO 256 bytes 256 bytes
Parity None, Even, Odd, Mark and Space None, Even, Odd, Mark and Space
Speed 50 bps ~ 921.6 kbps, any baud rate setting 50 bps ~ 921.6 kbps, any baud rate setting
Stop Bits 1,1.5,2 1,1.5,2
Data Flow Control DTR/DSR,RTS/CTS, Xon/Xoff DTR/DSR,RTS/CTS, Xon/Xoff
Communication Controller XR17V354 XR17V354
Serial/CAN/GPIB/USB RS-232 RS-232

Environment
Operating-Temperature* -10 ~ 60° C (14 ~ 140° F) -10 ~ 60° C (14 ~ 140° F)
Operating Humidity* 5 ~ 95 % RH, non-condensing 5 ~ 95 % RH, non-condensing
Storage Temperature -25 ~ 85°C (-13 ~ 185°F) -25 ~ 85°C (-13 ~ 185°F)

General
Bus* PCIPCI
Connectors 1 x Female DB37 1 x Female DB37
Power Consumption* 260 mA @ +3.3 V (typ.) 260 mA @ +3.3 V (typ.)
Certifications* CE, FCC, RoHS CE, FCC, RoHS
OS Support* 32-bit/64-bit Windows 7/8/10, and Linux 32-bit/64-bit Windows 7/8/10, and Linux
Dimensions* 174.65 x 106.67 mm (6.88”x 4.2”) 174.65 x 106.67 mm (6.88”x 4.2”)

Protection*
ESD Protection 15KV (air), 8KV (contact) 15KV (air), 8KV (contact)
Surge Protection 1 KV 1 KV
EFT Protection 1 KV 1 KV

Software*
Bundled Software ICOM Tools ICOM Tools



Datasheet on PCI-1610(pdf, opens in a new tab)

PCI-1612


4-port RS-232/422/485 PCI Communication Card w/Surge & Isolation

PCI-1612
Click here to show/ hide more info

PCI-1612
4-port RS-232/422/485 PCI Communication Card w/Surge & Isolation

Features:

  • Universal PCI v2.2
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting
  • 4 x RS-232 or RS- 232/422/485 ports
  • Supported operating systems: Windows 7/8/10, and Linux.
  • XR17V354 UART with 256-byte FIFOs

Specifications:

Part Number PCI-1612B-DE PCI-1612C-CE

Communications*
Ports 4 4
Data Bits 5,6,7,8 5,6,7,8
FIFO 256 bytes 256 bytes
Parity None, Even, Odd, Mark and Space None, Even, Odd, Mark and Space
Speed 50 bps ~ 921.6 kbps, any baud rate setting 50 bps ~ 921.6 kbps, any baud rate setting
Stop Bits 1,1.5,2 1,1.5,2
Data Flow Control DTR/DSR,RTS/CTS, Xon/Xoff DTR/DSR,RTS/CTS, Xon/Xoff
Communication Controller XR17V354 XR17V354
Serial/CAN/GPIB/USB RS-232/RS-422/RS-485 RS-232/RS-422/RS-485

Environment
Operating-Temperature* -10 ~ 60° C (14 ~ 140° F)-10 ~ 60° C (14 ~ 140° F)
Operating Humidity* 5 ~ 95 % RH, non-condensing5 ~ 95 % RH, non-condensing
Storage Temperature -25 ~ 85°C (-13 ~ 185°F)-25 ~ 85°C (-13 ~ 185°F)

General
Bus* PCI PCI
Connectors 1 x Female DB37 1 x Female DB37
Power Consumption* 260 mA @ +3.3 V (typ.) 260 mA @ +3.3 V (typ.)
Certifications* CE, FCC, RoHS CE, FCC, RoHS
OS Support* 32-bit/64-bit Windows 7/8/10, and Linux 32-bit/64-bit Windows 7/8/10, and Linux
Dimensions* 174.65 x 106.67 mm (6.88”x 4.2”) 174.65 x 106.67 mm (6.88”x 4.2”)

Protection*
ESD Protection 15KV (air), 8KV (contact) 15KV (air), 8KV (contact)
Surge Protection 1 KV 1 KV
EFT Protection 1 KV 1 KV
Isolation Protection 3 KV

Software*
Bundled Software ICOM Tools ICOM Tools



Datasheet on PCI-1612(pdf, opens in a new tab)

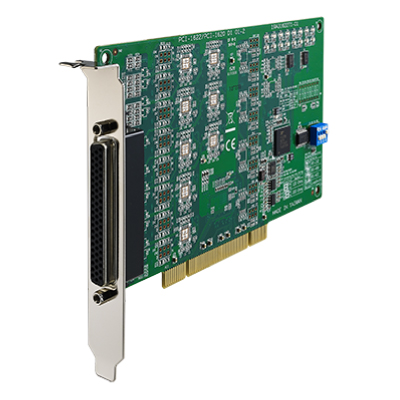

PCI-1620


8-port RS-232 PCI Communication Card w/ or w/o Surge

PCI-1620
Click here to show/ hide more info

PCI-1620

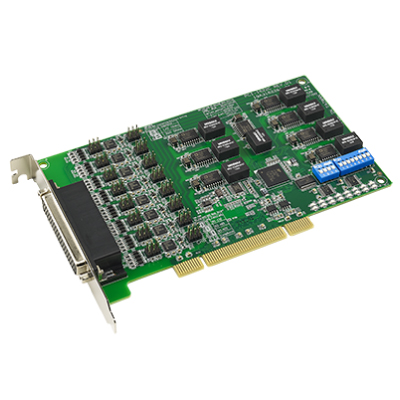

The PCI-1620 is an 8-port RS-232, and the PCI-1622 is an 8-port RS-232/422/485 PCI communication cards that are compatible with the PCI 2.2 bus specification. The cards provide eight EFT protected ports up to 1,000 V, and have many functions such as high transmission speed of 921.6 kbps; The cards utilize high-performance XR17V358 UARTs with 256-byte FIFOs to reduce CPU load. Thus, the PCI-1620 and PCI-1622 are especially suitable for making reliable systems in multitasking environments.

Features:

  • PCI bus 2.2 compliant
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting
  • 8 x RS-232 ports
  • XR17V358 UART with 256-byte FIFOs
  • Supported operating systems: Windows 7/8/10, and Linux.

Specifications:

Part Number

PCI-1620A-DE

PCI-1620B-DE







Protection*





Surge Protection

1 KV

ESD Protection

15KV (air), 8KV (contact)

15KV (air), 8KV (contact)

EFT Protection

1 KV

1 KV







Communications*





Ports

8

8

Data Bits

5,6,7,8

5,6,7,8

FIFO

256 bytes

256 bytes

Parity

None, Even, Odd, Mark and Space

None, Even, Odd, Mark and Space

Speed

50 bps ~ 921.6 kbps, any baud rate setting

50 bps ~ 921.6 kbps, any baud rate setting

Stop Bits

1,1.5,2

1,1.5,2

Data Flow Control

DTR/DSR,RTS/CTS, Xon/Xoff

DTR/DSR,RTS/CTS, Xon/Xoff

Communication Controller

XR17V358

XR17V358

Serial/CAN/GPIB/USB

RS-232

RS-232







Environment





Operating-Temperature*

-10 ~ 60° C (14 ~ 140° F)

-10 ~ 60° C (14 ~ 140° F)

Operating Humidity*

5 ~ 95 % RH, non-condensing

5 ~ 95 % RH, non-condensing

Storage Temperature

-25 ~ 85°C (-13 ~ 185°F)

-25 ~ 85°C (-13 ~ 185°F)







General





Bus*

PCI

PCI

Connectors

1x Female DB62

1x Female DB62

Power Consumption*

260 mA @ +3.3 V (typ.)

260 mA @ +3.3 V (typ.)

Certifications*

CE, FCC, RoHS

CE, FCC, RoHS

OS Support*

32-bit/64-bit Windows 7/8/10, and Linux

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions*

174.65 x 106.67 mm (6.88”x 4.2”)

174.65 x 106.67 mm (6.88”x 4.2”)







Software*





Bundled Software

ICOM Tools

ICOM Tools



Datasheet on PCI-1620 (pdf, opens in a new tab)

PCI-1622


8-port RS-232/422/485 PCI Communication Card w/Surge & Isolation

PCI-1622
Click here to show/ hide more info

PCI-1622
The PCI-1620 is an 8-port RS-232, and the PCI-1622 is an 8-port RS-232/422/485 PCI communication cards that are compatible with the PCI 2.2 bus specification. The cards provide eight EFT protected ports up to 1,000 V, and have many functions such as high transmission speed of 921.6 kbps; The cards utilize high-performance XR17V358 UARTs with 256-byte FIFOs to reduce CPU load. Thus, the PCI-1620 and PCI-1622 are especially suitable for making reliable systems in multitasking environments.

Features:

  • PCI bus 2.2 compliant
  • Speeds up to 921.6 kbps for extremely fast data transmission
  • Supports any baud rate setting
  • 8 x RS-232 or RS-232/422/485 ports
  • XR17V358 UART with 256-byte FIFOs
  • Supported operating systems: Windows 7/8/10, and Linux.

Specifications:

Part Number

PCI-1622B-DE

PCI-1622C-DE







Communications*





Ports

8

8

Data Bits

5,6,7,8

5,6,7,8

FIFO

256 bytes

256 bytes

Parity

None, Even, Odd, Mark and Space

None, Even, Odd, Mark and Space

Speed

50 bps ~ 921.6 kbps, any baud rate setting

50 bps ~ 921.6 kbps, any baud rate setting

Stop Bits

1,1.5,2

1,1.5,2

Data Flow Control

DTR/DSR,RTS/CTS, Xon/Xoff

DTR/DSR,RTS/CTS, Xon/Xoff

Communication Controller

XR17V358

XR17V358

Serial/CAN/GPIB/USB

RS-232/RS-422/RS-485

RS-232/RS-422/RS-485







Environment





Operating-Temperature*

-10 ~ 60° C (14 ~ 140° F)

-10 ~ 60° C (14 ~ 140° F)

Operating Humidity*

5 ~ 95 % RH, non-condensing

5 ~ 95 % RH, non-condensing

Storage Temperature

-25 ~ 85°C (-13 ~ 185°F)

-25 ~ 85°C (-13 ~ 185°F)







General





Bus*

PCI

PCI

Connectors

1x Female DB62

1x Female DB78

Power Consumption*

260 mA @ +3.3 V (typ.)

260 mA @ +3.3 V (typ.)

Certifications*

CE, FCC, RoHS

CE, FCC, RoHS

OS Support*

32-bit/64-bit Windows 7/8/10, and Linux

32-bit/64-bit Windows 7/8/10, and Linux

Dimensions*

174.65 x 106.67 mm (6.88”x 4.2”)

174.65 x 106.67 mm (6.88”x 4.2”)







Protection*





ESD Protection

15KV (air), 8KV (contact)

15KV (air), 8KV (contact)

Surge Protection

1 KV

1 KV

EFT Protection

1 KV

1 KV

Isolation Protection

3 KV







Software*





Bundled Software

ICOM Tools

ICOM Tools



Datasheet on PCI-1622 (pdf, opens in a new tab)

PCI-bus Low-profile Cards (PCI-1600 Series)

PCI-1602UP


2-port RS-232/422/485 Low-Profile PCI Communication Card with Isolation

PCI-1602UP
Click here to show/ hide more info

PCI-1602UP
These RS-232/422/485 PCI communication cards are compatible with the PCI 2.2 bus specification for universal connectivity and low-profile PCI cards. The PCI-1604UP provides two independent RS-232 ports, while the PCI-1602UP has two RS-232/422/485 ports. To improve system performance, all cards allow transmission rates up to 921.6 kbps. To increase reliability, the cards offer EFT protection, protecting your system from abrupt high voltages up to 2,500 VDC. High-performance OXuPC1952 and OXuPC1954 UARTs with 128-byte FIFO, reduces the CPU load, making the cards especially suitable for multitasking environments. The cards follow the Low Profile PCI MD1 standard. This standard has the same protocol and electronic definition as standard PCI, but the low-profile PCI standard is smaller. Thus, the cards are suitable for embedded systems, and size-constrained environments. Moreover, all cards are equipped with an universal PCI connector, which allows support for traditional systems with 5 V signaling or newer systems with 3.3 V signaling.

Features:

  • PCI bus 2.2 compliant
  • Up to 921.6 kbps speed for extremely fast data transmissions
  • 2 x RS-232/422/485 ports
  • Supports Windows XP/7/8/10 and Linux operating systems
  • 3,000 VDC isolation protection
  • Automatic RS-485 data flow control
  • Powerful and easy-to-use utility (ICOM tools)
  • Supports any baud rate setting

Specifications:

Part Number

PCI-1602UP-CE





Communications*



Ports

2

Data Bits

5, 6, 7, 8

FIFO

128 bytes

Parity

None, Even, Odd, Mark and Space

Speed

50 bps ~ 921.6 kbps

Stop Bits

1, 1.5, 2

Data Flow Control

CTS/RTS, Xon/Xoff

Communication Controller

PI7C8952

Serial/CAN/GPIB/USB

RS-232/RS-422/RS-485





Environment



Operating-Temperature*

0 ~ 65° C (32 ~ 149° F)

Operating Humidity*

5 ~ 95 % RH, non-condensing

Storage Temperature

-25 ~ 85°C (-13 ~ 185°F)





General



Bus*

PCI

Connectors

1 x Female DB25

Power Consumption*

5 V @ 400 mA

Certifications*

CE, FCC, RoHS

OS Support*

Windows XP/7/8/10 and Linux

Dimensions*

119.91 x 64.41 mm (4.7″ x 2.5″)





Protection*



ESD Protection

15KV (air), 8KV (contact)

Surge Protection

1 KV

Isolation Protection

2.5 KV

EFT Protection

1 KV





Software*



Bundled Software

ICOM Tester , ICOM Tools



Datasheet on PCI-1602UP (pdf, opens in a new tab)

CAN Communication Cards

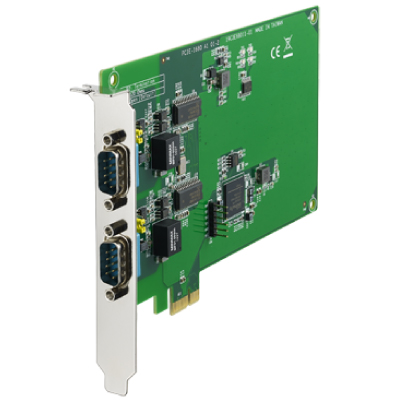

PCIE-1680


2-Port CAN-Bus PCIe Card with Isolation

PCIE-1680
Click here to show/ hide more info

PCIE-1680
The PCIE-1680 is a special purpose communication card that offers connectivity to Controller Area Networks (CAN) on your PC. With its built-in CAN controllers, the PCIE-1680 provides bus arbitration and error detection with an automatic transmission repetition. This drastically reduces the chance of data loss and ensures system reliability. You can run both CAN controllers independently at the same time. The PCIE-1680 operates at baud rates up to 1 Mbps.

Features:

  • PCIe bus specification 1.2 compliant
  • Operates two separate CAN networks at the same time
  • High speed transmission up to 1 Mbps
  • 16 MHz CAN controller frequency
  • Optical isolation protection of 2,500 VDC ensures system reliability
  • Windows DLL library and examples included
  • Supports Windows CE5/CE6/XP/7/8.1/10 drivers and utilities
  • Supports Linux 2.4.xx / 2.6.xx; Intel x86 hardware platform

Specifications:

Part Number

PCIE-1680-AE





Communications*



Ports

2

Speed

1 Mbps

Serial/CAN/GPIB/USB

CAN





General



Power Consumption*

3.3 V @ 600 mA (Typical)

Certifications*

CE, FCC, RoHS

Bus*

PCIe

Dimensions*

168 x 100 mm (6.6″ x 3.9″)

Connectors

2x Male DB9

OS Support*

32-bit/64-bit Windows XP/7/8/10, WinCE5/CE6 , QNX6.5 and Linux





Protection*



Isolation Protection

2.5 KV





Environment



Operating-Temperature*

0 ~ 70°C (32 ~ 158°F)



Datasheet on PCIE-1680 (pdf, opens in a new tab)

PCI-1680U


2-port CAN-bus Universal PCI Card with Isolation

PCIE-1680U
Click here to show/ hide more info

PCIE-1680U
PCI-1680U is a special purpose communication card that offers the connectivity of the Controller Area Network (CAN) to your PC. With its built-in CAN controllers, the PCI-1680U provides bus arbitration and error detection with an automatic transmission repeat function. This drastically reduces the chance of data loss and ensures system reliability. The on-board CAN controllers are located at different positions in the memory, and you can run both CAN controllers independently at the same time. Besides, PCI-1680U has a universal PCI connector, which is compatible with both new 3.3 V signaling systems and traditional 5 V signaling systems. With high-compatibility, the PCI-1680U can be used in diverse systems.

Features:

  • Operates two separate CAN networks simultaneously
  • High speed transmission up to 1 Mbps
  • Optical isolation protection of 1000 VDC
  • Windows DLL library and examples included
  • I/O address automatically assigned by PCI PnP
  • Supports Windows CE5/CE6/XP/7/8.1/10 and Linux drivers

Specifications:

Part Number

PCI-1680U-BE





Communications*



Ports

2

Speed

1 Mbps

Serial/CAN/GPIB/USB

CAN





General



Power Consumption*

5 V @ 400 mA typical

Certifications*

CE, FCC, RoHS

Bus*

PCI

Dimensions*

175 x 107 mm (6.9″ x 4.2″)

Connectors

2x Male DB9

OS Support*

32-bit/64-bit Windows XP/7/8/10, WinCE5/CE6 , QNX6.5 and Linux





Protection*



Isolation Protection

2.5 KV





Environment



Operating-Temperature*

0 ~ 70°C (32 ~ 158°F)



Datasheet on PCIE-1680U(pdf, opens in a new tab)

PCL-841


2-port CAN-bus ISA Card with Isolation Protection

PCL-841
Click here to show/ hide more info

PCL-841
The PCL-841 is special purpose communication cards which offer the connectivity of the Controller Area Network to your PC. With its built-in CAN controllers, the PCL-841 provides bus arbitration and error detection with an automatic transmission repeat function. This drastically reduces the chance of data loss and ensures system reliability. The onboard CAN controllers are located at different positions in the memory. You can run both CAN controllers independently at the same time. The PCL-841 operates at baud rates up to 1 Mbps and can be installed in a PC expansion slot.

Features:

  • Operates two separate CAN networks simultaneously
  • High speed transmission up to 500 kbps
  • Optical isolation protection of 1000 VDC
  • Windows DLL library and examples included
  • Wide IRQ selection for each port: IRQ 3, 4, 5, 6, 7, 9, 10, 11, 12, 15
  • Supports 32-bit/64-bit Windows 2000/XP/Vista/7 and Linux

Specifications:

Part Number

PCL-841-A2E





Communications*



Ports

2

Speed

500 kbps

Serial/CAN/GPIB/USB

CAN





General



Power Consumption*

5 V @ 400 mA typical

Certifications*

CE, FCC, RoHS

Bus*

ISA

Dimensions*

185 x 100 mm (7.3″ x 3.9″)

Connectors

2x DB9-M





Protection*



Isolation Protection

1 KV





Environment



Operating-Temperature*

0 ~ 50°C (32 ~ 122°F)



Datasheet on PCL-841(pdf, opens in a new tab)

ISA-bus Communication Cards

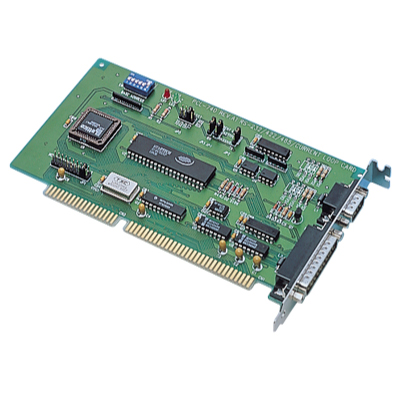

PCL-740


RS-232/422/485 Current-loop Communication Card

PCL-740
Click here to show/ hide more info

PCL-740
The PCL-740 offers a versatile range of high speed interfacing options. You can switch its single port between the popular RS-232, long distance RS-422, multi-drop RS-485, or noise-resistant current-loop. The card’s 16C550 UART has an on-chip 16-byte FIFO buffer for faster and more reliable communication, especially under Windows.
The card has two 16C550 UARTs with on-chip 16-byte FIFO buffers. The UARTs buffer data into 16-byte packets before sending it to the bus. This drastically reduces CPU load and avoids data loss when the system is busy and cannot process the interrupt quickly. These FIFO buffers make the PCL-741 especially suitable for high speed serial I/O under Windows. Onboard optical isolators protect your PC and equipment against damage from ground loops, increasing system reliability in harsh environments.

Features:

  • RS-232, RS-422, RS-485 or current-loop interface
  • 16C550 UART with 16-byte FIFO
  • Transmission speeds up to 921.6 kbps
  • Flexible I/O address and IRQ selection
  • IRQ: 3, 4, 5, 6, 7, 9, 10, 11, 12 or 15
  • Complete RS-232 modem control signals
  • Supports 4-wire or 2-wire operation for RS-422/485
  • Automatic RS-485 data flow control
  • Space reserved for termination resistors
  • Supports Windows® 98/ME/2000/XP, Linux
  • Powerful and easy-to-use utility (ICOM Tools)

Specifications:

General
Card Interface ISA
Certifications CE
Connectors PCL-740: 1 x DB9-M, 1 x DB25-M
PCL-741, PCL-743, PCL-745: 2 x DB9-M PCL-746+: 1 x DB37-F
Dimensions 185 x 100 mm (7.3″ x 3.9″)
Power Consumption PCL-740: +5 V @ 180 mA max., ±12 V @ 20 mA max.
PCL-741: +5 V @ 300 mA (typical), +5 V @ 1.1 A max. PCL-743,PCL-745:[email protected] mA typical, 950 mA max. PCL-746+: +5 V @ 800 mA typical, 1.5 A max.
±12 V @ 60 mA typical, 120 mA max.
Weight (Gross) PCL-740,PCL-741, PCL-743, PCL-745: 0.6 kg (1.3 lb)
PCL-746+: 1.1 kg (2.4 lb) (including cable)

Communications
Data Bits 5, 6, 7, 8
Data Signals
RS-232: Tx, Rx, CTS, RTS, DTR, DSR, DCD, GND, RI
Current loop: Tx+, Tx-, Rx+, Rx-
RS-422: Tx+, Tx-, Rx+, Rx-, GND, CTS+, CTS-, RTS+, RTS-
RS-485: Data+, Data-, GND
I/O Address From 200H to 3F8H (for PCL-740/741/743/745)
From 000h to 3F8H (for PCL-746+)
IRQ 3, 4, 5, 6, 7, 9, 10, 11, 12 or 15
Ports PCL-740: 1, PCL-741: 2
PCL-743, PCL-745: 2
PCL-746+: 4
Parity None, even, odd
Protocols PCI-740: RS-232/422/485, current-loop PCI-741: RS232, current-loop
PCI-743, 745: RS-422/485 PCI-746+: RS-232/422/485
Speed PCL-740, PCL-741: 50 bps ~115.2 kbps
(for RS-232/422/485)
50 bps~57.6 kbps (current-loop)
PCL-743, PCL-745: 50 bps ~ 921.6 kbps
PCL-746+: 50 bps ~ 115.2 kbps
Stop Bits 1, 1.5, 2
UART PCL-743, PCL-745: 2 x 16C550 with 16-byte FIFO PCL-746+: 4 x 16C550 16-byte FIFO
PCL-740: 1 x 16C550 with 16-byte FIFO PCL-741: 2 x 16C550 with 16-byte FIFO

Protection
Isolation Protection 2500 VDC (PCL-741), 3000 VDC (PCL-745B/745S)
EFT Surge Protection 2500 VDC (PCL-743S/745S)

Software
Bundled Software ICOM Tools
Driver Support Windows 98/ME/2000/XP, Linux

Environment
Operating Temperature PCL-740,PCL-741,PCL-746+: 0 ~ 50° C (32 ~ 122° F)
PCL-743, PCL-745: 0 ~ 65° C (32 ~ 149° F)



Datasheet on PCL-740 (pdf, opens in a new tab)

PCL-741


RS-232/422/485 Current-loop Communication Card

PCL-741
Click here to show/ hide more info

PCL-741
The PCL-740 offers a versatile range of high speed interfacing options. You can switch its single port between the popular RS-232, long distance RS-422, multi-drop RS-485, or noise-resistant current-loop. The card’s 16C550 UART has an on-chip 16-byte FIFO buffer for faster and more reliable communication, especially under Windows.
The card has two 16C550 UARTs with on-chip 16-byte FIFO buffers. The UARTs buffer data into 16-byte packets before sending it to the bus. This drastically reduces CPU load and avoids data loss when the system is busy and cannot process the interrupt quickly. These FIFO buffers make the PCL-741 especially suitable for high speed serial I/O under Windows. Onboard optical isolators protect your PC and equipment against damage from ground loops, increasing system reliability in harsh environments.

Features:

  • RS-232, RS-422, RS-485 or current-loop interface
  • 16C550 UART with 16-byte FIFO
  • Transmission speeds up to 921.6 kbps
  • Flexible I/O address and IRQ selection
  • IRQ: 3, 4, 5, 6, 7, 9, 10, 11, 12 or 15
  • Complete RS-232 modem control signals
  • Supports 4-wire or 2-wire operation for RS-422/485
  • Automatic RS-485 data flow control
  • Space reserved for termination resistors
  • Supports Windows® 98/ME/2000/XP, Linux
  • Powerful and easy-to-use utility (ICOM Tools)

Specifications:

General
Card Interface ISA
Certifications CE
Connectors PCL-740: 1 x DB9-M, 1 x DB25-M
PCL-741, PCL-743, PCL-745: 2 x DB9-M PCL-746+: 1 x DB37-F
Dimensions 185 x 100 mm (7.3″ x 3.9″)
Power Consumption PCL-740: +5 V @ 180 mA max., ±12 V @ 20 mA max.
PCL-741: +5 V @ 300 mA (typical), +5 V @ 1.1 A max. PCL-743,PCL-745:[email protected] mA typical, 950 mA max. PCL-746+: +5 V @ 800 mA typical, 1.5 A max.
±12 V @ 60 mA typical, 120 mA max.
Weight (Gross) PCL-740,PCL-741, PCL-743, PCL-745: 0.6 kg (1.3 lb)
PCL-746+: 1.1 kg (2.4 lb) (including cable)

Communications
Data Bits 5, 6, 7, 8
Data Signals
RS-232: Tx, Rx, CTS, RTS, DTR, DSR, DCD, GND, RI
Current loop: Tx+, Tx-, Rx+, Rx-
RS-422: Tx+, Tx-, Rx+, Rx-, GND, CTS+, CTS-, RTS+, RTS-
RS-485: Data+, Data-, GND
I/O Address From 200H to 3F8H (for PCL-740/741/743/745)
From 000h to 3F8H (for PCL-746+)
IRQ 3, 4, 5, 6, 7, 9, 10, 11, 12 or 15
Ports PCL-740: 1, PCL-741: 2
PCL-743, PCL-745: 2
PCL-746+: 4
Parity None, even, odd
Protocols PCI-740: RS-232/422/485, current-loop PCI-741: RS232, current-loop
PCI-743, 745: RS-422/485 PCI-746+: RS-232/422/485
Speed PCL-740, PCL-741: 50 bps ~115.2 kbps
(for RS-232/422/485)
50 bps~57.6 kbps (current-loop)
PCL-743, PCL-745: 50 bps ~ 921.6 kbps
PCL-746+: 50 bps ~ 115.2 kbps
Stop Bits 1, 1.5, 2
UART PCL-743, PCL-745: 2 x 16C550 with 16-byte FIFO PCL-746+: 4 x 16C550 16-byte FIFO
PCL-740: 1 x 16C550 with 16-byte FIFO PCL-741: 2 x 16C550 with 16-byte FIFO

Protection
Isolation Protection 2500 VDC (PCL-741), 3000 VDC (PCL-745B/745S)
EFT Surge Protection 2500 VDC (PCL-743S/745S)

Software
Bundled Software ICOM Tools
Driver Support Windows 98/ME/2000/XP, Linux

Environment
Operating Temperature PCL-740,PCL-741,PCL-746+: 0 ~ 50° C (32 ~ 122° F)
PCL-743, PCL-745: 0 ~ 65° C (32 ~ 149° F)



Datasheet on PCL-741 (pdf, opens in a new tab)

Call Now Button
