USB to Serial converters – Industrial/Commercial

Advantech

Connect RS-232, RS-422, RS-485 devices to USB ports. Options include: rugged, isolated, multi or single port, inline/panel/DIN mount and more.

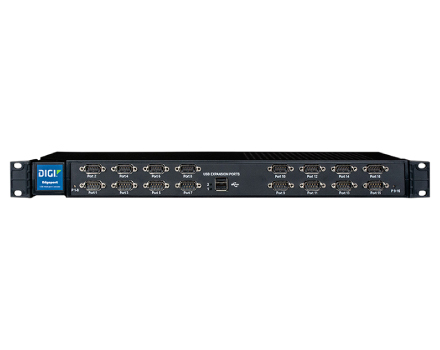

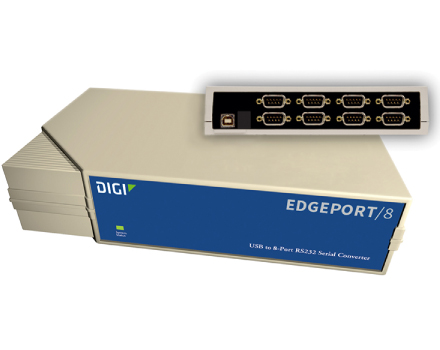

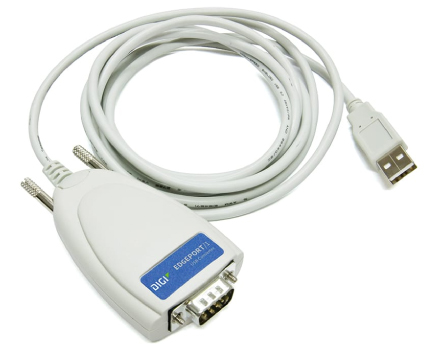

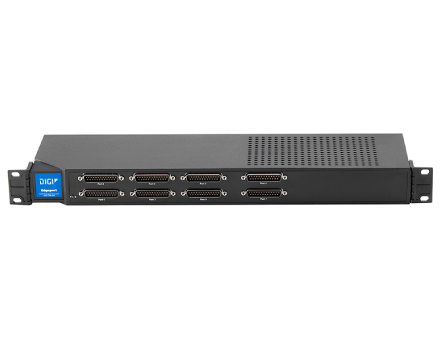

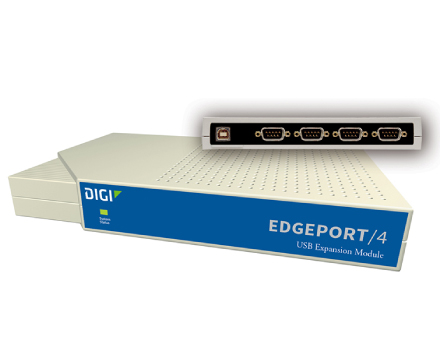

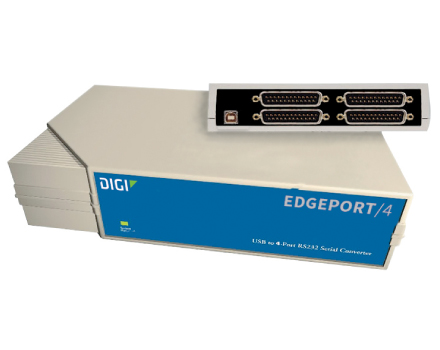

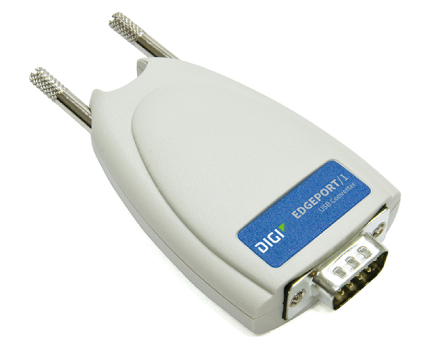

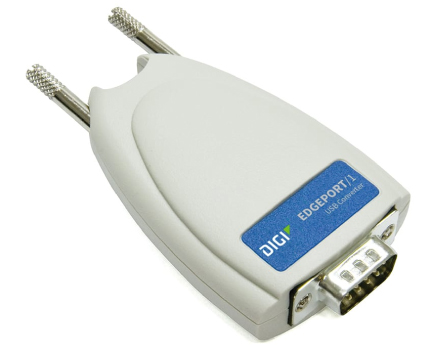

Edgeport USB-to-Serial Converters

Easy out-of-the-box solution for I/O expansion is available in a wide variety of configurations for maximum flexibility and scalability

  • Add 1, 4, 8, or 16 serial ports to a PC, thin client or server in minutes
  • Designed for peripheral device connectivity in retail stations, self check-out systems, emergency vehicles, kiosks, ATMs and more
  • Software selectable MEI and industrial models
  • Low total cost of ownership with external, user-installable solution

Advantech-USB Serial Converters

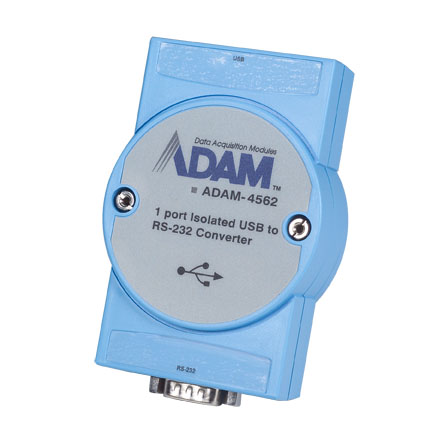

ADAM-4562


ADAM-4561/4562 allows PC users to connect a serial device to a system that use a USB interface. To attach the ADAM-4561/4562 to a PC, you don’t need to open the chassis or power down your PC. Instantly get one or two extra high-speed RS-232/422/485 ports.
ADAM-4562
Click here to show/ hide more info

ADAM-4562

Features

  • Full compliance with USB V1.1 specifications
  • Transmission speed up to 115.2 kbps
  • Isolation protection 3000 VDC provided
  • Automatic RS-485 data flow control
  • No external power supply necessary; the hub derives its power from the USB port
  • Plug & Play installation
  • No additional IRQs or I/O ports required
  • Hot swap function supported

Descriptions

ADAM-4561/4562 allows PC users to connect a serial device to a system that use a USB interface. To attach the ADAM-4561/4562 to a PC, you don’t need to open the chassis or power down your PC. Instantly get one or two extra high-speed RS-232/422/485 ports. The power is derived from the USB port, so there are no power adapters to deal with. Thismakes the ADAM-4561/4562 especially suitable for modems, printers, POS systems and industrial control devices.
Compliant with USB V1.1, ADAM-4561/4562 features several powerful functions such as high-speed 115.2 kbps transmission, support for various operating systems, independentRS-232/422/485 ports and more. By simply plugging in a USB hub, ADAM-4561/4562 eliminates the configuration issues associated with high-priced, older card solutions. Youonly have to install the drivers, no need to set cards slots, IRQ addresses, DMA channels, or device addresses. This reduces programming effort.

Specifications

Part Number ADAM-4562-AE
Display
LED Indicators Comm
General
Temperature (Operating) -10~70 °C (14~158 °F)
Humidity 5~95 %RH
Temperature (Storage) -25~85 °C (-13~185 °F)
Interface USB to RS-232
Isolation Protection 2,500 VDC
Communication Speed Serial: From 75 to 115.2 k
Comm. Distance Serial: 1.2 km USB: 5 m
Data Flow Control Yes
Connector USB RS-232/422/485: plug-in screw terminal

Data sheet on ADAM-4562 (pdf file (opens in new tab)

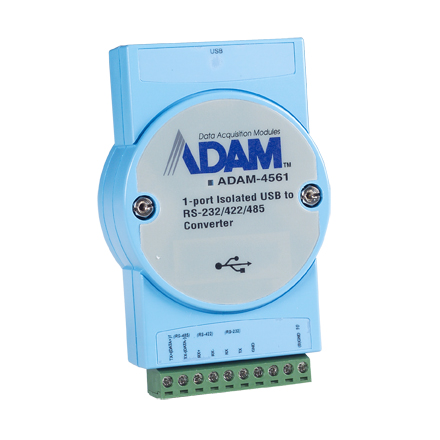

ADAM-4561


ADAM-4561/4562 allows PC users to connect a serial device to a system that use a USB interface. To attach the ADAM-4561/4562 to a PC, you don’t need to open the chassis or power down your PC. Instantly get one or two extra high-speed RS-232/422/485 ports.
ADAM-4561
Click here to show/ hide more info

ADAM-4561

Features

  • Full compliance with USB V1.1 specifications
  • RS-232/422/485 port supported
  • Transmission speed up to 115.2 kbps
  • Isolation protection 3000 VDC provided
  • Automatic RS-485 data flow control
  • No external power supply necessary; the hub derives its power from the USB port
  • Plug & Play installation
  • No additional IRQs or I/O ports required
  • Hot swap function supported

Descriptions

ADAM-4561/4562 allows PC users to connect a serial device to a system that use a USB interface. To attach the ADAM-4561/4562 to a PC, you don’t need to open the chassis or power down your PC. Instantly get one or two extra high-speed RS-232/422/485 ports. The power is derived from the USB port, so there are no power adapters to deal with. Thismakes the ADAM-4561/4562 especially suitable for modems, printers, POS systems and industrial control devices.

Specifications

Part Number ADAM-4561-CE
Display
Interface USB 2.0
LED Indicators Comm
General
Temperature (Operating) -10~70 °C (14~158 °F)
Humidity 5~95 %RH
Temperature (Storage) -25~85 °C (-13~185 °F)
Interface USB to RS-232/422/485
Isolation Protection 2,500 VDC
Communication Speed Serial: From 75 to 115.2 k
Comm. Distance Serial: 1.2 km USB: 5 m
Data Flow Control Yes
Connector USB RS-232/422/485: plug-in screw terminal

Data sheet on ADAM-4561 (pdf file (opens in new tab)

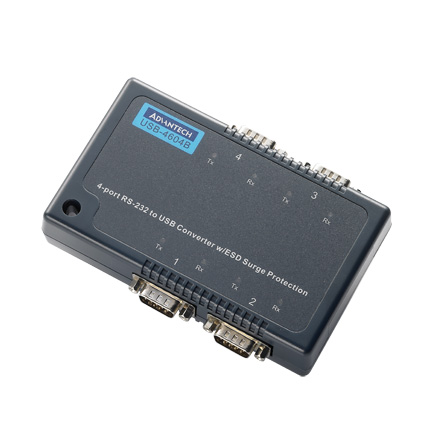

USB-4604B


USB-4604 series allows PC users to connect a serial device to a system that use a USB interface. To attach the USB-4604B/4604BM to a PC, you don’t need to open the chassis or power down your PC.
USB-4604B
Click here to show/ hide more info

USB-4604B

Feature

  • 2 kV Port to Port Isolation
  • ESD Protection – 8 kV Contact, 15 kV Air
  • Rugged Metal Case & High Retention USB Connector
  • Wide Operating Temperature (-40 to 80°C)
  • Redundant Power Inputs
  • Modbus ASCII/RTU Compatible
  • DIN Rail & Panel Mounting Options

Descriptions

USB-4604 series allows PC users to connect a serial device to a system that use a USB interface. To attach the USB-4604B/4604BM to a PC, you don’t need to open the chassis or power down your PC. Instantly get extra high-speed RS-232/422/485 ports. The power is derived from the USB port, so there are no power adapters to deal with. This makes the USB-4604B/4604BM especially suitable for modems, printers, POS systems and industrial control devices. Supporting USB2.0 high speed, USB-4604B/4604BM features several powerful functions such as high-speed 921.6 kbps transmission, support for various operating systems, independent RS-232/422/485 ports and more. By simply plugging in a USB hub, USB-4604B and USB-4604BM eliminates the configuration issues associated with high-priced, older card solutions. You only have to install the drivers, no need to set cards slots, IRQ addresses, DMA channels, or device addresses. This reduces programming effort

Specifications

Part Number USB-4604B-BE
Connector
Serial DB9
USB Type B
Software
Driver Windows 2000/XP/2003
Baud Rate 50 ~ 921.6 Kbps
Display
Interface USB 1.1/2.0
Protection
Surge Protection 2500 VDC
Serial Communication
Ports 4
Type RS-232

Data sheet on USB-4604B (pdf file (opens in new tab)

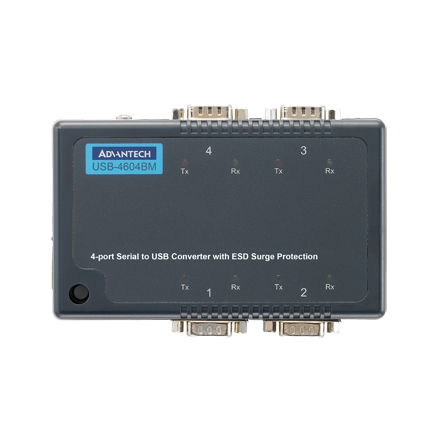

USB-4604BM


USB-4604 series allows PC users to connect a serial device to a system that use a USB interface. To attach the USB-4604B/4604BM to a PC, you don’t need to open the chassis or power down your PC.
USB-4604BM
Click here to show/ hide more info

USB-4604BM

Feature

  • Full compliance with USB V1.1 and V2.0 specifications.
  • RS-232/422/485 port supported
  • Transmission speed up to 921.6 kbps
  • Automatic RS-485 data flow control
  • Bus-powered; no need for external power supply
  • Plug & Play installation
  • No additional IRQs or I/O ports required
  • Hot swap function supported

Descriptions

USB-4604 series allows PC users to connect a serial device to a system that use a USB interface. To attach the USB-4604B/4604BM to a PC, you don’t need to open the chassis or power down your PC. Instantly get extra high-speed RS-232/422/485 ports. The power is derived from the USB port, so there are no power adapters to deal with. This makes the USB-4604B/4604BM especially suitable for modems, printers, POS systems and industrial control devices. Supporting USB2.0 high speed, USB-4604B/4604BM features several powerful functions such as high-speed 921.6 kbps transmission, support for various operating systems, independent RS-232/422/485 ports and more. By simply plugging in a USB hub, USB-4604B and USB-4604BM eliminates the configuration issues associated with high-priced, older card solutions. You only have to install the drivers, no need to set cards slots, IRQ addresses, DMA channels, or device addresses. This reduces programming effort

Specifications

Part Number USB-4604BM-BE
Connector
Serial DB9
USB Type B
Display
Interface USB 1.1/2.0
Protection
Surge Protection 2500 VDC
Serial Communication
Ports 4
Type RS-232/422/485
Software
Baud Rate 50 ~ 921.6 Kbps
Driver Windows 2000/XP/2003, CE5.0



Data sheet on USB-4604BM (pdf file (opens in new tab)

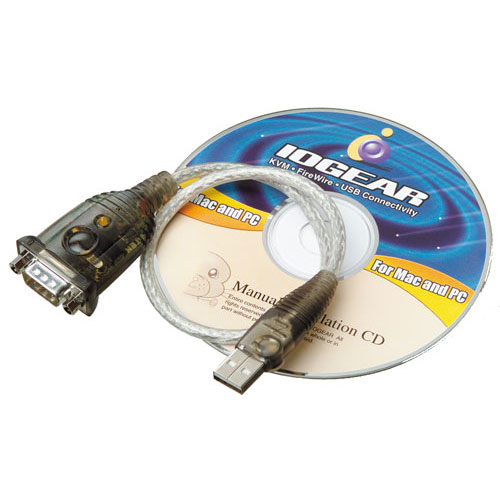

BB-UC232A


USB TO RS-232 DB9 CONVERTER
BB-UC232A
Click here to show/ hide more info

BB-UC232A

Features

  • Supports automatic handshake mode
  • Up to 230 kbps data transfer rate
  • Supports remote wake-up and power management
  • 96 byte buffer each for upstream and downstream data flow
  • Easy installation
  • Works with cellular phones, PDA, digital cameras, modems, and ISDN terminal adapters
  • Frees your RS-232 ports for other uses
  • No IRQs, no IRQ conflicts

Descriptions

USB TO RS-232 DB9 CONVERTER

Specifications

Part Number BB-UC232A
General
Technology USB
Mounting Inline
Power Bus Powered
Temperature 0 to 50C
Serial Port Count 1
Serial Type RS-232
Serial Connector DB9 Male

Data sheet on BB-UC232A (pdf file (opens in new tab)

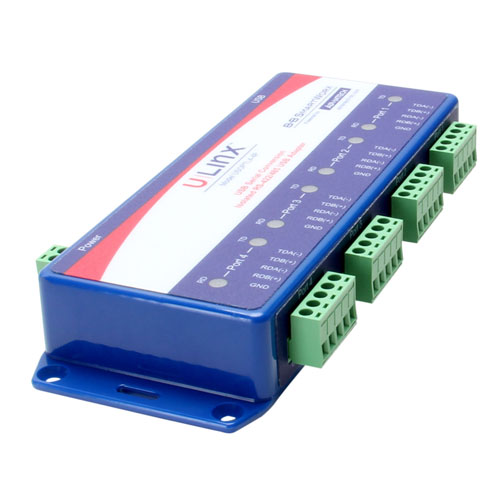

BB-USOPTL4-4P


Connect RS-422 and RS-485 (2-wire and 4-wire) devices to a USB port and gain 2000 V RMS isolation from voltage spikes and ground loops. Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports.
BB-USOPTL4-4P
Click here to show/ hide more info

BB-USOPTL4-4P

Feature

  • Connect Multiple RS-422/485 Devices to Your USB Port
  • 2000 V RMS Port-to-Port Optical Isolation
  • 15 KV ESD Surge Protection
  • USB Port Powered or External Power
  • Supports USB 2.0 (backward compatible)
  • High-Retention USB Port Connectors Ensure Reliable Connection
  • RS-422/485 Data Rates Up to 921.6 kbps
  • LEDs Indicate Data Flow on Serial Ports
  • Removable Terminal Blocks on Serial Ports Make Wiring Easy
  • Automatic Configuration on Windows 2000, XP, Vista, 7 (32/64 bit)

Descriptions

Connect RS-422 and RS-485 (2-wire and 4-wire) devices to a USB port and gain 2000 V RMS isolation from voltage spikes and ground loops. Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-422/485 interface. To connect these devices to modern PCs and provide protection from electrical transients, you need a simple and reliable conversion solution. The USOPTL4-4P offers this solution and is ideal for applications requiring long-range or multi-drop capabilities. It features include a high retention USB interface, removable terminal blocks on the serial side and LEDs to indicate data flow. Simply plug the converter into an available USB port on your computer or USB hub and install the drivers supplied on CD ROM. The device will show up as additional COM port in the Windows Device Manager, which is fully compatible with your Windows applications. A one meter USB cable is included.

Specifications

Category Attribute Value
General Mounting Inline
Power Bus Powered
Serial Connector Terminal Block
Serial Port Count 1
Serial Type RS-422, RS-485
Technology USB
Temperature 0 to 70C
Data sheet on BB-USOPTL4-4P(pdf file (opens in new tab)

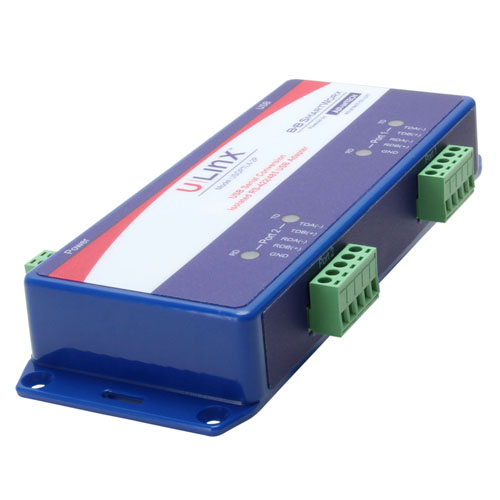

BB-USOPTL4-2P


Connect RS-422 and RS-485 (2-wire and 4-wire) devices to a USB port and gain 2000 V RMS isolation from voltage spikes and ground loops. Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports.
BB-USOPTL4-2P
Click here to show/ hide more info

BB-USOPTL4-2P

Features

  • Connect Multiple RS-422/485 Devices to Your USB Port
  • 2000 V RMS Port-to-Port Optical Isolation
  • 15 KV ESD Surge Protection
  • USB Port Powered or External Power
  • Supports USB 2.0 (backward compatible)
  • High-Retention USB Port Connectors Ensure Reliable Connection
  • RS-422/485 Data Rates Up to 921.6 kbps
  • LEDs Indicate Data Flow on Serial Ports
  • LEDs Indicate Data Flow on Serial Ports
  • Removable Terminal Blocks on Serial Ports Make Wiring Easy
  • Automatic Configuration on Windows 2000, XP, Vista, 7 (32/64 bit)

Descriptions

Connect RS-422 and RS-485 (2-wire and 4-wire) devices to a USB port and gain 2000 V RMS isolation from voltage spikes and ground loops. Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-422/485 interface. To connect these devices to modern PCs and provide protection from electrical transients, you need a simple and reliable conversion solution. The USOPTL4-2P offers this solution and is ideal for applications requiring long-range or multi-drop capabilities. It features include a high retention USB interface, removable terminal blocks on the serial side and LEDs to indicate data flow. Simply plug the converter into an available USB port on your computer or USB hub and install the drivers supplied on CD ROM. The device will show up as additional COM port in the Windows Device Manager, which is fully compatible with your Windows applications. A one meter USB cable is included.

Specifications

Category Attribute Value
General Isolation 3kV
Mounting DIN
Power Bus Powered
Serial Connector Terminal Block
Serial Port Count 1
Serial Type RS-422, RS-485
Technology USB
Temperature 0 to 70C

Data sheet on BB-USOPTL4-2P (pdf file (opens in new tab)

BB-USO9ML2-4P


Connect legacy RS-232 devices to a USB port and with 2000 V RMS isolation from voltage spikes and ground loops. Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-232 interface.
BB-USO9ML2-4P
Click here to show/ hide more info

BB-USO9ML2-4P

Feature

  • Connects Multiple RS-232 Devices to Your USB Port
  • 2000 V RMS Port-to-Port Optical Isolation
  • 15 KV ESD Surge Protection
  • 15 KV ESD Surge Protection
  • USB Port Powered or External Power
  • Supports USB 2.0 (backward compatible)
  • High Retention USB Port Ensures A Reliable Connection
  • RS-232 Data Rates up to 460.8 kbps
  • LED’s Indicate Data Flow on RS-232 Ports
  • Automatic Configuration on Windows 2000, XP, Vista, 7 (32/64 bit)

Descriptions

Connect legacy RS-232 devices to a USB port and with 2000 V RMS isolation from voltage spikes and ground loops. Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-232 interface. To connect these devices to modern PCs and provide protection from electrical transients, you need a simple and reliable conversion solution. The USO9ML2-4P offers this solution. Simply plug the converter into an available USB port on your computer or USB hub and install the drivers supplied on CD ROM. The device will show up as additional COM ports in the Windows Device Manager which are fully compatible with your Windows applications. A one meter USB cable is included.

Specifications

Category Attribute Value
General Isolation 3kV
Mounting DIN
Power Bus Powered
Serial Connector Terminal Block
Serial Port Count 2
Serial Type RS-422, RS-485
Technology USB
Temperature 0 to 70C

Data sheet on BB-USO9ML2-4P (pdf file (opens in new tab)

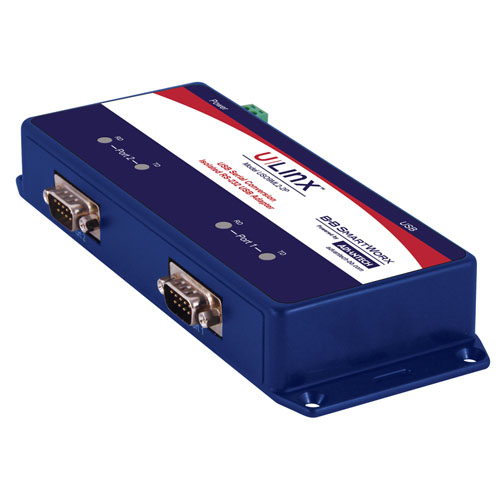

BB-USO9ML2-2P


Connect legacy RS-232 devices to a USB port and with 2000 V RMS isolation from voltage spikes and ground loops. Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports.
BB-USO9ML2-2P
Click here to show/ hide more info

BB-USO9ML2-2P

Feature

  • Connects Multiple RS-232 Devices to Your USB Port
  • 2000 V RMS Port-to-Port Optical Isolation
  • 15 KV ESD Surge Protection
  • USB Port Powered or External Power
  • Supports USB 2.0 (backward compatible)
  • High Retention USB Port Ensures A Reliable Connection
  • RS-232 Data Rates up to 460.8 kbps
  • LED’s Indicate Data Flow on RS-232 Ports
  • Automatic Configuration on Windows 2000, XP, Vista, 7 (32/64 bit)

Descriptions

Connect legacy RS-232 devices to a USB port and with 2000 V RMS isolation from voltage spikes and ground loops. Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-232 interface. To connect these devices to modern PCs and provide protection from electrical transients, you need a simple and reliable conversion solution. The USO9ML2-2P offers this solution. Simply plug the converter into an available USB port on your computer or USB hub and install the drivers supplied on CD ROM. The device will show up as additional COM ports in the Windows Device Manager which are fully compatible with your Windows applications. A one meter USB cable is included.

Specifications

Device Connections 4
Connectors
USB Port 1 x USB Type B Female (White)
Power 1 x DC Jack
Serial 4 x DB-9 Male (Black)
LEDs
Ports 4 (Green)
Power 1 (Orange)
Data Rate 115.2 Kbps (max.)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Power Mode Bus Powered; use of Power Adapter is optional
Power Consumption DC5V:0.50W:2BTU
Environmental
Operating Temperature 0–50˚C
Storage Temperature -20–60˚C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm

(4.92 x 3.15 x 0.98 in.)

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Data sheet on BB-USO9ML2-2P (pdf file (opens in new tab)

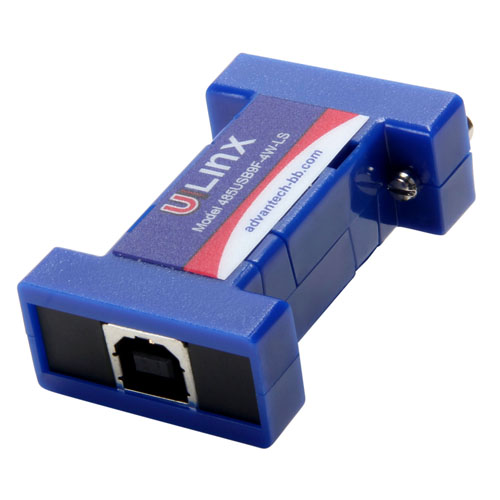

BB-485USB9F-4W-LS


Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial port. However, many commercial and industrial devices still use the RS-485 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution.
BB-485USB9F-4W-LS
Click here to show/ hide more info

BB-485USB9F-4W-LS

Feature

  • Connect RS-485 devices to your USB port
  • Locked Serial Number
  • Perfect for field service applications
  • Small – fits easily into any laptop bag
  • USB port powered
  • USB 2.0 (12 Mbps) compatible
  • RS-485 data rates up to 921.6 kbps
  • Supports Windows XP, 7 (32/64 bit), 8 (32/64 bit), 8.1 (32/64 bit), 10 (32/64bit)

Descriptions

Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial port. However, many commercial and industrial devices still use the RS-485 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution. The 485USB9F-4W-LS offers RS-485 4-wire conversion in a space saving, USB port-powered package. Simply install the drivers and plug the converter into an available USB port on your computer or USB hub. The device will appear as an additional COM port in the Windows Device Manager which is fully compatible with your Windows applications. A one meter USB cable is included. Locked Serial Numbers Explained – The “locked serial number” format uses the same serial number (same COM port) that is associated with a given model type. If the converter is shared among several computers, like field service laptops, a locked serial number model lets you plug and play without having to worry about matching the two.

Specifications

Device Connections 4
Connectors
USB Port 1 x USB Type B Female (White)
Power 1 x DC Jack
Serial 4 x DB-9 Male (Black)
LEDs
Ports 4 (Green)
Power 1 (Orange)
Data Rate 115.2 Kbps (max.)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Power Mode Bus Powered; use of Power Adapter is optional
Power Consumption DC5V:0.50W:2BTU
Environmental
Operating Temperature 0–50˚C
Storage Temperature -20–60˚C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm

(4.92 x 3.15 x 0.98 in.)

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Data sheet on BB-485USB9F-4W-LS (pdf file (opens in new tab)

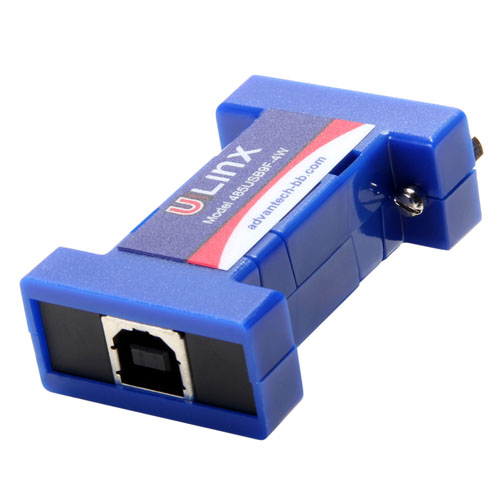

BB-485USB9F-4W


Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial port. However, many commercial and industrial devices still use the RS-485 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution.
BB-485USB9F-4W
Click here to show/ hide more info

BB-485USB9F-4W

Feature

  • Connect RS-485 devices to your USB port
  • Perfect for field service applications
  • Small – fits easily into any laptop bag
  • USB port powered
  • USB 2.0 (12 Mbps) compatible
  • RS-485 data rates up to 921.6 kbps
  • Supports Windows XP, 7 (32/64 bit), 8 (32/64 bit), 8.1 (32/64 bit), 10 (32/64bit)

Descriptions

Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial port. However, many commercial and industrial devices still use the RS-485 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution. The 485USB9F-4W offers RS-485 4-wire conversion in a space saving, USB port-powered package. Simply install the drivers and plug the converter into an available USB port on your computer or USB hub. The device will appear as an additional COM port in the Windows Device Manager which is fully compatible with your Windows applications. A one meter USB cable is included.

Specifications

Device Connections 4
Connectors
USB Port 1 x USB Type B Female (White)
Power 1 x DC Jack
Serial 4 x DB-9 Male (Black)
LEDs
Ports 4 (Green)
Power 1 (Orange)
Data Rate 115.2 Kbps (max.)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Power Mode Bus Powered; use of Power Adapter is optional
Power Consumption DC5V:0.50W:2BTU
Environmental
Operating Temperature 0–50˚C
Storage Temperature -20–60˚C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm

(4.92 x 3.15 x 0.98 in.)

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Data sheet on BB-485USB9F-4W (pdf file (opens in new tab)

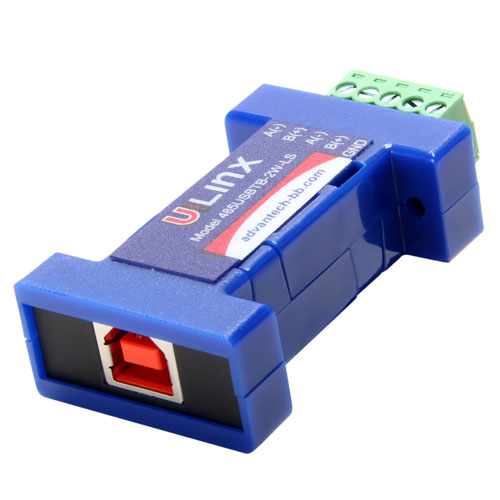

BB-485USBTB-2W-LS


Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-485 interface.
BB-485USBTB-2W-LS
Click here to show/ hide more info

BB-485USBTB-2W-LS

Feature

  • Connect RS-485 Devices to Your USB Port
  • Locked Serial Number
  • Perfect for Field Service Applications
  • Compact – Fits Easily Into Any Laptop Bag
  • USB Port-powered
  • High Retention USB Connector
  • USB 2.0 (12 Mbps) Compatible
  • RS-485 Data Rates Up to 921.6 Kbps
  • Removable Terminal Block For Easy Wiring
  • Windows 98, ME, 2000, XP, Vista, 7 (32/64 bit), 8 (32/64 bit)

Descriptions

Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-485 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution. The 485USBTB-2W-LS offers RS-485 2-wire conversion in a space saving, USB port-powered package. Simply install the drivers and plug the converter into an available USB port on your computer or USB hub. The device will appear as an additional COM port in the Windows Device Manager which is fully compatible with your Windows applications. A one meter USB cable is included. Locked Serial Numbers Explained – The “locked serial number” format uses the same serial number (same COM port) that is associated with a given model type. If the converter is shared among several computers, like field service laptops, a locked serial number model lets you plug and play without having to worry about matching the two.

Specifications

Device Connections 4
Connectors
USB Port 1 x USB Type B Female (White)
Power 1 x DC Jack
Serial 4 x DB-9 Male (Black)
LEDs
Ports 4 (Green)
Power 1 (Orange)
Data Rate 115.2 Kbps (max.)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Power Mode Bus Powered; use of Power Adapter is optional
Power Consumption DC5V:0.50W:2BTU
Environmental
Operating Temperature 0–50˚C
Storage Temperature -20–60˚C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm

(4.92 x 3.15 x 0.98 in.)

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Data sheet on BB-485USBTB-2W-LS (pdf file (opens in new tab)

BB-USO9ML2-LS


This compact, isolated USB to RS-232 converter allows you to add an RS-232 port to your USB only PC. Built to rugged specifications with 2 kV of isolation, it will protect your PC from hazardous ground loops. The compact size makes it perfect for field service use but, it is also suitable for instrumentation and laboratory applications.
BB-USO9ML2-LS
Click here to show/ hide more info

BB-USO9ML2-LS

Feature

  • 2 kV Isolation
  • ESD Protection – 4 kV Contact, 8 kV Air
  • Locked Serial Number
  • Compact In-Line Case
  • USB 2.0 Full Speed Compatible (12 Mbps)
  • RS-232 Data Rates Up to 460.8 Kbps
  • USB Bus Powered
  • =

Descriptions

This compact, isolated USB to RS-232 converter allows you to add an RS-232 port to your USB only PC. Built to rugged specifications with 2 kV of isolation, it will protect your PC from hazardous ground loops. The compact size makes it perfect for field service use but, it is also suitable for instrumentation and laboratory applications. Full speed (12 Mbps) USB 2.0 support allows connectivity with modern computer technology. The RS-232 port is a DB9 male connector wired as a DTE with full hardware handshake support. It can handle standard RS-232 data rates up to 460.8 Kbps. Drivers support Windows platforms up to Windows 8 in 32 and 64 bit implementations. Includes USB cable and a driver disk. The “locked serial number” format uses the same serial number (same COM port) that is associated with a given model type. If the converter is shared among several computers, like field service laptops, a locked serial number model lets you plug-and-play without having to worry about matching the two.

Specifications

Device Connections 4
Connectors
USB Port 1 x USB Type B Female (White)
Power 1 x DC Jack
Serial 4 x DB-9 Male (Black)
LEDs
Ports 4 (Green)
Power 1 (Orange)
Data Rate 115.2 Kbps (max.)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Power Mode Bus Powered; use of Power Adapter is optional
Power Consumption DC5V:0.50W:2BTU
Environmental
Operating Temperature 0–50˚C
Storage Temperature -20–60˚C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm

(4.92 x 3.15 x 0.98 in.)

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Data sheet on BB-USO9ML2-LS (pdf file (opens in new tab)

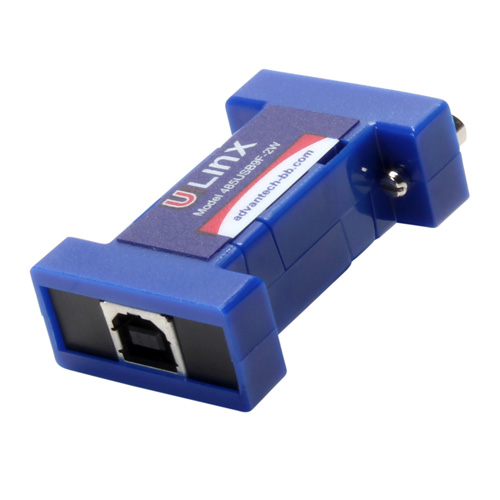

BB-485USB9F-2W-LS


Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial port. However, many commercial and industrial devices still use the RS-485 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution.
BB-485USB9F-2W-LS
Click here to show/ hide more info

BB-485USB9F-2W-LS

Feature

  • Connect RS-485 devices to your USB port
  • Locked Serial Number versions
  • Perfect for field service applications
  • Small – fits easily into any laptop bag
  • USB port powered
  • USB 2.0 (12 Mbps) compatible
  • RS-485 data rates up to 921.6 kbps
  • Supports Windows XP, 7 (32/64 bit), 8 (32/64 bit), 8.1 (32/64 bit), 10 (32/64bit)

Descriptions

Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial port. However, many commercial and industrial devices still use the RS-485 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution. The 485USB9F-2W-LS offers RS-485 2-wire conversion in a space saving, USB port-powered package. Simply install the drivers and plug the converter into an available USB port on your computer or USB hub. The device will appear as an additional COM port in the Windows Device Manager which is fully compatible with your Windows applications. A one meter USB cable is included. Locked Serial Numbers Explained – The “locked serial number” format uses the same serial number (same COM port) that is associated with a given model. If the converter is shared among several computers, like field service laptops, a locked serial number model lets you plug and play without having to worry about matching the two.

Specifications

Device Connections 4
Connectors
USB Port 1 x USB Type B Female (White)
Power 1 x DC Jack
Serial 4 x DB-9 Male (Black)
LEDs
Ports 4 (Green)
Power 1 (Orange)
Data Rate 115.2 Kbps (max.)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Power Mode Bus Powered; use of Power Adapter is optional
Power Consumption DC5V:0.50W:2BTU
Environmental
Operating Temperature 0–50˚C
Storage Temperature -20–60˚C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm

(4.92 x 3.15 x 0.98 in.)

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Data sheet on BB-485USB9F-2W-LS (pdf file (opens in new tab)

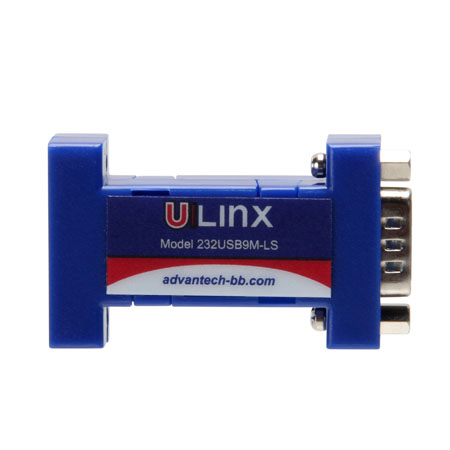

BB-232USB9M-LS


Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-232 interface.
BB-232USB9M-LS
Click here to show/ hide more info

BB-232USB9M-LS

Feature

  • Connect RS-232 Devices to Your USB Port
  • Locked Serial Number Feature
  • Perfect for Field Service Applications
  • Compact, Space Saving Size
  • USB Port Powered
  • USB 2.0 (12 Mbps) Compatible
  • RS-232 Data Rates Up to 921.6 Kbps

Descriptions

Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-232 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution. The 232USB9M-LS offers this solution in a space saving, USB port-powered package. Locked Serial Numbers Explained – “Locked serial number” format uses the same serial number that is associated with a model type. If the converter is shared among several computers, like field service laptops, the “locked serial number” model lets you plug and play without having to worry about matching the two.

Specifications

Device Connections 4
Connectors
USB Port 1 x USB Type B Female (White)
Power 1 x DC Jack
Serial 4 x DB-9 Male (Black)
LEDs
Ports 4 (Green)
Power 1 (Orange)
Data Rate 115.2 Kbps (max.)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Power Mode Bus Powered; use of Power Adapter is optional
Power Consumption DC5V:0.50W:2BTU
Environmental
Operating Temperature 0–50˚C
Storage Temperature -20–60˚C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm

(4.92 x 3.15 x 0.98 in.)

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Data sheet (pdf file (opens in new tab)

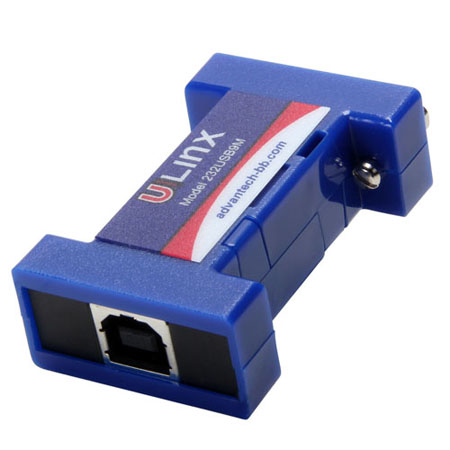

BB-232USB9M


Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-232 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution.
BB-232USB9M
Click here to show/ hide more info

BB-232USB9M

Feature

  • Connect RS-232 Devices to Your USB Port
  • Perfect for Field Service Applications
  • Compact, Space Saving Size
  • USB Port Powered
  • USB 2.0 (12 Mbps) Compatible
  • RS-232 Data Rates Up to 921.6 Kbps

Descriptions

Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-232 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution. The 232USB9M offers this solution in a space saving, USB port-powered package. Simply install the drivers supplied on CD ROM and plug the converter into an available USB port on your computer or USB hub. The device will show up as an additional COM port in the Windows Device Manager which is fully compatible with your Windows applications. Locked serial number version is also available. A USB cable is included.

Specifications

Part Number BB-232USB9M
General
Technology USB
Mounting Inline
Power Bus Powered
Temperature 0 to 70C
Serial Port Count 1
Serial Type RS-232
Serial Connector DB9 Male

Data sheet (pdf file (opens in new tab)

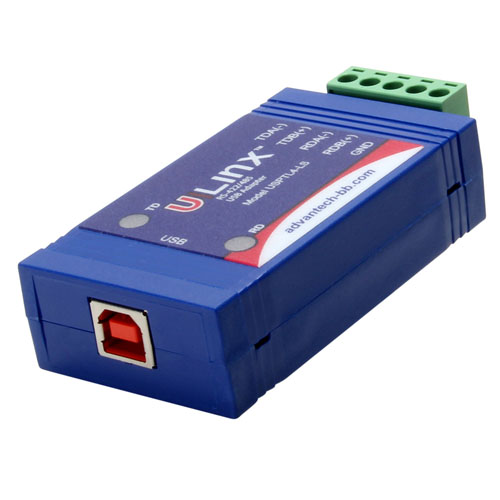

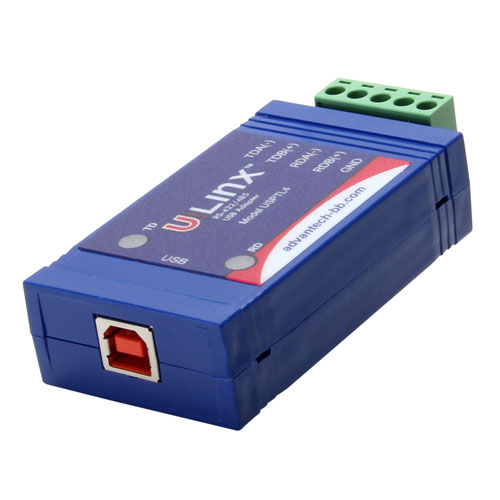

BB-USPTL4-LS


Model USPTL4 is a USB to one-port RS-422/485 converter that supports 2-wire RS-485 or 4-wire RS-422/485 communications. It is ideal for applications requiring long-range or multi-drop capabilities. Model USPTL4 uses pluggable terminal blocks on the RS-422/485 side.
BB-USPTL4-LS
Click here to show/ hide more info

BB-USPTL4-LS

Feature

  • 2000 V RMS Optical Isolation (isolated Models)
  • Adds a COM Port to Your PC
  • Locked Serial Number option (-LS models)
  • LEDs for Transmit and Receive Data Lines
  • USB 1.0, 1.1 and 2.0 Compatible (12 Mbps)
  • High Retention USB Port
  • Powered by USB Port

Descriptions

Model USPTL4 is a USB to one-port RS-422/485 converter that supports 2-wire RS-485 or 4-wire RS-422/485 communications. It is ideal for applications requiring long-range or multi-drop capabilities. Model USPTL4 uses pluggable terminal blocks on the RS-422/485 side.Two LEDs indicate data transmit or receive. The converter draws power from the USB port so no power supply is required. High retention USB port holds standard USB cables tight. Simply install the drivers supplied on CD ROM and plug the converter into an available USB port on your computer or USB hub. The device show ups as an additional COM port in the Windows Device Manager, and is compatible with Windows applications. Locked Serial Numbers Explained – We configure our single-port USB to serial converters in two ways. In standard format, each product has a unique serial number. “Locked serial” format uses the same serial number that is associated with a model type. If your converter will always be used with the same computer, the standard serialized model is all you need. If the converter is shared among several computers, like field service laptops, the locked serial number model lets you plug and play without having to worry about matching the two. Universal Serial Bus – USB has become the connectivity workhorse of today’s PCs, replacing classic serial ports. But, many commercial and industrial devices still use RS-422/485 interfaces. To connect these devices to modern PCs, you need robust and reliable conversion solutions. USB ports are becoming more common on commercial and industrial equipment such as point-of-sale peripherals, medical devices, scientific instrumentation, laboratory equipment and other devices or in environments where surges, spikes and ground loops are likely to occur. RS-485 Control – No special software is required to control the RS-485 receiver or transmit line driver. The driver is automatically enabled during each byte transmitted in RS-485 mode. The transmitter is always enabled in RS-422 mode. The receiver is tri-stated during each byte transmitted in the echo-off mode. The receiver is always enabled in the echo-on mode. There are 4.7k Ohm pull-up/pull-down resistors on the RDA and RDB lines. A termination resistor may be added to R16 if needed.

Specifications

Device Connections 4
Connectors
USB Port 1 x USB Type B Female (White)
Power 1 x DC Jack
Serial 4 x DB-9 Male (Black)
LEDs
Ports 4 (Green)
Power 1 (Orange)
Data Rate 115.2 Kbps (max.)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Power Mode Bus Powered; use of Power Adapter is optional
Power Consumption DC5V:0.50W:2BTU
Environmental
Operating Temperature 0–50˚C
Storage Temperature -20–60˚C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm

(4.92 x 3.15 x 0.98 in.)

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Data sheet on BB-USPTL4-LS (pdf file (opens in new tab)

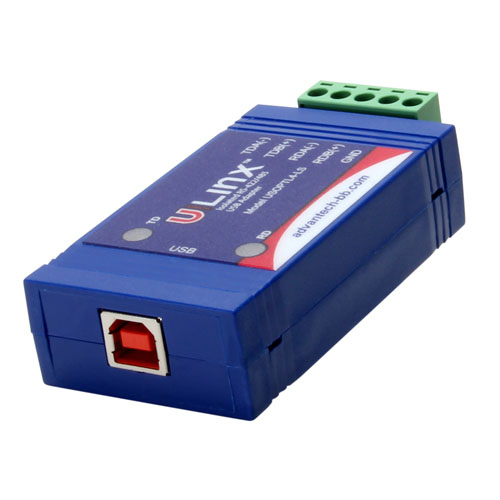

BB-USOPTL4-LS


Model USOPTL4-LS is a USB to one-port RS-422/485 converter that supports 2-wire RS-485 or 4-wire RS-422/485 communications. It is ideal for applications requiring long-range or multi-drop capabilities. Model USOPTL4-LS includes circuitry with 2000 Volts isolation to protect against ground loops and voltage spikes.
BB-USOPTL4-LS
Click here to show/ hide more info

BB-USOPTL4-LS

Feature

  • 2000 V RMS Optical Isolation (isolated Models)
  • Adds a COM Port to Your PC
  • LEDs for Transmit and Receive Data Lines
  • USB 1.0, 1.1 and 2.0 Compatible (12 Mbps)
  • High Retention USB Port
  • Powered by USB Port
  • Locked Serial Number

Descriptions

Model USOPTL4-LS is a USB to one-port RS-422/485 converter that supports 2-wire RS-485 or 4-wire RS-422/485 communications. It is ideal for applications requiring long-range or multi-drop capabilities. Model USOPTL4-LS includes circuitry with 2000 Volts isolation to protect against ground loops and voltage spikes. It uses pluggable terminal blocks on the RS-422/485 side.Two LEDs indicate data transmit or receive. The converter draws power from the USB port so no power supply is required. High retention USB port holds standard USB cables tight. Simply install the drivers supplied on CD ROM and plug the converter into an available USB port on your computer or USB hub. The device show ups as an additional COM port in the Windows Device Manager, and is compatible with Windows applications. Locked Serial Numbers Explained – We configure our single-port USB to serial converters in two ways. In standard format, each product has a unique serial number. “Locked serial” format uses the same serial number that is associated with a model type. Universal Serial Bus – USB has become the connectivity workhorse of today’s PCs, replacing classic serial ports. But, many commercial and industrial devices still use RS-422/485 interfaces. To connect these devices to modern PCs, you need robust and reliable conversion solutions. USB ports are becoming more common on commercial and industrial equipment such as point-of-sale peripherals, medical devices, scientific instrumentation, laboratory equipment and other devices or in environments where surges, spikes and ground loops are likely to occur. RS-485 Control – No special software is required to control the RS-485 receiver or transmit line driver. The driver is automatically enabled during each byte transmitted in RS-485 mode. The transmitter is always enabled in RS-422 mode. The receiver is tri-stated during each byte transmitted in the echo-off mode. The receiver is always enabled in the echo-on mode. There are 4.7k Ohm pull-up/pull-down resistors on the RDA and RDB lines. A termination resistor may be added to R16 if needed. If your converter will always be used with the same computer, the standard serialized model is all you need. If the converter is shared among several computers, like field service laptops, the locked serial number model lets you plug and play without having to worry about matching the two.

Specifications

Device Connections 4
Connectors
USB Port 1 x USB Type B Female (White)
Power 1 x DC Jack
Serial 4 x DB-9 Male (Black)
LEDs
Ports 4 (Green)
Power 1 (Orange)
Data Rate 115.2 Kbps (max.)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Power Mode Bus Powered; use of Power Adapter is optional
Power Consumption DC5V:0.50W:2BTU
Environmental
Operating Temperature 0–50˚C
Storage Temperature -20–60˚C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm

(4.92 x 3.15 x 0.98 in.)

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Data sheet on BB-USOPTL4-LS (pdf file (opens in new tab)

BB-USOPTL4DR-2


Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial port. However, many commercial and industrial devices still use serial interfaces. To connect these devices to modern PCs, you need a simple and reliable conversion solution.
BB-USOPTL4DR-2
Click here to show/ hide more info

BB-USOPTL4DR-2

Feature

  • 3000 Volts optical isolation
  • 15 KV ESD protection
  • USB bus powered
  • RS-422/485 data rates up to 921.6 Kbps
  • High retention USB connector
  • Removable terminal blocks
  • DIN rail mount (panel mount option)

Descriptions

Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial port. However, many commercial and industrial devices still use serial interfaces. To connect these devices to modern PCs, you need a simple and reliable conversion solution. The USOPTL4DR-2, two-port isolated serial converter, is specifically designed for industrial applications. It provides 3000V optical isolation with 15 KV ESD protection. The slim-line DIN rail mountable enclosure has a small footprint and, since it draws power from your computer’s USB bus, an additional power supply is not required. Simply plug the converter into an available USB port on your computer or USB hub and install the drivers supplied on CD ROM. The device will show up as an additional COM port in the Windows Device Manager which is fully compatible with your Windows applications.

Specifications

Device Connections 4
Connectors
USB Port 1 x USB Type B Female (White)
Power 1 x DC Jack
Serial 4 x DB-9 Male (Black)
LEDs
Ports 4 (Green)
Power 1 (Orange)
Data Rate 115.2 Kbps (max.)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Power Mode Bus Powered; use of Power Adapter is optional
Power Consumption DC5V:0.50W:2BTU
Environmental
Operating Temperature 0–50˚C
Storage Temperature -20–60˚C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Data sheet on BB-USOPTL4DR-2 (pdf file (opens in new tab)

BB-USR604


Model USR604 is an industrial grade, isolated, USB to serial converter that allows you to add four RS-232/422/485 ports to your PC. Built to rugged specifications, the USR604 offers 2 kV port-to-port isolation.
BB-USR604
Click here to show/ hide more info

BB-USR604

Feature

  • 2 kV Port to Port Isolation
  • ESD Protection – 8 kV Contact, 15 kV Air
  • Rugged Metal Case & High Retention USB Connector
  • Wide Operating Temperature (-40 to 80°C)
  • Redundant Power Inputs
  • Modbus ASCII/RTU Compatible
  • DIN Rail & Panel Mounting Options

Descriptions

Model USR604 is an industrial grade, isolated, USB to serial converter that allows you to add four RS-232/422/485 ports to your PC. Built to rugged specifications, the USR604 offers 2 kV port-to-port isolation. This means that your upstream PC is isolated from downstream serial devices and the downstream serial devices are isolated from each other and the upstream PC. Additional features, such as a heavy duty metal enclosure with panel and DIN rail mounting options, high ESD protection, shock and vibration testing and wide operating temperatures, are ideal for use in harsh environments. Designed for industrial use, it also suitable for instrumentation, utilities, and laboratory applications. Modbus support enables use with a wide variety of industrial devices. Full speed (480 Mbps) USB 2.0 support allows connectivity with modern computer technology. Serial ports are configurable for RS-232, RS-422 and RS-485 (2-wire & 4-wire). Each unit comes with DIN rail and panel mounting hardware, giving maximum flexibility for your installation.

Specifications

Part Number BB-USR604
General
Technology USB
Mounting DIN, Panel
Power 10 to 48VDC
Temperature -40 to 80C
Isolation 2kV
Serial Port Count 4
Serial Type RS-232, RS-422, RS-485
Serial Connector DB9 Male
Software
Baud Rate 50 ~ 921.6 Kbps
Serial Communication
Type RS-232/422/485
Ports 4
Connector
Serial DB9
USB Type B
Display
Interface USB 1.1/2.0

Data sheet on BB-USR604 (pdf file (opens in new tab)

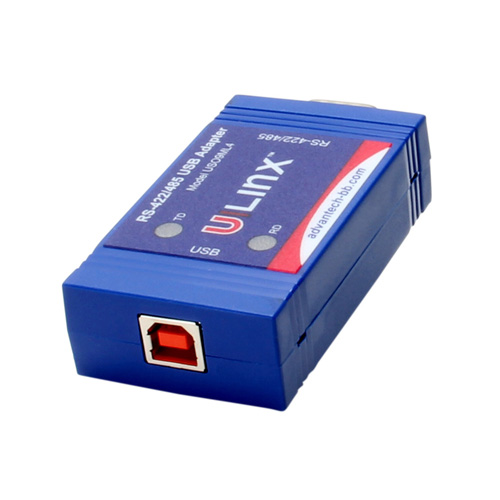

BB-USO9ML4


Model USO9ML4 is a USB to one-port RS-422/485 converter that supports 2-wire RS-485 or 4-wire RS-422/485 communications. It is ideal for applications requiring long-range or multi-drop capabilities. Model USO9ML4 uses a DB9 connector on the RS-422/485 side.
BB-USO9ML4
Click here to show/ hide more info

BB-USO9ML4

Feature

  • Adds a COM Port to Your PC
  • USB High Retention Connector Type B
  • USB 2.0 Full Speed Compatible (12 Mbps)
  • USB Bus Powered (<100mA)
  • DB9 Male RS-422/485 Connector
  • Automatic Send Data Control
  • Compact In-Line Case

Descriptions

Model USO9ML4 is a USB to one-port RS-422/485 converter that supports 2-wire RS-485 or 4-wire RS-422/485 communications. It is ideal for applications requiring long-range or multi-drop capabilities. Model USO9ML4 uses a DB9 connector on the RS-422/485 side. Two LEDs indicate data transmit or receive. The converter draws power from the USB port so no power supply is required. High retention USB port holds standard USB cables tight. Simply install the drivers supplied on CD ROM and plug the converter into an available USB port on your computer or USB hub. The device show ups as an additional COM port in the Windows Device Manager, and is compatible with Windows applications. Universal Serial Bus (USB) USB has become the connectivity workhorse of today’s PCs, replacing classic serial ports. But, many commercial and industrial devices still use RS-422/485 interfaces. To connect these devices to modern PCs, you need robust and reliable conversion solutions. USB ports are becoming more common on commercial and industrial equipment such as point-of-sale peripherals, medical devices, scientific instrumentation, laboratory equipment and other devices or in environments where surges, spikes and ground loops are likely to occur. RS-485 Control No special software is required to control the RS-485 receiver or transmit line driver. The driver is automatically enabled during each byte transmitted in RS-485 mode. The transmitter is always enabled in RS-422 mode. The receiver is tri-stated during each byte transmitted in the echo-off mode. The receiver is always enabled in the echo-on mode. There are 4.7k Ohm pull-up/pull-down resistors on the RDA and RDB lines. A termination resistor may be added to R16 if needed.

Specifications

Part Number BB-USO9ML4
General
Technology USB
Mounting Inline
Power Bus Powered
Temperature 0 to 70C
Isolation 2kV
Serial Port Count 1
Serial Type RS-422, RS-485
Serial Connector Terminal Block
Software
Baud Rate 460.8 Kbps
Serial Communication
Type RS-422/485
Ports 1
Connector
Serial DB9
USB Type B
Display
Interface USB 1.1/2.0

Data sheet on BB-USO9ML4 (pdf file (opens in new tab)

BB-USPTL4


Model USPTL4 is a USB to one-port RS-422/485 converter that supports 2-wire RS-485 or 4-wire RS-422/485 communications. It is ideal for applications requiring long-range or multi-drop capabilities. Model USPTL4 uses pluggable terminal blocks on the RS-422/485 side.Two LEDs indicate data transmit or receive.
BB-USPTL4
Click here to show/ hide more info

BB-USPTL4

Feature

  • Adds a COM Port to Your PC
  • 15KV ESD Surge Protection
  • High Retention USB Port
  • USB 1.0, 1.1 and 2.0 Compatible (12 Mbps)
  • LEDs for Transmit and Receive Data Lines
  • No power supply required (powered from USB bus)

Descriptions

Model USPTL4 is a USB to one-port RS-422/485 converter that supports 2-wire RS-485 or 4-wire RS-422/485 communications. It is ideal for applications requiring long-range or multi-drop capabilities. Model USPTL4 uses pluggable terminal blocks on the RS-422/485 side.Two LEDs indicate data transmit or receive. The converter draws power from the USB port so no power supply is required. High retention USB port holds standard USB cables tight. Simply install the drivers supplied on CD ROM and plug the converter into an available USB port on your computer or USB hub. The device show ups as an additional COM port in the Windows Device Manager, and is compatible with Windows applications. Universal Serial Bus (USB) USB has become the connectivity workhorse of today’s PCs, replacing classic serial ports. But, many commercial and industrial devices still use RS-422/485 interfaces. To connect these devices to modern PCs, you need robust and reliable conversion solutions. USB ports are becoming more common on commercial and industrial equipment such as point-of-sale peripherals, medical devices, scientific instrumentation, laboratory equipment and other devices or in environments where surges, spikes and ground loops are likely to occur. RS-485 Control No special software is required to control the RS-485 receiver or transmit line driver. The driver is automatically enabled during each byte transmitted in RS-485 mode. The transmitter is always enabled in RS-422 mode. The receiver is tri-stated during each byte transmitted in the echo-off mode. The receiver is always enabled in the echo-on mode. There are 4.7k Ohm pull-up/pull-down resistors on the RDA and RDB lines. A termination resistor may be added to R16 if needed.

Specifications

Device Connections 4
Connectors
USB Port 1 x USB Type B Female (White)
Power 1 x DC Jack
Serial 4 x DB-9 Male (Black)
LEDs
Ports 4 (Green)
Power 1 (Orange)
Data Rate 115.2 Kbps (max.)
USB Specification USB 1.1 Compliant; USB 2.0 Compatible
Power Mode Bus Powered; use of Power Adapter is optional
Power Consumption DC5V:0.50W:2BTU
Environmental
Operating Temperature 0–50˚C
Storage Temperature -20–60˚C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.32 kg ( 0.7 lb )
Dimensions (L x W x H) 12.50 x 8.00 x 2.50 cm

(4.92 x 3.15 x 0.98 in.)

Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Data sheet on BB-USPTL4 (pdf file (opens in new tab)

BB-USOPTL4


Model USOPTL4 is a USB to one-port RS-422/485 converter that supports 2-wire RS-485 or 4-wire RS-422/485 communications. It is ideal for applications requiring long-range or multi-drop capabilities. Model USOPTL4 includes circuitry with 2000 Volts isolation to protect against ground loops and voltage spikes.
BB-USOPTL4
Click here to show/ hide more info

BB-USOPTL4

Feature

  • 2000 V RMS Optical Isolation
  • 15KV ESD surge protection
  • Adds a COM port to your PC
  • LEDs for Transmit and Receive Lines
  • High Retention USB Ports
  • USB 1.0, 1.1 and 2.0 compatible (12 Mbps)
  • No power supply required (powered from USB bus)

Descriptions

Model USOPTL4 is a USB to one-port RS-422/485 converter that supports 2-wire RS-485 or 4-wire RS-422/485 communications. It is ideal for applications requiring long-range or multi-drop capabilities. Model USOPTL4 includes circuitry with 2000 Volts isolation to protect against ground loops and voltage spikes. It uses pluggable terminal blocks on the RS-422/485 side.Two LEDs indicate data transmit or receive. The converter draws power from the USB port so no power supply is required. High retention USB port holds standard USB cables tight. Simply install the drivers supplied on CD ROM and plug the converter into an available USB port on your computer or USB hub. The device show ups as an additional COM port in the Windows Device Manager, and is compatible with Windows applications. Universal Serial Bus (USB) USB has become the connectivity workhorse of today’s PCs, replacing classic serial ports. But, many commercial and industrial devices still use RS-422/485 interfaces. To connect these devices to modern PCs, you need robust and reliable conversion solutions. USB ports are becoming more common on commercial and industrial equipment such as point-of-sale peripherals, medical devices, scientific instrumentation, laboratory equipment and other devices or in environments where surges, spikes and ground loops are likely to occur. RS-485 Control No special software is required to control the RS-485 receiver or transmit line driver. The driver is automatically enabled during each byte transmitted in RS-485 mode. The transmitter is always enabled in RS-422 mode. The receiver is tri-stated during each byte transmitted in the echo-off mode. The receiver is always enabled in the echo-on mode. There are 4.7k Ohm pull-up/pull-down resistors on the RDA and RDB lines. A termination resistor may be added to R16 if needed.

Specifications

Part Number BB-USOPTL4
General
Technology USB
Mounting Inline
Power Bus Powered
Temperature 0 to 70C
Isolation 2kV
Serial Port Count 1
Serial Type RS-422, RS-485
Serial Connector Terminal Block
Software
Baud Rate 460.8 Kbps
Serial Communication
Type RS-422/485
Ports 1
Connector
Serial Screw Terminal
USB Type B
Display
Interface USB 1.1/2.0

Data sheet on BB-USOPTL4 (pdf file (opens in new tab)

BB-485USB9F-2W


Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial port. However, many commercial and industrial devices still use the RS-485 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution.
BB-485USB9F-2W
Click here to show/ hide more info

BB-485USB9F-2W

Feature

  • Connect RS-485 devices to your USB port
  • Perfect for Field Service Applications
  • Small – Fits easily into any laptop bag
  • USB port-powered
  • USB 2.0 (12 Mbps) compatible
  • RS-485 data rates up to 921.6 Kbps
  • Supports Windows XP, 7 (32/64 bit), 8 (32/64 bit), 8.1 (32/64 bit), 10 (32/64bit)

Descriptions

Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial port. However, many commercial and industrial devices still use the RS-485 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution. The 485USB9F-2W offers RS-485 2-wire conversion in a space saving, USB port-powered package. Simply install the drivers and plug the converter into an available USB port on your computer or USB hub. The device will appear as an additional COM port in the Windows Device Manager which is fully compatible with Windows applications. A one meter USB cable is included.

Specifications

Part Number BB-485USBTB-2W
General
Technology USB
Mounting Inline
Power Bus Powered
Temperature 0 to 70C
Serial Port Count 1
Serial Type RS-485 2-wire
Serial Connector DB9 Female
Software
Baud Rate 50 ~ 921.6 Kbps
Serial Communication
Type RS-485
Ports 1
Connector
Serial DB9
USB Type B

Data sheet on BB-485USB9F-2W (pdf file (opens in new tab)

BB-USO9ML2-A – USB to RS-232 Converter, Isolated


Serial Converter, USB 2.0 to RS-232 DB9 M, Isolated
BB-USO9ML2-A
Click here to show/ hide more info

BB-USO9ML2-A
Supports serial RS-232. Easy to set up with a DB9 M on the RS-232 side and a high retention USB connector that works with a standard USB cable (included). LEDs indicate transmit and receive. USB Port Powered.

Feature

  • USB to RS-232 Converter
  • 2 kV Isolation, 4kV Contact, 8 kV Air ESD Protection
  • USB Port Powered
  • High Retention USB Connector
  • 460.8 kbps Serial Data Rate
  • USB Cable Included

Specifications

Part Number BB-USO9ML2-A
Isolation 2kV
Mounting Inline
Power Bus Powered
Serial Connector DB9 Male
Serial Port Count 1
Serial Type RS-232
Technology USB
Temperature 0 to 70C
Bus USB 1.1/2.0
Compatibility USB 2.0 Full-speed
Protection 2000 V
Serial Port Number 1
Temperature (Operating Range) 0 ~ 70° C (32 ~ 158° F)
  D-sub 9 male

Data sheet on BB-USO9ML2-A (pdf file (opens in new tab)

BB-USO9ML2-LS-A


Serial Converter, USB 2.0 Locked Serial Num to RS-232 DB9 M, Isolated
BB-USO9ML2-A
Click here to show/ hide more info

BB-USO9ML2-A
Supports serial RS-232. Easy to set up with a DB9 M on the RS-232 side and a high retention USB connector that works with a standard USB cable (included). LEDs indicate transmit and receive. USB Port Powered.

Feature

  • USB to RS-232 Converter
  • 2 kV Isolation, 4kV Contact, 8 kV Air ESD Protection
  • USB Port Powered
  • High Retention USB Connector
  • 460.8 kbps Serial Data Rate
  • USB Cable Included
  • Locked Serial Number – Simplifies use in service pool

Specifications

Part Number BB-USO9ML2-LS-A
Isolation 2kV
Mounting Inline
Power Bus Powered
Serial Connector DB9 Male
Serial Port Count 1
Serial Type RS-232
Technology USB
Temperature 0 to 70C
Bus USB 1.1/2.0
Compatibility USB 2.0 Full-speed
Protection 2000 V
Serial Port Number 1
Temperature (Operating Range) 0 ~ 70° C (32 ~ 158° F)
  D-sub 9 male

Data sheet on BB-USO9ML2-LS-A (pdf file (opens in new tab)

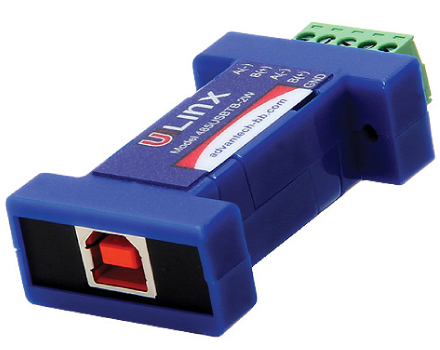

BB-485USBTB-2W-A


Serial Converter, USB 2.0 to RS-485 2W TB
BB-485USBTB-2W-A
Click here to show/ hide more info

BB-485USBTB-2W-A
Supports 2-wire RS-485. Long range, multi-drop communications. Easy to set up with plug in terminal block on RS-485 side and a high retention USB connector that works with a standard USB cable (included). Small form factor. USB Port Powered.
Feature

  • USB to RS-485 2-Wire Converter
  • Small Form Factor
  • USB Port Powered
  • High Retention USB Connector, Plug in Terminal Block Serial Connector
  • 921.6 kbps Serial Data Rate
  • USB Cable Included

Specifications

Part Number BB-485USBTB-2W-A
Mounting Inline
Power Bus Powered
Serial Connector Terminal Block
Serial Port Count 1
Serial Type RS-485 2-wire
Technology USB
Temperature 0 to 70C
Bus USB 1.1/2.0
USB (B) Type B
Serial Port Number 1
Serial Standard RS-485
Baud Rate 50 ~ 921.6 Kbps
Temperature (Operating Range) 0 ~ 70° C (32 ~ 158° F)
Temperature (Storage Range) -40~85°C (40~185 °F)
Port Connector Terminal Block

Data sheet on BB-485USBTB-2W-A (pdf file (opens in new tab)

BB-485USBTB-4W-A


Serial Converter, USB 2.0 to RS-485 4W TB
BB-485USBTB-4W-A
Click here to show/ hide more info

BB-485USBTB-4W-A
Supports 4-wire RS-485. Long range, multi-drop communications. Easy to set up with plug in terminal block on RS-485 side and a high retention USB connector that works with a standard USB cable (included). Small form factor. USB Port Powered.

Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-485 interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution.

These USB 2.0 to RS-485 4-wire converters offer this solution in a space saving, USB port-powered package. Model BB-485USBTB4WLS-A features a “locked serial number”.

Simply plug the converter in – Windows will find and install the FTDI Virtual COM (VCP) driver software. When installation is complete, the converter will show up as an additional COM port. A USB cable is included.

Feature

  • Connect RS-485 devices to your USB port
  • RS-485 data rate up to 921.6 Kbps
  • USB 2.0 (12 Mbps) compatible
  • Convenient, quick inline installation
  • Compact size fits into laptop bags; perfect for field service
  • USB port-powered
  • High retention USB port holds USB cables securely
  • Removable terminal block for easy wiring
  • Locked Serial number model version
  • USB cable included

Specifications

SERIAL TECHNOLOGY
RS-485 TDA(-), TDB(+), RDA(-), RDB(+), Ground
Connector Removable terminal block (28 to 16 AWG)
Data Rate Up to 921.6 Kbps
USB TECHNOLOGY
Connector USB Type B female, high retention port (3.4 lb (15N) pull force)
Standard 2.0 (backward compatible)
Data Rate 12 Mbps
POWER
Source USB port
Input Voltage 5 VDC
Consumption ~ 0.5 W (low power device – draws less than 100 mA)
SOFTWARE
Driver FTDI Virtual COM Port (VCP) Driver
O/S Windows 98, ME, 2000, XP, Vista, 7 (32/64), 8 (32/64), 10
MECHANICAL
Dimensions 6.5 x 3.2 x 1.6 cm (2.6 x 1.3 x 0.6 in)
Enclosure In-line mounted, plastic
Weight 104.3 g (0.23 lb) with USB cable
ENVIRONMENTAL
Operating Temperature 0 to +70 °C (+32 to +158 °F)
Storage Temperature -40 to +85 °C (-40 to +185 °F)
Operating Humidity 0 to 95% (non-condensing)
MEANTIME BETWEEN FAILURES (MTBF)
MTBF 1869313 hours
MTBF Calc. Method MIL 217F Parts Count Reliability Prediction
APPROVALS, DIRECTIVES, STANDARDS
Approvals FCC, CE
CE – Directives

2014/30/EU Electromagnetic Compatibility Directive

2011/65/EU amended by (EU) 2015/863 Reduction of Hazardous Substances Directive (RoHS)

2012/19/EU Waste Electrical and Electronic Equipment (WEEE)

CE – Standards

EN 55032:2015 Class B Electromagnetic Compatibility of Multimedia Equipment – Emission Requirements

EN 55024:2010 Information Technology Equipment – Immunity Characteristics – Limits and Methods of Measurement

Standards – other EN 61000-6 – Generic Immunity Standard for Residential, Commercial and Light-industrial Environments



Data sheet on BB-485USBTB-4W-A (pdf file (opens in new tab)

BB-485USBTB2WLS-A


Serial Converter, USB 2.0 Locked Serial Number to RS-485 4W TB
BB-485USBTB4WLS-A
Click here to show/ hide more info

BB-485USBTB4WLS-A
Supports 4-wire RS-485. Long range, multi-drop communications. Easy to set up with plug in terminal block on RS-485 side and a high retention USB connector that works with a standard USB cable (included). Small form factor. USB Port Powered.
Feature

  • USB to RS-485 4-Wire Converter
  • Small Form Factor
  • USB Port Powered
  • High Retention USB Connector, Plug in Terminal Block Serial Connector
  • 921.6 kbps Serial Data Rate
  • USB Cable Included
  • Locked Serial Number – Simplifies use in service pool

Specifications

Part Number BB-485USBTB4WLS-A
Mounting Inline
Power Bus Powered
Serial Connector Terminal Block
Serial Port Count 1
Serial Type RS-485 2-wire
Technology USB
Temperature 0 to 70C
Bus USB 1.1/2.0
USB (B) Type B
Serial Port Number 1
Serial Standard RS-485
Baud Rate 50 ~ 921.6 Kbps
Temperature (Operating Range) 0 ~ 70° C (32 ~ 158° F)
Temperature (Storage Range) -40~85°C (40~185 °F)
Port Connector Terminal Block

Data sheet on BB-485USBTB4WLS-A (pdf file (opens in new tab)

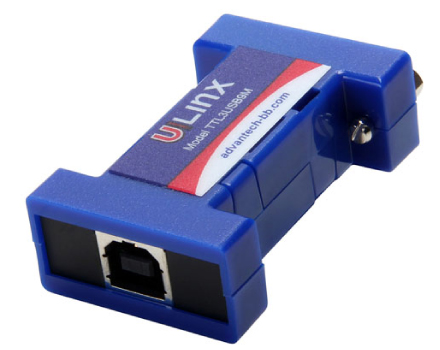

BB-TTL3USB9M


Serial Converter, USB 2.0 to 3.3 V TTL DB9 M
BB-TTL3USB9M
Click here to show/ hide more info

BB-TTL3USB9M
Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the TTL interface. To connect these devices to modern PCs, you need a simple and reliable conversion solution. Model TTL3USB9M, for 3.3V TTL, offers this solution in a space saving, USB port-powered package. Simply install the drivers supplied on CD ROM and plug the converter into an available USB port on your computer or USB hub. The device will show up as an additional COM port in the Windows Device Manager which is fully compatible with your Windows applications. A one meter USB cable is included.
Feature

  • Connect 3.3V TTL devices to your USB port
  • TTL data rate: up to 460.8 Kbps
  • Quick, convenient in-line installation
  • USB port-powered
  • Small easily fits in laptop bag; Perfect for field service
  • USB 2.0 (12 Mbps) compatible
  • Supports Windows 98, ME, 2000, XP, Vista, 7 (32/64 bit), 8 (32/64 bit)
  • USB cable included, 0.9 m (3 ft)

Specifications

SERIAL TECHNOLOGY
TTL TD, RD, CTS, RTS, GND
Level 3.3V
Connector DB9 Male
Data Rate Up to 460.8 Kbps
USB TECHNOLOGY
Connector USB Type B Female
Standard 2.0 (backward compatible)
Data Rate 12 Mbps
POWER
Source USB Port
Input Voltage 5 VDC
Consumption ~ 0.5 W (Low power device, draws less than 100 mA)
SOFTWARE
Driver CD Windows 98, ME, 2000, XP, Vista, 7 (32/64 bit), 8 (32/64 bit)
MECHANICAL
Dimensions 5.8 x 3.2 x 1.6 cm (2.3 x 1.3 x .6 in)
Enclosure In-line mounted, plastic
Weight 104.3 g (0.23 lb) with USB cable
ENVIRONMENTAL
Operating Temperature 0 to +70 °C (+32 to +158 °F)
Storage Temperature -40 to +85 °C (-40 to +185 °F)
Operating Humidity 0 to 95% (non-condensing)
MEANTIME BETWEEN FAILURES (MTBF)
TTL3USB9M 1981564 hours
MTBF Method Parts Count Reliability Prediction
APPROVALS / DIRECTIVES / STANDARDS
Approvals FCC, CE
CE – Directives

2014/30/EU Electromagnetic Compatibility Directive

2011/65/EU amended by (EU) 2015/863 Reduction of Hazardous Substances Directive (RoHS)

2012/19/EU Waste Electrical and Electronic Equipment (WEEE)

CE – Standards

EMC: EN 55032 – Class B Electromagnetic Compatibility of Multimedia Equipment – Emission Requirements

EN 55024 – Information Technology Equipment – Immunity Characteristics – Limits and Methods of Measurement

Standards – other EN 61000-6-1 – Generic Immunity Standard for Residential, Commercial and Light-Industrial Environments



Data sheet on BB-TTL3USB9M (pdf file (opens in new tab)

Digi Edgeport Series

Edgeport Serial

301-1004-04 – EDGEPORT/1 USB Converter


Edgeport/1 – 1 RS-232 serial DB-9
301-1004-04 - EDGEPORT/1 USB Converter
Click here to show/ hide more info

301-1004-04 - EDGEPORT/1 USB Converter

Digi Edgeport® Measurements

  • Length: 8.00 cm (3.15 in)
  • Width: 4.40 cm (1.75 in)
  • Height: 2.03 cm (0.80 in)
  • Weight: 45.36 g (1.60 oz)

Data sheet on 301-1004-04 – EDGEPORT/1 USB Converter (pdf file (opens in new tab)

301-1001-15


Digi Edgeport 1 port RS-232 DB-9 to USB Converter with captive 2 meter USB cable
301-1001-15
Click here to show/ hide more info

301-1001-15

Data sheet on 301-1001-15 (pdf file (opens in new tab)

EP-USB-4


Edgeport/4 – 4 RS-232 serial DB-9
EP-USB-4
Click here to show/ hide more info

EP-USB-4

Digi Edgeport® Measurements

  • Length: 11.05 cm (4.35 in)
  • Width: 18.29 cm (7.20 in)
  • Height: 2.61 cm (1.03 in)
  • Weight: 311.00 g (10.00 oz)

Data sheet on EP-USB-4 (pdf file (opens in new tab)

EP-USB-4-D25


Edgeport/4 – 4 RS-232 serial DB-25
EP-USB-4-D25
Click here to show/ hide more info

EP-USB-4-D25

Digi Edgeport® Measurements

  • Length: 11.05 cm (4.35 in)
  • Width: 18.29 cm (7.20 in)
  • Height: 2.61 cm (1.03 in)
  • Weight: 311.00 g (10.00 oz)

Data sheet on EP-USB-4-D25 (pdf file (opens in new tab)

EP-USB-8


Edgeport/8 – 8 RS-232 serial DB-9
EP-USB-8
Click here to show/ hide more info

EP-USB-8

Digi Edgeport® Measurements

  • Length: 11.05 cm (4.35 in)
  • Width: 18.29 cm (7.20 in)
  • Height: 4.45 cm (1.75 in)
  • Weight: 453.59 g (16.00 oz)

Data sheet on EP-USB-8 (pdf file (opens in new tab)

EP-USB-8-D25


Edgeport/8 – 8 RS-232 serial DB-25
EP-USB-8-D25
Click here to show/ hide more info

EP-USB-8-D25

Digi Edgeport® Measurements

  • Length: 12.70 cm (5.00 in)
  • Width: 43.118 cm (17.00 in)*
  • Height: 4.53 cm (1.80 in)
  • Weight: 1170.84 g (41.30 oz)
    *19.0 in (48.26 cm) with optional rack mount ears

Data sheet on EP-USB-8-D25 (pdf file (opens in new tab)

EP-USB-216


Edgeport/216 – 2 USB; 16 RS-232 serial DB-9
EP-USB-216
Click here to show/ hide more info

EP-USB-216

Digi Edgeport® Measurements

  • Length: 12.70 cm (5.00 in)
  • Width: 43.118 cm (17.00 in)*
  • Height: 4.53 cm (1.80 in)
  • Weight: 1170.84 g (41.30 oz)
    *19.0 in (48.26 cm) with optional rack mount ears

Data sheet on EP-USB-216 (pdf file (opens in new tab)

Edgeport Industrial

301-1001-31


Edgeport/1i – 1 RS-422/485 serial DB-9
301-1001-31
Click here to show/ hide more info

301-1001-31

Data sheet on 301-1001-31 (pdf file (opens in new tab)

EP-USB-4S


Edgeport/4s – 4 RS-232/422/485 serial DB-9; software selectable
EP-USB-4S
Click here to show/ hide more info

EP-USB-4S

Digi Edgeport® Measurements

  • Length: 11.05 cm (4.35 in)
  • Width: 18.29 cm (7.20 in)
  • Height: 2.61 cm (1.03 in)
  • Weight: 311.00 g (10.00 oz)

Data sheet on EP-USB-4S (pdf file (opens in new tab)

EP-USB-8S


Edgeport/8s – 8 RS-232/422/485 serial DB-9; software selectable
EP-USB-8S
Click here to show/ hide more info

EP-USB-8S

Digi Edgeport® Measurements

  • Length: 11.05 cm (4.35 in)
  • Width: 18.29 cm (7.20 in)
  • Height: 4.45 cm (1.75 in)
  • Weight: 453.59 g (16.00 oz)

Data sheet on EP-USB-8S (pdf file (opens in new tab)

Obsolete Products

Obsolete product list – part numbers & which products supersede them

Call Now Button
Upgrade to reliability this Black Friday with 10% off on Industrial PCs—durable solutions for demanding settings!
