Handheld Nautiz Rugged Smartphones & Scanners
Nautiz X2, X4, X8 and X9Handheld Nautiz Rugged Smartphones & Scanners
The Handheld Nautiz range includes small hand-held tablet PC’s or smartphones, ranging from 2.8″ to 5″ screen size, some with keypads. They are available with Android or Windows operating systems. These devices are designed to operate in harsh exposed or outdoor working conditions, every day for three to five years’ life expectancy.
Handheld is a Scandinavian manufactuer of best-in-class Rugged Tablets and Notebooks since 2003.
Nautiz X2
Nautiz X4
Nautiz X8

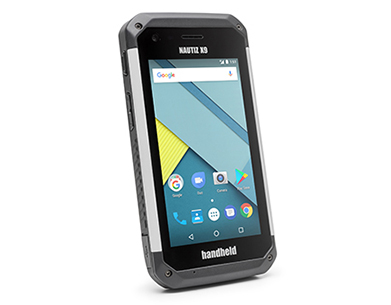

Nautiz X9
Some features of the Nautiz range compared
| Dimensions | Weight | Memory / Disk | Screen/Touch | Keypad | Communications & Operating System | |
| Nautiz X2 | 150 mm x 73.5 mm x 16 mm | 230 g | 2 GB RAM / 16 GB ROM | 4.7″ IPS panel | Four keys on front side |
Micro USB 2.0, Docking connector for charging, 3.5mm headphone jack Android 7.0 Nougat (GMS) |
| Nautiz X4 | 156 mm x 74 mm x 25.5 mm | 330 g | 512 MB RAM/1 GB Flash | 3.5″ VGA High Brightness, sunlight-readable resistive touch | Numeric or QWERTY |
Micro USB 2.0, OTG, Docking connector USB Client/Host connection with power input, 3.5mm headset connection, Ethernet (via optional desktop cradle or docking station accessory) Windows Embedded Handheld 6.5 Professional, Android 4.2.2 (Non-GMS/Google Play version) |
| Nautiz X8 | 190.9 mm x 79.7 mm x 34.6 mm | 490 g | 1 GB RAM/4 GB iNAND Flash | 4.7″ FWVGA capacitive multi-touch | Numeric with 3 programmable function keys |
USB A Host, USB micro (PC sync and charging), DB9 RS-232 serial, 3.5 mm headset (stereo and mic) Windows Embedded Handheld 6.5.3 |
| Nautiz X9 | 165.8 mm x 86 mm x 25.5 mm | 385 g | 2 GB RAM / 16 GB Flash | 5” capacitive touch | On-screen keypad |
Micro USB 2.0, High Speed / OTG, Dock connector for charging, 3.5 mm headset connection Android 7.0 Nougat (GMS) |
Nautiz Rugged Smartphones

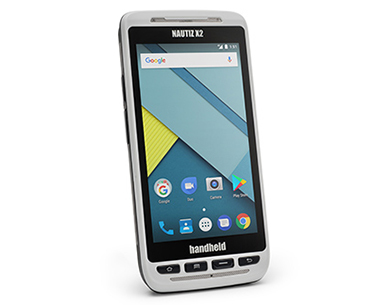

Nautiz X2 Handheld
The Nautiz X2 is the ideal handheld for today’s mobile workforce. With enterprise-level capabilities, it can handle all your tasks – and your rough-and-tumble environments.
The Nautiz X2 is the ideal handheld for today’s mobile workforce. With enterprise-level capabilities, it can handle all your tasks – and your rough-and-tumble environments. Plus it offers the portability, feel and sophistication of an Android smartphone. All this, and it’s the best value in the market.
The Nautiz X2 is a true all-in-one: a computer, a scanner, a camera and a 4G/LTE phone.
Accomplish your daily tasks with the power of a quad-core processor and easy-to-use Android 7.0 (Nougat) OS. But then add a high-quality, high-speed 1D/2D scanner with three dedicated scan buttons. The integrated camera offers the clarity and versatility of 8 megapixels, with autofocus and flash. And, to top it off, the Nautiz X2 has the kind of phone functionality you would expect from a consumer smartphone. Google GMS sets the Nautiz X2 apart from other enterprise handhelds, allowing you to download Play Store apps and use Google Maps. The Nautiz X2 is a rugged superstar with efficiency at its core.
Specifications:
| Size | 150 mm x 73.5 mm x 16 mm (5.9” x 2.89” x 0.62”) |
| Weight | 230 g (8.11 oz) |
| Processor | Quad-core ARM Cortex-A53 1.3 GHz |
| Memory/Disk | 2 GB RAM / 16 GB ROM |
| Operating System | Android 7.0 Nougat (GMS) |
| Screen | 4.7″ IPS panel 1280×720 |
| Keypad | Four keys on front side |
| Battery | Lithium polymer rechargeable 3300 mAh (12.21 Wh) |
| Connections | Micro USB 2.0 Docking connector for charging 3.5mm headphone jack |
| I/O slot | SIM (user accessible) MicroSDHC slot (user accessible) |
| Communication | |
| Audio | Built-in microphone |
| PAN | BT 4.0 LE |
| Cellular (WWAN) | GSM HSPA+ (3G) LTE (4G) |
| Wireless LAN | 802.11 a/b/g/n (Dual-band WLAN: 2.4G+5G) |
| NFC | NFC 13.56MHz ISO14443A/14443B/15693 |
| Camera | 8 megapixel camera with autofocus and LED flash |
| Scanner | 1D Laser scanner (Motorola SE965HP) or 1D/2D Imager (Honeywell N6603) |
| Sensors | GPS/GLONASS Accelerometer Light/Proximity |
| Environment | |
| Operating | -20°C to 50°C (-4°F to 122°F) MIL-STD-810G, Method 501.5 Procedure II |
| Storage | -20°C to 60°C (-4°F to 140°F) MIL-STD-810G, Method 501.5/502.5 Procedure I |
| Drop | 26 drops from 1.22 m (ft) MIL-STD-810G, Method 516.6 Procedure IV |
| Vibration | MIL-STD-810G, Method 514.6 Procedures I & II |
| Sand & Dust | IP65, IEC 60529 |
| Water | IP65, IEC 60529 |
| Humidity | 0 ～ 95% (non-condensing) MIL-STD-810G, Method 507.5 |
| Altitude | 4572 m (15.000 ft) MIL-STD-810G, Method 500.5 Procedure I |
Handheld Nautiz X2 Review (opens in a new tab)
Data sheet on Nautiz X2 (pdf, opens in a new tab)
Nautiz X2 Handheld Options & Accessories
Options for Nautiz X2
NX2-B-RF1-1D G Scanner 1D/SE 965HP, 4G/EU, BT,WLAN, Camera, NFC, GPS, battery. AC adapter incl. dock connector with power plugs EU, US, UK, AU, wrist strap and quick start guide: $1,342.97+GST (6/19)
NX2-B-RF1-2D G Imager 2D/N6603, 4G/EU, BT,WLAN, Camera, NFC, GPS, battery. AC adapter incl. dock connector with power plugs EU, US, UK, AU, wrist strap and quick start guide: $1,548.97
Nautiz X2 HandHeld Terminal Accessories
NX2-1030 C Nautiz X2 backpack LF RFID reader/writer 125/134,2 kHz: $494.25
NX-2001 C DC-12V Direct cigarette lighter cable: $53.41
NX2-1002 C Nautiz X2 vehicle cradle 12-24VDC: $133.75
NX2-1002-PB C Nautiz X2 vehicle cradle 12-24VDC, compatible with NX2-1041: $133.75
USB-HWK-3 C Hard-wire installation kit for vehicle cradle 12-24V: $46.20
NX-1018 C Suction mount and arm for vehicle cradle: $44.14
NX-1019 C Proclip mount and arm for vehicle cradle, state car / year /model: $46.20
NX2-1004 C Nautiz X2 High capacity battery (3.7V, 3300 mAh, 12.21Wh): $117.27
NX2-1005 C Nautiz X2 AC adapter for STD battery incl. dock connector with power plugs EU, US, UK, AU: $77.10
NX2-B-1005 C Nautiz X2 AC adapter for EXT battery incl. dock connector with power plugs EU, US, UK, AU: $77.10
NX2-1055 C Nautiz X2 Pistol Grip with charging cradle and battery: $380.95
NX2-B-1015 C Nautiz X2 4 slot cradle. Charging only. EU, US, UK, AUS plugs: $298.55
NX2-2006 C Nautiz X2 Copter Screen Protector: $35.90
NX2-1041 C Nautiz X2 Protective boot with handstrap and stylus pen holder: $58.56
NX2-1007 C Nautiz X2 Desktop cradle with USB, battery slot: $101.82
NX2-1044 C Nautiz X2 Desktop cradle compatible with NX2-1055, NX2-1041: $97.70
NX2-2020 C Nautiz X2 Carry case: $82.25
NX2-EU-1043 C Same as NX2-1055 + UHF with 865-867MHz EU antenna: $1,475.84
NX2-NA-1043 C Same as NX2-1055 + UHF with 902-928MHz NA/SA antenna: $1,475.84
NX2-1024 C Nautiz X2 Wrist strap: $22.51
NX-1010 C USB A to micro USB Cable: $21.48
NX-1011 C Capacitive stylus pen and string: $31.78
HHSTYLUS-02 C Capacitive “thin tip” passive stylus pen and string: $35.90
NX-1013 C In Ear microphone headset: $33.84
K513713A X NX2 Cover for Wrist Mount: $230.00
K513714A-M X NX2 Wrist mount – medium: $325.00
K513714A-L X NX2 Wrist Mount – Large: $325.00
2286-NX2TRIGGER X NX2 Trigger with Cable: $245.00

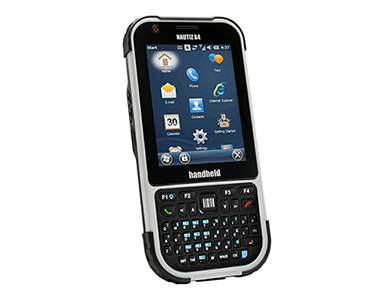

Nautiz X4 Handheld
The NAUTIZ X4 is a rugged barcode scanner and rugged handheld combination that can help you get the efficiency gains you need. With its integrated scanner and IP65 design the Nautiz X4 thrives in your tough conditions.
The NAUTIZ X4 is a rugged barcode scanner and rugged handheld combination that can help you get the efficiency gains you need. With its integrated scanner and IP65 design the Nautiz X4 thrives in your tough conditions. It’s packed with features, it’s compact and truly portable, and it offers a reliable computing solution for challenging worksite environments.
The Nautiz X4 has all you need for work on the go. It features a high-brightness resistive touchscreen for a generous and practical mobile workspace, without sacrificing portability — this ultra-rugged handheld weighs just 330 grams (11.6 ounces). The unit comes complete with either a high-performance laser scanner or 2D imager for super-fast and accurate scanning and barcoding tasks. It also features a 5MP camera with auto focus and LED Flash. An integrated GPS receiver by u-blox®, the global leader in positioning technology for professional field use, offers built-in navigation functionality. Multiple connectivity options such as high-powered 3G and Wi-Fi keep you connected, everywhere and always.
The feature-rich Nautiz X4 runs Android 4.2 or Windows Embedded Handheld 6.5 operating system. A high-speed 1 GHz processor, 512 MB of RAM and 1 GB of Flash memory make sure this device keeps up with every task you throw its way.
Specifications:
| Size | 156 mm x 74 mm x 25.5 mm (6.1″ x 2.9″ x 1.0″) |
| Weight | 330 g (11.6 oz) |
| Processor | Texas Instruments AM3715 1 GHz |
| Memory/Disk | 512 MB RAM/1 GB Flash |
| I/O slot | SIM (user accessible) MicroSD/MicroSDHC slot (user accessible) |
| Operating System | Windows Embedded Handheld 6.5 Professional, Android 4.2.2 (Non-GMS/Google Play version) |
| Screen | 3.5″ VGA High Brightness, sunlight-readable resistive touch |
| Keypad | Numeric or QWERTY |
| Battery | Li-ion rechargeable 4000 mAh (14.8 Wh) |
| Connections | Micro USB 2.0 OTG Docking connector USB Client/Host connection with power input 3.5mm headset connection Ethernet (via optional desktop cradle or docking station accessory) |
| Communication | |
| Audio | Built in: Handset Receiver, Loud speaker, Mic, Vibration function |
| PAN | BT 2.1 EDR |
| Cellular (WWAN) | 3.8G GSM HSPA+/HSUPA or CDMA EVDO Rev. A, voice and data. Verizon-certified |
| Wireless LAN | 802.11 b/g/n; WEP / WPA / WPA2 / WEP, RC4 Algorithm / TKIP, RC4 Algorithm / AES, Rijndael Algorithm EAP-FAST / EAP-TLS / EAP-TTLS / PEAP-GTC / PEAP-MSCHAPv2 / PEAP-TLS / LEAP |
| Navigation | Integrated with u-blox® GPS |
| Camera | 5 megapixel camera with autofocus and LED Flash |
| Scanner | 1D Laser scanner (Honeywell N4313) or 2D Imager (Honeywell N560x – Gen6) |
| Environment | |
| Operating | -20°C to 55°C (-4°F to 131°F), MIL-STD-810G, Method 501.5 Procedure II, MIL-STD-810G, Method 502.5 Procedure II, III |
| Storage | -25°C to 70°C (-13 °F to 158 °F), MIL-STD-810G, Method 501.5 Procedure I, MIL-STD-810G, Method 502.5 Procedure I |
| Drop | 26 drops from 1.22 m (4 ft) to concrete, MIL-STD-810G, Method 516.6, Procedure IV Tumble: 500 times, 1.0-meter tumbles per IEC 60068-2-32 specification |
| Vibration | MIL-STD-810G, Method 514.6, Procedures I, II |
| Sand & Dust | IP65, IEC 60529 |
| Water | IP65, IEC 60529 |
| Humidity | MIL-STD-810G, Method 507.5 |
| Altitude | 4572 m (15.000 ft) MIL-STD-810G, Method 500.5 Procedure I |
Handheld Nautiz X4 Review (opens in a new tab)
Data sheet on Nautiz X4 (pdf, opens in a new tab)
Nautiz X4 Handheld Options & Accessories
Options for Nautiz X4 HandHeld:
NX4-1DGNW G Nautiz NX4 – OS – Windows WEH 6.5 1D Scanner, 3G, Wlan, Bt, GPS, Camera, Numeric Keyboard: $1,857.97+GST (6/19)
NX4-1DCNW G Nautiz NX4 – OS – Windows WEH 6.5, 1D Scanner, CDMA, Wlan, Bt, GPS, Camera , Numeric Keyboard: $1,857.97
NX4-2DGNW G Nautiz NX4 – OS – Windows WEH 6.5 2D Imager 5600 , 3G, Wlan, Bt, GPS, Camera, Numeric keyboard: $2,063.97
NX4-2DGQW G Nautiz NX4 – OS – Windows WEH 6.5, 2D Imager 5600 , 3G, Wlan, Bt, GPS, Camera, Qwerty Keyboard: $2,063.97
NX4-1DGNA G Nautiz NX4 – OS – Android, 1D Scanner, 3G, Wlan, Bt, GPS, Camera, Numeric Keyboard: $1,857.97
NX4-1DCNA G Nautiz NX4 – OS – Android, 1D Scanner, CDMA, Wlan, Bt, GPS, Camera , Numeric Keyboard: $1,857.97
NX4-2DGNA G Nautiz NX4 – OS – Android, 2D Imager 5600 , 3G, Wlan, Bt, GPS, Camera, Numeric keyboard: $2,063.97
NX4-2DGQA G Nautiz NX4 – OS – Android, 2D Imager 5600 , 3G, Wlan, Bt, GPS, Camera, Qwerty Keyboard: $2,063.97
NAUTIZ X4 HandHeld Terminal Accessories:
NX-2001 C DC-12V Direct Cigarette Lighter Cable: $53.41
NX4-1002 C Nautiz X4 vehicle cradle with micro USB. 9-30VDC cigarette plug: $196.58
NX4-1003 C Nautiz X4 Vehicle cradle, passive: $118.30
NX-1051 C USB micro-A to USB-A female, for NX3-1002, NX4-1002 and NX5-2002: $24.57
NX-1018 C Nautiz Suction mount and Arm for Vehicle cradle: $44.14
NX-1019 C Proclip mount and Arm for Vehicle Cradle, State Car / Year /Model: $46.20
NX4-1004 C Nautiz X4 High Capacity Battery 3.7V (4000mAh): $138.90
NX-1005 C Nautiz X4/X8 AC charger for direct connection to PDA. 5V 1.8A/100-240V: $68.86
NX4-1009 C Nautiz X4 AC charger for Desktop cradle (Sparepart) 5V 4.0A/100-240V: $81.22
NX4-1006 C Nautiz X4 LCD Protection UV Film, 1 Piece: $14.27
NX4-1007 C Nautiz X4 Desktop cradle with USB, Battery Slot, AC charger NX4-1009 included: $147.14
NX4-1008 C Nautiz X4 Desktop cradle with USB/Ethernet,Battery slot, AC charger NX4-1009 included: $186.28
NX4-2015 C Nautiz X4 4 slot cradle. Charging only. EU, US, UK, AUS plugs: $458.20
NX-2020 C Carry Case, Open type, Black: $71.95
NX4-2021 C Carry Case, With Metal knob and Ratchet clip: $82.25
NX-1013 C In Ear microphone headset: $33.84
NX4-1023 C Nautiz X4 Hand strap, User changeable: $25.60
NX4-1024 C Nautiz X4 Wriststrap: $19.42
NX-1010 C USB A to micro USB Cable: $21.48
NX4-1011 C Nautiz X4 Stylus Pen: $17.36
Nautiz X8 Handheld
The Nautiz X8 rugged handheld delivers the largest, most brilliant capacitive touchscreen in its class. This rugged PDA offers an unprecedented combination of processing power, connectivity and a tough IP67 ruggedness rating.
The Nautiz X8 rugged handheld delivers the largest, most brilliant capacitive touchscreen in its class. This rugged PDA offers an unprecedented combination of processing power, connectivity and a tough IP67 ruggedness rating. The best ultra-rugged data collector available!
The Nautiz X8 won’t just keep up with you — it’ll lead the way. This dynamic handheld features a high-speed Texas Instruments 4470 dual-core 1.5 GHz processor, 1 GB of RAM, 4 GB of iNAND Flash and a 5200 mAh Li-ion battery that lasts up to 12 hours on a single charge. A choice of operating systems — Android 4.2.2 or Windows Embedded Handheld 6.5.3 — allows you to choose the most suitable platform for your needs.
The Nautiz X8 offers an exceptional combination of connectivity options and standard features, including a dedicated u-blox GPS receiver, BT 2.0 and 802.11b/g/n WLAN functionality. A built-in 8-megapixel camera with autofocus and an LED flash lets you capture visual data quickly and easily, and connectivity through GSM/UMTS or CDMA phone data transmission keeps you connected wherever you go. Measure acceleration and orientation with the built-in G-sensor/accelerometer and gyroscope, or navigate with the integrated compass and altimeter. This handheld also features an open architecture and an extension cap system that lets you connect additional hardware such as sensors, radios and other add-ons.
Specifications:
| Size | 190.9 mm x 79.7 mm x 34.6 mm (7.5″ x 3.1″ x 1.3″) |
| Weight | 490 g (17.3 oz) (including battery and hand strap) |
| Processor | Texas Instruments 4470 dual-core 1.5 GHz |
| Memory/Disk | 1 GB RAM/4 GB iNAND Flash |
| Operating System | Windows Embedded Handheld 6.5.3 Android 4.2.2 (Non-GMS/Google Play version) |
| Screen | 4.7″ FWVGA (854×480); IPS; 600 nits, capacitive multi-touch Asahi Dragontrail chemically strengthened glass |
| Keypad | Numeric with 3 programmable function keys |
| Battery | Li-Ion, 3.7V 5200 mAh (19.2 Wh) (Warm-swappable) with smart gauge |
| Connections | USB A Host USB micro (PC sync and charging) DB9 RS-232 serial 3.5 mm headset (stereo and mic) |
| I/O slot | SIM (user accessible) MicroSD/MicroSDHC slot |
| Expansion | Embedded expansion connector for custom hardware integrations in conjunction with expansion cap. USB Host, serial, and 3.3v/5v power connections available via proprietary connector |
| Communication | |
| Audio | Built in: Receiver, loud-speaker; mic |
| PAN | BT Class 2 (10 m), v3.0 in Android OS and v2.0 in Windows Mobile OS |
| Cellular (WWAN) | Voice and data, 3.8G GSM HSPA+/HSUPA or CDMA EVDO Rev. A. Verizon-certified |
| Wireless LAN | 802.11 b/g/n |
| Navigation | Integrated with stand-alone u-blox® GPS |
| Camera | 8 megapixel rear-facing camera with autofocus and LED illumination |
| Indicators | LEDs: 1. Charge state, 2. GPS, 3. Notification; Vibration motor |
| Sensors | 3-axis accelerometers 3-axis gyroscope Ambient light sensor Digital compass Altimeter/barometer Proximity Ambient temperature |
| Environment | |
| Operating | -30°C to 60°C (-22°F to 140°F), MIL-STD-810G, Method 501.5/502.5 Procedure II and III /td> |
| Storage | -40°C to 70°C, MIL-STD-810G, Methode 501.5/502.5, Prozedur I |
| Drop | 1.22 m (4 ft) MIL-STD-810G, Method 516.6 Procedure IV |
| Vibration | MIL-STD-810G, Method 514.6, Procedure I and II, Category 5 |
| Sand & Dust | IP67 |
| Water | IP67 |
| Humidity | MIL-STD-810G, Method 507.5 Procedure II |
| Altitude | 4572 m (15.000 ft) MIL-STD-810G, Method 500.5 Procedure I |
| Solar Exposure | Survives prolonged UVB exposure, MIL-STD-810G, Method 505.5, Procedure II |
| Temperature Shock | Cycles between -22 F and 140 F (-30 C and +60 C), MIL-STD-810G, Method 503.5, Procedure I-C |
| Options | SKUs: Verizon CDMA, GSM, 2d imager expansion pack, LRBT expansion pack |
Handheld Nautiz X8 Review (opens in a new tab)
Data sheet on Nautiz X8 (pdf, opens in a new tab)
Nautiz X8 Handheld Options & Accessories
Options for Nautiz X8 HandHeld:
NX8-BW G Nautiz X8 – OS – Windows WEH 6.5.3 -1.5Ghz,1Gb/4Gb, Wlan, Bt, 8MP Camera, GPS, compass, altimeter and G-Sensor: $1,857.97+GST (6/19)
NX8-GW G Nautiz X8 – OS – Windows WEH 6.5.3 – 1.5Ghz,1Gb/4Gb, 3G Wan, Wlan, Bt, 8MP Camera, GPS, compass, altimeter and GSensor: $2,372.97
NX8-BA G Nautiz X8 – OS – Android 4.2.2 – 1.5Ghz,1Gb/4Gb, Wlan, Bt, 8MP Camera, GPS, compass, altimeter and G-Sensor: $1,857.97
NX8-GA G Nautiz X8 – OS – Android 4.2.2 – 1.5Ghz,1Gb/4Gb, 3G Wan, Wlan, Bt, 8MP Camera, GPS, compass, altimeter and G-Sensor: $2,372.97
NAUTIZ X8 HandHeld Terminal Accessories:
MSD-8GB-U C 8 Gbytes Micro-SD Flashdisk, Ultra II (Micro With SD Adapter): $47.23
NX-2001 C Nautiz X1/X4/X8 DC-12V Direct Cigarette Lighter Cable: $53.41
NX8-1003 C Passive Holder for mount: $163.62
NX-1018 C Suction mount and arm for NX8-1003, NX5-2002, NX3-1002, NX1-1002: $44.14
NX-1019 C Proclip mount and Arm for NX8-1003, NX5-2002, NX3-1002, NX1-1002, State Car / Year /Model: $46.20
NX8-1004 C Nautiz X8 High Capacity Battery (5200mAh): $151.26
NX8-1029 C Nautiz X8 Expansion cap: $157.44
NX8-1034 C Nautiz X8 Expansion cap with Window: $242.93
NX8-CAP2D C Nautiz X8 Expansion cap With 2D Barcode Imager: $617.85
NX8-CAPLRBT C Nautiz X8 Expansion cap With long range Bluetooth module: $371.68
NX-1005 C Nautiz X4/X8 AC charger for direct connection to PDA. 5V 1.8A/100-240V, Spare unit: $68.86
NX8-1042 C Nautiz X8 AC charger for charging for two batteries: $185.25
NX8-2020 C Nautiz X8 Carry Case, Open type: $148.17
NX8-2021 C Nautiz X8 Carry Case with Ratchet clip: $148.17
NX8-1011 C Nautiz X8 Stylus pen and tether: $22.51
NX8-1023 C Nautiz X8 Handstrap: $22.51
NX8-1006 C Nautiz X8 LCD Protection UV Film, 1 Piece: $25.60
NX-1013 C Nautiz X1/X4/X8 in Ear microphone headset: $33.84
NX-1046 C Pole mount with quick release for 1.25 inch poles: $272.80
NX8-1047 C Nautiz X8 Pole mount for 1 and 1.25 Inch Poles, With Compass, 40-min Vial: $292.37
NX-1010 C Nautiz X4/X8 USB data sync Cable: $21.48
Nautiz X9 Handheld
The Nautiz X9 rugged computer is a tough-as-nails Android PDA that can handle any environment a field worker might encounter. Loaded with all the enterprise-level capabilities available, it delivers best-in-class field performance with a battery that works through even your longest shifts.
The Nautiz X9 rugged computer is a tough-as-nails Android PDA that can handle any environment a field worker might encounter. Loaded with all the enterprise-level capabilities available, it delivers best-in-class field performance with a battery that works through even your longest shifts. The Nautiz X9 is a rugged mobile computer, a data collector or field controller designed for use in the most challenging demanding environments.
The Nautiz X9 is a feature-full rugged handheld with plenty of computing power, a scanner, camera, 4G/LTE phone and NFC, plus all the capabilities that come with the Google GMS license, such as access to Play Store and Google Maps.
This rugged data collector is powered by a quad-core processor and runs Android 7.0 (Nougat). It has plenty of RAM and storage to handle a wide range of field tasks, and it features a sunlight-readable 5-inch capacitive display with multi-touch sensitivity and specially hardened glass.
Specifications:
| Size | 165.8 mm x 86 mm x 25.5 mm (6.6″ x 3.3″ x 1.0″) |
| Weight | 385 g (13.5 oz) |
| Processor | Quad-core ARM Cortex-A53 1.3 GHz |
| Memory/Disk | 2 GB RAM / 16 GB Flash |
| Operating System | Android 7.0 Nougat (GMS) |
| Screen | 5” capacitive touch, 1280×720 resolution |
| Keypad | On-screen keypad |
| Battery | Lithium-ion rechargeable 3.7V 4800 mAh (17.76 Wh), field replaceable |
| Connections | Micro USB 2.0 High Speed / OTG Dock connector for charging 3.5 mm headset connection |
| I/O slot | 1x micro SDHC (32GB) 1x micro-SIM supporting 2G/3G/4G/LTE 1x micro-SIM supporting 2G only |
| Communication | |
| Audio | Built-in microphone/headphone connector |
| PAN | BT 4.1 (BLE, HS compliant) |
| Cellular (WWAN) | 2G, 3G, 4G/LTE |
| Wireless LAN | 802.11 a/b/g/n (Dual-band 2.4GHz+5GHz) |
| NFC | 13.56 MHz, ISO14443A/ISO15693 |
| Scanner | Zebra SE4710 (Optional) |
| Navigation | GPS/GLONASS |
| Camera | Rear facing: 13 megapixel with auto-focus and flash Front facing: 2 megapixel |
| Sensors | Magnetometer (M-Sensor/E-Compass) Accelerometer (G-Sensor) Gyroscope Pressure sensor Proximity sensor Ambient light sensor |
| Environment | |
| Operating | -20°C to 55°C (-4°F to 131°F) MIL-STD-810G, Method 501.5 Procedure II |
| Storage | -20°C to 60°C (-4°F to 140°F) MIL-STD-810G, Method 501.5/502.5 Procedure I |
| Drop | 26 drops from 1.5 m (5 ft) MIL-STD-810G, Method 516.6 Procedure IV |
| Vibration | MIL-STD-810G, Method 514.6 Procedures I & II |
| Sand & Dust | IP67, IEC 60529 |
| Water | IP67, IEC 60529 |
| Humidity | 5% ～ 95% (non-condensing) MIL-STD-810G, Method 507.5 |
| Altitude | 4572 m (15.000 ft) MIL-STD-810G, Method 500.5 Procedure II |
| Included Accessories | Standard battery, USB cable, Ac-adapter, power plugs |
| Options | |
| SKUs | Base unit (includes 4G/EU, BT, WLAN, Camera, NFC, GPS) 2D Imager |
Handheld Nautiz X9 Review (opens in a new tab)
Data sheet on Nautiz X9 (pdf, opens in a new tab)
Nautiz X9 Handheld Options & Accessories
Options for Nautiz X9 HandHeld:
NX9-RF1-A00 G Nautiz X9 LTE – 4G/EU, BT,WLAN, Camera, NFC, GPS, battery (Each unit is supplied with a standard battery, AC adapter with power plugs EU, US, UK, AU): $1,342.97+GST (6/19)
NX9-RF1-AS0 G Nautiz X9 LTE – 4G/EU, BT,WLAN, Camera, NFC, GPS, battery, Imager 2D/SE4710 (Each unit is supplied with a standard battery, AC adapter with power plugs EU, US, UK, AU): $1,548.97
NAUTIZ X9 HandHeld Terminal Accessories:
NX-2001 C DC-12V Direct cigarette lighter cable: $53.41
NX9-1002 C Nautiz X9 vehicle cradle 12-24VDC: $136.84
NX9-1002-LC C Nautiz X9 lockable vehicle cradle 12-24VDC: $206.88
USB-HWK-3 C Hard-wire installation kit for vehicle cradle 12-24V: $46.20
NX-1018 C Suction mount and arm for vehicle cradle: $44.14
NX-1019 C Proclip mount and arm for vehicle cradle, state car / year /model: $46.20
NX9-1004 C Nautiz X9 High capacity battery (3.7V, 4800 mAh, 17.76Wh): $86.37
NX9-1005 C Nautiz X9 AC adapter incl. power plugs EU, US, UK, AU: $35.90
NX9-2006 C Nautiz X9 Copter Screen Protector: $25.60
NX9-1007 C Nautiz X9 Desktop cradle: $126.54
NX9-2021 C Nautiz X9 Carry case with shoulder strap: $93.58
NX-2020 C Carry Case, Open type, Black: $62.68
NX9-1023 C Nautiz X9 Hand strap: $46.20
NX9-1045 C Nautiz X9 Pistol Grip: $246.02
NX-1010 C USB A to micro USB Cable: $21.48
NX-1011 C Capacitive stylus pen and string: $25.60
NX-1046 C Pole mount with quick release for 1.25 inch poles: $272.80
NX-1013 C In Ear microphone headset: $33.84
NX9-1015 C Nautiz X9 Quad battery charger with EU power cord: $225.42
