Multi-Parameter Weather Sensors – Rika
Rika, as a professional automative weather station manufacturer, has been performing perfectly in outdoor & indoor home weather station. The weather monitoring station is used in wide range of industries like agriculture, hydrological monitoring, aquaculture monitoring and home uses.
Scroll down to browse for the sensor or instrument you need, or give us a call to discuss your needs.
On this page:
Other related pages:

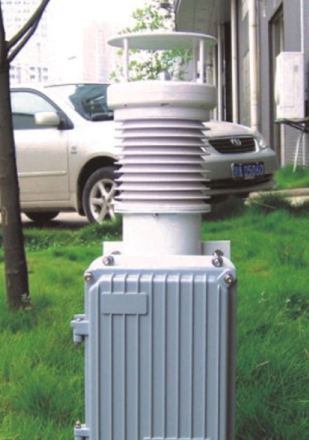

Multi-parameter weather sensors – Rika

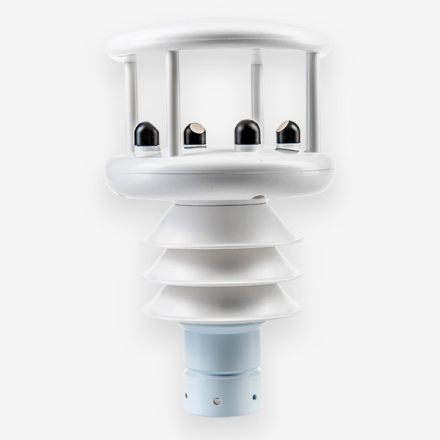

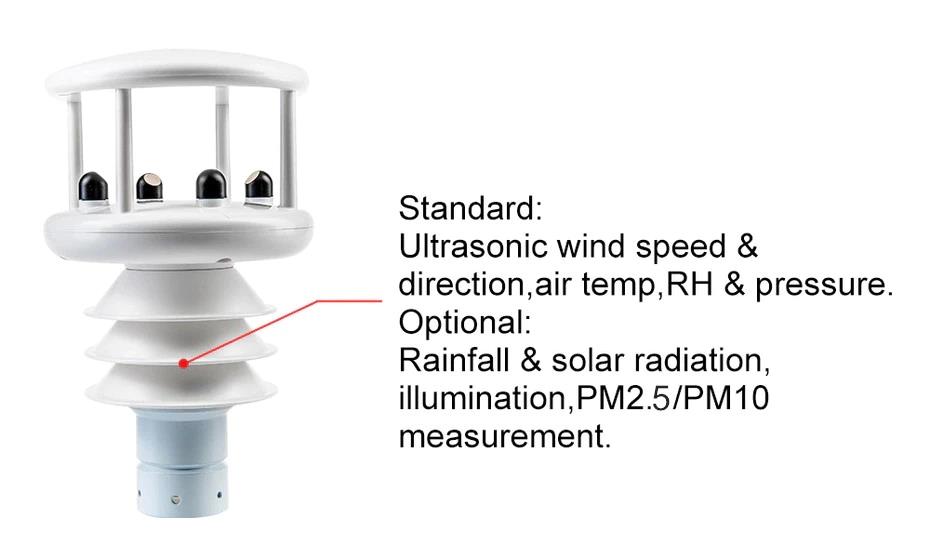

RK900-10 Ultrasonic Automatic Weather Instrument
RK900-10 automatic weather instrument is simultaneously measure the atmospheric temperature, atmospheric humidity, air pressure, wind speed, wind direction, solar radiation, Illuminance/UV, dust concentration and precipitation. Temperature, humidity and air pressure sensor is placed within the radiation shield. Wind speed and direction of ultrasonic principle. 24G radar detection on rainfall, which can quickly detect rainfall and rainfall intensity. Internal GPS global positioning module and electronic compass can be mounted to the system to give a good indication of latitude and longitude and relative speed, which can calculate the real and virtual wind speed and direction, and is especially suitable for installation on motion vector, such as special vehicles or vessels, etc.
Features:
- High accuracy, fast response
- Easy to install, all-weather measurement
- RS485/RS232/SDI-12 output
- No moving parts, maintenance free
- Built-in heating device to ensure the normal work in cold climate
- Use radar measurement of precipitation, accurately reflect the rainfall and start-stop moment
- Can be added the electronic compass, GPS and BDS global positioning module
Applications:
- Unattended meteorological monitoring system
- Mobile meteorological monitoring system
- Electric power safety monitoring
- Solar or wind power generation
- Port and navigation of the ship
- Scenic region
- Meteorological science research
Specifications:
| Measure Item | Primciple | Range | Resolution | Accuracy | |
| Wind Speed | Ultrasonic | 0-60m/s | 0.01m/s | ±3% | |
| Wind Direction | Ultrasonic | 0-360° | 1° | ±3° | |
| Atmospheric temperature | MEMS | -40-+80℃ | 0.1℃ | ±0.3℃ | |
| Atmospheric humidity | MEMS | 0-100%RH | 0.1%RH | ±3% | |
| Atmospheric pressure | MEMS | 150-1100hPa | 0.1hpa | ±1hPa | |
| Precipitation(Rain/Hail/Snow) | Radar | 0-4mm/min | 0.01mm | ±0.4mm | |
| Solar radiation | Silicon-cell | 0-1750W/m2 | 1W/m2 | ±5% | |
| Illuminance | optional | Silicon-cell | 0-20klux | 1lux | ±5% |
| UV | Silicon-cell | 100-200kμW/cm2 | 1μW/cm2 | ±10% | |
| Dust concenttration (PM2.5,PM1) | Photoelectric scattering | 0-2000μg/m3 | 1μg/m3 | ±4% | |
| Supply | 12-24v |
| Output | RS485, RS232,SDI-12 |
| Communication Protocol | Modbus-rtu(default),NMEA-0183,SDI-12 |
| Data update cycle | 1s (default) , other optional |
| Power consumption | <2W,auto-heating power: 6W |
| Operating temperature | -40-+80℃ |
| EMC |
EN61000-6-3 , EN61000-3-3 EN61000-3-2 , EN61000-6-1 |
| IP Rating | IP66 |
| Main material | ABS+ Aluminum alloy |

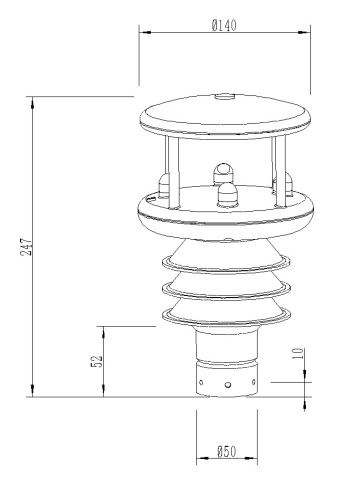

Dimension:
Product Details:
Data sheet on RK900-10 Ultrasonic Automatic Weather Instrument (pdf, opens in a new tab)
