General Description of Datataker data loggers

From two channel data loggers up to systems with hundreds of analog inputs and many digital inputs. These loggers read, return, and/or store analog & digital data in engineering units from just about any electrical sensor or analog instrument. thermocouples, transistor temperature sensors, RTDs, strain gauges, current loop outputs from other instruments, voltages, currents, resistance, frequency, period, etc, (except AC).

AC voltages and currents may be measured by using external signal conditioners to convert to DC signals, or else Modbus transducers such as the Dent PowerScout. (opens in new tab)

Analog input channels can also sense logic level inputs (0/1). Readings are time & date stamped automatically. The loggers are autoranging and auto calibrating and have 15-bit resolution (1:40,000, 1µv). Accuracy is 0.15%, trimmable.

The DT80 series’ Ethernet port can be connected to the internet via standard networks, allowing remote access. The DT80M also includes a built-in 3G modem, allowing remote access as well as SMS alerts.

The digital inputs (with resistor pull-ups) sense ON/OFF states of contacts, etc, or count pulses over a desired period, either resetting or not resetting the counter at the end of each period.

With their alarm channels and digital outputs you can raise alarms (email / SMS / physical digital outputs), control external processes, or even modify the logger’s activity (e.g. scan more frequently, or scan more channels).

Readings may be returned directly or converted to more useful form by changing the span limits or linearising with polynomials within the logger. Also, readings may be averaged, with standard deviation, maximums, minimums, & times these occurred.

The loggers allow calculations to be made within the logger on readings from any channel, or between channels. There are internal variables for intermediate calculations and results, which may be read out or logged to memory. The loggers can determine change and rate of change on any channel, and perform integration.

The data may be either returned to a computer as it is collected (via RS-232 port / USB / Ethernet),
or may be stored in the logger’s own memory for later retrieval.

Internal memory holds approx 10 million readings (DT80 series). The internal flash storage may be upgraded by Esis to allow much more storage than this – please enquire.

Connection to the host computer can be made in several ways: Ethernet, USB, and serial Host Port. A separate USB port on the top allows USB flash drives to be used for extra storage, or automatic unloading of data from the logger (without needing to connect a PC).

The loggers have an in-built battery, allowing stand-alone use. Auxiliary batteries may be connected.

Mains frequency (50Hz) pick-up on the input leads is cancelled out. The reading rate is 25 readings per sec. (The reading rate can be made faster by reducing channel settle time, and integrate period, but the mains rejection is decreased).

What’s NASA doing with a little Aussie logger? Same thing as the West German military, Danish Atomic Energy, General Motors, Volvo, ICI, ESSO, Antarctic bases (60 loggers), sales offices worldwide. Just about all Universities and CSIROs in Australia, many industrial companies, Sydney Water uses over one hundred, Ausgrid & AGL have many.



Easy to setup and control

Most standard data logging configurations can be easily set up using the graphical web-based dEX interface and a standard web browser (requires Flash).

For more complex configurations, a script can be developed using the logger’s own scripting language, which is easy to use and well documented. Esis has extensive experience programming Datataker loggers, please enquire for our rates.



Software

dEX: The loggers themselves include a built-in web server called dEX which allows the logger to be configured, as well as data to be viewed and downloaded. All you need is a standard web browser with Adobe Flash.

The web interface can be accessed when the logger is connected up via Ethernet, or via USB (USB is not available on the DT82E or DT82I). With a USB connection, the logger automatically installs the USB-serial driver and a piece of software called DTUSB which opens a PPP network connection with the logger, and allows it to be accessed via a web browser.

DataTaker Resource CD: Standard Software, Manuals, Support & Training files DTKDSS-CD – included with Datataker as a USB Flash drive

Note: The legacy DeLogger software is no longer shipped with DataTakers.

Datataker Comparison Chart

(table of the various Datataker loggers showing channels & specs).
Example of scripting language
A very simple example of a text program for Datataker:

To read the date, time, then three K type thermocouples every 2 seconds, send the following program to the logger:

R2S 1..3TK These commands mean:

Repeat every 2Sec, ch1 to ch3 Thermocouple K type.

Date and time are returned automatically if desired. These and many other parameters are easily set with software switches.

The data can be returned from the logger in real time, or at a later time from its memory. When logging data to the logger’s own memory, time and date are automatically recorded.

Data can be returned in various forms, for example in column format, which suits display on a dumb terminal:
Date 2/6/2000 (Date & Time may be returned if desired)
Time 00:08:48
1TK 28.4 Deg C (1TK indicates channel 1 with Thermocouple K type etc, etc.)
2TK 29.6 Deg C
3TK 35.2 Deg C

or with numbers only, and any desired delimiter:
00:08:48, 28.4, 29.6, 35.2
00:08:50, 28.5, 29.7, 35.3
00:08:52, 28.6, 29.6, 35.4 etc, etc,
which is suitable for use by a computer program, spreadsheet, etc..

Time can be in hours:min:sec, or just seconds, or decimal hours, and can be either from time of reset, or from last midnight.

Date can be specified, as day number, or dd/mm/yyyy.
The internal real time clock runs from its own battery with ten year life expectancy.

The loggers are highly flexible, and can be set up in all sorts of ways to suit the task to be done.

Datataker Applications

Unattended rainfall simulation Datatakers monitor soil moisture, control sprinkler valves.

Pharmaceutical production Datatakers monitor and control plant temperature and humidity, provide printed proof of consistent environment.

Hospital power supply Datataker monitors natural-gas-powered primary generator, generates alarms, provides long term trending from stored data. Logger sends temperature, pressures, flow, speed, current and voltage to printer every 10 minutes.

Fire fighting foam Datataker activates extinguisher, makes rapid measurements of fire intensity for repeatable testing of foams.

Fishing net behaviour Datataker on fishing vessel records winch speed, net drag, length of net in water for long term study.

Cotton production Datataker monitors rotational speed from pulse outputs of 30 machines.

Cool rooms Datatakers replace chart recorders by using 4-wire PT100 RTD method for reliable, accurate temperature measurement. Datataker software used for trending and archiving.

Process monitoring alongside PLCs Datatakers measure analog processes in aluminium smelter, feed data to BASIC modules connected to PLCs via RS-232. Cheaper than using PLC analog modules. Datatakers also log data.

Water usage in coal mine Every hour, Datataker calculates and logs average, maximum and minimum flow rates from 4–20mA flowmeter. Datataker scales the signal to engineering units and  integrates the values, giving an accumulative total.

Network monitoring of shipping containers Several Datatakers, each with CEMs attached, are networked to measure and record hundreds of RTDs in refrigerated shipping containers aboard
ships travelling between Australia and Europe. Host computer can address each RTD directly.

Black box recorder Datataker in portable enclosure is temporarily installed to “lie in wait” for intermittent air conditioning failures.

QA in foam packaging Portable Datataker measures and logs signals from thermocouples embedded in polystyrene samples (indicates curing progress). Logged data periodically downloaded
to computer for QA records.

Chocolate transport Portable Datatakers in problem transport vehicles record temperatures, door open/close, refrigeration on/off. Logger memory cards returned to head office for data evaluation. Spoiled chocolate traced to drivers turning refrigeration units off.

Combustion heater emissions and efficiency Datataker logs fire box/flue temperatures and emissions to provide proof for various countries’ regulatory standards. Real-time plotting via host computer optimises heater design.

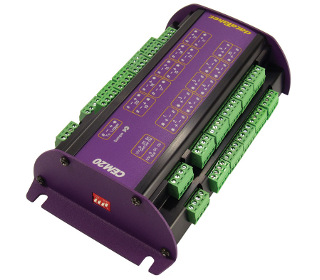

Flammability testing Networked Datatakers, each with two CEMs, log data from hundreds of thermocouples in furnace room during testing of building materials.

Yacht development Datataker measures and logs mast flex (from strain gauges) to on-deck laptop computer for immediate feedback and later analysis. Hull temperatures also monitored during curing.

Petrol pump product development Datatakers installed in petrol pumps log temperature, pressure, flow, nozzle switch start/stop times, number of starts.

Outstation monitoring via modem Datataker in each cellular phone outstation logs temperature, humidity, power supply, equipment on/off. Data is accessed by modem from head office.

Vehicle durability tests Datataker in each test vehicle measures deceleration and acceleration (from piezoresistive accelerometer connected as constant current bridge). Data displayed to driver as bar graph on Datataker Panel-Mount Display fitted to dashboard assists driver in maintaining consistent braking/acceleration. Logger also measures various engine parameters. All data logged to memory card (returned to proving centre after test).

…and many more applications.

DataTaker Data Loggers

Standard models without WiFi or 3G

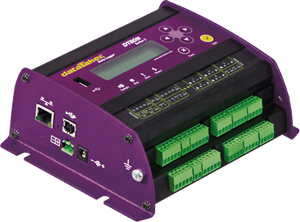

dataTaker® DT80


5-15 analog channels, fully featured
DT80
Click here to show/ hide more info

DT80

Features

  • Universal – compatible with majority of the commercially available sensors
  • Programmable – customised software deployment for changing and challenging requirements
  • High input Impedance – ensure accurate sensor readings
  • Expandable – expandable to 300 analogue inputs with expansion module
  • Programmable analogue output – for connection to SCADA or control application

Versatile Measurement
Connect an array of sensors through the versatile analog and digital channels, high-speed counter inputs, phase encoder inputs and programmable serial sensor channels.

Temperature, voltage, current, 4-20mA loops, resistance, bridges, strain gauges, frequency, digital, serial and calculated measurements can all be scaled, logged and returned in engineering units or within statistical reporting.

Set up sampling, logging, alarm and control tasks to suit your own requirements while interfaces for smart sensors, GPS and other intelligent devices expand the DT80W flexibility.

Local Wireless Access
With wireless access, no need to have physical connection to the logger. Send the program, view and download the data or even modify your setting on nearby PC or Tablet wirelessly either as a Master (Access Point mode) or Slave (Client).

Automatic Data Delivery
On Client mode dataTaker can have access to local router and if the router has internet access it can utilise the DT80W’s automatic data delivery features to schedule your data to be automatically emailed to your inbox every day, week, month or other time interval.

More sophisticated systems can make use of the automatic data delivery features to send logged data to an FTP server.

Easy To Configure
The DT80W is confi gured directly in your web browser using dataTaker’s dEX graphical interface. dEX takes you through the confi guration of your logger, showing you wiring diagrams and allowing you to decide – in as much or as little detail – how you want the system to work, suiting both novice or advanced users.

Applications

  • Meteorological station network
  • Air pollution
  • River floods
  • Water flow
  • Plantation monitoring
  • Wind and solar power monitoring
  • Green houses
  • Power usage or smart grid



Data sheet on dataTaker® DT80 (pdf file opens in new tab)

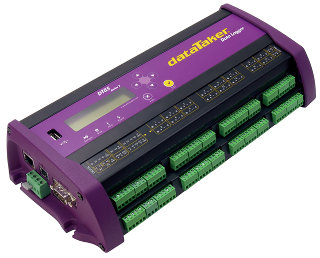

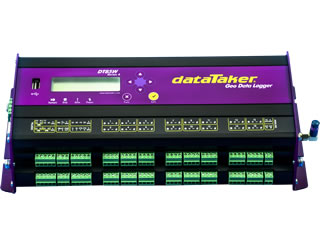

dataTaker® DT85


16-48 analog channels, fully featured
DT85
Click here to show/ hide more info

DT85

Features

  • Universal – compatible with majority of the commercially available sensors
  • Programmable – customised software deployment for changing and challenging requirements
  • High input Impedance – ensure accurate sensor readings
  • Expandable – expandable to 960 analogue inputs with expansion module
  • Programmable analogue output – for connection to SCADA or control application

The Smarter Solution
The dataTaker DT85 smart data logger provides an extensive array of features that allow it to be used across a wide variety of applications. The DT85 is a robust, stand alone, low power data logger featuring USB memory stick support, 18 bit resolution, extensive communications capabilities and built-in display.

The dataTaker DT85’s Dual Channel concept allows up to 32 isolated or 48 common referenced analog inputs to be used in many combinations. With support for multiple SDI-12 sensor networks, Modbus for SCADA systems, FTP and Web interface, 12V regulated output to power sensors, the DT85 is a totally self contained solution.

Versatile Measurement
Connect an array of sensors through the versatile analog and digital channels, high-speed counter inputs, phase encoder inputs and programmable serial sensor channels.

Temperature, voltage, current, 4-20mA loops, resistance, bridges, strain gauges, frequency, digital, serial and calculated measurements can all be scaled, logged and returned in engineering units or within statistical reporting.

Set up sampling, logging, alarm and control tasks to suit your own requirements while interfaces for smart sensors, GPS and other intelligent devices expand the DT85 flexibility.

Superior Data Storage and Communications
With the standard unit able to store up to 10 million data points (expandable) you can log as much or as little as you need. Overwrite or stop logging once allocated memory is full, archive data on alarm event, copy to USB memory or transfer via FTP/ Email, the choice is yours.

Communications features include RS232, USB and Ethernet, connect to the DT85 locally, remotely through a modem or over the Internet. The web interface allows users to configure the DT85, access logged data and see current measurements as mimics or in a list using a web browser.

FTP/ Email provides data to your office over the internet or wireless network, without the need for polling or specific host software.

Applications

  • Meteorological station network
  • Air pollution
  • River floods
  • Water flow
  • Forest fire detection
  • Water pollution
  • Plantation monitoring
  • Wind and solar power monitoring
  • Green houses
  • Power usage or smart grid



Data sheet on dataTaker® DT85 (pdf file opens in new tab)

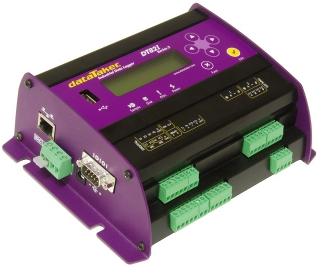

dataTaker® DT82I


2-6 analog channels, low cost industrial model includes Modbus
DT82I
Click here to show/ hide more info

DT82I

Features

  • Universal – compatible with majority of the commercially available sensors
  • Programmable – customised software deployment for changing and challenging requirements
  • High input Impedance – ensure accurate sensor readings
  • Programmable analogue output – for connection to SCADA or control application
  • Lowest cost of dataTaker logger range
  • Low power consumption
  • Maintain most features of full-featured DT80 logger with lower channel counts
  • Suitable for industrial application with two serial “smart sensor” ports

The Smarter Solution
The dataTaker DT82I smart data logger provides an extensive array of features that allow it to be used across a wide variety of applications. The DT82I is a robust, stand alone, low power data logger featuring USB memory stick support, 18 bit resolution, extensive communications capabilities and built-in display. The dataTaker DT82I’s Dual Channel concept allows up to 4 isolated or 6 common referenced analog inputs to be used in many combinations. With support for Modbus for SCADA systems, FTP and Web interface, 12V regulated output to power sensors, the DT82I is a totally self contained solution.

Versatile Measurement
Connect an array of sensors through the versatile analog and digital channels, high-speed counter inputs and programmable serial sensor channels. Temperature, voltage, current, 4-20mA loops, resistance, bridges, strain gauges, frequency, digital, serial and calculated measurements can all be scaled, logged and returned in engineering units or within statistical reporting. Set up sampling, logging, alarm and control tasks to suit your own requirements while interfaces for smart sensors, GPS and other intelligent devices expand the DT82I flexibility.

Superior Data Storage and Communications
With the standard unit able to store up to 10 million data points (expandable) you can log as much or as little as you need. Overwrite or stop logging once allocated memory is full, archive data on alarm event, copy to USB memory or transfer via FTP/ Email, the choice is yours.

Communications features include RS232 and Ethernet, connect to the DT82I locally, remotely through a modem or over the Internet. The web interface allows users to configure the DT82I, access logged data and see current measurements as mimics or in a list using a web browser.

FTP/ Email provides data to your offi ce over the internet or wireless network, without the need for polling or specifi c host software.

Applications

  • Tank Level
  • Toxic gas level
  • Temperature monitoring
  • Power usage and smart grid
  • Wind power generation
  • Process monitoring
  • Machine down time
  • Pressure monitoring



Data sheet on dataTaker® DT82I (pdf file opens in new tab)

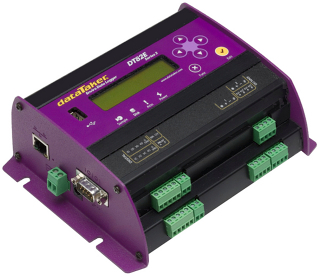

dataTaker® DT82E


2-6 analog channels, low cost environmental model includes SDI
DT82E
Click here to show/ hide more info

DT82E

Features

  • Universal – compatible with majority of the commercially available sensors
  • Programmable – customised software deployment for changing and challenging requirements
  • High input Impedance – ensure accurate sensor readings
  • Programmable analogue output – for connection to SCADA or control application
  • Lowest cost of dataTaker logger range
  • Low power consumption
  • Maintain most features of full-featured DT80 logger with lower channel counts
  • Suitable for environmental application with SDI-12 support

The Smarter Solution
The dataTaker DT82E smart data logger provides an extensive array of features that allow it to be used across a wide variety of applications. The DT82E is a robust, stand alone, low power data logger featuring USB memory stick support, 18 bit resolution, extensive communications capabilities and built-in display.

The dataTaker DT82E’s Dual Channel concept allows up to 4 isolated or 6 common referenced analog inputs to be used in many combinations. With support for 1 SDI-12 sensor networks, Modbus for SCADA systems, FTP and Web interface, 12V regulated output to power sensors, the DT82E is a totally self contained solution.

Versatile Measurement
Connect an array of sensors through the versatile analog and digital channels, high-speed counter inputs, phase encoder inputs and programmable serial sensor channels.

Temperature, voltage, current, 4-20mA loops, resistance, bridges, strain gauges, frequency, digital, serial and calculated measurements can all be scaled, logged and returned in engineering units or within statistical reporting.

Set up sampling, logging, alarm and control tasks to suit your own requirements while interfaces for smart sensors, GPS and other intelligent devices expand the DT82E fl exibility.

Superior Data Storage and Communications
With the standard unit able to store up to 10 million data points (expandable) you can log as much or as little as you need. Overwrite or stop logging once allocated memory is full, archive data on alarm event, copy to USB memory or transfer via FTP/ Email, the choice is yours.

Communications features include RS232 and Ethernet, connect to the DT82E locally, remotely through a modem or over the Internet. The web interface allows users to configure the DT82E, access logged data and see current measurements as mimics or in a list using a web browser.

FTP/ Email provides data to your offi ce over the internet or wireless network, without the need for polling or specifi c host software.

Applications

  • Weather Station
  • Air pollution
  • Water flow
  • Water pollution
  • Plantation monitoring
  • Green houses
  • Noise level
  • Temperature monitoring



Data sheet on dataTaker® DT82E (pdf file opens in new tab)



Standard models with WiFi

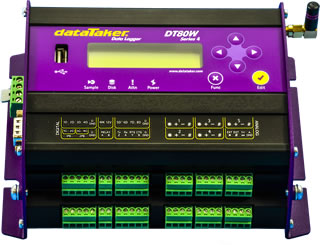

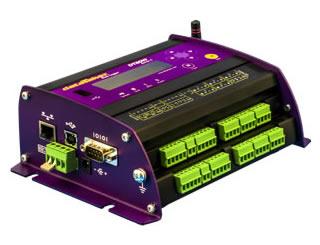

dataTaker® DT80W


5-15 analog channels, fully featured, with WiFi
DT80W
Click here to show/ hide more info

CSK-301 Rugged Silicone Keyboard with Pointer

Features

  • Universal – compatible with majority of the commercially available sensors
  • Programmable – customised software deployment for changing and challenging requirements
  • High input Impedance – ensure accurate sensor readings
  • Expandable – expandable to 300 analogue inputs with expansion module
  • Programmable analogue output – for connection to SCADA or control application
  • Integrated WIFI

Versatile Measurement
Connect an array of sensors through the versatile analog and digital channels, high-speed counter inputs, phase encoder inputs and programmable serial sensor channels.

Temperature, voltage, current, 4-20mA loops, resistance, bridges, strain gauges, frequency, digital, serial and calculated measurements can all be scaled, logged and returned in engineering units or within statistical reporting.

Set up sampling, logging, alarm and control tasks to suit your own requirements while interfaces for smart sensors, GPS and other intelligent devices expand the DT80W flexibility.

Local Wireless Access
With wireless access, no need to have physical connection to the logger. Send the program, view and download the data or even modify your setting on nearby PC or Tablet wirelessly either as a Master (Access Point mode) or Slave (Client).

Automatic Data Delivery
On Client mode dataTaker can have access to local router and if the router has internet access it can utilise the DT80W’s automatic data delivery features to schedule your data to be automatically emailed to your inbox every day, week, month or other time interval.

More sophisticated systems can make use of the automatic data delivery features to send logged data to an FTP server.

Easy To Configure
The DT80W is configured directly in your web browser using dataTaker’s dEX graphical interface. dEX takes you through the confi guration of your logger, showing you wiring diagrams and allowing you to decide – in as much or as little detail – how you want the system to work, suiting both novice or advanced users.

Applications

  • Meteorological station network
  • Air pollution
  • River floods
  • Water flow
  • Forest fire detection
  • Water pollution
  • Plantation monitoring
  • Wind and solar power monitoring
  • Green houses
  • Power usage or smart grid



Data sheet on dataTaker® DT80W (pdf file opens in new tab)



Standard models with 3G Modem

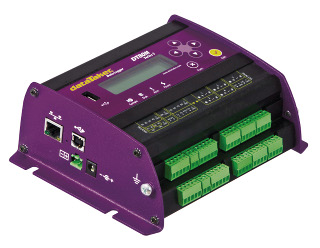

dataTaker® DT80M


5-15 analog channels, fully featured, with 3G Modem.
Esis recommends that instead of DT80M, pair a DT80 with a suitable industrial 4G router such as Netcomm NTC-221. Please contact us for more details.
DT80M
Click here to show/ hide more info

DT80M

Esis recommends that instead of DT80M, pair a DT80 with a suitable industrial 4G router such as Netcomm NTC-221. Please contact us for more details.

Features

  • Universal – compatible with majority of the commercially available sensors
  • Programmable – customised software deployment for changing and challenging requirements
  • High input Impedance – ensure accurate sensor readings
  • Expandable – expandable to 300 analogue inputs with expansion module
  • Programmable analogue output – for connection to SCADA or control application
  • Integrated cellular modem for remote monitoring application
  • No hassles of integrating additional equipment and cables

Versatile Measurement
Connect an array of sensors through the versatile analog and digital channels, high-speed counter inputs, phase encoder inputs and programmable serial sensor channels.

Temperature, voltage, current, 4-20mA loops, resistance, bridges, strain gauges, frequency, digital, serial and calculated measurements can all be scaled, logged and returned in engineering units or within statistical reporting.

Set up sampling, logging, alarm and control tasks to suit your own requirements while interfaces for smart sensors, GPS and other intelligent devices expand the DT80Mflexibility.

Designed For Remote Applications
The dataTaker DT80M intelligent data logger is a fully featured low-powered logging platform with an integrated cellular modem, making it perfect for remote applications. The rugged design and wide operating temperature range of the DT80M provides reliable operation in virtually any environment.

The DT80M’s perfect balance of performance with low-power also allows you to use a smaller solar panel without compromising on functionality.

Automatic Data Delivery
Forget travelling long distances to get your data. Utilise the DT80M’s automatic data delivery features to schedule your data to be automatically emailed to your inbox every day, week, month or other time interval.

More sophisticated systems can make use of the automatic data delivery features to send logged data to an FTP server. Alarm conditions can also trigger data delivery in addition to sending alarm messages to multiple email addresses or mobile phones.

Easy To Configure
The DT80M is confi gured directly in your web browser using dataTaker’s dEX graphical interface. dEX takes you through the confi guration of your logger, showing you wiring diagrams and allowing you to decide – in as much or as little detail – how you want the system to work, suiting both novice or advanced users.

Using the internal modem you can even re-confi gure your system remotely over the internet if required.

Applications

  • Meteorological station network
  • Air pollution
  • River floods
  • Water flow
  • Forest fire detection
  • Water pollution
  • Plantation monitoring
  • Wind and solar power monitoring
  • Green houses
  • Power usage or smart grid



Data sheet on dataTaker® DT80M (pdf file opens in new tab)

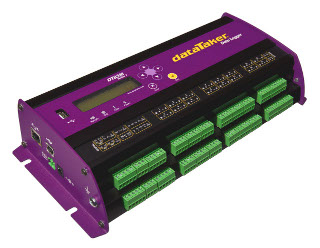

dataTaker® DT85M


16-48 analog channels, fully featured, with 3G Modem

Esis recommends that instead of DT85M, pair a DT85 with a suitable industrial 4G router such as Netcomm NTC-221. Please contact us for more details.
DT85M
Click here to show/ hide more info

DT85M

Esis recommends that instead of DT85M, pair a DT85 with a suitable industrial 4G router such as Netcomm NTC-221. Please contact us for more details.

Features

  • Universal – compatible with majority of the commercially available sensors
  • Programmable – customised software deployment for changing and challenging requirements
  • High input Impedance – ensure accurate sensor readings
  • Expandable – expandable to 960 analogue inputs with expansion module
  • Programmable analogue output – for connection to SCADA or control application
  • Integrated cellular modem for remote monitoring application
  • No hassles of integrating additional equipment and cables

Versatile Measurement
Connect an array of sensors through the versatile analog and digital channels, high-speed counter inputs, phase encoder inputs and programmable serial sensor channels.

Temperature, voltage, current, 4-20mA loops, resistance, bridges, strain gauges, frequency, digital, serial and calculated measurements can all be scaled, logged and returned in engineering units or within statistical reporting.

Set up sampling, logging, alarm and control tasks to suit your own requirements while interfaces for smart sensors, GPS and other intelligent devices expand the DT85M flexibility.

Designed For Remote Applications
The dataTaker DT85M intelligent data logger is a fully featured low-powered logging platform with an integrated cellular modem, making it perfect for remote applications. The rugged design and wide operating temperature range of the DT85M provides reliable operation in virtually any environment.

The DT85M’s perfect balance of performance with low-power also allows you to use a smaller solar panel without compromising on functionality.

The DT80M’s perfect balance of performance with low-power also allows you to use a smaller solar panel without compromising on functionality.

Automatic Data Delivery
Forget travelling long distances to get your data. Utilise the DT85M’s automatic data delivery features to schedule your data to be automatically emailed to your inbox every day, week, month or other time interval.

More sophisticated systems can make use of the automatic data delivery features to send logged data to an FTP server. Alarm conditions can also trigger data delivery in addition to sending alarm messages to multiple email addresses or mobile phones.

Easy To Configure
The DT85M is configured directly in your web browser using dataTaker’s dEX graphical interface. dEX takes you through the configuration of your logger, showing you wiring diagrams and allowing you to decide – in as much or as little detail – how you want to the system to work, suiting both novice or advanced users.

Using the internal modem you can even re-configure your system remotely over the internet if required.

Applications

  • Meteorological station network
  • Air pollution
  • River floods
  • Water flow
  • Forest fire detection
  • Water pollution
  • Plantation monitoring
  • Wind and solar power monitoring
  • Green houses
  • Power usage or smart grid



Data sheet on dataTaker® DT85M (pdf file opens in new tab)

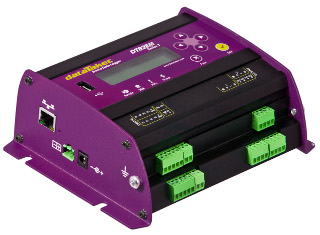

dataTaker® DT82EM


2-6 analog channels, low cost environmental model includes SDI, with 3G Modem
Esis recommends that instead of DT82EM, pair a DT82E with a suitable industrial 4G router such as Netcomm NTC-221. Please contact us for more details.
DT82EM
Click here to show/ hide more info

DT82EM

Esis recommends that instead of DT82EM, pair a DT82E with a suitable industrial 4G router such as Netcomm NTC-221. Please contact us for more details.

Features

  • Universal – compatible with majority of the commercially available sensors
  • Programmable – customised software deployment for changing and challenging requirements
  • High input Impedance – ensure accurate sensor readings
  • Programmable analogue output – for connection to SCADA or control application
  • Lowest cost of dataTaker logger range
  • Low power consumption
  • Maintain most features of full-featured DT80 logger with lower channel counts
  • Suitable for environmental application with SDI-12 support
  • Integrated cellular modem for remote monitoring application with a fraction of DT80M cost
  • No hassles in integrating additional equipment and cables

Versatile Measurement
Connect an array of sensors through the versatile analog and digital channels, high-speed counter inputs, phase encoder inputs and programmable serial sensor channels.

Temperature, voltage, current, 4-20mA loops, resistance, bridges, strain gauges, frequency, digital, serial and calculated measurements can all be scaled, logged and returned in engineering units or within statistical reporting.

Set up sampling, logging, alarm and control tasks to suit your own requirements while interfaces for smart sensors, GPS and other intelligent devices expand the DT82EM flexibility.

Designed For Remote Applications
The dataTaker DT82EM intelligent data logger is a fully featured low-powered logging platform with an integrated cellular modem, making it perfect for remote applications. The rugged design and wide operating temperature range of the DT82EM provides reliable operation in virtually any environment.

The DT82EM’s perfect balance of performance with low-power also allows you to use a smaller solar panel without compromising on functionality.

Automatic Data Delivery
Forget travelling long distances to get your data. Utilise the DT82EM’s automatic data delivery features to schedule your data to be automatically emailed to your inbox every day, week, month or other time interval.

More sophisticated systems can make use of the automatic data delivery features to send logged data to an FTP server. Alarm conditions can also trigger data delivery in addition to sending alarm messages to multiple email addresses or mobile phones.

Easy to Configure
The DT82EM is confi gured directly in your web browser using dataTaker’s dEX graphical interface. dEX takes you through the confi guration of your logger, showing you wiring diagrams and allowing you to decide – in as much or as little detail – how you want the system to work, suiting both novice or advanced users.

Using the internal modem you can even re-configure your system remotely over the internet if required.

Applications

  • Weather Station
  • Air pollution
  • Water flow
  • Water pollution
  • Plantation monitoring
  • Green houses
  • Noise level
  • Temperature monitoring



Data sheet on dataTaker® DT82EM (pdf file opens in new tab)



Geotechnical models – support vibrating wire strain gauges

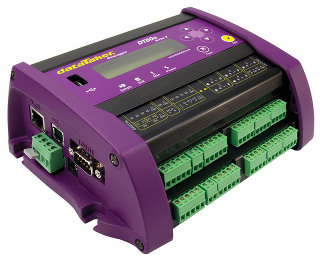

dataTaker® DT80G


5-15 analog channels, geotechnical version
DT80G
Click here to show/ hide more info

DT80G

Features

  • Universal – compatible with majority of the commercially available sensors
  • Programmable – customised software deployment for changing and challenging requirements
  • High input Impedance – ensure accurate sensor readings
  • Expandable – expandable to 300 analogue inputs with expansion module
  • Programmable analogue output – for connection to SCADA or control application
  • Additional support for vibrating-wires
  • Carlson, electro level & LVDT support
  • Capable to test sensor integrity through audible frequency

Geotechnical Logger
Advanced design and technology plus 25 years of geotechnical expertise have produced the dataTaker DT80G GeoLogger – A versatile, powerful – yet low power & cost effective data logger.

It support vibrating wire and other geotechnical sensors such as Slope Indicator, RST Instruments, Geokon, Soil Instruments, Roctest, AGI – Applied Geomechanics Inc. DT80G is also capable to test sensor integrity through audible frequency

With temperature compensation (thermistor), 5 analog channels are capable to read up to 5 vibrating wire sensors. If temperature compensation is not required this logger can read up to 15 vibrating wire sensors.

Further expansion up to 100 sensors (with temperature compensation) or 300 sensors(without temperature compensation) is possible.

Superior Data Storage & Communications
With the standard unit able to store up to 10 million data points (expandable) you can log as much or as little as you need. Overwrite or stop logging once allocated memory is full,archive data on alarm event, copy to USB memory or transfer via FTP/ Email, the choice is yours.

Communications features include RS232, USB and Ethernet, connect to the DT80G locally, remotely through a modem or over the Internet. The web interface allows users to configure the DT80G, access logged data and see current measurements as mimics or in a list using a web browser.

FTP/ Email provides data to your office over the internet or wireless network, without the need for polling or specific host software.

Applications

  • Land slide prevention
  • Structural strength diagnosis
  • Dam-wall monitoring
  • Tunnel monitoring
  • Concrete curing
  • Mining exploration
  • Pipelines monitoring
  • Earthquake early detection



Data sheet on dataTaker® DT80G (pdf file opens in new tab)

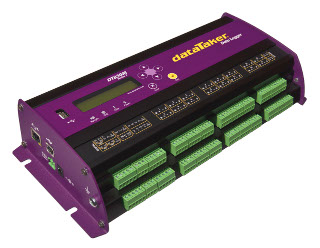

dataTaker® DT85G


16-48 analog channels, geotechnical version
DT85G
Click here to show/ hide more info

DT85G

Supporting vibrating wire sensors the dataTaker DT85G GeoLogger is ideal for all geotechnical data logging applications. The dataTaker GeoLoggers have built-in vibrating wire support providing ideal data acquisition and monitoring solution for the engineer working in the geotechnical environment. The low cost, low power dataTaker DT85G is extremely versatile and easy to configure for communications, data capture and data analysis. View the data in real time or store up to 10 million data points. Data storage and retrieval can be achieved via USB memory stick, FTP, cell phone, Modbus for SCADA, Ethernet or Web.

Features

  • Universal – compatible with majority of the commercially available sensors
  • Programmable – customised software deployment for changing and challenging requirements
  • High input Impedance – ensure accurate sensor readings
  • Expandable – expandable to 960 analogue inputs with expansion module
  • Programmable analogue output – for connection to SCADA or control application
  • Additional support for vibrating-wires
  • Carlson, electro level & LVDT support
  • Capable to test sensor integrity through audible frequency

For Geotechnical Applications
The dataTaker GeoLoggers can monitor a wide variety of geotechnical datalogging applications including slope stability, subsidence, dam wall monitoring, tunnel and mining excavation, ground water, tunnel wall monitoring and site assessment.

Versatile Measurement
The dataTaker DT85G has 16 analog channels capable of measuring up to 16 vibrating wire strain gauges with thermistors or 48 vibrating wire strain gauges without thermistors. If additional channels are required the DT85G and DT85G can be expanded simply by connecting dataTaker Channel Expansion Modules (CEM20) to provide 300 to 900 vibrating wire channels with thermistors. The advanced dataTaker DT85G range Geologgers are compatible with all major brands of geotechnical instrumentation including Slope Indicator, RST Instruments, Geokon, Soil Instruments, Roctest, AGI – Applied Geomechanics Inc. Manage a variety of sensors or devices using the Sensor Power options via dedicated power output, digital outputs or the latching relay configurations.

Superior Data Storage and Communications
Store up to 10 million data points in user defined memory, log as much or as little as you need with independent control of schedule size and mode. Overwrite or stop logging once allocated memory is full. Archive data on alarm event, copy to USB memory or transfer via FTP, the choice is yours. Communications features include RS232 with modem support, USB, Ethernet and USB memory stick ports. Connect to the DT80 locally, remotely or over the Internet. The web interface allows users to configure the DT85G, access logged data and see current measurements as mimics or in a list using a web browser. FTP provides data to your office over the internet or mobile phone network, without the need for polling or specific host software.

Applications

  • Land slide prevention
  • Structural strength diagnosis
  • Dam-wall monitoring
  • Tunnel monitoring
  • Concrete curing
  • Mining exploration
  • Pipelines monitoring
  • Earthquake early detection



Data sheet on dataTaker® DT85G (pdf file opens in new tab)



dataTaker® DT80GW


5-15 analog channels, geotechnical version, with WiFi
DT80GW
Click here to show/ hide more info

DT80GW

Features

  • Universal – compatible with majority of the commercially available sensors
  • Programmable – customised software deployment for changing and challenging requirements
  • High input Impedance – ensure accurate sensor readings
  • Expandable – expandable to 300 analogue inputs with expansion module
  • Programmable analogue output – for connection to SCADA or control application
  • Additional support for vibrating-wires
  • Carlson, electro level & LVDT support
  • Capable to test sensor integrity through audible frequency
  • Integrated WIFI

Geotechnical Logger
Advanced design and technology plus 25 years of geotechnical expertise have produced the dataTaker DT80GW GeoLogger – A versatile, powerful – yet low power & cost effective data logger.

It support vibrating wire and other geotechnical sensors such as Slope Indicator, RST Instruments, Geokon, Soil Instruments, Roctest, AGI – Applied Geomechanics Inc. DT80GW is also capable to test sensor integrity through audible frequency

With temperature compensation (thermistor), 5 analog channels are capable to read up to 5 vibrating wire sensors. If temperature compensation is not required this logger can read upto 15 vibrating wire sensors.

Further expansion up to 100 sensors (with temperature compensation) or 300 sensors(without temperature compensation) is possible.

With wireless access, no need to have physical connection to the logger. Send the program, view and download the data or even modify your setting on nearby PC or Tablet wirelessly either as a Master (Access Point mode) or Slave (Client).

Automatic Data Delivery
On Client mode dataTaker can have access to local router and if the router has internet access it can utilise the DT80GW’s automatic data delivery features to schedule your data to be automatically emailed to your inbox every day, week, month or other time interval.

More sophisticated systems can make use of the automatic data delivery features to send logged data to an FTP server.

Superior Data Storage & Communications
With the standard unit able to store up to 10 million data points (expandable) you can log as much or as little as you need. Overwrite or stop logging once allocated memory is full, archive data on alarm event, copy to USB memory or transfer via FTP/ Email, the choice is yours.

Communications features include RS232, USB and Ethernet, connect to the DT80GW locally, remotely through a modem or over the Internet. The web interface allows users to configure the DT80GW, access logged data and see current measurements as mimics or in a list using a web browser.

FTP/ Email provides data to your office over the internet or wireless network, without the need for polling or specific host software.

Applications

  • Land slide prevention
  • Structural strength diagnosis
  • Dam-wall monitoring
  • Tunnel monitoring
  • Concrete curing
  • Mining exploration
  • Pipelines monitoring
  • Earthquake early detection



Data sheet on dataTaker® DT80GW (pdf file opens in new tab)





dataTaker® DT85GW


16-48 analog channels, geotechnical version, with WiFi
DT85GW
Click here to show/ hide more info

DT85GW

Features

  • Universal – compatible with majority of the commercially available sensors
  • Programmable – customised software deployment for changing and challenging requirements
  • High input Impedance – ensure accurate sensor readings
  • Expandable – expandable to 960 analogue inputs with expansion module
  • Programmable analogue output – for connection to SCADA or control application
  • Additional support for vibrating-wires
  • Carlson, electro level & LVDT support
  • Capable to test sensor integrity through audible frequency
  • Integrated WIFI

Geotechnical Logger
Advanced design and technology plus 25 years of geotechnical expertise have produced the dataTaker DT85GW GeoLogger – A versatile, powerful – yet low power & cost effective data logger.

It support vibrating wire and other geotechnical sensors such as Slope Indicator, RST Instruments, Geokon, Soil Instruments, Roctest, AGI – Applied Geomechanics Inc. DT85GW is also capable to test sensor integrity through audible frequency with temperature compensation (thermistor), 16 analog channels are capable to read up to 16 vibrating wire sensors. If temperature compensation is not required this logger can read up to 48 vibrating wire sensors.

Further expansion up to 320 sensors (with temperature compensation) or 960 sensors(without temperature compensation) is possible.

Local Wireless Access
With wireless access, no need to have physical connection to the logger. Send the program, view and download the data or even modify your setting on nearby PC or Tablet wirelessly either as a Master (Access Point mode) or Slave (Client).

Automatic Data Delivery
On Client mode dataTaker can have access to local router and if the router has internet access it can utilise the DT85GW’s automatic data delivery features to schedule your data to be automatically emailed to your inbox every day, week, month or other time interval.

More sophisticated systems can make use of the automatic data delivery features to send logged data to an FTP server.

Superior Data Storage & Communications
With the standard unit able to store up to 10 million data points (expandable) you can log as much or as little as you need. Overwrite or stop logging once allocated memory is full, archive data on alarm event, copy to USB memory or transfer via FTP/ Email, the choice is yours.

Communications features include RS232, USB and Ethernet, connect to the DT85GW locally, remotely through a modem or over the Internet. The web interface allows users to configure the DT85GW, access logged data and see current measurements as mimics or in a list using a web browser.

FTP/ Email provides data to your office over the internet or wireless network, without the need for polling or specific host software.

Applications

  • Land slide prevention
  • Structural strength diagnosis
  • Dam-wall monitoring
  • Tunnel monitoring
  • Concrete curing
  • Mining exploration
  • Pipelines monitoring
  • Earthquake early detection

Data sheet on dataTaker® DT85GW (pdf file opens in new tab)



dataTaker® DT85GM


16-48 analog channels, geotechnical version, with 3G Modem
DT85GM
Click here to show/ hide more info

DT85GM

Features

  • Universal – compatible with majority of the commercially available sensors
  • Programmable – customised software deployment for changing and challenging requirements
  • High input Impedance – ensure accurate sensor readings
  • Expandable – expandable to 960 analogue inputs with expansion module
  • Programmable analogue output – for connection to SCADA or control application
  • Additional support for vibrating-wires
  • Carlson, electro level & LVDT support
  • Capable to test sensor integrity through audible frequency
  • Integrated cellular modem for remote monitoring application
  • No hassles of integrating additional equipment and cables

Geotechnical Logger
Advanced design and technology plus 25 years of geotechnical expertise have produced the dataTaker DT80G GeoLogger – A versatile, powerful – yet low power & cost effective data logger.

It support vibrating wire and other geotechnical sensors such as Slope Indicator, RST Instruments, Geokon, Soil Instruments, Roctest, AGI – Applied Geomechanics Inc. DT80G is also capable to test sensor integrity through audible frequency

With temperature compensation (thermistor), 5 analog channels are capable to read up to 5 vibrating wire sensors. If temperature compensation is not required this logger can read up to 15 vibrating wire sensors.

Further expansion up to 100 sensors (with temperature compensation) or 300 sensors(without temperature compensation) is possible.

Designed For Remote Applications?
The dataTaker DT85GM intelligent data logger is a fully featured low-powered logging platform with an integrated cellular modem, making it perfect for remote applications. The rugged design and wide operating temperature range of the DT85GM provides reliable operation in virtually any environment.

The DT85GM’s perfect balance of performance with low-power also allows you to use a smaller solar panel without compromising on functionality.

Automatic Data Delivery
Forget travelling long distances to get your data. Utilise the DT85GM’s automatic data delivery features to schedule your data to be automatically emailed to your inbox every day, week, month or other time interval.

More sophisticated systems can make use of the automatic data delivery features to send logged data to an FTP server. Alarm conditions can also trigger data delivery in addition to sending alarm messages to multiple email addresses or mobile phones.

Easy To Configure
The DT85GM is configured directly in your web browser using dataTaker’s dEX graphical interface. dEX takes you through the configuration of your logger, showing you wiring diagrams and allowing you to decide – in as much or as little detail – how you want to the system to work, suiting both novice or advanced users.

Using the internal modem you can even re-configure your system remotely over the internet if required.

Applications

  • Land slide prevention
  • Structural strength diagnosis
  • Dam-wall monitoring
  • Tunnel monitoring
  • Concrete curing
  • Mining exploration
  • Pipelines monitoring
  • Earthquake early detection



Data sheet on dataTaker® DT85GM (pdf file opens in new tab)



Channel Expansion

dataTaker® CEM20


20-60 analog channel expansion module
CEM20
Click here to show/ hide more info

CEM20

Features

  • Turns one analogue channel into 20
  • Cost effective
  • Compact size
  • Ultra low power
  • Compatible with DT80 & DT85 series loggers (series 2 and later)
  • Solid construction and design

Increased Channel Capacity
A dataTaker CEM20 connects to one analogue channel of the dataTaker data logger. This effectively expands the total channel capacity of the DT80 to 320 analogue inputs and the DT85 to an incredible 960 inputs. Incorporating the same dual isolation technology as the DT80 range dataTaker data loggers each channel of the CEM20 can be used for two isolated inputs or three common reference inputs so the maximum inputs increases further.

Easy Setup and Connection
Connecting a channel expansion module to a dataTaker data logger is very easy. The CEM20 is powered directly from the dataTaker data logger 12V output. Analog output connections of the CEM20 connect to a analog channel of the data logger. Analogue and control cables for connection to the dataTaker data logger are included as standard.

Applications

  • Land slide prevention
  • Structural strength diagnosis
  • Dam-wall monitoring
  • Tunnel monitoring
  • Concrete curing
  • Mining exploration
  • Pipelines monitoring
  • Earthquake early detection



Data sheet on dataTaker® CEM20 (pdf file opens in new tab)



DataTaker Accessories

Accessories Description
dataTaker Resource  CD Standard Software, Manuals, Support & Training files DTKDSS-CD
Industrial Grade 1GB USB memory stick Extended temperature range -45 deg C to +90 dec C DTKUSBIND-1GB
Memory Card 128 MB Industrial Grade with extended temp range (-40/+85C) DTKCF128-MIND
USB Cable Cable 1.8m. Connect DT80 range ro PC DTKUSB-1
PC to dataTaker DT80 range Serial Cable 1.5m & Supports handshake lines DTKIBM-6
Sealed Lead Acid Battery 6V, 1.2AHr, replacement DT80/81 internal battery DTKGC-1.2
Sealed Lead Acid Battery 4Ah 6V, 4.0AHr, recommended for portable use with PROPE DTKGC-4
AC to DC Power Pack 240Vac to 15Vdc 800mA DTKMA-1000
Memory Backup battery 1/2 AA Lithium 3.6V No leads DTKBAT#LITH3.6VN/L
Portable Enclosure IP67 Nema 4 & Mounting Frame – suits DT80/82E/I/80G, DT800 DTKPE
Large Portable Enclosure IP67 Nema 4 & Mounting Frame – suits DT85/85G DTKPE-LARGE
Call Now Button
