Logtag Data Loggers, Temperature & Humidity Recorders

Logtag Data Loggers, Temperature & Humidity Recorders

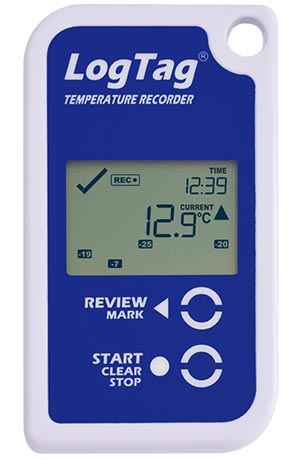

LogTag with displayThe Logtag is one of the most cost effective, high performance small sized temperature data loggers available in today’s market.

Very easy to measure temperature, & optionally humidity: Configure the logger with the user-friendly software, and press the LogTag’s Start button to start recording.

The LED indicators or LCD display show whether the temperature has gone outside your predefined temperature range.

Pick the LogTag model which suits – Wide Temperature Ranges, down to -80º or up to +99ºC – and Internal or External Sensors. Perfect for transportation, storage areas, fridges, ultra freezers, measuring inside food, etc.

Logtag Data Loggers – Selection Table and Software

Temperature only models:

LOG, LOGEXT, LOGDISP, LOGDISPEX, LOGDRYICE, LOGDIEXT

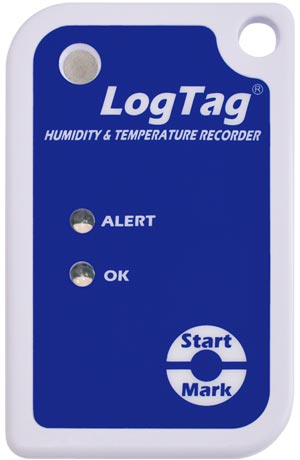

Humidity & Temperature model:

LOGHUM

Logtags provide the convenience of alarm indicators or displays and the option for external probes. Features include:

  • Alarm LED or temperature display
  • Tough ABS housing
  • Larger log capacity
  • Credit card sized

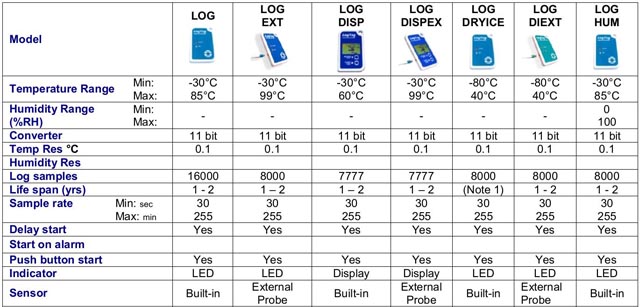

Choose your model from this table, and scroll down to see full details of each model.

Note 1: The LOGDRYICE battery life is 1 to 2 years, but is restricted to 1,000 readings at extremely low temperatures. This is due to the battery being exposed to incredibly low temperatures. The LOGDIEXT does not have this limitation because the logger is not exposed to the colder temperatures.

LogTag General Quick Start Guide (pdf file, opens in a new tab)

Required with all LogTag loggers:LogTag Software and USB Reader KitReader & Software Kit

LTKIT: (LTI-USB) The software kit contains the software, reader and case required for a PC to communicate with the Logtags. At least one reader is required per customer. The software can be freely copied onto multiple computers. The software will download results, display them and save them for later recall.

LTKIT (LTI-USB) LogTag Software and USB Reader Kit: $139+GST



Logtag Reader and Software details

The reader is by far the fastest in its class. Interface cradles are available in USB or legacy RS232 connection versions. Designed for high levels of use, the LogTag Interface cradle can sustain many 10000’s of insert cycles and gold plated contact design resists the effects of dirt and moisture.

  • Automatic download of results when LogTag Logger is connected
  • Configuration of LogTag Logger, including batch configuration
  • Display results in multiple chart formats
  • Reports and summaries
  • Store results on computer for later use
  • Automatic emailing and upload of results

Storage Temperature Range: -40°C ~ +70°C
Operating Temperature Range: -20°C ~ +60°C
USB2.0 standard (LTI/USB only)

Cable length: 1.5m (4′ 11″)
Environmental: IP50 (rated for inside use only)
Power source: Powered from computer
Size: 46mm(H)x103mm(W)x84mm(D) not including cable
Weight: 142grams
Case Material: ABS

LogTag Analyser™ software provides a powerful user-friendly platform for configuring LogTag before deployment and for data analysis when LogTag is retrieved. LogTag software can support multiple interface cradles thereby reducing the processing time of multiple LogTag download or configuring.

USB drivers are Microsoft WHQL digitally signed and available for download from Windows Update LogTag Analyser™ is available free for download: LogTag software download

Kits include reader (USB), software, and instructions.

Temperature Data Loggers without displays: LOG, LOGEXT

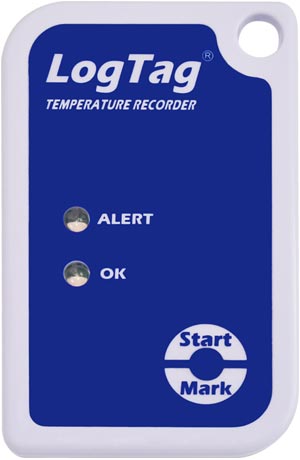

LOG Temperature Data Logger


The LogTag® TRIX-16 is a versatile, wide range, multi-trip Temperature Recorder, featuring high resolution temperature readings over a measurement range of -40°C to +85°C (-40°F to +185°F).

LogTag® TRIX
Click here to show/ hide more info

LogTag® TRIX

The LogTag® TRIX-16 is a versatile, wide range, multi-trip Temperature Logger, featuring high resolution temperature readings over a measurement range of -40°C to +85°C (-40°F to +185°F). Enclosed in a robust and durable polycarbonate case, the TRIX-16 features a real time clock, which provides date/time stamps for each temperature reading.

Using the LogTag® Interface and the freely available companion software LogTag Analyzer, the LogTag® is easily set-up for recording conditions including delayed start, sampling interval, number of readings, continuous or fixed number of readings and configuration of conditions to activate the ALERT indicator. Readings are downloaded using LogTag® Analyzer, which provides facilities for charting, zooming, listing data statistics and allows exporting the data to other applications such as Excel.

Features

  • A real time clock provides date/time stamps for each temperature reading.
  • Push-to-start button with optional delay or a specific time & date.
  • Comprehensive customisation options including alert settings, sample interval and trip duration.
  • Robust and durable polycarbonate case with lug for secure mounting.
  • Up to 16,000 recordings – enough for the longest trip.
  • In-transit inspections can be recorded at the push of a button.
  • Complies with industry standards including EN12830, FCC, CE, C-TICK and RoHS.
  • Industry best download time – less than 10 seconds for full memory.

Specifications:

Sensor Measurement Range-40°C to +85°C (-40°F to +185°F)
Operating Temperature Range-40°C to +85°C (-40°F to +185°F).
Storage Temperature Range-30°C to +55°C (-22°F to +131°F).
Rated Temperature Reading AccuracyBetter than ±0.5°C for -20°C to +40°C.
Better than ±0.7°C for -30°C to -20°C and +40°C to +60°C.
Better than ±0.8°C for +60°C to +85°C.
Better than ±0.9°C for -40°C to -30°C.
Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below.
Accuracy figures can be improved by recalibration.
Rated Temperature Reading ResolutionLess than 0.1°C for -40°C to +40°C.
Less than 0.2°C for +40°C to +80°C.
Less than 0.4°C for +80°C to +85°C.
Please see the Rated Native Resolution chart below.
LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®.
Sensor Reaction TimeTypically less than 5 minutes (T90) in moving air (1m/s).
Recording Capacity16,159 temperature readings. 112 days @ 10min logging, 168 days @ 15min logging.
Sampling IntervalConfigurable from 30 seconds to several hours.
Logging Start OptionsPush button start or specific date & time. Optional start delay of up to 18hours.
Recording IndicationFlashing ‘OK’ indicator / flashing ‘ALERT’ indicator.
Download TimeTypically less than 10 seconds for full memory (16,159 readings), depending on computer or readout device used.
EnvironmentalIP65 (roughly equivalent to NEMA 4).
Power Source3V Li-Mg Battery.
Battery Life2 – 3 years of normal use (based on 15 minute logging, download data monthly).
Real Time ClockBuilt-in real time clock.
Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day).
Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).
Size86mm(H) x 54.5mm(W) x 8.6mm(T).
Weight33g.
Case MaterialPolycarbonate.

Data sheet on LogTag® TRIX-16 (pdf, opens in a new tab)

LOG (TRIX-16) Temperature Data Logger, larger memory: $70+GST

Also required: Software & Reader, see above
Qty. discounts available

General Quick Start Guide (pdf, opens in a new tab)

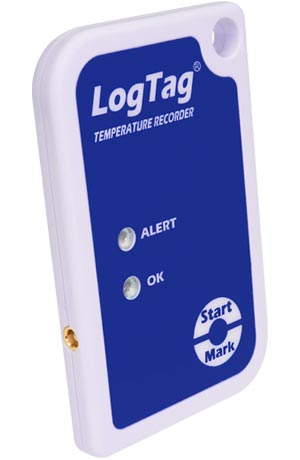

LOGEXT Temperature Logger with External probe


The LogTag® TREX-8 is a versatile, wide range, multitrip Temperature Logger with interchangeable External Probes, featuring high resolution temperature readings over a measurement range of -40°C to +99°C (-40°F to +210°F).

LogTag® TREX-8
Click here to show/ hide more info

LogTag® TREX-8

The LogTag® TREX-8 is a versatile, wide range, multitrip Temperature Logger with interchangeable External Probes, featuring high resolution temperature readings over a measurement range of -40°C to +99°C (-40°F to +210°F).

Interchangeable Remote Probes – LogTag remote temperature probes are interchangeable provided they are changed with LogTag ST100 type remote temperature sensors.

Using the LogTag® Interface and LogTag’s freely available companion software LogTag® Analyzer, the LogTag is easily set-up for recording conditions including delayed start, sampling interval, number of readings, continuous or fixed number of readings and configuration of conditions to activate the ALERT indicator.

Features

  • A real time clock provides date/time stamps for each temperature reading.
  • Push-to-start button with optional delay or a specific time & date.
  • Comprehensive customisation options including alert settings, sample interval and trip duration.
  • Robust and durable polycarbonate case with lug for secure mounting.
  • Up to 8,000 recordings – enough for the longest trip.
  • In-transit inspections can be recorded at the push of a button.
  • Complies with industry standards including FCC, CE, C-TICK and RoHS.
  • Interchangeable External Probe with high quality gold plated connector.
  • Industry best download time – less than 5 seconds for full memory.

Specifications:

Product ModelTREX-8.
External Sensor Measurement Range-40°C to +99°C (-40°F to +210°F)
Operating Temperature Range-40°C to +85°C (-40°F to +185°F).
Storage Temperature Range-10°C to +55°C (14°F to +131°F).
Rated Temperature Reading AccuracyBetter than ±0.5°C for -10°C to +40°C.
Better than ±0.7°C for -10°C to -30°C and +40°C to +60°C.
Better than ±0.8°C for -30°C to -40°C and +60°C to +80°C.
Better than ±1.0°C for +80°C to +99°C.
Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below.
Accuracy figures can be improved by recalibration.
Rated Temperature Reading ResolutionLess than 0.1°C for -40°C to +40°C.
Less than 0.2°C for +40°C to +80°C.
Less than 0.6°C for +80°C to +99°C.
Please see the Rated Native Resolution chart below.
LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®.
Sensor Reaction TimeTypically less than 2 minutes (T90) in moving air (1m/s) for ST100T, ST100H and ST100S types.
Recording Capacity8031 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging.
Sampling IntervalConfigurable from 30 seconds to several hours.
Logging Start OptionsPush button start or specific date & time. Optional start delay of up to 18 hours.
Recording IndicationFlashing ‘OK’ indicator / flashing ‘ALERT’ indicator.
Download TimeTypically less than 5 seconds for full memory (8031 readings), depending on computer or readout device used.
EnvironmentalIP61.
Power Source3V Li-Mg Battery.
Battery Life2 – 3 years of normal use (based on 15 minute logging, download data monthly).
Real Time ClockBuilt-in real time clock.
Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day).
Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).
Standard Remote Sensor Cable LengthStandard: 1.5m (4’11″).
Extended: 3m (9’10″) (Recommended maximum).
Remote Sensor Cable TypePTFE (FDA food contact rated), coaxial.
Size86mm(H) x 54.5mm(W) x 8.6mm(T).
Weight36g (without External Probe).
Case MaterialPolycarbonate.

Data sheet on LogTag® TREX-8 (pdf, opens in a new tab)

LOGEXT (TREX-8) Temperature Logger with External probe: $160+GST

Includes ST100T-15 External Probe with 1.5m cable (4’11”) with no handle

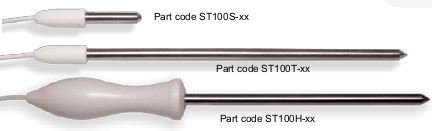

ST100T140mm probe length, diameter 5mm, cable length 1.5mLogTag ST100T

This long tipped probe incorporates a 140mm exposed length of 5mm diameter 316 stainless probe.

All materials at probe end of cable are FDA food rated including the cable.
Alternative probe models are available – see probe list below

Also required: Software & Reader, see above
Qty discounts available

General Quick Start Guide (pdf, opens in a new tab)

Temperature Data Loggers with displays: LOGDISP, LOGDISPEX

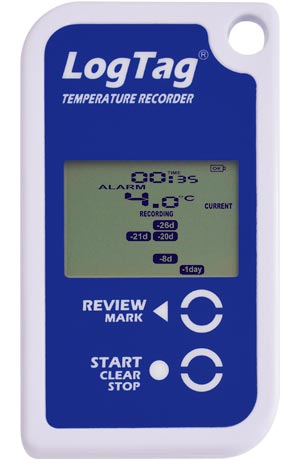

LOGDISP Temperature Logger with 30 day summary display


The LogTag® TRID30-7 temperature logger features a display together with a data logging function storing up to 7770 temperature readings. Statistical temperature and duration readings for up to 30 days can be reviewed on the display.

LogTag® TRID30-7
Click here to show/ hide more info

LogTag® TRID30-7

The LogTag® TRID30-7 temperature logger features a display together with a data logging function storing up to 7770 temperature readings. Statistical temperature and duration readings for up to 30 days can be reviewed on the display.

The visual display of current temperature and previous alarms is an important feature in “static” applications such as cool rooms and refrigerators. The TRID30-7 can also be used in transit applications where direct readout of the statistical data is required without use of a computer or readout device.

The display arrangement is designed to show ‘at a glance’ if temperature violations have occurred during the current day and up to the previous 29 days. The display also shows the current temperature reading, the current time, recording status and battery status.

Features

  • A real time clock provides date/time stamps for each temperature reading.
  • 30 day On-screen summary in calendar-like summary.
  • Push-to-start button with optional delay or a specific time & date.
  • Comprehensive customisation options including alert settings, sample interval and trip duration.
  • Robust and durable polycarbonate case with lug for secure mounting.
  • Up to 7,770 recordings – Enough memory for 53 days at 10min logging or 80 days at 15min logging.
  • Inspections can be recorded at the push of a button.
  • Industry best download time – less than 5 seconds for fully memory.

Specifications:

Product ModelTRID30-7R (Replaceable Battery).
TRID30-7F (Fixed Battery).
Sensor Measurement Range-30°C to +60°C (-40°F to +210°F).
Operating Temperature Range-30°C to +60°C (-22°F to +140°F).
Storage Temperature Range-10°C to +40°C  (14°F to +104°F).
Rated Temperature Reading AccuracyBetter than ±0.5°C (±0.9°F) for measurements from -20°C to +40°C (-4°F to +104°F), typically ±0.3°C (0.6°F).
Better than ±0.8°C (±1.5°F) for other measurements – typically ±0.5°C (0.9°F).
Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below.
Accuracy figures can be improved by recalibration.
Rated Temperature Reading Resolution0.1°C (0.2°F) for measurements -40°C to +50°C (-40°F to +122°F).
0.2°C (0.4°F) for measurements +50°C to +70°C (+122°F to +158°F).
Please see the Rated Native Resolution chart below.
LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®.
Sensor Reaction TimeTypically less than 5 minutes (T90) in moving air (1m/s) in EN12830:1999.
Recording Capacity7,770 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging.
Day summary statistics memory (for display on LCD): up for 30 days of Max/Min/duration and alarm trigger statistics.
Sampling IntervalConfigurable from 1 minute to hourly.
Logging Start OptionsPush button start (with configurable start delay from 1 minute to 18 hours) or specific date & time.
Recording Indication“REC” symbol on LCD
Download TimeTypically less than 5 seconds for full memory (7,770 readings), depending on computer or readout device used.
EnvironmentalIP65 (roughly equivalent to NEMA 4) when vertically mounted or hung.
Power Source3V Li-Mg Battery.
Battery LifeTRID30-7R: Typically 1 year of operation.
TRID30-7F: Typically 2+ years of operation.
NOTE: Typical battery life assumes 6 minute logging, day statistics are reviewed on the display no more than once daily for no longer than 30 seconds each time. Download data monthly.
Real Time ClockBuilt-in real time clock.
Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day).
Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).
Connection InterfaceInterface Cradle
SoftwareLogTag® Analyzer
Size93mm(H) x 54.5mm(W) x 8.6mm(T).
WeightTRID30-7R: 41g.
TRID30-7F: 43g.
Case MaterialPolycarbonate.

LOGDISP (TRID30-7R) Temperature Logger with Display, Internal Sensor: $160+GST

Also required: Software & Reader, see above
Qty. discounts available

Brochure on LOGDISP (TRID30-7) (pdf, opens in a new tab)

Specs on LOGDISP (TRID30-7) (pdf, opens in a new tab)

Startup Guide for LOGDISP & LOGDISPEX  (pdf, opens in a new tab)

LOGDISPEX Temperature Logger, 30 day summary display & external probe


The LogTag® TRED30-7 Temperature Recorder measures and stores up to 7770 temperature readings over -40°C to +99°C (-40°F to +210°F) measurement range from a remote temperature probe.

LogTag® TRED30-7
Click here to show/ hide more info

LogTag® TRED30-7

The LogTag® TRED30-7 Temperature Recorder measures and stores up to 7770 temperature readings over -40°C to +99°C (-40°F to +210°F) measurement range from a remote temperature probe.

Statistical temperature and duration readings for up to 30 days can be reviewed on the display.

The visual display of current temperature* and previous alarms is an important feature in “static” applications such as cool rooms and refrigerators. The display arrangement is designed to show ‘at a glance’ if temperature violations have occurred during the current day and up to the previous 29 days. The display also shows the current temperature reading, the current time, recording status and battery status.

Details of any excursions can be checked directly by inspecting the statistics history on the recorder’s display or in more detail by downloading the logged data via a standard LogTag® Interface cradle to LogTag® Analyzer.

If a reading outside the pre-set “Alarm” limits is recorded at any time, a “day alarm indicator” appears on the display.

Features

  • Ambient temperature recordings with -40°C to 99°C range using external probe
  • LCD Display shows current, 30 day summary and statistical temperature readings
  • 1 year battery life with user-Replaceable Battery
  • Stores up to 7,770 temperature samples
  • Visual Alarms, Push-Button Start and FDA 21 CFR Part 11 Digital Signatures
  • Requires USB Docking Station (#LTI-USB). Software Available for Download
  • 30 day summary display

Specifications:

LogTag® Part CodesTRED30-7R : (replaceable battery)
TRED30-7F: (fixed battery)
Measurement Temperature range with ST100 remote temperature probe-40°C ~ +99°C (-40°F ~ +210°F)
Recorder operating temperature range-30°C ~ +60°C (-22°F ~ +140°F)
Rated Temperature reading accuracyBetter than ±0.5°C (±0.9°F) for -20°C~+40°C (-4°F~+104°F) –typically ±0.3°C (0.6°F)
Better than ±0.8°C (±1.4°F) for -40°C~-20°C (-40°F~ -4°F) – typically ±0.5°C (0.9°F)
Better than ±0.8°C (±1.4°F) for +40°C~+70°C (+104°F~+158°F) – typically ±0.7°C (1.3°F)
Better than ±1.2°C (±2.2°F) for +70°C~+99°C (+158°F~+210°F) – typically ±1°C (1.8°F).
Rated temperature resolution on LCD0.1°C(0.2°F) for measurements -40°C ~ +50°C (-40°F ~ +122°F)
0.2°C(0.4°F) for measurements +50°C ~ +70°C (+122°F ~ +158°F)
0.3°C(0.5°F) for measurements +70°C ~ +80°C (+158°F ~ +176°F)
0.4°C-0.6°C(0.7°F~1°F) for measurements +80°C~ +99°C (+176°F ~ +210°F)
Recording capacityData logging memory : 7770 logs – eg 53 days @ 10min logging, 80 days @ 15min logging Day summary statistics memory (for display on LCD): up for 30 days of Max/Min and duration values
Sampling Intervalconfigurable from 30 seconds to hourly
Logging ModesSupports ‘continuous’ wrap around or specific recording period
Real time clock accuracyQuartz crystal locked real time clock.
Rated accuracy ±25ppm @ 25°C (equiv to 2.5 seconds/day)
Rated temperature coefficient is -0.034±0.006ppm/°C (i.e typically +/- 0.00294seconds/day/°C)
Download timetypically less than 8 seconds for full memory
Power Source3V Lithium-Manganese Dioxide extended temperature chemistry
Battery LifeTRED30-7R : typically 1 year of operation TRED30-7F : typically 2+ years of operation
Size93.0mm(H)x54.5mm(W)x8.6mm(T) (without temperature probe)
Weight without temperature probeTRED30-7R : 41grams TRED30-7F : 44grams
Case MaterialPolycarbonate
  EMC ComplianceComplies with EC EMC directives (EN 61000-6-3:2006 & EN 61000-6-1:2005) Complies with FCC Part 15 Subparts A and B.
EnvironmentalIP61 (when vertically mounted or hung)
FDA 21CFR Part 11 ComplianceDesigned to comply with FDA 21CFR Part 11 (Digital signatures)
Reader interfaceStandard LogTag Interface cradle
Remote Temperature probesStandard LogTag® ST100 temperature probes (Standard lengths 1.5m (4’11”) or 3m (9’10”))

LOGDISPEX (TRED30-7) Temperature Logger with Display, with external probe: $195+GST (10/17)
Includes probe ST100T-15

Also required: Software & Reader, see above
Qty. discounts available

Data on LOGDISPEX (TRED30-7) (pdf, opens in a new tab)

Specs. for LOGDISPEX (TRED30-7) (pdf, opens in a new tab)

Startup Guide for LOGDISP & LOGDISPEX (pdf, opens in a new tab)

Accepts all LogTag® ST100 type remote temperature probes.

Other LogTag models not stocked in Australia (MOQ applies, lead time approx 2 weeks)

TRID30-7F is the same as LOGDISP but has a fixed battery that cannot be replaced.

TRID30-7FW Vaccine Refrigerator Temperature Logger with 30 day summary display,
compliant to WHO PQS specification E006/TR06.3.

Humidity & Temperature Data Logger: LOGHUM

LOGHUM Humidity & Temperature Recorder


The LogTag® HAXO-8 Humidity and Temperature Logger measures and stores up to 8000 sets of high resolution humidity and temperature readings over a measurement range of 0 to 100%RH and -40°C to +85°C (-40°F to +185°F).

LogTag® HAXO-8
Click here to show/ hide more info

LogTag® HAXO-8

The LogTag® HAXO-8 Humidity and Temperature Logger measures and stores up to 8000 sets of high resolution humidity and temperature readings over a measurement range of 0 to 100%RH and -40°C to +85°C (-40°F to +185°F).

Enclosed in a robust and durable polycarbonate case – the HAXO-8 is equipped with a unique external temperature sensor arrangement providing fast reaction time to temperature change and a real time clock which provides date/time stamps for each temperature reading.

Using the LogTag Interface and LogTag’s freely available companion software LogTag Analyzer, the LogTag is easily set-up for recording conditions including delayed start, sampling interval, number of readings, continuous or fixed number of readings and configuration of conditions to activate the ALERT indicator.

Features

  • Record high resolution Temperature & Humidity readings simultaneously.
  • A real time clock provides date/time stamps for each temperature reading.
  • Push-to-start button with optional delay or a specific time & date.
  • Comprehensive customisation options including alert settings, sample interval and trip duration.
  • Robust and durable polycarbonate case with lug for secure mounting.
  • Up to 8,000 recordings – enough for the longest trip.
  • In-transit inspections can be recorded at the push of a button.
  • Replaceable air filter.

Specifications:

Product ModelHAXO-8.
Sensor Measurement Range-40°C to +85°C (-40°F to +185°F).
Operating Temperature Range-40°C to +85°C (-40°F to +185°F).
Storage Temperature Range0°C to +40°C (-32°F to +140°F).
Humidity Measurement Range0% RH to 100% RH, with limitations.
Humidity Operating Range0% RH to 100% RH, with limitations.
Storage Humidity Range0-65%, non condensing.
Humidity ResolutionBetter than 0.1% RH.
Temperature ResolutionBetter than 0.1°C or 0.1°F
Recording Capacity8,031 pairs of humidity and temperature readings. 53 days @ 10min logging, 80 days @ 15min logging.
Sampling IntervalConfigurable from 30 seconds to several hours.
Logging Start OptionsPush button start or specific date & time. Optional start delay of up to 18hours.
Recording IndicationFlashing ‘OK’ indicator / flashing ‘ALERT’ indicator.
Download TimeTypically less than 10 seconds for full memory (8,031 pairs of humidity and temperature readings), depending on computer or readout device used.
EnvironmentalIP61.
Power Source3V Li-Mg Battery.
Battery Life2 – 3 years of normal use (based on 15 minute logging, download data monthly).
Real Time ClockBuilt-in real time clock.
Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day).
Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).
Size86mm(H) x 54.5mm(W) x 8.6mm(T).
Weight34g.
Case MaterialPolycarbonate.

LOGHUM (HAXO-8) Humidity & Temperature Logger: $165+GST (10/17)

Also required: Software & Reader, see above
Qty. discounts available

Brochure & Specs. on LOGHUM (HAXO-8) (pdf, opens in a new tab)

Quick Start Guide for LOGHUM (HAXO-8) (pdf, opens in a new tab)

Air Filter for LOGHUM (HAXO-8) (pdf, opens in a new tab)

Low Temperature Data Loggers LOGDRYICE, LOGDIEXT, Freeze Indicator

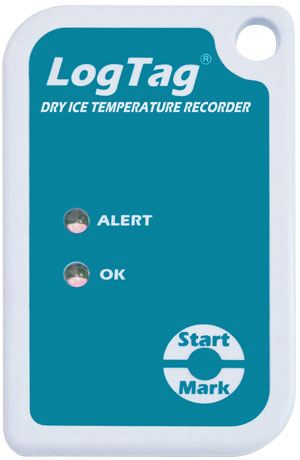

LOGDRYICE Dry Ice “Probe-less” Temperature Recorder


The LogTag® Dry Ice “Probe-less” Temperature Logger operates, measures and stores up to 8000 temperature readings in temperature environments ranging from -80°C to +40°C (-112°F to +104°F).

LogTag® TRIL-8
Click here to show/ hide more info

LogTag® TRIL-8

The LogTag® Dry Ice “Probe-less” Temperature Logger operates, measures and stores up to 8000 temperature readings in temperature environments ranging from -80°C to +40°C (-112°F to +104°F).

Intended for use in transit monitoring of articles stored in packaging incorporating dry ice cooling agents.

Available in single trip (SRIL-8) version.

Using the LogTag® Interface and LogTag’s freely available companion software LogTag Analyzer, the LogTag® Dry Ice Temperature Logger is easily configured for recording conditions including delayed start, sampling interval, number of readings and configuration of conditions to activate the ALERT indicator.

Features

  • Records temperature from +40°C to as low as -80°C
  • A real time clock provides date/time stamps for each temperature reading.
  • Push-to-start button with optional delay or a specific time & date.
  • Comprehensive customization options including alert settings, sample interval and trip duration.
  • Robust and durable polycarbonate case with lug for secure mounting.
  • Up to 8,000 recordings – enough for the longest trip.
  • In-transit inspections can be recorded at the push of a button.
  • Industry best download time – less than 5 seconds for fully memory.

Specifications:

Product ModelTRIL-8.
Sensor Measurement Range-80°C to +40°C (-112°F to +104°F).
Operating Temperature Range-80°C to +40°C (-112°F to +104°F).
Storage Temperature Range-20°C to +40°C (-4°F to +104°F).
Rated Temperature Reading AccuracyBetter than ±1°C for -30°C to +20°C.
Better than ±1.2°C for -45°C to -30°C and +20°C to +40°C.
Better than ±1.7°C for -80°C to -45°C.
Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below.
Accuracy figures can be improved by recalibration.
Rated Temperature Reading ResolutionLess than 0.1°C for -80°C to 0°C.
Less than 0.2°C for 0°C to +20°C.
Less than 0.5°C for +20°C to +40°C.
Please see the Rated Native Resolution chart below.
LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®.
Sensor Reaction TimeTypically less than 5 minutes (T90) in moving air (1m/s).
Recording Capacity8000 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging.
Sampling IntervalConfigurable from 1 minute to 18 hours.
Logging Start OptionsPush button start or specific date & time.
Recording IndicationFlashing ‘OK’ indicator / flashing ‘ALERT’ indicator.
Download TimeTypically less than 5 seconds for full memory (8000 readings), depending on computer or readout device used.
EnvironmentalIP65 (roughly equivalent to NEMA 4).
Power Source3.6V low temperature chemistry Lithium battery.
Battery LifeStorage life of up to 12 months before ‘start’. Rated for up to 1000 hours of exposure to -80°C.
Real Time ClockBuilt-in real time clock.
Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day).
Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).
Size86mm(H) x 54.5mm(W) x 8.6mm(T).
Weight35g.
Case MaterialPolycarbonate.

LOGDRYICE (TRIL-8) Multi-use Low Temp Logger: rated for up to 1000 hours of exposure to -80°C: $199+GST (10/17)

Also required: Software & Reader, see above
Qty. discounts available

Brochure on LOGDRYICE (TRIL-8) (pdf, opens in a new tab)

General Quick Start Guide (pdf, opens in a new tab)

Note: Prior to December 2011 the TRIL-8 battery specification and management system limited the product to a total of 3 trips. TRIL-8 product shipped from the factory from December 2011 supports an enhanced battery management system that rates the product multiuse for an accumulative exposure of up to 1000 hours @ -80°C. Newer TRIL-8 product will require the LogTag Analyzer, software version 2.2r20 or later.

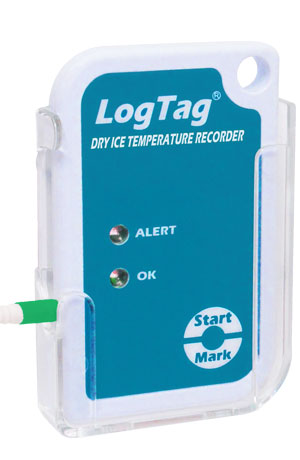

LOGDIEXT Low Temperature Data Logger – External Probe


The TREL-8 Low Temperature Remote Probe Logger measures and stores up to 8000 temperature readings over -80°C to +40°C (-112°F to +104°F) measurement range from associated interchangeable LogTag® ST10 type remote probe temperature sensor (available in lengths up to 3 meters (9’10”).

LogTag® TREL-8
Click here to show/ hide more info

LogTag® TREL-8

The TREL-8 Low Temperature Remote Probe Logger measures and stores up to 8000 temperature readings over -80°C to +40°C (-112°F to +104°F) measurement range from associated interchangeable LogTag® ST10 type remote probe temperature sensor (available in lengths up to 3 meters (9’10”).

It is intended for use in monitoring of articles stored at low temperatures such as in dry ice type environments. Using the LogTag® Interface Cradle and LogTag’s freely available companion software LogTag® Analyzer.

TREL-8 is easily configured for recording conditions including delayed start, sampling interval, number of readings and configuration of conditions to activate the ALERT indicator. Readings are downloaded using LogTag® Analyzer which provides facilities for charting, zooming, listing data statistics and allows exporting the data to other applications such as Excel.

The Red Alert indicator provides an immediate indication, without access to a PC, if any readings are outside the limits specified at the time the unit was configured. Green OK indicator provides immediate visual confirmation, without access to a PC, that the unit is operating.

Features

  • Records temperature from +40°C to as low as -80°C
  • Interchangeable External Probe with high quality gold plated connector.
  • A real time clock provides date/time stamps for each temperature reading.
  • Push-to-start button with optional delay or a specific time & date.
  • Comprehensive customisation options including alert settings, sample interval and trip duration.
  • Robust and durable polycarbonate case with lug for secure mounting.
  • Up to 8,000 recordings – enough for the longest trip.
  • In-transit inspections can be recorded at the push of a button.
  • Industry best download time – less than 5 seconds for fully memory

Specifications:

Product ModelTREL-8.
Sensor Measurement Range-80°C to +40°C (-112°F to +104°F).
Operating Temperature Range-20°C to +40°C (-4°F to +104°F).
Storage Temperature Range-10°C to +55°C (14°F to +131°F).
Rated Temperature Reading AccuracyWith the logger case sitting in an environmental temperature between 0°C and 50°C: Better than ±1°C for -30°C to +20°C.
Better than ±1.2°C for -45°C to -30°C and +20°C to +40°C.
Better than ±1.7°C for -80°C to -45°C.
Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below.
Accuracy figures can be improved by recalibration.
Rated Temperature Reading ResolutionLess than 0.1°C for -80°C to 0°C.
Less than 0.2°C for 0°C to +20°C.
Less than 0.5°C for +20°C to +40°C.
Please see the Rated Native Resolution chart below.
LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®.
Sensor Reaction TimeTypically less than 2 minutes (T90) in moving air (1m/s) for ST10S type.
Recording Capacity8032 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging.
Sampling IntervalConfigurable from 1 minute to several hours.
Logging Start OptionsPush button start or specific date & time.
Recording IndicationFlashing ‘OK’ indicator / flashing ‘ALERT’ indicator.
Download TimeTypically less than 5 seconds for full memory (8000 readings), depending on computer or readout device used.
EnvironmentalIP61.
Power Source3V LiMg battery.
Battery Life2 to 3 years of normal use (based on 15 minute logging, download data monthly.
Real Time ClockBuilt-in real time clock.
Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day).
Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C).
Size86mm(H) x 54.5mm(W) x 8.6mm(T).
Weight35g.
Case MaterialPolycarbonate.

LOGDIEXT (TREL-8) Low Temperature Data Logger with external probe: $229+GST (10/17)

Also required: Software & Reader, see above
Qty. discounts available

Brochure on LOGDIEXT (TREL-8) (pdf, opens in a new tab)

TREL-8 Quick Start Guide (pdf, opens in a new tab)

Includes ST100T-15 External Probe with 1.5m cable (4’11”) with no handleLogTag ST100T
140mm probe length, diameter 5mm, cable length 1.5m

This long tipped probe incorporates a 140mm exposed length of 5mm diameter 316 stainless probe.

All materials at probe end of cable are FDA food rated including the cable.
Alternative probe models are available – see probe list below

LogTag® TICT iS0°Tag®Other LogTag models not stocked in Australia (MOQ applies, lead time approx 2 weeks)

SRIL-8 Single use Dry Ice Logger: Similar to LOGDRYICE but lower cost for single use

TICT iS0°Tag Freeze Indicator and Temperature Logger:

A temp logger with a tamper-proof, irreversible electronic indicator which shows if the temperature has been at or below freezing point (0°C ) for 60 minutes.

External Probes

Interchangeable to rated product accuracy with LogTag LOGEXT, LOGDISPEX

High Quality gold plated connector
Industrial strength PTFE coaxial cable

logtag st100 external probesST100S-xx 30mm tip length, ⌀5mm (upper picture)
This short tipped probe incorporates a 22mm exposed length of 5mm OD 316 stainless probe without handle but with small over mold to improve resistance to moisture and provide cable strain relief. All materials at probe end of cable are FDA food rated including the cable.

ST100S-15 with 1.5m (4’11”) cable or
ST100S-30 with 3m (9’10”) cable

ST100T-xx 140mm tip length, ⌀5mm (middle picture above)
This long tipped probe incorporates a 140mm exposed length of 5mm diameter 316 stainless probe.
All materials at probe end of cable are FDA food rated including the cable.

ST100T-15 with 1.5m cable (4’11”) with no handle – supplied as standard with ..EXT loggers.
ST100T-30 with 3m (9’10”) cable

ST100H-xx 105mm tip length, ⌀5mm with handle (lower picture above)
The handled probe incorporates a 70mm long shaped overmolded handle with a 105mm length 5mm diameter (slightly greater than 3/16”) 316 stainless probe. All materials at probe end of cable are FDA food rated including the cable. Terminated with an MCX plug.

ST100H-15 with 1.5m (4’11”) cable, or
ST100H-15 with 3.0m (9’10”) cable

logtag st100j probeST100J probeST100J-xx 40mm tip length, ⌀3.2mm
This short tipped probe incorporates ~40mm of exposed length of 3.2mm diameter 316 stainless probe.
All materials at probe end of cable are FDA food rated including the cable. Terminated to MCX plug.

ST100J-15 with 1.5m (4’11”) cable, or
ST100J-30 with 3m (9’10”) cable

logtag st100b untipped probeST100B-xx Untipped (bare sensor)
Bare sensor without stainless sheath ready for fitting to custom probe assembly.
Not rated for food contact or environmentally rated. Terminated to MCX plug.

ST100B-15 with 1.5m (4’11”) cable, or
ST100B-30 with 3.0m (9’10”) cable

External Probe details (mfr site, opens in a new tab)
includes ST100J, ST100K, ST100L, ST100S, ST100T, ST100H, ST100B

Optional Accessories for LogTag Loggers

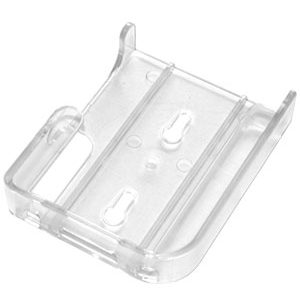

Optional Wall mount


The LogTag® Wall Mount Bracket provides an easy and tidy solution to mounting a LogTag® on a wall, door or vertical surface while still allowing easy removal of the LogTag® for download etc.

LogTag® Wall Mount Bracket
Click here to show/ hide more info

LogTag® Wall Mount Bracket

The LogTag® Wall Mount Bracket provides an easy and tidy solution to mounting a LogTag® on a wall, door or vertical surface while still allowing easy removal of the LogTag® for download etc.

Molded in polycarbonate plastic to allow use in a large range of environments.

The Wall Mount Bracket can be used inside coolstores, refrigerators, freezers, shipping containers and many other applications.

LOGWALL (200-000010) LogTag Wall Mount Bracket: $10+GST

Data on Wallmount Bracket (pdf, opens in a new tab)

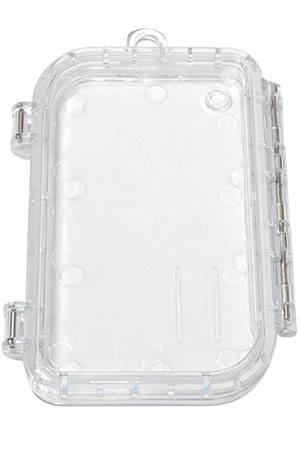

Optional Protective Case


The LogTag® Protective Enclosure is specifically designed for use with LogTag® Logger products and allows LogTags® to be used in harsh environments.

LogTag® Protective Enclosure
Click here to show/ hide more info

LogTag® Protective Enclosure

The LogTag® Protective Enclosure is specifically designed for use with LogTag® Logger products and allows LogTags® to be used in harsh environments.

The design of the enclosure minimises the effects of thermal lag caused by the additional casing. In general, the enclosure adds about 70% to the reaction time to temperature change in the same environment.

The enclosure’s case is made from high impact polycarbonate plastic and is clear to allow viewing of the enclosed logger’s LCD or indicators.

Conservatively rated at IP67 (equivalent to NEMA6).

Specifications:

Order Code200-000020
LogTag® Models SupportedSupports all non-External Probe and Humidity products.
Storage temperature range-40°C to +85°C (-40°F to +185°F)
Protection ratingIP67 (equivalent to NEMA6) for temperatures 1°C to +40°C (33°F to +104°F)
Case materialClear Polycarbonate
Seal MaterialSilicon rubber
Chemical resistanceIn general the polycarbonate material can withstand alcohols and diluted acids well. Problems can occur with hydrocarbons, phenols, esters, ketones and alkalis especially at elevated temperatures.
Size104mm (L- not including lug) x 76.5mm (W – including clips and hinge) x 13mm D
Weight41g
T90 thermal performanceWith TRIX-8 in 1 m/s air: T90 = to 10 minutes.
With TRID30-7x in 1 m/s air: T90 = to 17minutes

Data on LogTag Protective Enclosure (pdf, opens in a new tab)

Protective_Enclosure_Instructions (pdf, opens in a new tab)

LOGPROT (200-00020) Protective Enclosure: $20+GST

Call Now Button
