ACR SmartReader Plus 7 Data Logger for External Sensors
ACR SmartReader Plus 7 Data Logger for External Sensors
Application areas include HVAC Systems, Industrial Controls, Compressed Air, Water and Wastewater. Critical parameters are measured at a preset time interval and the readings are stored giving a time and date stamp of when an event occurred.
Specifications
| Input Ranges – Standard Model | 0 to 2.5 volts DC (1 channel) 0 to 5.0 volts DC (2 channels) 0 to 10.0 volts DC (1 channel) 0 to 200 millivolts DC (1 channel) 0 to 25 milliamps DC (2 channels) |
| Input Ranges – Other Models | 0 to 2.5 volts DC (all external channels) 0 to 5 volts DC (all external channels) 0 to 10 volts DC (all external channels) 0 to 25mA DC (all external channels) |
| Accuracy | +/- 0.5% of full scale |
| Overload Protection | Voltage channels: +/- 40 volts (reverse-polarity protected) Current channels: +/- 70 mA (reverse-polarity protected) |
| Input Impedance | > 1 M ohm (200 mV channels) > 1 M ohm (0 to 2.5 V channels) > 1 M ohm (0 to 5.0 V channels) > 1 M ohm (0 to 10.0 V channels) 20 ohm (0 to 25 mA channels) |
| Transducer Restrictions | It is recommended to use a single power supply or loop isolators to avoid ground loops |
The base sampling interval is 8 seconds, and longer averaging & recording intervals can be chosen. To log at rates faster than once every 8 seconds, SmartReader Plus Data Loggers require a separate 5V power supply.
This can be achieved by using a USB cable to a computer (powered up), or the BP-101 Battery pack, or a 5V power supply.
Data on SmartReader Plus 7 (SRP7)
Pricing – Standard input models: (1x 200mV channel, 1x 2.5V channel, 2x 5V channels, 1x 10V channel, 2x 25mA channels)
Prices are indicative only and may change without notice – please contact us for a quote.
| Part No | Product Details | Price (ex-GST) |
|---|---|---|

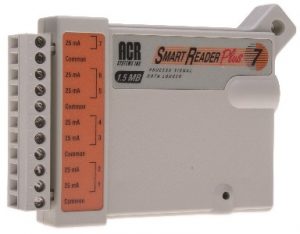

| SRP-007-128K | SmartReader Plus 7 – 128 KB Eight channel, 12 bit, 128 KB data logger (One ambient temperature and a 2.5, 5 (2 channels), 10, and 200 mV DC channel plus two 0-25 mA channels) | Approx $2,025+GST |
| SRP-007-1.5M | SmartReader Plus 7 – 1.5 MB Eight channel, 12 bit, 1.5 MB data logger (One ambient temperature and a 2.5, 5 (2 channels), 10, and 200 mV DC channel plus two 0-25 mA channels) | Approx $2,570+GST |
Pricing – Model with all 0-25mA inputs:
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| SRP-007-25mA-128K | SmartReader Plus 7 – 25mA – 128 KB Eight channel, 12 bit, 128 KB data logger (One ambient temperature and seven external 0-25 mA DC channels) | Approx $2,055+GST |
Pricing – Model with all 0-2.5V inputs:
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| SRP-007-2.5V-128K | SmartReader Plus 7 – 2.5V – 128 KB Eight channel, 12 bit, 128 KB data logger (One ambient temperature and seven external 0-2.5V DC channels) | Approx $2,055+GST |
Pricing – Models with all 0-5V inputs:
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| SRP-007-5V-128K | SmartReader Plus 7 – 5V – 128 KB Eight channel, 12 bit, 128 KB data logger (One ambient temperature and seven external 0-5V DC channels) | Approx $1,682+GST |
| SRP-007-5V-1.5M | SmartReader Plus 7 – 5V – 1.5 MB Eight channel, 12 bit, 1.5 MB data logger (One ambient temperature and seven external 0-5V DC channels) | Approx $2,570+GST |
Pricing – Models with all 0-10V inputs:
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| SRP-007-10V-128K | SmartReader Plus 7 – 10V – 128 KB Eight channel, 12 bit, 128 KB data logger (One ambient temperature and seven external 0-10V DC channels) | Approx $2,055+GST |
| SRP-007-10V-1.5M | SmartReader Plus 7 – 10V – 1.5 MB Eight channel, 12 bit, 1.5 MB data logger (One ambient temperature and seven external 0-10V DC channels) | Approx $2,570+GST |
Also required with SmartReader Plus loggers:
TR3-IC102 TrendReader software for Windows with IC-102 USB cable, see below
For fast scanning, see BP-101 Battery Pack option at the end of this section.
Software: TrendReader for Windows
TrendReader® 3 is a powerful, versatile and easy-to-use software application for all versions of windows, designed exclusively for ACR’s SmartReader Plus, SmartReader, IAQ, OWL, TRH, JR and Nautilus data loggers.
Powerful features and easy setup enables collected data to be thoroughly analyzed in seconds.
TrendReader Software details includes download trial (ACR site, opens in new tab)
Data Sheet on TrendReader 2 Rev 6, 7/11/2012 (pdf, opens in a new tab)
Data collected in ACR Data Loggers is downloaded using the USB port of a computer, with the bundled IC-102 cable.
TrendReader Software features:
- Simple logger setup window
- Compound multiple graphs to a resultant graph
- Export data to most spreadsheet formats
- Interface with remote loggers via modem
- Multi-graph display
- Zoom
- Scale units
- Add comments
- Data table view
Updates: TrendReader updates are available free of charge to existing users at the ACR website – downloads.
The USB cable has a minijack plug on one end for the SmartReader Plus logger, and a USB plug on the other end for the PC.
Prices are indicative only and may change without notice – please contact us for a quote.
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| TR3-IC102 | TrendReader3 software package for PC, including IC-102 USB interface cable for SRP loggers | Approx $288+GST |
An RS-232 Serial logger cable is also available, for connecting SRP loggers to serial device servers etc:
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| IC-101 | RS-232 9-pin PC serial port to logger interface cable, for SmartReader Plus loggers | Approx $150+GST |
For connecting SmartReader Plus loggers directly to modems, a different serial cable is available:
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| IC-101RFA | DE9M connector w/built in Null Modem for connection to DCE (RF/Cellular Modem), c/w 30cm M-M Stereo Cable | Approx $188+GST |
BP-101 Battery Pack
SmartReader Plus Data Loggers require the BP-101 Battery pack to log at rates faster than once every 8 seconds. A male stereo jack and cable plugs directly into the communication port on the logger. Uses 4 AAA batteries (included) and are user replaceable.
Size: 80 x 55 x 40 cm (3.25 x 2 x 1.5 inches)
Prices are indicative only and may change without notice – please contact us for a quote.
| Part No | Product Details | Price (ex-GST) |
|---|---|---|
| BP-101 | Battery Pack, Fast Sampling – BP101, Portable power supply for SmartReader Plus data loggers to allow them to sample faster than 8 seconds. | Approx $85+GST |
