Analog Input Modules for PC

with USB Port i/f

Pico Data Logger / Data Acquisition Range

Pico data acquisition products provide a straightforward answer to your data logging needs. Our data loggers require no power supply and simply plug into a USB port on your PC, or an Ethernet port on your PC or network. Every logger is supplied with PicoLog data acquisition software so you can measure, record and analyze your data.

Voltage measuring modules

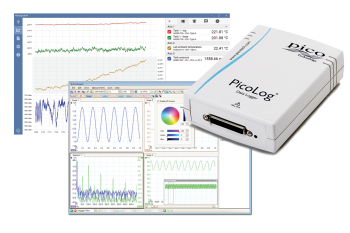

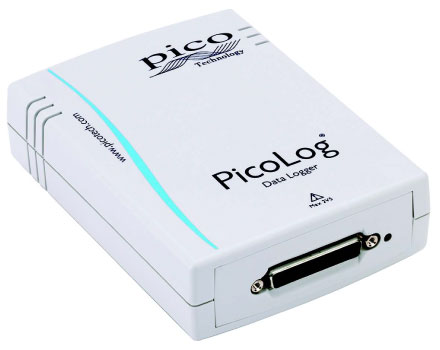

PicoLog® 1000 Series Multipurpose data acquisition


Designed to meet the needs of a wide range of general-purpose voltage, sensor and transducer logging applications, the PicoLog 1000 Multichannel DAQ Series features independent software-configurable scaling and control outputs, an external terminal board for custom front-end circuitry and a choice of 10 or 12-bit input resolution.
PicoLog® 1000 Series Multipurpose data acquisition
Click here to show/ hide more info

PicoLog® 1000 Series Multipurpose data acquisition

Designed to meet the needs of a wide range of general-purpose voltage, sensor and transducer logging applications, the PicoLog 1000 Multichannel DAQ Series features independent software-configurable scaling and control outputs, an external terminal board for custom front-end circuitry and a choice of 10 or 12-bit input resolution.



Multichannel data acquisition (DAQ):

  • Up to 16 input channels per data logger
  • Up to 4 output channels per data logger
  • Use up to 20 data loggers at the same time
  • Up to 1 MS/s sample rate
  • USB connected and powered
  • Data acquisition software and SDK included

A distinguished pedigree:
The PicoLog 1000 Series is the result of a distinguished lineage that goes back to the release of our first multichannel data logger—the ADC-11—in 1993. The original ADC-11, and its successor the USB ADC-11, proved to be the perfect choice for users wanting a low-cost way to measure and record multiple signals. The PicoLog 1000 Series builds on this success to give you the same low-cost data acquisition but with greater power and performance. (Because the ADC-11 was so popular we’ve also added a USB ADC-11 compatibility mode which allows you to use your PicoLog 1000 logger as a direct replacement to the USB ADC-11.)

An expandable multichannel data acquisition system:

The budget model PicoLog 1012 has 12 input channels and 10 bit resolution. The powerful PicoLog 1216 has 16 channels and 12 bit resolution. Need more channels? No problem. Using the new PicoLog 6 software you can connect up to 20 Pico data loggers to one PC—giving you a potential 320 channel PicoLog 1000 Series data acquisition system, or the ability to use your PicoLog 1000 logger with other devices such as the USB TC-08 Thermocouple Data Logger.

External Terminal Board:

The external terminal board has screw terminals to allow sensor wires to be attached to the data logger without soldering. The terminal board also has locations where you can fit resistors to offset and extend the input ranges of the logger.

Fast and accurate:

With 10 or 12-bit resolution and multiple sampling modes, a PicoLog 1000 Series logger will meet your data logging needs. The PicoLog 1000 Series has 3 sampling modes: Streaming mode allows channel voltage readings to be logged continuously at up to 100 kS/s, while block mode captures up to the full 1 MS/s sample rate of the logger for a duration limited by the 8000 sample buffer, both these speeds applying to single-channel operation.

Specifications:



Input
Model PicoLog 1012 PicoLog 1216
Analog inputs 12 16
Resolution 10 bits 12 bits
Accuracy 1% of full scale 0.5% of full scale
Maximum sampling rates:

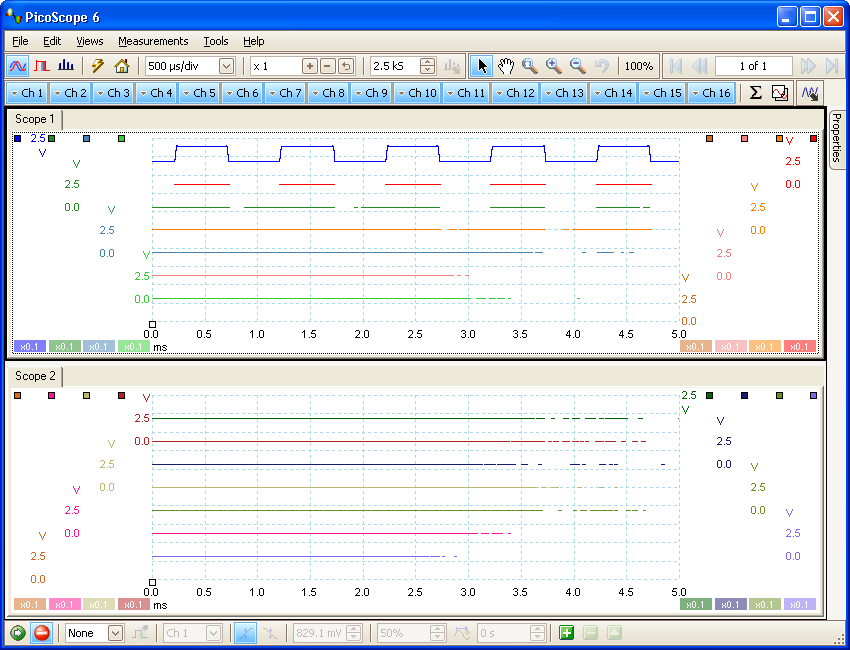

PicoScope
PicoLog
PicoSDK (block mode)
PicoSDK (streaming)
1 MS/s[1]
1 kS/s[2]
1 MS/s[1]
100 kS/s[1]
Capture memory
PicoScope (and PicoSDK block mode)
Sample rates over 100 kS/s:
Lower sample rates:
PicoLog (and PicoSDK streaming mode):
8000 samples [1]
1 million samples [1]
Up to available PC storage
Analog bandwidth (-3 dB) DC to 70 kHz
Input type Single-ended, unipolar
Input voltage range 0 to +2.5 V
Overvoltage protection 30 V to ground
Input coupling DC
Input impedance 1 MΩ
Outputs
Digital outputs (D0…D3) 2 4[3]
Digital outputs (PWM)
Period
Duty cycle
None 1
100 µs to 1800 µs
Adjustable from 0% to 100% in 1% steps
Digital outputs (all)
Logic low voltage
Logic high voltage
Current limit
100 mV (typical)
3.3 V
1 kΩ resistors in series with outputs
Power output for sensors 2.5 V @ 10 mA, current-limited



Environmental
Stated accuracy temperature range 20 to 50 °C
General operation temperature 0 to 70 B °C
Relative humidity (operating) 5 to 80 %RH
Storage temperature -20 to +80 °C
Storage humidity 5 to 95 %RH
Physical properties
Dimensions 45 x 100 x 140 mm (1.77 x 3.94 x 5.51 in)
Weight <200 g (7.05 oz)



Software
PicoLog, PicoScope and PicoSDK Available from www.picotech.com/downloads
PicoSDK example code Available from Picobs GitHub organization page, github.com/picotech
PicoLog user interface languages English, French, Italian, German, Spanish, Korean, Japanese, Chinese (simplified), Russian
PicoScope user interface languages Chinese (simplified), Chinese (traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Turkish
PC requirements
Minimum Processor, Memory, Free disk space: As required by the operating system
Operating system: Microsoft Windows 7, 8 or 10, 32-bit and 64-bit versions; macOS 10.9 (Mavericks) or later, 64-bit only; Linux*, 64-bit only
Ports: USB 1.1

* PicoLog 6 for Linux is distributed as an AppImage, so you can install it without superuser permissions: see appimage.org for further information. The software has been tested on Red Hat, OpenSUSE and Ubuntu.

General
Accessories supplied USB 2.0 cable, Quick Start Guide
PC interface USB 2.0 full speed
I/O connector 25-way D female
Power requirements Powered from USB port
Ground fault current protection 0.9 A thermal self-resetting fuse
Compliance European EMC and LVD standards FCC Rules Part 15 Subpart B RoHS compliant
Warranty 5 years

[1]Shared between active channels.
[2]Per active channel
[3]Except in ADC-11 compatibility mode.
[4]PicoScope R6.11 and PicoSDK 10.6.11 are the last versions compatible with Microsoft Windows XP (SP3) and Vista SP2, and they are also compatible with the Windows versions above.

Datasheet on PicoLog® 1000 Series Multipurpose data acquisition (pdf, opens in a new tab)

PicoLog 1000 Accessories

MI106 – USB 2.0 cable, 1.8 m

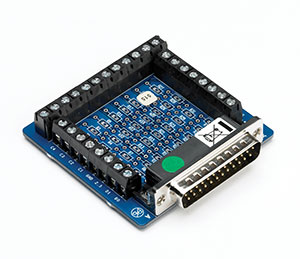

PP545 – Small terminal board for PicoLog 1000

TA268 – USB 2.0 cable, 0.5 m

CC008 – Calibration certificate for voltage input data logger

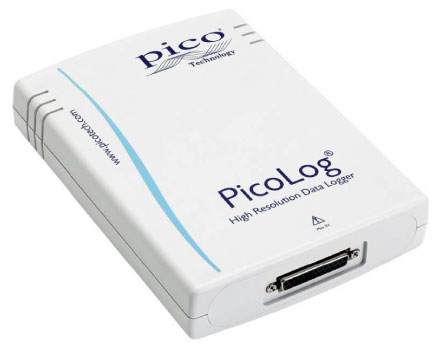

ADC-20 and ADC-24 Precision Data Loggers


Multichannel data loggers offering high resolution, high accuracy and programmable input ranges.
ADC-20 and ADC-24 Precision Data Loggers
Click here to show/ hide more info

ADC-20 and ADC-24 Precision Data Loggers

Multichannel data loggers offering high resolution, high accuracy and programmable input ranges.

High-resolution data acquisition:

  • 24-bit resolution
  • Up to 8 true differential inputs
  • Up to 16 single-ended inputs
  • 7 input ranges (±39 mV to ±2500 mV)
  • Fast conversion time
  • Digital outputs for control
  • Galvanic isolation from the PC to eliminate noise pickup
  • PicoLog data acquisition software included
  • Software drivers and SDK included

The ultimate in resolution and accuracy:
With up to 24-bit resolution the ADC-20 and ADC-24 USB data loggers are able to detect small signal changes. Features such as true differential inputs, galvanic isolation and software-selectable sampling rates all contribute to a superior noise-free resolution and ensure that your measurements are reliable and accurate.

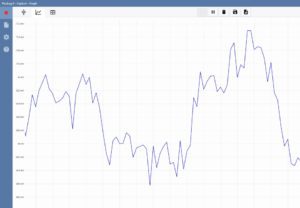

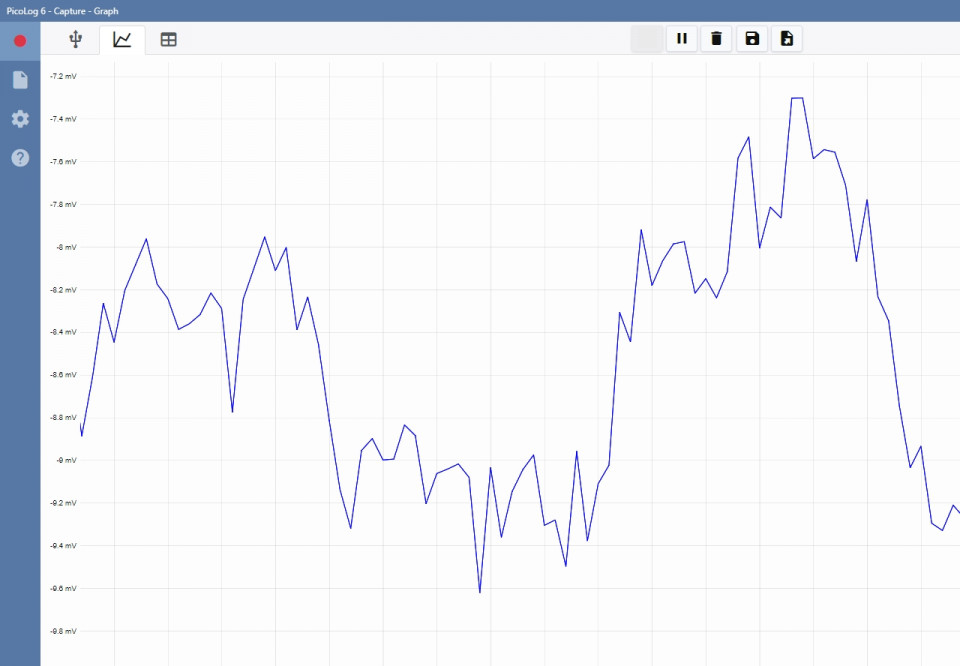

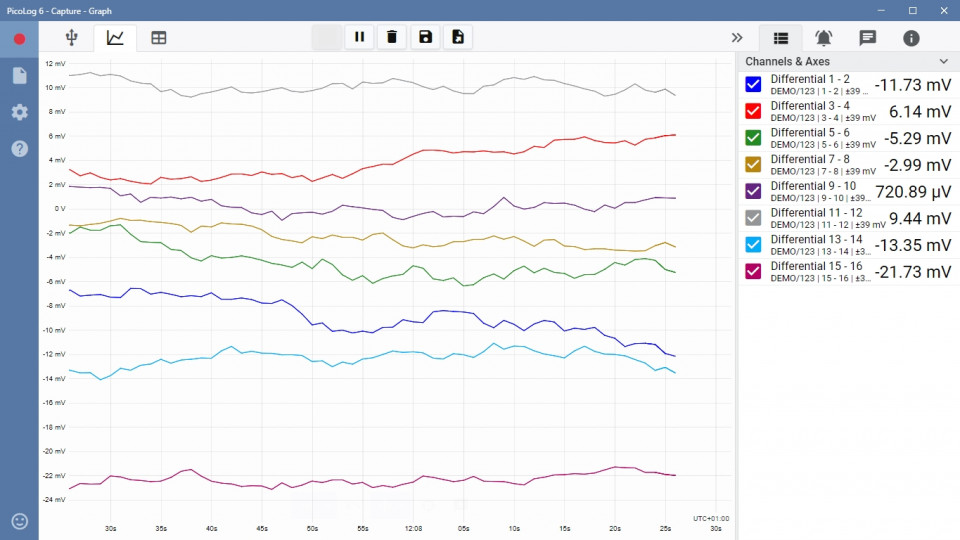

PicoLog 6 software – straightforward from the start
All Pico data acquisition products come complete with PicoLog 6. This powerful yet flexible data acquisition software allows you to collect, manipulate, analyze, display and export data.

Designed from the ground up to be intuitive from the outset, PicoLog 6 allows you to set up the logger and start recording with just a few clicks of the mouse, whatever your level of data logging experience.

From here, starting a capture is simple: plug in the logger, add a channel, press Record, and you’re logging! PicoLog 6 also includes a number of additional features to cater for more advanced data logging needs.

Flexible, multichannel data acquisition:
Both the ADC-20 and ADC-24 feature true differential inputs for excellent noise rejection. To give you a very flexible system each differential input can also be configured as two single-ended inputs. With up to eight differential or 16 single-ended inputs on the ADC-24, this flexibility gives you complete control on what type of inputs you use. If you require more channels, you can use multiple PicoLog data loggers on the same PC.

With seven bipolar voltage ranges, the ADC-20 and ADC-24 are also flexible enough to be used with a wide range of sensors and signal types. There’s also an external terminal board with screw terminals to allow you to quickly connect and disconnect different sensors.

Additionally, the ADC-24 has four configurable digital input/output channels that can be used to control alarms or other devices.

The flexibility of the ADC-20 and ADC-24 allows you to use these precision data loggers as an advanced multichannel data acquisition system with a low cost per channel.

No need for power supplies or batteries:
The high-resolution ADC-20 and ADC-24 are powered directly by your PC — eliminating the need for batteries or a separate power supply, and making them ideal when you need a portable data logger.

The answer to your data acquisition needs:
High resolution, true differential inputs, galvanic isolation, and selectable sampling rates combine to ensure that your measurements are always precise and accurate. Configurable inputs, digital inputs and outputs, and programmable voltage ranges give you a truly flexible answer to your data acquisition needs.

When you need the ultimate in high resolution and accuracy, the versatile ADC-20 and ADC-24 provide you with a portable answer with the performance and flexibility you need.

Specifications:


ADC-20
ADC-24
Resolution 20 bits 24 bits
Number of channels[1] 4 differential / 8 single-ended 8 differential / 16 single-ended
Conversion time (per channel) 660 ms, 340 ms, 180 ms, 100 ms, 60 ms
Voltage ranges ±2500 mV
±1250 mV
±2500 mV
±1250 mV
±625 mV
±312 mV
±156 mV
±78 mV
±39 mV
Gain error 0.2% of reading 0.1% (±39 mV to 1250 mV range)
0.2% (±2500 mV range)
Offset accuracy 6 µV (±39 mV range)
7 µV (±78 mV range)
9 µV (±156 mV range)
13 µV (±313 mV range)
20 µV (±625 mV range)
36 µV (±1250 mV range)
400 µV (±2500 mV range)

[1]The ADC-20 and ADC-24 have four and eight true differential input channels respectively. For flexibility each of these channels can be configured as either one differential channel or two single-ended channels.

Noise-free resolution and conversion time
Conversion time per channel Voltage ranges & noise-free resolution (bits) for the full range of conversion times
  ±39 mV ±78 mV ±156 mV ±313 mV ±625 mV ±1250 mV ±2500 mV
  ADC-24 only ADC-20 and ADC-24
660 ms 17 18 19 20 20 20 20
340 ms 17 18 19 19 19 20 20
180 ms 16 17 18 19 19 19 19
100 ms 16 17 18 18 18 19 19
60 ms 15 16 17 18 18 18 18

  ADC-20 ADC-24
Noise rejection 120 dB typical at 50/60 Hz
Input impedance Differential: 2 MΩ
Single-ended: 1 MΩ
Common mode input range, channel to common ±1.9 V (±39 mV to ±1250 mV ranges)
±3.0 V (±2500 mV range)
Common mode input range, common to earth ground ±30 V
Common mode rejection ratio, channel to common 95 dB (DC to 60 Hz)
Common mode rejection ratio, common to earth ground > 125 dB (DC to 60 Hz)
Overvoltage protection ±30 V between any input and common
Digital I/O none 4 bidirectional (3.3 V CMOS)
Output level, high: > 2.40 V
Output level, low: < 0.40 V
Input level, high: > 2.20 V
Input level, low: < 0.88 V
Isolation (input to input) None
Isolation (input to ground) Galvanic up to ±30 V
AGND and DGND isolated
Reference output +2.5 V ±2.5 mV @ 2 mA
+5 V ±1.0 V @ 2 mA
–5 V ±1.5 V @ 2 mA
Software
PicoLog and PicoSDK Available from www.picotech.com/downloads
Example code Available from Pico’s GitHub organization page, github.com/picotech
PicoLog user interface languages English, French, Italian, German, Spanish, Korean, Japanese, Chinese (simplified), Russian




PC requirements
Minimum Processor, Memory, Free disk space: As required by the operating system
Operating system: Microsoft Windows 7, 8 or 10, 32-bit and 64-bit versions; macOS 10.9 (Mavericks) or later, 64-bit only; Linux*, 64-bit only
Ports: USB 1.1

* PicoLog 6 for Linux is distributed as an AppImage, so you can install it without superuser permissions: see appimage.org for further information. The software has been tested on Red Hat, OpenSUSE and Ubuntu.

[2]PicoSDK 10.6.11 are the last versions compatible with Microsoft Windows XP (SP3) and Vista SP2, and they are also compatible with the Windows versions above.

Environmental
Temperature range, operating, for quoted accuracy 20 °C to 30 °C
Temperature range, operating 0 °C to 45 °C
Temperature range, storage –20 to +60 °C
Humidity range, operating 5 to 80 %RH, non-condensing
Humidity range, storage 5 to 95 %RH, non-condensing
General
I/O connector 25-way D female
Power requirements Powered from USB port, 100 mA (max.)
A 4.4 m (13.8 ft) USB cable is permanently attached to the logger
Dimensions 135 x 184 x 36 mm (5.31 x 7.24 x 1.41 in)
Weight Approx. 505 g (17.8 oz)
Compliance European EMC and LVD standards
FCC Rules Part 15 Class A
Warranty 5 years

Datasheet on ADC-20 and ADC-24 Precision Data Loggers (pdf, opens in a new tab)

ADC-20 & ADC-24 Accessories

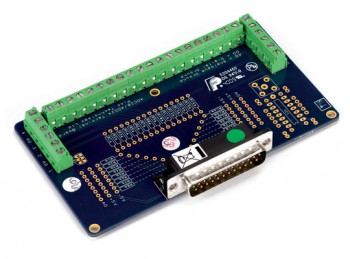

PP310: ADC-20/24 terminal board
CC008: Calibration certificate for voltage input data logger

Temperature measuring modules (also measure voltage)

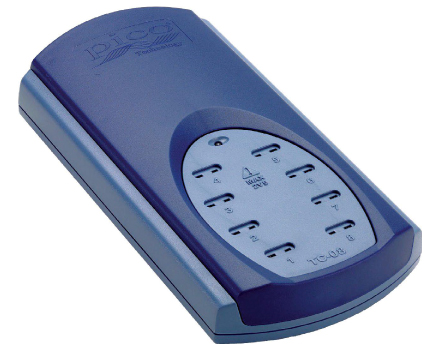

TC-08 Thermocouple Data Logger


Suitable for a wide range of temperature measurement and recording applications. Works with all types of thermocouple sensor to measure temperatures from −270°C to +1820°C. We stock a wide range of thermocouples.
TC-08 Thermocouple Data Logger
Click here to show/ hide more info

TC-08 Thermocouple Data Logger

Suitable for a wide range of temperature measurement and recording applications. Works with all types of thermocouple sensor to measure temperatures from −270°C to +1820°C. We stock a wide range of thermocouples.

8 channel thermocouple data logger:

  • 8 channel thermocouple data logger
  • Measures from –270 to +1820 °C (–454 to +3308 °F)
  • High resolution and accuracy
  • Expandable to 20 units / 160 channels
  • Supports all popular thermocouple types
  • Fast sampling rate — up to 10 measurements per second (including CJC)
  • USB connected and powered
  • PicoLog 6 for Windows, macOS and Linux data logging software included
  • PicoSDK drivers for Windows, macOS and Linux included

Datasheet on TC-08 Thermocouple Data Logger (pdf, opens in a new tab)

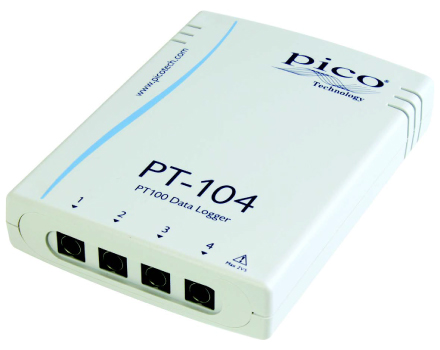

PT-104 High Accuracy Temperature Data Logger


Designed for precision temperature measurement, the PT-104 offers the ultimate in resolution (0.001°C) and accuracy (0.015°C).
PT-104 High Accuracy Temperature Data Logger
Click here to show/ hide more info

PT-104 High Accuracy Temperature Data Logger

The PT-104 is a four-channel temperature measuring data logger. It offers the ultimate in resolution (0.001 °C) and accuracy (0.015 °C). Along with temperature it can also be used to measure resistance and voltage.

PT-104 Platinum Resistance Data Logger:

  • Measures temperature, resistance and voltage
  • High resolution and accuracy
  • Works with PT100 and PT1000 sensors
  • Supports 2, 3 and 4-wire sensors
  • No power supply required
  • USB and Ethernet interfaces
  • Run multiple units on a single PC

Datasheet on PT-104 High Accuracy Temperature Data Logger (pdf, opens in a new tab)

Software

PicoLog 6 data logging software

PicoLog 6 is a complete data acquisition software package. It provides a visual, easy-to-use interface for users to quickly set up simple or complex acquisitions, record, view and analyze data.

  • Real-time data collection and display
  • Visual logger and channel setup for easy configuration and viewing
  • Available for Windows 7, 8 and 10 (32 and 64-bit), macOS and Linux
  • Virtually unlimited logging capacity to PC
  • Robust database format minimizes data loss and corruption
  • Simple and complex programmable alarms
  • ​Channels can be scaled using lookup table or equation
  • Up to 4 independent graph axes
  • Data can be exported as CSV, clipboard image and PDF
  • Supports multiple different PicoLog data loggers and PicoScope oscilloscopes on the same PC

Download PicoLog 6 now for free, from https://www.picotech.com/download.

PicoLog 6 – straightforward from the start

Designed from the ground up to be intuitive from the outset, PicoLog 6 allows you to set up the logger and start recording with just a few clicks of the mouse, whatever your level of data logging experience.

From here, starting a capture is simple: plug in the logger, add a channel, press Record, and you’re logging! PicoLog 6 also includes a number of additional features to cater for more advanced data logging needs.

Easy navigation

A simple vertical menu bar on the left of the screen provides permanent access to the main program menus and view modes of PicoLog 6 without pausing capture.

The permanent vertical navigation bar gives access to the following menus:

  • Device setup and capture menu
  • Saved file browser menu
  • Program settings menu
  • Help menu

The device setup and capture menu

Within the Device setup and capture menu are Device configuration view, Graph view and Table view providing a visually smart way to set up and acquire data from a multichannel acquisition system, even with multiple different PicoLog data loggers and PicoScope oscilloscopes with hundreds of channels enabled and logging.

Device configuration

In the Device configuration view you can instantly see the status of instruments, acquisition channel setting and math channel setup. An image of the device appears for each device detected, showing which channels are enabled. Device configurations can simply be moved or copied to aid larger multi-instrument configurations, swap out devices during capture or share configurations.

From this screen you can view and adjust settings such as adding graph axes, per-channel scaling factor, alarms, notes, graph annotations, channel naming and color, sample mode and sample interval.

View live data in Graph view

Viewing your data in a graph is fundamental to data acquisition applications. The PicoLog 6 graph view makes it easy to view captures, zoom and pan through large datasets, record alarm history and display when alarms occurred. It also allows you to annotate the graph with your notes and observations.

Adding additional graph axes is also essential for multi-channel logging applications where measurement units are different for every channel, or when the channels are measuring values at opposite ends of the range. For example, simultaneously measuring an internal furnace temperature of over 1000 °C and the ambient temperature at the same time requires two axes so that the detail of both is visible. You can view up to four axes with different ranges at a time.

View live numerical data in table format

Table view is a really useful new feature which allows you to view your tabulated numerical data in a spreadsheet format. Table view is not only available to view live data from your current dataset, you can also view tabulated data in your saved data files.

When configuring table view, it is possible to add 4 statistical parameters to each channel, choose from; last sample, minimum, maximum and average. In addition, the output sample rate must be specified allowing you to define the frequency that table rows are calculated.

Setting up Channels and Axes

The Channel and Axes settings menu is visible in both the Device settings and Capture Graph views. Once a channel is enabled and settings confirmed, you can view its connection status at a glance, along with alarm condition and current live measurement. In this menu, you can also configure alarms and view graph annotations and capture info.

Alarms and annotations

Maybe you’re measuring the temperature of a microbiological culture in an incubator, or strain on a concrete bridge in high winds; you’ll need to be informed when a reading exceeds acceptable tolerances.  In PicoLog 6, you can set up an alarm to alert users when a parameter goes out of range. This can be configured to play a sound, display visual alerts on the screen, run a specified application such as an email or SMS client, and automatically annotate the capture graph to mark when the alarm happened and its duration.

PicoLog 6 alarms can also trigger a digital output on devices with supporting hardware, such as the PicoLog 1000 Series, ADC-24 and DrDAQ. You can even trigger a digital output from one of these devices based on an alarm condition from another connected logger without digital outputs, such as a TC-08.

Math channels

Some applications require the recording and graphing of a calculated parameter containing data from one or more measurement channels. PicoLog 6 is equipped with an equation builder to perform simple calculations such as A – B, or more complex functions such as log, sqrt, abs, round, min, max, mean and median. Math channels are treated like any normal channel, so you can perform functions like alarms, graphing and annotations on them.

Robust data file format

At the heart of PicoLog 6 is the file system which stores live capture data directly to a robust database, rather than to a single file that is prone to data loss and corruption. If the computer is shut down and rebooted, PicoLog will only lose the data during the outage and the file system will begin saving capture data once again without corruption of the file.

The file system also allows for virtually no limit on the size of dataset you can capture – only the size of the hard disk on your computer!

Another major step forward is native support for 32-bit and 64-bit Windows, various Linux distributions (64-bit only) and macOS. The new .picolog file format is compatible across all operating systems. Since anyone can download and install PicoLog 6 for free, you can share saved .picolog files with co-workers, customers and suppliers for offline post-analysis.

Exporting data

When you’re ready to export the data, you have several options. First, save the .picolog file and close the acquisition. You can save files with custom search tags to make them easier to categorize and locate later.

Exporting large datasets to CSV can often be troublesome due to file size limitations, so PicoLog 6 includes a suite of export options to narrow down the size of the whole dataset. These include downsampling, selecting channels to export or even restricting the export region to the zoomed area on screen.

Want to export a screen shot? PicoLog 6 includes a feature to export the graph as a PDF: again, select either the entire capture or the zoomed area of interest. The export to PDF format also includes options to include alarm trigger history, annotations, channel configuration and capture notes, for a complete capture report.

PicoLog data loggers now support Raspberry Pi computers

Pico Technology data loggers work great when USB connected to PCs running Windows, macOS and Linux, and now with support for Raspbian OS on armhf processors, we now support Raspberry Pi computers.

Optimized and tested on the new Raspberry Pi 4, and the current 3B and 3B+ on Raspbian Stretch, the PicoLog 6 data logging software package provides a visual, easy-to-use interface allowing you to quickly set up simple or complex acquisitions and record, view and analyze data. It’s the same fully functioning software that runs on Windows, macOS and Linux.

Coupled with a Raspberry Pi, this new PicoLog 6 package expands the flexibility and opens the door for Pico’s data loggers to be used in new and different ways:

  • You can now connect the logger to the Pi and remove the keyboard, mouse and video to make an inexpensive stand-alone logger storing its captured data locally on a Pi SD-CARD
  • Furthermore, connecting your Pi by WiFi or Ethernet, you can internet-enable your Pico logger which you can then access remotely using an open-source VNC server and viewer freely available
  • …and better still, utilising the Power over Ethernet (PoE) capability on the Raspberry Pi 3B+ paired with the PoE PiHAT not only eliminates the need for an external power supply and powered USB hub, it also internet-enables your logger at the same time

PicoScope Software

Advanced display

PicoScope software dedicates almost all of the display area to the waveform. This ensures that the maximum amount of data is seen at once. The viewing area is much bigger and of a higher resolution than with a traditional benchtop scope.

With a large display area available, you can also create a customizable split-screen display, and view multiple channels or different views of the same signal at the same time. As the example shows, the software can even show multiple oscilloscope and spectrum analyzer traces at once. Additionally, each waveform shown works with individual zoom, pan, and filter settings for ultimate flexibility.

The PicoScope software can be controlled by mouse, touchscreen or keyboard shortcuts.



FFT spectrum analyzer

FFT spectrum analyzer

The spectrum view plots amplitude vs frequency and is ideal for finding noise, crosstalk or distortion in signals. The spectrum analyzer in PicoScope is of the Fast Fourier Transform (FFT) type which, unlike a traditional swept spectrum analyzer, can display the spectrum of a single, non-repeating waveform.

A full range of settings gives you control over the number of spectrum bands (FFT bins), window types, scaling (including log/log) and display modes (instantaneous, average, or peak-hold).

You can display multiple spectrum views alongside oscilloscope views of the same data. A comprehensive set of automatic frequency-domain measurements can be added to the display, including THD, THD+N, SNR, SINAD and IMD. A mask limit test can be applied to a spectrum for automated testing.

More information on Spectrum analyzer >>



waveform buffer

Waveform buffer and navigator

Ever spotted a glitch on a waveform, but by the time you’ve stopped the scope it has gone? With PicoScope you no longer need to worry about missing glitches or other transient events. PicoScope can store the last ten thousand oscilloscope or spectrum waveforms in its circular waveform buffer.

The buffer navigator provides an efficient way of navigating and searching through waveforms, effectively letting you turn back time. Tools such as mask limit testing can also be used to scan through each waveform in the buffer looking for mask violations.

More information on Waveform buffer >>


PicoScope color persistence mode

Digital persistence modes

Advanced display modes allow you to overlay thousands of waveforms. New or more frequent data can be displayed in a brighter color or shade. This makes it easy to see glitches and dropouts and to estimate their relative frequency. Choose between analog persistence, digital color or custom display modes.

More information on Persistence modes >>



Custom probes in PicoScope oscilloscope software

The custom probes feature allows you to correct for gain, attenuation, offsets and nonlinearities in probes, sensors or transducers that you connect to the oscilloscope. This could be used to scale the output of a current probe so that it correctly displays amperes. A more advanced use would be to scale the output of a nonlinear temperature sensor using the table lookup function.

Definitions for standard Pico-supplied oscilloscope probes and current clamps are included. User-created probes may be saved for later use.

More information on Custom probes in PicoScope oscilloscope software >>



Alarms

PicoScope can be programmed to execute actions when certain events occur.

The events that can trigger an alarm include mask limit fails, trigger events and buffers full.

The actions that PicoScope can execute include saving a file, playing a sound, executing a program or triggering the signal generator / AWG.

Alarms, coupled with mask limit testing, help create a powerful and time saving waveform monitoring tool. Capture a known good signal, auto generate a mask around it and then use the alarms to automatically save any waveform (complete with a time/date stamp) that does not meet specification.



oscilloscope maths channels and filters

Math channels and filters

On many oscilloscopes waveform math just means simple calculations such as A + B. With a PicoScope it means much, much more.

With PicoScope 6 you can select simple functions such as addition and inversion, or open the equation editor to create complex functions involving filters (lowpass, highpass, bandpass and bandstop filters), trigonometry, exponentials, logarithms, statistics, integrals and derivatives.

Waveform math also allows you to plot live signals alongside historic peak, averaged or filtered waveforms.

You can also use math channels to reveal new details in complex signals. An example would be to graph the changing duty cycle or frequency of your signal over time.

Call Now Button
Upgrade to reliability this Black Friday with 10% off on Industrial PCs—durable solutions for demanding settings!
