Handheld Algiz Rugged Tablet PC's
Algiz RT7, 8X and 10XHandheld Algiz Rugged Tablet PCs
The Handheld Algiz range of rugged Tablet PCs include 7″ Android, and 8″ and 10″ Windows based rugged tablets. These European made devices are built to operate in harsh exposed or outdoor working conditions, every day, with three to five years’ life expectancy.
Handheld is a Scandinavian manufacturer of best-in-class Rugged Tablets and Notebooks since 2003.
Algiz RT7
Algiz 8X
Algiz 10X
Handheld Rugged Tablets

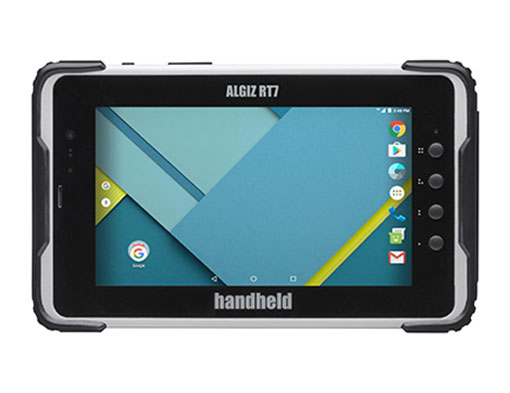

Algiz RT7 Ultra Rugged 7″ Tablet
Perfectly ergonomic, seriously rugged, and ready for any task, the 7-inch Algiz RT7 offers unmatched field performance at an excellent value.
Perfectly ergonomic, seriously rugged, and ready for any task, the 7-inch Algiz RT7 offers unmatched field performance at an excellent value.
Whether you’re collecting data, crunching numbers or viewing graphics, the Algiz RT7’s powerful Qualcomm quad-core processor provides reliable, uninterrupted work performance. And the Algiz RT7 doesn’t just run Android flawlessly — its capacitive touchscreen also enhances the Android experience with five-point multi-touch capability, 600-nit high-brightness sunlight readability and chemically strengthened glass.
The Algiz RT7’s physical design balances full ruggedness and lightweight ergonomics — without compromising either. Algiz RT7 was designed from the inside out to be comfortable to hold and easy to carry, resulting in a tablet that weighs just 650 grams. Yet the Algiz RT7 also meets stringent MIL-STD-810G military standards for withstanding extreme temperatures, drops and vibrations, and its IP65 rating means it’s waterproof and fully protected against sand and dust.
Specifications
| Size | 216 mm x 128 mm x 24 mm (8.5” x 5” x 0.9”) |
| Weight | 650 g (22.9 oz) (including battery) |
| Processor | Qualcomm® MSM8916 – quad-core ARM Cortex A53, 1.2 GHz |
| Memory/Disk | 2 GB LP-DDR3 Storage: 16 GB eMMC1 |
| Operating System | Android 6.0 (Marshmallow) Google GMS (Google Play) |
| Screen | 7″ WSVGA (1024×600); 600 nits Capacitive 5-point multi-touch Chemically strengthened glass |
| Keypad | 4 programmable function keys |
| Battery | Li-Ion, 3.7V 6000 mAh (22.2Wh) |
| Connections | USB A Host USB micro (PC sync and charging) RJ45 (Ethernet) 3.5 mm headset (stereo and mic) 3.5 mm DC inlet |
| I/O slot | Dual SIM slots (user accessible) SDXC slot |
| Camera | 8 megapixel rear-facing camera with autofocus and LED illumination 2 megapixel front-facing camera |
| Communication | |
| Audio | Built in: Microphone, 1.8W speaker |
| PAN | BT v4.1 LE (up to 150 m) |
| Cellular (WWAN) | Voice and data 2.5G (GSM, GPRS,EDGE) 3G (UMTS, HSPA+) 4G (LTE) |
| Wireless LAN | 802.11 b/g/n 2.4 GHz |
| NFC | NFCIP-1 NFCIP-2 ISO/IEC14443 ISO/IEC 15693 ISO/IEC 18000-3 MIFARE FeliCa |
| Navigation | Integrated with stand-alone u-blox® GPS (EVA-7M, position accuracy with SBAS 2m CEP) Built-in GPS Qualcomm® IZat |
| Indicators | LEDs: white, green, red, yellow and blue indicators Vibration motor |
| Sensors | 3-axis accelerometers 3-axis gyroscope eCompass |
| Environment | |
| Operating | -20 °C to 50 °C (-4 °F to 122 °F) MIL-STD-810G, Method 501.5/502.5 Procedure II and III |
| Storage | -40 °C to 70 °C (-40 °F to 158 °F) MIL-STD-810G, Method 501.5/502.5 Procedure I |
| Drop | 26 drops from 1.22 m (4 ft) MIL-STD-810G, Method 516.6 Procedure IV |
| Vibration | MIL-STD-810G, Method 514.6 Procedure I |
| Sand & Dust | IP65, IEC 60529 |
| Water | IP65, IEC 60529 |
| Humidity | MIL-STD-810G, Method 507.5 Procedure II |
| Altitude | 4572 m (15.000 ft) MIL-STD-810G, Method 500.5 Procedure I |
| Options | |
| SKUs | North American European |
| Optional scanners | 2D Barcode Imager 13.56 Mhz RFID reader 2 x SAM slot. |
| Included in box | International power adapter Battery 3.5 mm headset USB cable Quick-start guide |
Data sheet on Algiz RT7 Tablet (pdf, opens in a new tab)
Options for Algiz RT7 Ultra Rugged 7″ Tablet
RT7-B-RF1-A00 G Algiz RT7 – 1Gb/16Gb, 1.2 GHz, WLAN, BT, LTE, NFC, GPS: $1,600.47+GST (6/19)
RT7-RF1-AS0 G Algiz RT7 – 1Gb/16Gb, 1.2 GHz, WLAN, BT, LTE, NFC, GPS, 2D Barcode Imager: $2,063.97
RT7-RF1-ASR G Algiz RT7 – 1Gb/16Gb, 1.2 GHz, WLAN, BT, LTE, GPS, 2D Barcode Imager and eTicket Pro Reader: $3,042.47
RT7-05A C Algiz RT7 Vehicle dock 12V-24V, 2 USB A, Lockable: $282.07
RT7-08A C Algiz RT7 Standard Battery: $127.57
RT7-13A C Algiz RT7 Spare AC Charger: $53.41
RT7-01A C Algiz RT7 Car Charger Input :11V-16V: $89.46
RT7-19A C Algiz RT7 Quad Charger for Units: $487.04
RT7-09A C Algiz RT7 Micro USB cable: $24.57
RT7-14A C Algiz RT7 Headset: $32.81
RT7-15A C Algiz RT7 Hand strap: $137.87
RT7-20A C Algiz RT7 Carry case: $165.68
RT7-21A C Algiz RT7 Holster with quick release clip for belt: $117.27
RT7-21AWSS C Algiz RT7 Nylon Webbing Shoulder Strap for Holster (RT7-21A): $27.66
NX-1011 C Capacative Stylus pen and string: $27.66

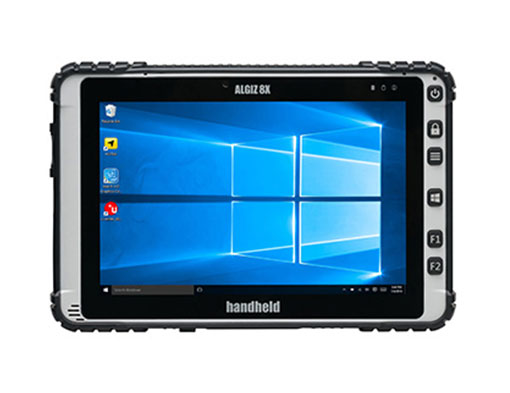

Algiz 8X Rugged 8” Tablet
The ultra-mobile Algiz® 8X rugged tablet combines powerful computing with ultimate reliability in the toughest environments. It offers fast processing power along with user-friendly features and design, maximizing your efficiency on long days in the field.
The Algiz 8X is powered by a speedy Intel® Pentium processor with plenty of RAM and storage. The Algiz 8X’s compact size makes it the perfect companion for today’s mobile field workers. It’s only 24 mm thick and weighs less than a kilo, including the powerhouse battery. Along with sleek design, the Algiz 8X offers snappy performance and can withstand harsh handling and tough outdoor and industrial environments, from mining to maintenance.
The Algiz 8X is IP65-rated and meets stringent MIL-STD-810G military standards for protection against dust, water, vibrations, drops, extreme temperatures and varying altitudes. It transitions seamlessly from the office to the field and back again, making field computing easy and keeping your information safe.
Specifications
| Size | 225 mm x 147 mm x 24 mm (8.8” x 5.7” x 0.9”) |
| Weight | 990 g (2.18 lbs) (including battery) |
| Processor | Intel® Pentium® Processor N3710 (2M Cache, up to 2.40 GHz) |
| Memory/Disk | 4 GB DDR3L RAM/128 GB SSD |
| Operating System | Windows® 10 Enterprise CBB (64bit) |
| Data Security | TPM v1.2 |
| Screen | 8” Capacitive Touchscreen with chemically strengthened glass. 600+ Nits Rain Mode and Glove mode Supporting active pen Resolution: 1280×800 |
| Keypad | Power, Touchscreen mode, Menu, Home, F1, F2 |
| Battery | Hot-swappable lithium-ion battery pack. Standard: 5200 mAh (39.52 Wh), 7.6V Extended: 10350 mAh (74.52Wh), 7.2V |
| Connections | 1 x DC power port 2 x USB Host 3.0 Type A 1 x Micro HDMI Micro SDXC Micro SIM |
| Docking Connector | Charging GPS antenna pass-through WWAN antenna pass-through Multipurpose docking connector |
| Expansion | Interchangeable ports with following capabilities (all individual ports): Dummy (Default) LAN port RS232 RS422 RS285 CAN bus Barcode imager |
| Communication | |
| Audio | Speaker |
| PAN | Integrated BT v4.2 LE |
| Cellular (WWAN) | 2G, 3G, 4G/LTE, Verizon LTE Sierra EM7355 (NA. M.2 Type) Sierra EM7305 (EU. M.2 Type) Sierra EM7455 (Verizon. M.2 Type) |
| Wireless LAN | 802.11 ac, a/b/g/n 2.4 GHz and 5 GHz |
| Navigation | Integrated u-blox® GPS/GLONASS (NEO-M8N) |
| Camera | Rear facing: 8 megapixel with autofocus and LED flash Front facing: 2 megapixel |
| Indicators | Power status Battery/Charging status SSD status |
| Sensors | Light sensor |
| Environment | |
| Operating | -20°C to 60°C (-4°F to 140°F) MIL-STD-810G, Method 501.5 Procedure II |
| Storage | -40°C to 70°C (-40°F to 158°F) MIL-STD-810G, Method 501.5/502.5 Procedure I |
| Drop | 26 drops from 1.22 m (4 ft) MIL-STD-810G, Method 516.6 Procedure IV |
| Vibration | MIL-STD-810G, Method 514.6 Procedures I & II |
| Sand & Dust | IP65, IEC 60529 |
| Water | IP65, IEC 60529 |
| Humidity | 0 ～ 95% (non-condensing) MIL-STD-810G, Method 507.5 |
| Altitude | 4572 m (15.000 ft) MIL-STD-810G, Method 500.5 Procedure I |
| Included Accessories | Standard battery, ac-adapter |
Data sheet on Algiz 8X Tablet (pdf, opens in a new tab) Options:
Options for Algiz 8X Rugged 8” Tablet
A8XV1-10P01 G 4Gb/128Gb SSD, Windows 10,Intel® Quadcore: $2,269.97+GST (6/19)
A8XV1-10P02 G 4Gb/128Gb SSD, Windows 10,Intel® Quadcore and 4G LTE for EMEA, APAC, S. America: $2,578.97
EM7305 C WAN Upgrade for ALGIZ 8X, for EMEA, APAC, S. America: $287.22
A8XEXP-BC C Algiz 8X Barcode Scanner Expansion Module, Honeywell N6603: $595.19
A8XEXP-RJ45 C Algiz 8X RJ45 Expansion Module: $112.12
A8XEXP-COM C Algiz 8X COM Port Expansion Module: $112.12
ALG8X-05A C Algiz 8X Lockable Vehicle dock 12V-36V: $567.38
ALG8X-14A C Algiz 8X Desktop Cradle: $387.13
ALG8X-08A C Algiz 8X Standard Battery 5200 mAh (39.52Wh) 7.6V: $209.97
ALG8X-08B C Algiz 8X Extended Battery 10050 mAh (76.38Wh) 7.6V: $320.18
ALG-13C C Algiz 8X/10X Spare AC Charger: $125.51
ALG8X-10A C Algiz 8X External Twin Battery Charger: $269.71
HH-12VB C Car Charger Input :11V-16V, 22-32V, DC Output :12V DC 5.0A 60W: $130.66
ALG-02AU C Power Cord standard Australia: $21.48
ALG8X-15A C Algiz 8X Hand Strap: $25.60
ALG8X-22A C Algiz 8X Flip Cover: $113.15
ALG-06A C Active External GPS Antenna for vehicle dock: $42.08
ALG8X-16A C Algiz 8X Copter Screen Protector Film: $34.87
ALG8X-17A C Algiz 8X Pole mount for 1 and 1.25 Inch Poles, Compass, 40-min Vial, for standard battery: $292.37
ALG8X-17B C Algiz 8X Pole mount for 1 and 1.25 Inch Poles, Compass, 40-min Vial, for extended battery: $292.37
ALG8X-18A C Algiz 8X Tactical Vehicle mount: $114.18
RAM-101U-2461 C RAM Mount with Vesa plate 75mm for vehicle dock: $82.25
HHSTYLUS-03 C Active Stylus Pen. String and Battery Included: $81.22

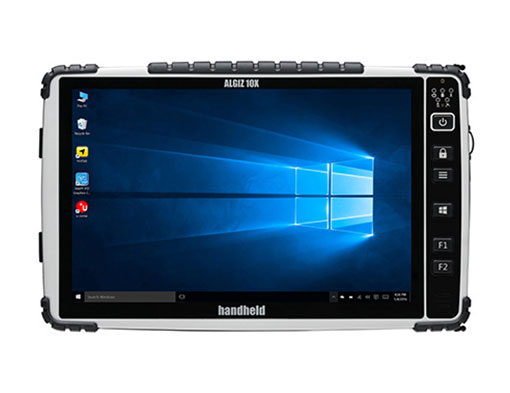

Algiz 10X Tablet – 10.1″, IP65, Windows
The powerful Algiz® 10X rugged tablet offers sophisticated technology and can withstand weather elements and harsh handling — a perfect match for today’s mobile workforce. It operates on a powerful Intel® quad-core processor, with a 128 GB SSD, expandable via microSD™, and 4 GB of DDR3 RAM, offering top-of-the-line computing capability and massive storage capacity. The Algiz 10X comes standard with Windows 10 Enterprise CBB (64-bit).
The Algiz 10X features a crisp and bright 10.1-inch full HD projected capacitive touchscreen, and comes with an optional active capacitive stylus plus rain and glove modes — perfect for field professionals who need a large display to handle detailed maps or other visuals in any weather condition. The screen’s ambient light sensor adjusts backlighting automatically — so collecting data in bright sunlight is just as easy as reviewing it indoors.
The Algiz 10X is lightweight for a rugged device at just 1.3 kg, and it’s only 32 mm thick. Even with such a portable size, this tablet is built to withstand the harsh conditions that come with all kinds of industry fieldwork. It’s IP65-rated and meets stringent MIL-STD-810G military standards for protection against dust, water, vibrations, drops, extreme temperatures and varying altitudes.
Specifications:
| Size | 275 mm x 171 mm x 32 mm (10.8″ x 6.7″ x 1.2″) |
| Weight | 1.3 kg (2.9 lbs) |
| Processor | Intel® quad-core N2930 1.83 GHz Processor with 2.16 GHz boost. |
| Memory/Disk | 4 GB DDR3 RAM 128 GB SSD |
| Data Security | TPM v1.2 |
| Operating System | Windows 10 Enterprise CBB (64-bit) Windows 7 Ultimate (64-bit) |
| Screen | 10.1″ (16:10) 1920×1200 resolution LED high-brightness MaxView™ Technology. 10 points projective capacitive touch. Ambient light sensor. Rain and glove mode. |
| Keypad | Power key Menu key Touch Lock key Windows Home key 2 Programmable Hotkeys On-screen QWERTY soft keyboard |
| Battery | Hot-swappable Li-Ion Battery Pack: Standard battery: 5300 mAh (39.22 Wh) Extended battery: 10600 mAh (78.44 Wh) |
| Camera | 5 megapixel camera + LED flash |
| Connections | 1 x USB 2.0 port* 1 x USB 3.0 port 1 x 9-pin serial RS-232 port* 1 x VGA* 1 x DC power port* 1 x RJ45 10/100/1000 LAN 1 x microSD Slot, SDXC 1 x Audio/Microphone *IP65 with open cover |
| Docking Connector | Contact Pin Type 1 x External GPS/GLONASS antenna input 1 x External GSM antenna input |
| Communication | |
| Audio | Speaker / Digital Microphone / Headset jack |
| PAN | Integrated BT v4.0 LE / v2.1 |
| Cellular (WWAN) | Sierra Wireless MC7304 / MC7354/MC7455 Verizon LTE LTE HSPA+ GSM/GPRS |
| Wireless LAN | 802.11ac a/b/g, n Dual Band 2.4/5 GHz |
| Navigation | Integrated u-blox® NEO-M8N, GPS & GLONASS, WAAS/EGNOS/MSAS-capable |
| Environment | |
| Operating | -20 °C to 60 °C (-4 °F to 140 °F) MIL-STD-810G, Method 501.5 Procedure II, MIL-STD-810G, Method 502.5 Procedure II, III |
| Storage | -40 °C to 70 °C (-40 °F to 158 °F) MIL-STD-810G, Method 501.5 Procedure I, MIL-STD-810G, Method 502.5 Procedure I |
| Drop | 26 drops from 1.22 m (4 ft) to concrete MIL-STD-810G, Method 516.6 Procedure IV |
| Vibration | MIL-STD-810G, Method 514.6 Procedure I |
| Sand & Dust | IP65, IEC 60529 |
| Water | IP65, IEC 60529 |
| Humidity | MIL-STD-810G, Method 507.5 Procedure II |
| Altitude | 4572 m (15.000 ft) MIL-STD-810G, Method 500.5 Procedure I |
Data sheet on Algiz 10X Tablet (pdf, opens in a new tab)
Options for Algiz 10X Tablet – 10.1", IP65, Windows 8.1
A10XV3-10P01 G 4Gb/128Gb SSD, Windows 10,Intel® Quadcore Capacitive multi touch(V3): $3,196.97
A10XV3-10P02 G 4Gb/128Gb SSD, Windows 10,Intel® Quadcore and 4G LTE for EMEA, APAC, S. America, Capacitive multi touch(V3): $3,608.97
A10XV3-7P01 G 4Gb/128Gb SSD, Windows 7,Intel® Quadcore Capacitive multi touch(V3): $3,196.97
A10XV3-7P02 G 4Gb/128Gb SSD, Windows 7,Intel® Quadcore and 4G LTE for EMEA, APAC, S. America, Capacitive multi touch(V3): $3,608.97
A10X-10P01-V2 G 4Gb/128Gb SSD, Windows 10,Intel® Quadcore Resistive single touch (V2): $3,196.97
A10X-10P02-V2 G 4Gb/128Gb SSD, Windows 10,Intel® Quadcore and 4G LTE for EMEA, APAC, S. America Resistive single touch (V2): $3,608.97
A10X-8P01-V2 G 4Gb/128Gb SSD, Windows 8,Intel® Quadcore: $3,196.97
A10X-8P02-V2 G 4Gb/128Gb SSD, Windows 8,Intel® Quadcore and 4G LTE for EMEA, APAC, S. America: $3,608.97
A10X-7P01-V2 G 4Gb/128Gb SSD, Windows 7,Intel® Quadcore: $3,196.97
A10X-7P02-V2 G 4Gb/128Gb SSD, Windows 7,Intel® Quadcore and 4G LTE for EMEA, APAC, S. America: $3,608.97
MC7304 C WAN Upgrade for ALGIZ 10X V2, for EMEA, APAC, S. America: $330.48
WIN10ENT-A10X C Windows 10 Enterprise LTSB delivered on an USB stick: $320.18
WIN8PRO-A10X C Windows 8.1 Pro delivered on a USB stick: $320.18
WIN7ULT-A10x C Windows 7 Ultimate delivered on a USB stick: $398.46
ALG10X-05C C Vehicle dock 12V-36V,2 USB/2 RS232/1 Ethernet 10Mb, GPS/WAN Pass thru Updated version with 12V Com port/RS232: $406.70
ALG10X-04C C Algiz 10X Lockable Vehicle dock (Specs as ALG10X-05C): $527.21
ALG10X-08A C Algiz 10X Standard Battery 38.5 Wh: $226.45
ALG10X-08B C Algiz 10X Extended Battery 77 Wh: $303.70
ALG-13C C Algiz 10X Spare AC Charger: $125.51
ALG10X-10A C Algiz 10X External Charger for Std/Ext Batteries, Needs ALG-13C: $205.85
HH-12VB C Car Charger Input :11V-16V, 22-32V, DC Output :12V DC 5.0A 60W: $130.66
ALG-02AU C Power Cord standard Australia: $25.60
ALG10X-15A C Algiz 10X Hand strap: $49.29
ALG10X-06A C GPS Antenna External passive for Algiz 10X Vehicle Dock: $49.29
ALGX-16A C Algiz 10X V1/V2 Screen Protector Film 10”: $37.96
ALG10X-16B C Algiz 10X V2 Copter Screen Protector Film: $41.05
ALG10X-16C C Algix 10X V3 Copter Screen Protector Film: $41.05
ALG10X-17A C Algiz 10X Pole mount for 1 and 1.25 Inch Poles, With Compass, 40-min Vial: $298.55
ALG10X-18A C Algiz 10X Tactical Vehicle mount: $162.59
ALG10X-20C C Algiz 10X Carry case: $97.70
RAM-101U-2461 C RAM Mount with Vesa plate75mm for ALG10X-05A: $92.55
ALG10X-03B C Algiz 10X V2 Stylus pen and String: $25.60
ALG10X-03C C Algiz 10X V3 Passive Stylus pen and String: $25.60
ALG10X-12A C Algiz 10X Shoulder Carrier: $560.17
HHSTYLUS-03 C Active stylus pen. String and battery included: $82.25
HHSTYLUS-02 C Capacitive “thin tip” passive stylus pen and string: $25.60
