LCD Monitors with Plastic Cases
LCD Touchscreen Monitors – many optionsLCD Monitors with Plastic Cases
The optional desk stand provides flexibility of viewing angle, and for touch screen models the stand is heavier duty for extra support. All models also provide rear VESA mounting points so a third party mounting arm can be used (e.g. desk, wall or ceiling mount).
Options are available such as sunlight readable, composite video / HDMI in, DC powered, various touch screen types, etc, even for very small orders.
Touch screen types
Resistive Touchscreens are for applications where speed and accuracy are required, They are used primarily for point of sales and medical and industrial applications.
Resistive Touchscreens are versatile and pens, gloved hands or bare skin can be used to acivate the touchscreen.
Capacitive touchscreens need bare finger or wet glove to activate them.
The surface is tougher than that of resistive touchscreens.
SAW (Surface Acoustic Wave) Touchscreens are for applications such as information kiosks.
They are strong and are scratch and vandal proof.
Water, dirt and contaminants can’t get in.
They work even when glass is scratched.
The user must use bare skin or object that absorbs the sound waves to activate the touchscreen.
Other related pages:
- Arms and Mounts for LCD monitors – Atdec
- Overview of LCD Monitor range – CyberVisuell
- Smart Chassis Industrial LCD Monitors with Custom Options – CyberVisuell
- Panel Mount Industrial LCD Monitors with Custom Options – CyberVisuell
- Rack Mount Industrial LCD Monitors with Custom Options – CyberVisuell
- Open Frame Industrial LCD Monitors with Custom Options – CyberVisuell
- Flush Mount Marine Grade LCD Monitors – CyberVisuell
Desktop LCD Monitors with Plastic Cases
Desktop LCD Monitors with Plastic Cases
CyberVisuell’s desktop LCD monitors with plastic housing are suitable for general office use as well as digital signage, video surveillance and retail applications. They are cost effective monitors with a wide variety of input types, in a range of sizes from 10.4” up to 24”.
CyberVisuell’s desktop LCD monitors with plastic housing are suitable for general office use as well as digital signage, video surveillance and retail applications. They are cost effective monitors with a wide variety of input types, in a range of sizes from 10.4” up to 24”.
They optionally come with a removable and foldable stand, and also offer VESA mounting holes on the monitor back. The VESA mounting allows the monitors to be mounted using any desk, wall or ceiling mount – please refer to our LCD Mounting Arms pages for more mounting options.
For touch screen versions please see the touch screen section below.
Features
- Extra small footprint creates more work space
- Built-in speaker for multimedia
- Sharp and brilliant images of text and graphics
- Slim bezel, long lasting product cycle for enclosure – future generation panels phased in without external changes
- Wide range of options available with no MOQ, due to modular design
- Wide operating temperature 0-50°C
- Touch screens: please see below for touch monitors, which come with a heavier stand
- Flexible input options: VGA, DVI, Composite Video, HDMI, HD-SDI
- Power supply: DC 12V with mains adaptor
- Optional Sunlight Readable panel and/or LED backlight
- VESA compliant mounting on rear
Sizes and Resolutions
| 4:3 Screen Models | Wide Screen Models | |

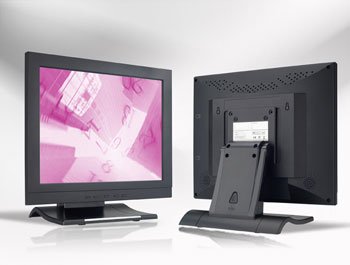

| Model No Size Res. | Pics of 10.4″ and 24″ Desktop LCDs | Model No Size |
| PCB1041SN 10.4″ 800X600 PCB1041XN 10.4″ 1024×768 PCB1218SN 12.1″ 800X600 PCB1218XN 12.1″ 1024×768 PCB1588XN 15″ 1024×768 PCB1788EN 17″ 1280×1024 PCB1988EN 19″ 1280×1024 |
|
PCB1561WX 15.6″ 1366×768 PCB17W1WP 17″ 1440×900 PCB19W1WP 19″ 1440×900 PCB2411WU 24″ 1920×1200 |
Common Specifications
| Display Type | TFT LCD | |
| Panel | Surface | Black Anti-Glare, Low Reflection Coating |
| Light Source | CCFL, (Cold-cathode fluorescent lamps) Long Life 50,000 Hrs (typ) Optional LED Backlight available |
|
| Inputs | VGA Input | 15-pin D-Sub Female, Analog RGB Signal |
| 0.7/1.0Vp-p, 75 Ohms, Fh = 30-82kHz, Fv = 50-75Hz | ||
| Separate Sync / Composite Sync / Sync on Green | ||
| Audio | Stereo Mini Jack, 2W Speaker x2 | |
| Power | All plastic cased models | 12V DC, with External AC Adaptor included |
| Mounting | VESA mount on rear | Up to 17″: 75 x 75 mm |
| 19″-24″: 100 x 100 mm | ||
| Features | Auto Calibration, Back Light Adjustment, Plug & Play (VESA DDC/CI, DDC 2B) | |
| Operating Conditions | Temperature / Humidity | 0°C to 50°C, 10%-90% (non condensing) |
| Storage Conditions | Temperature / Humidity | -20°C to 60°C, 10%-90% (non condensing) |
| Certifications | CE, FCC, C-Tick | CE, FCC, C-Tick |
Options
| Most options may be ordered in any quantity of monitors
Please note some combinations of options/sizes may not be possible – please contact us for a quote. |
Option Codes | |
| Panel / Backlight | LED Backlight (brightness specified in nits xxxx) For Sunlight Readable: Use 1000 or 0700 nits high brightness models |
-BLxxxx |
| CCFL Backlight (brightness specified in nits xxxx) | -BCxxxx | |
| Wide Dimming Range, controlled by OSD buttons | -BW | |
| Touchscreen | Please see the Touch Monitor range below for touch versions. | |
| Inputs | VGA | -IV |
| VGA + DVI | -IVD | |
| VGA + DVI + HDMI | -IVDH | |
| VGA + DVI + HDMI + RS-232 remote control input | -IVDHR | |
| VGA + S-Video + Composite Video (BNC connectors) | -IVSC | |
| VGA + DVI + S-Video + Composite Video | -IVDSC | |
| VGA + HDMI | -IVH | |
| VGA + Media Player (plays various formats from CF / SD cards / USB stick) | -IVM | |
| Power | 12V DC, with External AC Adaptor included | -P12 |
| Stand | Supplied without stand or mounting bracket
Please check out our range of Atdec arms and brackets for monting on desks or walls |
-MN |
| Includes desk stand | -MS | |
| Other | Wide Viewing Angle (only available for specific LCD panels) | -VW |
| Light Sensor with Auto Dimming | -LS | |
Touch Screen LCD Monitors with plastic cases
Touch Screen LCD Monitors with plastic cases
CyberVisuell’s LCD touch monitors with plastic housing are excellent for POS (point of sale) use, as well as digital signage, medical and transportation applications. They are cost effective touch screen monitors with a wide variety of input types, in a range of sizes from 10.4” (4:3) up to 24” (widescreen), and with a choice of resistive or capacitive touch screens.
CyberVisuell’s LCD touch monitors with plastic housing are excellent for POS (point of sale) use, as well as digital signage, medical and transportation applications. They are cost effective touch screen monitors with a wide variety of input types, in a range of sizes from 10.4” (4:3) up to 24” (widescreen), and with a choice of resistive or capacitive touch screens.
They come with a sturdy removable base which is engineered for the physical demands of touch screen use. The monitors also offer VESA mounting holes on the monitor back which allows the monitors to be mounted using any desk, wall or ceiling mount – please refer to our LCD Mounting Arms pages for more mounting options.
For non-touch versions please see the Desktop LCD Monitors section above.
Features
-
- Extra sturdy base designed for touch screen use (optional)
- Built-in speaker for multimedia
- Sharp and brilliant images of text and graphics
- Long lasting product cycle for enclosure – future generation panels phased in without external changes
- Wide range of options available with no MOQ, due to modular design
- Wide operating temperature 0-50°C
- Touch screens: Resistive or Capacitive
- Flexible input options: VGA, DVI, Composite Video, HDMI, HD-SDI
- Power supply: DC 12V with mains adaptor
- Optional Sunlight Readable panel and/or LED backlight
- VESA compliant mounting on rear
Sizes and Resolutions
| 4:3 Screen Models | Wide Screen Models | |

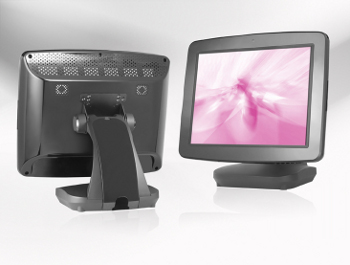

| Model No Size Res. | Pics of 10.4″ and 24″ Touch Monitors | Model No Size Res. |
| PCC1043SN 10.4″ 800×600 PCC1043XN 10.4″ 1024×768 PCC1213SN 12.1″ 800×600 PCC1213XN 12.1″ 1024×768 PCC1585XN 15″ 1024×768 PCC1785EN 17″ 1280×1024 PCC1985EN 19″ 1280×1024 |
|
PCC1565WX 15.6″ 1366×768 PCC17W5WP 17″ 1440×900 PCC19W5WP 19″ 1440×900 PCC2415WU 24″ 1920×1200 |
Common Specifications
| Display Type | TFT LCD | |
| Panel | Surface | Black Anti-Glare, Low Reflection Coating |
| Light Source | CCFL, (cold-cathode fluorescent lamps) Long Life 50,000 Hrs (typ) Optional LED Backlight available |
|
| Inputs | VGA Input | 15-pin D-Sub Female, Analog RGB Signal |
| 0.7/1.0Vp-p, 75 Ohms, Fh = 30-82kHz, Fv = 50-75Hz | ||
| Separate Sync / Composite Sync / Sync on Green | ||
| Audio | Stereo Mini Jack, 2W Speaker x2 | |
| Power | All plastic cased models | 12V DC, with External AC Adaptor included |
| Mounting | VESA mount on rear | Up to 17″: 75 x 75 mm |
| 19″-24″: 100 x 100 mm | ||
| Features | Auto Calibration, Back Light Adjustment, Plug & Play (VESA DDC/CI, DDC 2B) | |
| Operating Conditions | Temperature / Humidity | 0°C to 50°C, 10%-90% (non condensing) |
| Storage Conditions | Temperature / Humidity | -20°C to 60°C, 10%-90% (non condensing) |
| Certifications | CE, FCC, C-Tick | CE, FCC, C-Tick |
Options
|
Most options may be ordered in any quantity of monitors Please note some combinations of options/sizes may not be possible – please contact us for a quote. |
Option Codes | |
| Panel / Backlight | LED Backlight (brightness specified in nits xxxx) For Sunlight Readable: Use 1000 or 0700 nits high brightness models |
-BLxxxx |
| CCFL Backlight (brightness specified in nits xxxx) | -BCxxxx | |
| Wide Dimming Range, controlled by OSD buttons | -BW | |
| Touchscreens | Resistive USB connection by default, or specify -RS232 for serial |
-TR |
| Capacitive (cannot detect gloved finger) USB connection by default, or specify -RS232 for serial |
-TC | |
| Inputs | VGA | -IV |
| VGA + DVI | -IVD | |
| VGA + DVI + HDMI | -IVDH | |
| VGA + DVI + HDMI + RS-232 remote control input | -IVDHR | |
| VGA + S-Video + Composite Video (BNC connectors) | -IVSC | |
| VGA + DVI + S-Video + Composite Video | -IVDSC | |
| VGA + HDMI | -IVH | |
| VGA + Media Player (plays various formats from CF / SD cards / USB stick) | -IVM | |
| Power | 12V DC, with External AC Adaptor included | -P12 |
| Stand |
Supplied without stand or mounting bracket Please check out our range of Atdec arms and brackets for monting on desks or walls |
-MN |
| Includes extra sturdy desk stand for touch use | -MS | |
| Other | Wide Viewing Angle (only available for specific LCD panels) | -VW |
| Light Sensor with Auto Dimming | -LS | |
