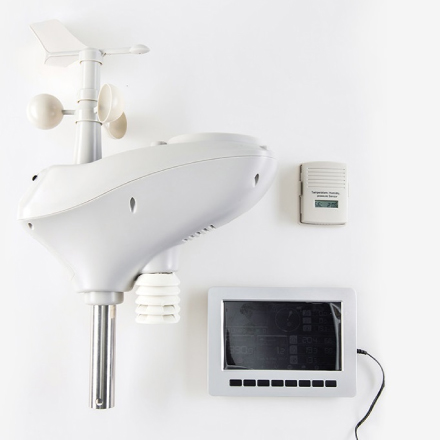

RK900-05 Wireless Home Weather Station used to measure the indoor temperature and humidity and outdoor temperature and humidity, atmospheric pressure, light, ultraviolet radiation, wind speed and direction, dew-point, rainfall, large screen color LCD display and built-in large capacity storage function, the product can be through the WIFI meteorological data uploaded to www.wunderground.com, also can through the APP to view data, suitable for installation in the garden, villa, park, country house and other areas.

Features:

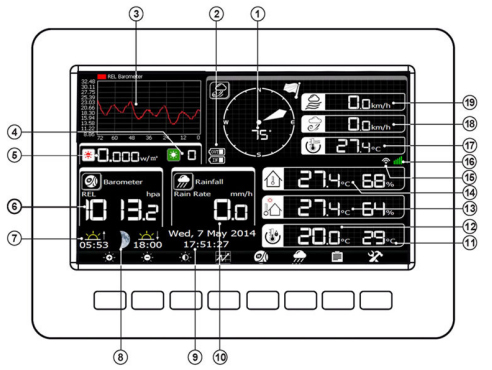

• TFT color display
• WIFI connection to the router
• Records of all minimum and maximum values along with time and date of their recordings
• Internal memory: 4GB
• Time display, including Hour, Minutes, Date
• Automatic daylight saving time function
• Weather Symbols
• Hi/low alarm
• Calibration function is available
• Outdoor unit powered by solar
• All the weather data from the station and weather history data with user adjustable measuring intervals can be recorded and uploaded to your PC
• Free PC software for transfer weather data to PC (support windows system)
• Measurement parameters: Indoor temperature & humidity, Outdoor temperature & humidity, Lux index ( solar radiation index: w/m2),UV index, Wind speed & Wind direction, Wind chill ,Dew point temperature, Barometric pressure, Rainfall data in 1hour,24hours,one week, one month and total since last reset

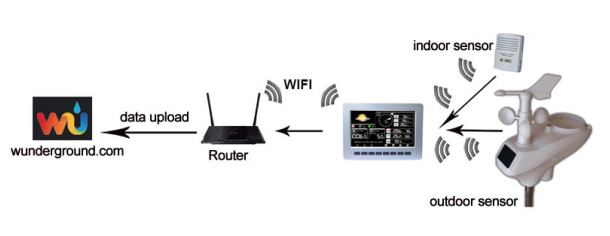

• Upload data to the website automatically(www.wunderground.com), you can see the weather information of your weather station everywhere, once you browse the web
• Can check the weather station data at any time by the APP(weather underground)Display Language: English, Dansk, Nederlands, Francais, Deutsch, Italiano, Espanol, Chinese

Applications:

• Home
• Villa
• Country house
• Courtyard
• Garden
• Private meteorological application

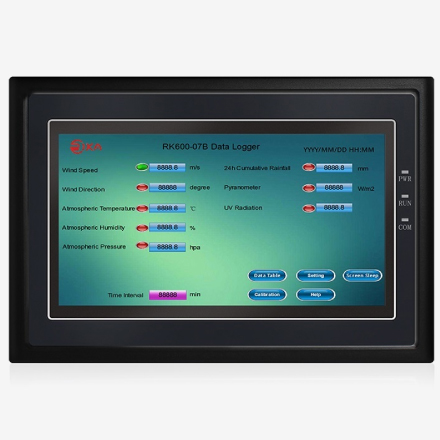

RK600-07 Data Logger with data acquisition, storage, transmission and management, and other functions, is the core component of automatic weather station, which can connect 32 parameter at the same time, has the settings and color LCD display, can communication with PC via cable or wireless connection, provide communication protocol, convenient for secondary development.

Features:

• Real-time display
• Multiple sensor interface
• Large storage
• Types of communication interface
• Udisk external storage optional
• Wireless optional
• Self-contained clock chip
• Solar power supply optional
• HMI app & Software

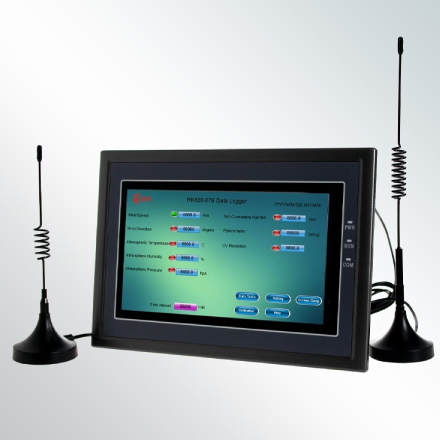

RK600-07 Data Logger with data acquisition, storage, transmission and management, and other functions, is the core component of automatic weather station, which can connect 32 parameter at the same time, has the settings and color LCD display, can communication with sever or cloud via cable or wireless connection, provide communication protocol, convenient for secondary development.

Features:

• Local real-time display
• Multiple sensor interface
• Large storage
• Multiple communication interfaces
• Wireless optional
• Free app and PC remote monitoring software
• Self-contained clock chip
• Solar power supply optional
• Data cloud platform
• Custom display interface

Advantage:

• Real time data display and storage;
• Adjustable data storage interval;
• View data table in real time;
• Support remote viewing and exporting data in CSV format;
• Sensor communication status indication;
• Support wireless between sensor and data logger;
• Support wireless between data logger and cloud sever;
• Support U_disk local export data;
• Support exporting data in specified time period;
• The connector supports blind plug, no misplug risk.
• Compatible with DC and AC power supply;
• Low power consumption design which support solar power supply;
• Compact design, the solar power supply system and battery can be installed in the protective box;
• RIKA provide open service of cloud platform with multi-device management;
• Windows,IOS,Android；Remote monitoring software available for Windows, IOS, and Android System;（RIKA cloud）；Support video monitoring ( by using RIKA ’s Cloud)
• Support custom control output;
• Support customized display interface (including logo, language, etc.);

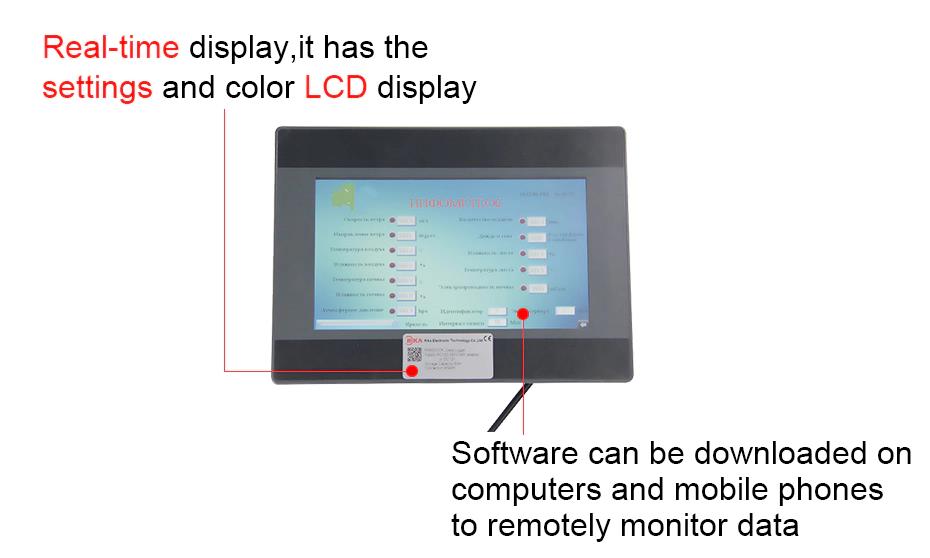

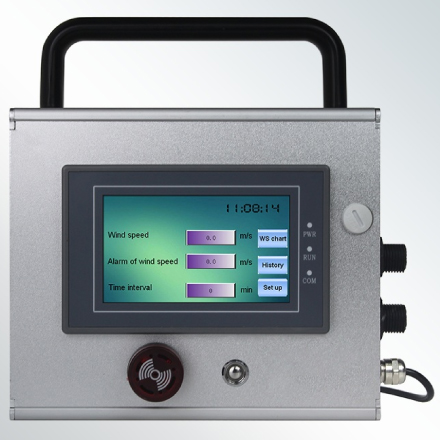

RK600-08 Data Logger with data acquisition, storage, transmission and management, and other functions, is the core component of automatic weather station, which can connect 32 parameter at the same time, has the settings and color LCD display, can communication with PC via cable or wireless connection, provide communication protocol, convenient for secondary development.

Features:

• Real-time display
• Multiple sensor interface
• Large storage
• Types of communication interface
• Udisk external storage optional
• Wireless optional
• Self-contained clock chip
• Solar power supply optional
• HMI app & Software
• Data cloud platform
• Custom display interface
• Relay and alarm output

Specifications:

Guidelines for the Selection of Data logger:
If solar power supply is needed, RK600-08 is recommended, data logger, solar controller and battery can be installed in protective box.

Interface Description:
Display screen of sensor data

1. Real time monitoring of sensor data.
2. Set data saving interval.
3. View data table in real time.
4. Restraint relay control output.
The above interface is an example of temperature sensor

(1)When the channel receives data normally, the channel indicator is green, and when the channel receives data abnormally, the indicator becomes red(Check whether the wire connection is good when receiving abnormal data).
(2)Backlight progress bar moved to the left backlight darkest, moved to the right brightest, in order to reduce power consumption, keep the progress bar on the leftmost side.
(3)Local ID default: 1(Decimal), you can modify it via MODBUS RTU command
(4)Screen Saver time default: 1min, in order to reduce power consumption, no modification is recommended.
(5) Record interval default:10 min, it can be modified by touch screen.First storage time is 10 minutes by default
(6) Adjust the interface according to the type and number of sensors.

Communication Mode:
*The AWS can communicate with the center workstation by RS232 or RS485.
If the communication distance is less than 20m, RS232 communication is recommended;
if communication distance is within 20 to 800m, RS485 communication is recommended.
*GPRS wireless communication, when cable routing is inconvenient, data can be transferred by GPRS wireless communication, the center workstation can network with several RK900-01 AWS.
*LAN access, RK900-01 AWS is worked as a LAN node communication in the local network by transferring the RS232 with a LAN module. This mode can work under the network interface.

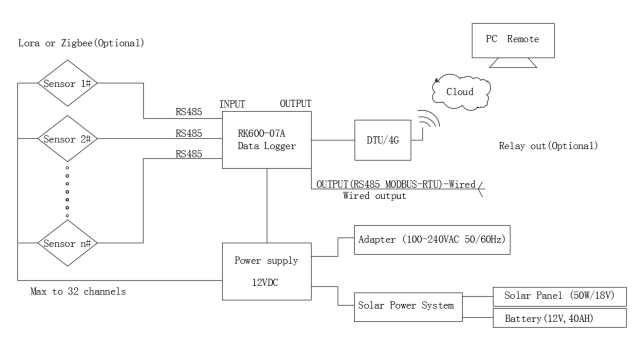

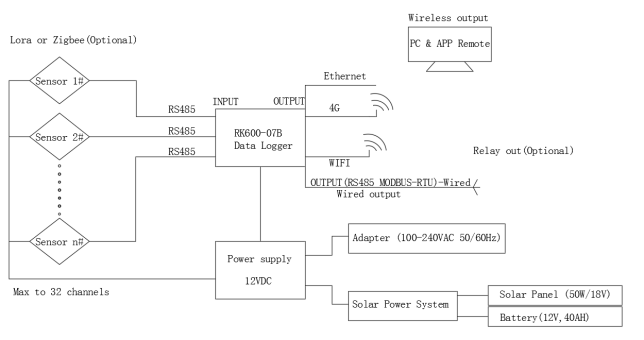

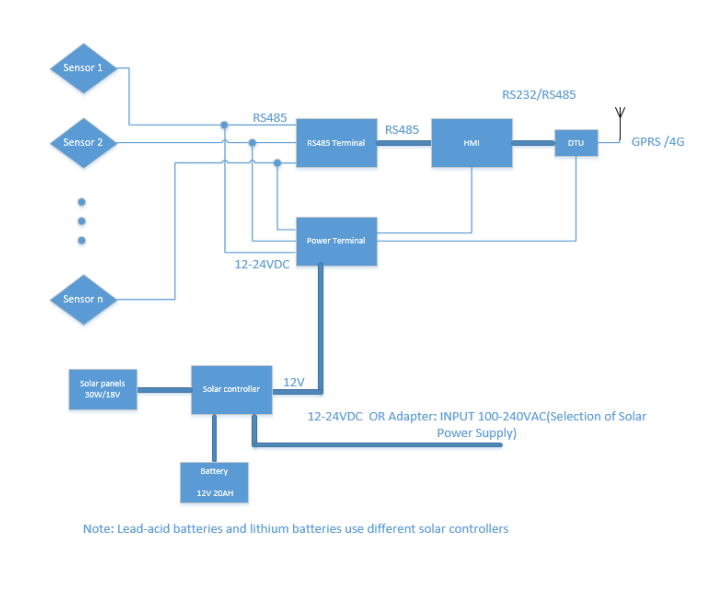

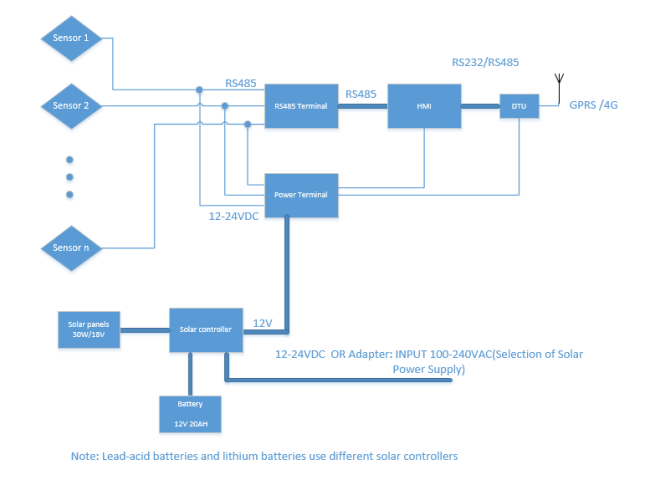

System Diagram:

Data sheet on RK600-08 Data Logger of Automatic Weather Station (pdf, opens in a new tab)

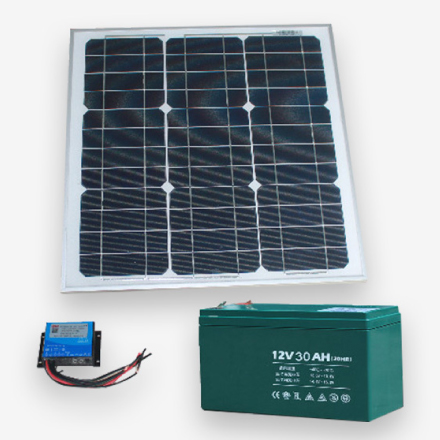

Solar power supply system consists of solar panel, solar controller and battery. According to the actual needs, it can also configure the inverter. Solar energy is a clean renewable new energy, has no moving parts, no noise, no pollution, high reliability. It can provide reliable power to sensors or weather stations, mainly used for wireless sensor, automatic test station, automatic weather stations and other power supply.

Features:

• Controller automatic identification 12VDC/24VDC
• Key operation, automatic save settings parameters, low standby power consumption high charging efficiency
• 4 work modes optional: normally open, light mode, light and time mode, manual mode
• With battery under-voltage, over-voltage, output overload, short circuit, battery or solar panels reverse connect protection function etc.
• Fault code instructions
• Waterproof grade IP67

Specifications:

1.Controller cannot be directly connected to the AC110V/AC220V,the AC must be converted to DC(12V/24V),then connect to the controller.

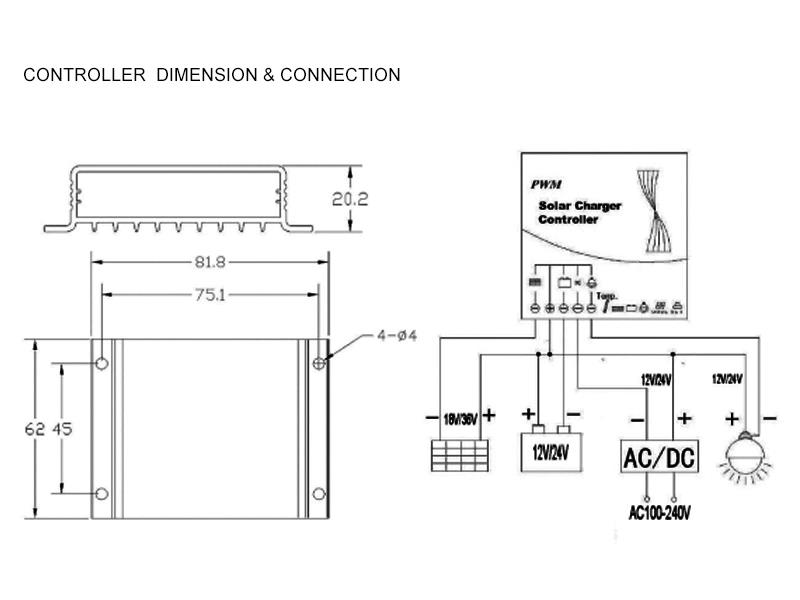

Controller Dimension & Connection:

Work Mode:

The controller has 4 work modes:

• • Light & time control:Mode=1-15:When there is no sunlight start the load, time control shutoff(1-15 hours);
  • Light control Mode=16:When there is no sunlight start the load, when the light appear, shut down load;
  • Normally open Mode=17:Keep the output state 24 hours a day;
  • Manual mode Mode=18:Manual mode.

Press the button for 5 s, digital tube start flashing, product into regulating mode, loosen the button, each time you press the button,

the number will increase, and the set up, about 5 s digital tube stop flashing, exit mode Settings.

Data sheet on RK95-03 Solar Power Supply System (pdf, opens in a new tab)
