Rackmount Chassis for Industrial PC’s

19" Rackmount PC Chassis for ATX, etc, mainboard

Rackmount Cases

Rackmount IPC chassis and IPC enclosure series offers wide range of rackmount chassis from 1U to 6U. The rackmount server case is built for slot-hungry applications and for supporting rackmount computer system.

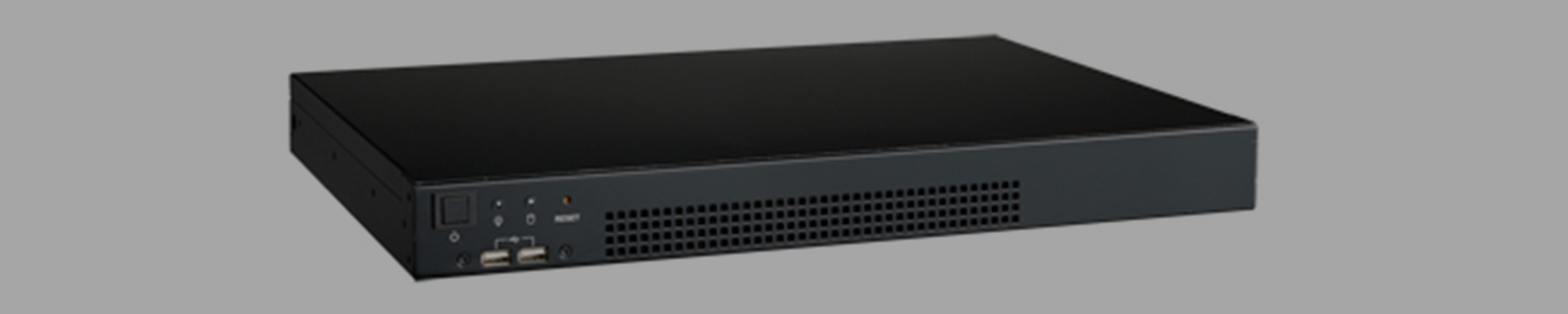

1U Rackmount Chassis

Advantech 1U rackmount chassis is an ultra-compact yet powerful computer chassis. This IPC chassis with great ventilation is especially designed for space-constrained applications.

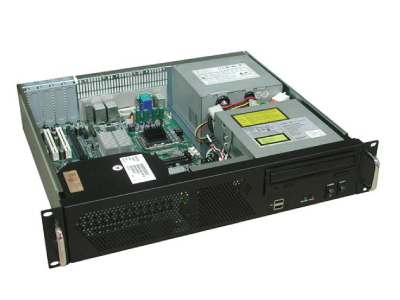

2U Rackmount Chassis

2U rackmount chassis is compact yet highly expandable computer chassis featuring modular design for easy maintenance. The 2U computer chassis provide the best support for various wallmount and rackmount system.

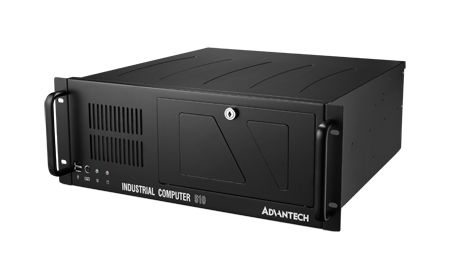

4U Rackmount Chassis

4U rackmount chassis is a cost-effective computer chassis featuring a complete line of backplanes, power and storage device options. The 4U computer chassis provide the best support for various wallmount and rackmount system.

6U Rackmount Chassis

6U rackmount chassis is a cost-effective yet fault-resilient computer chassis with redundant power supplies ideal for multiple system application. The 6U computer chassis provide the best support for various wallmount and rackmount system.

1U Rackmount Chassis

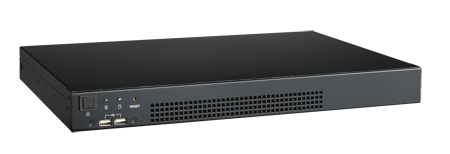

IPC-120


Cost Effective Compact 1U Rackmount Chassis for Half-size SBC, 300mm (Depth)
IPC-120
Read more

IPC-120Features

  • Compact, space-saving 1U rackmount chassis
  • Supports half-size SBC and up to 2 expansion cards
  • Supports 80plus single power supply up to 350W
  • Optional fan for cooling high performance add-on card

Descriptions

Cost Effective Compact 1U Rackmount Chassis for Half-size SBC

Specifications

Drive Bay Internal
2.5″ 2
Cooling
Fan 1 (4 cm / 6.5 CFM)
Air Filter Yes
Front I/O Interface
USB 2
Miscellaneous
LED Indicators Power, HDD
Rear Panel Two 9-pin D-Sub openings
Operating
Temperature 0 ~ 40° C (32 ~ 104° F)
Environment
Humidity 10 ~ 85% @ 40° C, non-condensing
Vibration (5 ~ 500 Hz) 1 Grms
Shock 10 G (with 11 ms duration, half sine wave)
Physical Characteristics
Dimensions (W x H x D) 480 x 44 x 300 mm (19″ x 1.7″ x 11.8″)
Weight 3.1 kg (6.82 lb)

Data sheet on IPC-120 (pdf file (opens in new tab)

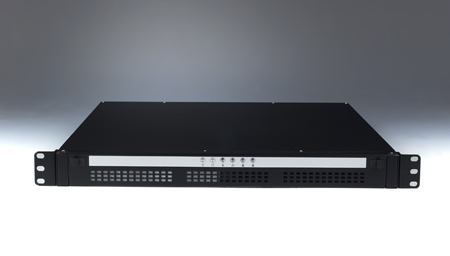

ACP-1010


1U Rackmount Chassis for Full-size SHB/SBC or ATX/MicroATX Motherboard with Dual SAS/SATA HDD Trays, 497mm (Depth)
ACP-1010
Read more

ACP-1010

Features

  • Space-saving 1U rackmount chassis, ideal building block for business expansion
  • Supports full-size SHB/SBC or ATX/MicroATX motherboards
  • LED indicators for LAN connectivity, alarm notification of power supply, HDD activity, system fan, and in-chassis temperature
  • supports a slim ODD and two disk drives
  • Supports up to 2 expansion slots in BP version, and 1 expansion slot via riser card in MB version
  • Supports both 250 W/300 W ATX/PFC power supply
  • Efficient cooling design prevents the system from over-heating

Descriptions

1U Rackmount Chassis for Full-size SHB/SBC or ATX/MicroATX Motherboard with Dual SAS/SATA HDD Trays

Specifications

Part Number ACP-1010BP-00BE
Form Factor
Form Factor 1U Rackmount
Front I/O Interface
USB2.0 2
Cooling
System Fan 4 (4 cm/24 CFM x 3 + 15 CFM x 1)
Environment
Operating Vibration 0.5 Grms
Non-Operating Vibration 2 Grms
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Miscellaneous
LED Indicators Power, HDD, temperature, fan, LAN1, and LAN2
Rear Panel One 9-pin D-Sub opening
Control Power / System reset / Alarm reset switch
Physical Characteristics
Weight 8 kg (17.6 lb)
Dimensions (W x H x D) 480 x 44 x 497 mm (19″ x 1.7″ x 19.6″)
Disk Drive Bay
Slim ODD 1
3.5″ Front-Accessible 1
Power Supply
Power Supply

Data sheet on ACP-1010 (pdf file (opens in new tab)

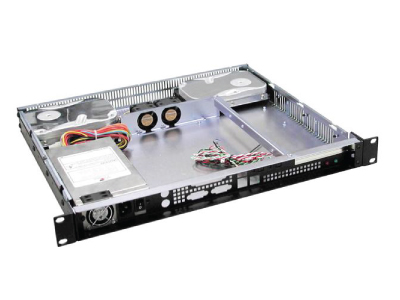

APGHI-107-B


Guanghsing 1U 19″ Rackmount ATX Server Chassis, 2×3.5″ HDD Hidden bay, 382mm (Depth)
APGHI-107-B
Read more

APGHI-107-B

Specifications:

Model: APGHI-107
Max. Board Size: ATX (12″ x 9.6″)
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon

Product Information:

Standard: EIA RS-310C 19″ Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: 2x 3.5″ HDD
Power Supply: 1U 250~400W ATX P/S, Max. Depth 190mm
Cooling Units: 2x (40 x 28mm = 15.3CFM ea.) Fans
Expansion Slot: 1x Horizontal PCI Slot
Connector Port (front):
Indicators:
Buttons: Power ON/OFF, System Reset
Crossbar:
Thermal Card: NA
Front Door(s):
Air Filter: None
Dimensions(W x H x D): 483 x 44 x 382mm (19″ x 1.7″ x 15″)
Weight: 7.6 kgs / 16.8 lbs
Cu. ft.:
Carton Size: 53.5 x 18 x 58.3 (21.1″ x 7.1″ x 23″)
Humidity: 5% – 95% Non-condensing
Product Applications:

Optional Accessories:

HDD Drive Accessories:
Slide Rails:
Chassis Height: 1U


Data sheet on APGHI-107-B
(pdf file (opens in new tab)

2U Rackmount Chassis

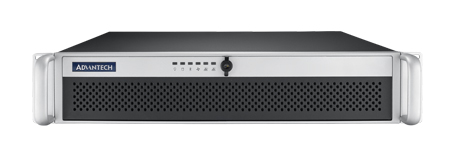

ACP-2020


2U Rackmount Short Depth Chassis for ATX and mATX Motherboard, 398mm (Depth)
ACP-2020
Read more

ACP-2020

Features

  • 398 mm short depth 2U rackmount chassis
  • Supports ATX and mATX form factor motherboard
  • Dual front USB 3.0
  • Support 350W 80 plus single flex ATX power supply or 500W 2U redundant power supply
  • Front-accessible system fan without opening top cover for easy maintenance
  • ƒ Built-in Intelligent System Module enabling whole system fan control and remote manageability

Descriptions

2U Rackmount Short Depth Chassis for ATX and mATX Motherboard

Specifications

Part Number ACP-2020MB-35ZE
Form Factor
Form Factor 2U Rackmount
Front I/O Interface
USB3.0 2
Power Supply
Single FlexATX 350W
Cooling
Air Filter Yes
Fan 1 ( 8 cm, 41 CFM )
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Shock 10 G (with 11 ms duration, half sine wave)
Humidity 10 ~ 85% @40C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 60° C, non-condensing
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Physical Characteristics
Weight 8.6 kg ( 18.96 lbs )
Dimensions (W x H x D) 482 x 88 x 398 mm ( 18.96″ x 3.46″ x 15.67″ )
Disk Drive Bay
Slim ODD 1
2.5″ Internal 2
2.5″ Internal 2
Hot-swap Drive Bay 2 ( 2.5″ SATA – Optional )
Miscellaneous
LED Indicators Power, HDD, temperature, fan, LAN1, and LAN2
Intelligent System Module
Remote Monitoring CPU/System fan speed , CPU/System temperature , motherboard voltage

Data sheet on ACP-2020 (pdf file (opens in new tab)

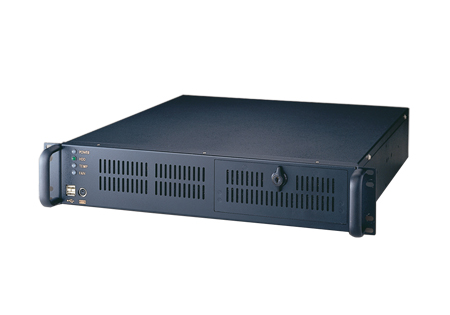

ACP-2000


2U 6-Slot Rackmount Chassis with Front USB and PS/2 Interfaces, 451mm (Depth)
ACP-2000
Read more

ACP-2000

Features

  • 2U rackmount chassis supports up to 6 cards
  • Butterfly backplane design
  • Front-accessible USB and PS/2 connectors
  • 250 W / 300 W AC ATX and DC power supply options
  • Two 40 CFM cooling fans with air filter
  • Lockable front door prevents unauthorized access
  • System alarm notification by front LED indicators

Descriptions

2U 6-Slot Rackmount Chassis with Front USB and PS/2 Interfaces



Specifications

Part Number ACP-2000EBP-00BE
Form Factor
Form Factor 2U Rackmount
Miscellaneous
LED Indicators Power, HDD, temperature, fan
Control Power / System reset / Alarm reset switch
Rear Panel One 9-pin D-Sub opening
Intelligent System Module
Remote Monitoring CPU/System fan speed , CPU/System temperature , motherboard voltage
Front I/O Interface
PS/2 1
USB 2
Cooling
Air Filter Yes
Fan 2 (8 cm / 47 CFM each)2
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Vibration 0.5 Grms
Non-Operating Vibration 2 G
Operating Shock 10G, half sine wave, 11 ms duration
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Physical Characteristics
Weight 11.5 kg (25.3 lb)
Dimensions (W x H x D) 482 x 88 x 451 mm (19” x 3.5” x 17.8”)
Disk Drive Bay
Slim ODD 1
3.5″ Front-Accessible 2
Power Supply
Power Supply

Data sheet on ACP-2000  (pdf file (opens in new tab)

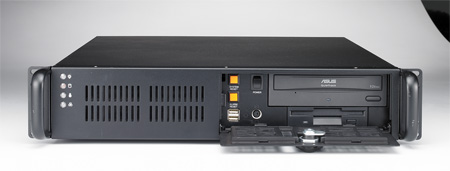

ACP-2010MB


2U Rackmount Chassis for ATX/ MicroATX Motherboard with Low-Profile Rear Bracket Option, 480mm (Depth)
ACP-2010
Read more

ACP-2010

Features

  • LED indicators and audible alarm notification for system fault detection
  • Shock-resistant drive bays to hold one 5.25″ and three 3.5″ drives for ACP-2010MB (one front-accessible and two internal)
  • Various riser card options to support three full-size PCI or PCIe cards for expansion
  • Supports 300 W / 400 W ATX PFC power supply
  • Reusable and washable air filters

Descriptions

2U Rackmount Chassis for ATX/ MicroATX Motherboard with Low-Profile Rear Bracket Option

Specifications

Part Number ACP-2010MB-00CE
Form Factor
Form Factor 2U Rackmount
Miscellaneous
LED Indicators Power, HDD, temperature, fan status
Rear Panel Two 9-pin D-Sub opening
Intelligent System Module
Remote Monitoring CPU/System fan speed , CPU/System temperature , motherboard voltage
Front I/O Interface
PS/2 1
USB 2
Cooling
Air Filter Yes
Fan 2 (8 cm / 47 CFM each)
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Vibration 1 Grms
Non-Operating Vibration 2 G
Operating Shock 10G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Physical Characteristics
Weight 10.7 kg (23.5 lb)
Dimensions (W x H x D) 482 x 88 x 480 mm (19″ x 3.46″ x 18.9″)
Disk Drive Bay
Slim ODD
5.25 External Bay 1
3.5 External Bay 1
3.5 External Bay 2
Hot-swap Drive Bay
Power Supply
Power Supply

Data sheet on ACP-2010MB (pdf file (opens in new tab)

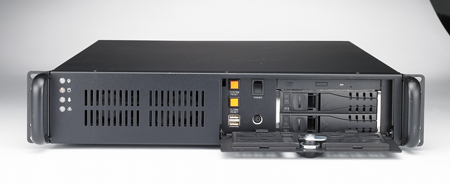

ACP-2320MB


2U Rackmount Chassis for ATX/ MicroATX Motherboard with Low-Profile Rear Bracket Option, 480mm (Depth)
ACP-2320
Read more

ACP-2320

Features

  • LED indicators and audible alarm notification for system fault detection
  • one slim optical disk drive, two internal 3.5″ drives and dual mobile SAS/SATA HDD trays for ACP-2320MB
  • Various riser card options to support three full-size PCI or PCIe cards for expansion
  • Supports 300 W / 400 W ATX PFC power supply
  • Reusable and washable air filters

Descriptions

2U Rackmount Chassis for ATX/ MicroATX Motherboard with Low-Profile Rear Bracket Option

Specifications

Part Number ACP-2320MB-00CE
Form Factor
Form Factor 2U Rackmount
Miscellaneous
LED Indicators Power, HDD, temperature, fan status
Rear Panel Two 9-pin D-Sub opening
Intelligent System Module
Remote Monitoring CPU/System fan speed , CPU/System temperature , motherboard voltage
Front I/O Interface
PS/2 1
USB 2
Cooling
Air Filter Yes
Fan 2 (8 cm / 47 CFM each)+ 1 (6 cm /28 CFM) for SAS/SATA storage unit
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Vibration 1 Grms
Non-Operating Vibration 2 G
Operating Shock 10G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Physical Characteristics
Weight 10.7 kg (23.5 lb)
Dimensions (W x H x D) 482 x 88 x 480 mm (19″ x 3.46″ x 18.9″)
Disk Drive Bay
Slim ODD
5.25 External Bay 1
3.5 External Bay 1
3.5 External Bay 2
Hot-swap Drive Bay 2 (compatible with 3.5″ or 2.5″ devices)
Power Supply
Power Supply

Data sheet on ACP-2320MB (pdf file (opens in new tab)

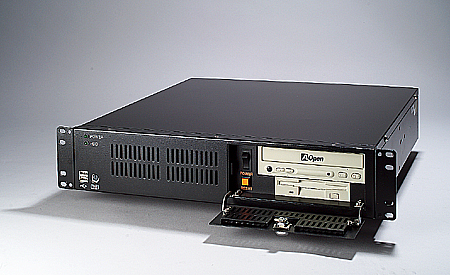

IPC-602


2U 6-Slot Rackmount Chassis with Front USB and PS/2 Interfaces, 451mm (Depth)
IPC-602
Read more

IPC-602

Features

  • 2U rackmount chassis supports up to 6 cards
  • Butterfly backplane design
  • Front-accessible USB and PS/2 connectors
  • 250 W / 300 W AC ATX and DC power supply options
  • Two 40 CFM cooling fans with air filter
  • Lockable front door prevents unauthorized access

Descriptions

2U 6-Slot Rackmount Chassis with Front USB and PS/2 Interfaces

Specifications

Part Number IPC-602EBP-00XBE
Form Factor
Form Factor 2U Rackmount
Miscellaneous
LED Indicators Power, HDD, temperature, fan status
Control Power / System reset
Rear Panel One 9-pin D-Sub opening
Intelligent System Module
Remote Monitoring CPU/System fan speed , CPU/System temperature , motherboard voltage
Front I/O Interface
PS/2 1
USB 2
Cooling
Air Filter Yes
Fan 2 (8 cm / 40 CFM each)
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Vibration 0.5 Grms
Non-Operating Vibration 2 G
Operating Shock 10G, half sine wave, 11 ms duration
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Physical Characteristics
Weight 11.3 kg (24.9 lb)
Dimensions (W x H x D) 482 x 88 x 451 mm (19” x 3.5” x 17.8”)
Disk Drive Bay
Slim ODD 1
3.5″ Front-Accessible 2
Power Supply
Power Supply

Data sheet on IPC-602 (pdf file (opens in new tab)

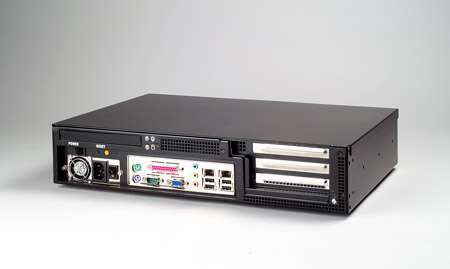

IPC-603MB


2U 3-Slot Rackmount Chassis for ATX/MicroATX Motherboard with Front I/O, 308mm (Depth)
IPC-603MB
Read more

IPC-603MB

Features

  • The best embedded computing system for machinery applications
  • Streamlined in-chassis airflow design supporting LGA775 Intel® Pentium® 4 processor up to 3.8 GHz with suggested CPU cooler
  • All I/O interfaces are in the front
  • Shock resistant disk drive bay designed to hold one slim CD-ROM and one internal 3.5″ HDD
  • Equipped with 1U 300 W ATX PFC power supply
  • Easy-to-replace air filters

Descriptions

2U 3-Slot Rackmount Chassis for ATX/MicroATX Motherboard with Front I/O

Specifications

Part Number IPC-603MB-35BE
Form Factor
Form Factor 2U Rackmount
Miscellaneous
LED Indicators Power status and HDD activity
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Vibration 1 Grms
Non-Operating Vibration 2 G
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Physical Characteristics
Weight 6.4 kg (14.1lb)
Dimensions (W x H x D) 482 x 88 x 308 mm (19″ x 3.46″ x 12.1″)
Disk Drive Bay
Slim ODD 1
3.5 Internal Bay 1
Power Supply
Power Supply 350W (Single)

Data sheet on IPC-603MB  (pdf file (opens in new tab)

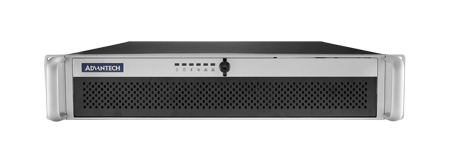

HPC-7242

2U Rackmount Chassis for ATX Motherboard with 4 Hot-Swap SAS/SATA HDD Trays and RPS, 525mm (Depth)
HPC-7242
Read more

HPC-7242

Features

  • Supports ATX motherboard with dual processors
  • Four shock-resistant hot-swap disk trays supporting 3.5″ or 2.5″ SAS/SATA drives for RAID 5/10 application, one slim ODD, and two 2.5″ internal drives
  • Dual front USB 3.0 ports
  • Supports 80plus single or redundant power supply up to 700W
  • Front-accessible system fan without opening top cover for easy maintenance
  • LED indicators and audible alarm notification for system fault detection
  • Built-in Intelligent System Module enabling whole system fan control and remote manageability

Descriptions

The HPC-7242 series is a 2U rackmount chassis designed for digital surveillance or SCADA(Supervisory Control And Data Acquisition) server applications which have high storage demand. With the latest in industrial design, the HPC-7242 represents a breakthrough from the traditional, rigid concept of industrial PCs, and provides users with both a high-performance and a state-of-the-art operating platform. This series supports versatile ATX/MicroATX motherboards, with a highly efficient switching power supply and easy-to-maintain cooling fans. The series provides four SAS/SATA HDD trays, which provide a flexible solution for data storage. Other data storage options include one slim-type drive bay for optical disk drives, and two 2.5″ drive bay for internal hard drive disk. The unique alarm module monitors system status such as power, HDD, temperature, fan, and LAN, to minimize system downtime. Meanwhile, system fan’s rotation speed increases or decreases depending on high or low temperature inside the chassis, to minimize system noise while light system loading. A wide range of standard computing peripherals can be integrated with these chassis to accommodate robust applications in rugged environments, 24 hours a day, 7 days a week.

Specifications

Part Number HPC-7242MB-00XE
Front I/O Interface
USB3.0 2
Cooling
System Fan 1 (8 cm/47 CFM) + 2 (6 cm/28 CFM) for SAS/SATA storage unit
Air Filter Yes
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -40 ~ 70° C (-40 ~ 156° F)
Operating Vibration 1 Grms
Operating Shock 10 G (with 11 ms duration, half sine wave)
Humidity 10 ~ 95% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 60° C, non-condensing
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Physical Characteristics
Weight 13.7 kg (30.12 lb)
Dimensions (W x H x D) 482 x 88 x 525 mm (19″ x 3.46″ x 20.67″)
Disk Drive Bay
Slim ODD 1
2.5″ Internal 1
Hot-swap Drive Bay 4 (compatible with 3.5″ or 2.5″ devices)
Miscellaneous
LED Indicators Power, HDD, temperature, fan
Rear Panel Two 9-pin D-Sub openings
Intelligent System Module
Remote Monitoring CPU/System fan speed , CPU/System temperature , motherboard voltage

Data sheet on HPC-7242 (pdf file (opens in new tab)

APGHI-255-B


Guanghsing 2U 19″ Rackmount Micro-ATX Server Chassis, 1×5.25″ Open bay & 2×3.5″ HDD Hidden bay, 383mm(Depth)
APGHI-255-B
Read more

APGHI-255-B

Specifications:

Model: APGHI-255
Max. Board Size: ATX (9.6″ x 9.6″)
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon


Product Information:

Standard: EIA RS-310C 19″ Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: 1x 5.25″ & 2x 3.5″ HDD
Power Supply: PS/2 Size Single up to 400W ATX P/S Max. Depth 150mm
Cooling Units: 1x (80mm = 42.5CFM ea.)
Expansion Slot: 4x Low Profile PCI Slots
Connector Port (front): 2x USB Ports
Indicators:
Buttons: Power ON/OFF Momentary (Rocker), System Reset
Crossbar:
Thermal Card: NA
Front Door(s): NA
Air Filter:
Dimensions(W x H x D): 483 x 88 x 383mm (19″ x 3.5″ x 15.1″)
Weight: 8.8 kgs / 19.4 lbs
Cu. ft.: 2.4
Carton Size: 57 x 22 x 53.5 (22.4″ x 8.7″ x 21.1″)
Humidity: 5% – 95% Non-condensing
Product Applications:

Optional Accessories:

HDD Drive Accessories:
Slide Rails:
Chassis Height: 2U


Data sheet on APGHI-255-B
(pdf file (opens in new tab)

3U Rackmount Chassis

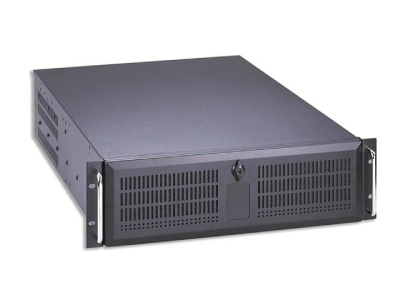

APGHI-312-B


Guanghsing 3U 19″ Rackmount ATX Server Chassis, 2×5.25″ & 1×3.5″ Open bay & 7×3.5″ HDD Hidden bay, 650mm(Depth)
APGHI-312-B
Read more

APGHI-312-B

Specifications:

Model: APGHI-312
Max. Board Size: EATX (12″ x 13″)
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon

Product Information:

Standard: EIA RS-310C 19″ Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: 2x 5.25″ & 1x 3.5″ & 7x 3.5″ HDD & 2x 3.5″ HDD (Optional)
Power Supply: 2U Single up to 700W or 2U Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 300mm
Cooling Units: 5x (92mm = 51CFM ea.) & 1x (60mm = 23.5CFM ea.) Fans
Expansion Slot: 7 Slots
Connector Port (front): 2x USB Ports
Indicators:
Buttons: Power ON/OFF Momentary(Rocker), System Reset
Crossbar:
Thermal Card: NA
Front Door(s): Single Door with 1 Thumb Twist Keylock
Air Filter: Inside Front Door (Washable)
Dimensions(W x H x D): 483 x 133 x 650mm (190″ x 5.2″ x 25.6″)
Weight: 17.2 kgs / 37.9 lbs
Cu. ft.: 5.3
Carton Size: 81.8 x 59.4 x 31 (32.2″ x 23.4″ x 12.2″)
Humidity: 5% – 95% Non-condensing
Product Applications:

Optional Accessories:

HDD Drive Accessories:
Slide Rails:
Chassis Height: 3U


Data sheet on APGHI-312-B
(pdf file (opens in new tab)

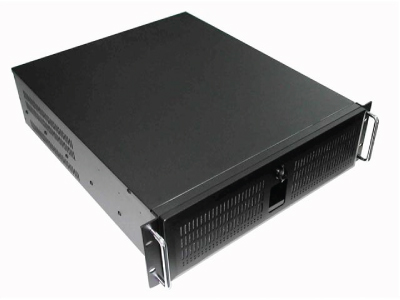

APGHI-313-B


Guanghsing 3U 19″ Rackmount ATX Server Chassis, 2×5.25″ & 1×3.5″ Open bay & 7×3.5″ HDD Hidden bay, 526mm(Depth)
APGHI-313-B
Read more

APGHI-313-B

Specifications:

Model: APGHI-313
Max. Board Size: ATX (12″ x 10.5″)
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon

Product Information:

Standard: EIA RS-310C 19″ Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: 2x 5.25″, 1x 3.5″FDD & 7x 3.5″ HDD & 1x 3.5″ HDD (Optional)
Power Supply: 2U Single up to 600W or 2U Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 250mm
Cooling Units: 2x (92mm = 51CFM ea.) Fans & 2x (60mm = 23.5CFM ea.) Fan
Expansion Slot: 7 Slots
Connector Port (front): 2x USB Ports
Indicators:
Buttons: Power ON/OFF Momentary(Rocker), System Reset
Crossbar:
Thermal Card: NA
Front Door(s): Single Door with 1 Thumb Twist Keylock
Air Filter: Inside Front Door (Washable)
Dimensions(W x H x D): 483 x 133 x 526mm (19″ x 5.2″ x 20.7″)
Weight: 14.6 kgs / 32.2 lbs
Cu. ft.: 4.2
Carton Size: 58.8 x 28.5 x 70.3 (23.1″ x 11.2″ x 27.7″)
Humidity: 5% – 95% Non-condensing
Product Applications:



Optional Accessories:

HDD Drive Accessories:
Slide Rails:
Chassis Height: 3U


Data sheet on APGHI-313-B
(pdf file (opens in new tab)

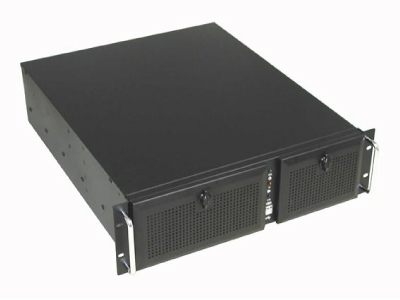

APGHI-314-B


Guanghsing 3U 19″ Rackmount ATX Server Chassis, 2×5.25″ Open bay & 4×3.5″ Hot Swap SATA HDD bay, 524mm (Depth) Drive Interface SATA B/P
APGHI-314-B
Read more

APGHI-314-B

Specifications:

Model: APGHI-314
Max. Board Size: ATX (12″ x 10.5″)
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon

Product Information:

Standard: EIA RS-310C 19″ Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: 2x 5.25″ , 4x 3.5″ Swappable Trays
Power Supply: 2U Single up to 510W or 2U Redundant up to 400W ATX P/S (Rear Installation) Max. Depth 250mm
Cooling Units: 1x (120mm = 108CFM ea.) & 2x (60mm = 23.5CFM ea.) & 4x (40mm = 15.3CFM ea.) Fans
Expansion Slot: 7 Slots
Connector Port (front): 2x USB Ports
Indicators:
Buttons: Power ON/OFF Momentary (Rocker), System Reset
Crossbar:
Thermal Card: NA
Front Door(s): Double Doors with Keylocks
Air Filter:
Dimensions(W x H x D): 483 x 133 x 524mm (19″ x 5.2″ x 20.6″)
Weight: 15.5 kgs / 34.2 lbs
Cu. ft.: 4.2
Carton Size: 58.8 x 28.5 x 70.3 (23.1″ x 11.2″ x 27.7″)
Humidity: 5% – 95% Non-condensing
Product Applications:

Optional Accessories:

HDD Drive Accessories:
Slide Rails:
Chassis Height: 3U


Data sheet on APGHI-314-B
(pdf file (opens in new tab)

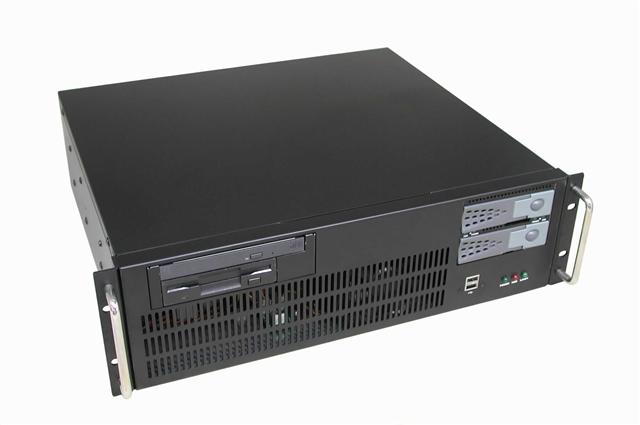

APGHI-352-B


Guanghsing 3U 19″ Rackmount ATX Server Chassis, (Option A) 1xSlim CD-ROM & 1×3.5″ FDD & 2x 3.5″ Swappable Trays & 1x 3.5″HDD & 1x 3.5″HDD (Optional) (Option B) 1×5.25″ CD-ROM 2×3.5″ Swappable Trays & 1x 3.5″HDD & 1x 3.5″HDD (Optional), 400mm (Depth) Drive Interface SATA B/P
APGHI-352-B
Read more

APGHI-352-B

Specifications:

Model: APGHI-352
Max. Board Size: ATX (12″ x 9.6″)
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon

Product Information:

Standard: EIA RS-310C 19″ Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: (Option A) 1xSlim CD-ROM & 1×3.5″ FDD & 2x 3.5″ Swappable Trays & 1x 3.5″HDD & 1x 3.5″HDD (Optional) (Option B) 1×5.25″ CD-ROM 2×3.5″ Swappable Trays & 1x 3.5″HDD & 1x 3.5″HDD (Optional)
Power Supply: 2U Single to up 600W or 2U Redundant up to 500W (Rear Installation) Max. Depth 300mm
Cooling Units: 1x (80mm = 42.5CFM ea.) & 2x (40mm = 7CFM ea.) Fans & 1x (60mm = 23.5CFM ea.) Fan (Optional)
Expansion Slot: 7 Slots
Connector Port (front): 2x USB Ports
Indicators:
Buttons: Power ON/OFF, System Reset on Rear Side
Crossbar:
Thermal Card:
Front Door(s):
Air Filter:
Dimensions(W x H x D): 483 x 133 x 400mm (19″ x 5.2″ x 15.7″)
Weight: 12.8 kgs / 28.2 lbs
Cu. ft.: 3.5
Carton Size: 58 x 28.5 x 59.9 (22.8″ x 11.2″ x 23.6″)
Humidity: 5% – 95% Non-condensing
Product Applications:

Optional Accessories:

HDD Drive Accessories:
Slide Rails:
Chassis Height: 3U


Data sheet on APGHI-352-B
(pdf file (opens in new tab)

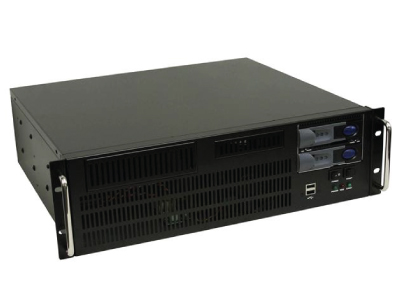

APGHI-353-B


Guanghsing 3U 19″ Rackmount ATX Server Chassis, 1×5.25″ & 1×3.5″ Open bay & 1×3.5″ HDD Hidden bay & 2×3.5″ Hot Swap SATA HDD bay, 400mm(Depth) (Included 2x EC-30130-00-A cable in accessories bag)
APGHI-353-B
Read more

APGHI-353-B

Specifications:

Model: APGHI-353
Max. Board Size: ATX (12″ x 10.5″)
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon

Product Information:

Standard: EIA RS-310C 19″ Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: 1x 5.25″ CD-ROM & 1x 3.5″FDD & 2 x 3.5″Swappable Trays
Power Supply: 2U Single or Redundant up to 400W ATX P/S (Rear Installation) Max. Depth 300mm
Cooling Units: 1x (80mm = 42.5CFM ea.) & 2x (40mm = 7CFM ea.) & 2x (60mm = 23.5CFM ea.) (Optional) Fans
Expansion Slot: 7 Slots
Connector Port (front): 2x USB Ports
Indicators:
Buttons: Power ON/OFF Momentary (Rocker), System Reset
Crossbar:
Thermal Card:
Front Door(s):
Air Filter:
Dimensions(W x H x D): 483 x 133 x 400mm (19″ x 5.2″ x 15.7″)
Weight: 11 kgs / 24.3 lbs
Cu. ft.: 3.5
Carton Size: 58 x 28.5 x 59.9 (22.8″ x 11.2″ x 23.6″)
Humidity: 5% – 95% Non-condensing
Product Applications:

Optional Accessories:

HDD Drive Accessories:
Slide Rails:
Chassis Height: 3U


Data sheet on APGHI-353-B
(pdf file (opens in new tab)

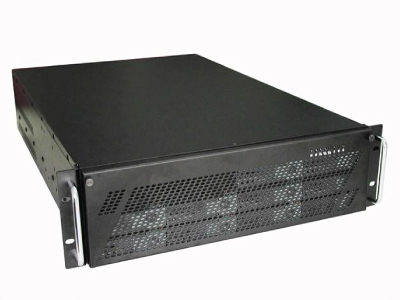

APGHI-381-B


Guanghsing 3U 19″ Rackmount ATX Server Chassis, 1×5.25″ & 1xSlim CD-ROM (GHA-K008) & 1xSlim FDD Open bay & 10×3.5″ Hot Swap SATA HDD bay with SAS B/P, 650mm(Depth)
APGHI-381-B
Read more

APGHI-381-B

Specifications:

Model: APGHI-381
Max. Board Size: EATX (12″ x 13″)
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon

Product Information:

Standard: EIA RS-310C 19″ Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: 1x 5.25″ & 1x Slim CD-ROM & 1x Slim FDD & 10x 3.5″Swappable Trays
Power Supply: 2U Single up to 650W or 2U Redundant up to 500W or 3U Single up to 950W ATX P/S or 3U Redundant up to 650W ATX P/S (Rear Installation) Max. Depth 300mm
Cooling Units: 4x (92cm = 51CFM ea.) & 2x (60mm = 23.5CFM ea.) Fan
Expansion Slot: 7 Slots
Connector Port (front): 2x USB Ports
Indicators:
Buttons: Power ON/OFF Momentary (Pushbutton), System Reset, Buzzer Reset
Crossbar:
Thermal Card:
Front Door(s): Single Door with 2 Thumbscrews(Removable)
Air Filter:
Dimensions(W x H x D): 483 x 133 x 650mm (19″ x 5.2″ x 25.6″)
Weight: 22.0 kgs / 48.5 lbs
Cu. ft.: 5.3
Carton Size: 81.8 x 31 x 59.4 (32.2″ x 12.2″ x 23.4″)
Humidity: 5% – 95% Non-condensing
Product Applications:

Optional Accessories:

HDD Drive Accessories:
Slide Rails:
Chassis Height: 3U

Data sheet on APGHI-381-B  (pdf file (opens in new tab)

4U Rackmount Chassis

IPC-631


4U Front I/O Short Depth Rackmount Chassis for ATX/MicroATX Motherboard, 348mm (Depth)
IPC-631
Read more

IPC-631

Features

  • All I/O ports, buttons, LEDs, drive bays, AC inlet located on the front side
  • Supports ATX/Micro ATX MB with CPU TDP up to 120W
  • Built-in 500W single or redundant power supply
  • 350mm short depth
  • Optional module for dual hot-swap 2.5″ drive drive bays for RAID 0, 1
  • PWM controlled smart fan generating low noise

Descriptions

4U Front I/O Short Depth Rackmount Chassis for ATX/MicroATX Motherboard

Specifications

Part Number IPC-631MB-50RE
Form Factor
Form Factor 4U Rackmount
Front I/O Interface
Phoenix front PW-ON 1
Cooling
System Fan 2 (12 cm / 82 CFM)
Air Filter Yes
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -40 ~ 70° C (-40 ~ 156° F)
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 60° C, non-condensing
Physical Characteristics
Weight 8 kg (17.6 lb)
Dimensions (W x H x D) 482 x 177 x 348 mm (19” x 7.0” x 13.7”)
Disk Drive Bay
2.5″ Internal 2
Hot-swap Drive Bay 2 ( 2.5″ SATA – Optional )
Slim ODD 1
Miscellaneous
LED Indicators Power, HDDPower, HDD
Control Power Switch, System resetPower Switch, System reset
System Monitoring
System Monitoring Chassis intrusion switchChassis intrusion switch
Power Supply
Power Supply 500W (Redundant)500W (Single)

Data sheet on IPC-631  (pdf file (opens in new tab)

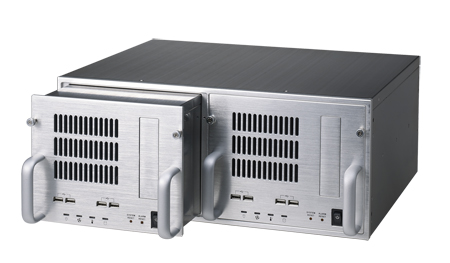

ACP-4D00


Dual-Node 4U Chassis for Half-Sized Slot SBC, 350mm (Depth)
ACP-4D00
Read more

ACP-4D00

Features

  • Dual nodes, 350mm depth design for easy maintenance and space saving
  • Supports PICMG 1.3 or PCI half-sized slot SBC with Core i7 CPU
  • Supports 6-slot backplane, 3 available slots per node
  • Supports 2 front USB 3.0 ports each node
  • Supports 250W or 350W Flex ATX PSUs

Descriptions

Dual-Node 350mm Depth 4U Chassis for Half-Sized Slot SBC

Specifications

Part Number ACP-4D00BP-00XE
Form Factor
Form Factor 4U Rackmount
Front I/O Interface
USB3.0 2
USB2.0 2
Cooling
Air Filter Yes
Fan 1 (9cm / 58 CFM)
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Physical Characteristics
Weight 15.0 kg
Dimensions (W x H x D) 430 x 177 x 350 mm
Disk Drive Bay
3.5″ Front-Accessible 1
Miscellaneous
LED Indicators Power On/Off, HDD Action, Fan Status, Temperature Status
Control 2 COM/VGA, 1 PRT Semi-Piercing Openings
Front Buttons System Reset, Alarm Reset, Power Switch
Power Supply
Power Supply

Data sheet on ACP-4D00  (pdf file (opens in new tab)

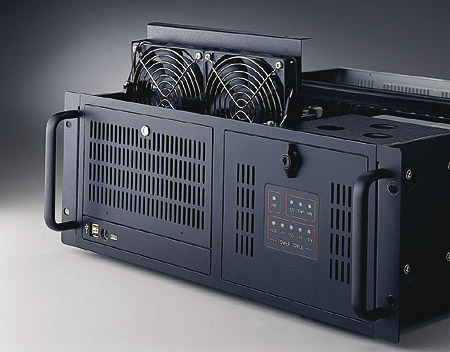

ACP-4000


Quiet 4U Rackmount Chassis with Visual & Audible Alarm Notification, 479mm (Depth)
ACP-4000
Read more

ACP-4000

Features

  • Supports either an ATX motherboard or a PICMG backplane with up to 15 slots
  • Shock-resistant disk drive bay design holds up to three 5.25″ and one 3.5″ disk drives
  • Front LED indicators and audible alarm notification for system fault detection
  • Low noise system fans with fan speed control
  • Built-in Intelligent System Module enables whole system fan control and remote manageability

Descriptions

Quiet 4U Rackmount Chassis with Visual & Audible Alarm Notification

Specifications

Part Number ACP-4000BP-00CE
Form Factor
Form Factor 4U Rackmount
Disk Drive Bay
5.25 External Bay 3
3.5 External Bay 1
Front I/O Interface
USB2.0 2
PS/2 1
Cooling
Air Filter Yes
Fan 2 (12 cm / 85 CFM each)
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Physical Characteristics
Weight 15.2 kg (33.5 lb)
Dimensions (W x H x D) 482 x 177 x 479 mm (19” x 7” x 18.9”)
Miscellaneous
LED Indicators Power, HDD, Temperature, FAN, and Power voltage Status
Rear Panel One 9-pin D-Sub opening
Intelligent System Module
Remote Monitoring CPU/System fan speed , CPU/System temperature , motherboard voltage
Power Supply
Power Supply

Data sheet on ACP-4000  (pdf file (opens in new tab)

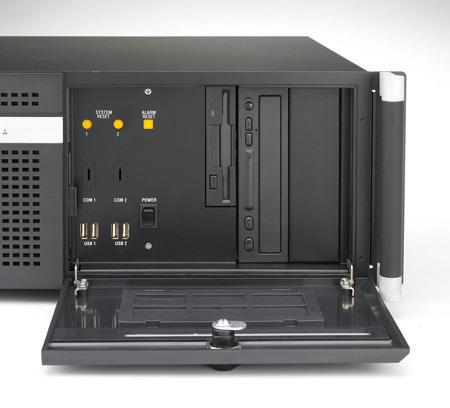

ACP-4010


Quiet 4U Rackmount Chassis for ATX/CEB/EEB Motherboard or Full-size SHB/SBC with Dual System Support, 479mm (Depth)
ACP-4010
Read more

ACP-4010

Features

  • Supports either an ATX/CEB/EEB single/dual processors motherboard or a PICMG backplane with up to 15 slots
  • Supports one or two systems in a single chassis
  • Shock-resistant disk drive bay design holds up to two 5.25″ and two 3.5″ disk drives
  • LED indicators and alarm notification for system fault detection and network connection
  • Low noise system fans with fan speed control
  • Built-in Intelligent System Module enables whole system fan control and remote manageability

Descriptions

Quiet 4U Rackmount Chassis for ATX/CEB/EEB Motherboard or Full-size SHB/SBC with Dual System Support

Specifications

Part Number ACP-4010BP-00BE
Form Factor
Form Factor 4U Rackmount
Disk Drive Bay
5.25 External Bay 2
3.5 External Bay 1
3.5 Internal Bay 1
Front I/O Interface
USB2.0 2
Cooling
Air Filter Yes
Fan 2 (12 cm / 85 CFM each)
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Physical Characteristics
Weight 16.6 kg (36.5 lb)
Dimensions (W x H x D) 482 x 177 x 479 mm (19″ x 7″ x 18.9″)
Miscellaneous
LED Indicators Power, HDD, temperature, fan, LAN1, and LAN2
Rear Panel One 9-pin D-Sub opening
Intelligent System Module
Remote Monitoring CPU/System fan speed , CPU/System temperature , motherboard voltage
Power Supply
Power Supply

Data sheet on ACP-4010  (pdf file (opens in new tab)

ACP-4020


Compact 4U Rackmount Chassis for Half-size SBC or ATX/MicroATX Motherboard, 348mm(Depth
ACP-4020
Read more

ACP-4020

Features

  • Compact 4U rackmount chassis, with only 348mm depth
  • Supports 14-slot BP for half-size SBC or ATX/MicroATX motherboard
  • Shock-resistant disk drive bay holds one internal 2.5″, and two front-accessible 3.5″ drives, plus one slim optical disk drive. Optionally, the two front-accessible 3.5″ slots may be converted to two or even four 2.5″ mobile SATA HDD trays by using optional part IDT-3120E
  • Supports 80plus single power supply
  • Front-accessible system fan without opening top cover for easy maintenance
  • LED indicators and audible alarm notification for system fault detection
  • Smart fan speed control for system fans
  • Remote management (with SUSIAccess 2.1)

Descriptions

Compact 4U Rackmount Chassis for Half-size SBC or ATX/MicroATX Motherboard

Specifications

Part Number ACP-4020BP-25ZE
Form Factor
Form Factor 4U Rackmount
Disk Drive Bay
Slim ODD 1
3.5 External Bay 1
2.5 Internal 2
Front I/O Interface
USB3.0 2
Cooling
Air Filter Yes
Fan 2 (9 cm / 53 CFM)
System Fan 2 (9 cm / 53 CFM)
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Physical Characteristics
Weight 8.5 kg (18.7 lb)
Dimensions (W x H x D) 482 x 177 x 348 mm (19” x 7.0” x 13.7”)
Miscellaneous
LED Indicators Power, HDD, temperature, fan, LAN1, and LAN2
Rear Panel One 9-pin D-Sub opening
Intelligent System Module
Remote Monitoring CPU/System fan speed , CPU/System temperature , motherboard voltage
Power Supply
Power Supply 250W (Single)

Data sheet on ACP-4020  (pdf file (opens in new tab)

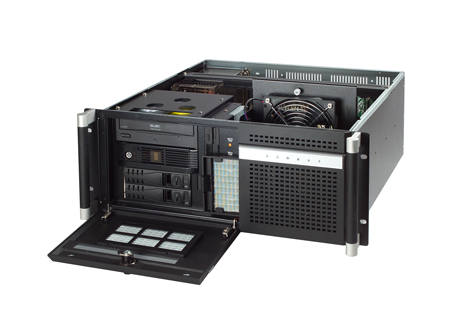

ACP-4320


Quiet 4U Rackmount Chassis with Dual Hot-Swap SAS/SATA HDD Trays, 479mm (Depth)
ACP-4320
Read more

ACP-4320

Features

  • Supports either an ATX motherboard or a PICMG backplane with up to15 slots
  • Support dual SAS/SATA hot-swap HDD trays
  • LED indicators and alarm notification for system fault detection
  • Low noise system fans
  • Built-in Intelligent System Module enabling whole system fan control and remote manageability

Descriptions

Quiet 4U Rackmount Chassis with Dual Hot-Swap SAS/SATA HDD Trays

Specifications

Part Number ACP-4320BP-00BE
Form Factor
Form Factor 4U Rackmount
Disk Drive Bay
5.25 External Bay 2
3.5 External Bay 1
Hot-swap Drive Bay 2 (compatible with 3.5″ or 2.5″ devices)
Front I/O Interface
USB2.0 2
Cooling
Air Filter Yes
Fan 1(12 cm/74 CFM) + 1 (6cm / 28 CFM)
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Physical Characteristics
Weight 17.6 kg (38.7 lb)
Dimensions (W x H x D) 482 x 177 x 479 mm (19″ x 7″ x 18.9″)
Miscellaneous
LED Indicators Power, HDD, temperature, fan, LAN1, and LAN2
Rear Panel One 9-pin D-Sub opening
Intelligent System Module
Remote Monitoring CPU/System fan speed , CPU/System temperature , motherboard voltage
Power Supply
Power Supply

Data sheet on ACP-4320  (pdf file (opens in new tab)

Rackmount IPC chassis and IPC enclosure series offers wide range of rackmount chassis from 1U to 6U. The rackmount server case is built for slot-hungry applications and for supporting rackmount computer system.

ACP-4340


4U Rackmount Chassis for Full-size SHB/SBC or ATX/MicroATX Motherboard with 4 SAS/SATA HDD Trays, 479mm (Depth)
ACP-4340
Read more

ACP-4340

Features

  • Supports a PICMG backplane with up to 15 slots or an ATX/Micro-ATX motherboard
  • Shock-resistant disk drive bay holds four hot-swap 3.5″ and 2.5″ SAS/SATA disk trays, one slim optical disk drive, and one 2.5″ internal drive
  • Equipped with dual front USB 3.0 ports
  • Supports 80plus single and redundant power supply
  • Front-accessible system fan without opening top cover for easy maintenance
  • LED indicators and audible alarm notification for system fault detection
  • Smart fan speed control for system fans
  • Remote management (with SUSIAccess 2.1)

Descriptions

4U Rackmount Chassis for Full-size SHB/SBC or ATX/MicroATX Motherboard with 4 SAS/SATA HDD Trays

Specifications

Part Number ACP-4340BP-50ZE
Form Factor
Form Factor 4U Rackmount
Disk Drive Bay
Slim ODD 1
2.5″ Internal 1
Hot-swap Drive Bay 4 (compatible with 3.5″ or 2.5″ devices)
Front I/O Interface
USB2.0 2
Cooling
Air Filter Yes
Fan 1 (12 cm /74 CFM) + 1 (8 cm/56 CFM) for SAS/SATA storage unit
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Physical Characteristics
Weight 12.5 kg (27.5 lb )
Dimensions (W x H x D) 482 x 177 x 479 mm (19″ x 7″ x 18.9″)
Miscellaneous
LED Indicators Power, HDD, temperature, fan, LAN1, and LAN2
Rear Panel One 9-pin D-Sub opening
Intelligent System Module
Remote Monitoring CPU/System fan speed , CPU/System temperature , motherboard voltage
Power Supply
Power Supply 500W (Single)

Data sheet on ACP-4340  (pdf file (opens in new tab)

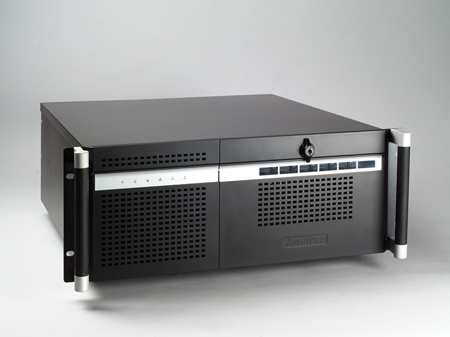

ACP-4360


4U Rackmount Chassis with 6 Hot-Swap SAS / SATA Trays for RAID, 501mm (Depth)
ACP-4360
Read more

ACP-4360

Features

  • Supports up to 6 SAS/SATA HDDs, which can be hot-swappable if a SATA RAID card is used
  • Supports either an ATX motherboard or a PICMG backplane up to 15 slots
  • Supports one slim optical disk drive and one 3.5″ FDD or internal HDD
  • LED indicators for LAN connectivity and alarm notification for redundant power supply, HDD activity, system fan and in-chassis temperature
  • Reusable, front-accessible filters for easy maintenance

Descriptions

4U Rackmount Chassis with 6 Hot-Swap SAS / SATA Trays for RAID

Specifications

Part Number ACP-4360MB-00XBE
Form Factor
Form Factor 4U Rackmount
Disk Drive Bay
Slim ODD 1
3.5″ Front-Accessible 6 SAS/SATA HDDs + 1 (mobile trays compatible with 2.5” HDD/SSD)
Front I/O Interface
USB2.0 2
Cooling
Air Filter Yes
Fan 1 (12cm / 114 CFM) + 2 (8 cm / 47 CFM each) for SATA/SAS storage unit
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Physical Characteristics
Weight 19.0 kg (41.8 lb)
Dimensions (W x H x D) 482 x 177 x 501 mm (19” x 7” x 19.8”)
Miscellaneous
LED Indicators System: Power, HDD, (for IDE drives only), fan, temperature, LAN1 and LAN2
Power Supply
Power Supply

Data sheet on ACP-4360  (pdf file (opens in new tab)

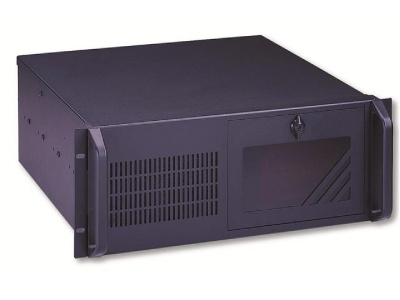

APGH-402-B


Guanghsing 19″ 4HE Rackmount ATX Server Chassis APGH-402 451 mm(Depth), 3x 5.25″ & 1x 3.5″(Drive Bays), 2x USB Ports(Connector Port (front))
APGH-402-B
Read more

APGH-402-B

Specifications:

Model: GH-402
Max. Board Size: ATX (12″ x 9.6″) or (SR Version) GHP-2008, GHP-2208, GHP-2014, GHP-2214, GHP-P14P4, GHP-2214D
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon or Passive Backplane (SR Version)

Product Information:

Standard: EIA RS-310C 19″ Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: 3x 5.25″ & 1x 3.5″
Power Supply: PS/2 Size Single up to 700W ATX or Mini Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 200mm
Cooling Units: 2x (92mm = 51CFM ea.) Hot Swap Fans
Expansion Slot: 7 Slots
Connector Port (front): 2x USB Ports
Indicators:
Buttons: Power ON/OFF, Momentary(Pushbutton),System Reset
Crossbar:
Thermal Card:
Front Door(s): Drive Panel Door with Keylock
Air Filter:
Dimensions(W x H x D): 483x177x451mm (19″ x 7″ x 17.8″)
Weight: 16.5 kgs / 36.4 lbs
Cu. ft.: 4.4
Carton Size: 61.8 x 34 x 59 (24.3″ x 13.4″ x 23.2″)
Humidity: 5% – 95% Non-condensing
Product Applications:

Optional Accessories:

HDD Drive Accessories:
Slide Rails:
Chassis Height: 4U


Data sheet on APGH-402-B
(pdf file (opens in new tab)

APGH-418-B


Guanghsing 19″ 4HE Rackmount ATX Server Chassis APGH-418-B, 510mm mm(Depth), 3x 5.25″ & 1x 3.5″ & 2x 3.5″ (Drive Bays), 2x USB Ports
APGH-418-B
Read more

APGH-418-B

Specifications:

Model: GH-418
Max. Board Size: ATX (12″ x 9.6″) or (SR Version) GHP-2008, GHP-2208, GHP-2014, GHP-2214, GHP-P14P4, GHP-2214D
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon or Passive Backplane (SR Version)

Product Information:

Standard: EIA RS-310C 19″ Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: 3x 5.25″ & 1x 3.5″ & 2x 3.5″ HDD
Power Supply: PS/2 Size Single up to 700W or Mini Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 220mm
Cooling Units: 1x (120mm = 90CFM ea.) Fan & 3x (90mm = 32 CFM ea.) Optional Blower (GHA-F418)
Expansion Slot: 7 slots
Connector Port (front): 2x USB
Indicators:
Buttons: Power ON/OFF Momentary (Pushbutton), SystemReset
Crossbar:
Thermal Card:
Front Door(s): Single Door with 1 Thumb Twist Keylock
Air Filter:
Dimensions(W x H x D): 483 x177 x 510mm (19″ x 7.0″ x 20.1″)
Weight: 14.4 kgs / 37.1 lbs
Cu. ft.: 3.8
Carton Size: 57.5 x 31.5 x 70 (22.6″ x 12.4″ x 27.6″)
Humidity: 5% – 95% Non-condensing
Product Applications:

Optional Accessories:

HDD Drive Accessories:
Slide Rails:
Chassis Height: 4U


Data sheet on APGH-418-B
(pdf file (opens in new tab)

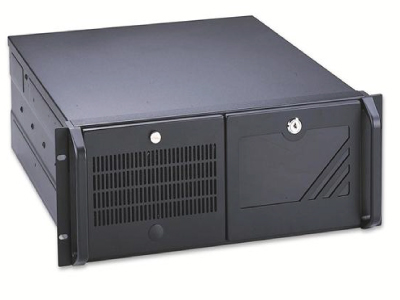

APGHI-419-B


Guanghsing 4U 19″ Rackmount ATX Server Chassis, 2x 5.25″ & 1x 3.5″ & 5x 3.5″ HDD & 1x 3.5″HDD (Optional), 510mm(Depth)
APGHI-419-B
Read more

APGHI-419-B

Specifications:

Model: APGHI-419-B
Max. Board Size: EATX (12″ x 13″) or (SR Version) GHP-2008, GHP-2208, GHP-2014, GHP-2214, GHP-P14P4, GHP-2214D
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon or Passive Backplane (SR Version)

Product Information:

Standard: EIA RS-310C 19″ Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: 2x 5.25″ & 1x 3.5″ & 5x 3.5″ HDD & 1x 3.5″HDD (Optional)
Power Supply: PS/2 Size Single up to 700W or Redundant up to 500W ATX P/S(Rear Installation)Max.Depth 300mm
Cooling Units: 2x (90mm = 51CFM ea.) Fans & 2x (60mm = 23.5CFM ea.) Fans (Optional)
Expansion Slot: 7 slots
Connector Port (front): 2x USB
Indicators:
Buttons: Power ON/OFF Momentary (Pushbutton), System Reset
Crossbar:
Thermal Card:
Front Door(s):
Air Filter:
Dimensions(W x H x D): 483 x 177 x 510mm (19″ x 7.0″ x 20.1″)
Weight: 17.8kgs / 39.3lbs
Cu. ft.: 4.9
Carton Size: 68.8 x 34.0 x 59.1 (27.1″ x 13.4″ x 23.3″)
Humidity: 5% – 95% Non-condensing
Product Applications:

Optional Accessories:

HDD Drive Accessories:
Slide Rails:
Chassis Height: 4U


Data sheet on APGHI-419-B
(pdf file (opens in new tab)

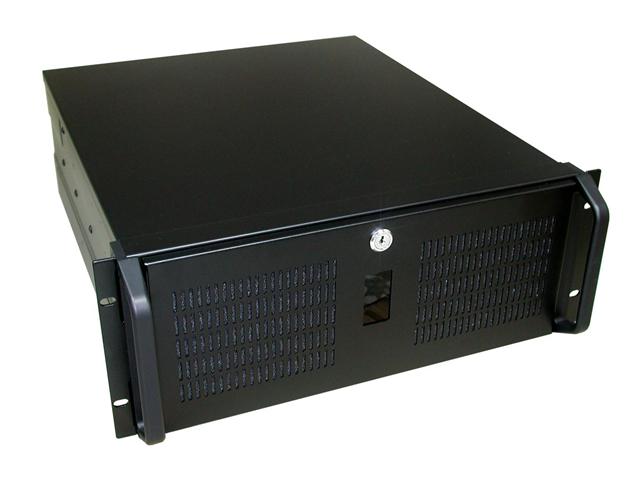

APGHI-479-B


Guanghsing 4U 19″ Rackmount ATX Server Chassis, 6×5.25″ & 2×3.5″ Open bay, 510mm(Depth)
APGHI-479-B
Read more

APGHI-479-B

Specifications:

Model: APGHI-479
Max. Board Size: EATX (12″ x 13″)
System Board Type: Core i, Core2Duo, Core2Quad, Pentium, Dual Xeon, AMD 64, Dual Opteron, Athlon

Product Information:

Standard: EIA RS-310C 19″ Rackmount Standard
Construction: Heavy Duty Cold Rolled Electroplated Steel
Color: Black (Standard), Beige or Custom
Drive Bays: 2x 3.5″ & 6x 5.25″
Power Supply: PS/2 Size Single up to 700W or Mini Redundant up to 500W ATX P/S (Rear Installation) Max. Depth 220mm
Cooling Units: 2x (80mm = 35CFM ea.) & 2x (60mm = 23.5CFM ea.) Fans
Expansion Slot: 7 slots
Connector Port (front): 2x USB Ports
Indicators:
Buttons: Power ON/OFF Momentary (Pushbutton), System Reset
Crossbar:
Thermal Card:
Front Door(s): Single Door With Keylock
Air Filter:
Dimensions(W x H x D): 483 x 177 x 510mm (19″ x 7″ x 20.1″)
Weight: 17.8 kgs / 39.3 lbs
Cu. ft.: 4.9
Carton Size: 59.1 x 34 x 68.8 (23.3″ x 13.4″ x 27.1″)
Humidity: 5% – 95% Non-condensing
Product Applications:

Optional Accessories:

HDD Drive Accessories:
Slide Rails:
Chassis Height: 4U


Data sheet on APGHI-479-B
(pdf file (opens in new tab)

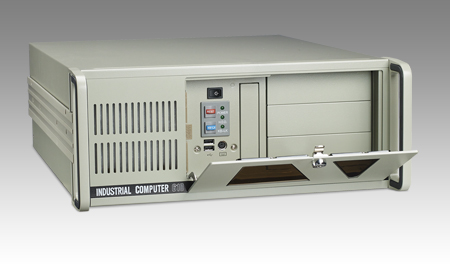

IPC-610-F


Classic 4U 15-Slot Rackmount Chassis, 499mm (Depth)
IPC-610-F
Read more

IPC-610-F

Features

  • 4U rackmount chassis supports up to 15 cards
  • Shock-resistant disk drive bay design holds up to three 5.25″ and two 3.5″ (one front-accessible & one internal) disk drives
  • Special hold-down clamp design with rubber cushions protects the cards from shock and vibration
  • Power and HDD activity notification improves system availability
  • Front-accessible air filter for easy system maintenance
  • Lockable front door prevents unauthorized access
  • 300 W / 400 W AC and 300 W DC ATX power supply options

Descriptions

Classic 4U 15-Slot Rackmount Chassis

Specifications

Part Number IPC-610BP-00FEE
Form Factor
Form Factor 4U Rackmount
Disk Drive Bay
5.25 External Bay 3
3.5 Internal Bay 1
3.5″ External Bay 1
Front I/O Interface
USB2.0 2
PS/2 1
Cooling
Air Filter Yes
Fan 1 (12 cm / 85 CFM)
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Physical Characteristics
Weight 16.2 kg (35.6 lb)
Dimensions (W x H x D) MB 482 x 177 x 499 mm (19″ x 7″ x 19.6) / BP 482 x 177 x 449 ( 19″ x 7″ x 17.8″)
Miscellaneous
Rear Panel One 9-pin D-Sub opening
LED Indicators Power, HDD and keyboard lock
Power Supply
Power Supply

Data sheet on IPC-610-F  (pdf file (opens in new tab)

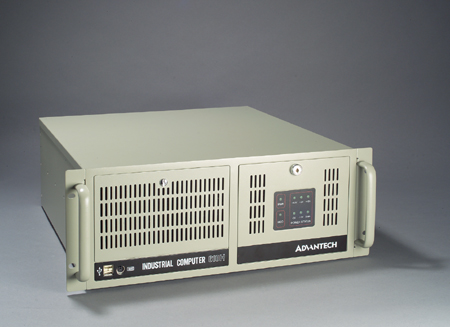

IPC-610-H


4U Rackmount Chassis with Visual Alarm Notification, 479mm (Depth)
IPC-610-H
Read more

IPC-610-H

Features

  • 4U rackmount chassis supports up to 15 add-on cards
  • Shock-resistant disk drive bay design holds up to three 5.25″ and one 3.5″ disk drives
  • Front accessible USB & PS/2 interfaces for easy data transfer
  • Dual front-accessible filtered cooling fans provide optimized and streamlined airflow
  • Front LEDs indicate power status, and HDD activity
  • Lockable front door prevents unauthorized access
  • Supports single PS/2 and redundant ATX power supplies

Descriptions

4U Rackmount Chassis with Visual Alarm Notification

Specifications

Part Number IPC-610BP-00XHE
Form Factor
Form Factor 4U Rackmount
Disk Drive Bay
5.25 External Bay 3
3.5″ External Bay 1
Front I/O Interface
USB2.0 2
PS/2 1
Cooling
Air Filter Yes
Fan 1 (12 cm / 85 CFM)
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Physical Characteristics
Weight 15 kg ( 33 lb )
Dimensions (W x H x D) 482 x 177 x 479 mm (19″ x 7″ x 18.9″)
Miscellaneous
Rear Panel One 9-pin D-Sub opening
LED Indicators Power, HDD and power voltage status
Power Supply
Power Supply

Data sheet on IPC-610-H  (pdf file (opens in new tab)

IPC-610-L


4U 15-Slot Rackmount Chassis with Front-Accessible Fan, 479mm (Depth)
IPC-610-L
Read more

IPC-610-L

Features

  • Supports an ATX motherboard or a backplane with up to 15 slots
  • Shock-resistant disk drive bay design holds up to three 5.25″ and one 3.5″ disk drives
  • Special hold-down clamp design with rubber cushions protects the cards from shocks and vibrations
  • Power and HDD activity notification improves system availability
  • Front-accessible air filter for easy system maintenance
  • Lockable front door prevents unauthorized access
  • Flexible mechanical design supports both 300 W single PS/2 and redundant ATX power supply

Descriptions

4U 15-Slot Rackmount Chassis with Front-Accessible Fan

Specifications

Part Number IPC-610BP-00LBE
Form Factor
Form Factor 4U Rackmount
Disk Drive Bay
5.25 External Bay 3
3.5″ External Bay 1
Front I/O Interface
USB2.0 2
Cooling
Air Filter Yes
Fan 1 (12 cm / 85 CFM)
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Physical Characteristics
Weight 14.5 kg ( 31.9 lb )
Dimensions (W x H x D) 482 x 177 x 479 mm (19″ x 7″ x 18.9″)
Miscellaneous
Rear Panel One 9-pin D-Sub opening
LED Indicators Power, HDD activity
Graphics
Controller Power, System reset button
Power Supply
Power Supply

Data sheet on IPC-610-L  (pdf file (opens in new tab)

IPC-611


4U 15-Slot Rackmount Chassis with Front-Accessible Fan, 479mm (Depth)
IPC-611
Read more

IPC-611

Features

  • Supports an ATX motherboard or a backplane with up to 15 slots
  • Shock-resistant disk drive bay design holds up to three 5.25″ and one 3.5″ disk drives
  • Special hold-down clamp design with rubber cushions protects the cards from shocks and vibrations
  • Power and HDD activity notification improves system availability
  • Front-accessible air filter for easy system maintenance
  • Lockable front door prevents unauthorized access
  • Flexible mechanical design supports both 300 W single PS/2 and redundant ATX power supply

Descriptions

4U 15-Slot Rackmount Chassis with Front-Accessible Fan



Specifications

Part Number IPC-611BP-00XBE
Form Factor
Form Factor 4U Rackmount
Disk Drive Bay
5.25 External Bay 3
3.5″ External Bay 1
Front I/O Interface
USB2.0 2
Cooling
Air Filter Yes
Fan 1 (12 cm / 85 CFM)
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Physical Characteristics
Weight 14.2 kg (31.2 lb)
Dimensions (W x H x D) 482 x 177 x 479 mm (19″ x 7″ x 18.9″)
Miscellaneous
Rear Panel One 9-pin D-Sub opening
LED Indicators Power, HID activity
Graphics
Controller Power, System reset button
Power Supply
Power Supply

Data sheet on IPC-611  (pdf file (opens in new tab)

IPC-619


Compact 4U Rackmount Chassis for Motherboard & Full-Size Half-Size SHB/SBC, 430mm (Depth)
IPC-619
Read more

IPC-619

Features

  • Space-saving 4U rackmount chassis, with only 429 mm depth
  • Supports either ATX/MicroATX motherboards or backplane up to 15 slots
  • Shock-resistant drive bay design supports up to two 5.25″ and one 3.5″ disk drives
  • Versatile 250W/300W/400W power supply options

Descriptions

Compact 4U Rackmount Chassis for Motherboard & Full-Size Half-Size SHB/SBC

Specifications

Part Number IPC-619BP-00XE
Form Factor
Form Factor 4U Rackmount
Disk Drive Bay
5.25 External Bay 2
3.5″ External Bay 1
Front I/O Interface
USB2.0 2
Cooling
Fan 1 (12 cm / 85 CFM)
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Physical Characteristics
Weight 15 kg (33 lb)
Dimensions (W x H x D) 482 x 177 x 430 mm (19″ x 7″ x 18.9″)
Miscellaneous
Rear Panel One 9-pin D-Sub opening
LED Indicators Power, HID activity
Graphics
Controller Power, System reset button
Power Supply
Power Supply

Data sheet on IPC-619  (pdf file (opens in new tab)

IPC-623


4U 20-Slot Rackmount Chassis with Multi-System and Front-Accessible Redundant Power Supply, 657mm (Depth)
IPC-623
Read more

IPC-623

Features

  • 4U rackmount chassis supports up to 4 multi-systems
  • Front-accessible redundant power supply
  • Shockproof disk drive bay design can hold up to three front-accessible 5.25″ and one 3.5″ disk drives, and one internal 3.5″ HDD
  • Three 12 cm / 114 CFM ball-bearing cooling fans
  • Front LEDs and audible alarm notifications for system power status, fan operation, HDD status, and in-chassis temperature monitoring
  • Dual top cover designed for easy maintenance
  • Five easily replaceable air filters provide good airflow
  • Redundant power supplies are all with dual AC inputs

Descriptions

4U 20-Slot Rackmount Chassis with Multi-System and Front-Accessible Redundant Power Supply

Specifications

Part Number IPC-623BP-00RBE
Form Factor
Form Factor 4U Rackmount
Disk Drive Bay
5.25″ Front-Accessible 3
Cooling
System Fan 3(12cm/114CFM each)
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Vibration 1 Grms
Non-Operating Vibration 2 Grms
Physical Characteristics
Dimensions (W x H x D) 482 x 177 x 657 mm (19” x 7” x 26”)
Miscellaneous
LED Indicators Power, HDD, Temperature, FAN, and Power voltage Status
Power Supply
Power Supply

Data sheet on  IPC-623  (pdf file (opens in new tab)

IPC-510


Economical 4U Rackmount Chassis with Front USB and PS/2 Interfaces, 446mm (Depth)
IPC-510
Read more

IPC-510

Features

  • The most cost-effective rackmount chassis
  • Supports 250/300 W ATX PFC PS/2 power supply
  • Easy to install front-accessible drive bays to hold three 5.25″ and two 3.5″ drives (one front-accessible & one internal)
  • Front-accessible USB & PS/2 interfaces
  • Designed to withstand environmental extremes, such as shock, vibration and high temperature

Descriptions

Economical 4U Rackmount Chassis with Front USB and PS/2 Interfaces

Specifications

Part Number IPC-510BP-00XBE
Form Factor
Form Factor 4U Rackmount
Disk Drive Bay
5.25 External Bay 3
3.5″ External Bay 1
3.5 Internal Bay 1
Front I/O Interface
USB2.0 2
PS/2 1
Cooling
System Fan 1 (12 cm / 77 CFM)
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Physical Characteristics
Weight 10.7 kg (23.5 lb)
Dimensions (W x H x D) 481 x 175 x 446 mm ( 19″ x 7″ x 17.6″ )
Miscellaneous
Rear Panel Two 9-pin D-Sub opening
LED Indicators Power, HID activity
Power Supply
Power Supply

Data sheet on IPC-510  (pdf file (opens in new tab)

HPC-7442


4U Rackmount/Tower Chassis for EATX/ATX Motherboard with Up to 8 SAS/SATA HDD Trays, 600mm (Depth)
HPC-7442
Read more

HPC-7442

Features

  • Supports EATX/ATX motherboard
  • Shock-resistant disk drive bay provides four hot-swap 3.5″ or 2.5″ SAS/SATA disk trays, one slim optical disk drive, and one 3.5″ internal drive
  • With optional storage upgrade kit installed, system equipped up to eight hot-swap HDD trays for higher storage capacity requirement
  • Supports 80plus single and redundant power supply
  • Front-accessible system fan without opening top cover for easy maintenance
  • LED indicators and alarm notification for system fault detection
  • Built-in Intelligent System Module enabling whole system fan control and remote manageability

Descriptions

The HPC-7442 series is a 4U rackmount chassis designed for digital surveillance or SCADA(Supervisory Control And Data Acquisition) server applications which have high storage demand. With the latest in industrial design, the HPC-7442 represents a breakthrough from the traditional, rigid concept of industrial PCs, and provides users with both a high-performance and a state-of-the-art operating platform. This series supports versatile EATX/ATX motherboards, with a highly efficient switching power supply and easy-to-maintain cooling fans. The series provides four or eight(after adding “storage upgrade kit”) SAS/SATA HDD trays, which provide a flexible solution for data storage. Other data storage options include one slim-type drive bay for optical disk drives, and one 3.5″ drive bay for internal hard drive disk. The unique alarm module monitors system status such as power, HDD, temperature, fan, and LAN, to minimize system downtime. Meanwhile, system fan’s rotation speed increases or decreases depending on high or low temperature inside the chassis, to minimize system noise while light system loading. A wide range of standard computing peripherals can be integrated with these chassis to accommodate robust applications in rugged environments, 24 hours a day, 7 days a week.

Specifications

Part Number HPC-7442MB-00XE
Form Factor
Form Factor 4U Rackmount
Disk Drive Bay
Slim ODD 1
3.5″ External Bay 1
Hot-swap Drive Bay 4 (compatible with 3.5″ or 2.5″ devices)
Front I/O Interface
USB2.0 2
Cooling
System Fan 1 (12 cm /114 CFM) + 1 (8 cm/55 CFM)
Air Filter Yes
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -40 ~ 70° C (-40 ~ 156° F)
Operating Shock 10 G (with 11 ms duration, half sine wave)
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Operating Vibration (5 ~ 500 Hz) 1 Grms
Non-Operating Vibration (5 ~ 500 Hz) 2 G
Physical Characteristics
Weight 18.5 kg (40.68 lb)
Dimensions (W x H x D) 482 x 177 x 600 mm (19″ x 7.0″ x 23.6″)
Miscellaneous
Rear Panel Five 9-pin D-Sub & one 68-pin SCSI openings
LED Indicators Power, HDD, temperature, fan, LAN1, and LAN2
Intelligent System Module
Remote Monitoring CPU/System fan speed , CPU/System temperature , motherboard voltage

Data sheet on HPC-7442  (pdf file (opens in new tab)

6U Rackmount Chassis

IPC-622


6U 20-Slot Rackmount Chassis Supporting Quad-System and Redundant Power Supply, 465mm (Depth)
IPC-622
Read more

IPC-622

Features

  • 6U rackmount chassis supports up to 4 multi-systems
  • LED indicators and audible alarm notification for system fault detection
  • Four 9 cm / 53 CFM ball-bearing system fans for excellent cooling
  • Various backplane options for up to 20 slots
  • Lockable front door prevents unauthorized access
  • Supports up to 4 sets of dual USB ports in the front
  • Four reserved 9-pin D-sub openings on the rear panel

Descriptions

6U 20-Slot Rackmount Chassis Supporting Quad-System and Redundant Power Supply

Specifications

Part Number IPC-622BP-00DE
Form Factor
Form Factor 6U Rackmount
Front I/O Interface
USB2.0 2 (default) and reserve up to 4 sets of dual USB ports in the front
Cooling
System Fan 4 (9 cm / 58 CFM each)
Air Filter Yes
Environment
Operational Temperature 0 ~ 40° C (32 ~ 104° F)
Non-Operational Temperature -20 ~ 60° C (-4 ~ 140° F)
Operating Vibration 0.5 Grms
Non-Operating Vibration 1 Grms
Operating Shock 5G (with 11ms duration, half sine wave
Operating Humidity 10 ~ 85% @ 40° C, non-condensing
Non-Operating Humidity 10 ~ 95% @ 40° C, non-condensing
Physical Characteristics
Weight 30 kg (66lb)
Dimensions (W x H x D) 482 x 266 x 465 mm ( 19″ x 10.5″ x 18.3″ )
Disk Drive Bay
5.25″ Front-Accessible 4
Miscellaneous
LED Indicators Power, HDD, Temperature, FAN, and Power voltage Status
Control Power / System reset / Alarm reset switch
Rear Panel Four 9-pin D-sub openings
Drive Bay
3.5 Internal Bay 2
Intelligent System Module
Remote Monitoring CPU/System fan speed , CPU/System temperature , motherboard voltage
Power Supply
Power Supply

Data sheet on IPC-622  (pdf file (opens in new tab)

FAQs

What does 1U 2U 3U 4U mean?

There is a huge variety of computing equipment on the market, with rackmount computers and server systems generally classified according to size. Rackmount chassis systems are a very efficient way to store and operate computing devices, as these computers are built in a standardised width and height, to fit into a standard rack with mounting rails at the front. The international rack standard has been developed over time, with 1U designating a single unit of rack space, 2U designating two units of rack space, and so on. From a technical perspective, 1U represents 1.75 inches or 44.45 mm of rack height space. As a modular and configurable system, users can easily add or remove equipment based on need. Powerful industrial PCs are also available in non-rackmount cases.

What is a rackmount PC?

A rackmount PC is a personal computer in a standard rackmount chassis or enclosure, which fits into a standard rack cabinet. Rack PCs are often used for commercial applications due to accessibility and standardisation. These computers are simple to transport, easy to access for servicing, and fit with existing cooling and electrical systems. Industrial rackmount PCs are often used for industrial applications where they are set up in equipment rooms or on moving vehicles, ships, etc. Even regular computer users such as music producers and technology enthusiasts sometimes choose to rack their equipment to take advantage of more efficient cooling and better power management. Rack PC use is alive and well across Australia.

What is a rack server used for?

A rackmount server is a specialised piece of computer hardware that provides functionality that other devices (clients) can access. The client–server model is pervasive in the computing world, with servers computing data, sharing resources, and generally working hard behind the scenes to add functionality. A single server can serve anything from a single client to thousands of clients, depending on the application. Rackmount servers are used widely to route, distribute, and store information on the internet. Rackmount systems allow a large number of individual servers (and other equipment such as networking) to work together while sharing cooling and power infrastructure.

Do I need a server rack?

Server racks are incredibly useful for many businesses and organisations. Instead of relying on inefficient communication protocols between distributed computing devices, servers can be installed to centralise and manage data flows and storage. While few personal computer users need their own dedicated server, many businesses would benefit from their own server rack. Advantages include increased performance, enhanced security, and improved accessibility between users, devices, and locations. If a dedicated server is needed, it will generally be installed in a standard rack, with rackmount PC case designs also available for smaller configurations.

If you have any questions about rack computers or would like to make an order — please contact us today.

Call Now Button
