High Temperature loggers - Autoclave

High Temperature loggers – Autoclave

When you need to record temperature (or pressure) in a high temperature environment such as an autoclave or oven, you will need a data logger specifically designed for high temperature and high pressure environments. Most regular data loggers cannot withstand more than about 80°C and that too only for short time periods.

Esis specialises in high temperature data logging, and we have several loggers that can survive 140°C or even up to 260°C for limited times with a suitable thermal shield. There are several options at different price points, detailed below. If you’re feeling unsure, please contact us to discuss your needs.

Nautilus LoggersThermochron high-temp loggersMadgetech Autoclave loggers

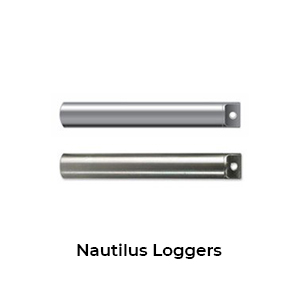

Nautilus Loggers – Rugged loggers for high temperature unforgiving environments

  • Nautilus85 can stand up against harsh environments.
  • Nautilus135 with high temperature capabilities 135°C, make it the ideal logger for more extreme environments.

ACR Nautilus data loggers are single channel, waterproof temperature data loggers with the ability to record temperature in water, food or other liquids. Designed for rugged applications, Nautilus loggers are available in stainless steel or aluminum.

Nautilus loggers can hold over 500 days of data and feature data compression capability. With extremely durable and robust construction, Nautilus loggers are your choice for temperature monitoring and logging in wet environments.

ACR Nautilus Loggers & Autoclave logger, to 135°C

Nautilus85 – for harsh environments to 85 ° C


Single-channel, waterproof temperature data loggers with 3 to 10-year battery life.
The Nautilus85 is a durable, robust data logger that can monitor temperature in a variety of applications and is particularly well suited for the food and beverage, biomedical, pharmaceutical industries.
Nautilus85
Click here to show/ hide more info

Nautilus85

The Nautilus Series consists of two full-featured, single-channel temperature loggers designed for “wet” environments at varying temperature ranges – from oceans, streams, and wastewater to food and other liquids, Ideal for rugged applictions, Nautilus loggers come in stainless steel or aluminum and offer a high temperature option for environments where conventional loggers are unable to survive

Key Features

  • Widest temperature range supported across series (-40°C to 135°C or -40°F to 275°F)
  • 32KB memory for up to 244,800 readings with data compression
  • Compact, cylindrical design for the narrowest applications (e.g. in bottles)
  • Lightweight with stainless steel and aluminum case material options
  • 3 to 10-year battery life (depending on model)
  • 3-year warranty

Specifications

Size 18 mm x 127 mm (0.71″ x 5.00″)
Weight Aluminum case: 51 grams (1.8 ounces)
Stainless steel case: 112 grams (4 ounces)
Case Material Anodized aluminum or stainless steel
Operating Limits See individual specifications
Operating Pressure Range Up to 2000 PSI
Clock Accuracy +/- 2 seconds per day
Battery 3.6 volt Lithium, 0.95 Amp-Hour
Power Consumption 5 to 10 microamps (continuous)
Battery Life See individual specifications
Mounting Locking hole on cap
Memory Size 32 KB (up to 244,800 readings with data compression)
Sampling Methods 1. Continuous (First-in, First-out)
2. Stop when full (Fill-then-stop)
(Option to delay start)
Sampling Rates User selectable from 8 seconds to 34 minutes
Readings stored to memory can be spot or averaged over the sample interval (except for the 8 second interval)
Resolution 8-bit (1 part in 256)
PC Requirements Windows PC with a least 256MB RAM, 250MB of hard drive space and one free serial or USB port
Software Requirements TrendReader® Express or TrendReader® (compatible with Windows 7, Windows 8 & Windows 10)
Temperature Range -40°C to 85°C (-40°F to 185°F)
Sensor Accuracy ± 0.2°C over the range of 0 to 70°C (± 0.3°F over the range of 32 to 158°F)
Sensor Type Negative temperature Coefficient (NTC) Thermistor
10,000 ohms @ 25°C (77°F)

Operating Range: -40°C to 85°C.
Resolution: 0.4°C, Sensor Accuracy: +/-0.2°C. @ 25°C,
Memory Size: 32 KB, Accessories: None
Number of channels: One (ambient temperature)
Sensor Type: Negative Temperature Coefficient Thermistor (NTC) 10,000 ohms @ 25°C

NTL-100 Nautilus85 with Aluminium case – $395+GST 9/15
NTL-101 Nautilus85 with Stainless Steel case – $460+GST

Nautilus85 Data (pdf, opens in a new tab)

Also requires TrendReader Express software and USB Cable IC-102, or Serial interface cable (see below)

Calibration

NautilusFactCalibCert-2P Nautilus Factory Calibration Certificate 2 Temp points: $120+GST

Nautilus135 Autoclave Logger to 135 ° C


Single-Channel Waterproof High Temperature Data Logger.
The high temperature capabilities of the Nautilus135 make it the ideal logger for monitoring temperature in extreme environments or environments where conventional data loggers are not able to survive.
Nautilus85
Click here to show/ hide more info

Nautilus85

The high temperature capabilities of the Nautilus135 make it the ideal logger for monitoring temperature in extreme environments or environments where conventional data loggers are not able to survive.

The Nautilus Series consists of two full-featured, single-channel temperature loggers designed for “wet” environments at varying temperature ranges – from oceans, streams, and wastewater to food and other liquids, Ideal for rugged applications, Nautilus loggers come in stainless steel or aluminum and offer a high temperature option for environments where conventional loggers are unable to survive

Key Features

  • Widest temperature range supported across series (-40°C to 135°C or -40°F to 275°F)
  • 32KB memory for up to 244,800 readings with data compression
  • Compact, cylindrical design for the narrowest applications (e.g. in bottles)
  • Lightweight with stainless steel and aluminum case material options
  • 3 to 10-year battery life (depending on model)
  • 3-year warranty

Specifications

Size 18 mm x 127 mm (0.71″ x 5.00″)
Weight Aluminum case: 51 grams (1.8 ounces)
Stainless steel case: 112 grams (4 ounces)
Case Material Anodized aluminum or stainless steel
Operating Limits See individual specifications
Operating Pressure Range Up to 2000 PSI
Clock Accuracy +/- 2 seconds per day
Battery 3.6 volt Lithium, 0.95 Amp-Hour
Power Consumption 5 to 10 microamps (continuous)
Battery Life See individual specifications
Mounting Locking hole on cap
Memory Size 32 KB (up to 244,800 readings with data compression)
Sampling Methods 1. Continuous (First-in, First-out)
2. Stop when full (Fill-then-stop)
(Option to delay start)
Sampling Rates User selectable from 8 seconds to 34 minutes
Readings stored to memory can be spot or averaged over the sample interval (except for the 8 second interval)
Resolution 8-bit (1 part in 256)
PC Requirements Windows PC with a least 256MB RAM, 250MB of hard drive space and one free serial or USB port
Software Requirements TrendReader® Express or TrendReader® (compatible with Windows 7, Windows 8 & Windows 10)
Temperature Range 10°C to 135°C (50 to 275°F)
Sensor Accuracy +/- 0.5°C (+/- 0.9°F)
Sensor Type Negative temperature Coefficient (NTC) Thermistor
10,000 ohms @ 25°C (77°F)

Autoclaves work by allowing steam to enter, then maintaining the pressure at 103 kPa (1.03 bar,15 psi). This causes the steam to reach 121 °C, and this is maintained for at least 15 minutes. Modern autoclaves operate at higher temperature and pressures.

Information about Autoclaves (Wikipedia, opens in a new tab)

Conversion: 1 bar = 100kPa = 14.5psi

Nautilus135 is designed for autoclaves and can also be used in other applications.

Pressure rating: 13,800kPa, 13.8 bar, 2000psi
Operating Range: 10°C to 135°C. Resolution: +/-0.2°C @ 25°C,
Sensor Accuracy: +/- 0.5°C @ 77°C,
Memory Size: 32 KB, Accessories: None,
No. of Channels: One (Ambient Temperature),
Sensor Type: Negative temperature Coefficient Thermistor (NTC) 10,000 ohms @ 25C

Nautilus135 Data (pdf, opens in a new tab)

NTL-102 Nautilus 135 with Aluminium Case: $522+GST 9/15
NTL-103 Nautilus 135 with SS Stainless Steel Case: $595+GST

Also required: TrendReader® 2 Express or TrendReader® 2 (compatible with Windows® XP, Vista, Windows 7 and Windows 8 – 32 bit or 64 bit) (see below)

TrendReader 2 Software and Cable

TR2-USB software package incl. IC-102 USB cable: $295+GST 9/15
TR2-Express-USB software package incl. IC-102 USB cable: $255+GST

Cable only
IC-102 USB interface cable: $195+GST 9/15

Calibration
NautilusFactCalibCert-2P Nautilus Factory Calibration Certificate 2 Temp points: $120+GST 9/15

Time stamping of Readings in ACR Data Loggers
All ACR loggers have an accurate clock, but not a real time clock. Data is time referenced when the data is downloaded, from the time and date of the computer. The PC being used should have it’s clock set accurately (automatic via internet with Windows XP). Time references can be adjusted with the TrendReader software.

Various articles about ACR Loggers (Mfr site, opens in a new tab)

Nautilus FAQ

Is the Nautilus product waterproof? To what depth and pressure has it been tested?

While we have no official documentation or third party testing, the product easily withstood our own water testing. The Nautilus casing has been tested in 2000 PSI, which is equivalent to the pressure at a depth of 1400 meters of water.

Can I calibrate the Nautilus data logger?

Low, mid and high calibration values can be adjusted using TrendReader (version 2.30 and higher).

What are the Nautilus operating limits?

The operating range for the Nautilus85 is -40 to 85 degrees Celsius.

The operating range for the Nautilus135 is 10 to 135 degrees Celsius.

What should be done to protect the waterproof seal?

The O-Ring should be moistened with silicon grease to maintain the waterproof seal.

What is the battery life of the Nautilus?

The battery of a Nautilus85 is 10 years and for the Nautilus135 it is 3 years.

Is the battery in a Nautilus data logger replaceable?

Yes. However, it can only be replaced in the factory by ACR Systems Inc.

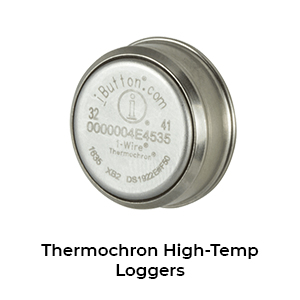

Thermochron high-temp loggers

The Thermocron temperature logger is an incredibly small and easy to use device that is a fraction of the price of every other temperature logger on the market.
Their small size and sturdy construction make them ideal for wet and rough conditions.
Their low price make them ideal for tracking everything from individual fridges to individual shipments.
They can be housed in the iButton Capsule (see below) in adverse environments.
Standard devices have temperature ranges:
-40° to 85°C, +15°C to +140°C or -5°C to 25°C for fridge loggers

Thermochron high-temp loggers – to 125 or 140°C

TCU Ultra model – DS1922E Thermochron


Extreme monitoring without a probe. Great for monitoring sterilizations, the Thermochron DS1922E can record up to 284°F (140°C).

This unit is most commonly used to ensure that sterilizers are functioning efficiently, but there are also uses in mining, food preparation, scientific research and industrial processes.

DS1922E Thermochron
Click here to show/ hide more info

DS1922E Thermochron

Extreme monitoring without a probe. Great for monitoring sterilizations, the Thermochron DS1922E can record up to 284°F (140°C).

This unit is most commonly used to ensure that sterilizers are functioning efficiently, but there are also uses in mining, food preparation, scientific research and industrial processes.

Range: +15°C to 140°C,
Resolution: 0.5°C/0.0625°C, 8000/4000 readings: $199+GST
Accuracy: between +110°C to +140°C is ±1.5°C.

For the remaining range it is ±7°C. Please enquire.

Also required:
eTemperature Kit, includes USB interface and software: $155+GST

Detailed data sheet on DS1922E (pdf, opens in a new tab)

To get started all you need is: one Kit which includes the reader, software and case, plus your choice of Thermocrons (generic, fridge, or room/body temperature)

Optionally: fobs to assist in the handling of the Thermocrons.

FAQ on Thermocron Loggers (pdf, opens in a new tab)

Other Thermochron loggers and more information about Thermochrons (pdf, opens in a new tab)

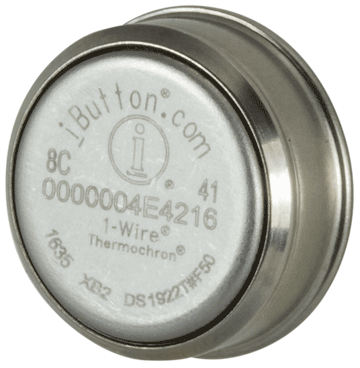

TCX Extreme model – DS1922T Thermochron


Go beyond boiling point. If your measurements are in the range of 140°F to 250°F, this is the logger for you. Place it directly in your test environment. No probe.
DS1922T Thermochron
Click here to show/ hide more info

DS1922T Thermochron

This temperature logger breaks the 212°F (boiling point of water) barrier and is able to log temperatures up to 257°C. If your measurements are in the 140°F to 250°F range, you will find this logger more accurate that the DS1922L.

No Probe
No need to drill a hole in your test environment for a probe, these tough little loggers will happily sit in right inside.

It is now possible to monitor what is happening inside the sterilizing unit, incubator, dishwasher and other hot environments.

The DS1922T Thermochrons are stainless steel and water resistant, but if you need to immerse them completely, we recommend purchasing waterproof capsules.

Range: 0°C to 125°C,
Resolution: 0.5°C/0.0625°C, 8000/4000 readings: $140+GST

For the remaining range it is ±7°C. Please enquire.

Also required:
eTemperature Kit, includes USB interface and software: $155+GST

Detailed data sheet on DS1922T (pdf, opens in a new tab)

To get started all you need is: one Kit which includes the reader, software and case, plus your choice of Thermocrons (generic, fridge, or room/body temperature)

Optionally: fobs to assist in the handling of the Thermocrons.

FAQ on Thermocron Loggers (pdf, opens in a new tab)

Other Thermochron loggers and more information about Thermochrons (pdf, opens in a new tab)

iButton Capsule mechanical enclosure

The iButton® Capsule is a mechanical enclosure to protect Temperature Logger iButtons (DS1921 and S1922 series) from moisture, solvents and pressure.

The device consists of a base with the cavity for a F5 iButton, a screw-in plug with O-ring to seal the enclosure, and a top with two stainless-steel screws to mount the iButton Capsule to a cable, e.g., to measure temperature at different levels within a liquid.

The cable is inserted into the notch of the plug where it is held in place by the matching protrusion of the top piece.

Data sheet on iButton Capsule (pdf, opens in a new tab)

Note that the logger cannot be connected to a PC whilst in the capsule – it must be removed from the capsule for setup and downloading data.

Applications: Autoclave Sterilization, Seawater temperature profiling, Monitoring of beverage production, Scientific research

iButton® Capsule: $79+GST for small quantities, currently in stock in Australia.

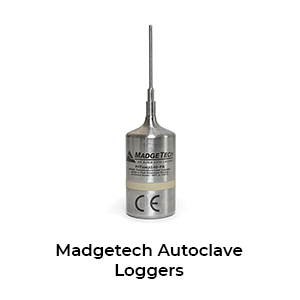

Madgetech Autoclave Loggers

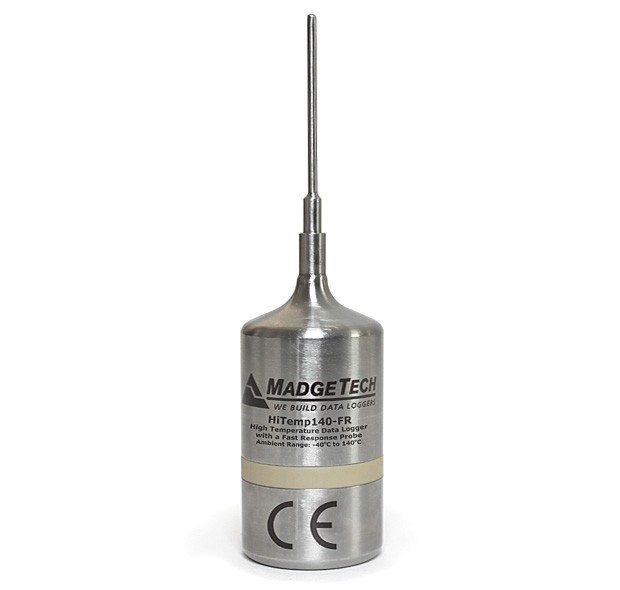

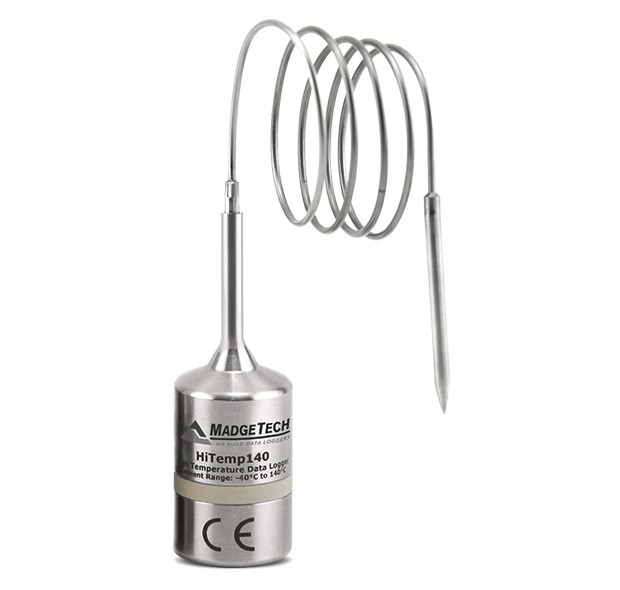

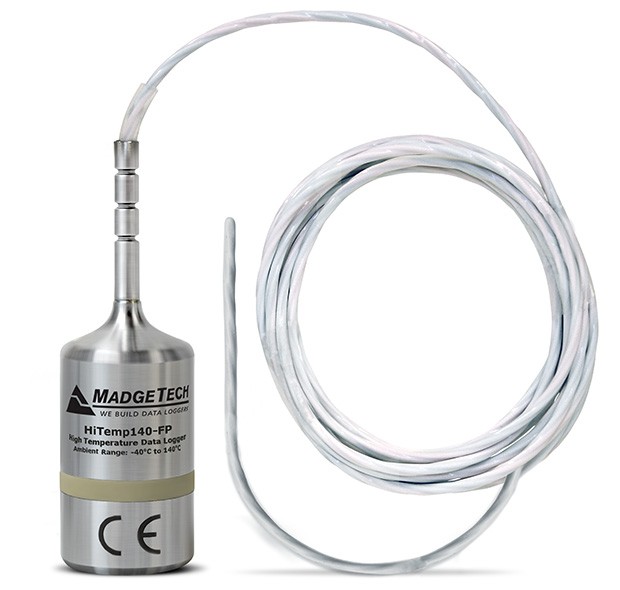

HiTemp-140 Data Logger – High Temperature, to 140 °C – short rigid external probe to 260 °C


The HiTemp140 is a rugged, high precision, temperature data logger that is built for use in harsh environments. This stainless steel device is submersible and can withstand temperatures up to 140 °C (284 °F).
HiTemp140 Data Logger
Click here to show/ hide more info

HiTemp140 Data Logger

The HiTemp140 is a rugged, high precision, temperature data logger that is built for use in harsh environments. This stainless steel device is submersible and can withstand temperatures up to 140 °C (284 °F). With the HiTemp140’s standard calibration, an accuracy of +/-0.1 °C (0.18 °F) can be achieved over a wide temperature range.

The HiTemp140 can store up to 32,700 readings, and features a rigid external probe capable of measuring extended temperatures, up to 260 °C (500 °F).

Custom probe lengths are available up to 7 inches. The device records date and time stamped readings, and has non-volatile solid state memory.

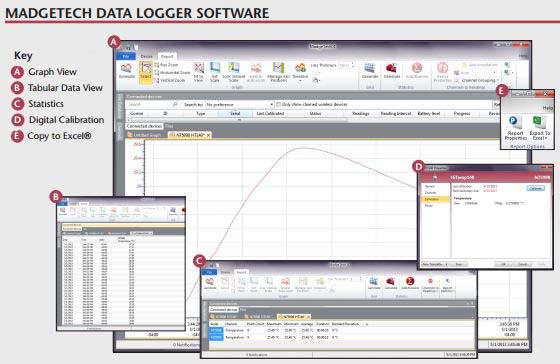

Using the MadgeTech Software, starting, stopping and downloading the HiTemp140 is simple and easy.

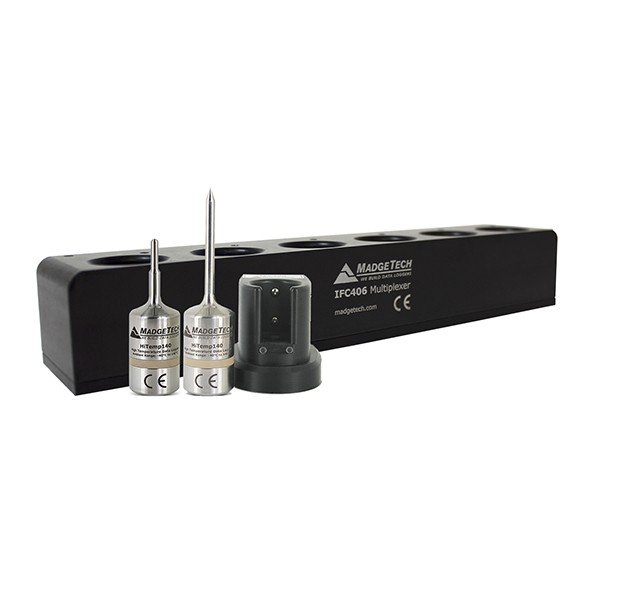

To use, simply place the HiTemp140 in the IFC400 or IFC406 docking station (sold separately). Using the software, an immediate or delay start can be chosen, as well as the reading rate. Start the data logger, remove it from the docking station and the device is ready to be deployed. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R.

The data can also be automatically exported to Excel® for further calculations

Features

  • ±0.1 °C (0.18 °F) Accuracy
  • Operates Up To 140 °C (284 °F)
  • Submersible (IP68)
  • NIST traceable
  • User Replaceable Battery
  • Rugged
  • Programmable start time
  • Programmable stop time
  • Engraved Label
  • Probe Lengths Up To 7 inches
  • Battery Life Indicator

Data sheet on HiTemp140 (pdf, opens in a new tab)

HITEMP140-1 – High Temperature Data Logger with a 1” probe

HITEMP140-2 / HITEMP140-2-TD – High Temperature Data Logger with a 2” probe / 2” transitional diameter probe

HITEMP140-5.25 / HITEMP140-5.25-TD – High Temperature Data Logger with a 5.25” probe / 5.25” transitional diameter probe

HITEMP140-7 – High Temperature Data Logger with a 7” probe

IFC400 – Docking station with USB cable, software and manual

IFC406 – 6 Port, Multiplexer docking station with USB cable, software and manual

ER1425S-HT – Replacement battery for the HiTemp140

*NIST – NIST Calibration Certificate

*To order the product with the NIST certificate add -CERT to the end of the part number (this increases the price).

HiTemp140-TSK Data Logger – housed in a thermal shield, -200°C to 250°C


The HiTemp140-TSK is a kit that includes a HiTemp140 data logger housed in a thermal shield. The combined features of the ±0.1°C accuracy of the HiTemp140 and the properties of the durable thermal shield allow the device to be used for a wide range of validation applications.
HiTemp140-TSK Data Logger
Click here to show/ hide more info

HiTemp140-TSK Data Logger

The HiTemp140-TSK is a kit that includes a HiTemp140 data logger housed in a thermal shield. The combined features of the ±0.1°C accuracy of the HiTemp140 and the properties of the durable thermal shield allow the device to be used for a wide range of validation applications. This rugged system can be placed in and withstand temperatures from -200°C to 250°C for a limited time, making it ideal for use in autoclave validation, monitoring food processing and dishwasher testing.

Using the MadgeTech software, the data logger is fast and easy to setup. Remove the thermal shield and place the HiTemp140 into the IFC400 docking station (sold separately). Using the software, an immediate or delay start can be chosen, as well as the reading rate. Select Start to program the settings and start the data logger. Place the thermal shield around the HiTemp140 and screw it back together. The device is ready to be deployed.

The HiTemp140-TSK can be completely submerged and is built for applications that require extreme temperature monitoring.

The HiTemp140-TSK is available with an extended warranty.

See above for data sheet on the HiTemp140 logger.

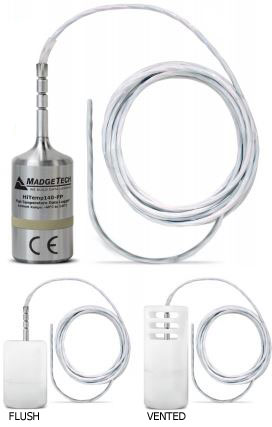

HiTemp140-FP Data Logger with a long, flexible RTD probe with a narrow diameter, to 260°C


The HiTemp140-FP is a durable, user friendly high temperature data logger featuring a long, flexible RTD probe with a narrow diameter, making it ideal for use in steam sterilization and lyophilization processes.
HiTemp140-FP Data Logger
Click here to show/ hide more info

HiTemp140-FP Data Logger

The HiTemp140-FP is a durable, user friendly high temperature data logger featuring a long, flexible RTD probe with a narrow diameter, making it ideal for use in steam sterilization and lyophilization processes.

Commonly used for mapping, validation and monitoring of high temperature surfaces and environments, this stainless steel data logger is available in two models, the HiTemp140-FP-36 and the HiTemp140-FP-72, which feature either 36 inch or 72 inch flexible probe lengths, respectively. The flexible probe is coated with PFA insulation and can withstand temperatures up to 260 °C with an accuracy of ±0.1 °C.

The HiTemp140-FP probe design is narrow and lightweight making it ideal for placement within small vials, tubing, test tube and other small diameter or delicate applications. Because of the flexible probe, the risks of breakage (both vial and probe) generally associated with stainless steel probe loggers are diminished and the location and placement of the probe is easy to manipulate. The device records and stores up to 32,700 time stamped readings and is equipped with non-volatile solid state memory that will continue recording even if battery becomes discharged.

The HiTemp140-FP can be configured for delayed start and is capable of reading rates as often as four readings per second, up to once every 24 hours.

Compatible with the latest MadgeTech Data Logger Software, starting, stopping, and downloading data is simple and reporting capabilities are abundant. The device connects to a PC with the IFC400 interface or the IFC406 docking station (sold separately). Downloaded data can be viewed in graphical, tabular, and summary data form in the MadgeTech software, and all data can be exported to Excel® for further analysis and calculations.

Dimensioned diagram of HiTemp140-FP (pdf, opens in a new tab)

Data sheet for HiTemp140-FP and HiTemp140-FP-TSK with Thermal Shield (pdf, opens in a new tab)

HiTemp140-FP-36 – High Temperature Data Logger with a 36 inch Flexible probe.

HiTemp140-FP-72 – High Temperature Data Logger with a 72 inch Flexible probe.

HiTemp140-FP-TSK, HiTemp140-FP – data logger and thermal shield with either a 36 inch or 72 inch flexible probe (Flush or Vented).

HiTemp140-TS – Thermal Shield for the HiTemp140-FP data logger (Flush or Vented).

IFC400 – Docking station with USB cable, software and manual.

IFC406 – 6 Port, Multiplexer docking station with USB cable, software and manual.

ER1425S-HT – Replacement battery for the HiTemp140-FP.

*NIST – NIST Calibration Certificate.

*To order the product with the NIST certificate add -CERT to the end of the part number (this increases the price).

HiTemp140-FR Data Logger, and Hitemp140-FR-TSK with Thermal Shield fast response, body to 140°C, probe -200 °C to +260 °C, recording up to 4Hz


The HiTemp140-FR is a high temperature data logger with an ultra-fast response time, to record temperature during rapidly changing thermal processes. This high temperature data logger features a 2 in x 0.0625 in diameter probe and is capable of recording up to 4Hz, which is 5 times faster than other data loggers in this series.
HiTemp140-FR Data Logger
Click here to show/ hide more info

HiTemp140-FR Data Logger

The HiTemp140-FR is a high temperature data logger with an ultra-fast response time, to record temperature during rapidly changing thermal processes. This high temperature data logger features a 2 in x 0.0625 in diameter probe and is capable of recording up to 4Hz, which is 5 times faster than other data loggers in this series. This allows the temperature sensor to quickly adapt and accurately record temperature variations in changing environments. Applications include oven profiling, steam sterilization, chamber mapping, seafood processing, flash freezing and more.

MadgeTech’s entire HiTemp140 data logger series is designed with food grade stainless steel. The device can be placed in environments up to 140 °C and the probe is capable of measuring from -200 °C to +260 °C (-328 °F to +500 °F).

The HiTemp140-FR is also available with an optional thermal shield enclosure to extend the operating range of the data logger to -200 °C to +250 °C (-328 °F to +482 °F). The HiTemp140-FR-TSK (Thermal Shield Kit) comes with either a vented or flush top enclosure to accommodate a multitude of applications.

The Trigger Settings feature of the HiTemp140-FR allows users to configure high and low temperature thresholds that when met or exceeded, will automatically start or stop recording data to memory. This data logger is capable of storing up to 32,700 date and time stamped readings and features a nonvolatile solid state memory which retains data even if the battery becomes discharged.

Compatible with the latest MadgeTech Data Logger Software, starting, stopping, and downloading data is simple and reporting capabilities are abundant. The device connects to a PC with the IFC400 interface or the IFC406 docking station (sold separately). Downloaded data can be viewed in graphical, tabular, and summary data form in the MadgeTech software, and all data can be exported to Excel® for further analysis and calculations.

Data sheet on HiTemp140-FR and HiTemp140-FR-TSK (pdf, opens in a new tab)

HiTemp140-FR High Temperature Data Logger with a 2 inch Fast Response Probe.

Hitemp140-FR-TSK, HiTemp140-FR data logger and thermal shield (Flush or Vented).

HiTemp140-TS Thermal Shield for the HiTemp140-FR data logger (Flush or Vented).

IFC400 Docking station with USB cable, software and manual.

IFC406 6 Port, Multiplexer docking station with USB cable, software and manual.

ER1425S-HT Replacement battery for the HiTemp140-FR.

*NIST – NIST Calibration Certificate.

*To order the product with the NIST certificate add -CERT to the end of the part number (this increases the price).

HiTemp140-PT Data Logger, body to 140°C, with 600mm flexible probe to 260°C


The HiTemp140-PT is a submersible, temperature data logger that can operate up to 140°C (284°F) and has an accuracy of +/-0.1°C (0.18°F). The device features a 24” flexible stainless steel probe for measuring extended temperatures up to 260°C (500°F).
HiTemp140-PT Data Logger
Click here to show/ hide more info

HiTemp140-PT Data Logger

The HiTemp140-PT is a submersible, temperature data logger that can operate up to 140°C (284°F) and has an accuracy of +/-0.1°C (0.18°F). The device features a 24” flexible stainless steel probe for measuring extended temperatures up to 260°C (500°F). The probe is durable and can be spiraled, bent or angled in any direction, making it easy to log temperatures within bottles, vials or other hard to reach places.

The HiTemp140-PT records date and time stamped readings, and has non-volatile solid state memory that will retain data even if the battery becomes discharged.

Using the MadgeTech Software, starting, stopping and downloading the HiTemp140-PT is simple and easy. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R. The data can also be automatically exported to Excel® for further calculations.

Accessories
Docking station IFC400 (sold separately) – Interface cable package for the HiTemp140 Data Logger. Includes MadgeTech Software CD, Software Manual, Quick Start Guide, USB Cable and USB Docking Station.

Data sheet on HiTemp140-PT (pdf, opens in a new tab)

HITEMP140-PT-1 Extended Range Temperature Data Logger with a 24” Bendable Probe with a 1” probe sheath

HITEMP140-PT-5 Extended Range Temperature Data Logger with a 24” Bendable Probe with a 5” probe sheath

IFC400 Docking station with USB cable, software and manual

IFC406 6 Port, Multiplexer docking station with USB cable, software and manual

ER1425S-HT Replacement battery for the HiTemp140-PT

*NIST – NIST Calibration Certificate

*To order the product with the NIST certificate add -CERT to the end of the part number (this increases the price).

HiTemp140-PT-TSK Data Logger housed in a thermal shield, 600mm probe can be bent -200°C to 250°C


The HiTemp140-PT-TSK is a kit that includes a HiTemp140-PT data logger housed in a thermal shield. The combined features of the data loggers +/-0.1°C accuracy and the properties of the durable thermal shield allow the device to be used for a wide range of validation applications. The built in 24” RTD probe can be bent or spiraled in any direction, making it easy to log temperatures in hard to reach places.
HiTemp140-PT-TSK Data Logger
Click here to show/ hide more info

HiTemp140-PT-TSK Data Logger

The HiTemp140-PT-TSK is a kit that includes a HiTemp140-PT data logger housed in a thermal shield. The combined features of the data loggers +/-0.1°C accuracy and the properties of the durable thermal shield allow the device to be used for a wide range of validation applications. The built in 24” RTD probe can be bent or spiraled in any direction, making it easy to log temperatures in hard to reach places. This rugged data logger system can be placed in and withstand temperatures from -200°C to 250°C, making it ideal for use in autoclave validation, monitoring food processing and dishwasher testing.

Using the MadgeTech software, the data logger is fast and easy to setup. Remove the thermal shield and place the HiTemp140-PT into the IFC400 docking station (sold separately). Using the software, an immediate or delay start can be chosen, as well as the reading rate. Select Start to program the settings and start the data logger. Place the thermal shield around the HiTemp140-PT data logger and screw it back together. The device is ready to be deployed.

The HiTemp140-PT-TSK data logger can be completely submerged and is built for applications that require extreme temperature monitoring.

The HiTemp140-PT-TSK is available with an extended warranty.

Data on HiTemp140-PT-TSK (pdf, opens in a new tab)

HITEMP140-PT-1-TSK HiTemp140-PT-1 data logger and vented thermal shield

HITEMP140-PT-1-TSK-FL HiTemp140-PT-1 data logger and flush thermal shield

HITEMP140-PT-5-TSK HiTemp140-PT-5 data logger and vented thermal shield

HITEMP140-PT-5-TSK-FL HiTemp140-PT-5 data logger and flush thermal shield

IFC400 Docking station with USB cable, software and manual

IFC406 6 Port, Multiplexer docking station with USB cable, software and manual

ER1425S-HT Replacement battery for the HiTemp140-PT

*NIST – NIST Calibration Certificate

*To order the product with the NIST certificate add -CERT to the end of the part number (this increases the price).

Kits with one logger or six loggers

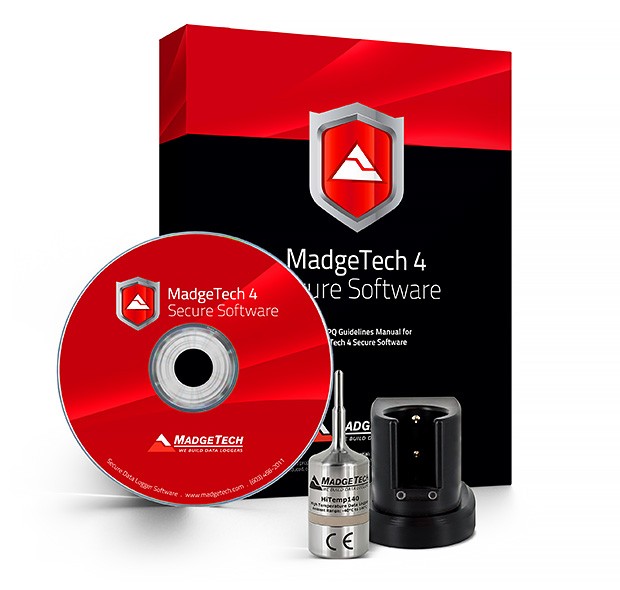

AVS140-1 Autoclave Validation Data Logging System – incl. 1 temperature logger


The AVS140-1 is a complete system used to perform autoclave validations. The AVS140-1 consists a NIST traceable high temperature data logger, an IFC400 Interface Cable and the MadgeTech 4 Secure Software providing tools to users to assist with FDA 21 CFR Part 11 compliance.
AVS140-1 Autoclave Validation Data Logging System
Click here to show/ hide more info

AVS140-1 Autoclave Validation Data Logging System

The AVS140-1 is a complete system used to perform autoclave validations. The AVS140-1 consists a NIST traceable high temperature data logger, an IFC400 Interface Cable and the MadgeTech 4 Secure Software providing tools to users to assist with FDA 21 CFR Part 11 compliance.

The AVS140-1 kit includes:

(1) HiTemp140 – High Temperature Data Loggers with 1 in probe style, with NIST Calibration Certificates
(1) IFC400 – Docking station with USB cable
(1) MadgeTech Secure Data Logger Software, complete with IQ/OQ/PQ validation protocols and workbook

(other data logger probe lengths and styles available, call for details)

The HiTemp140 is a rugged, high precision, temperature data logger that is built for use with autoclaves and harsh environments. This stainless steel device is submersible, can withstand temperatures up to 140 °C (284 °F) and has an accuracy of +/-0.1 °C (0.18 °F).

The MadgeTech 4 Secure Software aids customers in compliance with 21 CFR Part 11 requirements. The software ensures standards in which electronic files are considered equivalent to paper records, saving time and effort. MadgeTech 4 Secure Software contains criteria such as electronic signatures, access codes, secure data files, and an audit trail which meet the requirements of 21 CFR Part 11 and help provide data integrity.

Also available, the AVS140-6, a multi-logger autoclave validation system – incl 6 temp. & pressure loggers.

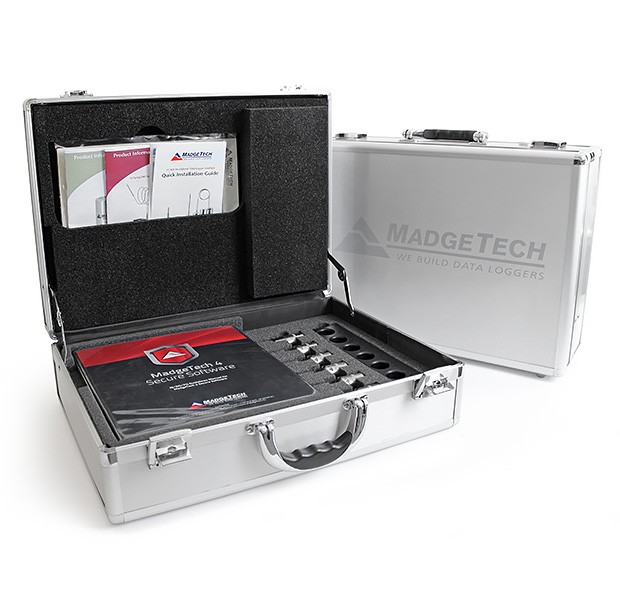

AVS140-6 Autoclave Validation Data Logging System – incl 6 temp. & pressure loggers


The AVS140-6 is a complete system used to perform autoclave validations. The AVS140-6 consists of six NIST traceable high temperature and pressure data loggers, an IFC406 Multiplexer Interface and the MadgeTech 4 Secure Software providing tools to users to assist with FDA 21 CFR Part 11 compliance.
AVS140-6 Autoclave Validation Data Logging System
Click here to show/ hide more info

AVS140-6 Autoclave Validation Data Logging System

The AVS140-6 is a complete system used to perform autoclave validations. The AVS140-6 consists of six NIST traceable high temperature and pressure data loggers, an IFC406 Multiplexer Interface and the MadgeTech 4 Secure Software providing tools to users to assist with FDA 21 CFR Part 11 compliance.

The AVS140-6 kit includes:

(5) HiTemp140 – High Temperature Data Loggers with 1 in probe style, all with NIST Calibration Certificates
(1) PR140-NPT – High Temperature and Pressure Data Logger with an NPT port, with NIST Calibration Certificate
(1) IFC406 – Multiplexer interface
(1) MadgeTech Secure Data Logger Software, complete with IQ/OQ/PQ validation protocols and workbook

(other data logger probe lengths and styles available, call for details)

The HiTemp140 is a rugged, high precision, temperature data logger that is built for use with autoclaves and harsh environments. This stainless steel device is submersible, can withstand temperatures up to 140 °C (284 °F) and has an accuracy of +/-0.1 °C (0.18 °F).

The PR140 is a pressure data logger designed for use in autoclave validation and mapping. This rugged data logger can withstand temperatures up to 140 °C and is completely submersible (IP68). The PR140 is built with a precision stainless steel pressure gauge. The data logger has an accuracy of ±0.03 Bar (±0.435 PSI), which can be achieved over a wide temperature range, from 20 °C to +140 °C (68 °F to 284 °F). The PR140 can be programmed to take readings as often as once per second (1 Hz), and has non-volatile memory that can store up to 32,700 measurements.

The MadgeTech 4 Secure Software aids customers in compliance with 21 CFR Part 11 requirements. The software ensures standards in which electronic files are considered equivalent to paper records, saving time and effort. MadgeTech 4 Secure Software contains criteria such as electronic signatures, access codes, secure data files, and an audit trail which meet the requirements of 21 CFR Part 11 and help provide data integrity.

Also available, the AVS140-1, a single logger autoclave validation system.

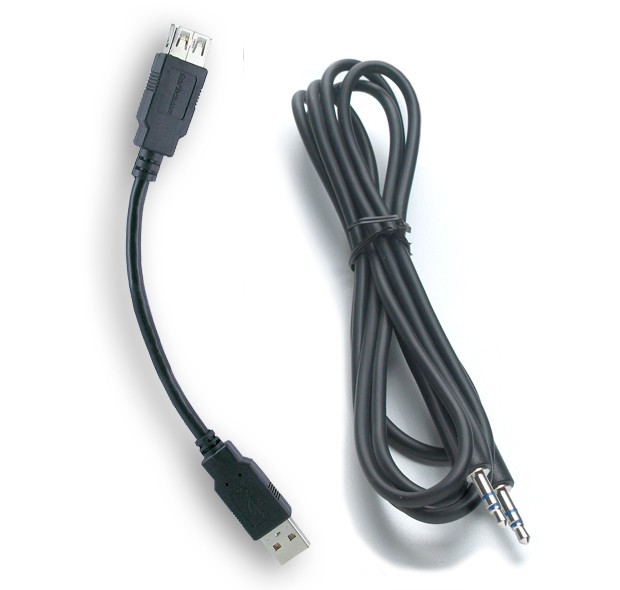

IFC200 Interface Cable


MadgeTech’s IFC200 interface cable communicates between stand alone data loggers and the MadgeTech software. Through this interface, loggers can be started, stopped or downloaded.
IFC200 Interface Cable
Click here to show/ hide more info

IFC200 Interface Cable

MadgeTech’s IFC200 interface cable communicates between stand alone data loggers and the MadgeTech software. Through this interface, loggers can be started, stopped or downloaded.

The IFC200 has been redesigned, and is now “plug and play”. It can be directly connected to a computer without installing any drivers and is compatible with Windows XP SP3, Windows Vista (32 and 64 bit), and Windows 7 (32 and 64 bit) operating systems. The improved IFC200 can now operate at up to 500 Volts RMS relative to the computer’s earth ground when attached.

The IFC200 is equipped with communication LEDs, that provide a quick indication of the device status. The blue light illuminates when the device is plugged in and successfully recognized by Windows. The red light flashes when data is sent, and the green light flashes when data is received.

MadgeTech Data Logger Software


The MadgeTech 4 Data Logger Software is designed to streamline the process of downloading data and reviewing it in a user-friendly, time efficient manner. The software offers many customizable features and options, including the ability to change engineering units (dependent upon specific data logger models), conforming to the needs of the user.
MadgeTech Data Logger Software
Click here to show/ hide more info

MadgeTech Data Logger Software

The MadgeTech 4 Data Logger Software is designed to streamline the process of downloading data and reviewing it in a user-friendly, time efficient manner. The software offers many customizable features and options, including the ability to change engineering units (dependent upon specific data logger models), conforming to the needs of the user.

All MadgeTech data loggers operate in a similar fashion and are simple and easy to use. Each class of logger has a unique device type and is automatically identified within the MadgeTech Software on the host computer.

Features

  • Multiple graph overlay
  • Statistics
  • Digital calibration
  • Zoom in/ zoom out
  • Lethality equations (F0, PU)
  • Mean Kinetic Temperature
  • Full time zone support
  • Data annotation
  • Min./Max./Average lines
  • Data table view
  • Automatic report generation
  • Summary view
  • Multilingual

Obsolete Products

  • HiTemp150 Data Logger with 2” rigid external probe & fast response time – replaced by HiTemp140
  • HiTemp150FP Data Logger, external probe with 600mm cable – replaced by HiTemp140FP
  • HiTemp150-TSK Data Logger with thermal shield, to 250°C – replaced by HiTemp150-TSK
