Pico Oscilloscopes for PC

PicoScopes - USB Oscilloscopes

Pico Oscilloscope Ranges for PC

Pico is the market leader in PC Oscilloscopes — the modern alternative to the traditional benchtop oscilloscope.

High-end features such as serial decoding and mask limit testing are included as standard — no more expensive “options” to pay for. We also have a long history of adding new features through free software upgrades — your PicoScope keeps getting better.

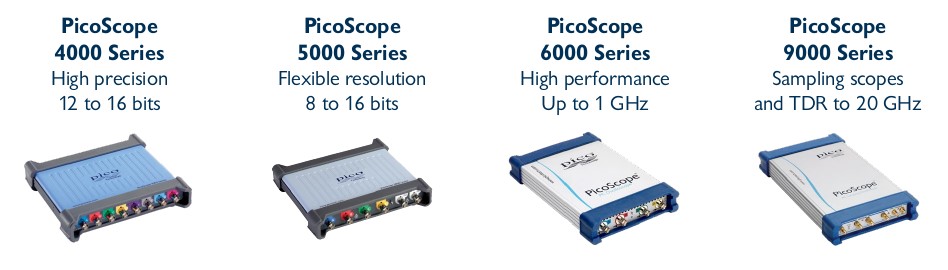

Other related pages:

Pico Oscilloscope Range

PicoScope® 2000 Series

Like a benchtop oscilloscope, only smaller and better

Click here to show/ hide more info

You can use your PicoScope 2000 Series as an advanced oscilloscope, spectrum analyzer, function generator, arbitrary waveform generator and protocol decoder out of the box. Mixed signal models also add a 16 channel logic analyzer. A complete electronics lab in one compact, low-cost, USB-powered unit.

The PicoScope 2000A models deliver unbeatable value for money and are ideal for education, hobby and field service use. In the lab the low cost allows one scope per person rather than having to share.

The PicoScope 2000B models have the added benefits of deep memory (up to 128 MS), higher bandwidth (up to 100 MHz) and faster waveform update rates. PicoScope 2000B models give you the performance to carry out advanced analysis of your waveforms. They are ideal for design, debug and serial decoding.

The Configure Your Scope panel on the left gives a quick guide to the models, specifications and prices.

USB oscilloscopes & mixed signal oscilloscopes:

2 channel, 4 channel and MSO models
6 instruments in one
Ultra-compact design
Up to 100 MHz bandwidth
Up to 128 MS buffer memory
Decode 16 serial protocols as standard
USB connected and powered
Windows, Linux and Mac software

Datasheet on PicoScope® 2000 Series (pdf, opens in a new tab)

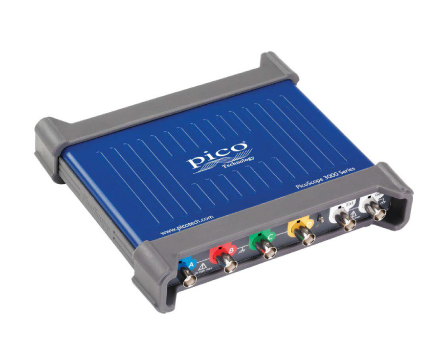

PicoScope® 3000 Series

PicoScope 3000 Series USB-powered PC oscilloscopes are small, light, and portable and can easily slip into a laptop bag while offering a range of high-performance specifications.

Click here to show/ hide more info

These oscilloscopes offer 2 or 4 analog channels and a built-in function / arbitrary waveform generator. MSO models add 16 digital channels. Key performance specifications:
PC Oscilloscopes & Mixed Signal Oscilloscopes:

200 MHz analog bandwidth
1 GS/s real-time sampling
512 MS buffer memory
100,000 waveforms per second
16 channel logic analyzer (MSO models)
Arbitrary waveform generator
USB 3.0 connected and powered
Serial decoding and mask testing as standard
Windows, Linux and Mac software

Supported by the advanced PicoScope 6 software, these devices offer an ideal, cost-effective package for many applications, including embedded systems design, research, test, education, service, and repair.

Datasheet on PicoScope® 3000 Series (pdf, opens in a new tab)
