Industrial Ethernet Switches

EKI-2528I-M12

8FE M12 Unmanaged Ethernet Switch, IP67 Rating

Click here to show/ hide more info

The EKI-2528I-M12 unmanaged switches are designed for application in harsh environments. First of all, the switches provide 8 Fast Ethernet ports with M12 D-coded connectors which can connect the cables tightly against vibration and shock. Second, the switches support 10/100 Mbps, auto MDI/MDI X, broadcast storm protection. Third, when supporting wide power input ranging from 12 to 48V with Polarity Reverse Protection and Overload Current Resettable Fuse, the EKI-2528I-M12 switches are robust and economical solutions for your network. Finally, as the switches are IP67-rated and is compliant with IEC 61131-2:2017, they are suitable for PLC application and their associated peripherals.

Features:

M12 Connectors and IP67 housing
Provides 8 fast Ethernet ports with Auto MDI/MDI-X
Supports 10/100 Mbps auto-negotiation
Complies with IEC 61131-2 specifications
Supports redundant 12 ~ 48 VDC power input
Supports wide operating temperature range from -40 to 75 °C
Complies with EN50155

Specifications:

Part Number	EKI-2528I-M12-AE

* Port Configuration
Description	8 x 10/100Base-T(X)
Total Port Number	8


Certification
EMI	EN 61131-2, CE, CE-LVD, FCC Class A
EMS	EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4)
Safety	UL 61010

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75° C (-40 ~ 167° F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	8
RJ45 Port Connector Type	M12
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	62 x 194 x 25 mm (2.44″ x 7.63″ x 1.00″)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP67

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power Consumption
Power Input (AC)	1.92 W
Power Input (DC)	–
Power Input (PoE)	12 ~ 48 VDC
Power Input (Battery)	–
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2528I-M12 (pdf, opens in a new tab)

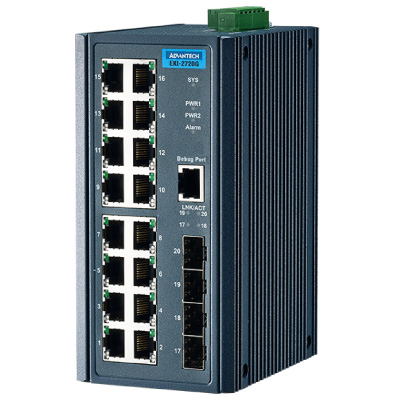

EKI-2720G

16GE+4SFP Port Gigabit Unmanaged Industrial Switch

Click here to show/ hide more info

The EKI-2720G-4F and EKI-2720G-4FI provide users with abundant port options to connect to a range of different device types with 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. The EKI-2720 series features a wide operating temperature and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.

Features:

16 x Gigabit Ethernet ports + 4 x SFP ports
SFP socket for easy and flexible fiber expansion
NEMA TS2 for traffic control
EN50121-4 approval for railway trackside deployment
Wide operating temperature range of -40 ~ 75°C (EKI-2720G-4FI)
Dual 12 ~ 48 VDC power input and 1 x relay output

Specifications:

Part Number	EKI-2720G-4F-AE	EKI-2720G-4FI-AE

* Port Configuration
Description	16 x 10/100/1000Base-T(X) + 4 x 1001000Base-F(X)	16 x 10/100/1000Base-T(X) + 4 x 1001000Base-F(X)
Total Port Number	20	20

Certification
EMI	CE, FCC Class A	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN50121-4	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3), EN50121-4
Safety	UL 61010, NEMA TS2	UL 61010, NEMA TS2

Environment
Temperature (Min. Operating)	-10°C (14°F)	-40°C (-40°F)
Temperature (Max. Operating)	60°C (140°F)	75°C (167°F)
Temperature (Operating Range)	-10 ~ 60° C (14 ~ 140° F)	-40 ~ 75° C (-40 ~ 167° F)
Temperature (Storage Range)	– 40 ~ 85° C (-40 ~185° F)	– 40 ~ 85° C (-40 ~185° F)

Ethernet Communication
Fiber Port Number	4	4
Fiber Port Interface	SFP	SFP
Fiber Port Connector Type	SFP	SFP
Fiber Transmission Distance	Up to 110km	Up to 110km
Fiber Transmission Speed	100/1000 Mbps	100/1000 Mbps
Ethernet Port Number	16	16
RJ45 Port Connector Type	RJ45	RJ45
RJ45 Transmission Distance	100 m	100 m
RJ45 Transmission Speed	10/100/1000 Mbps	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes	Yes
Mounting (Stack)	–	–
Mounting (Panel)	–	–
Mounting (Wall)	–	–
Mounting (Rack Mount)	–	–
Mounting (Pole Mount)	–	–
Dimensions (W x H x D)	74 x 152 x 105 mm (2.91″ x 5.98″ x 4.13″)	74 x 152 x 105 mm (2.91″ x 5.98″ x 4.13″)
Enclosure (Metal)	Yes	Yes
Enclosure (Plastic)	–	–
IP Rating	IP30	IP30
Weight	1.1kg	1.1kg

PoE Information
PoE Port Number	–	–
PoE Budget	–	–
PoE Output	–	–
Support PoE	No	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)	6-pin removable screw terminal ((power & relay)
Power Consumption	15W	15W
Power Input (AC)	–	–
Power Input (DC)	12 ~ 48 VDC	12 ~ 48 VDC
Power Input (PoE)	–	–
Power Input (Battery)	–	–
Power Operating Current	0.25A @ 48Vdc (system)	0.25A @ 48Vdc (system)
Redundant Dual Inputs	Yes	Yes

Switch Properties
Jumbo Frame	9,216 bytes	9,216 bytes
MAC Table Size	8K	8K
Packet Buffer Size	4.1M bit	4.1M bit
Switch Fabric Speed	40Gbps	40Gbps

Warranty
Warranty Period	5 years	5 years

Datasheet on EKI-2720G (pdf, opens in a new tab)

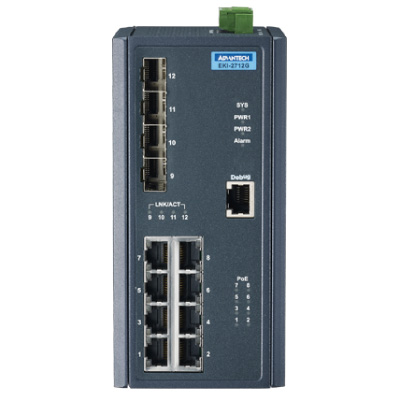

EKI-2712G-4FPI

8GE+4G SFP Port Gigabit Unmanaged PoE Switch

Click here to show/ hide more info

EKI-2712G-4FPI supports 8 Gigabit IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device). The switch also features a wide operating temperature range from -40° to 75°C and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications. The EKI-2712G also has successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.

Features:

Dual 48 VDC power input and 1 x relay output
-40 ~ 75°C wide-range operating temperature
EN50121-4 approval for railway trackside deployment
NEMA TS2 for traffic control
SFP socket for easy and flexible fiber expansion
8 x IEEE 802.3 af/at PoE Gigabit ports + 4 x SFP ports

Specifications:

Part Number	EKI-2712G-4FPI-AE

General
Ethernet Port Count	12
Mounting	DIN
Power	48VDC
Temperature	-40 to 75C
Unmanaged	Yes

* Port Configuration
Description	8 x 10/100/1000Base-T(X) + 4 x 100/1000Base-F(X)
Total Port Number	12

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN50121-4
Safety	UL 61010, NEMA TS2

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75° C (-40 ~ 167° F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	4
Fiber Port Interface	SFP
Fiber Port Connector Type	SFP
Fiber Transmission Distance	Up to 110km
Fiber Transmission Speed	100/1000 Mbps
Ethernet Port Number	8
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	–
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	74 x 152 x 105 mm (2.91″ x 5.98″ x 4.13″)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	1.1kg

PoE Information
PoE Port Number	8
PoE Budget	240 W
PoE Output	30W/ port
Support PoE	Yes

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	12.1W (system)
Power Input (AC)	–
Power Input (DC)	46 ~ 57VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.25A @ 48Vdc (system)
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	8K
Packet Buffer Size	4.1MB
Switch Fabric Speed	24Gbps

Warranty
Warranty Period	5 years

Datasheet on EKI-2712G-4FPI (pdf, opens in a new tab)

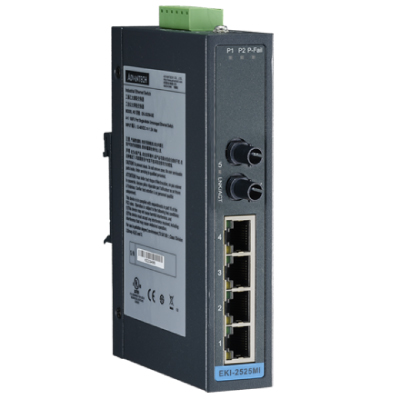

EKI-2525M-ST

4FE+1FE ST Multi-mode Unmanaged Ethernet Switch

Click here to show/ hide more info

EKI-2525M/2526M/2526S are industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M/2526M/2526S have four 10/100 Mbps Ethernet ports, and additionally the EKI-2525M/2526M provides one or two multi-mode fiber-optic ports, while the EKI-2526S provides two single-mode fiber-optic ports. Using fiber-optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions. EKI-2525M/2526M/2526S have industrial-grade designs, assuring high reliability and stability in harsh environments, making it a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525M/2526M/2526S includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected, so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism, assuring all data is transmitted properly.

Features:

Provides flexible mounting: DIN-rail and Wall mount
Provides redundant 12 ~ 48 VDC power input
upports MDI/MDI-X auto crossover
Supports full/half duplex flow control
rovides 1 x 100 Mbps Multi-mode ST type fiber optic port
Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector

Specifications:

Communications
Standard	IEEE 802.3, 802.3u, 802.3x
LAN	10/100Base-T (X), 100Base-FX
Transmission Distance	Ethernet: Up to 100 m
	Multi-mode Fiber: Up to 2 km (EKI-2525M)
	Single-mode Fiber: Up to 30 km (EKI-2525S)
Transmission Speed	Up to 100 Mbps

Optical Fiber
Multi-Mode	Wavelength: 1310nm
(EKI-2525M)	Tx Power: -14/-20 dBm
Rx Sensitivity:	-31 dBm
Parameters: 50/125 um, 62.5/125 um
Single-Mode	Wavelength: 1310 nm
(EKI-2525S)	Tx Power: -8/-15 dBm
Rx Sensitivity: -34 dBm Parameters: 9/125 um

Interface
Connectors	4 x RJ45 ports
	1 x SC type fiber connector (EKI-2525M/S) or 1 x ST type fiber connector (EKI-2525M-ST)
	6-pin removable screw terminal (Power & Relay)
LED Indicators	P1, P2, P-Fail
10/100TX: Link/Activity, Duplex/Collision

Power
Power Consumption	Max. 5 W
Power Input	12 ~ 48 VDC, redundant dual inputs
Fault Output	1 Relay Output

Mechanism
Dimensions (W x H x D) 30 x 140 x 95 mm (1.18″ x 5.52″ x 3.74″)
Enclosure	IP30, Metal shell with solid mounting kits
Mounting	DIN-rail, Wall

Protection
Reverse Polarity	Present
Overload Current	Present

Environment
Operating Temperature	-10 ~ 60°C (14 ~ 140°F)
Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity	10 ~ 95% (non-condensing)
Storage Humidity	10 ~ 95% (non-condensing)
MTBF	382,904 hours

Datasheet on EKI-2525M-ST (pdf, opens in a new tab)

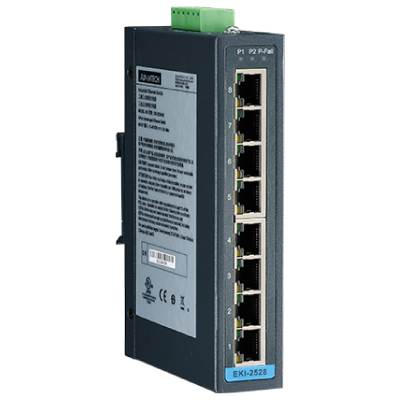

EKI-2528DI

8FE DNV Unmanaged Ethernet Switch, -40~75℃

Click here to show/ hide more info

The EKI-2528D/DI is DNV certificate product supports 8-port Fast Ethernet solution. The power is a 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. Each port of EKI-2528D/DI has 2 LED’s to show the link status transmission speed. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2528D/DI comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

Features:

Provides 8-port Fast Ethernet ports with Auto MDI/MDI-X
Supports 10/100 Mbps Auto-Negotiation
Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
Supports redundant 12 ~ 48 VDC power input and P-Fail relay
EKI-2528DI supports wide operating temperatures from -40 to 75°C
DNV certificate

Specifications:

Part Number	EKI-2528DI-AE

General
Ethernet Port Count	8
Mounting	DIN, Panel
Power	12-48VDC
Technology	Ethernet
Temperature	-40 to 75C
Unmanaged	Yes

* Port Configuration
Description	8 x 10/100Base-T(X)
Total Port Number	8

Certification
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Safety	DNVGL

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed
Ethernet Port Number	8
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	30 x 140 x 95 mm (1.18” x 5.51” x 3.74)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal
Power Consumption	3.93 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC, Marine 24VDC
Power Input (PoE)	–
Power Input (Battery)	–
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2528DI (pdf, opens in a new tab)

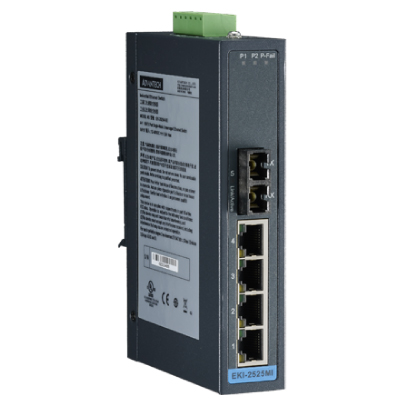

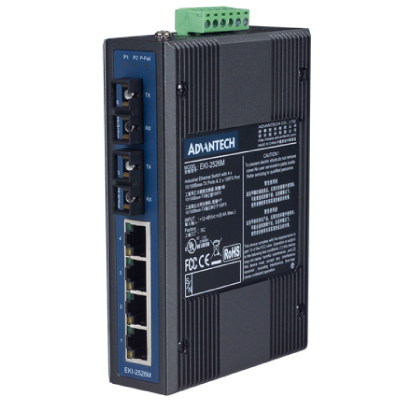

EKI-2525M

4FE+1FE SC Multi-mode Unmanaged Ethernet Switch

Click here to show/ hide more info

EKI-2525M/2526M/2526S are industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M/2526M/2526S have four 10/100 Mbps Ethernet ports, and additionally the EKI-2525M/2526M provides one or two multi-mode fiber-optic ports, while the EKI-2526S provides two single-mode fiber-optic ports. Using fiber-optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions. EKI-2525M/2526M/2526S have industrial-grade designs, assuring high reliability and stability in harsh environments, making it a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525M/2526M/2526S includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected, so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism, assuring all data is transmitted properly.

Features:

Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
Provides 1 x 100 Mbps Multi-mode SC type fiber optic port
Supports full/half duplex flow control
Supports MDI/MDI-X auto crossover
Provides redundant 12 ~ 48 VDC power input
Provides flexible mounting: DIN-rail and Wall mount

Specifications:

Part Number	EKI-2525M-BE

* Port Configuration
Description	4 x 10/100Base-T(X) + 1 x 100Base-F(X)
Total Port Number	5

Certification
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Safety	UL/cUL 60950-1, Class I, Division 2

Environment
Temperature (Min. Operating)	-10°C (14°F)
Temperature (Max. Operating)	60°C (140°F)
Temperature (Operating Range)	-10 ~ 60°C (14 ~ 140°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	1
Fiber Port Interface	Multi-Mode
Fiber Port Connector Type	SC Type
Fiber Transmission Distance	2 km
Fiber Transmission Speed	100 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	37 x 140 x 95 mm (1.46″ x 5.51″ x 3.74″)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal
Power Consumption	5 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2525M (pdf, opens in a new tab)

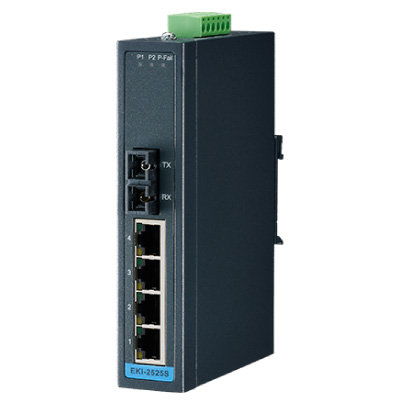

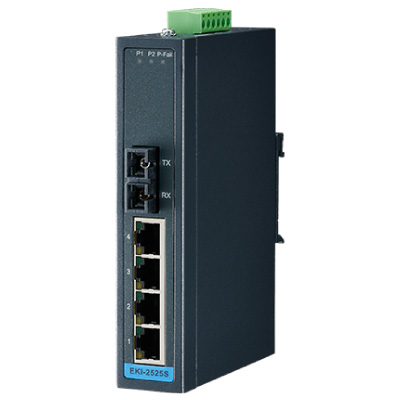

EKI-2525S

4FE+1FE SC Single-mode Unmanaged Ethernet Switch

Click here to show/ hide more info

EKI-2525M/2525S are industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M/2525S have four 10/100 Mbps Ethernet ports, and additionally the EKI-2525M/2525S provides one multi-mode/single mode fiber-optic ports. Using fiber-optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions. EKI-2525M/2525S have industrial-grade designs, assuring high reliability and stability in harsh environments, making it a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525M/2525S includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected, so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism, assuring all data is transmitted properly.

Features:

Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
Provides 1 x 100 Mbps Multi-mode SC type fiber optic port (EKI-2525M)
Provides 1 x 100 Mbps Single-mode SC type fiber optic port (EKI-2525S)
Supports full/half duplex flow control
Supports MDI/MDI-X auto crossove
Provides redundant 12 ~ 48 VDC power input
Provides flexible mounting: DIN-rail and Wall mount

Specifications:

Part Number	EKI-2525M-BE

* Port Configuration
Description	4 x 10/100Base-T(X) + 1 x 100Base-F(X)
Total Port Number	5

Certification
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Safety	UL/cUL 60950-1, Class I, Division 2

Environment
Temperature (Min. Operating)	-10°C (14°F)
Temperature (Max. Operating)	60°C (140°F)
Temperature (Operating Range)	-10 ~ 60°C (14 ~ 140°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	1
Fiber Port Interface	Single-Mode
Fiber Port Connector Type	SC Type
Fiber Transmission Distance	30 km
Fiber Transmission Speed	100 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	37 x 140 x 95 mm (1.46″ x 5.51″ x 3.74″)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal
Power Consumption	5 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2525S (pdf, opens in a new tab)

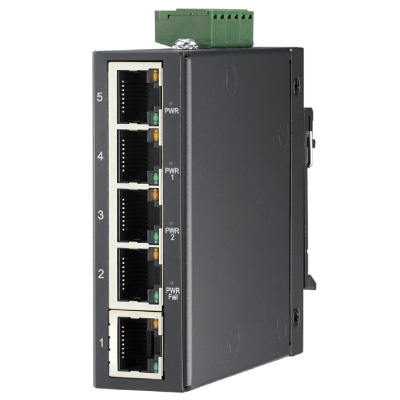

EKI-2525LI

5FE Slim type Unmanaged Industrial Ethernet Switch

Click here to show/ hide more info

The EKI-2525LI is a Fast Ethernet solution. Its power runs on 12 ~ 48 VDC with redundant input design plus one DC power jack, being secured with Power Polarity Reverse Protection. Each EKI- 2525LI port has 2 LEDs to show link status and transmission speed. It also provides a relay output for an event alarm. In the event of power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, which makes troubleshooting quick and easy. EKI-2525LI comes with a compact metal to fulfill narrow environment. Its IP40 rated housing protects against dusty industrial environments.

Features:

Supports wide operating temperatures from -40 to 75 °C
Supports redundant 12 ~ 48 VDC power terminal input plus one DC power jack and P-Fail relay
Provides compact size with DIN-rail/Wall mount, and IP40 metal mechanism
Supports 10/100 Mbps Auto-Negotiation
Provides 5 Fast Ethernet ports with Auto MDI/MDI-X

Specifications:

Part Number	EKI-2525LI-AE

* Port Configuration
Description	5 x 10/100BaseT(X)
Total Port Number	5

Certification
EMI	EN 55022/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS	EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	5
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	30 x 120 x 95 mm (1.18” x 4.72” x 3.74)
Enclosure (Metal)	–
Enclosure (Plastic)	Yes
IP Rating	IP40
Weight	500g

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	3.1W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.23A @ 24V
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	2K
Packet Buffer Size	448Kbit (0.4375Mbits)
Switch Fabric Speed	1.0Gbps

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2525LI (pdf, opens in a new tab)

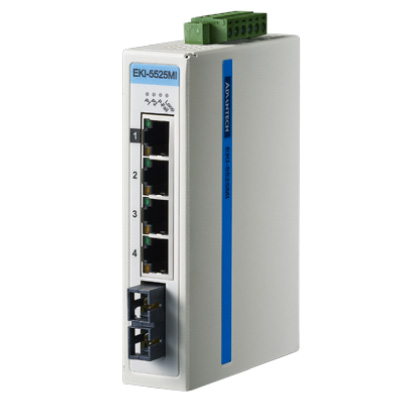

EKI-5525MI

4FE+1FE SC Multi-mode Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5525S/SI/S-ST/SI-ST and EKI-5525M/MI/M-ST/MI-ST are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-base d QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5525S/SI/S-ST/SI-ST and EKI-5525M/MI/M-ST/MI-ST switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75’C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
8.4~52.8 V DC wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Jumbo Frame Support (Up to 9,216 Bytes)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-5525MI-AE

* Port Configuration
Description	4 x 10/100 RJ45 + 1 x 100 Milti-Mode SC Fiber
Total Port Number	5

Certification
EMI	EN 55011/55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	IEC/EN 60950-1, UL508, Class 1 Division 2, ATEX, IECEx

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	1
Fiber Port Interface	Multi-Mode
Fiber Port Connector Type	SC Type
Fiber Transmission Distance	Up to 2 km
Fiber Transmission Speed	100 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	27 x 120 x 84 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	400g

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 2.8 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.11A @ 24V
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	2K
Packet Buffer Size	1M bit
Switch Fabric Speed	1.0Gbps

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5525MI (pdf, opens in a new tab)

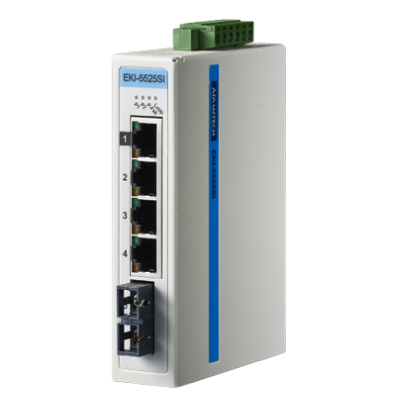

EKI-5525SI

4FE+1FE SC Single-mode Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5525S/SI/S-ST/SI-ST and EKI-5525M/MI/M-ST/MI-ST are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-base d QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5525S/SI/S-ST/SI-ST and EKI-5525M/MI/M-ST/MI-ST switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75’C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range (EKI-5525SI/SI-ST,EKI-5525MI/MI-ST only)
8.4~52.8 V DC wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-5525SI-AE

* Port Configuration
Description	4 x 10/100 RJ45 + 1 x 100 Single-Mode SC Fiber
Total Port Number	5

Certification
EMI	EN 55011/55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	IEC/EN 60950-1, UL508, Class 1 Division 2, ATEX, IECEx

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	1
Fiber Port Interface	Single-Mode
Fiber Port Connector Type	SC Type
Fiber Transmission Distance	Up to 2 km
Fiber Transmission Speed	100 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	27 x 120 x 84 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	400g

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 2.8 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.11A @ 24V
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	2K
Packet Buffer Size	1M bit
Switch Fabric Speed	1.0Gbps

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5525SI (pdf, opens in a new tab)

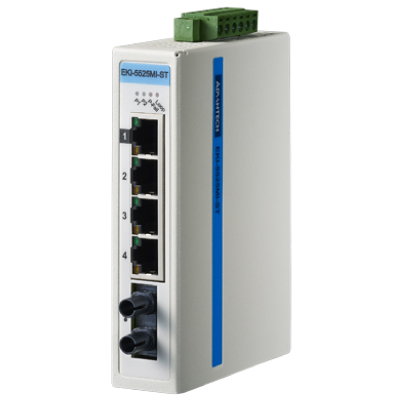

EKI-5525MI-ST

4FE+1FE ST Multi-mode Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5525S/SI/S-ST/SI-ST and EKI-5525M/MI/M-ST/MI-ST are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-base d QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5525S/SI/S-ST/SI-ST and EKI-5525M/MI/M-ST/MI-ST switches use the highest quality
components, to enable the range to operate in temperatures of between -40 and 75’C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range (EKI-5525SI/SI-ST,EKI-5525MI/MI-ST only)
8.4~52.8 V DC wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-5525MI-ST-AE

* Port Configuration
Description	4 x 10/100 RJ45 + 1 x 100 Milti-Mode ST Fiber
Total Port Number	5

Certification
EMI	EN 55011/55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	IEC/EN 60950-1, UL508, Class 1 Division 2, ATEX, IECEx

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	1
Fiber Port Interface	Multi-Mode
Fiber Port Connector Type	ST Type
Fiber Transmission Distance	Up to 2 km
Fiber Transmission Speed	100 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	27 x 120 x 84 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	400g

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 2.8 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.11A @ 24V
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	2K
Packet Buffer Size	1M bit
Switch Fabric Speed	1.0Gbps

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5525MI-ST (pdf, opens in a new tab)

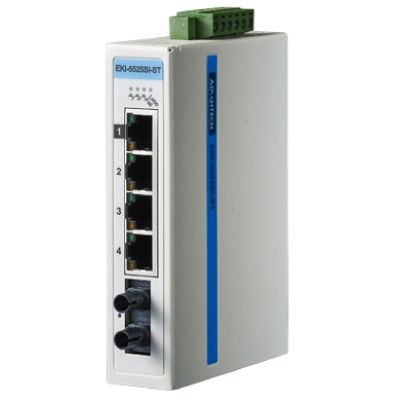

EKI-5525SI-ST

4FE+1FE ST Single-mode Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5525S/SI/S-ST/SI-ST and EKI-5525M/MI/M-ST/MI-ST are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with NMS(Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-base d QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5525S/SI/S-ST/SI-ST and EKI-5525M/MI/M-ST/MI-ST switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75’C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range (EKI-5525SI/SI-ST,EKI-5525MI/MI-ST only)
8.4~52.8 V DC wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-5525SI-ST-AE

* Port Configuration
Description	4 x 10/100 RJ45 + 1 x 100 Single-Mode ST Fiber
Total Port Number	5

Certification
EMI	EN 55011/55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	IEC/EN 60950-1, UL508, Class 1 Division 2, ATEX, IECEx

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	1
Fiber Port Interface	Single-Mode
Fiber Port Connector Type	ST Type
Fiber Transmission Distance	Up to 30 km
Fiber Transmission Speed	100 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	27 x 120 x 84 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	400g

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 2.8 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.11A @ 24V
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	2K
Packet Buffer Size	1M bit
Switch Fabric Speed	1.0Gbps

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5525SI-ST (pdf, opens in a new tab)

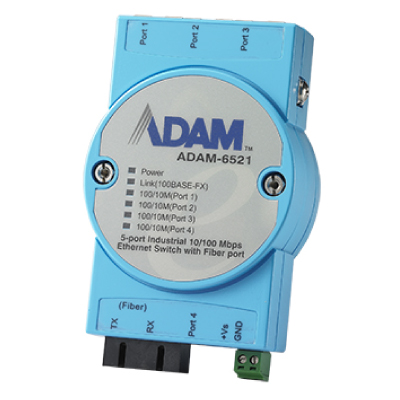

ADAM-6521

4FE+1FE SC Multi-mode Unmanaged Ethernet Switch, Flexible mounting

Click here to show/ hide more info

The ADAM-6521 is an industrial-grade Ethernet hub for infrastructure networking solution in industrial Automation environment. It allows users to cost-effectively expand their industrial network with ease. The ADAM-6521 consists of one fiber optic and four RJ-45 ports. With fiber optic, you can prevent noise interference from the system and transmission distance up to 2 km. The design is focused on industrial-grade reliability and stability. Thus, the ADAM-6521 is especially suited for industrial environments with Ethernet networking needs, e.g. semi-conductor factories, inventory control environments, assembly lines, production and more.

Features:

Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector and 1 x 100 Mbps multi/single-mode fiber port with SC/ST connector
Supports full/half duplex flow control
Supports Integrated Loop-up engine
Supports MDI/MDI-X auto crossover
Provides broadcast storm protection
Supports +10 ~ 30 VDC voltage power input
Provides surge (EFT) protection 3,000 VDC for power line
Supports 4,000 VDC Ethernet ESD protection
Supports operating temperatures from -10 ~ 65° C

Specifications:

Part Number	ADAM-6521-BE

* Port Configuration
Description	4 x 10/100Base-T + 1 x 100Base-FX
Total Port Number	5

Certification
EMI	CE, FCC
EMS	–
Safety	UL/cUL 60950-1

Environment
Temperature (Min. Operating)	-10°C (14°F)
Temperature (Max. Operating)	70°C (158°F)
Temperature (Operating Range)	-10 ~ 70°C (14 ~ 158°F) I21 Stack: -10~ 60°C (-40 ~ 140°F)
Temperature (Storage Range)	-20 ~ 80° C (-4 ~ 176° F)

Ethernet Communication
Fiber Port Number	1
Fiber Port Interface	Multi-Mode
Fiber Port Connector Type	SC Type
Fiber Transmission Distance	2km
Fiber Transmission Speed	100 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	Yes
Mounting (Panel)	–
Mounting (Wall)
Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	70 x 112 x 27 mm
Enclosure (Metal)	–
Enclosure (Plastic)	Yes
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	2-pin removable screw terminal
Power Consumption	3 W
Power Input (AC)	–
Power Input (DC)	1 x Unregulated 10 ~ 30 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	–

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	–
MAC Table Size	–
Packet Buffer Size	–
Switch Fabric Speed	–

Warranty
Warranty Period	2 years

Protection
Overload Current	–
Reverse Polarity	–

Datasheet on ADAM-6521 (pdf, opens in a new tab)

ADAM-6521S

4FE+1FE SC Single-mode Unmanaged Ethernet Switch, Flexible mounting

Click here to show/ hide more info

ADAM-652S1 is an industrial-grade Ethernet switch and single-mode fiber converter. It is designed to help extend an Ethernet network up to 15 km through areas with electrical noise interference. ADAM-6521 has one fiber optic and four RJ-45 ports. With single-mode fiber transmission, you can prevent noise interference and achieve transmission distances up to 15 km. Thus, ADAM-6521S is especially suitable for industrial environments with long-distance Ethernet networking needs, e.g. warehouses, transportation, environmental monitoring, and many more.

Features:

Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector and 1 x 100 Mbps multi/single-mode fiber port with SC connector
Supports full/half duplex flow control
Supports MDI/MDI-X auto crossover
Provides broadcast storm protection
Embedded with a switch controller, supports auto-negotiation
Embedded with the memory buffer, supports store-and-forward transmission
Support +10 ~ 30 VDC voltage and provides surge protection 3000 VDC for power line
Provides flexible mountings: DIN-rail, panel, piggyback
Supports operating temperature: -10 ~ 65°C

Specifications:

Part Number	ADAM-6521-BE

* Port Configuration
Description	4 x 10/100Base-T + 1 x 100Base-FX
Total Port Number	5

Certification
EMI	CE, FCC
EMS	–
Safety	UL/cUL 60950-1

Environment
Temperature (Min. Operating)	-10°C (14°F)
Temperature (Max. Operating)	70°C (158°F)
Temperature (Operating Range)	-10 ~ 70°C (14 ~ 158°F) I21 Stack: -10~ 60°C (-40 ~ 140°F)
Temperature (Storage Range)	-20 ~ 80° C (-4 ~ 176° F)

Ethernet Communication
Fiber Port Number	1
Fiber Port Interface	Single-Mode
Fiber Port Connector Type	SC Type
Fiber Transmission Distance	15km
Fiber Transmission Speed	100 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	Yes
Mounting (Panel)	–
Mounting (Wall)
Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	70 x 112 x 27 mm
Enclosure (Metal)	–
Enclosure (Plastic)	Yes
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	2-pin removable screw terminal
Power Consumption	3 W
Power Input (AC)	–
Power Input (DC)	1 x Unregulated 10 ~ 30 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	–

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	–
MAC Table Size	–
Packet Buffer Size	–
Switch Fabric Speed	–

Warranty
Warranty Period	2 years

Protection
Overload Current	–
Reverse Polarity	–

Datasheet on ADAM-6521S (pdf, opens in a new tab)

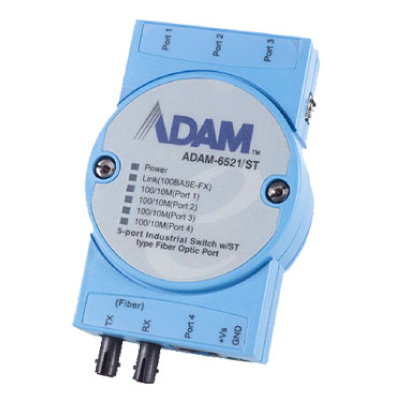

ADAM-6521/ST

4FE+1FE ST Multi-mode Unmanaged Ethernet Switch, Flexible mounting

Click here to show/ hide more info

ADAM-6521/ST is an industrial-grade Ethernet switch with a fiber optic port that makes it possible to expand industrial networks fast and cost-effectively. ADAM-6521/ST has 1 fiber port and 4-RJ-45 ports. With fiber optics, you can prevent noise interfering with your system and implement transmission distances up to 15 km. ADAM-6521/ST supports a wide voltage range of 10 ~ 30 VDC over the terminal block, and 3,000 VDC surge protection (EFT) to protect it from being damaged by over-voltage. A wide operating temperature range from -10 to 65° C (14 ~ 149° F), makes it functional in harsh operating environments. Six inclusive LED indicators make troubleshooting easier. Each port has a pair of LEDs that indicate link status and transmission speed. This function conveniently informs users of any collisions, the link status, power failure and data receipts for immediate on-site diagnostics.

Features:

Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector and 1 x 100 Mbps multi/single-mode fiber port with ST connector
Supports full/half duplex flow control
Supports Integrated Loop-up engine
Supports MDI/MDI-X auto crossover
Provides broadcast storm protection
Supports +10 ~ 30 VDC voltage power input
Provides surge protection (EFT) 3,000 VDC for power line and 4,000 VDC Ethernet ESD protection
Provides flexible mounting: DIN-rail, panel, piggyback
Supports operating temperatures from -10 ~ 65° C

Specifications:

Part Number	ADAM-6521/ST-AE

* Port Configuration
Description	4 x 10/100Base-T + 1 x 100Base-FX
Total Port Number	5

Certification
EMI	CE, FCC
EMS	–
Safety	UL/cUL 60950-1

Environment
Temperature (Min. Operating)	-10°C (14°F)
Temperature (Max. Operating)	70°C (158°F)
Temperature (Operating Range)	-10 ~ 70°C (14 ~ 158°F) I21 Stack: -10~ 60°C (-40 ~ 140°F)
Temperature (Storage Range)	-20 ~ 80° C (-4 ~ 176° F)

Ethernet Communication
Fiber Port Number	1
Fiber Port Interface	Multi-Mode
Fiber Port Connector Type	ST Type
Fiber Transmission Distance	2 km
Fiber Transmission Speed	100 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	Yes
Mounting (Panel)	–
Mounting (Wall)
Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	70 x 112 x 27 mm
Enclosure (Metal)	–
Enclosure (Plastic)	Yes
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	2-pin removable screw terminal
Power Consumption	3 W
Power Input (AC)	–
Power Input (DC)	1 x Unregulated 10 ~ 30 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	–

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	–
MAC Table Size	–
Packet Buffer Size	–
Switch Fabric Speed	–

Warranty
Warranty Period	2 years

Protection
Overload Current	–
Reverse Polarity	–

Datasheet on ADAM-6521/ST (pdf, opens in a new tab)

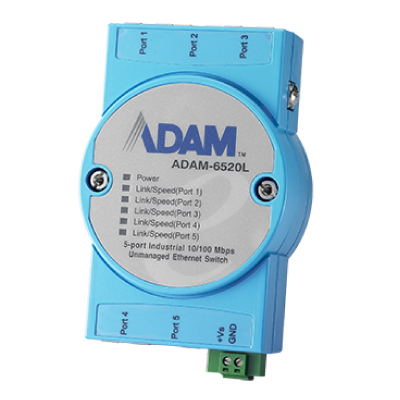

ADAM-6520L

5FE Unmanaged Ethernet Switch, Flexible mounting, 0~60℃

Click here to show/ hide more info

ADAM-6520L is a 5-port Industrial 10/100 Mbps Unmanaged Ethernet Switch, which substitutes ADAM-6510, which is being phased-out. With ADAM-6520L, users can upgrade their 10 Mbps hub to a 10/100 Mbps switch, for a small cost.

Features:

Supports full/half duplex flow control
Supports MDI/MDI-X auto crossover
Provides broadcast storm protection
Embedded with a switch controller, supports auto-negotiation
Supports +10~30 VDC for power input
Provides surge protection 3,000 VDC for power line
Provides flexible mounting: DIN-rail, Wall, Stack

Specifications:

Part Number	ADAM-6520L-AE

General
Ethernet Port Count	5
Mounting	DIN, Panel
Power	10-30VDC
Technology	Ethernet
Temperature	0 to 60C
Unmanaged	Yes

* Port Configuration
Description	5 x 10/100Base-TX
Total Port Number	5


Certification
EMI	CE, FCC
EMS	–
Safety	UL/cUL 60950-1

Environment
Temperature (Min. Operating)	0°C (32°F)
Temperature (Max. Operating)	60°C (140°F)
Temperature (Operating Range)	0 ~ 60°C (32 ~ 140°F) Stack: 0~ 50°C (32 ~ 122°F)
Temperature (Storage Range)	-10 ~ 70°C (14 ~ 158°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	5
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	Yes
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	70 x 112 x 27 mm
Enclosure (Metal)	–
Enclosure (Plastic)	Yes
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	2-pin removable screw terminal
Power Consumption	3 W
Power Input (AC)	–
Power Input (DC)	1 x Unregulated 10 ~ 30 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	–

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	–
MAC Table Size	–
Packet Buffer Size	–
Switch Fabric Speed	–

Warranty
Warranty Period	2 years

Protection
Overload Current	–
Reverse Polarity	–

Datasheet on ADAM-6520L (pdf, opens in a new tab)

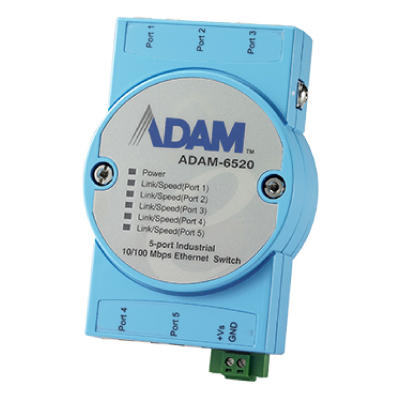

ADAM-6520

5FE Unmanaged Ethernet Switch, Flexible mounting, -10~70℃

Click here to show/ hide more info

ADAM-6520 is a 5-port industrial-grade switch with Ethernet connectivity and from 10 to 100 Mbps transfer rates(Auto-negotiation). Just like any other product in the ADAM family, ADAM-6520 can be mounted in three different ways: DIN rail, Wall and Stack. Solid industrial-grade design assures reliable operation in common application areas like: semi-conductor factories, inventory control environments, assembly lines, manufacturing and many more. All modules support a wide voltage range of 10 ~ 30 VDC over the terminal block, and 3,000 VDC surge (EFT) protection ensures that over-voltage is no concern. The wide operating temperature of ADAM-6520 goes from -10 ~ 70°, while ADAM-6520I from -40 ~ 85°. This permits them to be functional in harsh environments. The six inclusive LED indicators make troubleshooting of the modules easier. Each port has a pair of LEDs that indicate link status and port activities. This easily informs users of any collisions, the link status, power failure and data receipts for immediate on-site diagnosis.

Features:

Supports full/half duplex flow control
Supports MDI/MDI-X auto crossover
Provides broadcast storm protection
Embedded with a switch controller, supports auto-negotiation
Supports +10 ~ 30 VDC voltage power input
Provides surge (EFT) protection 3000VDC for power line (ADAM-6520L not equipped)
Supports 4,000 VDC Ethernet ESD protection (ADAM-6520L not equipped)
Provides flexible mounting: DIN-rail, Wall, Stack
Supports wide operating temperature range : -40 ~ 85° C (ADAM-6520)

Specifications:

Part Number	ADAM-6520L-AE

General
Ethernet Port Count	5
Mounting	DIN, Panel
Power	10-30VDC
Technology	Ethernet
Temperature	-10 to 70C
Unmanaged	Yes

* Port Configuration
Description	5 x 10/100Base-TX
Total Port Number	5


Certification
EMI	CE, FCC
EMS	–
Safety	UL/cUL 60950-1

Environment
Temperature (Min. Operating)	-10°C (14°F)
Temperature (Max. Operating)	70°C (158°F)
Temperature (Operating Range)	-10 ~ 70°C (14 ~ 158°F) I21 Stack: -10~ 60°C (-40 ~ 140°F)
Temperature (Storage Range)	-20 ~ 80° C (-4 ~ 176° F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	5
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	Yes
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	70 x 112 x 27 mm
Enclosure (Metal)	–
Enclosure (Plastic)	Yes
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	2-pin removable screw terminal
Power Consumption	2.4 W
Power Input (AC)	–
Power Input (DC)	1 x Unregulated 10 ~ 30 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	–

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	–
MAC Table Size	–
Packet Buffer Size	–
Switch Fabric Speed	–

Warranty
Warranty Period	2 years

Protection
Overload Current	–
Reverse Polarity	–

Datasheet on ADAM-6520 (pdf, opens in a new tab)

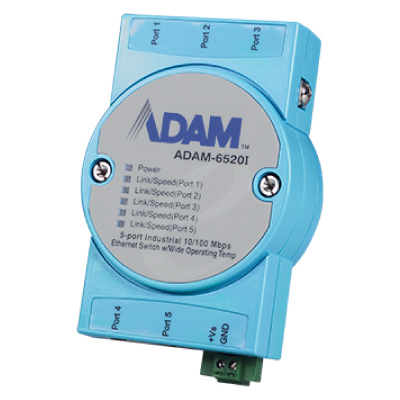

ADAM-6520I

5FE Unmanaged Ethernet Switch, Flexible mounting, -40~85℃

Click here to show/ hide more info

ADAM-6520I is a 5-port industrial-grade switch with Ethernet connectivity and 10/100 Mbps transmission speed. Just like any other in the ADAM® family, ADAM-6520I can be mounted in three different ways: DIN-rail, wall and stack. ADAM-6520I supports wider operating temperature ranges from -40°C up to 85°C while the ADAM-6520 from -10~70°C.

Features:

Supports full/half duplex flow control
Supports MDI/MDI-X auto crossover
Provides broadcast storm protection
Embedded with a switch controller, supports auto-negotiation
Supports +10~30 VDC for power input
Provides surge protection 3,000 VDC for power line
Supports 4,000 VDC Ethernet ESD protection
Provides flexible mounting: DIN-rail, Wall, Stack
Supports wide operating temperature range: -40 ~ 85° C

Specifications:

Part Number	ADAM-6520

General
Ethernet Port Count	5
Mounting	DIN, Panel
Power	10-30VDC
Technology	Ethernet
Temperature	-40 to 85C
Unmanaged	Yes

* Port Configuration
Description	5 x 10/100Base-TX
Total Port Number	5


Certification
EMI	CE, FCC
EMS	–
Safety	UL/cUL 60950-1

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	85°C (185°F)
Temperature (Operating Range)	-40 ~ 85°C (-40 ~ 185°F) Stack: -40~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-50 ~ 95° C (-58 ~ 203° F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	5
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	Yes
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	70 x 112 x 27 mm
Enclosure (Metal)	–
Enclosure (Plastic)	Yes
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	2-pin removable screw terminal
Power Consumption	2.4 W
Power Input (AC)	–
Power Input (DC)	1 x Unregulated 10 ~ 30 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	–

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	–
MAC Table Size	–
Packet Buffer Size	–
Switch Fabric Speed	–

Warranty
Warranty Period	2 years

Protection
Overload Current	–
Reverse Polarity	–

Datasheet on ADAM-6520I (pdf, opens in a new tab)

EKI-2525

5FE Unmanaged Ethernet Switch

Click here to show/ hide more info

The EKI-2525/2528 supports a Fast Ethernet solution. The power is a 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2525/2528 will automatically get back to work. Each port of EKI-2525/2528 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2525/2528 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

Features:

Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
Supports 10/100 Mbps Auto-Negotiation
Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
Supports redundant 12 ~ 48 VDC power input and P-Fail relay
Supports wide operating temperatures from -40 to 75°C

Specifications:

Part Number	EKI-2525I-BE

General
Ethernet Port Count	5
Mounting	DIN, Panel
Power	12-48VDC
Technology	Ethernet
Temperature	-40 to 75C
Unmanaged	Yes

* Port Configuration
Description	5 x 10/100Base-TX
Total Port Number	5


Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Safety	UL/cUL 60950-1, Class I, Division 2

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	5
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	30 x 120 x 95 mm (1.18” x 4.72” x 3.74)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	2-pin removable screw terminal
Power Consumption	2.88 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period5	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2525I (pdf, opens in a new tab)

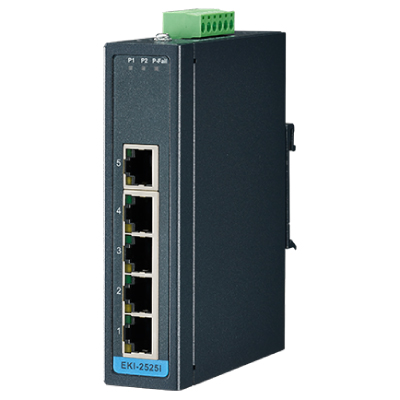

EKI-2525I

5FE Unmanaged Ethernet Switch, -40~75℃

Click here to show/ hide more info

The EKI-2525/2528 supports a Fast Ethernet solution. The power is a 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2525/2528 will automatically get back to work. Each port of EKI-2525/2528 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2525/2528 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

Features:

Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
Supports 10/100 Mbps Auto-Negotiation
Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
Supports redundant 12 ~ 48 VDC power input and P-Fail relay

Specifications:

Part Number	EKI-2525-BE

General
Ethernet Port Count	5
Mounting	DIN, Panel
Power	12-48VDC
Technology	Ethernet
Temperature	-10 to 60C
Unmanaged	Yes

* Port Configuration
Description	5 x 10/100Base-TX
Total Port Number	5


Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Safety	UL 60950-1

Environment
Temperature (Min. Operating)	-10°C (14°F)
Temperature (Max. Operating)	60°C (140°F)
Temperature (Operating Range)	-10 ~ 60°C (14 ~ 140°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	5
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	30 x 120 x 95 mm (1.18” x 4.72” x 3.74)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	2-pin removable screw terminal
Power Consumption	2.88 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period5	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2525I (pdf, opens in a new tab)

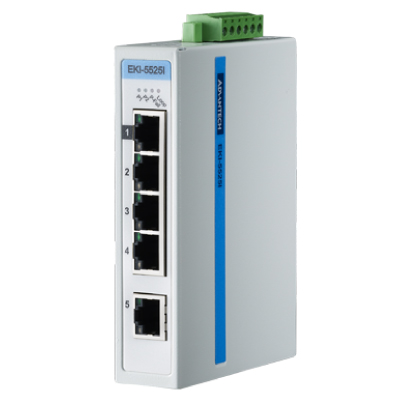

EKI-5525I

5FE Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5525/I and EKI-5528/I are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5525/I and EKI-5528/I switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with Level 3 EMS protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
40~75°C operating temperature range
8.4~52.8 V DC wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-5525I-AE

General
Ethernet Port Count	5
Mounting	DIN, Panel
Power	12-48VDC
Technology	Ethernet
Temperature	-40 to 75C
Unmanaged	Yes

* Port Configuration
Description	5 x 10/100 RJ45
Total Port Number	5


Certification
EMI	FCC Part 15 Subpart B Class A, EN 55011/55022 Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	IIEC/EN60950, UL60950, UL508, Class 1 Division 2, ATEX

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	5
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	27 x 120 x 84 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	400g

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 2 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.06A @ 24V
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	2K
Packet Buffer Size	1M bit
Switch Fabric Speed	1.0Gbps

Warranty
Warranty Period5	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5525I (pdf, opens in a new tab)

EKI-2526M

4FE+2FE SC Multi-mode Unmanaged Ethernet Switch

Click here to show/ hide more info

EKI-2525M/2526M/2526S are industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M/2526M/2526S have four 10/100 Mbps Ethernet ports, and additionally the EKI-2525M/2526M provides one or two multi-mode fiber-optic ports, while the EKI-2526S provides two single-mode fiber-optic ports. Using fiber-optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions. EKI-2525M/2526M/2526S have industrial-grade designs, assuring high reliability and stability in harsh environments, making it a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525M/2526M/2526S includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected, so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism, assuring all data is transmitted properly.

Features:

Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
Provides 2 x 100 Mbps Multi-mode SC type fiber optic port
Supports full/half duplex flow control
Supports MDI/MDI-X auto crossover
Provides Redundant 12 ~ 48 VDC power input
Provides flexible mounting: DIN-rail and Wall mount

Specifications:

Part Number	EKI-2526M-AE	EKI-2526M-ST-AE

* Port Configuration
Description	4 x 10/100Base-T(X) + 2 x 100Base-F(X)	4 x 10/100Base-T(X) + 2 x 100Base-F(X)
Total Port Number	6	6

Certification
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8	EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Safety	UL/cUL 60950-1, Class I, Division 2	UL/cUL 60950

Environment
Temperature (Min. Operating)	-10°C (14°F)	-10°C (14°F)
Temperature (Max. Operating)	60°C (140°F)	60°C (140°F)
Temperature (Operating Range)	-10 ~ 60°C (14 ~ 140°F)	-10 ~ 60°C (14 ~ 140°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	2	2
Fiber Port Interface	Multi-Mode	Multi-Mode
Fiber Port Connector Type	SC Type	ST Type
Fiber Transmission Distance	2 km	2 km
Fiber Transmission Speed	100 Mbps	100 Mbps
Ethernet Port Number	4	4
RJ45 Port Connector Type	RJ45	RJ45
RJ45 Transmission Distance	100 m	100 m
RJ45 Transmission Speed	10/100 Mbps	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes	Yes
Mounting (Stack)	–	–
Mounting (Panel)	–	–
Mounting (Wall)	Yes	Yes
Mounting (Rack Mount)	–	–
Mounting (Pole Mount)	–	–
Dimensions (W x H x D)	37 x 140 x 95 mm (1.46″ x 5.51″ x 3.74″)	37 x 140 x 95 mm (1.46″ x 5.51″ x 3.74″)
Enclosure (Metal)	Yes	Yes
Enclosure (Plastic)	–	–
IP Rating	IP30	IP30

PoE Information
PoE Port Number	–	–
PoE Budget	–	–
PoE Output	–	–
Support PoE	No	No

Power
Power Connector Type	6-pin removable screw terminal	6-pin removable screw terminal
Power Consumption	6.41 W	6.41 W
Power Input (AC)	–	–
Power Input (DC)	12 ~ 48 VDC	12 ~ 48 VDC
Power Input (PoE)	–	–
Power Input (Battery)	–	–
Redundant Dual Inputs	Yes	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes	Yes

Warranty
Warranty Period	5 years	5 years

Protection
Overload Current	Present	Present
Reverse Polarity	Present	Present

Datasheet on EKI-2526M (pdf, opens in a new tab)

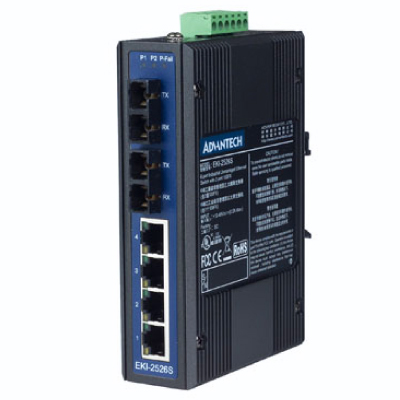

EKI-2526S

4FE+2FE SC Single-mode Unmanaged Ethernet Switch

Click here to show/ hide more info

EKI-2525M/2526M/2526S are industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M/2526M/2526S have four 10/100 Mbps Ethernet ports, and additionally the EKI-2525M/2526M provides one or two multi-mode fiber-optic ports, while the EKI-2526S provides two single-mode fiber-optic ports. Using fiber-optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions. EKI-2525M/2526M/2526S have industrial-grade designs, assuring high reliability and stability in harsh environments, making it a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525M/2526M/2526S includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected, so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism, assuring all data is transmitted properly.

Features:

Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
Provides 2 x 100 Mbps Single-mode SC type fiber optic port
Supports full/half duplex flow control
Supports MDI/MDI-X auto crossover
Provides Redundant 12 ~ 48 VDC power input
Provides flexible mounting: DIN-rail and Wall mount

Specifications:

Part Number	EKI-2526S-AE

* Port Configuration
Description	4 x 10/100Base-T(X) + 2 x 100Base-F(X)
Total Port Number	6

Certification
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Safety	UL/cUL 60950-1, Class I, Division 2

Environment
Temperature (Min. Operating)	-10°C (14°F)
Temperature (Max. Operating)	60°C (140°F)
Temperature (Operating Range)	-10 ~ 60°C (14 ~ 140°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	2
Fiber Port Interface	Single-Mode
Fiber Port Connector Type	SC Type
Fiber Transmission Distance	30 km
Fiber Transmission Speed	100 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	37 x 140 x 95 mm (1.46″ x 5.51″ x 3.74″)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal
Power Consumption	6.45 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2526S (pdf, opens in a new tab)

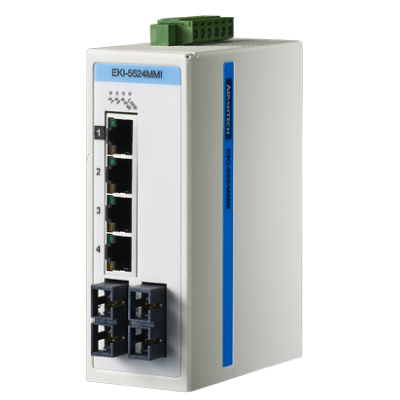

EKI-5524MMI

4FE+2FE SC Multi-mode Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5524SS/SSI/SS-ST/SSI-ST and EKI-5524MM/MMI/MM-ST/MMI-ST are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5524SS/SSI/SS-ST/SSI-ST and EKI-5524MM/MMI/MM-ST/MMI-ST switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75’C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range
8.4~52.8 V DC wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-5524MMI-AE

* Port Configuration
Description	4 x 10/100 RJ45 + 2 x 100 Multi-Mode SC Fiber
Total Port Number	6

Certification
EMI	FCC Part 15 Subpart B Class A, EN 55011/55022 Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	IEC/EN60950, UL60950, UL508, Class 1 Division 2, ATEX

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	2
Fiber Port Interface	Multi-Mode
Fiber Port Connector Type	SC Type
Fiber Transmission Distance	Up to 2 km
Fiber Transmission Speed	100 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	43 x 120 x 84 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 4 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.16A @ 24V
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	2K
Packet Buffer Size	1M bit
Switch Fabric Speed	1.2Gbps

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5524MMI (pdf, opens in a new tab)

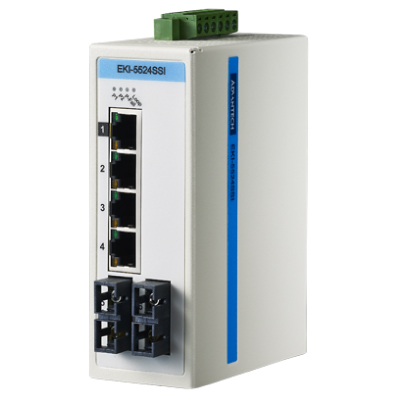

EKI-5524SSI

4FE+2FE SC Single-mode Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5524SS/SSI/SS-ST/SSI-ST and EKI-5524MM/MMI/MM-ST/MMI-ST are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize
the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5524SS/SSI/SS-ST/SSI-ST and EKI-5524MM/MMI/MM-ST/MMI-ST switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75’C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range (EKI-5524SSI/SSI-ST,EKI-5524MMI/MMI-ST only)
8.4~52.8 V DC wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-5524SSI-AE

* Port Configuration
Description	4 x 10/100 RJ45 + 2 x 100 Single-Mode SC Fiber
Total Port Number	6

Certification
EMI	FCC Part 15 Subpart B Class A, EN 55011/55022 Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	IEC/EN60950, UL60950, UL508, Class 1 Division 2, ATEX

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	2
Fiber Port Interface	Single-Mode
Fiber Port Connector Type	SC Type
Fiber Transmission Distance	Up to 30km
Fiber Transmission Speed	100 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	43 x 120 x 84 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 4 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.16A @ 24V
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	2K
Packet Buffer Size	1M bit
Switch Fabric Speed	1.2Gbps

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5524SSI (pdf, opens in a new tab)

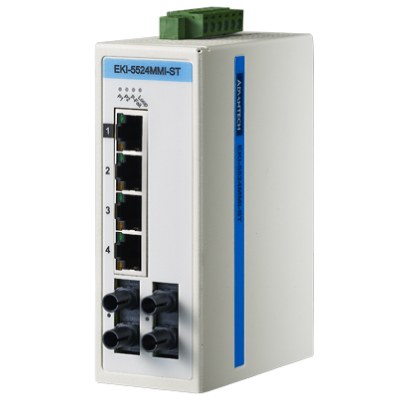

EKI-5524MMI-ST

4FE+2FE ST Multi-mode Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5524SS/SSI/SS-ST/SSI-ST and EKI-5524MM/MMI/MM-ST/MMI-ST are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5524SS/SSI/SS-ST/SSI-ST and EKI-5524MM/MMI/MM-ST/MMI-ST switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75’C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range (EKI-5524SSI/SSI-ST,EKI-5524MMI/MMI-ST only)
12 ~48 V DC (8.4 ~52.8 V DC ) wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-5524MMI-ST-AE

* Port Configuration
Description	4 x 10/100 RJ45 + 2 x 100 Multi-Mode ST Fiber
Total Port Number	6

Certification
EMI	FCC Part 15 Subpart B Class A, EN 55011/55022 Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	IEC/EN60950, UL60950, UL508, Class 1 Division 2, ATEX

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	2
Fiber Port Interface	Multi-Mode
Fiber Port Connector Type	ST Type
Fiber Transmission Distance	Up to 2 km
Fiber Transmission Speed	100 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	43 x 120 x 84 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 4 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.16A @ 24V
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	2K
Packet Buffer Size	1M bit
Switch Fabric Speed	1.2Gbps

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5524MMI-ST (pdf, opens in a new tab)

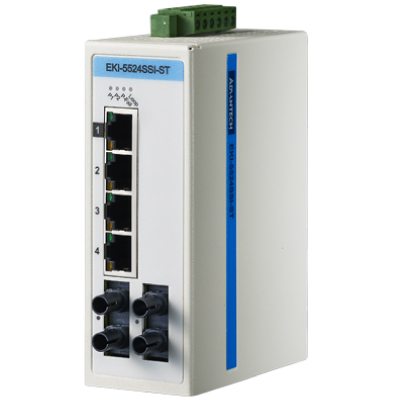

EKI-5524SSI-ST

4FE+2FE ST Single-mode Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5524SS/SSI/SS-ST/SSI-ST and EKI-5524MM/MMI/MM-ST/MMI-ST are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5524SS/SSI/SS-ST/SSI-ST and EKI-5524MM/MMI/MM-ST/MMI-ST switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75’C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range (EKI-5524SSI/SSI-ST,EKI-5524MMI/MMI-ST only)
12 ~48 V DC (8.4 ~52.8 V DC ) wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-5524SSI-ST-AE

* Port Configuration
Description	4 x 10/100 RJ45 + 2 x 100 Single-Mode ST Fiber
Total Port Number	6

Certification
EMI	FCC Part 15 Subpart B Class A, EN 55011/55022 Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	IEC/EN60950, UL60950, UL508, Class 1 Division 2, ATEX

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	2
Fiber Port Interface	Single-Mode
Fiber Port Connector Type	ST Type
Fiber Transmission Distance	Up to 30km
Fiber Transmission Speed	100 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	43 x 120 x 84 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 4 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.16A @ 24V
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5524SSI-ST (pdf, opens in a new tab)

EKI-2528

8FE Unmanaged Ethernet Switch

Click here to show/ hide more info

The EKI-2525/2528 supports a Fast Ethernet solution. The power is a 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2525/2528 will automatically get back to work. Each port of EKI-2525/2528 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2525/2528 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

Features:

Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
Supports 10/100 Mbps Auto-Negotiation
Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
Supports redundant 12 ~ 48 VDC power input and P-Fail relay

Specifications:

Part Number	EKI-2528-BE

General
Ethernet Port Count	8
Mounting	DIN, Panel
Power	12-48VDC
Technology	Ethernet
Temperature	-10 to 60C
Unmanaged	Yes

* Port Configuration
Description	8 x 10/100Base-T(X)
Total Port Number	8

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Safety	UL 60950

Environment
Temperature (Min. Operating)	-10°C (14°F)
Temperature (Max. Operating)	60°C (140°F)
Temperature (Operating Range)	-10 ~ 60°C (14 ~ 140°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	8
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	30 x 140 x 95 mm (1.18” x 5.51” x 3.74)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	4.71 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2528 (pdf, opens in a new tab)

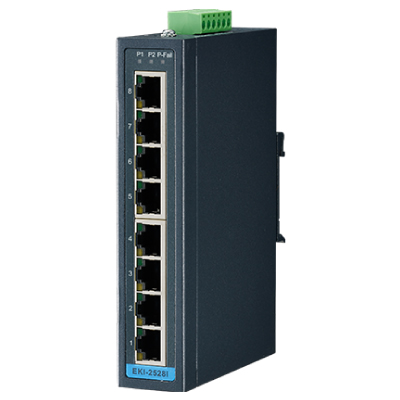

EKI-2528I

8FE Unmanaged Ethernet Switch, -40~75℃

Click here to show/ hide more info

The EKI-2525/2528 supports a Fast Ethernet solution. The power is a 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2525/2528 will automatically get back to work. Each port of EKI-2525/2528 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2525/2528 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

Features:

Provides 5/8 Fast Ethernet ports with Auto MDI/MDI-X
Supports 10/100 Mbps Auto-Negotiation
Provides compact size with DIN-rail/Wall mount, and IP30 metal mechanism
Supports redundant 12 ~ 48 VDC power input and P-Fail relay
Supports wide operating temperatures from -40 to 75°C

Specifications:

Part Number	EKI-2528I-BE

General
Ethernet Port Count	8
Mounting	DIN, Panel
Power	12-48VDC
Technology	Ethernet
Temperature	-40 to 75C
Unmanaged	Yes

* Port Configuration
Description	8 x 10/100Base-T(X)
Total Port Number	8

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Safety	UL 60950

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	8
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	30 x 140 x 95 mm (1.18” x 5.51” x 3.74)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	4.71 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2528I (pdf, opens in a new tab)

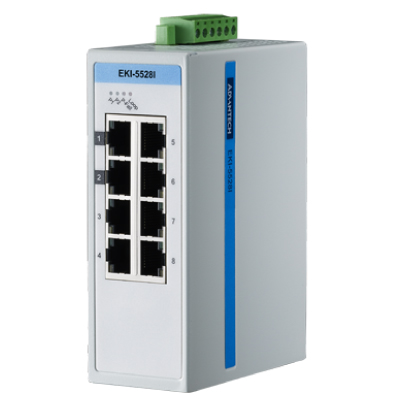

EKI-5528I

8FE Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5525/I and EKI-5528/I are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5525/I and EKI-5528/I switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with Level 3 EMS protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range
8.4~52.8 V DC wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-5528I-AE

General
Ethernet Port Count	8
Mounting	DIN, Panel
Power	12-48VDC
Technology	Ethernet
Temperature	-40 to 75C
Unmanaged	Yes

* Port Configuration
Description	8 x 10/100 RJ45
Total Port Number	8

Certification
EMI	FCC Part 15 Subpart B Class A, EN 55011/55022 Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	IEC/EN60950, UL60950, UL508, Class 1 Division 2, ATEX

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	8
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	43 x 120 x 84 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 3.6 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.16A @ 24V
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	2K
Packet Buffer Size	1M bit
Switch Fabric Speed	1.2Gbps
Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5528I (pdf, opens in a new tab)

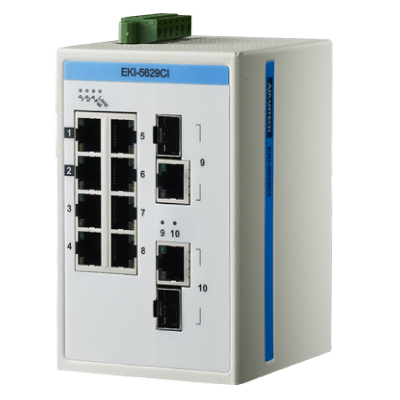

EKI-5629CI

8FE+2G Combo Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5629C/CI and EKI-5626C/CI is the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5629C/CI and EKI-5626C/CI switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range (EKI-5629CI/5626CI only)
EMS level 3 protection for extreme outdoor environments
12~48 V DC (8.4~52.8 V DC )wide-range power input
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48 V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-5629CI-AE

* Port Configuration
Description	8 x 10/100 RJ45 + 2 x 10/100/1000 RJ45/SFP (Combo)
Total Port Number	10

Certification
EMI	CE, FCC
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	UL508, Class 1 Division 2, ATEX

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	2 (Combo)
Fiber Port Interface	SFP
Fiber Port Connector Type	SFP
Fiber Transmission Distance	Up to 110km
Fiber Transmission Speed	1000 Mbps
Ethernet Port Number	8 + 2 (Combo)
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps (Combo: 10/100/1000 Mbps)

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	74 x 120 x 84 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	500g

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	5.8 W
Power Input (AC)	–
Power Input (DC)	24 ~ 48 VDC, (8.4VDC ~ 52.8VDC)
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.2A @ 24V
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	8K
Packet Buffer Size	128K bit
Switch Fabric Speed	5.6Gbps
Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5629CI (pdf, opens in a new tab)

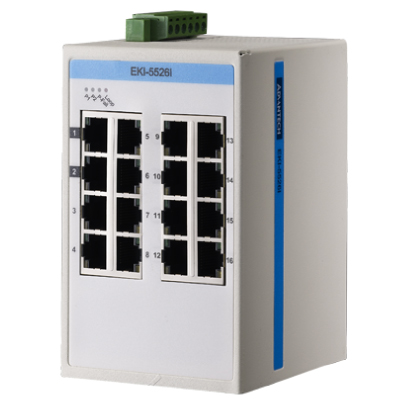

EKI-5526I

16FE Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5526/I are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5526/I switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range (EKI-5526I only)
12 ~48 V DC (8.4~52.8 V DC ) wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-5526I-AE

General
Ethernet Port Count	16
Mounting	DIN, Panel
Power	12-48VDC
Technology	Ethernet
Temperature	-40 to 75C
Unmanaged	Yes

* Port Configuration
Description	16 x 10/100 RJ45
Total Port Number	16

Certification
EMI	FCC Part 15 Subpart B Class A, EN 55011/55022 Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	IEC/EN60950, UL60950, UL508, Class 1 Division 2, ATEX

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	16
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	74 x 120 x 84 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	700g

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 3.84 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.12A @ 24V
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	2,048 bytes
MAC Table Size	8K
Packet Buffer Size	128K bit
Switch Fabric Speed	3.2Gbps

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5526I (pdf, opens in a new tab)

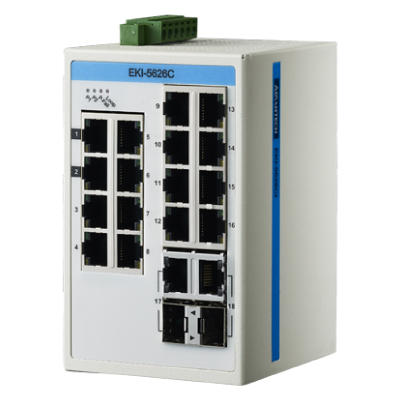

EKI-5626CI

16FE+2G Combo Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5629C/CI and EKI-5626C/CI is the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5629C/CI and EKI-5626C/CI switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range (EKI-5629CI/5626CI only)
EMS level 3 protection for extreme outdoor environments
12~48 V DC (8.4~52.8 V DC )wide-range power input
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48 V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-5526I-AE

General
Ethernet Port Count	16
Mounting	DIN, Panel
Power	12-48VDC
Technology	Ethernet
Temperature	-40 to 75C
Unmanaged	Yes

* Port Configuration
Description	16 x 10/100 RJ45
Total Port Number	16

Certification
EMI	FCC Part 15 Subpart B Class A, EN 55011/55022 Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	IEC/EN60950, UL60950, UL508, Class 1 Division 2, ATEX

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	16
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	74 x 120 x 84 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	700g

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 3.84 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.12A @ 24V
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	2,048 bytes
MAC Table Size	8K
Packet Buffer Size	128K bit
Switch Fabric Speed	3.2Gbps

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5626CI (pdf, opens in a new tab)

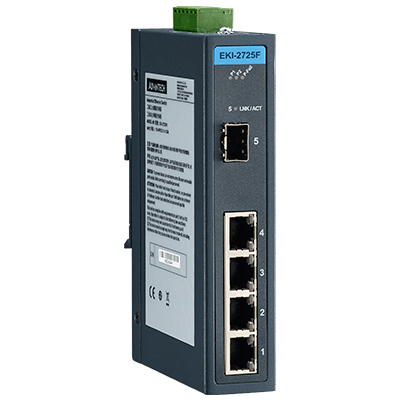

EKI-2725F

4GE+1G SFP Unmanaged Ethernet Switch

Click here to show/ hide more info

The EKI-2725F supports Gigabit Ethernet. The power rating is 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protection and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2725F will automatically get back to a normal operating state. Each port of EKI-2725F has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, which makes troubleshooting quick and easy. EKI-2725F comes with compact metal housing rated at IP30 to protect against dusty industrial environments.

Features:

Provides 4 GE+ 1 SFP ports with auto MDI/MDI-X
Supports 10/100/1000 Mbps auto negotiation
Supports jumbo frame transmission up to 9kb
Provides slim size, DIN-rail with IP30 metal mechanism
Supports redundant 12 ~ 48 VDC power input andP-Fail relay

Specifications:

Part Number	EKI-2725F-AE

* Port Configuration
Description	4 x 10/100/1000Base-T(X) + 1 x 100/1000Base-F(X)
Total Port Number	5

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	UL 60950

Environment
Temperature (Min. Operating)	-10°C (14°F)
Temperature (Max. Operating)	60°C (140°F)
Temperature (Operating Range)	-10 ~ 60°C (14 ~ 140°F)
Temperature (Storage Range)	– 40 ~ 85°C ( -40 ~ 185°F)

Ethernet Communication
Fiber Port Number	1
Fiber Port Interface	SFP
Fiber Port Connector Type	SFP
Fiber Transmission Distance	Up to 110km
Fiber Transmission Speed	100/1000 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	30 x 140 x 95 mm (1.18″ x 5.51″ x 3.74″)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	0.45 Kg

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max 2.5W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	1A @24VDC
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	2K
Packet Buffer Size	1Mbits
Switch Fabric Speed	10Gbit

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2725F (pdf, opens in a new tab)

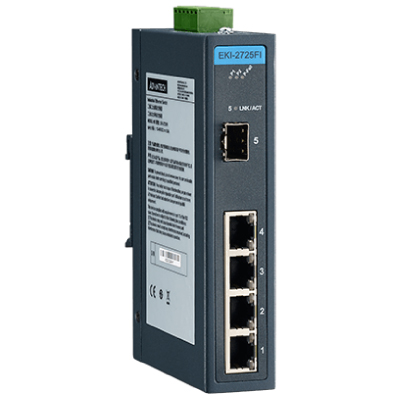

EKI-2725FI

4GE+1G SFP Unmanaged Ethernet Switch, -40~75℃

Click here to show/ hide more info

The EKI-2725F supports Gigabit Ethernet. The power rating is 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protection and an Overload Current Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2725F will automatically get back to a normal operating state. Each port of EKI-2725F has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, which makes troubleshooting quick and easy. EKI-2725F comes with compact metal housing rated at IP30 to protect against dusty industrial environments.

Features:

Provides 4 GE+ 1 SFP ports with auto MDI/MDI-X
Supports 10/100/1000 Mbps auto negotiation
Supports jumbo frame transmission up to 9kb
Provides slim size, DIN-rail with IP30 metal mechanism
Supports redundant 12 ~ 48 VDC power input andP-Fail relay

Specifications:

Part Number	EKI-2725FI-AE

* Port Configuration
Description	4 x 10/100/1000Base-T(X) + 1 x 100/1000Base-F(X)
Total Port Number	5

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	UL 60950

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	1
Fiber Port Interface	SFP
Fiber Port Connector Type	SFP
Fiber Transmission Distance	Up to 110km
Fiber Transmission Speed	100/1000 Mbps
Ethernet Port Number	4
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	30 x 140 x 95 mm (1.18″ x 5.51″ x 3.74″)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	0.45 Kg

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max 2.5W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	1A @24VDC
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	2K
Packet Buffer Size	1Mbits
Switch Fabric Speed	10Gbit

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2725FI (pdf, opens in a new tab)

EKI-2725

5GE Unmanaged Ethernet Switch

Click here to show/ hide more info

The EKI-2725/2728 supports Gigabit Ethernet. The power is a 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2725/2728 will automatically get back to normal operation state. Each port of EKI-2725/2728 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2725/2728 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

Features:

Provides 5 Gigabit Ethernet ports with Auto MDI/MDI-X
Supports 10/100/1000Mbps Auto Negotiation
Supports jumbo frame transmission up to 9kbytes
Provides Slim size, DIN-rail with IP30 metal mechanism
Supports Redundant 12 ~ 48 VDC power input and P-Fail Relay

Specifications:

Part Number	EKI-2725-CE

* Port Configuration
Description	5 x 10/100/1000Base-T(X)
Total Port Number	5

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	UL 60950-1

Environment
Temperature (Min. Operating)	-10°C (14°F)
Temperature (Max. Operating)	60°C (140°F)
Temperature (Operating Range)	-10 ~ 60°C (14 ~ 140°F)
Temperature (Storage Range)	– 40 ~ 85°C ( -40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	5
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	30 x 140 x 95 mm (1.18″ x 5.51″ x 3.74″)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal
Power Consumption	Max 2.5W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	–
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2725 (pdf, opens in a new tab)

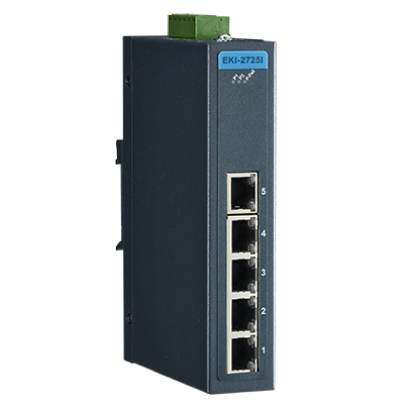

EKI-2725I

5GE Unmanaged Ethernet Switch, -40~75℃

Click here to show/ hide more info

The EKI-2725/2728 supports Gigabit Ethernet. The power is a 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2725/2728 will automatically get back to normal operation state. Each port of EKI-2725/2728 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2725/2728 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

Features:

Provides 5 Gigabit Ethernet ports with Auto MDI/MDI-X
Supports 10/100/1000Mbps Auto Negotiation
Supports jumbo frame transmission up to 9kbytes
Provides Slim size, DIN-rail with IP30 metal mechanism
Supports Redundant 12 ~ 48 VDC power input and P-Fail Relay

Specifications:

Part Number	EKI-2725-CE

* Port Configuration
Description	5 x 10/100/1000Base-T(X)
Total Port Number	5

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	UL 60950-1

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	5
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	30 x 140 x 95 mm (1.18″ x 5.51″ x 3.74″)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal
Power Consumption	Max 2.5W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	–
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2725I (pdf, opens in a new tab)

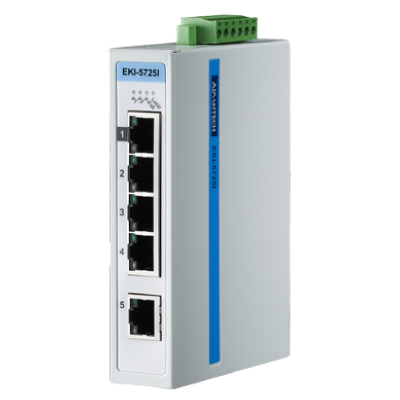

EKI-5725I

5GE Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5725/I and EKI-5728/I are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5725/I and EKI-5728/I switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range
8.4~52.8 V DC wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-2725-CE

* Port Configuration
Description	5 x 10/100/1000Base-T(X)
Total Port Number	5

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	UL 60950-1

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	5
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	27 x 120 x 93 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	400g

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 2.4 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.06A @ 24V
Redundant Dual Inputs	–

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5725I (pdf, opens in a new tab)

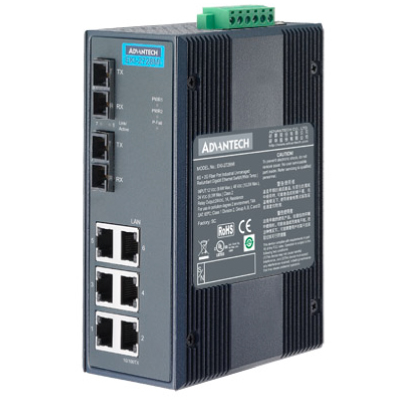

EKI-2728M

6GE+2G Multi-Mode Fiber Port Unmanaged Ethernet Switch

Click here to show/ hide more info

EKI-2728M/2728S are cost effective unmanaged industrial Ethernet switch which supports Giga Ethernet. It supports Green Power requirement, furthermore, EKI-2728M/2728S also supports advanced network standards to optimize network performance, reduce maintenance cost, and secure network safety.

Features:

Provides 6 x 10/100/1000 Mbps Ethernet port with RJ45 connector
Provides 2 x 1000 Mbps fiber port with SC type connector for 1000Base-SX/LX device
Supports MDI/MDI-X auto crossover
Supports Auto-Negotiation
Supports redundant 12 ~ 48 VDC and 24VAC power input
Provides flexible mounting: DIN-rail and Wall mount
Provides Link Fault Pass-through (LFP)
Jumbo Frame: 9216 bytes

Specifications:

Part Number	EKI-2728M-BE

* Port Configuration
Description	6 x 10/100/1000 RJ45 + 2 x 1000 Multi-Mode SC Fiber
Total Port Number	8

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	–

Environment
Temperature (Min. Operating)	-10°C (14°F)
Temperature (Max. Operating)	60°C (140°F)
Temperature (Operating Range)	-10 ~ 60°C (14 ~ 140°F)
Temperature (Storage Range)	– 40 ~ 85°C ( -40 ~ 185°F)

Ethernet Communication
Fiber Port Number	2
Fiber Port Interface	Multi-Mode
Fiber Port Connector Type	SC Type
Fiber Transmission Distance	Up to 550 m
Fiber Transmission Speed	1000 Mbps
Ethernet Port Number	6
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	59.6 x 152 x 105 mm (2.35″ x 5.98″ x 4.13″)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 7 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	1A @24VDC
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2728M (pdf, opens in a new tab)

EKI-2728MI

6GE+2G SC Multi-mode Unmanaged Ethernet Switch, -40~75℃

Click here to show/ hide more info

EKI-2728MI is a cost effective unmanaged industrial Ethernet switch which supports Giga Ethernet. It supports Green Power requirement, furthermore, EKI-2728MI also supports advanced network standards to optimize network performance, reduce maintenance cost, and secure network safety.

Features:

6 Gigabit Ethernet ports with auto negotiation and 2 Gigabit fiber optic ports
Supports jumbo frame transmission up to 9k bytes
Provides slim size, DIN-rail with IP30 metal mechanism
Supports 5.49% power consumption
Redundant DC power supply and one removable AC power input

Specifications:

Part Number	EKI-2728MI-BE

* Port Configuration
Description	6 x 10/100/1000 RJ45 + 2 x 1000 Multi-Mode SC Fiber
Total Port Number	8

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	–

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	– 40 ~ 85°C ( -40 ~ 185°F)

Ethernet Communication
Fiber Port Number	2
Fiber Port Interface	Multi-Mode
Fiber Port Connector Type	SC Type
Fiber Transmission Distance	Up to 550 m
Fiber Transmission Speed	1000 Mbps
Ethernet Port Number	6
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	59.6 x 152 x 105 mm (2.35″ x 5.98″ x 4.13″)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 7 W
Power Input (AC)	24VAC
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	1A @24VDC
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2728MI (pdf, opens in a new tab)

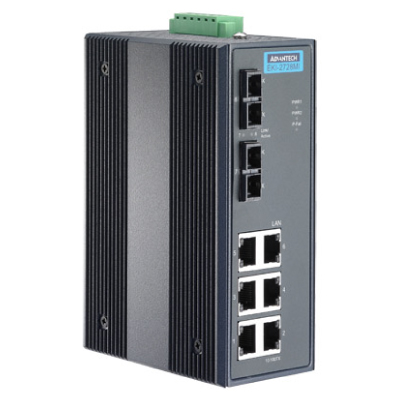

EKI-2728S

6GE+2G Single-Mode Fiber Port Unmanaged Ethernet Switch

Click here to show/ hide more info

EKI-2728M/2728S are cost effective unmanaged industrial Ethernet switch which supports Giga Ethernet. It supports Green Power requirement, furthermore, EKI-2728M/2728S also supports advanced network standards to optimize network performance, reduce maintenance cost, and secure network safety.

Features:

Provides 6 x 10/100/1000 Mbps Ethernet port with RJ45 connector
Provides 2 x 1000 Mbps fiber port with SC type connector for 1000Base-SX/LX device
Supports MDI/MDI-X auto crossover
Supports Auto-Negotiation
Supports redundant 12 ~ 48 VDC and 24VAC power input
Provides flexible mounting: DIN-rail and Wall mount
Provides Link Fault Pass-through (LFP)
Jumbo Frame: 9216 bytes

Specifications:

Part Number	EKI-2728S-AE

* Port Configuration
Description	6 x 10/100/1000 RJ45 + 2 x 1000 Single-Mode SC Fiber
Total Port Number	8

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	–

Environment
Temperature (Min. Operating)	-10°C (14°F)
Temperature (Max. Operating)	60°C (140°F)
Temperature (Operating Range)	-10 ~ 60°C (14 ~ 140°F)
Temperature (Storage Range)	– 40 ~ 85°C ( -40 ~ 185°F)

Ethernet Communication
Fiber Port Number	2
Fiber Port Interface	Single-Mode
Fiber Port Connector Type	SC Type
Fiber Transmission Distance	UP to 10km
Fiber Transmission Speed	1000 Mbps
Ethernet Port Number	6
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	59.6 x 152 x 105 mm (2.35″ x 5.98″ x 4.13″)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 7 W
Power Input (AC)	24VAC
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	1A @24VDC
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2728S (pdf, opens in a new tab)

EKI-2728SI

6GE+2G Single-Mode Fiber Port Unmanaged Ethernet Switch, -40~75℃

Click here to show/ hide more info

EKI-2728M/2728S are cost effective unmanaged industrial Ethernet switch which supports Giga Ethernet. It supports Green Power requirement, furthermore, EKI-2728M/2728S also supports advanced network standards to optimize network performance, reduce maintenance cost, and secure network safety.

Features:

Provides 6 x 10/100/1000 Mbps Ethernet port with RJ45 connector
Provides 2 x 1000 Mbps fiber port with SC type connector for 1000Base-SX/LX device
Supports MDI/MDI-X auto crossover
Supports Auto-Negotiation
Supports redundant 12 ~ 48 VDC and 24VAC power input
Provides flexible mounting: DIN-rail and Wall mount
Provides Link Fault Pass-through (LFP)
Jumbo Frame: 9216 bytes

Specifications:

Part Number	EKI-2728SI-AE

* Port Configuration
Description	6 x 10/100/1000 RJ45 + 2 x 1000 Single-Mode SC Fiber
Total Port Number	8

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	–

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	– 40 ~ 85°C ( -40 ~ 185°F)

Ethernet Communication
Fiber Port Number	2
Fiber Port Interface	Single-Mode
Fiber Port Connector Type	SC Type
Fiber Transmission Distance	UP to 10km
Fiber Transmission Speed	1000 Mbps
Ethernet Port Number	6
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	59.6 x 152 x 105 mm (2.35″ x 5.98″ x 4.13″)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 7 W
Power Input (AC)	24VAC
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	1A @24VDC
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2728SI (pdf, opens in a new tab)

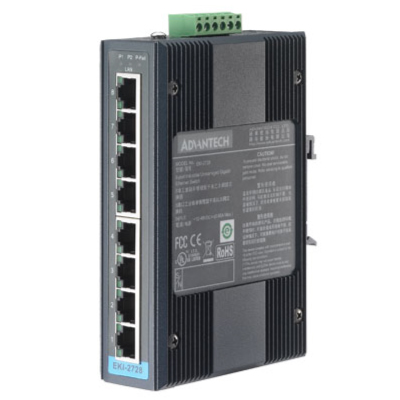

EKI-2728

8GE Unmanaged Ethernet Switch

Click here to show/ hide more info

The EKI-2725/2728 supports Gigabit Ethernet. The power is a 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2725/2728 will automatically get back to normal operation state. Each port of EKI-2725/2728 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2725/2728 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

Features:

Provides 8 Gigabit Ethernet ports with Auto MDI/MDI-X
Supports 10/100/1000Mbps Auto Negotiation
Supports jumbo frame transmission up to 9kbytes
Provides Slim size, DIN-rail with IP30 metal mechanism
Supports Redundant 12 ~ 48 VDC power input and P-Fail Relay

Specifications:

Part Number	EKI-2728-AE

* Port Configuration
Description	8 x 10/100/1000Base-T(X)
Total Port Number	8

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	UL 60950

Environment
Temperature (Min. Operating)	-10°C (14°F)
Temperature (Max. Operating)	60°C (140°F)
Temperature (Operating Range)	-10 ~ 60°C (14 ~ 140°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	8
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	–
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal
Power Consumption	5.8 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	–
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2728 (pdf, opens in a new tab)

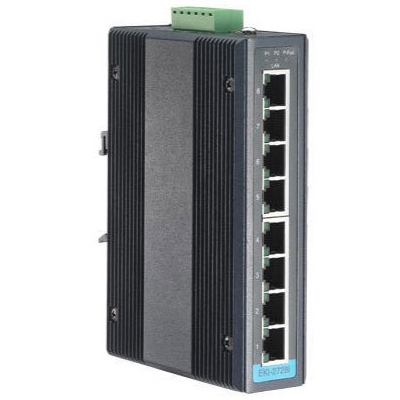

EKI-2728I

8GE Unmanaged Ethernet Switch, -40~75℃

Click here to show/ hide more info

The EKI-2725/2728 supports Gigabit Ethernet. The power is a 12 ~ 48 VDC redundant input design, and is secured with a double protection mechanism: Power Polarity Reverse Protect and an Overload Current Resetable Fuse. The former tolerates reverse power wiring while the later secures the system from overload currents. As the power supply turns normal, EKI-2725/2728 will automatically get back to normal operation state. Each port of EKI-2725/2728 has 2 LED’s to show the link status transmission speed and collision status. It also provides a relay output for an event alarm. In the event of a power failure, the built-in LED will activate the alarm to notify administrators. Engineers can simply verify the hardware status by checking the LED, and have troubleshooting easy and quick. EKI-2725/2728 comes with compact metal housing that rates IP30 to help against from dusty industrial environments.

Features:

Provides 8 Gigabit Ethernet ports with Auto MDI/MDI-X
Supports 10/100/1000Mbps Auto Negotiation
Supports jumbo frame transmission up to 9kbytes
Provides Slim size, DIN-rail with IP30 metal mechanism
Supports Redundant 12 ~ 48 VDC power input and P-Fail Relay
Supports a wide temperature range: -40 ~ 75° C

Specifications:

Part Number	EKI-2728I-AE

* Port Configuration
Description	8 x 10/100/1000Base-T(X)
Total Port Number	8

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	UL 62368

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	8
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	–
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal
Power Consumption	5.8 W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	–
Redundant Dual Inputs	Yes

Product Category
Layer 2 – Unmanaged Switch	Yes

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2728I (pdf, opens in a new tab)

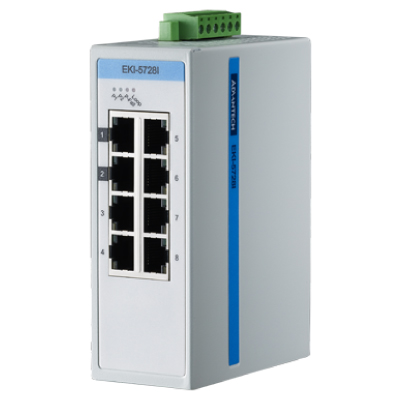

EKI-5728I

8GE Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5725/I and EKI-5728/I are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5725/I and EKI-5728/I switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range
8.4~52.8 V DC wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-2728I-AE

* Port Configuration
Description	8 x 10/100/1000Base-T(X)
Total Port Number	8

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	UL508, Class 1 Division 2, ATEX

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	8
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	43 x 120 x 93 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	500g

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max.4.72 W
Power Input (AC)	8.4~52.8VDC
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.23A @ 24V
Redundant Dual Inputs	–

Product Category
Layer 2 – Unmanaged Switch	Yes
Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	2K
Packet Buffer Size	1Mbits
Switch Fabric Speed	10Gbit

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5728I (pdf, opens in a new tab)

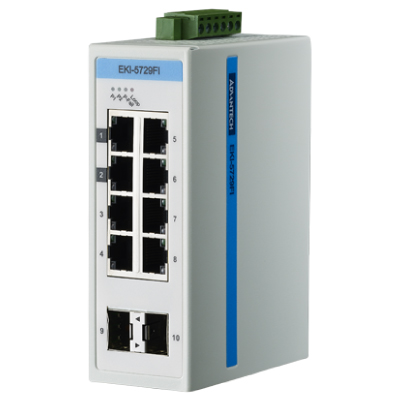

EKI-5729FI

8GE+2G SFP Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5729F/FI are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5729F/FI switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range
8.4~52.8 V DC wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-5729FI-AE

* Port Configuration
Description	8 x 10/100/1000Base-T(X) + 2 x 10/100/1000 SFP
Total Port Number	10

Certification
EMI	CE, FCC
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	UL508, Class 1 Division 2, ATEX

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	2
Fiber Port Interface	SFP
Fiber Port Connector Type	SFP
Fiber Transmission Distance	Up to 110km
Fiber Transmission Speed	–
Ethernet Port Number	8
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	43 x 120 x 84 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	700g

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 6.8W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.23A @ 24V
Redundant Dual Inputs	–

Product Category
Layer 2 – Unmanaged Switch	Yes
Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	8K
Packet Buffer Size	4.1M bit
Switch Fabric Speed	20Gbps

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5729FI (pdf, opens in a new tab)

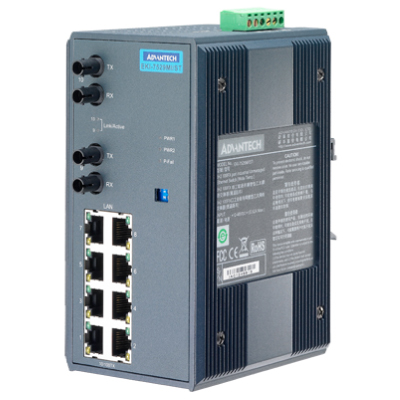

EKI-7529MI

8GE+2G ST Multi-mode Unmanaged Ethernet Switch, -40~75℃

Click here to show/ hide more info

Aside from 2 ST type ports, the EKI-7529MI/ST come equipped with 8 x 10/100Base-TX fast Ethernet ports. Traditional ST fiber optic ports can be used for uplinking and long distance transmissions to flexibly fit field requests. The RJ-45 interface can also be auto-detected, so MDI or MDI-X is automatically selected and a cross-over cable is not required. All Ethernet ports have memory buffers that support the store-and-forward mechanism, which assures that data can be transmitted properly. Furthermore, the power line of EKI-7529MI/ST supports Surge and EFT protection which secure equipment against unregulated voltage and make systems safer and more reliable.

Features:

Provides ST type fiber optic ports plus 8 Fast Ethernet ports
Supports Auto Negotiation and Auto MDI/MDI-X
Provides flexible mounting: DIN-rail or wallmounting
Supports Dual 12 ~ 48 VDC power input and 1 relay output
Enable or disable broadcast storm protection through a simple dip switch
Supports wide operating temperatures (-40 ~ 75° C)

Specifications:

Communications
Standard	IEEE 802.3, 802.3u, 802.3x
LAN	10/100Base-T (X), Optional 100Base-FX
Transmission Distance Ethernet:	Up to 100 m
Multi-mode Fiber:	Up to 2 km

Transmission Speed
Ethernet:	Port 1~ 2: 10 Mbps Port 3~ 8: 10/100 Mbps Auto-Negotiation

Interface
Connectors	8 x RJ45 (Ethernet) with 2 x ST-type fiber optic connectors 6-pin removable screw terminal (Power & Relay)
LED Indicators	System: PWR1, PWR2, P-Fail 10/100T (X): Link/Activity, Duplex/Collision
Dip Switch	DIP1 (Port 1 and 2): ON: 10M Full Force/ OFF: 10M Full Auto-Negation DIP2: ON: Broadcast Storm filter enable/ OFF:Broadcast Storm filter Disable

Power
Power Consumption	Max. 6.7W
Power Input	12 ~ 48 VDC, redundant dual inputs
Fault Output	1 Relay Output

Mechanism
Dimensions (W x H x D)	79 x 152 x 105 mm (3.11″ x 5.98″ x 4.13″)
Enclosure	IP30, Metal shell with solid mounting kits
Mounting	DIN-rail, Wall

Protection
Reverse Polarity	Present

Environment
Operating Temperature	-40 ~ 75°C (-40 ~ 167°F)
Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity	5 ~ 95% (non-condensing)
Storage Humidity	0 ~ 95% (non-condensing)
MTBF	289,329 hours

Certification
Safety	UL 508
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6

Datasheet on EKI-7529MI (pdf, opens in a new tab)

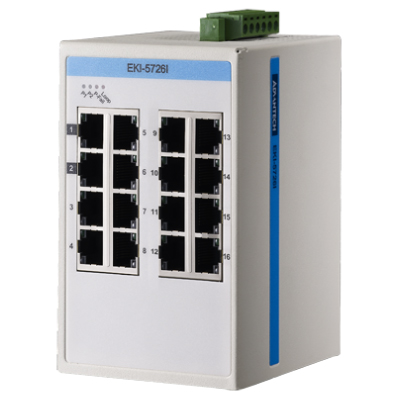

EKI-5726I

16GE Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5726/I is the world’s first convergence switch for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. The EKI-5726/I switch uses the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range (EKI-5726I only)
12 ~48 V DC (8.4~52.8 V DC ) wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48 V DC power input and P-Fail relay
Loop detection

Specifications:

Part Number	EKI-5726I-AE

* Port Configuration
Description	16 x 10/100/1000Base-T(X)
Total Port Number	16

Certification
EMI	CE, FCC
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	UL508, Class 1 Division 2, ATEX

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	– 40 ~ 85°C ( -40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	16
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	74 x 120 x 84 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	800g

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	6-pin removable screw terminal ((power & relay)
Power Consumption	Max. 8W
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.36A @ 24V
Redundant Dual Inputs	–

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	8K
Packet Buffer Size	4.1M bit
Switch Fabric Speed	32Gbps

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-5726I (pdf, opens in a new tab)

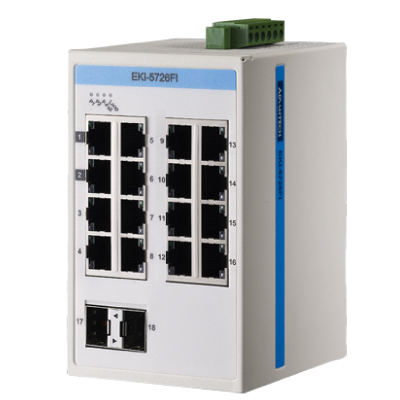

EKI-5726FI

16GE+2G SFP Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75℃

Click here to show/ hide more info

The EKI-5726F/FI are the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5726F/FI switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.

Features:

Communicates with SCADA software via Modbus/TCP
Communicates with NMS (Networking management system) via SNMP
Port-based QoS for deterministic data transmission
-40~75°C operating temperature range (EKI-5726FI only)
8.4~52.8 V DC wide-range power input
EMS level 3 protection for extreme outdoor environments
IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports redundant 12~48V DC power input and P-Fail relay
Loop detection

Specifications:

Communications
Standard	IEEE 802.3, 802.3u, 802.3x, 802.1p, 802.3az, 802.3ab
LAN	10/100/1000Base-T(X), Optional 100Base-FX, 1000Base-SX/LX/LHX/XD/ZX/EZX
Transmission Distance Ethernet:	UP to 100 m (4-wire Cat.5e, Cat.6 RJ-45 cable suggested for Gigabit port) SFP: UP to 110 km (depends on SFP)
Transmission Speed	Ethernet: 10/100/1000 Mbps Auto-Negotiation
	Gigabit Copper: 10/100/1000 Mbps, Auto-Negotiation Gigabit Fiber: UP to 1000 Mbps

Interface
Connectors	16 x RJ45 2 x SFP ports 6-pin removable screw terminal (power & relay)
LED Indicators	P1, P2, P-Fail, Loop detection 10/100/1000T(X): Link/Activity, Speed SFP: Link/Activity

Switch Properties
MAC Table Size	8K
Packet Buffer Size	4.1M bit
Switching Capacity	36 Gbps
Jumbo Frame	9216 bytes

Power
Power Consumption	Max. 9.6W
Power Input	12~48 VDC (8.4~52.8 VDC), redundant dual inputs
Fault Output	1 Relay Output

Mechanism
Dimensions (W x H x D)	74 x 120 x 84 mm
Enclosure	IP30, metal shell with solid mounting kits
Mounting	DIN-Rail, Wall

Protection
Reverse Polarity	Present
Overload Current	Present

Environment
Operating Temperature EKI-5726F:	-10~60°C (14~140°F) EKI-5726FI: -40~75°C (-40~167°F)
Storage Temperature	-40 ~ 85°C (-40 ~ 185°F)
Operating Humidity	10 ~ 95% (non-condensing)
Storage Humidity	10 ~ 95% (non-condensing)
MTBF	1,962,789 hours

Certification
Safety	IEC/EN 60950-1, UL508, Class 1 Division 2, ATEX, IECEx
EMC	CE, FCC
EMI	EN 55011/55022 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A
EMS	EN 61000-4-2 (Level 3) EN 61000-4-3 (Level 3) EN 61000-4-4 (Level 3) EN 61000-4-5 (Level 3) EN 61000-4-6 (Level 3) EN 61000-4-8 (Level 3)
Shock	IEC 60068-2-27
Freefall	IEC 60068-2-32
Vibration	IEC 60068-2-6

Datasheet on EKI-5726FI (pdf, opens in a new tab)

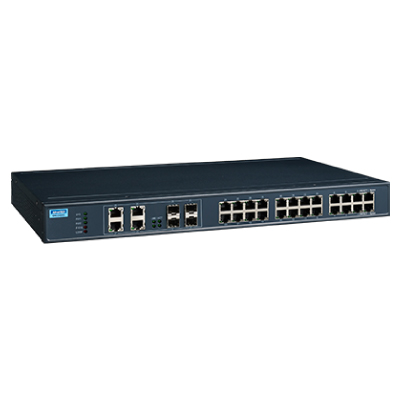

EKI-2428G-4CI

24GE+4G Combo Unmanaged Ethernet Switch, 19″ Rackmount, -40~75℃

Click here to show/ hide more info

The EKI-2428G is an industrial-class unmanaged switch with 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. It is highly reliable with -40 ~ 70 °C wide temperature operation.

Features:

24 x Gigabit ports + 4 x Gigabit copper/SFP combo ports
SFP socket for Easy and Flexible Fiber Expansion
Provides 8K MAC address
Supports 12-48V DC power input
-40 ~ 70°C wide-range operating temperature

Specifications:

Part Number	EKI-2428G-4CI-AE

* Port Configuration
Description	24 x 10/100/1000BaseT(X) + 4 x 10/100/1000BaseT(X) RJ45/SFP (Combo)
Total Port Number	28

Certification
EMI	CE, FCC, EN55022 Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	UL 61010-2-201

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	70°C (158°F)
Temperature (Operating Range)	-40 ~ 70°C (40~158°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	4 (combo)
Fiber Port Interface	SFP
Fiber Port Connector Type	SFP
Fiber Transmission Distance	Up to 110km
Fiber Transmission Speed	100/1000 Mbps
Ethernet Port Number	24 + 4 (combo)
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	–
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	–
Mounting (Rack Mount)	Yes
Mounting (Pole Mount)	–
Dimensions (W x H x D)	438 x 43.6 x 259.2 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	3.8kg

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	4-pin removable screw terminal (power & relay)
Power Consumption	20 W (system)
Power Input (AC)	–
Power Input (DC)	12 ~ 48 VDC, (8.4VDC ~ 52.8VDC)
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.83A @ 24V
Redundant Dual Inputs	–

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	9,216 bytes
MAC Table Size	8K
Packet Buffer Size	56Gbps
Switch Fabric Speed	10Gbit

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2428G-4CI (pdf, opens in a new tab)

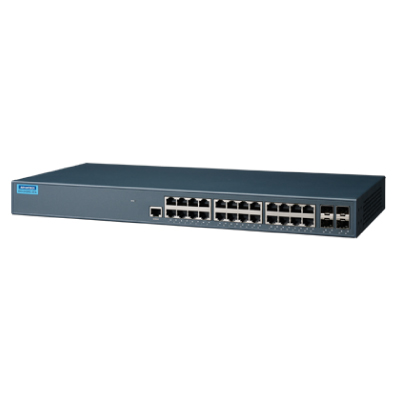

EKI-2428G-4FA

24GE+4G SFP Unmanaged Ethernet Switch, 19″ Rackmount, 100~240VAC, 0~55℃

Click here to show/ hide more info

The EKI-2428G is an unmanaged switch with 24 Gigabit ports and 4 Gigabit SFP ports. It is designed for rack-mount installation, and suitable for edge to core industrial networks. The wire speed across all ports up to 56 Gbps for layer 2 traffic forwarding.

Features:

24 x Gigabit copper ports + 4 x Gigabit SFP ports
SFP socket for Easy and Flexible Fiber Expansion
Provides 8K MAC address
100~240V AC power input

Specifications:

Part Number	EKI-2428G-4FA-AE

* Port Configuration
Description	24 x 10/100/1000BaseT(X) + 4 x 100/1000Base SFP
Total Port Number	28

Certification
EMI	CE FCC Class A
EMS	EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Safety	–

Environment
Temperature (Min. Operating)	0°C (32°F)
Temperature (Max. Operating)	55°C (131°F)
Temperature (Operating Range)	0 ~ 55°C (32 ~ 131°F)
Temperature (Storage Range)	-20 ~ 70°C (-4 ~ 158°F)

Ethernet Communication
Fiber Port Number	4
Fiber Port Interface	SFP
Fiber Port Connector Type	SFP
Fiber Transmission Distance	Up to 110km
Fiber Transmission Speed	100/1000 Mbps
Ethernet Port Number	24
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100/1000 Mbps

Mechanism
Mounting (DIN-rail)	–
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	–
Mounting (Rack Mount)	Yes
Mounting (Pole Mount)	–
Dimensions (W x H x D)	442 x 44 x 211 mm
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	3kg

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Consumption	18W
Power Input (AC)	100~240VAC
Power Input (DC)	–
Power Input (PoE)	–
Power Input (Battery)	–
Power Operating Current	0.9A
Redundant Dual Inputs	–

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	–
MAC Table Size	8K
Packet Buffer Size	4.1M bit
Switch Fabric Speed	56Gbps

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on EKI-2428G-4FA (pdf, opens in a new tab)

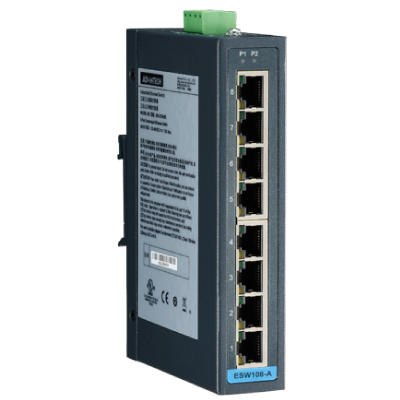

BB-ESW108-A

8FE Slim-type Unmanaged Industrial Ethernet Switch with Low VAC Power Input

Click here to show/ hide more info

The ESW108-A provides a C1D2 compliant fast Ethernet solution and comes with a compact metal enclosure, making it suitable for installation in narrow areas. The IP40-rated enclosure ensures protection against dusty environment.

Features:

8 x fast Ethernet ports with auto MDI/MDI-X
Supports 10/100 Mbps auto negotiation
Compact size with DIN rail and wall mount
Supports redundant 12~48 VDC or 10~24 VAC power input
Wide operating temperature range of -40 ~ 75°C
C1D2 for hazardous locations

Specifications:

Part Number	BB-ESW108-A

* Port Configuration
Description	8 x 10/100Base-TX
Total Port Number	8

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	EN 60950, UL60950, Class 1 Division 2

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	8
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	30 x 140 x 95 mm (1.18″ x 5.51″ x 3.74″)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	4-pin removable terminal (power)
Power Consumption	5.1 W
Power Input (AC)	10~24 VAC
Power Input (DC)	12~48 VDC
Power Input (PoE)	–
Power Input (Battery)	–

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	–
MAC Table Size	–
Packet Buffer Size	–
Switch Fabric Speed	–

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on BB-ESW108-A (pdf, opens in a new tab)

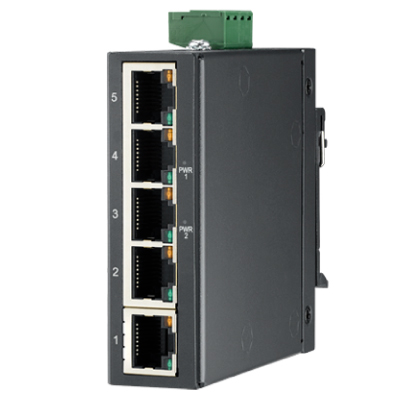

BB-ESW105-A

5FE Slim-type Unmanaged Industrial Ethernet Switch with Low VAC Power Input

Click here to show/ hide more info

The ESW105-A provides a fast Ethernet solution. Power is delivered via either +12 ~ 48 VDC or 10~24VAC redundant input design. The ESW105-A comes with a compact metal enclosure, making it suitable for installation in narrow areas. The IP40-rated enclosure ensures protection against dusty environment

Features:

5 x fast Ethernet ports with auto MDI/MDI-X
Supports 10/100 Mbps auto negotiation
Compact size with DIN rail and wall mount
IP40-rated metal enclosure
Supports redundant 12~48 VDC or 10~24 VAC power input
Wide operating temperature range of -40 ~ 75°C
C1D2 for hazardous locations

Specifications:

Part Number	BB-ESW108-A

* Port Configuration
Description	8 x 10/100Base-TX
Total Port Number	8

Certification
EMI	CE, FCC Class A
EMS	EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Safety	EN 60950, UL60950, Class 1 Division 2

Environment
Temperature (Min. Operating)	-40°C (-40°F)
Temperature (Max. Operating)	75°C (167°F)
Temperature (Operating Range)	-40 ~ 75°C (-40 ~ 167°F)
Temperature (Storage Range)	-40 ~ 85°C (-40 ~ 185°F)

Ethernet Communication
Fiber Port Number	–
Fiber Port Interface	–
Fiber Port Connector Type	–
Fiber Transmission Distance	–
Fiber Transmission Speed	–
Ethernet Port Number	8
RJ45 Port Connector Type	RJ45
RJ45 Transmission Distance	100 m
RJ45 Transmission Speed	10/100Mbps

Mechanism
Mounting (DIN-rail)	Yes
Mounting (Stack)	–
Mounting (Panel)	–
Mounting (Wall)	Yes
Mounting (Rack Mount)	–
Mounting (Pole Mount)	–
Dimensions (W x H x D)	30 x 140 x 95 mm (1.18″ x 5.51″ x 3.74″)
Enclosure (Metal)	Yes
Enclosure (Plastic)	–
IP Rating	IP30
Weight	–

PoE Information
PoE Port Number	–
PoE Budget	–
PoE Output	–
Support PoE	No

Power
Power Connector Type	4-pin removable terminal (power)
Power Consumption	5.1 W
Power Input (AC)	10~24 VAC
Power Input (DC)	12~48 VDC
Power Input (PoE)	–
Power Input (Battery)	–

Product Category
Layer 2 – Unmanaged Switch	Yes

Switch Properties
Jumbo Frame	–
MAC Table Size	–
Packet Buffer Size	–
Switch Fabric Speed	–

Warranty
Warranty Period	5 years

Protection
Overload Current	Present
Reverse Polarity	Present

Datasheet on BB-ESW105-A (pdf, opens in a new tab)

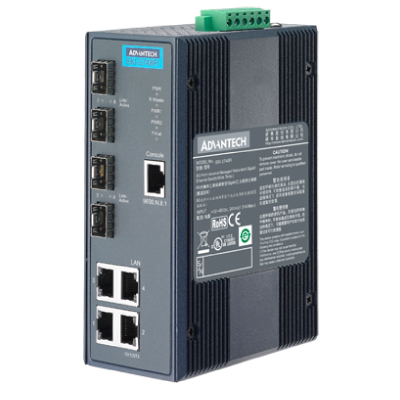

EKI-2748FI

4Gx+4SFP Managed Ethernet Switch with Wide Temperature

Click here to show/ hide more info

EKI-2748FI and EKI-2748CI supports Gigabit with Ethernet and SFP/Combo ports. To enhance reliability in industrial communication network, it equipped with Advantech owned redundant network protocol — X-Ring Pro, which provides users with an easy way to establish a redundant Ethernet network with ultra high-speed recovery time less than 20 ms.
Furthermore, EKI-2748FI and EKI-2748CI also support advanced network standards to optimize network performance, reduce maintenance cost, and secure network safety.

Features:

All Gigabit Ethernet ports for Copper and SFP/Combo interfaces
SFP sockets for easy and flexible fiber expansion
Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
Management: Web, Telnet, Serial Console, SNMP v1/v2c/v3
Control: VLAN/GVRP, QoS, IGMP Snooping/Query, LACP, Rate Limit
Security: IP/MAC and port binding, DHCP Server, IP access list, 802.1X, SSL
Diagnostic: Port statistic, Port Mirroring, RMON, Trap, Email Alert, Syslog
Dual 12 ~ 48 VDC power input and 1 relay output

Specifications:

Datasheet on EKI-2748FI (pdf, opens in a new tab)

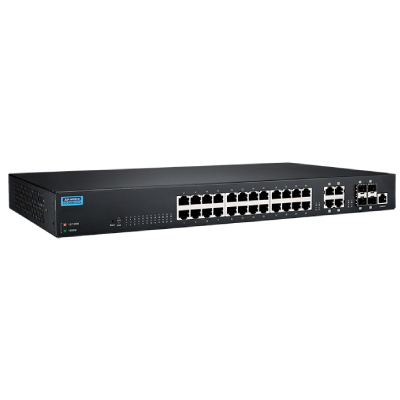

EKI-2428G-4CA

24GE+4G Combo Unmanaged Ethernet Switch, 19″ Rackmount, 100~240VAC, 0~60℃

Click here to show/ hide more info

It is an unmanaged switch with 24 Gigabit ports & 4 Gigabit combo ports, designed for rack-mount installation, and suitable for edge to core networks.

Features:

24 x Gigabit ports + 4 x Gigabit Copper/SFP combo ports
Support auto MDI/MDIX
Wire-speed data transmission
Easy to increase bandwidth of Gigabit Ethernet for network deployment
SFP socket for Easy and Flexible Fiber Expansion
100~240VAC Power Input

Specifications:

Datasheet on EKI-2428G-4CA (pdf, opens in a new tab)

EKI-2525MI

4FE+1FE SC Multi-mode Unmanaged Ethernet Switch, -40~75℃

Click here to show/ hide more info

EKI-2525MI/2525SI are industrial-grade Ethernet switches that enable you to expand your industrial network quickly and cost-effectively. Using fiber-optics prevents noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmission.

Features:

Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
Provides 1 x 100 Mbps Multi-mode SC type fiber optic port
Supports full/half duplex flow control
Supports MDI/MDI-X auto crossover
Provides redundant 12 ~ 48 VDC power input
Provides flexible mounting: DIN-rail and wall mount

Specifications:

Datasheet on EKI-2525MI (pdf, opens in a new tab)

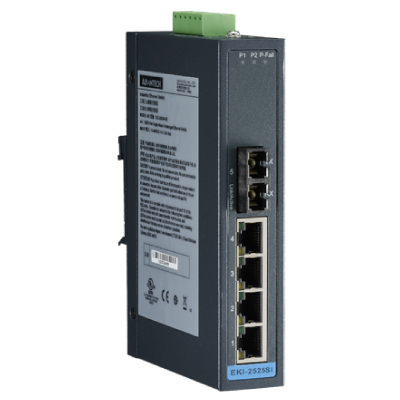

EKI-2525SI

4FE+1FE SC Single-mode Unmanaged Ethernet Switch, -40~75℃

Click here to show/ hide more info

EKI-2525MI/2525SI are industrial-grade Ethernet switches that enable you to expand your industrial network quickly and cost-effectively. Using fiber-optics prevents noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmission.

Features:

Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
Provides 1 x 100 Mbps Single-mode SC type fiber optic port
Supports full/half duplex flow control
Supports MDI/MDI-X auto crossover
Provides redundant 12 ~ 48 VDC power input
Provides flexible mounting: DIN-rail and wall mount

Specifications:

Datasheet on EKI-2525SI (pdf, opens in a new tab)

EKI-2525SI-ST

4FE+1FE ST Single-mode Unmanaged Ethernet Switch, -40~75℃

Click here to show/ hide more info

EKI-2525MI/2525SI are industrial-grade Ethernet switches that enable you to expand your industrial network quickly and cost-effectively. Using fiber-optics prevents noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmission.

Features:

Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
Provides 1 x 100 Mbps Single-mode ST type fiber optic port
Supports full/half duplex flow control
Supports MDI/MDI-X auto crossover
Provides redundant 12 ~ 48 VDC power input
Provides flexible mounting: DIN-rail and wall mount

Specifications:

Datasheet on EKI-2525SI-ST (pdf, opens in a new tab)

EKI-2525MI-ST

4FE+1FE ST Multi-mode Unmanaged Ethernet Switch, -40~75℃

Click here to show/ hide more info

EKI-2525MI/2525SI are industrial-grade Ethernet switches that enable you to expand your industrial network quickly and cost-effectively. Using fiber-optics prevents noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmission.

Features:

Provides 4 x 10/100 Mbps Ethernet ports with RJ45 connector
Provides 1 x 100 Mbps Multi-mode ST type fiber optic port
Supports full/half duplex flow control
Supports MDI/MDI-X auto crossover
Provides redundant 12 ~ 48 VDC power input
Provides flexible mounting: DIN-rail and wall mount

Specifications:

Datasheet on EKI-2525MI-ST (pdf, opens in a new tab)

Industrial Ethernet Switches

Unmanaged Ethernet Switches

On this page:

Other related pages:

Unmanaged Ethernet Switches Product List

EKI-2528I-M12

EKI-2720G

EKI-2712G-4FPI

EKI-2525M-ST

EKI-2528DI

EKI-2525M

EKI-2525S

EKI-2525LI

EKI-5525MI

EKI-5525SI

EKI-5525MI-ST

EKI-5525SI-ST

ADAM-6521

ADAM-6521S

ADAM-6521/ST

ADAM-6520L

ADAM-6520

ADAM-6520I

EKI-2525

EKI-2525I

EKI-5525I

EKI-2526M

EKI-2526S

EKI-5524MMI

EKI-5524SSI

EKI-5524MMI-ST

EKI-5524SSI-ST

EKI-2528

EKI-2528I

EKI-5528I

EKI-5629CI

EKI-5526I

EKI-5626CI

EKI-2725F

EKI-2725FI

EKI-2725

EKI-2725I

EKI-5725I

EKI-2728M

EKI-2728MI

EKI-2728S

EKI-2728SI

EKI-2728

EKI-2728I

EKI-5728I

EKI-5729FI

EKI-7529MI

EKI-5726I

EKI-5726FI

EKI-2428G-4CI

EKI-2428G-4FA

BB-ESW108-A

BB-ESW105-A

EKI-2748FI

EKI-2428G-4CA

EKI-2525MI

EKI-2525SI

EKI-2525SI-ST

EKI-2525MI-ST
