Why Choose AEMC® Data Loggers?
AEMC® Instrument’s data loggers are versatile, powerful and cost-effective.
We offer single, dual, four, and eight channel data loggers to address a wide range of applications
Simple to use, operation in a few minutes
Includes software for analyzing and reporting the recorded data
Models available with remote access via the internet
Cost Effective & Quick Ship
Our data loggers are built with exceptional quality for a great value



Key Features (model specific)
Programmable storage modes and rates
Accurate representation of measured signals for AC models
Stores over 240,000 measurements ensuring no valuable data is missed with more than 8 hours at 8 samples per second
Easily installed anywhere quickly – operational in seconds
Compact and runs on alkaline batteries
Wireless (Bluetooth) or USB communication
Comprehensive DataView graphing, analysis and report generation software
Display and analyze real-time data on your PC and more…

AEMC Dataloggers Measure a Wide Variety of Applications
Assists electricians and engineers in finding problems that occur randomly in fault/intermittent current detection
Neutral current monitoring finds unwanted leakage currents
Harmonic real-time current monitoring
Load profiling which size loads for proper transformer and meter selection
Process loops monitoring – finds troubled sensors and controls
HVAC and general temperature and more…

The AEMC SimpleLogger II range of AC power data loggers are very easy to use and provide a complete data logging solution for measuring single phase AC current and/or voltage. They run from standard AA batteries and are simple to configure and deploy, yet offer sophisticated features such as flexible storage modes and true RMS measurement.

About Measurement category - CAT III & CAT IV (click to view)

Measurement category – a method of classification of live electric circuits used in measurement and testing of installations and equipment, usually in the relation within a building (residential or industrial).

The categories take into account the total continuous energy available at the given point of circuit, and the occurrence of impulse voltages. The energy can be limited by circuit breakers or fuses, and the impulse voltages by the nominal level of voltage.

CAT III is for circuits which can be connected to the mains installation of a building. Energy is limited by circuit breakers to less than 110 000 VA with the current not exceeding 11 000 A.
Example: 110/240 V distribution boards, busbars, or equipment permanently connected to the 3-phase power supply (e.g. electric motors).

CAT IV includes circuits which are connected directly to the source of power for a given building. There are very high levels of available energy (e.g. limited only by the power transformer) and arc flash can occur.
Example: measurements on a cable connecting the power transformer and a building (i.e. before the circuit breakers in the building).

More information: http://en.wikipedia.org/wiki/Measurement_category

Data Loggers for Power – AEMC SimpleLogger II

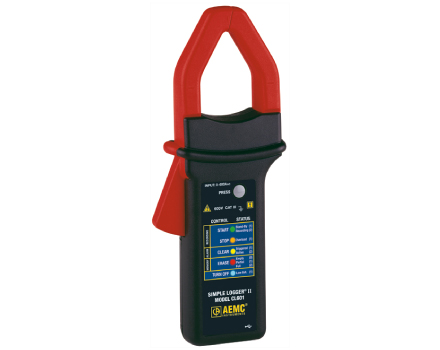

CL601 Simple Logger® II Clamp-on Current Logger


One channel recording device that performs line tracking by taking 64 samples over one line cycle. Performs frequency tracking over the range of ±2Hz around the nominal line frequency 50 or 60Hz. Records TRMS at a rate of up to eight times per second. Performs a variety of recording tasks with easy and intuitive setup from a computer using the free DataView® software (included).
Simple Logger® II Model CL601
Read more

Simple Logger® II Model CL601

The Simple Logger® II Model CL601 is a one channel recording device with an alkaline battery pack. Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed over the range of ±2Hz around the nominal line frequency 50 or 60Hz. Harmonic measurements are calculated from these 64 samples. It records TRMS at a rate of up to eight times per second. The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the inputs are ignored between measurement intervals. This logger can perform a variety of recording tasks with easy and intuitive setup from a computer using the free DataView® software included with the unit.

Features:

  • 0 to 600Arms
  • True RMS measurements
  • Self contained, no exposed connections
  • Overload indication
  • Optically isolated USB 2.0 communication cable included
  • One button operation
  • Alarm function
  • 5 LED indicators quickly and clearly display logger status
  • Powered by standard Alkaline batteries
  • Includes FREE DataView® software for data retrieval, real-time display, analysis and report generation
  • EN 61010-1; 300V CAT IV, 600V CAT III

Specifications:

  • Machine load monitoring
  • HVAC troubleshooting
  • Load profiling
  • Electrical troubleshooting
  • Start-Stop time stamping

Specifications:

MODEL CL601
ELECTRICAL
Channels One
Input Split CT – AC Current
Measurement Range 0 to 600AAC
Resolution 0.1A
Accuracy (50/60Hz) 0 to 5A: unspecified

5 to 50A: ±(1% of Reading + 1A) 50 to 400A: ±(1% of Reading + 0.5A) 400 to 600A: ±(3% of Reading + 1A)

Sample Rate 64 samples/cycle
Storage Rate Programmable from 8 every second to 1 every day
Storage Modes Start/Stop, FIFO, Extended Recording Mode (XRM™)* and Alarm
Recording Length 15 minutes to 8 weeks, programmable using DataView®
Memory 240,000 measurements (512KB) – The recorded data is

stored in non-volatile memory and will be retained even if the battery is low or removed.

Communication USB 2.0 optically isolated
Power Source 2 x 1.5V AA-cell Alkaline batteries (included)
Battery Life 100 hours to >45 days

(dependent on sample rate and recording length)

MECHANICAL
Dimensions 9.25 x 4.0 x 1.63″ (235 x 102 x 41mm)
Max Conductor Size 1 conductor – Ø 1.42″ (36mm)

2 conductor s- Ø 1.00″ (25mm) each

Weight (with battery) 17.1oz (485g)
Case UL94-V0
Vibration IEC 68-2-6 (1.5mm, 10 to 55Hz)
Shock IEC 68-2-27 (30G)
Drop IEC 68-2-32 (1m)

Datasheet on Simple Logger® II Model CL601 (pdf, opens in a new tab)

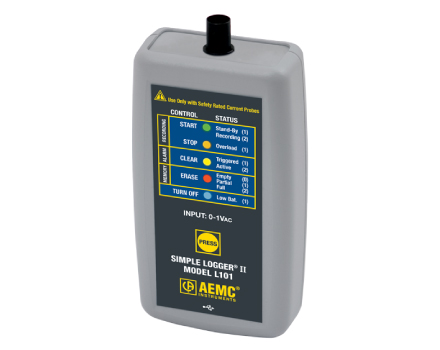

L101 Simple Logger II Series (1-Channel Current)


1-Channel, TRMS, 0 to 1VAC, DataView® Software
One channel recording device that performs line tracking by taking 64 samples over one line cycle. Harmonic measurements are calculated from these 64 samples. Records TRMS at a rate of up to eight times per second. TRMS calculations are performed on a single line cycle.
Simple Logger® II Model L101
Read more

Simple Logger® II Model L101

The Simple Logger® II Model L101 is a one channel recording device powered by an alkaline battery pack. Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed over the range of ±2Hz around the nominal line frequency 50 or 60Hz. Harmonic measurements are calculated from these 64 samples. Harmonics are only available from the Simple Logger® II Control Panel within the free DataView® software included with the unit. The L101 records TRMS at a rate of up to eight times per second. The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the inputs are ignored between measurement intervals.

Features:

  • Compatible standard current probes with voltage output and BNC connection (sold separately)
  • 64 samples per cycle
  • Programmable storage rates from 8 every second to 1 every day
  • 4 user selectable storage modes
  • Stores up to 240,000 measurements in non-volatile memory
  • Powered by standard Alkaline batteries
  • Lightweight, compact, fits anywhere
  • 5 LED indicators quickly and clearly display logger status
  • Includes FREE DataView® software for data storage, real-time display, analysis and report generation
  • Optically isolated USB 2.0 communication cable included

Applications:

  • Load profiling
  • Fault current detection
  • Intermittent problem detection
  • Demand recording
  • Neutral current monitoring
  • Harmonic current recording using DataView® software
  • Metering CT resizing
  • Start-Stop time stamping

Specifications:

MODELS L101
ELECTRICAL
Channels One
Input Connection BNC
Measurement

Range

0 to 1Vac (probe dependent)
Resolution 0.1mV
Accuracy (50/60Hz) 0 to 10mV: unspecified

10 to 50mV: ±(0.5% of Reading + 1mV) 50 to 1000mV: ±(0.5% of Reading + 0.5mV)

Input Impedance 800kW
Sample Rate 64 samples/cycle
Storage Rate Programmable from 8 every second to 1 every day
Storage Modes Start/Stop, FIFO, Extended Recording Mode (XRM™) and Alarm
Recording Length 15 minutes to 8 weeks, programmable using DataView®
Memory 240,000 measurements (512KB)

The recorded data is stored in non-volatile memory and will be retained even if the battery is low or removed.

Communication USB 2.0 optically isolated
Power Source 2 x 1.5V AA-cell Alkaline batteries (included)
Battery Life 100 hours to >45 days (dependent on sample rate and recording length)
MECHANICAL
Dimensions 5.38 x 2.75 x 1.28″

(136 x 70 x 32mm)

Max Conductor Size Current probe dependent
Weight

(with battery)

6.4oz (181g)
Case UL94-V0
Vibration IEC 68-2-6 (1.5mm, 10 to 55Hz)
Shock IEC 68-2-27 (30G)
Drop IEC 68-2-32 (1m)

Datasheet on Simple Logger® II Model L101 (pdf, opens in a new tab)

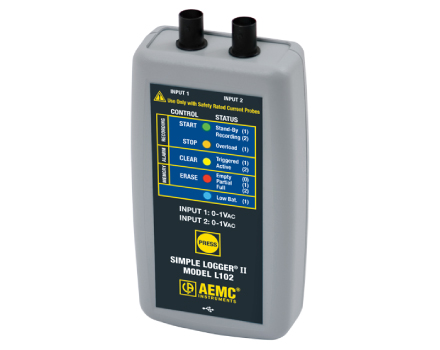

L102 Simple Logger II Series (2-Channel Current)


The Simple Logger® II Model L102 is a two channel recording device powered by two alkaline batteries. Line tracking is performed such that 64 samples over one line cycle are taken.
L102 Simple Logger II Series
Read more

L102 Simple Logger II Series

The Simple Logger® II Model L102 is a two channel recording device powered by two alkaline batteries. Line tracking is performed such that 64 samples over one line cycle are taken. Frequency tracking is performed over the range of ±2Hz around the nominal line frequency 50 or 60Hz. Harmonic measurements are calculated from these 64 samples. Harmonics are only available from the Simple Logger® II Control Panel within the free DataView® software included with the unit. The L102 records TRMS at a rate of up to eight times per second. The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the inputs are ignored between measurement intervals.

Features:

  • Compatible standard current probes with voltage output and BNC connection (sold separately)
  • 2 inputs (Model L102)
  • 64 samples per cycle
  • Programmable storage rates from 8 every second to 1 every day
  • 4 user selectable storage modes
  • Stores up to 240,000 measurements in non-volatile memory
  • Powered by standard Alkaline batteries
  • Lightweight, compact, fits anywhere
  • 5 LED indicators quickly and clearly display logger status
  • Includes FREE DataView® software for data storage, real-time display, analysis and report generation
  • Optically isolated USB 2.0 communication cable included
  • EN 61010-1; 50V CAT III

Applications:

  • Split phase load monitoring
  • Neutral & ground current monitoring
  • Intermittent problem detection
  • Harmonic current monitoring using DataView® software
  • Machine load monitoring
  • Start-Stop time stamping

Specifications:

MODELS L102
ELECTRICAL
Channels Two
Input Connection One BNC connector per channel
Measurement

Range

0 to 1Vac (probe dependent)
Resolution 0.1mV
Accuracy (50/60Hz) 0 to 10mV: unspecified

10 to 50mV: ±(0.5% of Reading + 1mV) 50 to 1000mV: ±(0.5% of Reading + 0.5mV)

Input Impedance 800kW
Sample Rate 64 samples/cycle
Storage Rate Programmable from 8 every second to 1 every day
Storage Modes Start/Stop, FIFO, Extended Recording Mode (XRM™) and Alarm
Recording Length 15 minutes to 8 weeks, programmable using DataView®
Memory 240,000 measurements (512KB)

The recorded data is stored in non-volatile memory and will be retained even if the battery is low or removed.

Communication USB 2.0 optically isolated
Power Source 2 x 1.5V AA-cell Alkaline batteries (included)
Battery Life 100 hours to >45 days (dependent on sample rate and recording length)
MECHANICAL
Dimensions 5.18 x 2.75 x 1.28″ (132 x 70 x 32mm)
Max Conductor Size Current probe dependent
Weight

(with battery)

6.64oz (188g)
Case UL94-V0
Vibration IEC 68-2-6 (1.5mm, 10 to 55Hz)
Shock IEC 68-2-27 (30G)
Drop IEC 68-2-32 (1m)

Datasheet on L102 Simple Logger II Series (pdf, opens in a new tab)

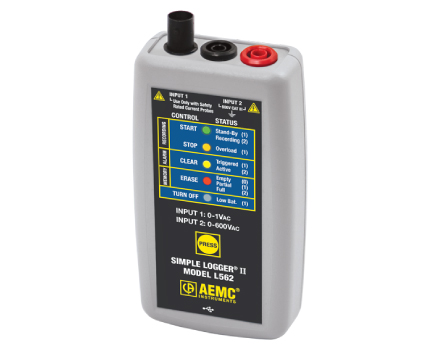

L562 Simple Logger II Series (AC Current and Voltage)


2-Channel, TRMS, Voltage & Current, DataView® Software
Two channel voltage/current data logger. Features include Extended Recording Mode (XRM®) and delayed start time. Records TRMS at a rate of up to eight times per second. TRMS calculations are performed on a single line cycle. Includes easy and intuitive setup from a computer using DataView® software.
L562 Simple Logger II Series (AC Current and Voltage)
Read more

L562 Simple Logger II Series (AC Current and Voltage)

The Simple Logger® II Model L562 is a two channel Volt/Amp data logger. The choice of data storage modes and storage rates allows the operator to effortlessly configure the logger to optimize memory usage to the application at hand. Extended Recording Mode XRMTM and delayed start time are just two of the many application friendly features. The Simple Logger® II records TRMS at a rate of up to eight times per second. The measurement process is performed no more than eight times per second. TRMS calculations are performed on a single line cycle. This means that the inputs are ignored between measurement intervals.

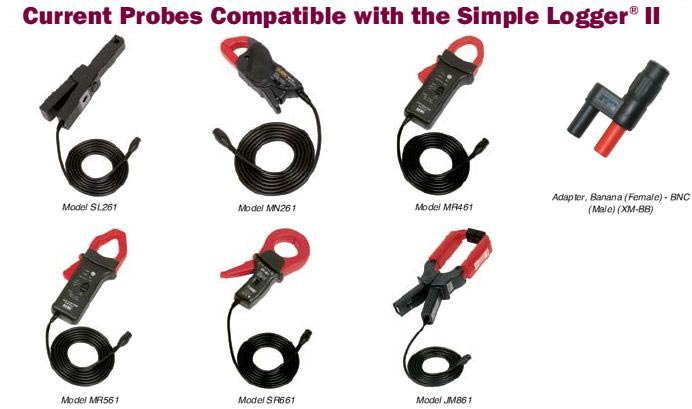

NOTE: There are many compatible current probes available as an accessory. The following current probes will also need the Adapter Cat. #2118.46 which is sold separately:
MF 300-6-2-10 | 300-24-2-1 | 1000-24-1-1 | 1000-24-2-1 | 1000-36-2-1 | 6000-36-2-0.1 | 30000-24-2-0.1 | MN01 | MN02 | MN03 | MN93-BK | MN193-BK | MN251 | MN255 | MN353 | MN373 | MN375 | MN379 | SR193-BK | SR661 | SR752 | SR759

Features:

  • 2 input channels
  • Voltage: 0 to 600V AC TRMS
  • Current: compatible with voltage output AC current probes with voltage outputs (see page 33 – sold separately)
  • 64 samples per cycle
  • Records Arms, Vrms & VA (VA displays in DataView® software)
  • 4 user selectable storage modes
  • Programmable storage rates from 8 every second to 1 every day
  • Stores up to 240,000 measurements in non-volatile memory
  • Powered by standard Alkaline batteries
  • Lightweight, compact, fits anywhere
  • 5 LED indicators quickly and clearly display logger status
  • Includes FREE DataView® software for data retrieval, real-time display, analysis and report generation
  • Optically isolated USB 2.0 communication cable included
  • Complies with EN 61010-1; 300V CAT IV; 600V CAT III (a safety rated current probe is required)

Applications:

  • Single phase power monitoring
  • Residential, commercial, industrial, troubleshooting
  • Find sags and surges
  • Track energy usage
  • Start-Stop time stamping


Specifications:

MODEL L562
ELECTRICAL
Channels Two
Connection Current Channel Voltage Channel
Input Connection BNC Two recessed banana jacks
Input Range 0 to 1VAC (for use with current probes with a voltage output) 0 to 600VAC
Resolution 0.1mV 0.1V
Accuracy (50/60Hz)

0 to 10mV unspecified 10 to 50mV:

±(0.5% of Reading + 1mV)

50 to 1000mV:

±(0.5% of Reading + 0.5mV)

0 to 5V unspecified 5 to 50V:

±(0.5% of Reading + 1V)

50 to 600V:

±(0.5% of Reading + 0.5V)

Input Impedance 800kΩ 40MΩ
Maximum Input Voltage 5Vrms or ±7.07V peak 1.2 x 600V
Sample Rate 64 samples/cycle
Storage Rate Programmable from 8 every second to 1 every day
Storage Modes Start/Stop, FIFO, Extended Recording Mode (XRmTM) and Alarm
Recording Length 15 minutes to 8 weeks, programmable using DataView®
Memory

240,000 measurement (512KB).

The recorded data is stored in non-volatile memory and will be retained even if the battery is low or removed.

Communication USB 2.0 optically isolated
Power Source 2 x 1.5V AA-cell Alkaline batteries (included)
Battery Life

100 hours to > 45 days

(dependent on sample rate and recording length)

MECHANICAL
Dimensions 5.38 x 2.75 x 1.28″ (136 x 70 x 32mm)
Max Conductor Size Current probe dependent
Weight (with battery) 6.4oz (181g)
Case UL94-VO
Vibration IEC 68-2-6 (1.5mm, 10 to 55Hz)
Shock IEC 68-2-27 (30G)
Drop IEC 68-2-32 (1m)

Datasheet on Simple Logger® II Model L562 (pdf, opens in a new tab)

Accessories for Simple Logger II

Call Now Button
Upgrade to reliability this Black Friday with 10% off on Industrial PCs—durable solutions for demanding settings!
