Passive Backplanes for Industrial PC’s

Plug into a passive backplane

Passive Backplanes

Passive Backplanes series are easily customized which include PCI boards, ISA boards, PICMG 1.3 full-sized, PICMG 1.0 full-sized and half-sized single board computers. All backplane products provide with matching chassis and outstanding expansion flexibility.

PICMG PCI/ISA Specification compliant, versatile combination of PCI and ISA slots, and supporting both AT and ATX power supplies.

PICMG
The PCI Industrial Computer Manufacturers Group (PICMG) is a consortium of over 450 companies that collaboratively develop open specifications for high performance telecommunications and industrial computing applications. The members of the consortium have a long history of developing and using leading edge products for these industries.

PICMG 1.3 Full-Size SBC Backplanes

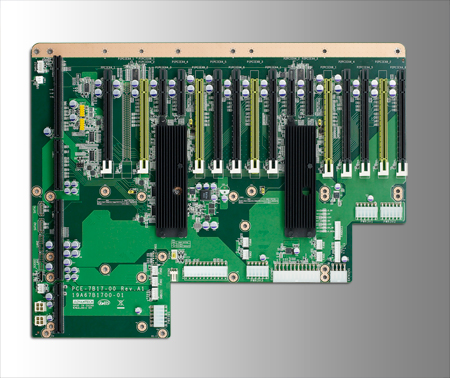

PCE-7B17-00


PICMG1.3 Full-Size SHB Backplanes
PCE-7B17-00
Click here to show/ hide more info

PCE-7B17-00

Features

  • 17 slot BP for 20-slot chassis
  • Segments:1
  • One CPU card slot
  • PCIe slot: five x8, eleven x4
  • PCI-X slot: N/A
  • PCI slot: N/A
  • Compatible with IPC chassis: IPC-623, ACP-5360, and ACP-7360

Descriptions

PICMG1.3 Full-Size SHB Backplanes

Specifications

Data sheet on PCE-7B17-00 (pdf file (opens in new tab)

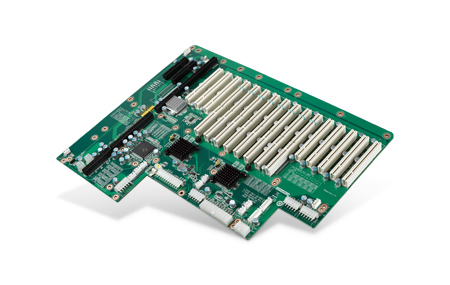

PCE-7B19


19-slot BP for 20-slot chassis
PCE-7B19
Click here to show/ hide more info

PCE-7B19

Features

  • 19-slot BP for 20-slot chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: Two X8
  • PCI-X slot: Eight 64/100
  • PCI slot: Eight 32/33
  • Compatible with IPC chassis: IPC-622 and IPC-623

Descriptions

19-slot BP for 20-slot chassis

Specifications

Part Number PCE-7B19-88B1E
Expansion Interface
PCI Express x 8 2
PCI 8
PCI-X 8

Data sheet on PCE-7B19 (pdf file (opens in new tab)

PCE-7B13


PICMG 1.3 Full-Size SHB Backplanes, Server Grade Backplanes, 14-slot Rackmount Chassis Backplanes
PCE-7B13
Click here to show/ hide more info

PCE-7B13

Features

  • 13-slot BP for 14-slot chassis
  • Segment: 1
  • One CPU card slot
  • PCIe slot: Two x8
  • PCI-X slot: Two 64/100; Four 64/66
  • PCI slot: Four 32/33
  • Compatible with IPC chassis: IPC-610, IPC-611, IPC-630, ACP-4000, ACP-4320 and ACP-4360, ACP-4010

Descriptions

PICMG 1.3 Full-Size SHB Backplanes, Server Grade Backplanes, 14-slot Rackmount Chassis Backplanes

Specifications

Part Number PCE-7B13-07A1E
Expansion Interface
PCI Express x 8 2
PCI Express x 4 3
PCI 7
PCI-X

Data sheet on PCE-7B13 (pdf file (opens in new tab)

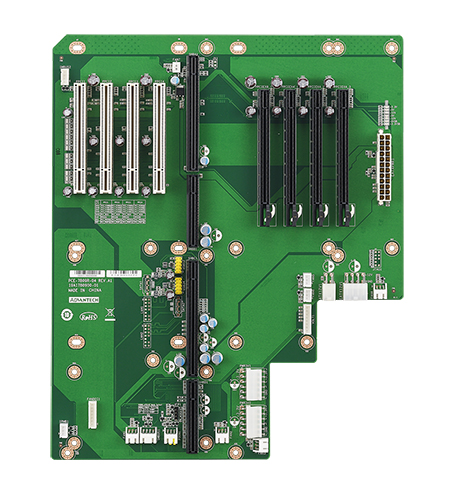

PCE-7B09R


14-slot Rackmount Chassis Backplanes
PCE-7B09R
Click here to show/ hide more info

PCE-7B09R

Features

  • Power supply voltage: +12V, +5V, -12V, -5V, +3.3V, +5VSBY
  • Power requirements: Refer to the CPU Board , add-on Card & Peripherals
  • Operating temperature: 0 ~ 60°C
  • Weight: 0.6kg (weight of board)

Descriptions

14-slot Rackmount Chassis Backplanes

Specifications

Part Number PCE-7B09R-04A1E
Expansion Interface
PCI Express x 8 1
PCI Express x 4 3
PCI 4

Data sheet on PCE-7B09R (pdf file (opens in new tab)

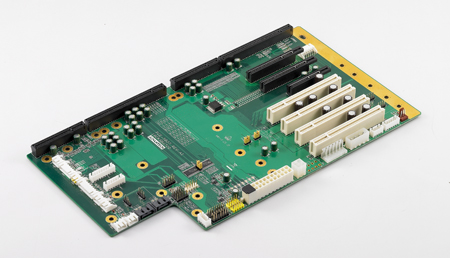

PCE-7B08


Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s.
PCE-7B08
Click here to show/ hide more info

PCE-7B08

Features

  • 8-slot BP for 8-slot chassis
  • Segment: 1
  • One CPU card slot
  • PCIe slot: Two x8; One x4
  • PCI-X slot: N/A
  • PCI slot: Four 32/33
  • Compatible with IPC chassis: IPC-6608 and IPC-6908

Descriptions

Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards. Advantech’s SHBs empower system designers to create a new generation of servers, workstations and industrial platforms.

Specifications

Part Number PCE-7B08-04A1E
Expansion Interface
PCI Express x 8 2
PCI Express x 4 1
PCI 4

Data sheet on PCE-7B08 (pdf file (opens in new tab)

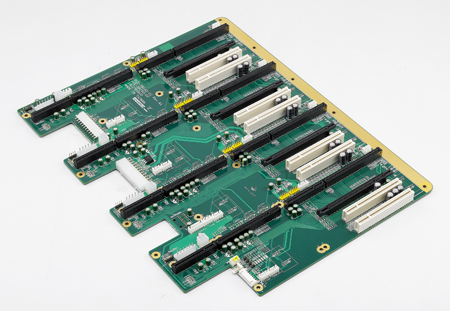

PCE-5B16Q


Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s.
PCE-5B16Q
Click here to show/ hide more info

PCE-5B16Q

Features

  • 16-slot BP for 20-slot chassis
  • Segments: 4
  • Each segment:
  • — One CPU card slot
  • — PCIe slot: One x16
  • — PCI-X slot: N/A
  • — PCI slot: Two 32/33
  • — Compatible with IPC chassis: IPC-623, ACP-5360, ACP-7360

Descriptions

Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards. Advantech’s SHBs empower system designers to create a new generation of servers, workstations and industrial platforms.

Specifications

Part Number PCE-5B16Q-02A1E
Expansion Interface
PCI Express x 16 1
PCI 2

Data sheet on PCE-5B16Q (pdf file (opens in new tab)

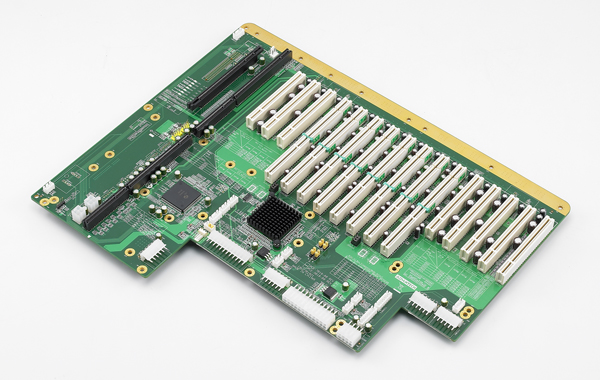

PCE-5B18-88A1E


Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards.
PCE-5B18-88A1E
Click here to show/ hide more info

PCE-5B18-88A1E

Features

  • 18-slot BP for 20-slot chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: One x16
  • PCI-X slot: Eight 64/66
  • PCI slot: Eight 32/33
  • Compatible with IPC chassis: IPC-623, ACP-5360 and ACP-7360

Descriptions

Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards. Advantech’s SHBs empower system designers to create a new generation of servers, workstations and industrial platforms.

Specifications

Part Number PCE-5B18-88A1E
Expansion Interface
PCI Express x 16 1
PCI 8
PCI-X 8

Data sheet on PCE-5B18-88A1E (pdf file (opens in new tab)

PCE-5B19


19 slot BP for 20-slot chassis
PCE-5B19
Click here to show/ hide more info

PCE-5B19

Features

  • Segments: 1
  • One CPU card slot
  • PCIe slot: Seventeen X16 and One X4
  • PCI-X slot: N/A
  • PCI slot: N/A
  • Compatible with IPC chassis: IPC-622/623

Descriptions

19 slot BP for 20-slot chassis

Specifications

Part Number PCE-5B19-00A1E
Expansion Interface
PCI Express x 16 17
PCI Express x 4 1
Compatible with IPC chassis
Chassis Model Name Compatible with IPC chassis: IPC-622/623

Data sheet on PCE-5B19 (pdf file (opens in new tab)

PCE-5B18


18-slot BP for 20-slot chassis
PCE-5B18
Click here to show/ hide more info

PCE-5B18

Features

  • 18-slot BP for 20-slot chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: One X16
  • PCI-X slot: Eight 64/100
  • PCI slot: Eight 32/33
  • Compatible with IPC chassis: IPC-622/623, ACP-5360, and ACP-7360

Descriptions

18-slot BP for 20-slot chassis

Specifications

Part Number PCE-5B18-88B1E
Expansion Interface
PCI Express x 16 1
PCI 8
PCI-X 8

Data sheet on PCE-5B18 (pdf file (opens in new tab)

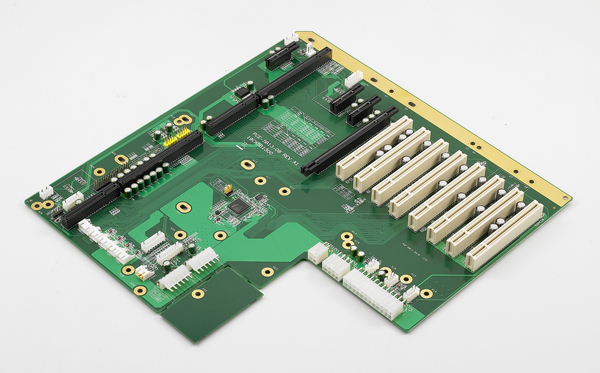

PCE-5B13


Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s.
PCE-5B13
Click here to show/ hide more info

PCE-5B13

Features

  • 13-slot BP for 14-slot chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: One x16; Three x1
  • PCI-X slot: N/A
  • PCI slot: Eight 32/33
  • Compatible with IPC chassis: IPC-610, IPC-611, IPC-630,ACP-4000, ACP-4010, ACP-4320, and ACP-4360

Descriptions

Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards. Advantech’s SHBs empower system designers to create a new generation of servers, workstations and industrial platforms.

Specifications

Part Number PCE-5B13-08A1E
Expansion Interface
PCI Express x 16 1
PCI Express x 1 3
PCI 8

Data sheet on PCE-5B13 (pdf file (opens in new tab)

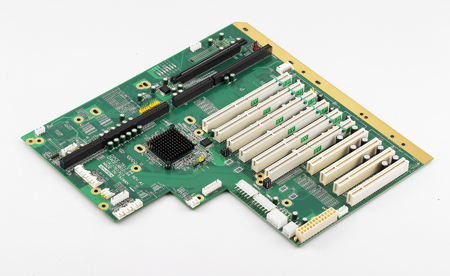

PCE-5B12


Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s.
PCE-5B12
Click here to show/ hide more info

PCE-5B12

Features

  • 12-slot backplane for 14-slot Chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: One x16
  • PCI-X slot: Two 64/100; Four 64/66
  • PCI slot: Four 32/33
  • Compatible with IPC chassis: IPC-610, IPC-611, IPC-630, ACP-4000, ACP-4010,ACP-4320, and ACP-4360

Descriptions

Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards. Advantech’s SHBs empower system designers to create a new generation of servers, workstations and industrial platforms.

Specifications

Part Number PCE-5B12-00A1E
Expansion Interface
PCI Express x 16 10
PCI Express x 4 1
PCI
PCI – X

Data sheet on PCE-5B12 (pdf file (opens in new tab)

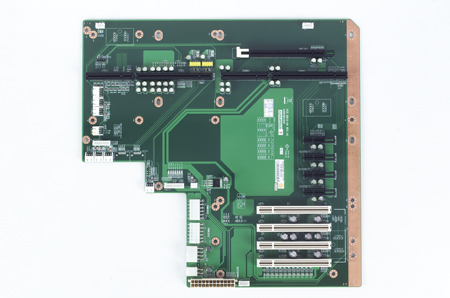

PCE-5B10


Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards.
PCE-5B10
Click here to show/ hide more info

PCE-5B10

Features

  • 10-slot BP for 14-slot chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: One x16; Four x1
  • PCI-X slot: N/A
  • PCI slot: Four 32/33
  • Compatible with IPC chassis: IPC-610, IPC-611, IPC-630, ACP-4000, ACP-4320, and ACP-4360, ACP-401

Descriptions

Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards. Advantech’s SHBs empower system designers to create a new generation of servers, workstations and industrial platforms.

Specifications

Category Attribute Value
Expansion Interface PCI 4
PCI Express x 1 4
PCI Express x 16 1

Data sheet on PCE-5B10 (pdf file (opens in new tab)

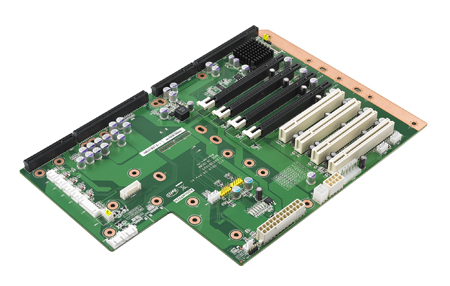

PCE-5B09


9-slot BP for 10-slot wall-mount/ 14-slot rack-mount chassis
PCE-5B09
Click here to show/ hide more info

PCE-5B09

Features

  • 9-slot BP for 10-slot wall-mount/ 14-slot rack-mount chassis
  • segment:1
  • one CPU card slot
  • PCIe slot: one x16, three x4
  • PCI-X slot:N/A
  • PCI slot: Four 32 bit/ 33MHz
  • Compatible with IPC-7132, ACP-4360/4320/4010/4000, IPC-630/610/ 611(F,H,L)

Descriptions

9-slot BP for 10-slot wall-mount/ 14-slot rack-mount chassis

Specifications

Part Number PCE-5B09-04A1E
Expansion Interface
PCI Express x 16 1
PCI Express x 4 3
PCI 4

Data sheet on PCE-5B09 (pdf file (opens in new tab)

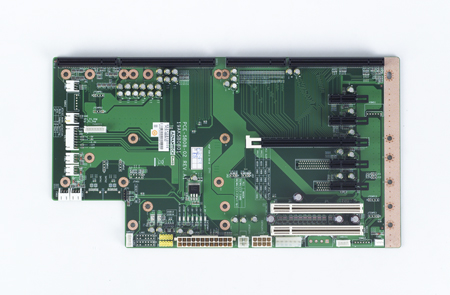

PCE-5B08


8-slot BP for 8-slot chassis
PCE-5B08
Click here to show/ hide more info

PCE-5B08

Features

  • 8-slot BP for 8-slot chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: One x16; Four x1
  • PCI-X slot: N/A
  • PCI slot: Two 32/33
  • Compatible with IPC chassis: IPC-6608 and IPC-6908

Descriptions

8-slot BP for 8-slot chassis

Specifications

Part Number PCE-5B08-02A1E
Expansion Interface
PCI Express x 16 1
PCI Express x 1 4
PCI 2

Data sheet on PCE-5B08 (pdf file (opens in new tab)

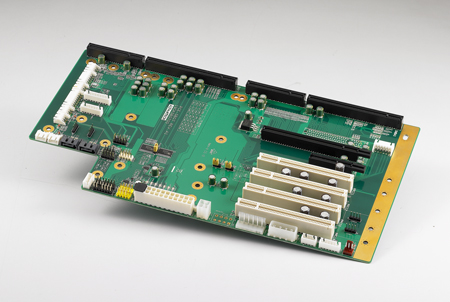

PCE-5B07


Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s.
PCE-5B07
Click here to show/ hide more info

PCE-5B07

Features

  • 7-slot BP for 8-slot chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: One x16; One x4
  • PCI-X slot: N/A
  • PCI slot: Four 32/33
  • Compatible with IPC chassis: IPC-6608 and IPC-6908

Descriptions

Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards. Advantech’s SHBs empower system designers to create a new generation of servers, workstations and industrial platforms.

Specifications

Category Attribute Value
Expansion Interface PCI 4
PCI Express x 16 1
PCI Express x 4 1

Data sheet on PCE-5B07 (pdf file (opens in new tab)

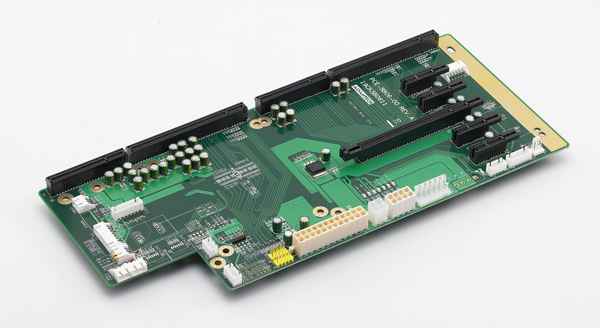

PCE-5B06


Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s.
PCE-5B06
Click here to show/ hide more info

PCE-5B06

Features

  • 6-slot BP for 6-slot chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: One x16; Four x1
  • PCI-X slot: N/A
  • PCI slot: N/A
  • Compatible with IPC chassis: IPC-6606

Descriptions

Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards. Advantech’s SHBs empower system designers to create a new generation of servers, workstations and industrial platforms.

Specifications

Part Number PCE-5B06-00A1E
Expansion Interface
PCI Express x 16 1
PCI Express x 1 4
PCI

Data sheet on PCE-5B06 (pdf file (opens in new tab)

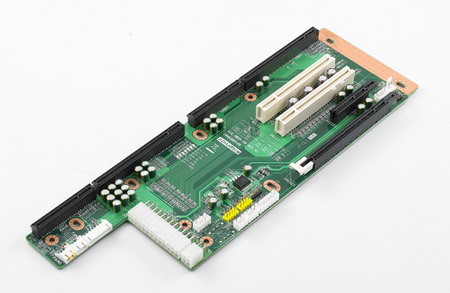

PCE-5B05


5-slot BP for 5-slot chassis
PCE-5B05
Click here to show/ hide more info

PCE-5B05

Features

  • 5-slot BP for 5-slot chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: One x16; One x4
  • PCI-X slot: N/A
  • PCI slot: Two
  • Compatible with IPC chassis: IPC-6025

Descriptions
5-slot BP for 5-slot chassis

Specifications

Part Number PCE-5B05-02A1E
Expansion Interface
PCI Express x 16 1
PCI Express x 4 1
PCI 2

Data sheet on PCE-5B05 (pdf file (opens in new tab)

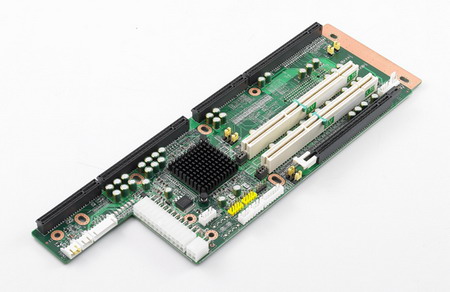

PCE-5B04


4-slot BP for 5-slot chassis
PCE-5B04
Click here to show/ hide more info

PCE-5B04

Features

  • 4-slot BP for 5-slot chassis
  • Segments: 1
  • One CPU card slot
  • PCI-X slot: Two 64/133
  • PCIe slot: One x16
  • PCI slot: N/A
  • Compatible with IPC chassis: IPC-6025

Descriptions
4-slot BP for 5-slot chassis

Specifications

Part Number PCE-5B04-20B1E
Expansion Interface
PCI Express x 16 1
PCI-X 2

Data sheet on PCE-5B04 (pdf file (opens in new tab)

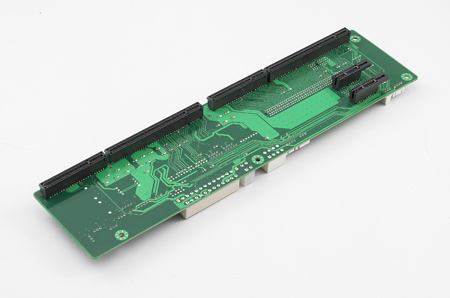

PCE-5B06V


6-slot Butterfly BP for 2U chassis
PCE-5B06V
Click here to show/ hide more info

PCE-5B06V

Features

  • 6-slot Butterfly BP for 2U chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: One x16; Four x1
  • PCI-X slot: N/A
  • PCI slot: N/A
  • Compatible with IPC chassis: ACP-2000EBP and IPC-602EBP

Descriptions

6-slot Butterfly BP for 2U chassis

Specifications

Category Attribute Value
Expansion Interface PCI 4
PCI Express x 16 1

Data sheet on PCE-5B06V (pdf file (opens in new tab)

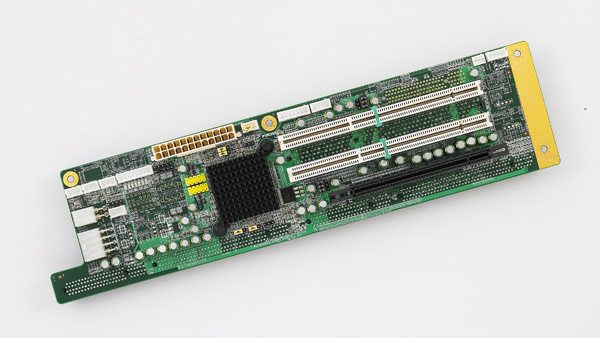

PCE-5B05V


Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s.
PCE-5B05V
Click here to show/ hide more info

PCE-5B05V

Features

  • 5-slot Butterfly BP for 2U chassis
  • Segment: 1
  • One CPU card slot
  • PCIe slot: One x16
  • PCI-X slot: Three 66/100
  • PCI slot: N/A
  • Compatible with IPC chassis: ACP-2000 and IPC-602

Descriptions

Complying with System Host Board (SHB Express; also called PICMG 1.3) standards, these SHBs feature the latest PCI Express technology, offering scalable I/O bandwidth of more than 10 GB/s. They maintain compatibility with PCIe, PCI-X, PCI and ISA, and allow customers to leverage commercial I/O cards. Advantech’s SHBs empower system designers to create a new generation of servers, workstations and industrial platforms.

Specifications

Part Number PCE-5B05V-30B1E
Expansion Interface
PCI Express x 16 1
PCI-X 3

Data sheet on PCE-5B05V (pdf file (opens in new tab)

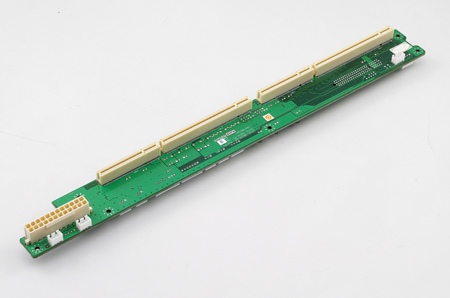

PCE-5B03V


3-slot Butterfly BP for 1U chassis
PCE-5B03V
Click here to show/ hide more info

PCE-5B03V

Features

  • 3-slot Butterfly BP for 1U chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: One x16; One x4
  • PCI-X slot: N/A
  • PCI slot: N/A
  • Compatible with IPC chassis: ACP-1320, ACP-1010

Descriptions

3-slot Butterfly BP for 1U chassis

Specifications

Part Number PCE-5B03V-01A1E
Expansion Interface
PCI Express x 16 1
PCI-X 1

Data sheet on PCE-5B03V (pdf file (opens in new tab)

PICMG 1.0 Full-Size SBC Backplanes

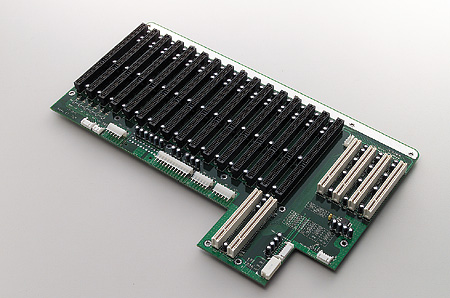

PCA-6120P4


The PCA-6120P4-0B2E is a 20-slot single segment ISA/ PCI/ PICMG passive backplane with 7 ISA, 6 PCI, and 2 PICMG/PCI, 4 PICMG slots.
PCA-6120P4
Click here to show/ hide more info

PCA-6120P4

Features

  • Segments: 1
  • Slots: 14 ISA, 4 PCI, 2 PICMG
  • Size: 417 x 260 mm (16.42″ x 10.24″)
  • Ordering Information: PCA-6120P4-0B2E

Descriptions

The PCA-6120P4-0B2E is a 20-slot single segment ISA/ PCI/ PICMG passive backplane with 7 ISA, 6 PCI, and 2 PICMG/PCI, 4 PICMG slots. This backplane is designed to work with Advantech’s ACP-5360/7360, IPC-622/623 chassis.

Specifications

Category Attribute Value
Expansion Interface ISA 14
PCI 4

Data sheet on PCA-6120P4 (pdf file (opens in new tab)

PCA-6120P18


The PCA-6120P18-0A2E is a 20-slot single segment ISA/ PCI/ PICMG passive backplane with 1 ISA, 17 PCI, and 1 PICMG/PCI, 1 PICMG slots.
PCA-6120P18
Click here to show/ hide more info

PCA-6120P18

Features

  • Segments: 1
  • Slots: 1 ISA, 17 PCI, 1 PICMG/PCI,1 PICMG
  • Size: 417x 260 mm (16.42″ x 10.24″)
  • PCI bridge: Three Pericom PI7C8150BMAE
  • Secondary: 6 slot/6 slot/6 slot
  • Ordering Information: PCA-6120P18-0A2E

Descriptions

The PCA-6120P18-0A2E is a 20-slot single segment ISA/ PCI/ PICMG passive backplane with 1 ISA, 17 PCI, and 1 PICMG/PCI, 1 PICMG slots. This backplane is designed to work with Advantech’s ACP-5360/7360, IPC-622/623 chassis.

Specifications

Data sheet on PCA-6120P18 (pdf file (opens in new tab)

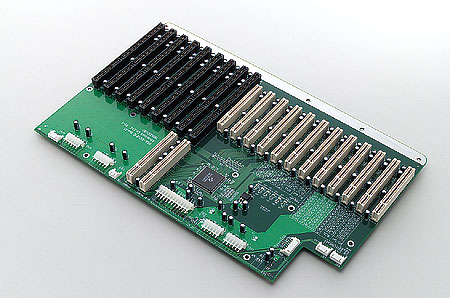

PCA-6120P12


The PCA-6120P12-0A2E is a 20-slot single segment ISA/ PCI/ PICMG passive backplane with 7 ISA, 11 PCI and 1 PICMG/PCI, 1 PICMG slots.
PCA-6120P12
Click here to show/ hide more info

PCA-6120P12

Features

  • Segments: 1
  • Slots: 7 ISA, 11 PCI, 1 PICMG/PCI,1 PICMG
  • Size: 417 x 260 mm (16.42″ x 10.24″)
  • PCI bridge: Pericom PI7C8150BMAE
  • Primary PCI: 3 slots; Secondary PCI: 9 slots
  • Ordering Information: PCA-6120P12-0A2E

Descriptions

The PCA-6120P12-0A2E is a 20-slot single segment ISA/ PCI/ PICMG passive backplane with 7 ISA, 11 PCI and 1 PICMG/PCI, 1 PICMG slots. This backplane is designed to work with Advantech’s ACP-5360/7360, IPC-622/623 chassis.

Specifications

Category Attribute Value
Expansion Interface ISA 7
PCI 11

Data sheet on PCA-6120P12 (pdf file (opens in new tab)

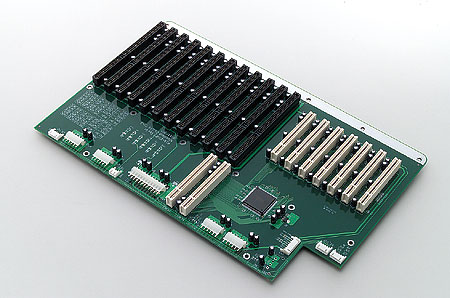

PCA-6119P7


20-slot PCI/ISA Backplanes
PCA-6119P7
Click here to show/ hide more info

PCA-6119P7

Features

  • Segments: 1
  • Slots: 10 ISA, 7 PCI, 2 PICMG
  • Size: 417 x 260 mm (16.42″ x 10.24″)
  • PCI bridge:PI7C8152
  • Primary PCI: 3 slots; Secondary PCI: 4 slots
  • Ordering Information: PCA-6119P7-0C1E

Descriptions

20-slot PCI/ISA Backplanes

Specifications

Part Number PCA-6119P7-0C1E
Expansion Interface
PCI 7
ISA 10

Data sheet on PCA-6119P7 (pdf file (opens in new tab)

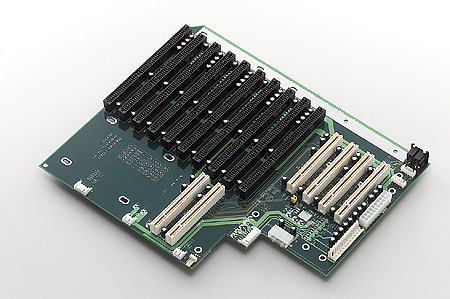

PCA-6114P4


The PCA-6114P4-0C2E is a 14-slot single segment ISA/ PCI/ PICMG passive backplane with 8 ISA, 4 PCI and 2 PICMG slots.
PCA-6114P4
Click here to show/ hide more info

PCA-6114P4

Features

  • Segments: 1
  • Slots: 8 ISA, 4 PCI, 2 PICMG
  • Size: 315 x 260 mm (12.4″ x 10.24″)
  • Ordering Information: PCA-6114P4-0C2E
  • When choosing to install in ACP-4320, 4360 and IPC-510 chassis, 1U cooler is required

Descriptions

The PCA-6114P4-0C2E is a 14-slot single segment ISA/ PCI/ PICMG passive backplane with 8 ISA, 4 PCI and 2 PICMG slots. It supports AT and ATX power supplies and follows the PICMG platform specifications. This backplane is designed to work with Advantech’s ACP-4360/4320/4010/4000, IPC-630/610/611 chassis.

Specifications

Category Attribute Value
Expansion Interface ISA 8
PCI 4

Data sheet on PCA-6114P4 (pdf file (opens in new tab)

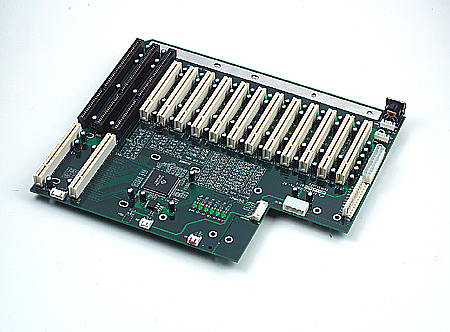

PCA-6114P12


The PCA-6114P12-0B3E is a single segment passive backplane with 1 ISA, 11 PCI and 1 PICMG slots.
PCA-6114P12
Click here to show/ hide more info

PCA-6114P12

Features

  • Segments: 1
  • Slots: 1 ISA, 11 PCI, 1 PICMG/PCI, 1 PICMG
  • Size: 315 x 300 mm (12.4″ x 11.8″)
  • PCI bridge: Pericom PI7C8150BMAE
  • Primary PCI: 3 slots; Secondary PCI: 9 slots
  • Ordering Information: PCA-6114P12-0B3E

Descriptions

The PCA-6114P12-0B3E is a single segment passive backplane with 1 ISA, 11 PCI and 1 PICMG slots. It supports AT and ATX power supplies and follows the PICMG platform specifications. This backplane is designed to work with Advantech’s ACP-4360/4320/4010/4000, IPC-630/ 610/ 611 chassis.

Specifications

Category Attribute Value
Expansion Interface ISA 1
PCI 11

Data sheet on PCA-6114P12 (pdf file (opens in new tab)

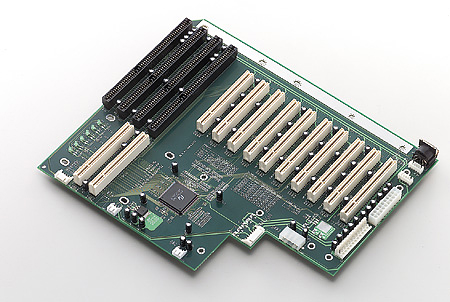

PCA-6114P10


The PCA-6114P10-0B2E is a 14-slot single segment ISA/ PCI/ PICMG passive backplane with 2 ISA, 10 PCI and 2 PICMG slots. It supports AT and ATX power supplies and follows the PICMG platform specifications.
PCA-6114P10
Click here to show/ hide more info

PCA-6114P10

Features

  • Segments: 1
  • Slots: 2 ISA, 10 PCI, 2 PICMG
  • Size: 315 x 260 mm (12.4″ x 10.24″)
  • PCI bridge: Pericom PI7C8150BMAE
  • Primary PCI: 3 slots;Secondary PCI: 7 slots
  • Ordering Information: PCA-6114P10-0B2E

Descriptions

The PCA-6114P10-0B2E is a 14-slot single segment ISA/ PCI/ PICMG passive backplane with 2 ISA, 10 PCI and 2 PICMG slots. It supports AT and ATX power supplies and follows the PICMG platform specifications. This backplane is designed to work with Advantech’s IPC-616, IPC-615 along with IPC-611, IPC-610 and ACP-4000 chassis.

Specifications

Category Attribute Value
Expansion Interface ISA 2
PCI 10

Data sheet on PCA-6114P10 (pdf file (opens in new tab)

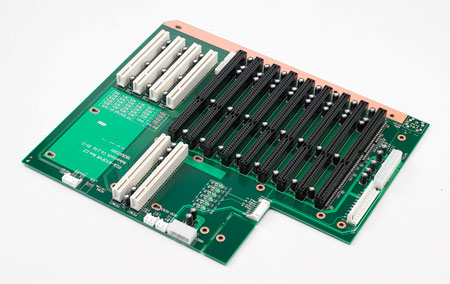

PCA-6113P4R


The PCA-6113P4R-0C2E is a passive backplane with 7 ISA, 4 PCI and 2 PICMG slots. It supports AT and ATX power supplies and follows the PICMG platform specifications.
PCA-6113P4R
Click here to show/ hide more info

PCA-6113P4R

Features

  • Segments: 1
  • Slots: 7 ISA, 4 PCI, 2 PICMG
  • Size: 315 x 260 mm (12.4″ x 10.24″)
  • Ordering Information: PCA-6113P4R-0C2E

Descriptions

The PCA-6113P4R-0C2E is a passive backplane with 7 ISA, 4 PCI and 2 PICMG slots. It supports AT and ATX power supplies and follows the PICMG platform specifications. This backplane is designed to work with Advantech’s ACP-4360/4320/4010/4000, IPC-630/ 610/ 611 chassis.

Specifications

Category Attribute Value
Expansion Interface ISA 7
PCI 4

Data sheet on PCA-6113P4R (pdf file (opens in new tab)

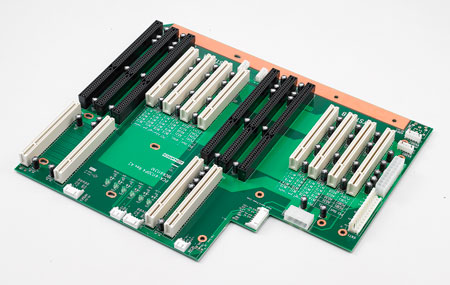

PCA-6113DP4


13-slot 2 ISA, 7 PCI, 1 PICMG/PCI, 3 PICMG Backplanes
PCA-6113DP4
Click here to show/ hide more info

PCA-6113DP4

Features

  • Segments: 2
  • Slots: 2 ISA, 7 PCI, 1 PICMG/PCI, 3 PICMG
  • Size: 315 x 260 mm (12.4″ x 10.24″)
  • Ordering Information: PCA-6113DP4-0A2E
  • Compatible with IPC Chassis: Only for ACP-4010.

Descriptions

13-slot 2 ISA, 7 PCI, 1 PICMG/PCI, 3 PICMG Backplanes

Specifications

Part Number PCA-6113DP4-0A2E
Expansion Interface
PCI 7
ISA 2

Data sheet on PCA-6113DP4 (pdf file (opens in new tab)

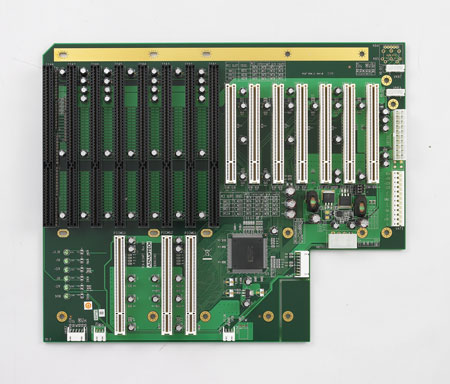

PCA-6114P7


14-slot PCI/ISA Backplanes
PCA-6114P7
Click here to show/ hide more info

PCA-6114P7

Features

  • Segments: 1
  • Slots: 4 ISA, 6 PCI, 3 PICMG, 1 PCI/ISA
  • Size: 315 x 260 mm (12.4″ x 10.24″)
  • PCI bridge: PI7C8152
  • Primary PCI: 3 slots; Secondary PCI: 4 slots
  • Ordering Information: PCA-6114P7-0E1E

Descriptions

14-slot PCI/ISA Backplanes

Specifications

Part Number PCA-6114P7-0E1E
Expansion Interface
PCI 6
ISA 4

Data sheet on PCA-6114P7 (pdf file (opens in new tab)

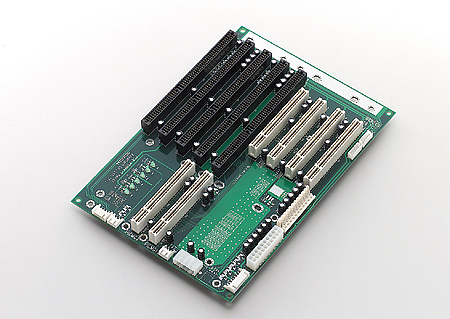

PCA-6108P4


The PCA-6108P4-0C2E is a 8-slot single segment ISA/ PCI/ PICMG passive backplane with 3 ISA, 3 PCI, 1 PICMG/PCI, 1 PICMG slots. It supports AT and ATX power supplies and follows the PICMG platform specifications.
PCA-6108P4
Click here to show/ hide more info

PCA-6108P4

Features

  • Segments: 1
  • Slots: 3 ISA, 3 PCI, 1 PICMG/PCI, 1 PICMG
  • Size:180 x 260 mm (7.09″ x 10.24″)
  • Ordering Information: PCA-6108P4-0C2E

Descriptions

The PCA-6108P4-0C2E is a 8-slot single segment ISA/ PCI/ PICMG passive backplane with 3 ISA, 3 PCI, 1 PICMG/PCI, 1 PICMG slots. It supports AT and ATX power supplies and follows the PICMG platform specifications. This backplane is designed to work with Advantech’s IPC-6908 and IPC-6608 chassis.

Specifications

Category Attribute Value
Expansion Interface ISA 3
PCI 3

Data sheet on PCA-6108P4 (pdf file (opens in new tab)

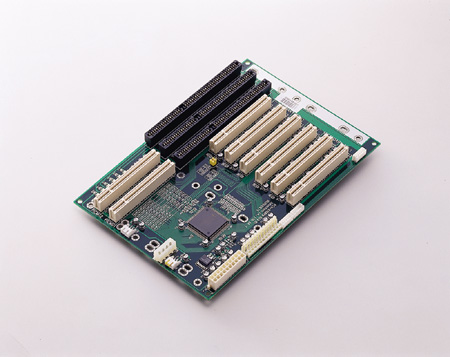

PCA-6108P6


8-slot PCI/ISA Backplanes
PCA-6108P6
Click here to show/ hide more info

PCA-6108P6

Features

  • Segments: 1
  • Slots: 1 ISA, 5 PCI, 1 PICMG/PCI, 1 PICMG
  • Size: 180 x 260 mm (7.09″ x 10.24″)
  • PCI bridge:P17C8152
  • Primary PCI: 3 slots; Secondary PCI: 3 slots
  • Ordering Information: PCA-6108P6-0C1E

Descriptions

8-slot PCI/ISA Backplanes

Specifications

Part Number PCA-6108P6-0C1E
Expansion Interface
PCI 5
ISA 1

Data sheet on PCA-6108P6 (pdf file (opens in new tab)

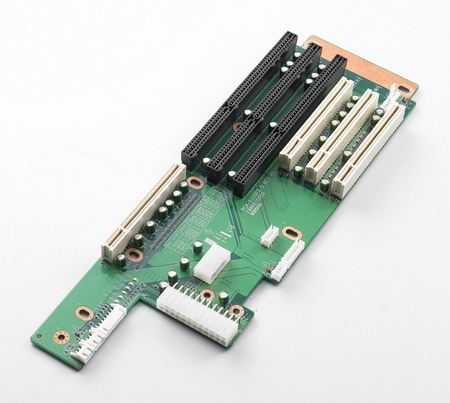

PCA-6105P3


5-slot PCI / ISA 1 ISA / 2 PCI / 1 PICNG 1PCI / ISA Backplane, Compatible IPC Chassis : with IPC-6025
PCA-6105P3
Click here to show/ hide more info

PCA-6105P3

Features

  • Segments: 1
  • Slots: 1 ISA, 2 PCI, 1 PICMG, 1 PCI/ISA
  • Size: 106.5 mm x 327.66 mm (4.19″ x 12.9″)
  • Ordering Information: PCA-6105P3-5A1E

Descriptions

5-slot PCI / ISA 1 ISA / 2 PCI / 1 PICNG 1PCI / ISA Backplane, Compatible IPC Chassis : with IPC-6025

Specifications

Part Number PCA-6105P3-5A1E
Expansion Interface
PCI 2
ISA 1

Data sheet on PCA-6105P3 (pdf file (opens in new tab)

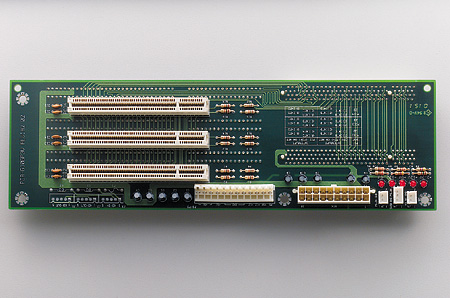

PCA-6106P3V


PCA-6106P3V-0B2E is a 6-slot single segment ISA/PCI/ PICMG passive backplane with 1 ISA, 3 PCI and 2 PICMG slots.
PCA-6106P3V
Click here to show/ hide more info

PCA-6106P3V

Features

  • Segments: 1
  • Slots: 1 ISA, 3 PCI, 2 PICMG
  • PCI bus: 32-bit/33 MHz
  • Size: 80 x 260 mm (3.15″ x 10.23″)
  • Ordering Information: 989K610622E

Descriptions

PCA-6106P3V-0B2E is a 6-slot single segment ISA/PCI/ PICMG passive backplane with 1 ISA, 3 PCI and 2 PICMG slots. It supports AT/ ATX power supplies and follows the PICMG platform specifications. This backplane is designed to work with Advantech’s ACP-2000 and IPC-602 chassis and only sold with Advantech’s 2U chassis.

Specifications

Part Number 989K610622E
Expansion Interface
PCI 3
ISA 1

Data sheet on PCA-6106P3V (pdf file (opens in new tab)

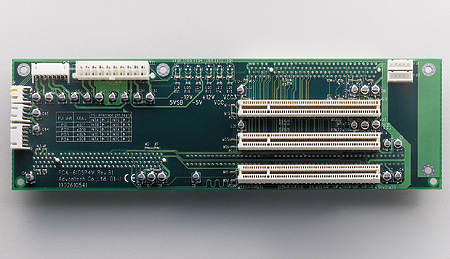

PCA-6105P4V


PCA-6105P4V-0B3E is a 5-slot single segment PCI/ PICMG passive backplane with 4 PCI and 1 PICMG slots. It supports ATX power supplies and follows the PICMG platform specifications.
PCA-6105P4V
Click here to show/ hide more info

PCA-6105P4V

Features

  • Segments: 1
  • Slots: 4 PCI, 1 PICMG
  • PCI bus: 32-bit/33 MHz
  • Size: 80 x 260 mm (3.15″ x 10.23″)
  • Ordering Information: 989K610511E

Descriptions

PCA-6105P4V-0B3E is a 5-slot single segment PCI/ PICMG passive backplane with 4 PCI and 1 PICMG slots. It supports ATX power supplies and follows the PICMG platform specifications. This backplane is designed to work with Advantech’s ACP-2000 and IPC-602 chassis and only sold with Advantech’s 2U chassis.

Specifications

Part Number 989K610512E
Expansion Interface
PCI 4

Data sheet on PCA-6105P4V (pdf file (opens in new tab)

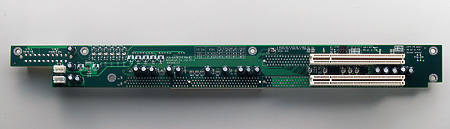

PCA-6103P2V


The PCA-6103P2V-0A2E is a butterfly passive backplane with 2 PCI and 1 CPU slots and it supports ATX power supplies.
PCA-6103P2V
Click here to show/ hide more info

PCA-6103P2V

Features

  • Segments: 1
  • Slots: 2 PCI, 1 CPU
  • PCI bus: 32-bit/33 MHz
  • Size: 40 x 400 mm (1.57″ x 15.75″)
  • Ordering Information:989K610302E

Descriptions

The PCA-6103P2V-0A2E is a butterfly passive backplane with 2 PCI and 1 CPU slots and it supports ATX power supplies.This backplane is designed to work with Advantech’s ACP-1010 chassis and only sold with Advantech’s 1U chassis.

Specifications

Part Number 989K610303E
Expansion Interface
PCI 2

Data sheet on PCA-6103P2V (pdf file (opens in new tab)

PICMG 1.3 Half-Size SBC Backplane

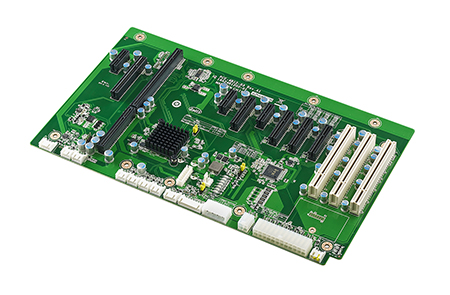

PCE-4B12


PICMG 1.3 Half-size Mainstream / Server-grade Backplanes
PCE-4B12
Click here to show/ hide more info

PCE-4B12

Features

  • 12-slot backplane for 14-slot half-sized chassis
  • Ordering information: PCE-4B12-03A1E
  • Compatible with IPC chassis: ACP-4020
  • Size: 315 x 185 mm
  • PCI slot: Three 32 bit/33MHz
  • PCIe slot: One x8, Four x4, Three x1
  • One CPU card slot
  • Segments:1

Descriptions

PICMG 1.3 Half-size Mainstream / Server-grade Backplanes

Specifications

Data sheet on PCE-4B12 (pdf file (opens in new tab)

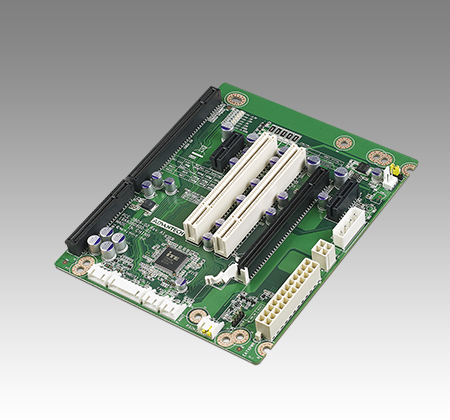

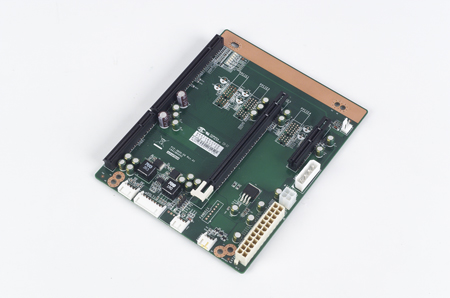

PCE-3B06


Brief description of Product 3, including what’s different about it compared to other products
PCE-3B06
Click here to show/ hide more info

PCE-3B06

Features

  • 6 slot backplane for 6-slot chassis
  • Segments:1
  • One CPU card slot
  • PCIe slot: One x16, Two x1
  • PCI slot: Two 32/33
  • Size: 142 x 176 mm
  • Compactable with IPC chassis: IPC-6806S, IPC-3026

Descriptions

PICMG 1.3 Half-size mainstream SHB Backplanes, Compactable with PCE-3000/PCE-4000 series and IPC chassis: IPC-3026, IPC-6806S

Specifications

Data sheet on PCE-3B06 (pdf file (opens in new tab)

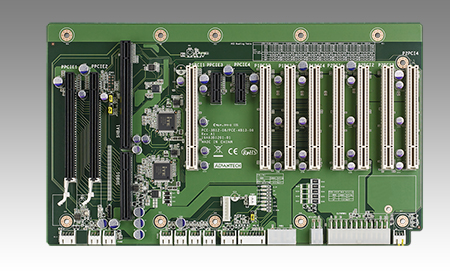

PCE-4B13


PICMG 1.3 Half-size server-grade SHB Backplanes, Compactable with PCE-4000 series and IPC chassis: ACP-4020
PCE-4B13
Click here to show/ hide more info

PCE-4B13

Features

  • 13-slot backplane for 14-slot half-sized chassis
  • Segments:1
  • One CPU card slot
  • PCIe slot: Two x8, Two x1
  • PCI slot: Eight 32 bit/33MHz
  • Size: 315 x 185 mm
  • Compactible with IPC chassis: ACP-4020

Descriptions

PICMG 1.3 Half-size server-grade SHB Backplanes, Compactable with PCE-4000 series and IPC chassis: ACP-4020

Specifications

Data sheet on PCE-4B13 (pdf file (opens in new tab)

PCE-3B03


PICMG 1.3 Half-Size SHB Backplanes, Compactible with IPC chassis:  IPC-3026
PCE-3B03
Click here to show/ hide more info

PCE-3B03

Features

  • 3 Slot backplane for 6-slot chassis
  • Segments: 1
  • One CPU card slot
  • PCIe slot: One x16; One x4
  • Size: 142 x 176 mm
  • Compatible With IPC chassis: IPC-6806S, IPC-3026
  • Ordering Information: PCE-3B03-00A1E

Descriptions

PICMG 1.3 Half-Size SHB Backplanes, Compactible with IPC chassis:  IPC-3026

Specifications

Data sheet on PCE-3B03 (pdf file (opens in new tab)

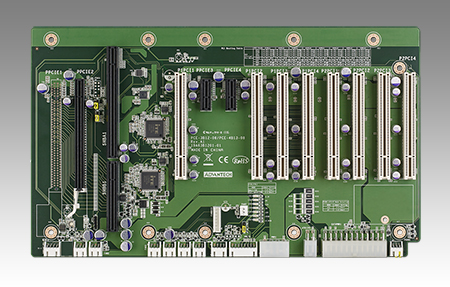

PCE-3B12


PICMG 1.3 Half-size mainstream SHB Backplanes, Compactable with PCE-3000 series and IPC chassis: ACP-4020
PCE-3B12
Click here to show/ hide more info

PCE-3B12

Features

  • 12-slot backplane for 14-slot half-sized chassis
  • Segments:1
  • One CPU card slot
  • PCIe slot: One x16, Two x1
  • PCI slot: Eight 32 bit/33MHz
  • Size: 315 x 185 mm
  • Compactible with IPC chassis: ACP-4020
  • Ordering information: PCE-3B12-08A1E

Descriptions

PICMG 1.3 Half-size mainstream SHB Backplanes, Compactable with PCE-3000 series and IPC chassis: ACP-4020

Specifications

Data sheet on PCE-3B12 (pdf file (opens in new tab)

PICMG 1.0 Half-Size SBC Backplane

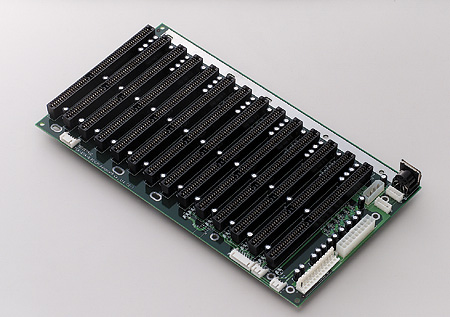

PCA-6114


The PCA-6114-0B2E is a 14-slot single segment ISA passive backplane. It supports AT and ATX power supplies. This backplane is designed to work with Advantech’sACP-4360/4320/ 4010/ 4000, IPC-630/610/611 chassis.
PCA-6114
Click here to show/ hide more info

PCA-6114

Features

  • Segments: 1
  • Slots: 14 ISA
  • Size: 315 x 175 mm (12.4″ x 6.89″)
  • Ordering Information: PCA-6114-0B2E

Descriptions

The PCA-6114-0B2E is a 14-slot single segment ISA passive backplane. It supports AT and ATX power supplies. This backplane is designed to work with Advantech’sACP-4360/4320/ 4010/ 4000, IPC-630/610/611 chassis.

Specifications

Category Attribute Value
Expansion Interface ISA 14

Data sheet on PCA-6114 (pdf file (opens in new tab)

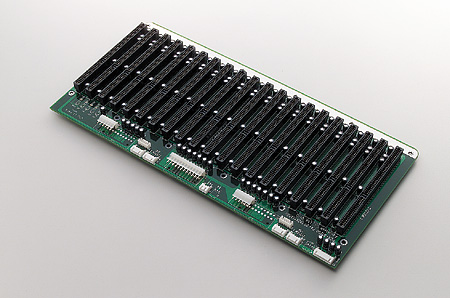

PCA-6120Q


The PCA-6120Q-0B2E is a 20-slot quad segment ISA passive backplane with 5 ISA slots per segment. This backplane is designed to work with Advantech’s ACP-5360/7360, IPC-622/ 623 chassis.
PCA-6120Q
Click here to show/ hide more info

PCA-6120Q

Features

  • Segments: 4
  • Slots: 5-5-5-5 ISA
  • Size: 417 x 200 mm (16.42″ x 7.87″)
  • Ordering Information: PCA-6120Q-0B2E

Descriptions

The PCA-6120Q-0B2E is a 20-slot quad segment ISA passive backplane with 5 ISA slots per segment. This backplane is designed to work with Advantech’s ACP-5360/7360, IPC-622/ 623 chassis.

Specifications

Category Attribute Value
Expansion Interface ISA 20

Data sheet on PCA-6120Q (pdf file (opens in new tab)

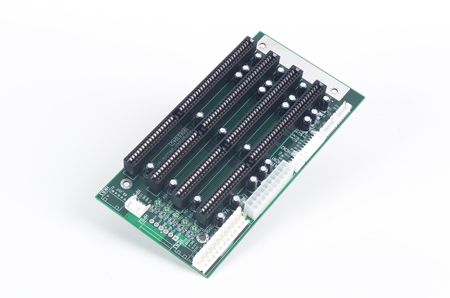

PCA-6104


The PCA-6104-0C2E is a 4-slot single segment ISA passive backplane. It supports AT and ATX power supplies.
PCA-6104
Click here to show/ hide more info

PCA-6104

Features

  • Segments: 1
  • Slots: 4 ISA
  • Size: 94.7 x 186 mm (3.7″ x 7.3″)
  • Ordering Information: PCA-6104-0C2E

Descriptions

The PCA-6104-0C2E is a 4-slot single segment ISA passive backplane. It supports AT and ATX power supplies.

Specifications

Category Attribute Value
Expansion Interface ISA 4
PCI 0
Physical Characteristics Dimensions (LxW) 94.7 x 186 mm

Data sheet on PCA-6104 (pdf file (opens in new tab)

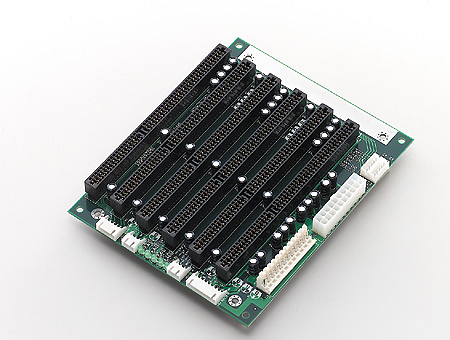

PCA-6106


The PCA-6106-0B2E is a 6-slot single segment ISA passive backplane with 6 ISA slots and it supports AT and ATX power supplies. This backplane is designed to work with Advantech’s IPC-6606/6806S/6006S/3026 chassis.
PCA-6106
Click here to show/ hide more info

PCA-6106

Features

  • Segments: 1
  • Slots: 6 ISA
  • Size: 142 x 175 mm (5.59″ x 6.89″)
  • Ordering Information: PCA-6106-0B2E

Descriptions

The PCA-6106-0B2E is a 6-slot single segment ISA passive backplane with 6 ISA slots and it supports AT and ATX power supplies. This backplane is designed to work with Advantech’s IPC-6606/6806S/6006S/3026 chassis.

Specifications

Category Attribute Value
Expansion Interface ISA 6
PCI 0
Physical Characteristics Dimensions (LxW) 142 x 175 mm

Data sheet on PCA-6106 (pdf file (opens in new tab)

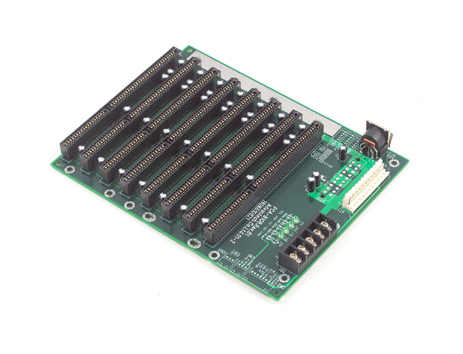

PCA-6108


The PCA-6108-0B2E is a 8-slot single segment ISA passive backplane. It supports AT and ATX power supplies. This backplane is designed to work with Advantech’s IPC-6908 and IPC-6608 chassis.
PCA-6108
Click here to show/ hide more info

PCA-6108

Features

  • Segments: 1
  • Slots: 8 ISA
  • Size: 222 x 171 mm (8.74″ x 6.73″)
  • Only for commercial PC chassis (baby AT size)
  • Ordering Information: PCA-6108-0B2E

Descriptions

The PCA-6108-0B2E is a 8-slot single segment ISA passive backplane. It supports AT and ATX power supplies. This backplane is designed to work with Advantech’s IPC-6908 and IPC-6608 chassis.

Specifications

Part Number PCA-6108-0B2E
Expansion Interface
PCI 0
ISA 8
Physical Characteristics
Dimensions (LxW) 222 x 171 mm

Data sheet on PCA-6108 (pdf file (opens in new tab)

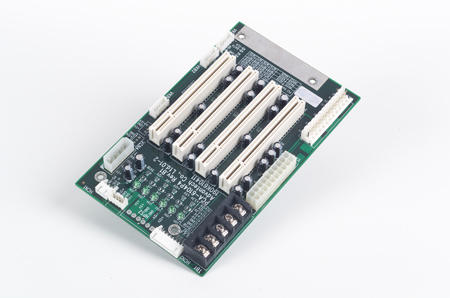

PCA-6104P4


The PCA-6104P4-0B2E is a 4-slot single segment PCI passive backplane. It supports AT and ATX power supplies.
PCA-6104P4
Click here to show/ hide more info

PCA-6104P4

Features

  • Segments: 1
  • Slots: 4 PCI
  • Size: 110 x 180 mm (4.3″ x 7″)
  • Ordering Information: PCA-6104P4-0B2E

Descriptions

The PCA-6104P4-0B2E is a 4-slot single segment PCI passive backplane. It supports AT and ATX power supplies.

Specifications

Part Number PCA-6104P4-0B2E
Expansion Interface
PCI 4
ISA 0
Physical Characteristics
Dimensions (LxW) 110 x 180 mm

Data sheet on PCA-6104P4 (pdf file (opens in new tab)

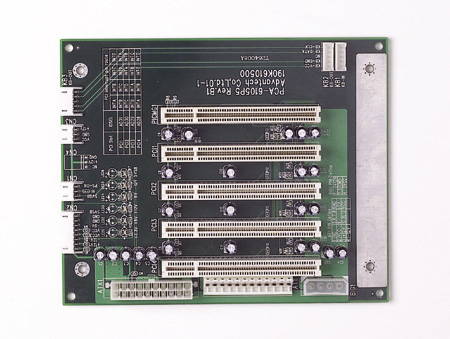

PCA-6105P5


The PCA-6105P5-0B2E is a 5-slot single segment PCI passive backplane. It supports AT and ATX power supplies and is designed to work with Advantech’s IPC-6806S / 6606 / 6006 / 3026 chassis.
PCA-6105P5
Click here to show/ hide more info

PCA-6105P5

Features

  • Segments: 1
  • Slots: 5 PCI
  • Size: 143 x 155 mm (5.6″ x 6″)
  • Chassis: IPC-6806, IPC-6606, IPC-6006
  • Ordering Information: PCA-6105P5-0B2E

Descriptions

The PCA-6105P5-0B2E is a 5-slot single segment PCI passive backplane. It supports AT and ATX power supplies and is designed to work with Advantech’s IPC-6806S / 6606 / 6006 / 3026 chassis.

Specifications

Category Attribute Value
Expansion Interface ISA 0
PCI 5
Physical Characteristics Dimensions (LxW) 142 x 155 mm

Data sheet on PCA-6105P5 (pdf file (opens in new tab)

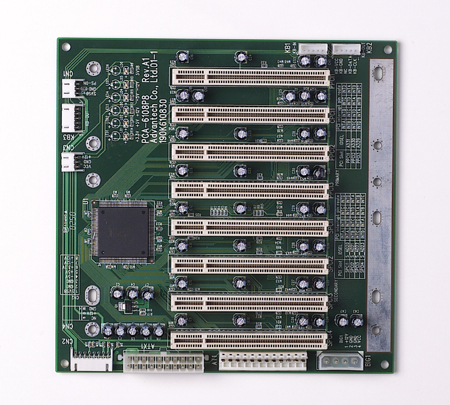

PCA-6108P8-0A2E


Pure PCI Backplanes, only Compatible with IPC Chassis: IPC-6608, IPC-6908
PCA-6106P4-0A2E
Click here to show/ hide more info

PCA-6106P4-0A2E

Features

  • Segments: 1
  • Slots: 8 PCI
  • Size: 182 x 185 mm (7.2″ x 7.3″)
  • Compatible With IPC Chassis: IPC-6608, IPC-6908
  • Ordering Information: PCA-6108P8-0A2E

Descriptions

Pure PCI Backplanes, only Compatible with IPC Chassis: IPC-6608, IPC-6908

Specifications

Category Attribute Value
Expansion Interface PCI 8
Physical Characteristics Dimensions (LxW) 182 x 185 mm

Data sheet on PCA-6108P8-0A2E (pdf file (opens in new tab)
