Cellular Routers 3G and 4G, Industrial / M2M

Industrial Cellular Routers 3G and 4G, M2M

Do you need to connect remote devices to the internet, with maximum reliability? The Netcomm range of 4G and 3G industrial routers are purpose built to connect remote devices to the internet. They offer rock solid reliability, giving years and years of continuous use, whilst supporting all the modern features required of M2M routers.

Perfect for unmanned sites, hard to access locations, remote customer premises and vehicles, these rugged M2M communication devices offer a plethora of features, including WiFi, Serial ports, analog and digital I/O, Ethernet ports, and integrated GPS receivers.

In addition to all the common router features, many useful functions can be set up using the web-based interface or with simple script commands. For example SMS alerts can be sent when digital input pins change state. In addition, the open source Linux-based platform allows custom applications to be developed, so the possibilities are endless.

Need to set up a point to point serial (RS232) link to a remote device? Click here to find out how.

NetComm Wireless M2M Routers

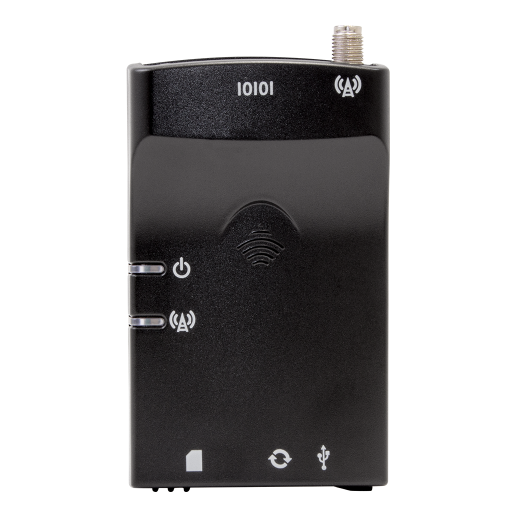

NTC-100  4G Industrial IOT Serial Modem, LTE Cat M1 / NB1


A low cost 4G Cat. M1 Serial Modem for low speed, low power, reliable remote device connectivity. Works with the Telstra network. Enable remote monitoring, data collection, diagnostics, problem resolution and control across a wide range of applications.
NTC-100
Click here to show/ hide more info

NTC-100

Connected to machines using a configurable serial interface, the NTC-100 supports both LTE category NB-IoT and M1 technologies to provide the needed connectivity to Industrial IoT applications that require small amounts of data transfer and extended coverage.

Featuring a compact robust industrial design, the NTC-100 is designed for space-constrained installations and long-term deployment in challenging environments.

Note that the Telstra 4G/LTE network already supports LTE Cat. M1 using existing SIM cards.

Global Industrial IOT Serial Modem
The NTC-100 integrates a dual technology moduleusing standardised LTE category NB-IoT and category M1, to guarantee 4G LTE network support and provide reliable, “always on”, low speed connectivity. With support for a wide range of frequency bands and regulatory compliance in Europe, UK, Australia, New Zealand and North America, the NTC-100 is suitable for industrial IoT deployment worldwide.

Improved Coverage
The NTC-100 is perfect for indoor applications as well as applications at the network fringe, utilising either NB-IoT or M1 capabilities for improved signal penetration and reach, extending the cellular connectivity to building basements and remote rural areas.

Industrial Grade
The robust NTC-100 features a ruggedized industrial housing and components specifically selected to endure harsh industrial environments, including severe vibrations and extreme temperatures, to ensure reliable connectivity in the toughest remote and isolated climates.

Remote Management via SMS
Featuring remote management capabilities to query status information, run advanced diagnostics, troubleshoot and execute commands via SMS, the NTC-100 automated layer of self-monitoring ensures a quick response to events requiring human intervention.

Specifications:

  • Cat-M1 and Cat-NB1 support perfect for transmitting the small amounts of data, providing low power wide area connectivity even in hard to reach areas
  • Powerful cellular connectivity supporting 4G LTE
  • A 10-pin NANO-fit connector providing a serial interface (RS232 / RS485 / RS422)
  • Advanced diagnostics and control to query status information, configure a device and execute various commands via SMS
  • Firmware upgrade over the air
  • Industrial grade design with wall mount option

Data and full specs for NTC-100 (pdf file, opens in new tab)

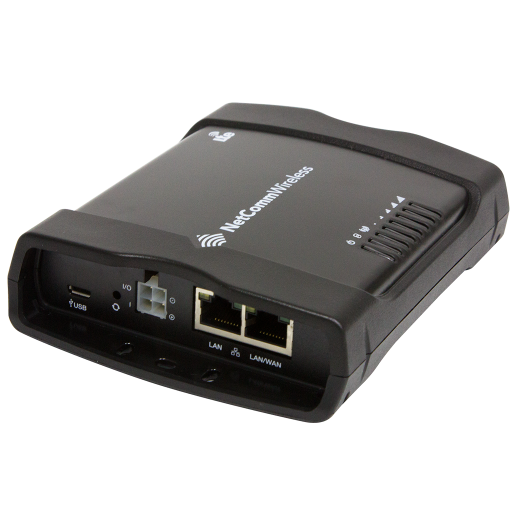

NTC-140-02  4G M2M Router


The NetComm Wireless 4G M2M Router enables highly complex M2M and industrial IoT deployments and ensures always-on connectivity with 4G failover.
NTC-140-02
Click here to show/ hide more info

NTC-140-02

Wireless Machine-to-Machine (M2M) communications is used to connect and manage an ever increasing number of mission-critical business assets across the entire organisation. As the cost of downtime escalates, the need to maintain a fail-proof connection is essential. Whether used as a primary or complimentary solution, the industrial-grade 4G M2M Router (NTC-140) ensures a fast, powerful and constant connection.

The NetComm Wireless 4G M2M Router (NTC-140) provides uninterrupted real-time data connectivity for diverse mission-critical applications, and is an ideal business continuity device. The feature rich and user friendly NTC-140 creates reliable point-to-point or point-to-multi-point WAN connectivity and offers automatic failover to ensure reliable connectivity when outages occur.

Dependable automatic-failover
Business continuity and continuous connectivity is assured with automatic failover to 3G when outside of 4G coverage areas, and instant fall-back to 4G when the Gigabit Ethernet ports are used as an alternate Internet connection.

Custom performance
The NTC-140 is a complementary solution that integrates seamlessly with the existing network. The powerful processor delivers optimal performance and its embedded NetComm Linux OS and Software Development Kit (SDK) enables the installation of custom software applications to the on-board memory.

Simple and cost-effective
Designed for ease of use, the NTC-140 has a user-friendly web interface and 8 tri-colour LED indicators for easy setup and ongoing management. The device can be managed using any browser, and text messages (SMS) can be used to securely access the current status, change configurations or execute commands. .

Future-proof remote asset management
The NTC-140 enables carrier grade remote management with support for protocols such as LWM2M, TR-069 and SNMP to allow quick and easy integration with a wide range of remote management platforms. The NTC-140 is a future-proof 4G device that is ideal for long-term deployments, ensuring a low total cost of ownership and a high rate of return as networks advance. Designed to ensure a quick response to events requiring human intervention, the built-in event notification engine, which sends alarms and notifications via email or SMS, allows an automated layer of self-monitoring.

Industrial grade design
Ideal for remote and industrial environments, the NTC-140 is easily mountable and features a hard wearing polycarbonate and rubber enclosure. Electrical components have been carefully selected to allow the NTC-140 to operate at extreme temperatures; and extensive environmental testing ensures that the device continues to operate under extreme conditions of temperature, shock and vibration.

  • Fast and reliable cellular connectivity supporting 4G (LTE) up to 100Mbps/50Mbps (downlink/uplink), 3G (DC-HSPA+) up to 42Mbps/5.76Mbps and 2G (EDGE)
  • Flexible WAN setup (use any interface as WAN), ideal for business continuity applications
  • Two Gigabit Ethernet ports for networking flexibility
  • Powerful processor and flash memory storage
  • Rugged enclosure, wide operating temperature range, wall mount options and a flexible range of input power options making it ideal for use in harsh industrial environments
  • USB-OTG for additional interfaces or extra storage
  • Integrated standalone GPS for precise and accurate asset tracking
  • Configurable power save mode with minimum current draw when in sleep mode

Data and full specs for NTC-140-02 (pdf file, opens in new tab)

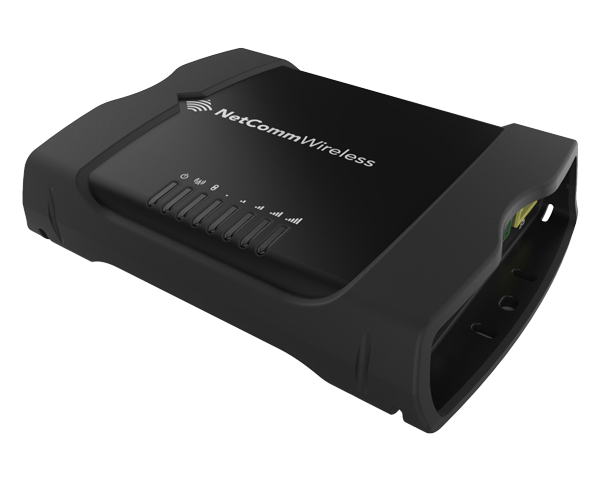

NTC-221-01  4G LTE Cat 1 Industrial IoT Router


The industrial-grade 4G LTE Cat 1 IoT Router NTC-221-01 router offers reliable performance, integrated GPS for reliable asset tracking and ignition sense capability and a wide input voltage range for vehicular applications.
NTC-221-01
Click here to show/ hide more info

NTC-221-01

The industrial-grade 4G LTE Cat 1 IoT Router NTC-221-01 router offers reliable performance, integrated GPS for reliable asset tracking and ignition sense capability and a wide input voltage range for vehicular applications.

Features

  • Cat 1 4G LTE (10Mbps)
  • A Fast Ethernet port, a serial port and a USB port
  • Integrated GPS for reliable asset tracking
  • Software configurable I/O ports
  • Rugged industrial design for harsh environments
  • Ignition sense capability and a wide input voltage range for vehicular applications

Data and full specs for NTC-221-01 (pdf file, opens in new tab)

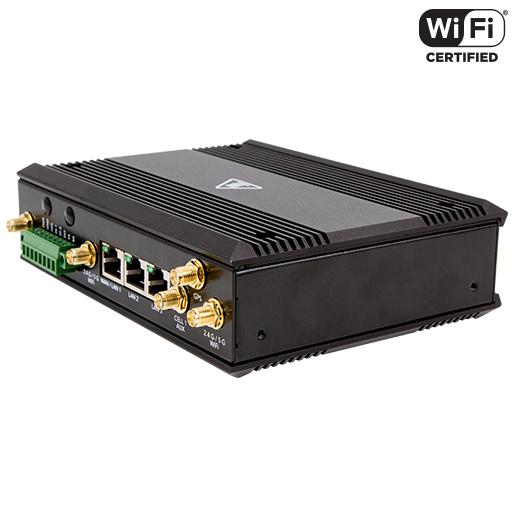

NTC-402-01  4G LTE CAT 6 Industrial IOT Router with Dual Band WI-FI


Designed to power new and innovative solutions, the NetComm Wireless NTC-402-01 creates reliable high-speed data connectivity for bandwidth-intensive applications without the need for fixed line connections.
NTC-402-01
Click here to show/ hide more info

NTC-402-01

Create high-speed dual-band Wi-Fi hotspots in public transport, stream HD video from multiple surveillance cameras, track vehicles using GPS or stream 4K/UHD video to large digital displays in real time with the future-proof NTC-402-01.

High-speed connectivity
Equipped with connectivity options covering almost any requirement, the NTC-400 delivers high-speed 4G LTE and Wi-Fi virtually anywhere. The cellular WAN connection supports 4G LTE Category 6 (up to 300Mbps) with failover to 3G and automatic fall back to 4G, to deliver the highest speed possible.

Integrating a high speed dual band Wi-Fi access point and hotspot functionality, the NTC-402-01 can be used to provide public Internet access to multiple passengers on a bus, or construction workers on a busy work site.

Industrial grade design
Designed from the ground up with harsh industrial and automotive environments in mind, the NTC-402-01 features a rugged industrial design with a metal housing and a wide temperature rating to allow the NTC-402-01 to operate at extreme temperatures. Most importantly, environmental testing ensures that the device continues to operate under extreme conditions of temperature, shock and vibration.

Carrier grade management
The NTC-402-01 supports telecommunication standards based remote management protocols such as TR-069 and SNMP to allow quick and easy integration with a wide range of remote management platforms including NetComm Wireless’ Remote Device Management platform. Extensive support for managing the device via SMS allows enterprises to communicate, get status reports, change settings using an SMS gateway. The built-in event notification engine, which sends alarms and notifications via email or SMS, allows an automated layer of self-monitoring to ensure a quick response to events requiring human intervention.

  • Cat 6 4G LTE (300 Mbps) and dual band Wi-Fi for high speed applications
  • Dual SIM for configurable network redundancy*
  • Three Gigabit Ethernet ports, a serial port, and dual band Wi-Fi WAN
  • Integrated GPS compatible with all global systems for reliable tracking applications
  • I/O ports to read sensors or remotely control equipment such as lights, fans or pumps
  • Rugged industrial design with a metal housing and a wide temperature rating for harsh environments
  • Ignition sense capability and a wide input voltage range for vehicular applications

Data and full specs for NTC-402-01 (pdf file, opens in new tab)

NTC-6200-02  3G M2M Router Plus (800/850/2100/1900)


The intelligent and versatile NetComm Wireless 3G M2M Router Plus (NTC-6200) is designed for universal deployment and seamless integration, enabling remote monitoring and management across diverse applications in areas such as asset management, security and surveillance, building automation, point of sale, healthcare and smart city initiatives.
NTC-6200-02
Click here to show/ hide more info

NTC-6200-02

Industrial M2M applications are becoming more advanced, more complex and more diverse. Whatever the industry sector, the challenge is to achieve business objectives through the efficient management of remote assets, equipment and systems. The NetComm Wireless 3G M2M Router Plus (NTC-6200) offers an easily integrated solution that is simple to manage, configure and customise. Designed to enable diverse M2M applications, the NTC-6200 connects to 3G networks worldwide and, depending on the selected model, comes equipped with GPS and multipurpose interfaces including I/O, Serial, Ethernet and USB ports.

The robust and intelligent NetComm Wireless 3G M2M Router Plus (NTC-6200) provides real-time M2M data connectivity, even in harsh environments. The NTC-6200 creates reliable point-to-point or point-to-multi-point WAN connections for a variety of mission critical applications such as primary broadband, video surveillance, retail, payments, in-vehicle communications and industrial automation.

Unlimited connectivity
Connect and manage remote assets across the globe. NTC-6200 delivers speeds reaching 14.4Mbps over 3G networks worldwide; and feature Ethernet, Serial (RS232/422/485) and USB 2.0 ports to seamlessly connect virtually any piece of equipment, anywhere.

Seamless integration
NTC-6200 routers integrate with application service enablement platforms, and provide developers with a variety of real-world interfaces, offering complete integrated solutions for any application.

Monitor mobile assets (selected models only)
Track and monitor vehicles and other mobile assets from any location using NTC-6200 models that feature built-in GPS; and gather information about the physical environment using the three multipurpose I/O ports to collect data from sensors, monitors and other input devices. One I/O port is a dedicated ignition input that can power the router when a vehicle is started, providing powering flexibility.

Remote management
M2M deployments in remote locations can be managed from a central location in real time to reduce site visits and manual maintenance costs. Technicians can receive status alerts, log into the system, extract and analyse data, upload firmware and change configuration from virtually any location using management interfaces including OMA LWM2M, TR-069, SNMP, HTTP/HTTPS, Telnet/CLI, and SMS. SMS can be used to access, control and monitor the router, and send and receive text messages while protecting from 3G/2G IP network outages using GSM networks.

Custom software applications
NTC-6200 routers are software rich intelligent 3G routers with the additional benefit of being software expandable. They feature an open embedded Linux Operating System empowering solution architects and system integrators to create their own apps using NetComm’s Software Development Kit (SDK).

Key Features:

  • Penta-band 3G and quad-band 2G auto-fallback for undisrupted communications
  • Connect to global 3G HSPA+ networks reaching speeds up to
  • 14.4 Mbps (downlink)
  • Fast Ethernet port (100Mbps)
  • Connect legacy devices using the Serial (RS232/RS422/RS485) port and USB 2.0 OTG port
  • Track assets with built-in GPS supporting an active GPS antenna via external SMA connector (selected models)
  • Three multi-purpose I/O ports and one dedicated ignition sensing input (selected models)
  • Intelligent, tri-Colour LED display for clear, easy to read modem status
  • Remote device management with support for LWM2M, TR-069, web GUI and full feature management with SMS
  • Save power using low power ‘sleep’ mode (~5mA at 12V)
  • Flexible mounting suitable for industrial applications with built-in wall mount and DIN rail mounting options
  • Device dimensions (excluding external antenna): 143mm (L) x 107mm (W) x 34mm (D) / 221g (254g with bracket)
  • Browser-based device management and on-board processing capabilities for customised software and all-in-one monitoring and communications functionality
MODEL NTC-6200-02 NTC-6200-12 NTC-6200-13
GPS Yes Yes No
3 x Multipurpose I/O ports Yes Yes No
1 x Ignition sensing port Yes Yes No
Regulatory Certifications CE (Europe)
•• RCM (Australia /New Zealand)
•• E-Mark(Europe)
•• TRA (UAE)
•• iDA (Singapore)
•• GCF (Europe)RoHS
•• IC (Canada)
•• FCC (USA)
•• PTCRB (USA)
•• NBTC(Thailand)
•• SIRIM(Malaysia)
•• SDPPI(Indonesia)SRRC/CCC/NAL (China)
•• ICASA (South Africa)
•• MIC (Vietnam)
•• CB Compliant
•• IP41
•• REACH
JRF (Japan)
•• JPA (Japan)
•• REACH
JRF (Japan)
•• JPA (Japan)
•• REACH
Carrier Approvals AT&T
•• Rogers
•• Spark
•• Telstra
NTT DoCoMo

Data and full specs for NTC-6200-02 (pdf file, opens in new tab)

NTC-3000  3G Serial Modem


The industrial-grade 3G Serial Modem (NTC-3000) supports serial data communications across a diverse range of machines and is ideal for SCADA use. It offers reliable performance, universal installation and remote control in any data telemetry environment.
NTC-3000
Click here to show/ hide more info

NTC-3000

The NetComm Wireless 3G Serial Modem (NTC-3000) enables the remote monitoring, analysis and management of industrial and commercial machine data. Offering RS-232 serial data connectivity, it gathers and transfers machine data to a central site over 3G for the real-time management of traffic infrastructure, water and waste control systems, vending machines, farming equipment and other machines in remote locations.

The 3G Serial Modem (NTC-3000) is a rugged 3G modem that enables wireless data communication and supports SCADA (Supervisory Control and Data Acquisition) systems. It comes equipped with RS-232 serial data connectivity and a USB 2.0 port for the real-time monitoring and control of machines in remote locations.

Connect legacy equipment
Avoid the cost of replacing or upgrading existing assets that run critical processes. The cost-effective 3G Serial Modem sends data to any IP enabled device using RS-232 serial data. Ideal for SCADA use in areas such as manufacturing, utilities, construction and agriculture, the NTC-3000 enables the remote collection, monitoring and control across a wide range of M2M applications.

Network and service flexibility
Featuring a multi-mode data module, the NTC-3000 supports remote deployments and allows you to choose between a variety of 2G and
3G networks.

Universal installation
Deploy M2M applications in any environment with access to a wide input voltage range, extreme temperature tolerance (-40°C to 85°C) and a lockable SIM tray. For easy installation, the compact NTC-3000 also includes a DIN rail and flexible wall mount options including a removable mounting bracket.

Open AT
Take advantage of the custom NetComm Wireless Open AT application with the capacity to: transparently transfer serial port traffic over the Internet via TCP or UDP using the built-in Packet Assembler and Disassembler (PAD) functionality; configure a periodic reboot to ensure the modem is always accessible and connect to a DynDNS account to update the NTC-3000’s IP address when not using a static IP address.

SMS control
Reduce onsite visits and save costs using advanced diagnostics and control via SMS to query status information and settings, execute commands and configure settings.

  • A compact heavy-duty 3G modem that provides reliable RS-232 serial data connectivity to enable diverse Machine-to-Machine (M2M) applications;
  • Connect to various 2G and 3G networks worldwide;
  • Includes a USB 2.0 port and a SIM card reader with lockable tray;
  • Can be deployed in diverse environments, offering a wide input voltage (5-36V DC), a wide operating temperature range (-40 to 85°C) and flexible mounting options; and
  • Supports the Open AT command set and AirVantage and allows remote diagnostics and control via SMS

Note: NTC-3000-03 is being discontinued. NTC-3000-02 is still available.

Data and full specs for NTC-3000 (pdf file, opens in new tab)

Conel Cellular Routers

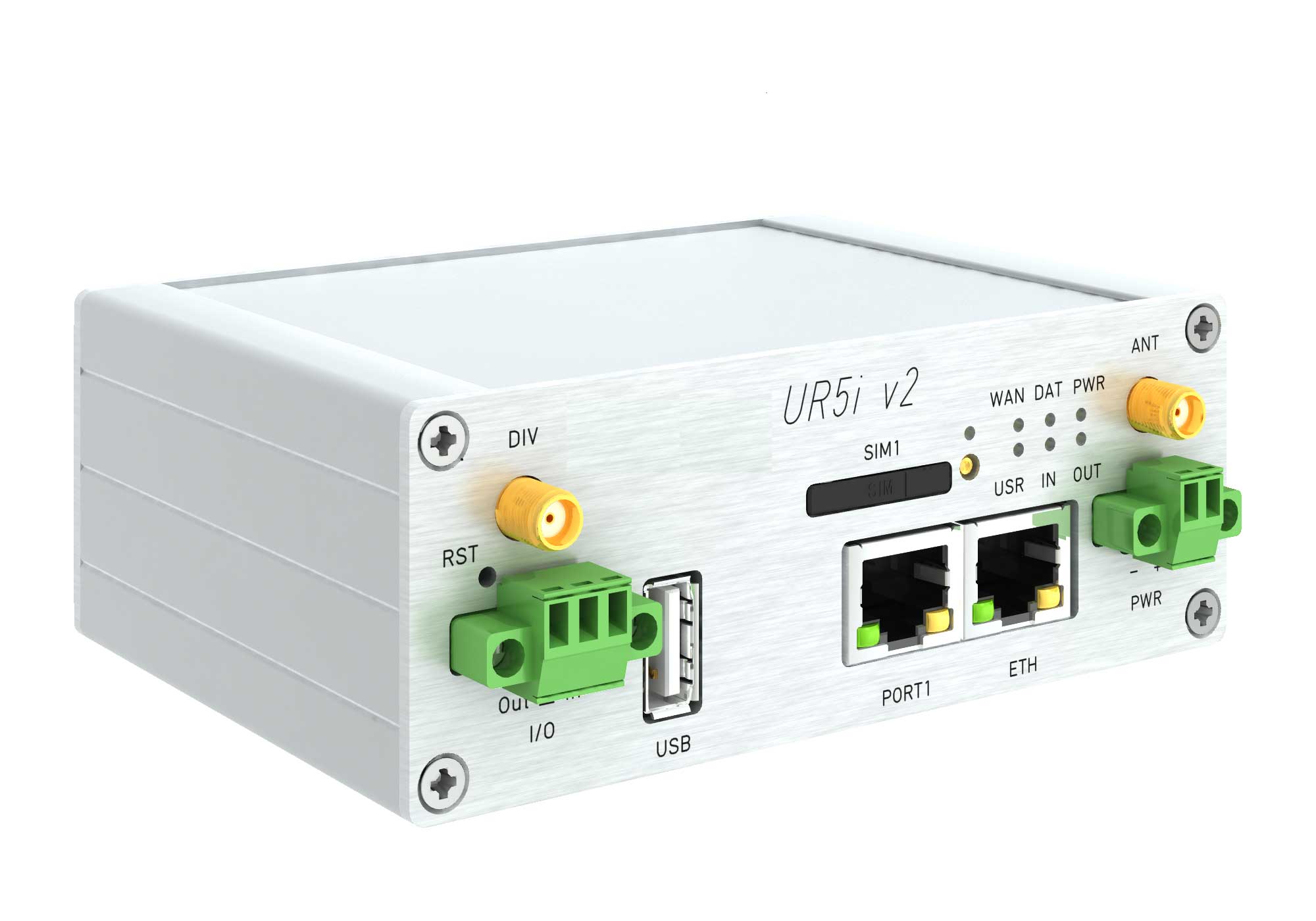

UR5i V2 – 3G UMTS/HSPA+ Router F RS232 SL SET


UR5i v2, our 3G UMTS/HSPA router, is also used to wirelessly connect various equipment and devices via an Ethernet 10/100 interface to the Internet or intranet.
UR5i v2
Click here to show/ hide more info

UR5i v2

UR5i v2, our 3G UMTS/HSPA router, is also used to wirelessly connect various equipment and devices via an Ethernet 10/100 interface to the Internet or intranet. Thanks to high data transfer speeds of up to 21.1 Mbit/s (download) and upload speeds up to 5.7 Mbit/s, it is an ideal wireless solution for traffic and security camera systems, individual computers, LAN networks, automatic teller machines (ATMs) and other self-service and point-of-sale kiosks.

Key Features
The extra fast 3G UR5i v2 wireless router comes standard equipped with one Ethernet 10/100 port, one USB host port, one binary input/output (I/O) port, and one SIM card (optional 2 x SIM cards) to save and
back-up communication data. The wide range of interface options gives you the ability to customise and expand the ports of the 3G router to meet your requirements.

  • Port1 is available as Ethernet 10/100, serial interface RS-232/RS-485/RS-422/MBUS or (I/O – CNT)
  • Port2 is available as serial interface RS-232/RS-485/ RS-422/MBUS or (I/O – CNT) )

The 3G wireless router is available in either a plastic or metal casing, based on the requirements of the customer.

The UR5i v2 router is configurable by a secure, password protected web interface. The 3G UMTS/HSPA+ router supports creation of VPN tunnels, using technologies such as IPsec, OpenVPN and L2TP to
ensure safe communication. The web interface provides detail statistics about the 3G router activities, signal strength, a detailed log and more. The cellular router supports DHCP, NAT, NAT-T, DynDNS, NTP,
VRRP, control by SMS and more.

Other diagnostic functions to ensure continuous communication include:

  • Automatic inspection of a PPP connection
  • An automatic restart feature in case of connection losses
  • A hardware watchdog which monitors the status of the router

The 3G router also provides a special start-up script window for inserting Linux scripts for various actions. For some applications, a key feature is the ability to create several different configurations for
one 3G wireless router (a maximum of 4 profiles), with the option to switch between them (for example, SMS, binary input status, etc.). The UR5i v2 cellular wireless router supports an automatic upgrade
of configurations and firmware from the server. This allows mass reconfiguration of many routers at the same time.

Data and full specs on Conel Cellular Routers (pdf file, opens in new tab)

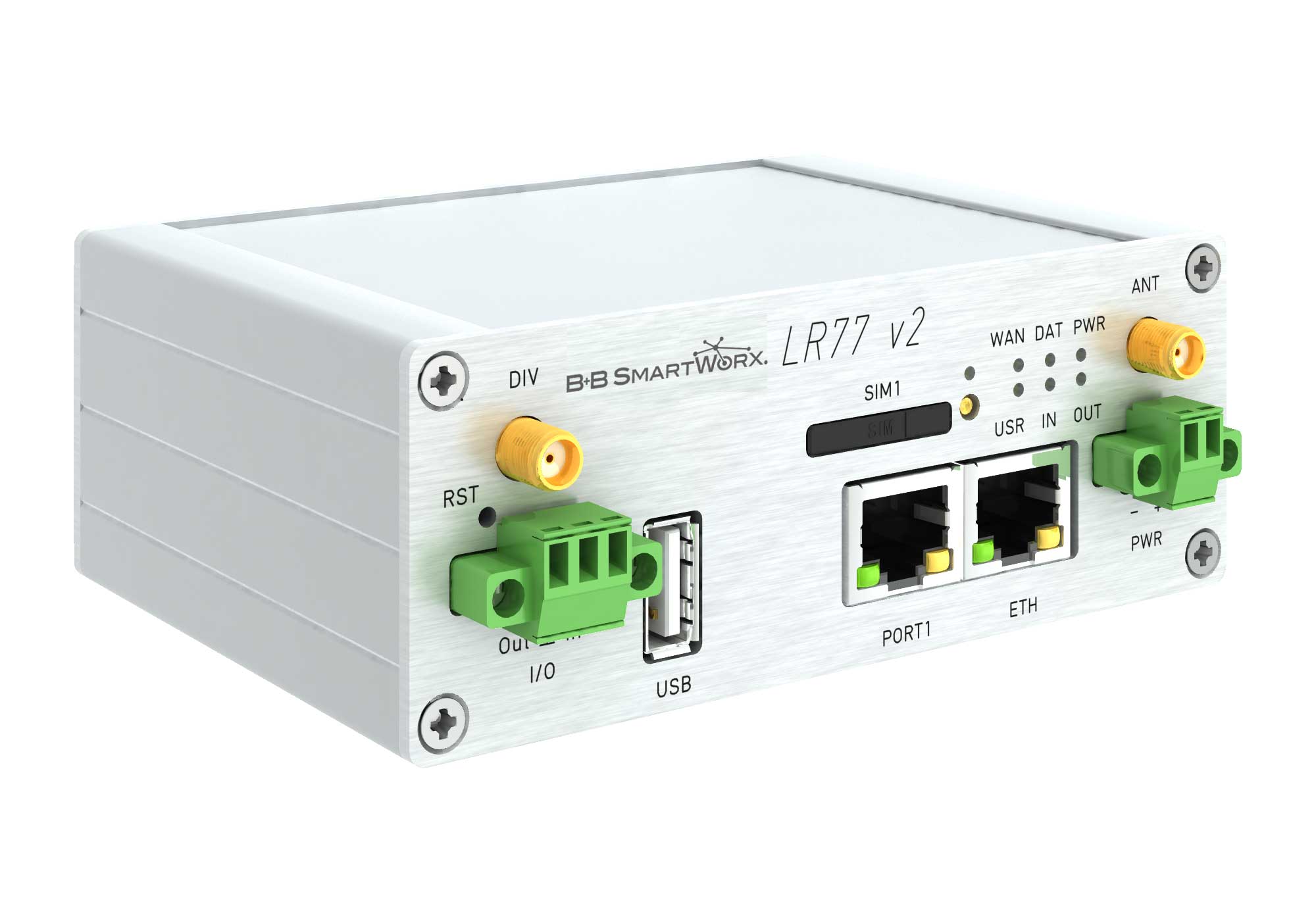

LR77 v2 –4G LTE Router


4G LTE router LR77 v2 provides a wireless connection between equipment and devices via an Ethernet interface 10/100 or serial interface to the Internet or intranet. The 4G router LR77 v2 is an advanced wireless data transfer device for applications with large data loads.
LR77 v2
Click here to show/ hide more info

LR77 v2

4G LTE router LR77 v2 provides a wireless connection between equipment and devices via an Ethernet interface 10/100 or serial interface to the Internet or intranet. The 4G router LR77 v2 is an advanced wireless data transfer device for applications with large data loads. Data transfer speeds in the LTE network reach up to 100 Mbit/s (download) and up to 50 Mbit/s for upload, making the LR77 v2 professional wireless solution an exceptional choice for traffic and security camera systems, individual computers, LAN networks, automatic teller machines (ATM) and other self-service terminals.

Key Features
The high speed 4G LR77 v2 wireless router is standard equipped with one Ethernet 10/100 port, one USB host port, one binary input/output (I/O) port, and one SIM card to save and back-up communication data.(Optional 2 x SIM cards). The wide range of interface options gives you the ability to customise and expand the ports of the 4G router to mee your specific requirements.

  • Port1 is available as Ethernet 10/100, serial interface RS-232/RS-485/RS-422/MBUS or (I/O – CNT)
  • Port2 is available as serial interface RS-232/RS-485/ RS-422/MBUS or (I/O – CNT)
  • Also available are optional 3 x switched Ethernet 10/100 ports, with an inserted XC-SW board

The 4G wireless router is available in either a plastic or metal casing, based on your requirements of the customer.

The LR77 v2 router is configurable by a secure, password protected web interface. This 4G LTE router supports creation of VPN tunnels, using technologies such as IPsec, OpenVPN and L2TP to ensure safe
communication. The web interface provides detail statistics about the 4G router activities, signal strength, a detailed log and more. The cellular router supports DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, HTTPS,
SSH, OSPF, RIP, BGP control by SMS and more.

Other diagnostic functions to ensure continuous communication include:

  • Automatic inspection of a PPP connection
  • An automatic restart feature in case of connection losses
  • A hardware watchdog which monitors the status of the router

A special start-up script window is available for inserting Linux scripts for various actions. For some applications, a key feature is the ability to create several different configurations for one 4G LTE wireless router (a maximum of 4 profiles), with the option to switch between them (for example, SMS, binary input status, etc.). The LR77 v2 cellular LTE wireless router supports an automatic upgrade of configurations and firmware from the server. This allows mass reconfiguration of many routers at the same time. It is possible to develop user modules that modify LTE router behavior on the 4G LR77 v2 wireless router.

Data and full specs on Conel Cellular Routers (pdf file, opens in new tab)

Obsolete Products

  • 4G WiFi M2M Router – NTC-140W
